EMORA
9362700 | 3EMT9 | MOL by ********* Last update: Wed May 01 2024
General Info
Ship Name:EMORA
IMO Code:9362700
Call Sign:3EMT9
Line Operator:MOL
Class Name for Sister Ships:KOMATI
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,794
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

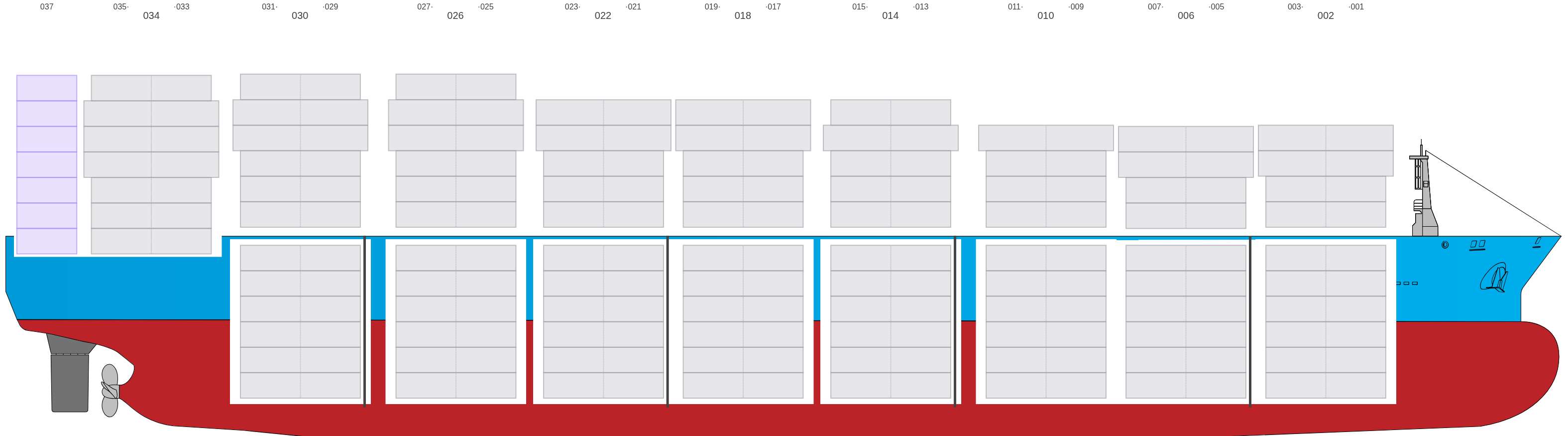

Side View
![Side view of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-sideView.png?v=1714606616830)
Hatch-Covers View
![Deck view of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-deckView.png?v=1714606616830)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

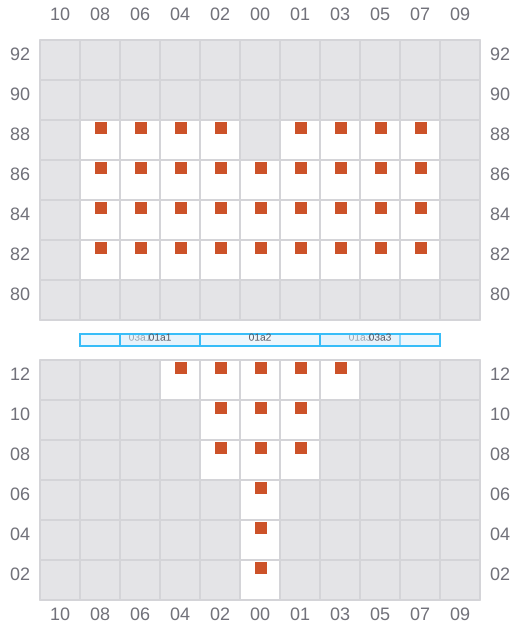

001
- →
- →
![Bay 001 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b001.png?v=1714606616830)

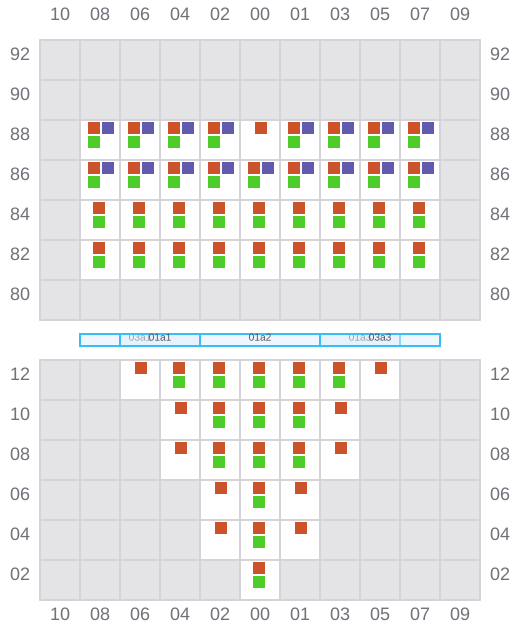

003 (002)
- ←
- →
![Bay 003 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b003.png?v=1714606616830)

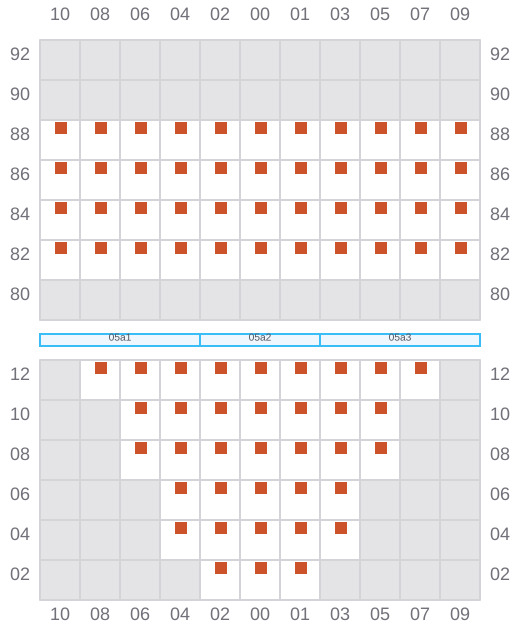

005
- →
- →
![Bay 005 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b005.png?v=1714606616830)

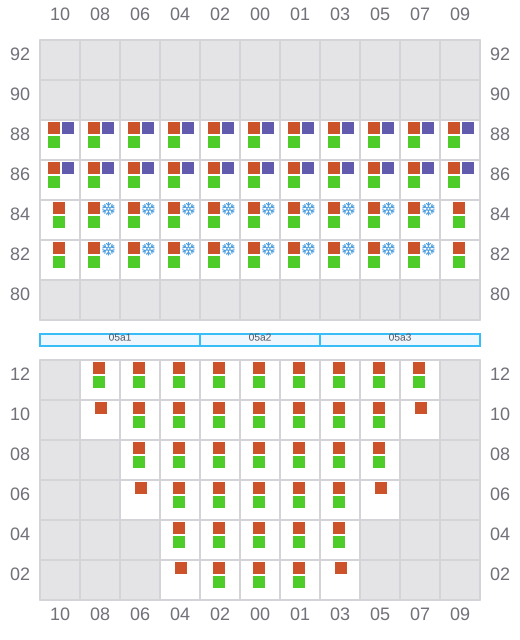

007 (006)
- ←
- → / ?
- →
![Bay 007 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b007.png?v=1714606616830)

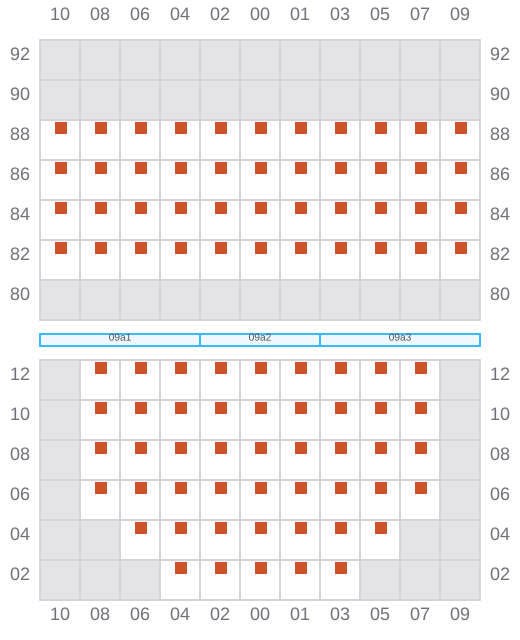

009
- →
- →
![Bay 009 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b009.png?v=1714606616830)

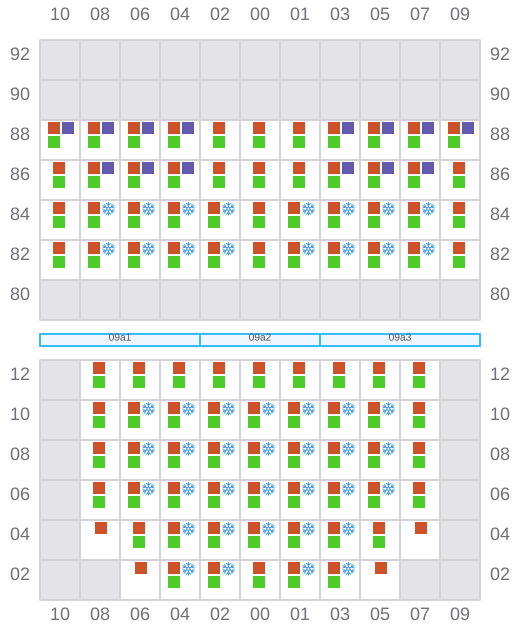

011 (010)
- ←
- → / ←
- →
![Bay 011 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b011.png?v=1714606616830)

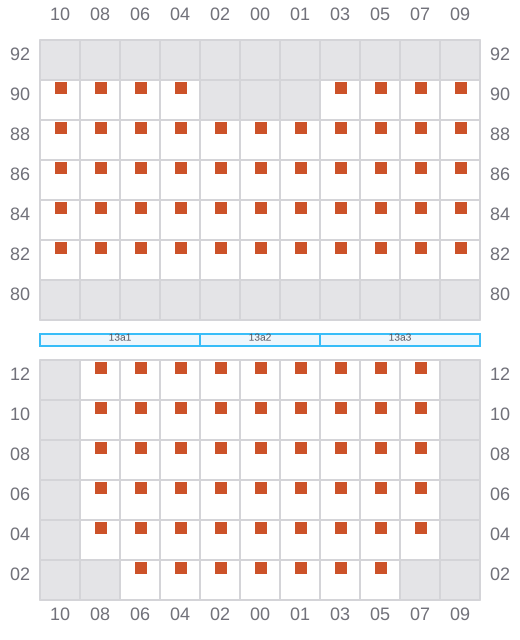

013
- →
- →
![Bay 013 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b013.png?v=1714606616830)

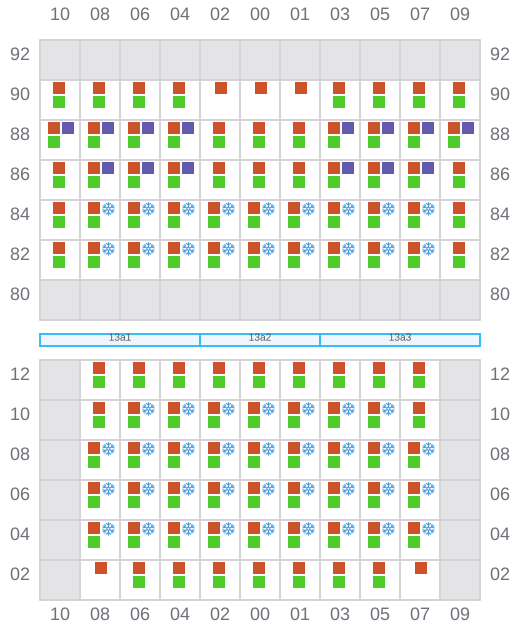

015 (014)
- ←
- →
- →
![Bay 015 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b015.png?v=1714606616830)
017
- →
- →
![Bay 017 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b017.png?v=1714606616830)
019 (018)
- ←
- → / ←
- →
![Bay 019 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b019.png?v=1714606616830)

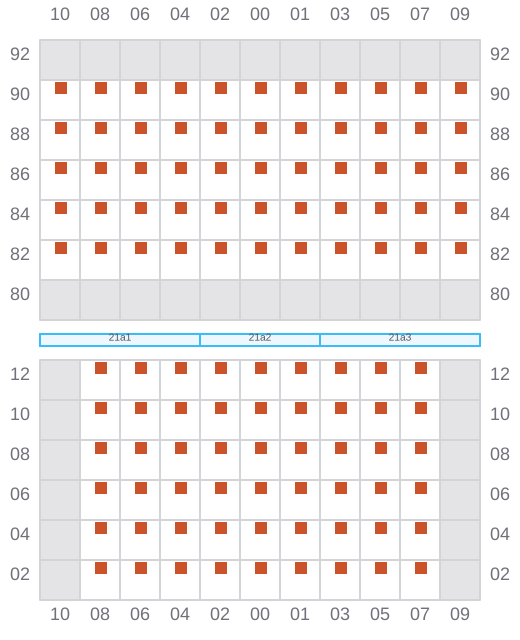

021
- →
- →
![Bay 021 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b021.png?v=1714606616830)

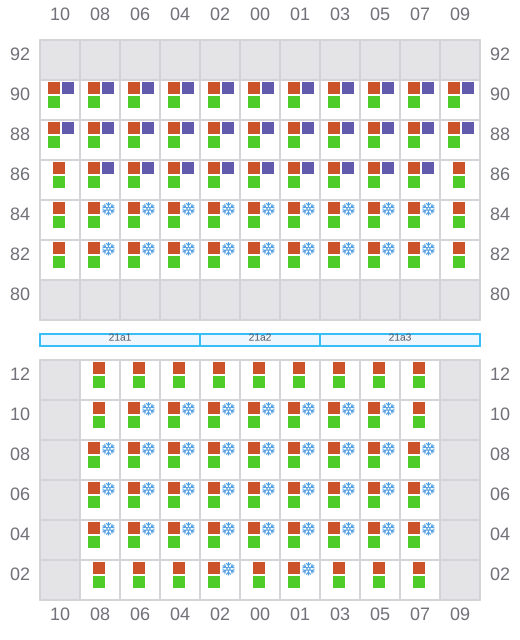

023 (022)
- ←
- →
- →
![Bay 023 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b023.png?v=1714606616830)

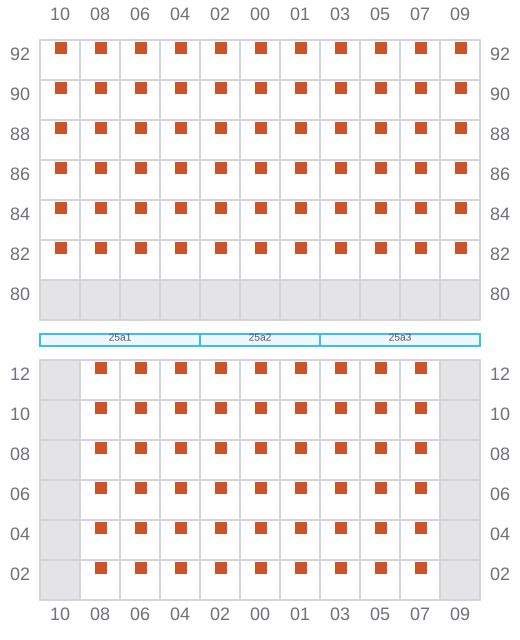

025
- →
- →
![Bay 025 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b025.png?v=1714606616830)

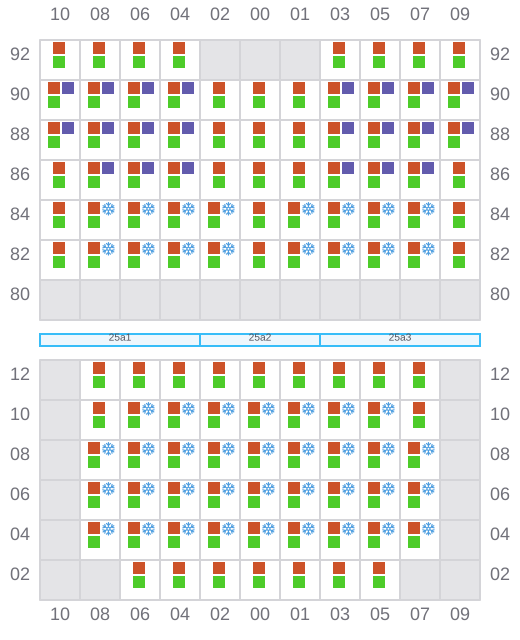

027 (026)
- ←
- → / ←
- →
![Bay 027 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b027.png?v=1714606616830)

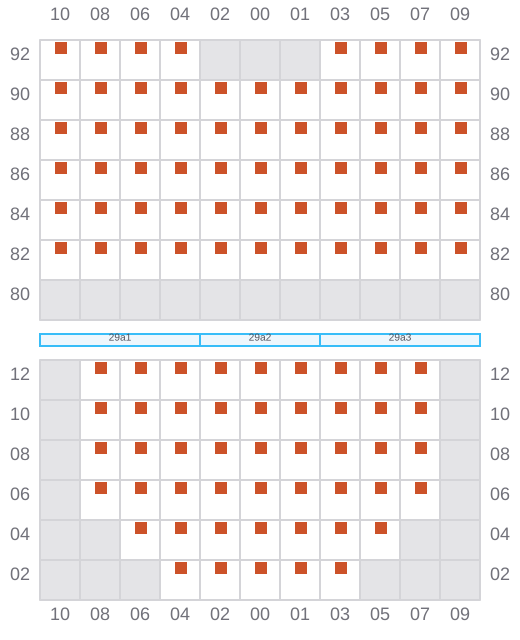

029
- →
- →
![Bay 029 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b029.png?v=1714606616830)

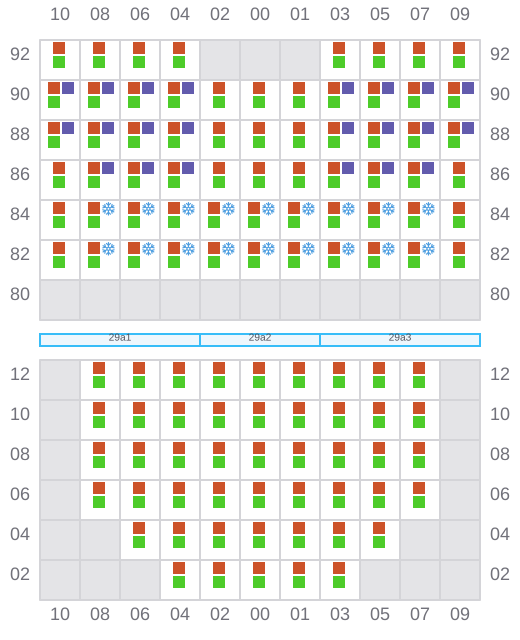

031 (030)
- ←
- → / ?
- →
![Bay 031 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b031.png?v=1714606616830)

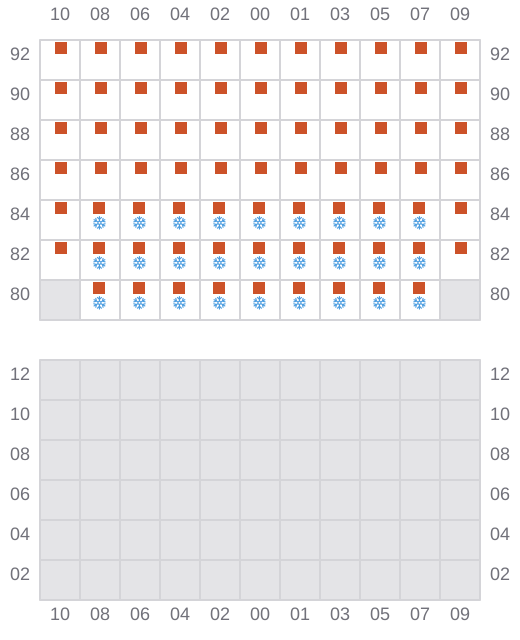

033
- → / ?
- ← / ?
- → / ?
![Bay 033 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b033.png?v=1714606616830)

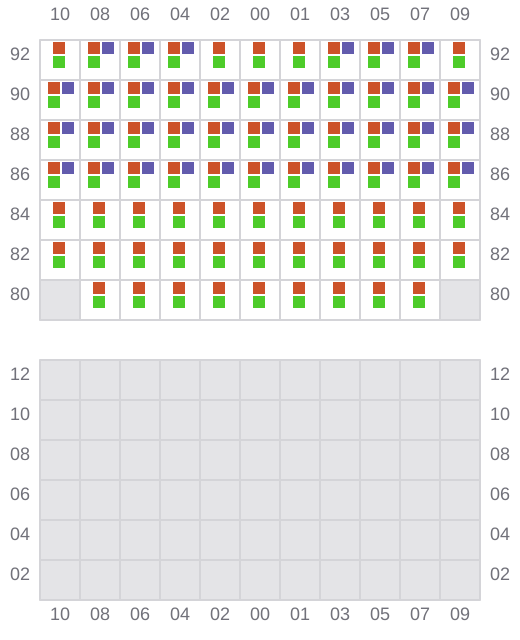

035 (034)
- ← / ?
- → / ?
![Bay 035 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b035.png?v=1714606616830)

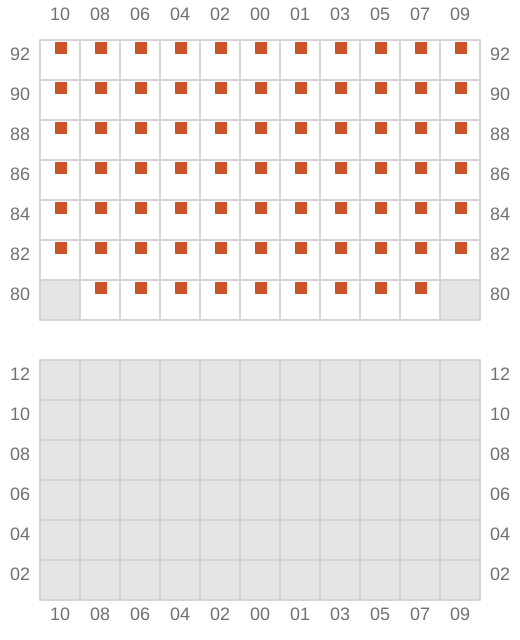

037
- → / ?
![Bay 037 view and slots of EMORA](/vessel-images/b1c5729c-c6ac-4661-bfe8-1d57e6dade25-b037.png?v=1714606616830)
