ENSEMBLE
9312212 | PHES | APL by *********************** Last update: Wed Jan 22 2025
General Info
Ship Name:ENSEMBLE
IMO Code:9312212
Call Sign:PHES
Line Operator:APL
Class Name for Sister Ships:ESL
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:781
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

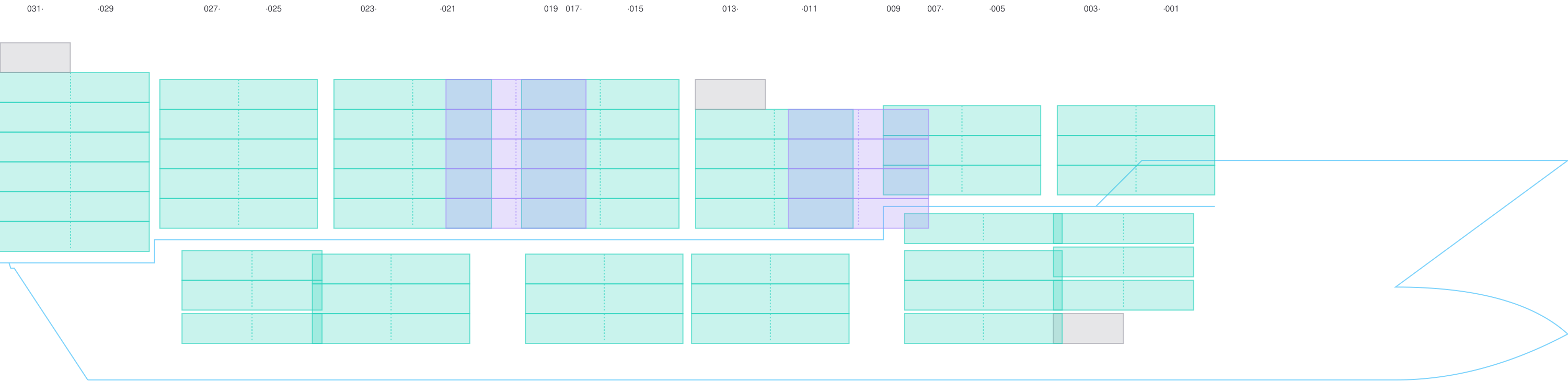

Side View

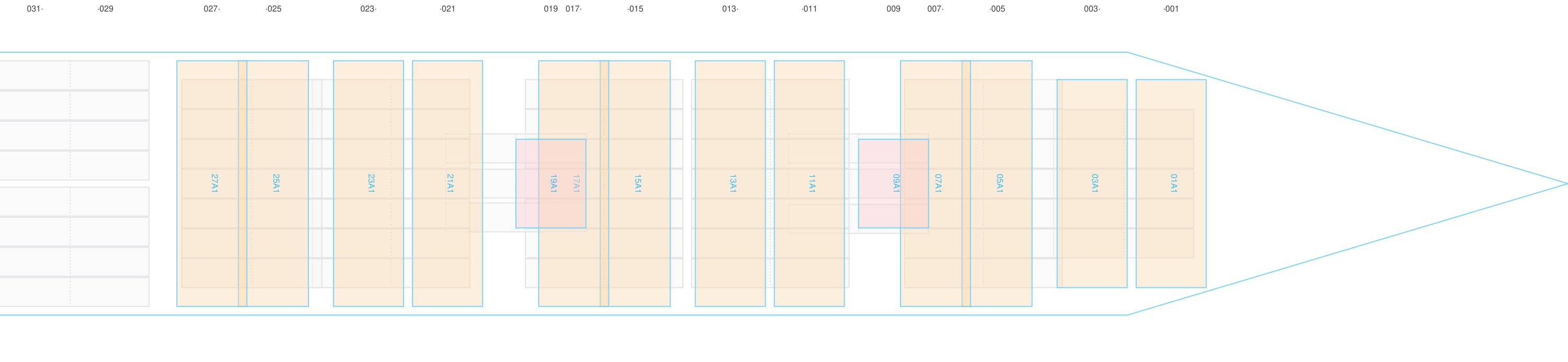

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

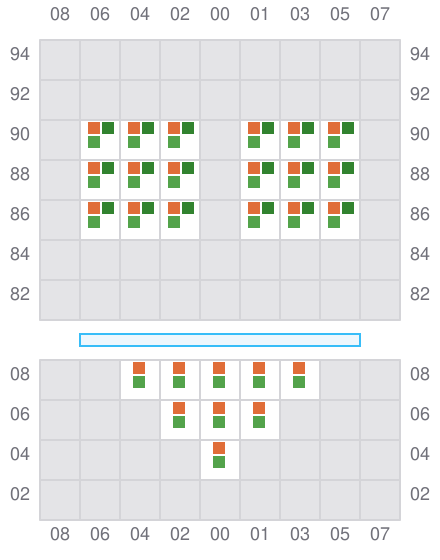

001 (002)
- →

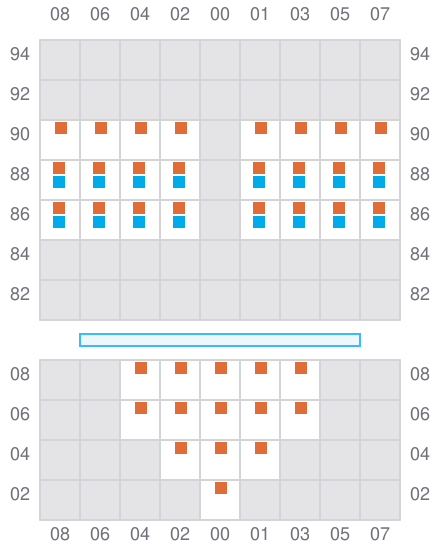

003
- ←

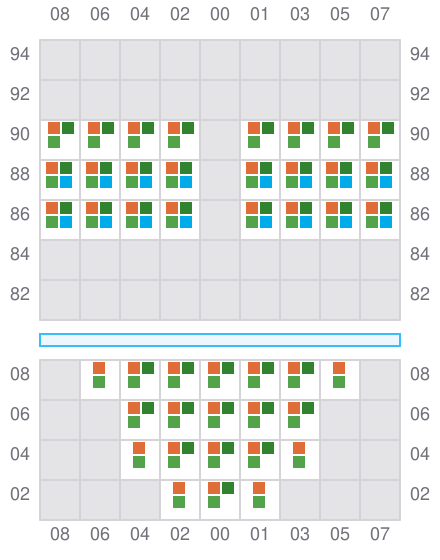

005 (006)
- →

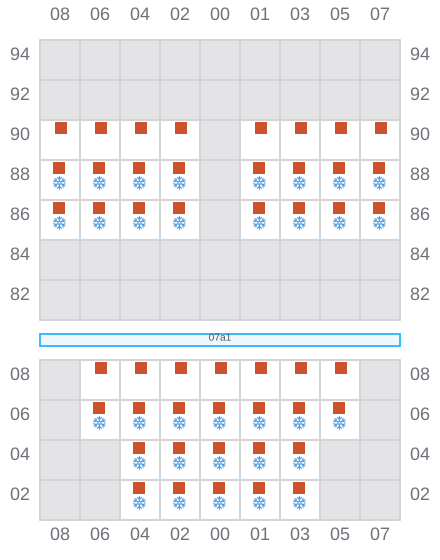

007
- ←

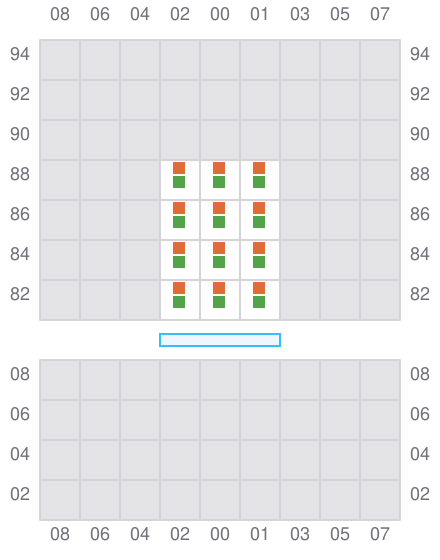

009

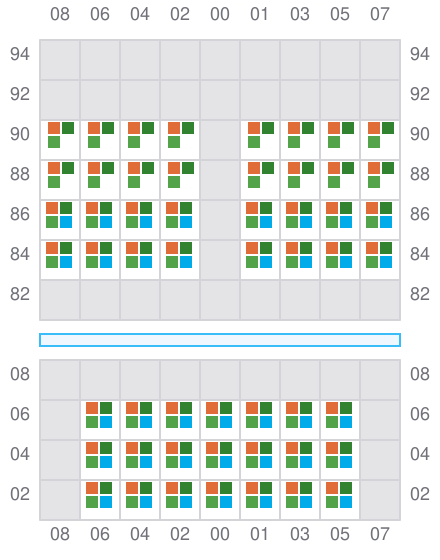

011 (012)
- →

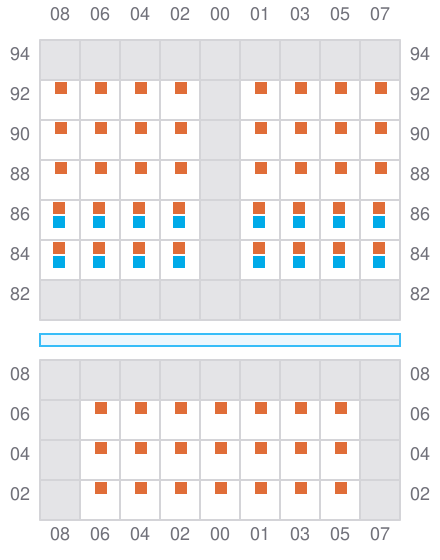

013
- ←

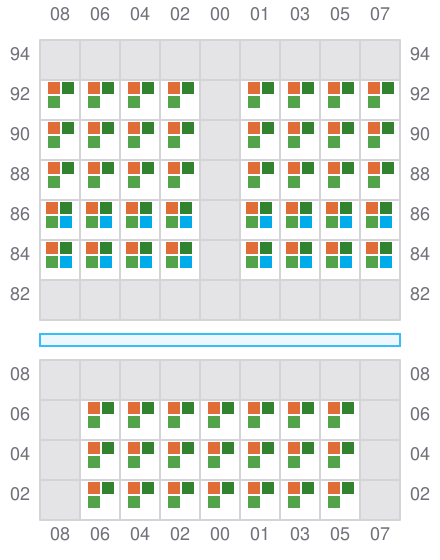

015 (016)
- →

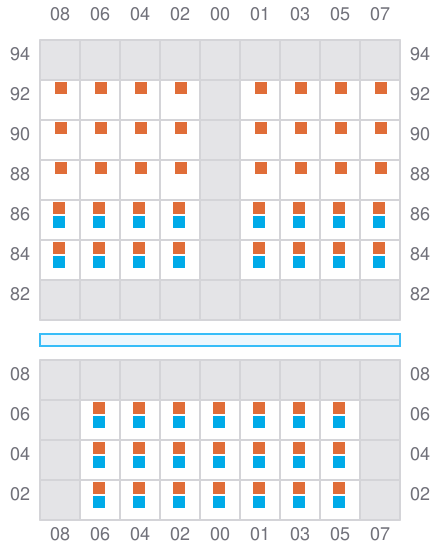

017
- ←

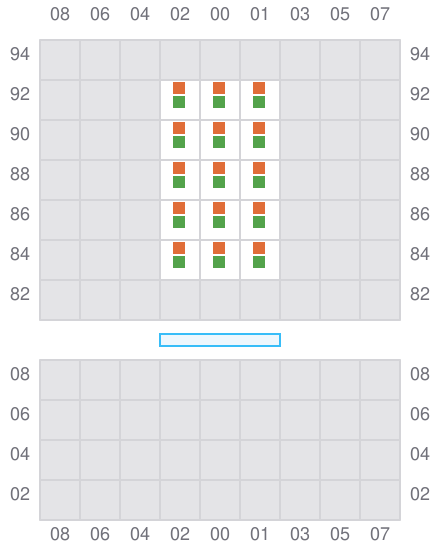

019

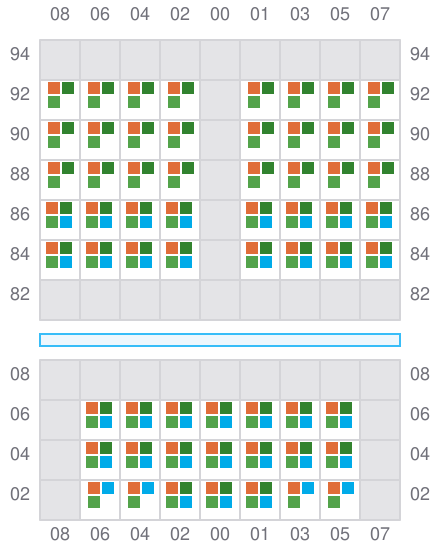

021 (022)
- →
023
- ←

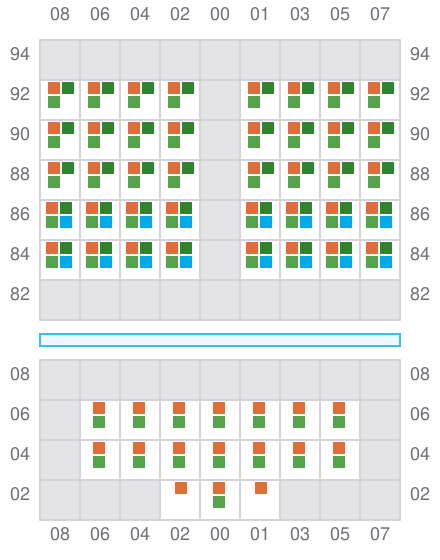

025 (026)
- →

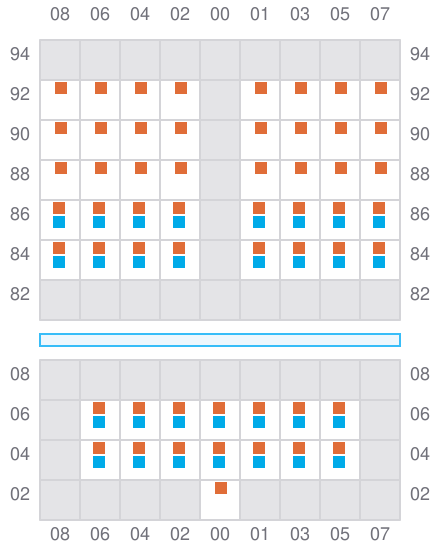

027
- ←

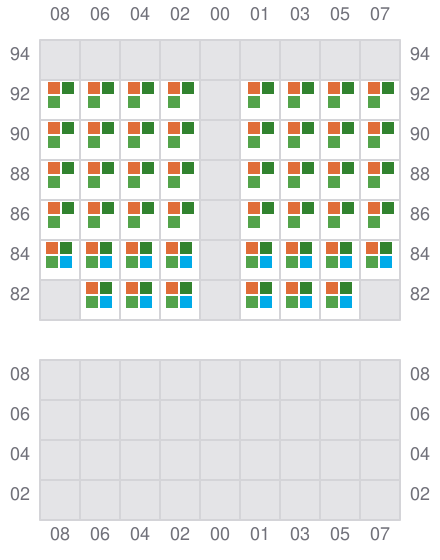

029 (030)
- → / ?

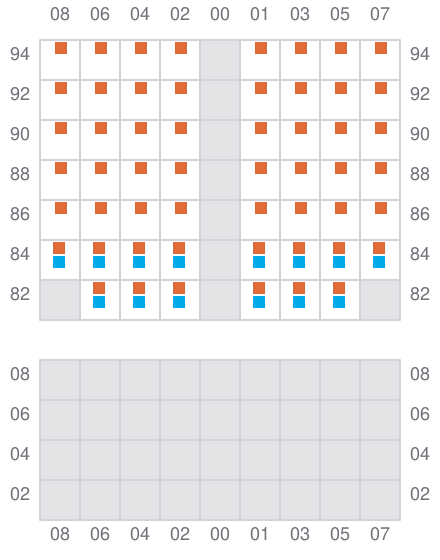

031
- ← / ?
