ERATO
9472103 | A8XZ4 | 9472103 by ********* Last update: Thu Jun 20 2024
General Info
Ship Name:ERATO
IMO Code:9472103
Call Sign:A8XZ4
Line Operator:9472103
Class Name for Sister Ships:CMA
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,546
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

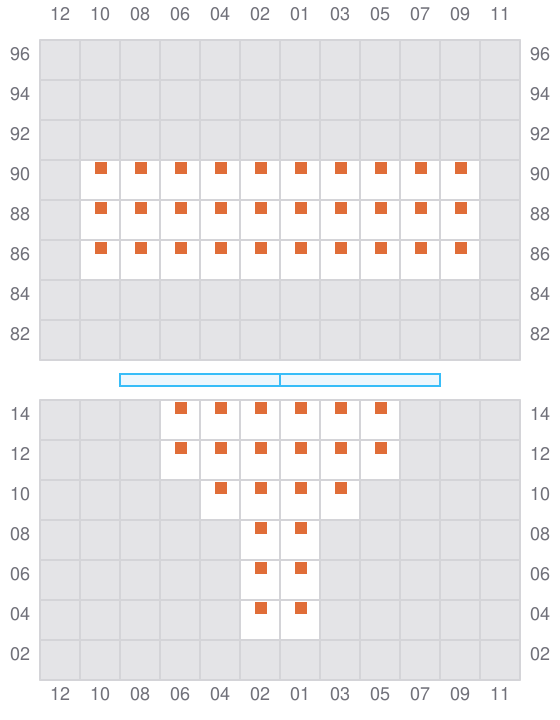

003
- ←

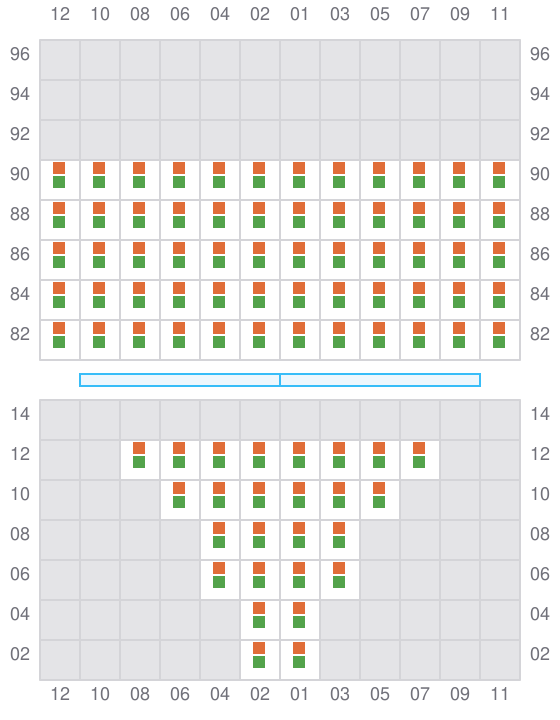

005 (006)
- →

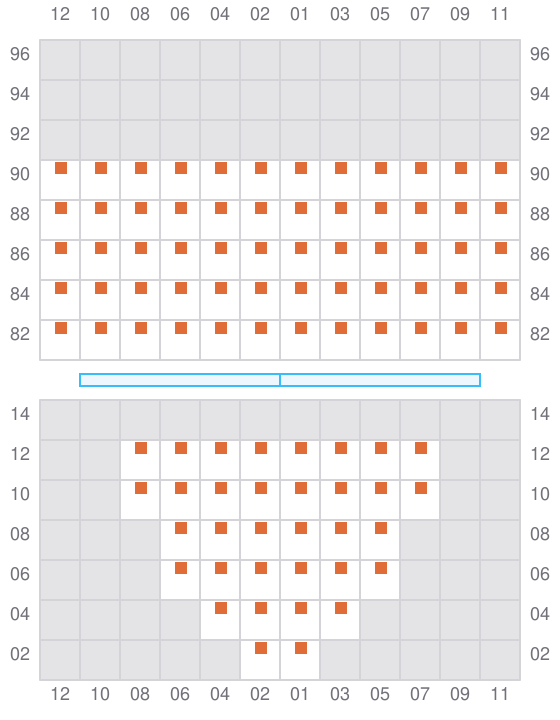

007
- ←

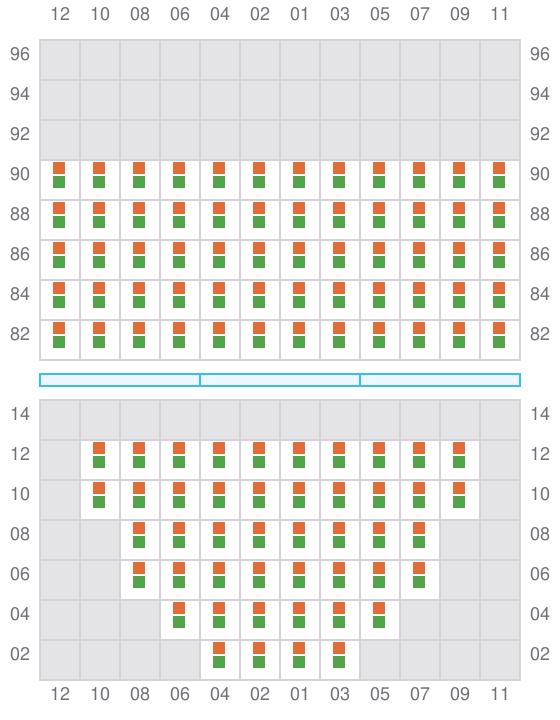

009 (010)
- →

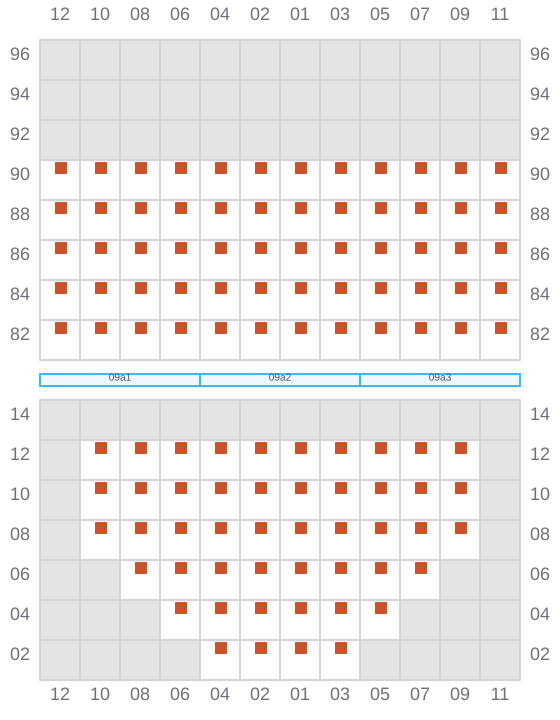

011
- ←

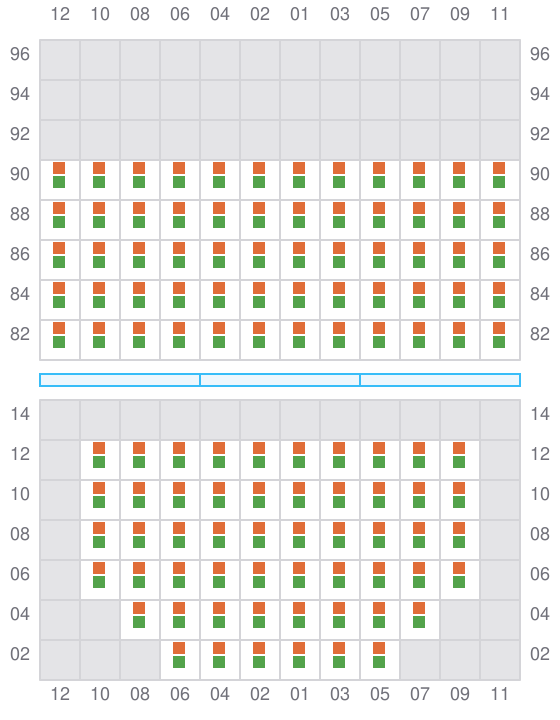

013 (014)
- →

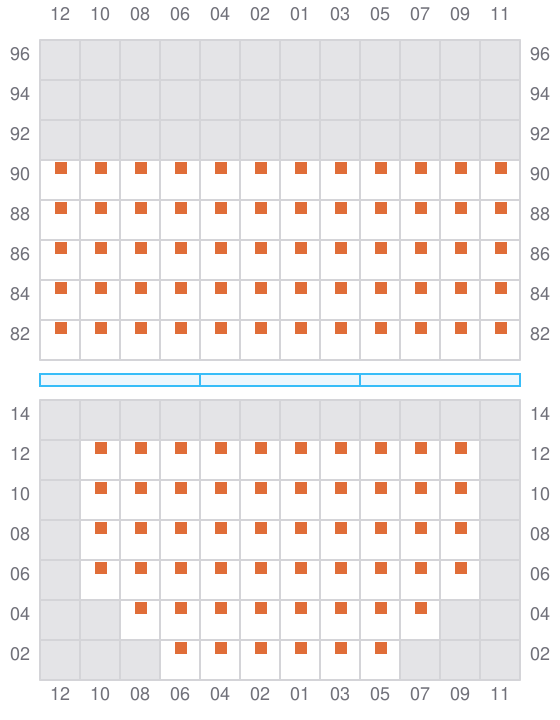

015
- ←
017 (018)
- →

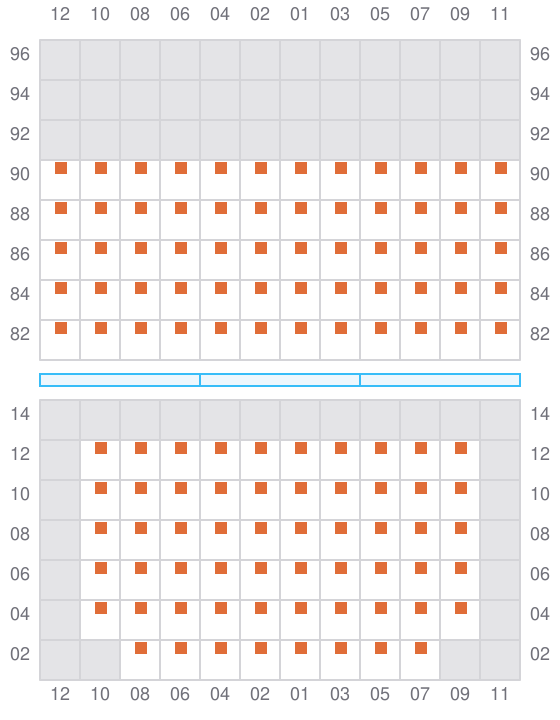

019
- ←
021 (022)
- →

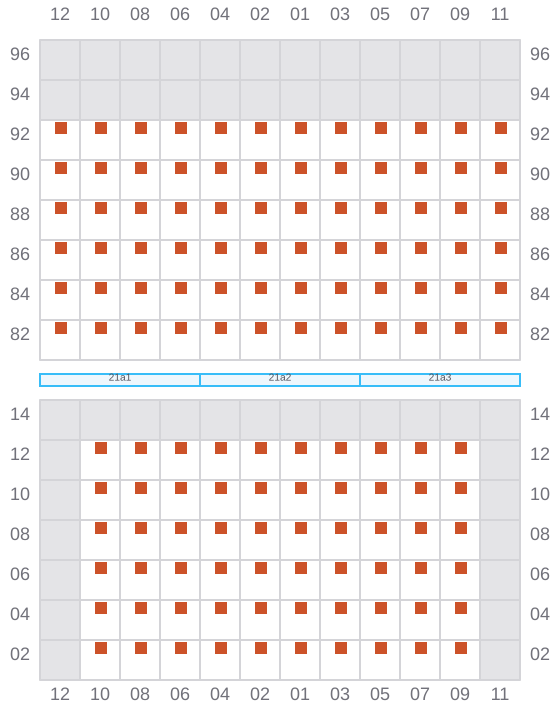

023
- ←

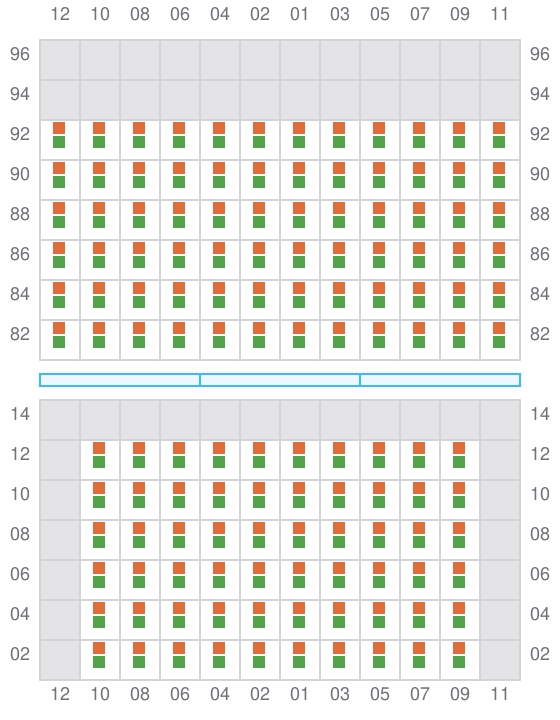

025 (026)
- →

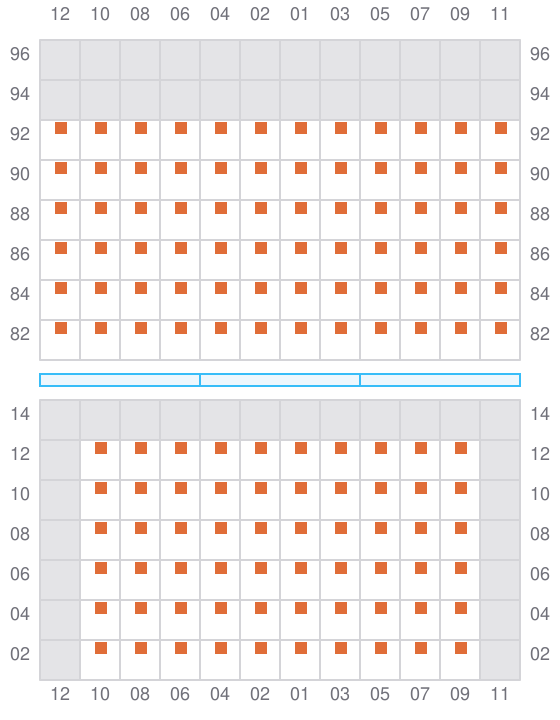

027
- ←

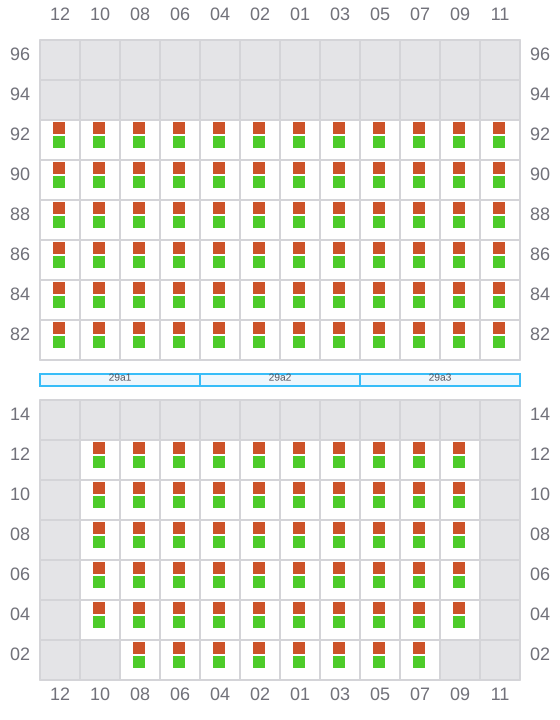

029 (030)
- →

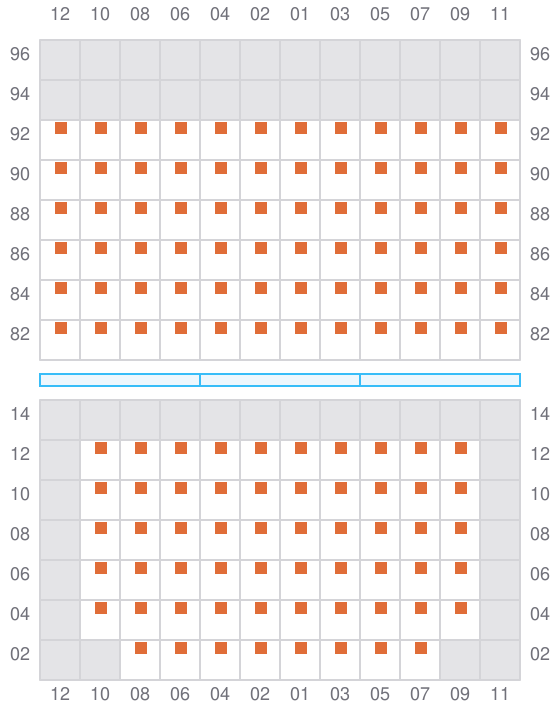

031
- ←

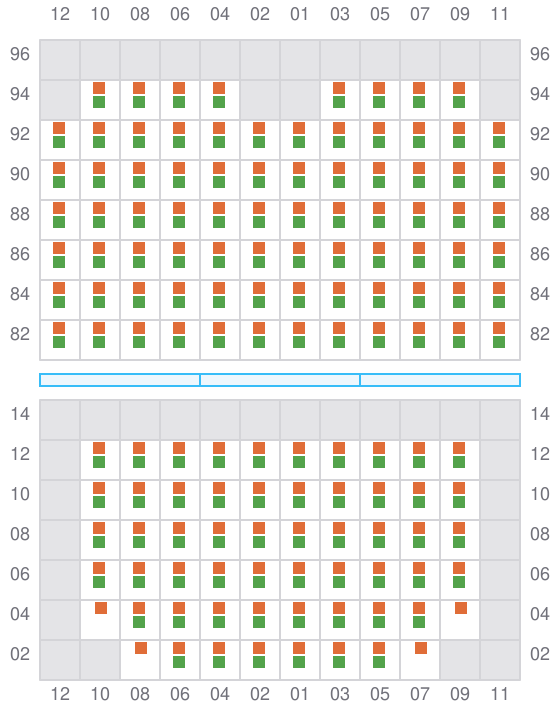

033 (034)
- →

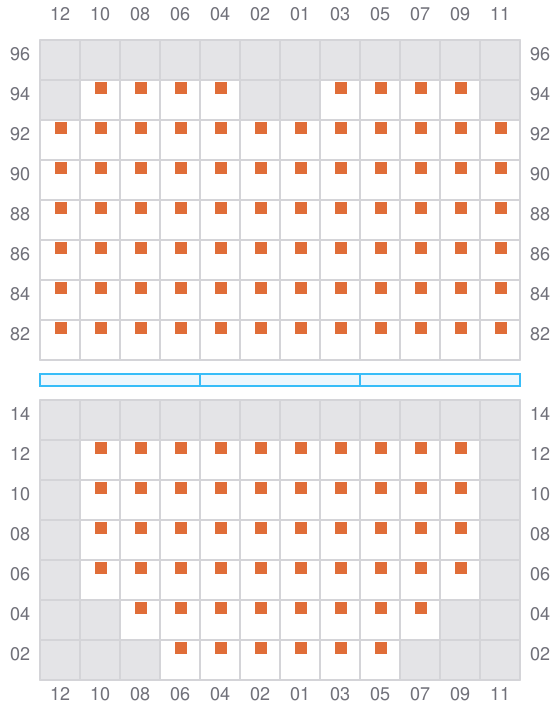

035
- ←

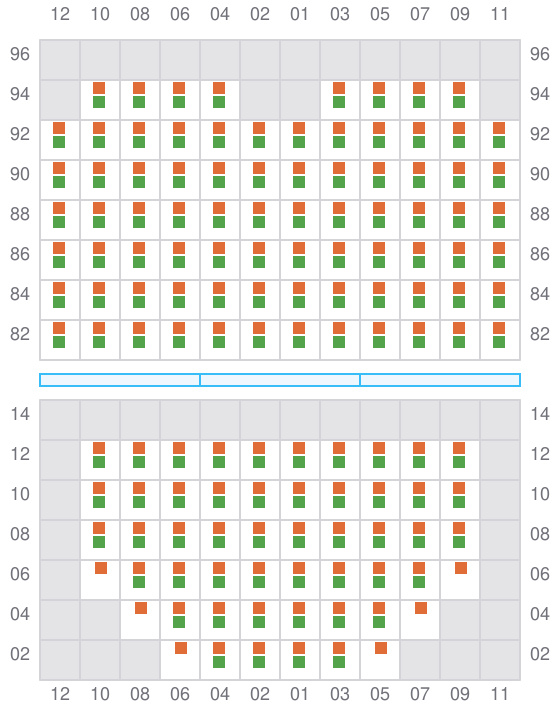

037 (038)
- →

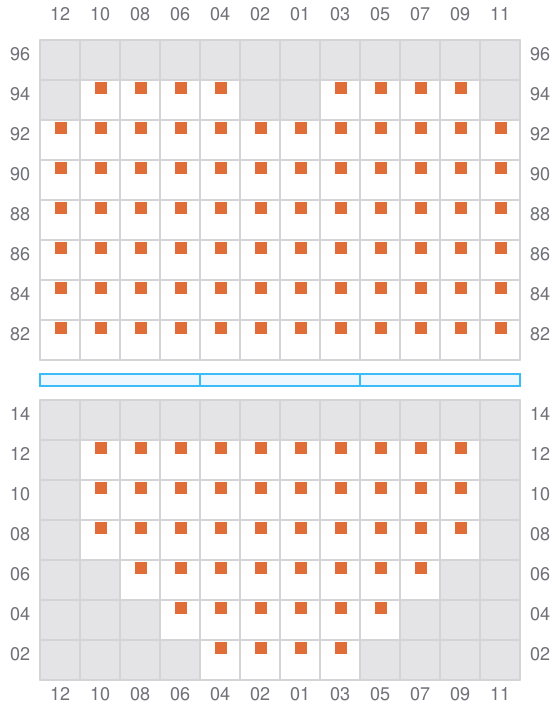

039
- ←
041
- → / ?

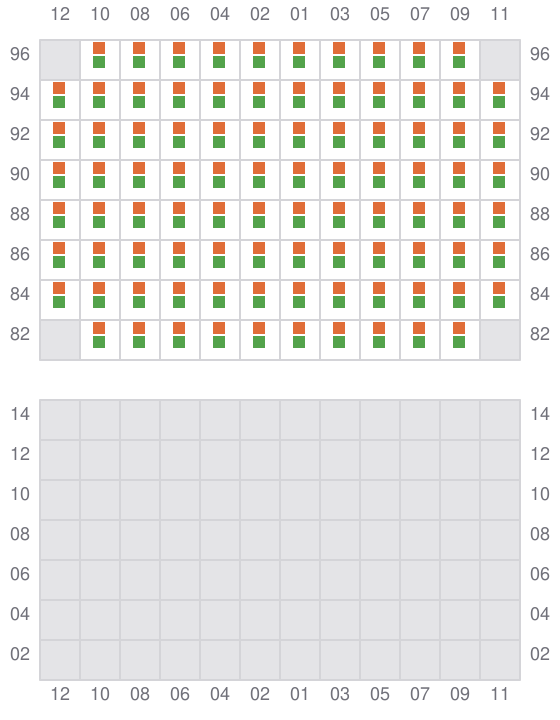

043 (044)
- → / ?

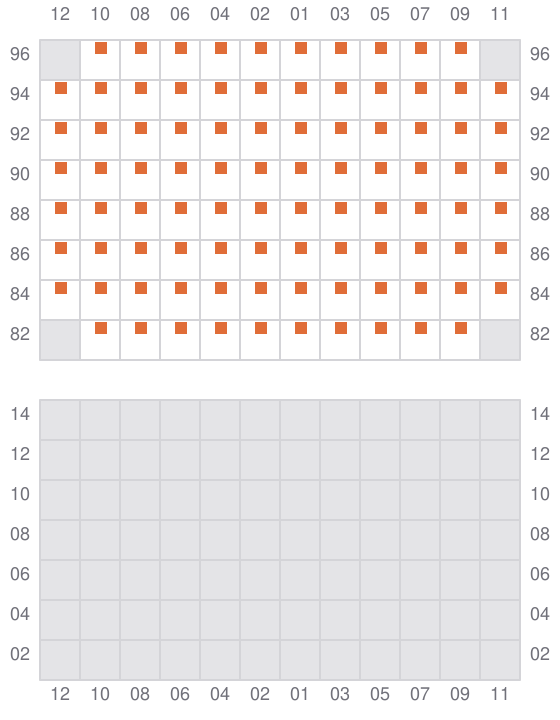

045
- ← / ?
