ERVING
9463023 | 2EDZ5 | MAERSK by ********* Last update: Wed Mar 27 2024
General Info
Ship Name:ERVING
IMO Code:9463023
Call Sign:2EDZ5
Line Operator:MAERSK
Class Name for Sister Ships:EDINBURGH
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,102
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-sideView.png?v=1711563141888)

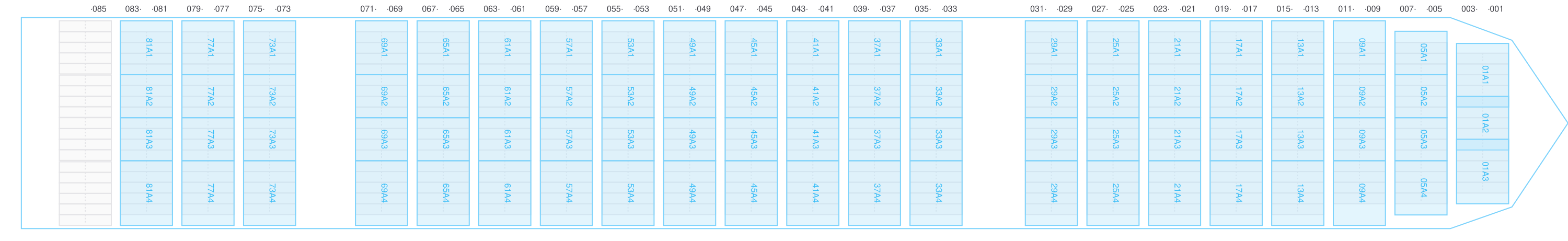

Hatch-Covers View
![Deck view of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-deckView.png?v=1711563141888)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

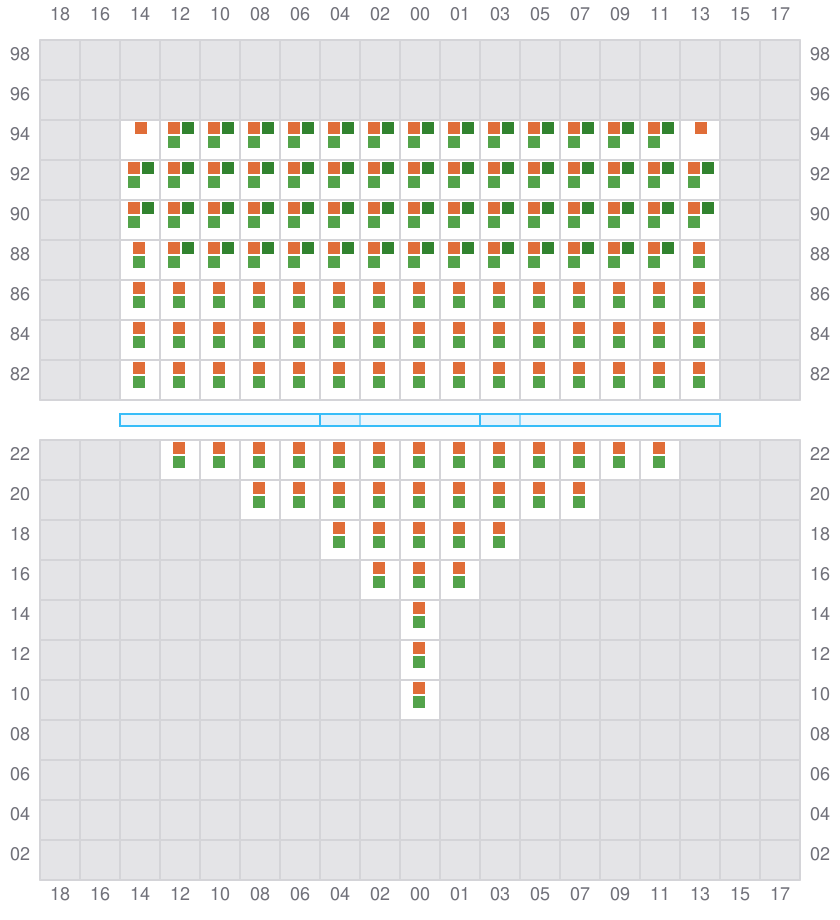

001 (002)
- →
![Bay 001 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b001.png?v=1711563141888)

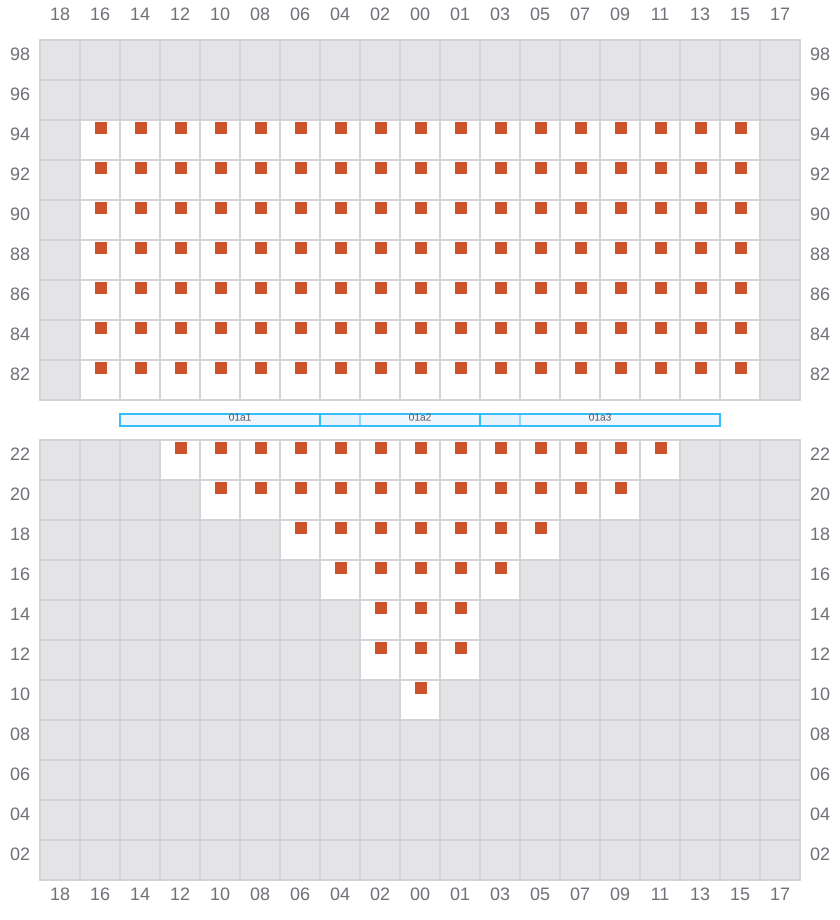

003
- ←
![Bay 003 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b003.png?v=1711563141888)

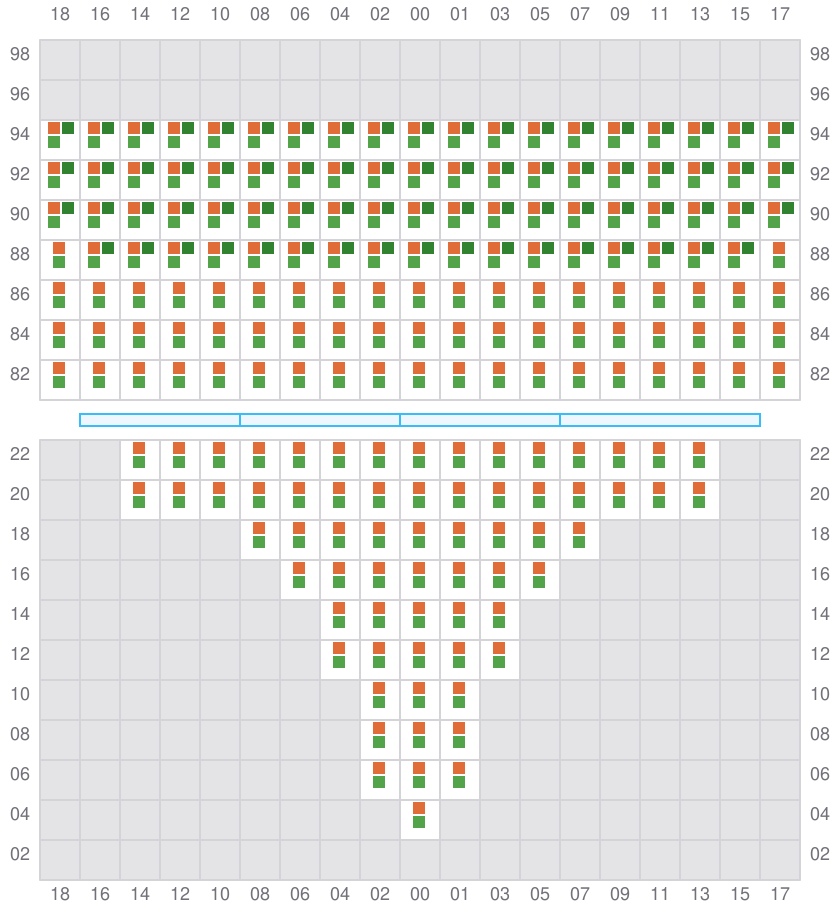

005 (006)
- →
![Bay 005 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b005.png?v=1711563141888)

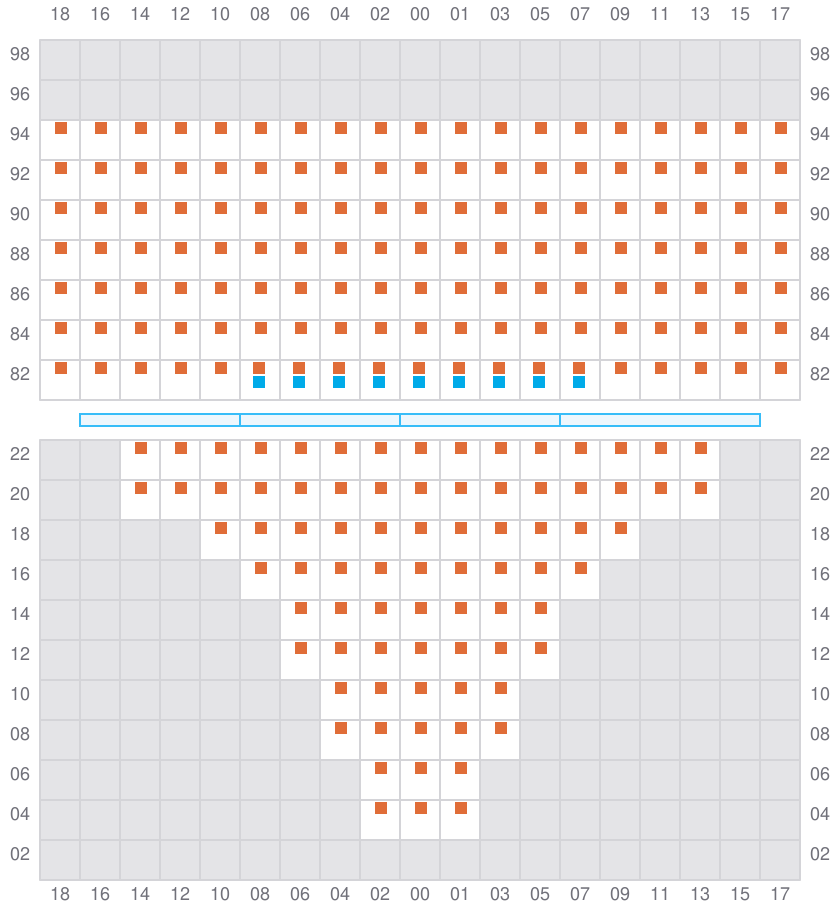

007
- ←
- → / ?
![Bay 007 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b007.png?v=1711563141888)

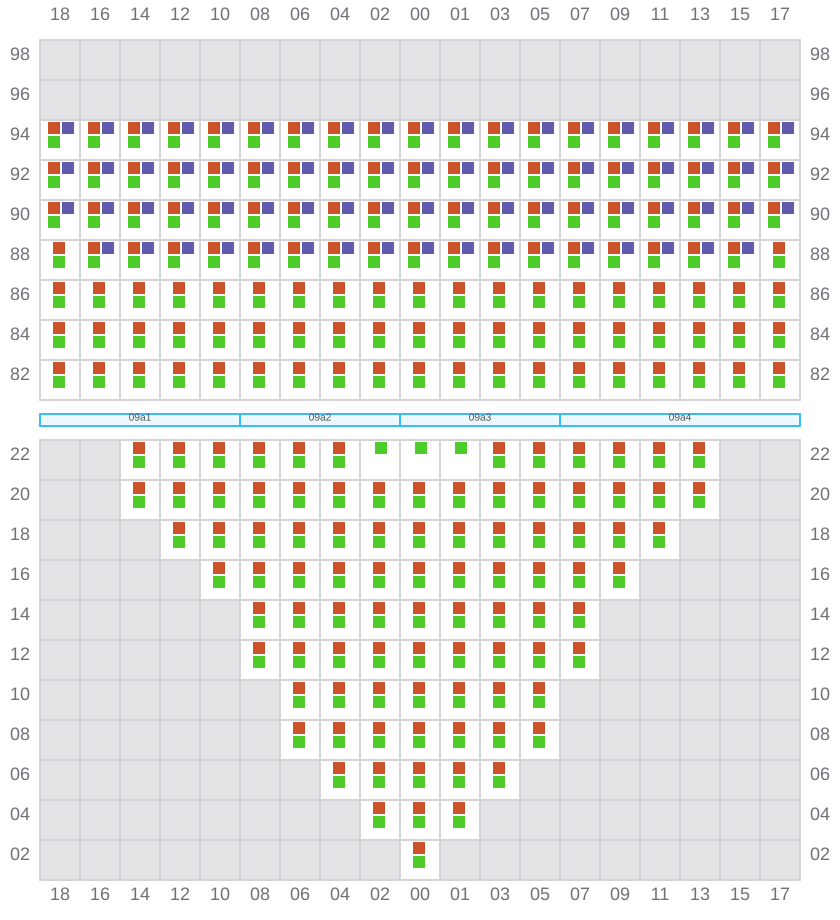

009 (010)
- →
![Bay 009 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b009.png?v=1711563141888)

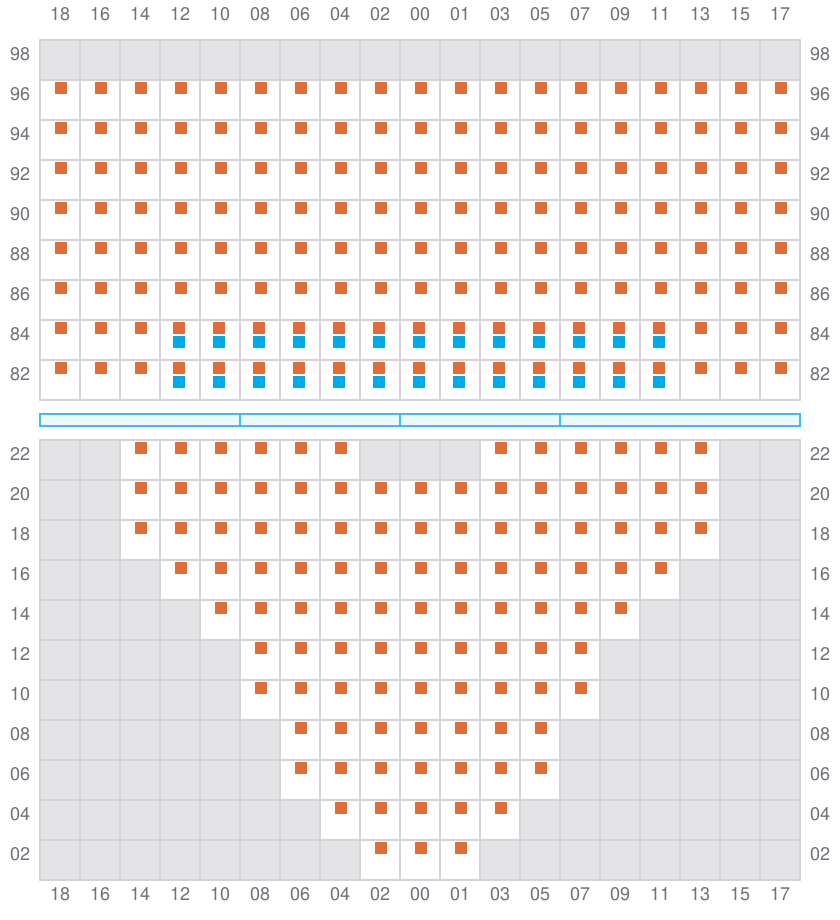

011
- ←
- → / ?
![Bay 011 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b011.png?v=1711563141888)

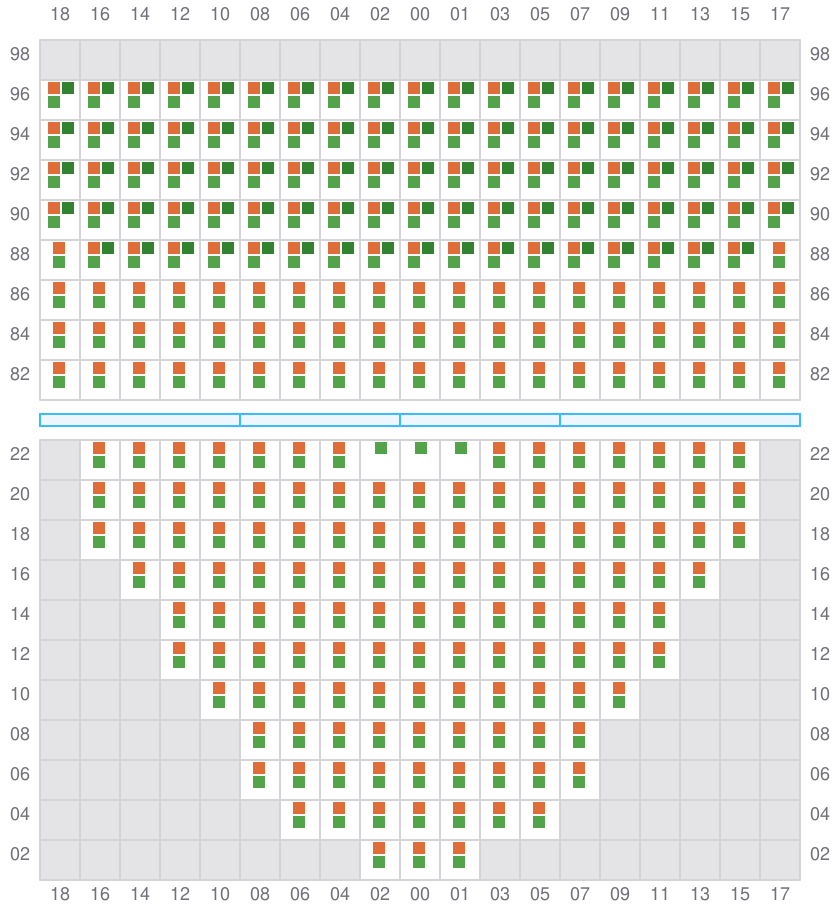

013 (014)
- →
![Bay 013 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b013.png?v=1711563141888)

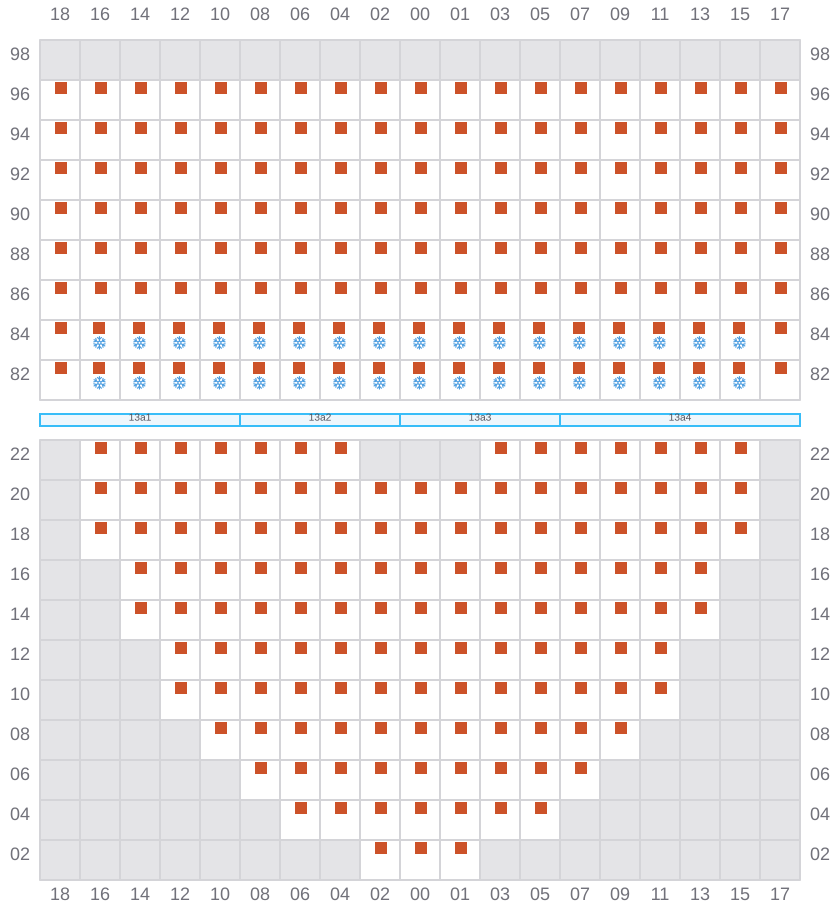

015
- ←
- → / ?
![Bay 015 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b015.png?v=1711563141888)

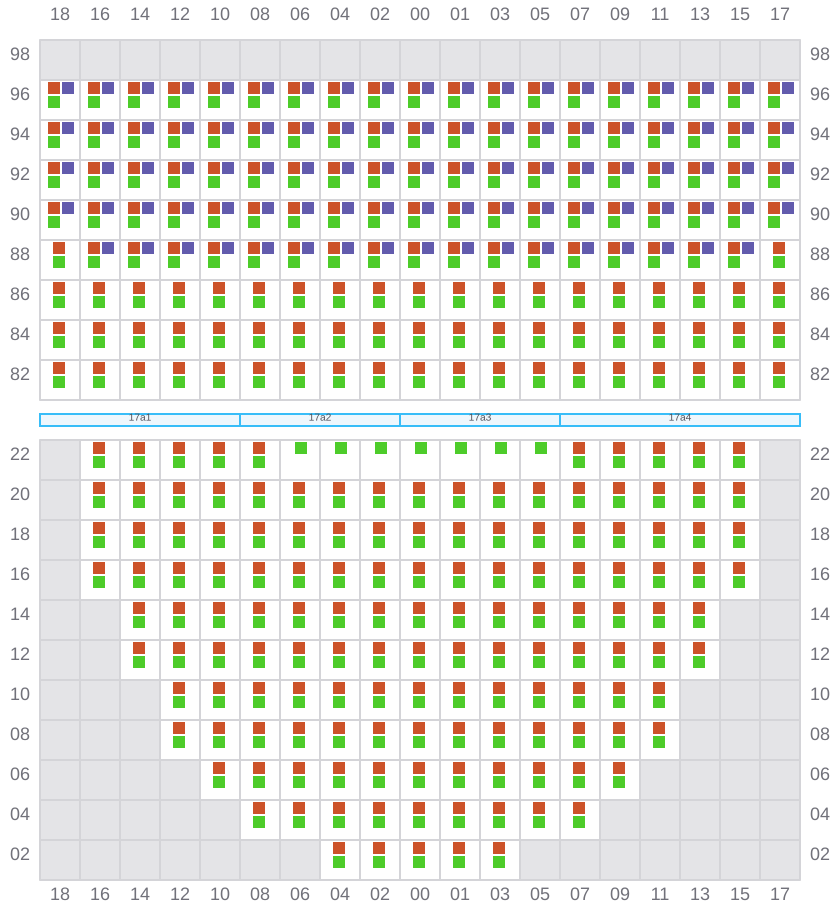

017 (018)
- →
![Bay 017 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b017.png?v=1711563141888)

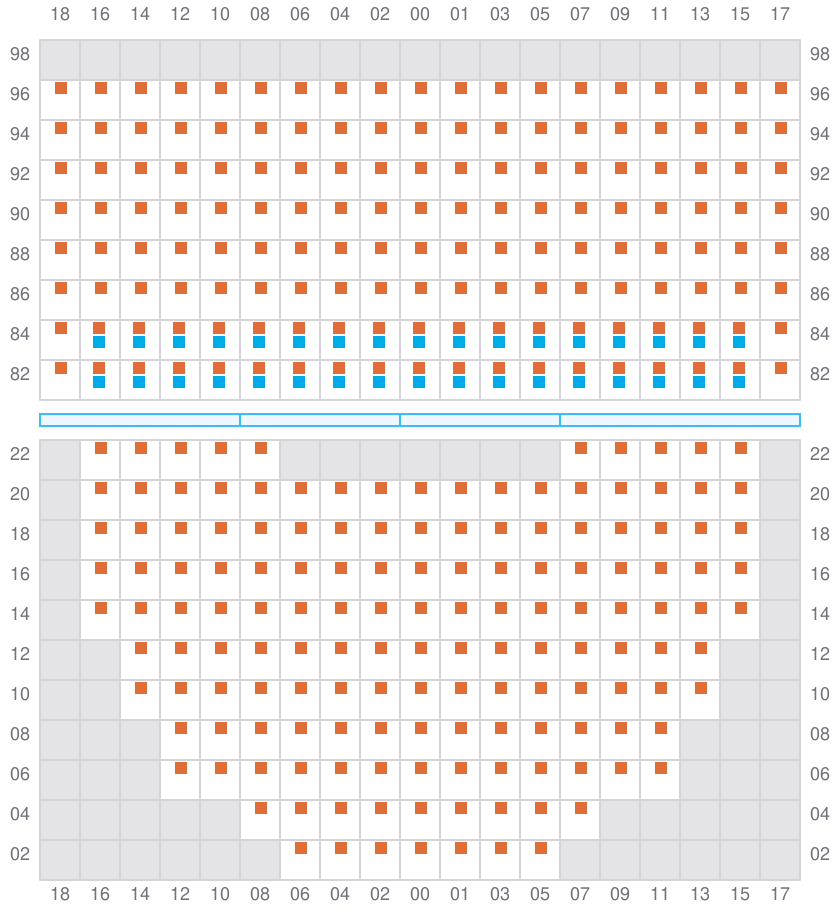

019
- ←
- → / ?
![Bay 019 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b019.png?v=1711563141888)
021 (022)
- →
![Bay 021 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b021.png?v=1711563141888)

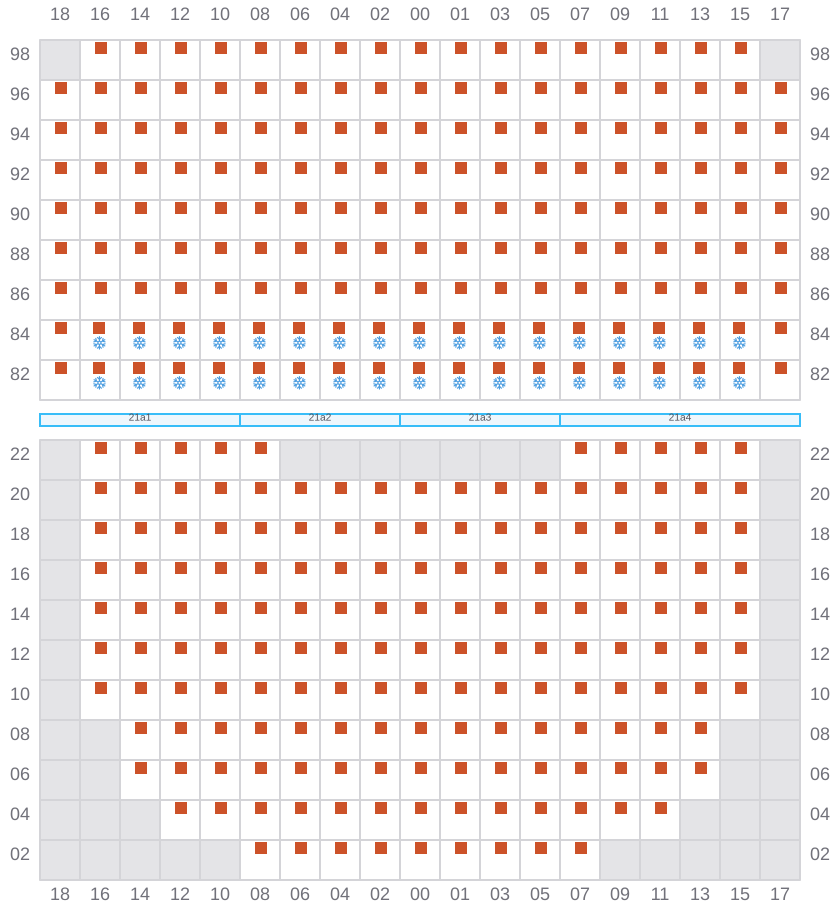

023
- ←
- → / ?
![Bay 023 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b023.png?v=1711563141888)

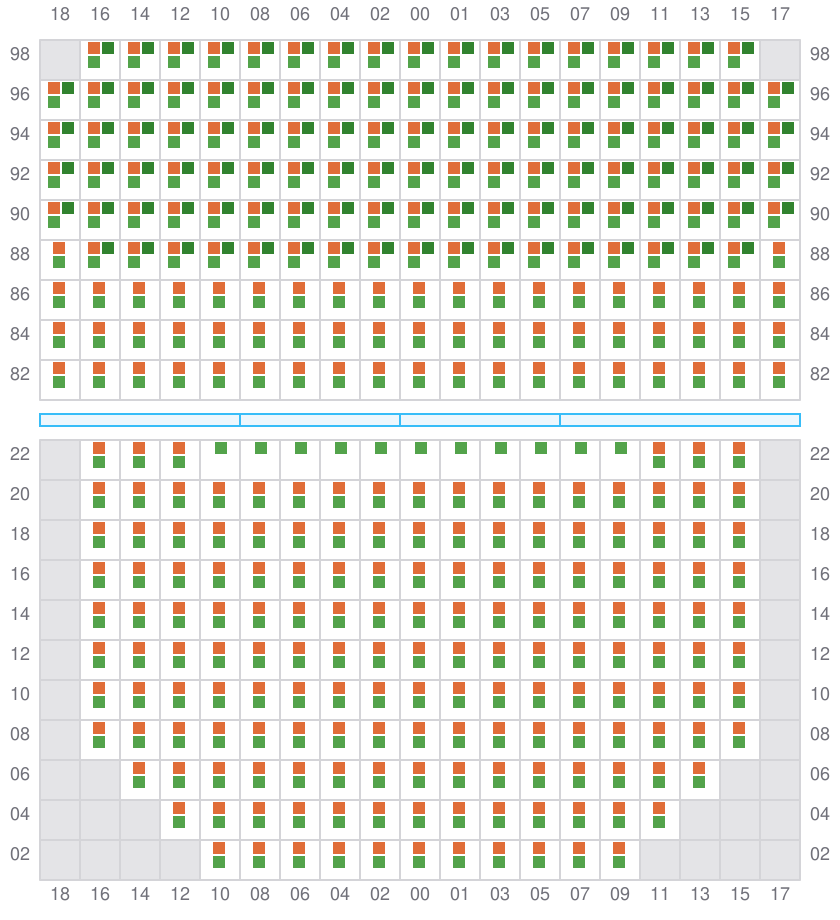

025 (026)
- →
![Bay 025 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b025.png?v=1711563141888)

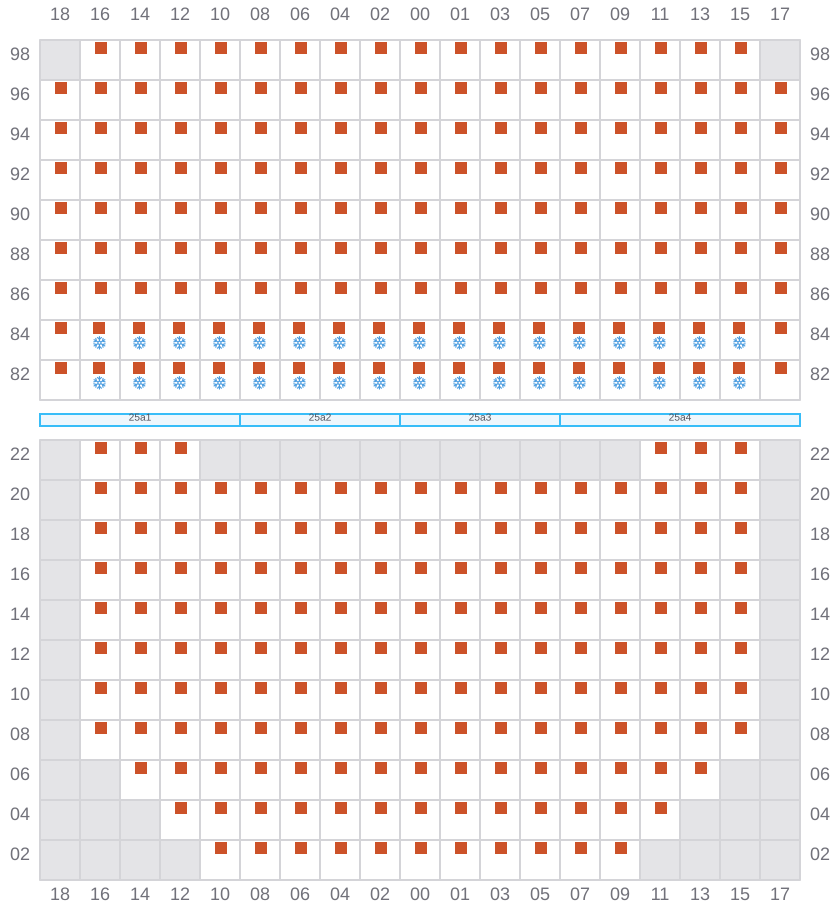

027
- ←
- → / ?
![Bay 027 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b027.png?v=1711563141888)

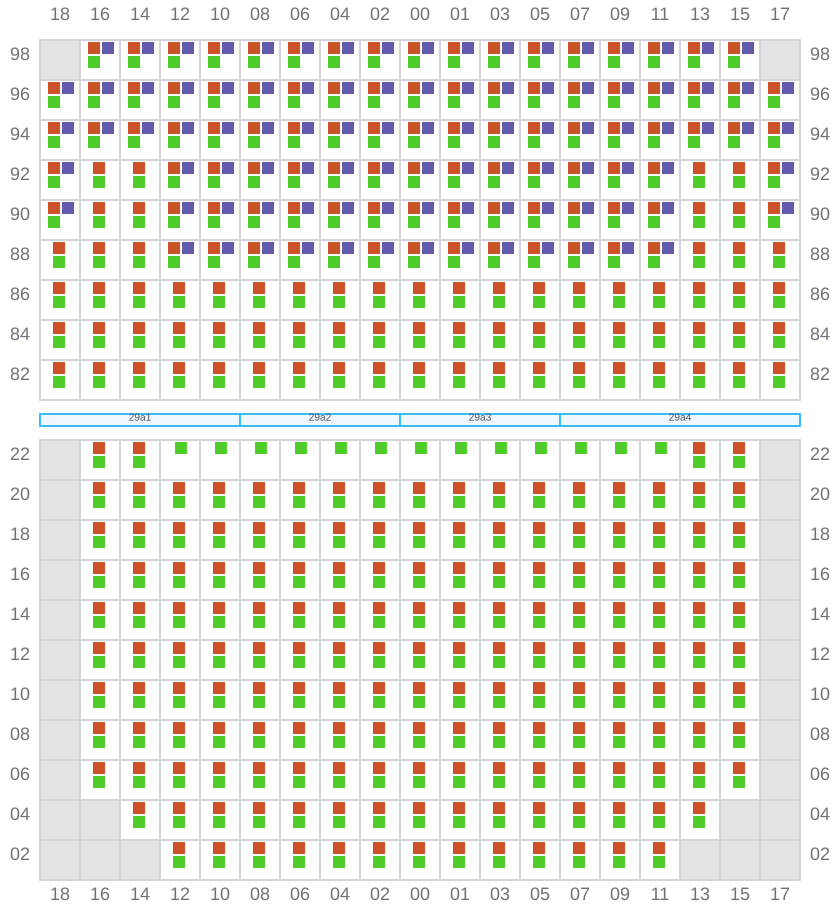

029 (030)
- →
![Bay 029 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b029.png?v=1711563141888)

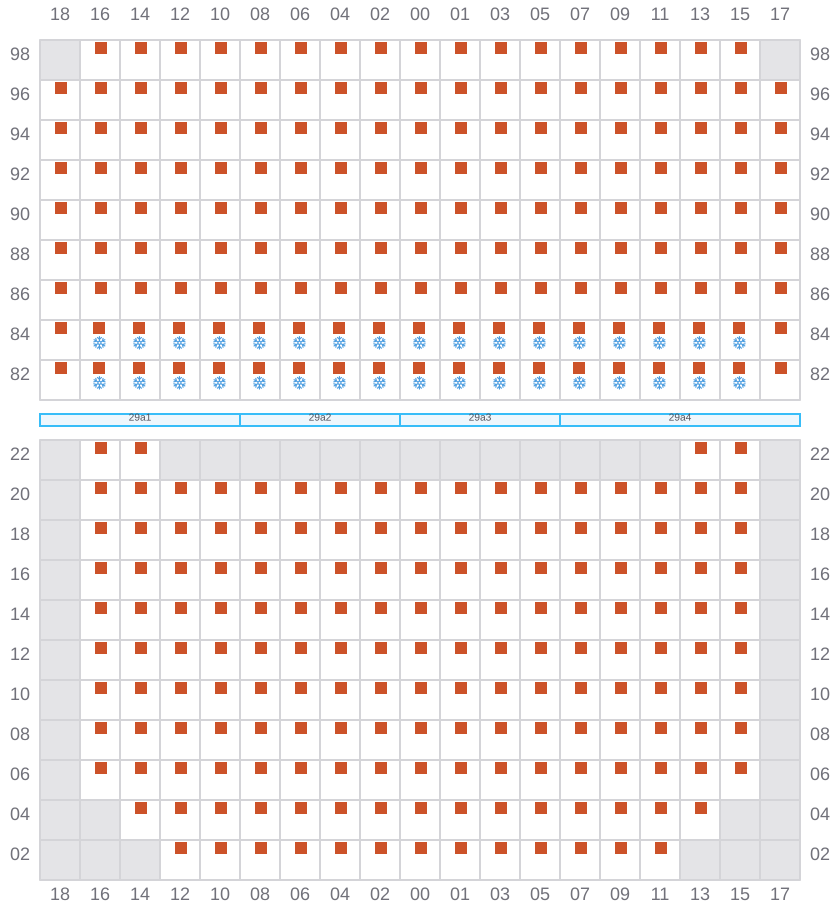

031
- ←
- → / ?
![Bay 031 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b031.png?v=1711563141888)
033 (034)
- →
![Bay 033 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b033.png?v=1711563141888)
035
- ←
- → / ?
![Bay 035 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b035.png?v=1711563141888)

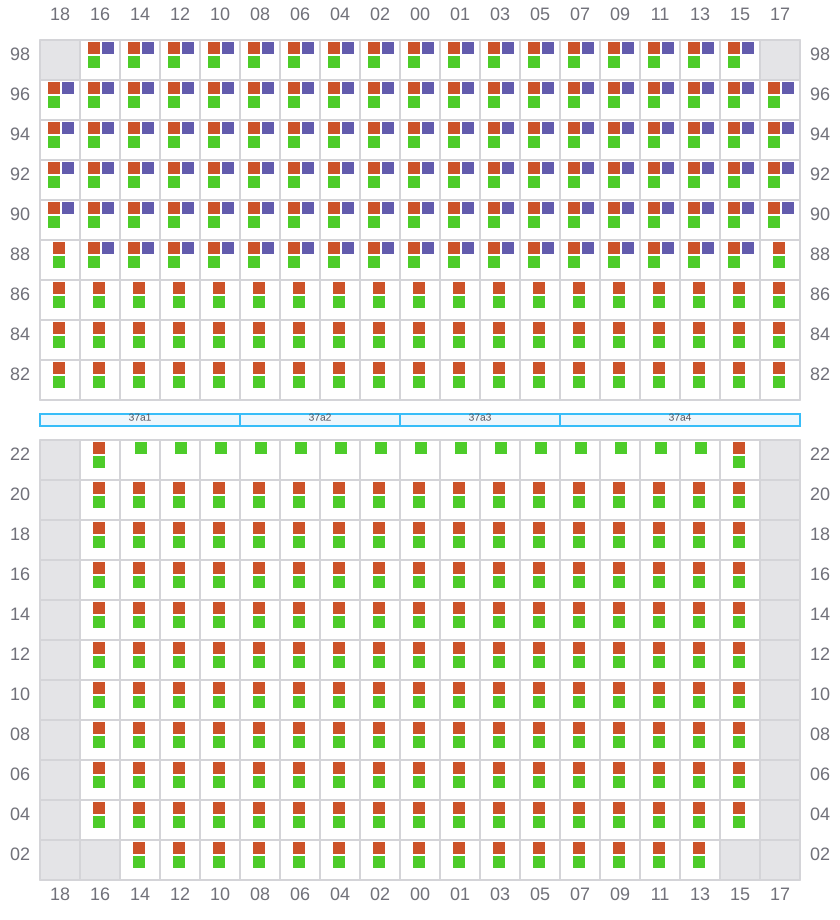

037 (038)
- →
![Bay 037 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b037.png?v=1711563141888)

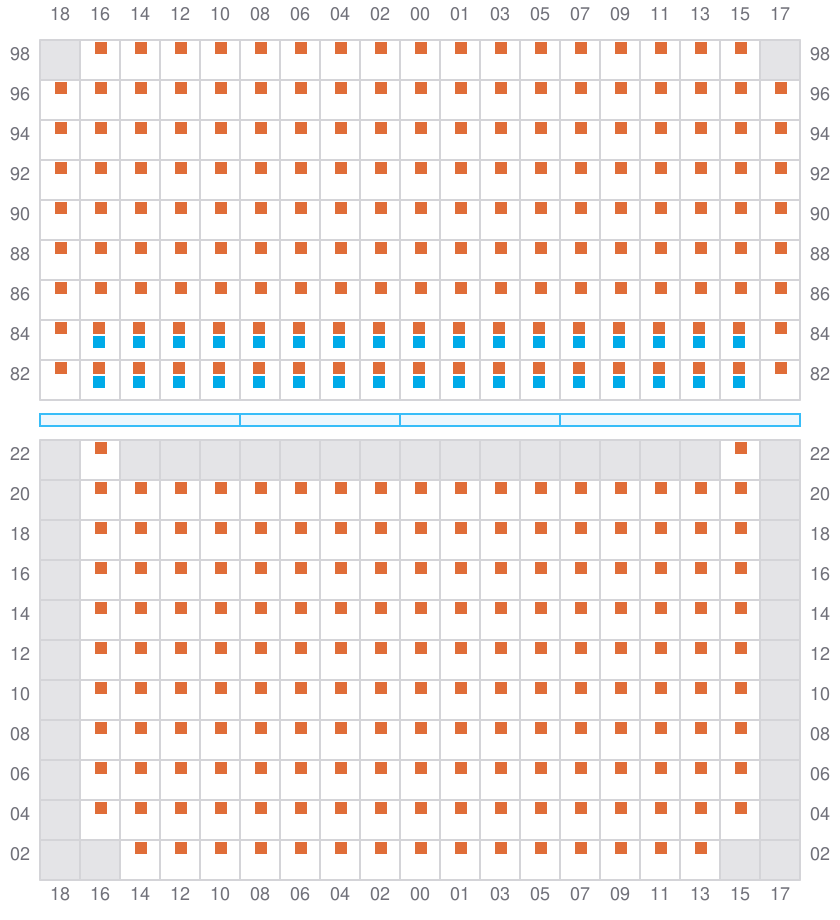

039
- ←
- → / ?
![Bay 039 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b039.png?v=1711563141888)

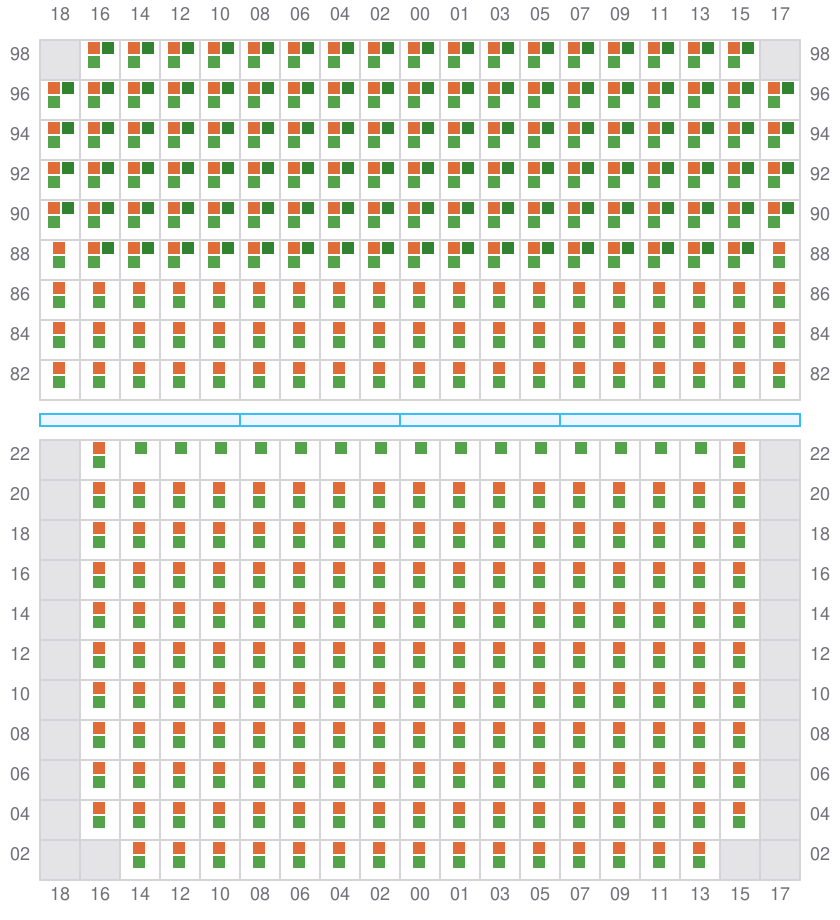

041 (042)
- →
![Bay 041 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b041.png?v=1711563141888)
043
- ←
- → / ?
![Bay 043 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b043.png?v=1711563141888)

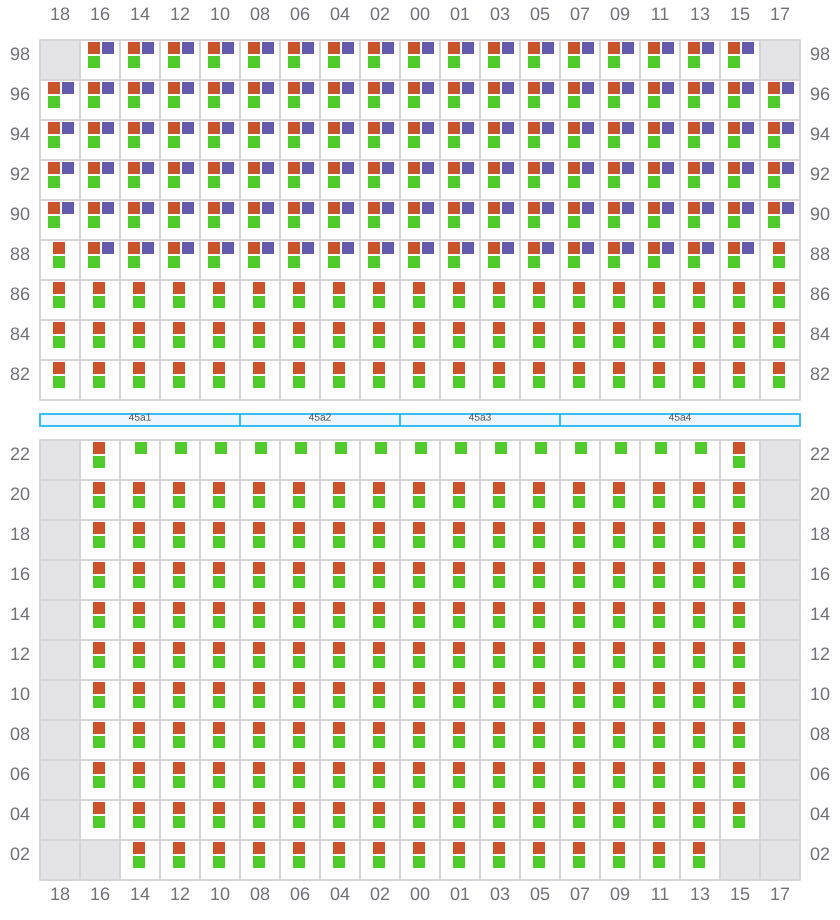

045 (046)
- →
![Bay 045 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b045.png?v=1711563141888)
047
- ←
- → / ?
![Bay 047 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b047.png?v=1711563141888)
049 (050)
- →
![Bay 049 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b049.png?v=1711563141888)

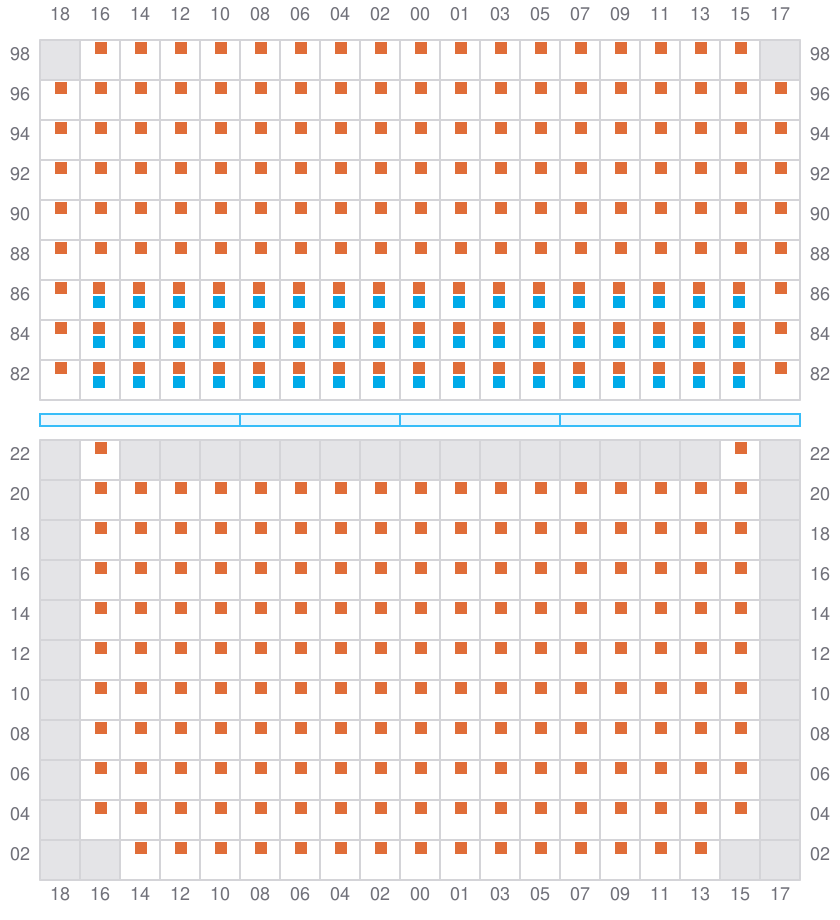

051
- ←
- → / ?
![Bay 051 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b051.png?v=1711563141888)
053 (054)
- →
![Bay 053 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b053.png?v=1711563141888)
055
- ←
- → / ?
![Bay 055 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b055.png?v=1711563141888)
057 (058)
- →
![Bay 057 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b057.png?v=1711563141888)
059
- ←
- → / ?
![Bay 059 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b059.png?v=1711563141888)
061 (062)
- →
![Bay 061 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b061.png?v=1711563141888)
063
- ←
- → / ?
![Bay 063 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b063.png?v=1711563141888)

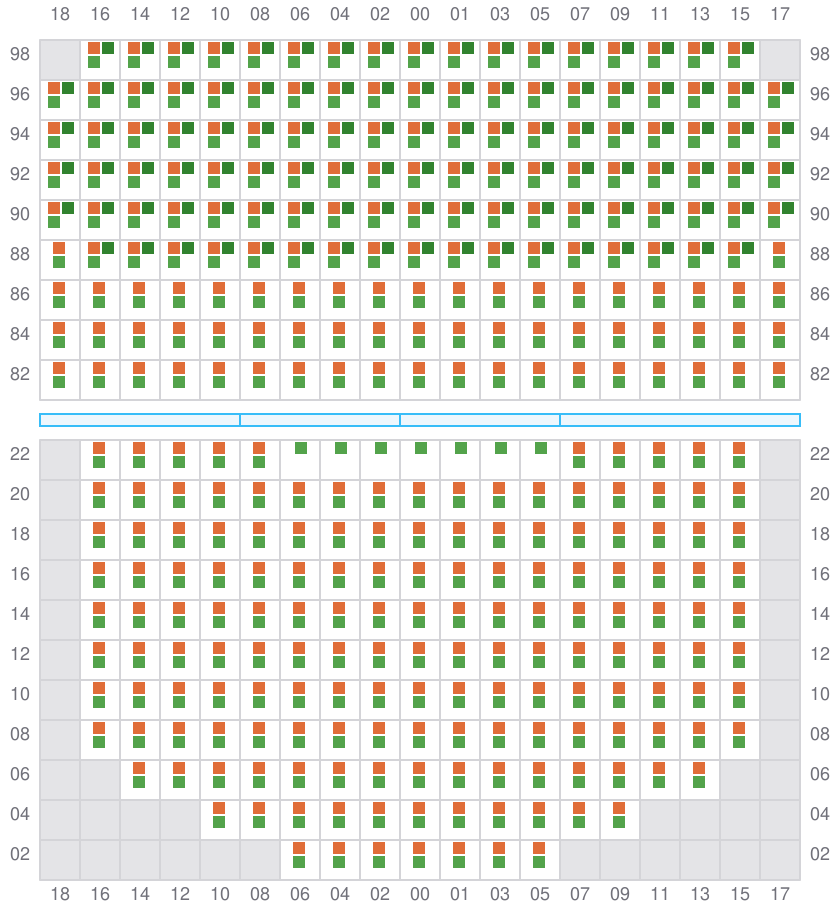

065 (066)
- →
![Bay 065 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b065.png?v=1711563141888)
067
- ←
- → / ?
![Bay 067 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b067.png?v=1711563141888)
069 (070)
- →
![Bay 069 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b069.png?v=1711563141888)

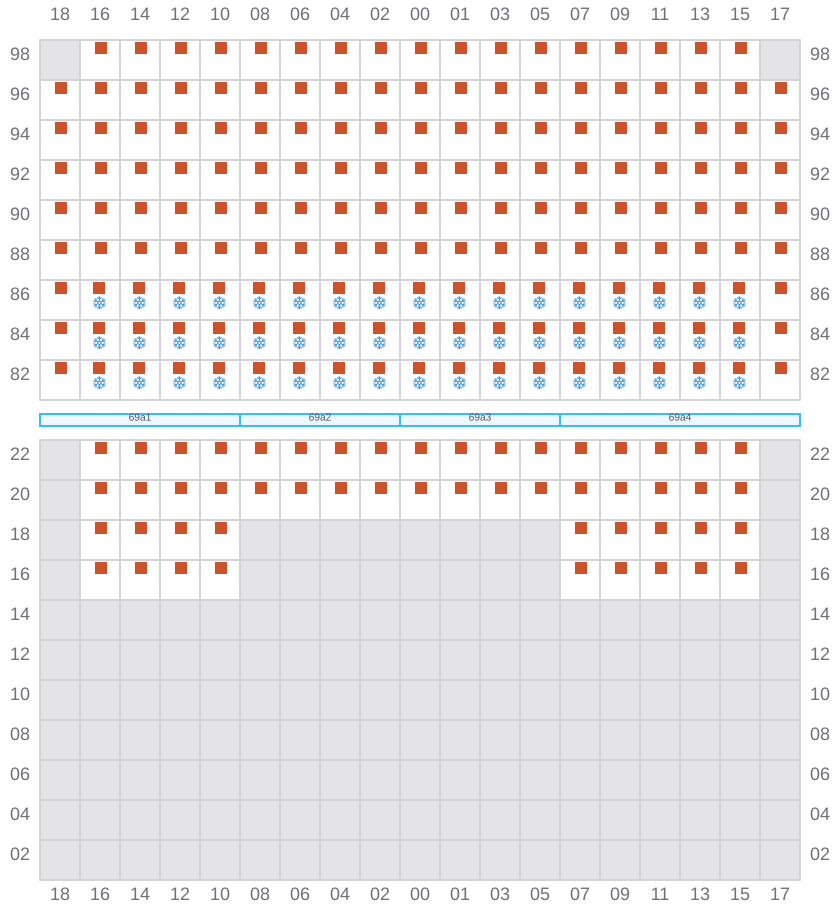

071
- ←
- → / ?
![Bay 071 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b071.png?v=1711563141888)
073 (074)
- →
![Bay 073 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b073.png?v=1711563141888)
075
- ←
- → / ?
![Bay 075 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b075.png?v=1711563141888)

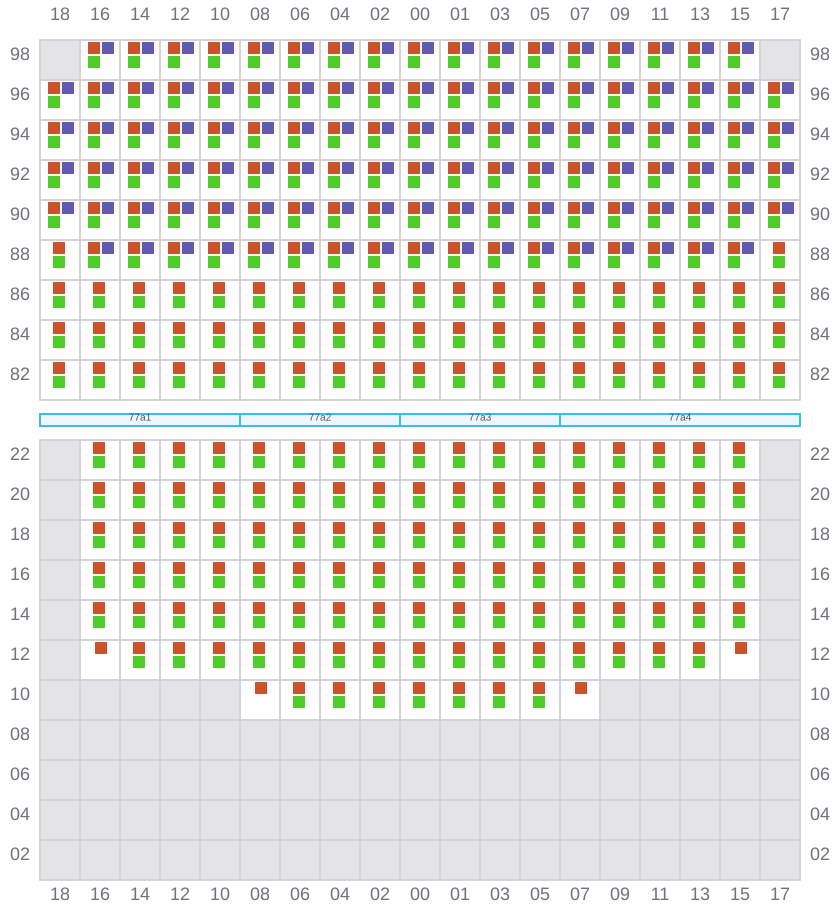

077 (078)
- →
![Bay 077 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b077.png?v=1711563141888)

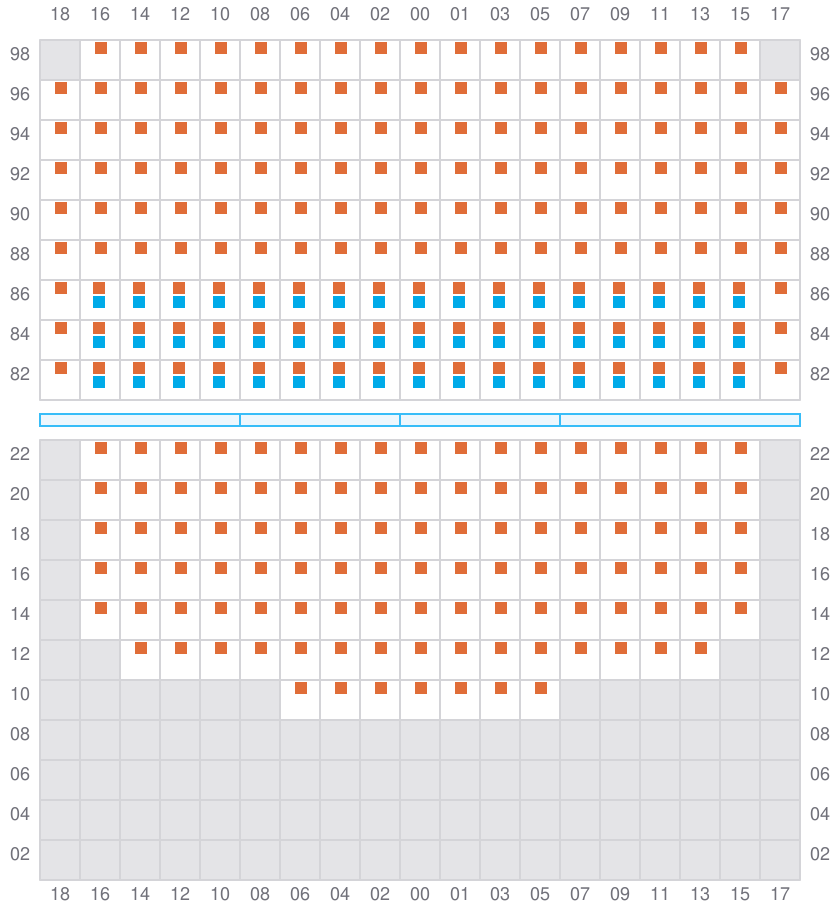

079
- ←
- → / ?
![Bay 079 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b079.png?v=1711563141888)

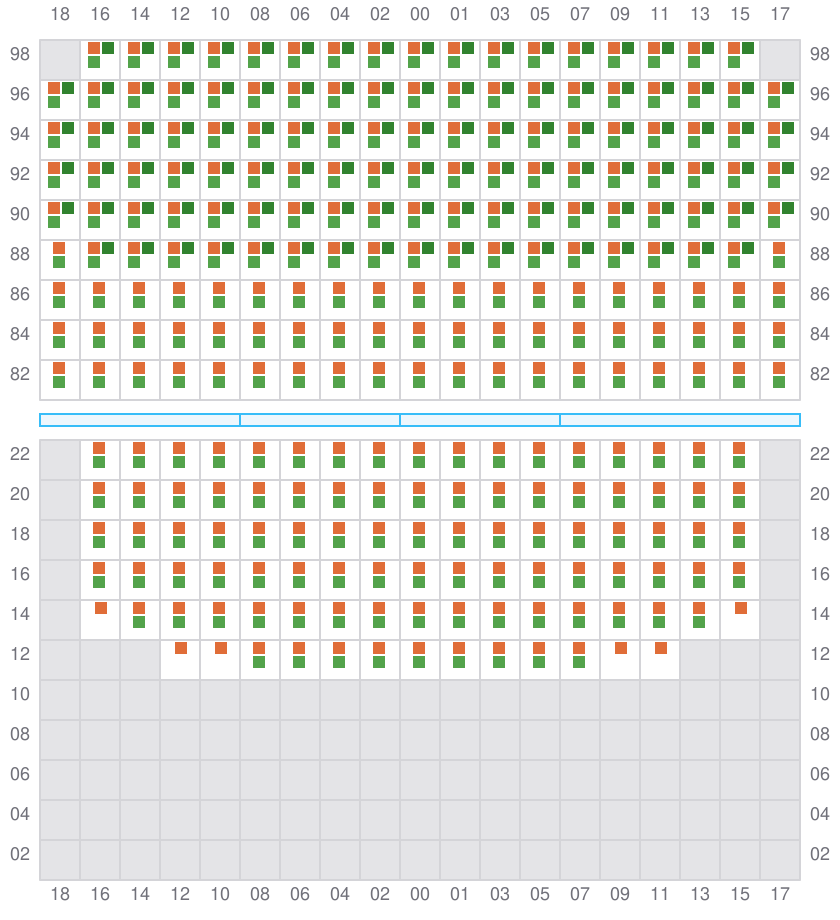

081 (082)
- →
![Bay 081 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b081.png?v=1711563141888)
083
- ←
- → / ?
![Bay 083 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b083.png?v=1711563141888)

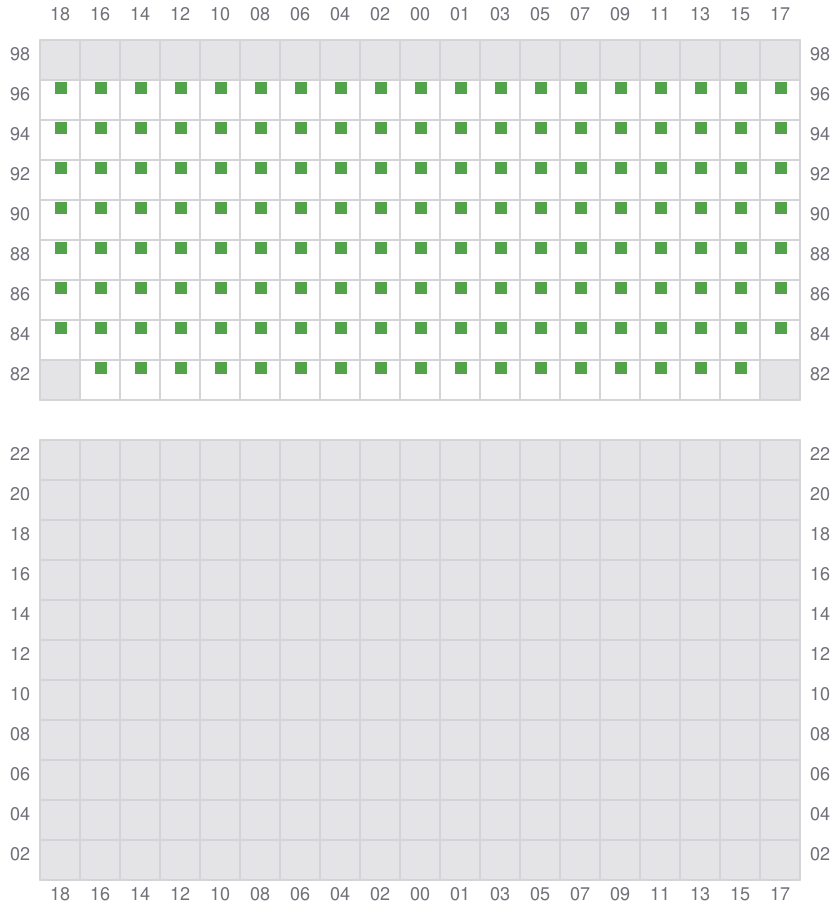

085 (086)
- → / ?
![Bay 085 view and slots of ERVING](/vessel-images/bc05d88f-6212-41e8-8936-043c03b2c9fb-b085.png?v=1711563141888)
