ERVING
9463023 | 2EDZ5 | CMA by *********************** Last update: Mon Feb 03 2025
General Info
Ship Name:ERVING
IMO Code:9463023
Call Sign:2EDZ5
Line Operator:CMA
Class Name for Sister Ships:CGER
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):353.00
LOA (Length Overall):366.50
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,136
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

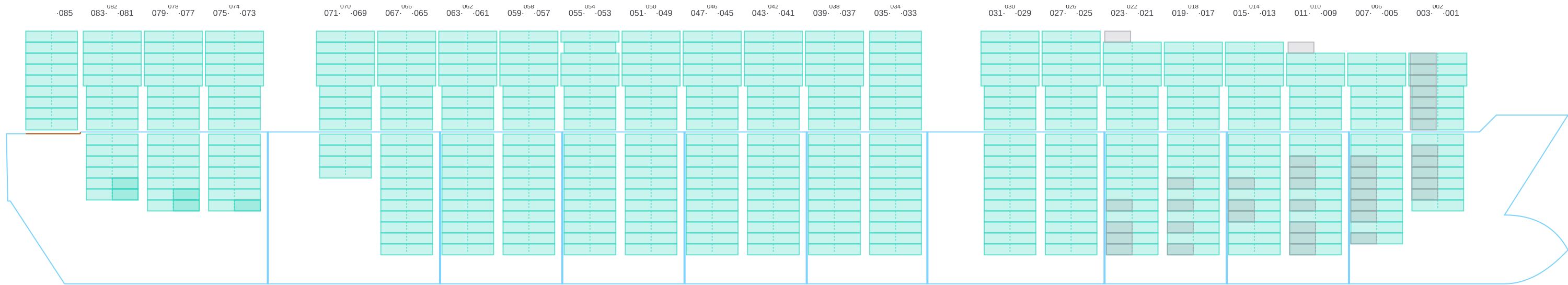

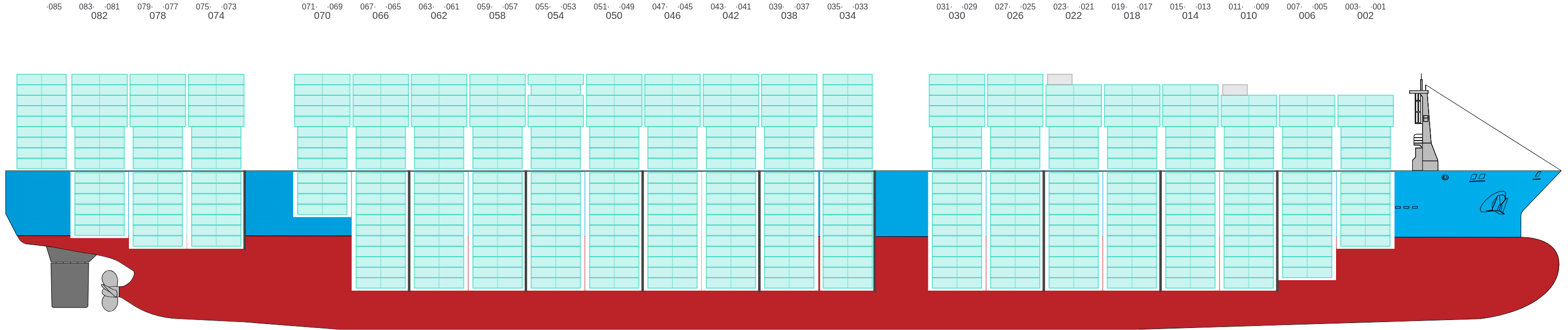

Side View

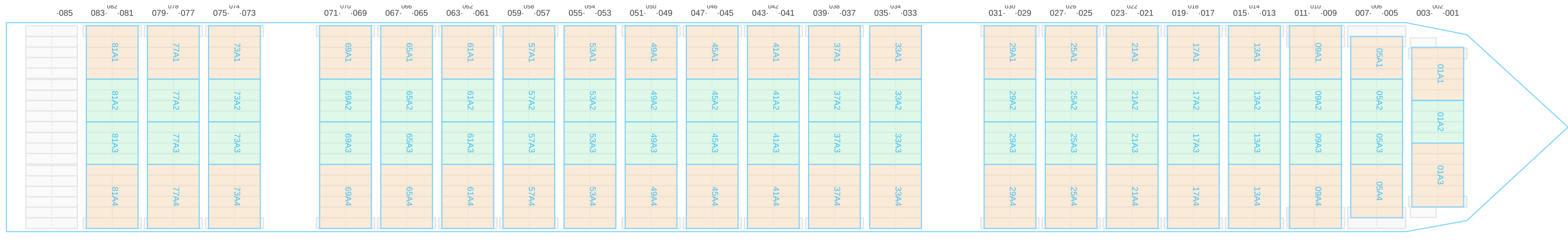

Hatch-Covers View

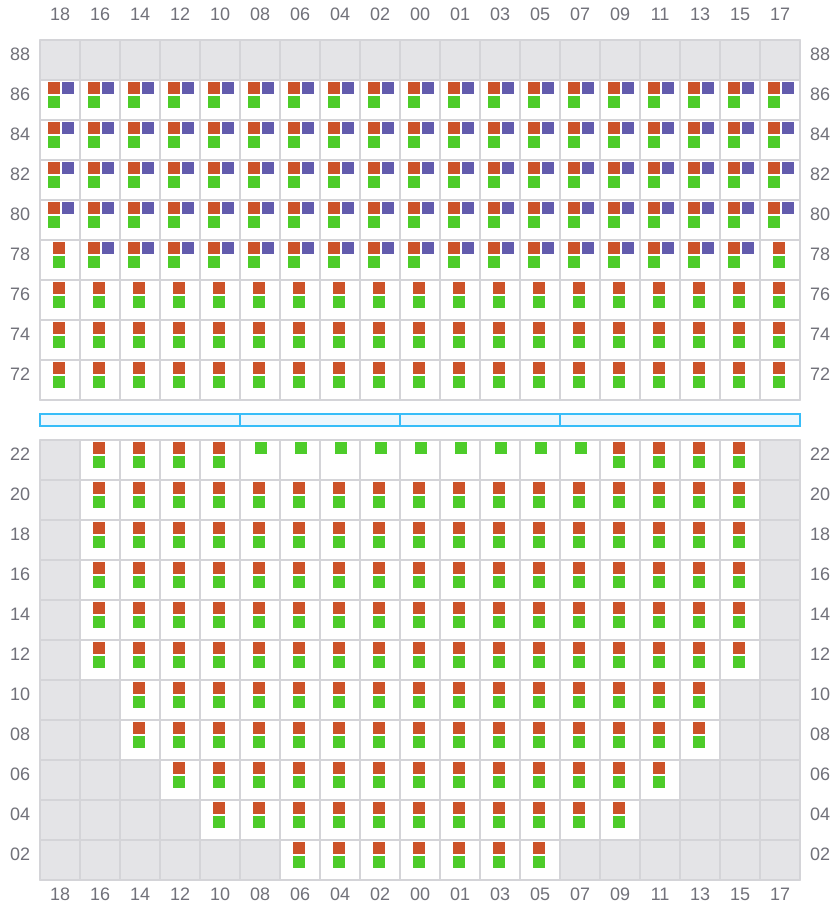

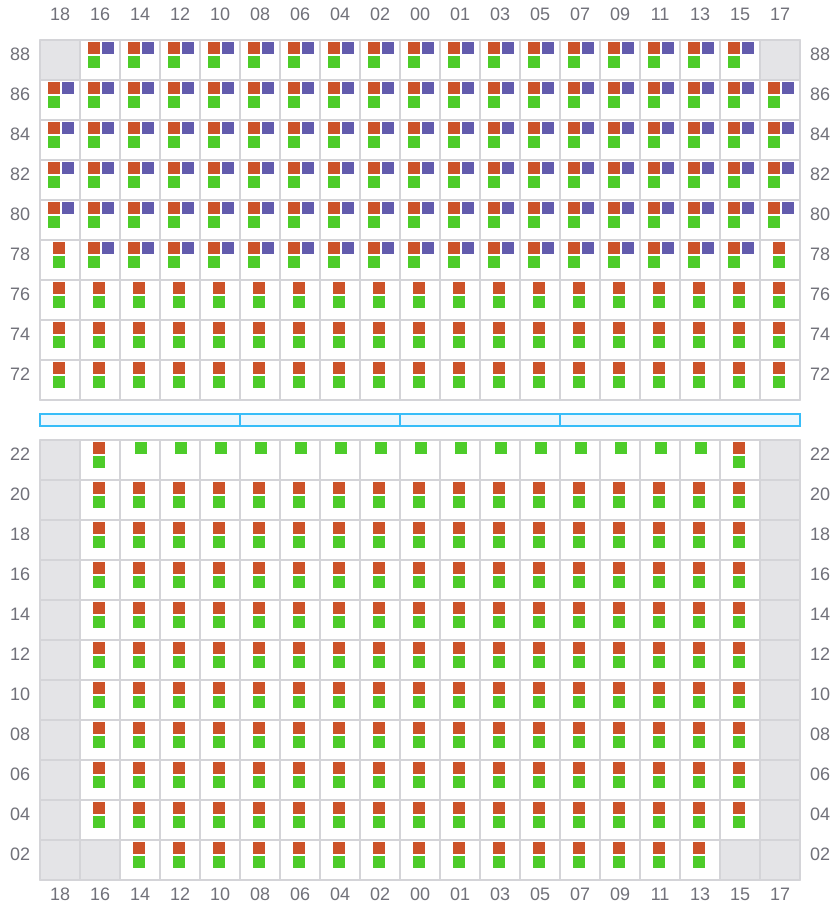

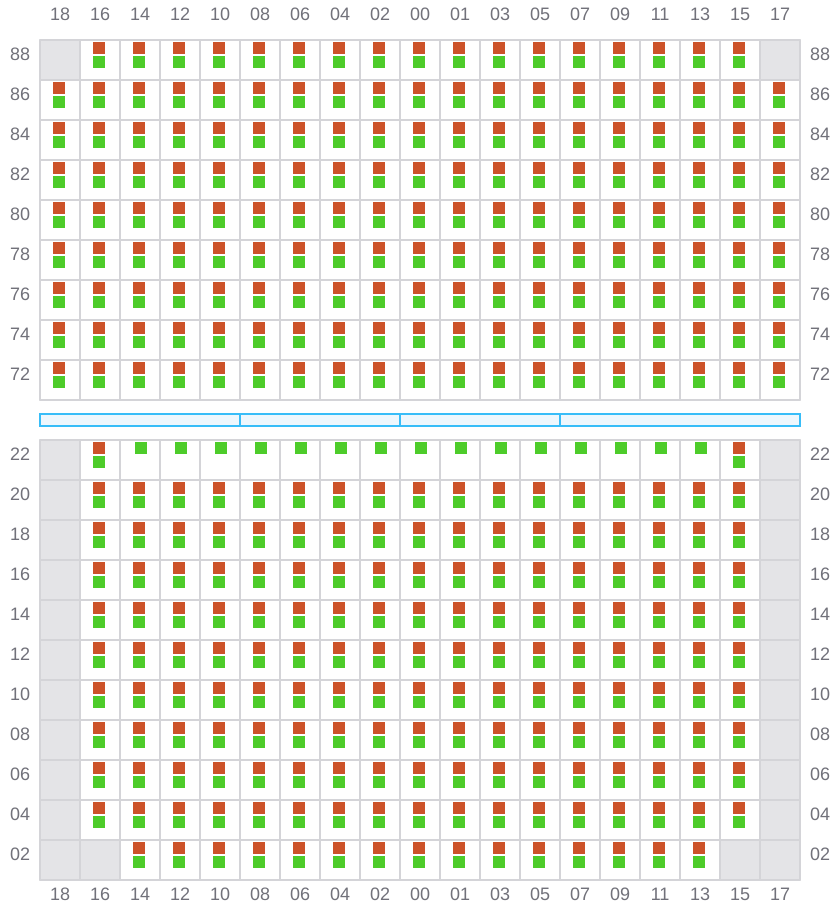

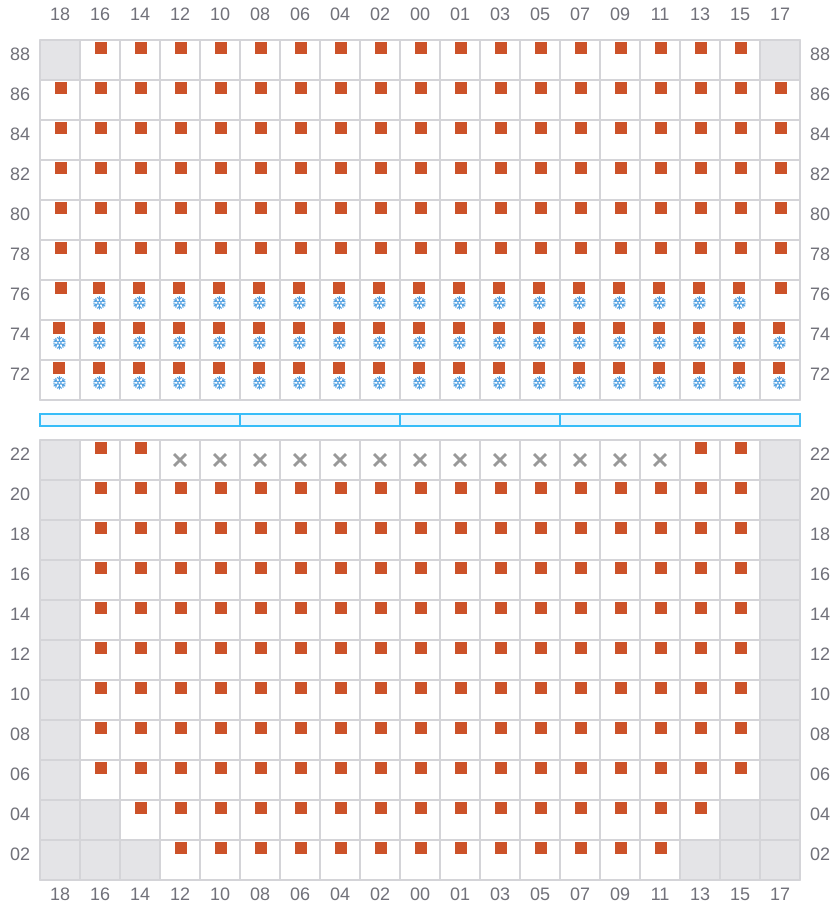

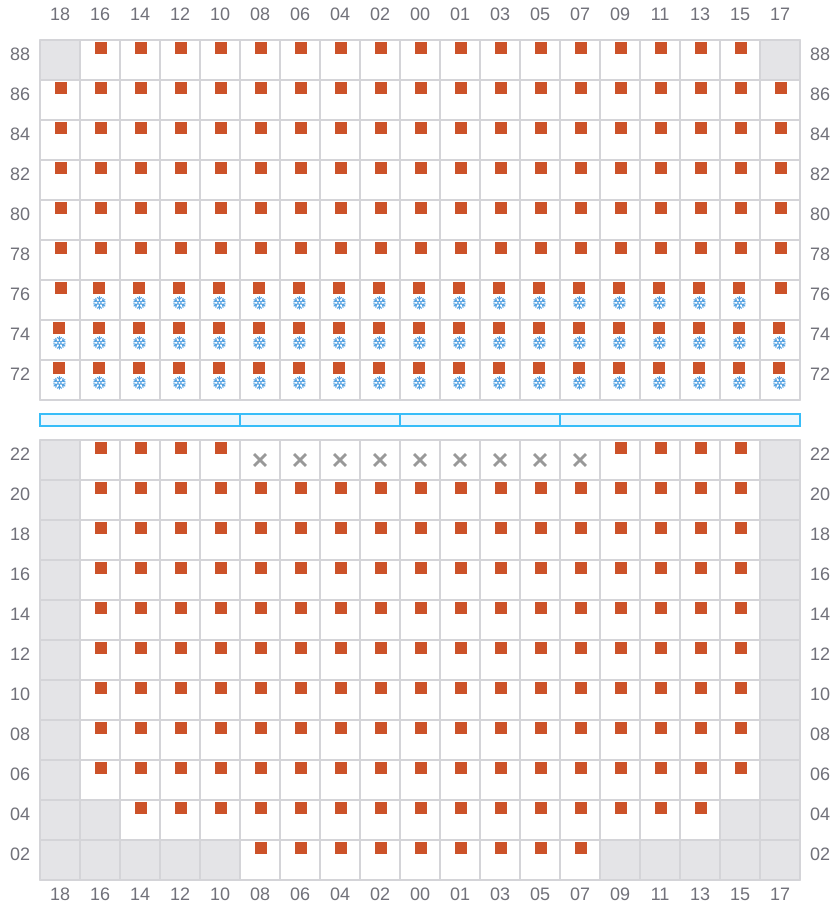

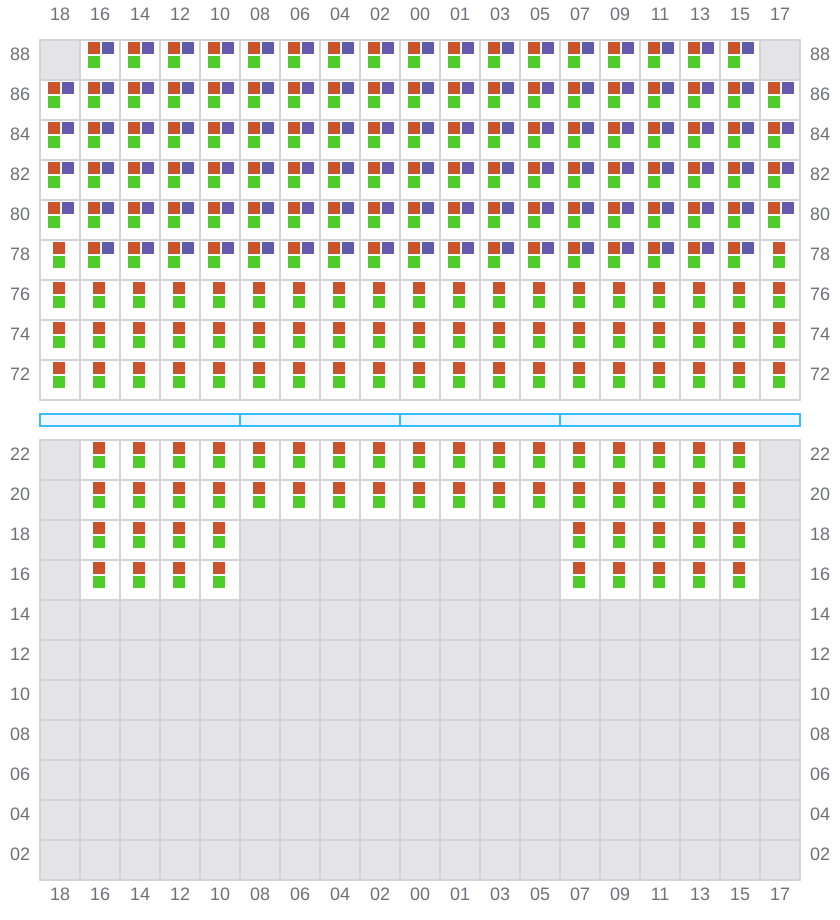

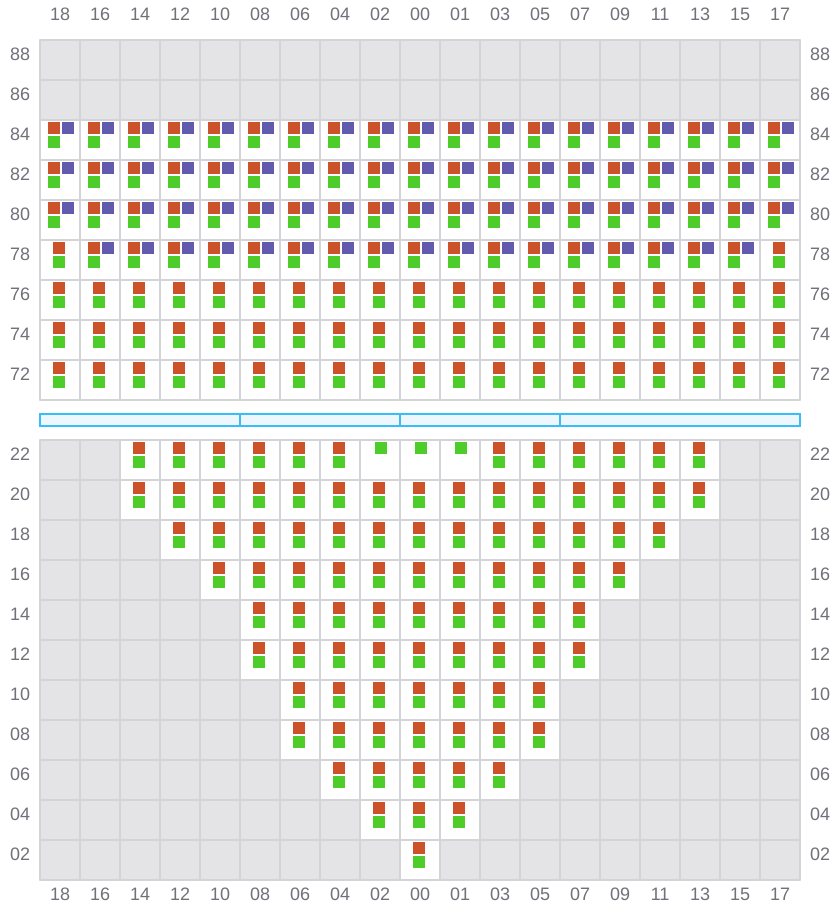

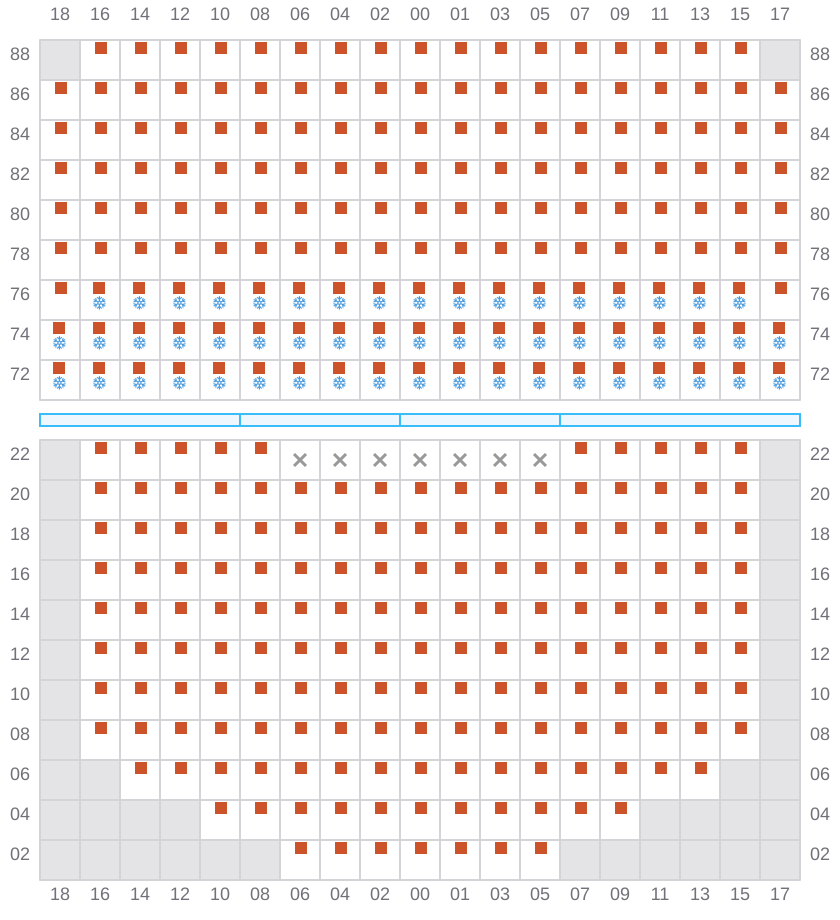

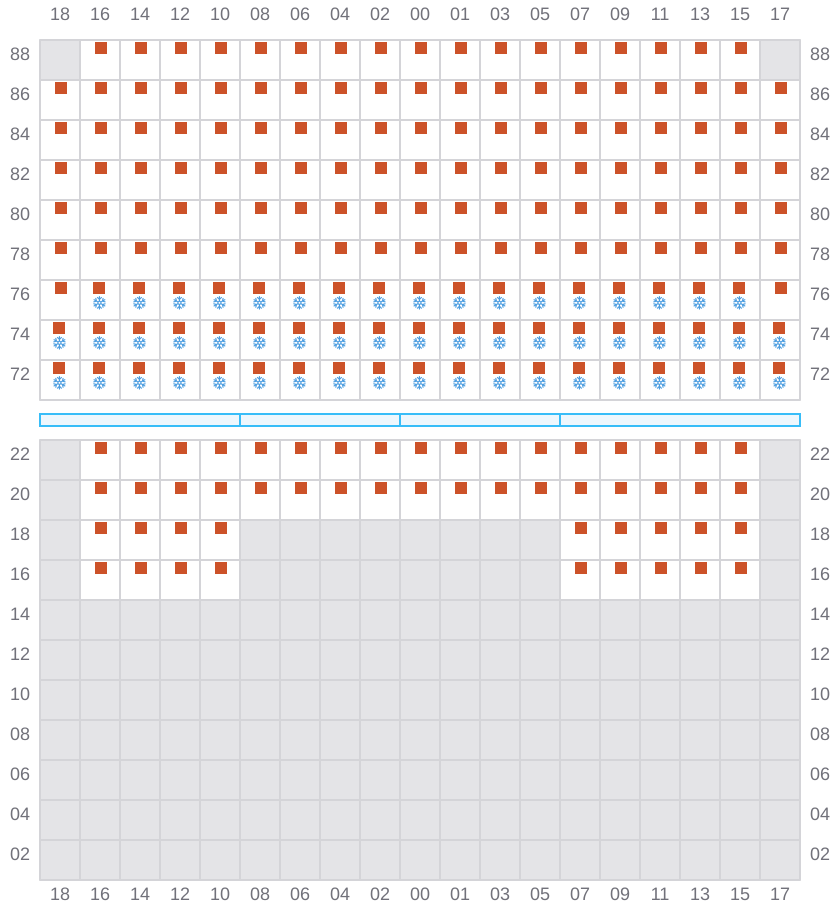

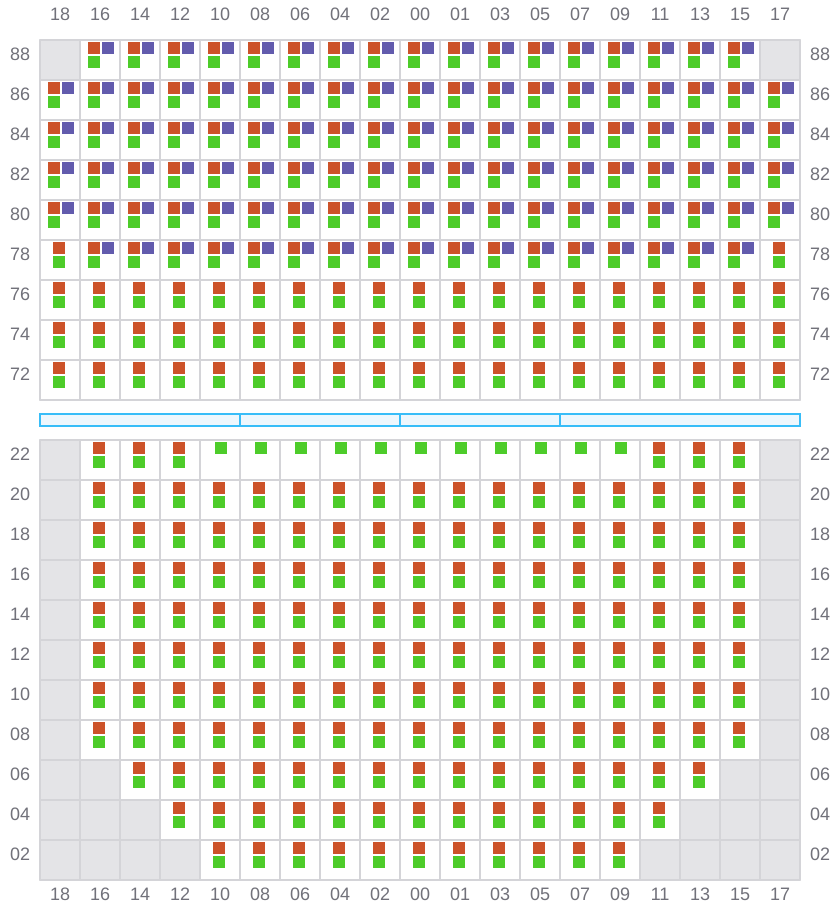

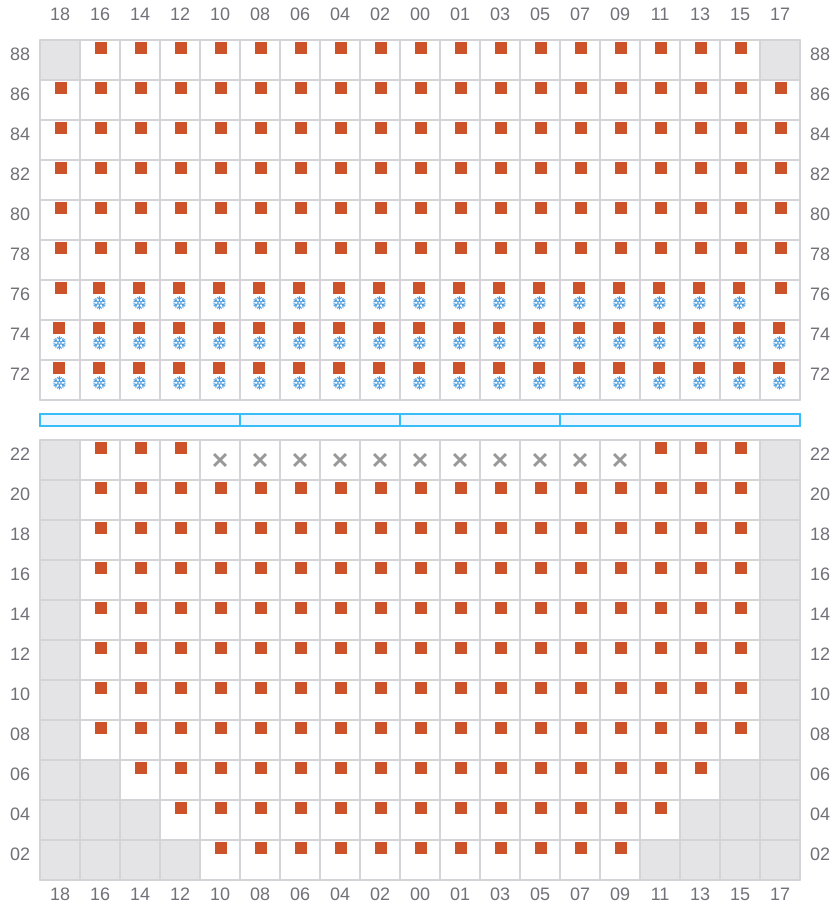

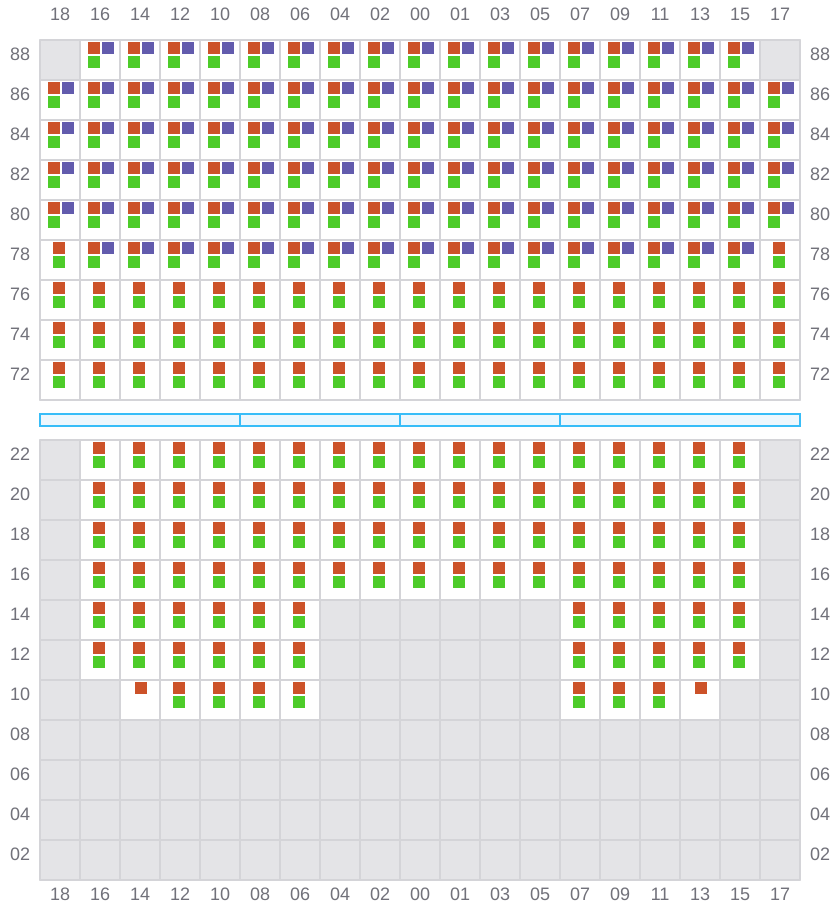

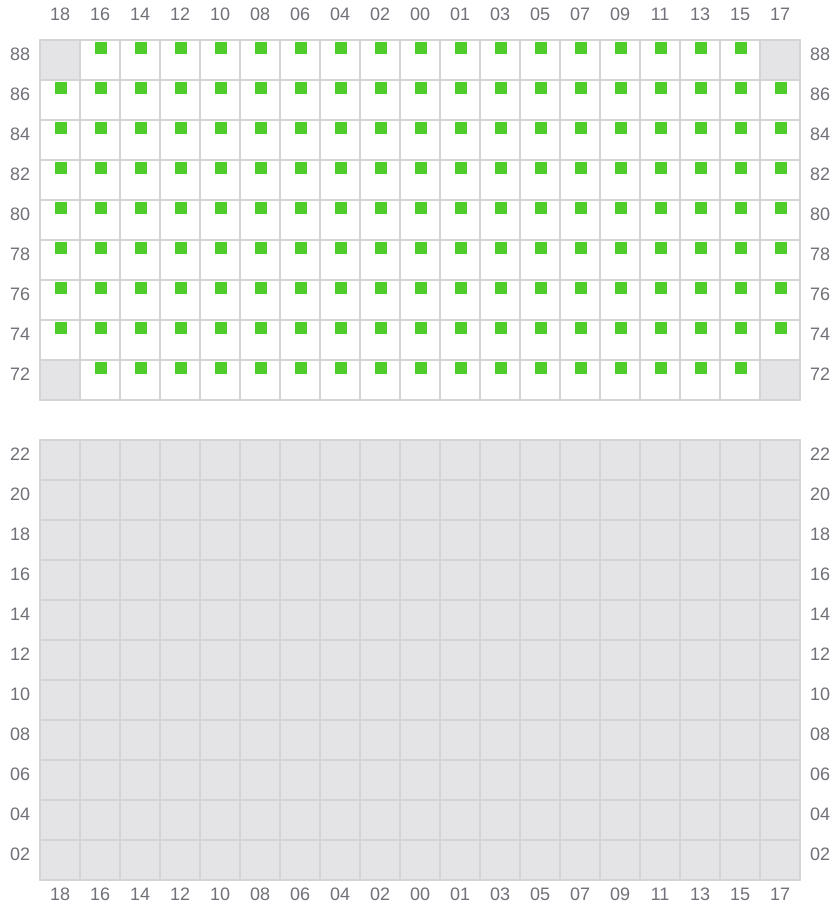

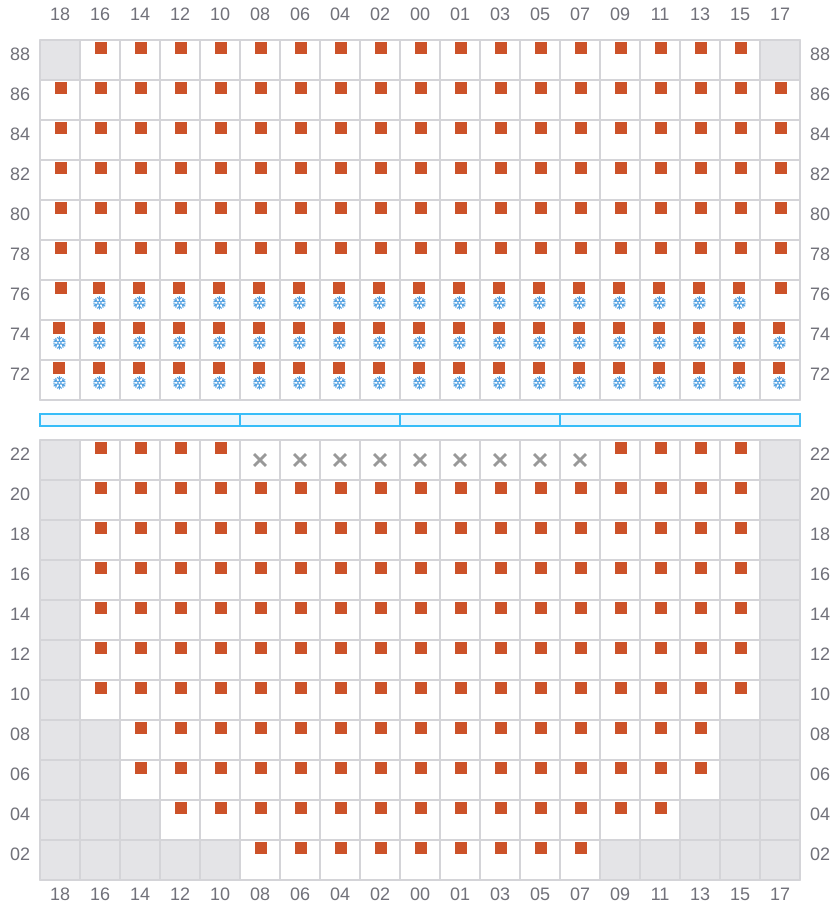

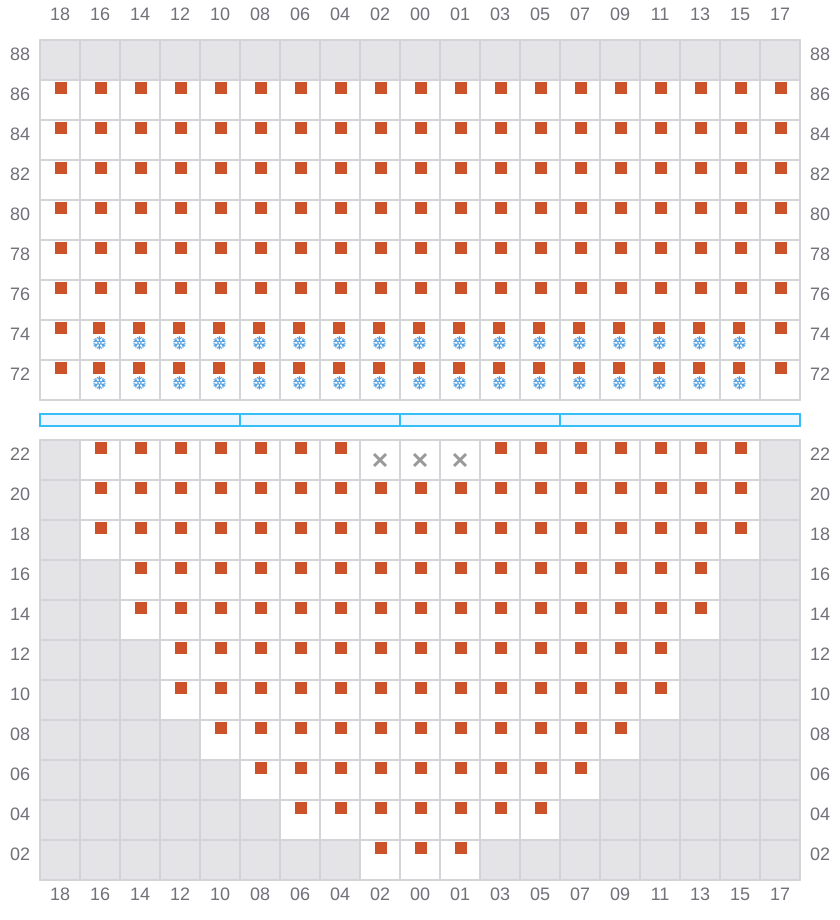

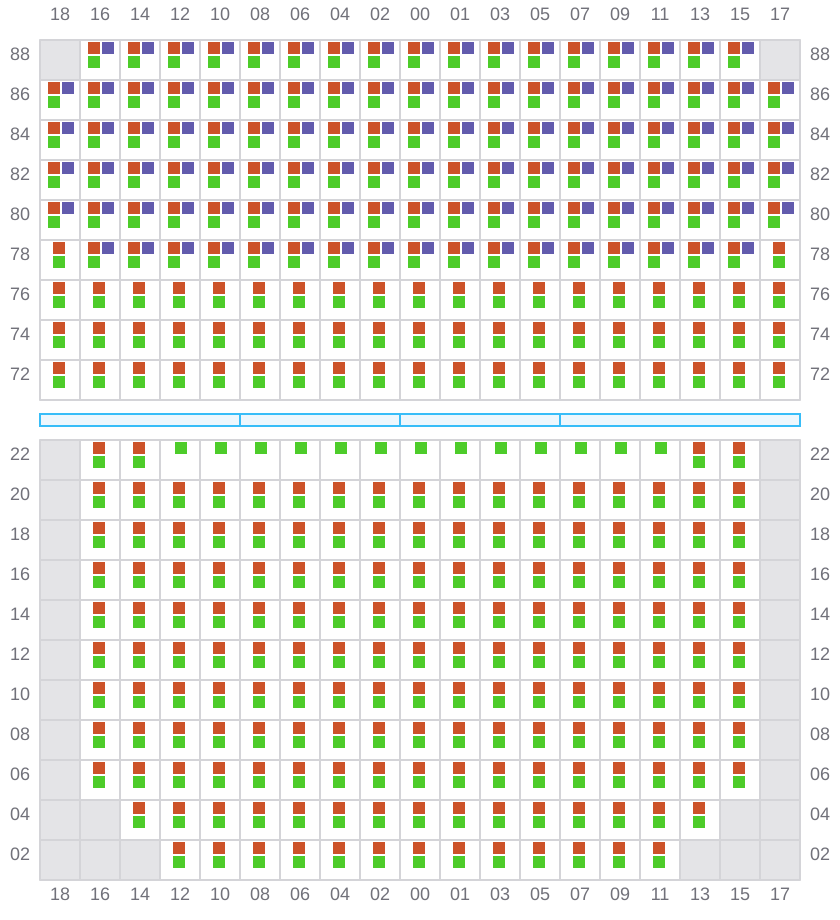

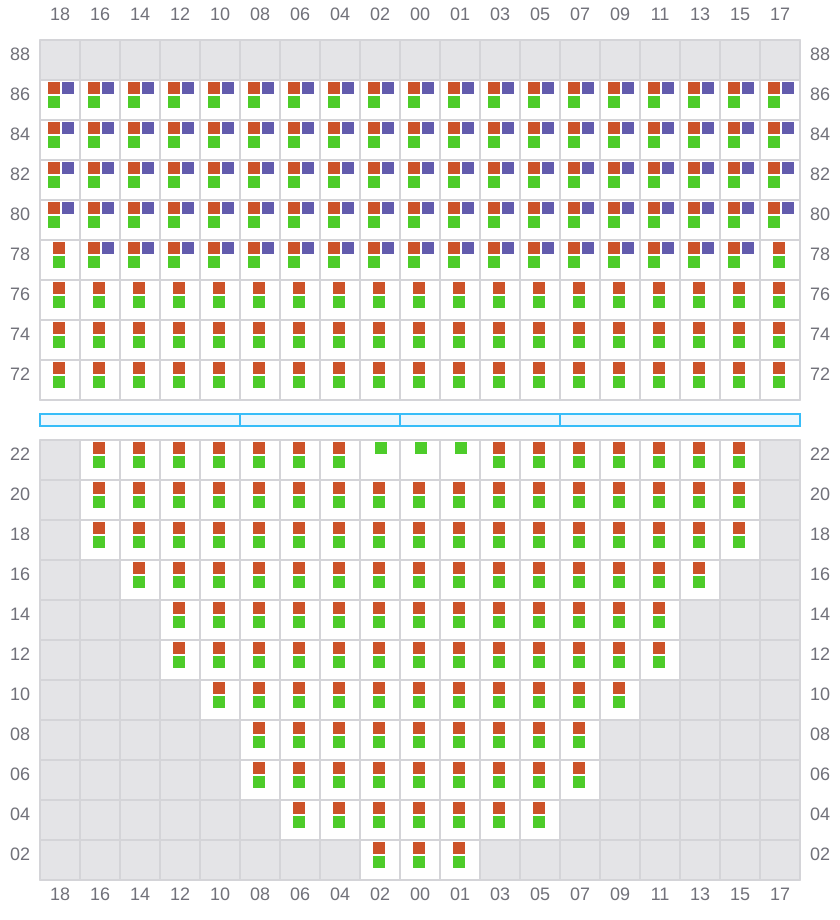

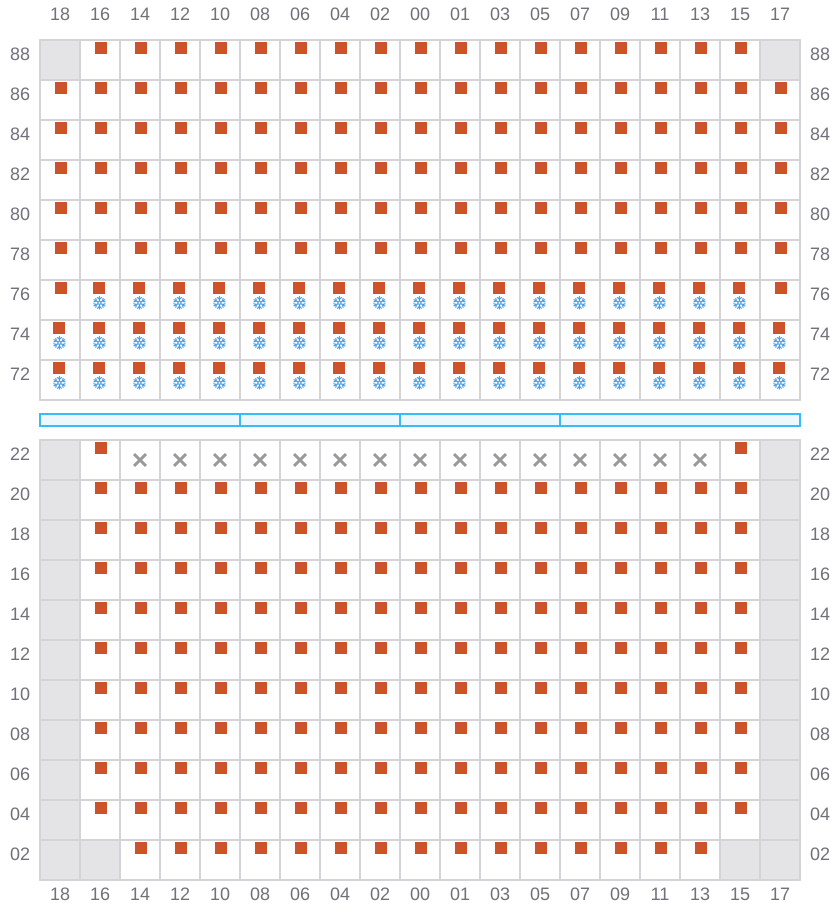

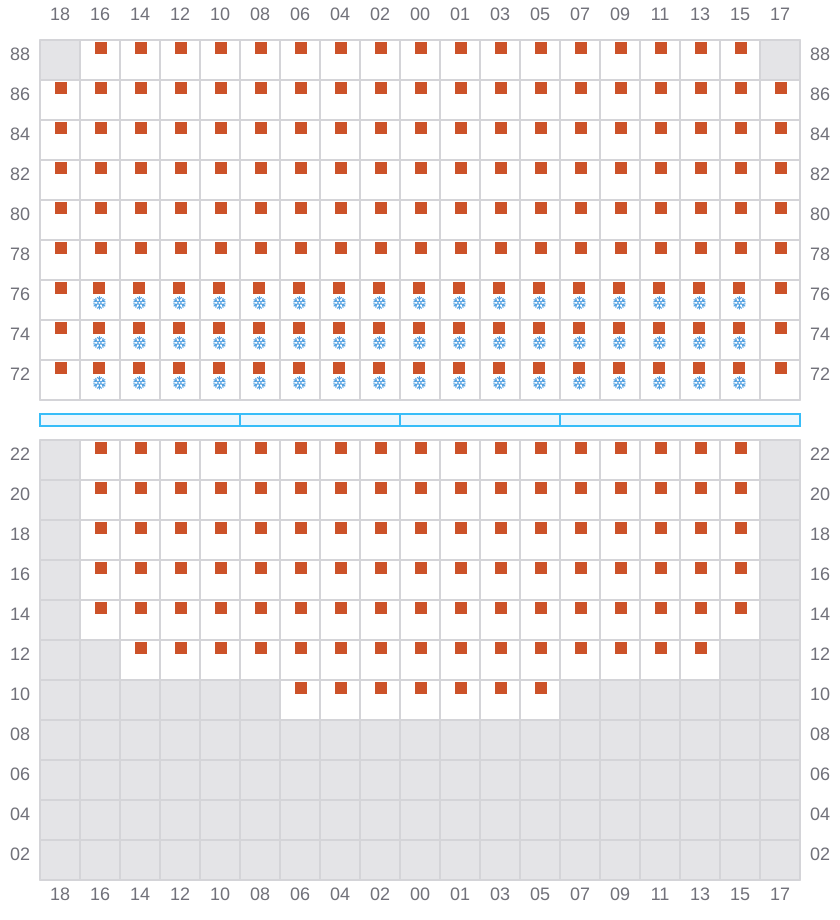

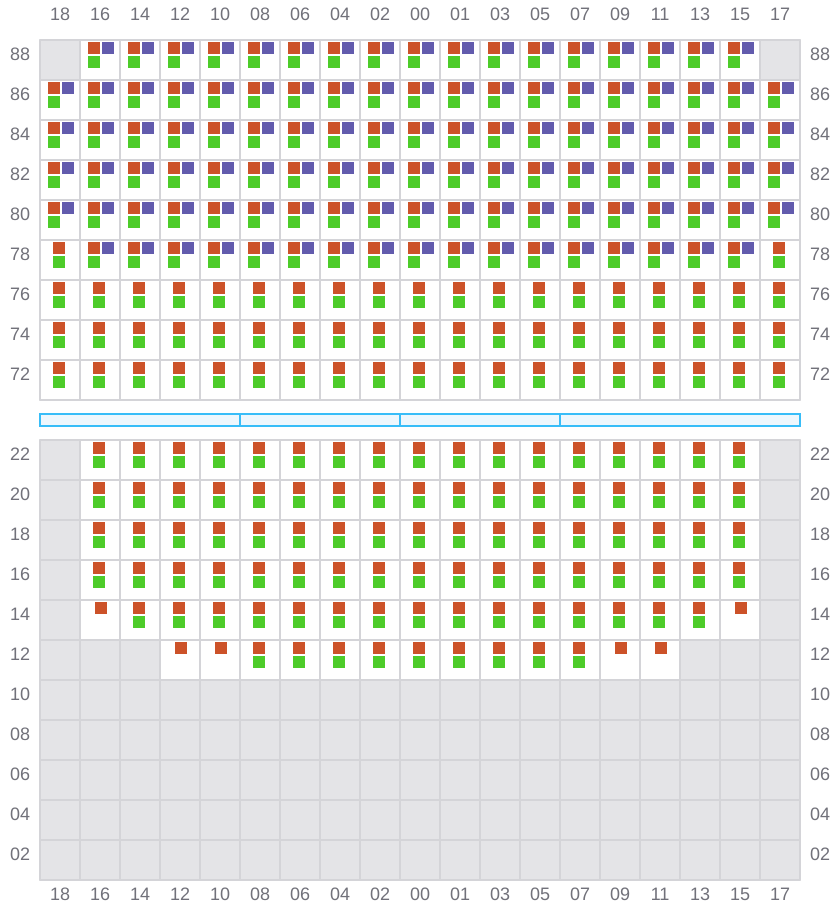

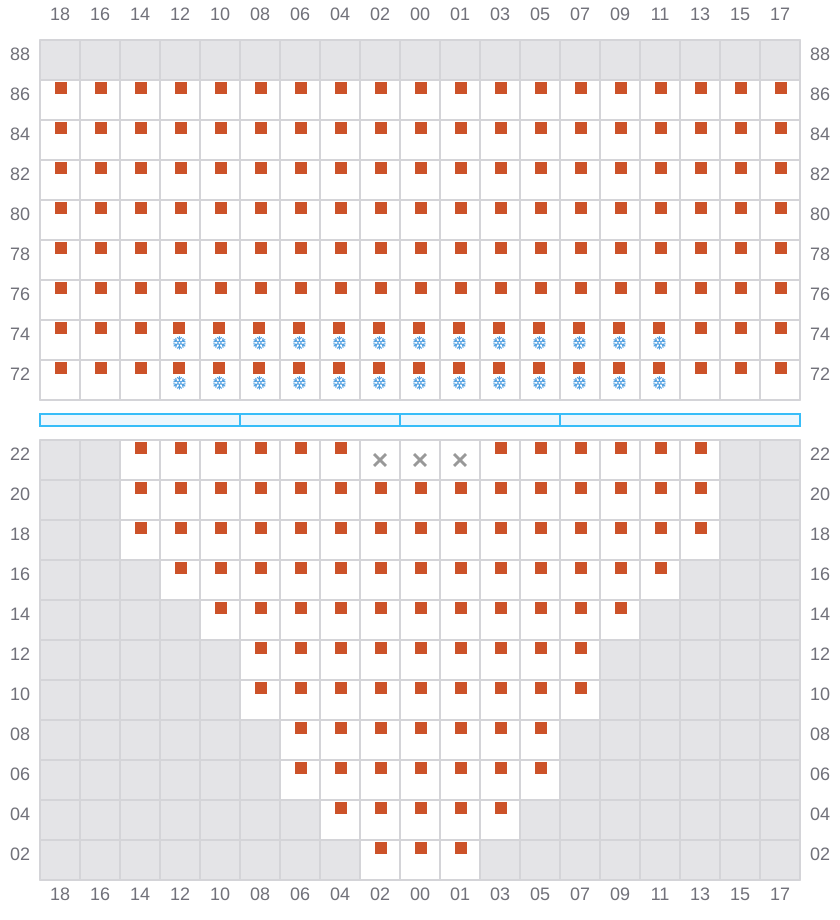

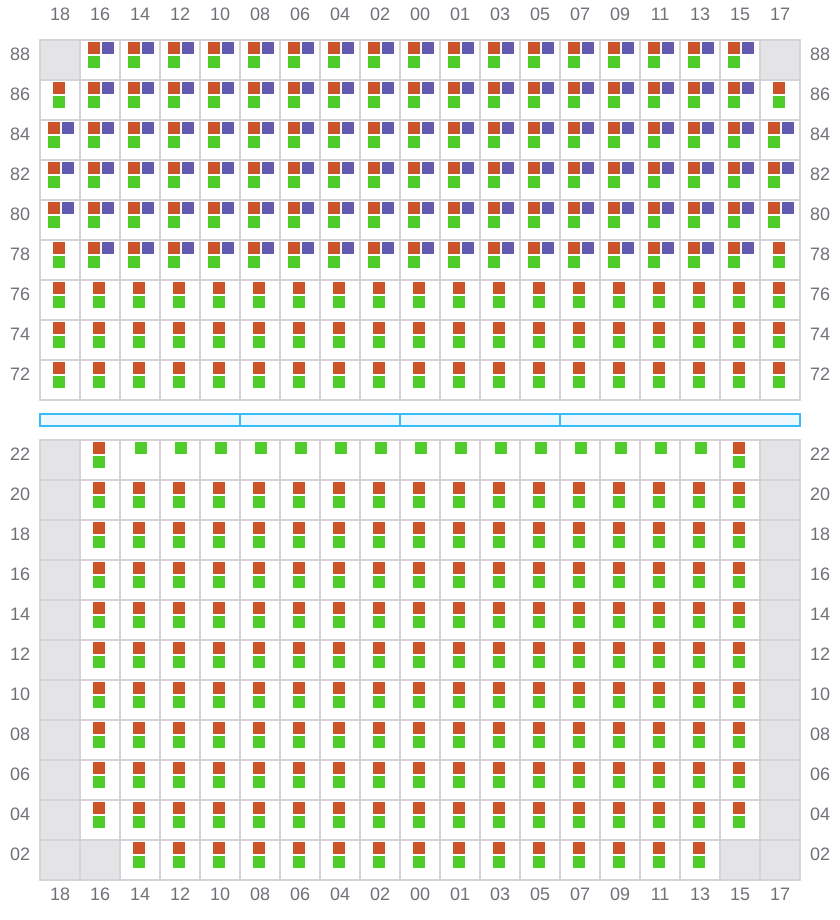

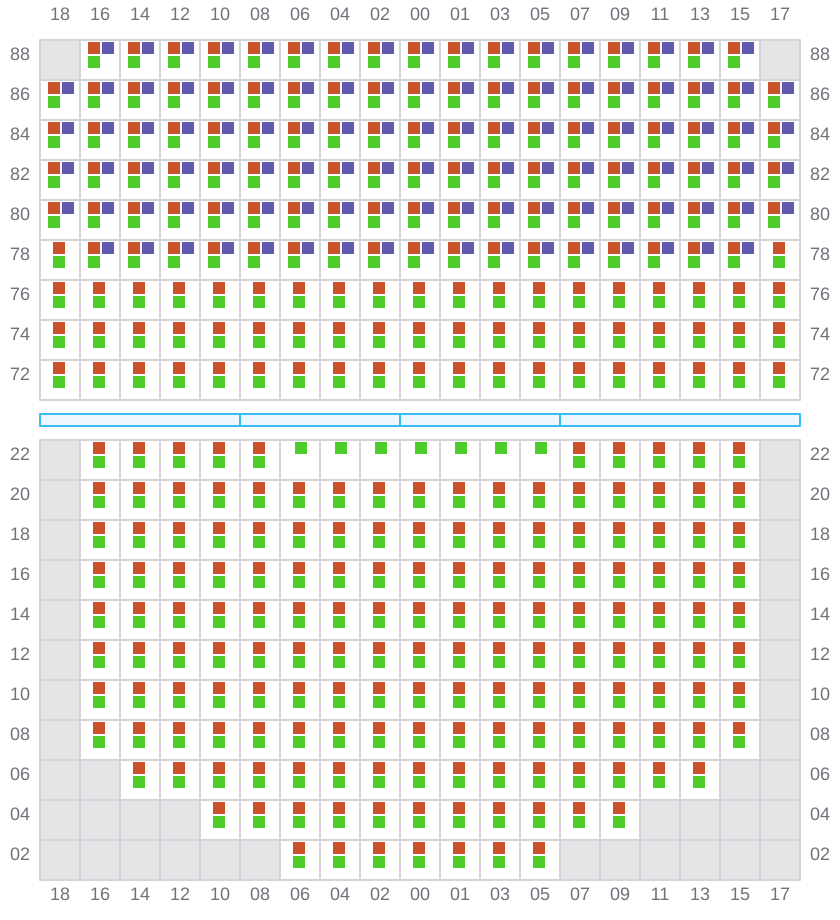

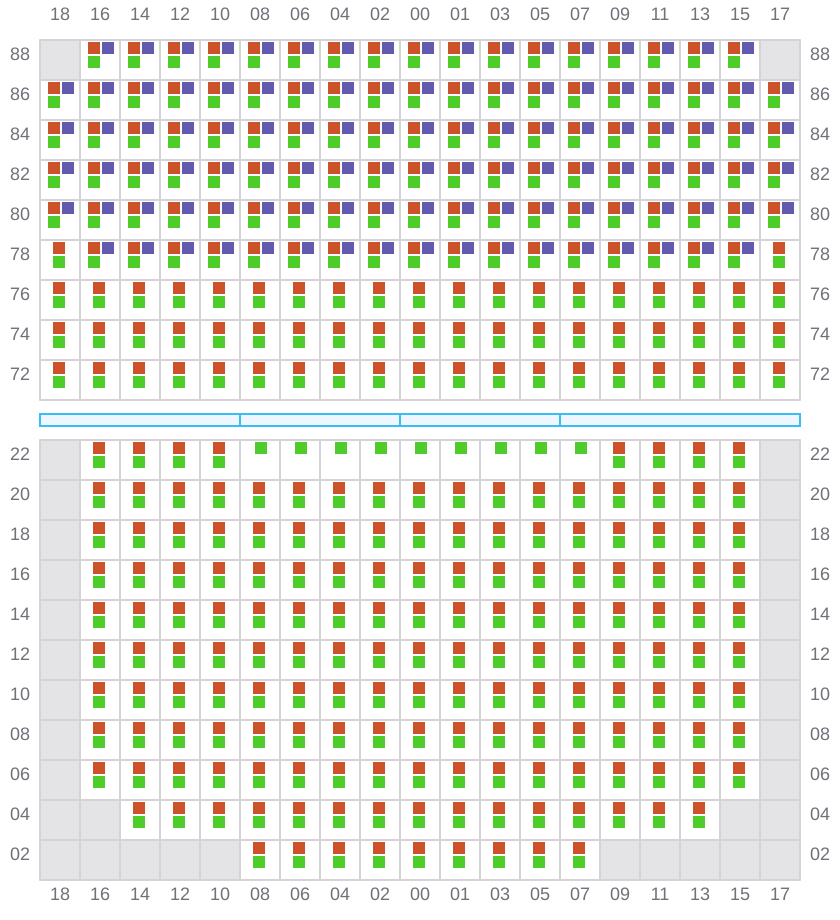

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

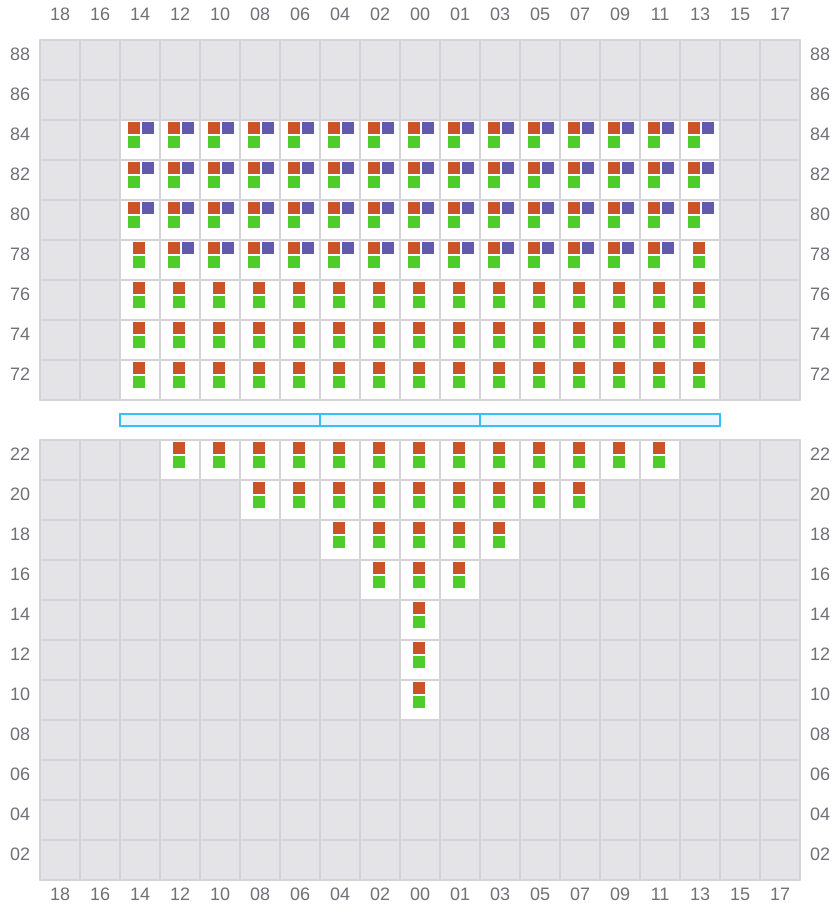

001 (002)
- →
- → / ←

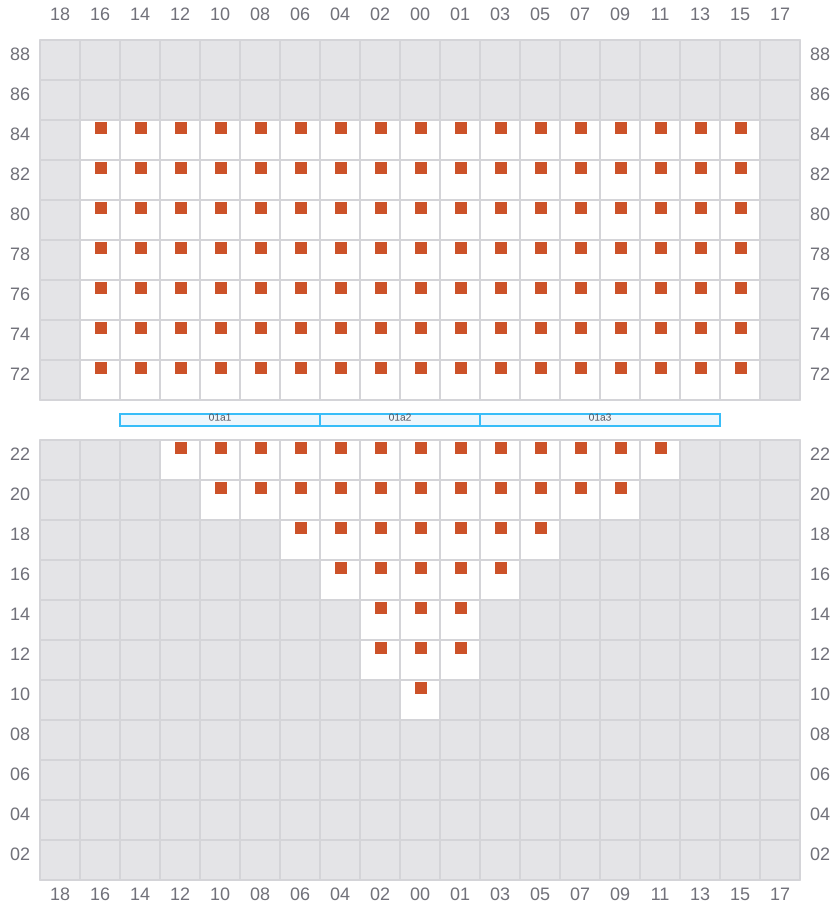

003
- ←
- → / ←

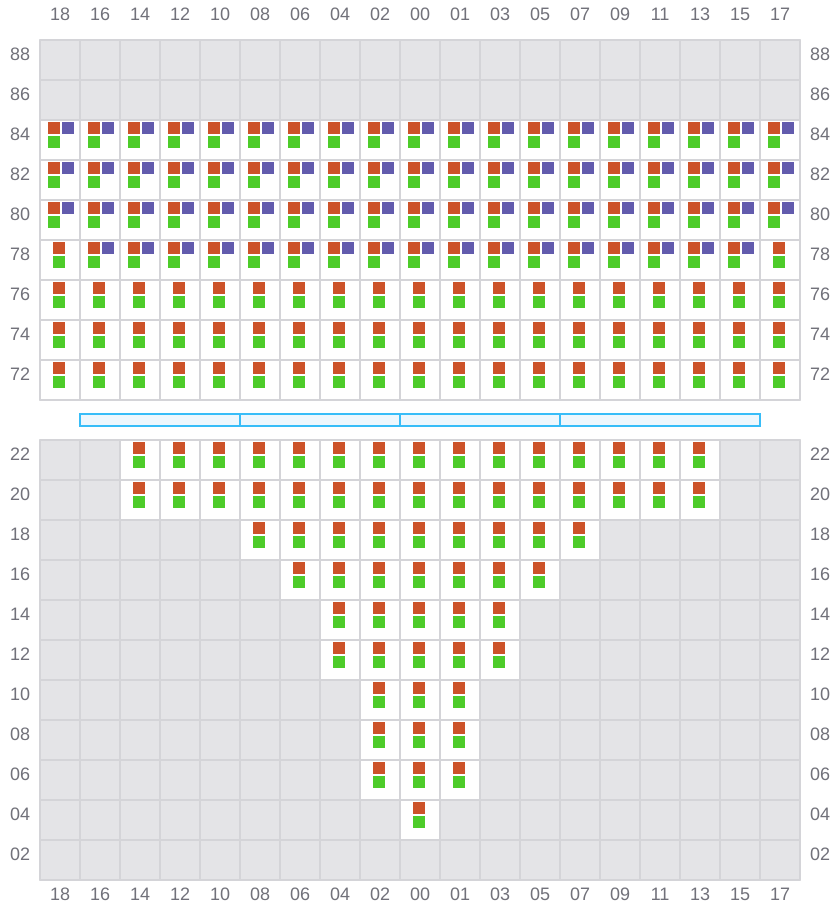

005 (006)
- →
- → / ←

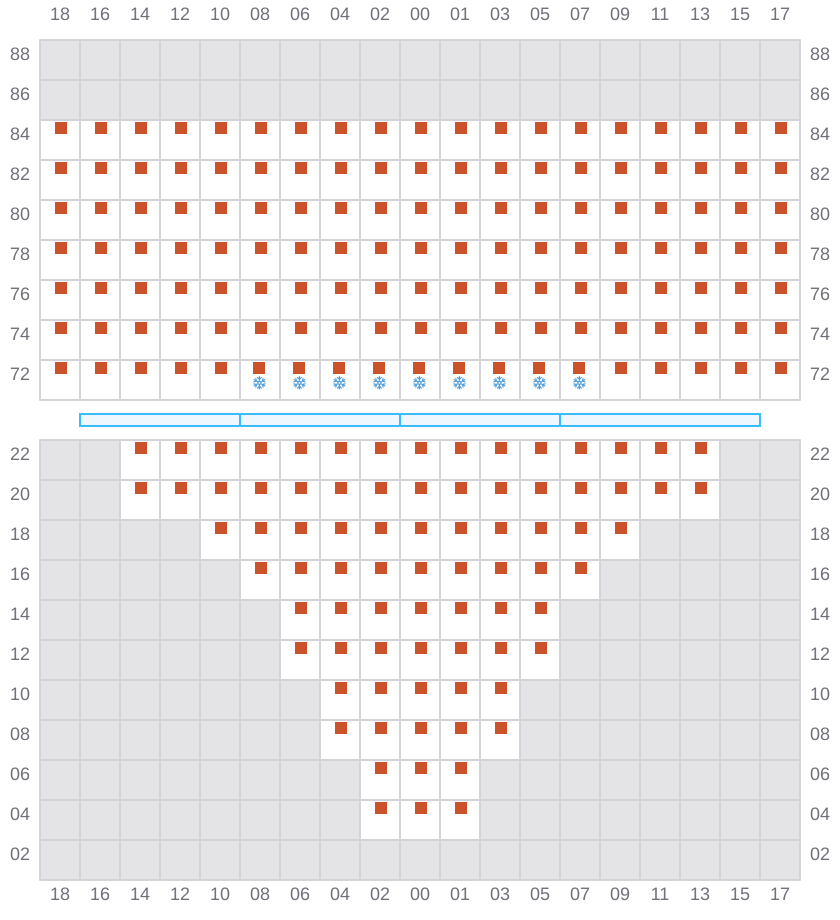

007
- ←
- → / ?
- → / ←
009 (010)
- →
- → / ←

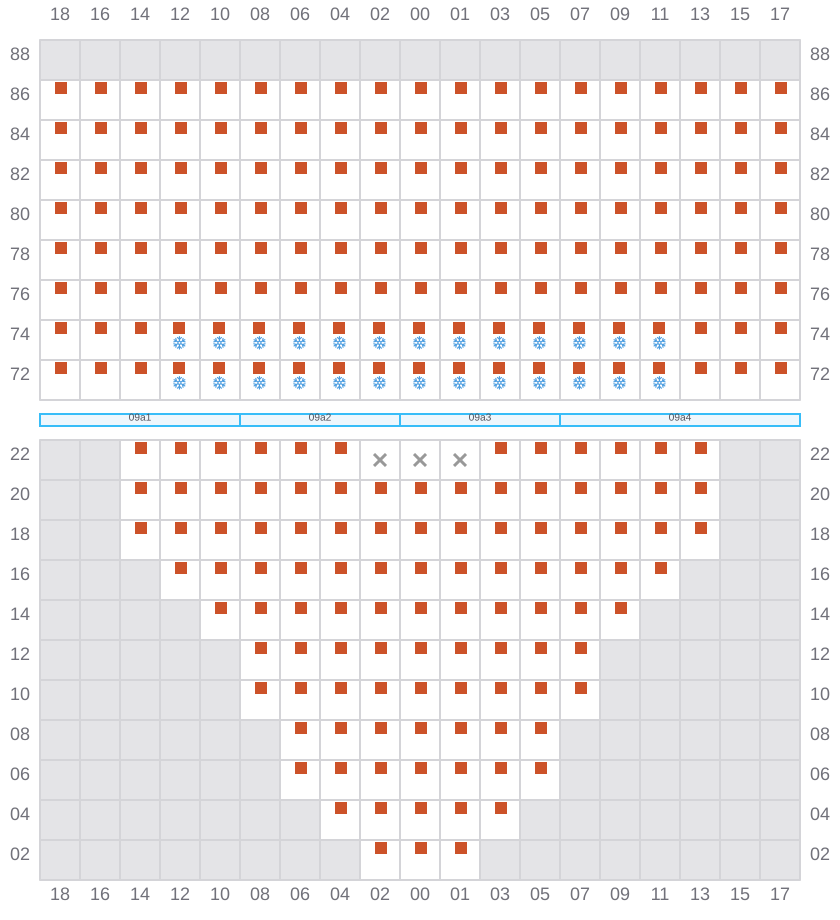

011
- ←
- → / ?
- → / ←
013 (014)
- →
- → / ←
015
- ←
- → / ?
- → / ←

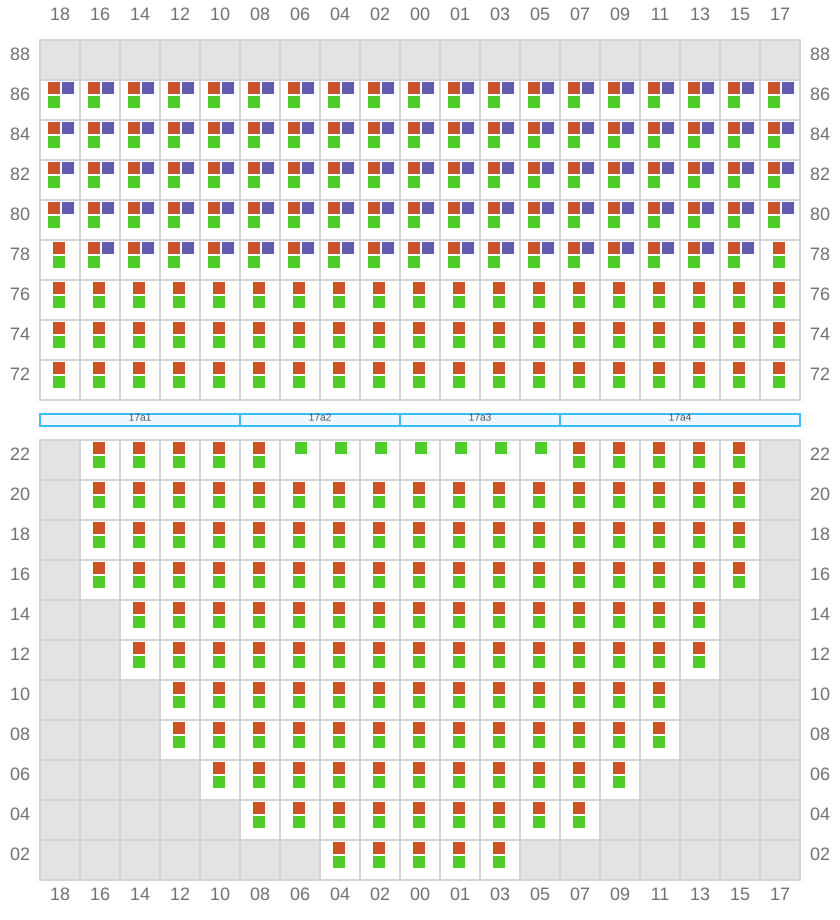

017 (018)
- →
- → / ←

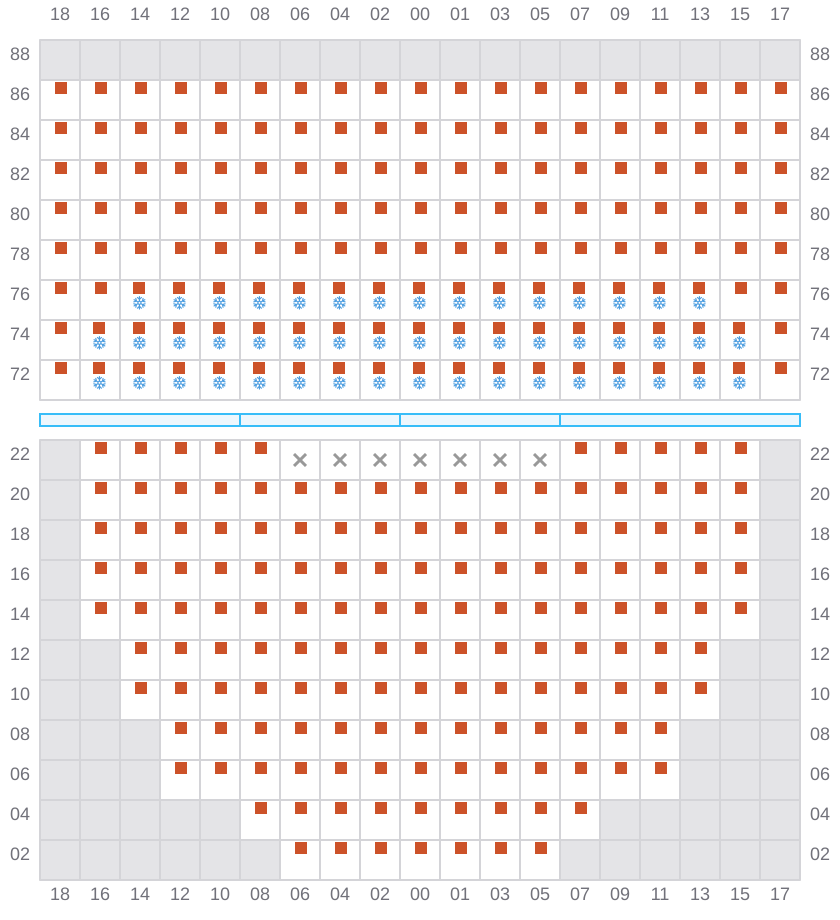

019
- ←
- → / ?
- → / ←

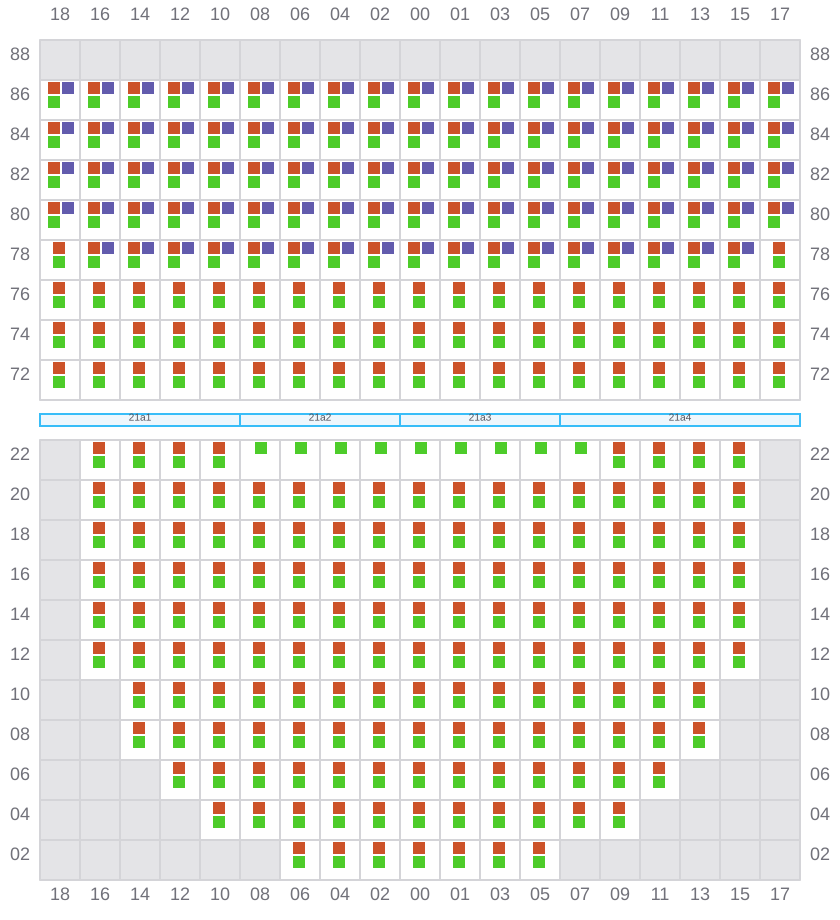

021 (022)
- →
- → / ←

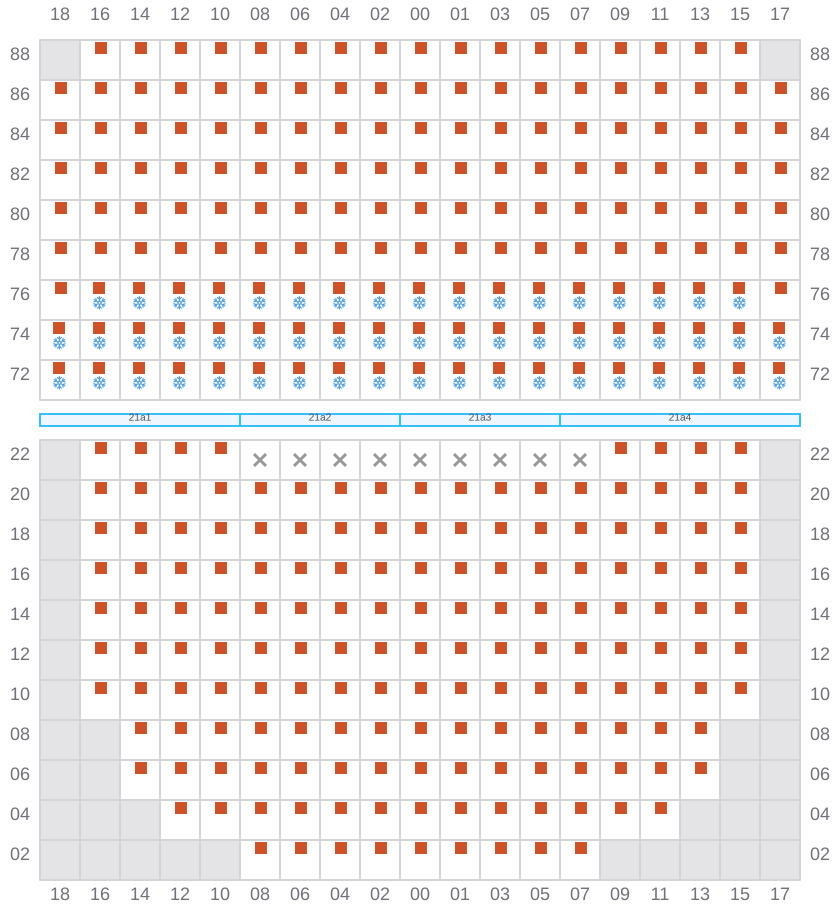

023
- ←
- → / ?
- → / ←

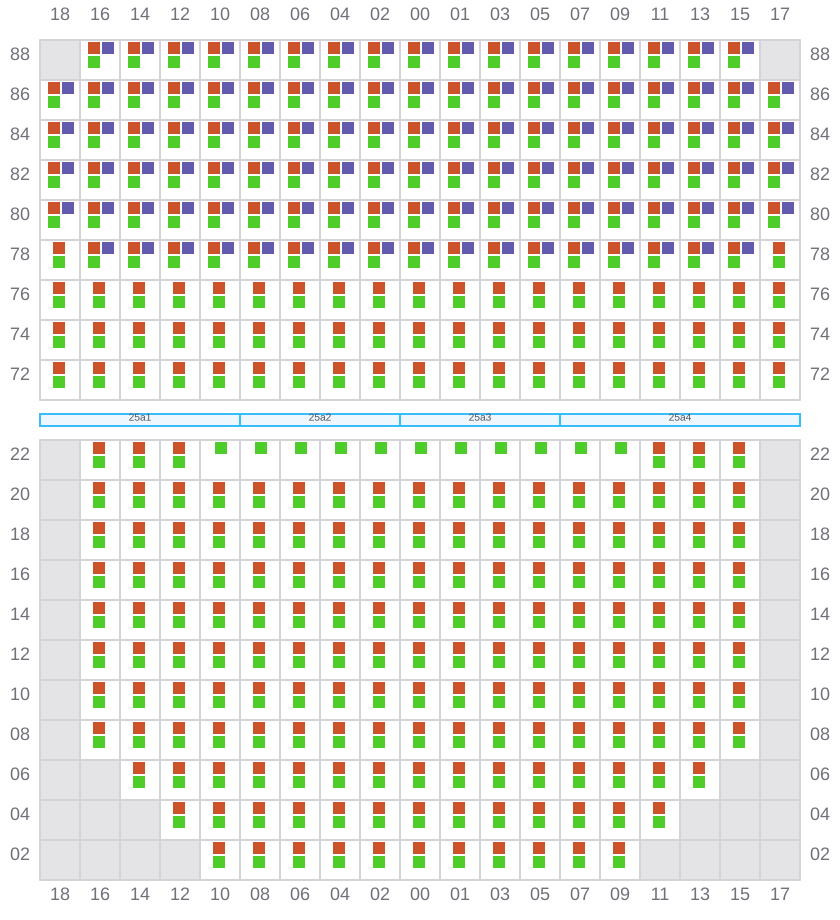

025 (026)
- →
- → / ←
027
- ←
- → / ?
- → / ←

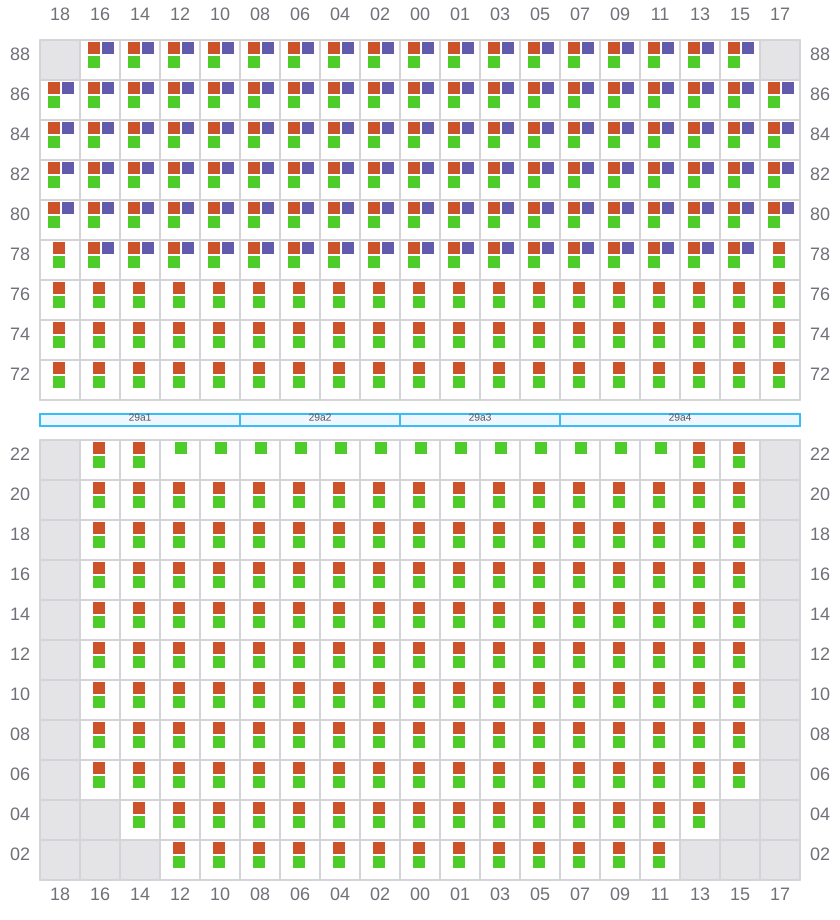

029 (030)
- →
- → / ←
031
- ←
- → / ?
- → / ←

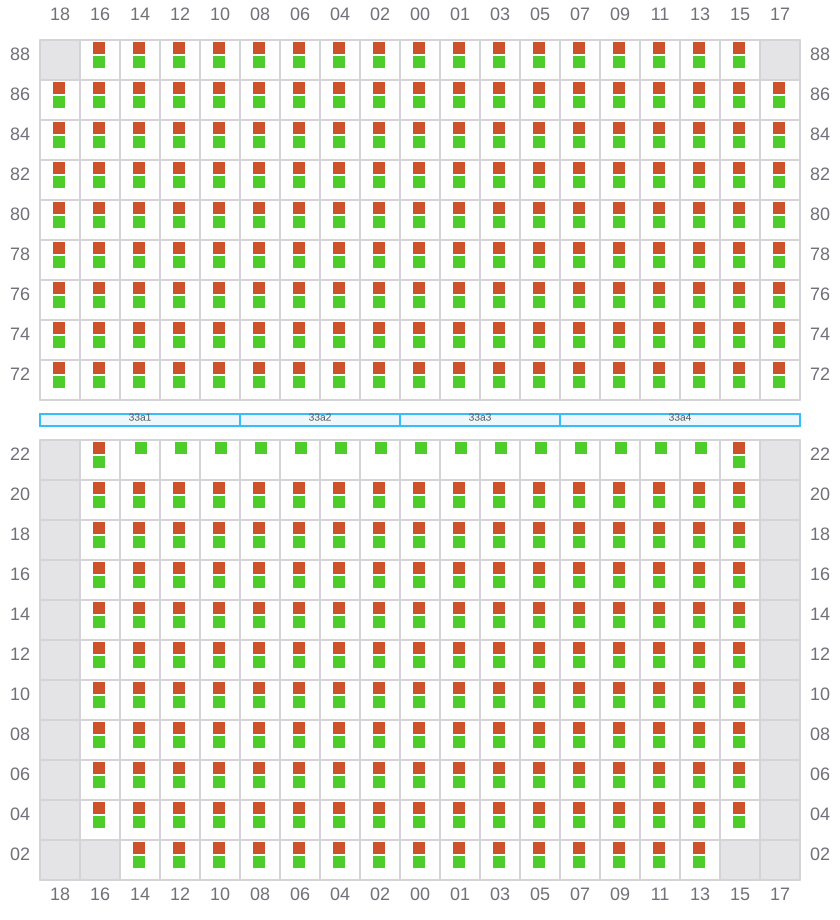

033 (034)
- →
- → / ←

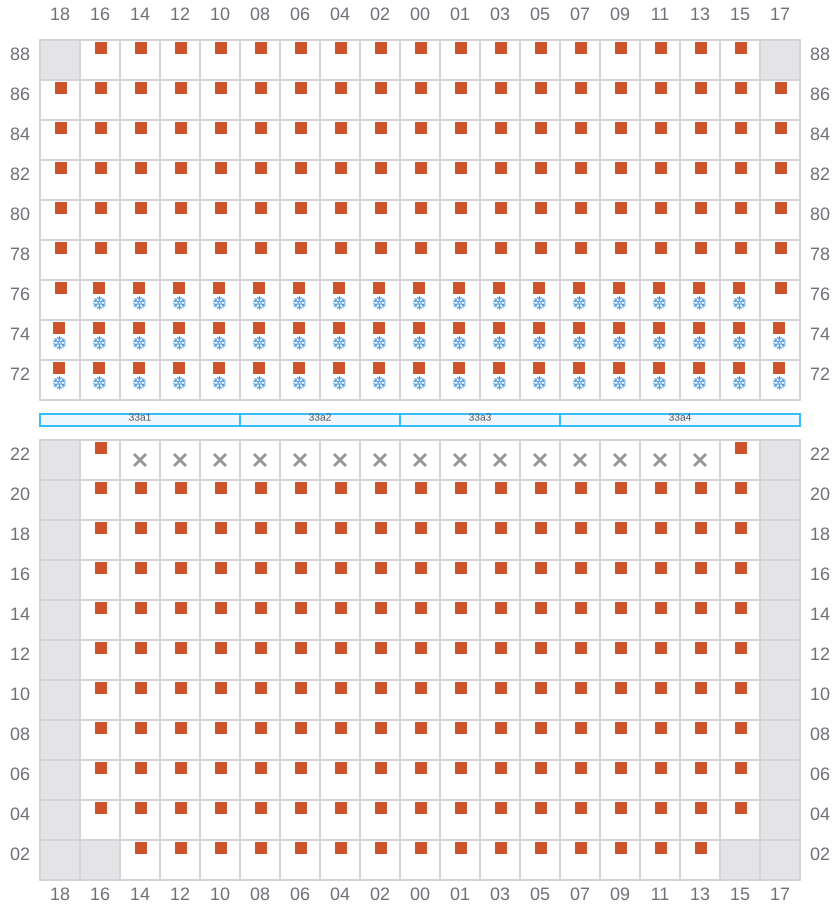

035
- ←
- → / ?
- → / ←
037 (038)
- →
- → / ←
039
- ←
- → / ?
- → / ←

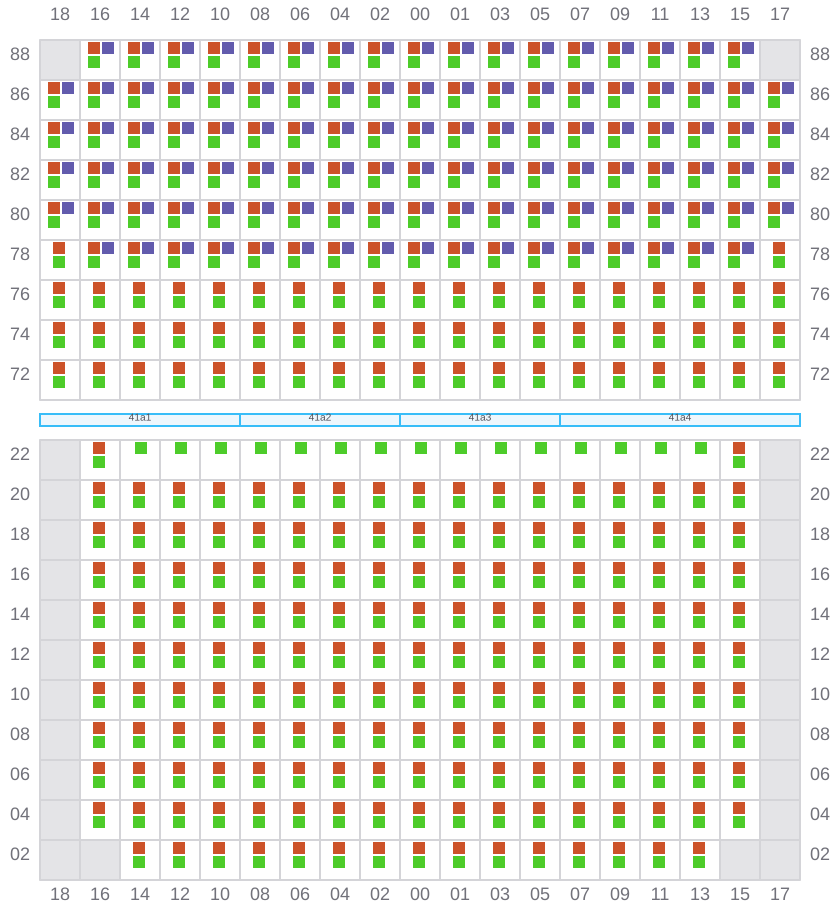

041 (042)
- →
- → / ←

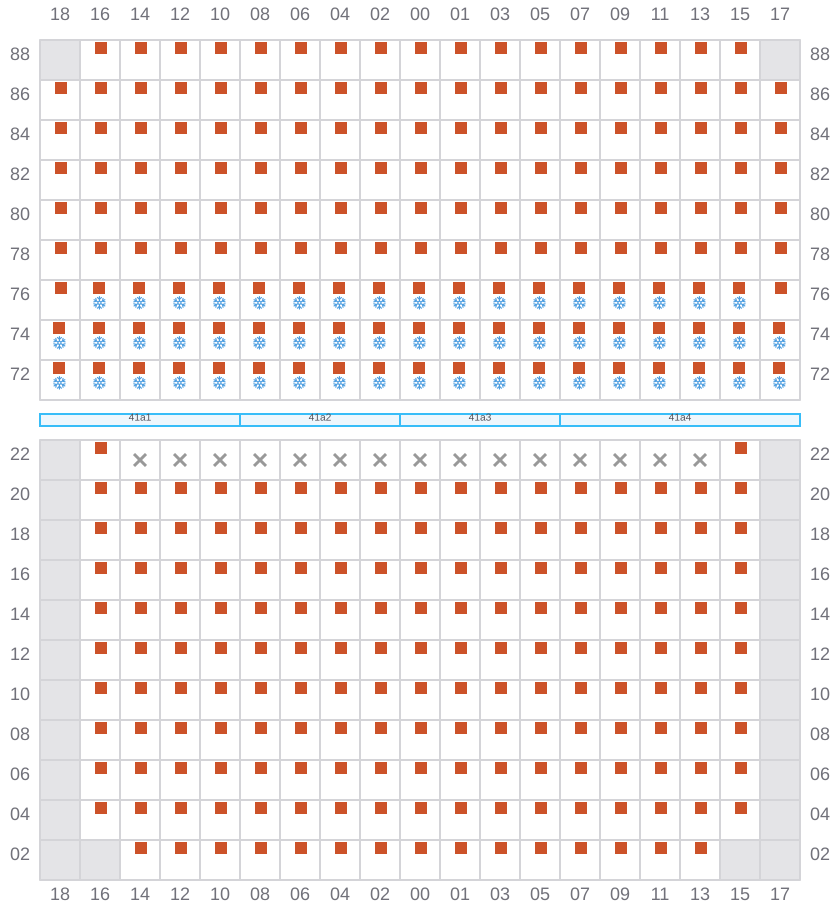

043
- ←
- → / ?
- → / ←
045 (046)
- →
- → / ←
047
- ←
- → / ?
- → / ←

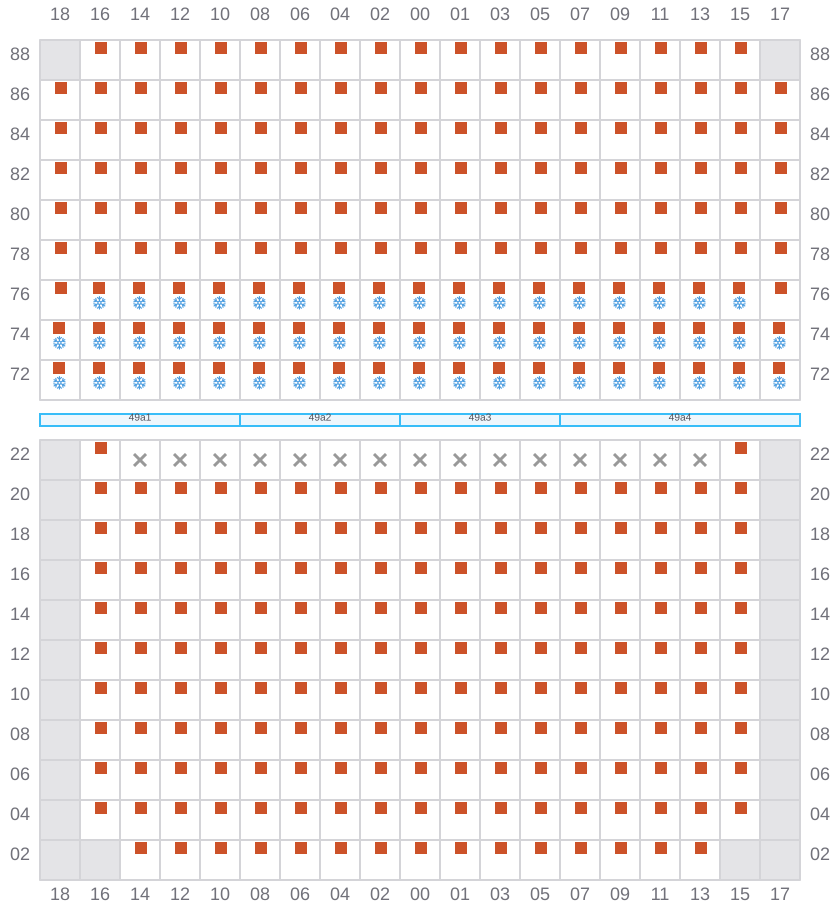

049 (050)
- →
- → / ←
051
- ←
- → / ?
- → / ←

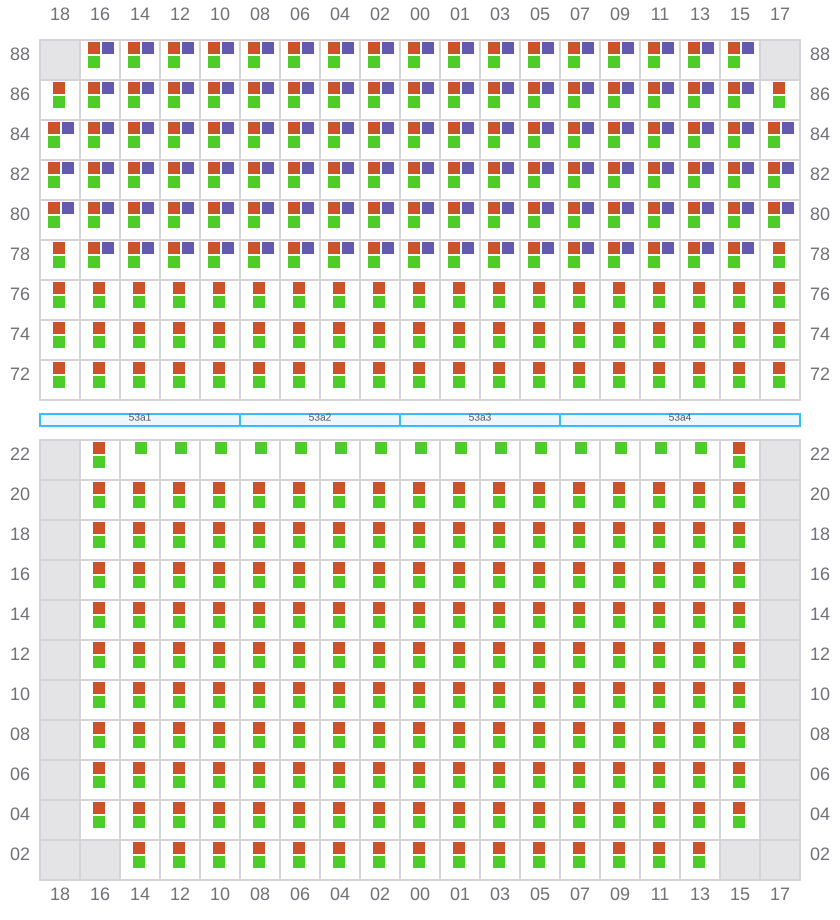

053 (054)
- →
- → / ←

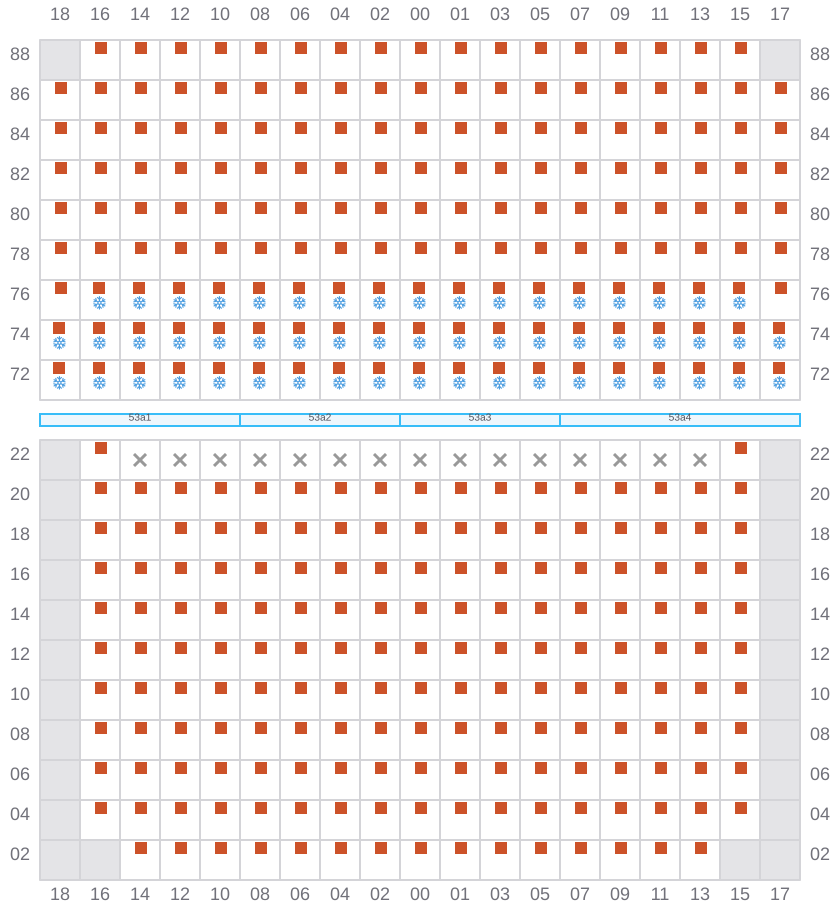

055
- ←
- → / ?
- → / ←
057 (058)
- →
- → / ←
059
- ←
- → / ?
- → / ←

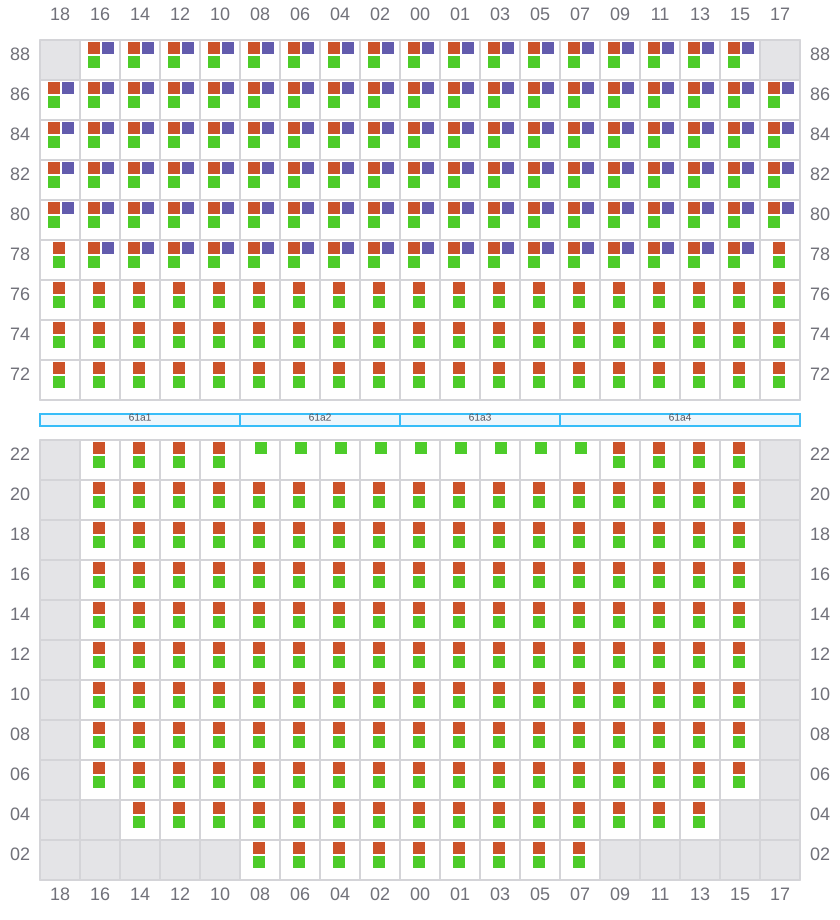

061 (062)
- →
- → / ←
063
- ←
- → / ?
- → / ←
065 (066)
- →
- → / ←
067
- ←
- → / ?
- → / ←

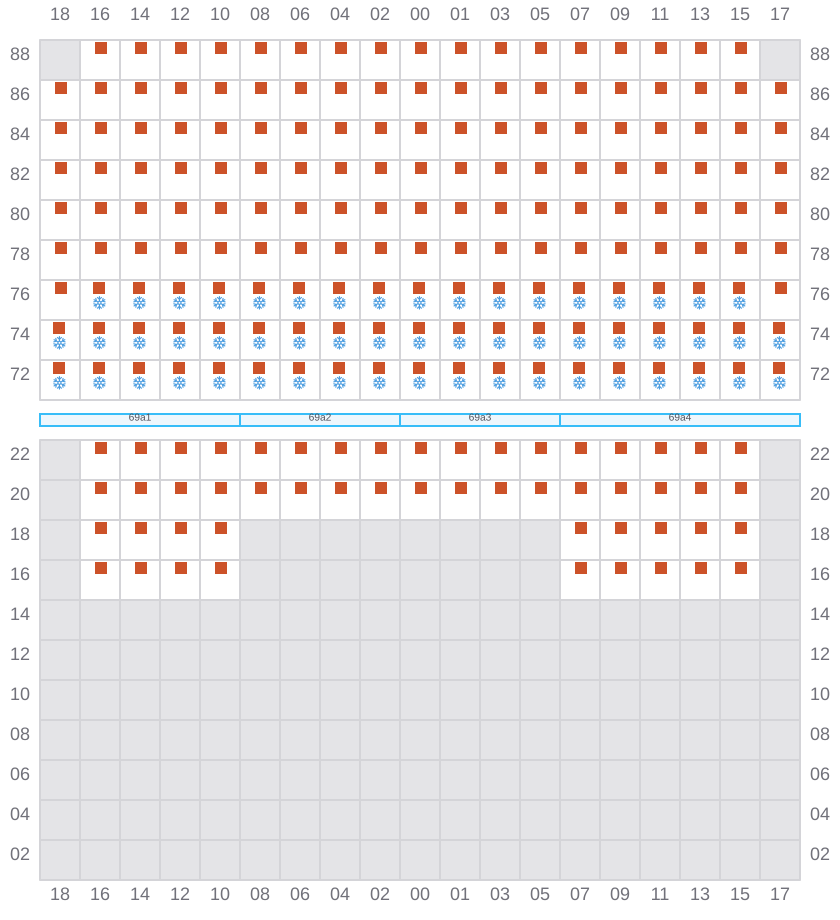

069 (070)
- →
- → / ←
071
- ←
- → / ?
- → / ←
073 (074)
- →
- → / ←
075
- ←
- → / ?
- → / ←
077 (078)
- →
- → / ←

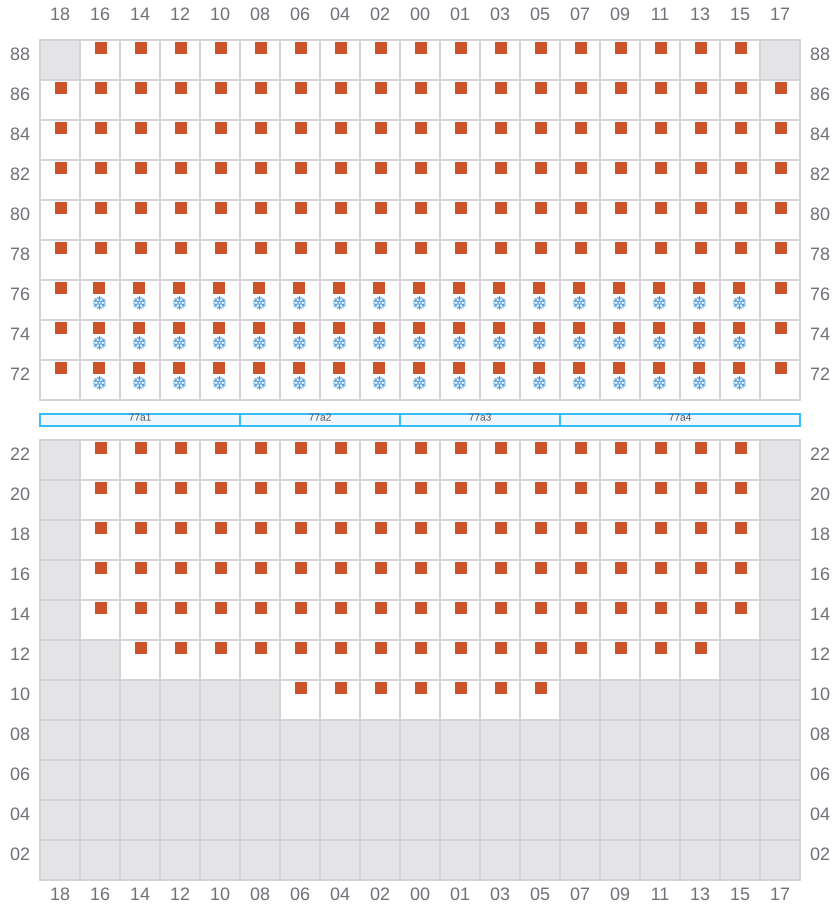

079
- ←
- → / ?
- → / ←

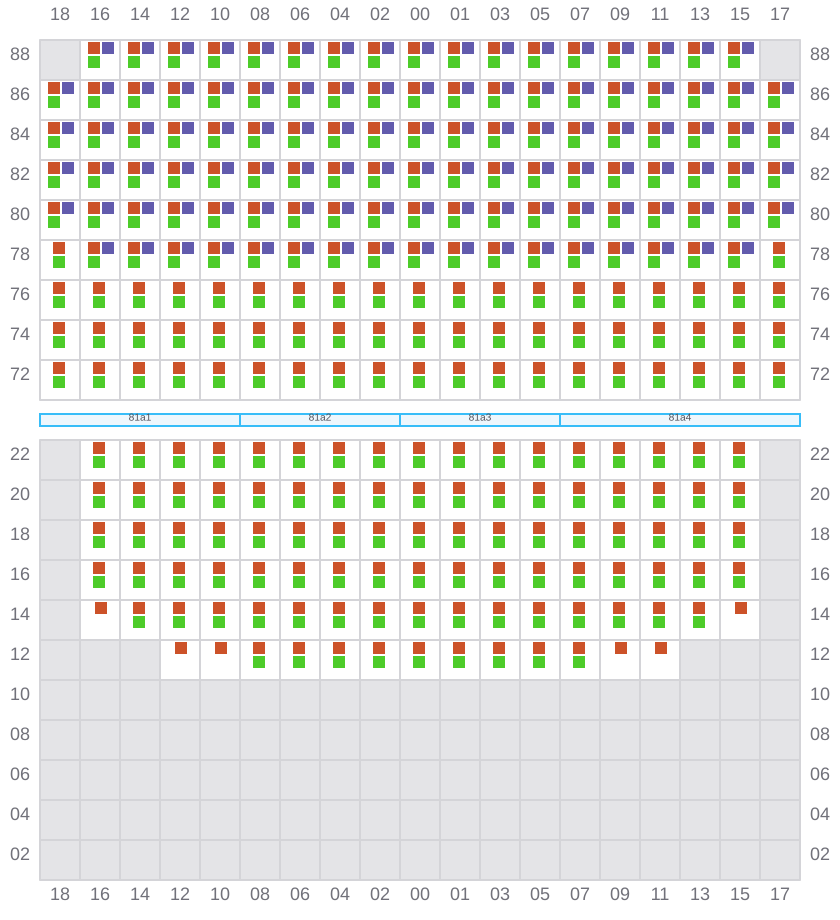

081 (082)
- →
- → / ←
083
- ←
- → / ?
- → / ←
085 (086)
- → / ?
- → / ?
