ESCADA
9255531 | 3E2338 | 9255531 by ********* Last update: Mon Jun 24 2024

General Info

Ship Name:ESCADA
IMO Code:9255531
Call Sign:3E2338
Line Operator:9255531
Class Name for Sister Ships:MCC
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):145.00
LOA (Length Overall):154.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,078

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of ESCADA

Hatch-Covers View

Deck view of ESCADA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

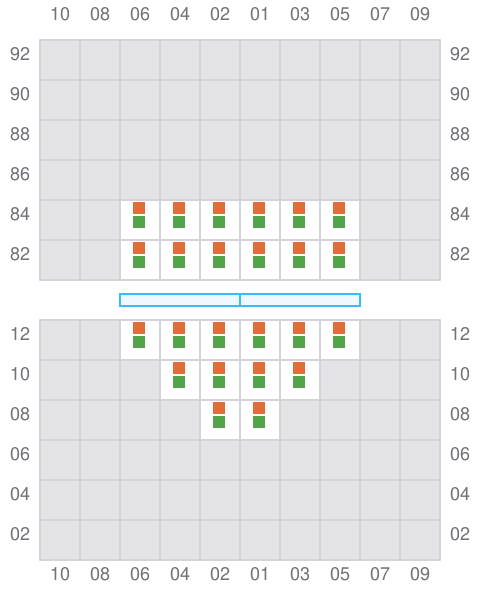

Bay 001 view and slots of ESCADA

003

  • / ?

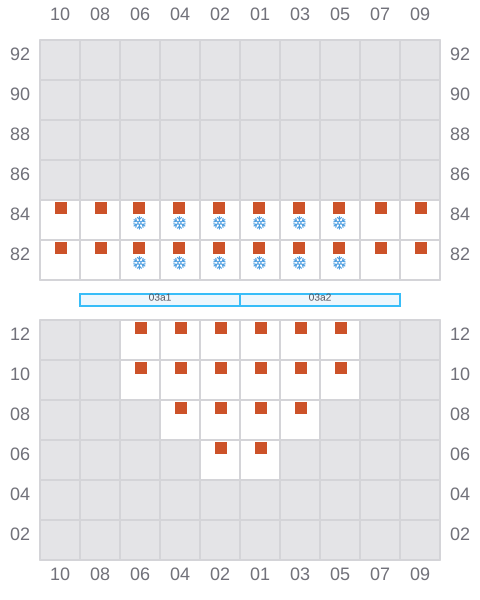

Bay 003 view and slots of ESCADA

005 (006)

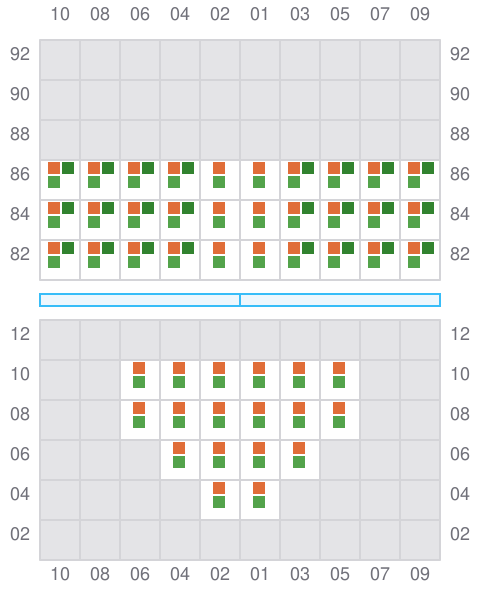

Bay 005 view and slots of ESCADA

007

  • / ?

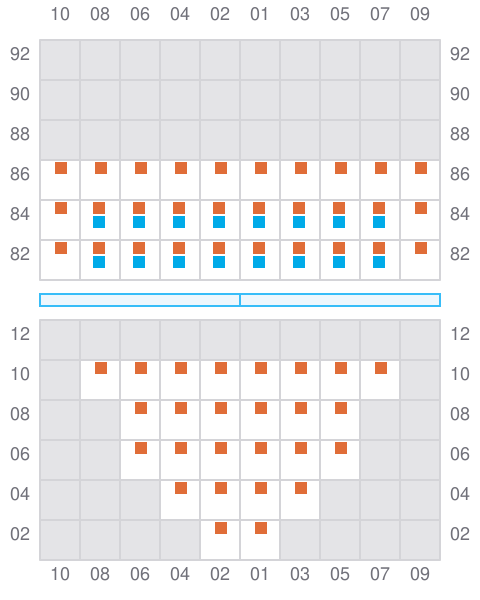

Bay 007 view and slots of ESCADA

009 (010)

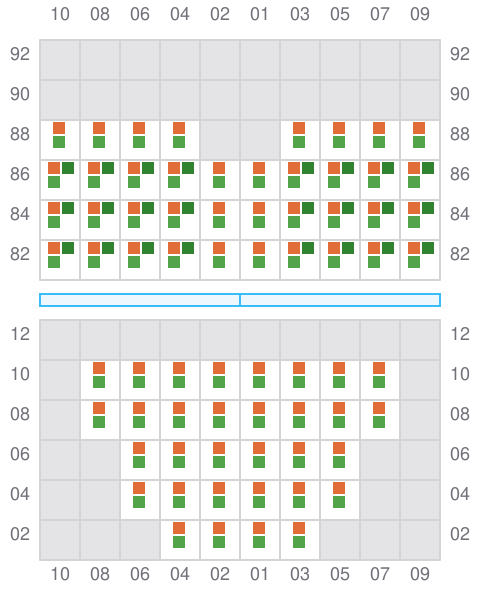

Bay 009 view and slots of ESCADA

011

  • / ?

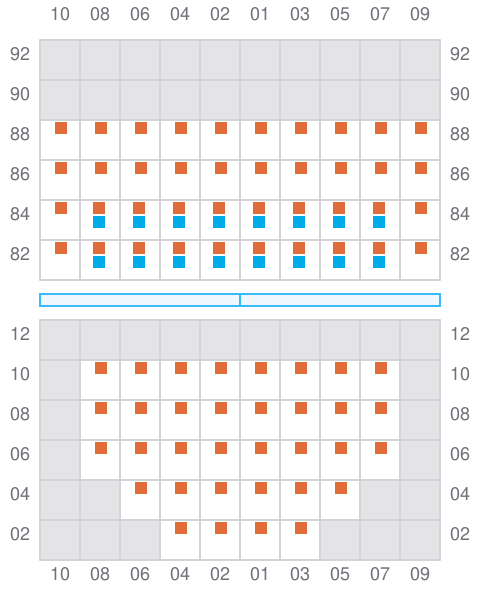

Bay 011 view and slots of ESCADA

013 (014)

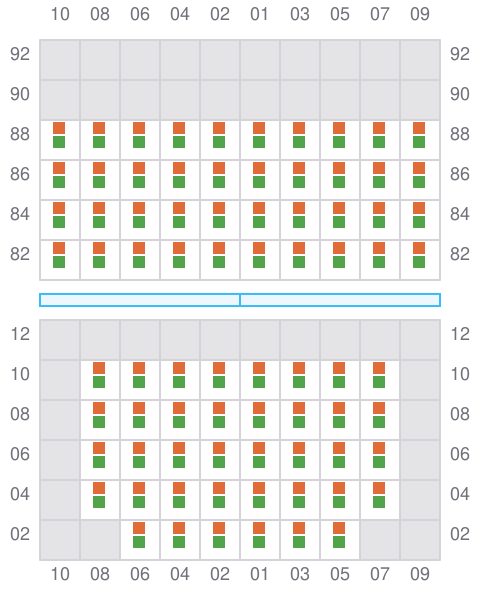

Bay 013 view and slots of ESCADA

015

  • / ?

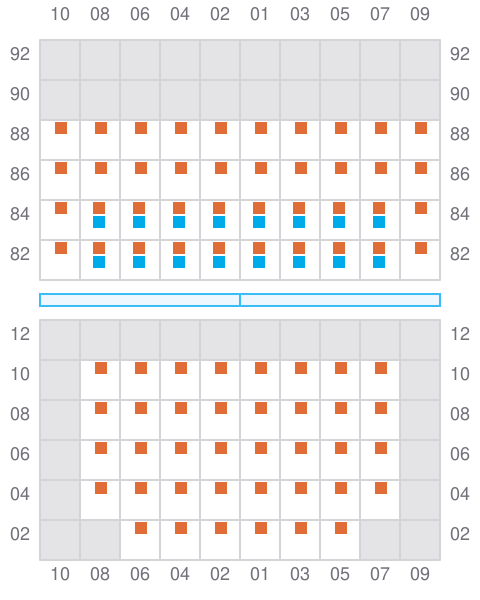

Bay 015 view and slots of ESCADA

017 (018)

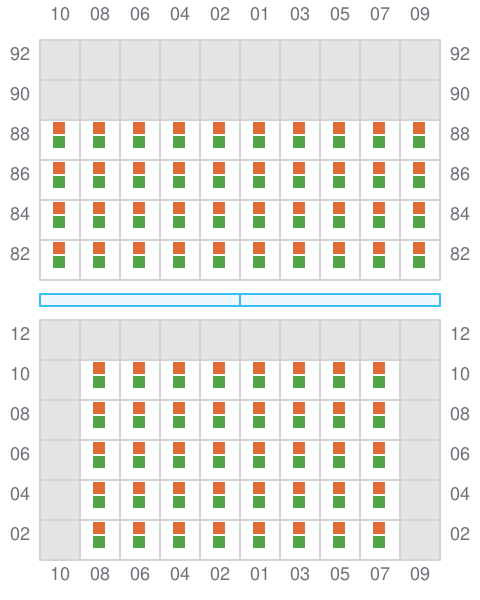

Bay 017 view and slots of ESCADA

019

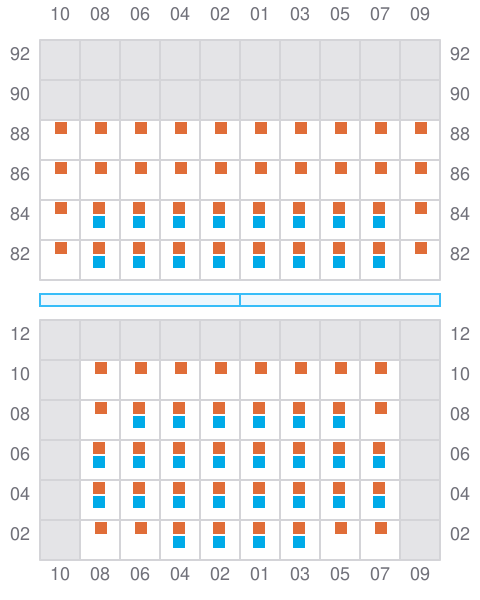

Bay 019 view and slots of ESCADA

021 (022)

  • ? /

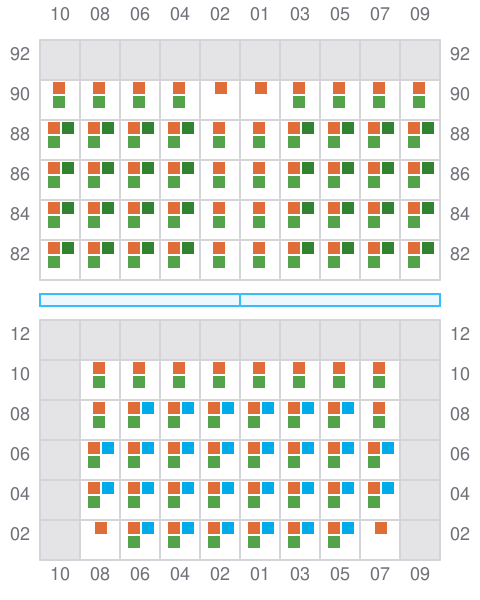

Bay 021 view and slots of ESCADA

023

  • / ?

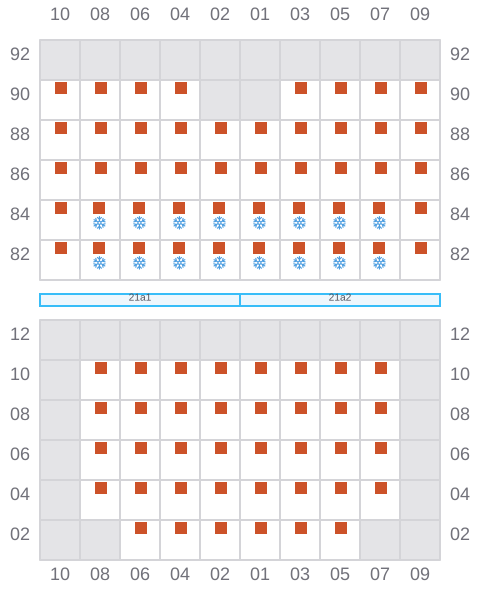

Bay 023 view and slots of ESCADA

025 (026)

Bay 025 view and slots of ESCADA

027

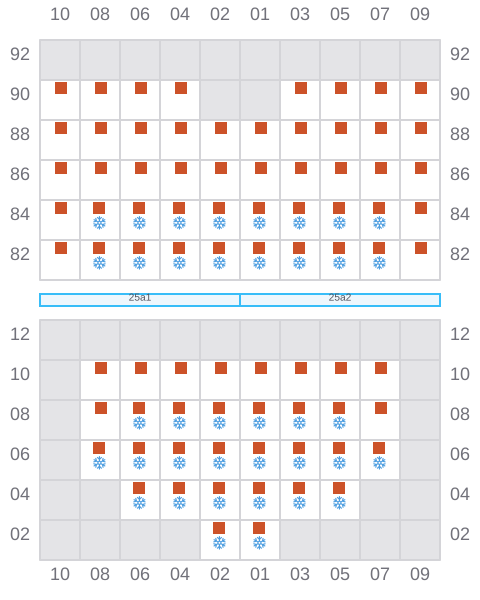

Bay 027 view and slots of ESCADA

029 (030)

Bay 029 view and slots of ESCADA

031

  • / ?

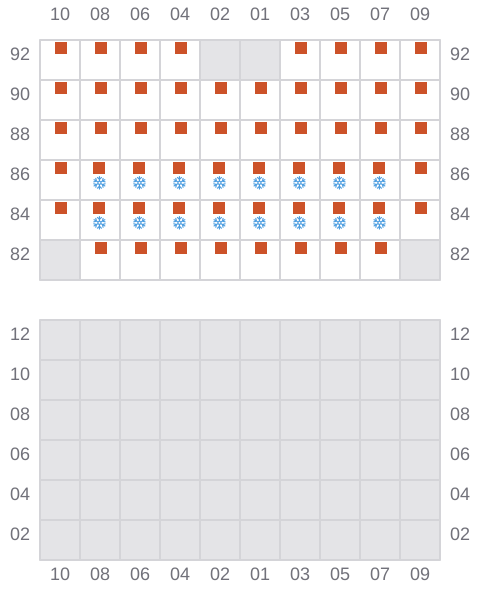

Bay 031 view and slots of ESCADA
