ESEN
9235488 | 3FFK7 | 9235488 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:ESEN
IMO Code:9235488
Call Sign:3FFK7
Line Operator:9235488
Class Name for Sister Ships:1GG
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:562
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

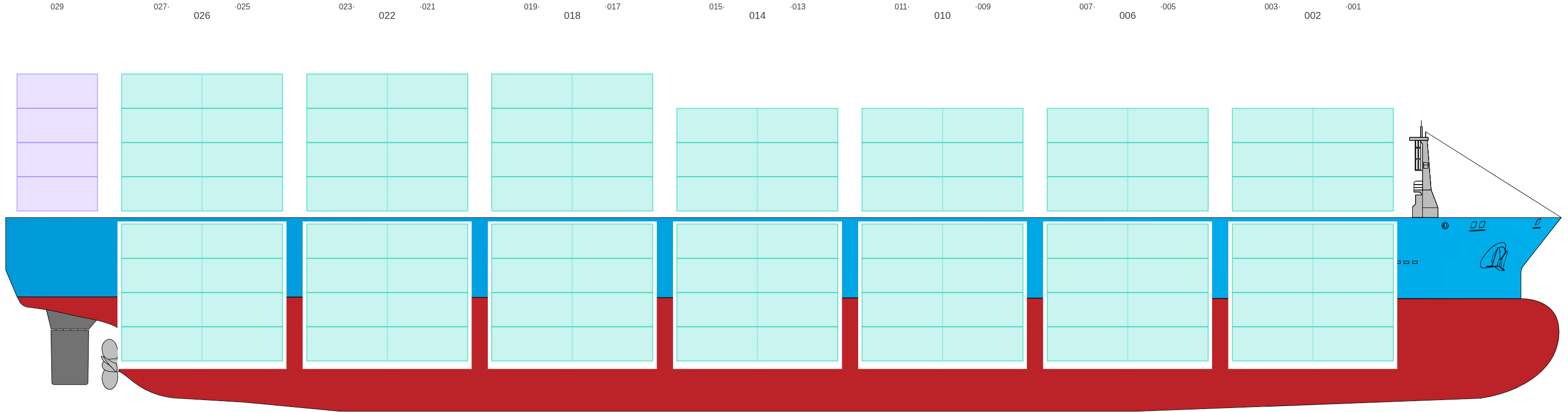

Side View
![Side view of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-sideView.png?v=1710533470842)
Hatch-Covers View
![Deck view of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-deckView.png?v=1710533470842)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

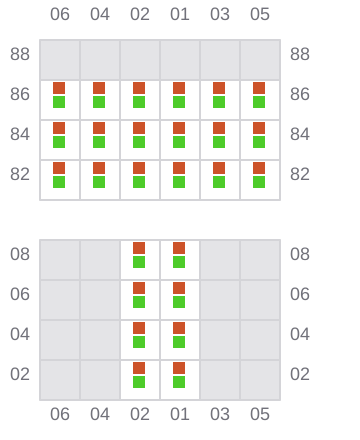

001 (002)
- →
![Bay 001 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b001.png?v=1710533470842)

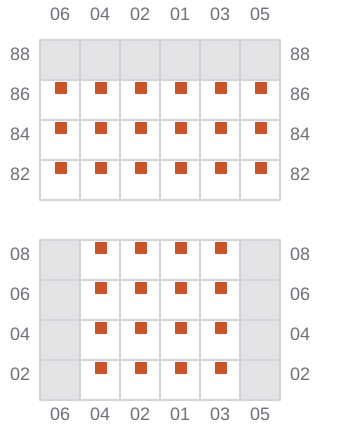

003
- ←
![Bay 003 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b003.png?v=1710533470842)

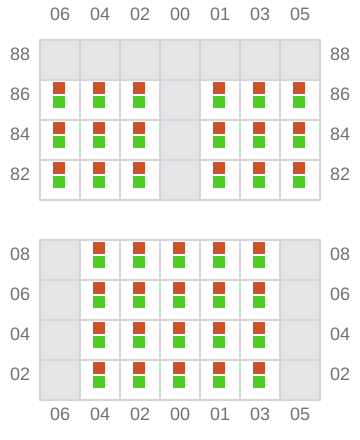

005 (006)
- →
![Bay 005 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b005.png?v=1710533470842)

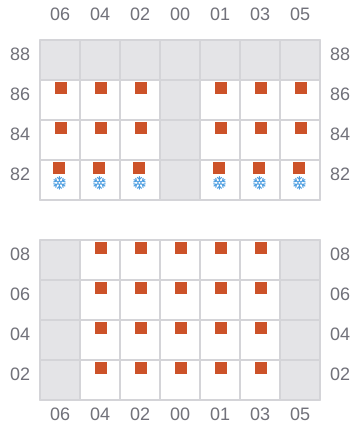

007
- ←
- → / ?
![Bay 007 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b007.png?v=1710533470842)

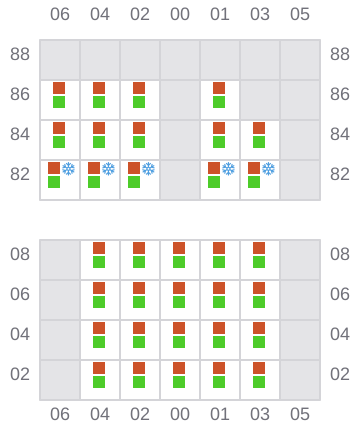

009 (010)
- →
- ← / ?
![Bay 009 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b009.png?v=1710533470842)

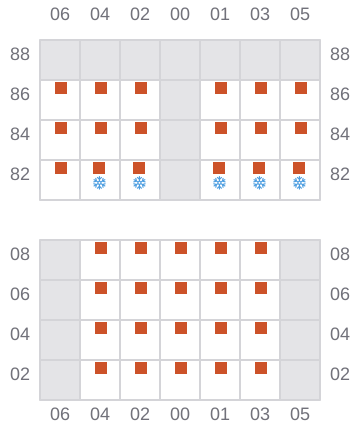

011
- ←
- → / ?
![Bay 011 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b011.png?v=1710533470842)

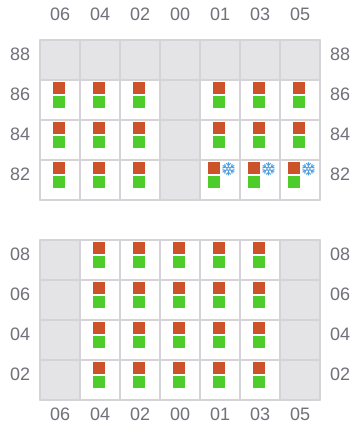

013 (014)
- →
- ← / ?
![Bay 013 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b013.png?v=1710533470842)
015
- ←
- → / ?
![Bay 015 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b015.png?v=1710533470842)

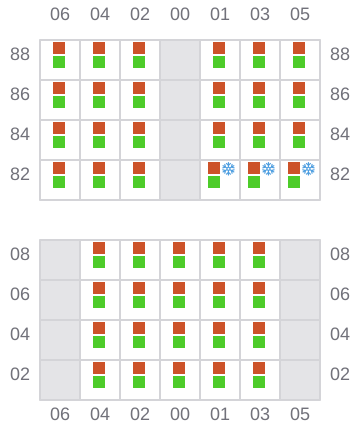

017 (018)
- →
- ← / ?
![Bay 017 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b017.png?v=1710533470842)

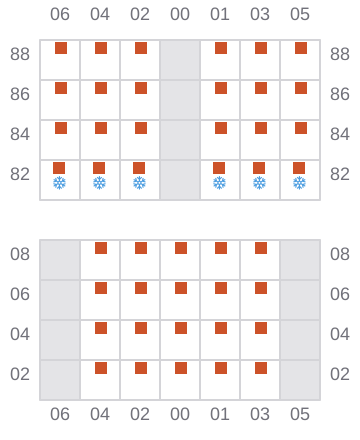

019
- ←
- → / ?
![Bay 019 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b019.png?v=1710533470842)

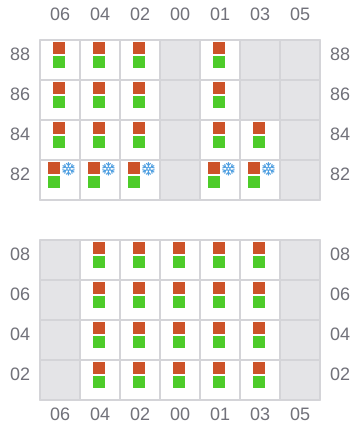

021 (022)
- →
- ← / ?
![Bay 021 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b021.png?v=1710533470842)

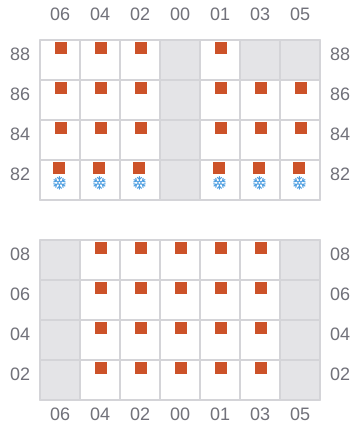

023
- ←
- → / ?
![Bay 023 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b023.png?v=1710533470842)

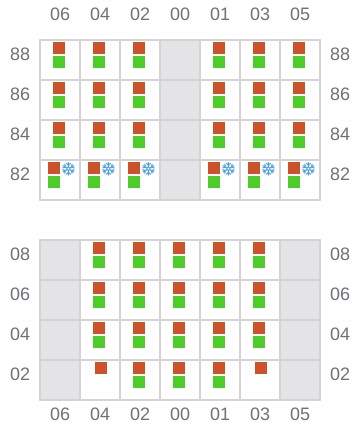

025 (026)
- →
- ← / ?
![Bay 025 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b025.png?v=1710533470842)

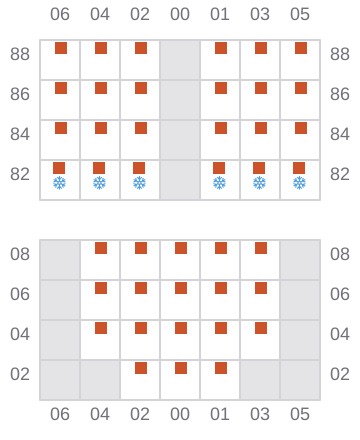

027
- ←
- → / ?
![Bay 027 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b027.png?v=1710533470842)

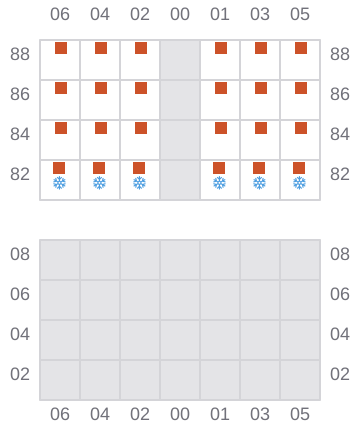

029
- → / ?
![Bay 029 view and slots of ESEN](/vessel-images/21441954-55d2-4215-8b07-2d64f314c703-b029.png?v=1710533470842)
