ESL DANA
9306287 | A8KY7 | MSC by ************************** Last update: Mon Jun 19 2023

General Info

Ship Name:ESL DANA

IMO Code:9306287

Call Sign:A8KY7

Line Operator:MSC

Class Name for Sister Ships:PLC

Year Built:2007

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:

Also Known As (old names):-

Size Summary

ISO Bays:071

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:6,541

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

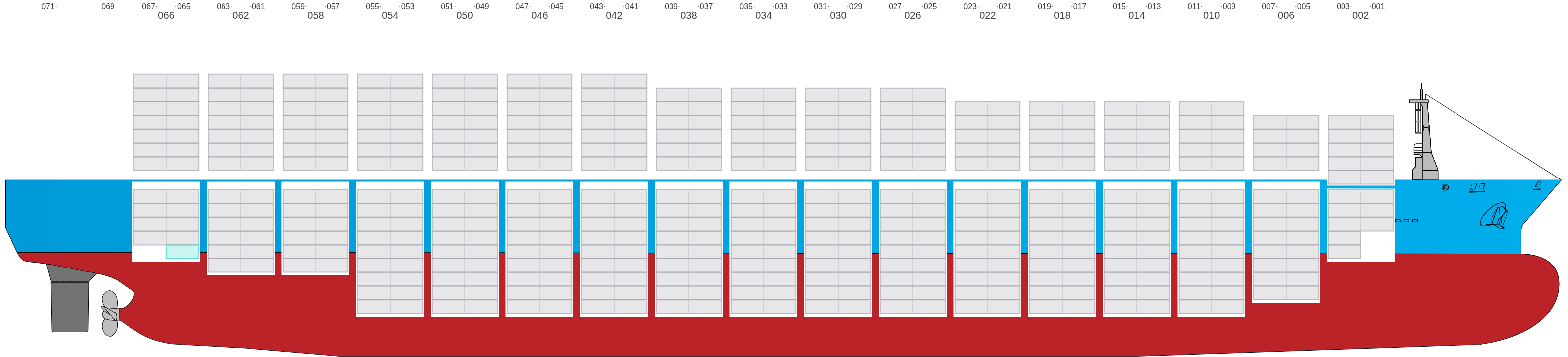

Side view of ESL DANA

Hatch-Covers View

Deck view of ESL DANA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

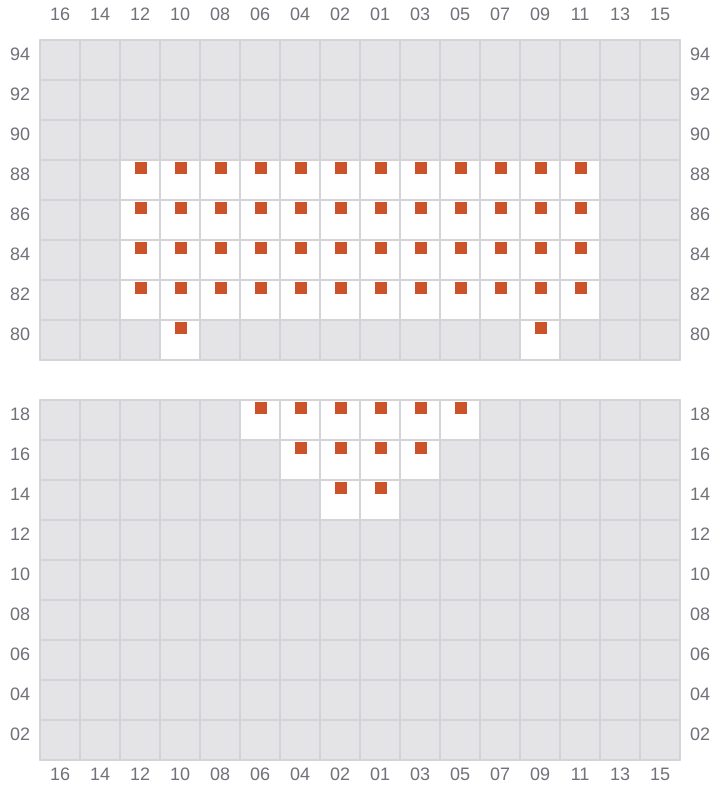

Bay 001 view and slots of ESL DANA

003 (002)

←

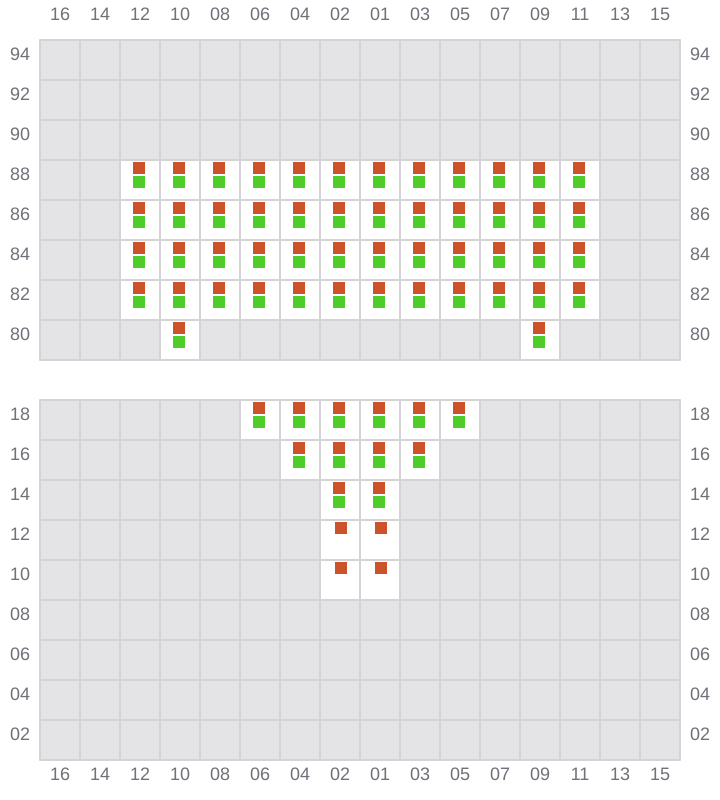

Bay 003 view and slots of ESL DANA

005

→

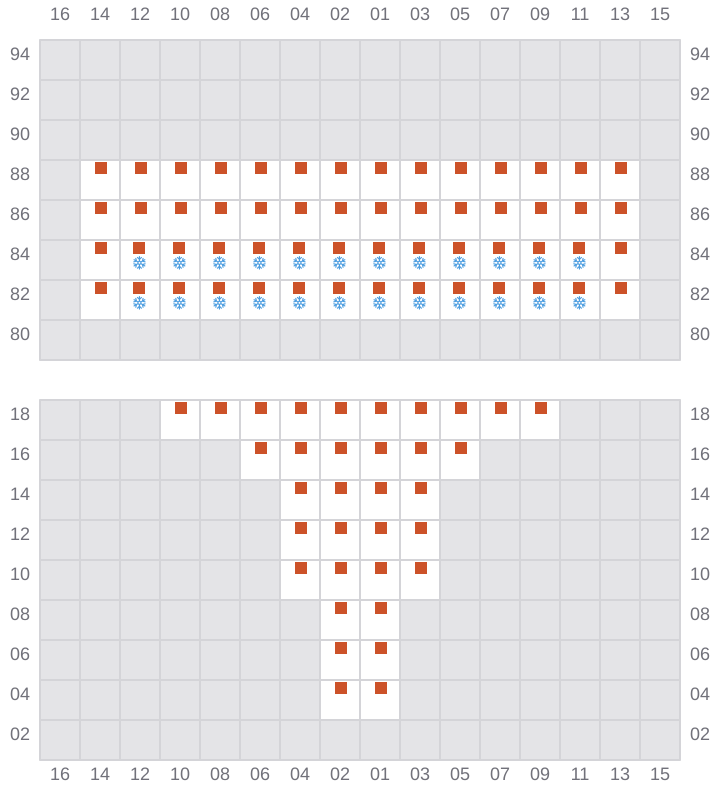

Bay 005 view and slots of ESL DANA

007 (006)

←

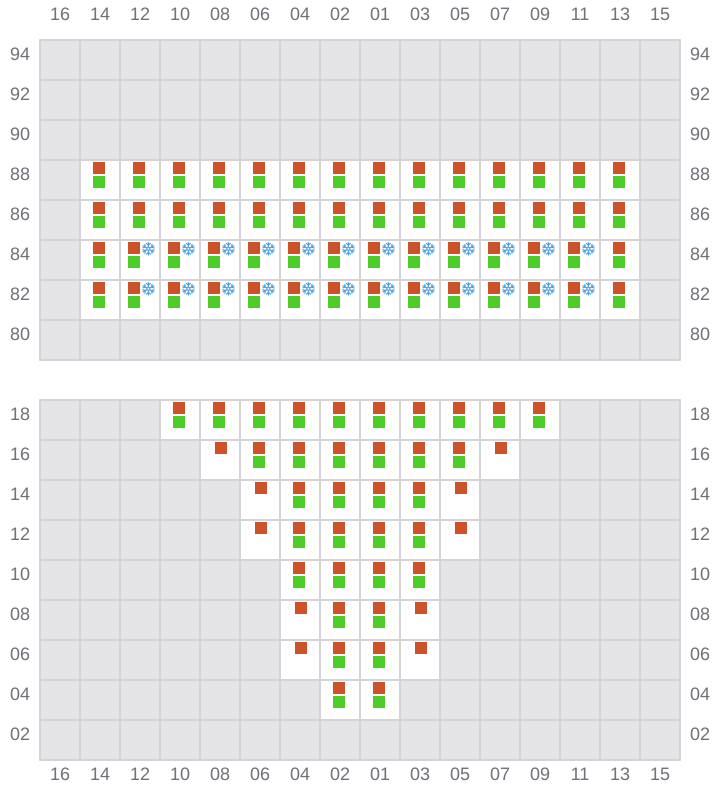

Bay 007 view and slots of ESL DANA

009

→

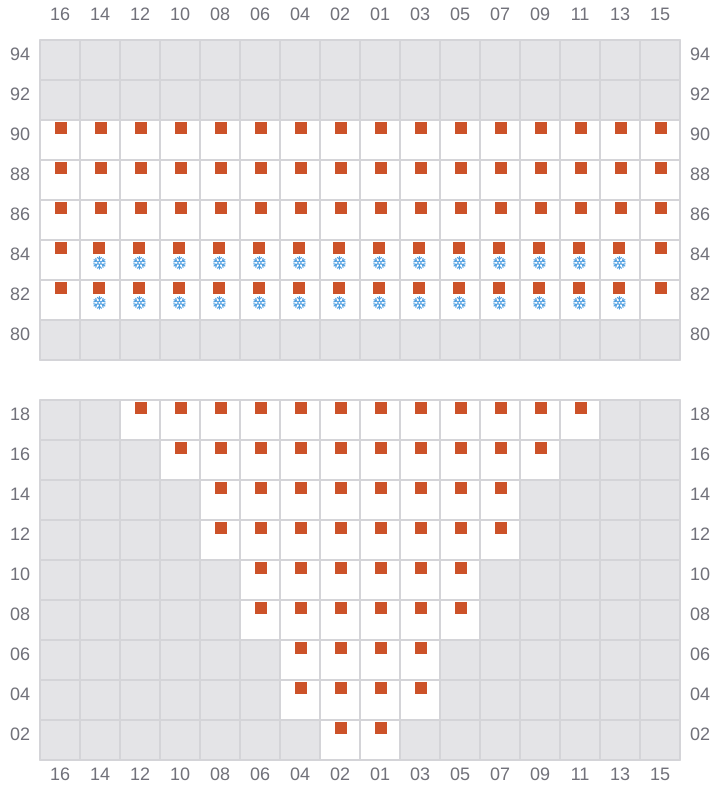

Bay 009 view and slots of ESL DANA

011 (010)

←

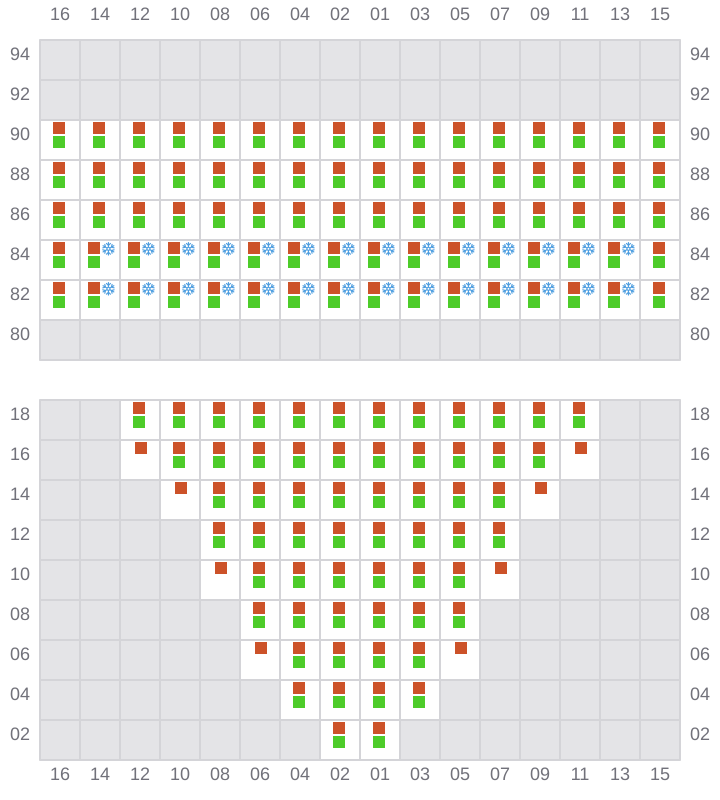

Bay 011 view and slots of ESL DANA

013

→

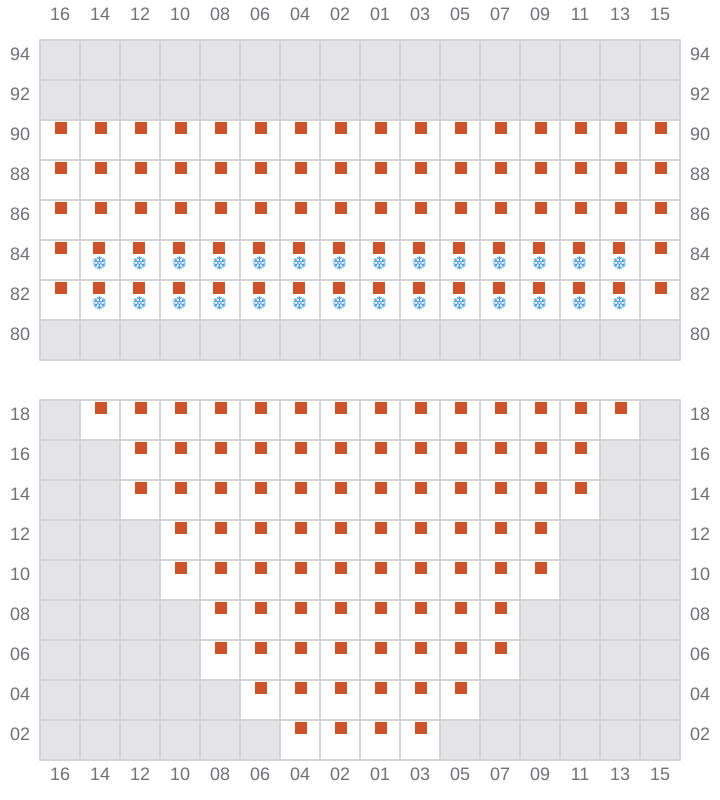

Bay 013 view and slots of ESL DANA

015 (014)

←

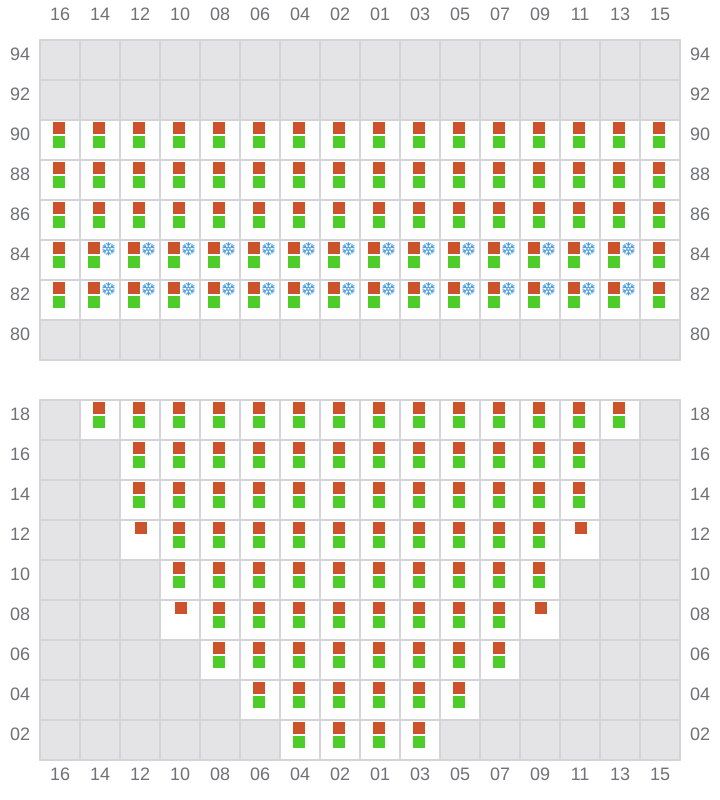

Bay 015 view and slots of ESL DANA

017

→

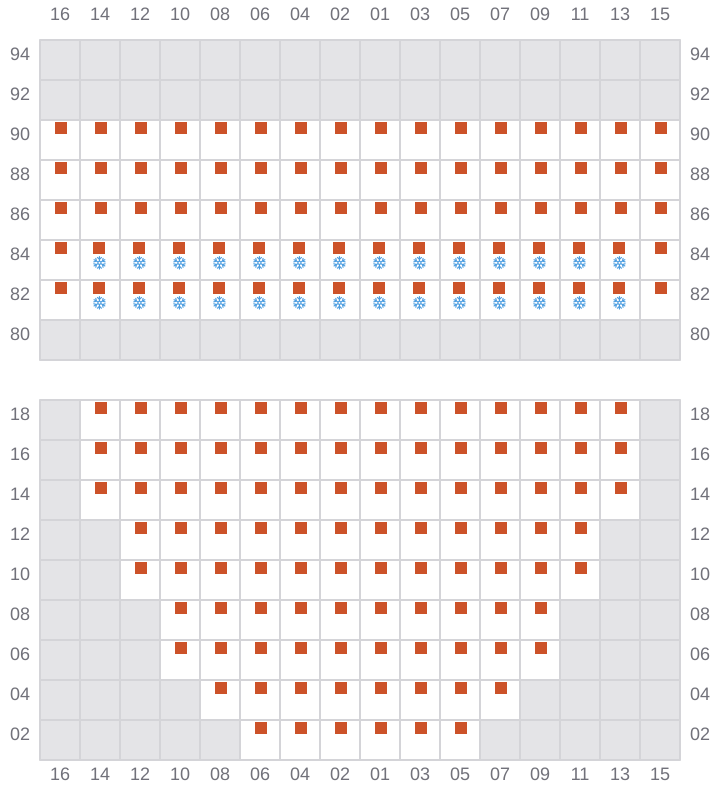

Bay 017 view and slots of ESL DANA

019 (018)

←

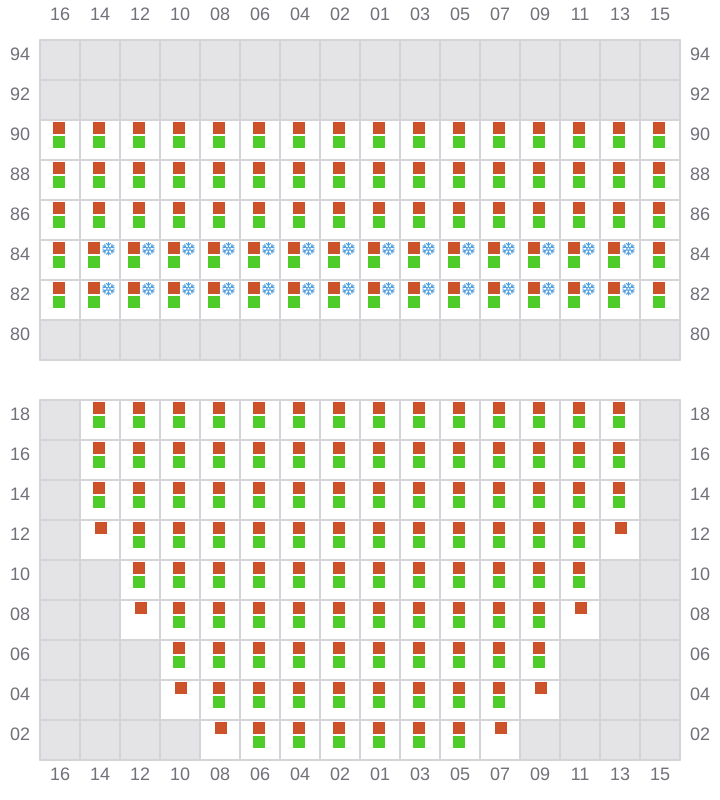

Bay 019 view and slots of ESL DANA

021

→

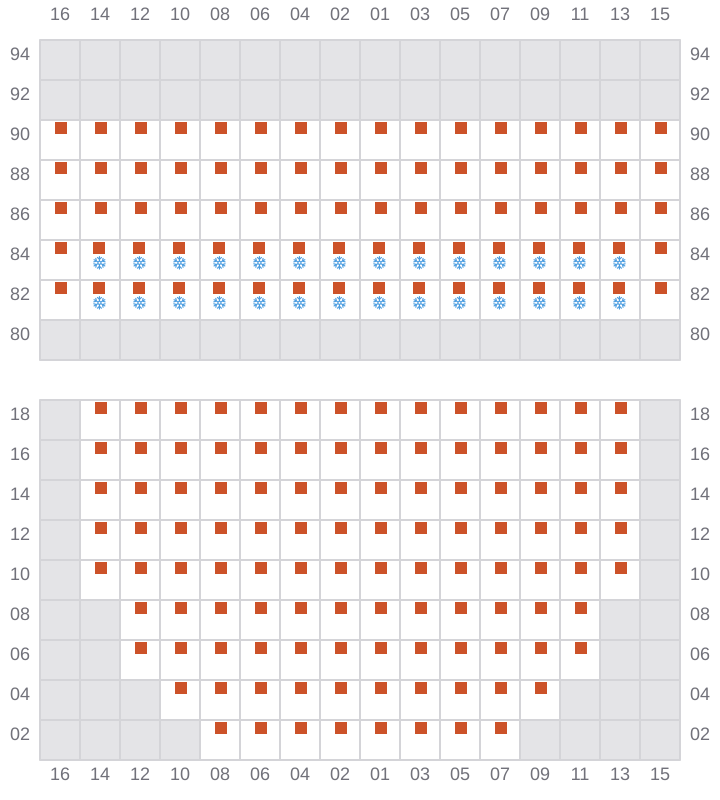

Bay 021 view and slots of ESL DANA

023 (022)

←

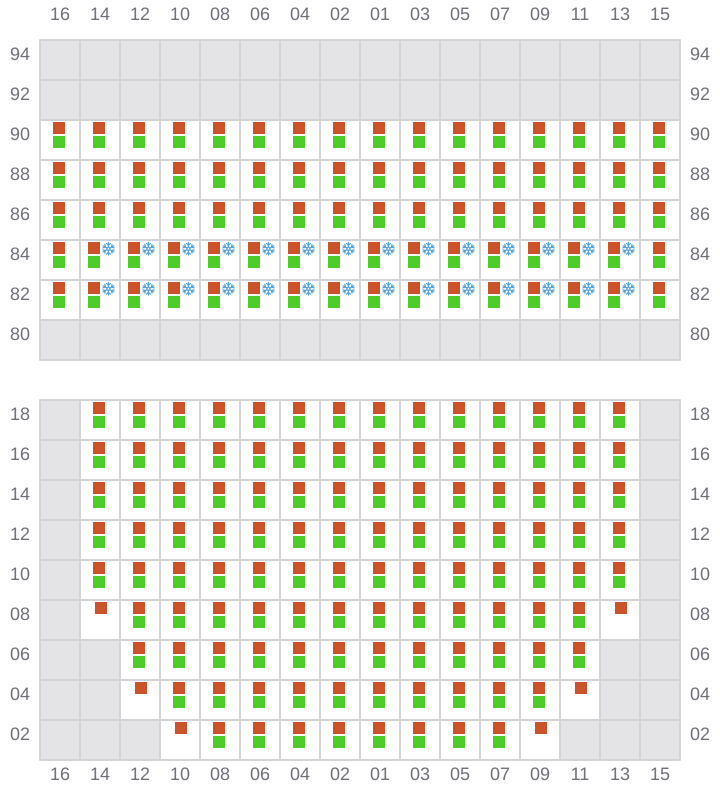

Bay 023 view and slots of ESL DANA

025

→

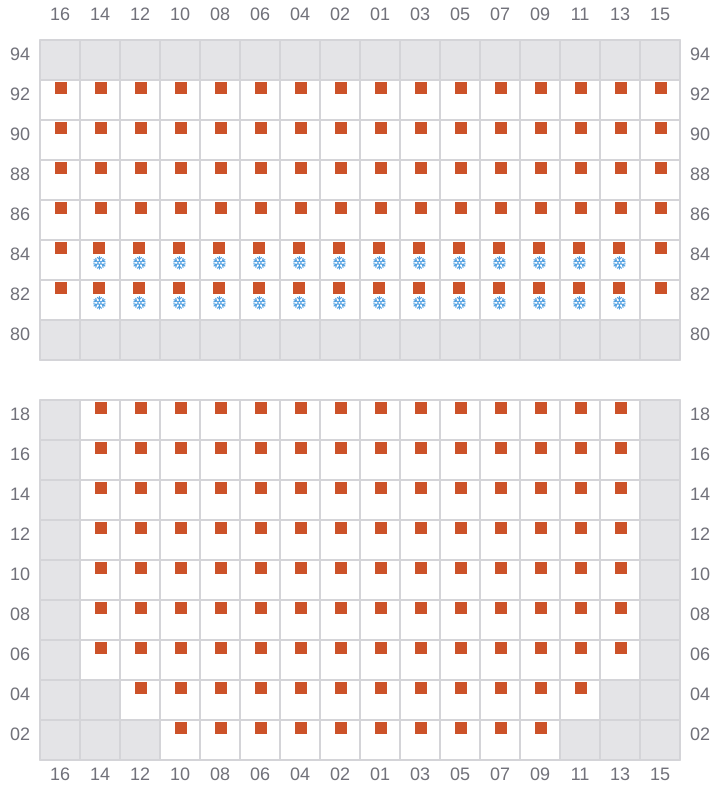

Bay 025 view and slots of ESL DANA

027 (026)

←

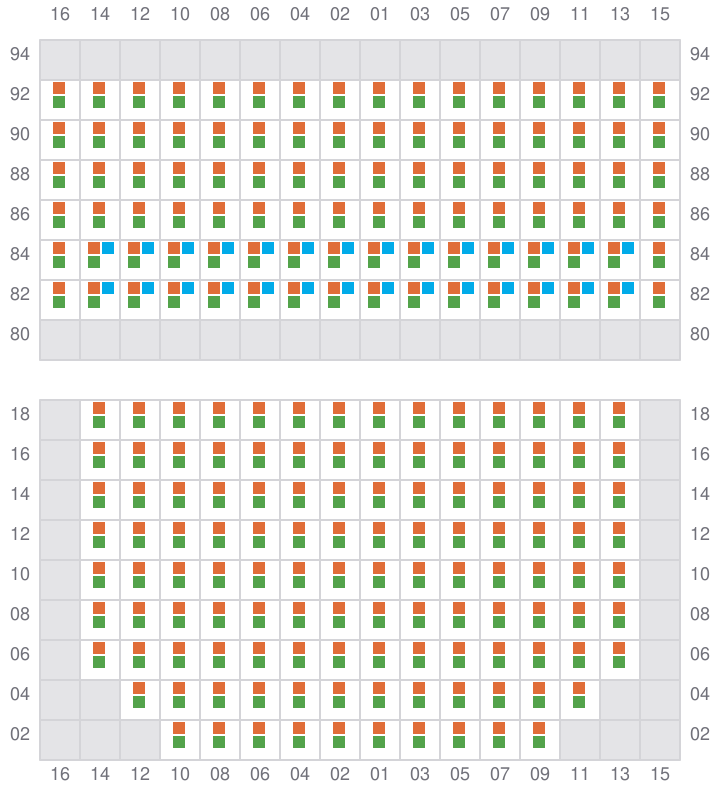

Bay 027 view and slots of ESL DANA

029

→

Bay 029 view and slots of ESL DANA

031 (030)

←

Bay 031 view and slots of ESL DANA

033

→

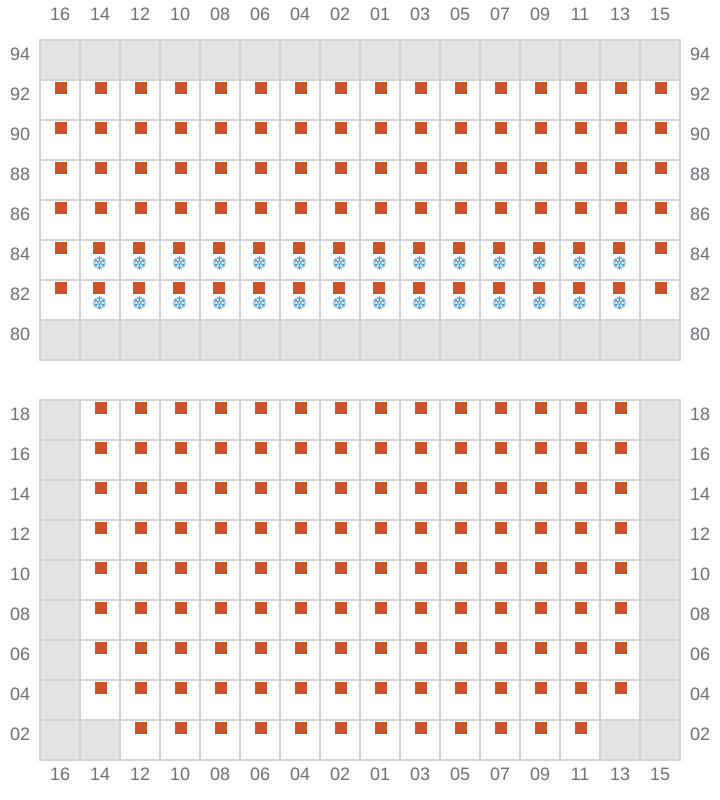

Bay 033 view and slots of ESL DANA

035 (034)

←

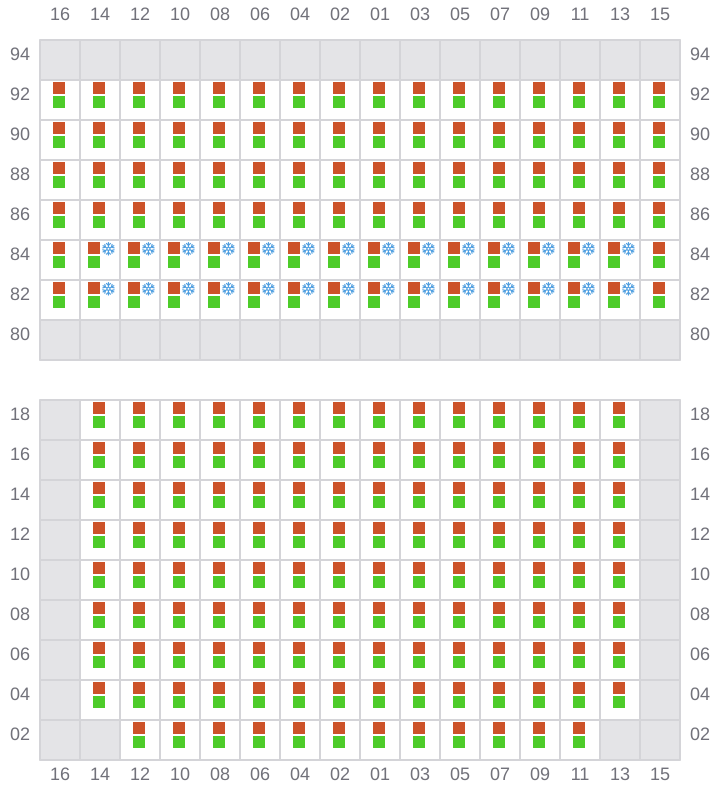

Bay 035 view and slots of ESL DANA

037

→

Bay 037 view and slots of ESL DANA

039 (038)

←

Bay 039 view and slots of ESL DANA

041

→

Bay 041 view and slots of ESL DANA

043 (042)

←

Bay 043 view and slots of ESL DANA

045

→

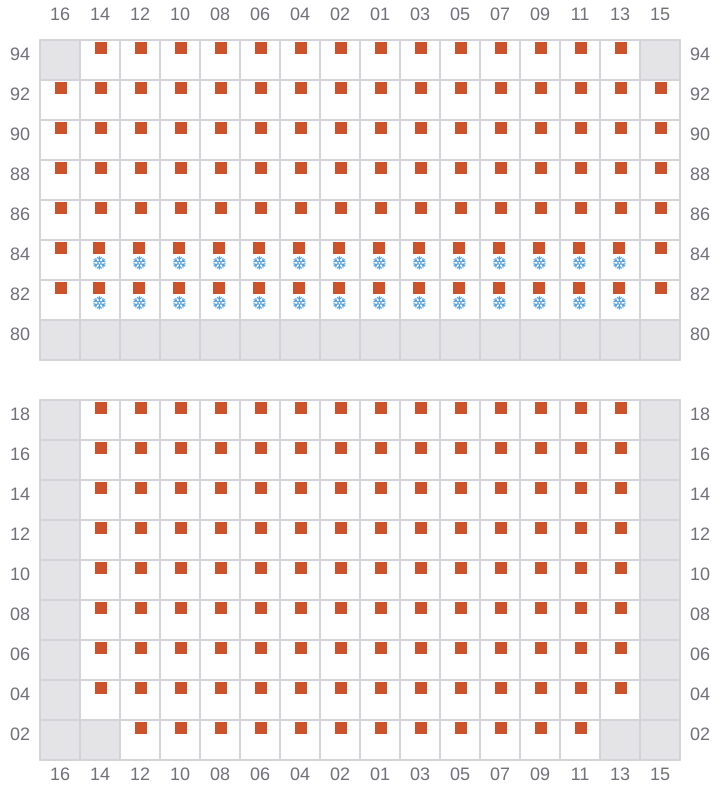

Bay 045 view and slots of ESL DANA

047 (046)

←

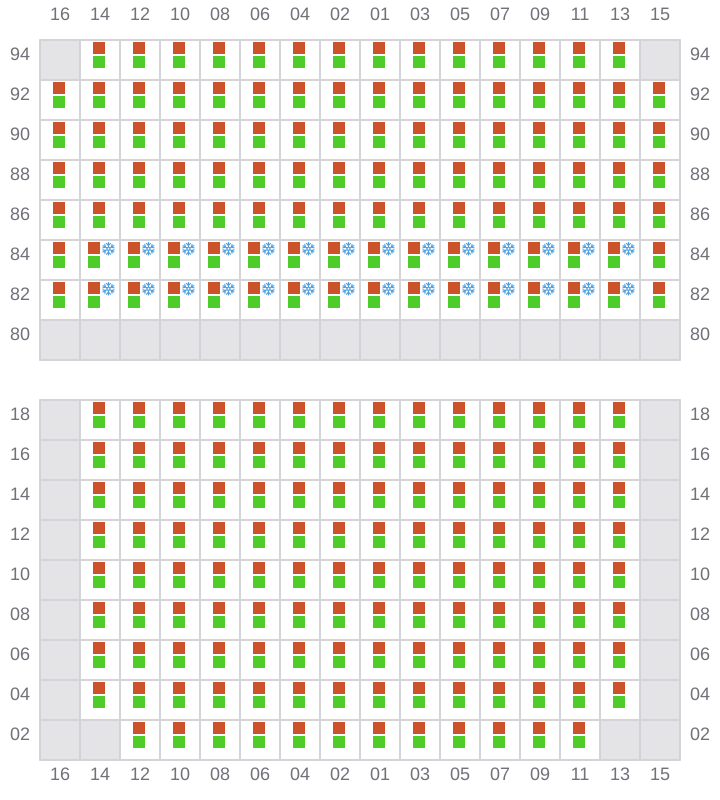

Bay 047 view and slots of ESL DANA

049

→

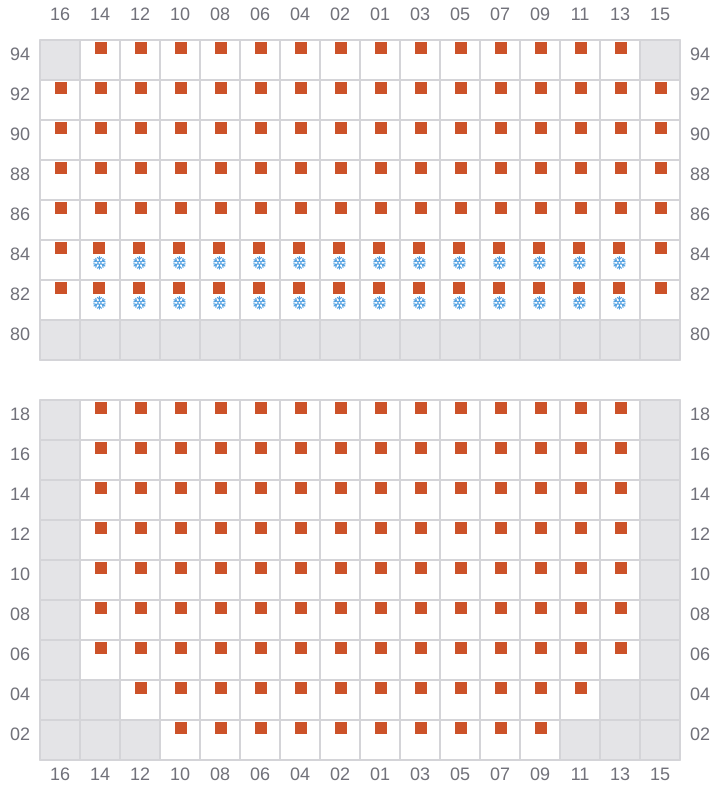

Bay 049 view and slots of ESL DANA

051 (050)

←

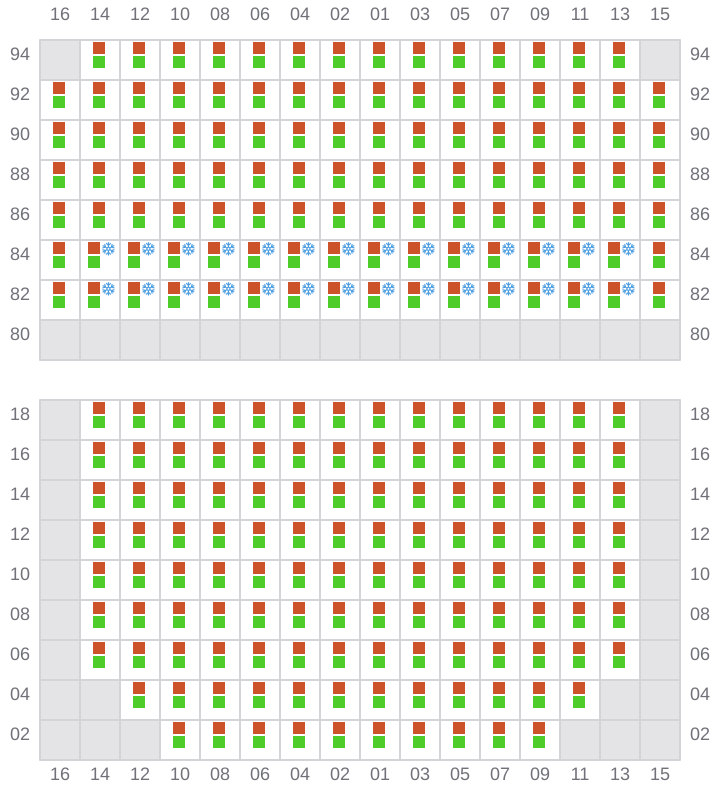

Bay 051 view and slots of ESL DANA

053

→

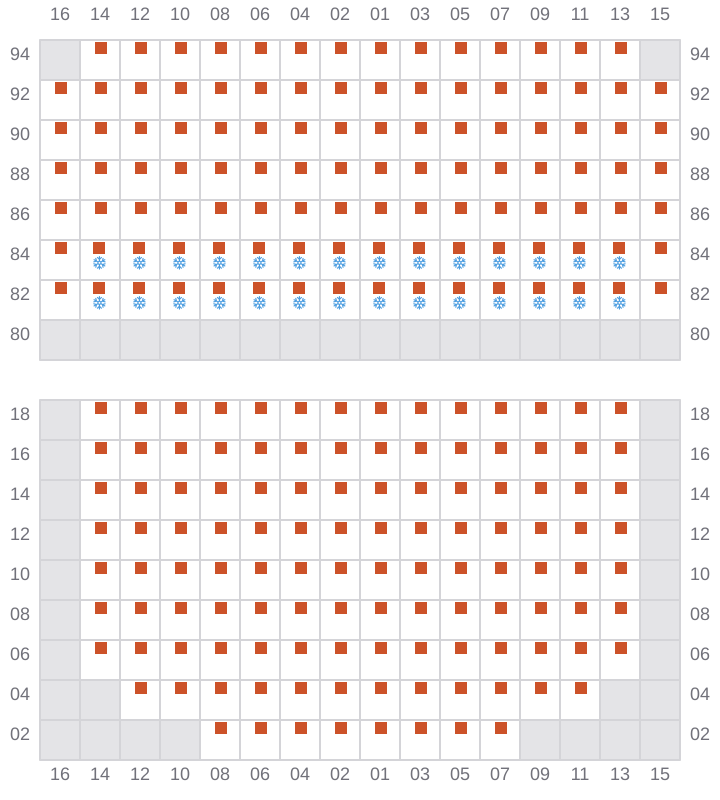

Bay 053 view and slots of ESL DANA

055 (054)

←

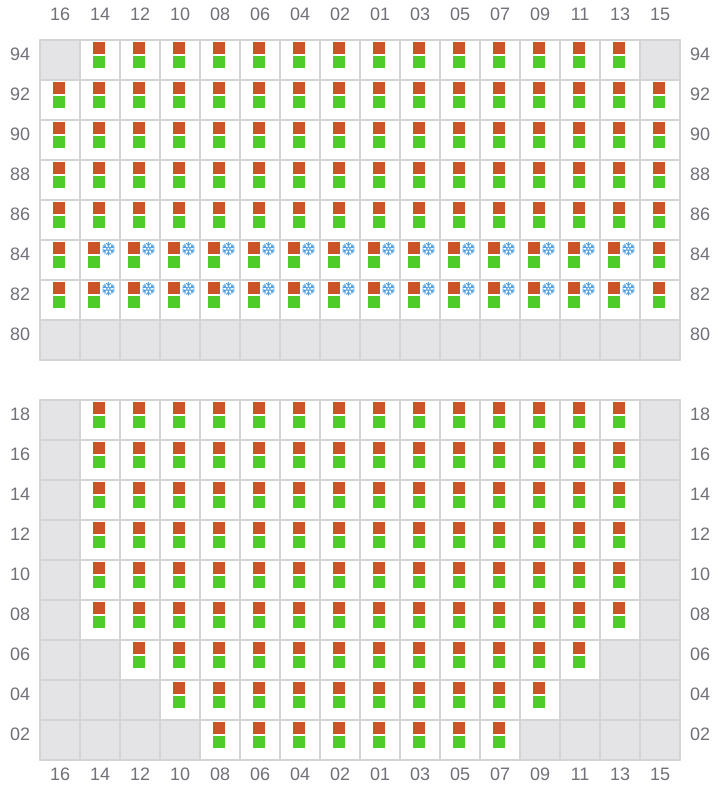

Bay 055 view and slots of ESL DANA

057

→

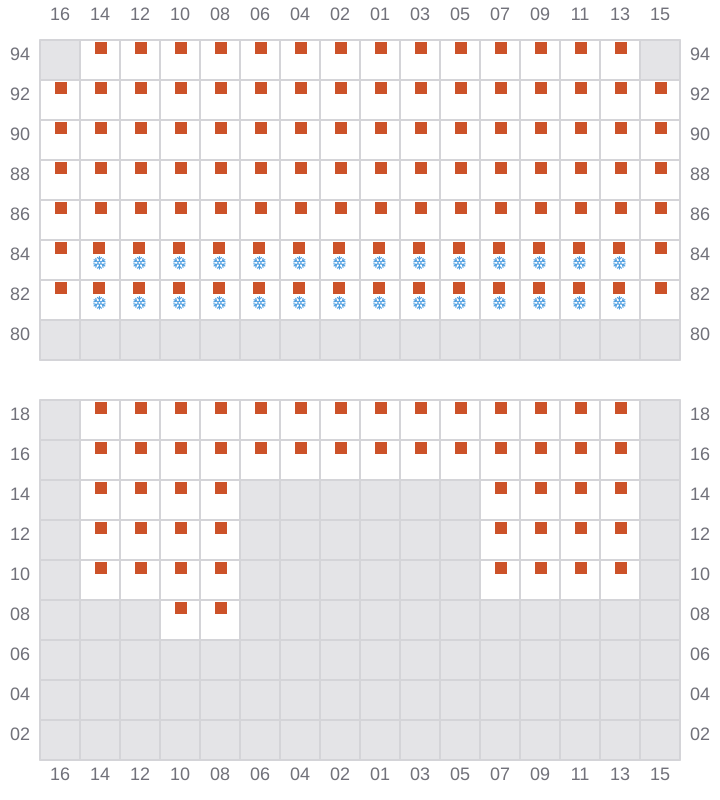

Bay 057 view and slots of ESL DANA

059 (058)

←

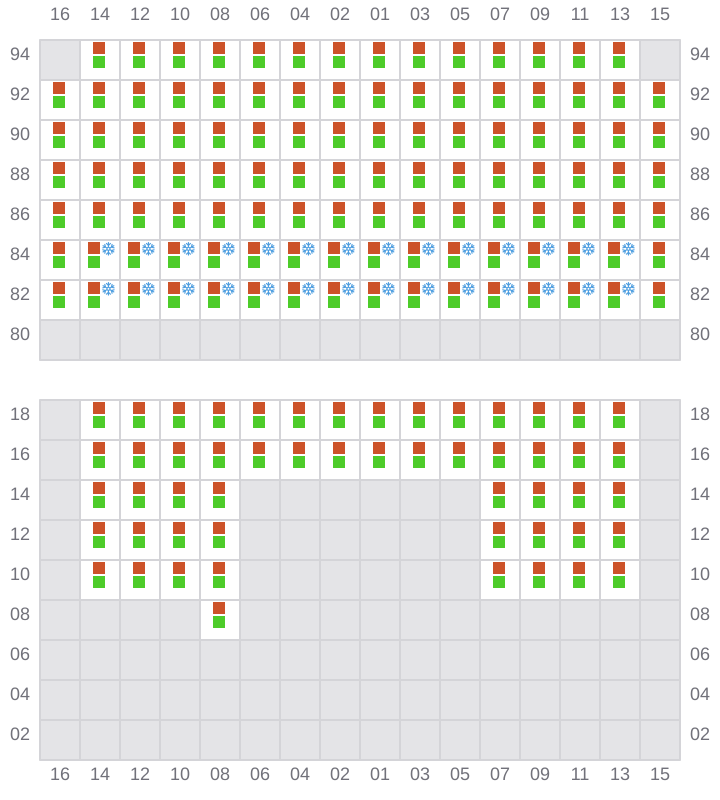

Bay 059 view and slots of ESL DANA

061

→

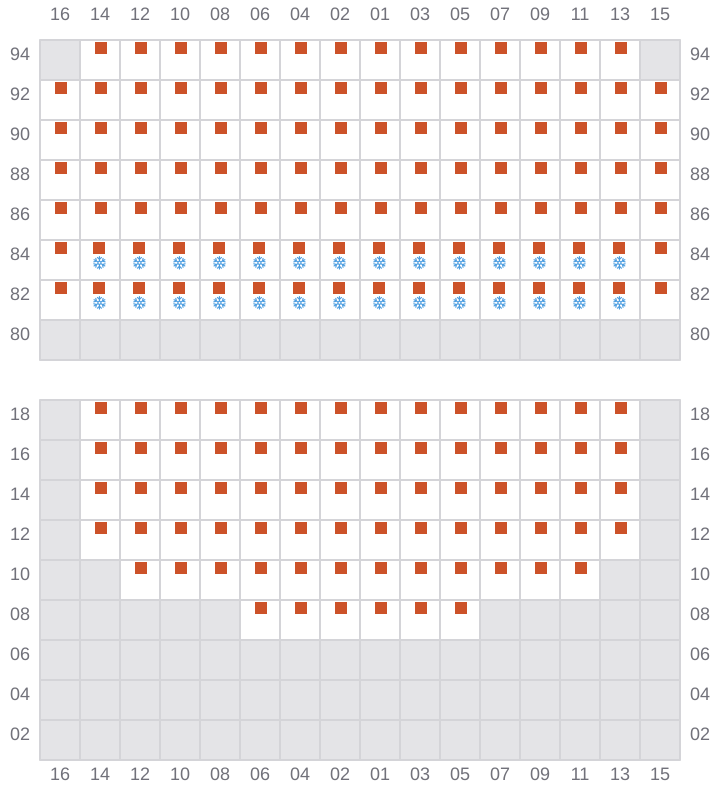

Bay 061 view and slots of ESL DANA

063 (062)

←

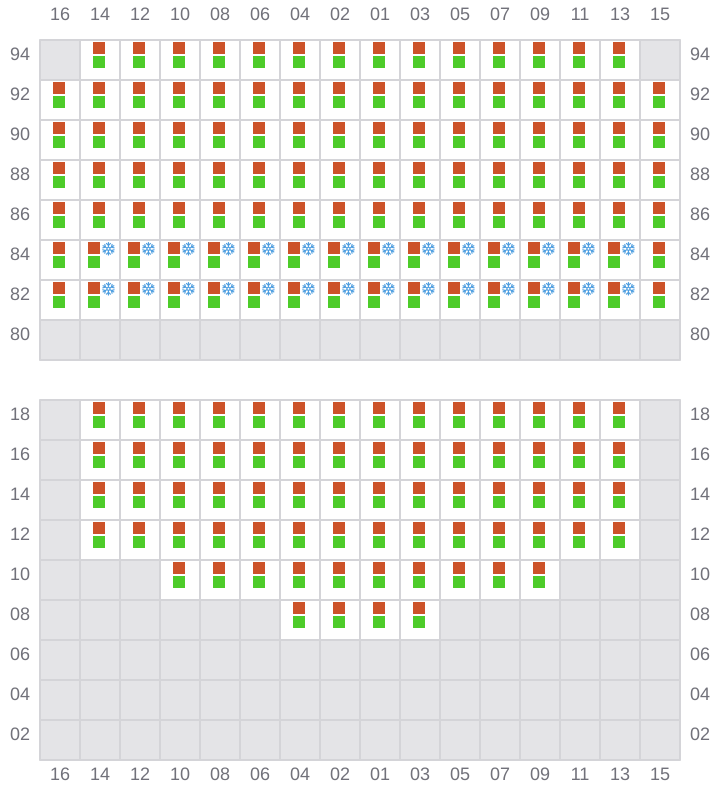

Bay 063 view and slots of ESL DANA

065

→

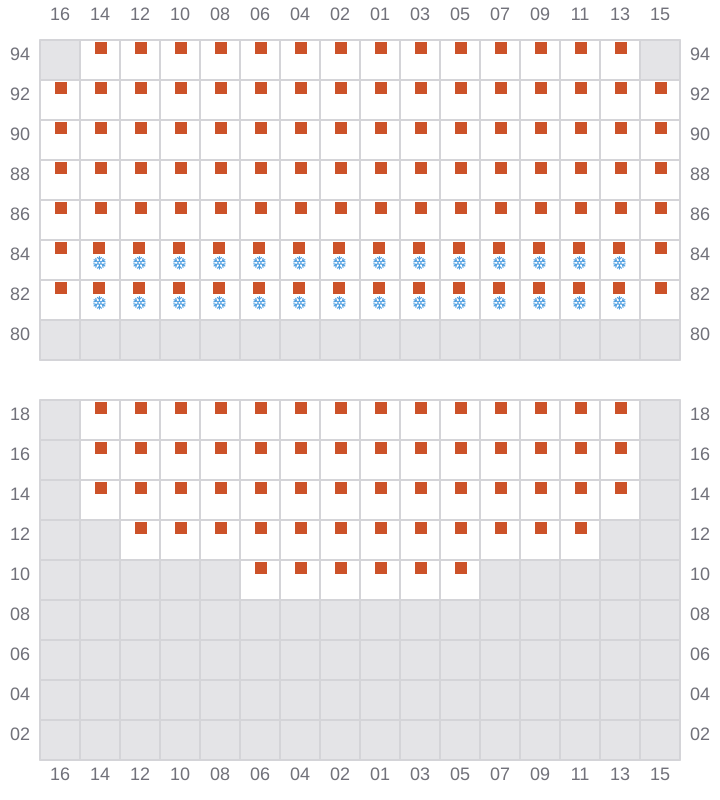

Bay 065 view and slots of ESL DANA

067 (066)

←

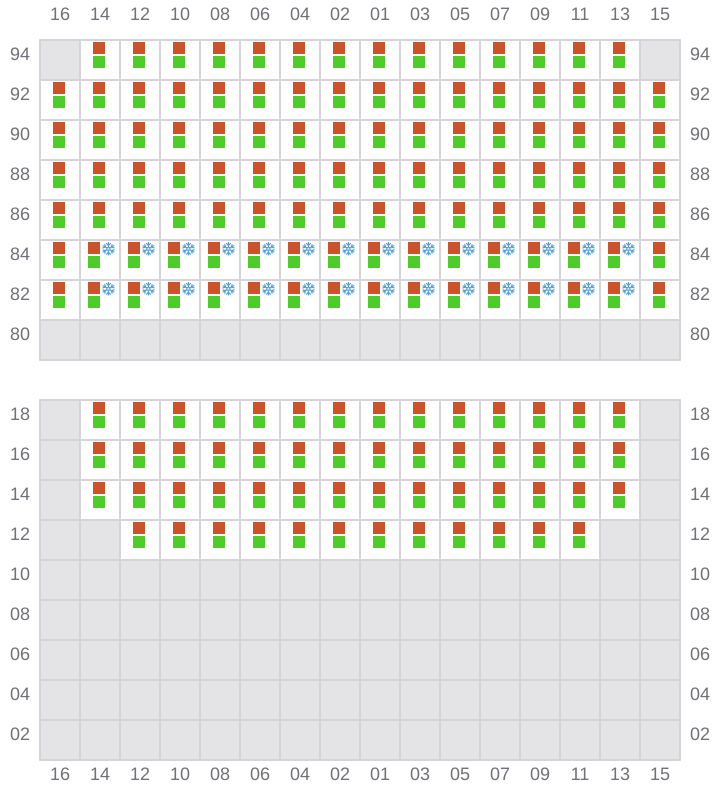

Bay 067 view and slots of ESL DANA

069

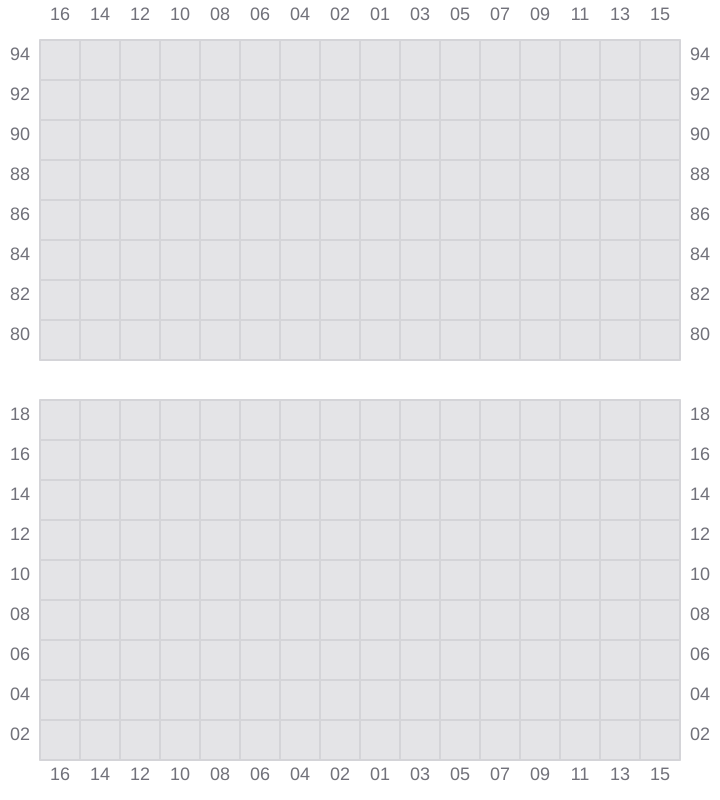

Bay 069 view and slots of ESL DANA

071 (070)

^← / _?

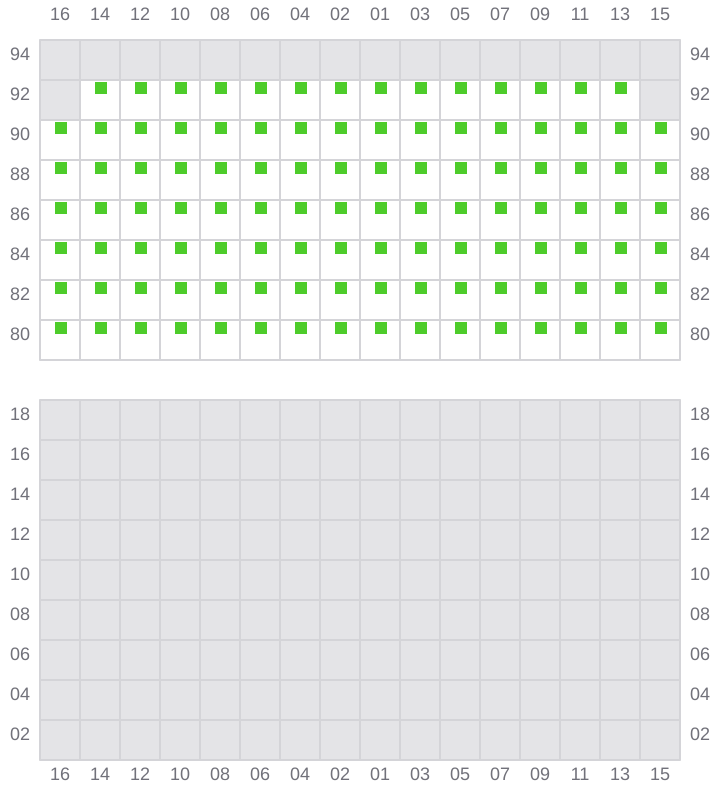

Bay 071 view and slots of ESL DANA
