ESL DAR ES SALAAM
9158525 | 5LAI5 | 9158525 by ********* Last update: Fri Mar 08 2024

General Info

Ship Name:ESL DAR ES SALAAM
IMO Code:9158525
Call Sign:5LAI5
Line Operator:9158525
Class Name for Sister Ships:73B
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,548

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

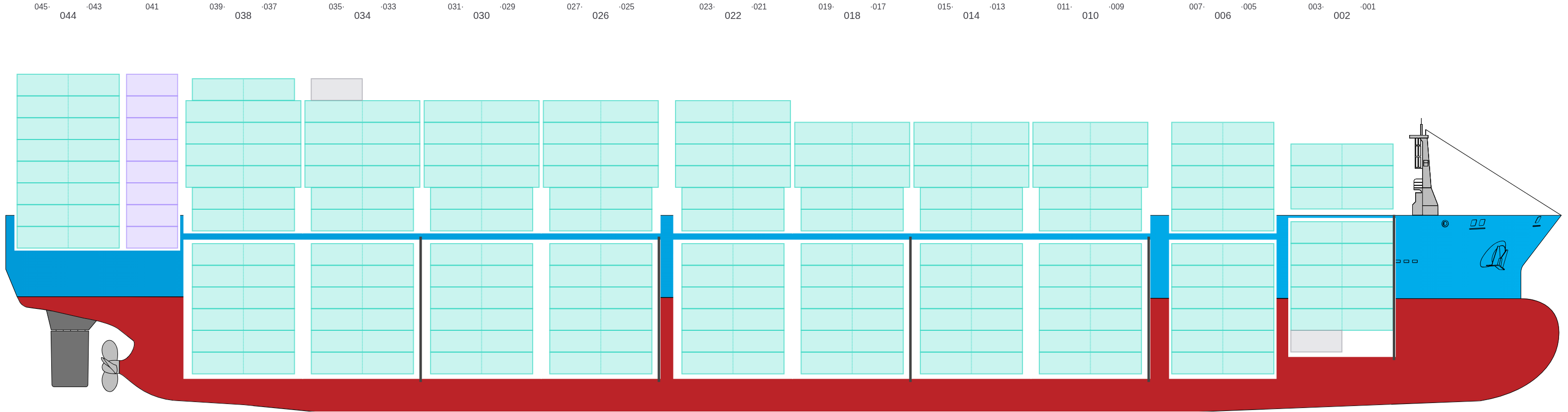

Side View

Side view of ESL DAR ES SALAAM

Hatch-Covers View

Deck view of ESL DAR ES SALAAM

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

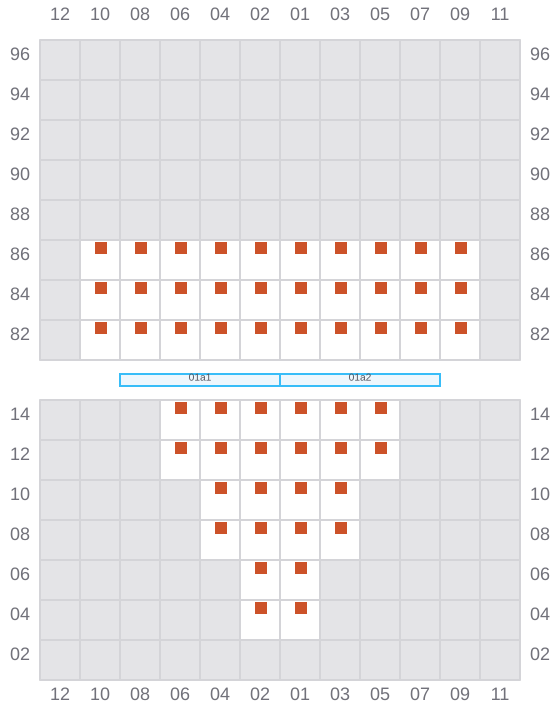

Bay 001 view and slots of ESL DAR ES SALAAM

003

  • ←
Bay 003 view and slots of ESL DAR ES SALAAM

005 (006)

  • →

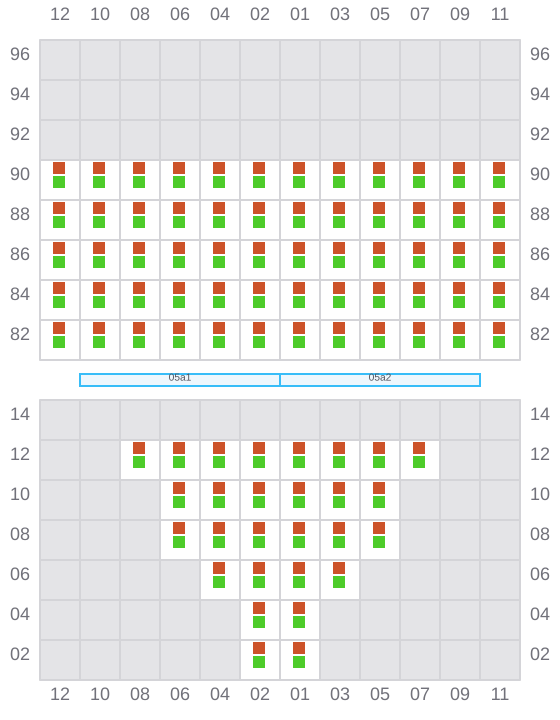

Bay 005 view and slots of ESL DAR ES SALAAM

007

  • ←

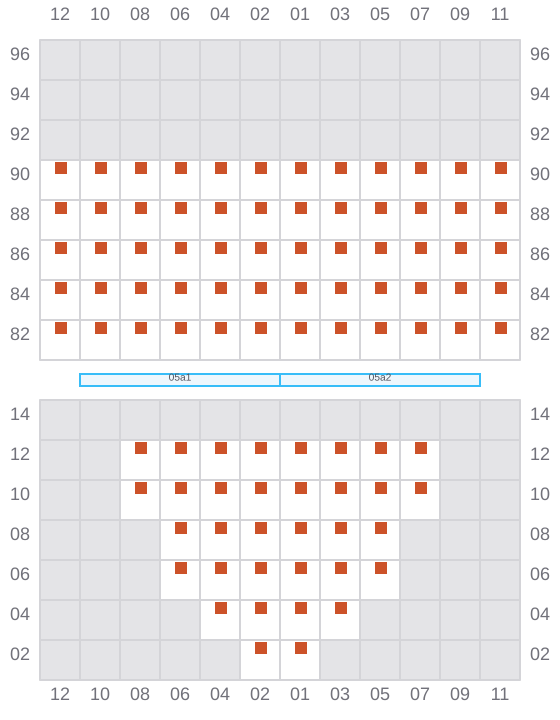

Bay 007 view and slots of ESL DAR ES SALAAM

009 (010)

  • →

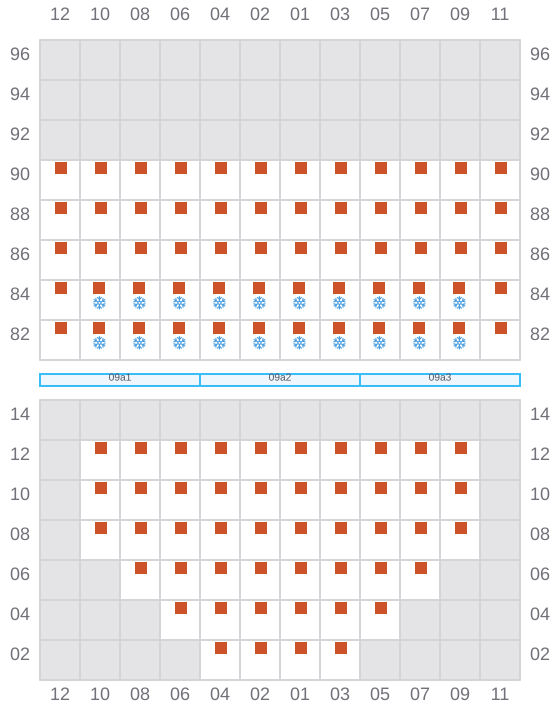

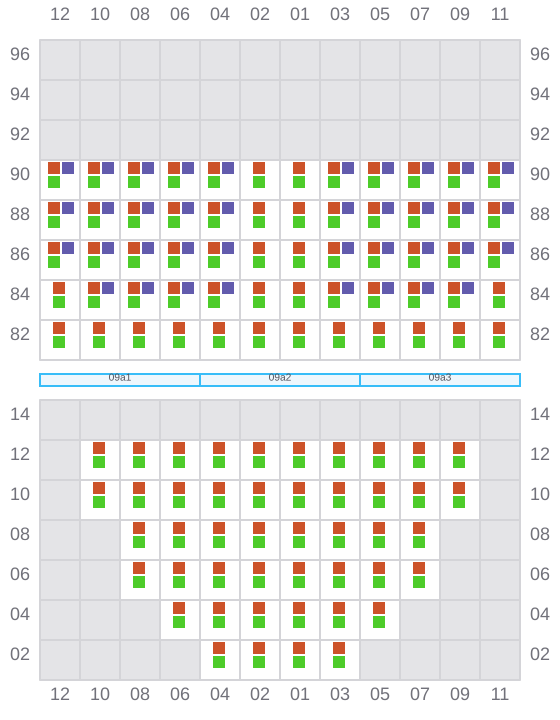

Bay 009 view and slots of ESL DAR ES SALAAM

011

  • ←
  • → / ?
Bay 011 view and slots of ESL DAR ES SALAAM

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of ESL DAR ES SALAAM

015

  • ←
  • → / ?

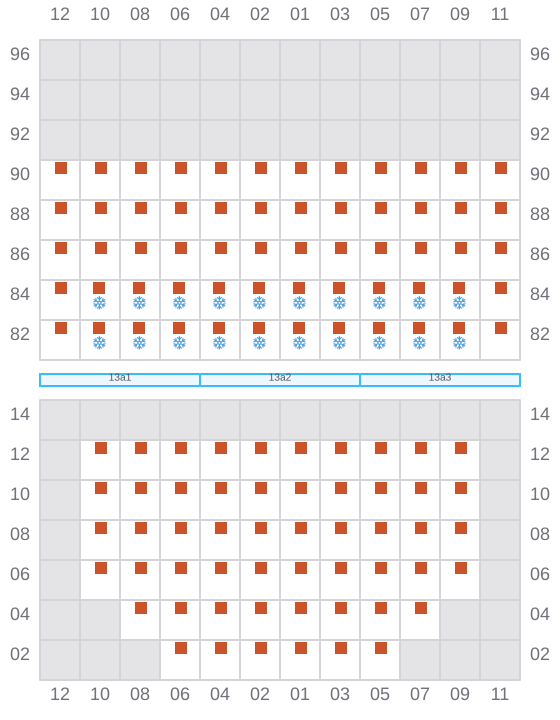

Bay 015 view and slots of ESL DAR ES SALAAM

017 (018)

  • →
  • ← / ?

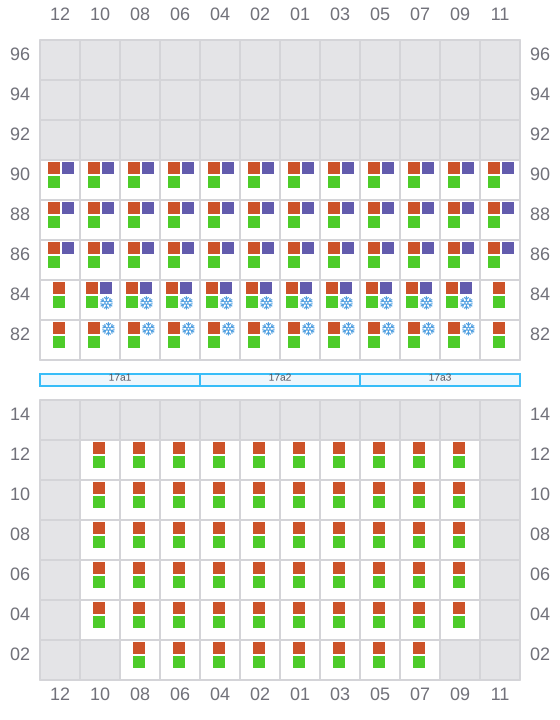

Bay 017 view and slots of ESL DAR ES SALAAM

019

  • ←
  • → / ?
Bay 019 view and slots of ESL DAR ES SALAAM

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of ESL DAR ES SALAAM

023

  • ←
  • → / ?

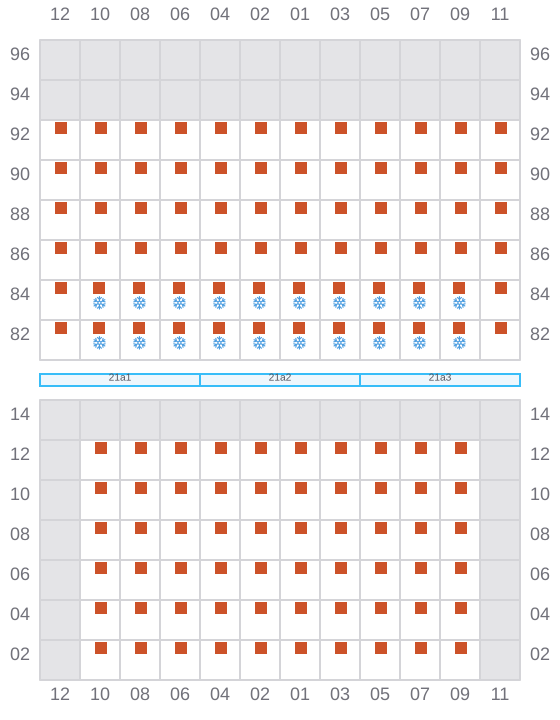

Bay 023 view and slots of ESL DAR ES SALAAM

025 (026)

  • →
  • ← / ?

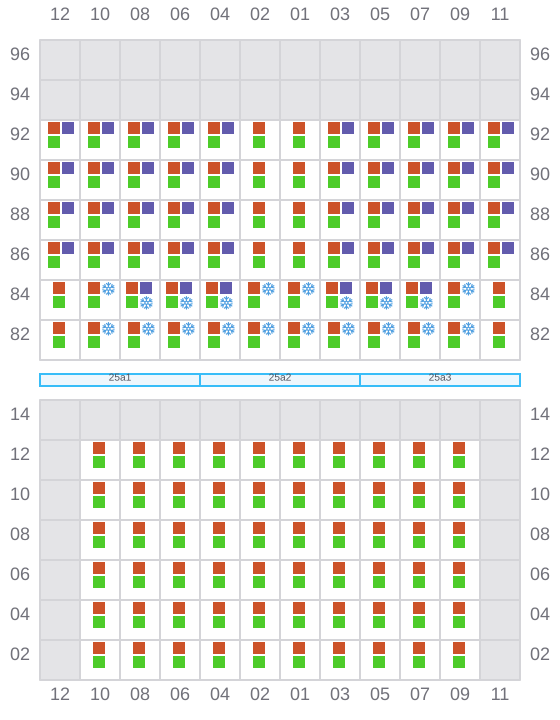

Bay 025 view and slots of ESL DAR ES SALAAM

027

  • ←
  • → / ?

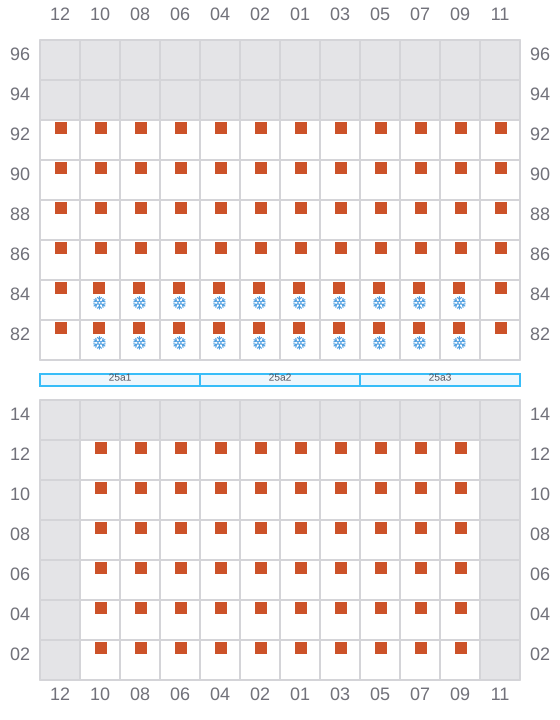

Bay 027 view and slots of ESL DAR ES SALAAM

029 (030)

  • →
  • ← / ?

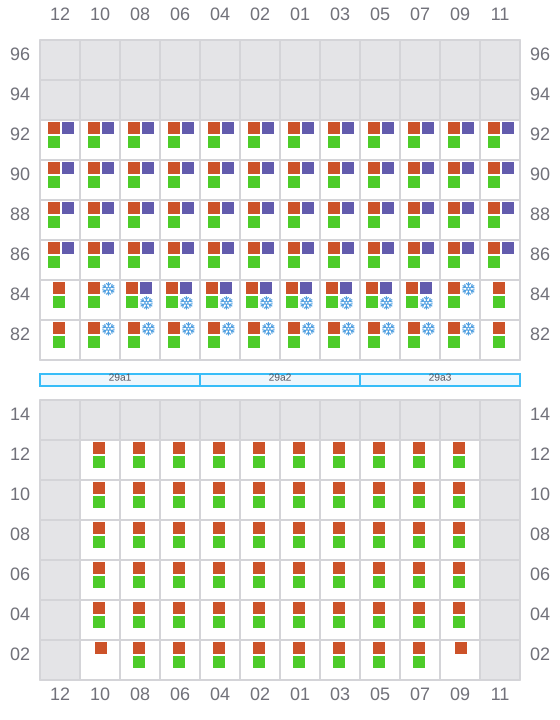

Bay 029 view and slots of ESL DAR ES SALAAM

031

  • ←
  • → / ?
Bay 031 view and slots of ESL DAR ES SALAAM

033 (034)

  • →
  • ← / ?

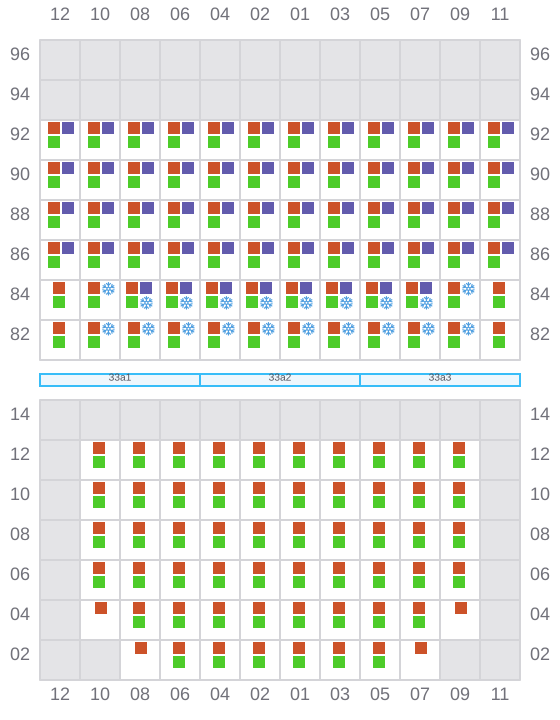

Bay 033 view and slots of ESL DAR ES SALAAM

035

  • ←
  • → / ?

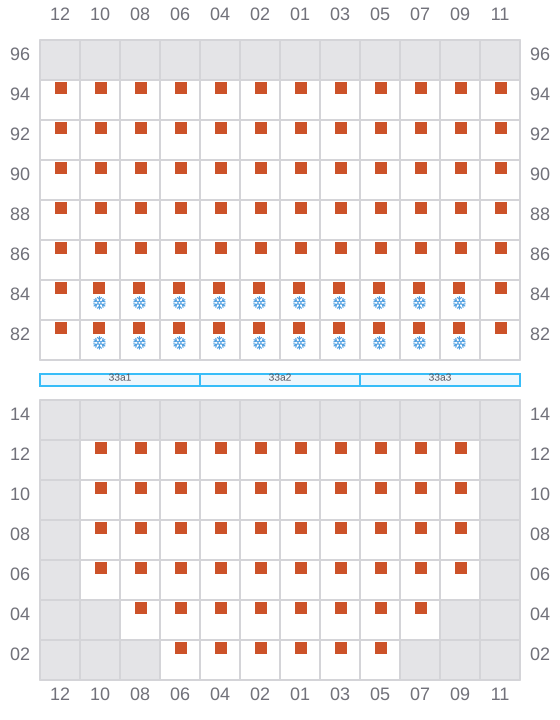

Bay 035 view and slots of ESL DAR ES SALAAM

037 (038)

  • →
  • ← / ?

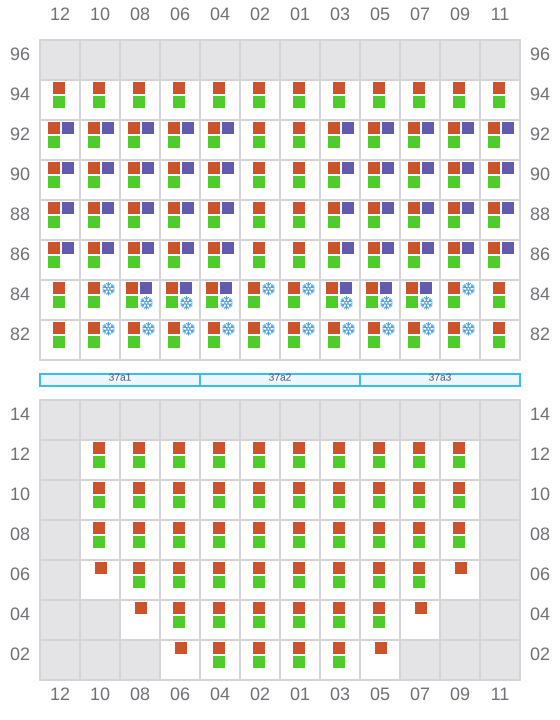

Bay 037 view and slots of ESL DAR ES SALAAM

039

  • ←
  • → / ?

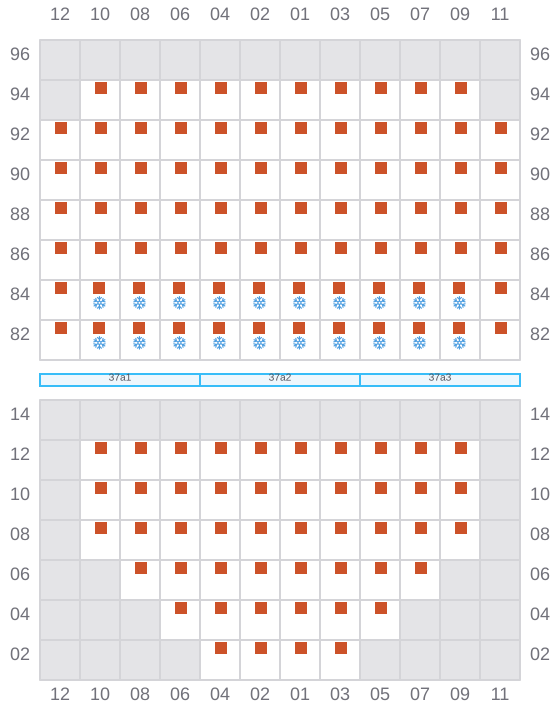

Bay 039 view and slots of ESL DAR ES SALAAM

041

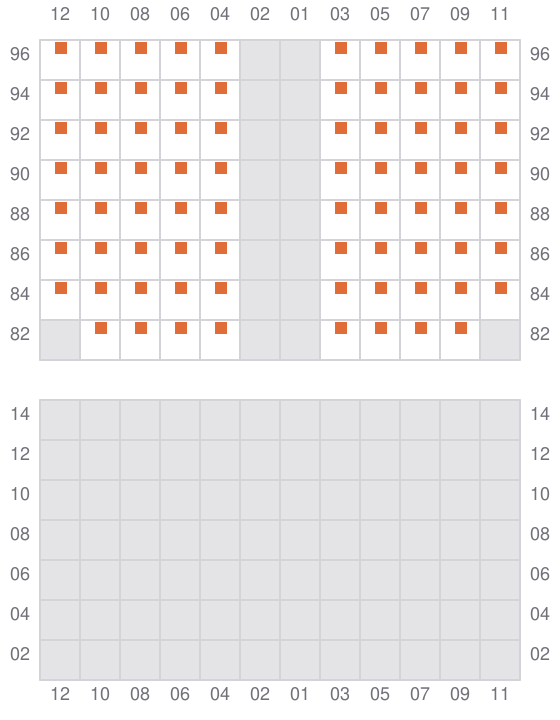

Bay 041 view and slots of ESL DAR ES SALAAM

043 (044)

  • → / ?

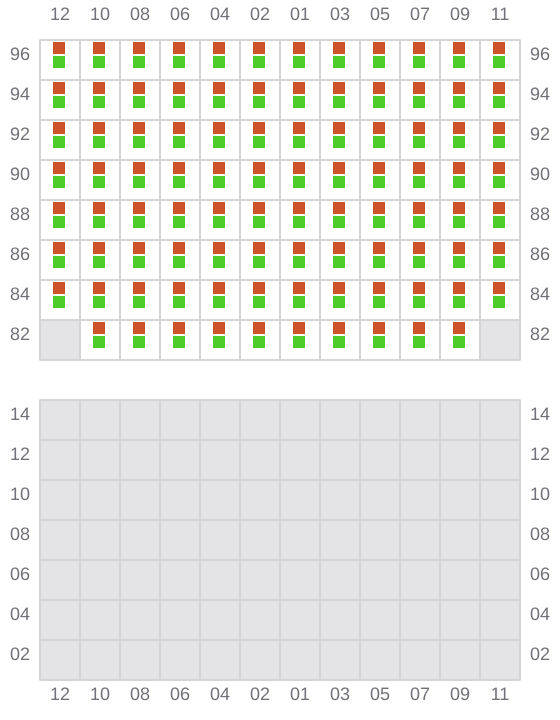

Bay 043 view and slots of ESL DAR ES SALAAM

045

  • ← / ?
  • → / ?

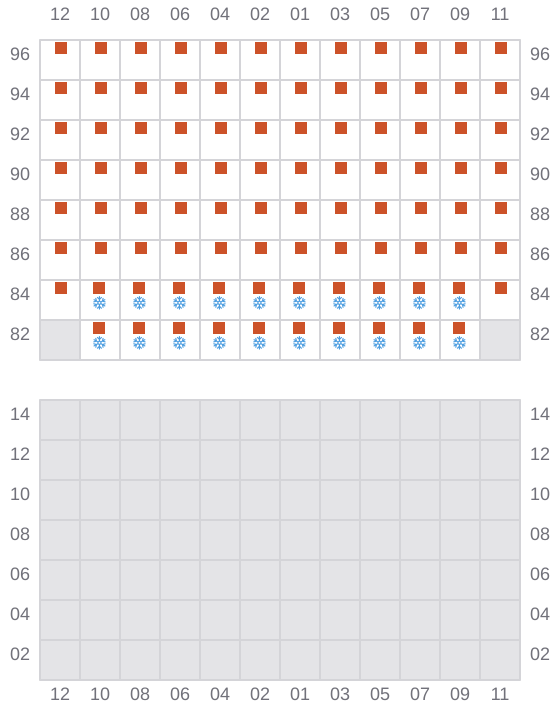

Bay 045 view and slots of ESL DAR ES SALAAM
