ESL KABIR
9535175 | CQ2099 | 9535175 by ********* Last update: Tue May 07 2024
General Info
Ship Name:ESL KABIR
IMO Code:9535175
Call Sign:CQ2099
Line Operator:9535175
Class Name for Sister Ships:MOLGUARDIAN
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,605
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

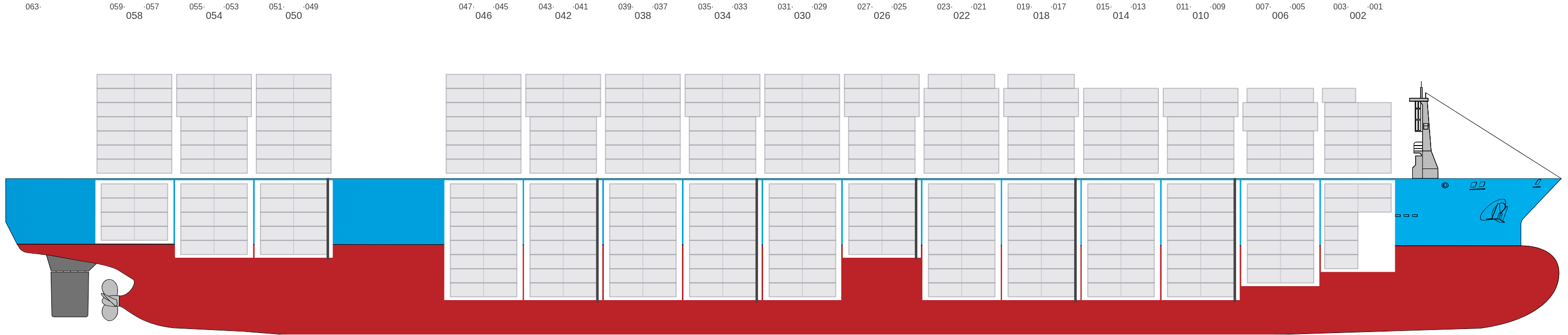

Side View
![Side view of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-sideView.png?v=1715110827849)
Hatch-Covers View
![Deck view of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-deckView.png?v=1715110827849)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

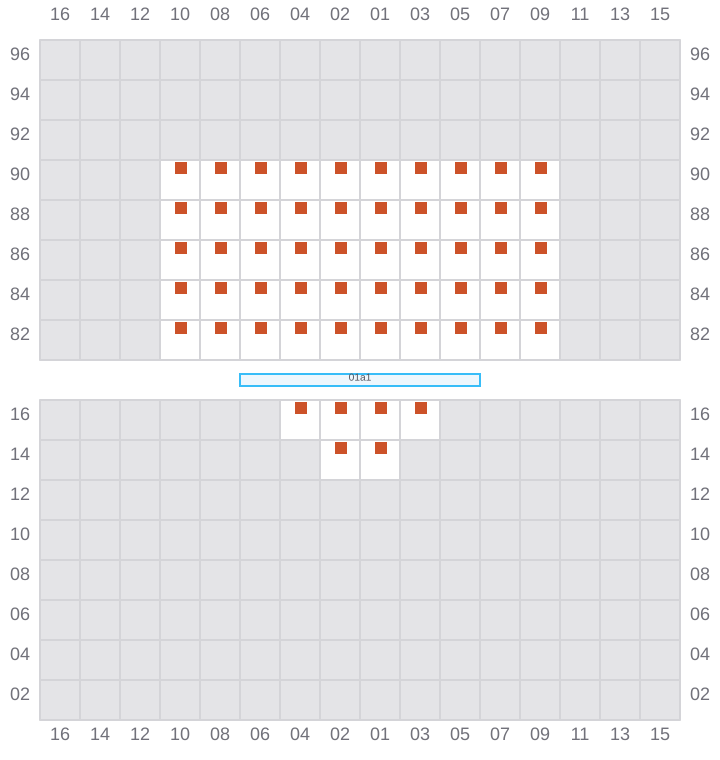

001
- →
- →
![Bay 001 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b001.png?v=1715110827849)

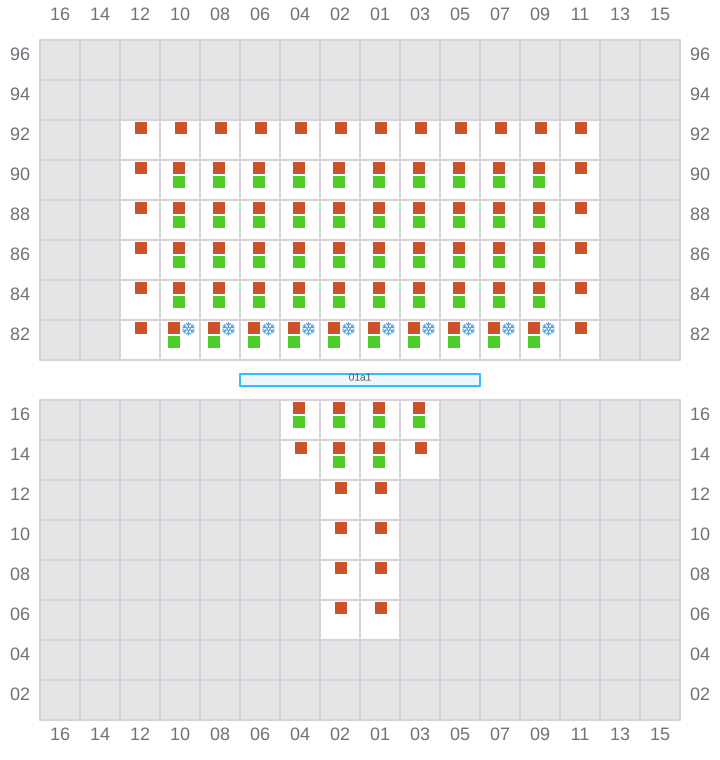

003 (002)
- ←
- → / ?
- →
![Bay 003 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b003.png?v=1715110827849)

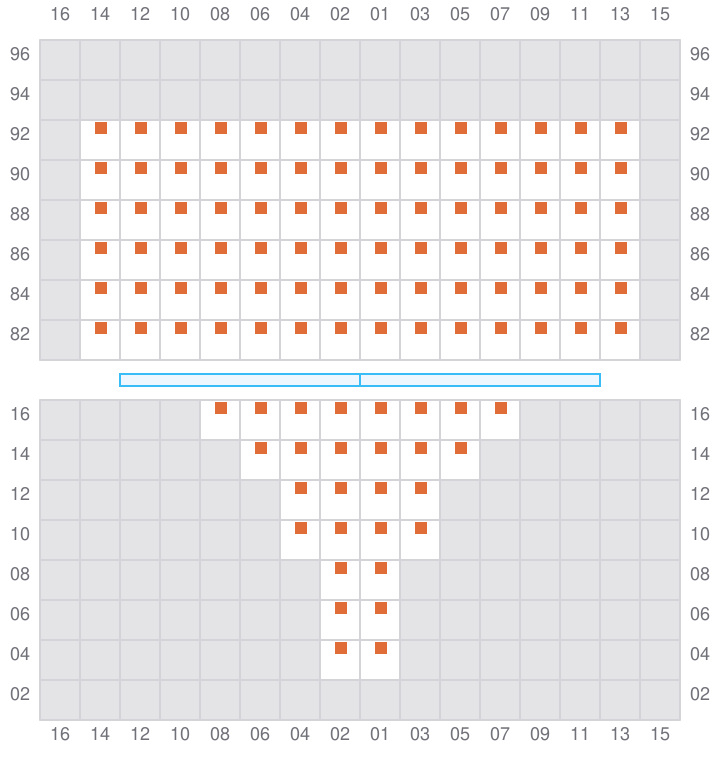

005
- →
- →
![Bay 005 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b005.png?v=1715110827849)
007 (006)
- ←
- → / ?
- →
![Bay 007 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b007.png?v=1715110827849)

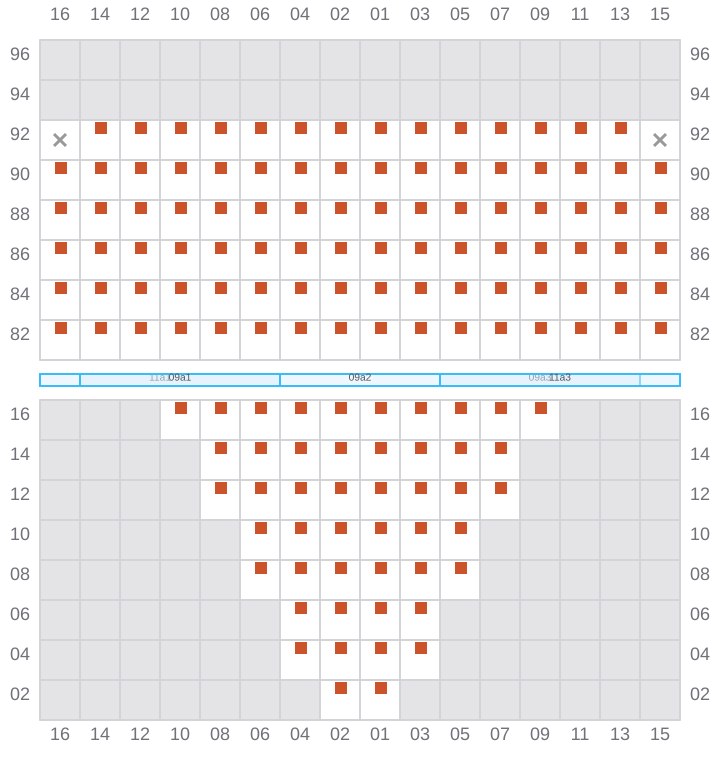

009
- →
- →
![Bay 009 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b009.png?v=1715110827849)

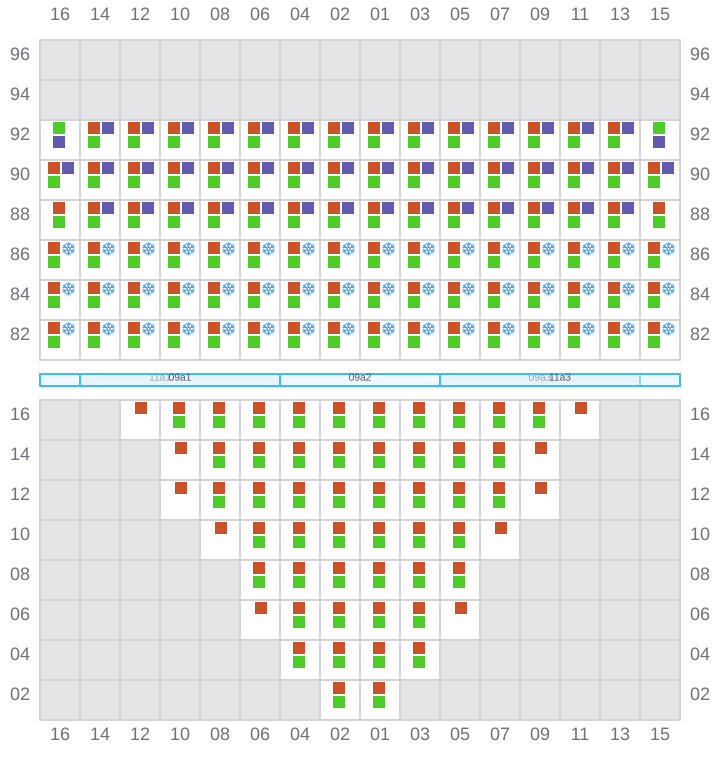

011 (010)
- ←
- → / ?
- →
![Bay 011 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b011.png?v=1715110827849)
013
- →
- →
![Bay 013 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b013.png?v=1715110827849)

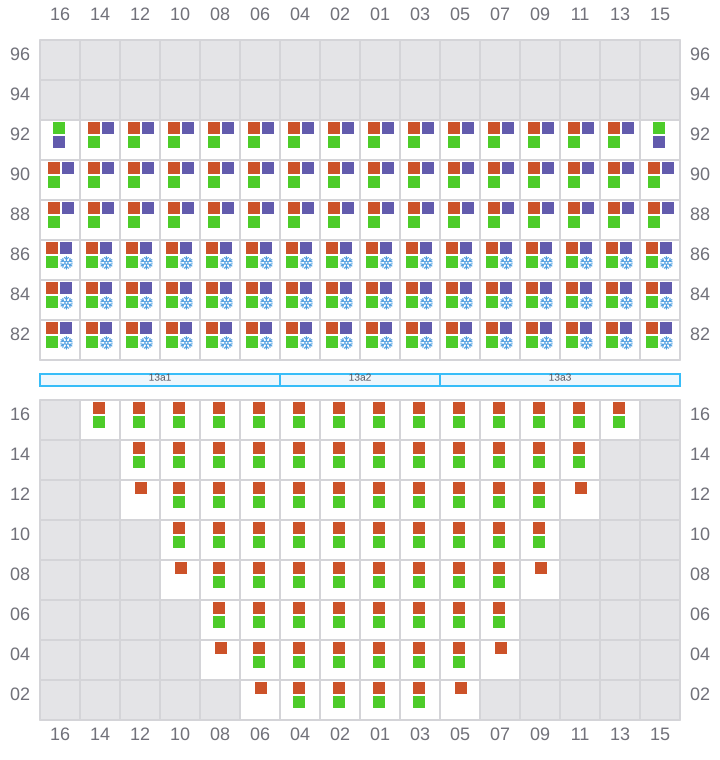

015 (014)
- ←
- → / ?
- →
![Bay 015 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b015.png?v=1715110827849)
017
- →
- →
![Bay 017 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b017.png?v=1715110827849)

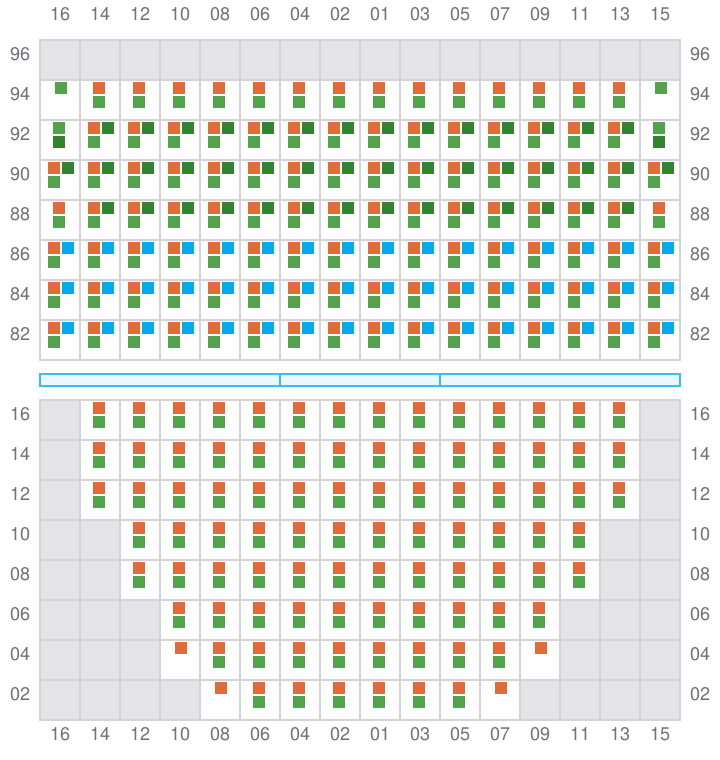

019 (018)
- ←
- → / ?
- →
![Bay 019 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b019.png?v=1715110827849)

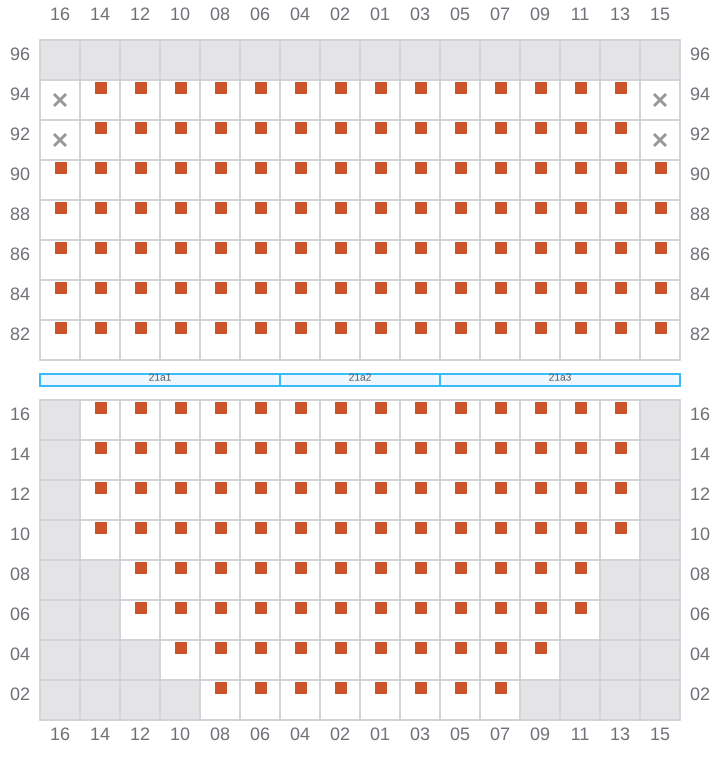

021
- →
- →
![Bay 021 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b021.png?v=1715110827849)

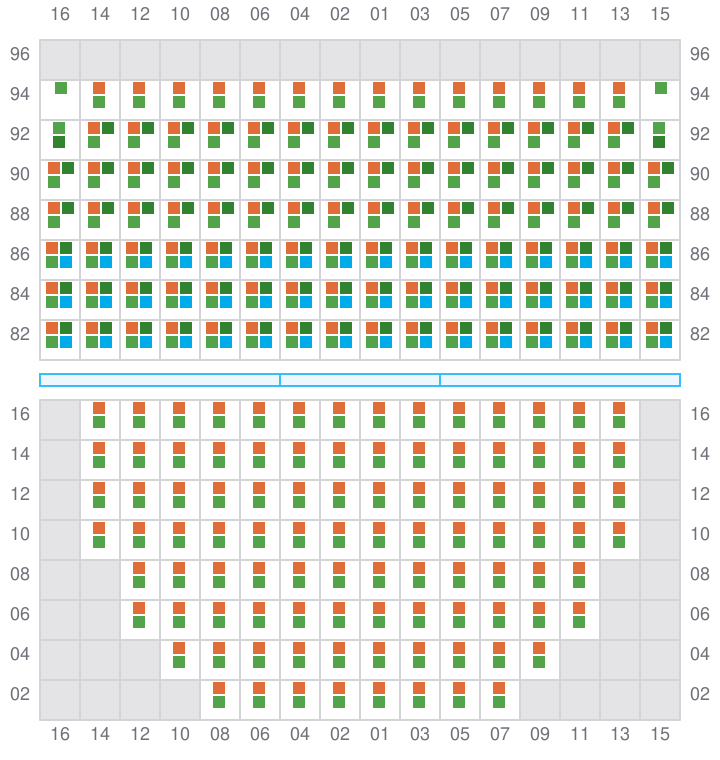

023 (022)
- ←
- → / ?
- →
![Bay 023 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b023.png?v=1715110827849)
025
- →
- →
![Bay 025 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b025.png?v=1715110827849)

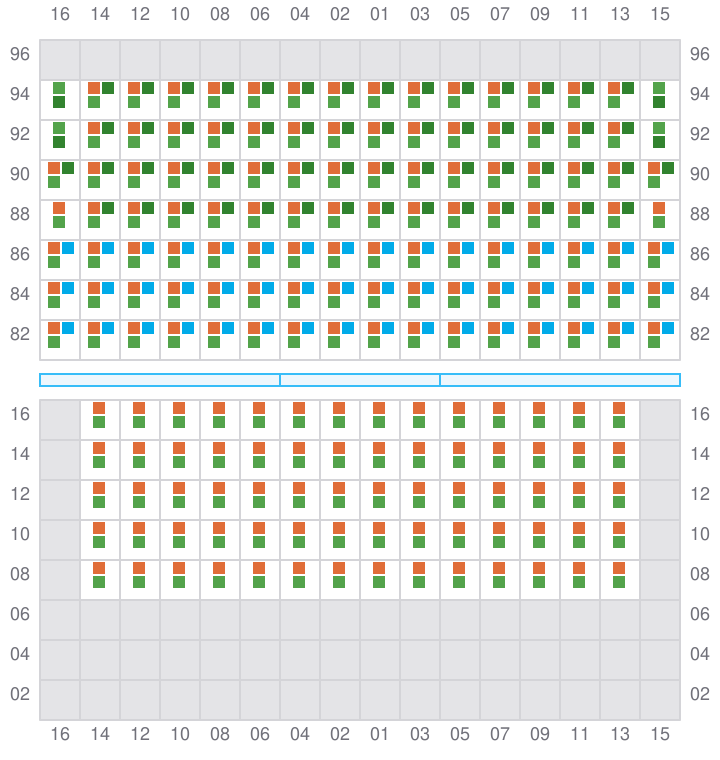

027 (026)
- ←
- → / ?
- →
![Bay 027 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b027.png?v=1715110827849)
029
- →
- →
![Bay 029 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b029.png?v=1715110827849)

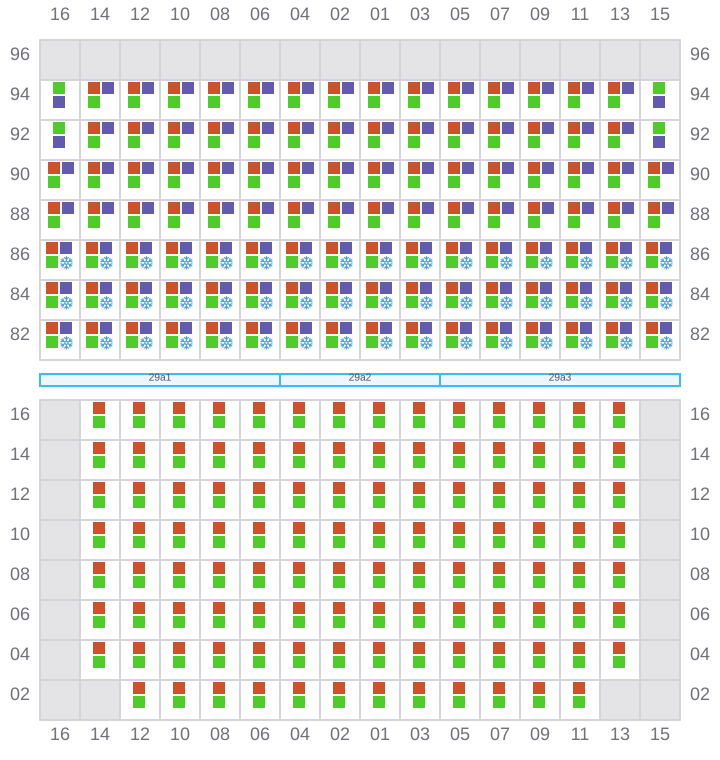

031 (030)
- ←
- → / ?
- →
![Bay 031 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b031.png?v=1715110827849)
033
- →
- →
![Bay 033 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b033.png?v=1715110827849)

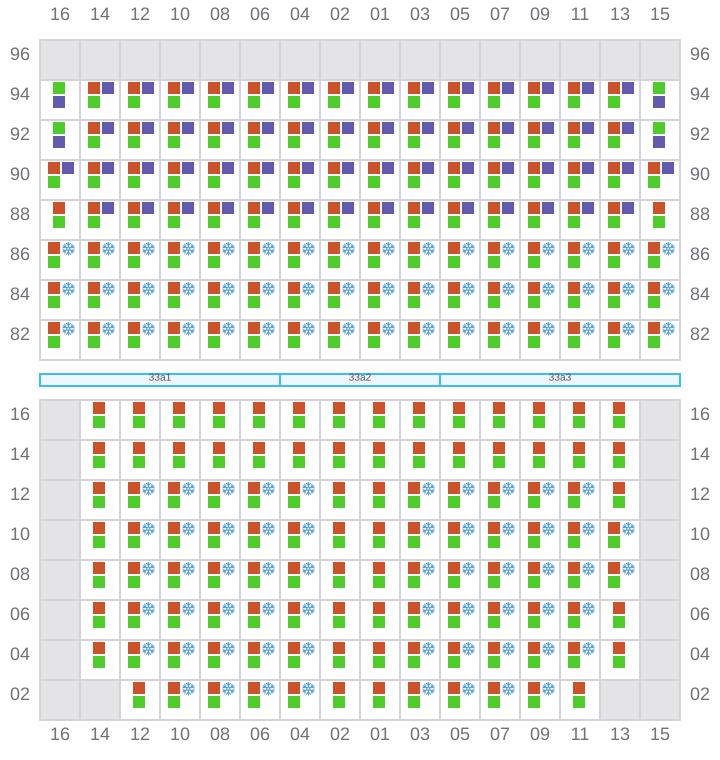

035 (034)
- ←
- →
- →
![Bay 035 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b035.png?v=1715110827849)

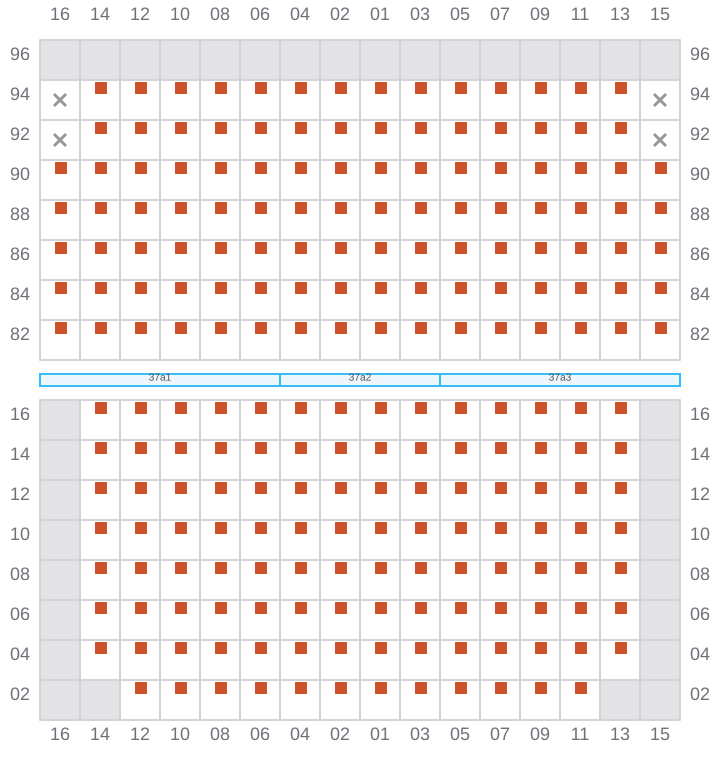

037
- →
- →
![Bay 037 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b037.png?v=1715110827849)

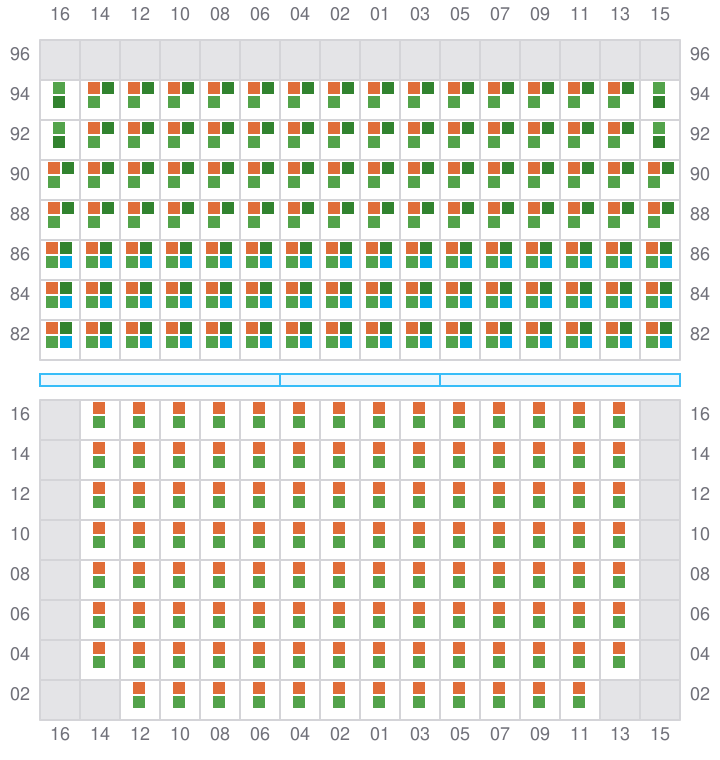

039 (038)
- ←
- → / ?
- →
![Bay 039 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b039.png?v=1715110827849)
041
- →
- →
![Bay 041 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b041.png?v=1715110827849)

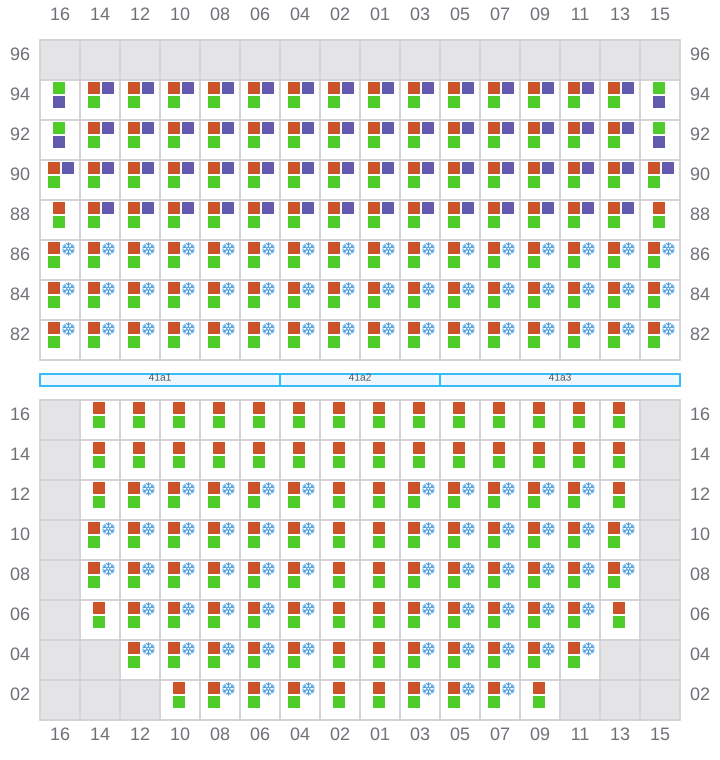

043 (042)
- ←
- →
- →
![Bay 043 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b043.png?v=1715110827849)

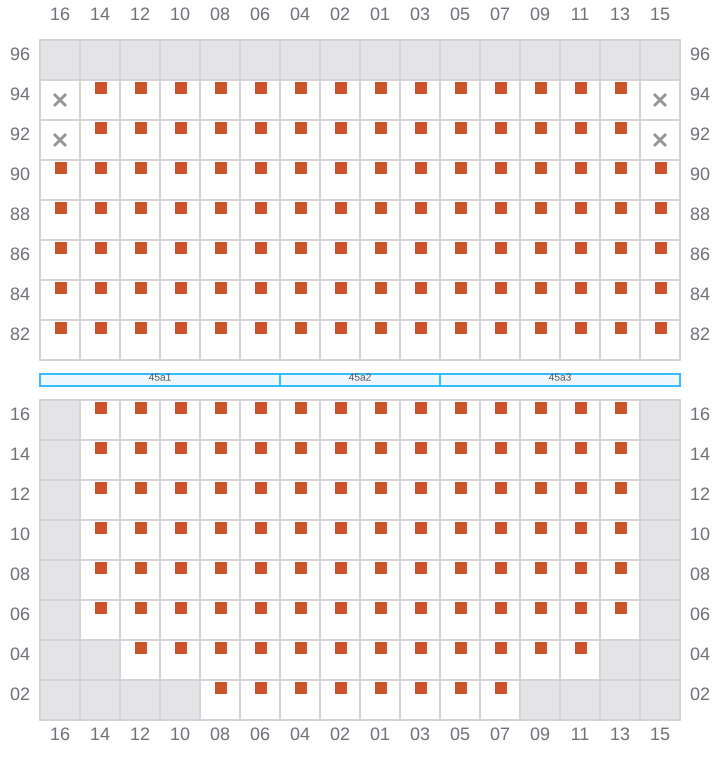

045
- →
- →
![Bay 045 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b045.png?v=1715110827849)
047 (046)
- ←
- → / ?
- →
![Bay 047 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b047.png?v=1715110827849)

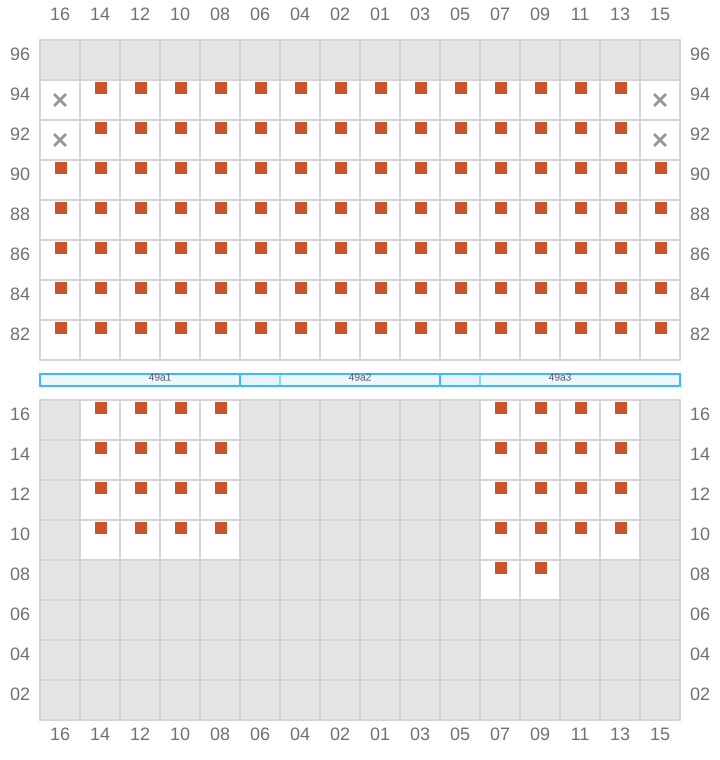

049
- →
- →
![Bay 049 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b049.png?v=1715110827849)

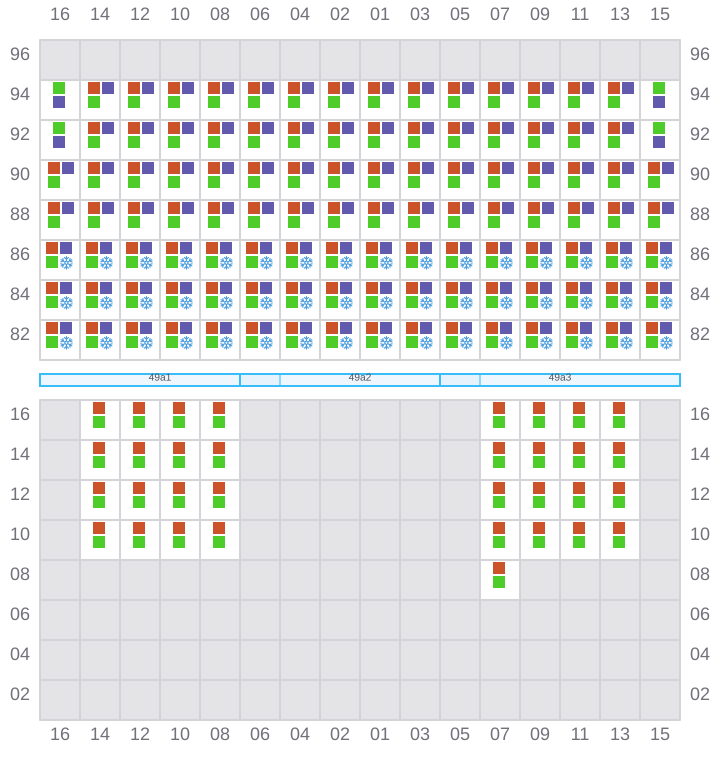

051 (050)
- ←
- → / ?
- →
![Bay 051 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b051.png?v=1715110827849)

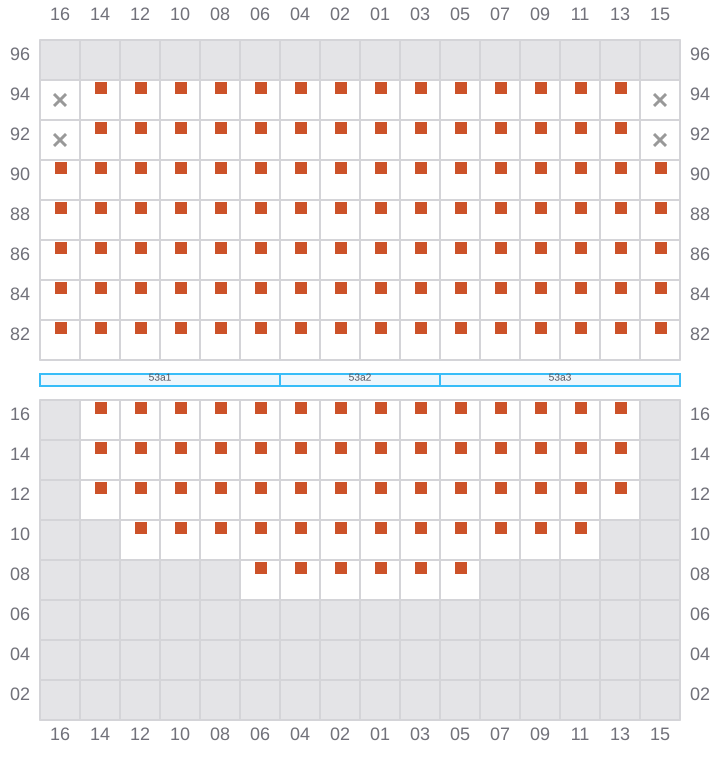

053
- →
- →
![Bay 053 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b053.png?v=1715110827849)
055 (054)
- ←
- → / ?
- →
![Bay 055 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b055.png?v=1715110827849)
057
- →
- →
![Bay 057 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b057.png?v=1715110827849)

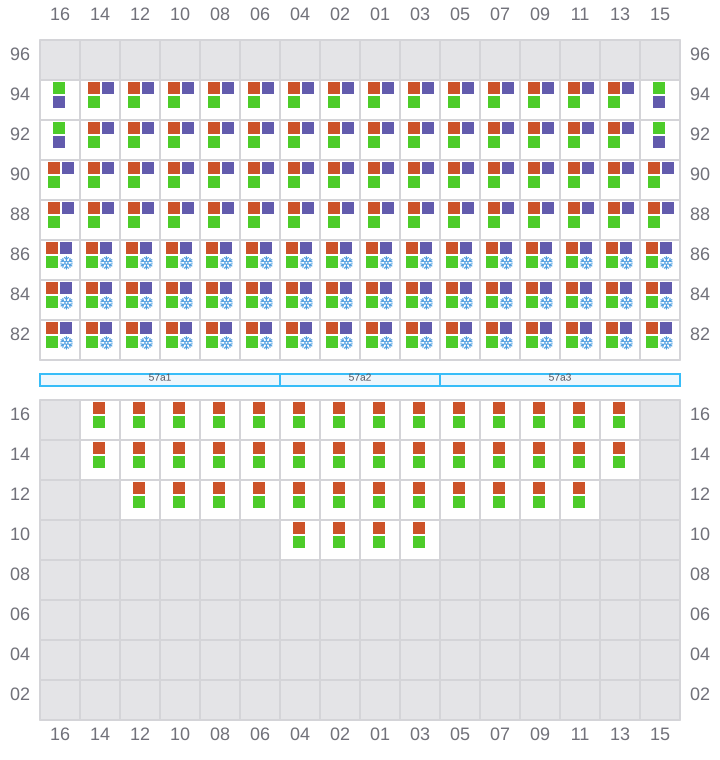

059 (058)
- ←
- → / ?
- →
![Bay 059 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b059.png?v=1715110827849)

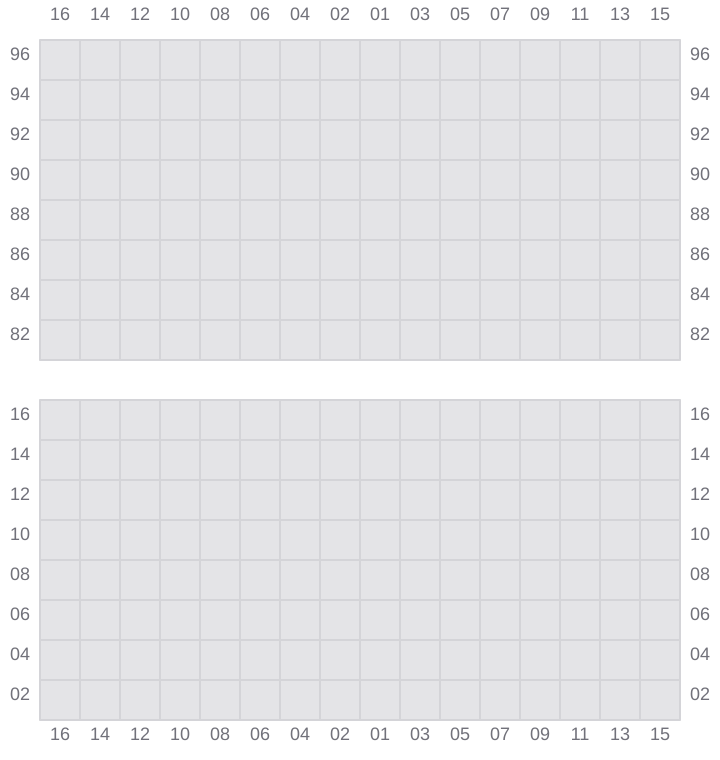

061
![Bay 061 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b061.png?v=1715110827849)

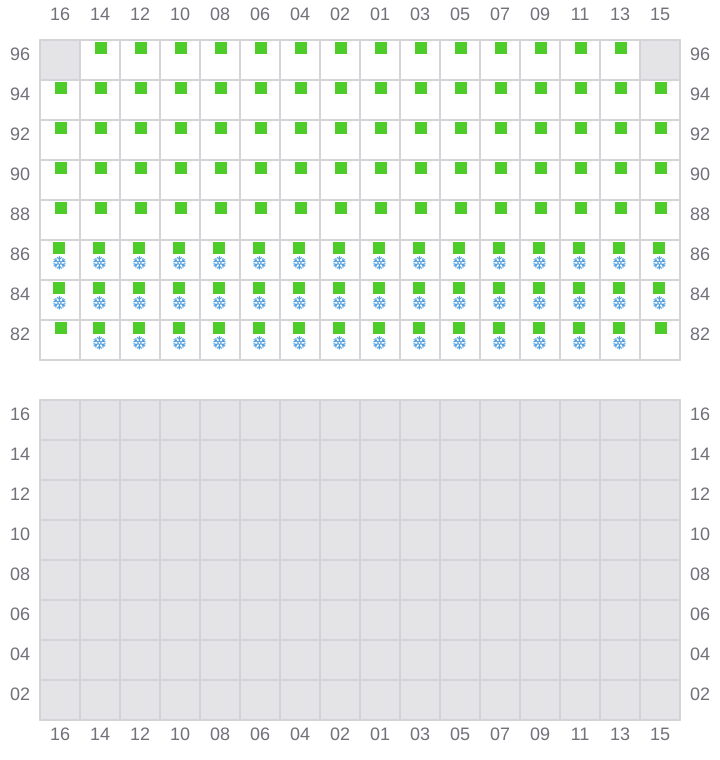

063 (062)
- ← / ?
- ← / ?
- → / ?
![Bay 063 view and slots of ESL KABIR](/vessel-images/47a9c920-40be-46e8-b9b7-1b4b62d9e7ef-b063.png?v=1715110827849)
