ESL NHAVA SHEVA
9535199 | CQHM | 9535199 by ********* Last update: Tue May 07 2024

General Info

Ship Name:ESL NHAVA SHEVA
IMO Code:9535199
Call Sign:CQHM
Line Operator:9535199
Class Name for Sister Ships:MOLGENESIS
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,605

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

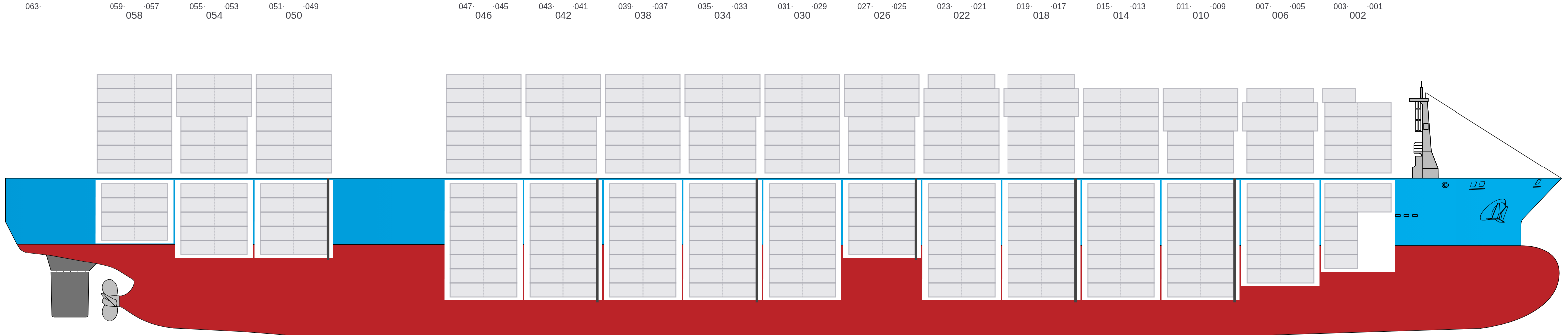

Side view of ESL NHAVA SHEVA

Hatch-Covers View

Deck view of ESL NHAVA SHEVA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →

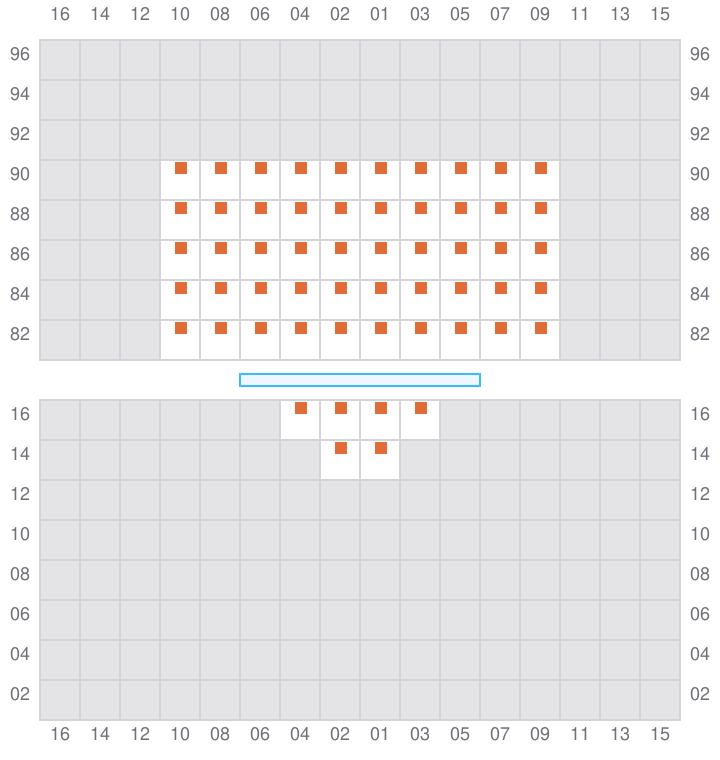

Bay 001 view and slots of ESL NHAVA SHEVA

003 (002)

  • ←
  • → / ?
  • →

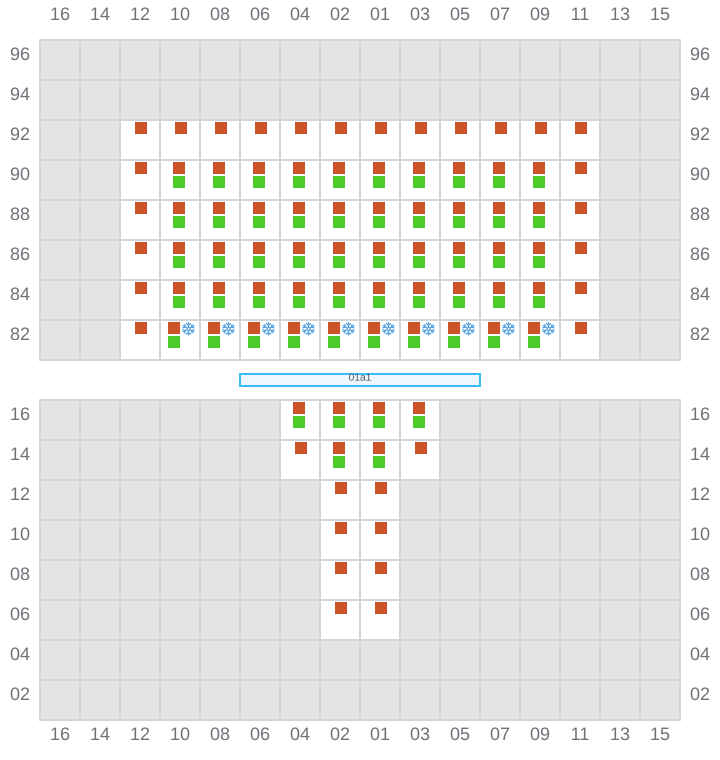

Bay 003 view and slots of ESL NHAVA SHEVA

005

  • →
  • →

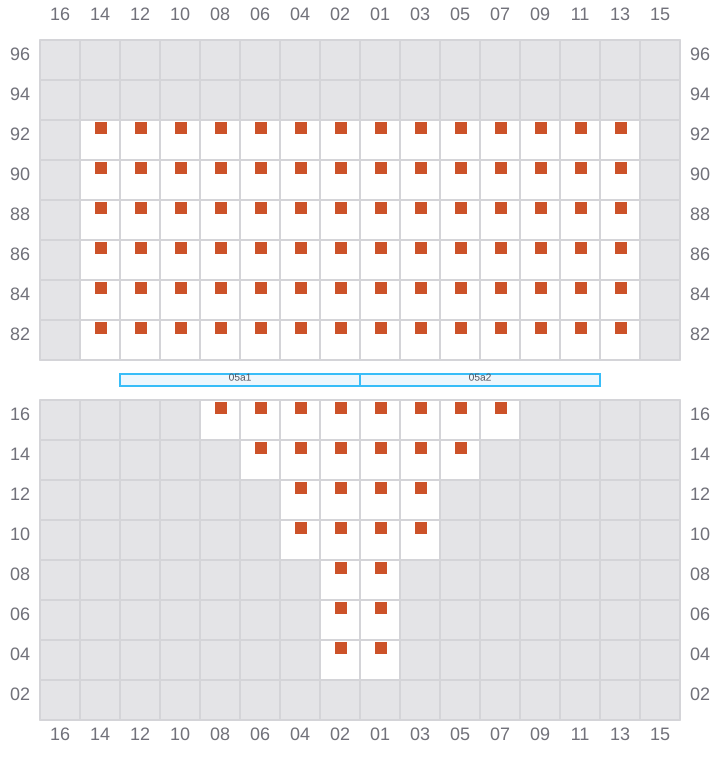

Bay 005 view and slots of ESL NHAVA SHEVA

007 (006)

  • ←
  • → / ?
  • →

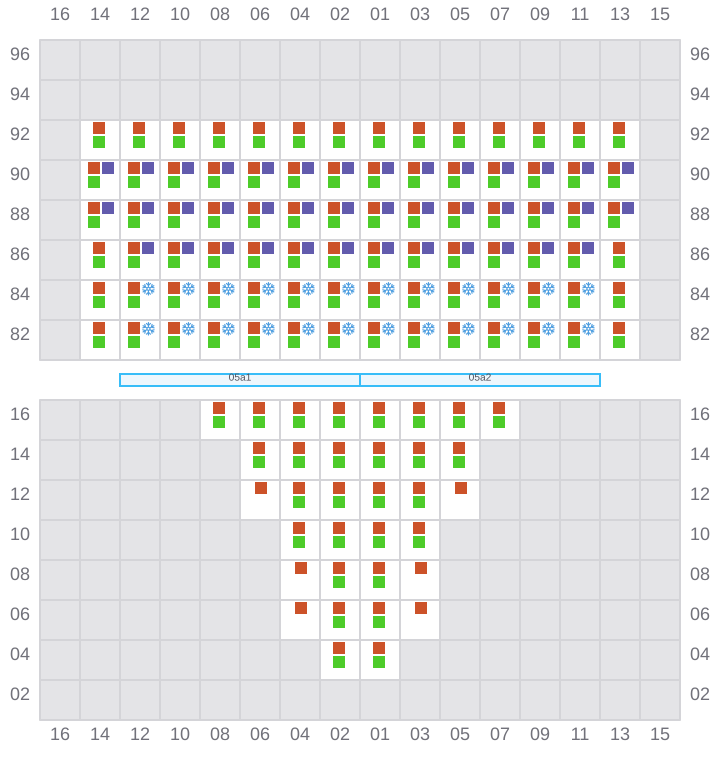

Bay 007 view and slots of ESL NHAVA SHEVA

009

  • →
  • →

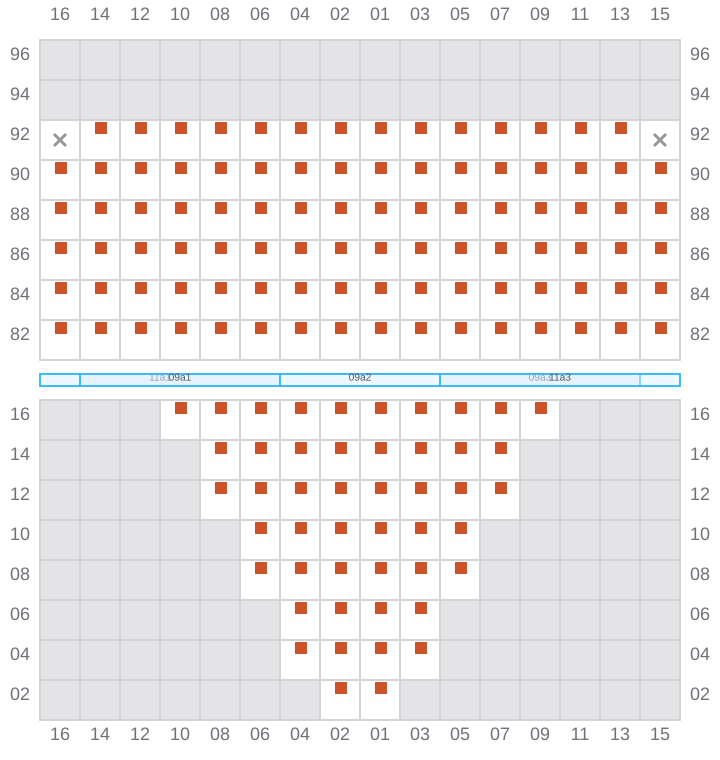

Bay 009 view and slots of ESL NHAVA SHEVA

011 (010)

  • ←
  • → / ?
  • →

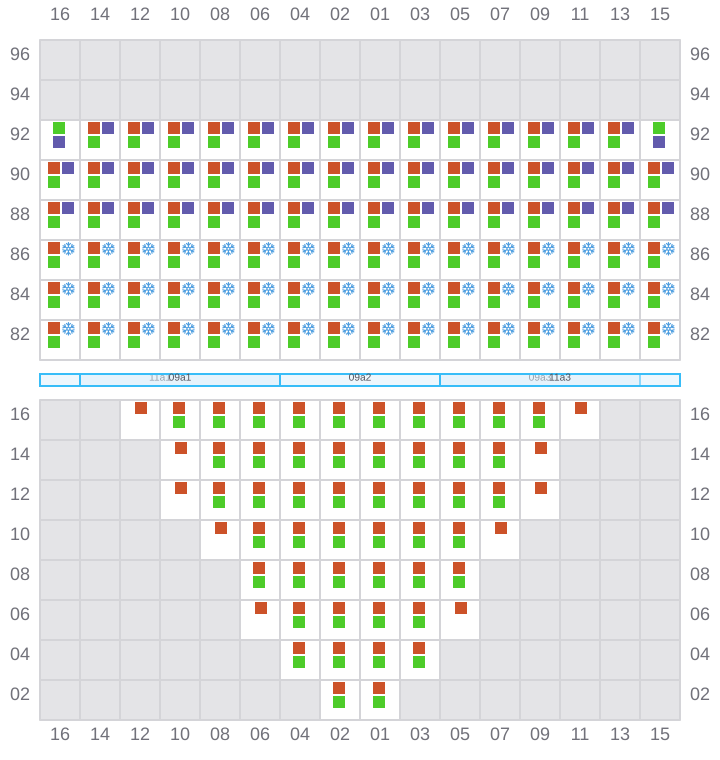

Bay 011 view and slots of ESL NHAVA SHEVA

013

  • →
  • →

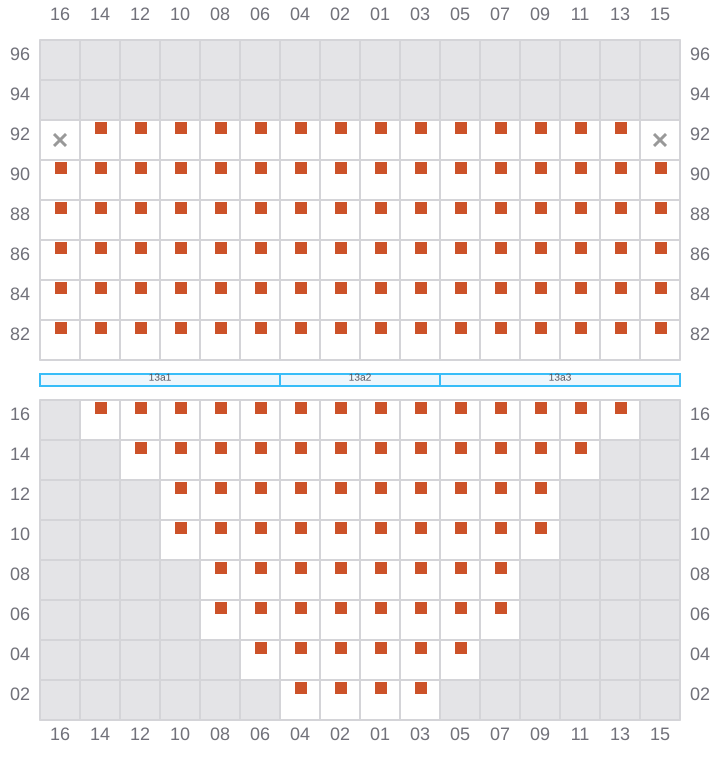

Bay 013 view and slots of ESL NHAVA SHEVA

015 (014)

  • ←
  • → / ?
  • →

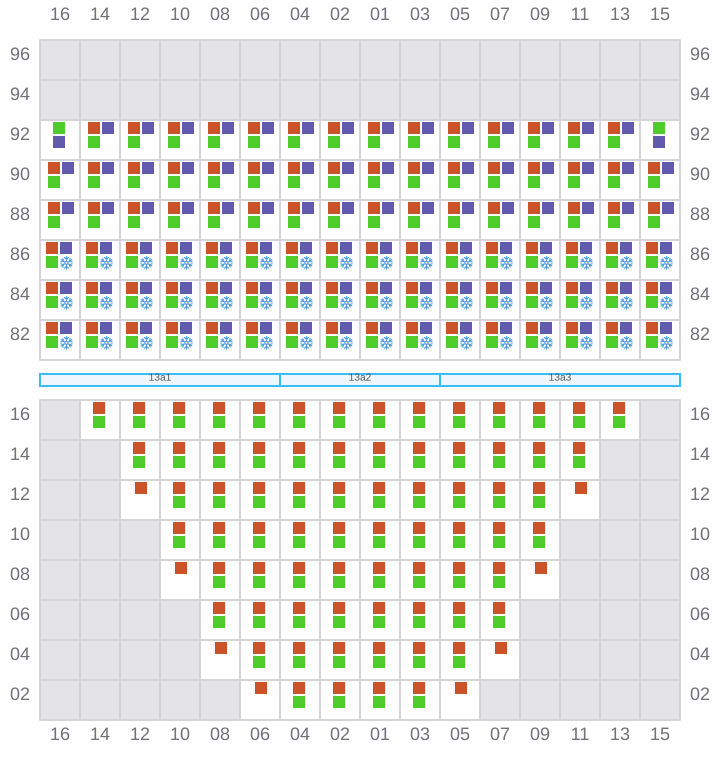

Bay 015 view and slots of ESL NHAVA SHEVA

017

  • →
  • →

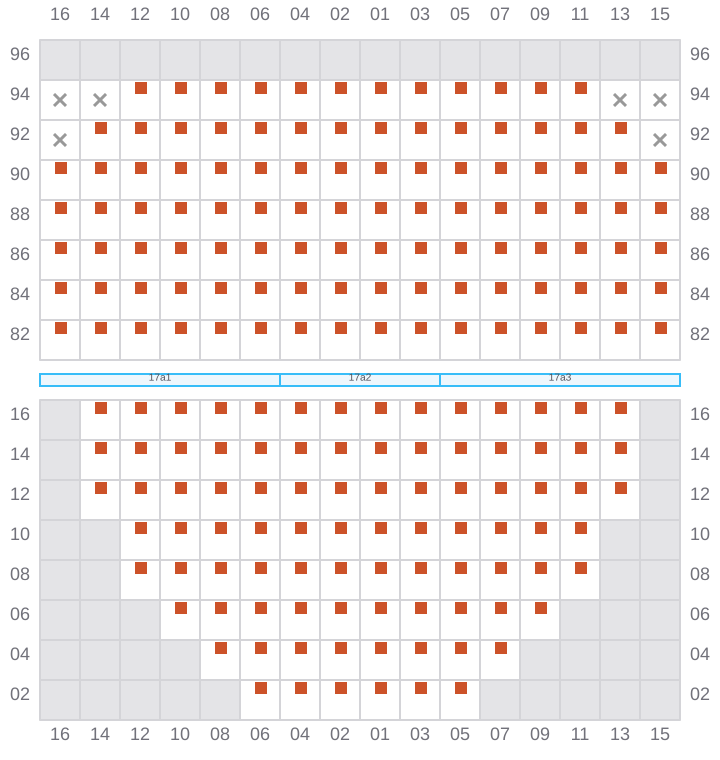

Bay 017 view and slots of ESL NHAVA SHEVA

019 (018)

  • ←
  • → / ?
  • →

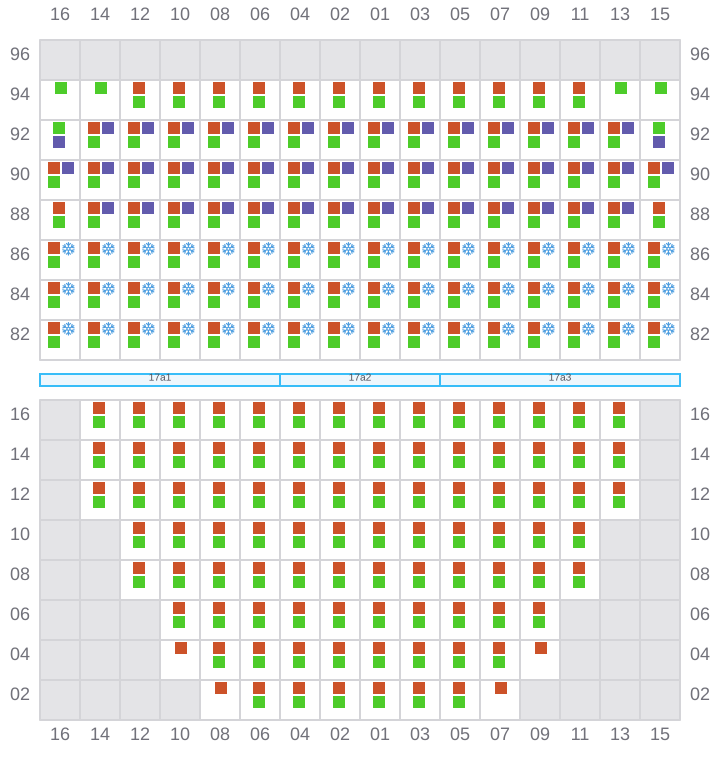

Bay 019 view and slots of ESL NHAVA SHEVA

021

  • →
  • →

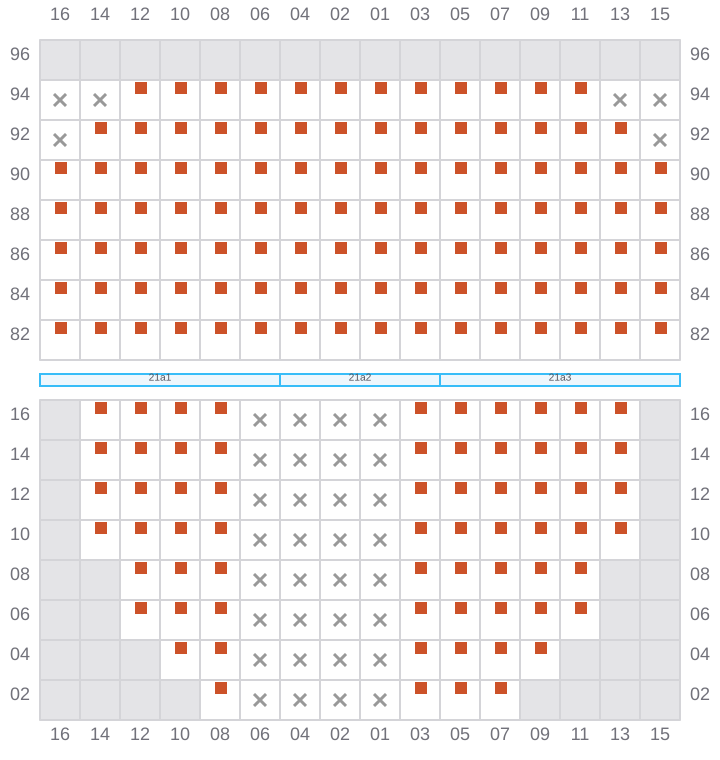

Bay 021 view and slots of ESL NHAVA SHEVA

023 (022)

  • ←
  • → / ?
  • →

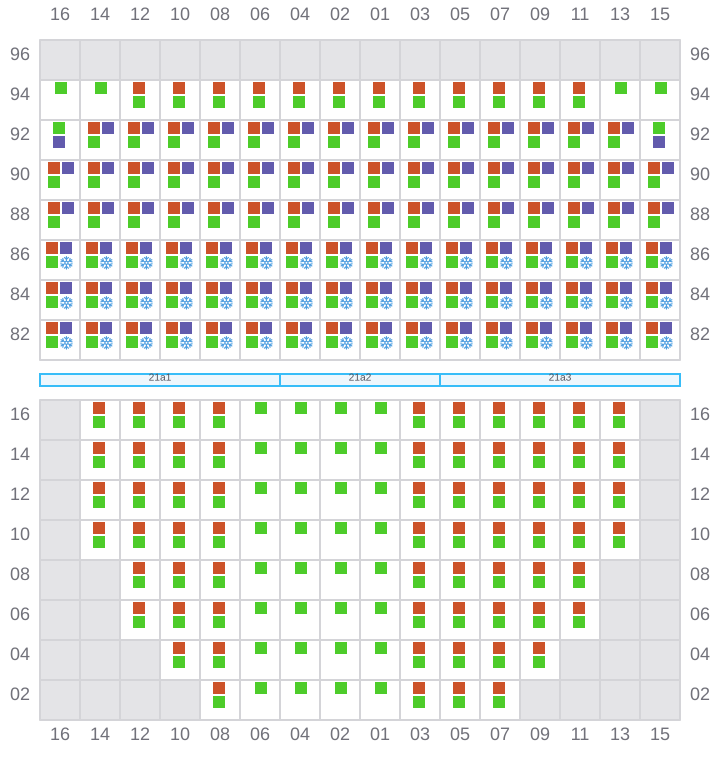

Bay 023 view and slots of ESL NHAVA SHEVA

025

  • →
  • →
Bay 025 view and slots of ESL NHAVA SHEVA

027 (026)

  • ←
  • → / ?
  • →

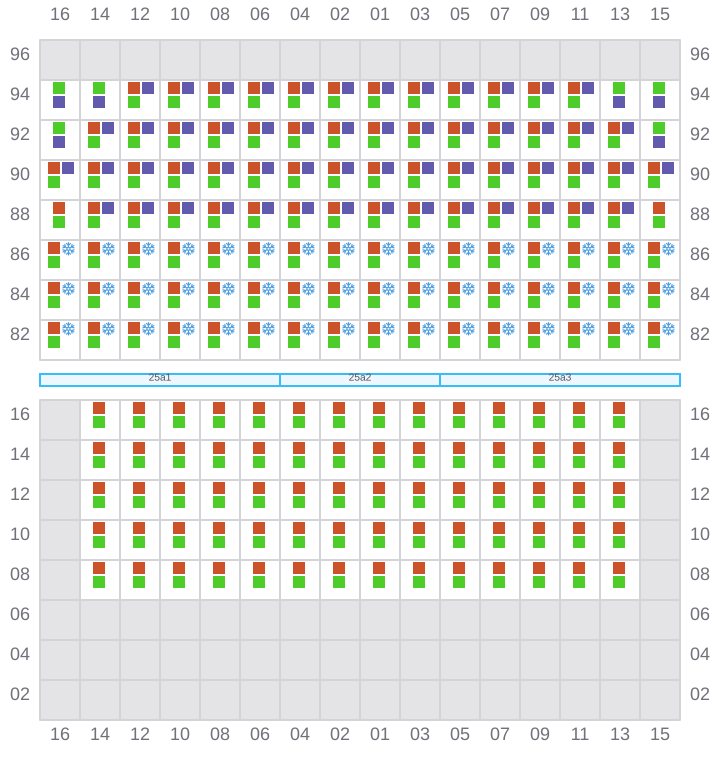

Bay 027 view and slots of ESL NHAVA SHEVA

029

  • →
  • →
Bay 029 view and slots of ESL NHAVA SHEVA

031 (030)

  • ←
  • → / ?
  • →

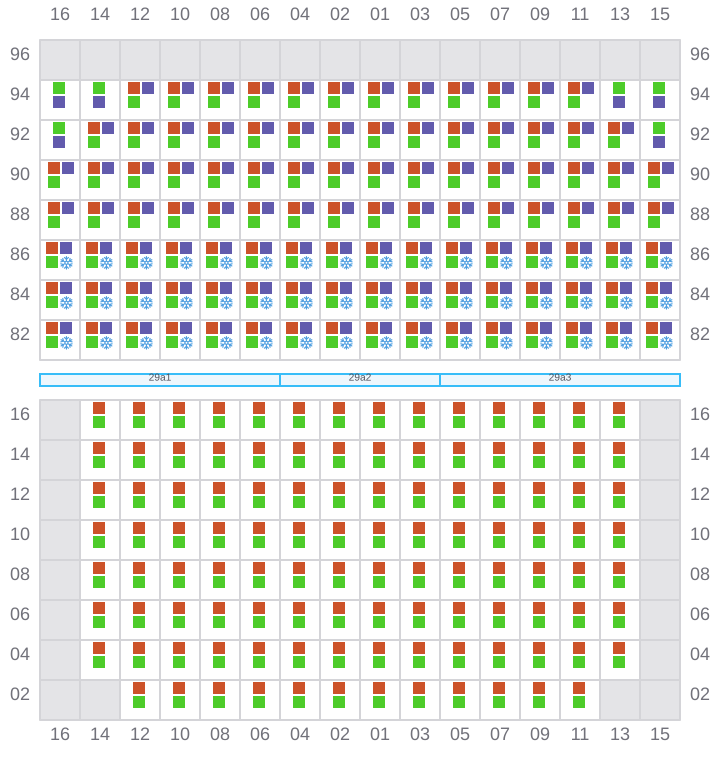

Bay 031 view and slots of ESL NHAVA SHEVA

033

  • →
  • →

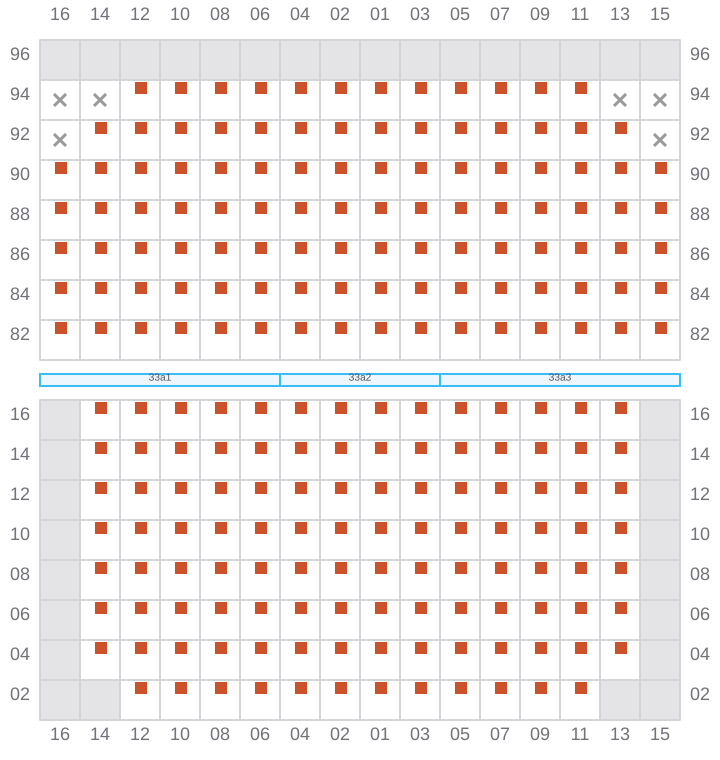

Bay 033 view and slots of ESL NHAVA SHEVA

035 (034)

  • ←
  • →
  • →

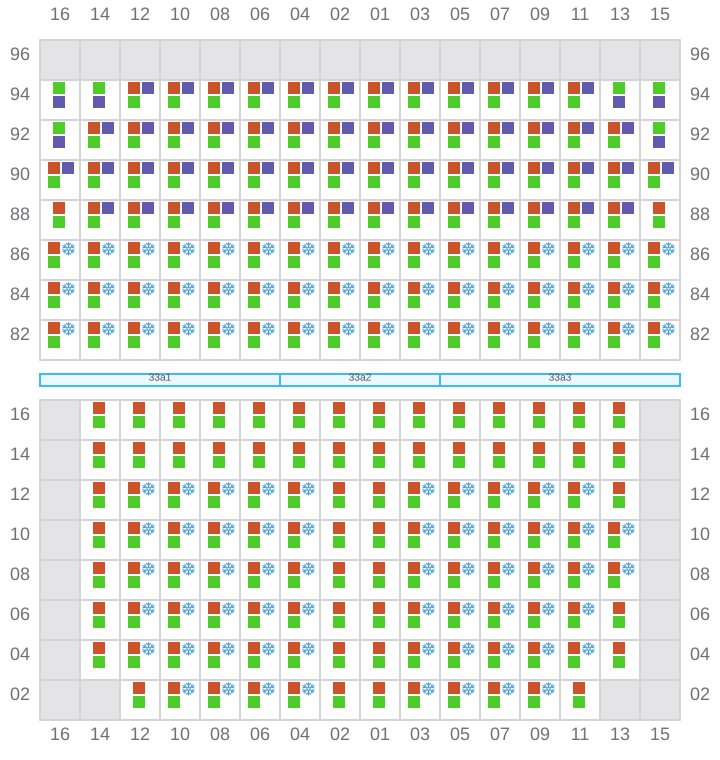

Bay 035 view and slots of ESL NHAVA SHEVA

037

  • →
  • →
Bay 037 view and slots of ESL NHAVA SHEVA

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of ESL NHAVA SHEVA

041

  • →
  • →

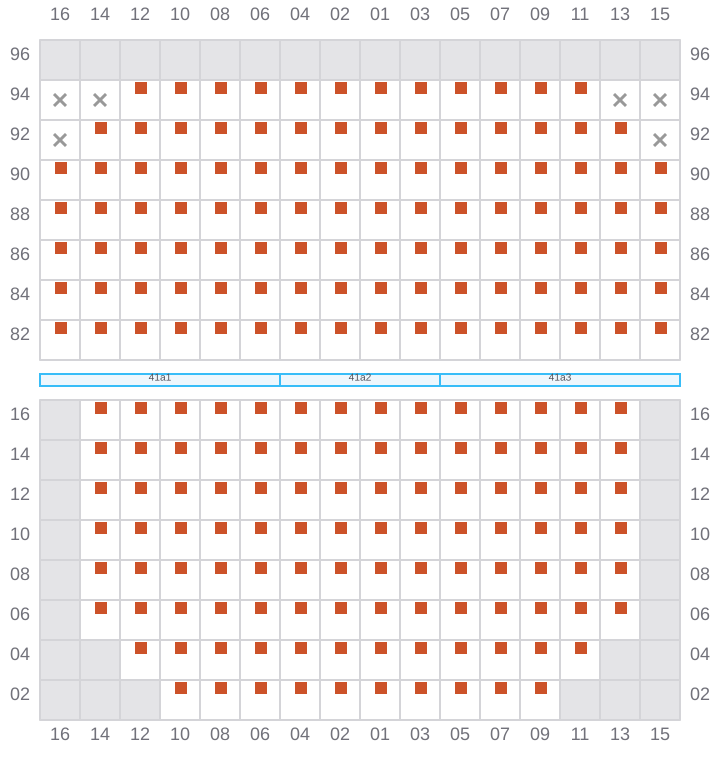

Bay 041 view and slots of ESL NHAVA SHEVA

043 (042)

  • ←
  • →
  • →

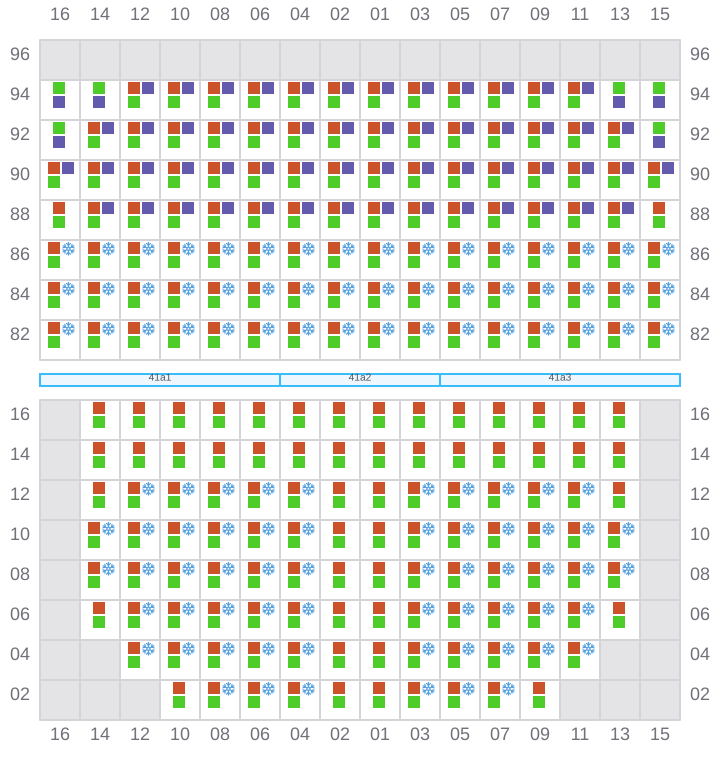

Bay 043 view and slots of ESL NHAVA SHEVA

045

  • →
  • →

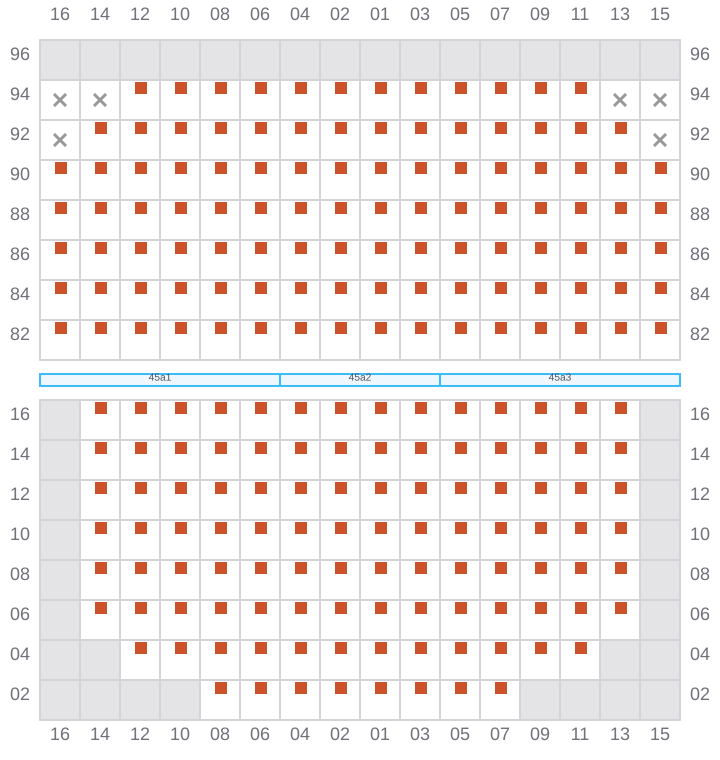

Bay 045 view and slots of ESL NHAVA SHEVA

047 (046)

  • ←
  • → / ?
  • →

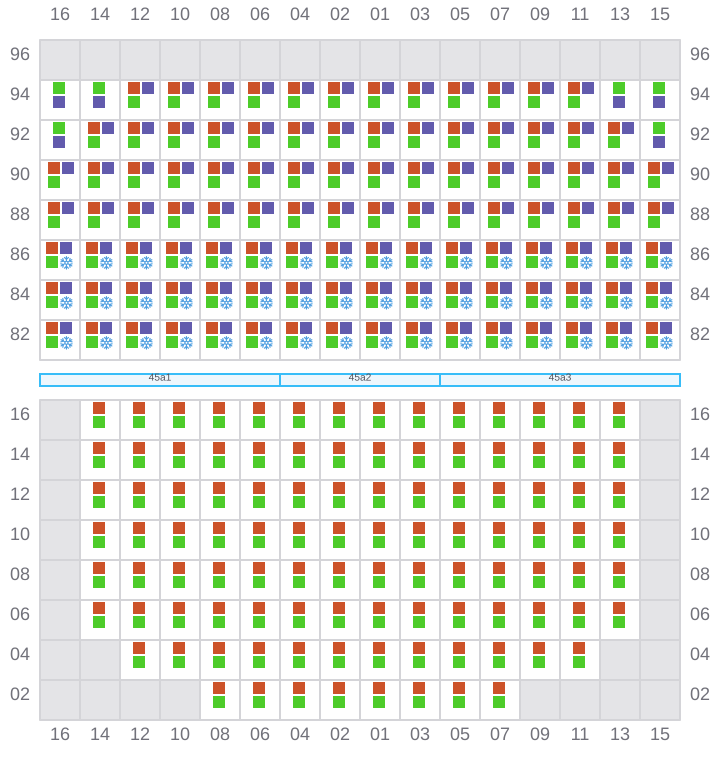

Bay 047 view and slots of ESL NHAVA SHEVA

049

  • →
  • →

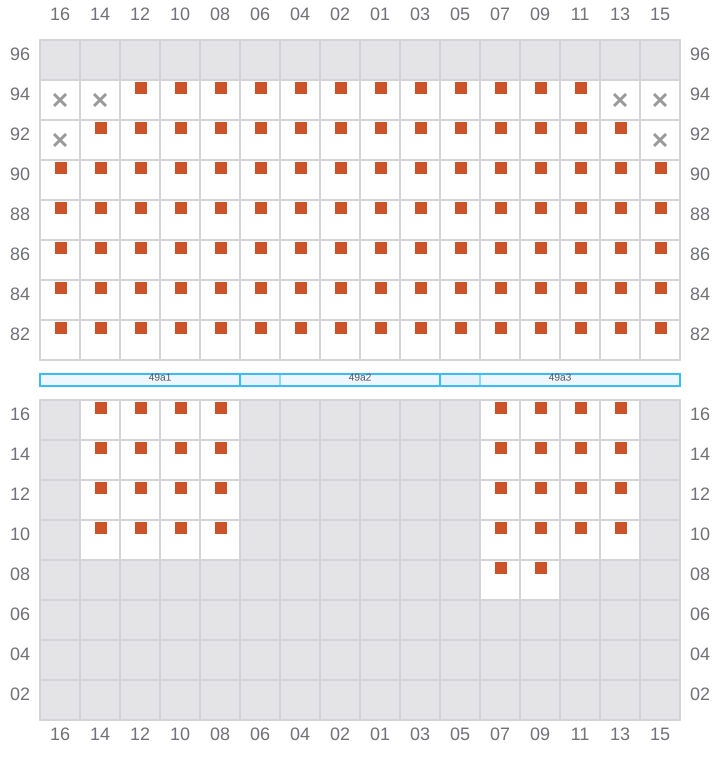

Bay 049 view and slots of ESL NHAVA SHEVA

051 (050)

  • ←
  • → / ?
  • →

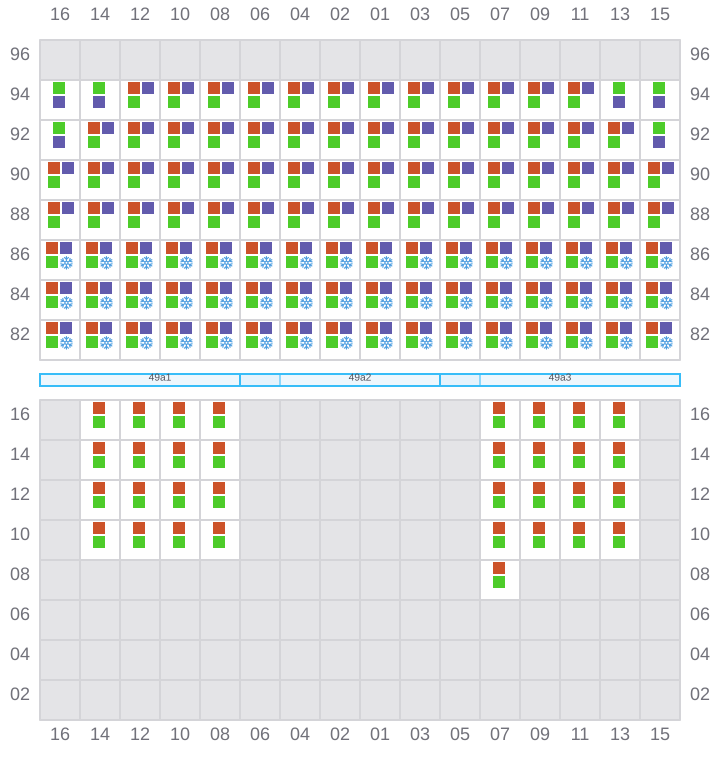

Bay 051 view and slots of ESL NHAVA SHEVA

053

  • →
  • →

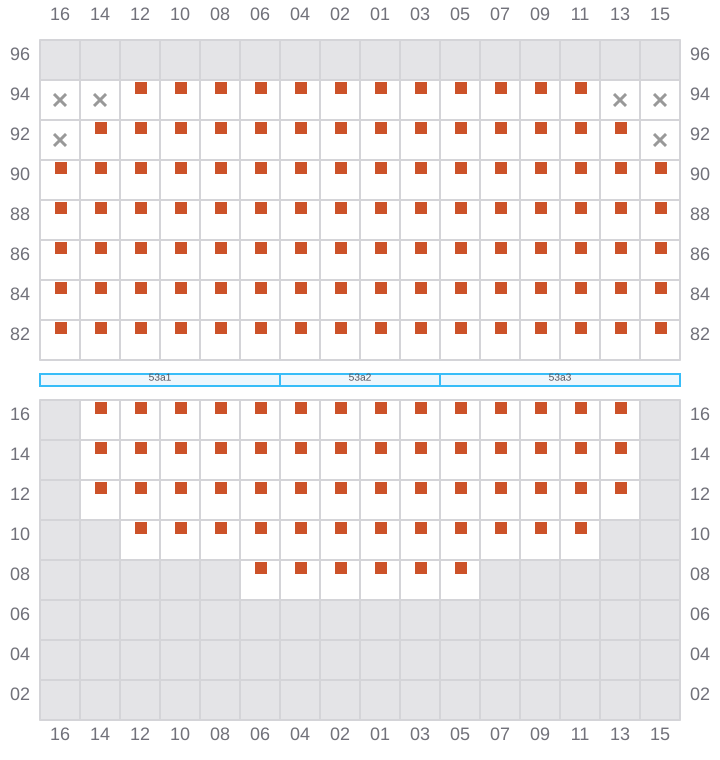

Bay 053 view and slots of ESL NHAVA SHEVA

055 (054)

  • ←
  • → / ?
  • →

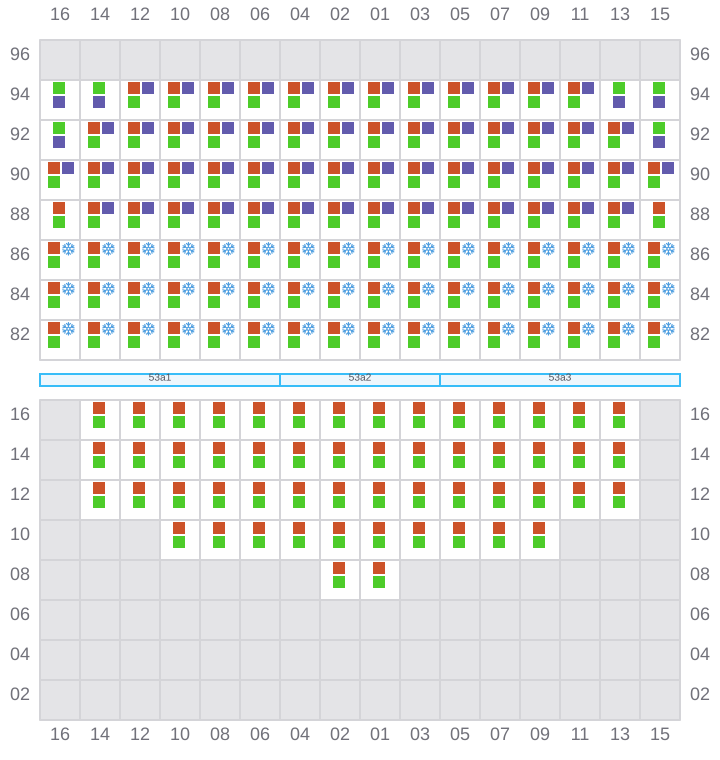

Bay 055 view and slots of ESL NHAVA SHEVA

057

  • →
  • →

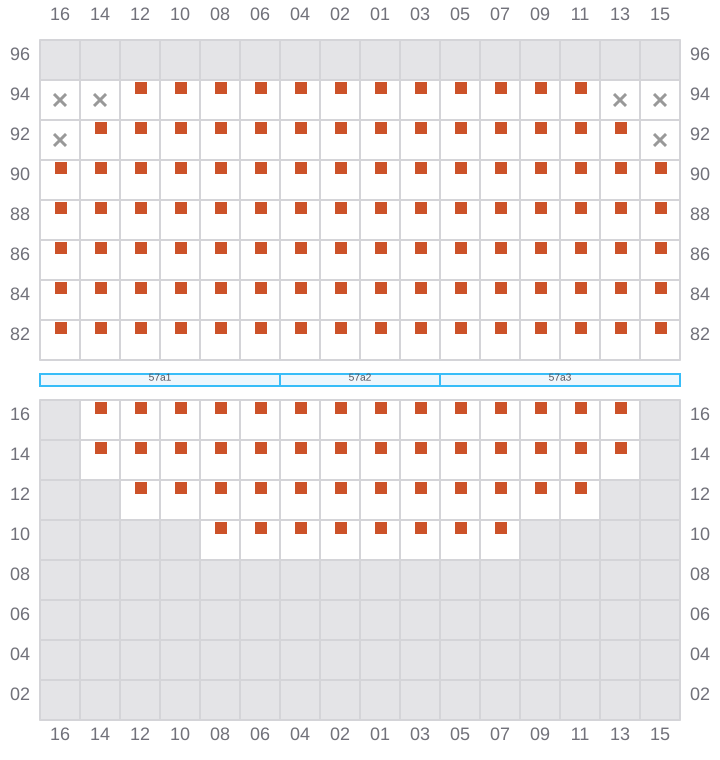

Bay 057 view and slots of ESL NHAVA SHEVA

059 (058)

  • ←
  • → / ?
  • →

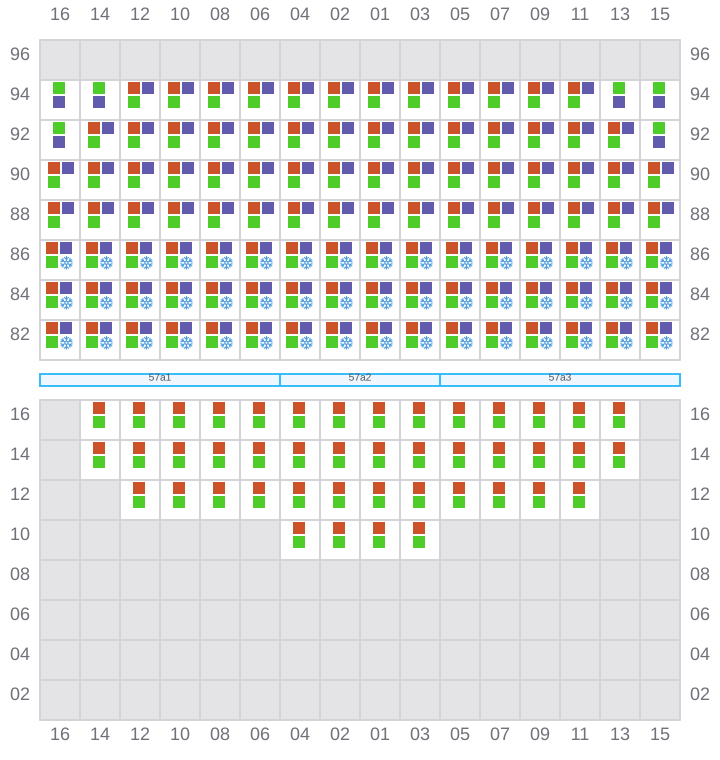

Bay 059 view and slots of ESL NHAVA SHEVA

061

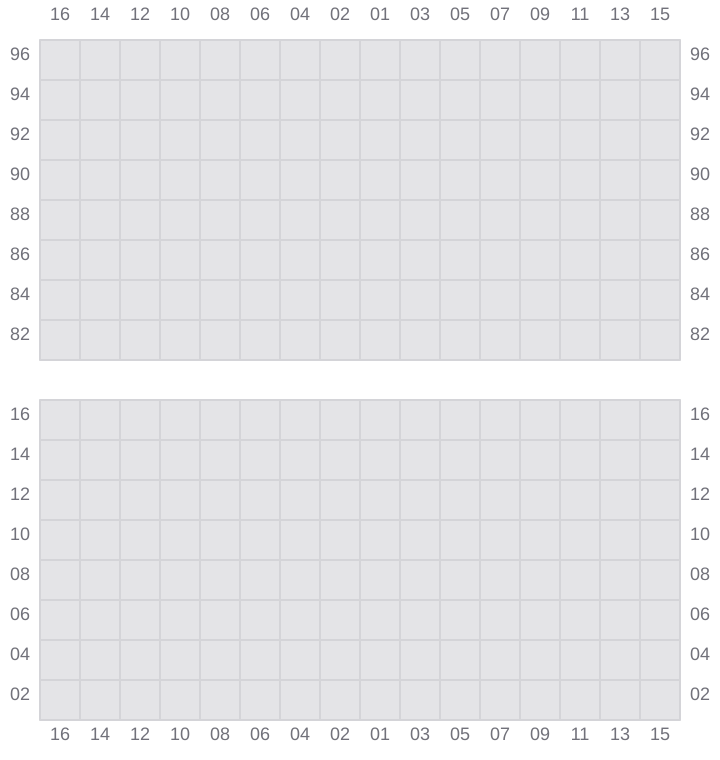

Bay 061 view and slots of ESL NHAVA SHEVA

063 (062)

  • ← / ?
  • ← / ?
  • → / ?

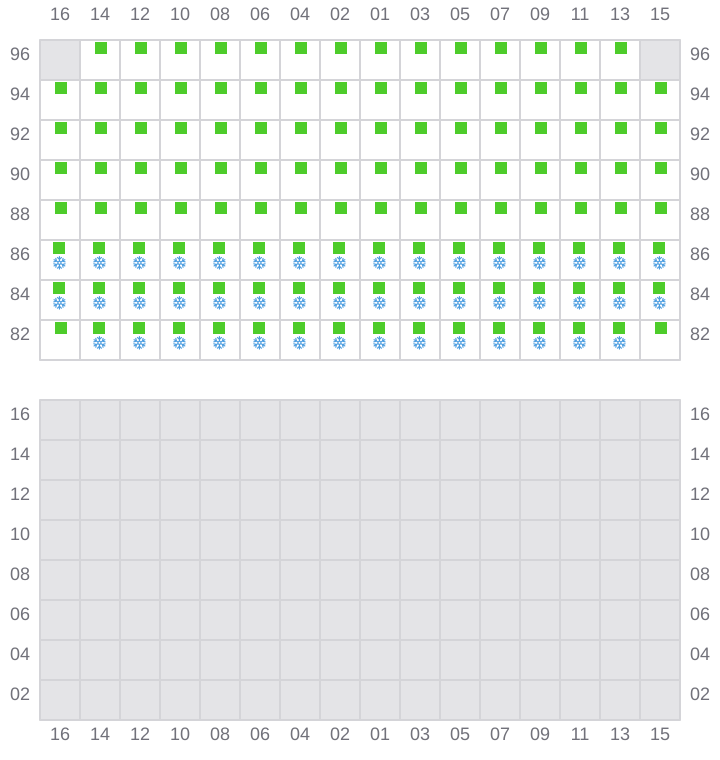

Bay 063 view and slots of ESL NHAVA SHEVA
