Ship Name:ESL WAFA
IMO Code:9306160
Call Sign:A8KM8
Line Operator:MSC
Class Name for Sister Ships:PGL
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,705

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

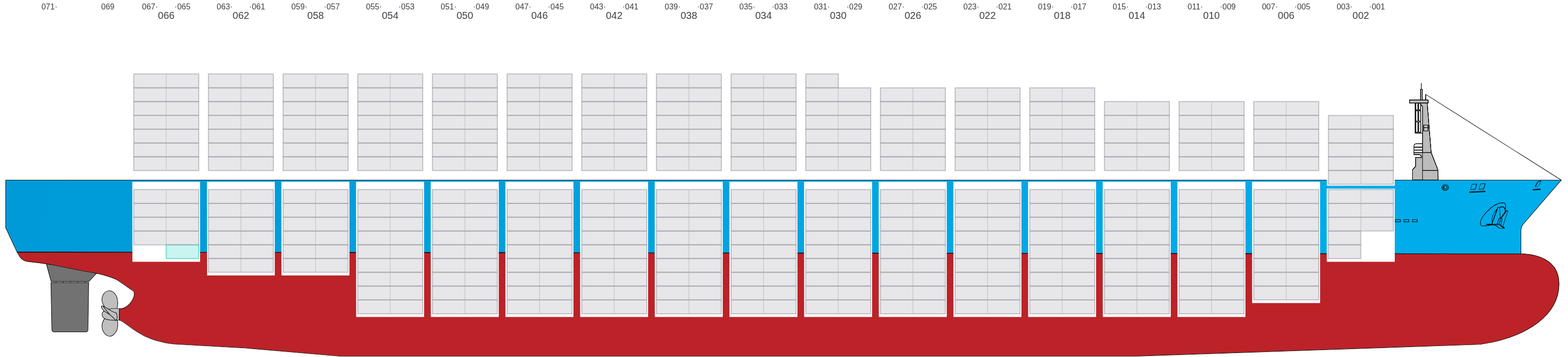

Side view of ESL WAFA

Hatch-Covers View

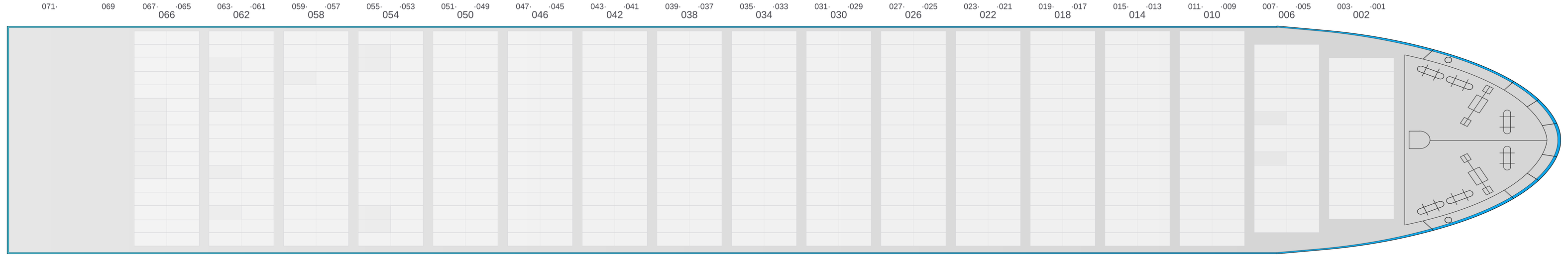

Deck view of ESL WAFA

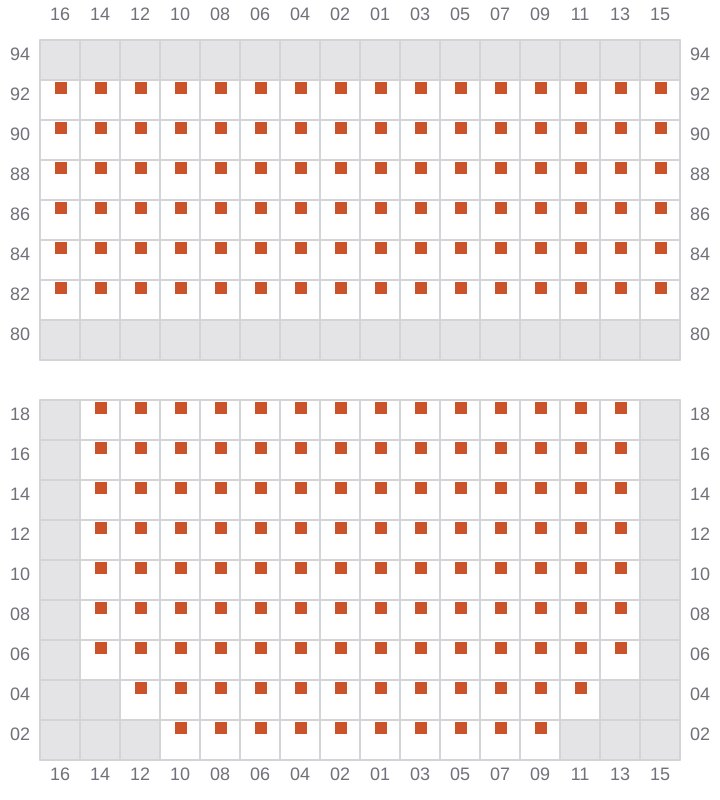

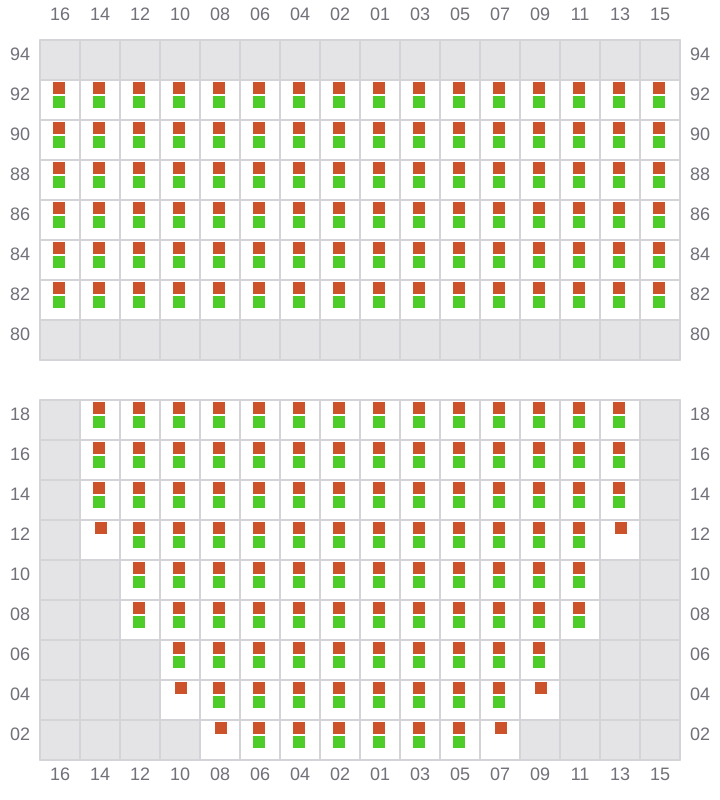

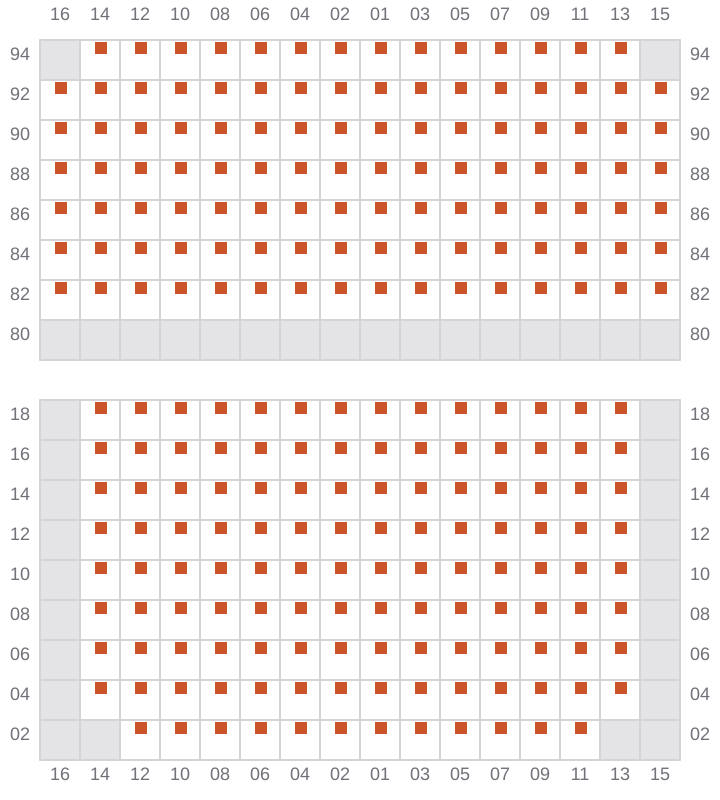

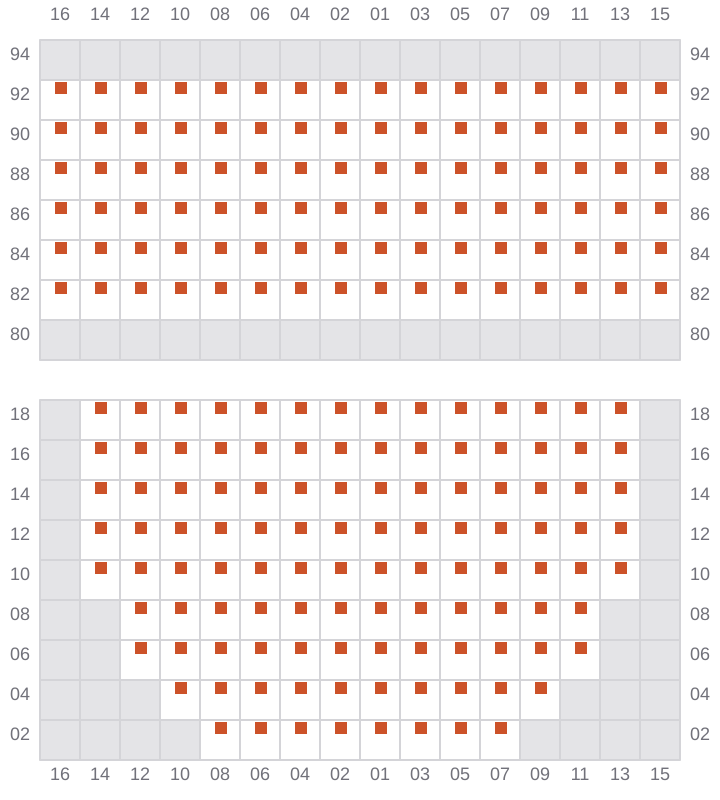

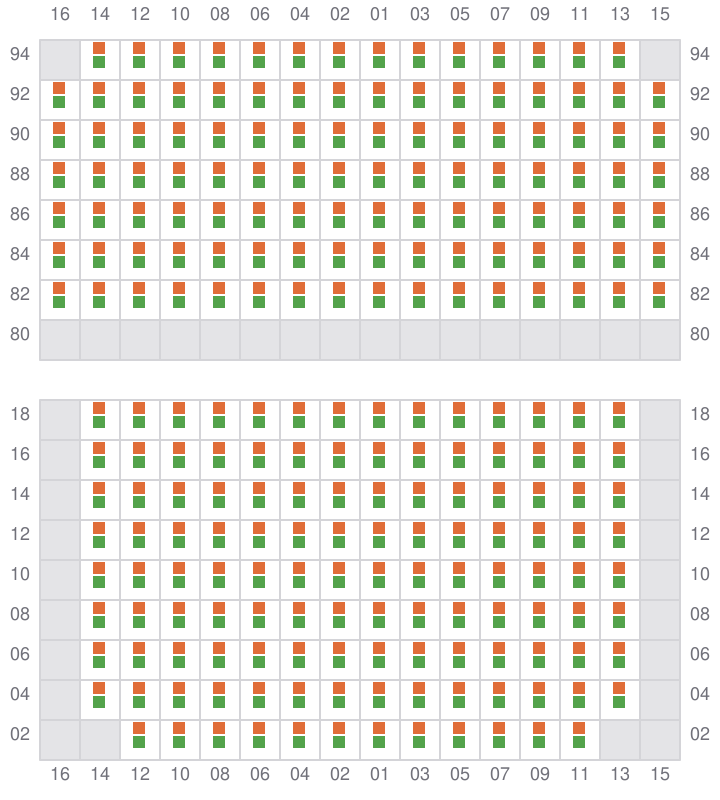

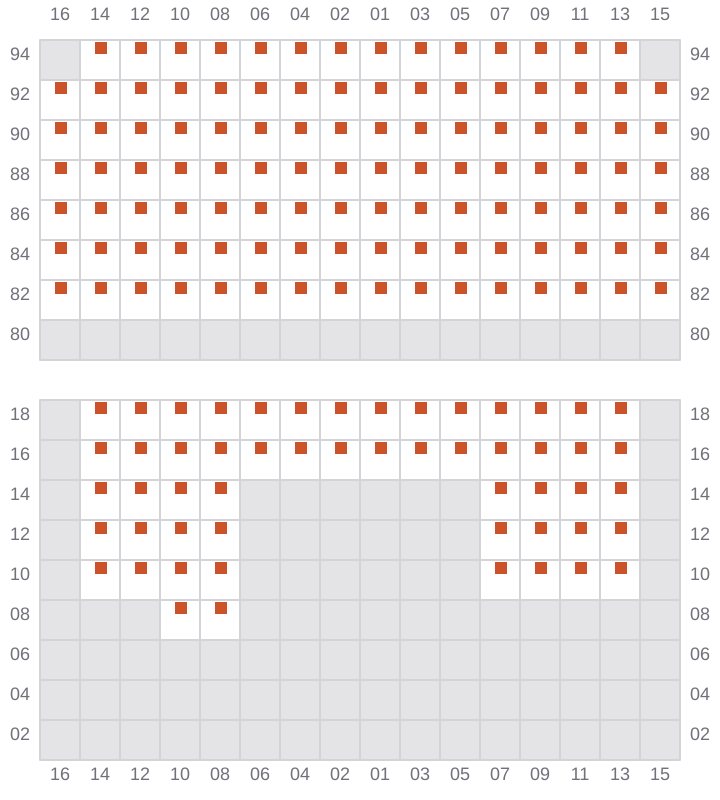

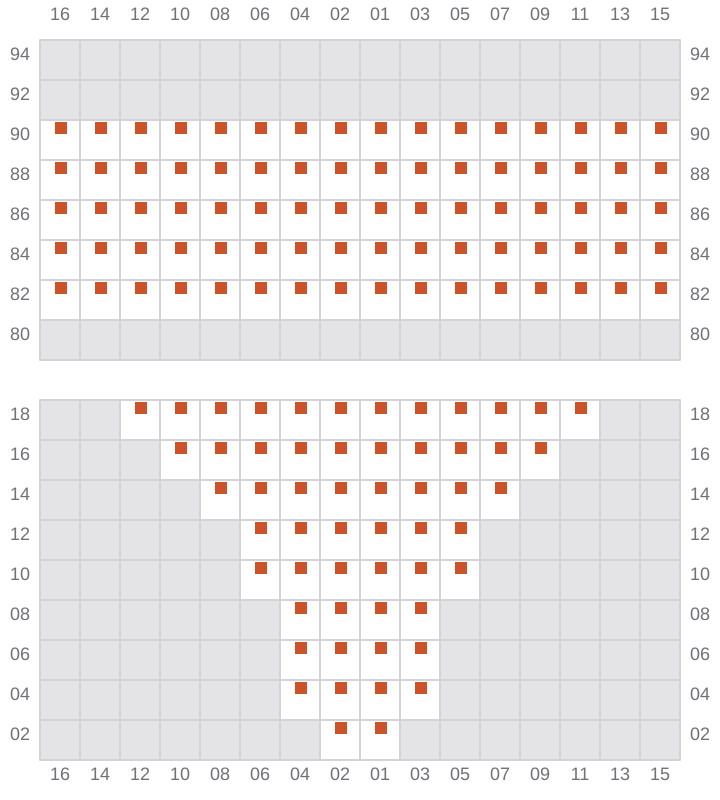

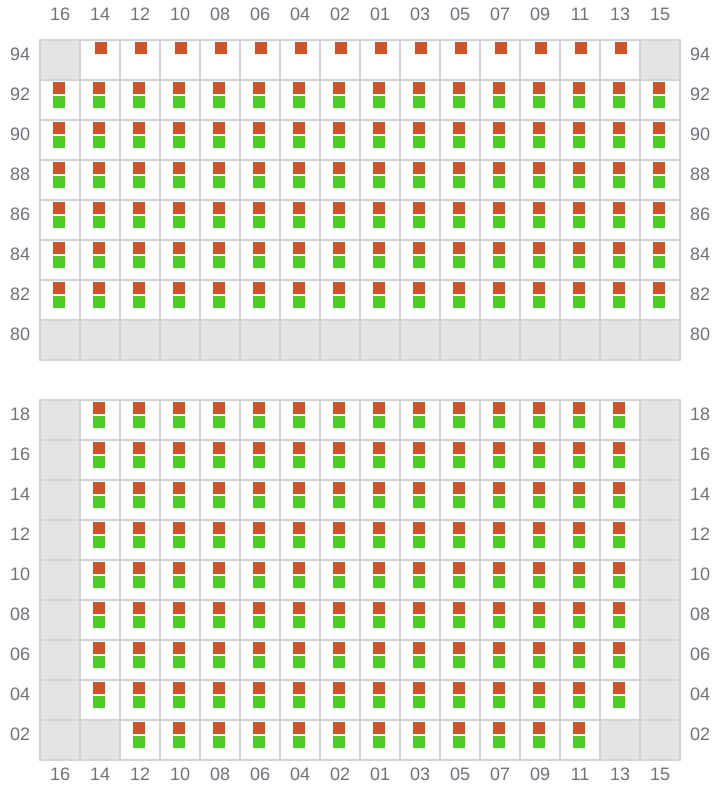

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

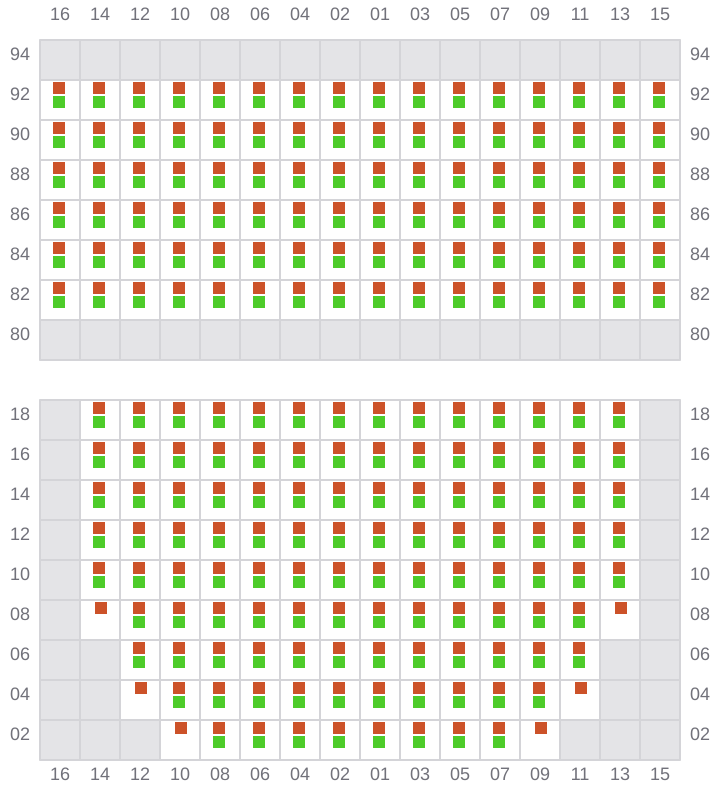

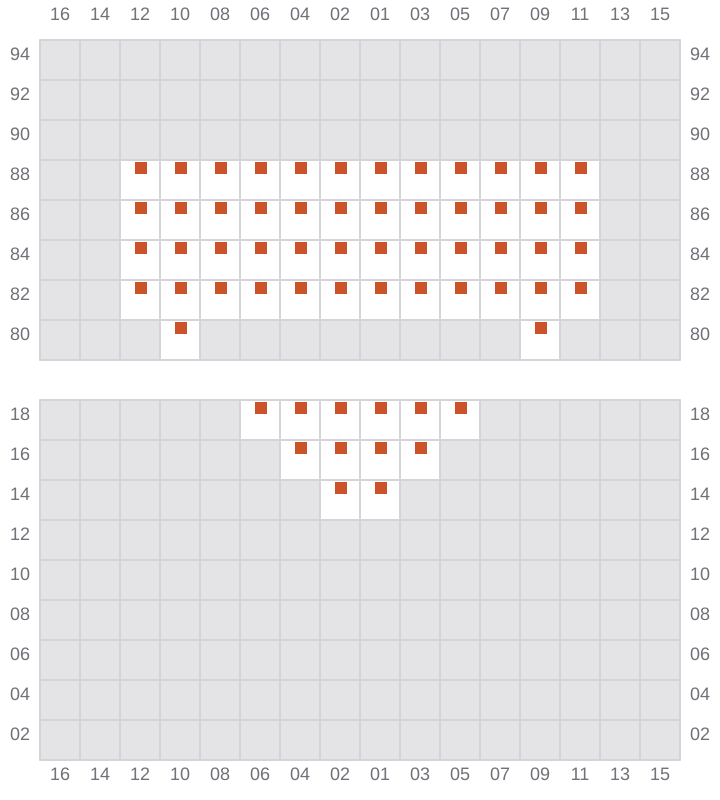

Bay 001 view and slots of ESL WAFA

003 (002)

Bay 003 view and slots of ESL WAFA

005

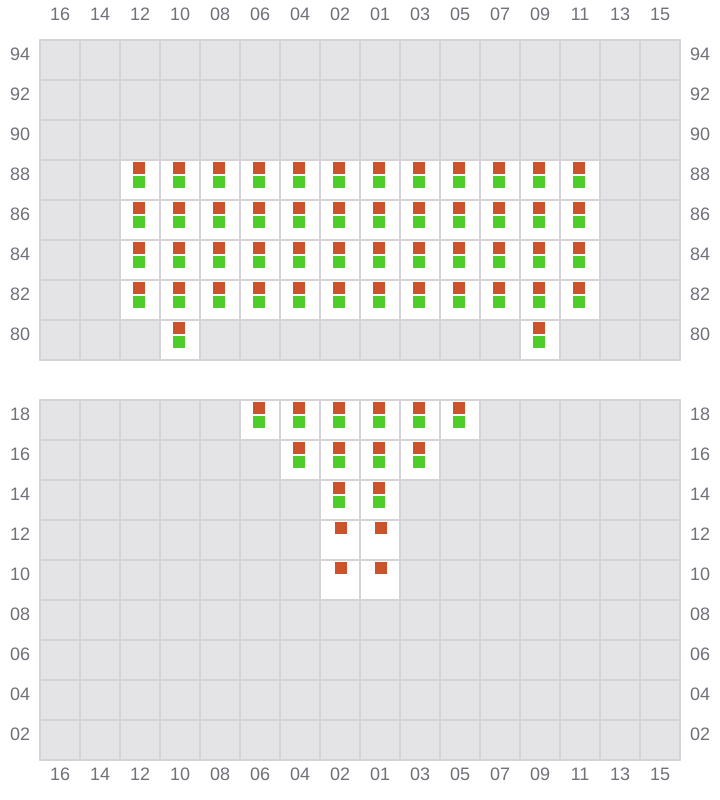

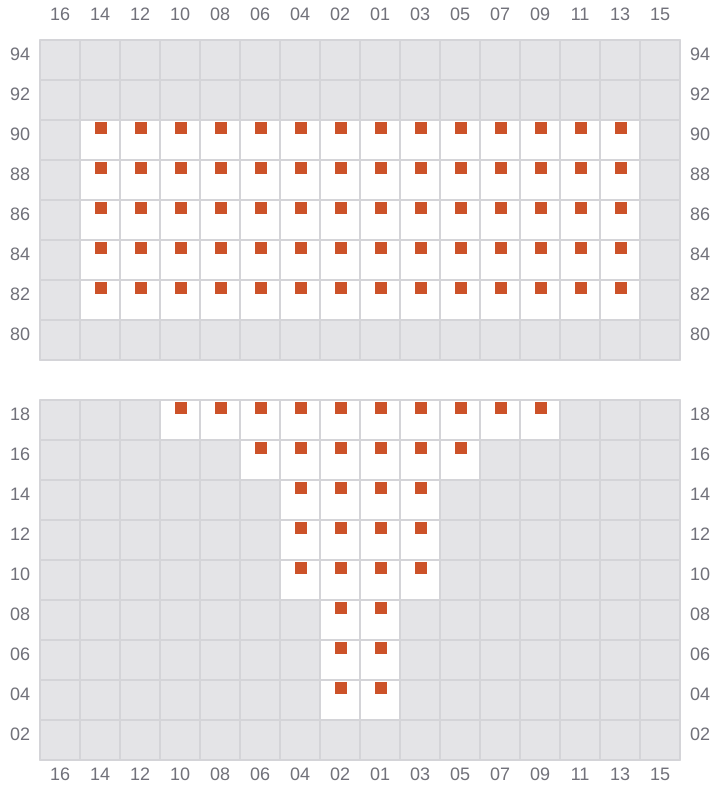

Bay 005 view and slots of ESL WAFA

007 (006)

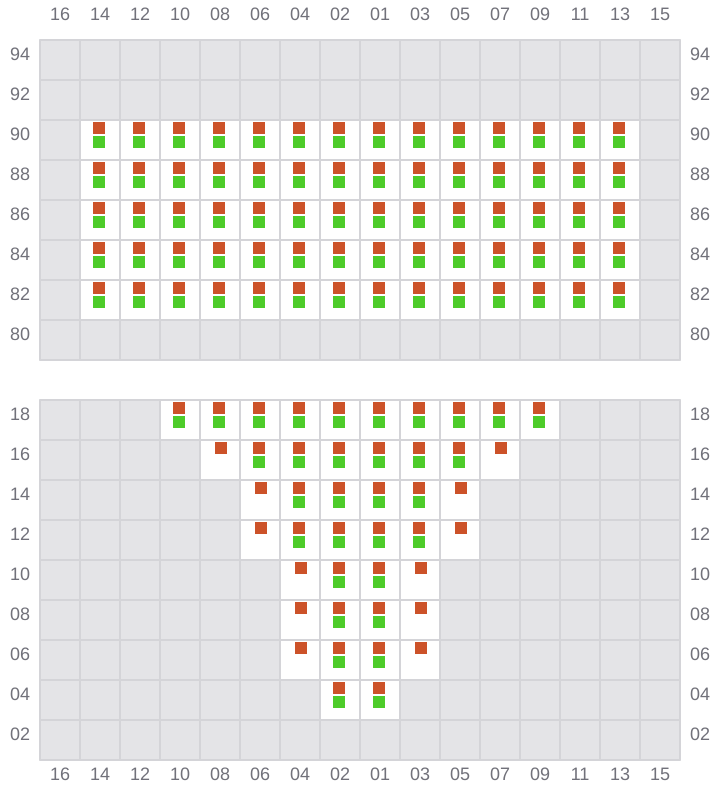

Bay 007 view and slots of ESL WAFA

009

Bay 009 view and slots of ESL WAFA

011 (010)

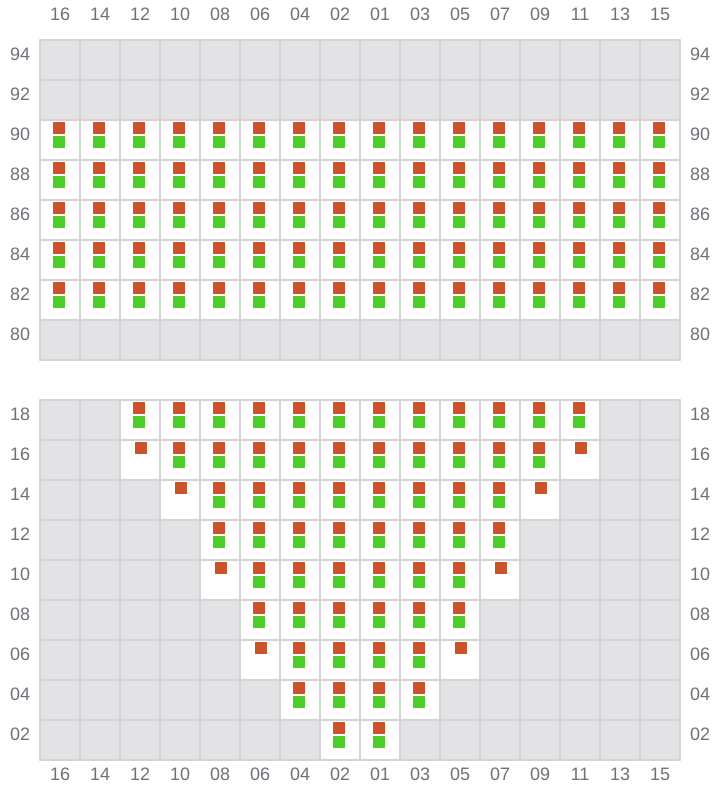

Bay 011 view and slots of ESL WAFA

013

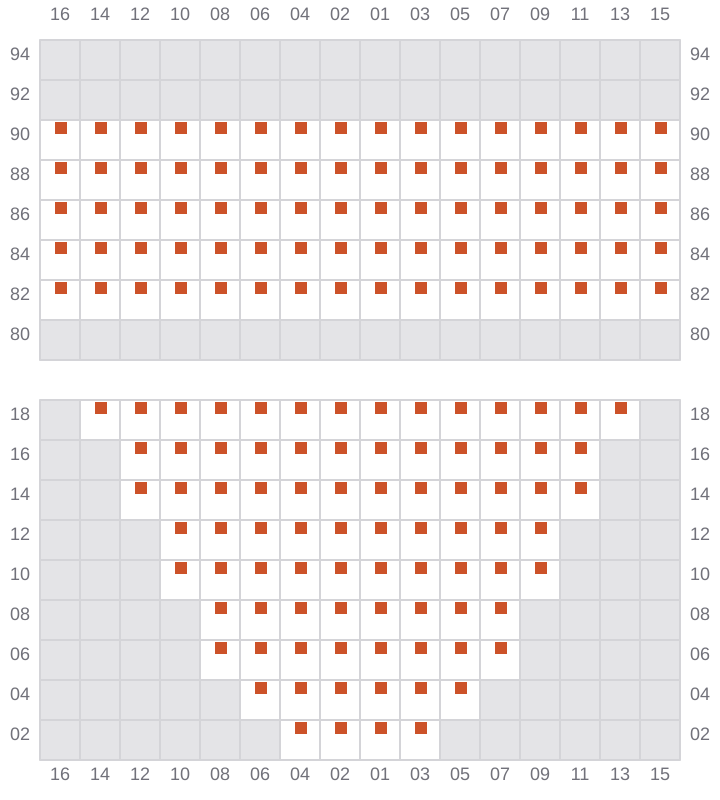

Bay 013 view and slots of ESL WAFA

015 (014)

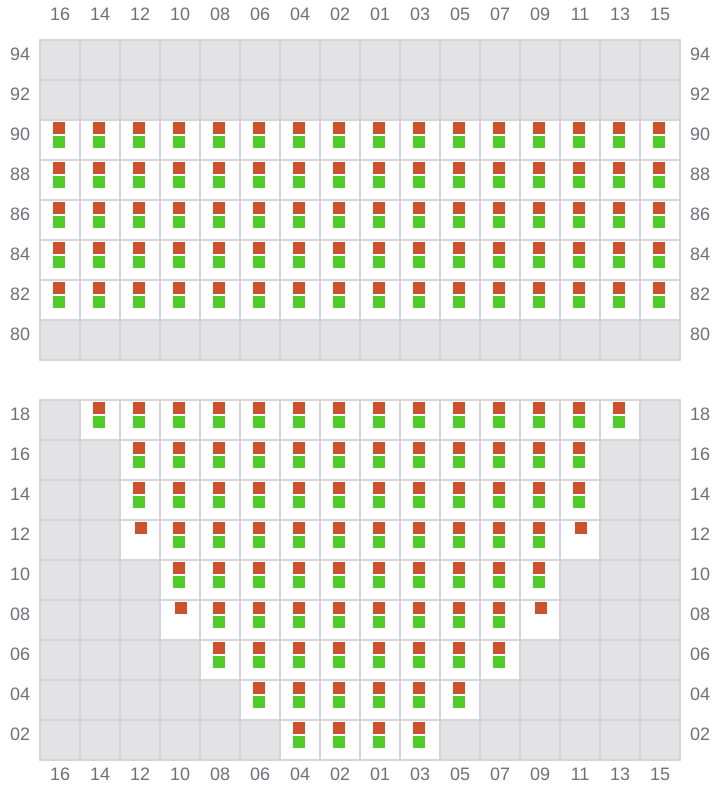

Bay 015 view and slots of ESL WAFA

017

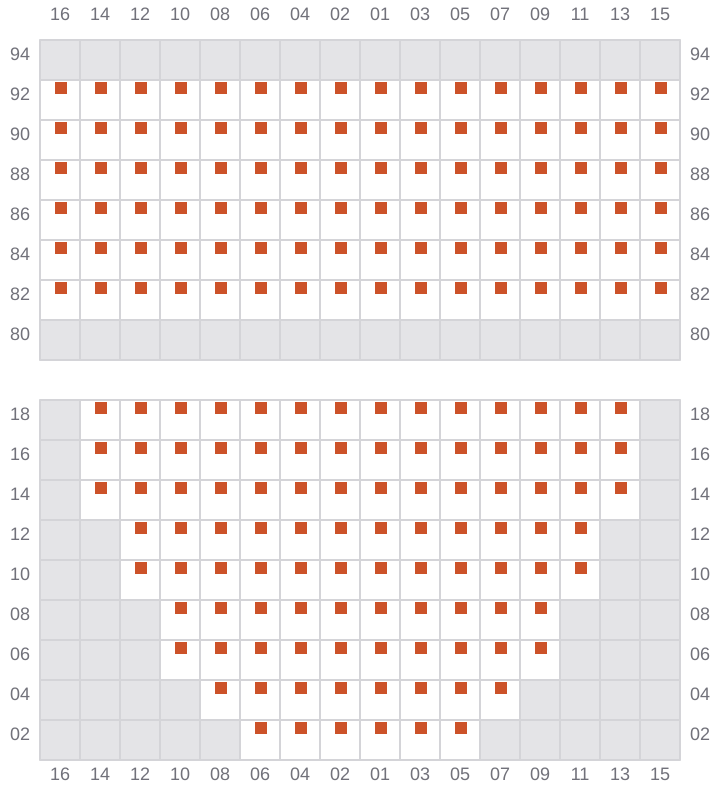

Bay 017 view and slots of ESL WAFA

019 (018)

Bay 019 view and slots of ESL WAFA

021

Bay 021 view and slots of ESL WAFA

023 (022)

Bay 023 view and slots of ESL WAFA

025

Bay 025 view and slots of ESL WAFA

027 (026)

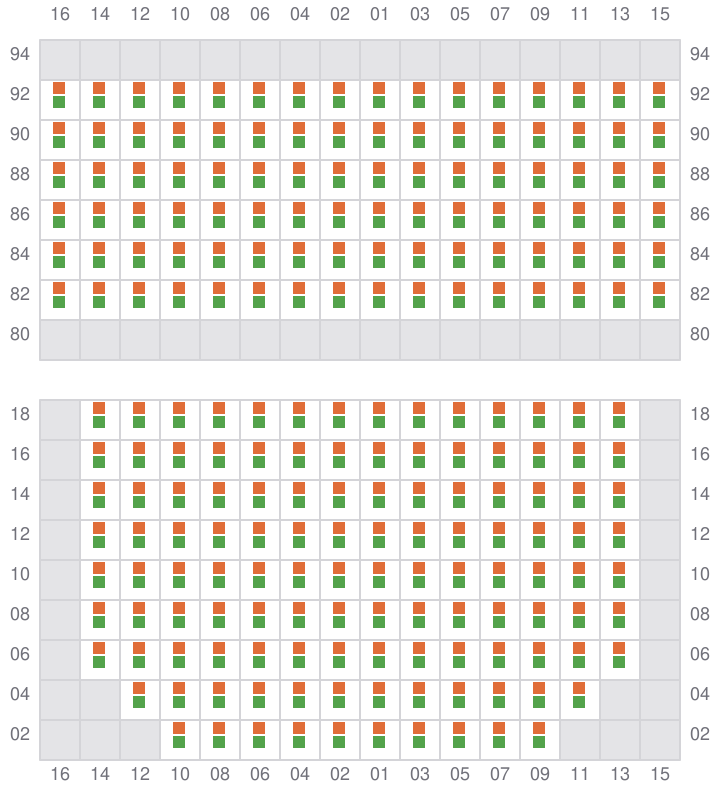

Bay 027 view and slots of ESL WAFA

029

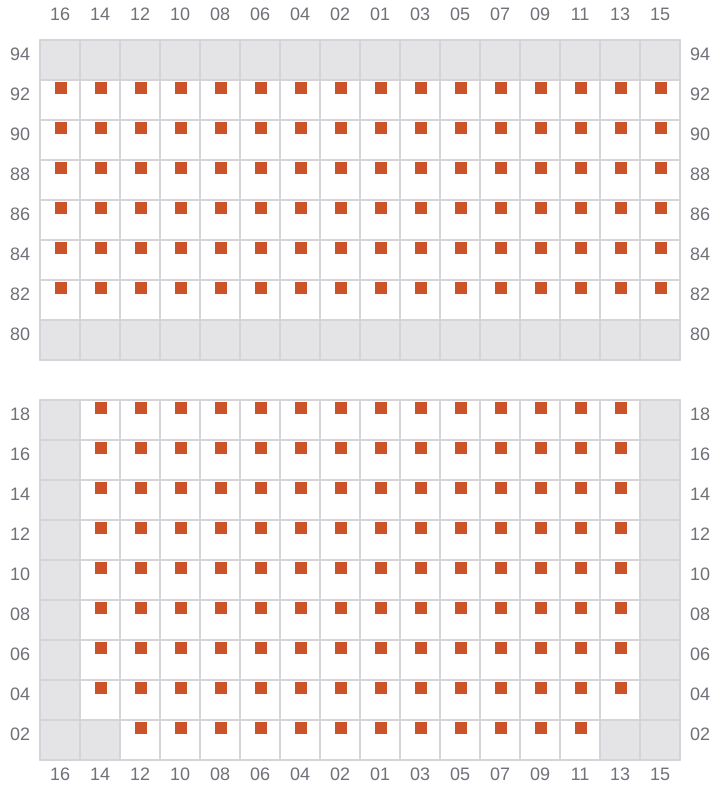

Bay 029 view and slots of ESL WAFA

031 (030)

Bay 031 view and slots of ESL WAFA

033

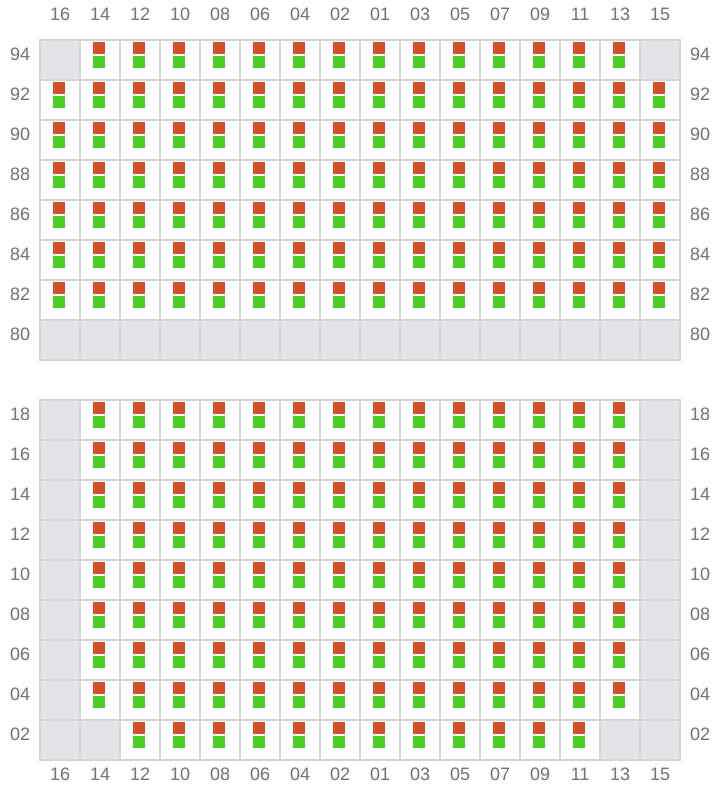

Bay 033 view and slots of ESL WAFA

035 (034)

Bay 035 view and slots of ESL WAFA

037

Bay 037 view and slots of ESL WAFA

039 (038)

Bay 039 view and slots of ESL WAFA

041

Bay 041 view and slots of ESL WAFA

043 (042)

Bay 043 view and slots of ESL WAFA

045

Bay 045 view and slots of ESL WAFA

047 (046)

Bay 047 view and slots of ESL WAFA

049

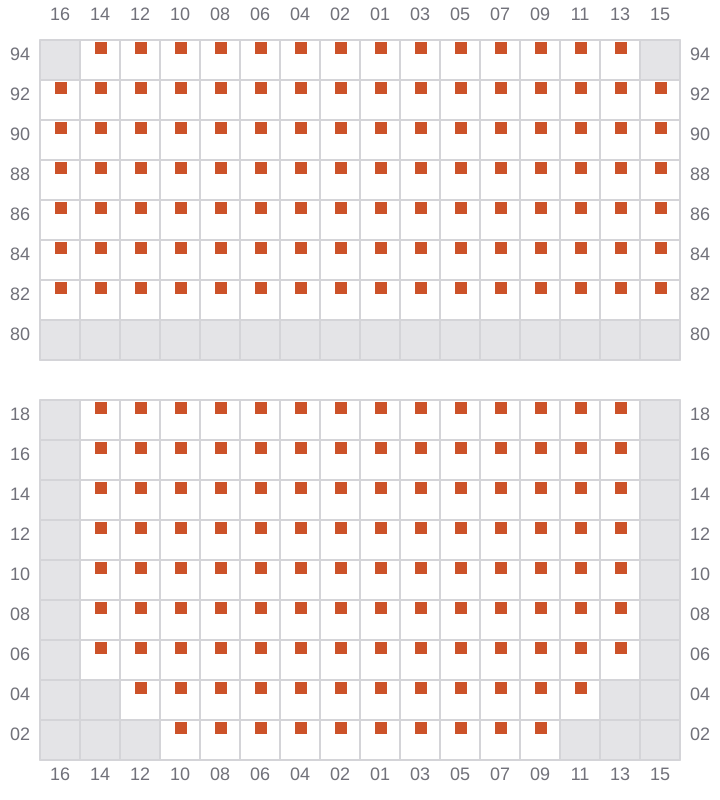

Bay 049 view and slots of ESL WAFA

051 (050)

Bay 051 view and slots of ESL WAFA

053

Bay 053 view and slots of ESL WAFA

055 (054)

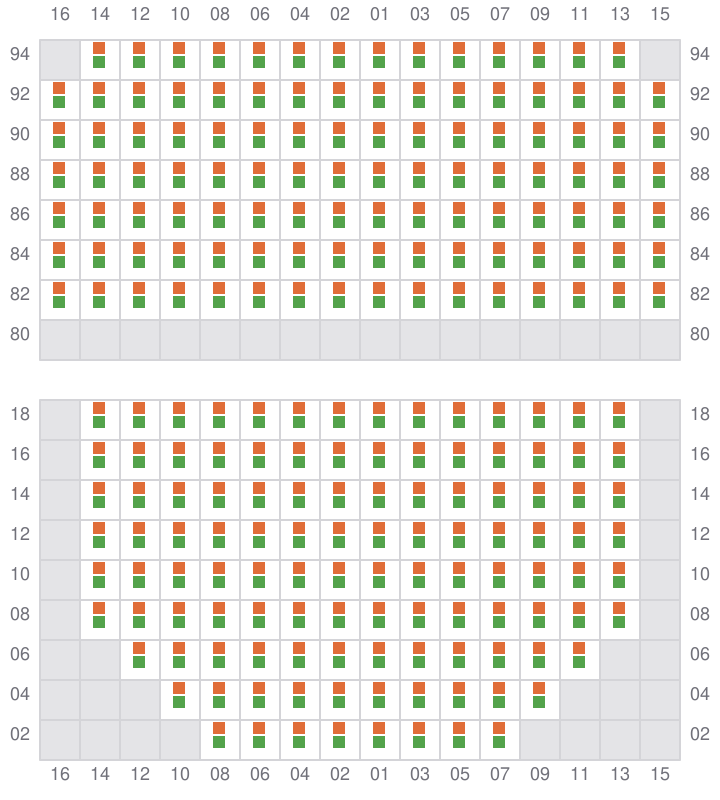

Bay 055 view and slots of ESL WAFA

057

Bay 057 view and slots of ESL WAFA

059 (058)

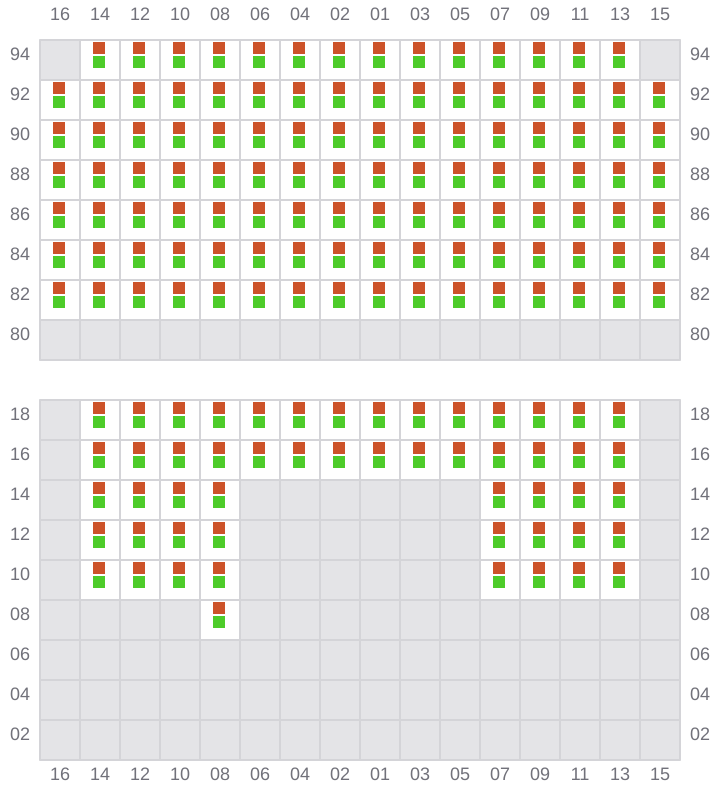

Bay 059 view and slots of ESL WAFA

061

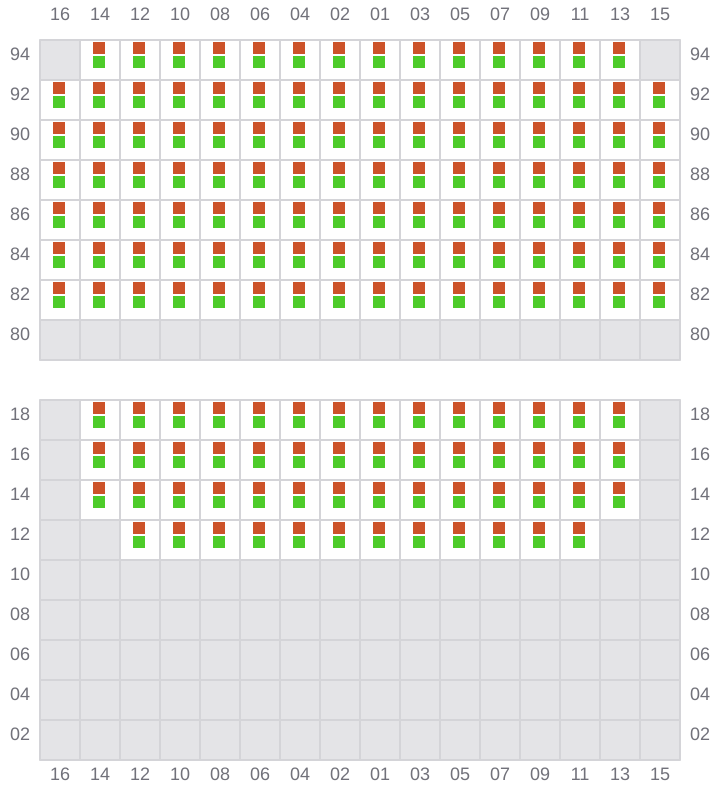

Bay 061 view and slots of ESL WAFA

063 (062)

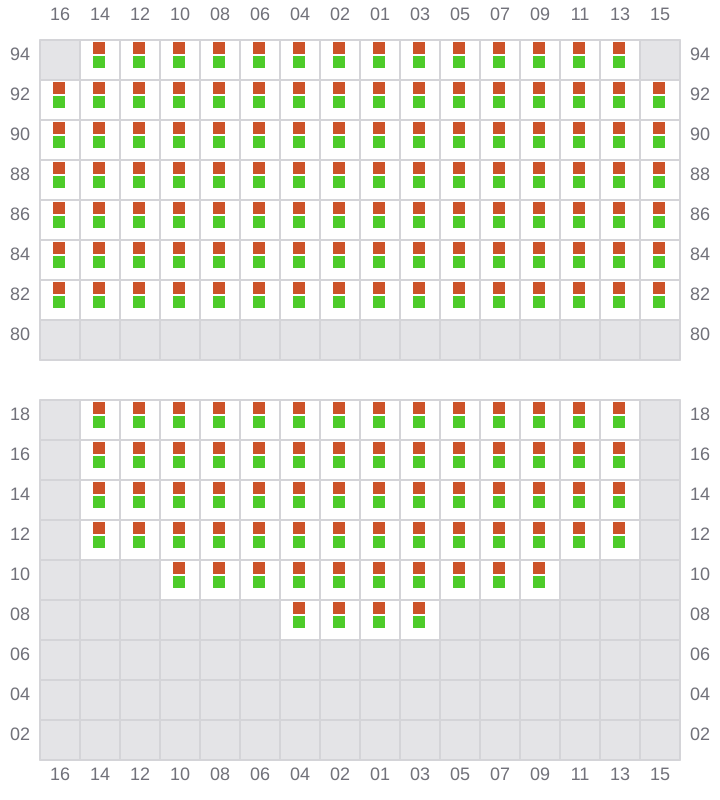

Bay 063 view and slots of ESL WAFA

065

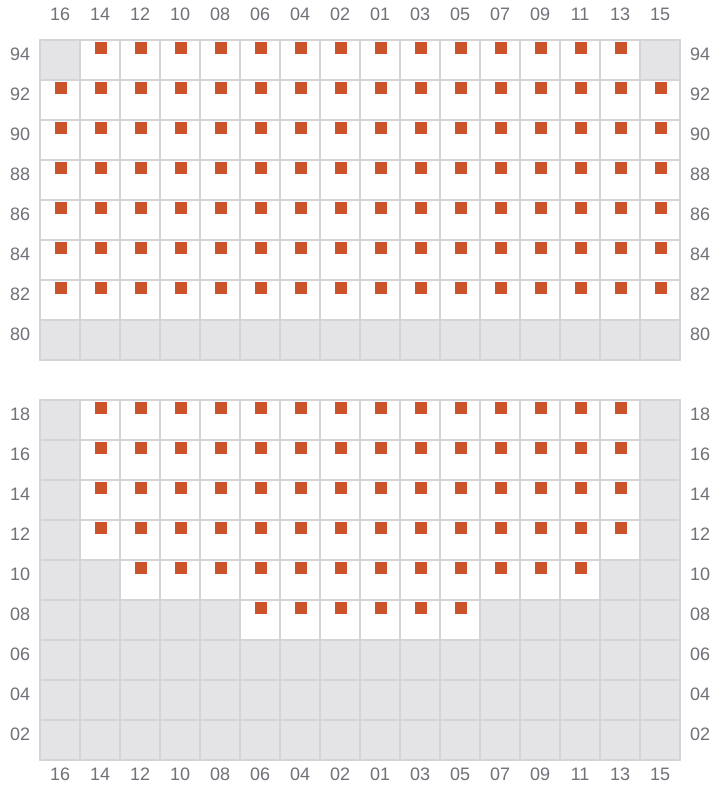

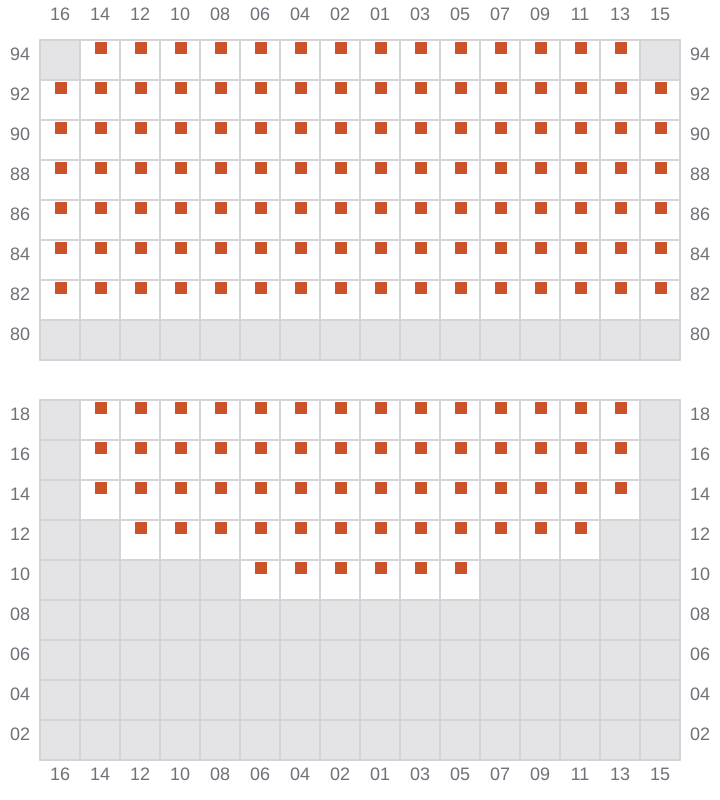

Bay 065 view and slots of ESL WAFA

067 (066)

Bay 067 view and slots of ESL WAFA

069

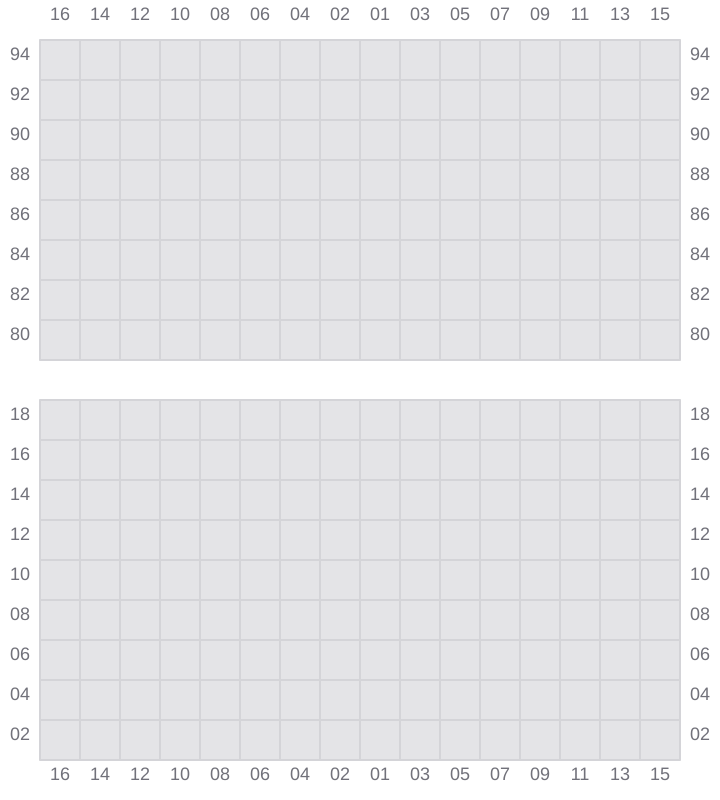

Bay 069 view and slots of ESL WAFA
