ESSENCE
9491496 | PBNL | ONE by *********************** Last update: Mon Feb 03 2025
General Info
Ship Name:ESSENCE
IMO Code:9491496
Call Sign:PBNL
Line Operator:ONE
Class Name for Sister Ships:FESS
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,454
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

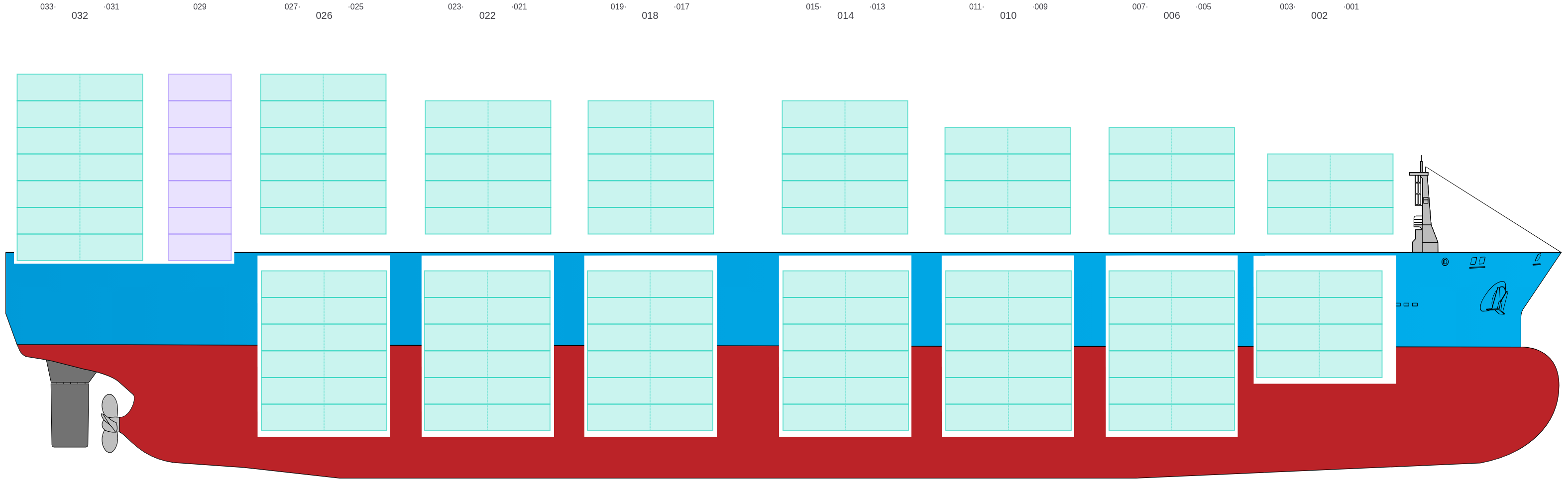

Side View
Hatch-Covers View

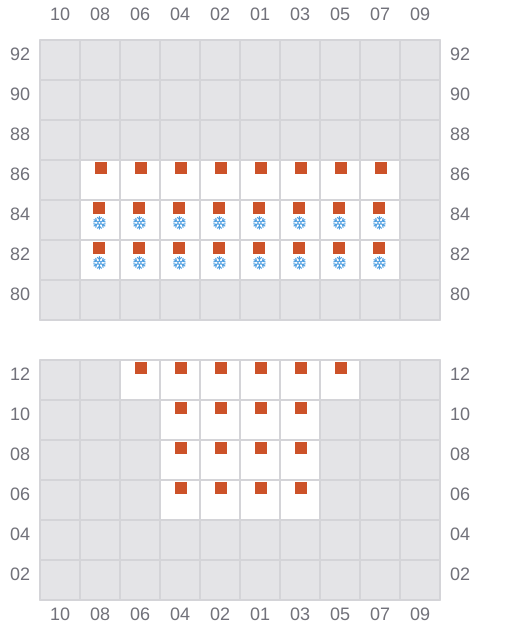

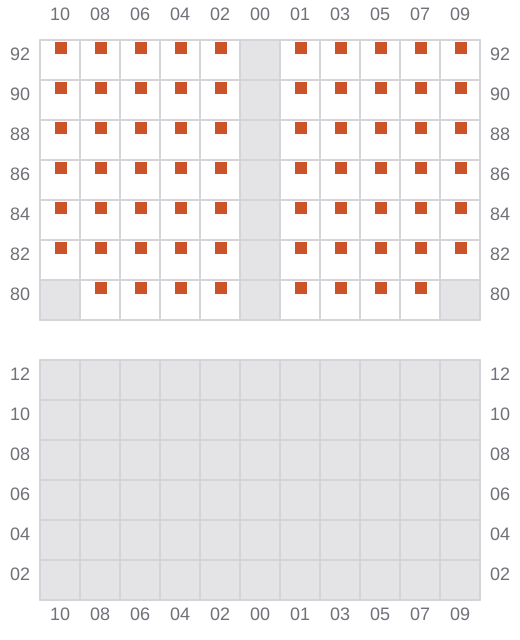

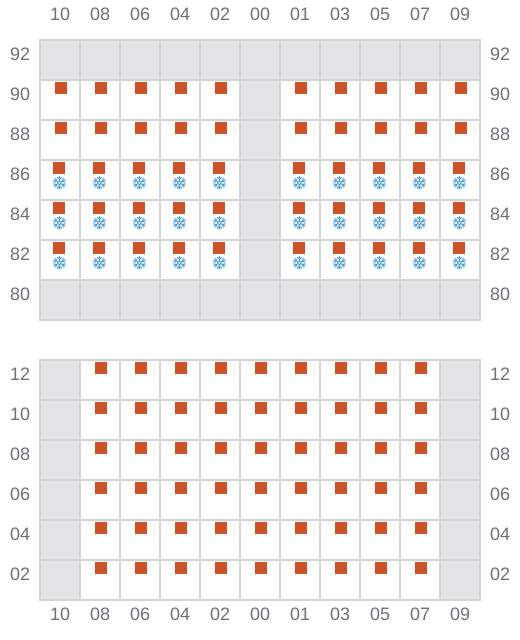

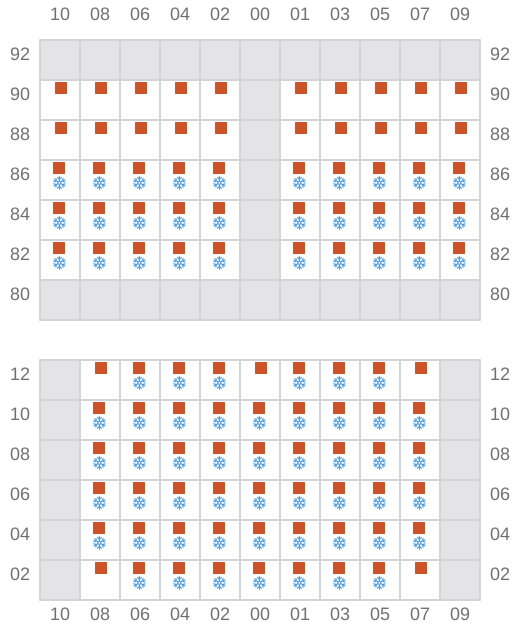

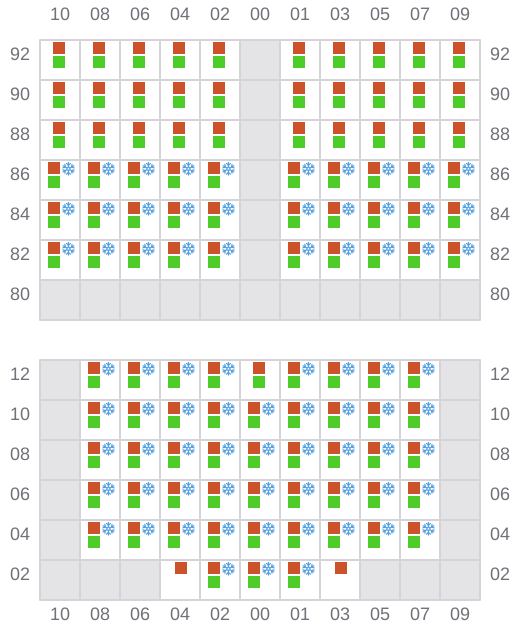

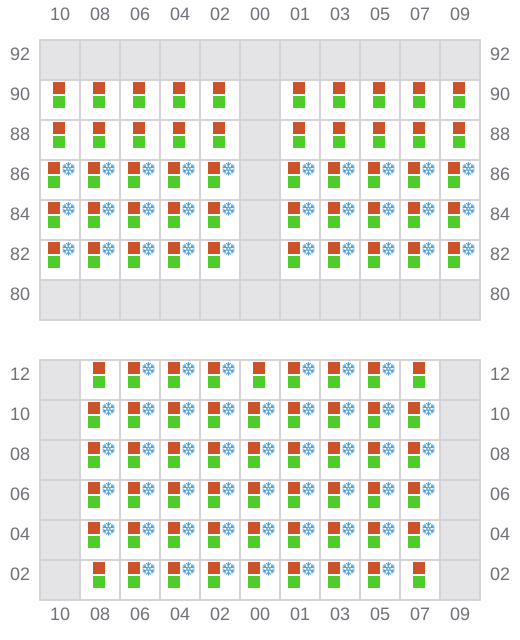

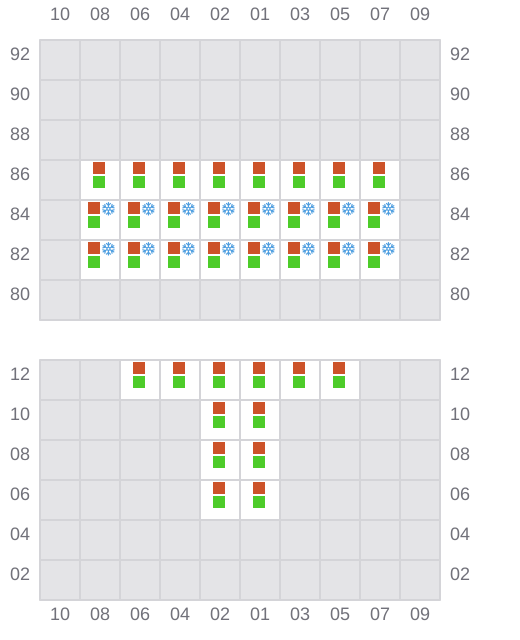

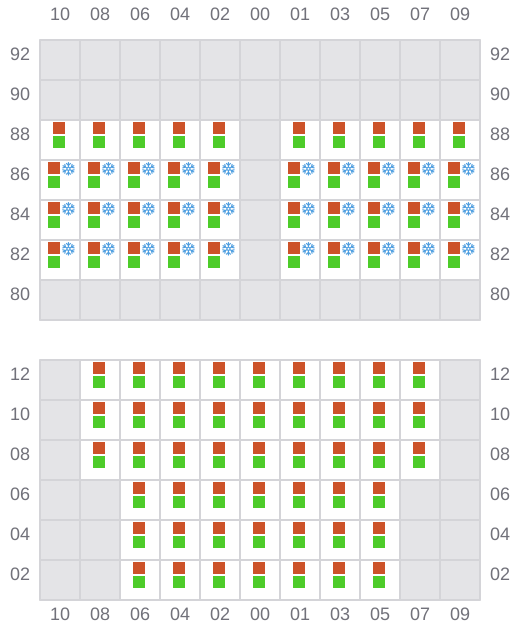

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001 (002)
- →
- → / ?
- →
003
- ←
- → / ?
- →
005 (006)
- →
- → / ?
- →

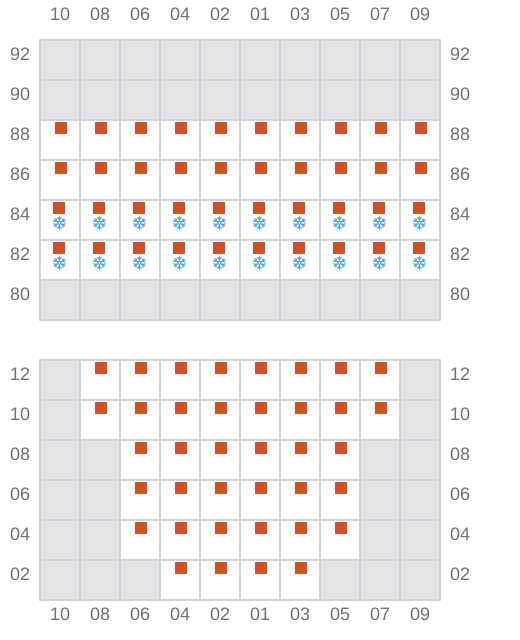

007
- ←
- → / ?
- →
009 (010)
- →
- → / ?
- →

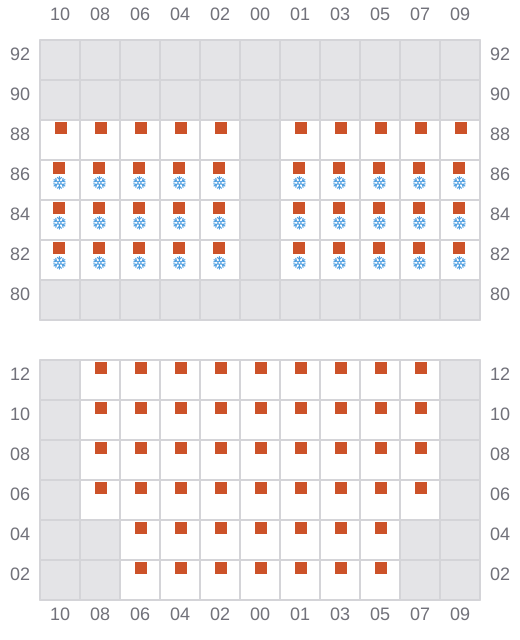

011
- ←
- → / ?
- →
013 (014)
- →
- →
- →
015
- ←
- → / ?
- →
017 (018)
- →
- →
- →
019
- ←
- → / ?
- →

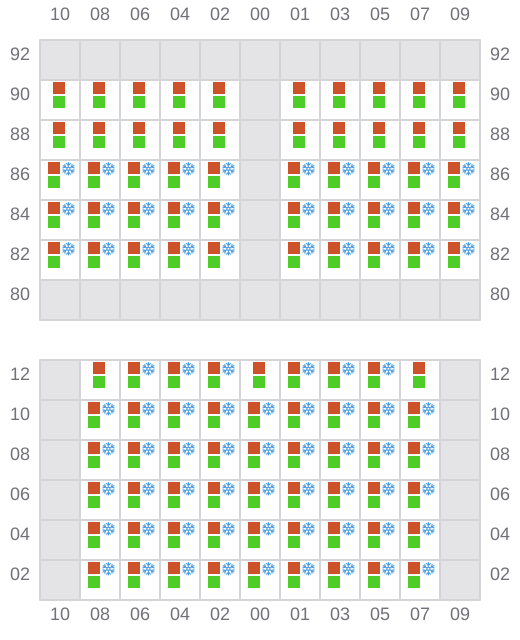

021 (022)
- →
- → / ←
- →
023
- ←
- → / ?
- →
025 (026)
- →
- →
- →

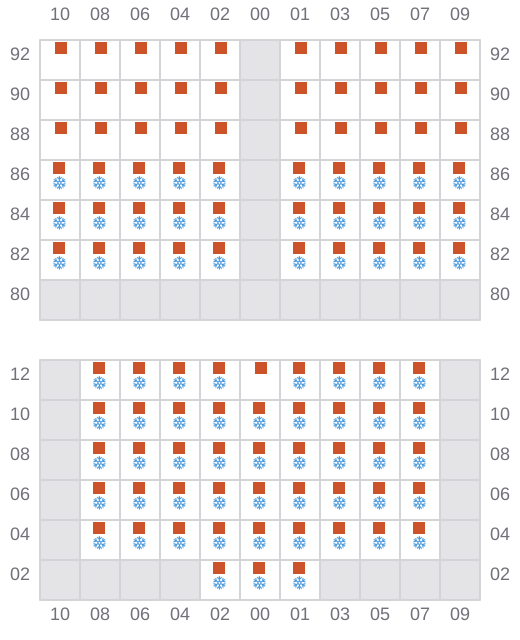

027
- ←
- →
- →
029
- → / ?

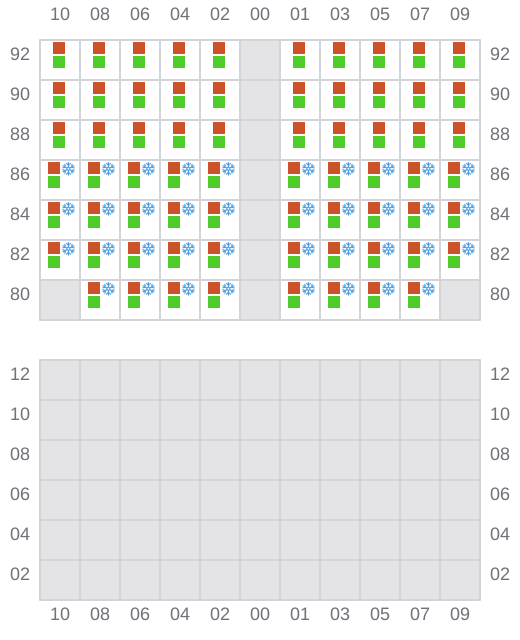

031 (032)
- → / ?
- → / ?
- → / ?

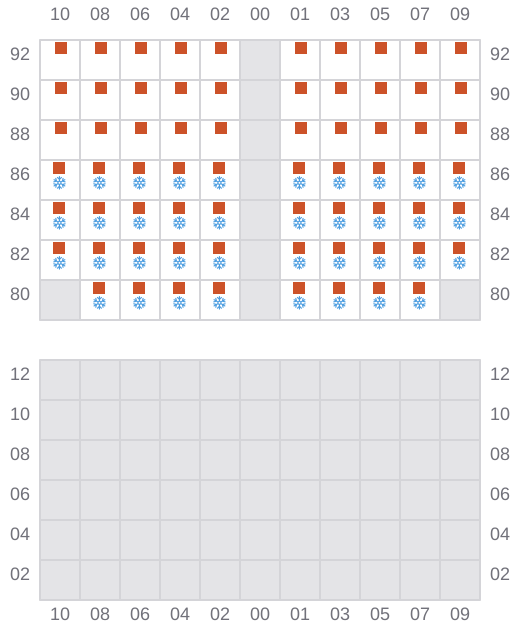

033
- ← / ?
- → / ?
- → / ?
