ESTELLE MAERSK
9321495 | OVXO2 | 9321495 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:ESTELLE MAERSK
IMO Code:9321495
Call Sign:OVXO2
Line Operator:9321495
Class Name for Sister Ships:MAERSK E
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):-
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:089
Max ISO Row:22
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,788

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

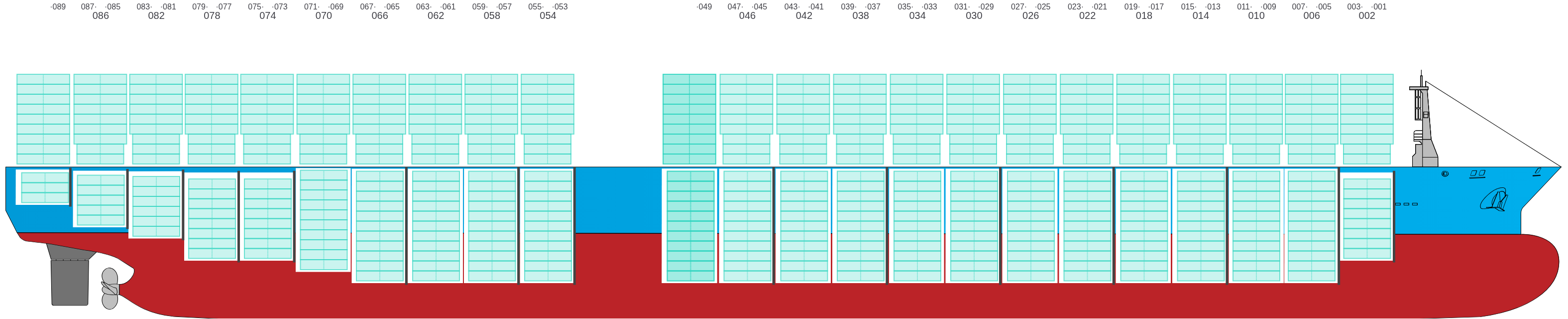

Side view of ESTELLE MAERSK

Hatch-Covers View

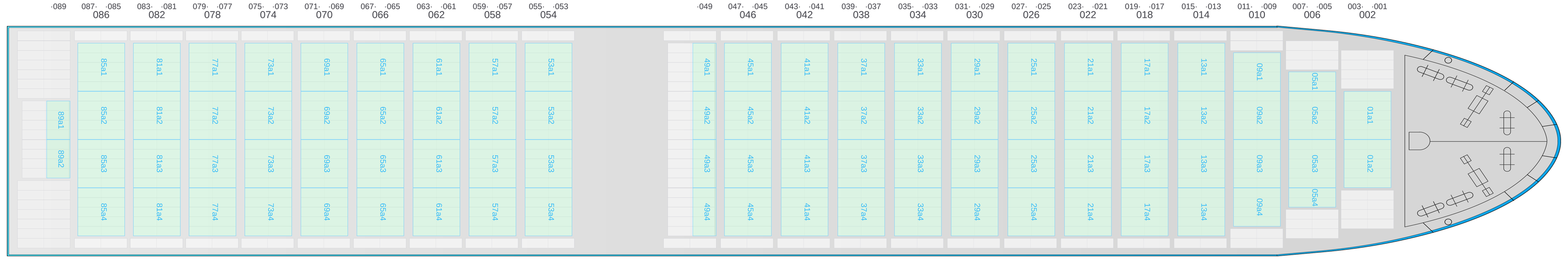

Deck view of ESTELLE MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

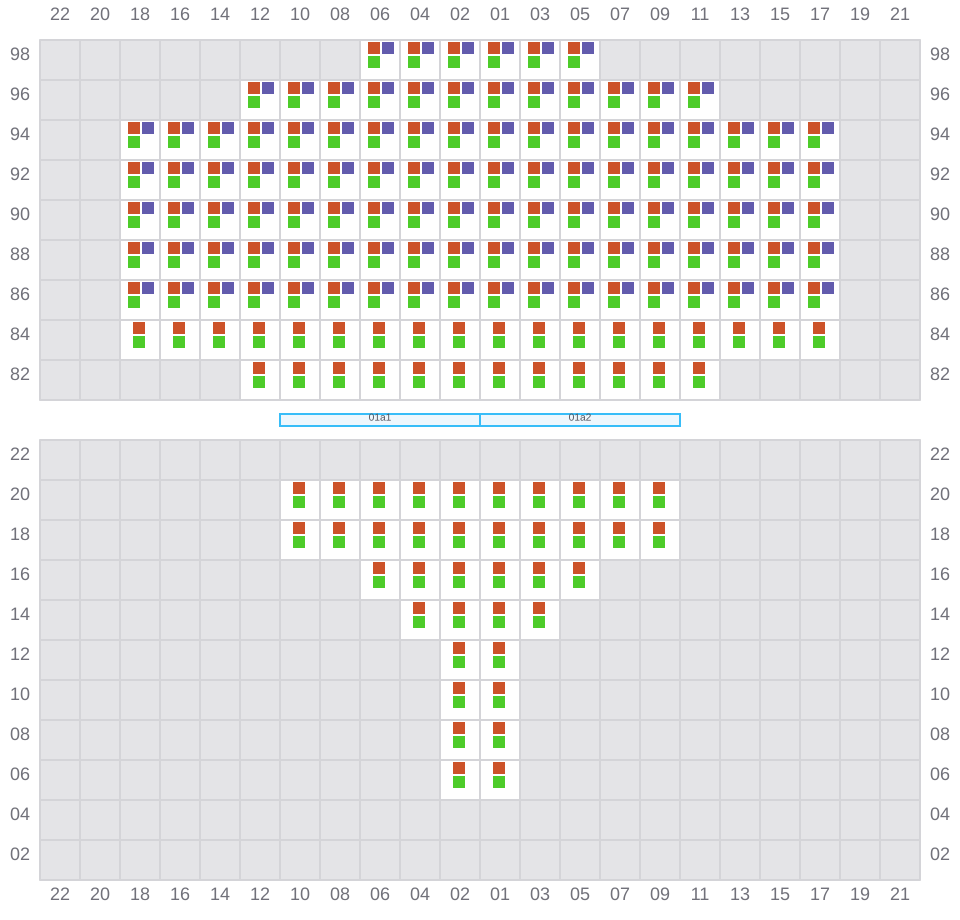

Bay 001 view and slots of ESTELLE MAERSK

003

  • ←

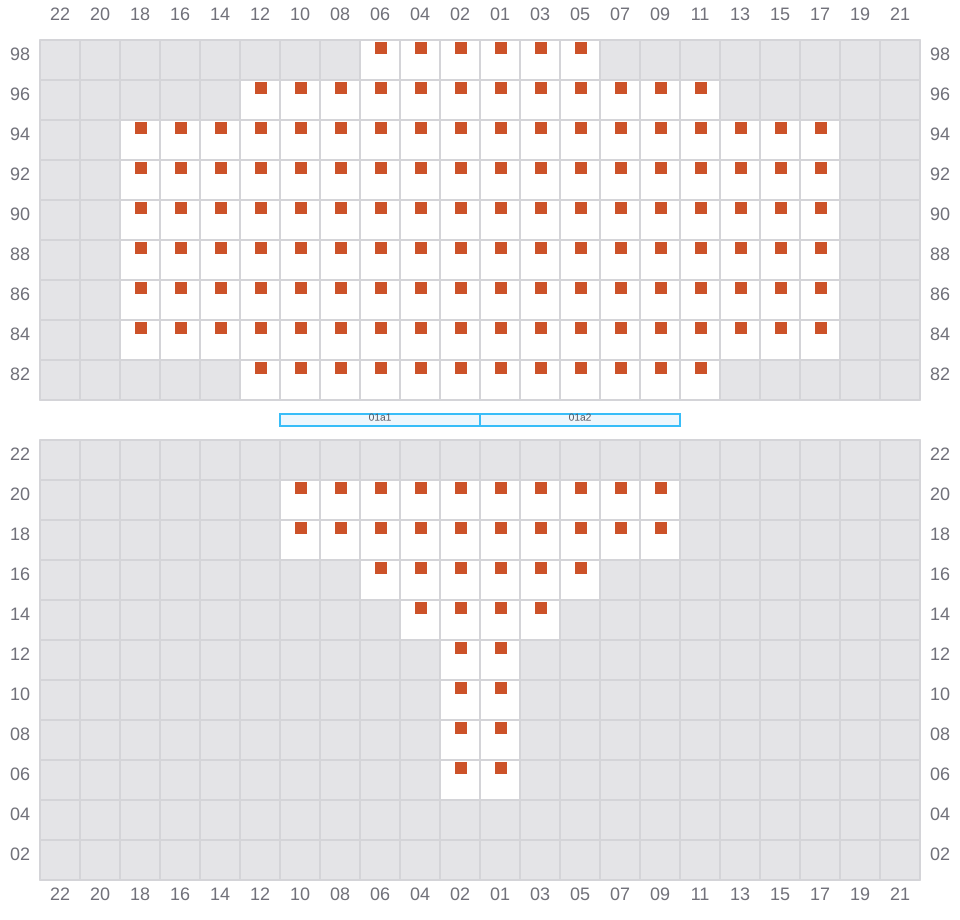

Bay 003 view and slots of ESTELLE MAERSK

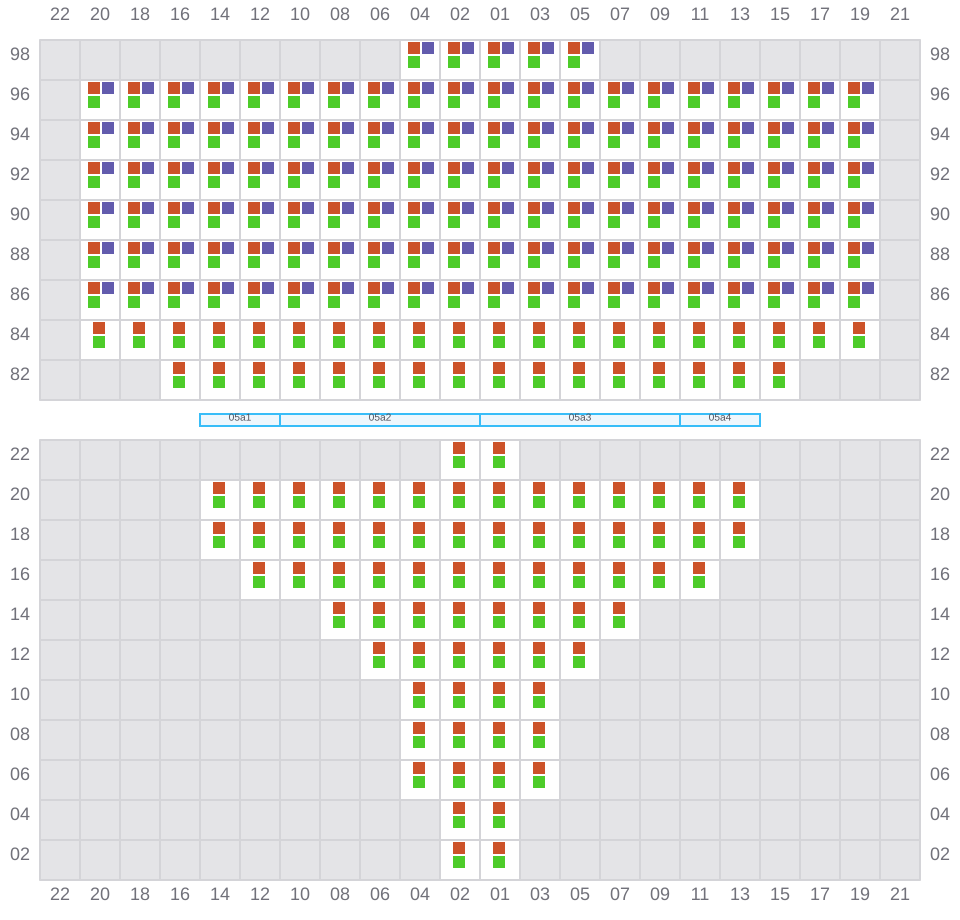

005 (006)

  • →
Bay 005 view and slots of ESTELLE MAERSK

007

  • ←

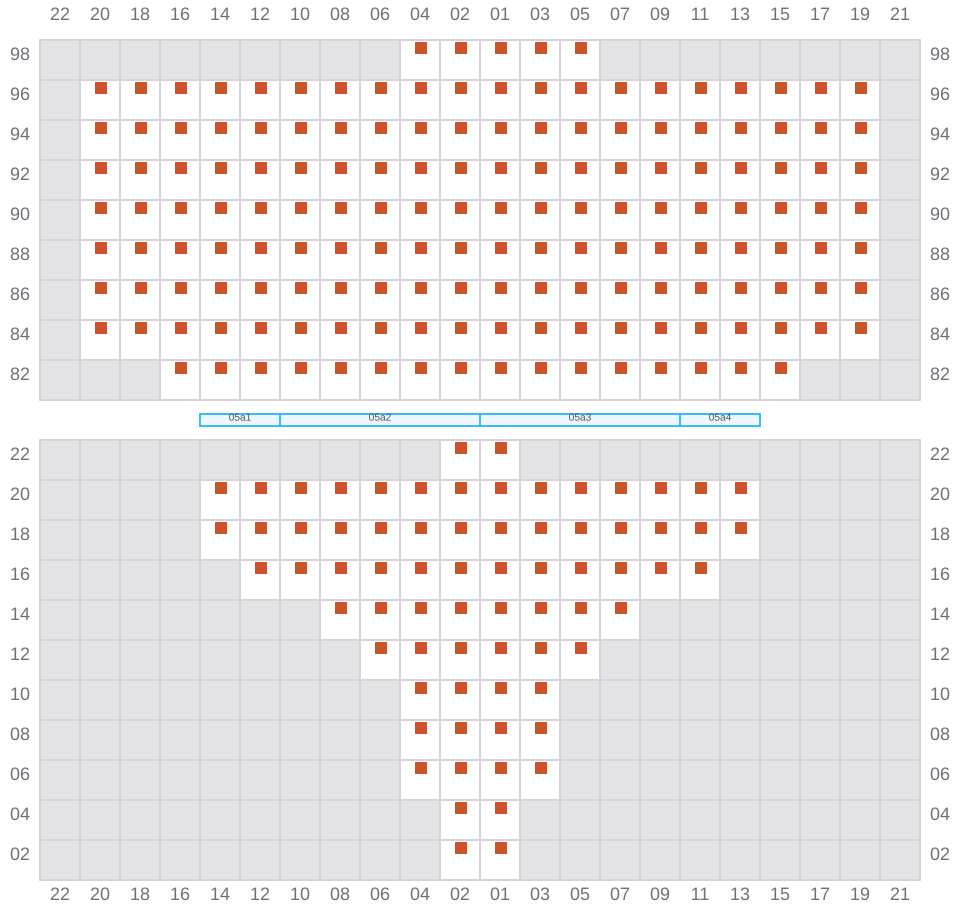

Bay 007 view and slots of ESTELLE MAERSK

009 (010)

  • →

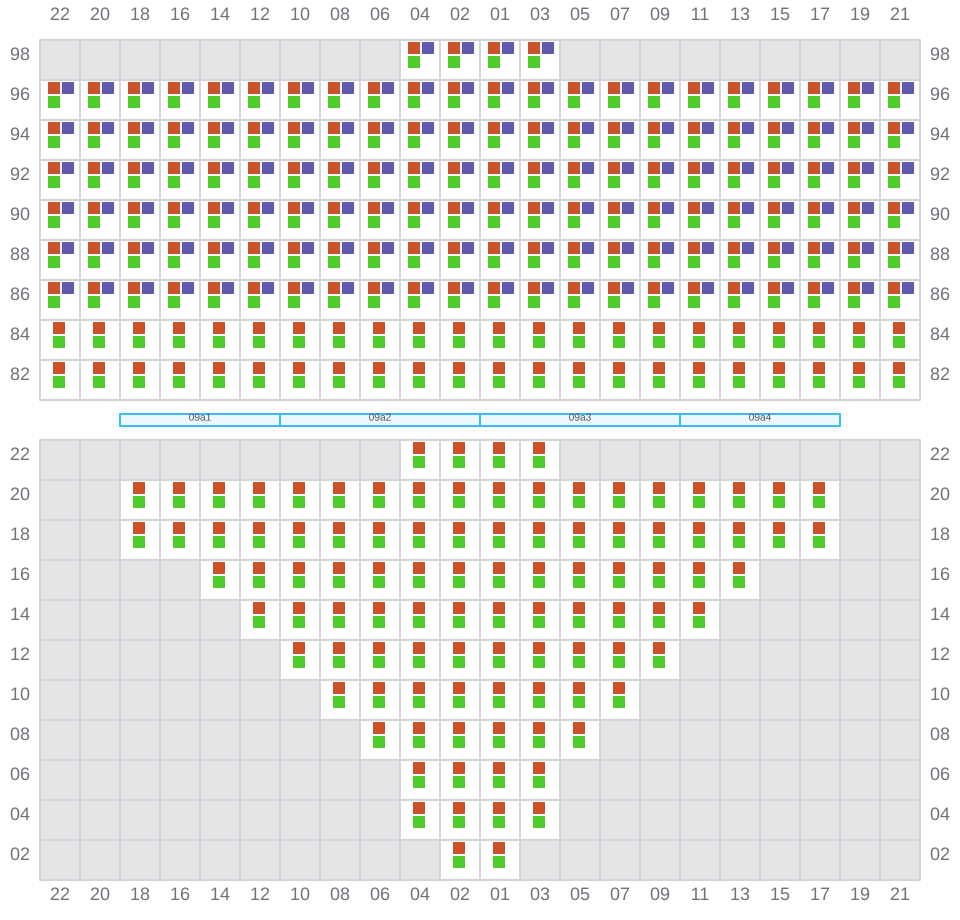

Bay 009 view and slots of ESTELLE MAERSK

011

  • ←

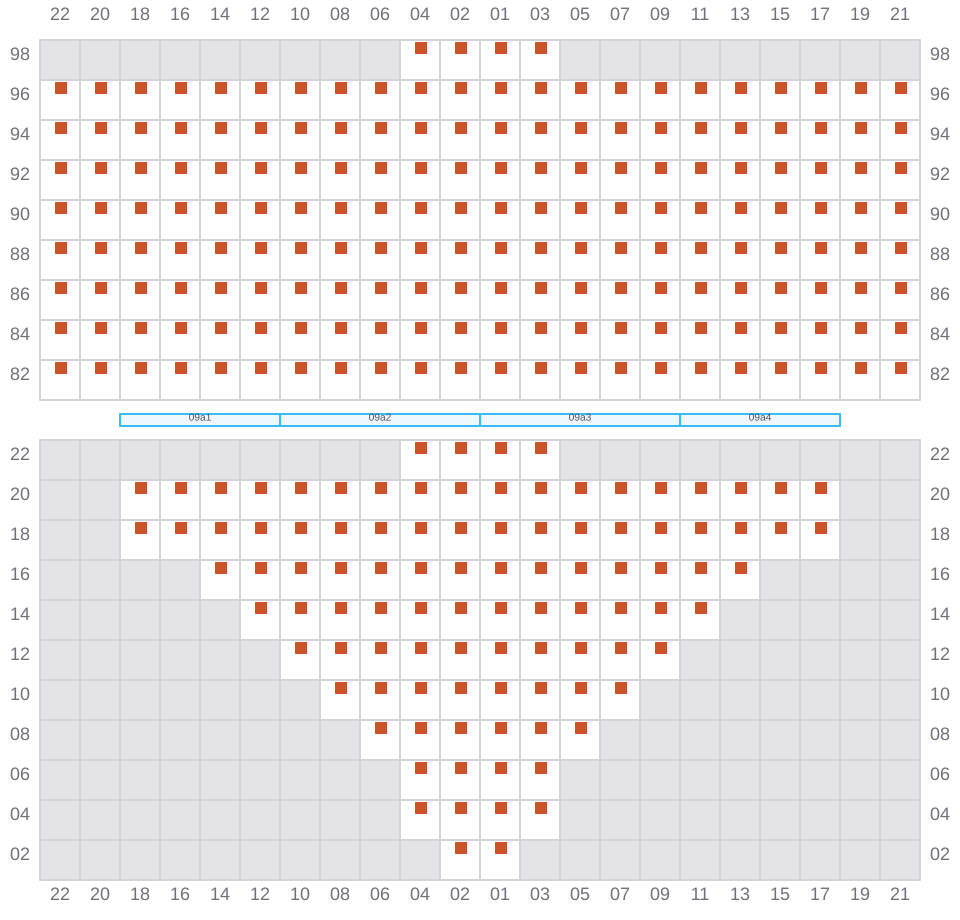

Bay 011 view and slots of ESTELLE MAERSK

013 (014)

  • →

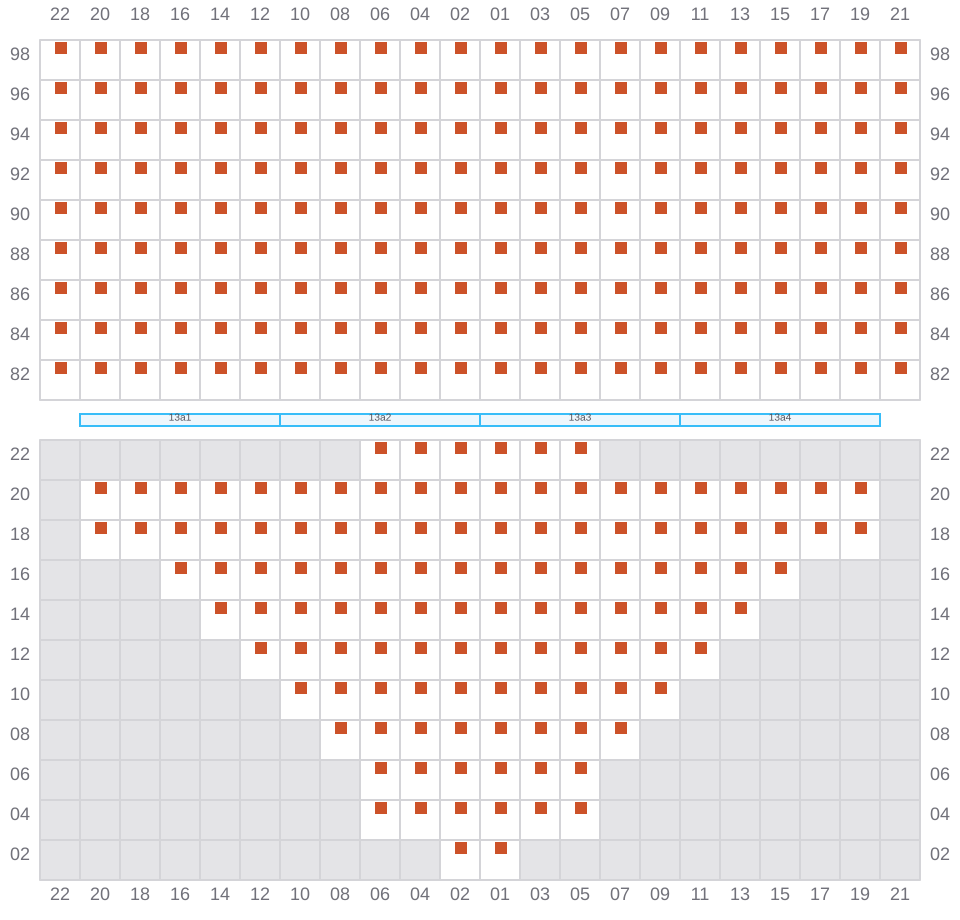

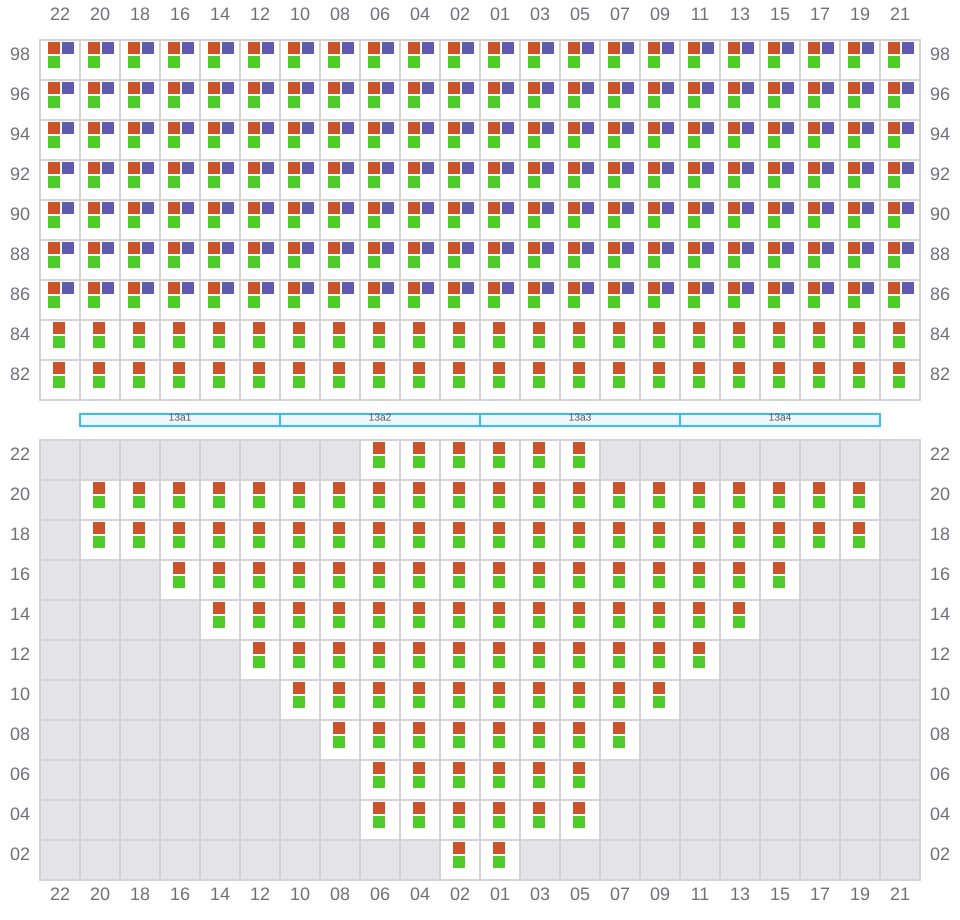

Bay 013 view and slots of ESTELLE MAERSK

015

  • ←
Bay 015 view and slots of ESTELLE MAERSK

017 (018)

  • →
  • ? / ←

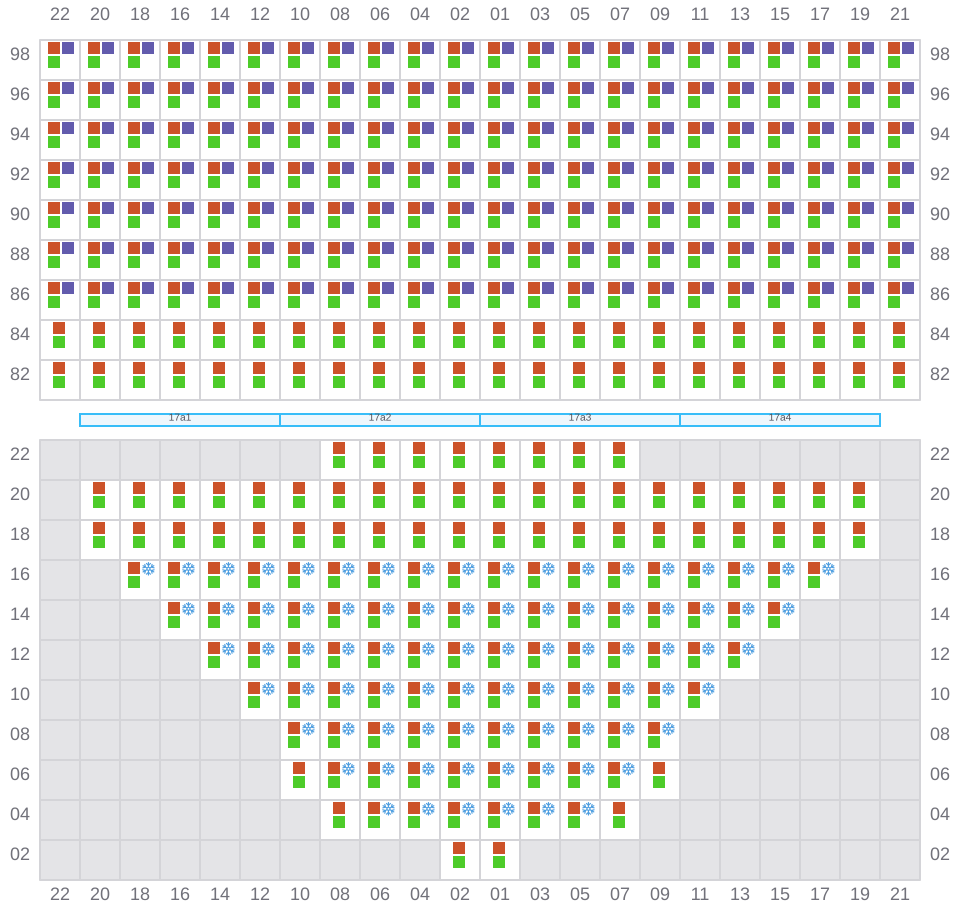

Bay 017 view and slots of ESTELLE MAERSK

019

  • ←
  • → / ?

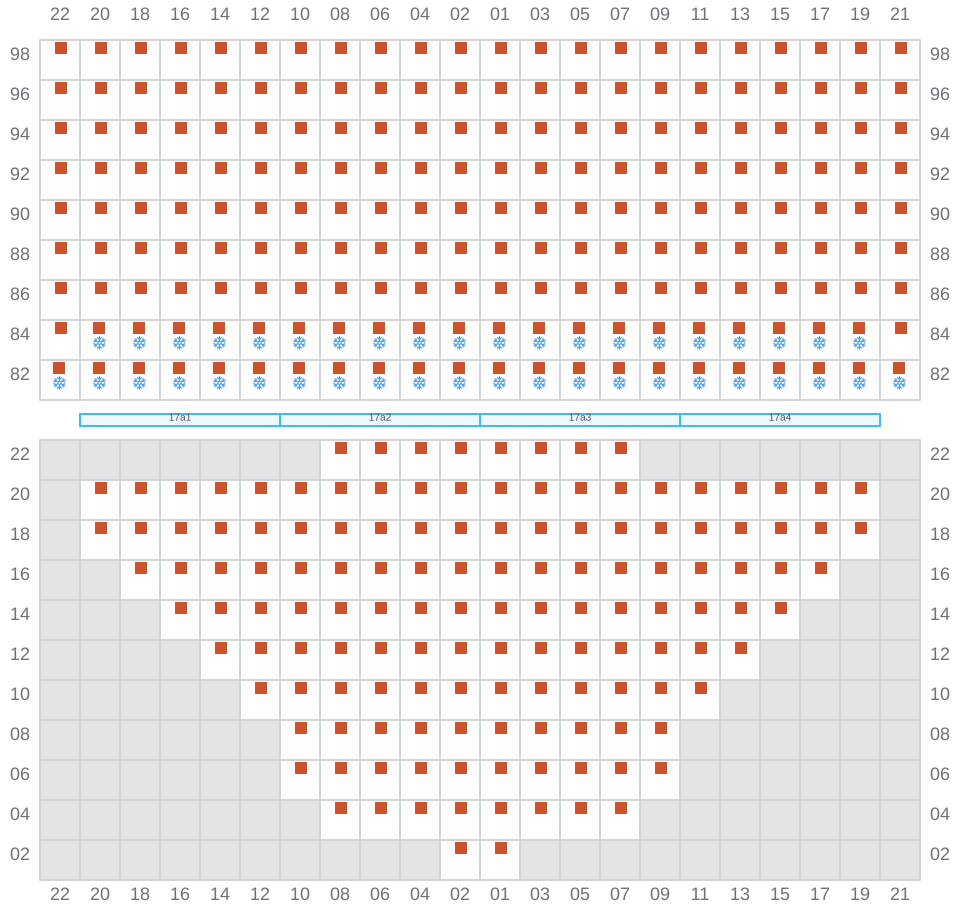

Bay 019 view and slots of ESTELLE MAERSK

021 (022)

  • →

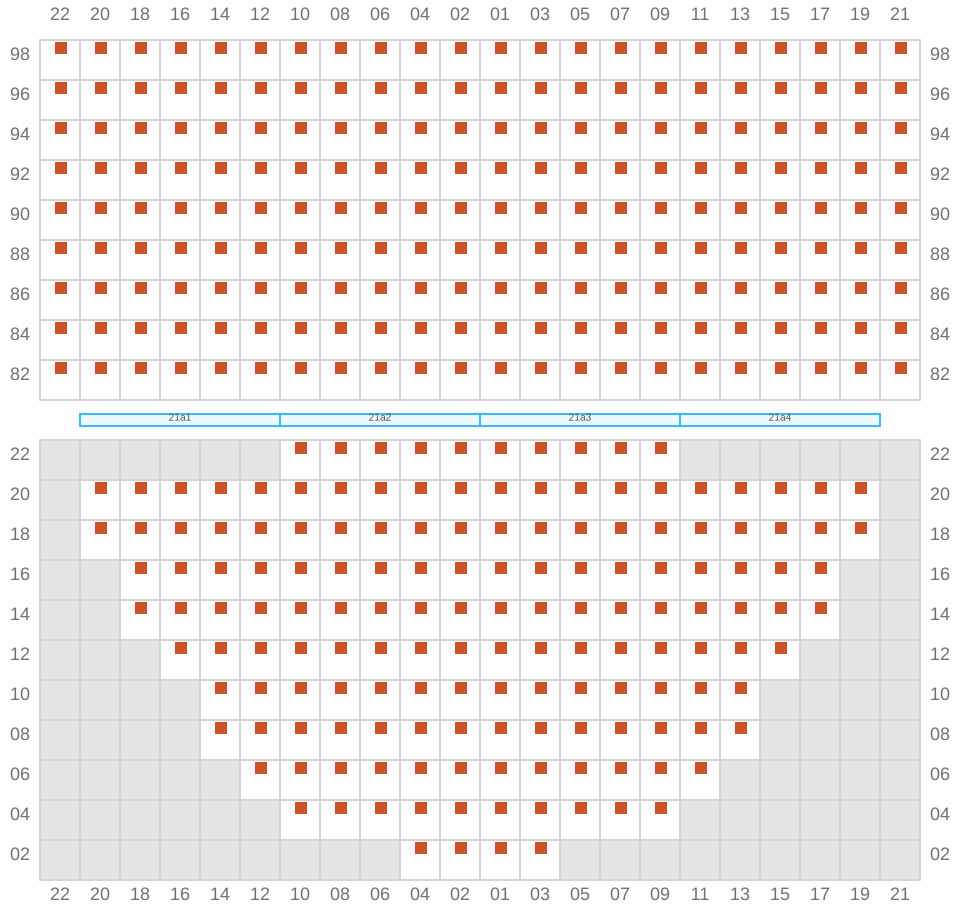

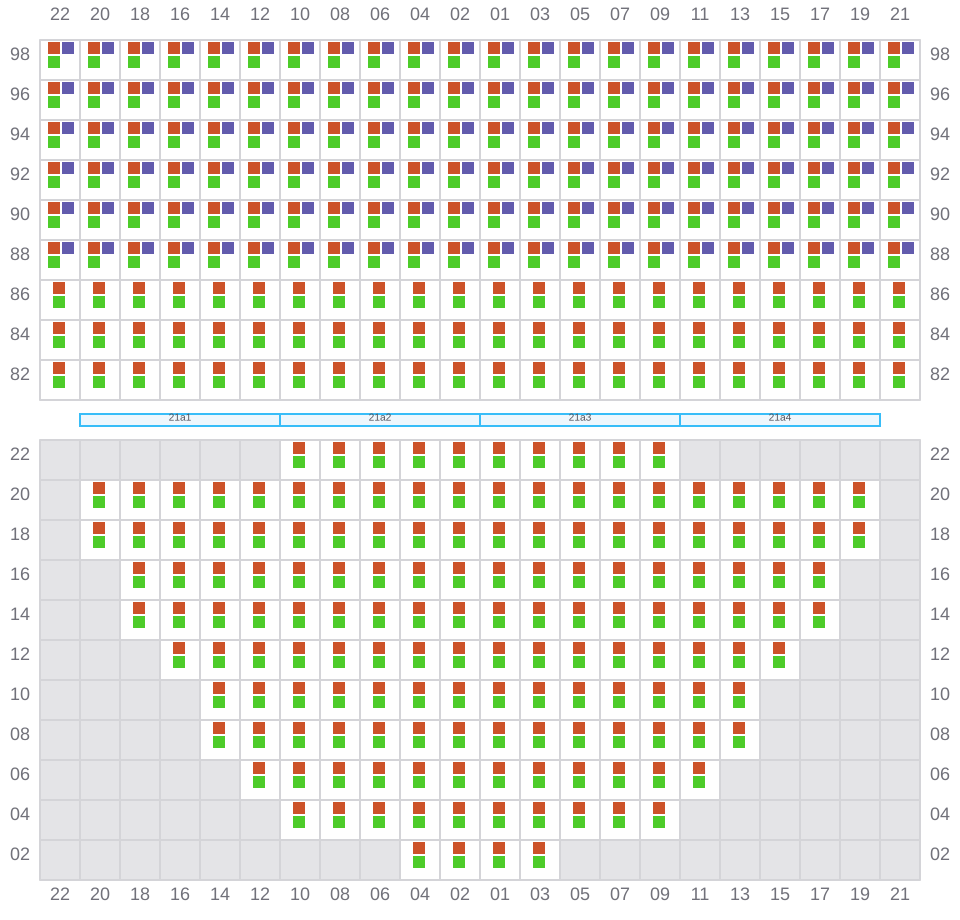

Bay 021 view and slots of ESTELLE MAERSK

023

  • ←
Bay 023 view and slots of ESTELLE MAERSK

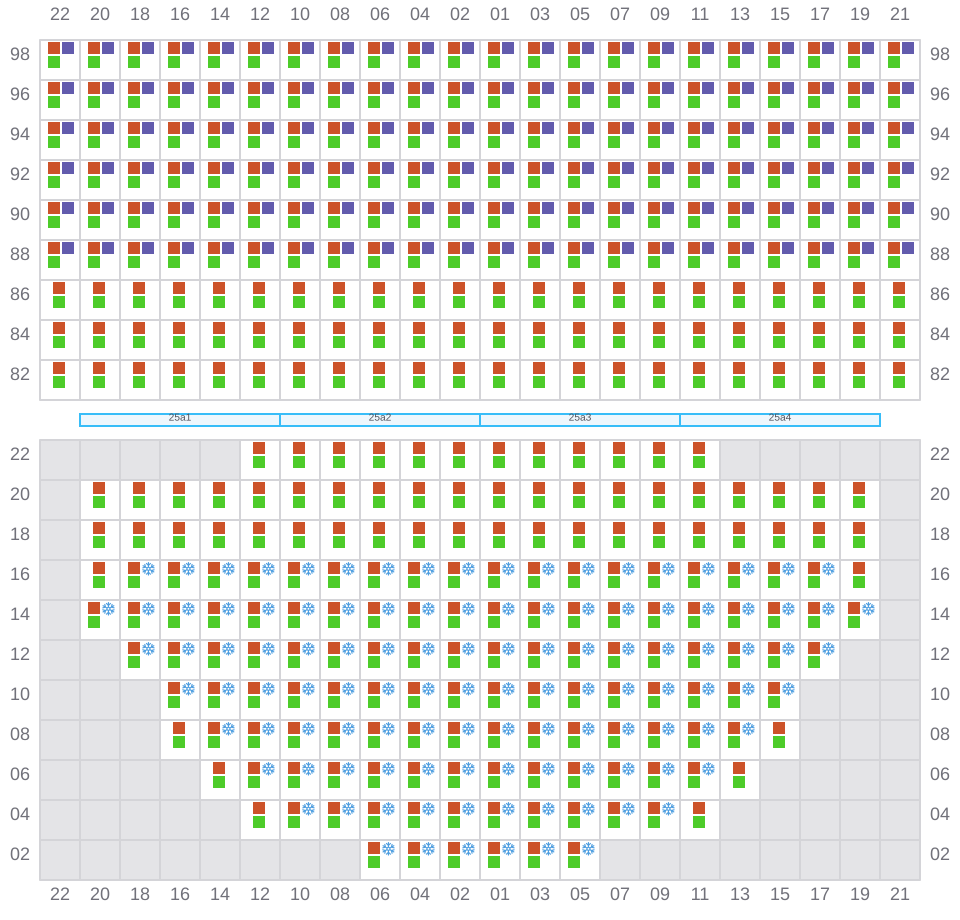

025 (026)

  • →
  • ? / ←

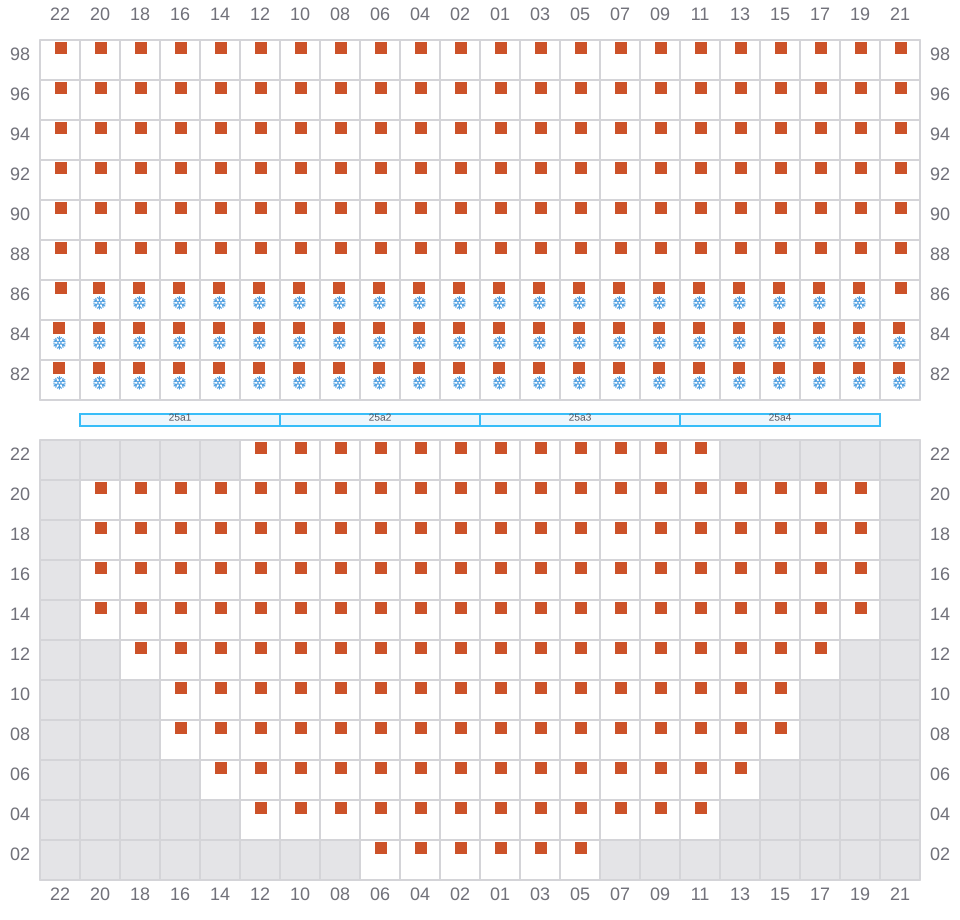

Bay 025 view and slots of ESTELLE MAERSK

027

  • ←
  • → / ?
Bay 027 view and slots of ESTELLE MAERSK

029 (030)

  • →

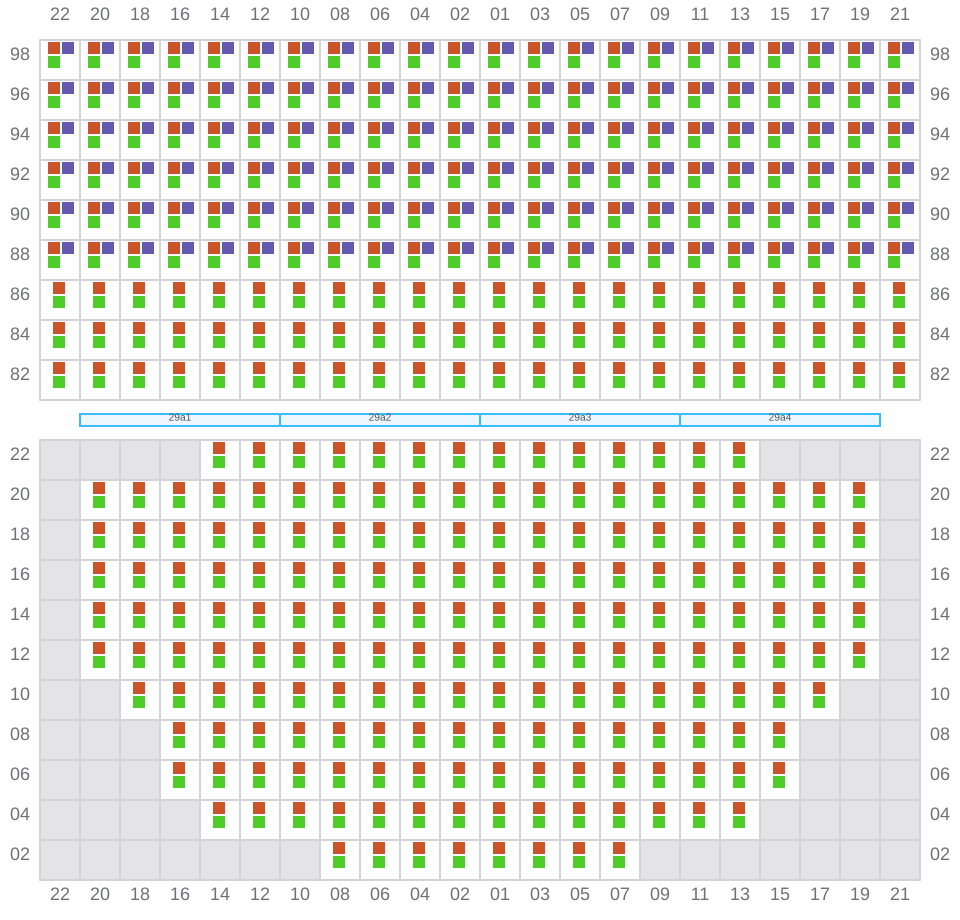

Bay 029 view and slots of ESTELLE MAERSK

031

  • ←
  • → / ?

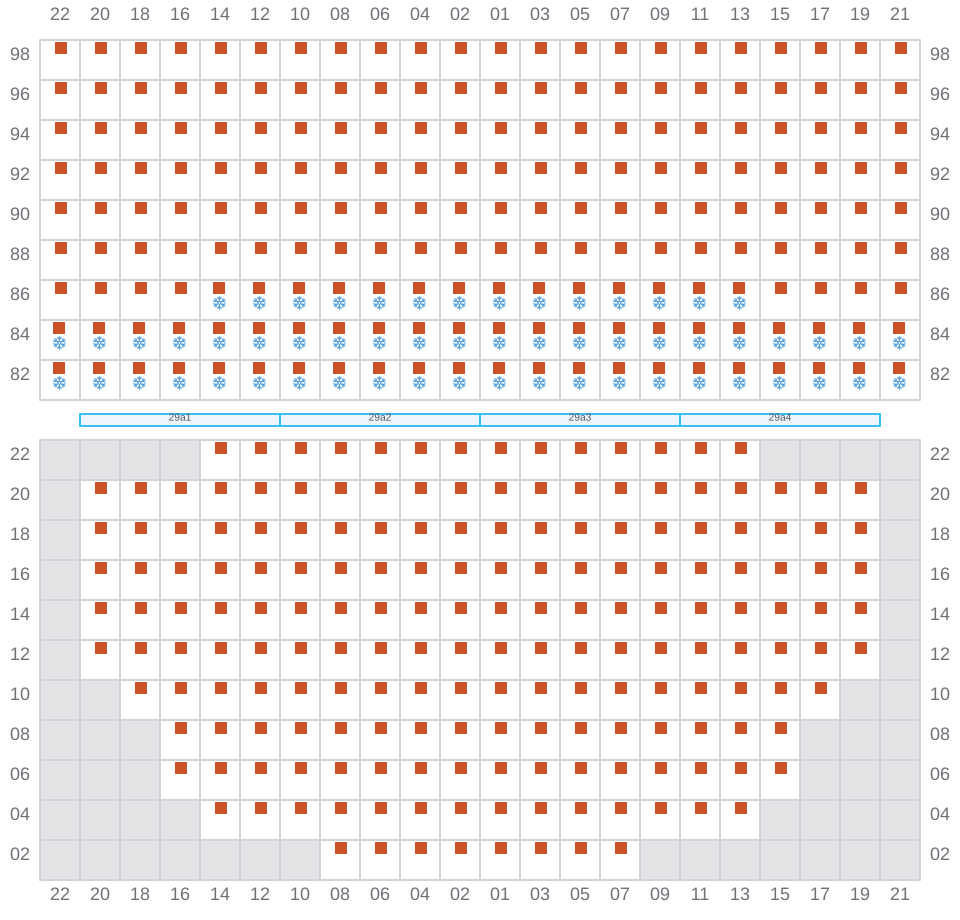

Bay 031 view and slots of ESTELLE MAERSK

033 (034)

  • →
  • ? / ←

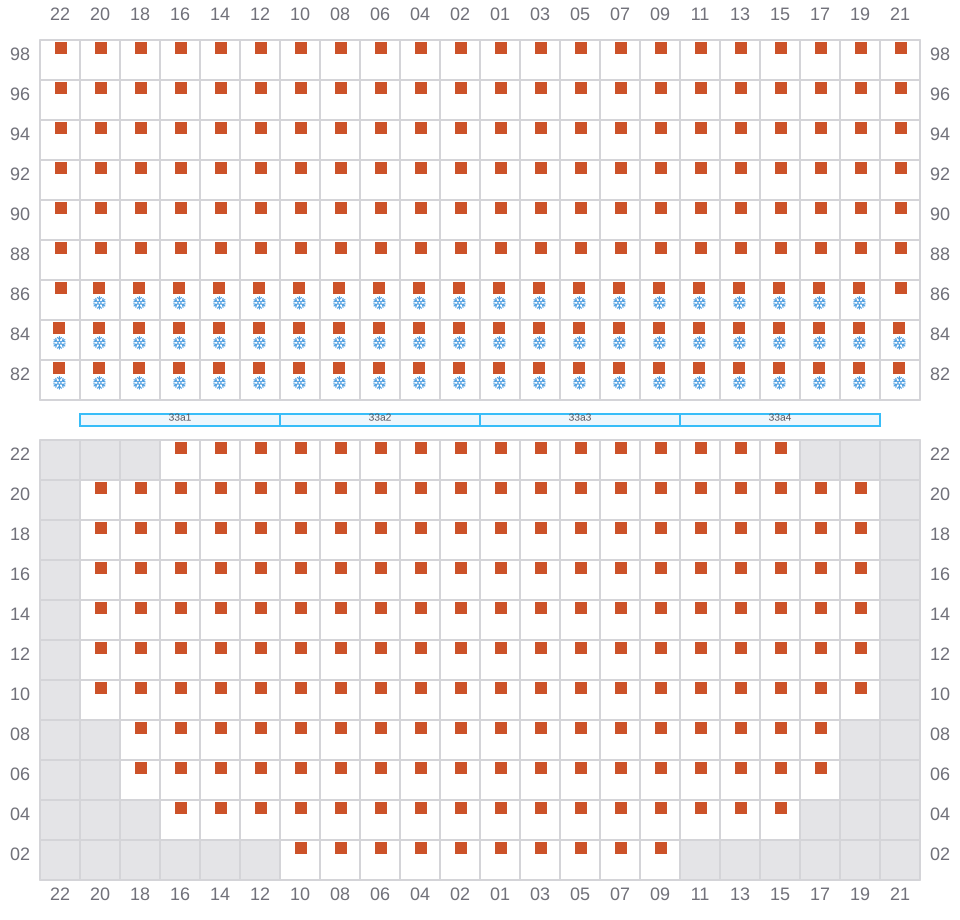

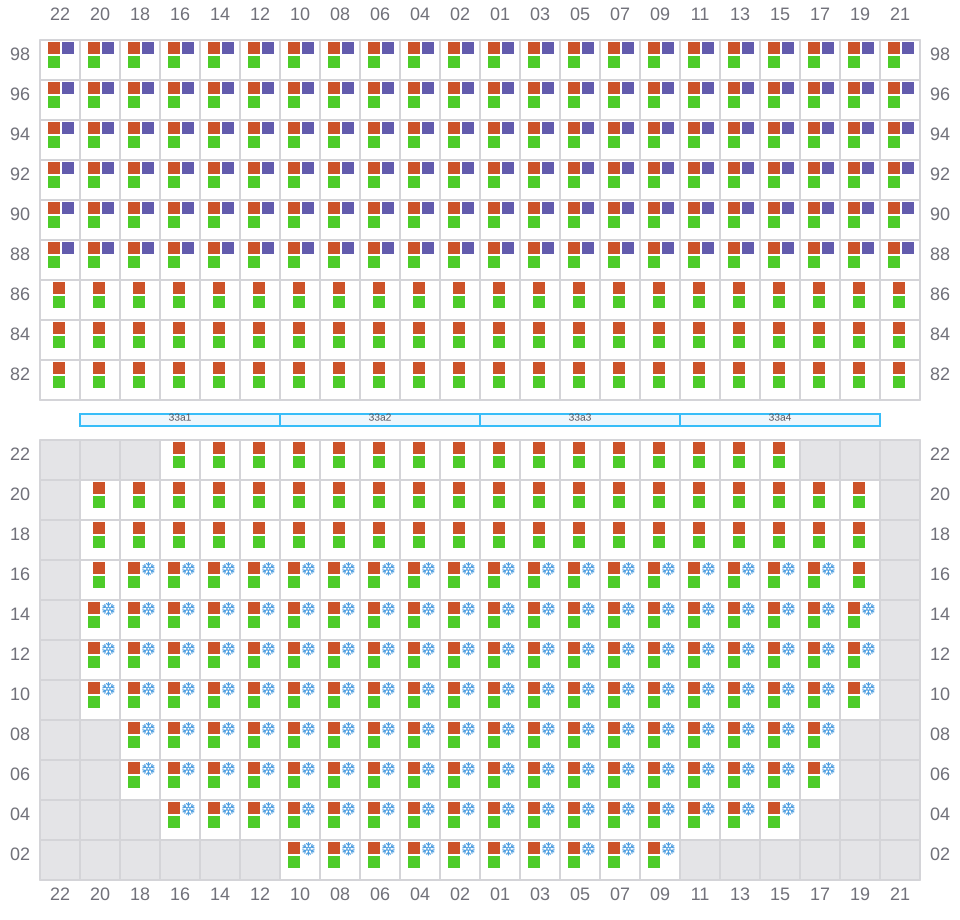

Bay 033 view and slots of ESTELLE MAERSK

035

  • ←
  • → / ?
Bay 035 view and slots of ESTELLE MAERSK

037 (038)

  • →

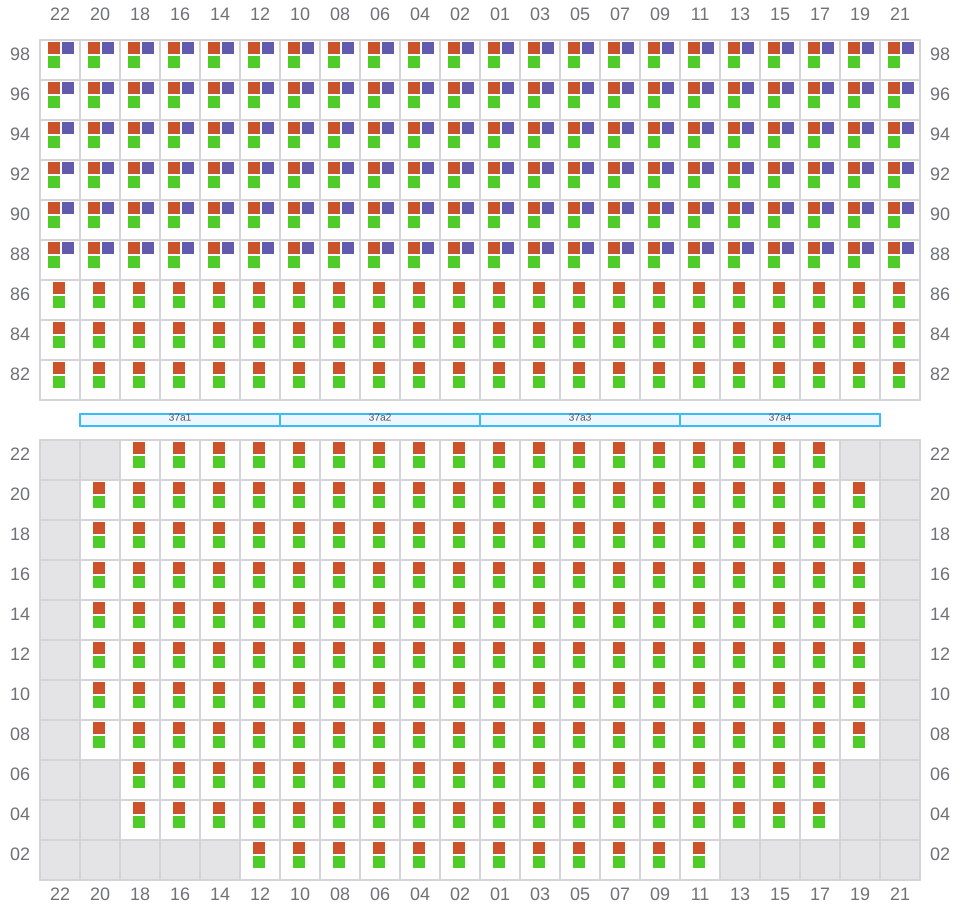

Bay 037 view and slots of ESTELLE MAERSK

039

  • ←

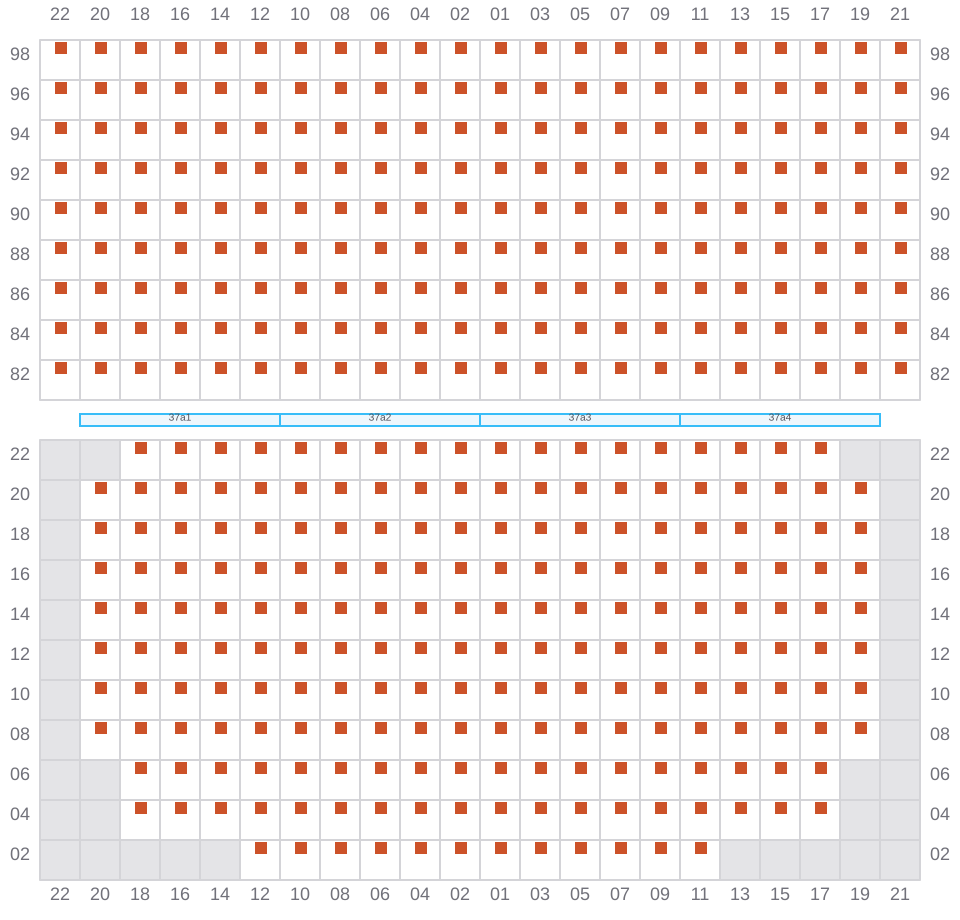

Bay 039 view and slots of ESTELLE MAERSK

041 (042)

  • →

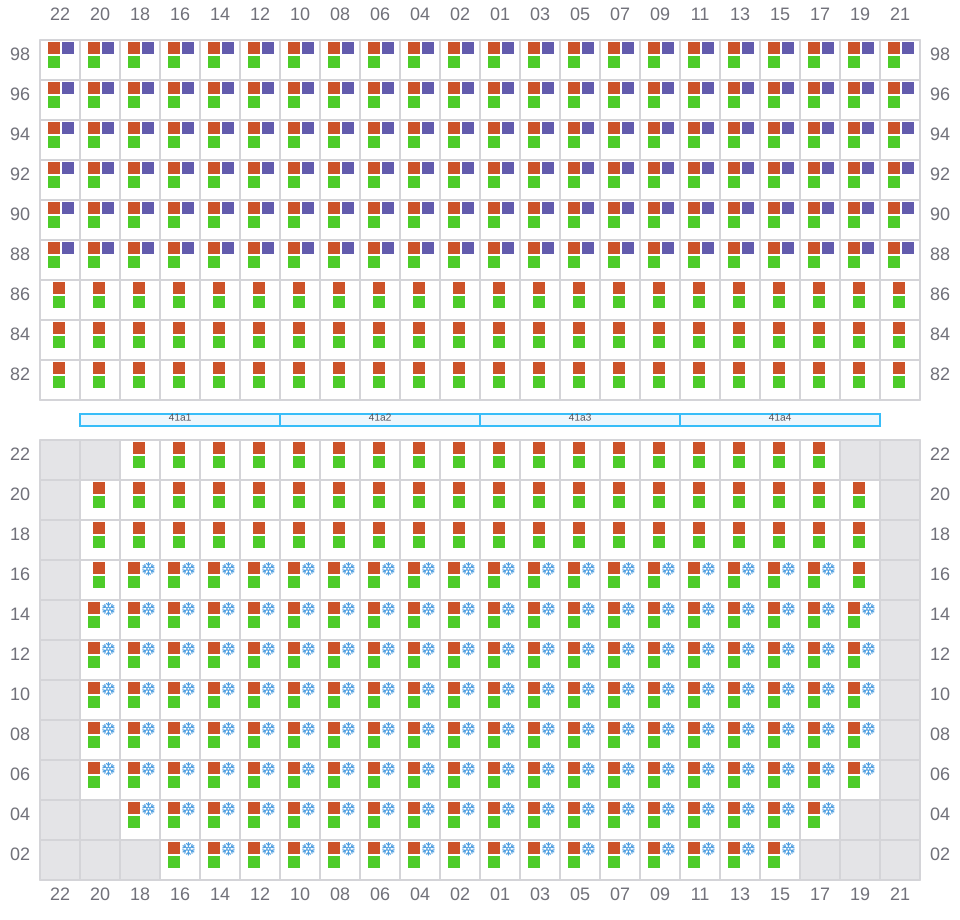

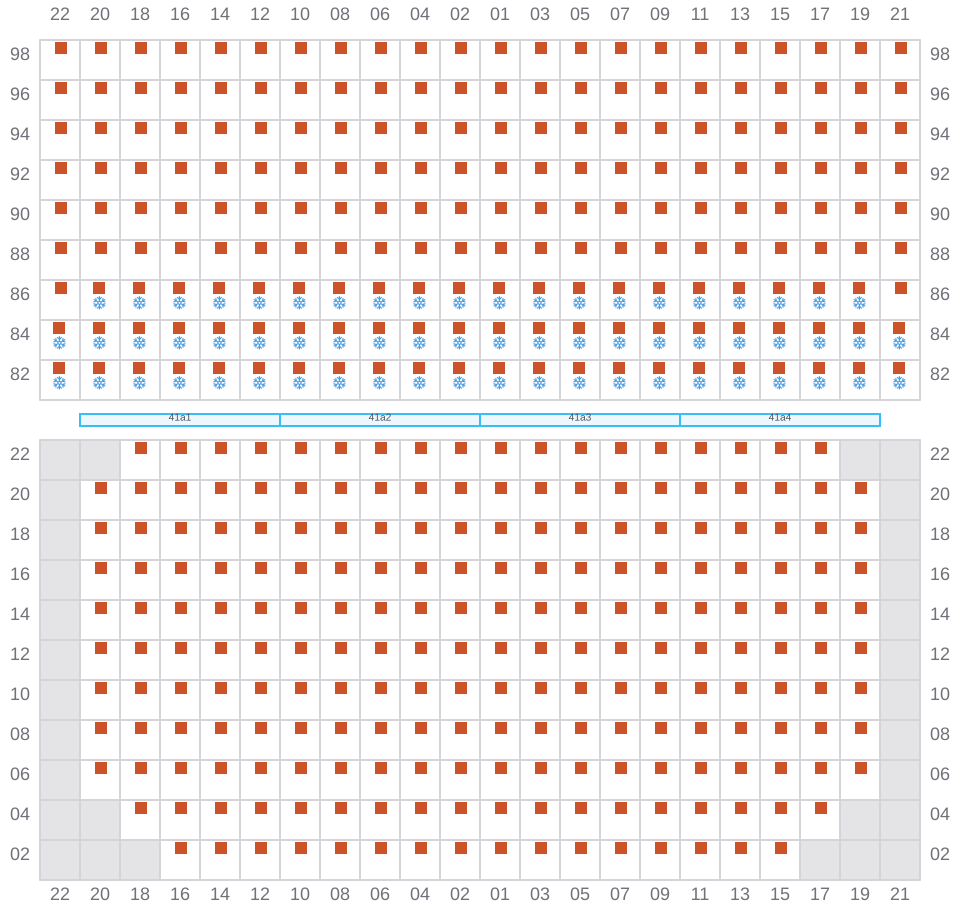

Bay 041 view and slots of ESTELLE MAERSK

043

  • ←
  • → / ?
Bay 043 view and slots of ESTELLE MAERSK

045 (046)

  • →

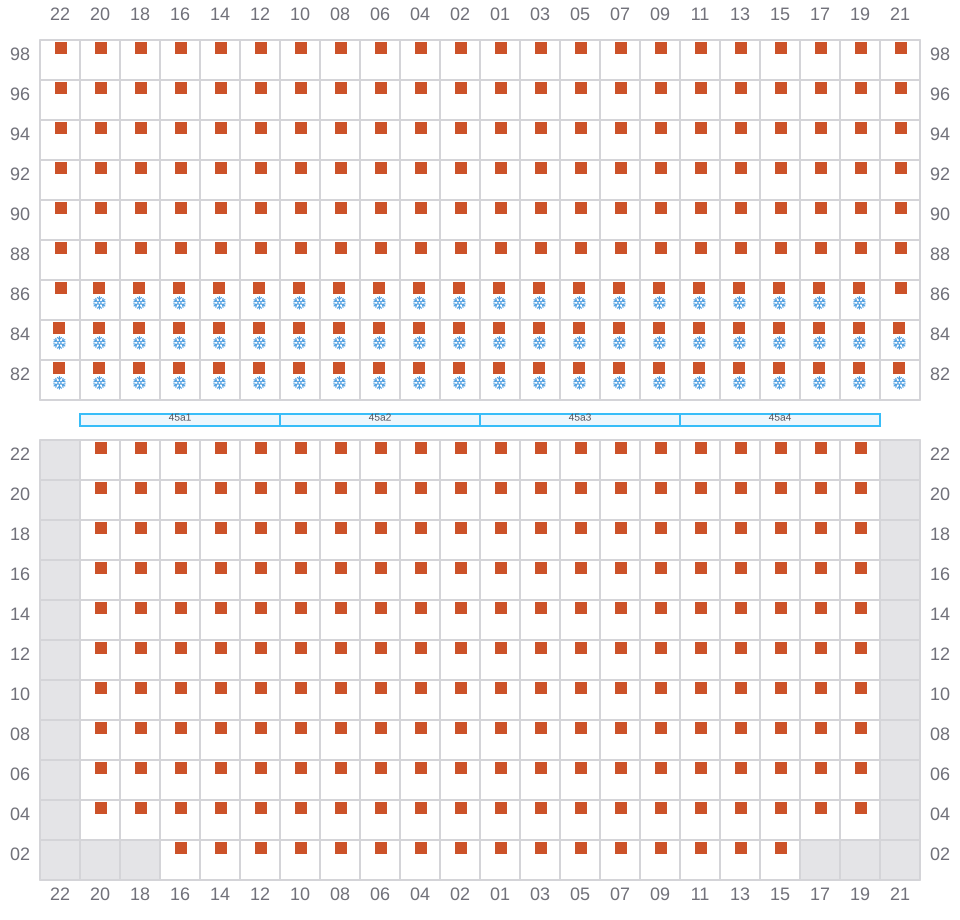

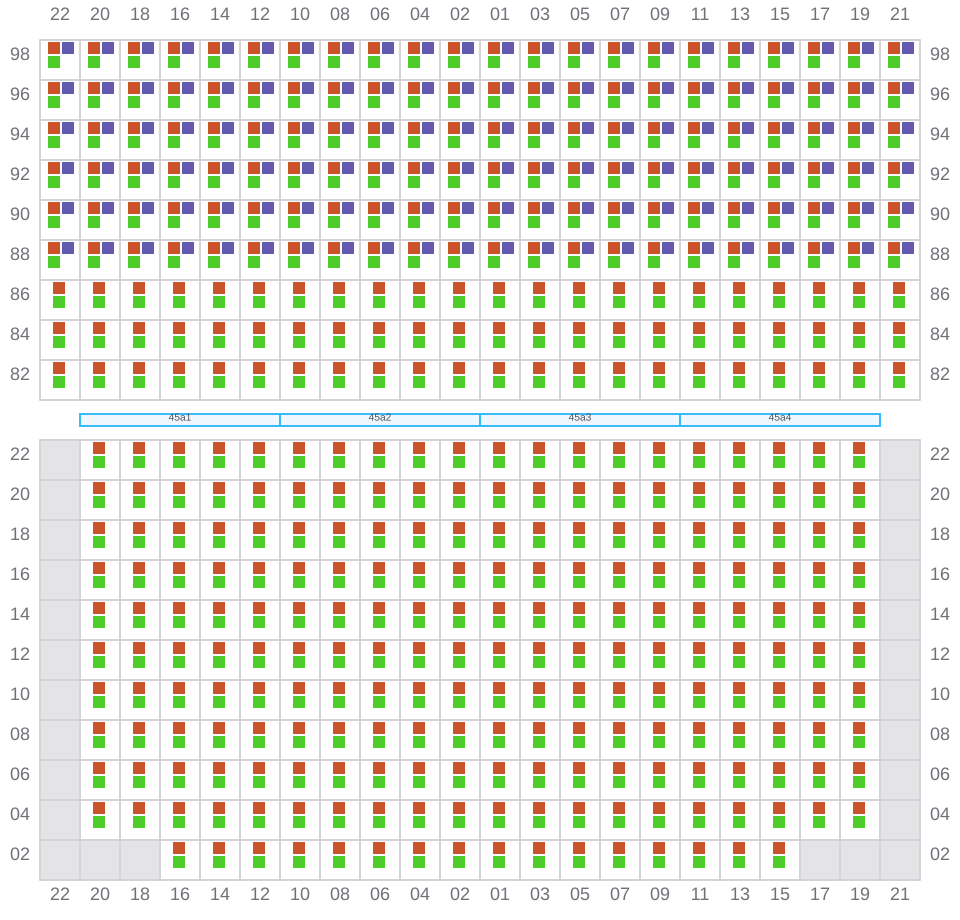

Bay 045 view and slots of ESTELLE MAERSK

047

  • ←
  • → / ?
Bay 047 view and slots of ESTELLE MAERSK

049 (050)

  • →
  • ? / ←

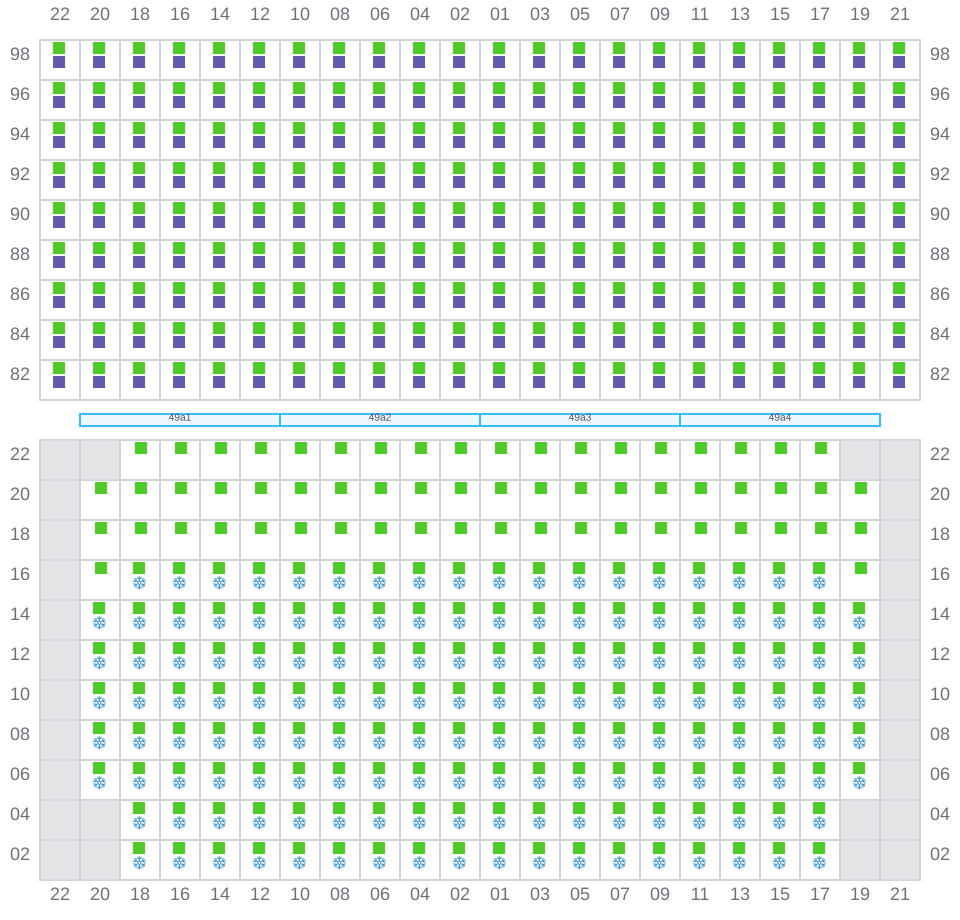

Bay 049 view and slots of ESTELLE MAERSK

051

Bay 051 view and slots of ESTELLE MAERSK

053 (054)

  • →

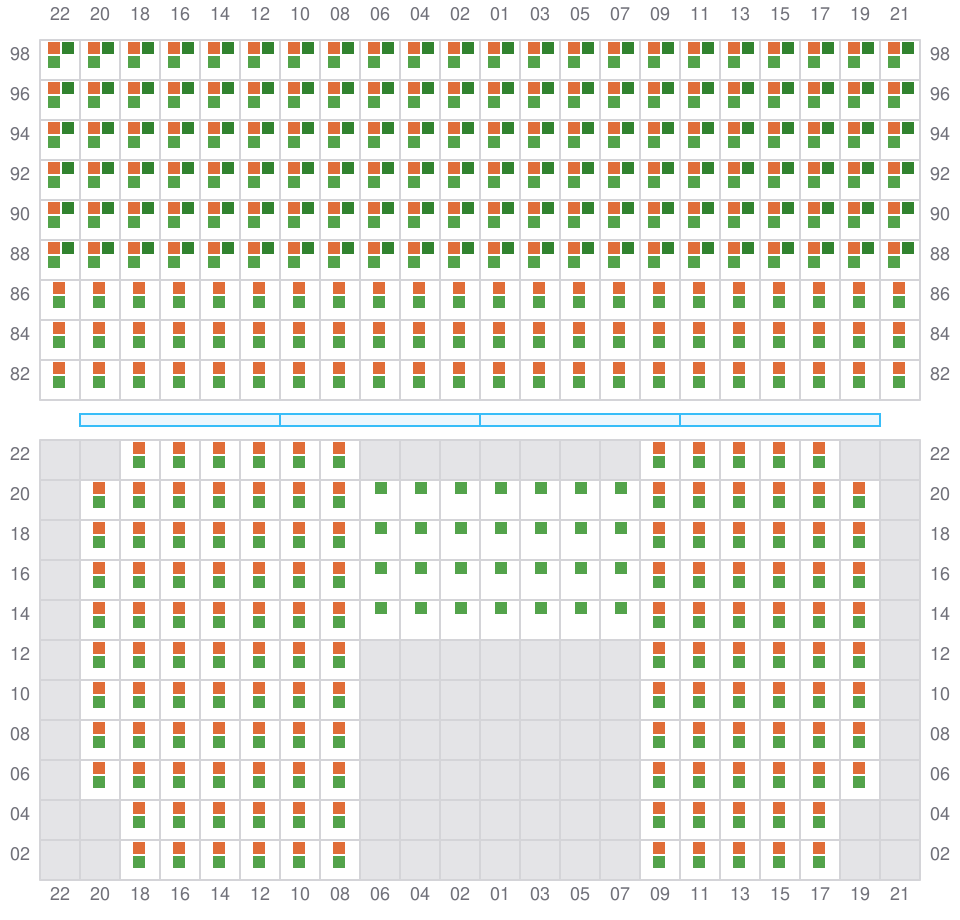

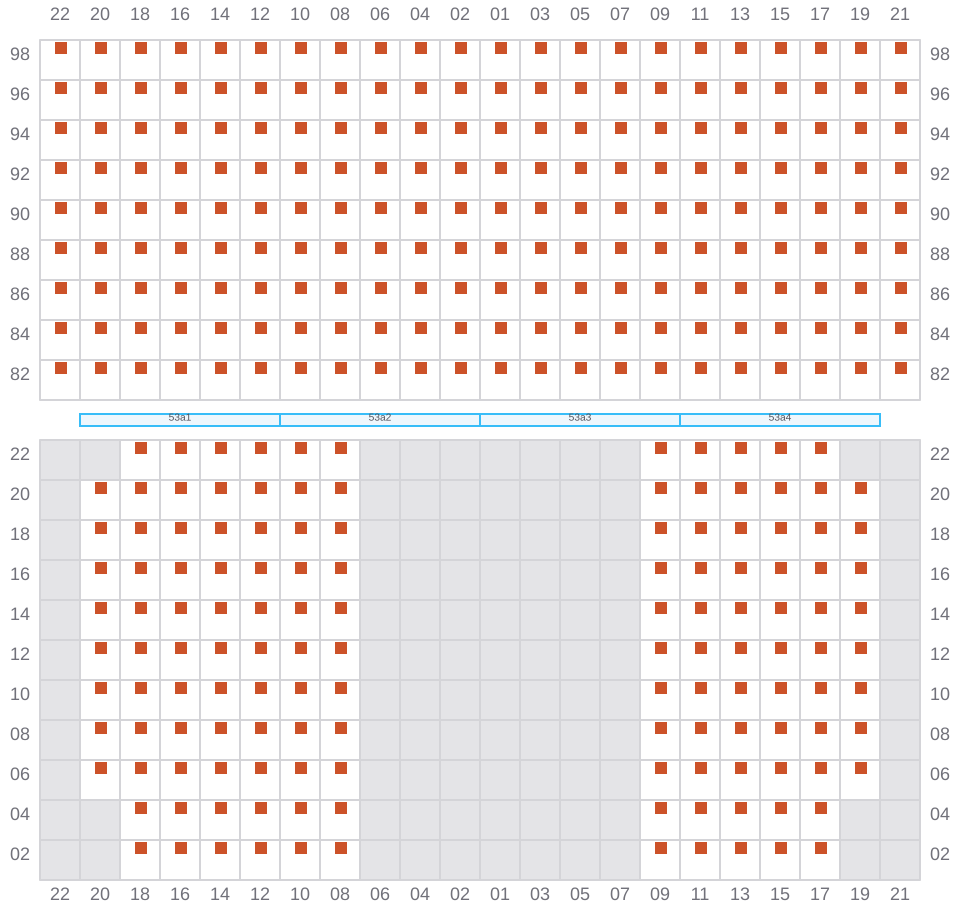

Bay 053 view and slots of ESTELLE MAERSK

055

  • ←
Bay 055 view and slots of ESTELLE MAERSK

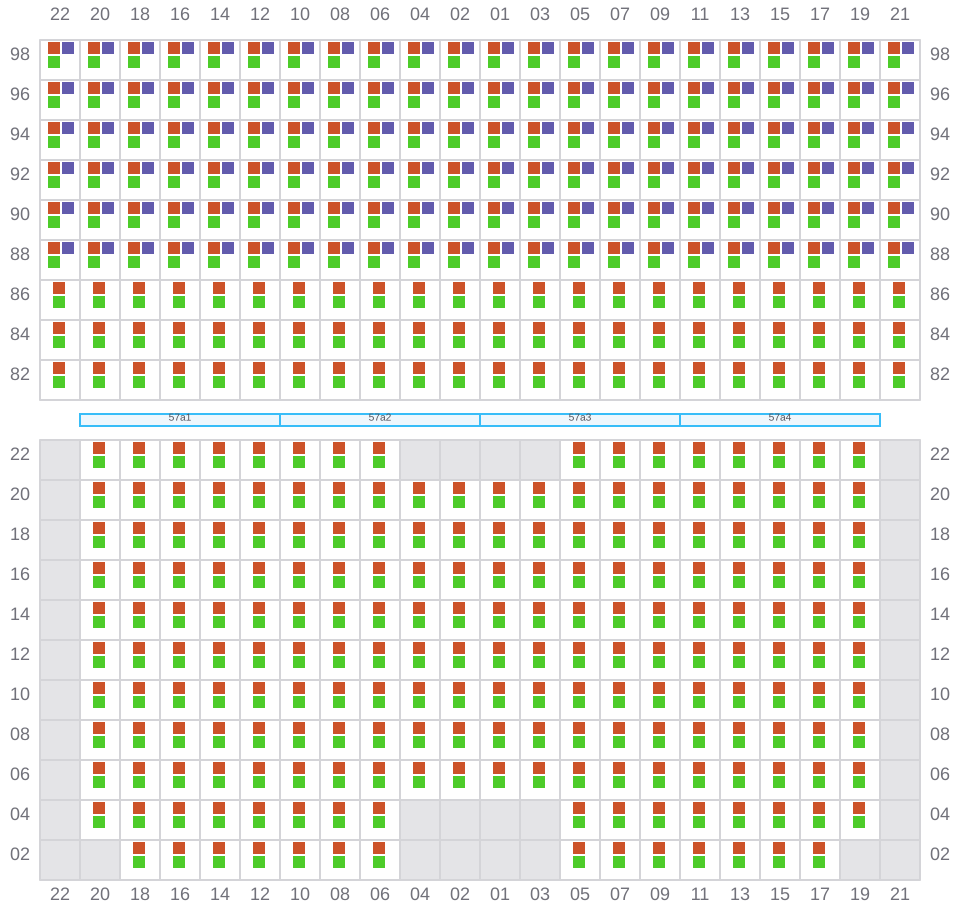

057 (058)

  • →

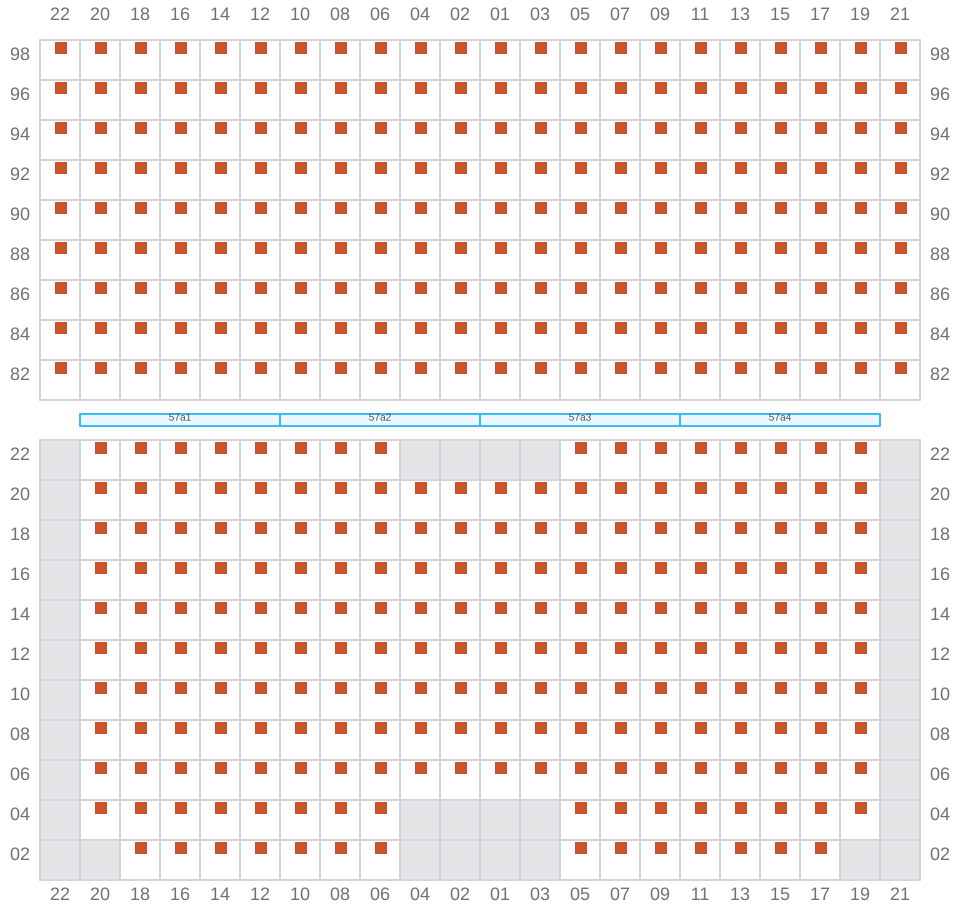

Bay 057 view and slots of ESTELLE MAERSK

059

  • ←
Bay 059 view and slots of ESTELLE MAERSK

061 (062)

  • →

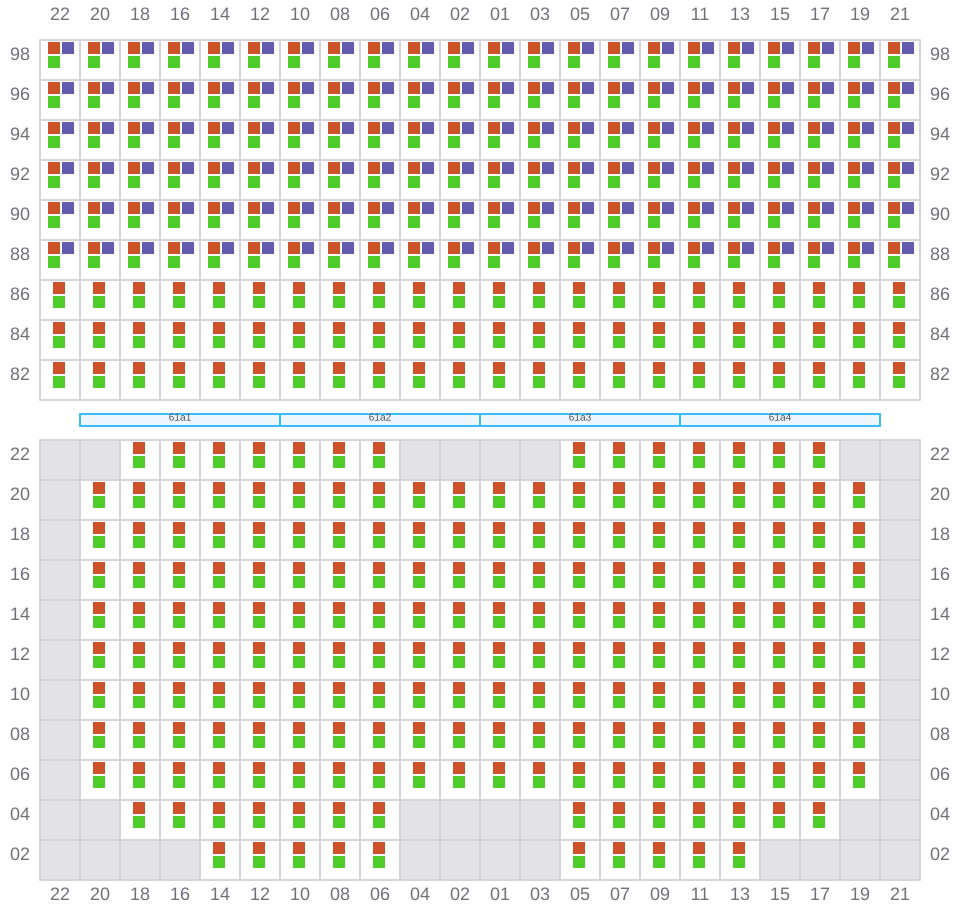

Bay 061 view and slots of ESTELLE MAERSK

063

  • ←
Bay 063 view and slots of ESTELLE MAERSK

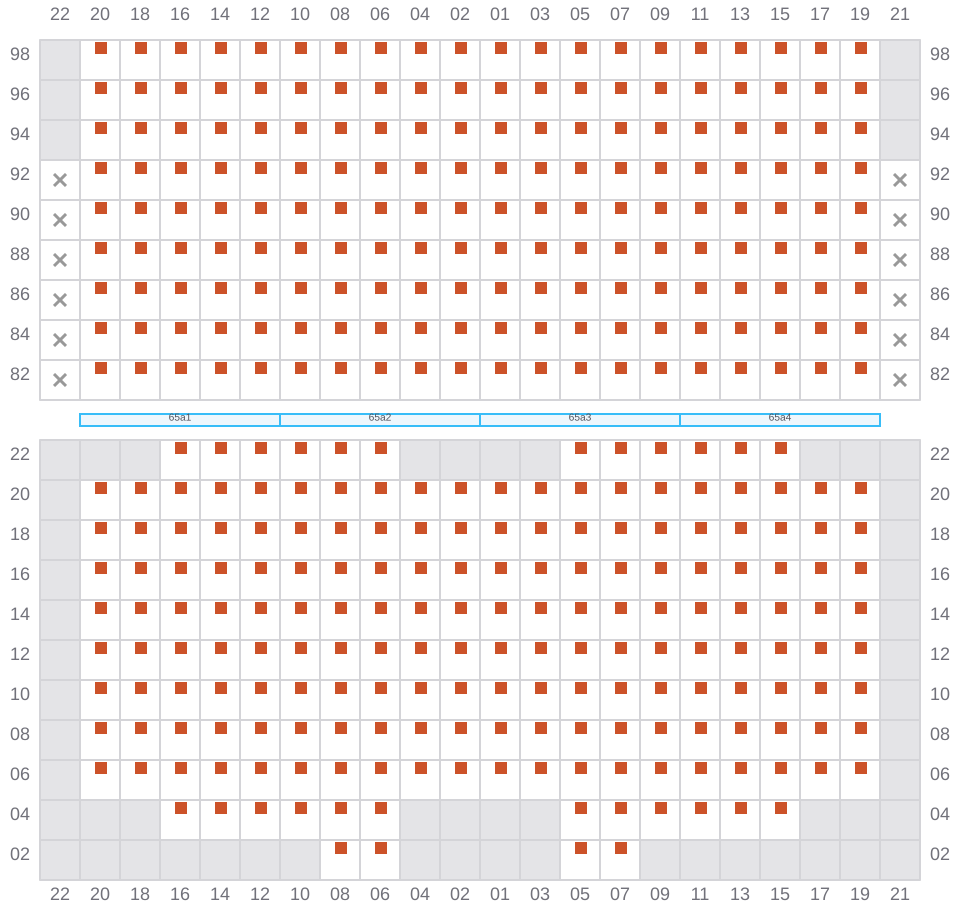

065 (066)

  • →

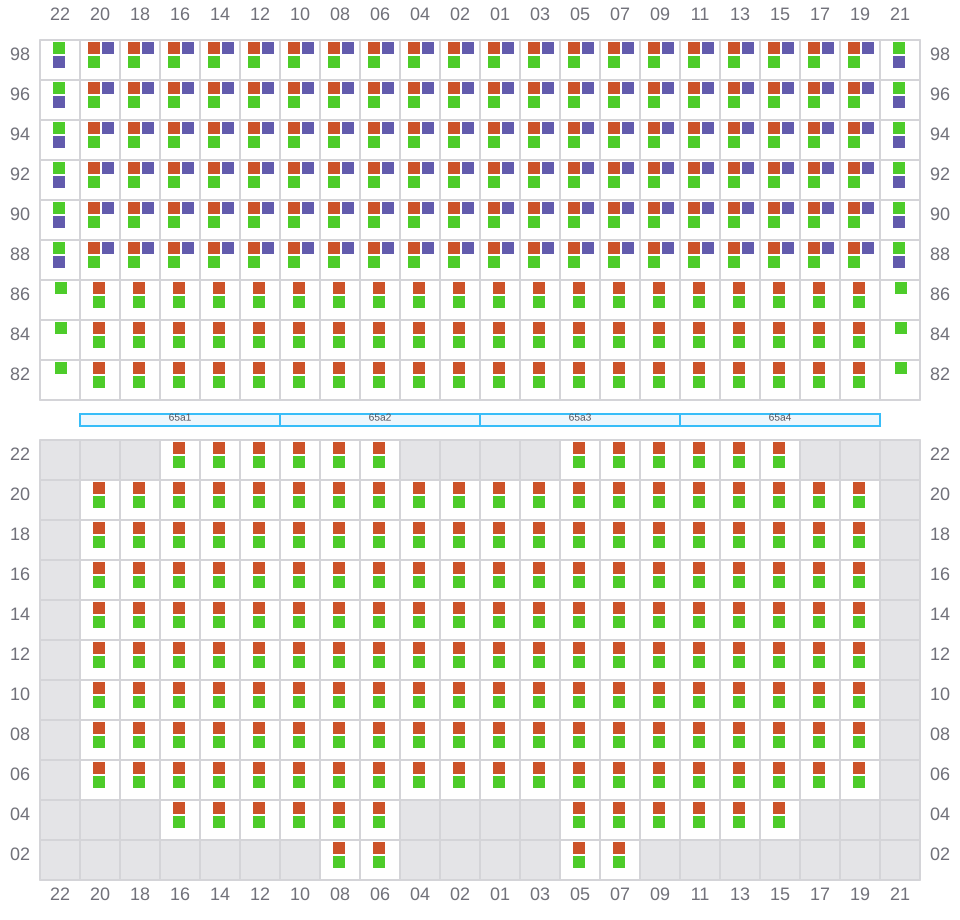

Bay 065 view and slots of ESTELLE MAERSK

067

  • ←
Bay 067 view and slots of ESTELLE MAERSK

069 (070)

  • →

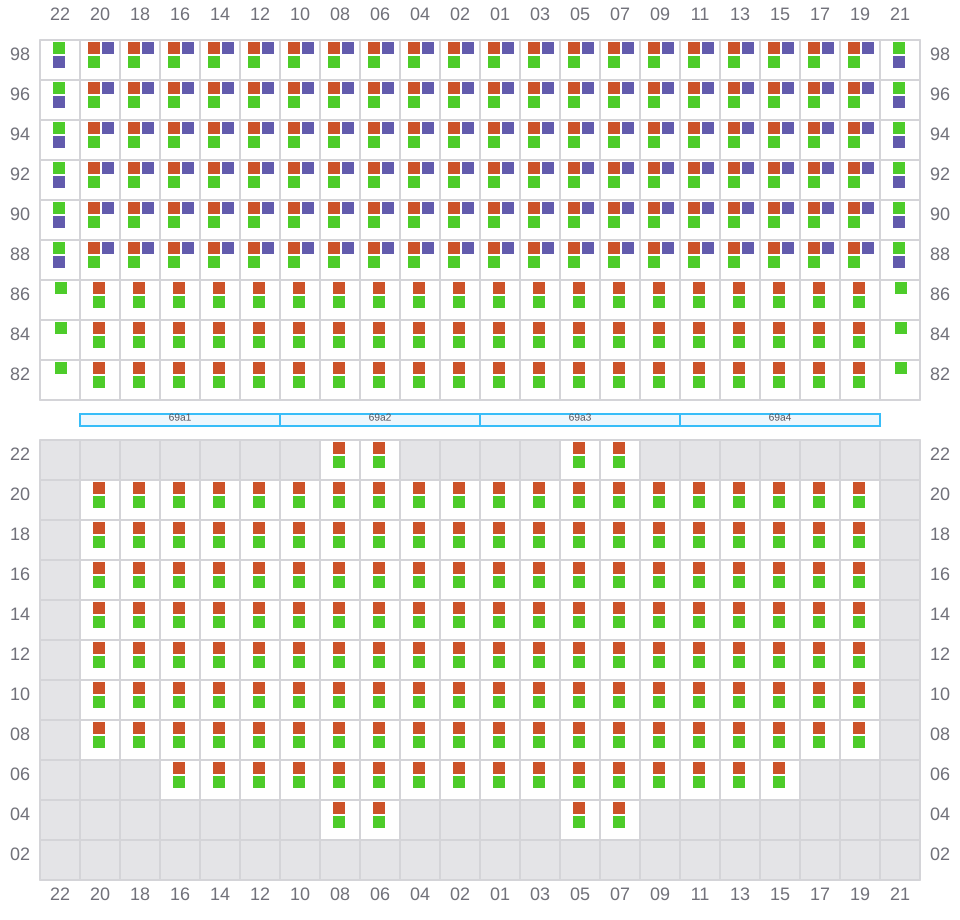

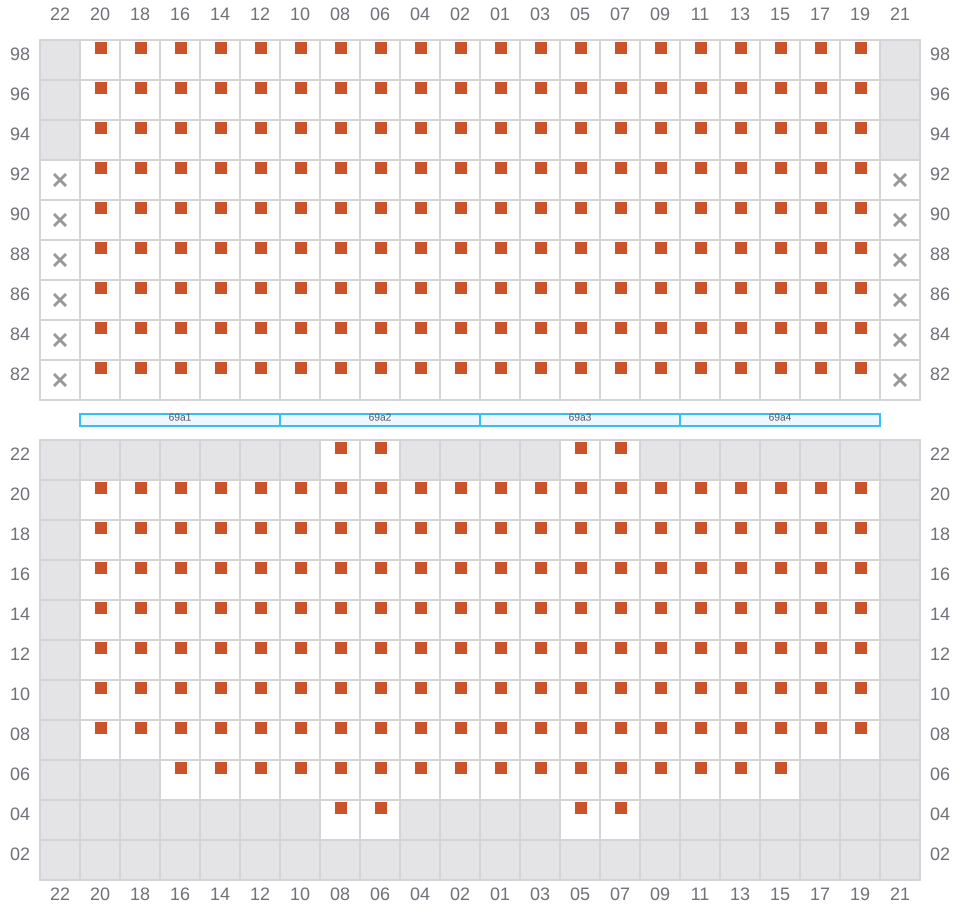

Bay 069 view and slots of ESTELLE MAERSK

071

  • ←
Bay 071 view and slots of ESTELLE MAERSK

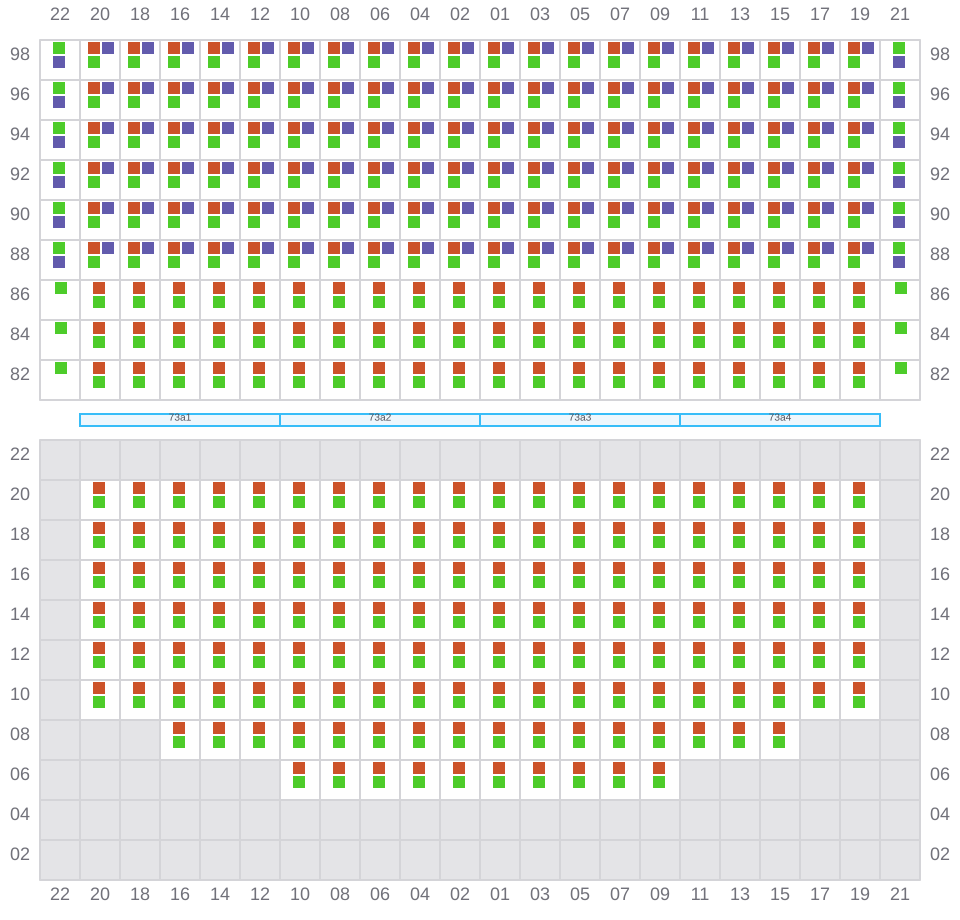

073 (074)

  • →

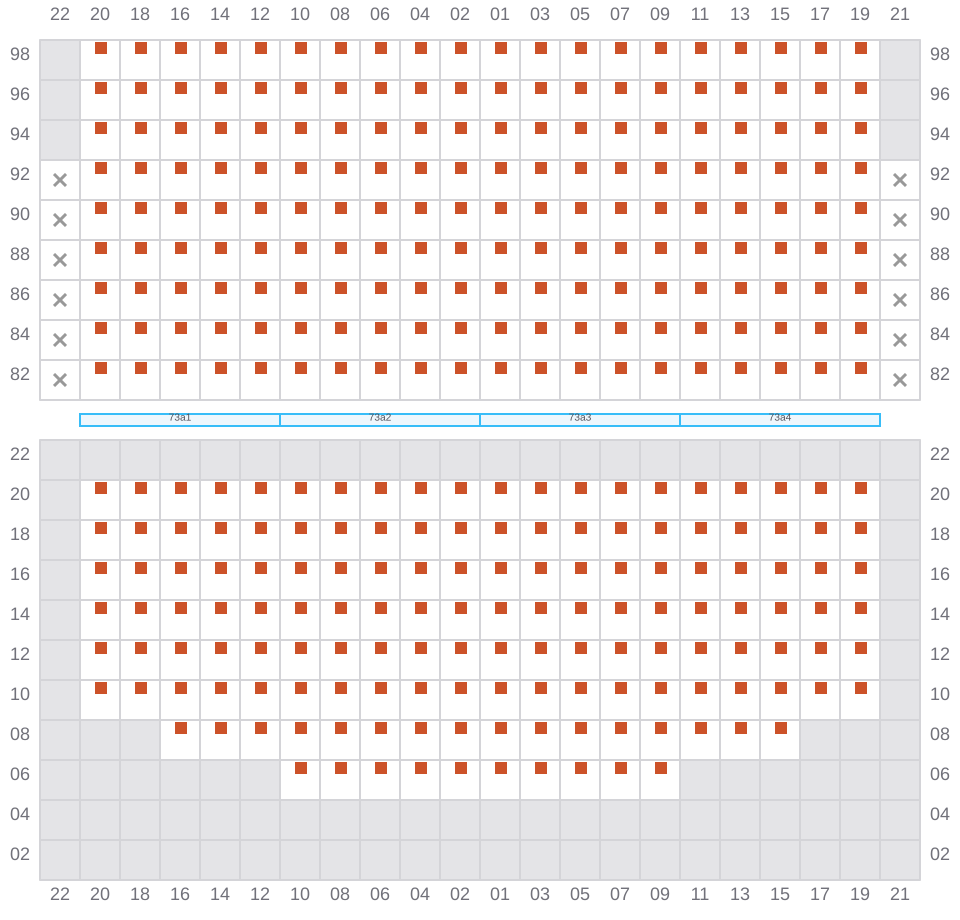

Bay 073 view and slots of ESTELLE MAERSK

075

  • ←
Bay 075 view and slots of ESTELLE MAERSK

077 (078)

  • →

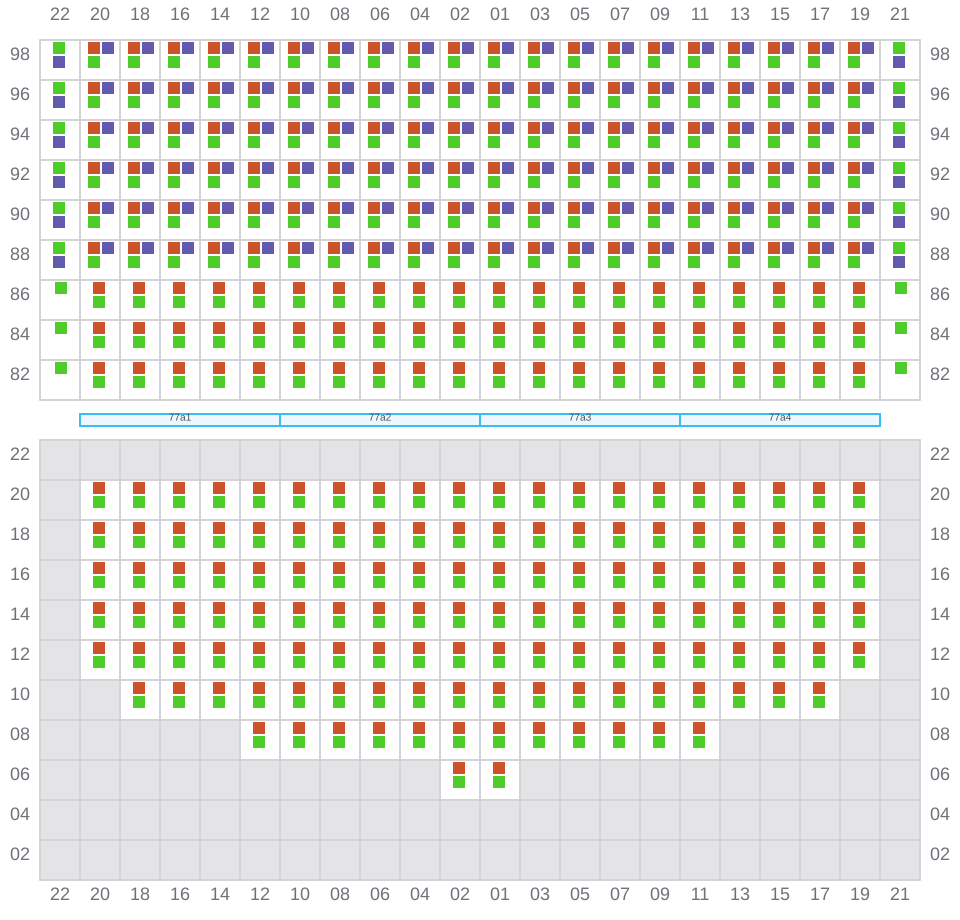

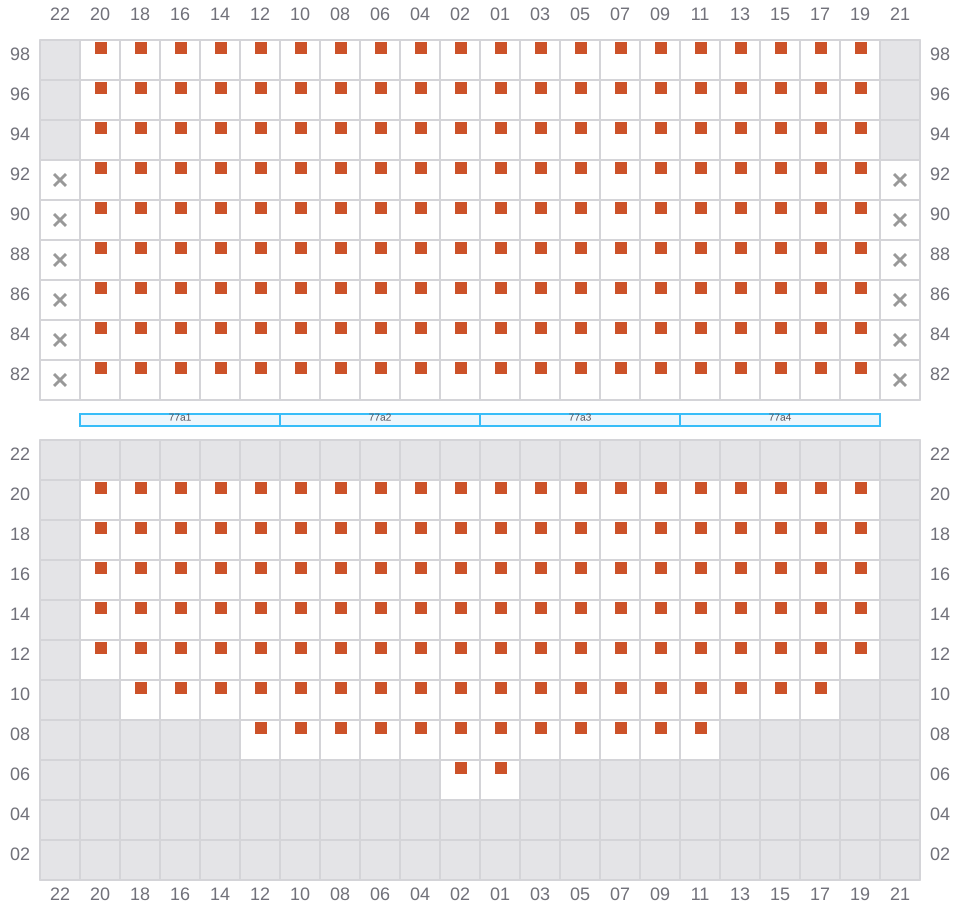

Bay 077 view and slots of ESTELLE MAERSK

079

  • ←
Bay 079 view and slots of ESTELLE MAERSK

081 (082)

  • →

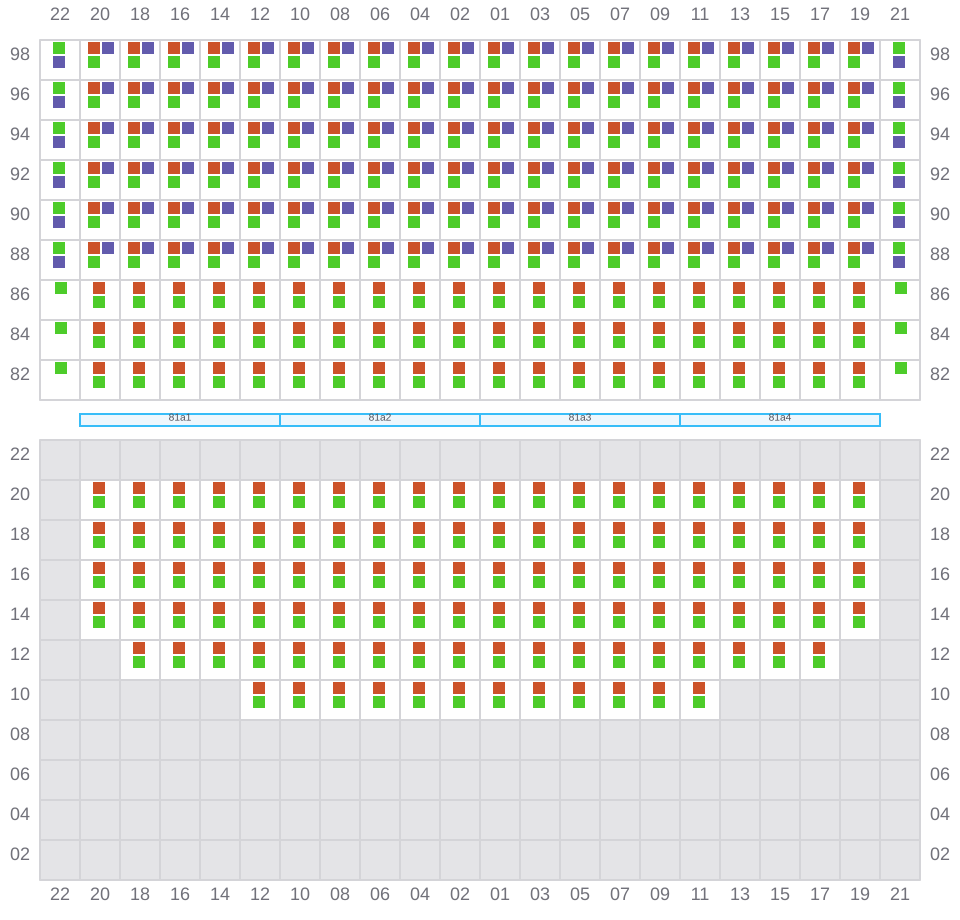

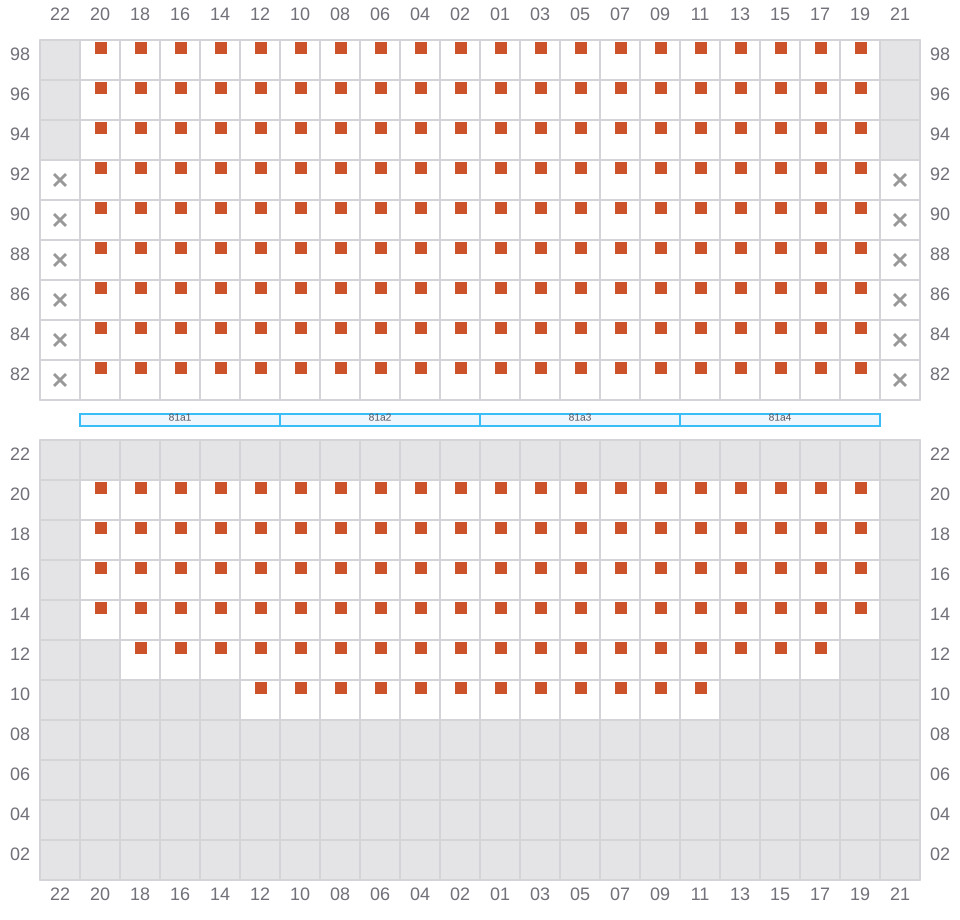

Bay 081 view and slots of ESTELLE MAERSK

083

  • ←
Bay 083 view and slots of ESTELLE MAERSK

085 (086)

  • →

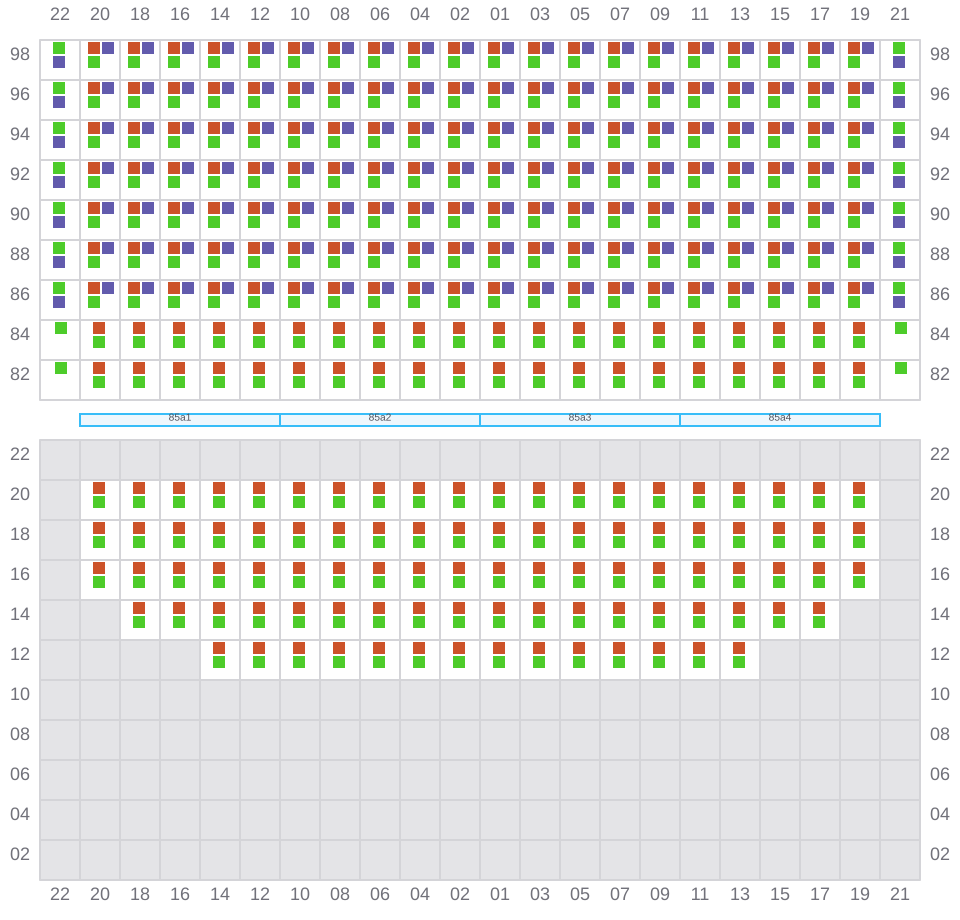

Bay 085 view and slots of ESTELLE MAERSK

087

  • ←
Bay 087 view and slots of ESTELLE MAERSK

089 (090)

  • →

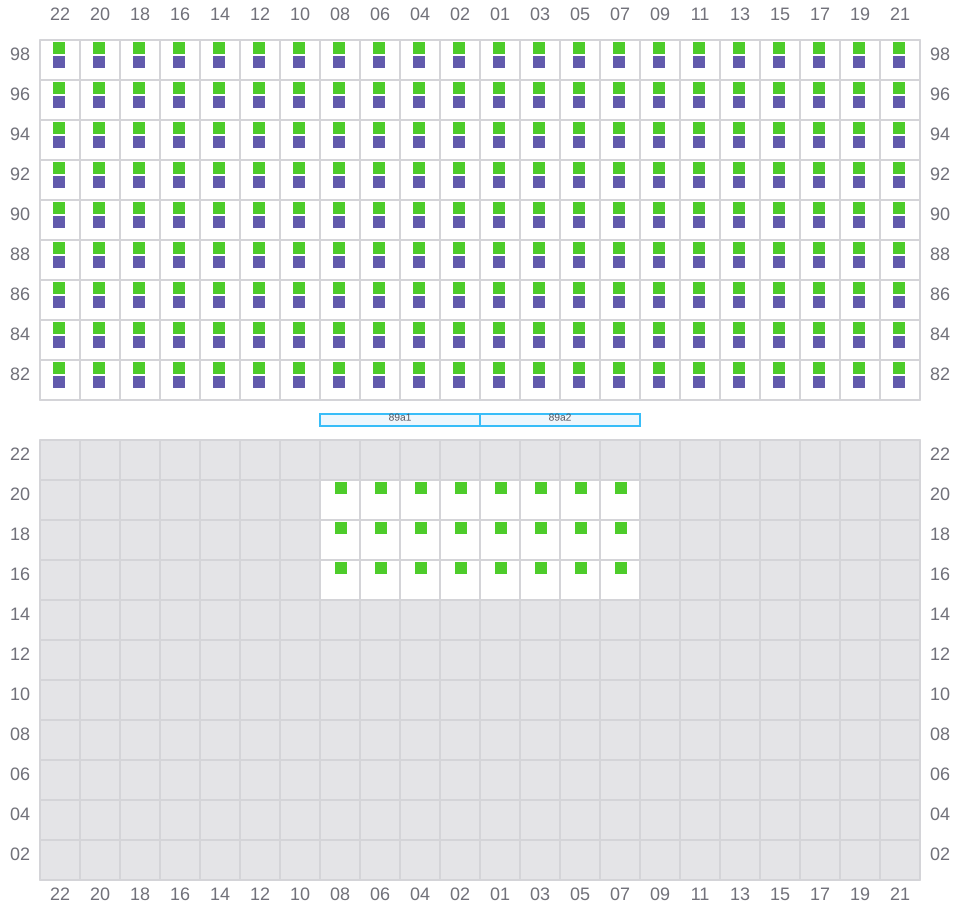

Bay 089 view and slots of ESTELLE MAERSK
