ETOILE
9301469 | 9HA3184 | 9301469 by ********* Last update: Tue Jul 16 2024
General Info
Ship Name:ETOILE
IMO Code:9301469
Call Sign:9HA3184
Line Operator:9301469
Class Name for Sister Ships:CMA
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,556
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

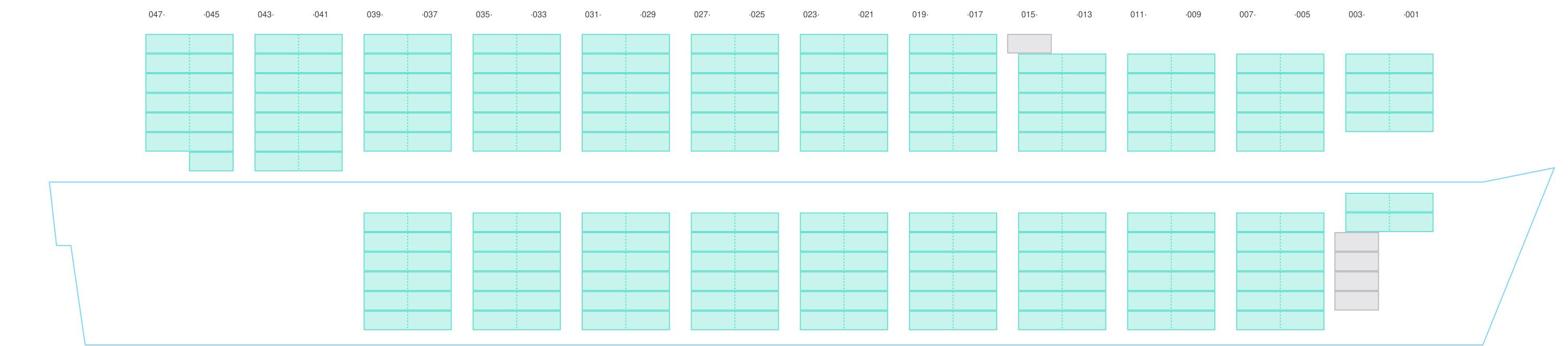

Side View

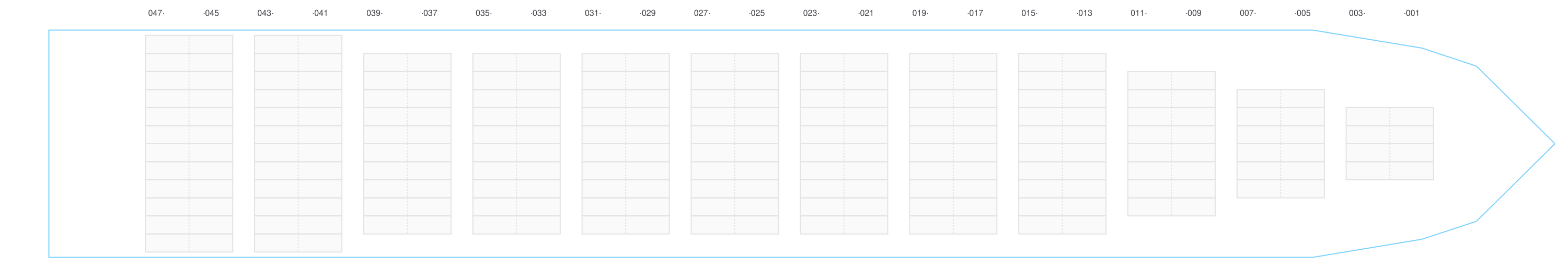

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

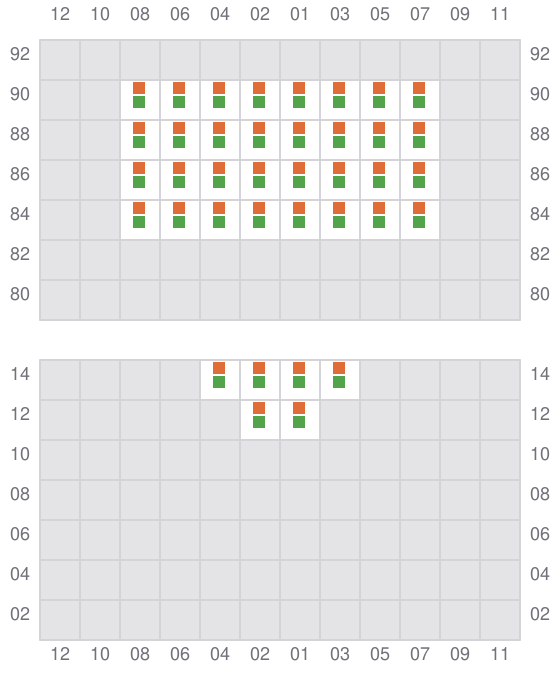

001 (002)
- →

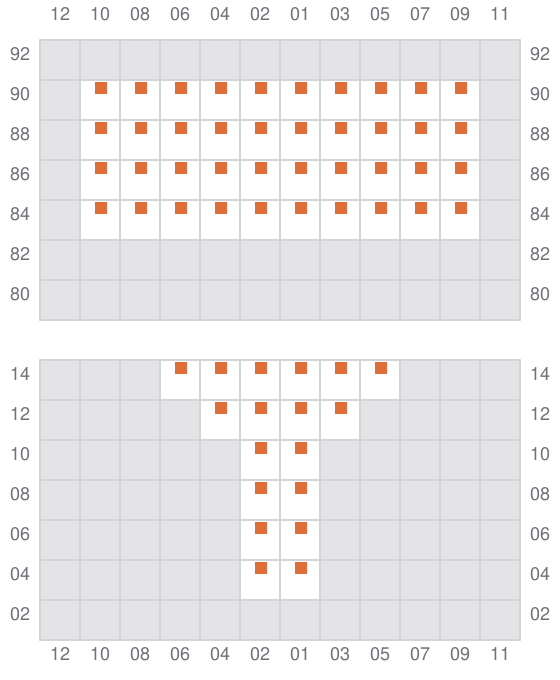

003
- ←
005 (006)
- →

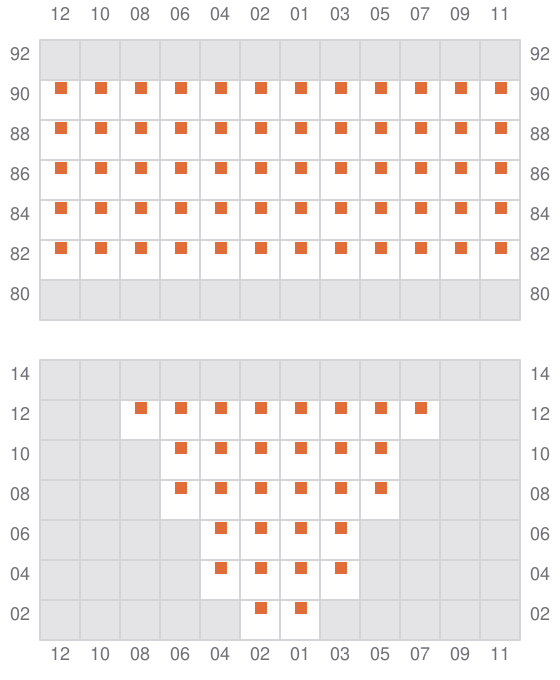

007
- ←

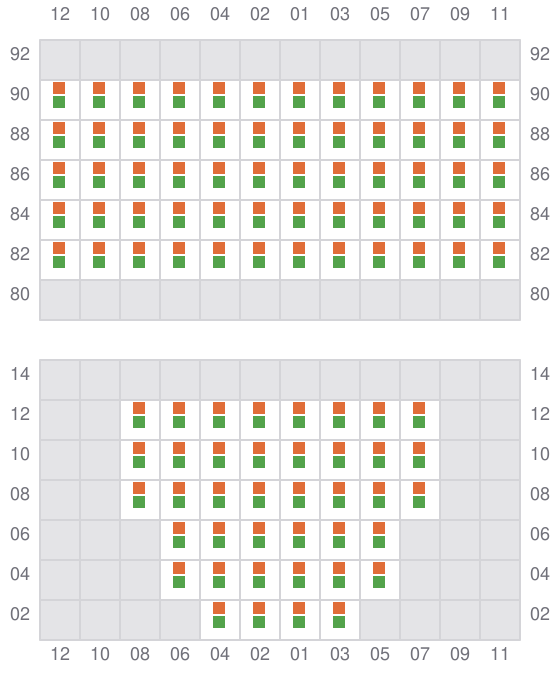

009 (010)
- →
011
- ←

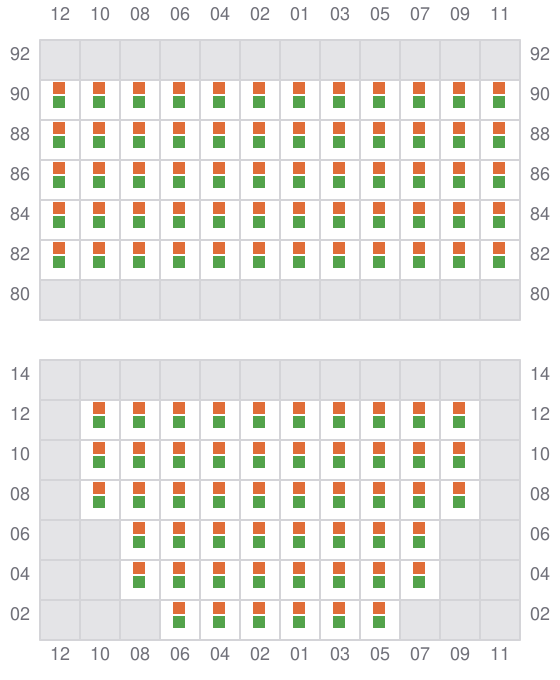

013 (014)
- →

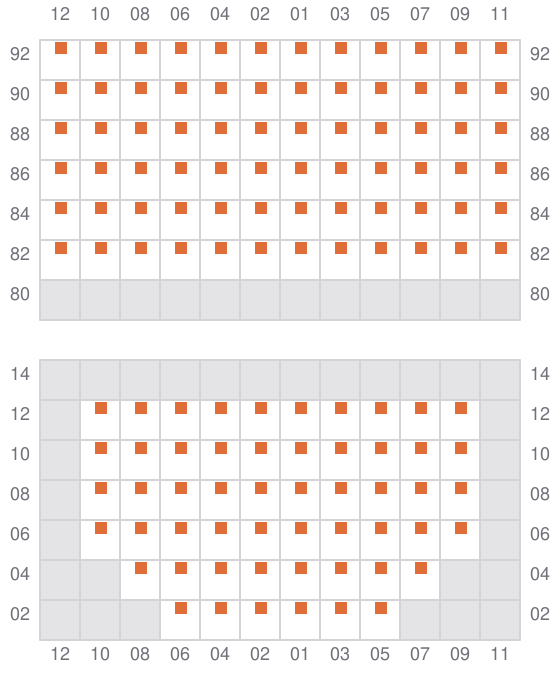

015
- ←
017 (018)
- →
019
- ←
021 (022)
- →

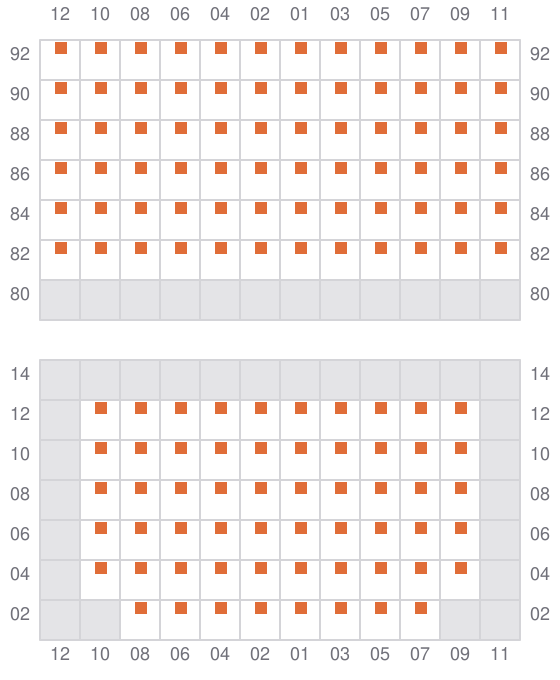

023
- ←

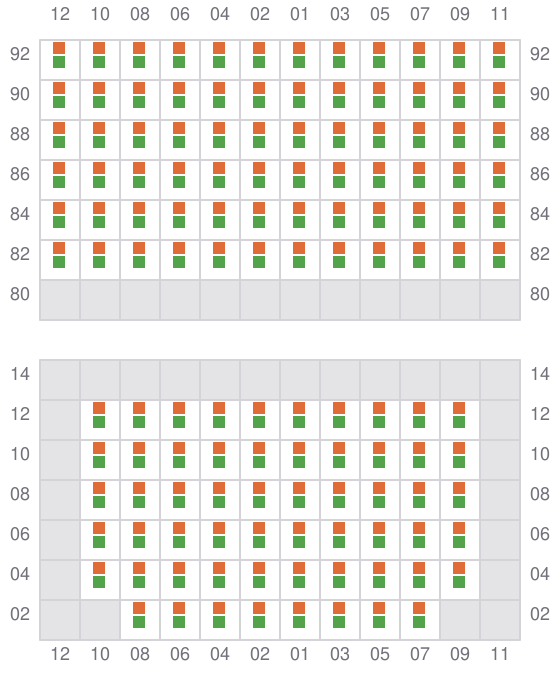

025 (026)
- →
027
- ←

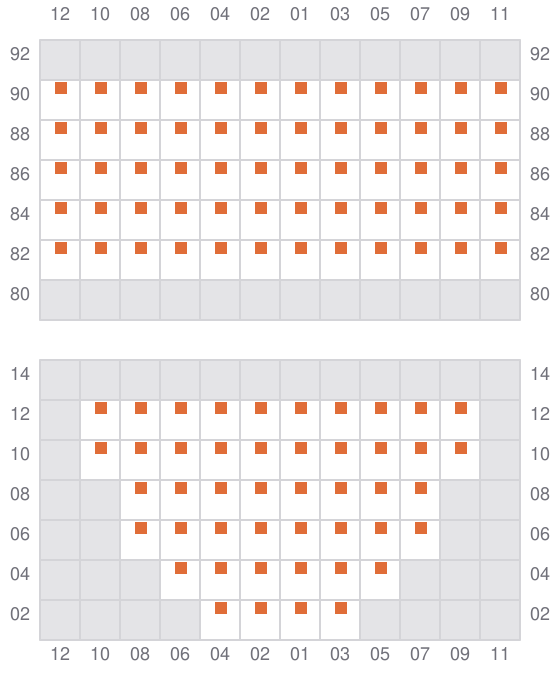

029 (030)
- →
031
- ←
033 (034)
- →
035
- ←

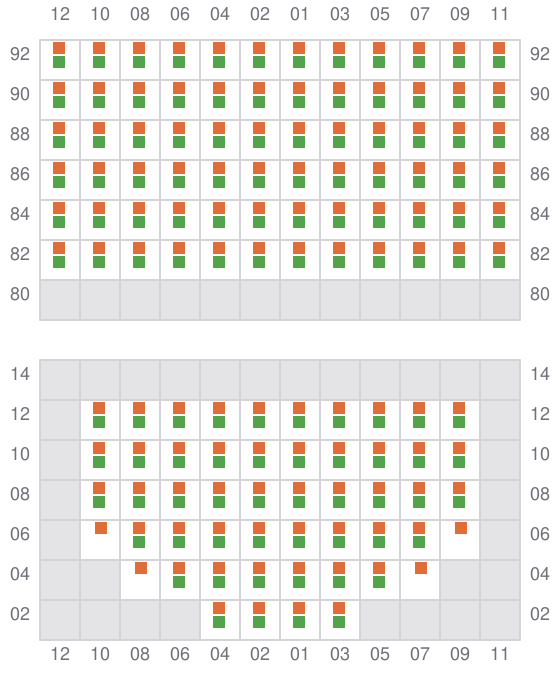

037 (038)
- →
039
- ←
041 (042)
- → / ?

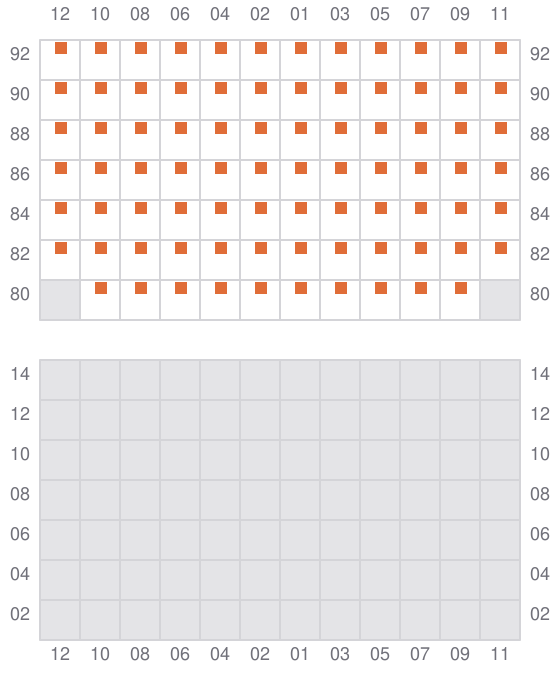

043
- ← / ?

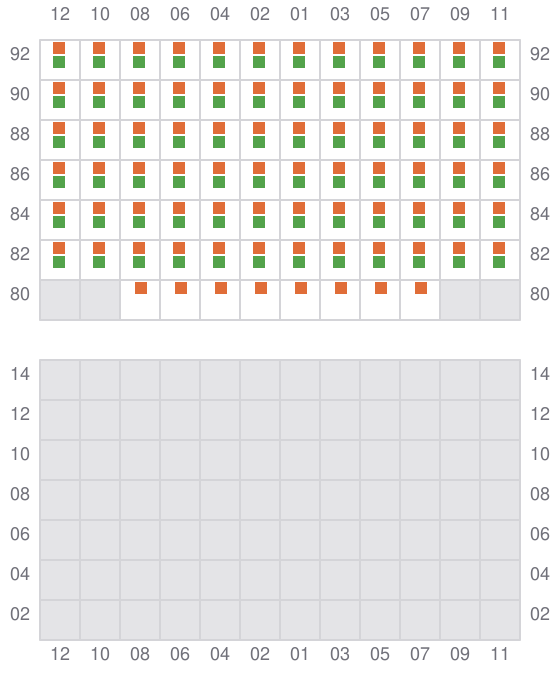

045 (046)
- → / ?

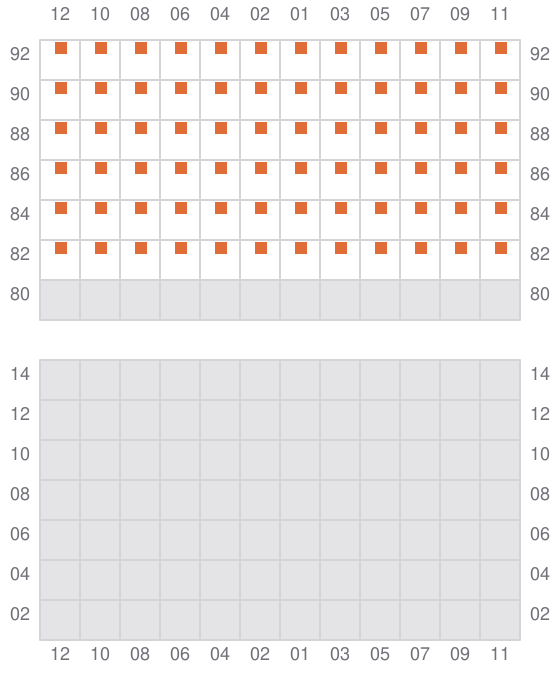

047
- ← / ?
