ETOILE
9301469 | 9HA3184 | CMA by *********************** Last update: Tue Jan 21 2025
General Info
Ship Name:ETOILE
IMO Code:9301469
Call Sign:9HA3184
Line Operator:CMA
Class Name for Sister Ships:ETO
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):210.07
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,564
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

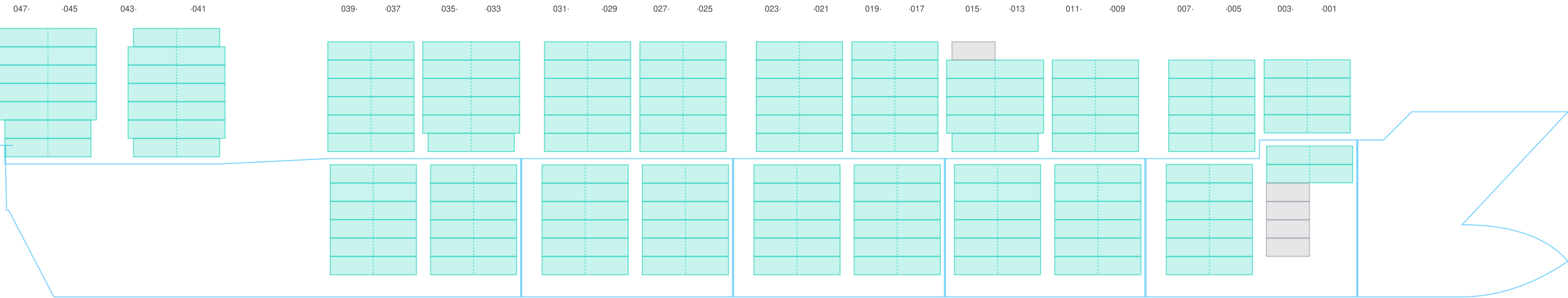

Side View

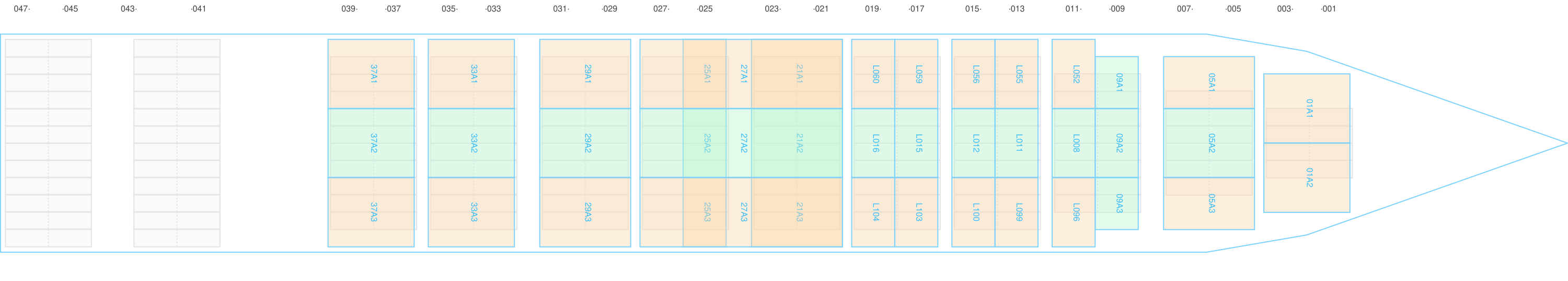

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

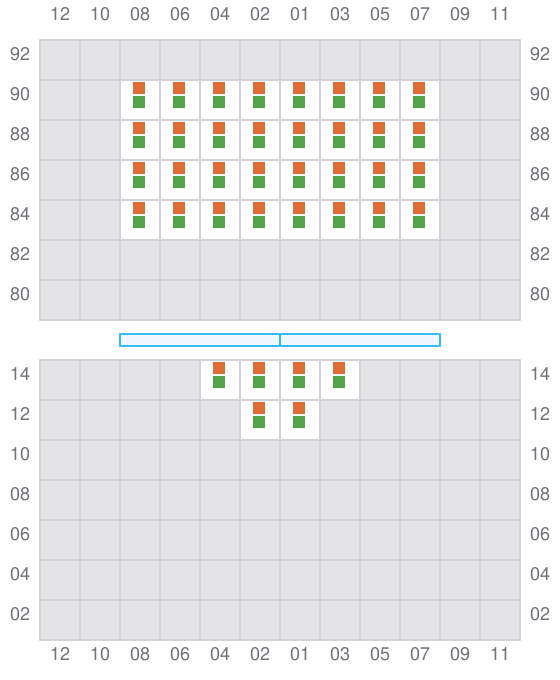

001 (002)
- →

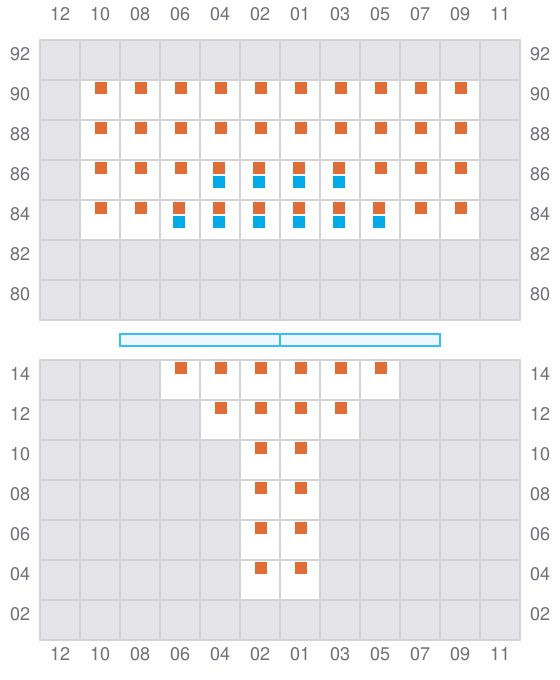

003
- ←
- → / ?
- ← / ?

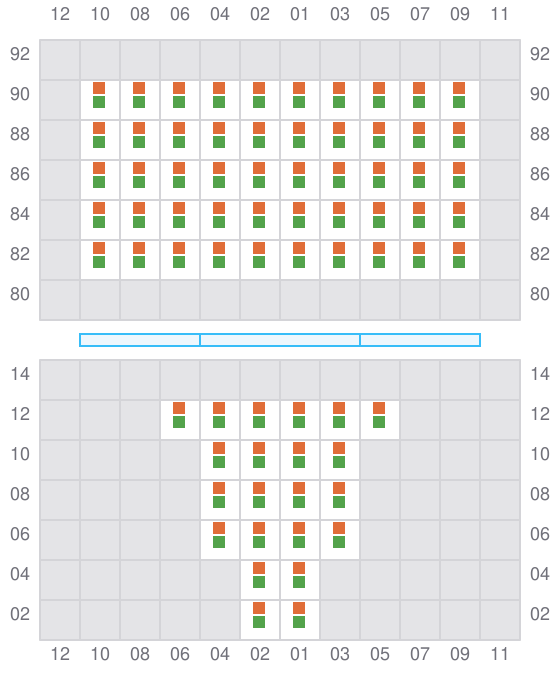

005 (006)
- →
- ← / ?
- → / ?

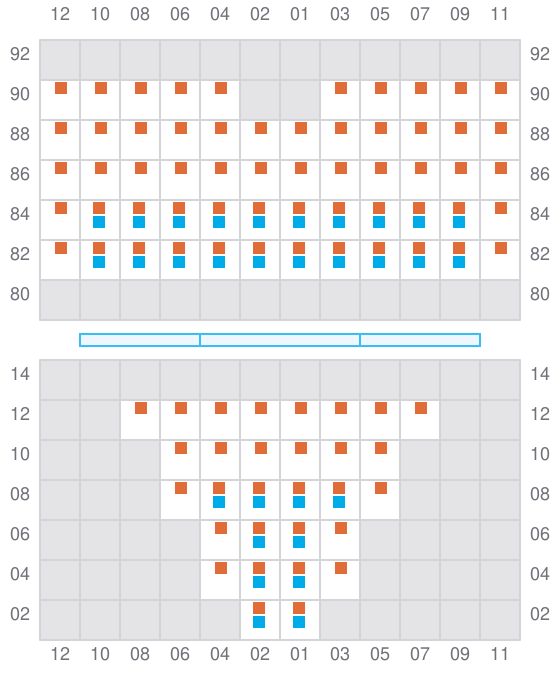

007
- ←

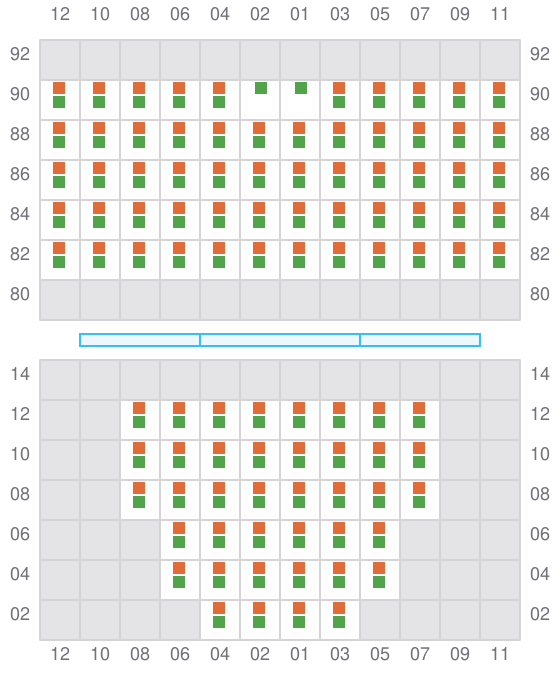

009 (010)
- →

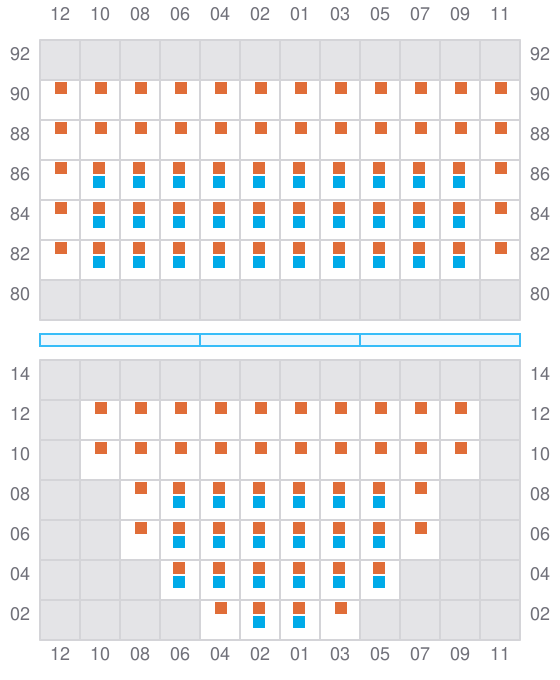

011
- ←
- → / ?
- ← / ?

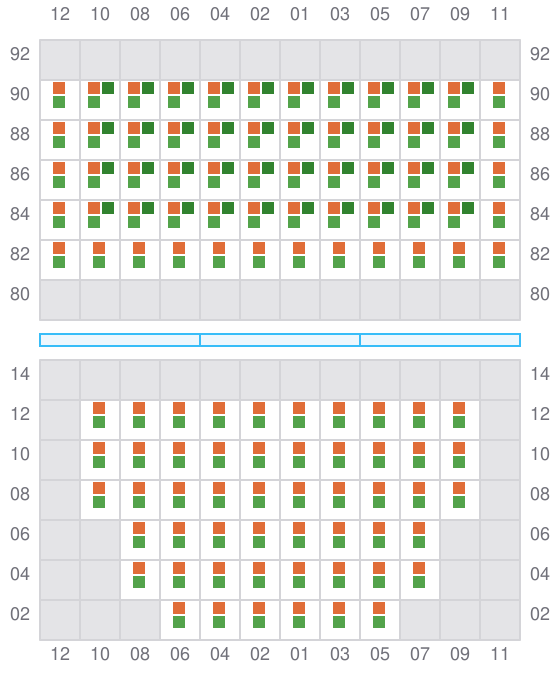

013 (014)
- →
- ← / ?
- → / ?

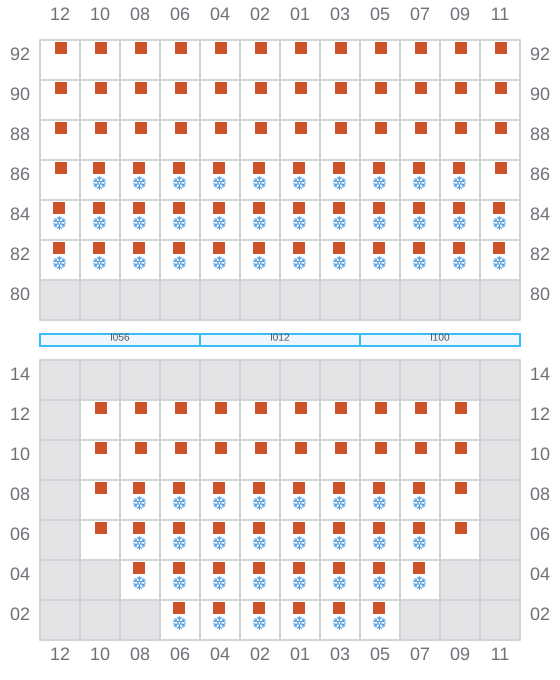

015
- ←
- → / ?

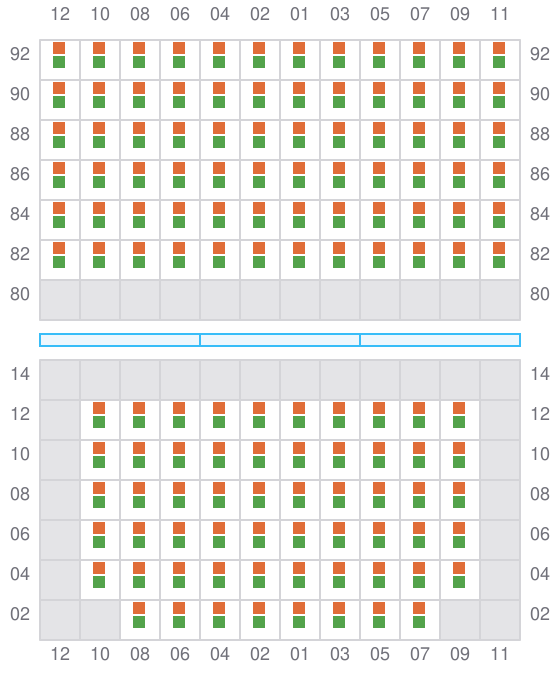

017 (018)
- →
- ? / ←
- ? / →

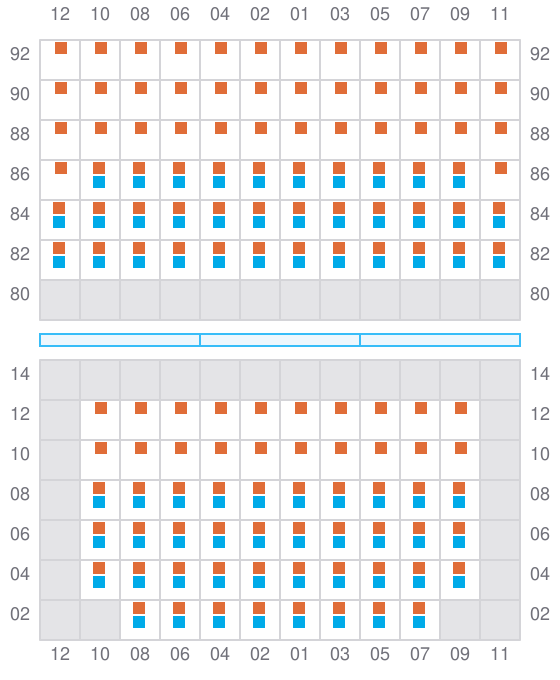

019
- ←
- →
- ← / ?

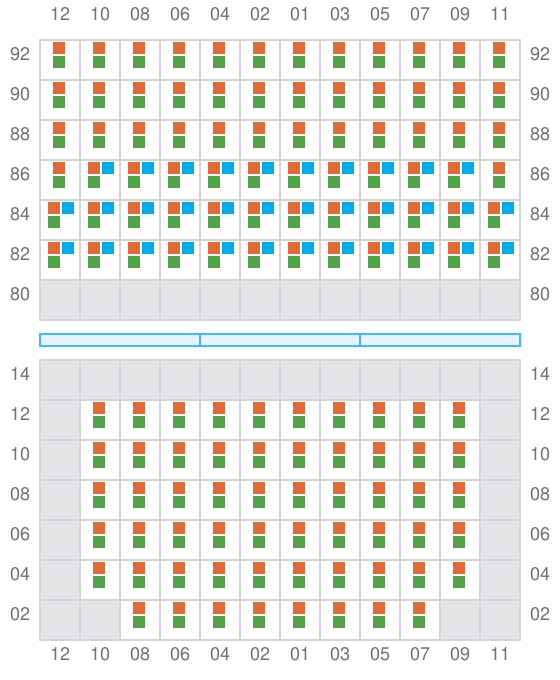

021 (022)
- →
- ←
- →

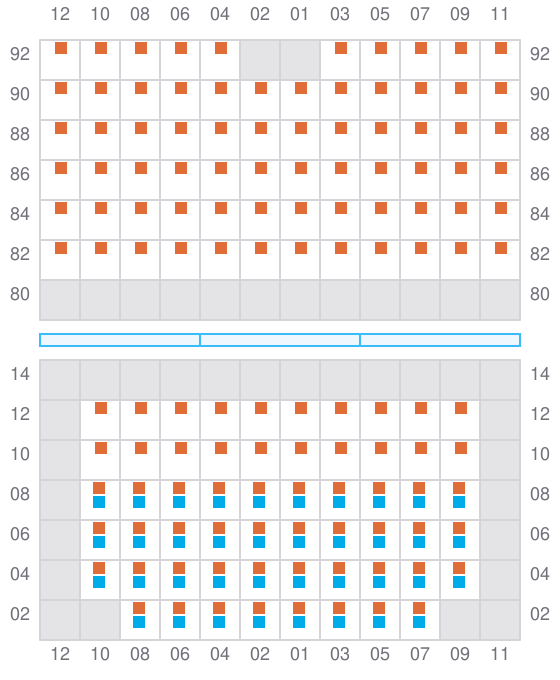

023
- ←
- ? / →

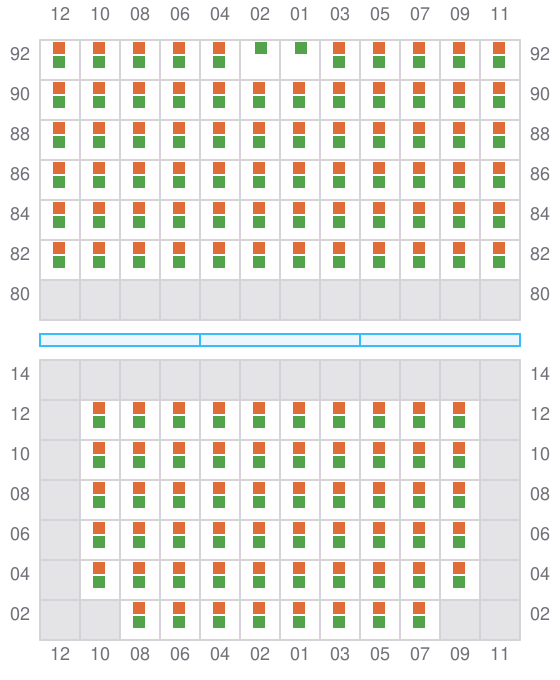

025 (026)
- →
- ? / ←
- ? / →
027
- ←
- →
- ← / ?
029 (030)
- →
- ←
- →

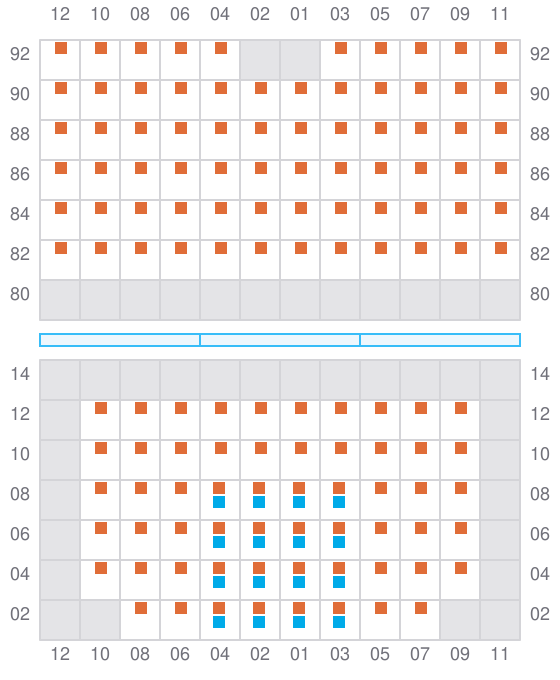

031
- ←
033 (034)
- →
- ? / ←
- ? / →

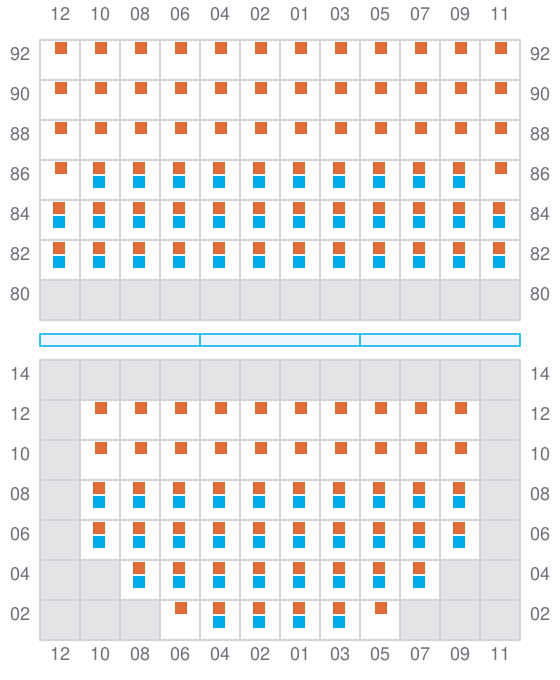

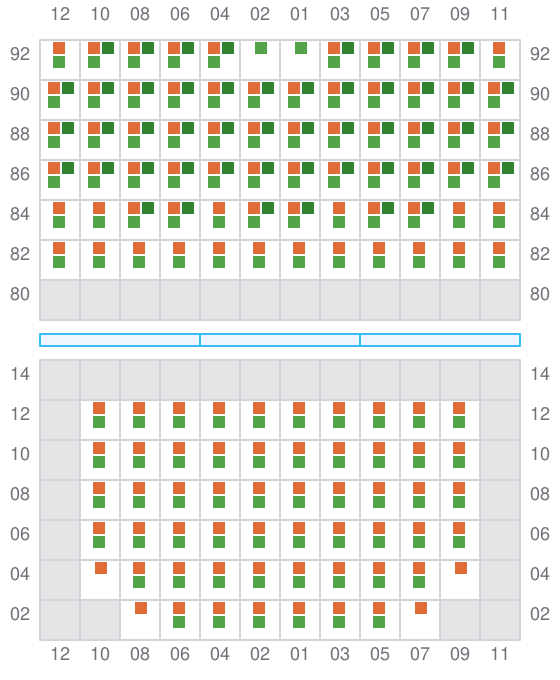

035
- ←
- →
- ← / ?
037 (038)
- →
- ? / ←
- ? / →

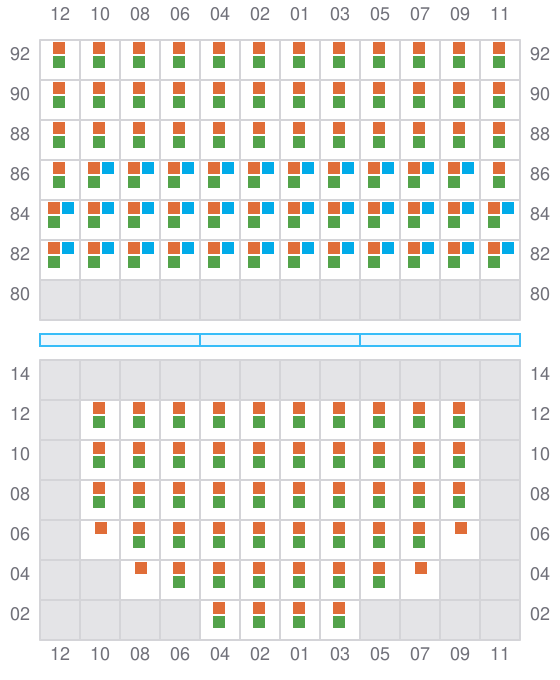

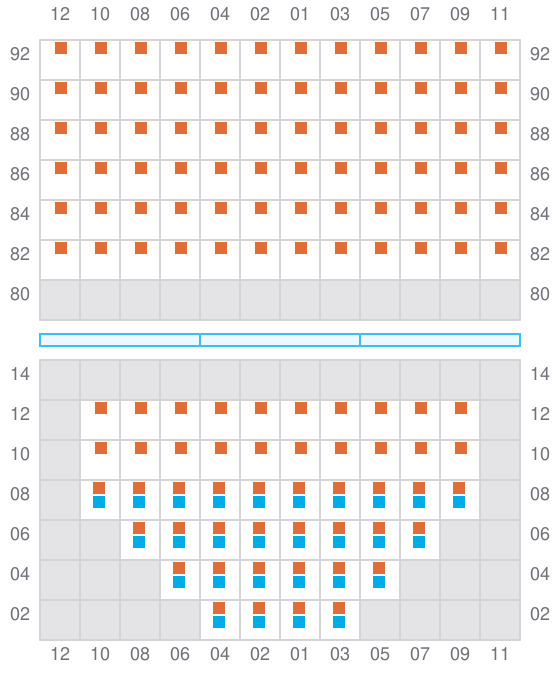

039
- ←
- → / ?
- ← / ?
041 (042)
- → / ?
- → / ?

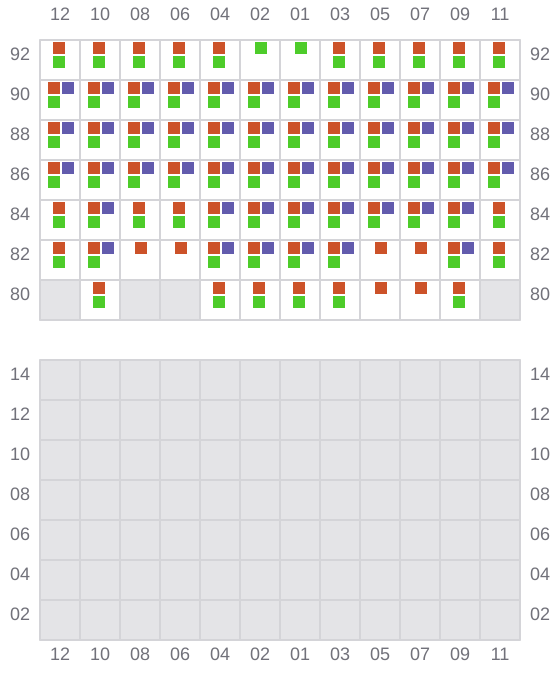

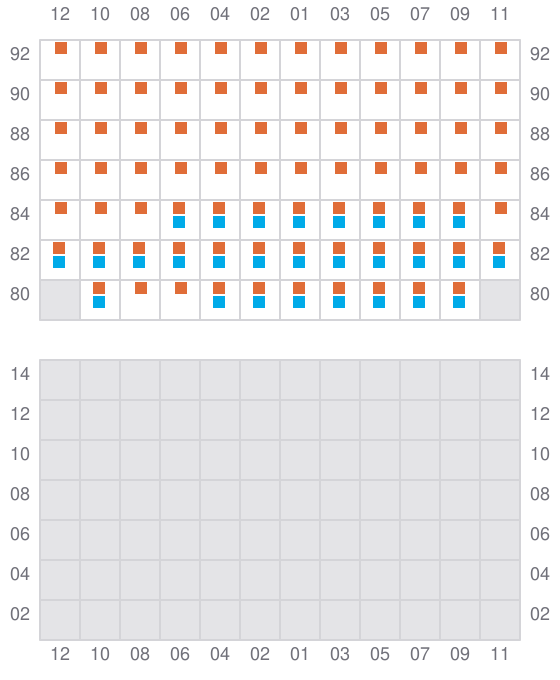

043
- ← / ?
045 (046)
- → / ?
- → / ?

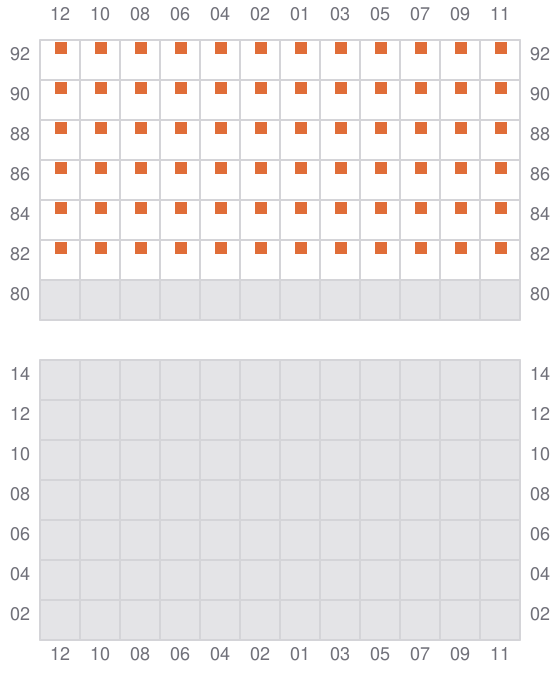

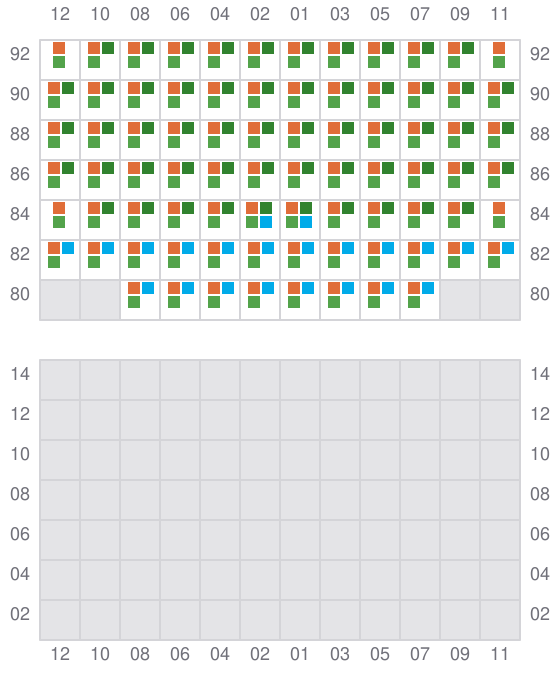

047
- ← / ?
- ← / ?
