EUGEN MAERSK
9321550 | OXOS2 | 9321550 by ********* Last update: Thu Mar 21 2024
General Info
Ship Name:EUGEN MAERSK
IMO Code:9321550
Call Sign:OXOS2
Line Operator:9321550
Class Name for Sister Ships:796
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:089
Max ISO Row:22
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,788
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

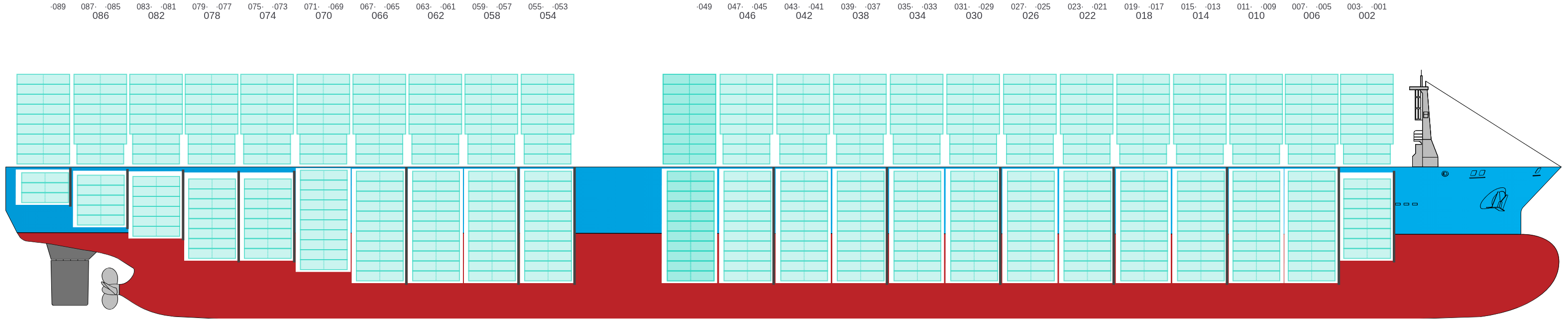

Side View
![Side view of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-sideView.png?v=1711047254231)

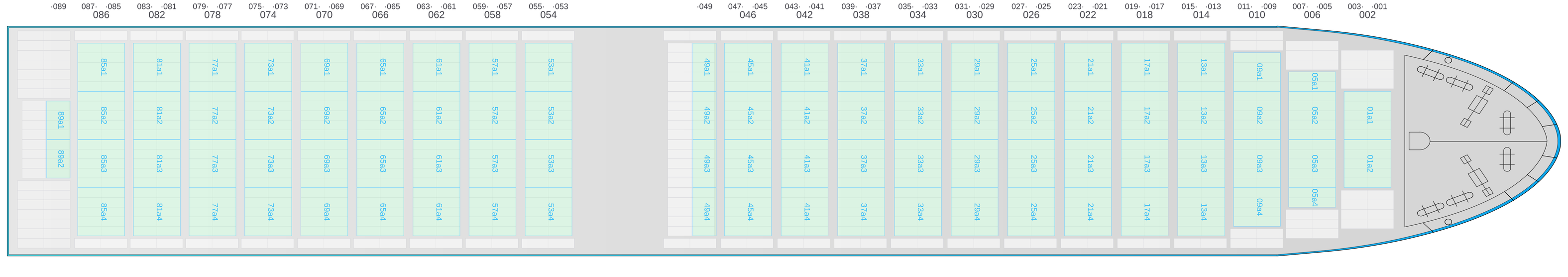

Hatch-Covers View
![Deck view of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-deckView.png?v=1711047254231)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

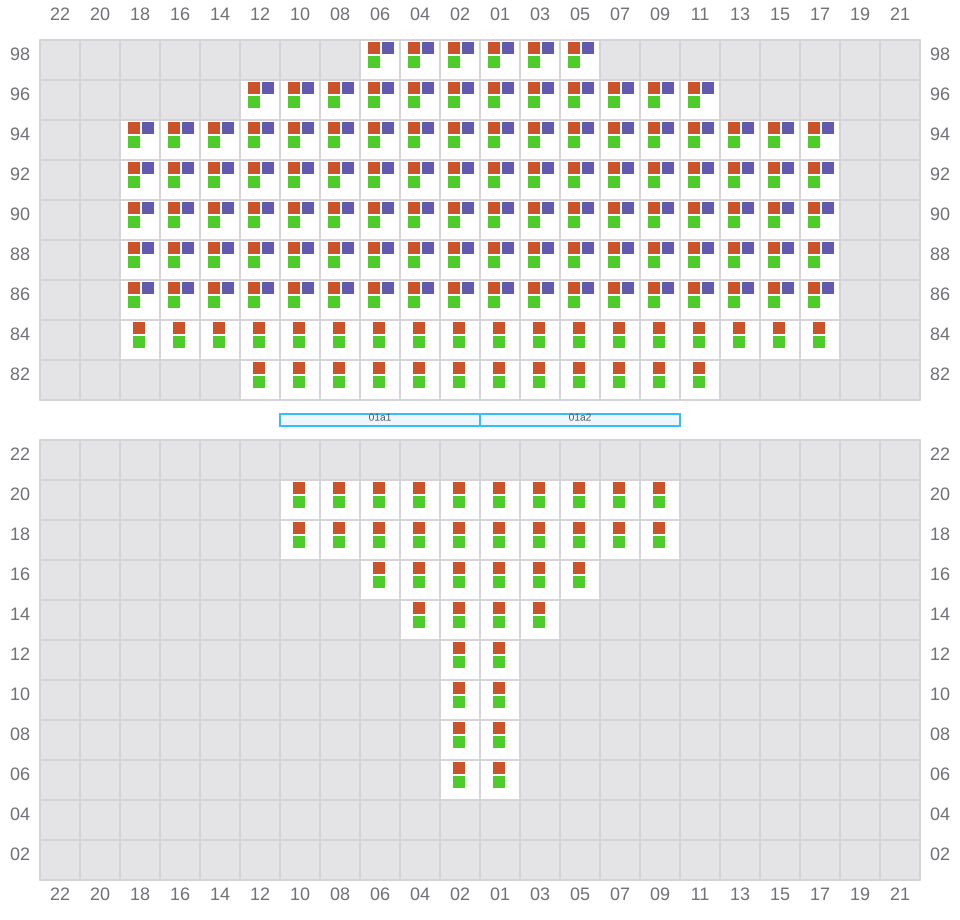

001 (002)
- →
![Bay 001 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b001.png?v=1711047254231)

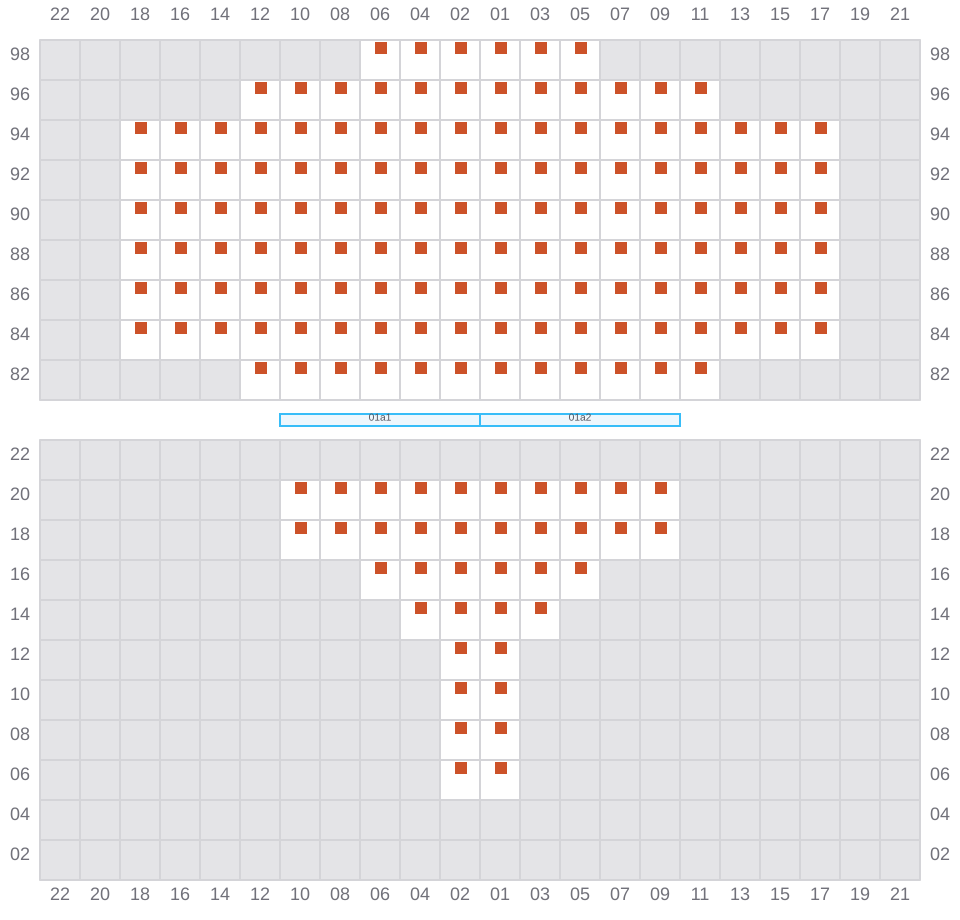

003
- ←
![Bay 003 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b003.png?v=1711047254231)

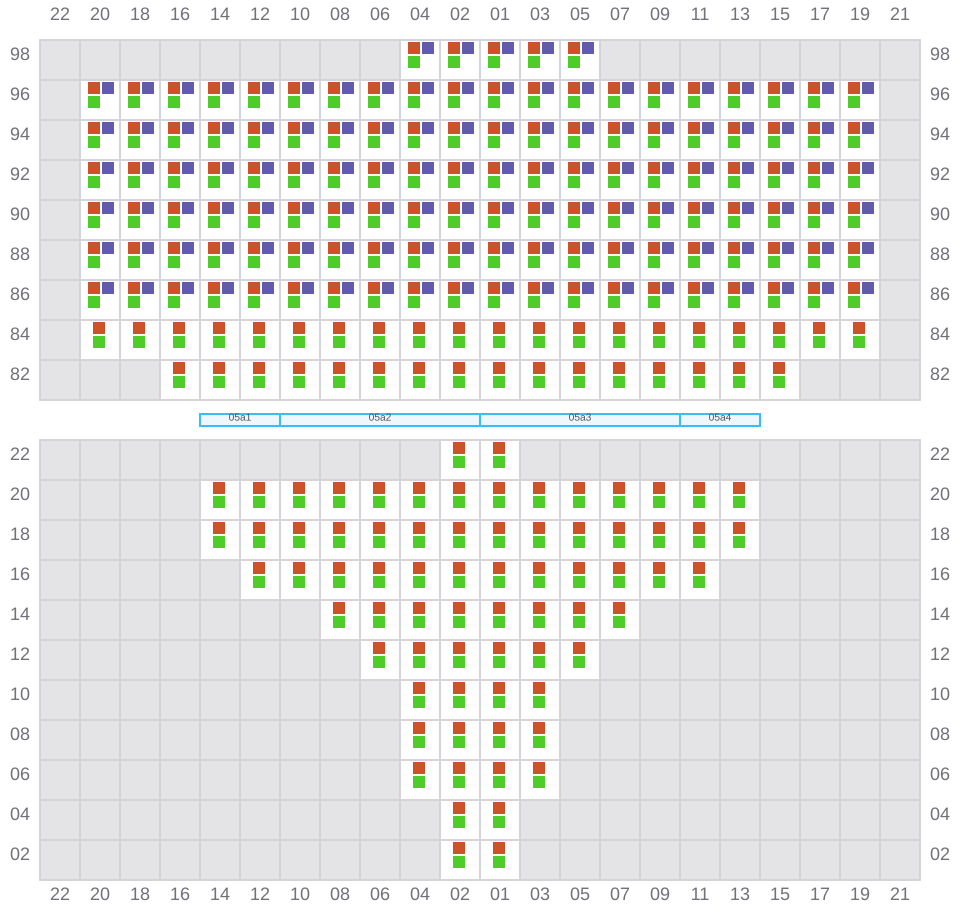

005 (006)
- →
![Bay 005 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b005.png?v=1711047254231)

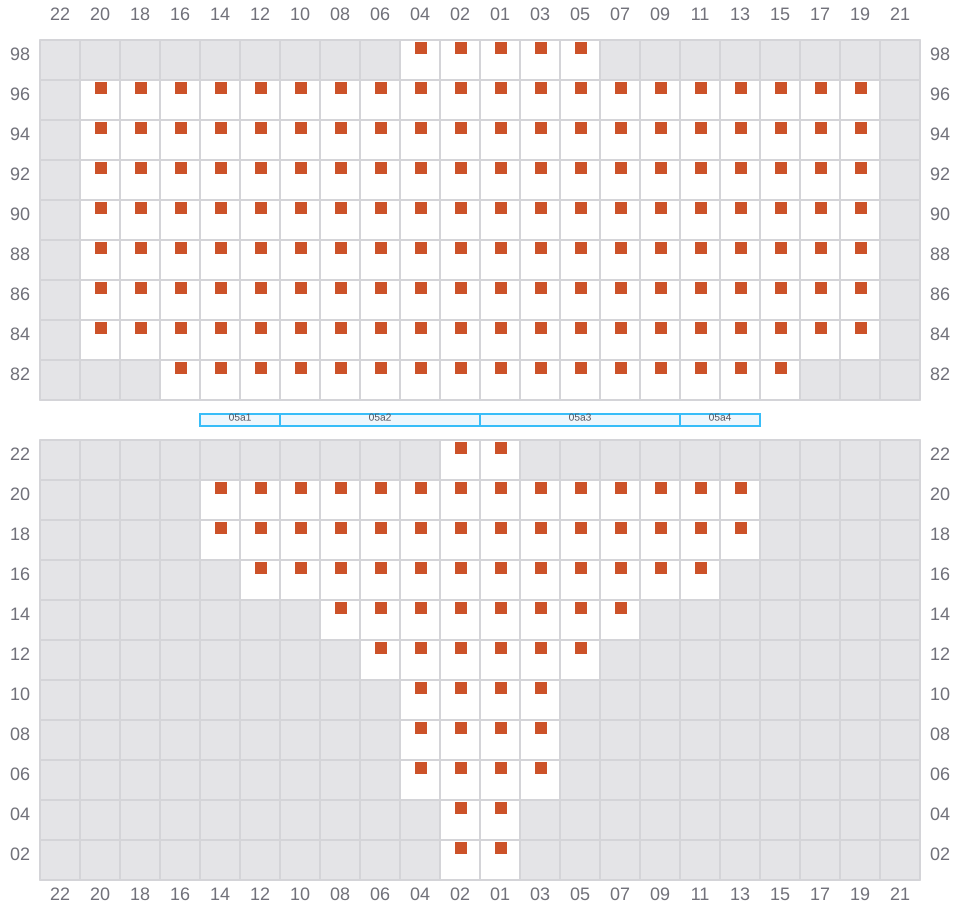

007
- ←
![Bay 007 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b007.png?v=1711047254231)

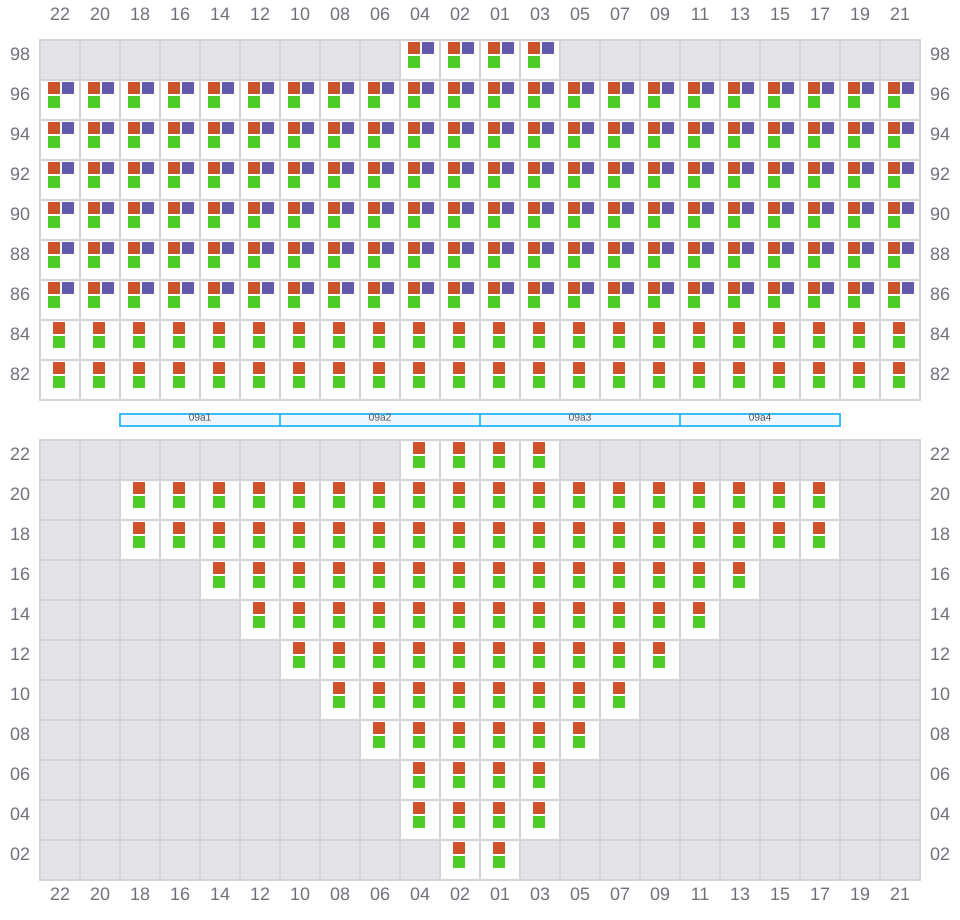

009 (010)
- →
![Bay 009 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b009.png?v=1711047254231)

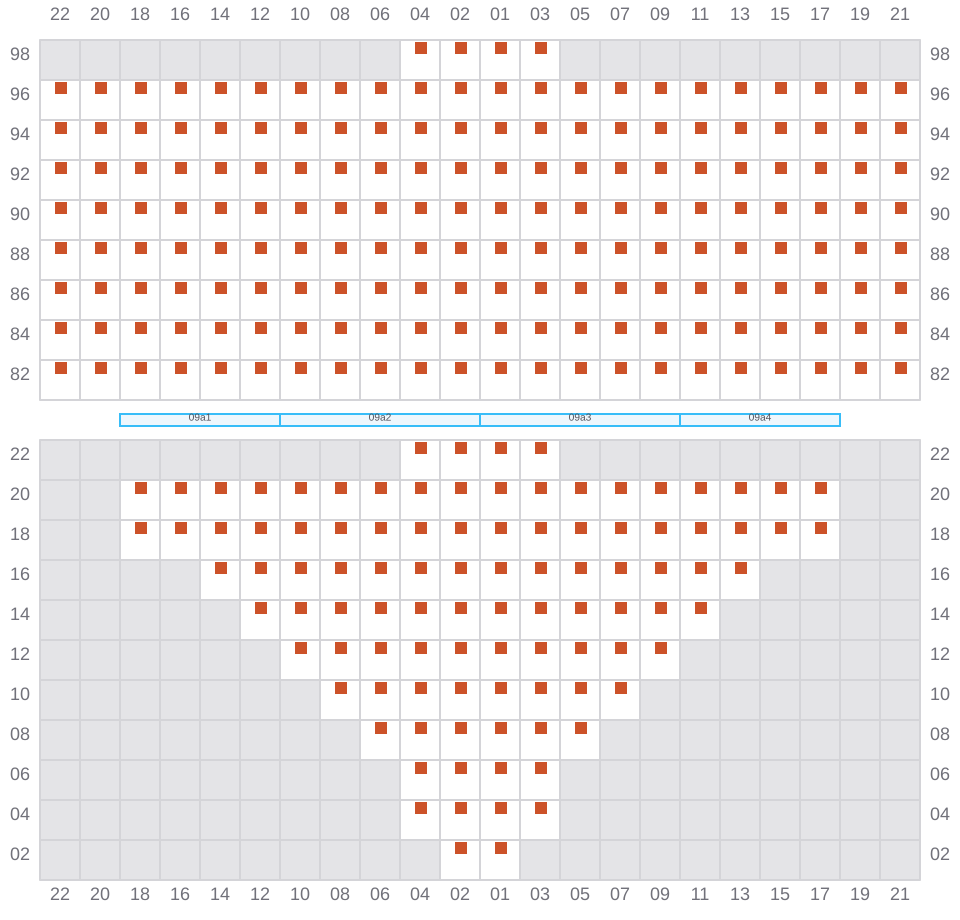

011
- ←
![Bay 011 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b011.png?v=1711047254231)

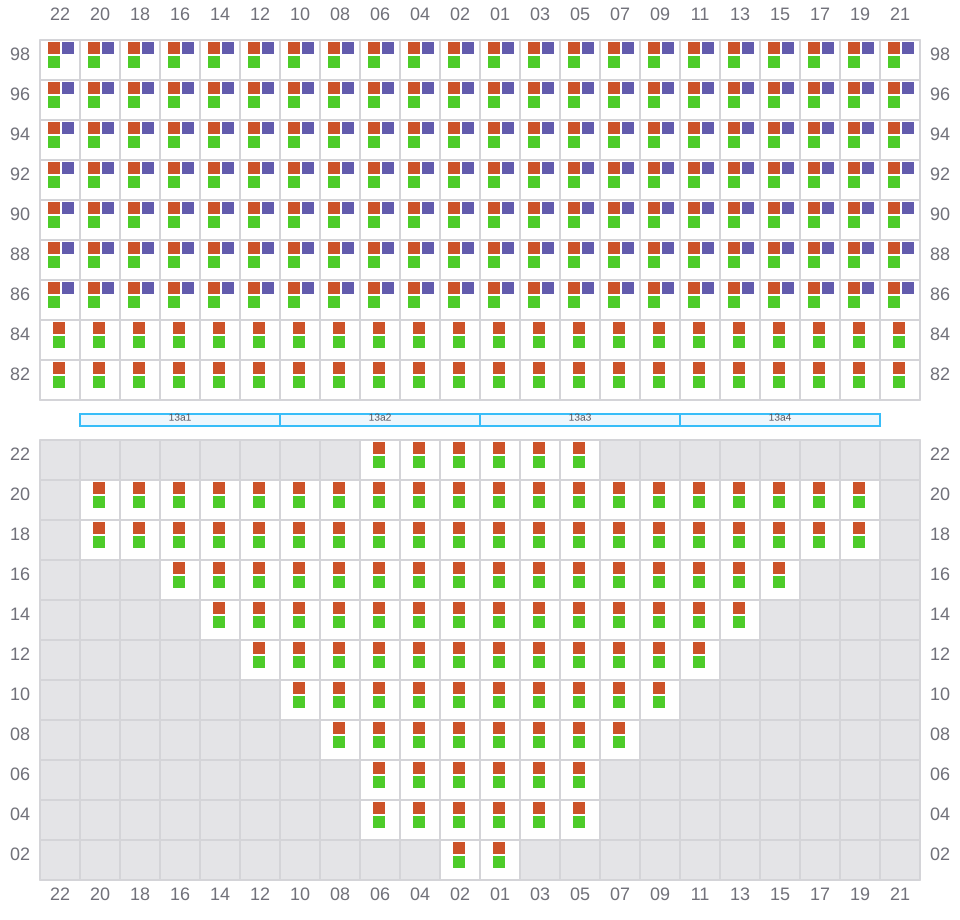

013 (014)
- →
![Bay 013 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b013.png?v=1711047254231)

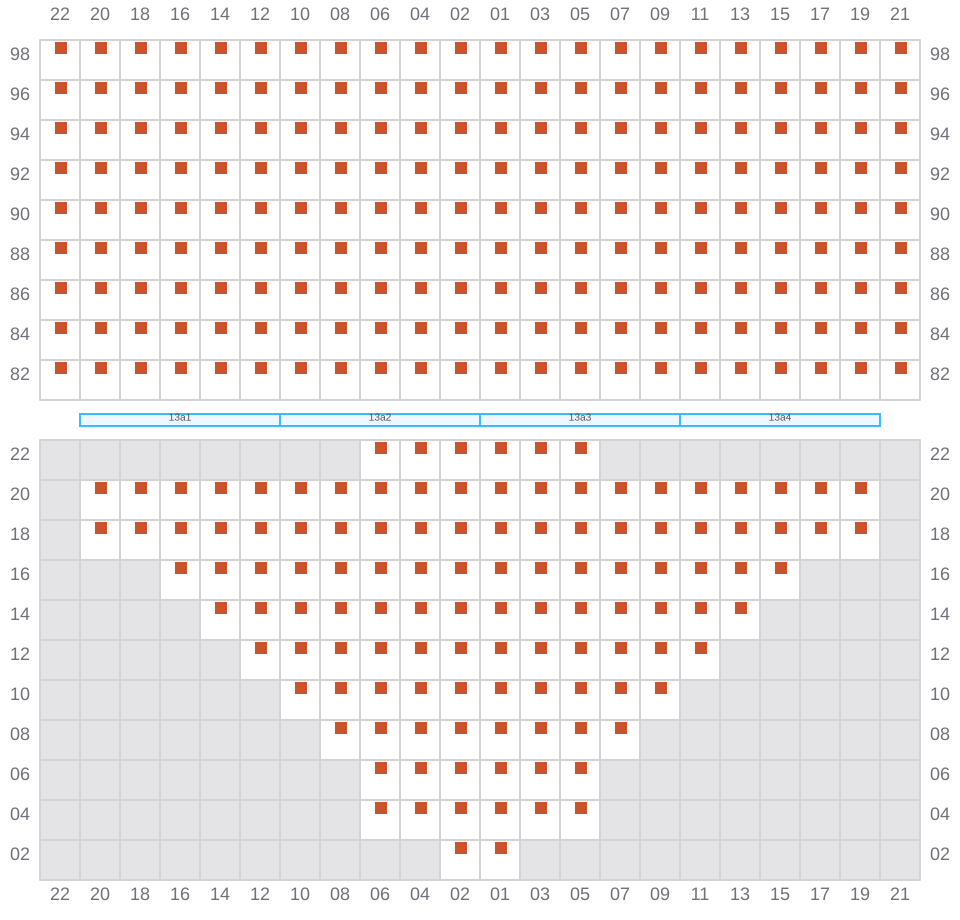

015
- ←
![Bay 015 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b015.png?v=1711047254231)

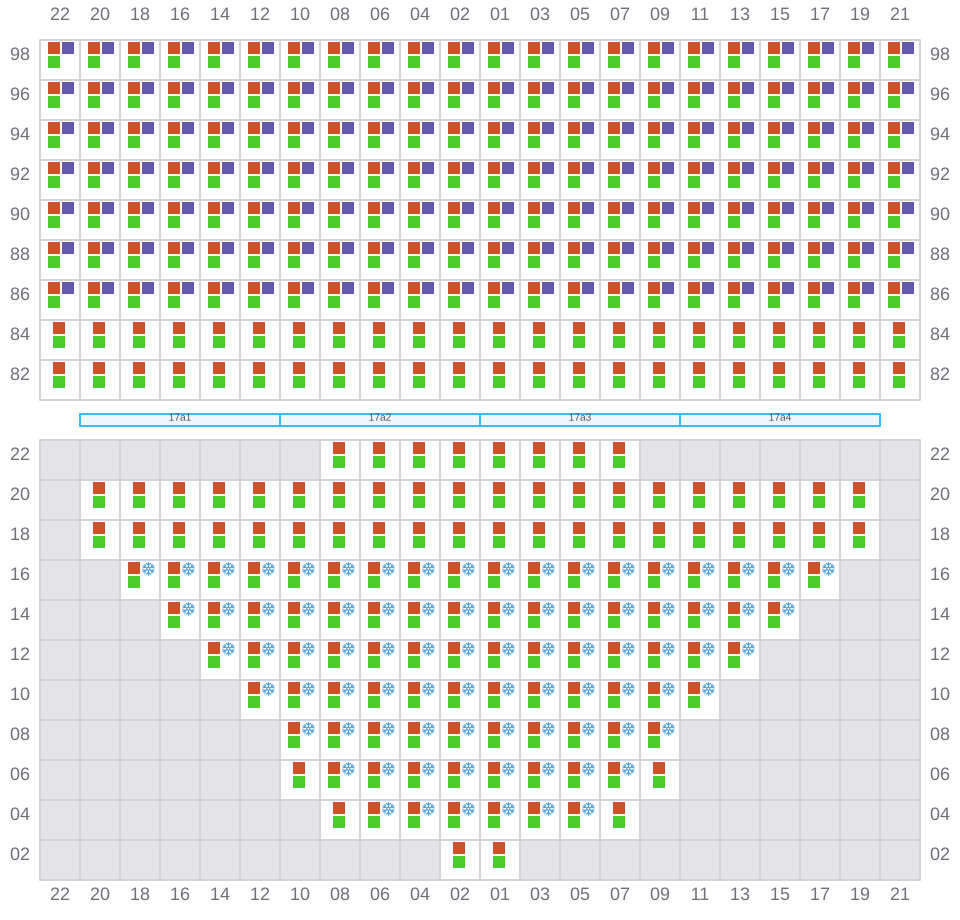

017 (018)
- →
- ? / ←
![Bay 017 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b017.png?v=1711047254231)

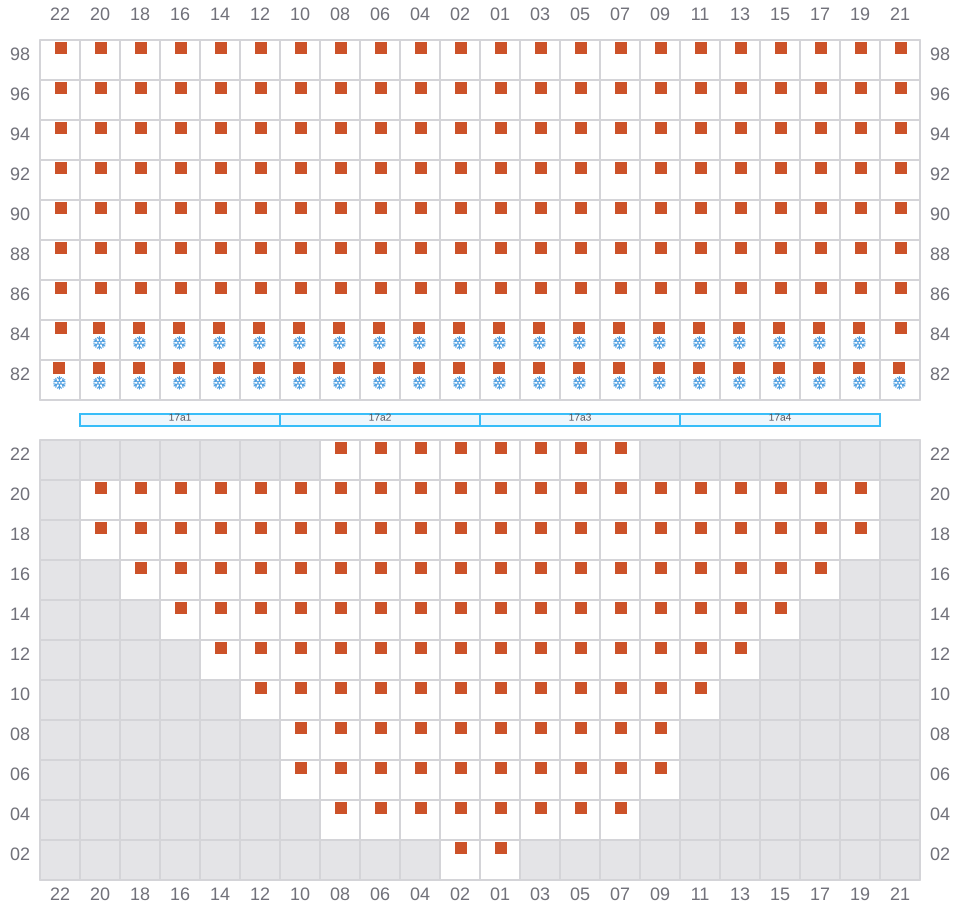

019
- ←
- → / ?
![Bay 019 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b019.png?v=1711047254231)

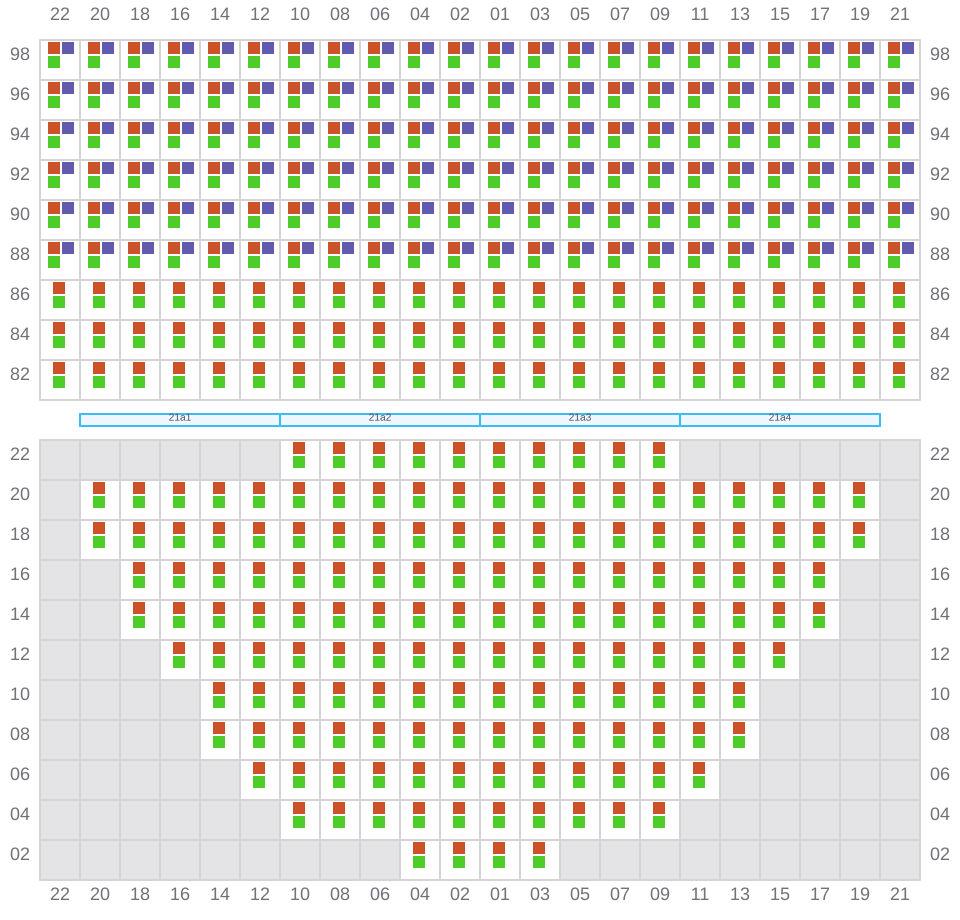

021 (022)
- →
![Bay 021 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b021.png?v=1711047254231)

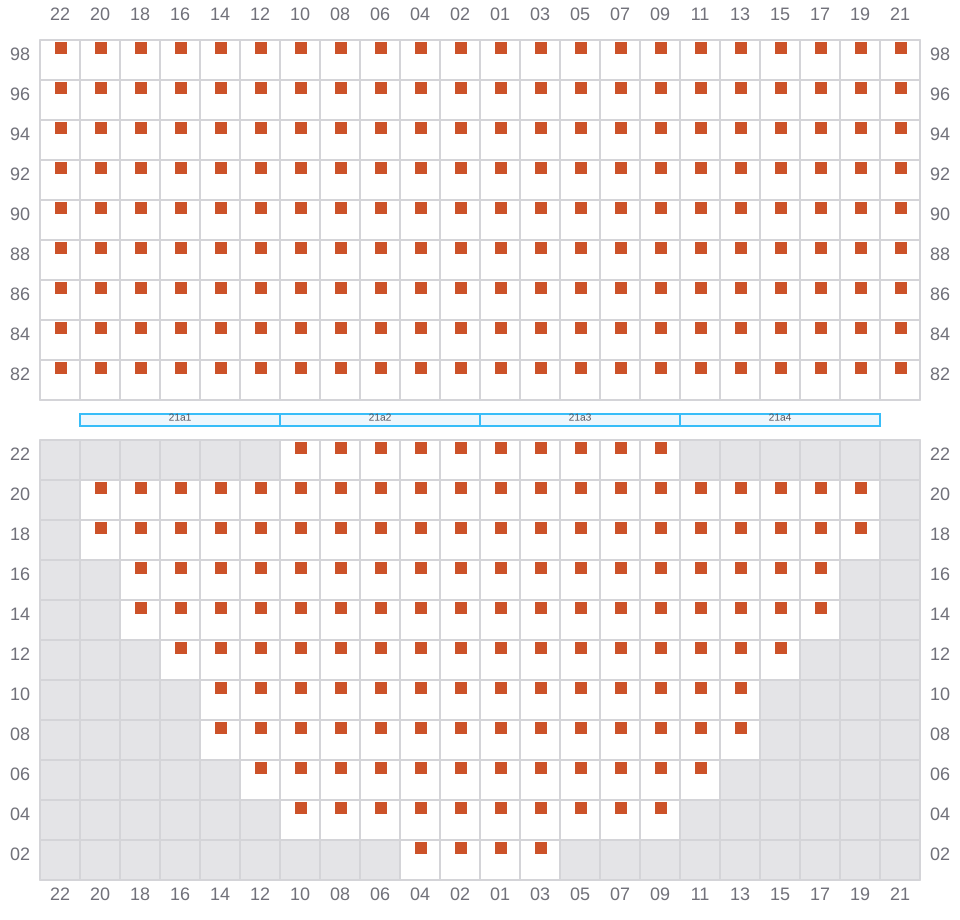

023
- ←
![Bay 023 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b023.png?v=1711047254231)

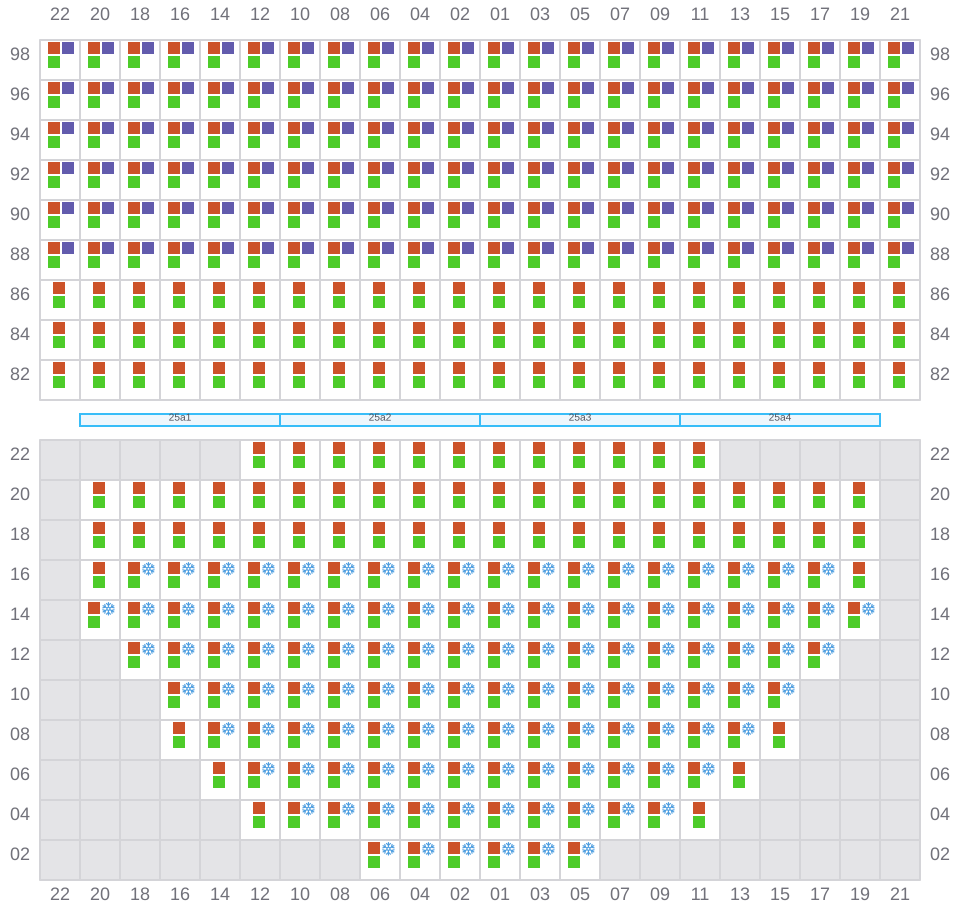

025 (026)
- →
- ? / ←
![Bay 025 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b025.png?v=1711047254231)

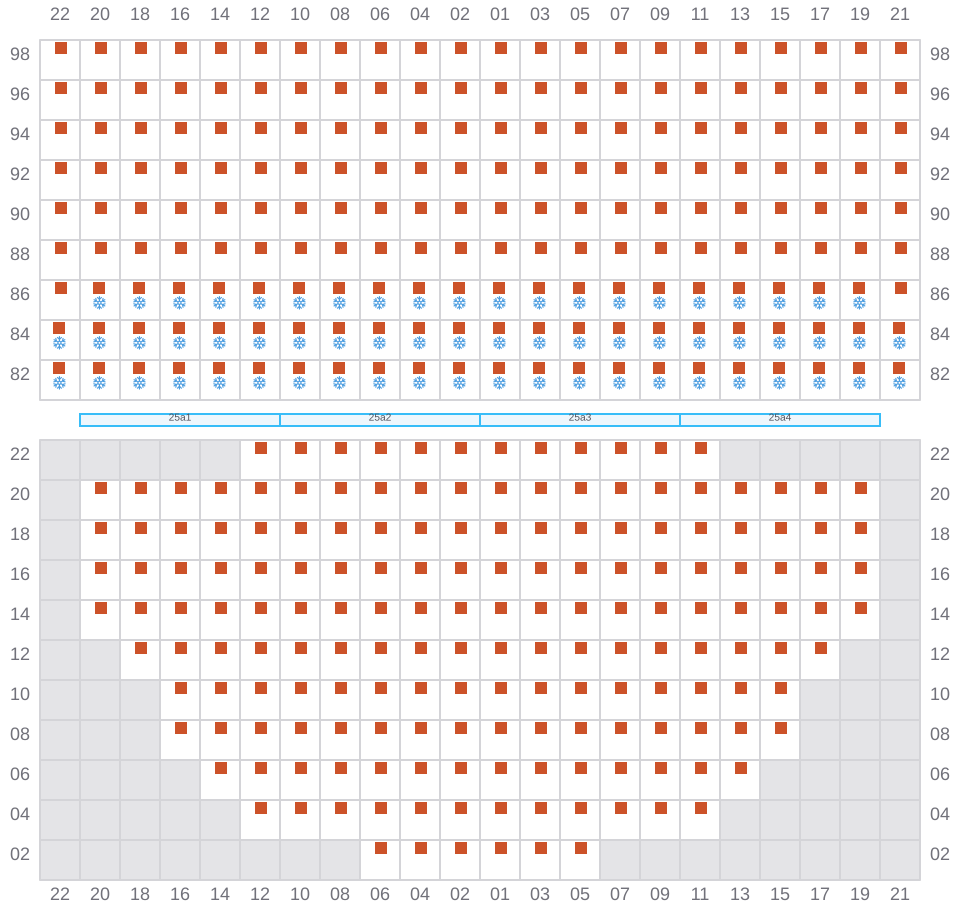

027
- ←
- → / ?
![Bay 027 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b027.png?v=1711047254231)

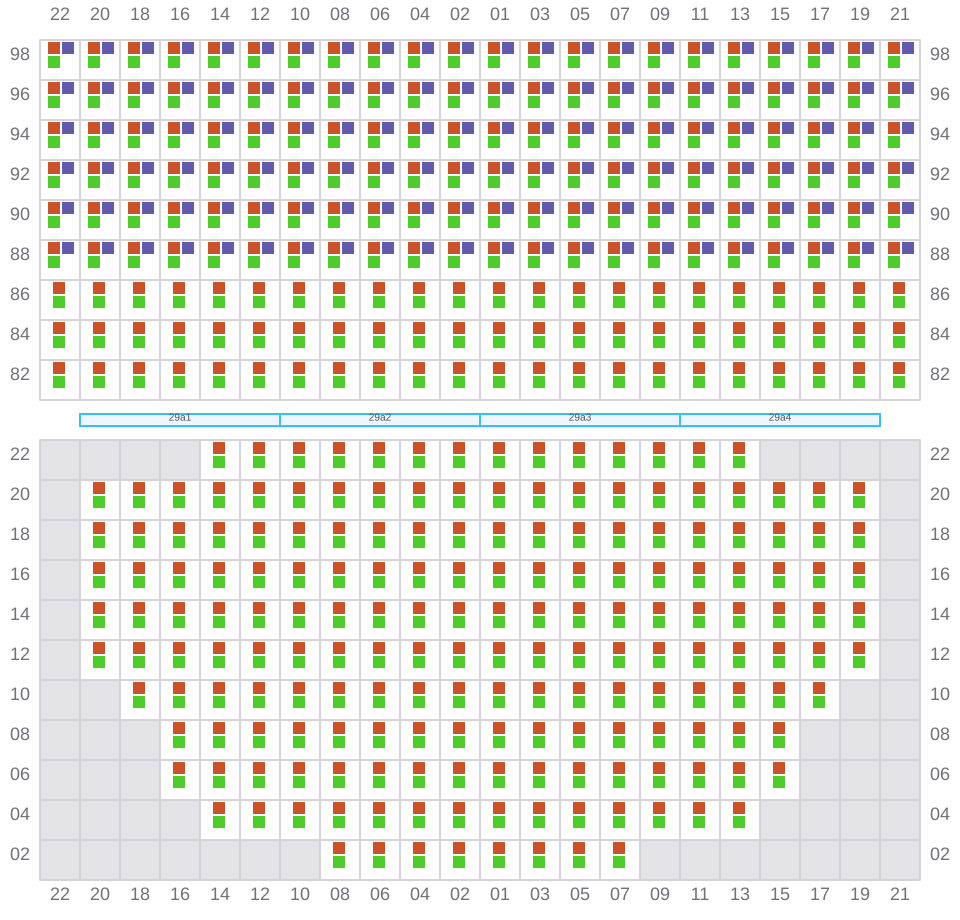

029 (030)
- →
![Bay 029 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b029.png?v=1711047254231)

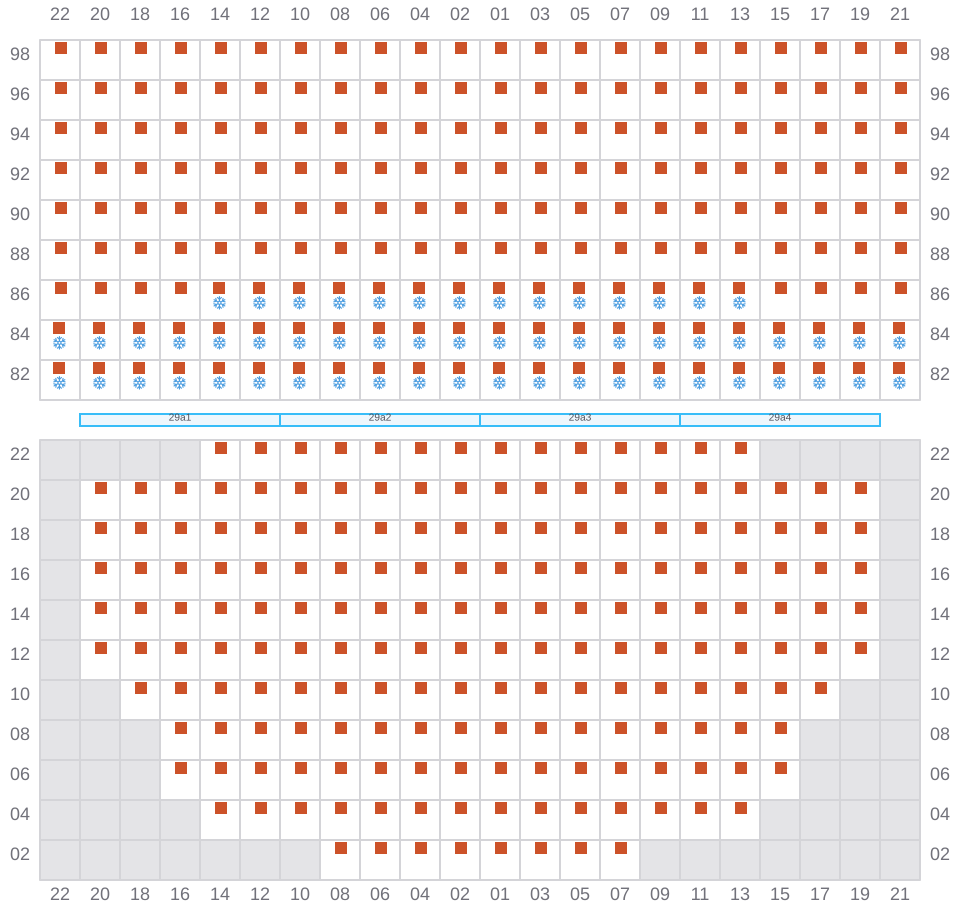

031
- ←
- → / ?
![Bay 031 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b031.png?v=1711047254231)

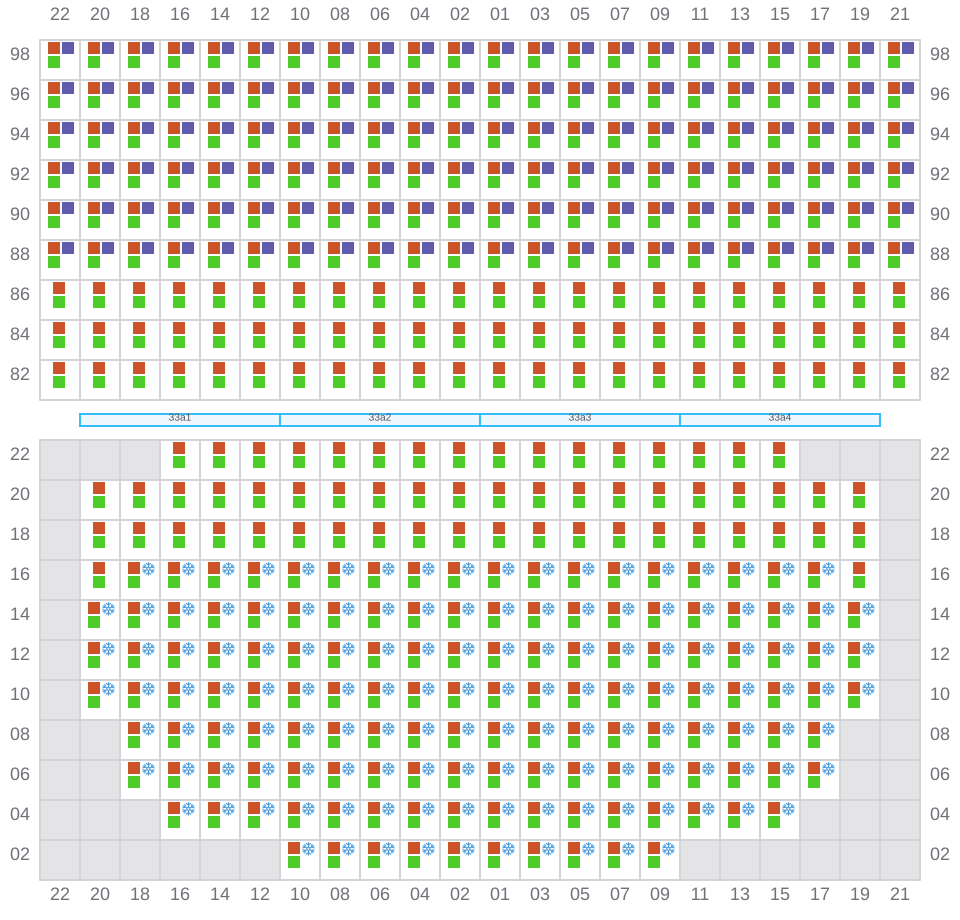

033 (034)
- →
- ? / ←
![Bay 033 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b033.png?v=1711047254231)

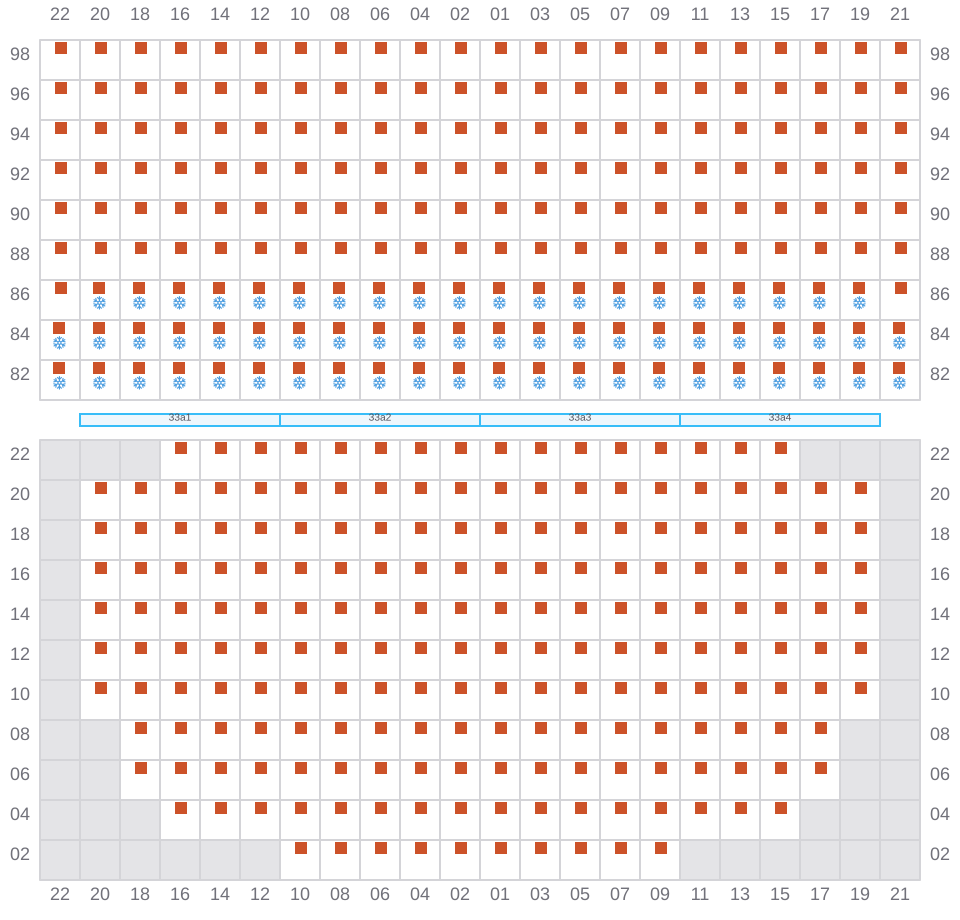

035
- ←
- → / ?
![Bay 035 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b035.png?v=1711047254231)

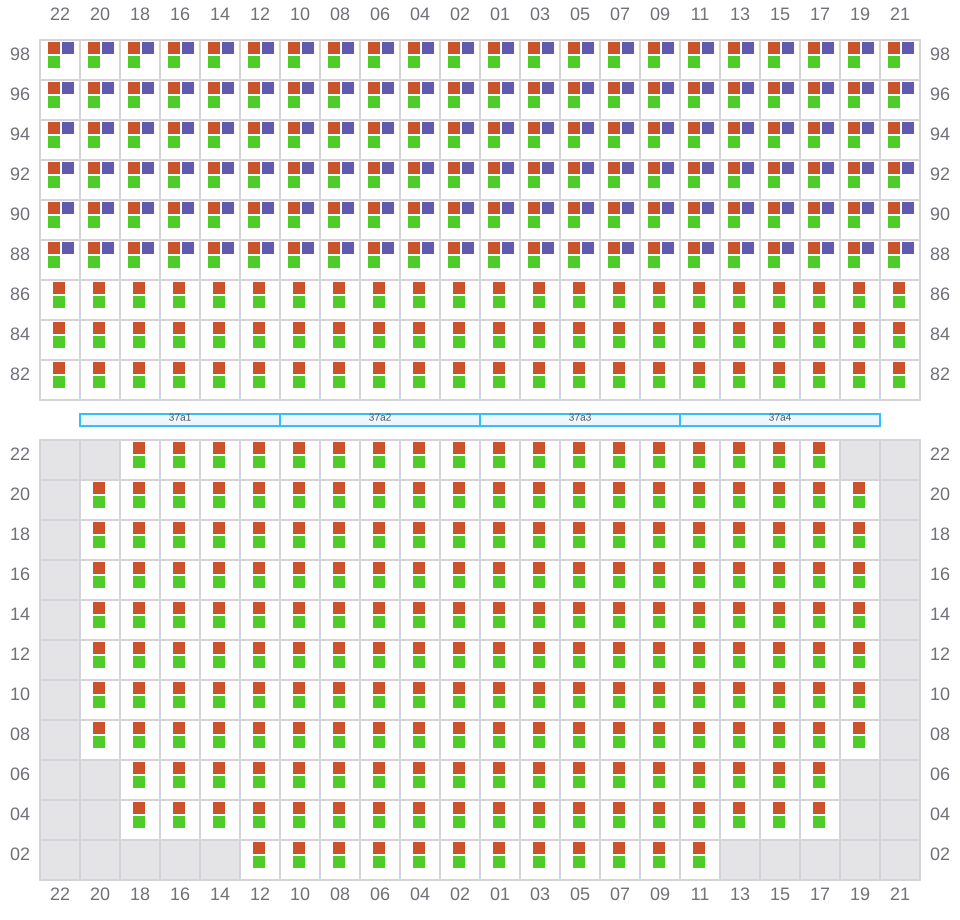

037 (038)
- →
![Bay 037 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b037.png?v=1711047254231)

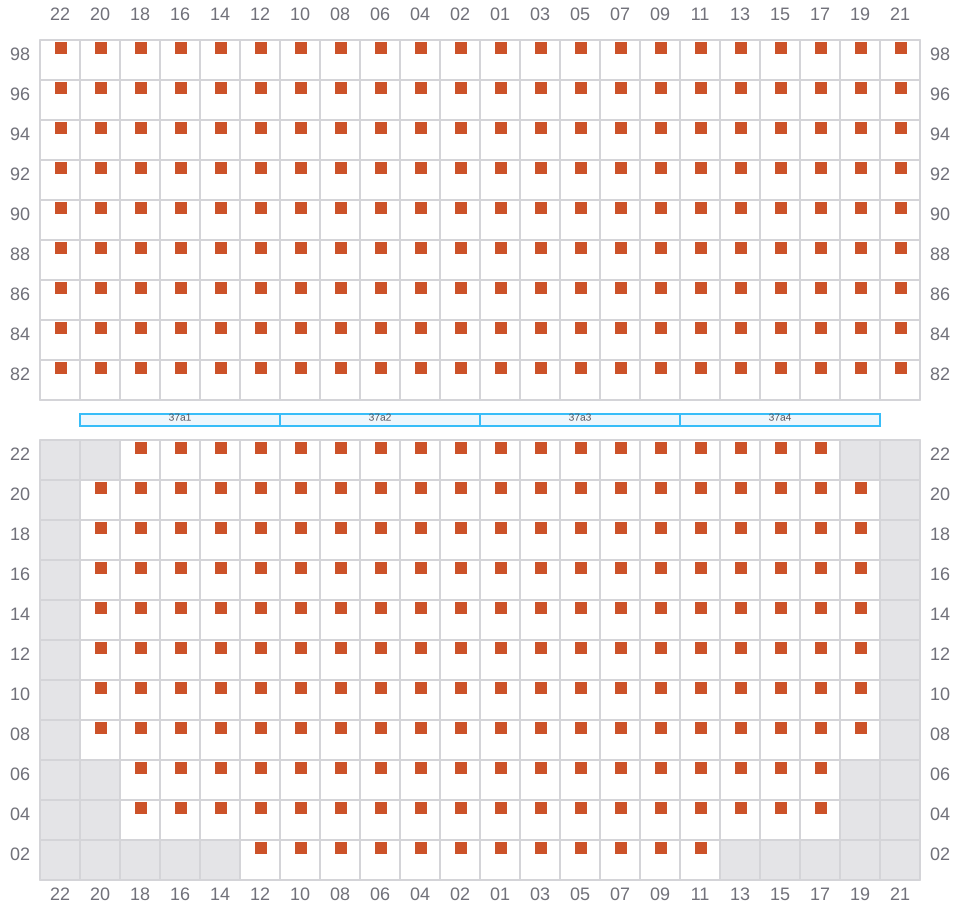

039
- ←
![Bay 039 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b039.png?v=1711047254231)

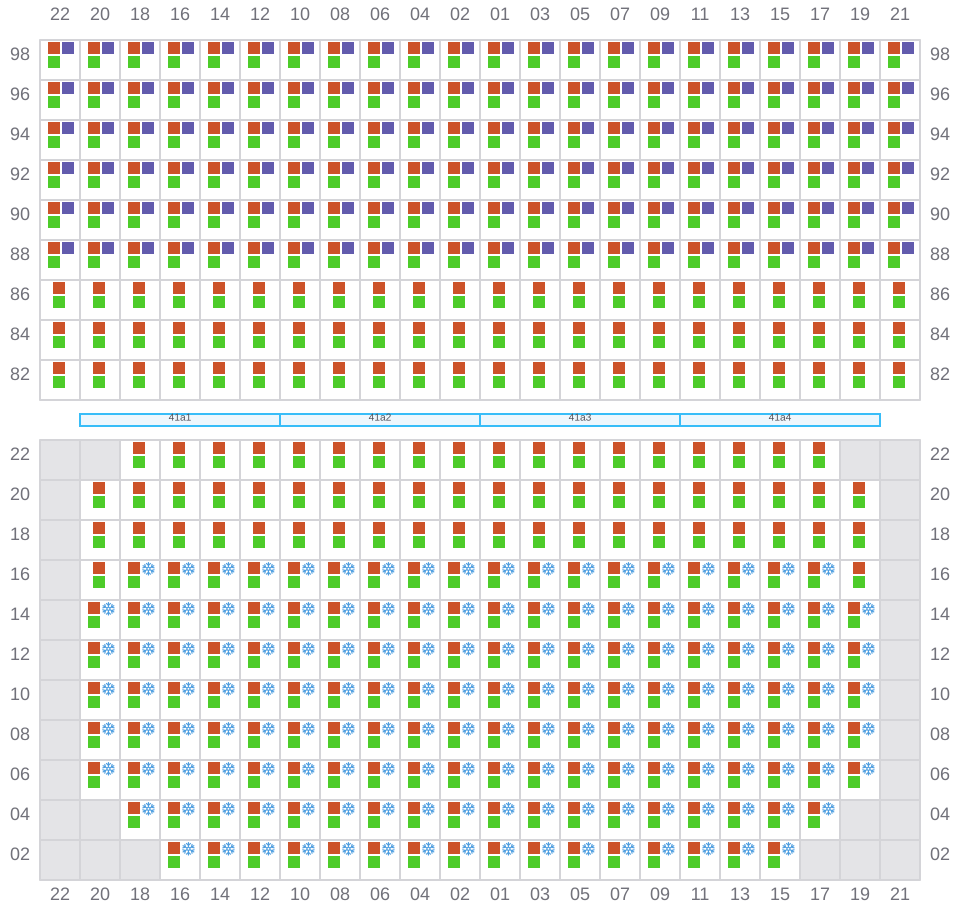

041 (042)
- →
![Bay 041 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b041.png?v=1711047254231)

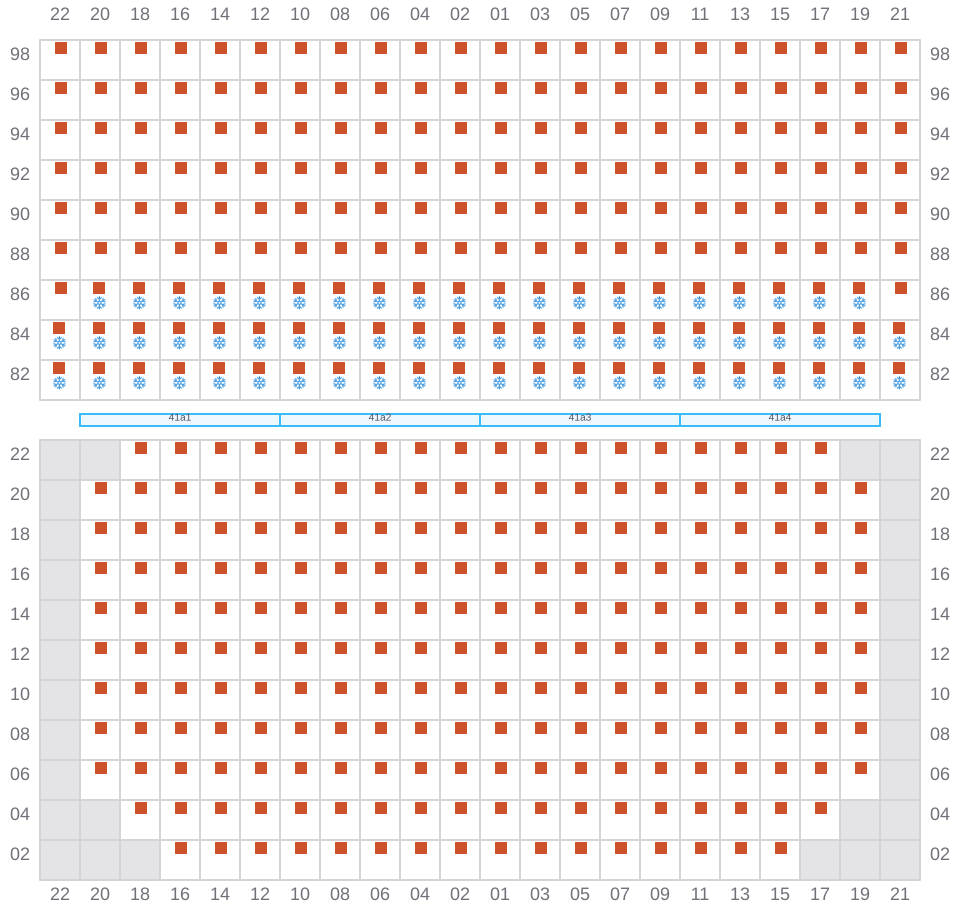

043
- ←
- → / ?
![Bay 043 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b043.png?v=1711047254231)

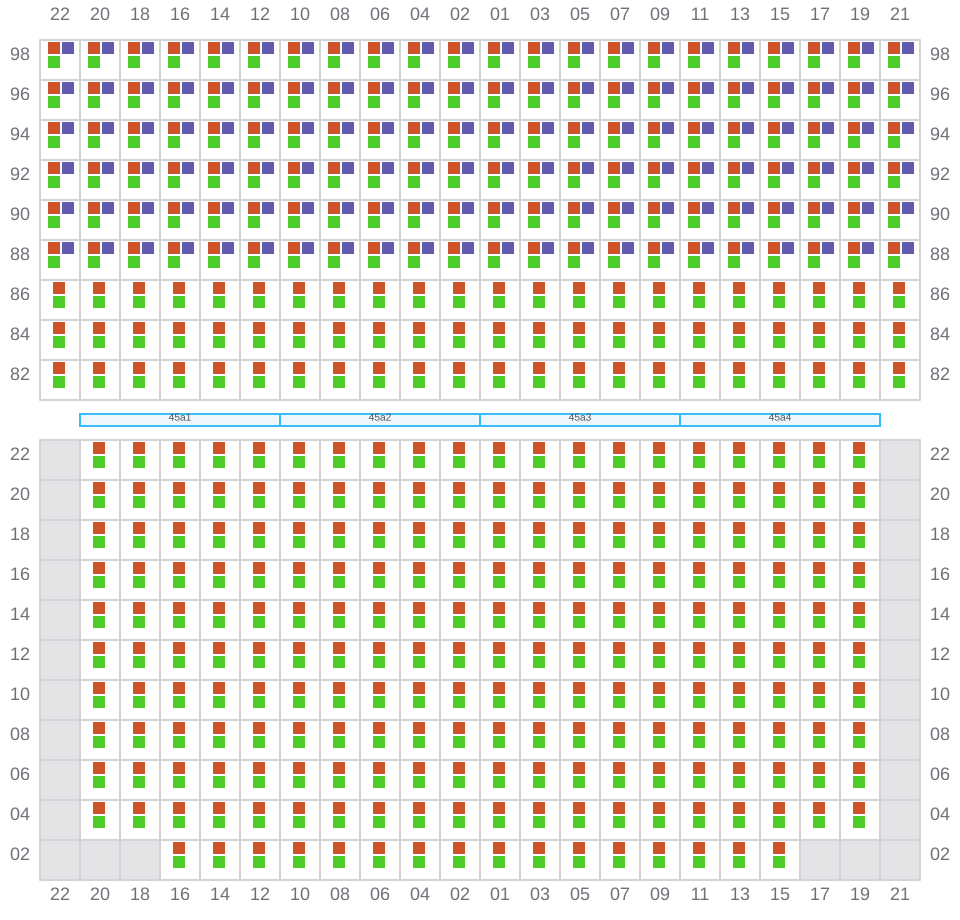

045 (046)
- →
![Bay 045 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b045.png?v=1711047254231)

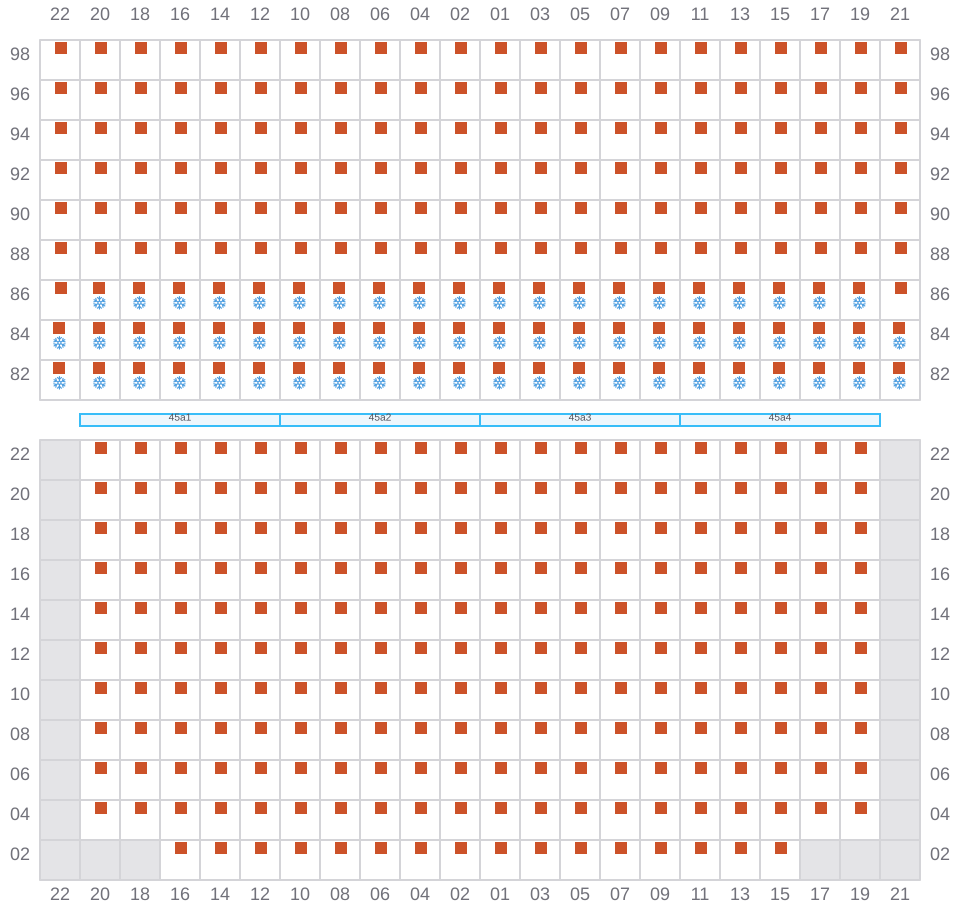

047
- ←
- → / ?
![Bay 047 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b047.png?v=1711047254231)

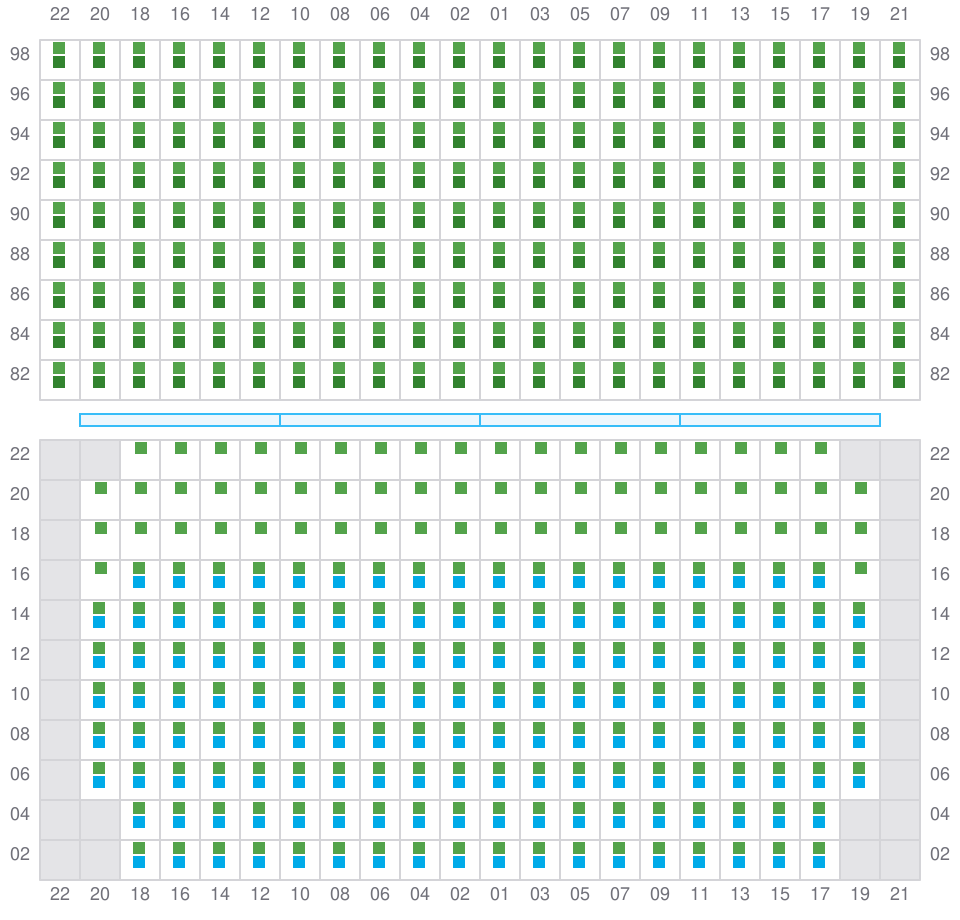

049 (050)
- →
- ? / ←
![Bay 049 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b049.png?v=1711047254231)
051
![Bay 051 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b051.png?v=1711047254231)

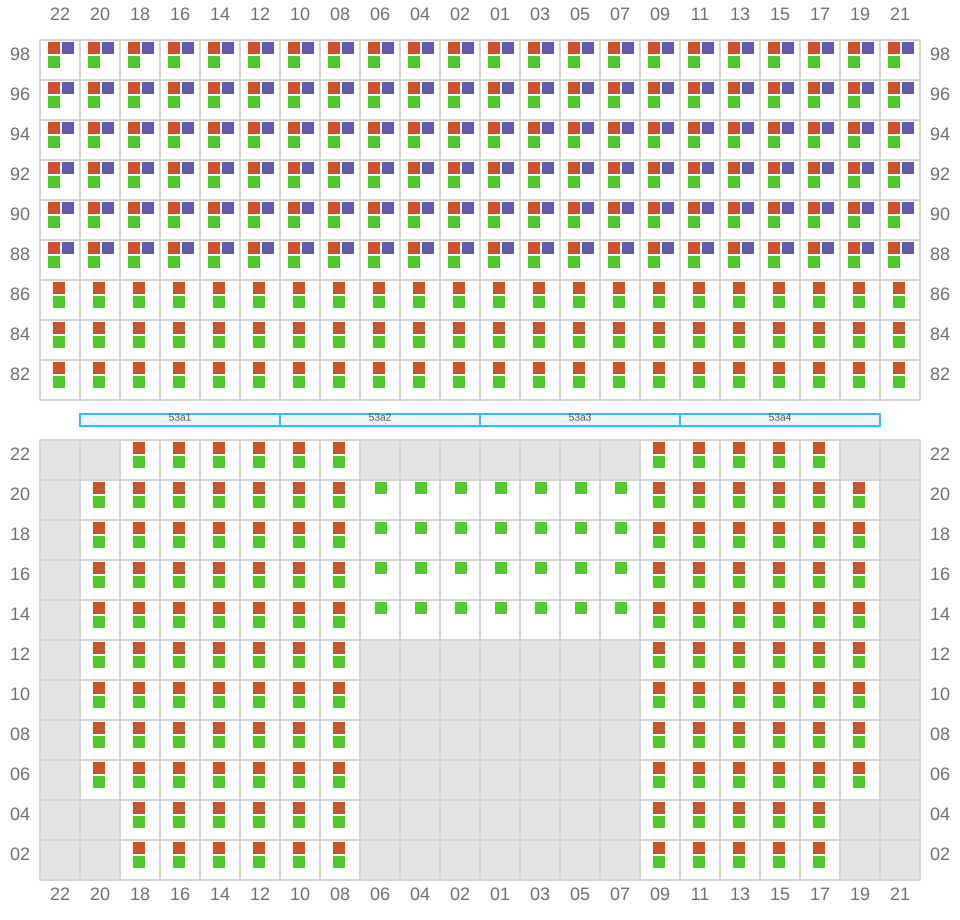

053 (054)
- →
![Bay 053 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b053.png?v=1711047254231)

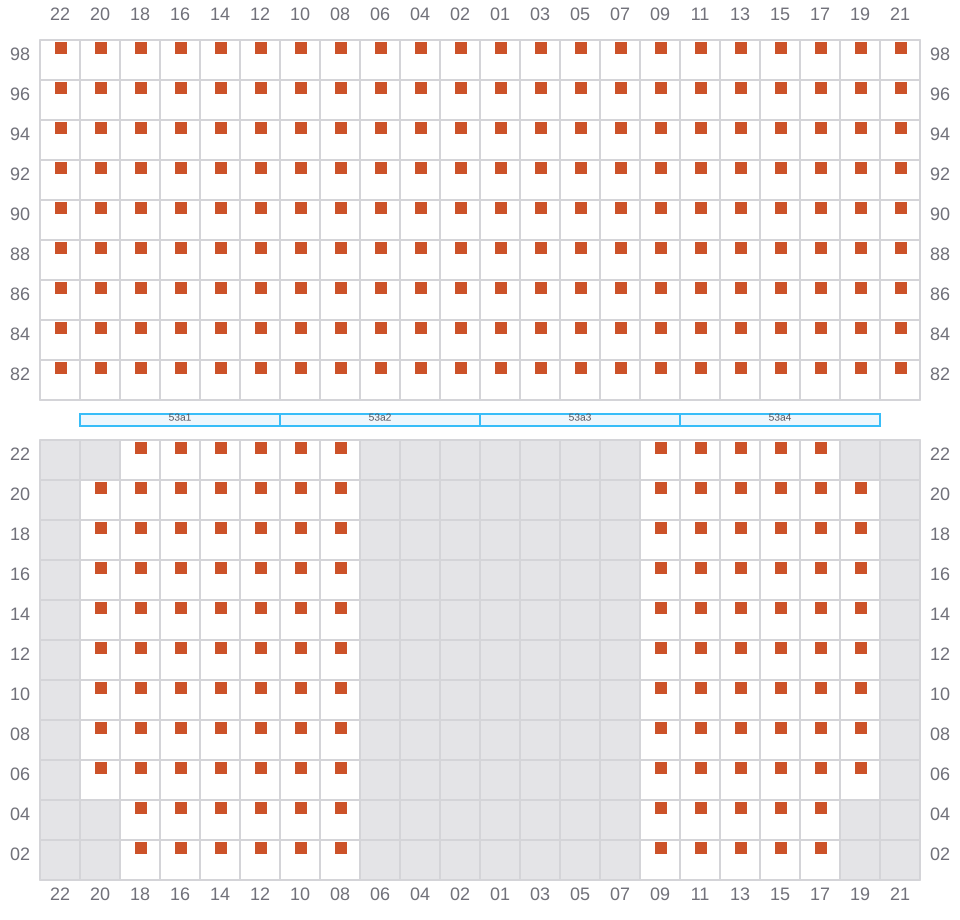

055
- ←
![Bay 055 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b055.png?v=1711047254231)

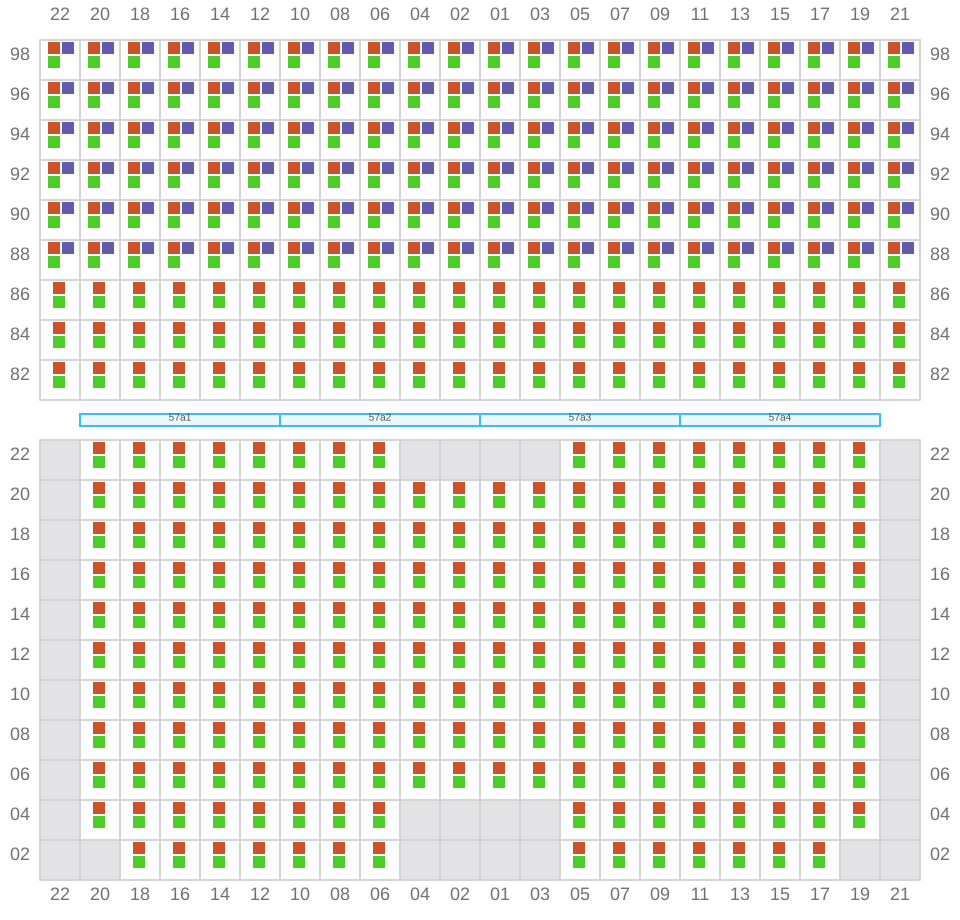

057 (058)
- →
![Bay 057 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b057.png?v=1711047254231)

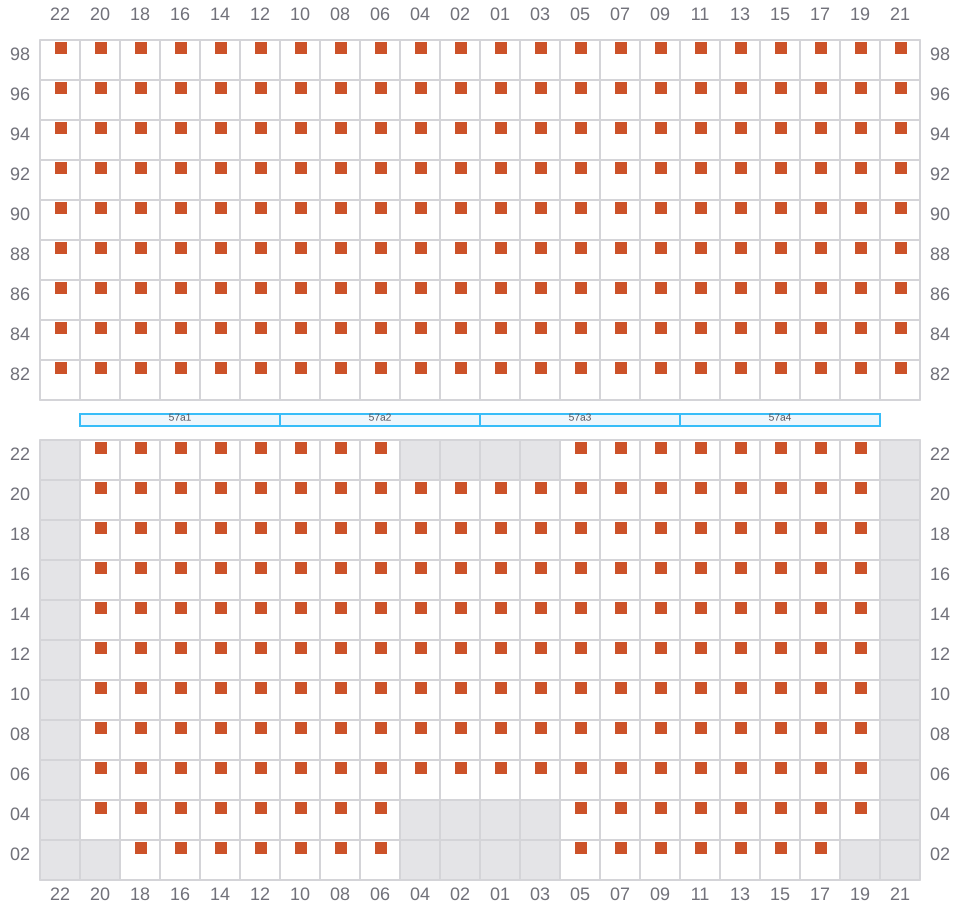

059
- ←
![Bay 059 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b059.png?v=1711047254231)

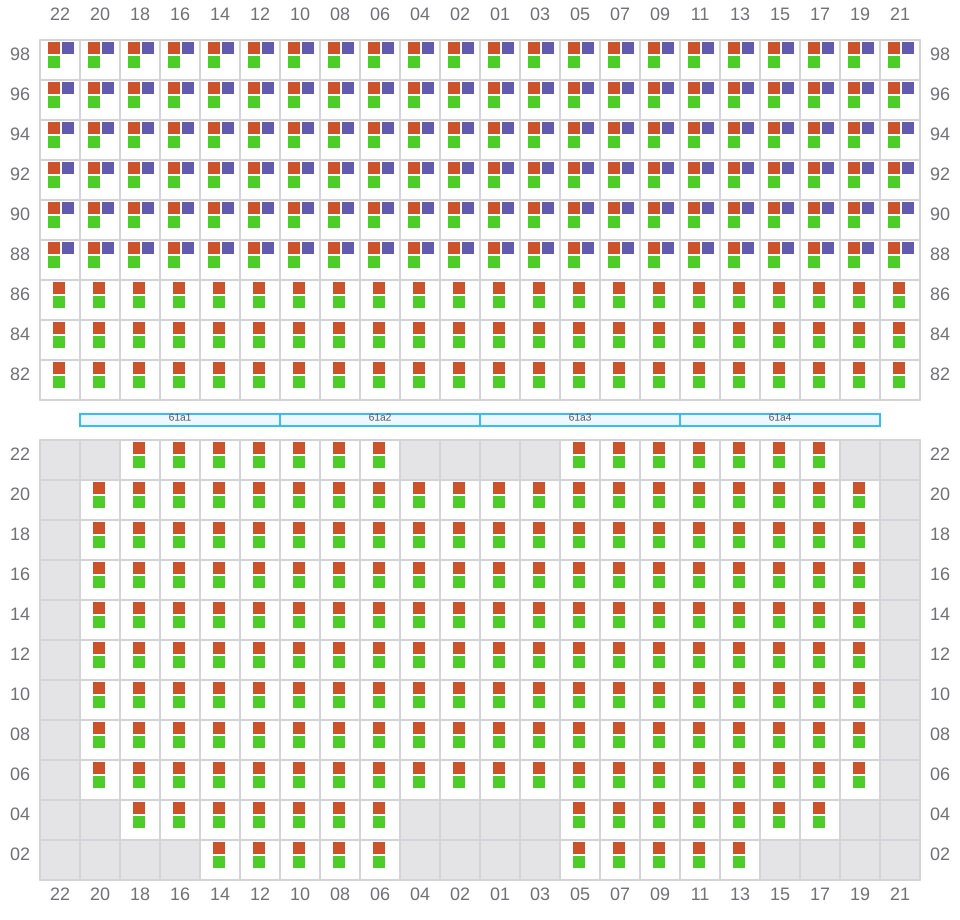

061 (062)
- →
![Bay 061 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b061.png?v=1711047254231)

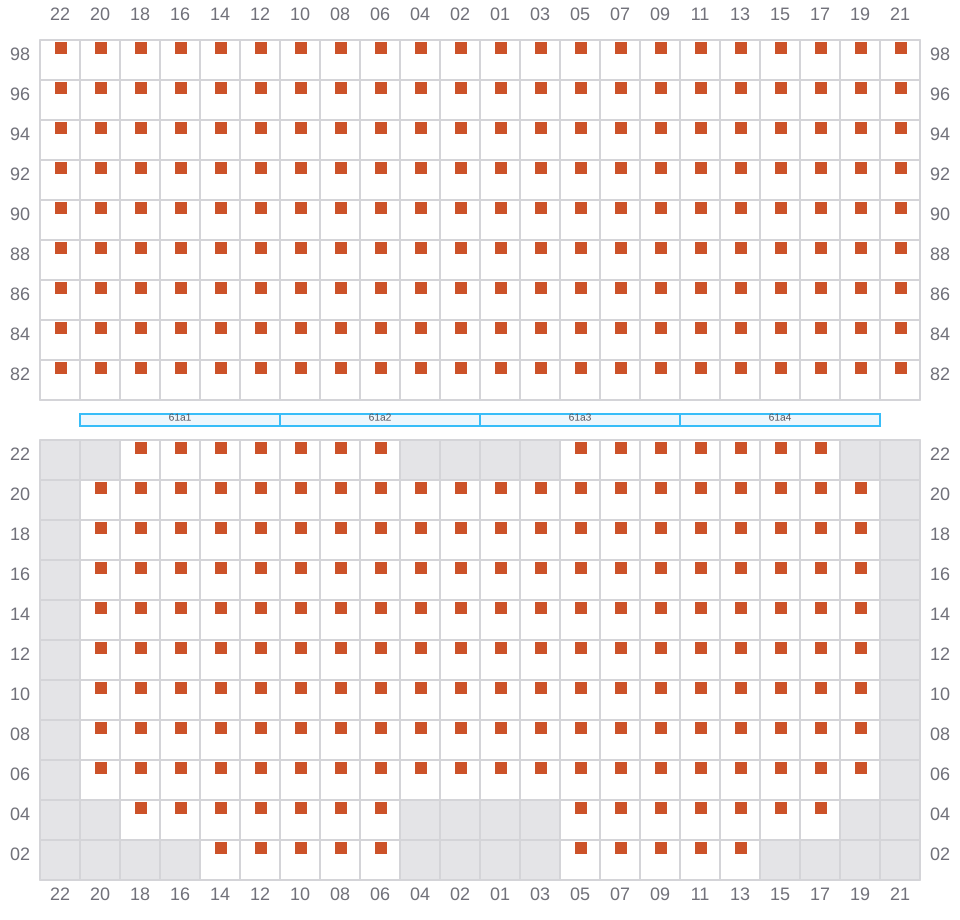

063
- ←
![Bay 063 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b063.png?v=1711047254231)

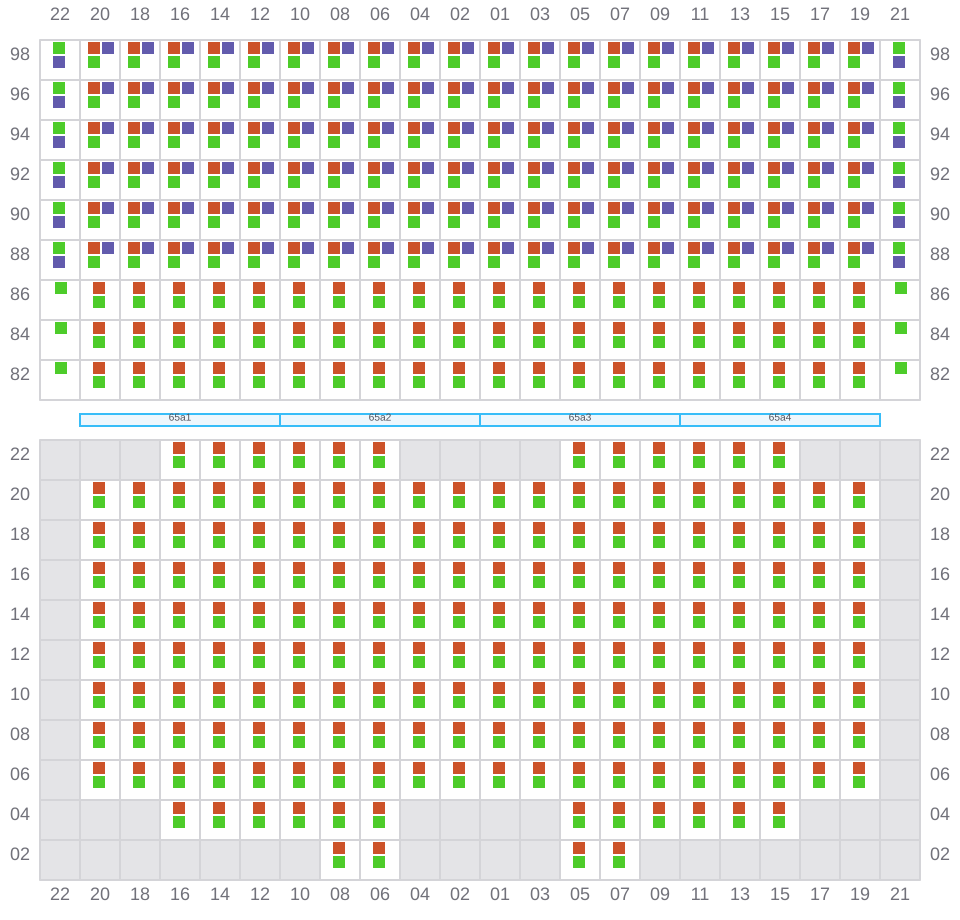

065 (066)
- →
![Bay 065 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b065.png?v=1711047254231)

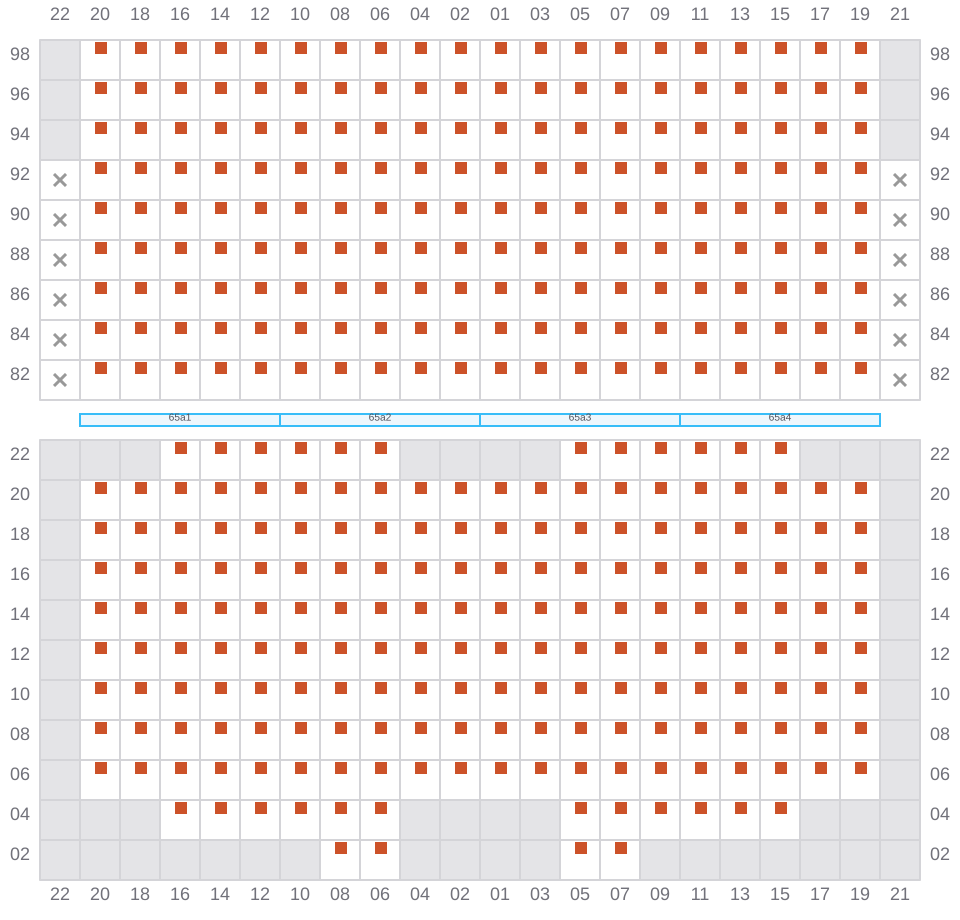

067
- ←
![Bay 067 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b067.png?v=1711047254231)

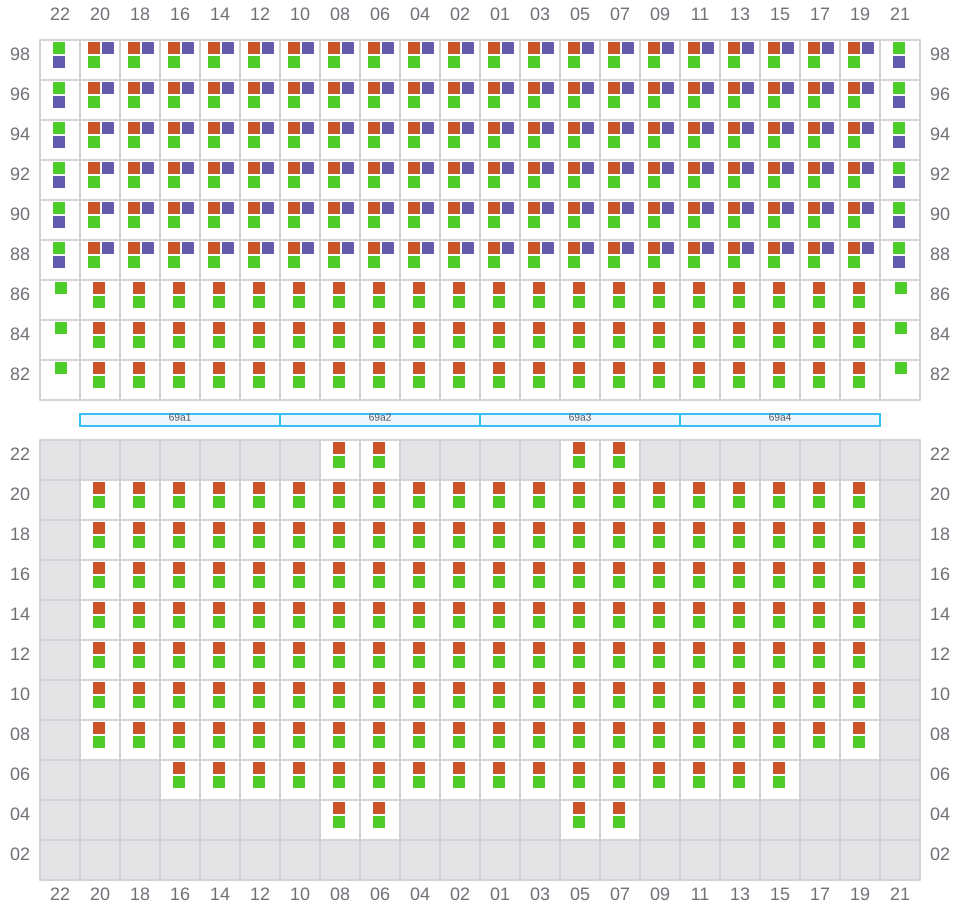

069 (070)
- →
![Bay 069 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b069.png?v=1711047254231)

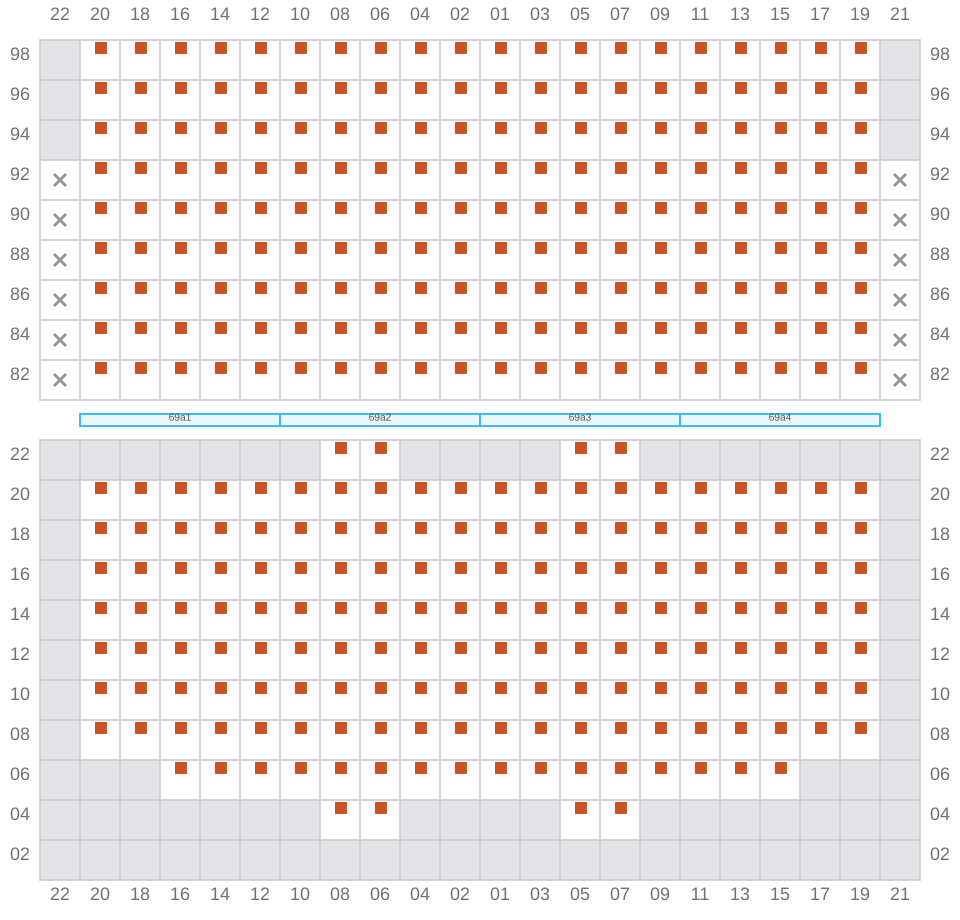

071
- ←
![Bay 071 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b071.png?v=1711047254231)

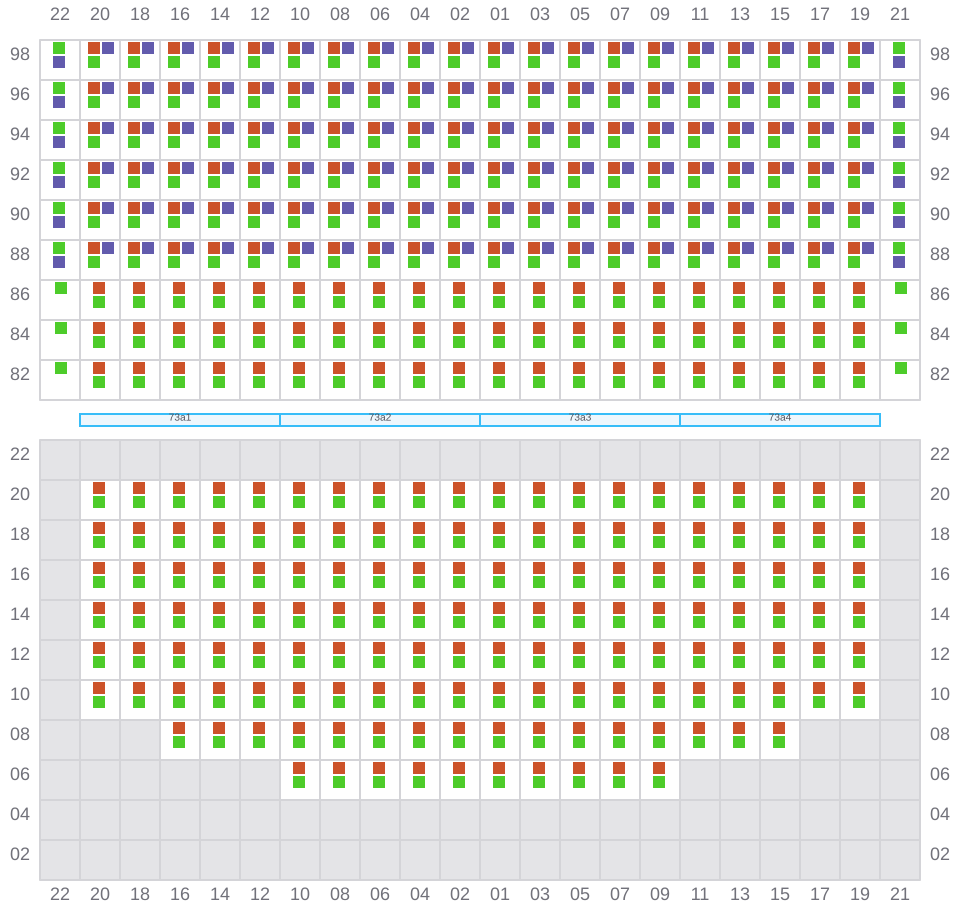

073 (074)
- →
![Bay 073 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b073.png?v=1711047254231)

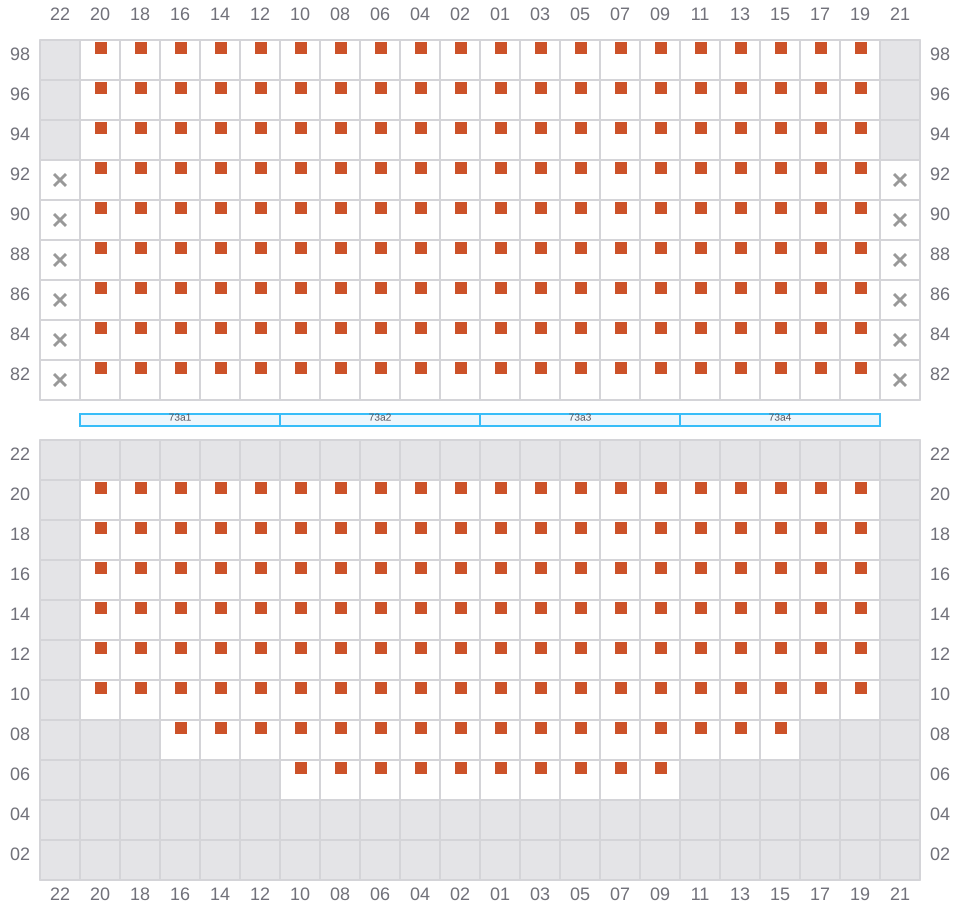

075
- ←
![Bay 075 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b075.png?v=1711047254231)

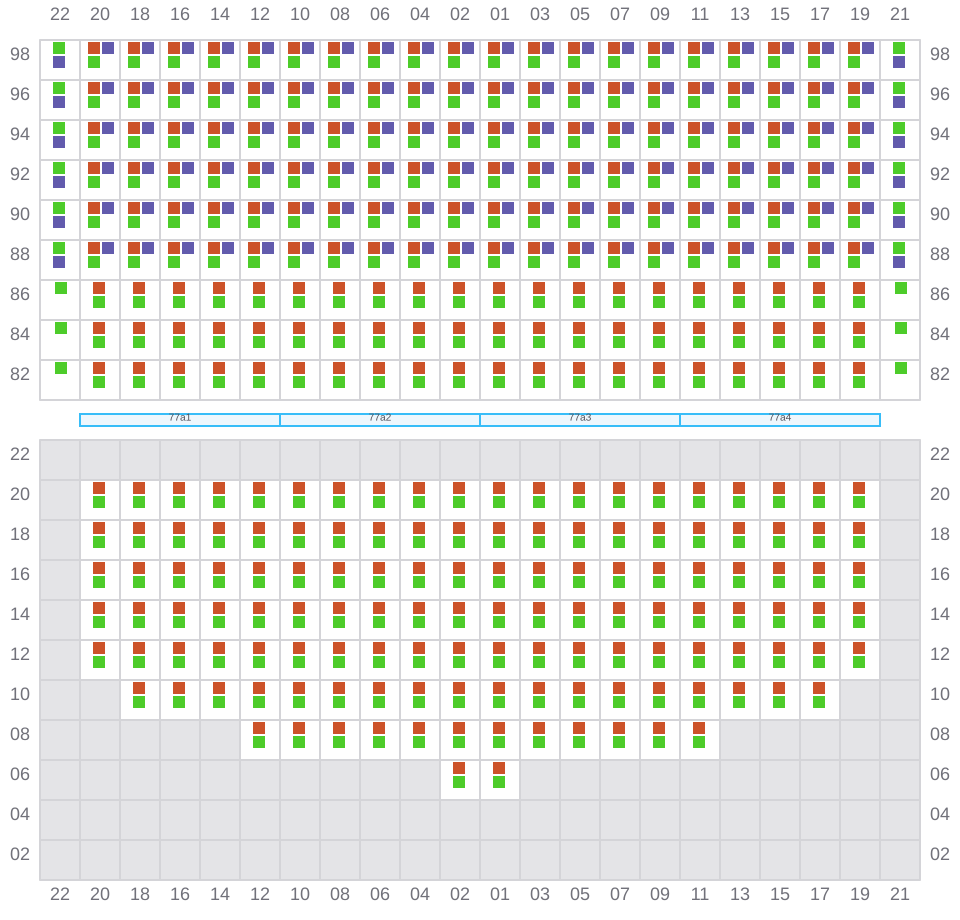

077 (078)
- →
![Bay 077 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b077.png?v=1711047254231)

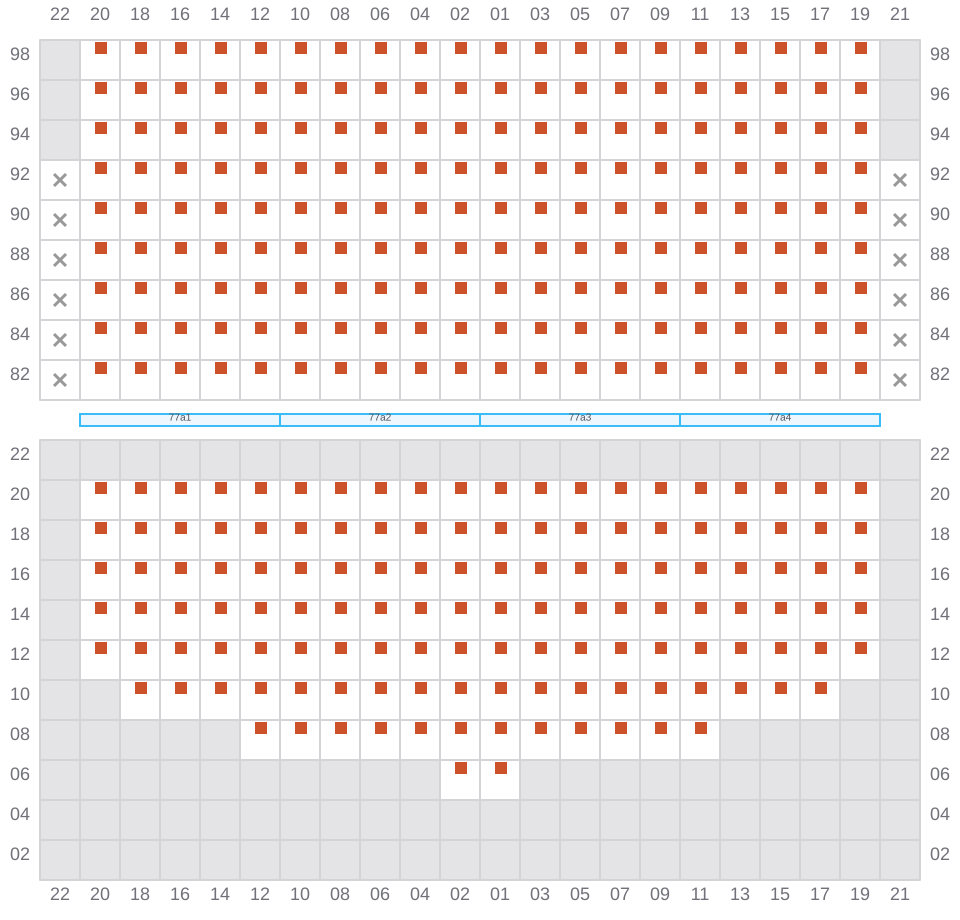

079
- ←
![Bay 079 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b079.png?v=1711047254231)

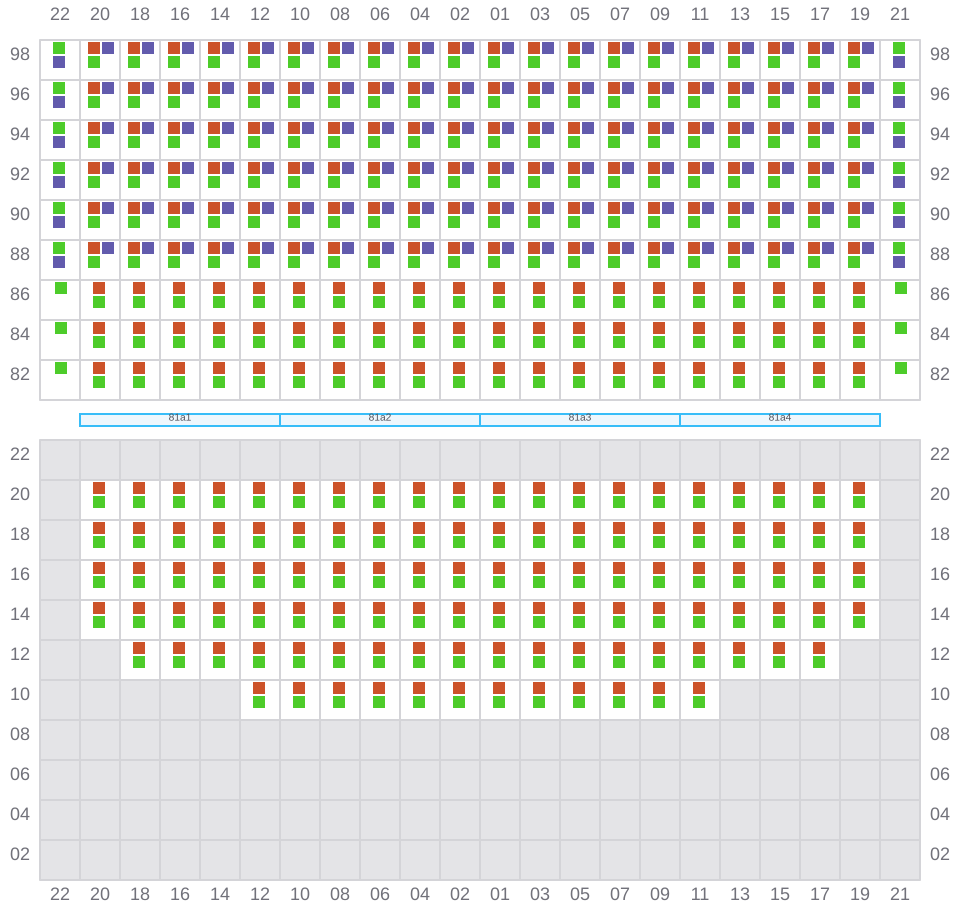

081 (082)
- →
![Bay 081 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b081.png?v=1711047254231)

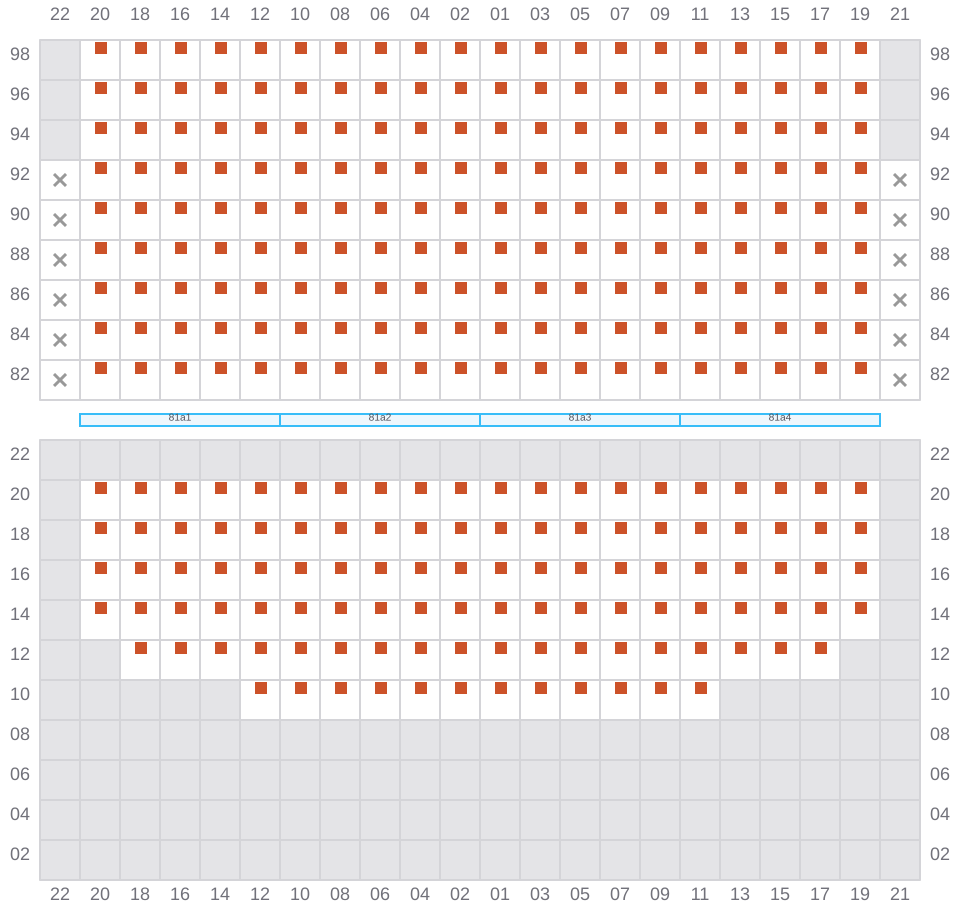

083
- ←
![Bay 083 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b083.png?v=1711047254231)

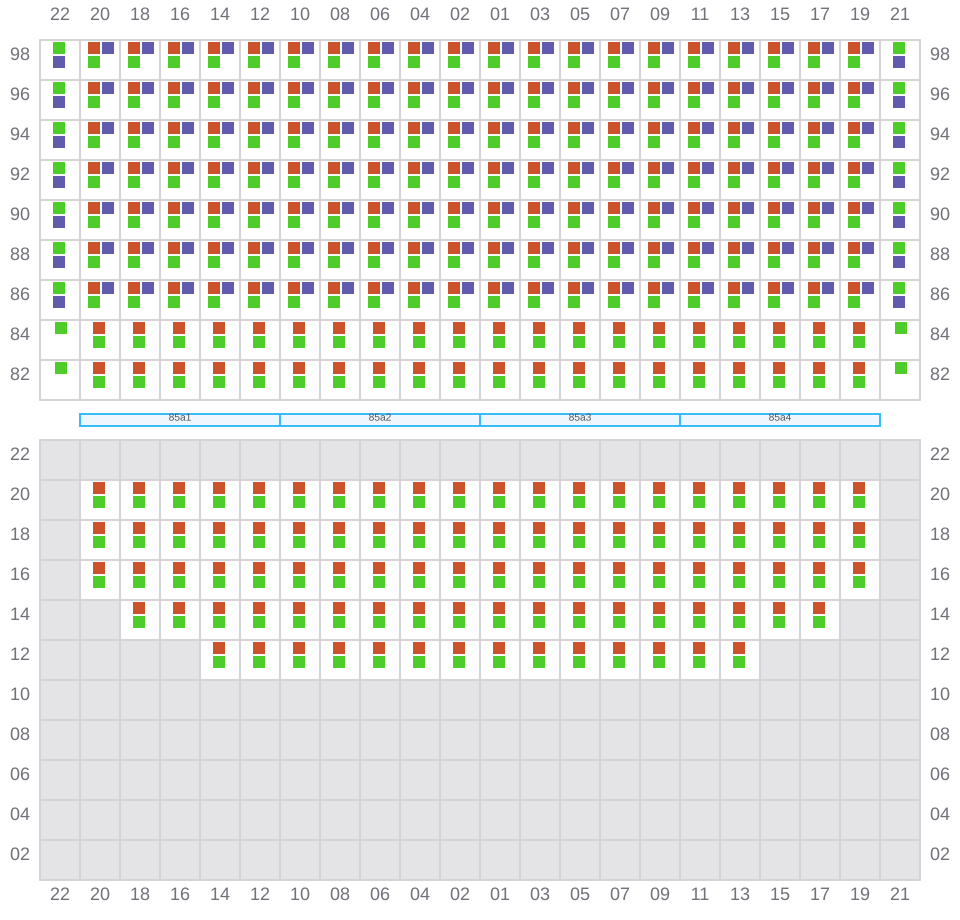

085 (086)
- →
![Bay 085 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b085.png?v=1711047254231)

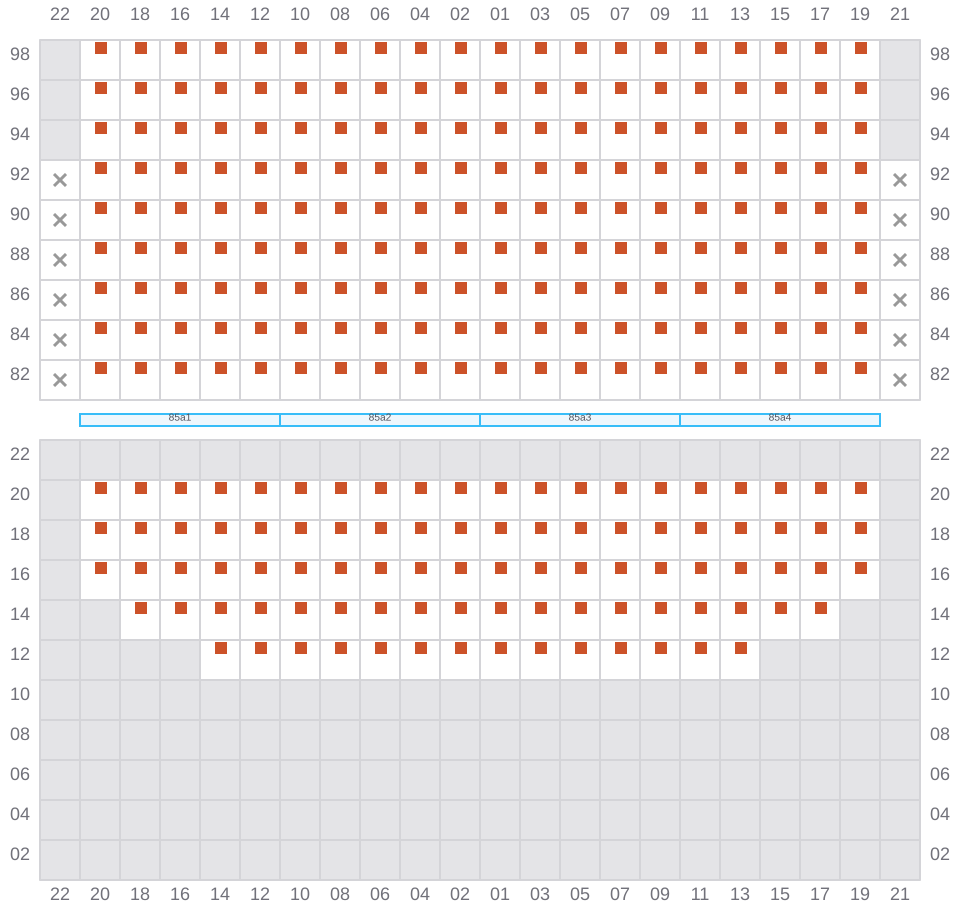

087
- ←
![Bay 087 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b087.png?v=1711047254231)

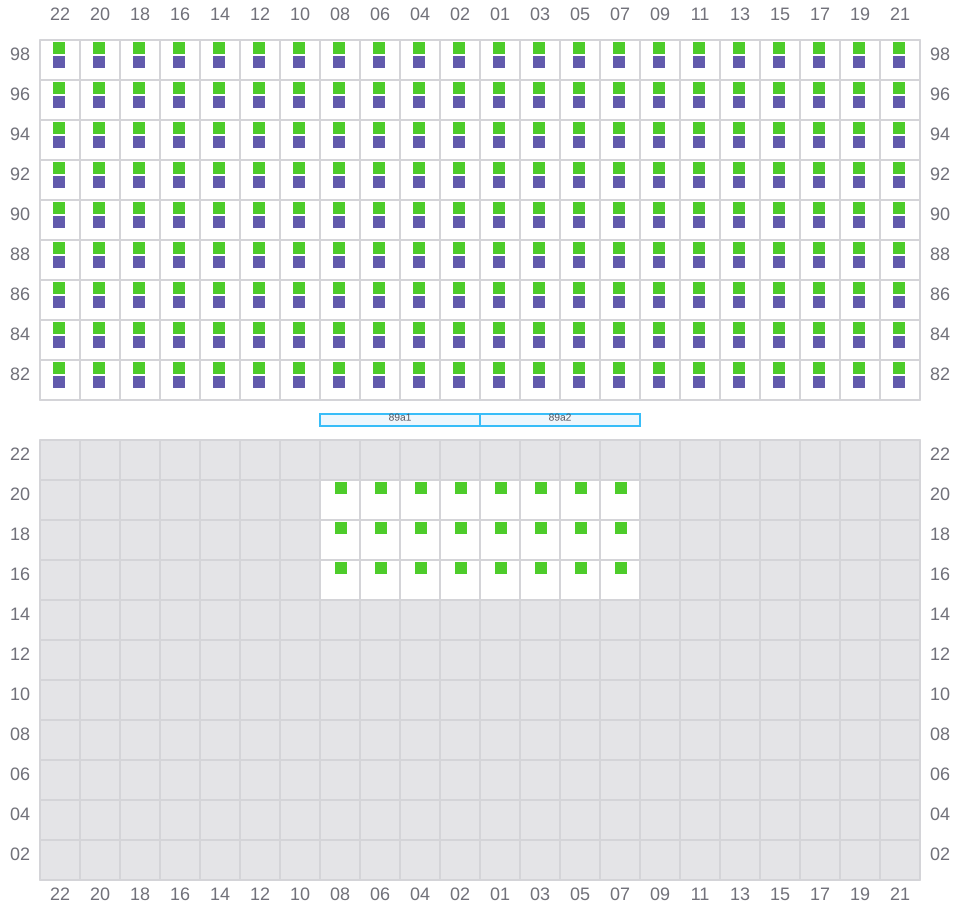

089 (090)
- →
![Bay 089 view and slots of EUGEN MAERSK](/vessel-images/89da8d7f-24ba-4e34-8aa6-3dc654a3c9b6-b089.png?v=1711047254231)
