EUROPE
9285988 | P3VZ9 | MSC by ************************** Last update: Sat Jun 17 2023
General Info
Ship Name:EUROPE
IMO Code:9285988
Call Sign:P3VZ9
Line Operator:MSC
Class Name for Sister Ships:EUR
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,256
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

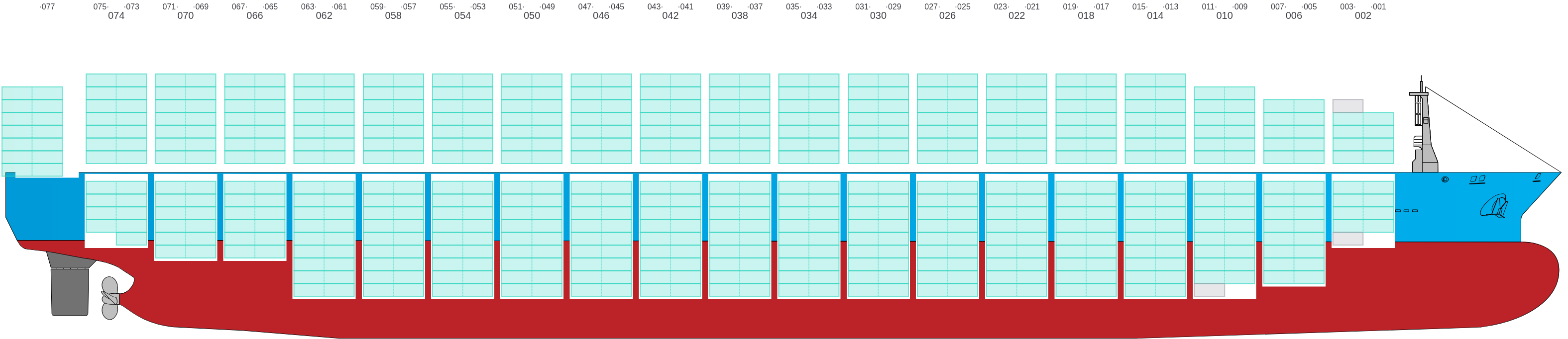

Side View
![Side view of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-sideView.png?v=1687024663139)
Hatch-Covers View
![Deck view of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-deckView.png?v=1687024663139)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

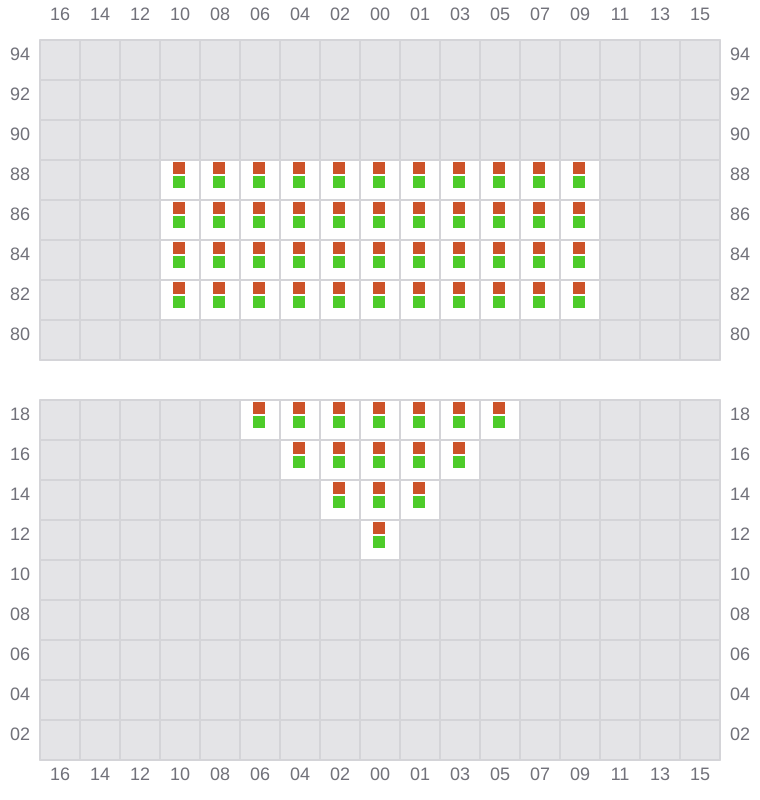

001 (002)
- →
![Bay 001 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b001.png?v=1687024663139)

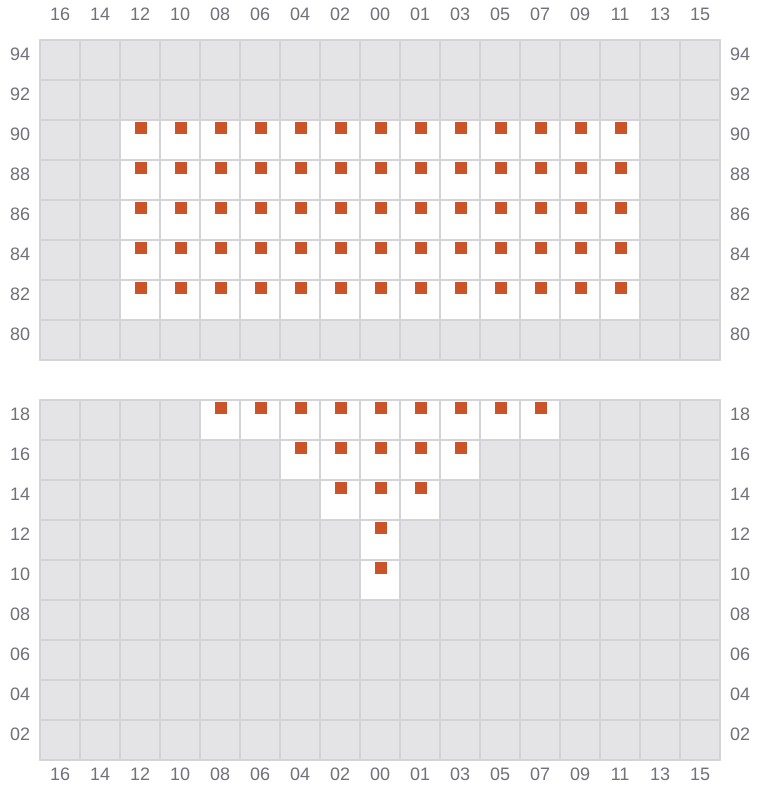

003
- ←
![Bay 003 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b003.png?v=1687024663139)
005 (006)
- →
![Bay 005 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b005.png?v=1687024663139)

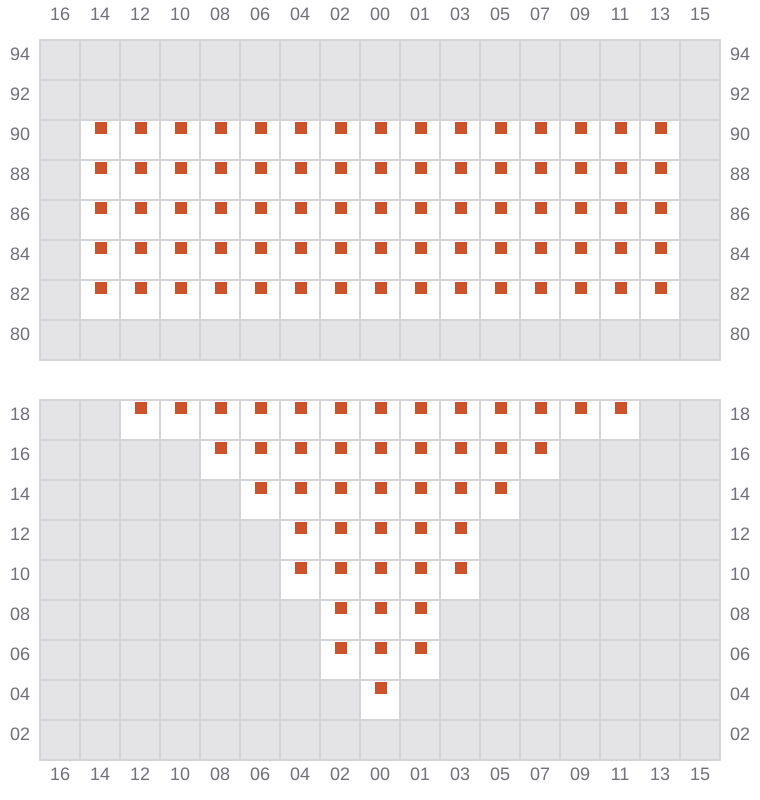

007
- ←
![Bay 007 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b007.png?v=1687024663139)

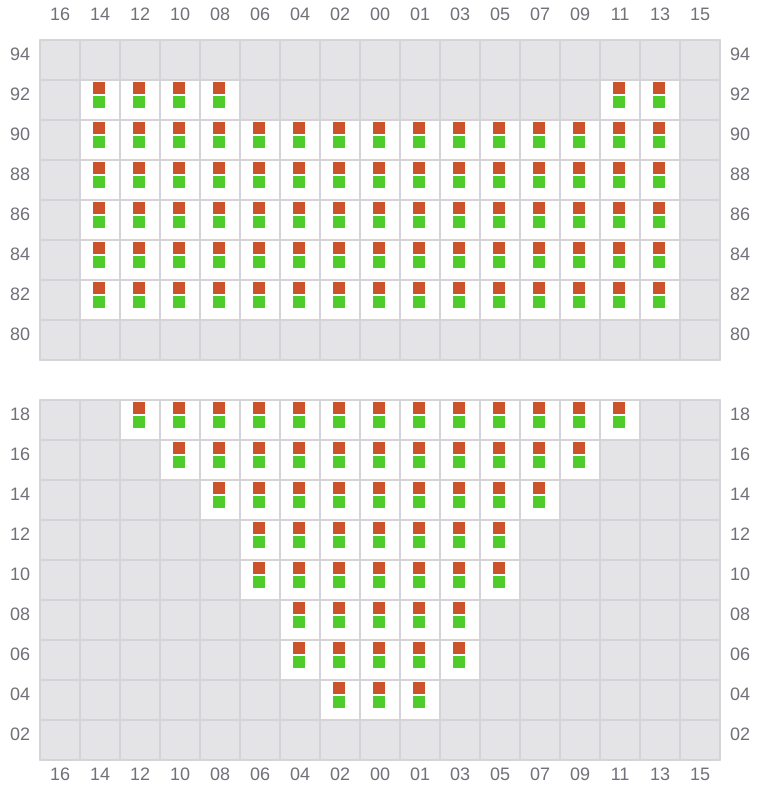

009 (010)
- →
![Bay 009 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b009.png?v=1687024663139)

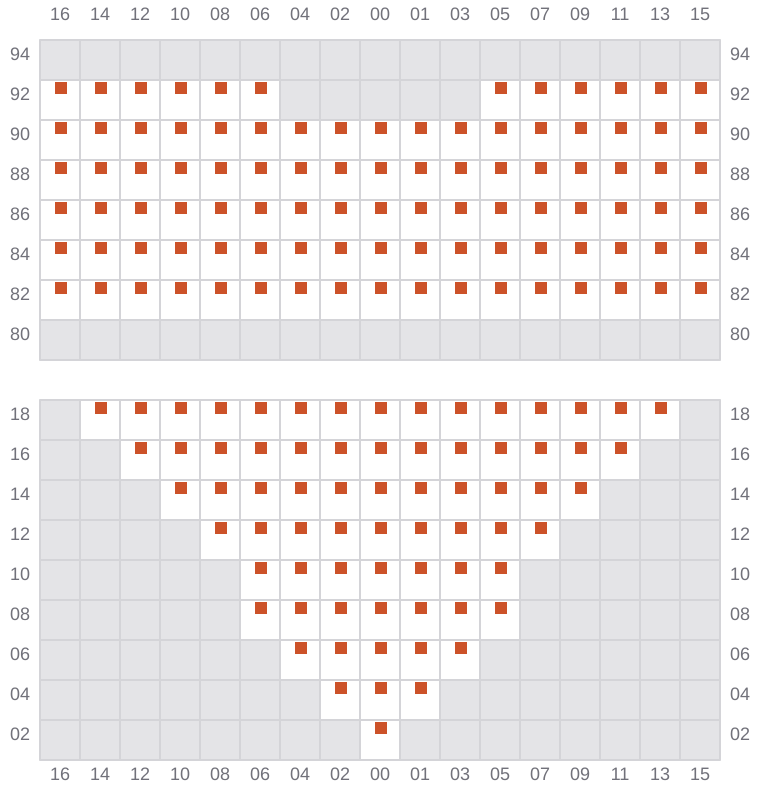

011
- ←
![Bay 011 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b011.png?v=1687024663139)

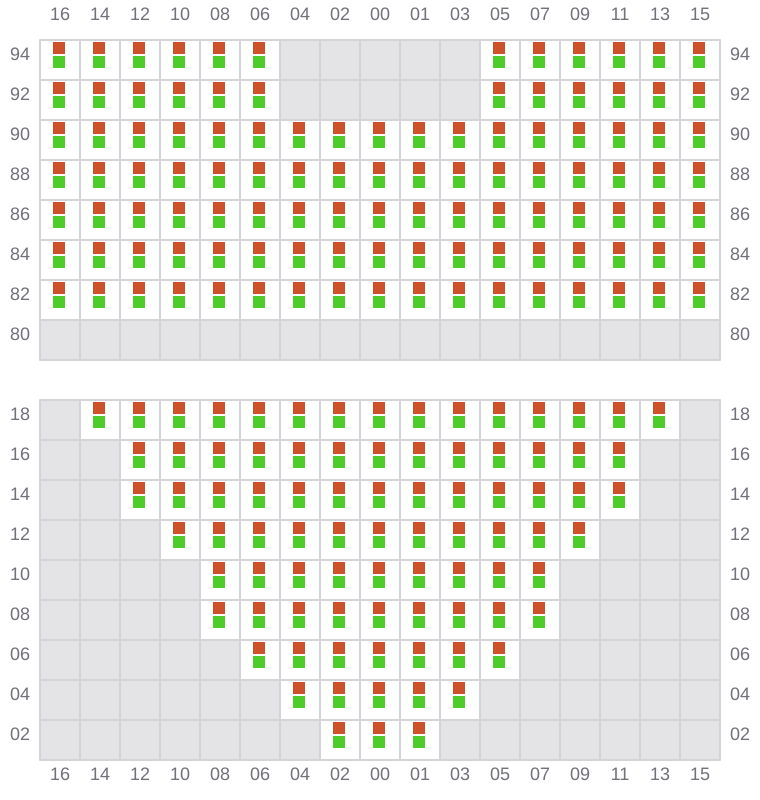

013 (014)
- →
![Bay 013 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b013.png?v=1687024663139)

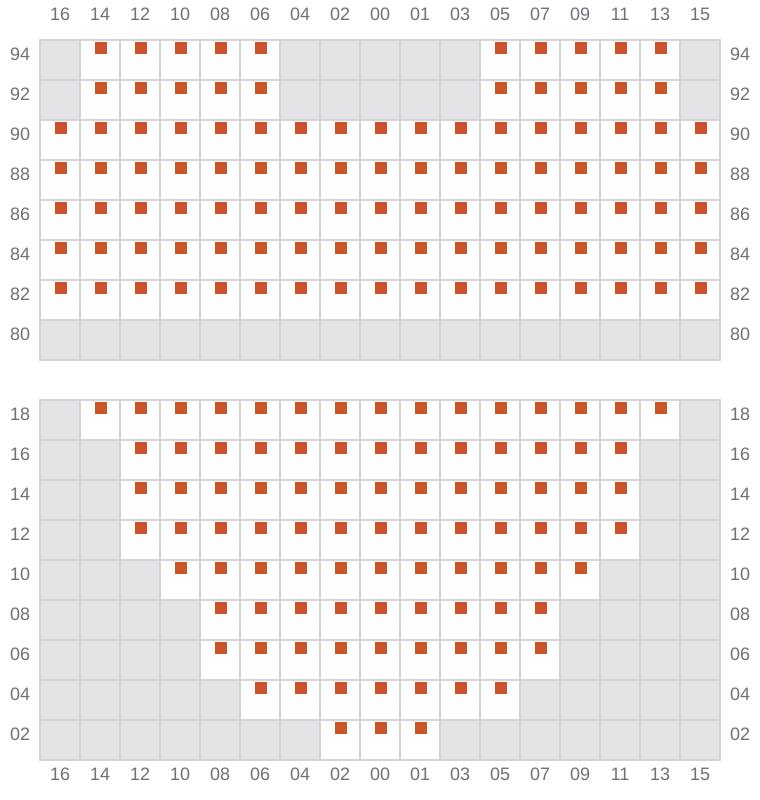

015
- ←
![Bay 015 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b015.png?v=1687024663139)

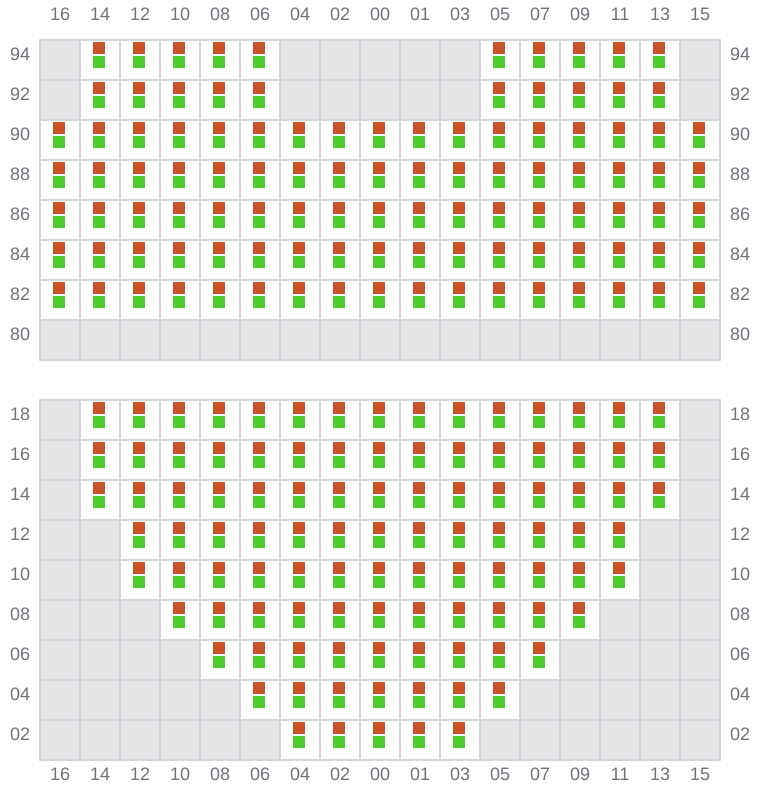

017 (018)
- →
![Bay 017 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b017.png?v=1687024663139)

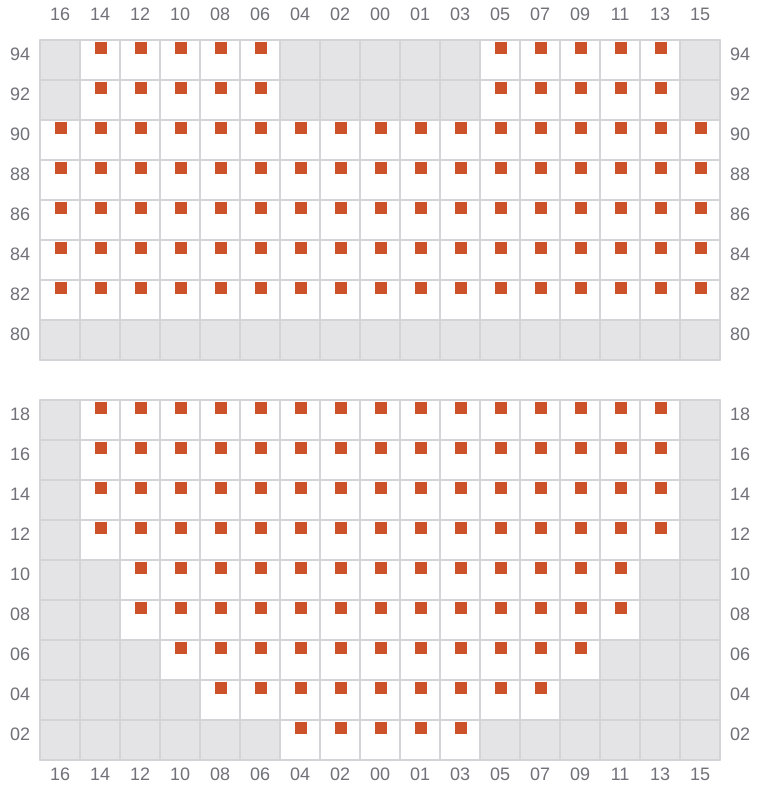

019
- ←
![Bay 019 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b019.png?v=1687024663139)

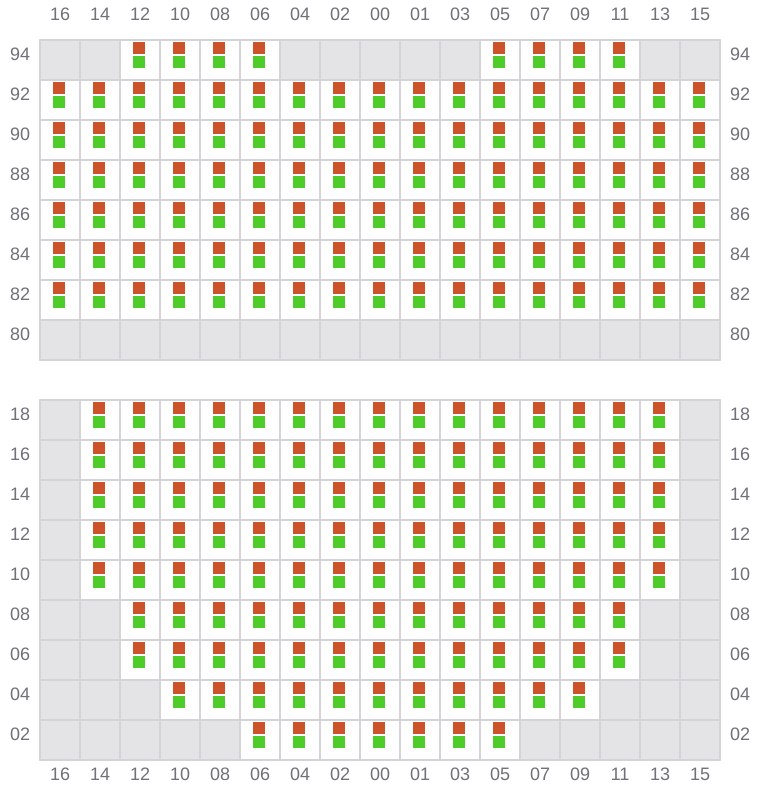

021 (022)
- →
![Bay 021 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b021.png?v=1687024663139)
023
- ←
![Bay 023 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b023.png?v=1687024663139)

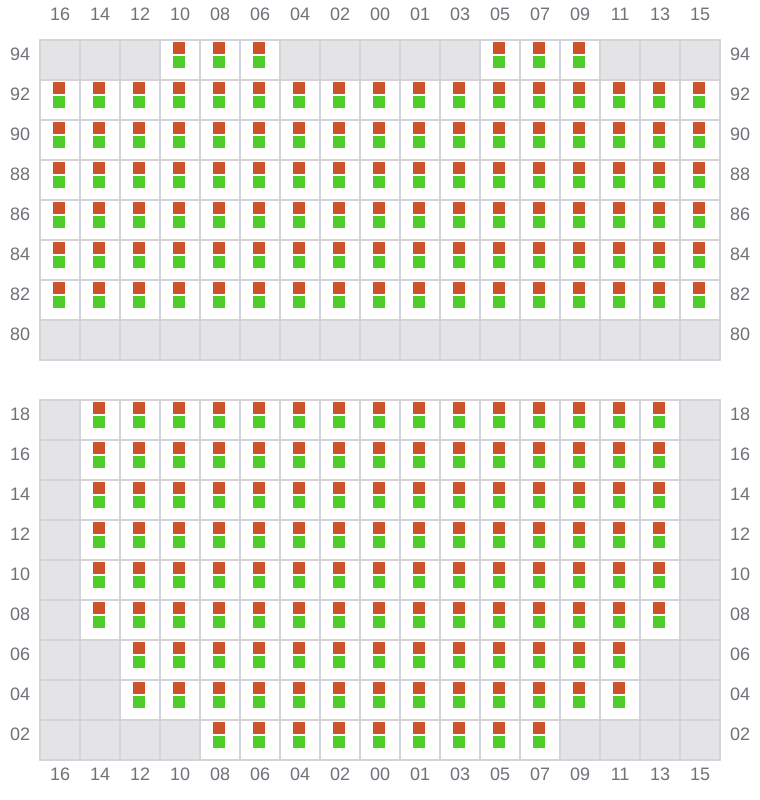

025 (026)
- →
![Bay 025 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b025.png?v=1687024663139)

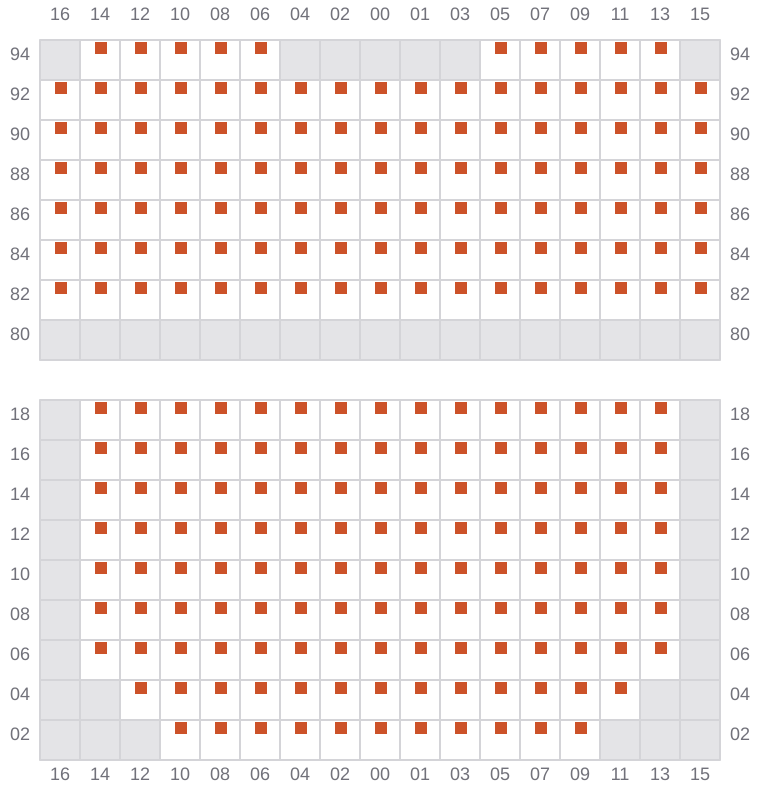

027
- ←
![Bay 027 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b027.png?v=1687024663139)

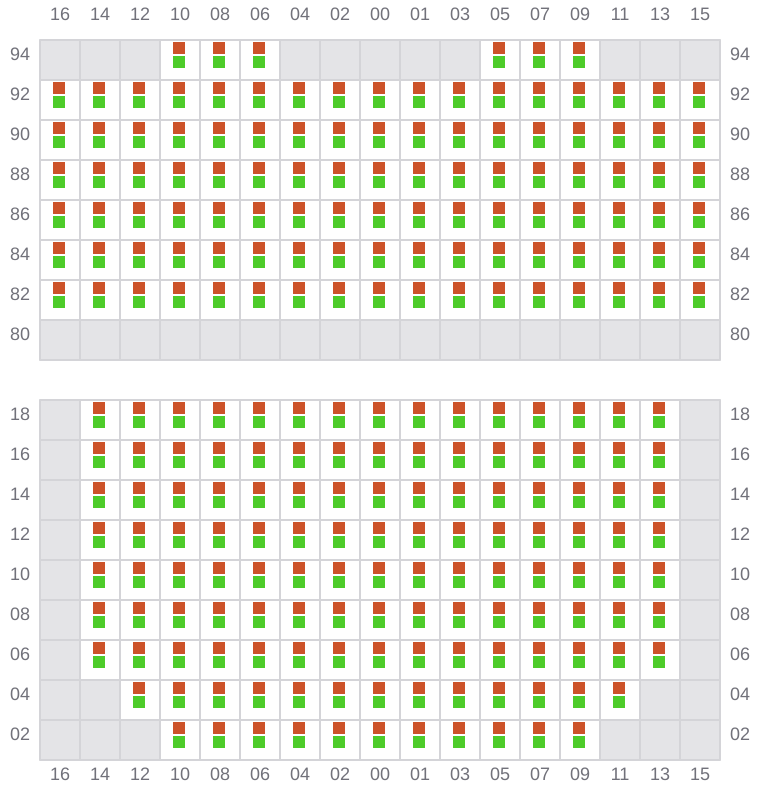

029 (030)
- →
![Bay 029 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b029.png?v=1687024663139)

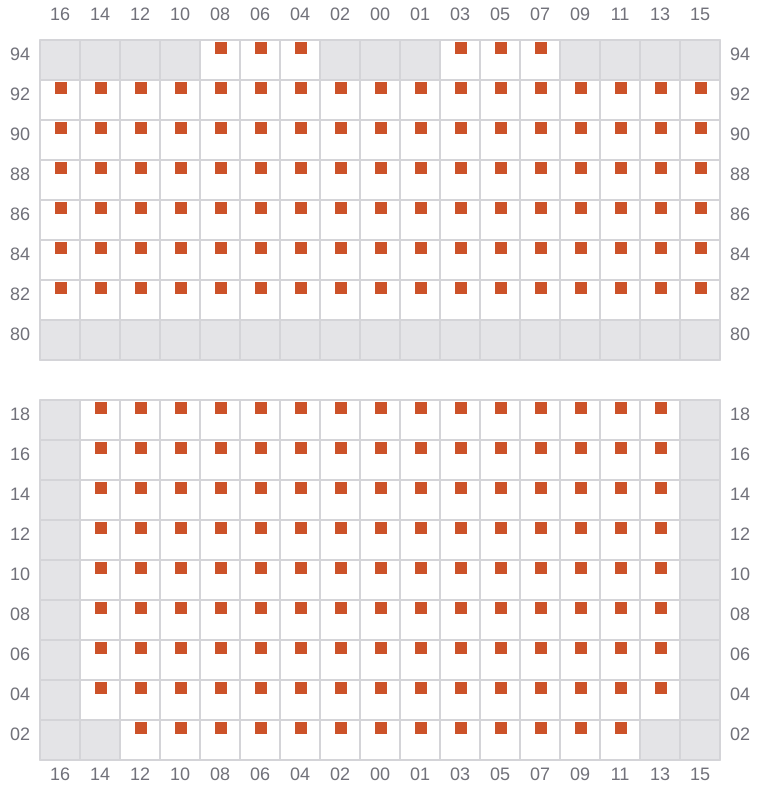

031
- ←
![Bay 031 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b031.png?v=1687024663139)

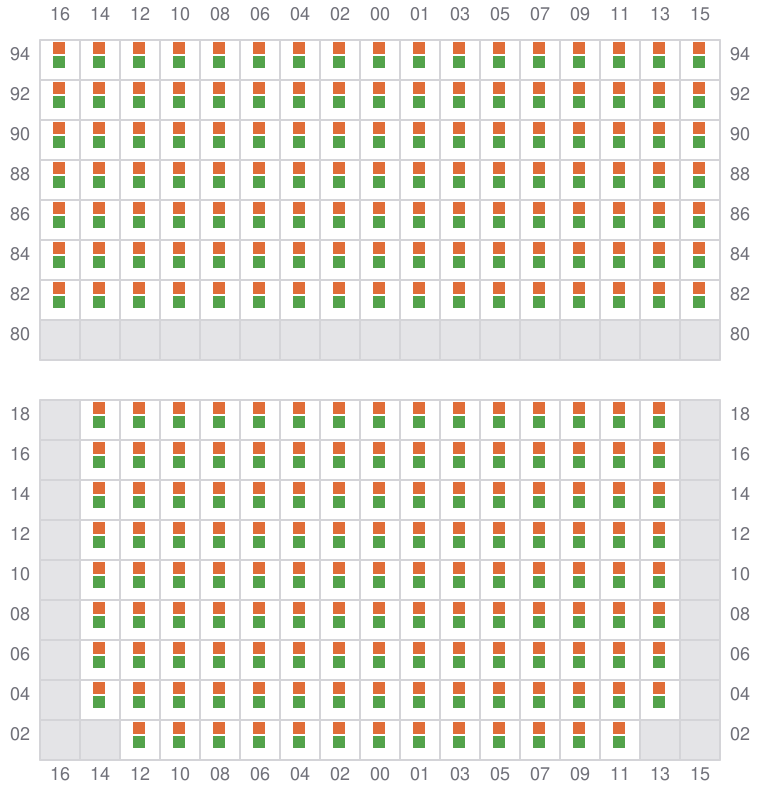

033 (034)
- →
![Bay 033 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b033.png?v=1687024663139)
035
- ←
![Bay 035 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b035.png?v=1687024663139)
037 (038)
- →
![Bay 037 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b037.png?v=1687024663139)
039
- ←
![Bay 039 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b039.png?v=1687024663139)
041 (042)
- →
![Bay 041 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b041.png?v=1687024663139)
043
- ←
![Bay 043 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b043.png?v=1687024663139)

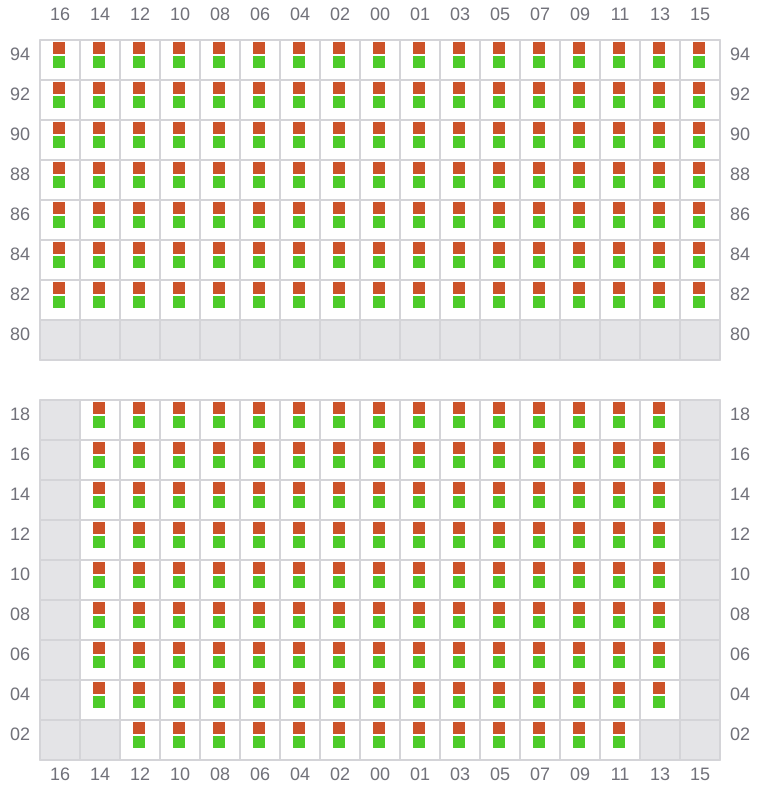

045 (046)
- →
![Bay 045 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b045.png?v=1687024663139)

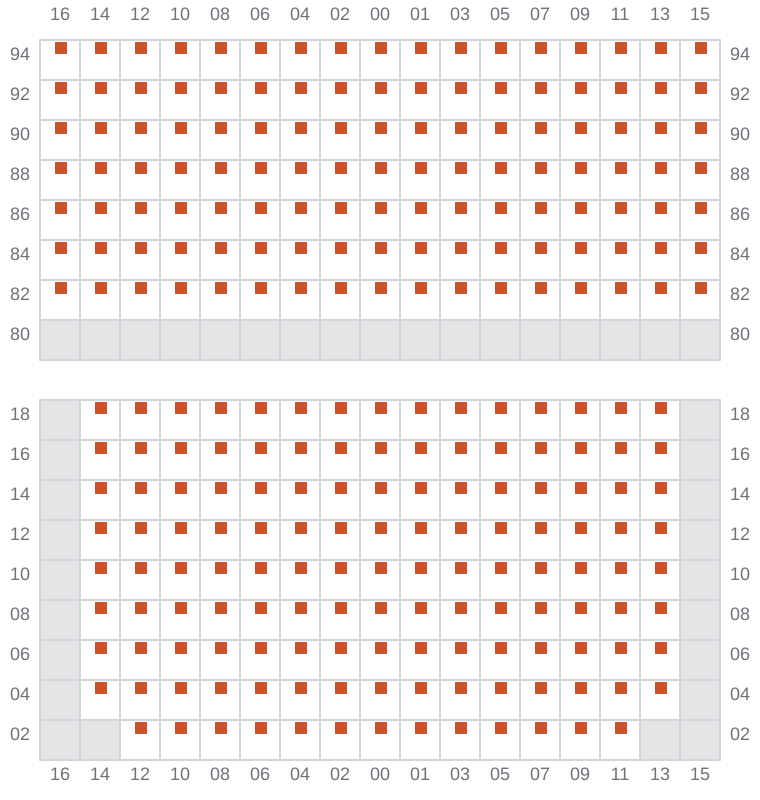

047
- ←
![Bay 047 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b047.png?v=1687024663139)
049 (050)
- →
![Bay 049 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b049.png?v=1687024663139)
051
- ←
![Bay 051 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b051.png?v=1687024663139)
053 (054)
- →
![Bay 053 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b053.png?v=1687024663139)

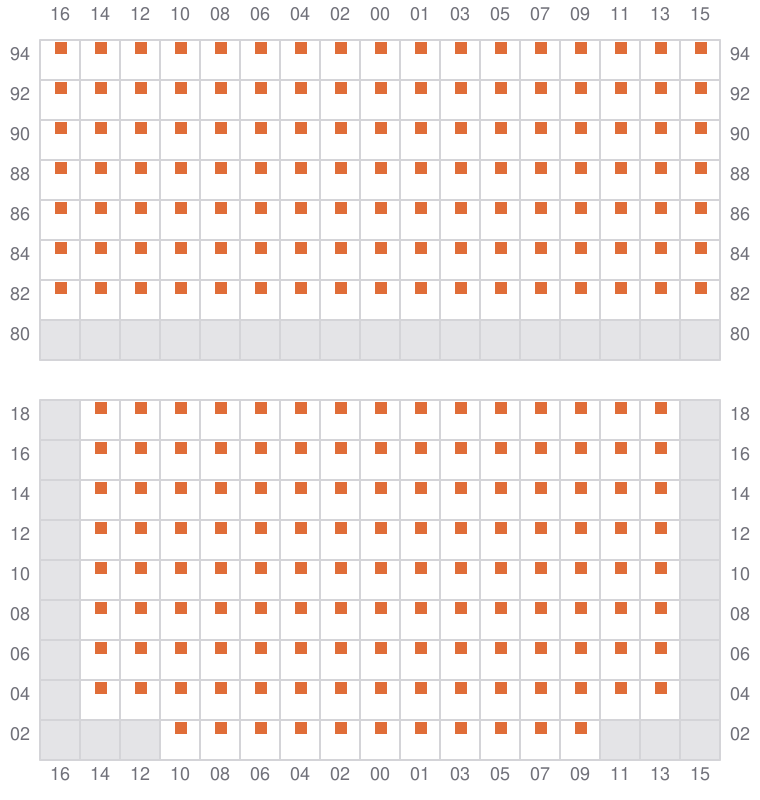

055
- ←
![Bay 055 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b055.png?v=1687024663139)

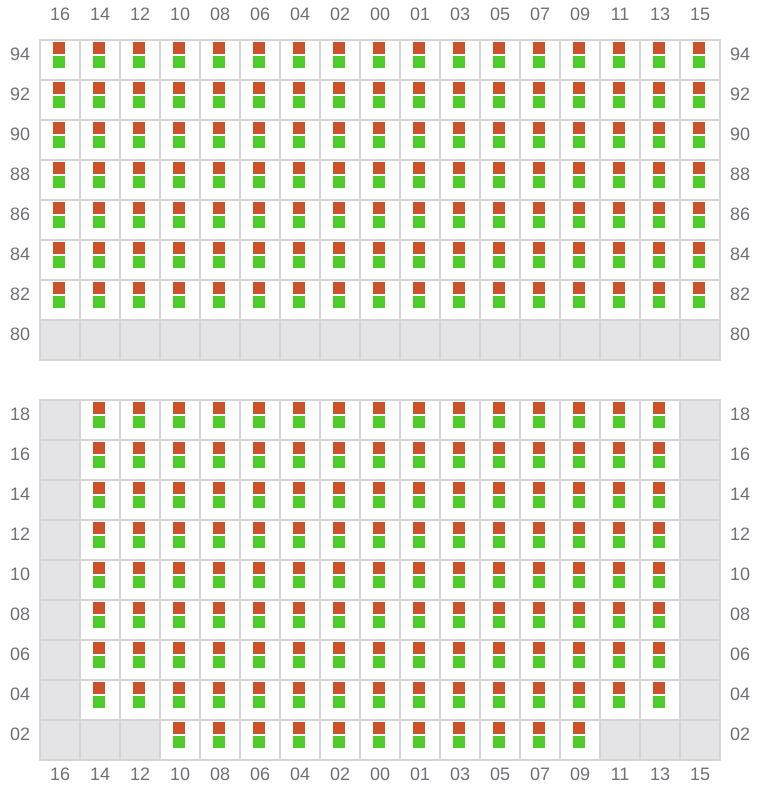

057 (058)
- →
![Bay 057 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b057.png?v=1687024663139)
059
- ←
![Bay 059 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b059.png?v=1687024663139)

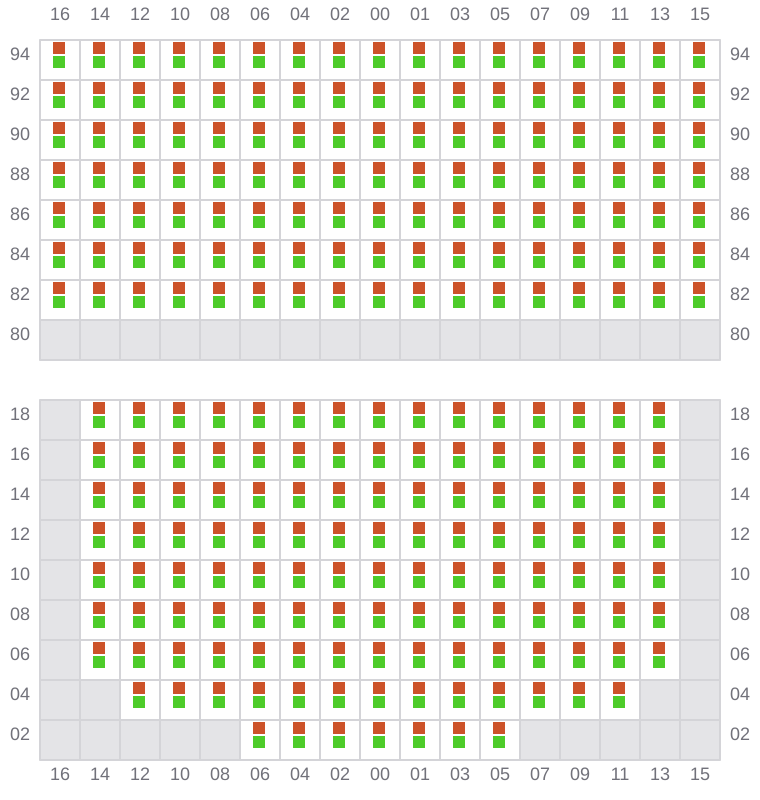

061 (062)
- →
![Bay 061 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b061.png?v=1687024663139)

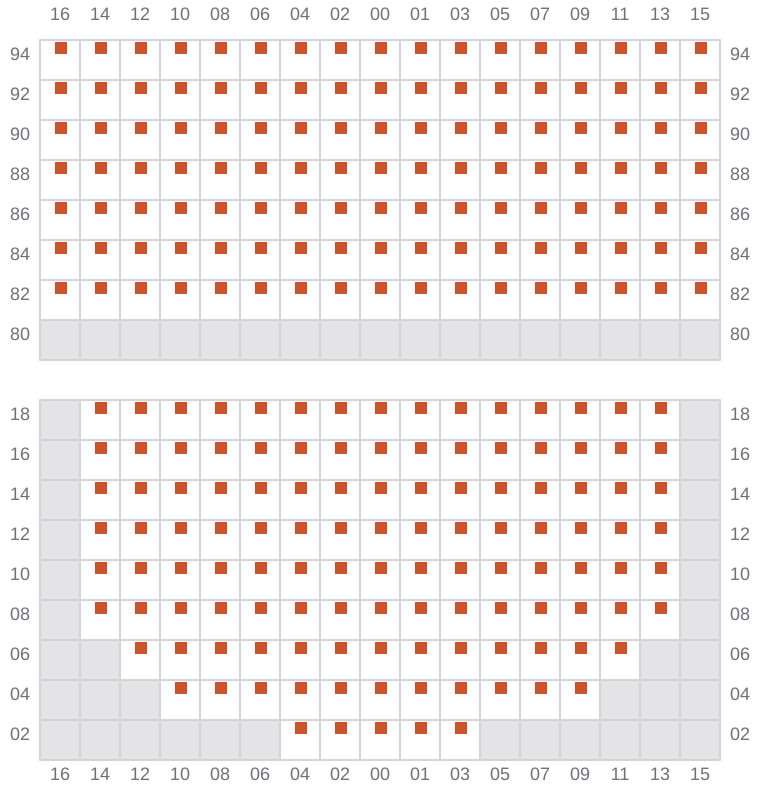

063
- ←
![Bay 063 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b063.png?v=1687024663139)

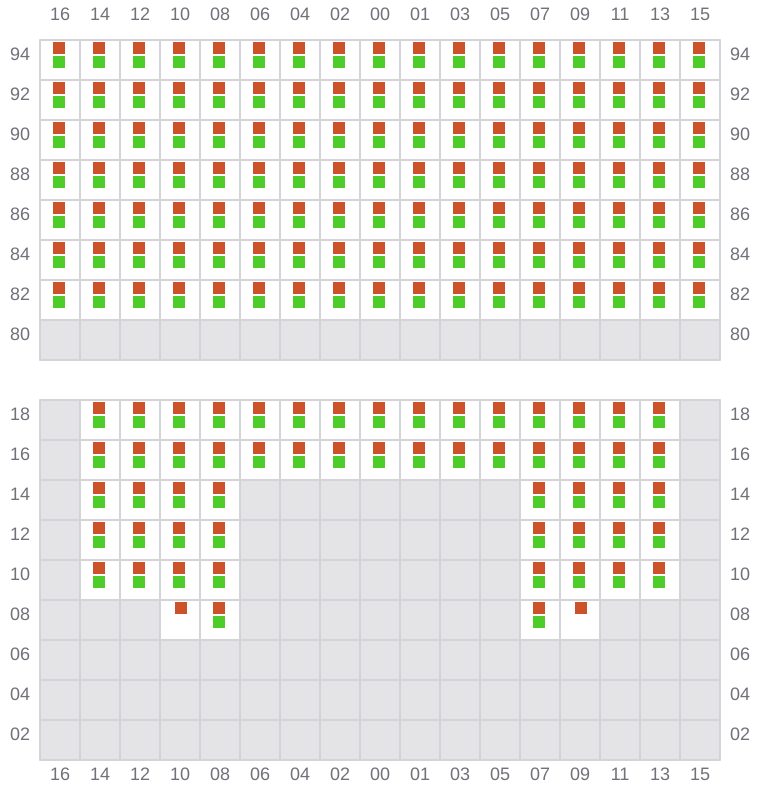

065 (066)
- →
![Bay 065 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b065.png?v=1687024663139)

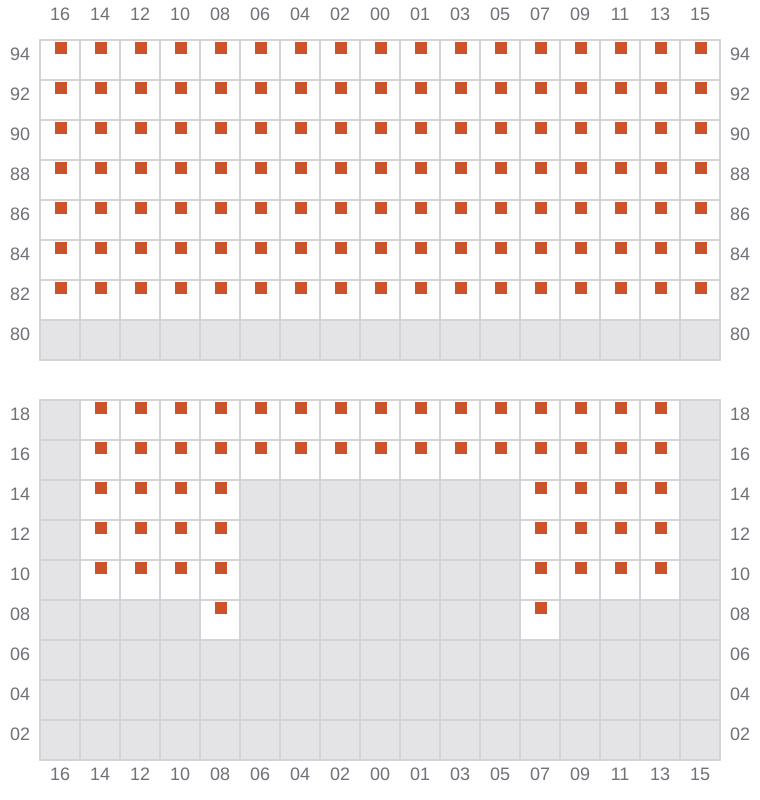

067
- ←
![Bay 067 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b067.png?v=1687024663139)

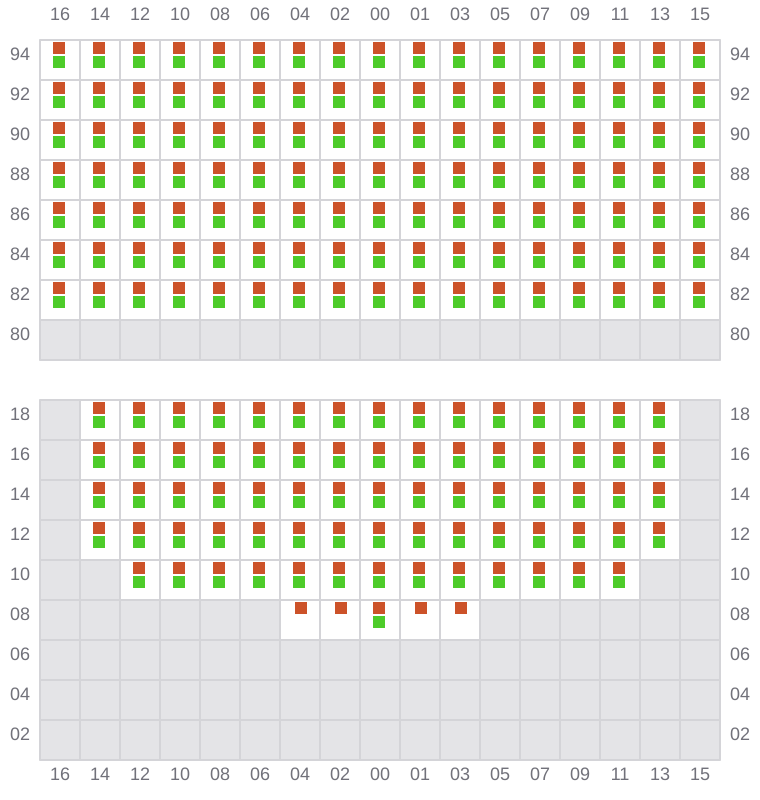

069 (070)
- →
![Bay 069 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b069.png?v=1687024663139)

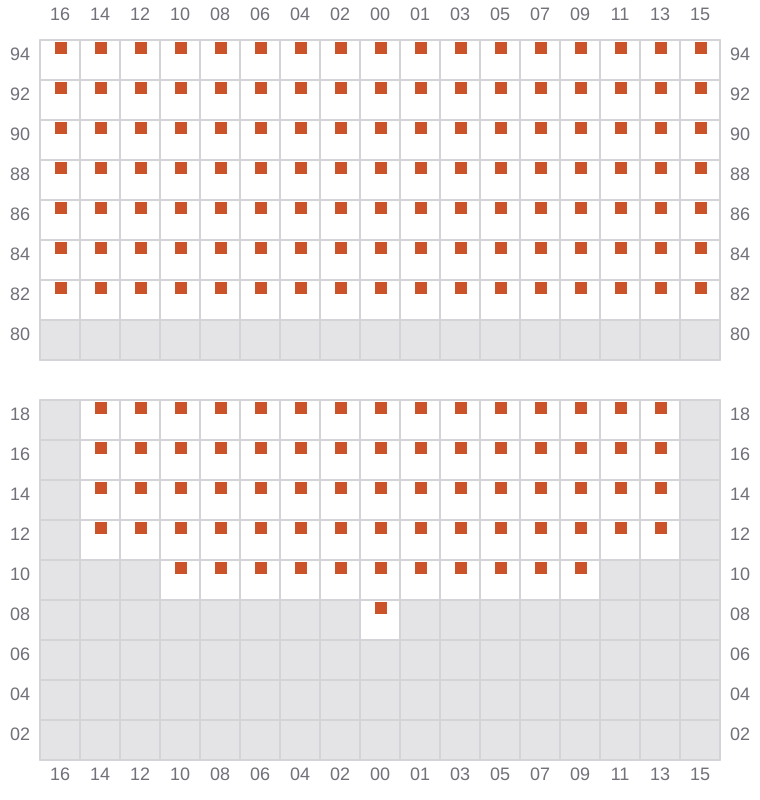

071
- ←
![Bay 071 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b071.png?v=1687024663139)

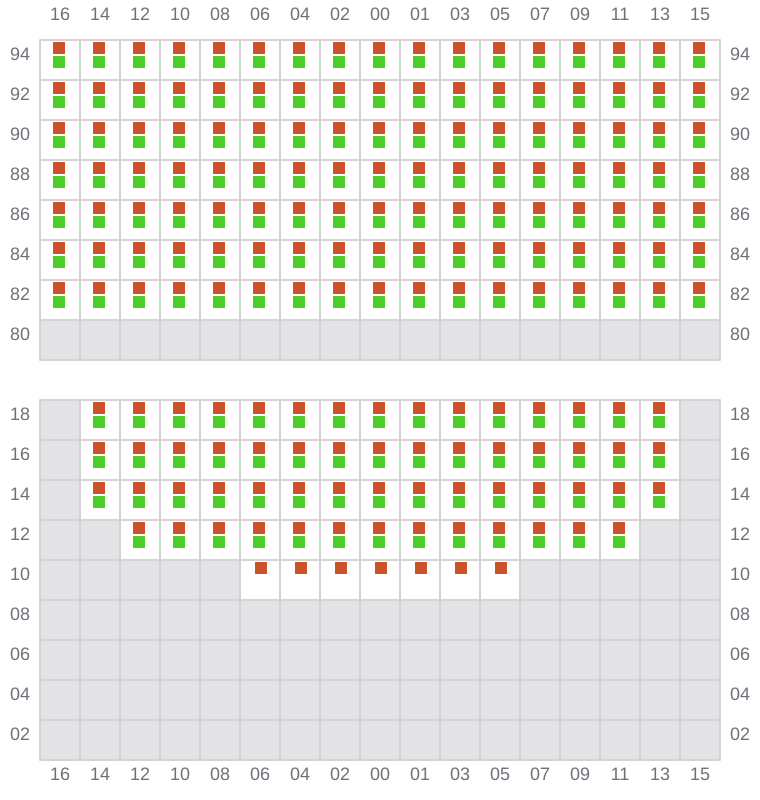

073 (074)
- →
![Bay 073 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b073.png?v=1687024663139)

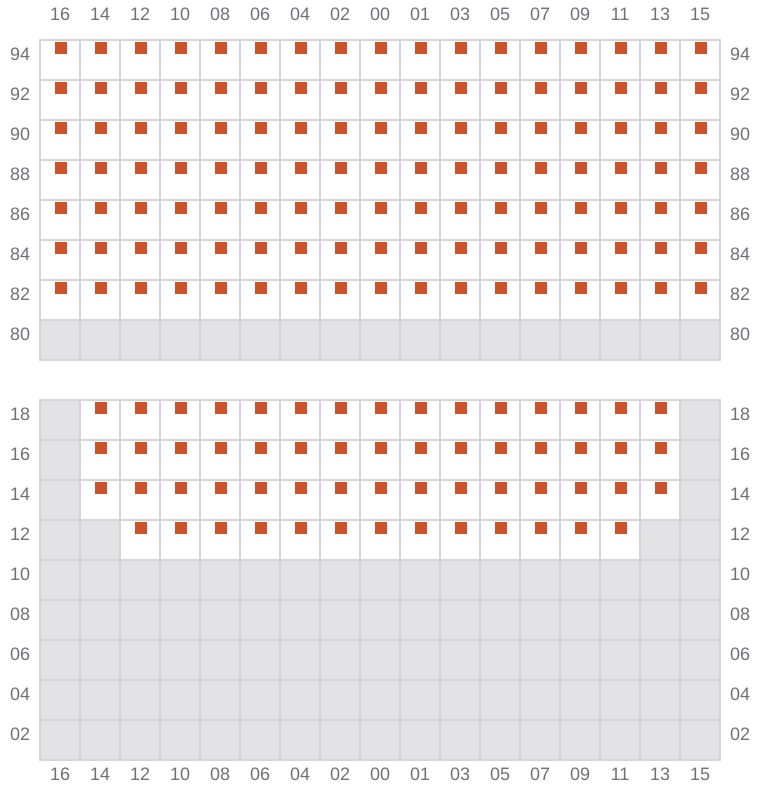

075
- ←
![Bay 075 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b075.png?v=1687024663139)

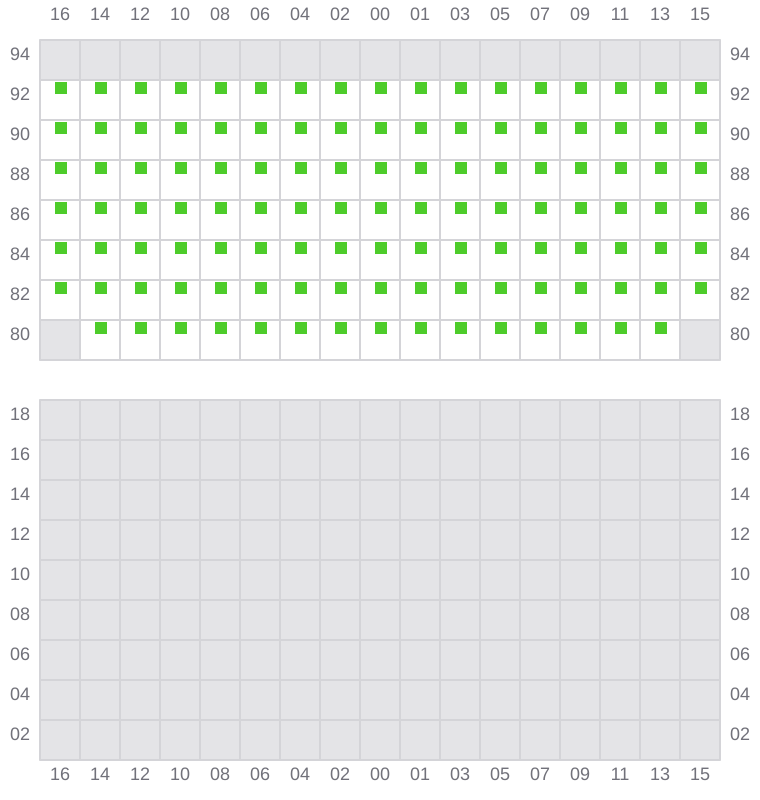

077 (078)
- → / ?
![Bay 077 view and slots of EUROPE](/vessel-images/5b6567b4-351a-4a03-8f21-e6a4173419cd-b077.png?v=1687024663139)
