EVER ACE
9893890 | 3E2382 | EVG by *********************** Last update: Tue Oct 15 2024

General Info

Ship Name:EVER ACE
IMO Code:9893890
Call Sign:3E2382
Line Operator:EVG
Class Name for Sister Ships:EVG
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:24
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:68
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:23,946

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

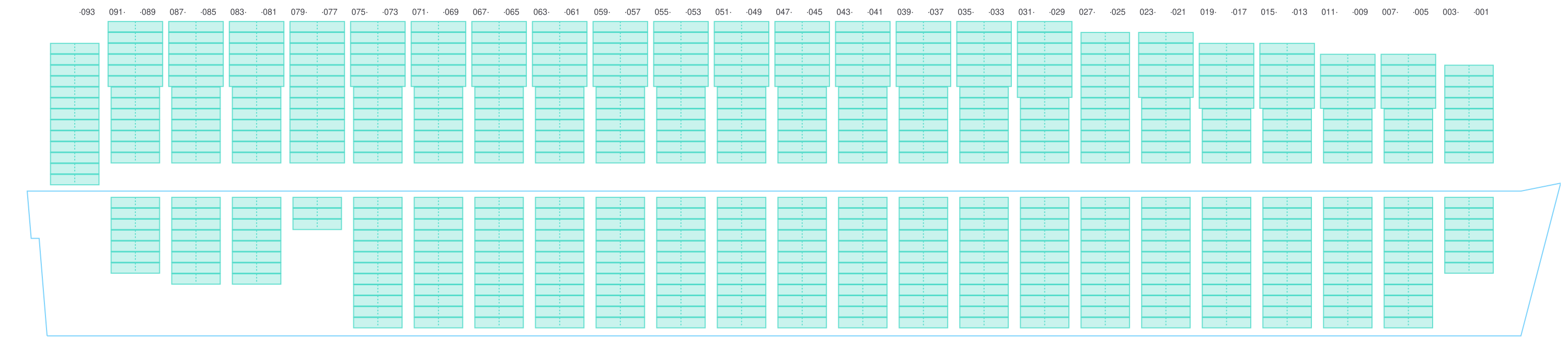

Side view of EVER ACE

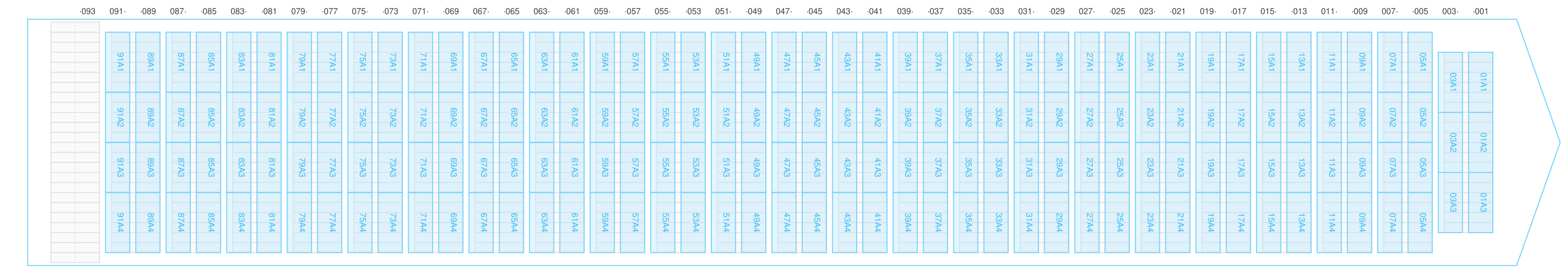

Hatch-Covers View

Deck view of EVER ACE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →

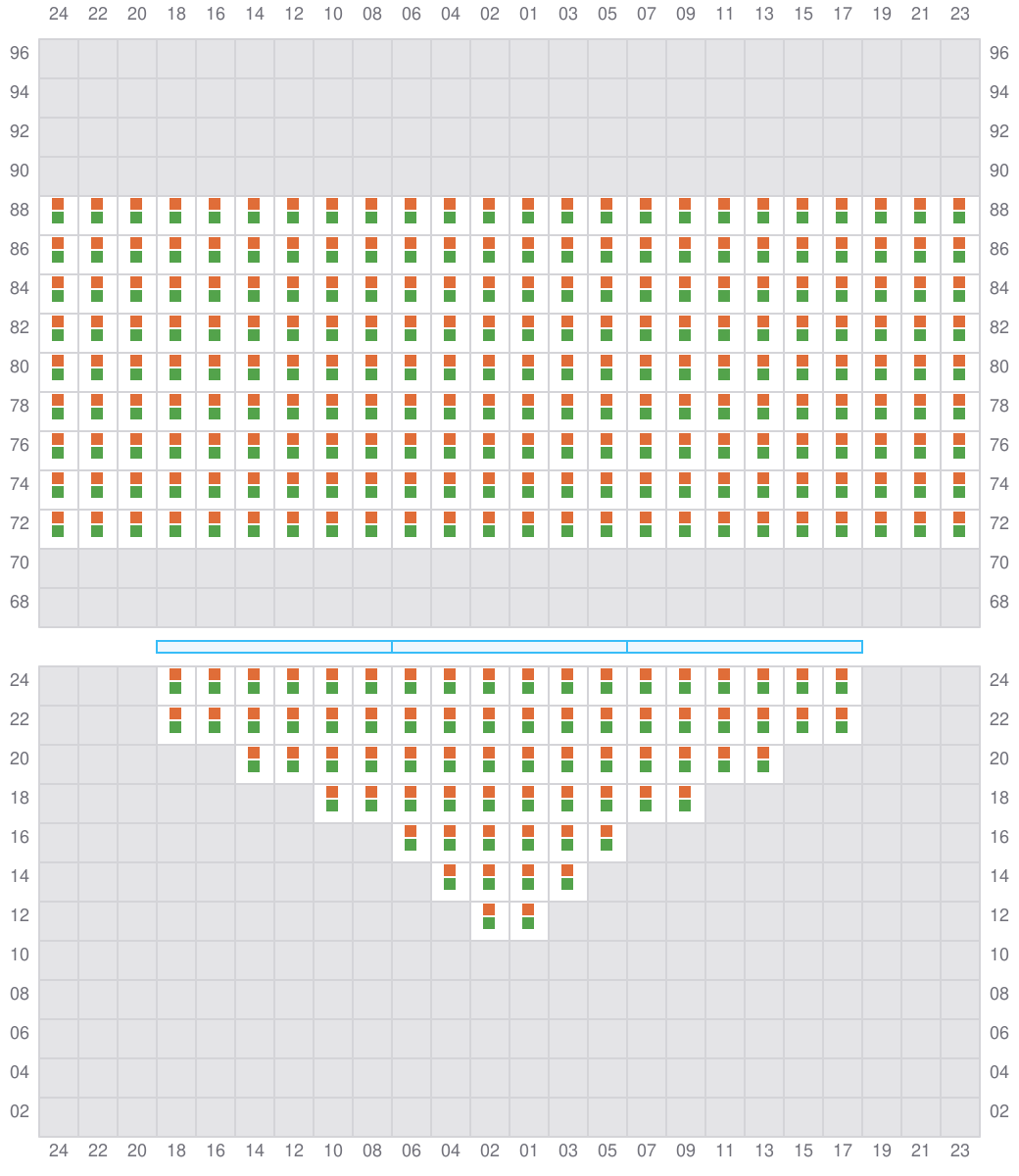

Bay 001 view and slots of EVER ACE

003

  • ←
  • →

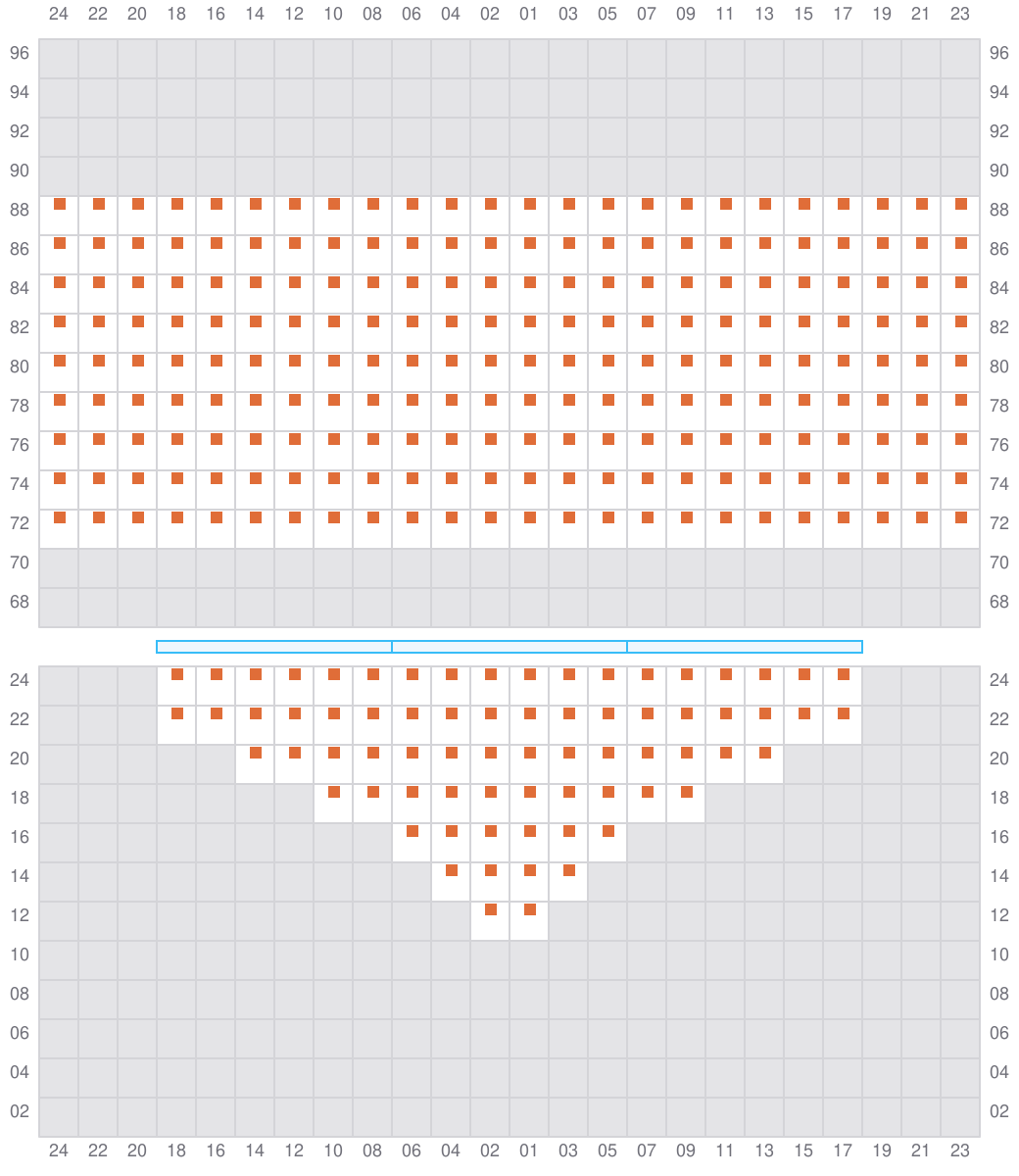

Bay 003 view and slots of EVER ACE

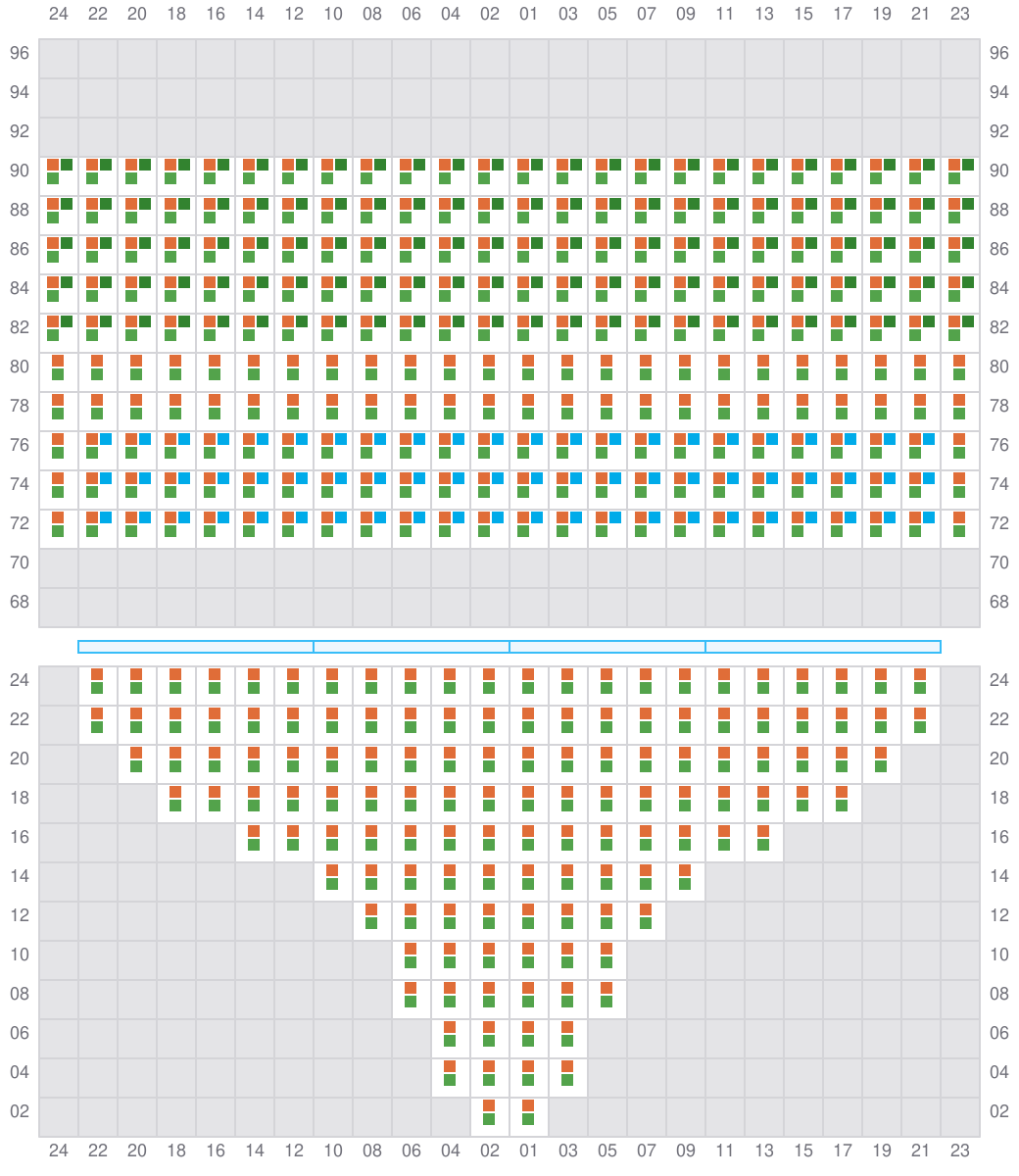

005 (006)

  • →
  • → / ?
  • →
Bay 005 view and slots of EVER ACE

007

  • ←
  • →

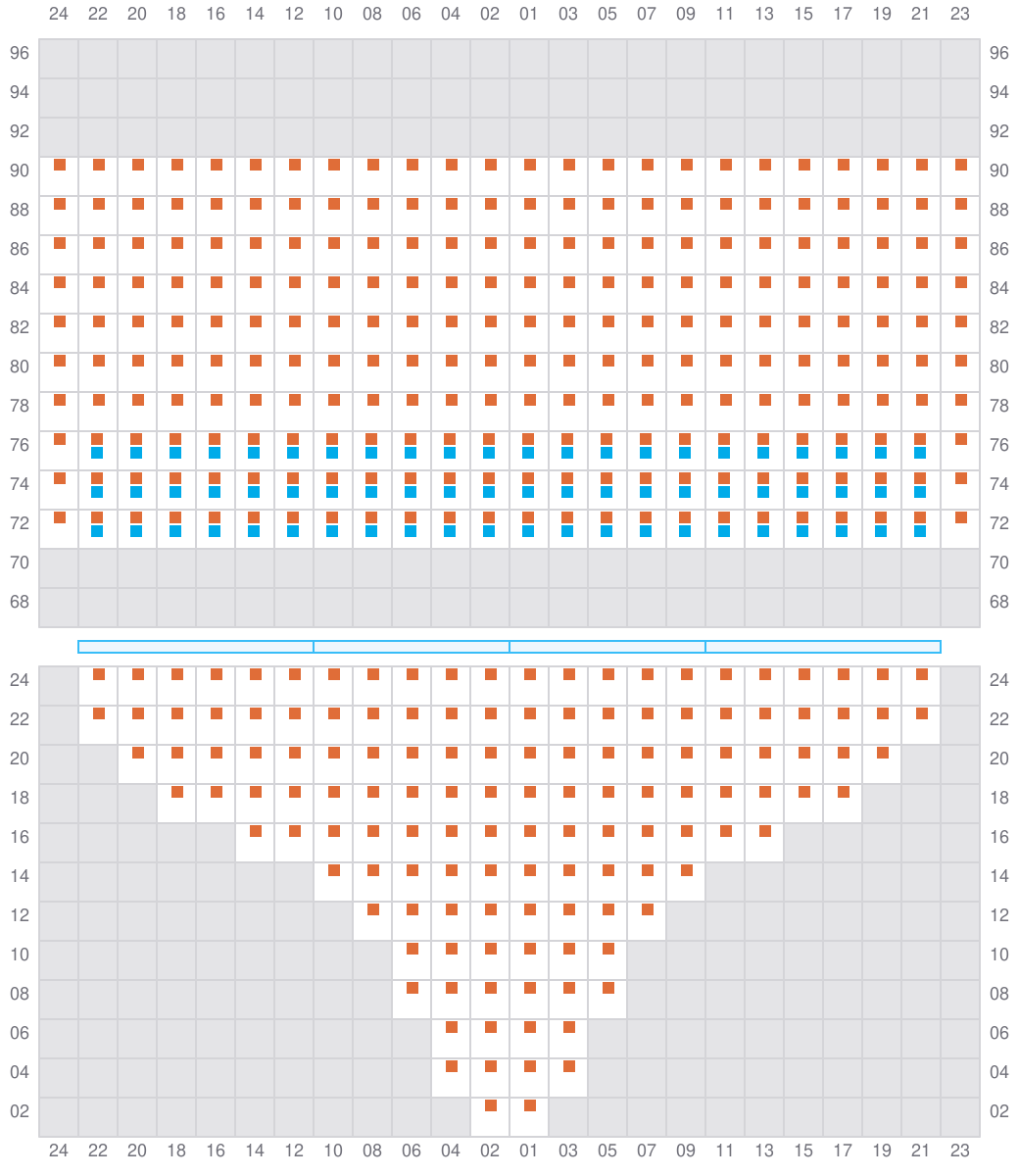

Bay 007 view and slots of EVER ACE

009 (010)

  • →
  • → / ?
  • →
Bay 009 view and slots of EVER ACE

011

  • ←
  • →

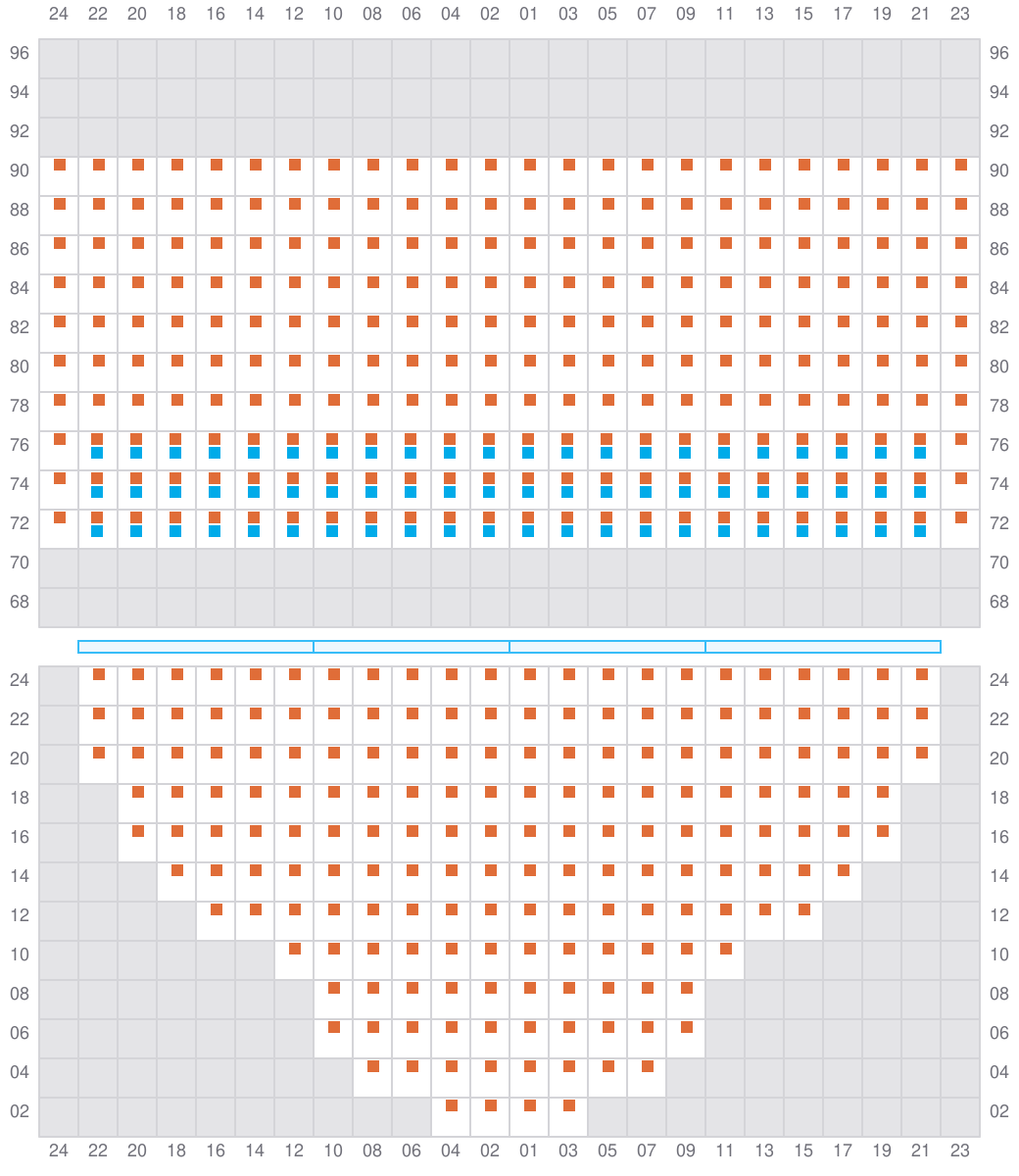

Bay 011 view and slots of EVER ACE

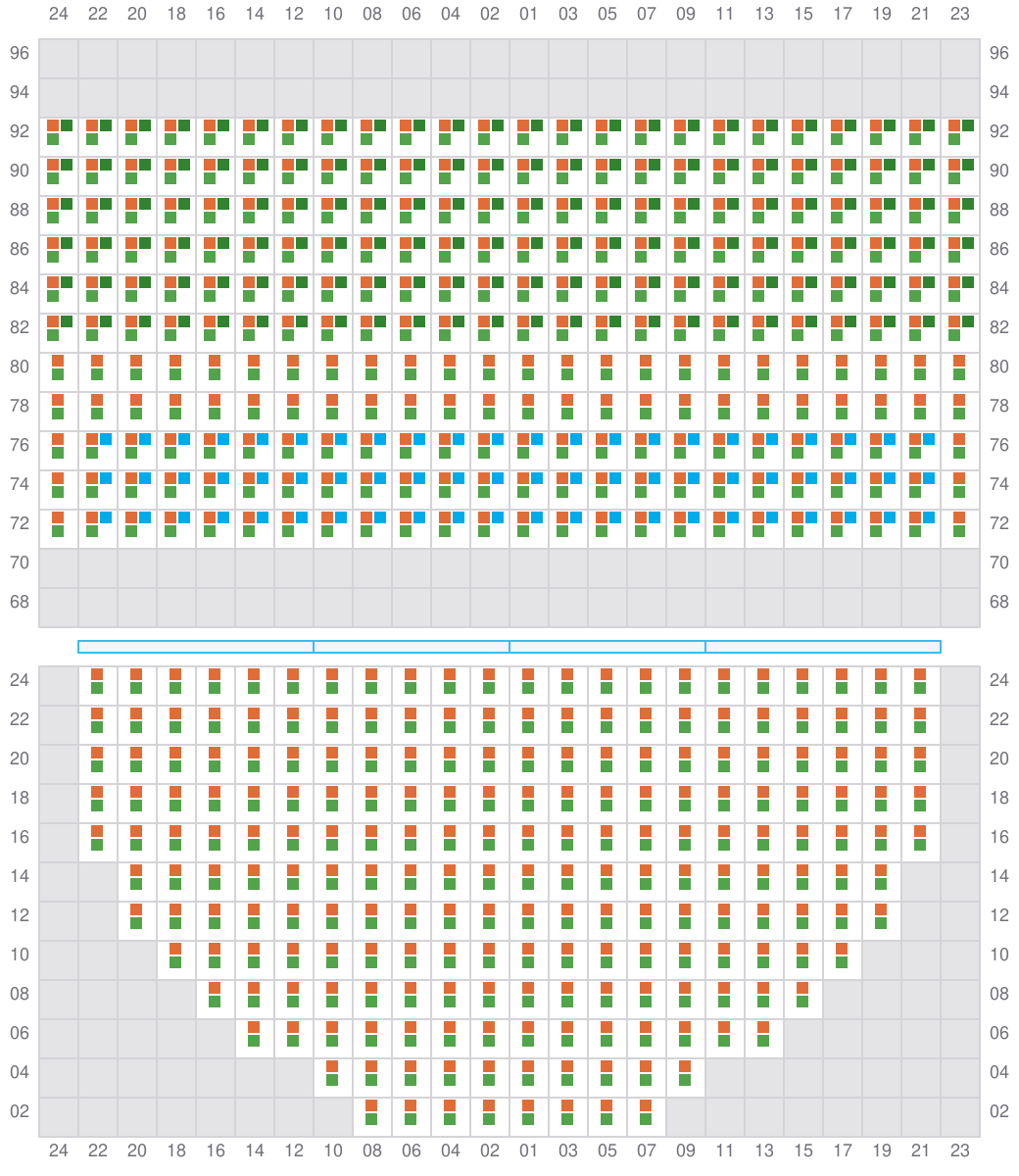

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of EVER ACE

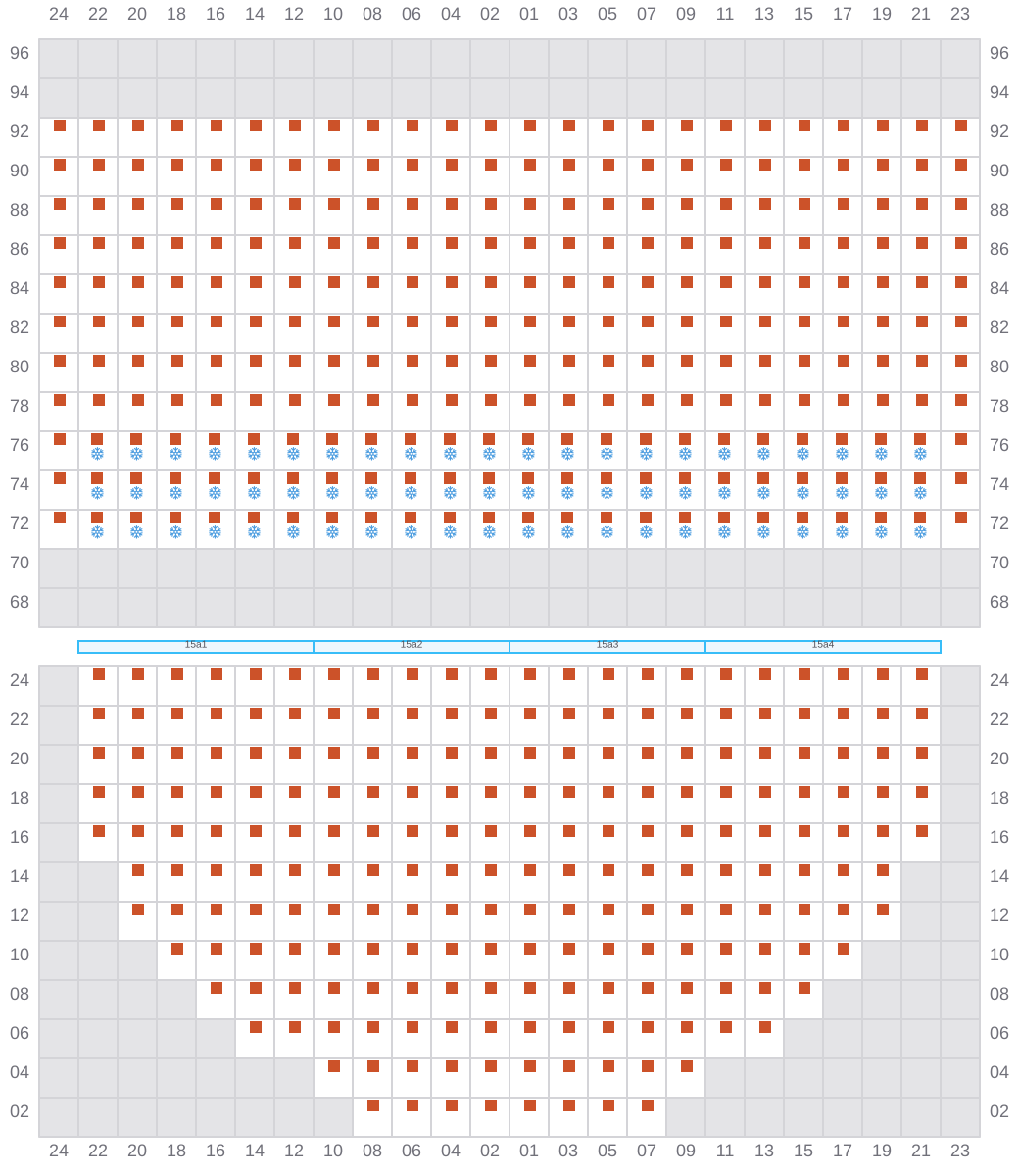

015

  • ←
  • →
Bay 015 view and slots of EVER ACE

017 (018)

  • →
  • → / ?
  • →

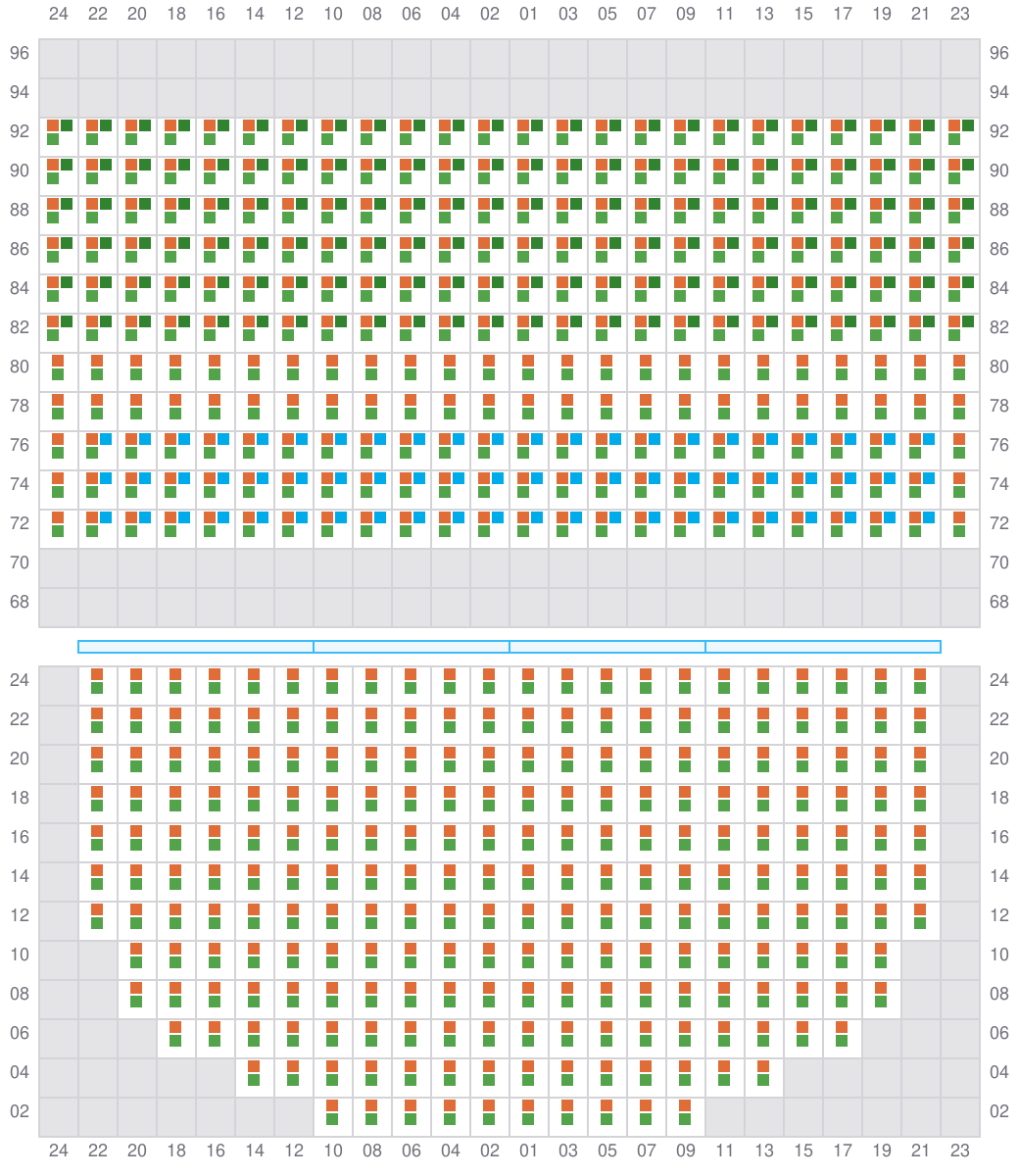

Bay 017 view and slots of EVER ACE

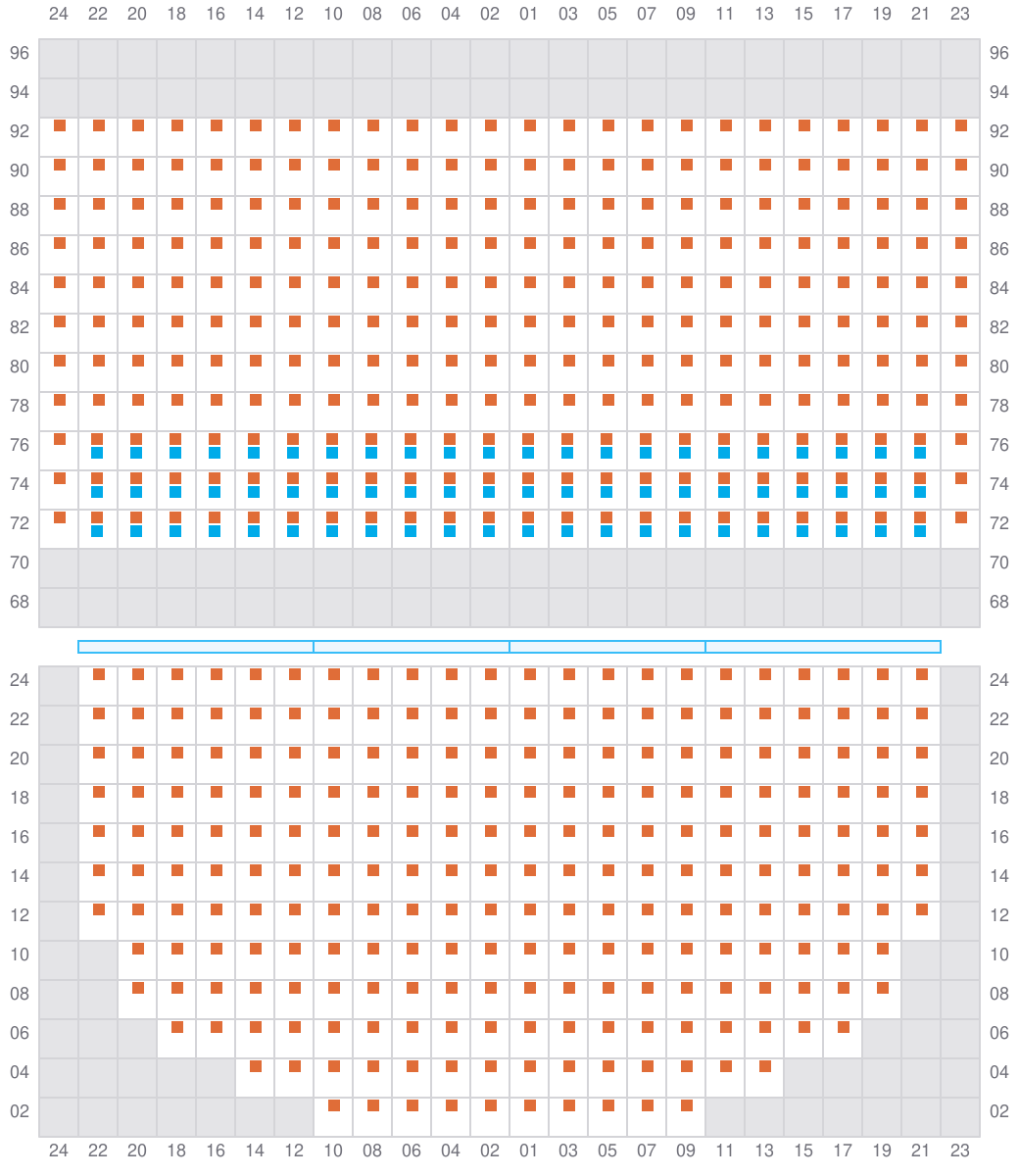

019

  • ←
  • →
Bay 019 view and slots of EVER ACE

021 (022)

  • →
  • → / ?
  • →

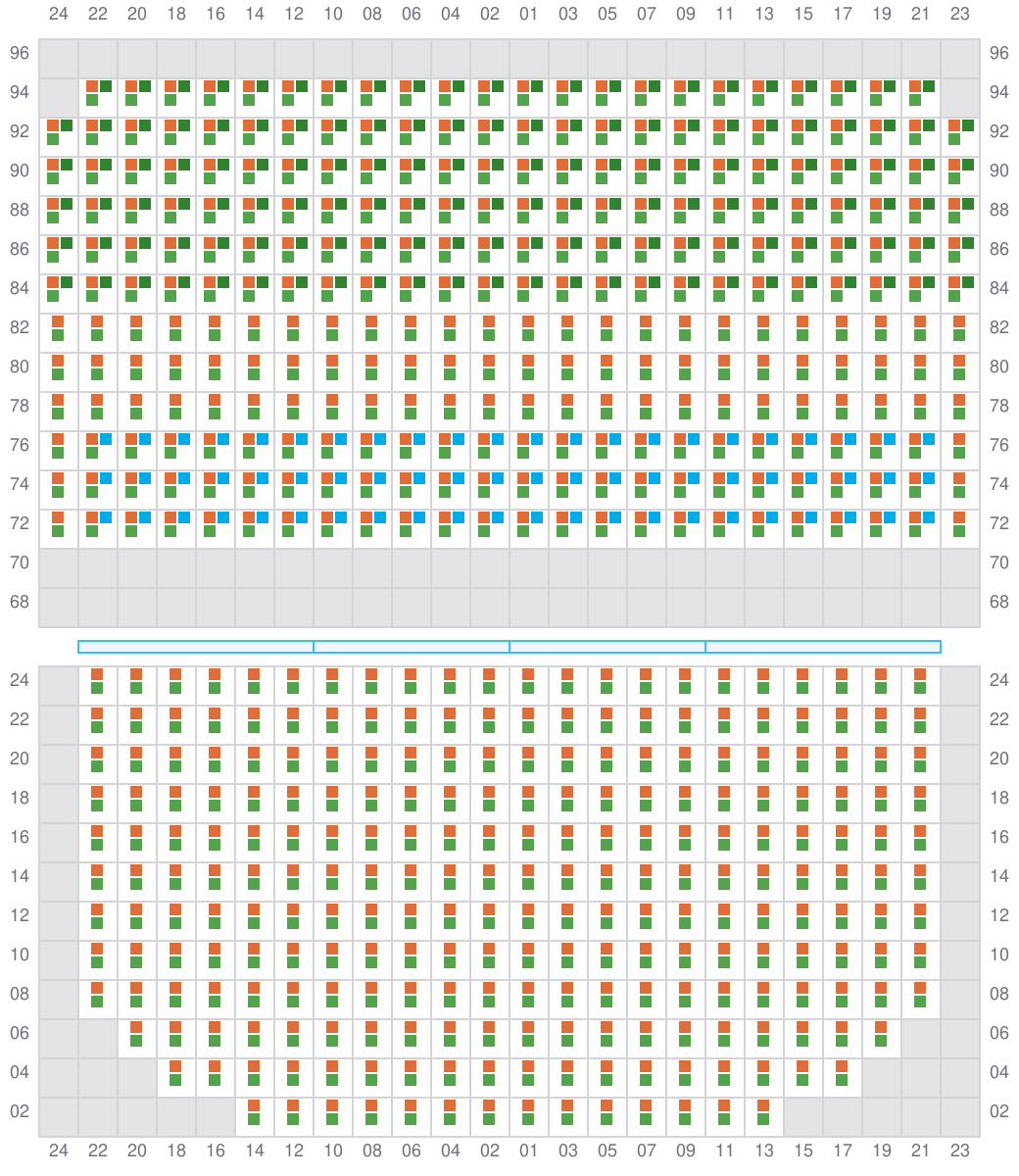

Bay 021 view and slots of EVER ACE

023

  • ←
  • →

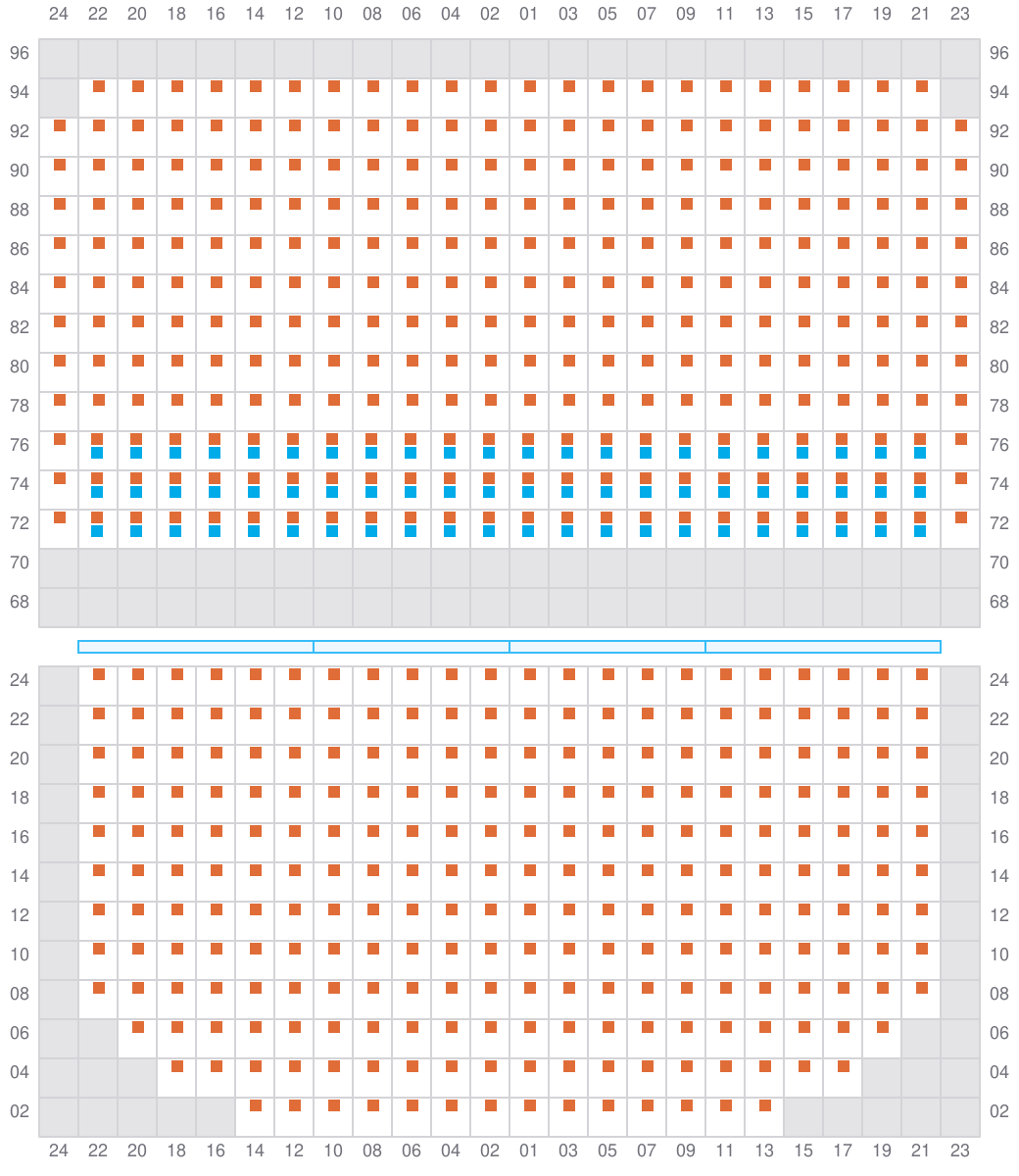

Bay 023 view and slots of EVER ACE

025 (026)

  • →
  • → / ?
  • →

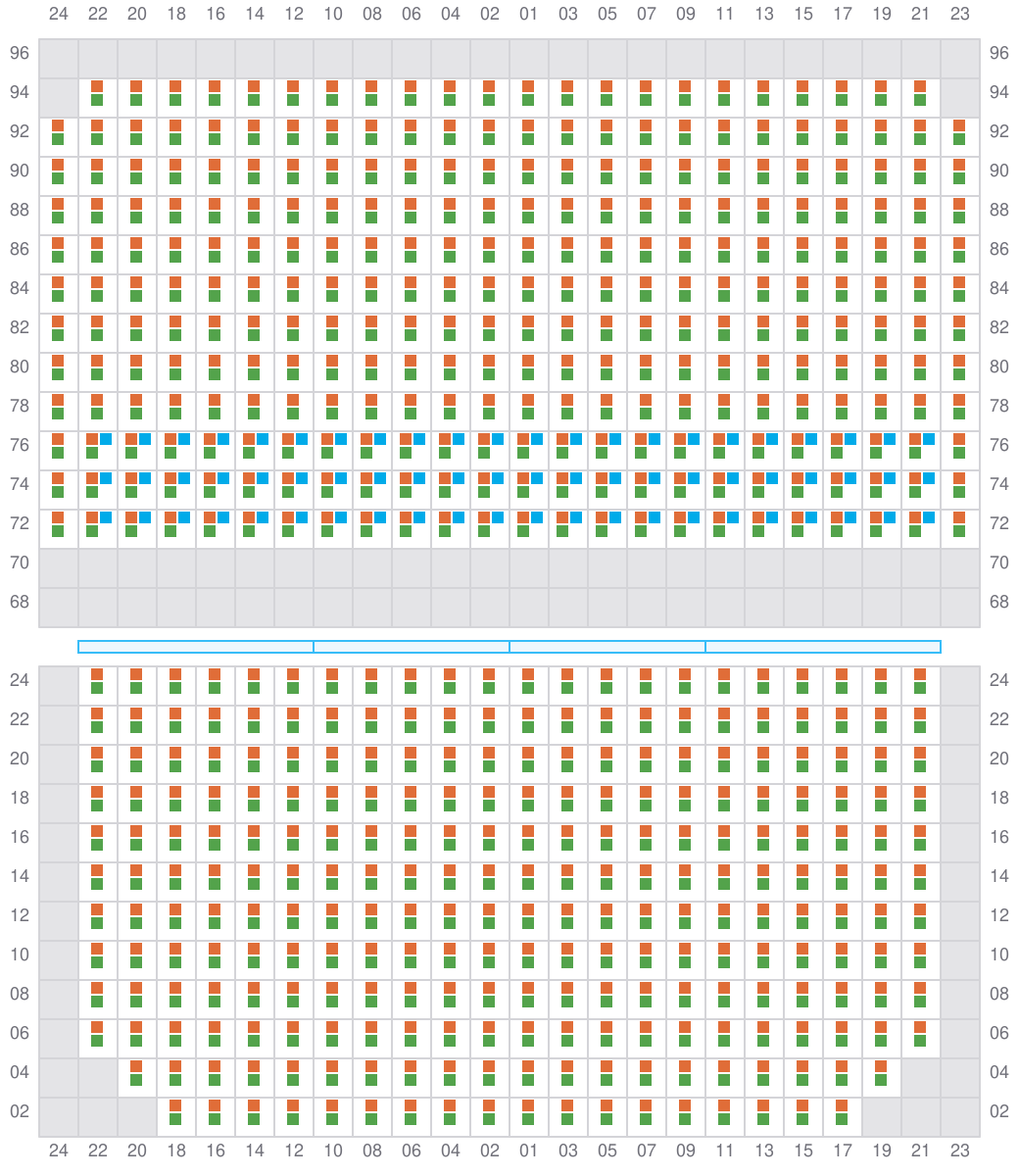

Bay 025 view and slots of EVER ACE

027

  • ←
  • →

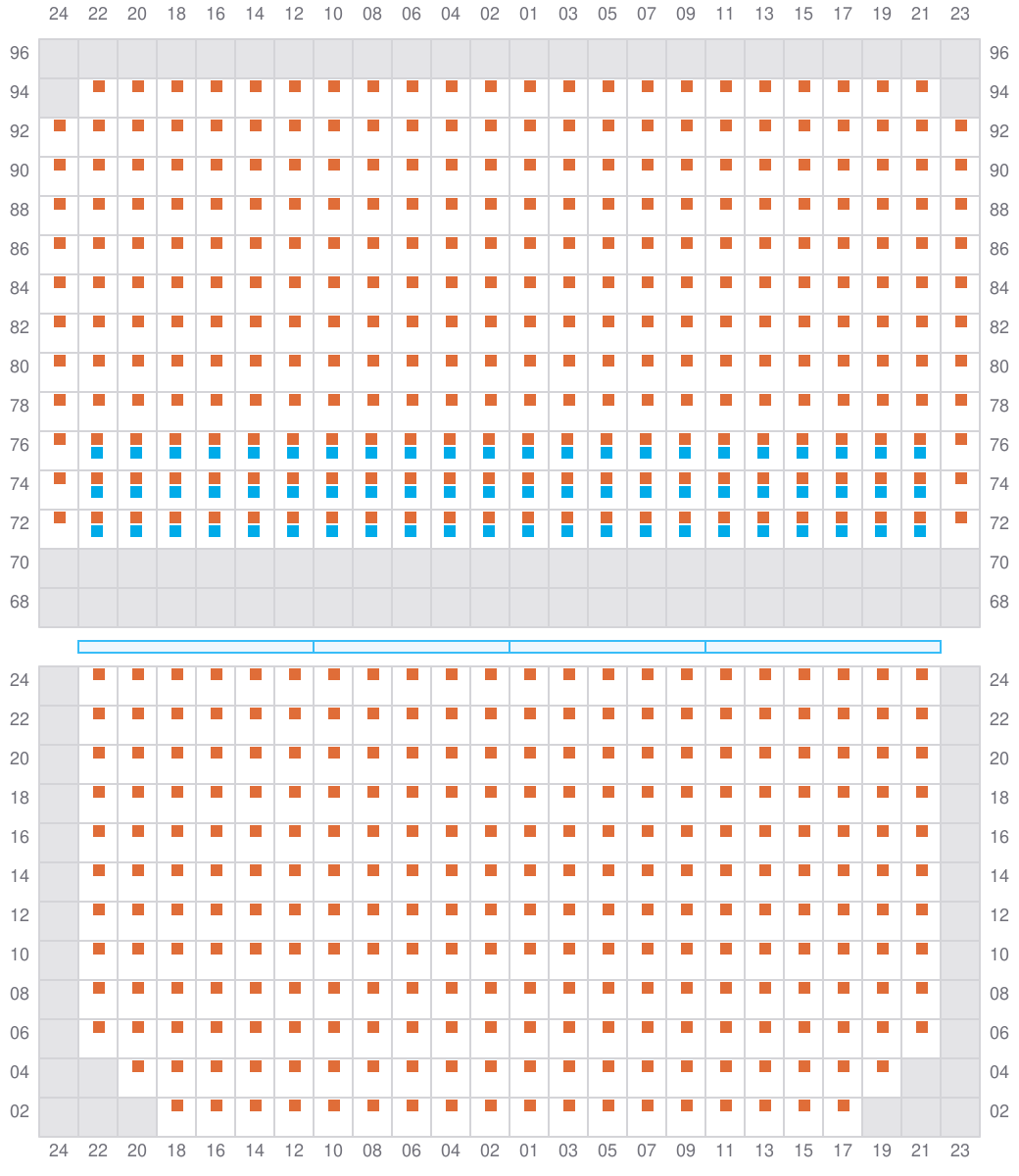

Bay 027 view and slots of EVER ACE

029 (030)

  • →
  • → / ?
  • →

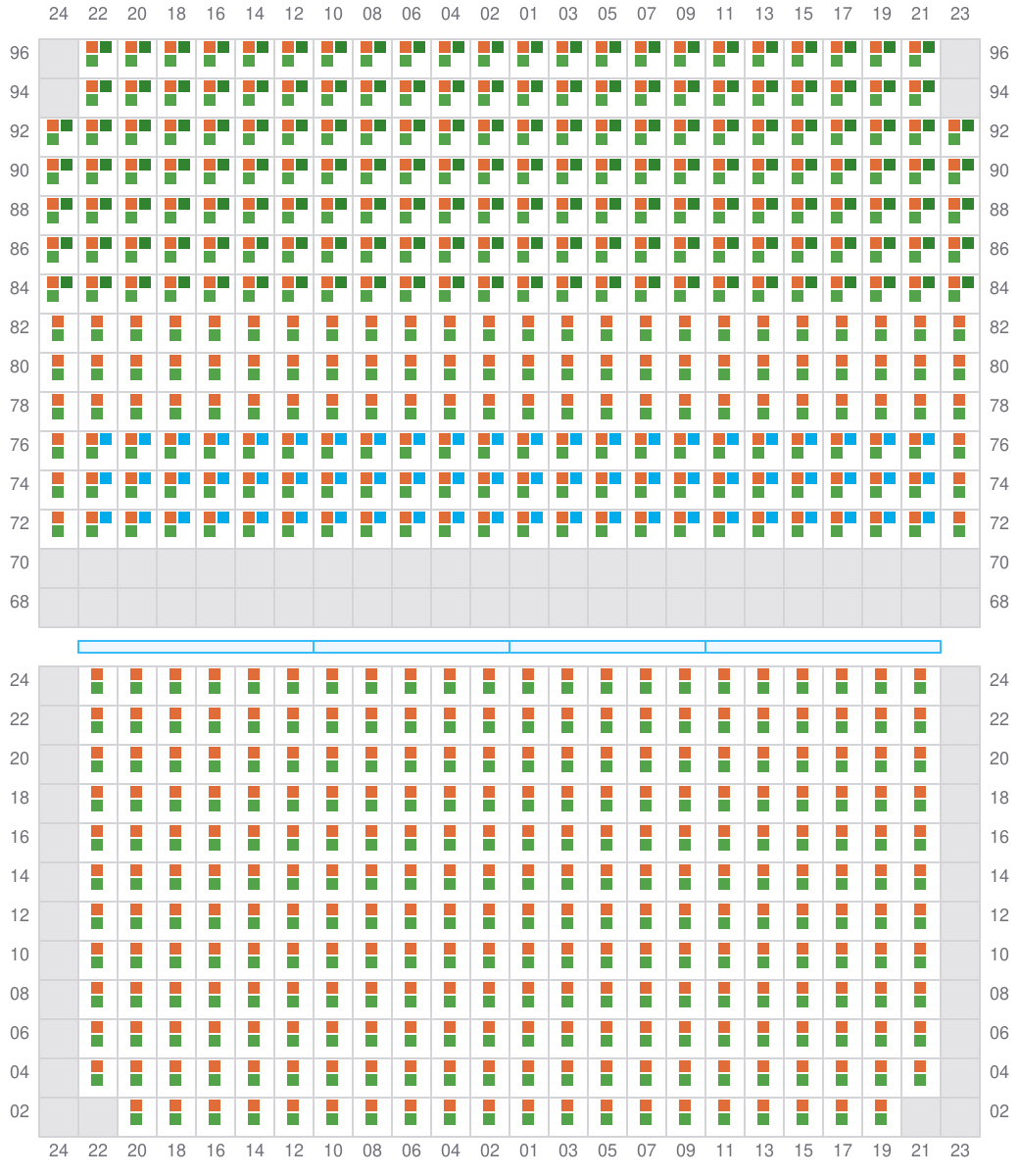

Bay 029 view and slots of EVER ACE

031

  • ←
  • →
Bay 031 view and slots of EVER ACE

033 (034)

  • →
  • → / ?
  • →
Bay 033 view and slots of EVER ACE

035

  • ←
  • →
Bay 035 view and slots of EVER ACE

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of EVER ACE

039

  • ←
  • →
Bay 039 view and slots of EVER ACE

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of EVER ACE

043

  • ←
  • →
Bay 043 view and slots of EVER ACE

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of EVER ACE

047

  • ←
  • →
Bay 047 view and slots of EVER ACE

049 (050)

  • →
  • → / ?
  • →

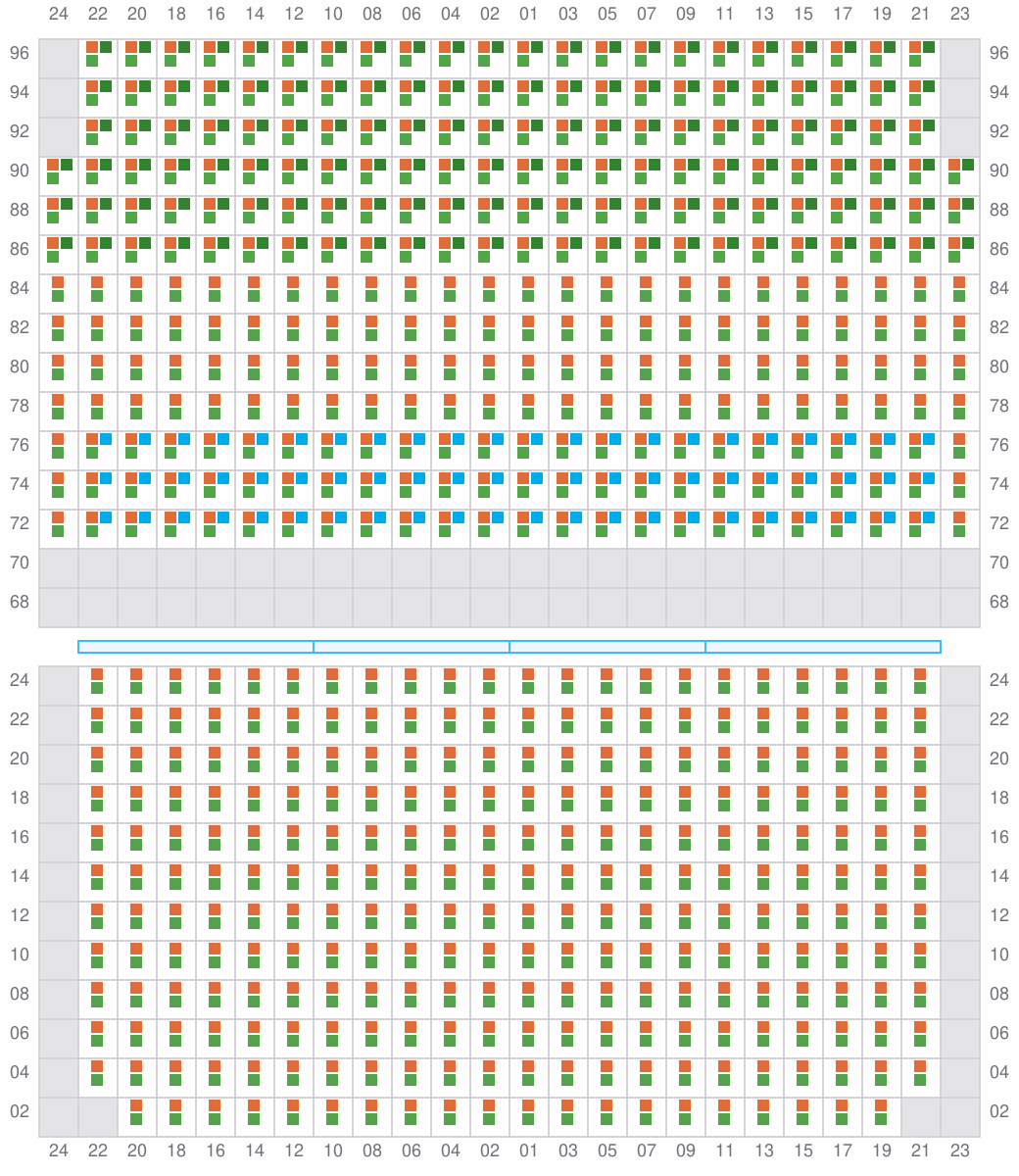

Bay 049 view and slots of EVER ACE

051

  • ←
  • →
Bay 051 view and slots of EVER ACE

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of EVER ACE

055

  • ←
  • →
Bay 055 view and slots of EVER ACE

057 (058)

  • →
  • → / ?
  • →

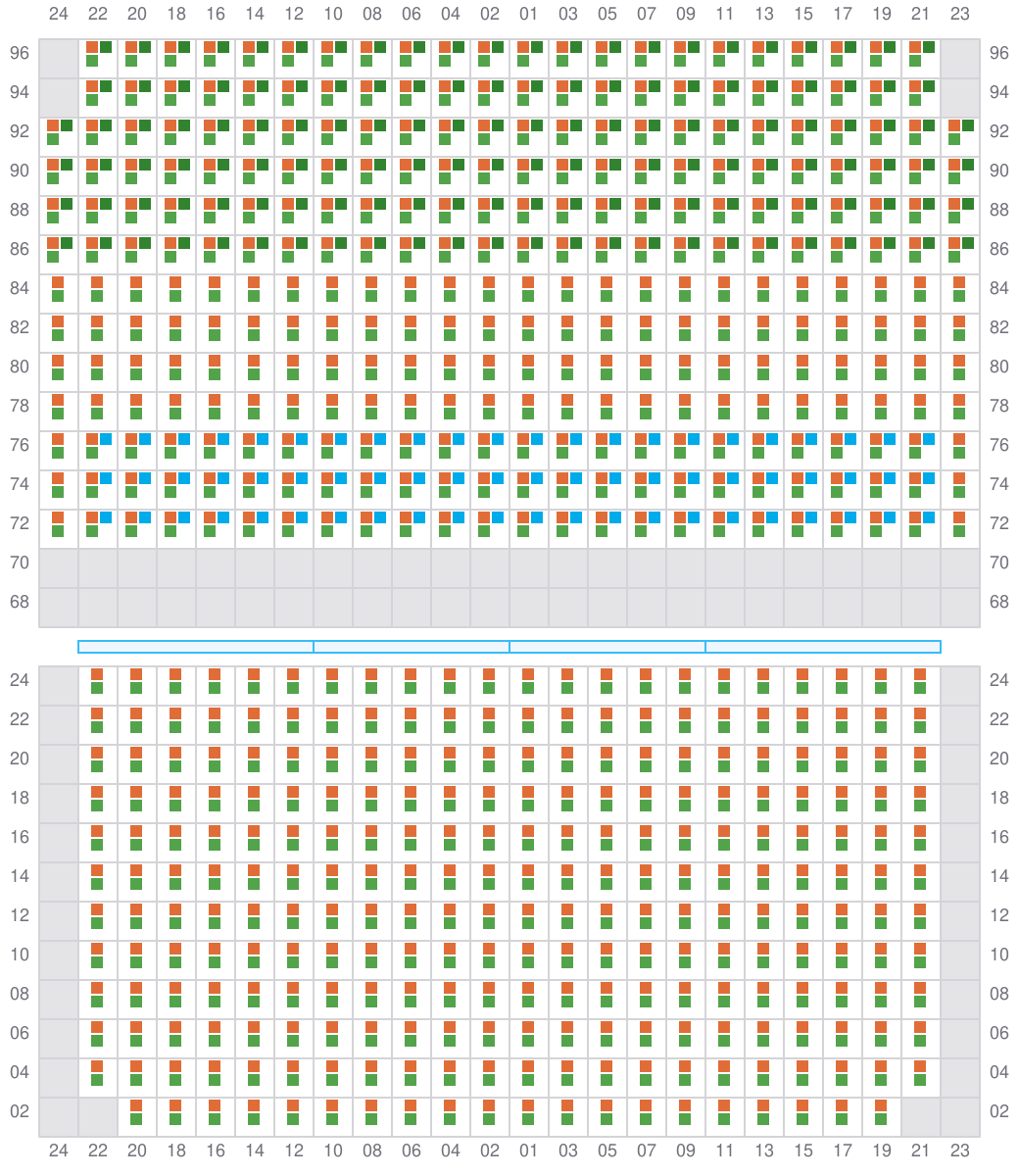

Bay 057 view and slots of EVER ACE

059

  • ←
  • →

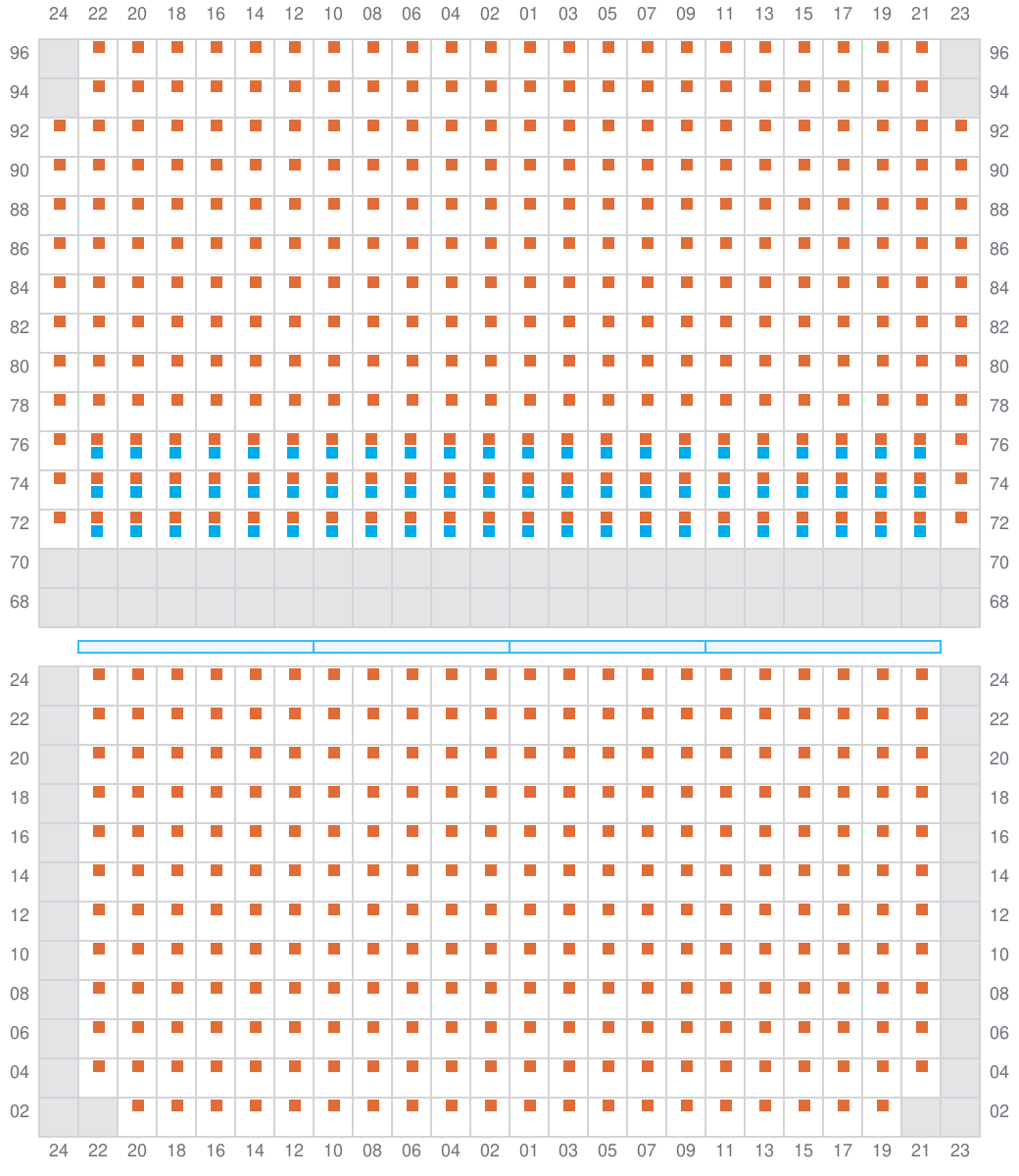

Bay 059 view and slots of EVER ACE

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of EVER ACE

063

  • ←
  • →
Bay 063 view and slots of EVER ACE

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of EVER ACE

067

  • ←
  • →
Bay 067 view and slots of EVER ACE

069 (070)

  • →
  • → / ?
  • →

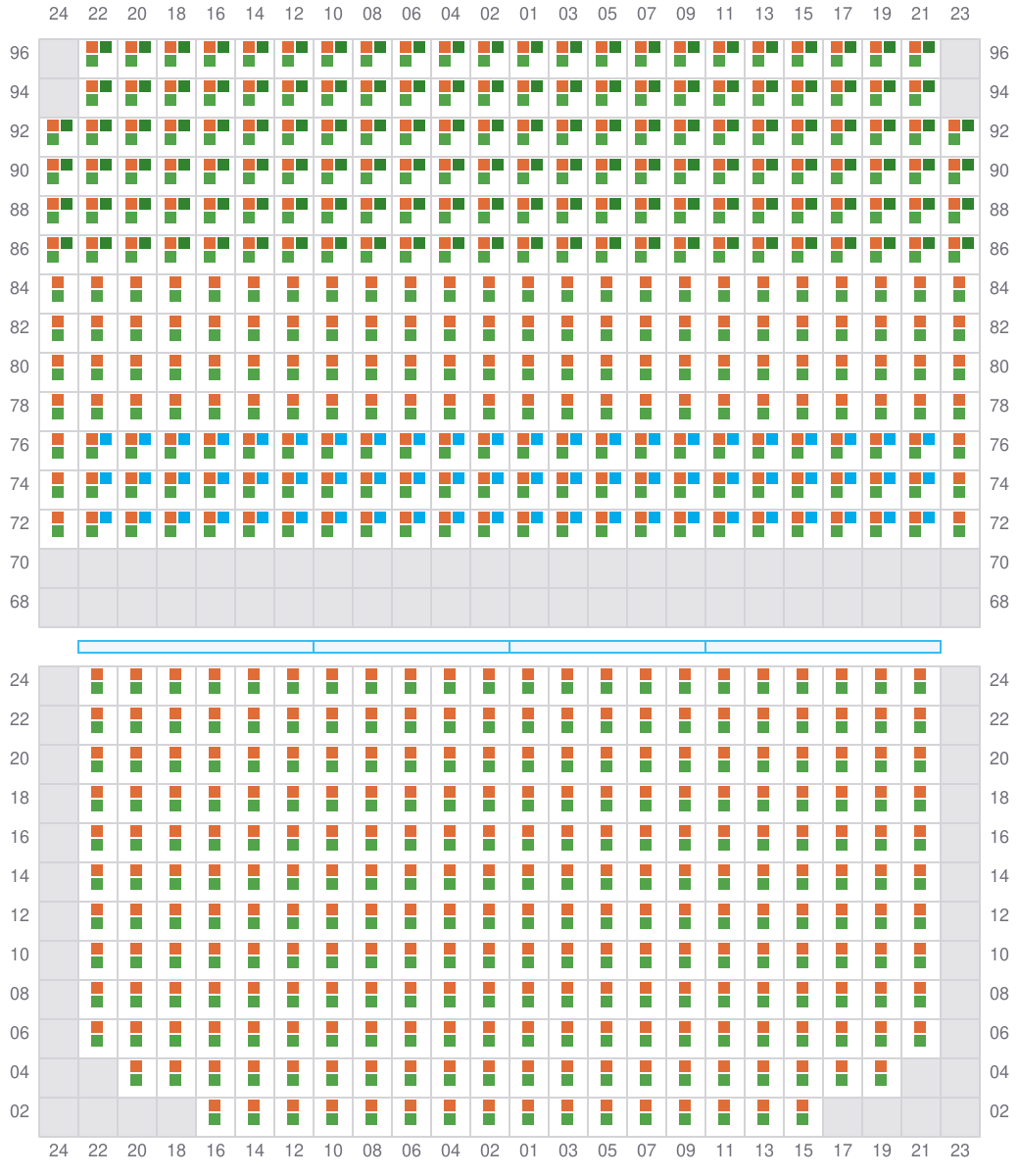

Bay 069 view and slots of EVER ACE

071

  • ←
  • →

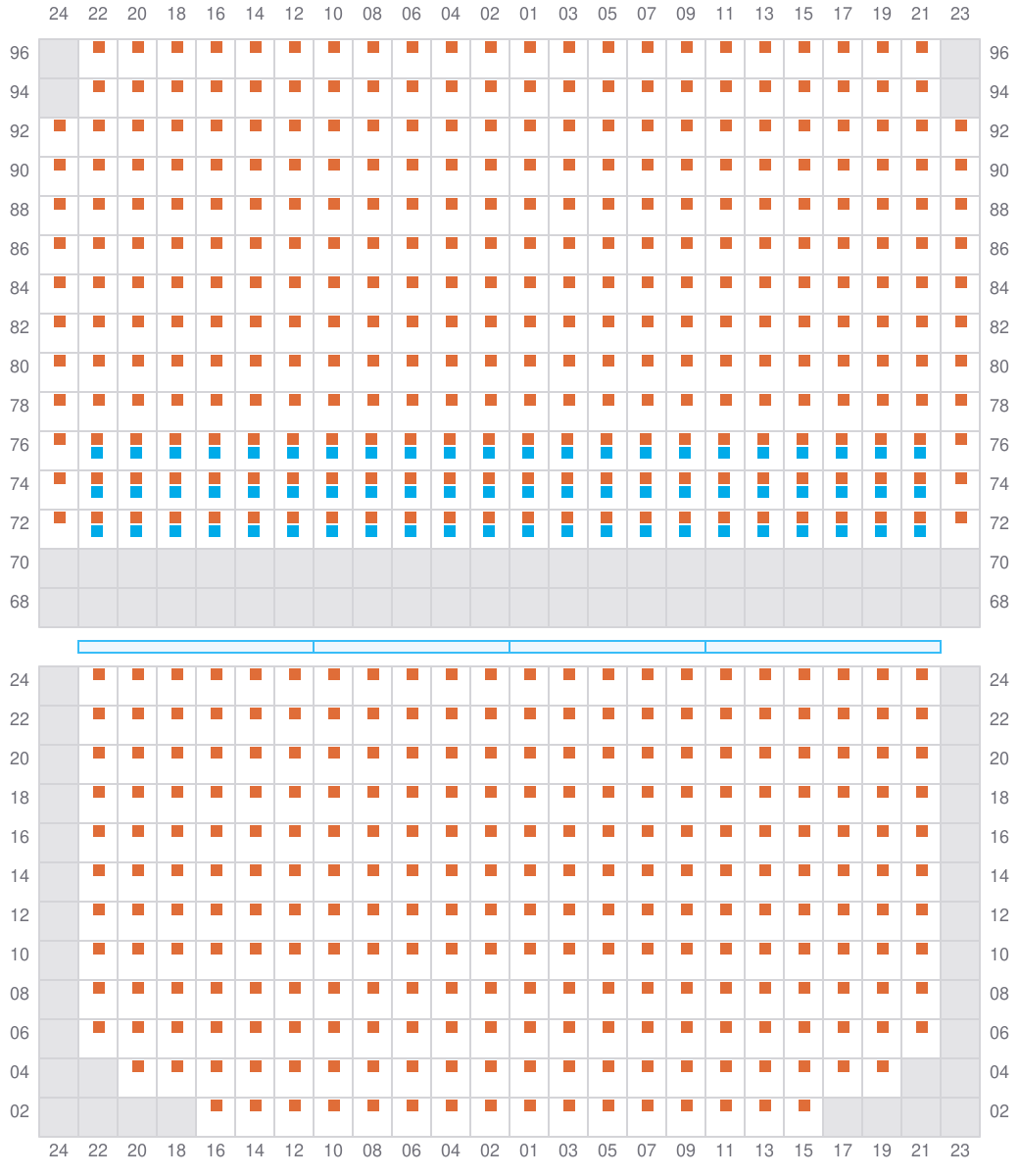

Bay 071 view and slots of EVER ACE

073 (074)

  • →
  • → / ?
  • →

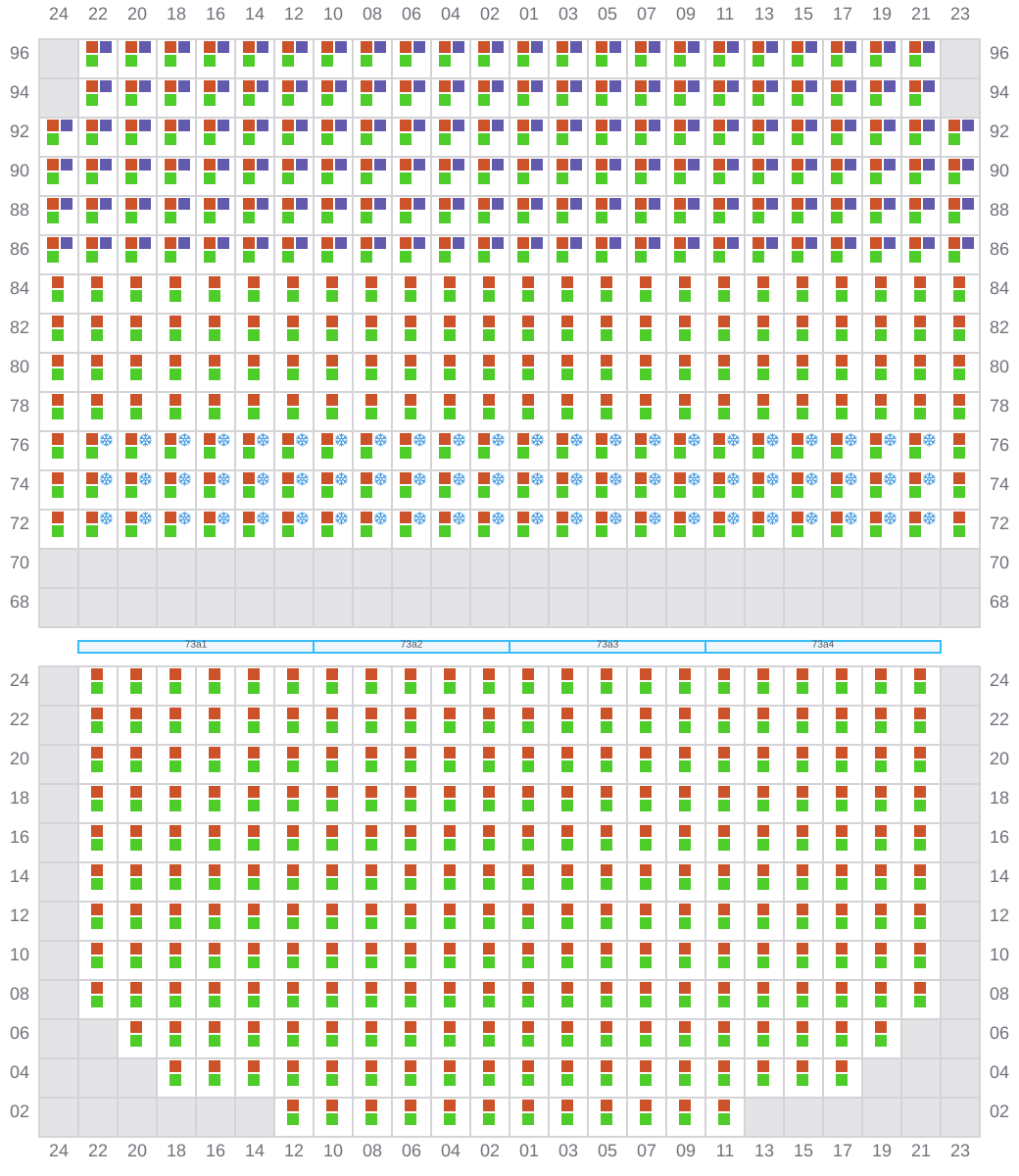

Bay 073 view and slots of EVER ACE

075

  • ←
  • →

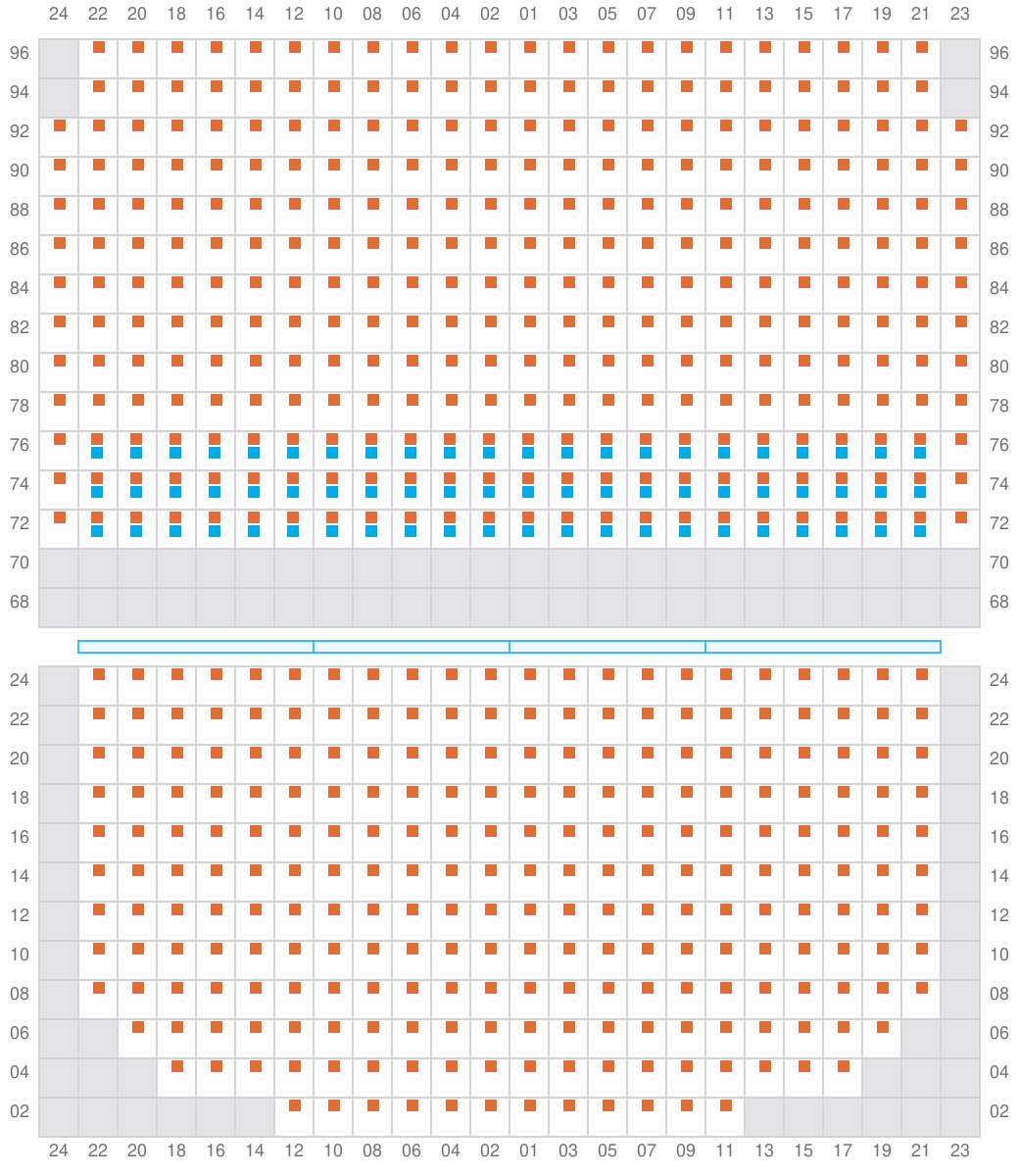

Bay 075 view and slots of EVER ACE

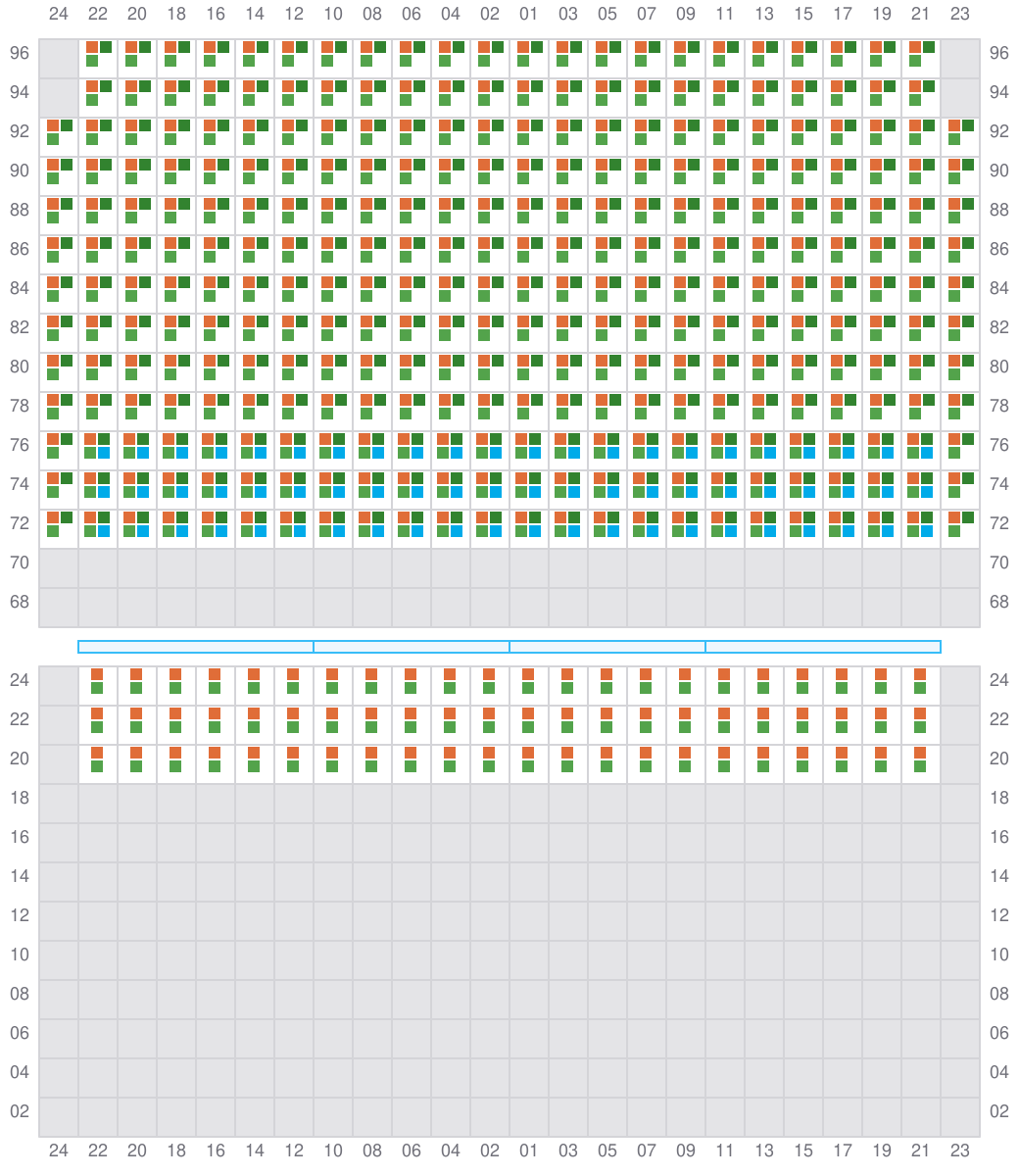

077 (078)

  • →
  • → / ?
  • →
Bay 077 view and slots of EVER ACE

079

  • ←
  • →

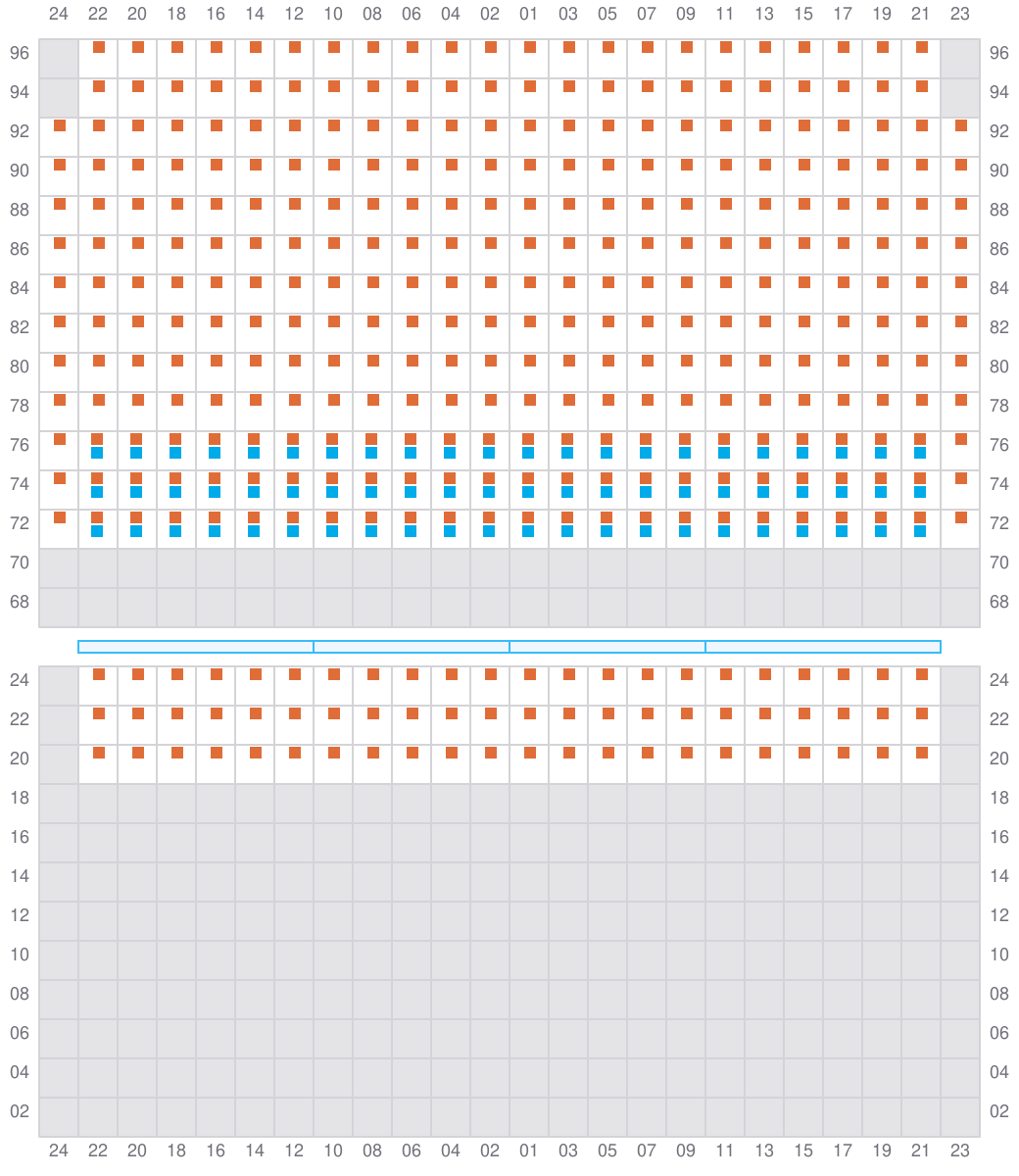

Bay 079 view and slots of EVER ACE

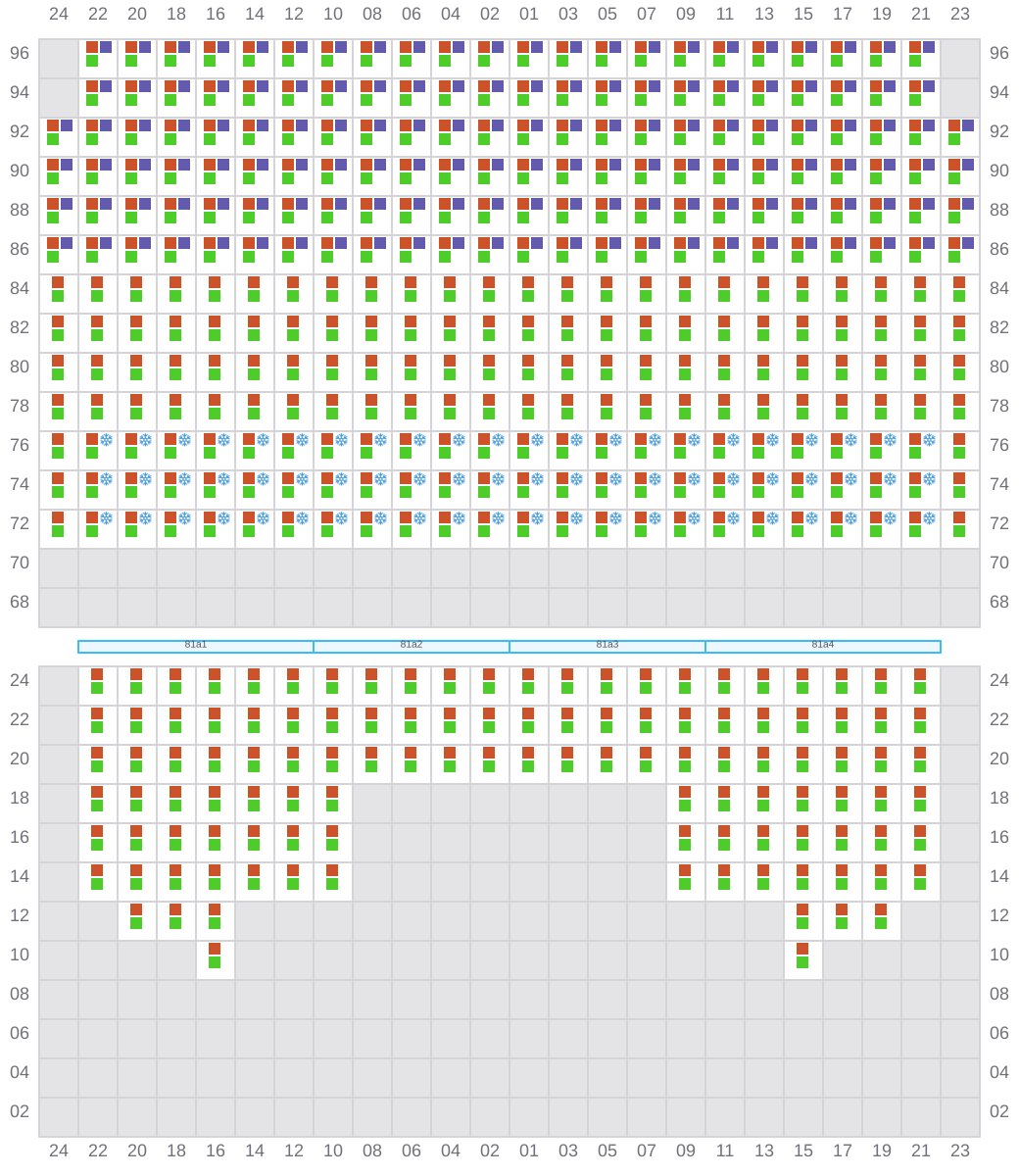

081 (082)

  • →
  • ← / ?
  • →
Bay 081 view and slots of EVER ACE

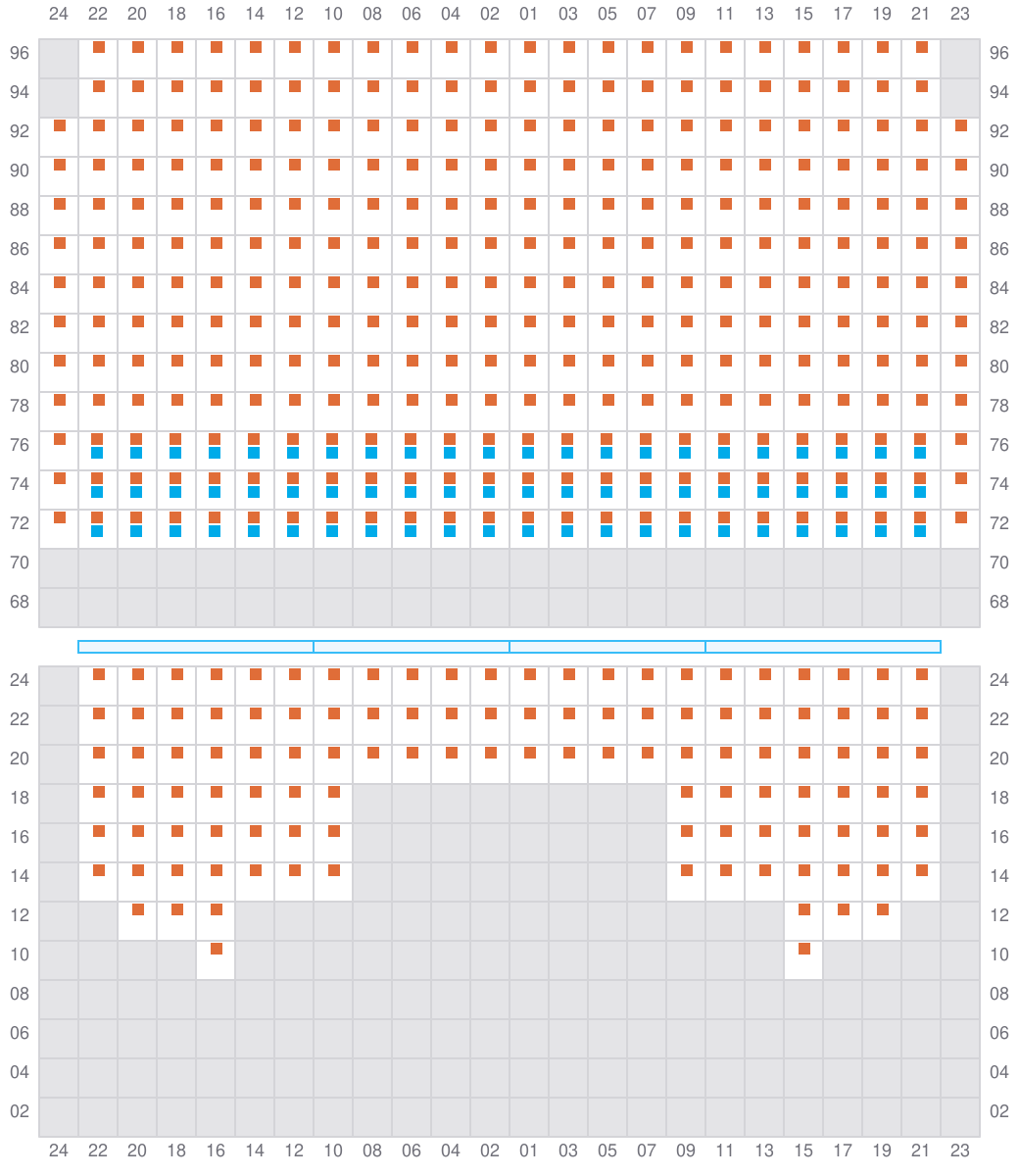

083

  • ←
  • →
Bay 083 view and slots of EVER ACE

085 (086)

  • →
  • ← / ?
  • →

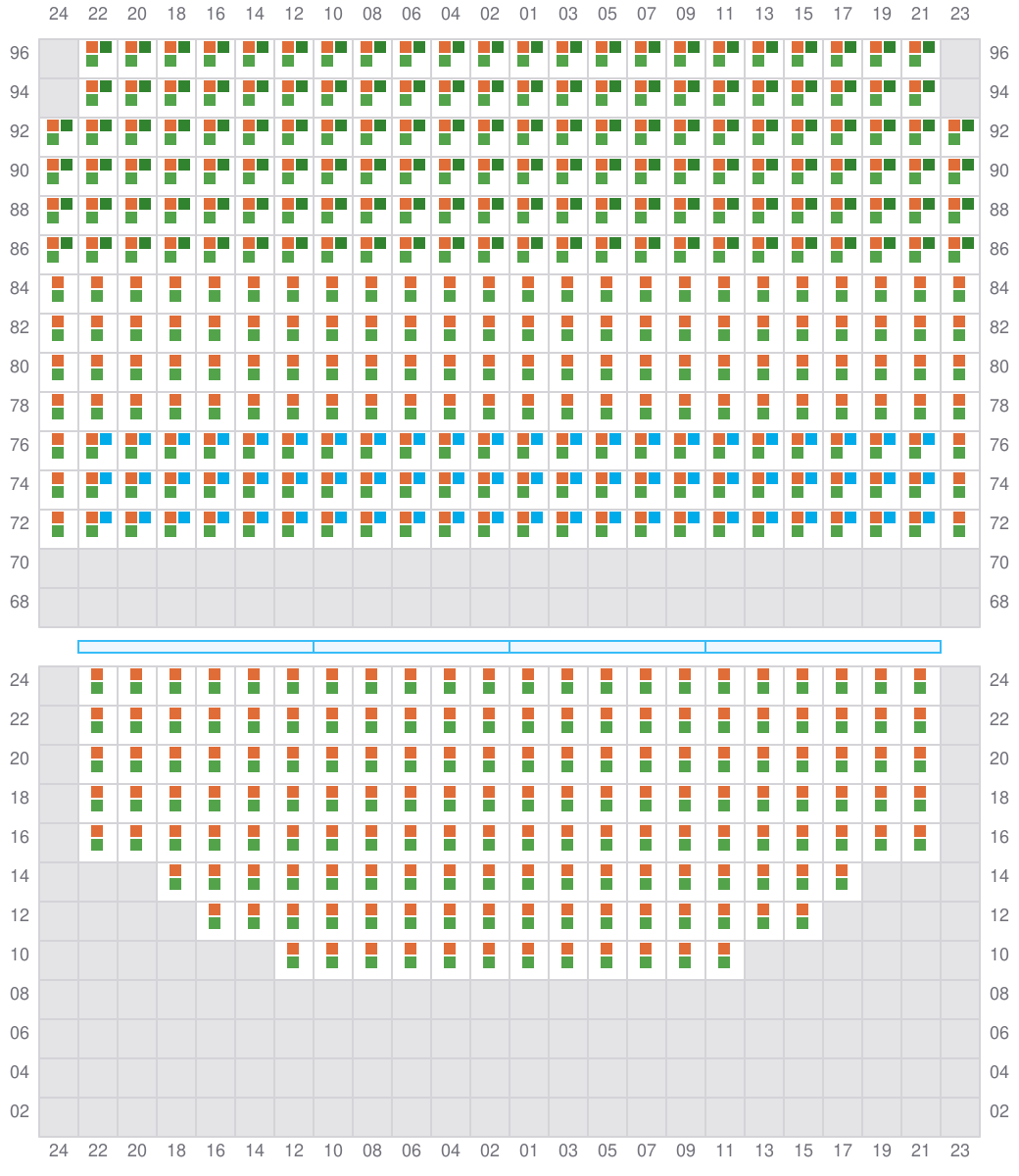

Bay 085 view and slots of EVER ACE

087

  • ←
  • →

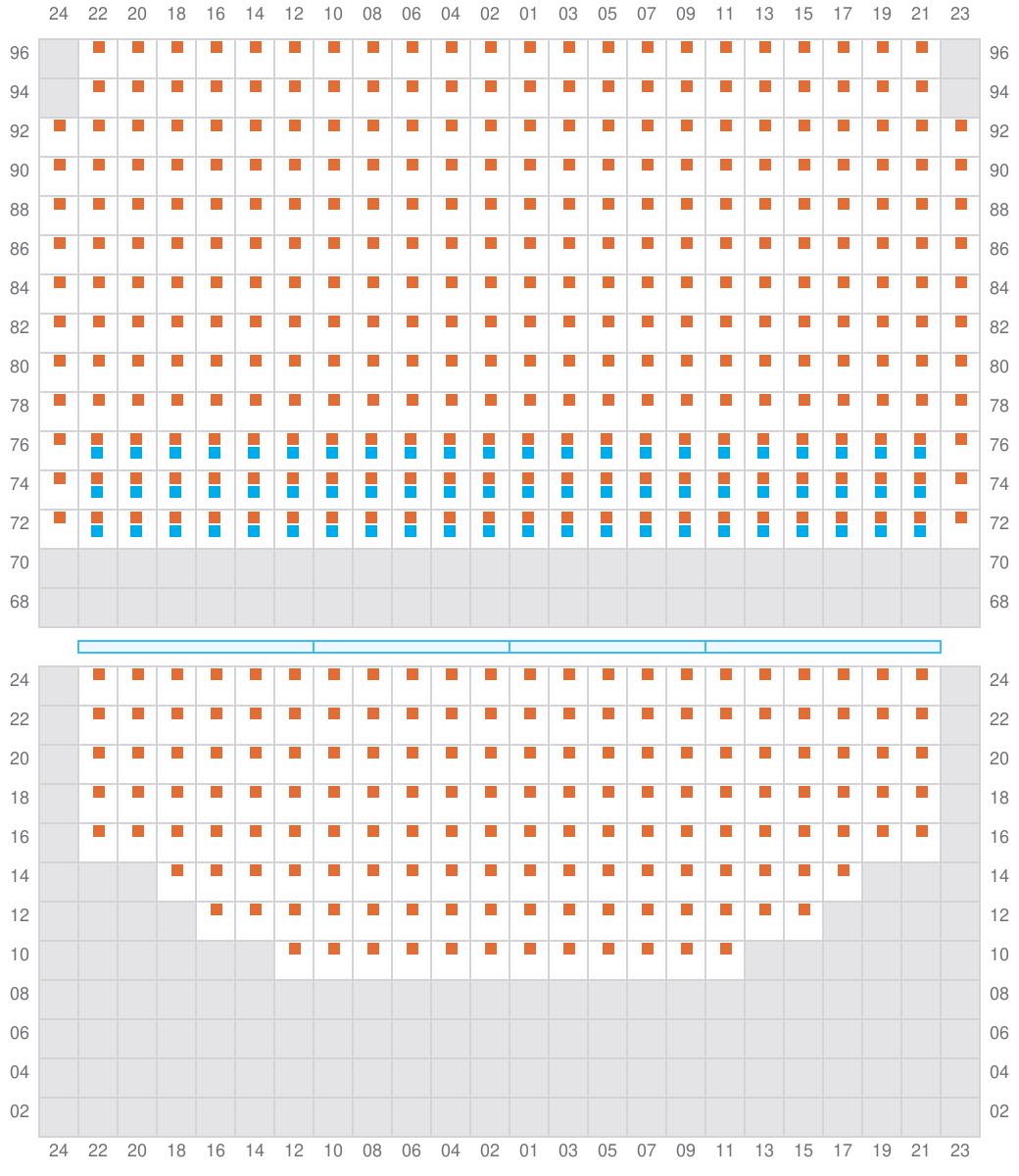

Bay 087 view and slots of EVER ACE

089 (090)

  • →
  • ← / ?
  • →

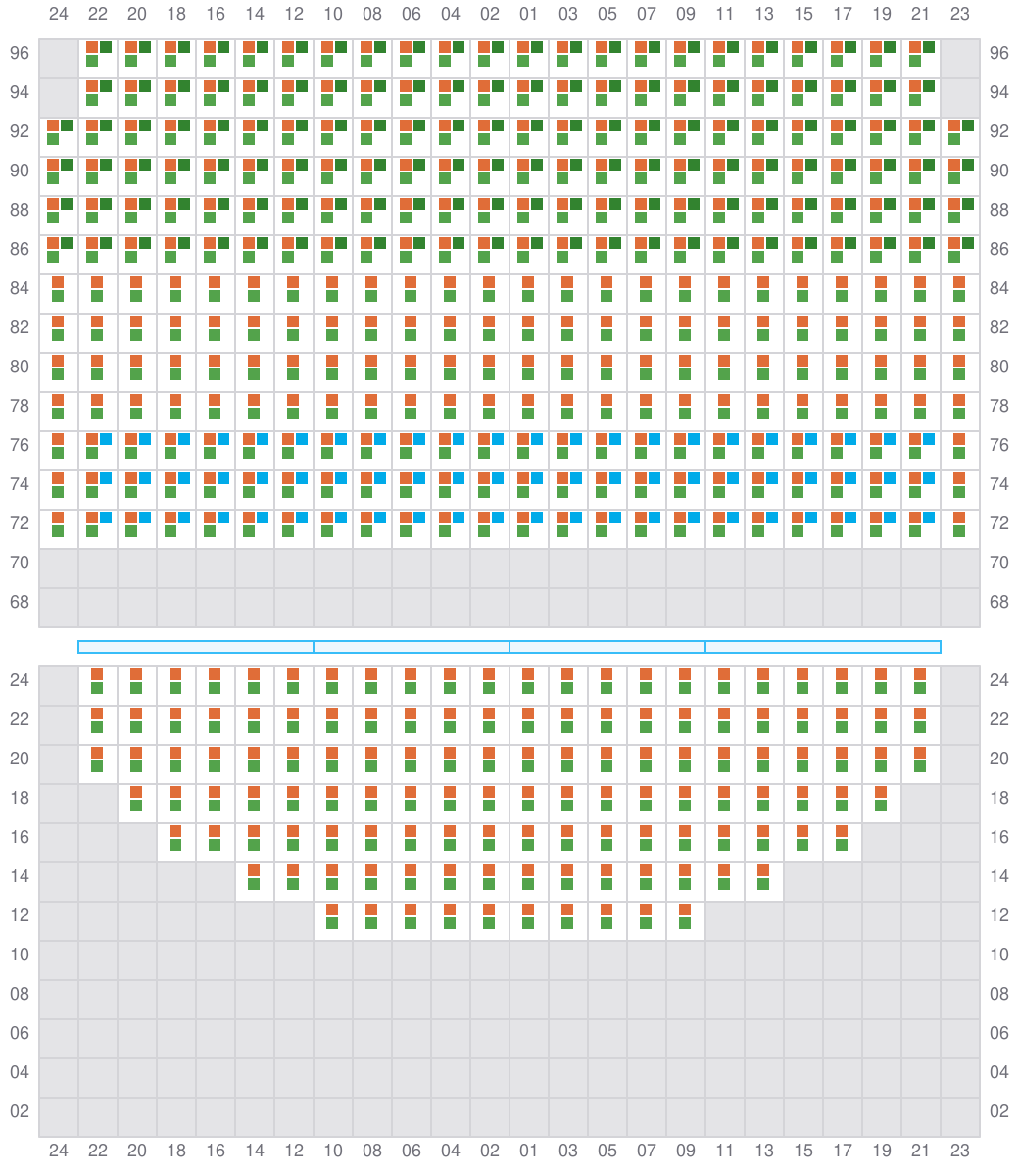

Bay 089 view and slots of EVER ACE

091

  • ←
  • →

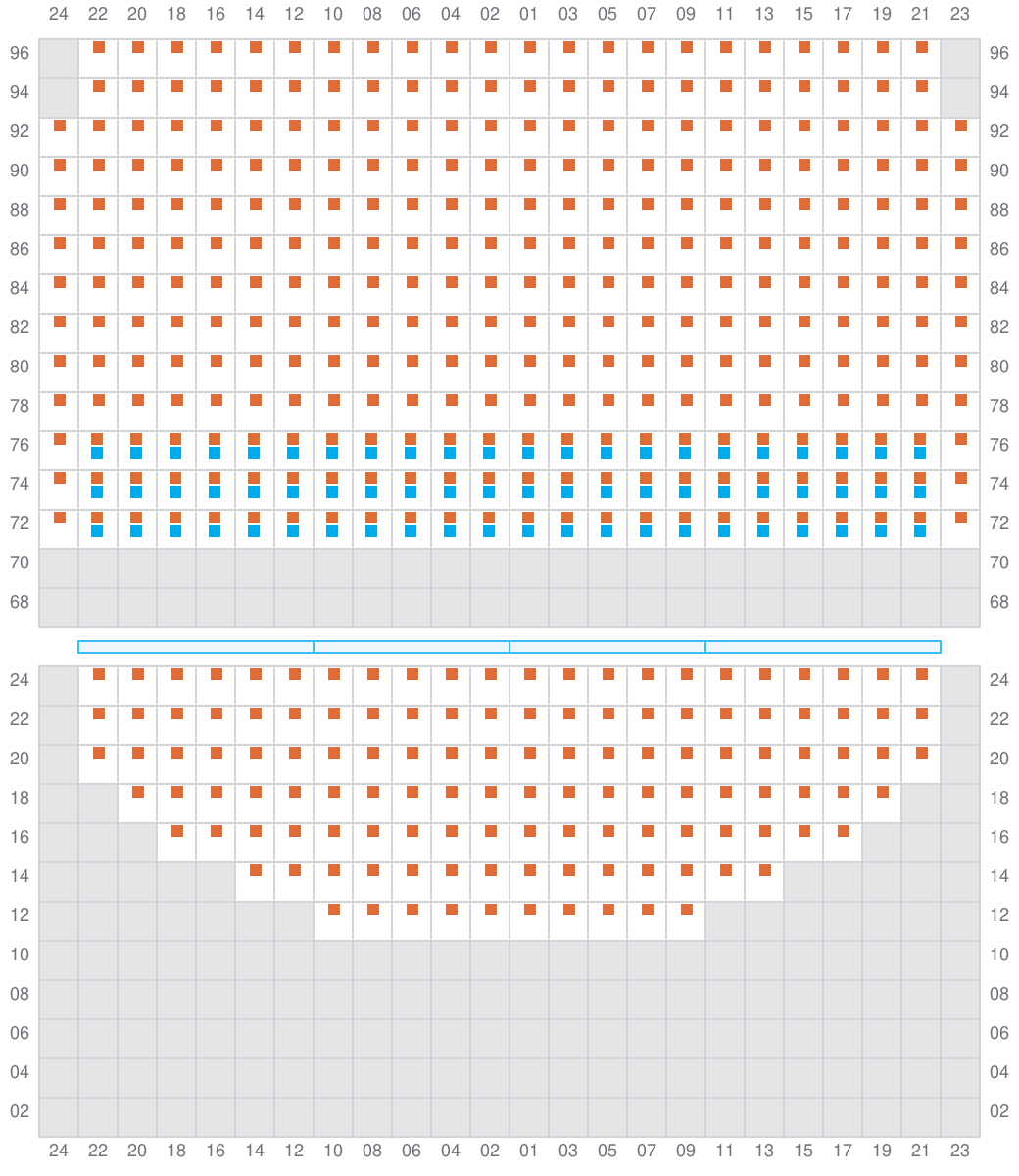

Bay 091 view and slots of EVER ACE

093 (094)

  • → / ?
  • → / ?

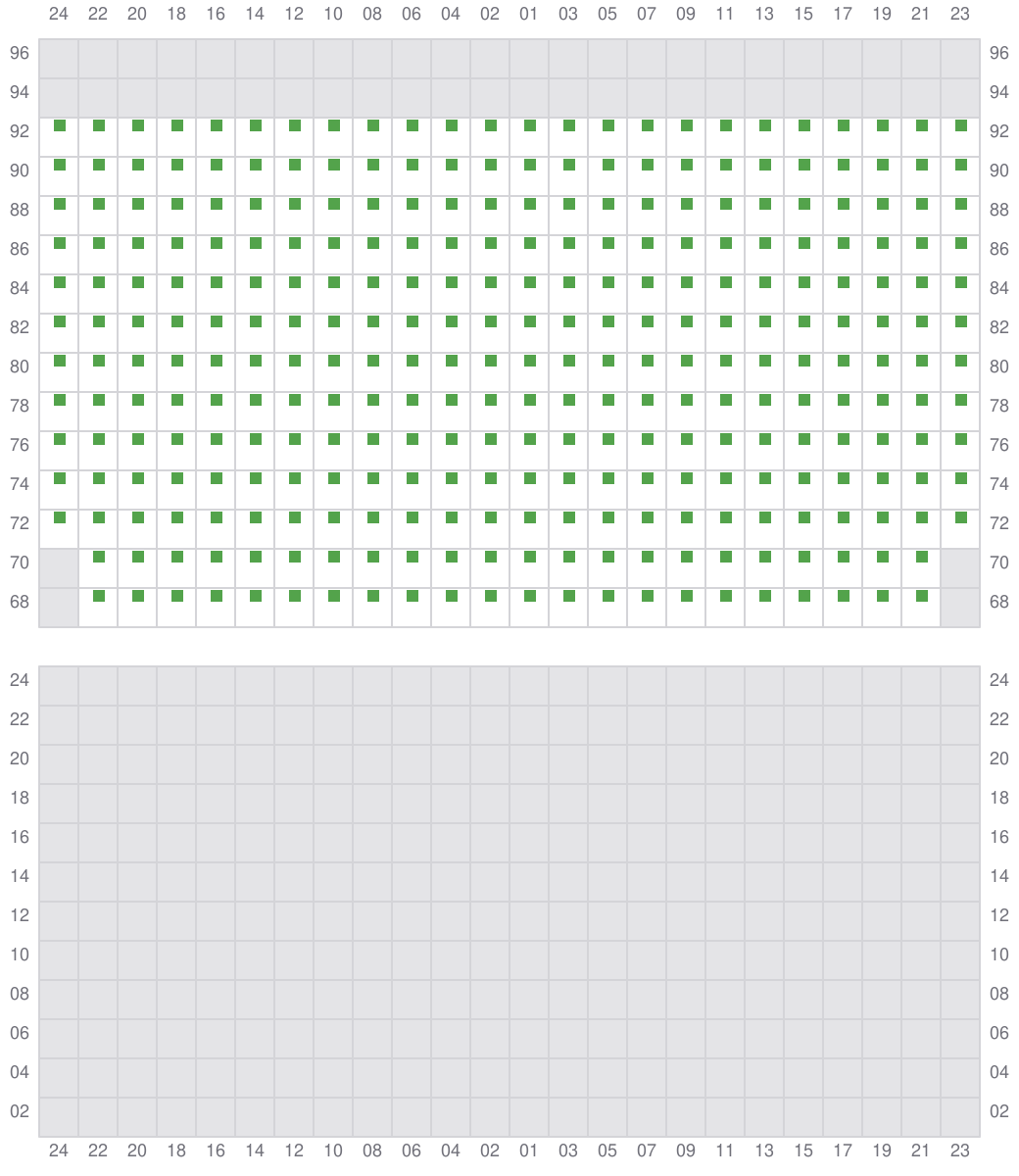

Bay 093 view and slots of EVER ACE
