EVER BLISS
9786932 | H9PP | 9786932 by ********* Last update: Tue May 07 2024
General Info
Ship Name:EVER BLISS
IMO Code:9786932
Call Sign:H9PP
Line Operator:9786932
Class Name for Sister Ships:EVER BLISS
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,926
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

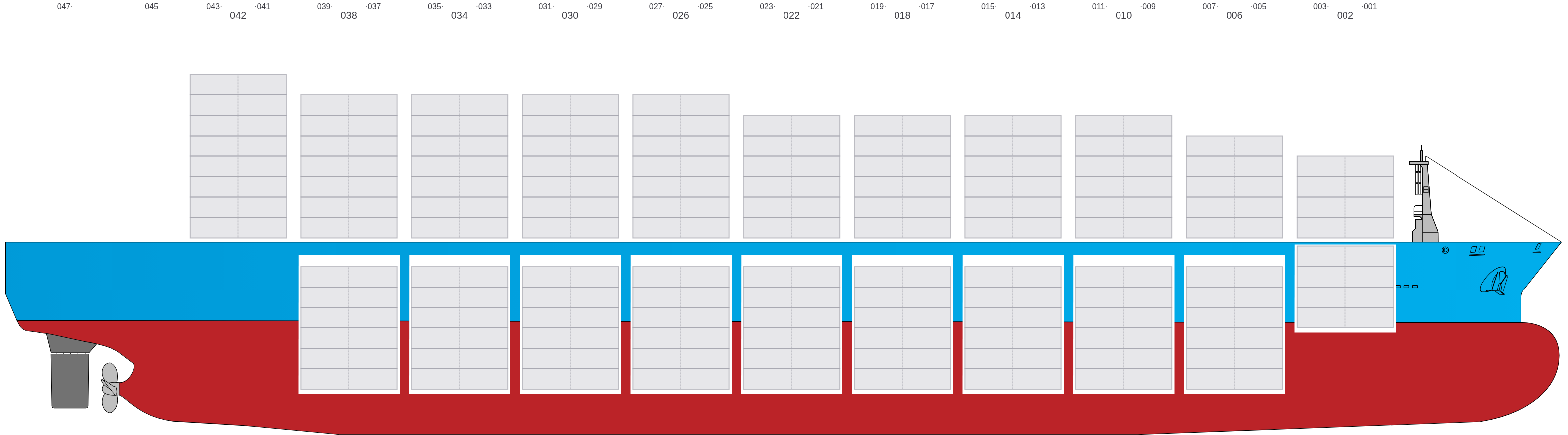

Side View
![Side view of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-sideView.png?v=1715112739583)

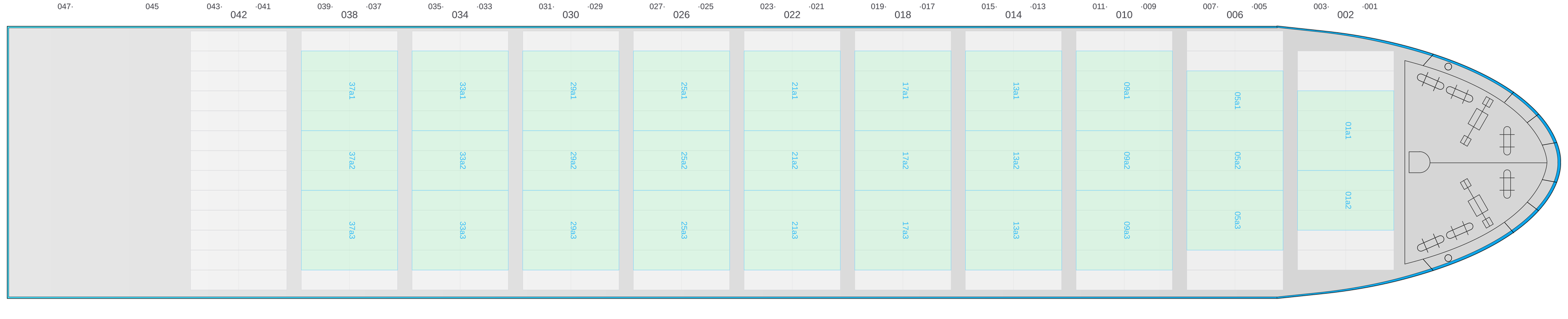

Hatch-Covers View
![Deck view of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-deckView.png?v=1715112739583)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

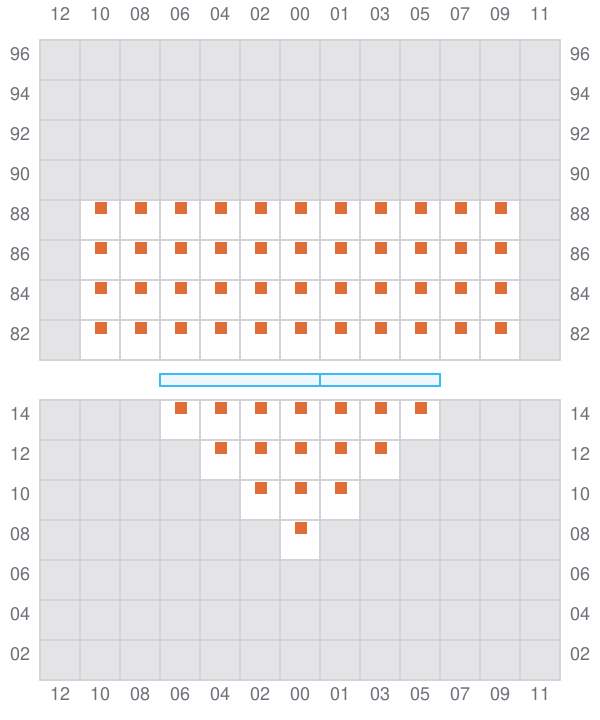

001
- →
![Bay 001 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b001.png?v=1715112739583)

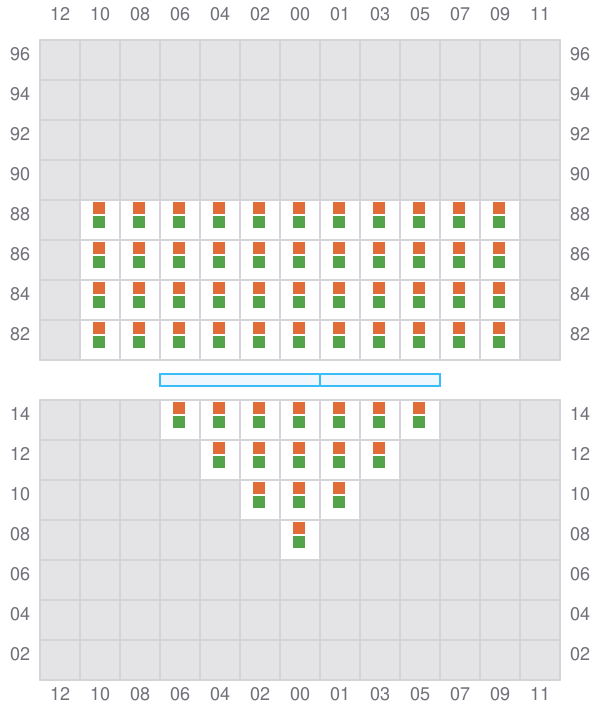

003 (002)
- ←
![Bay 003 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b003.png?v=1715112739583)

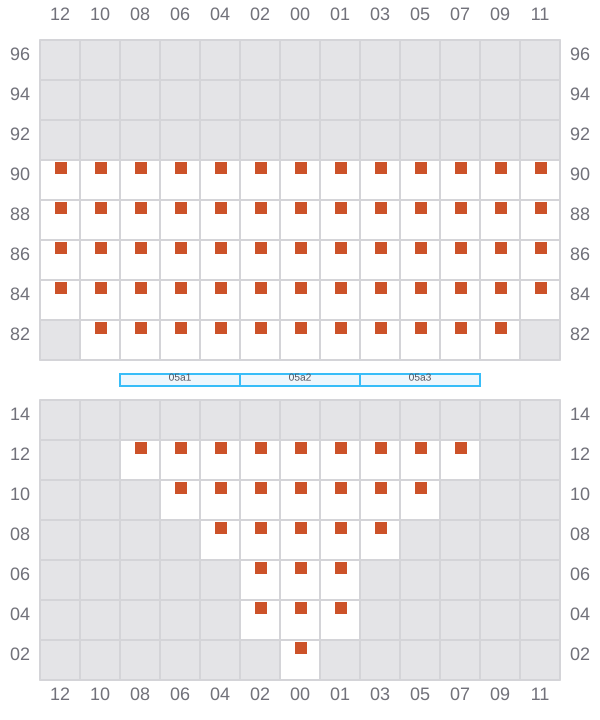

005
- →
![Bay 005 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b005.png?v=1715112739583)

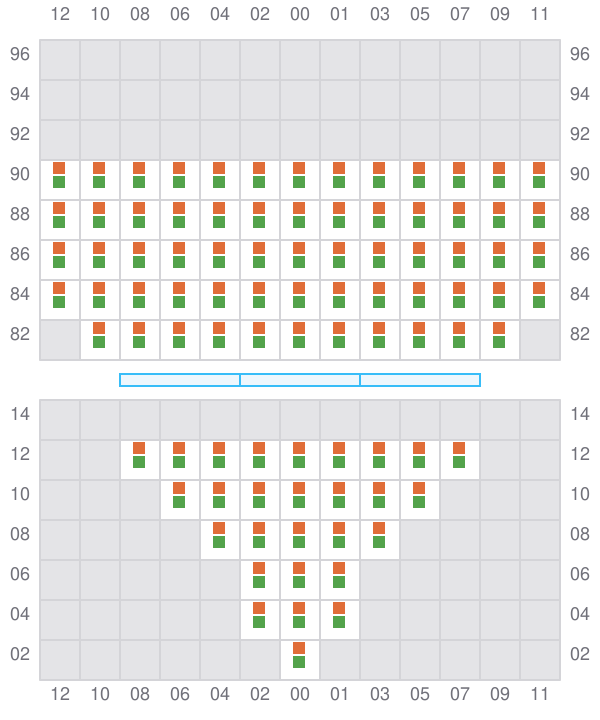

007 (006)
- ←
![Bay 007 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b007.png?v=1715112739583)

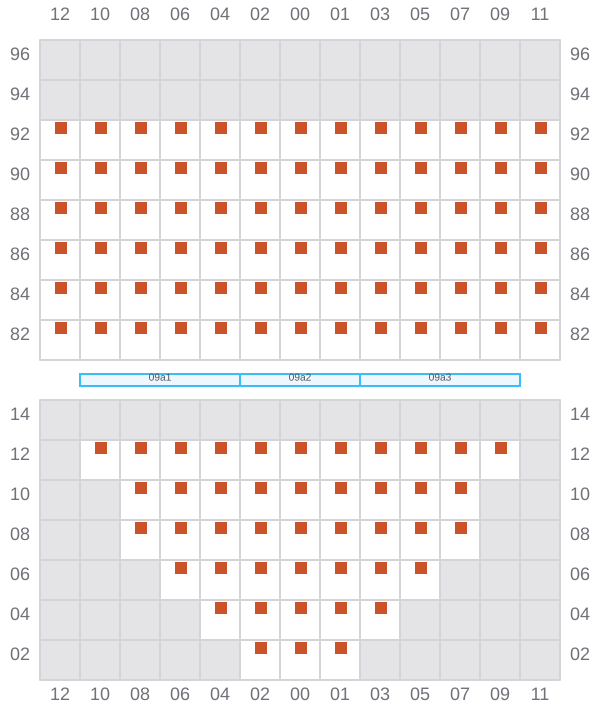

009
- →
![Bay 009 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b009.png?v=1715112739583)

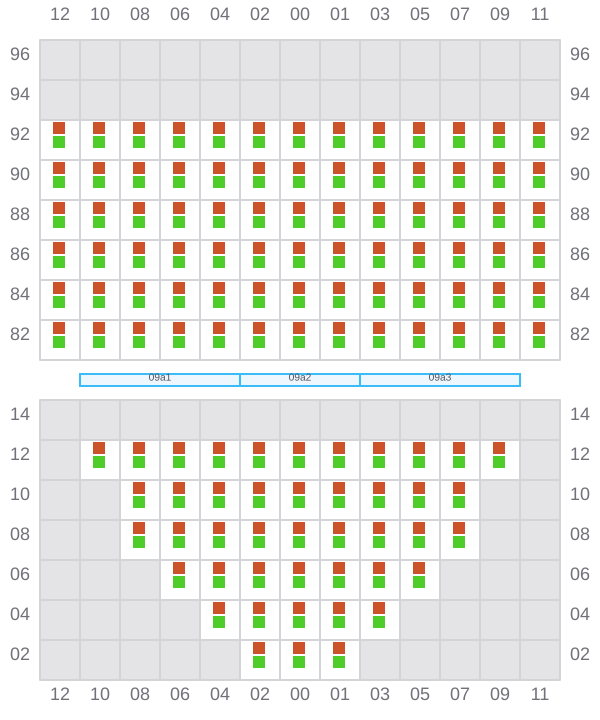

011 (010)
- ←
![Bay 011 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b011.png?v=1715112739583)

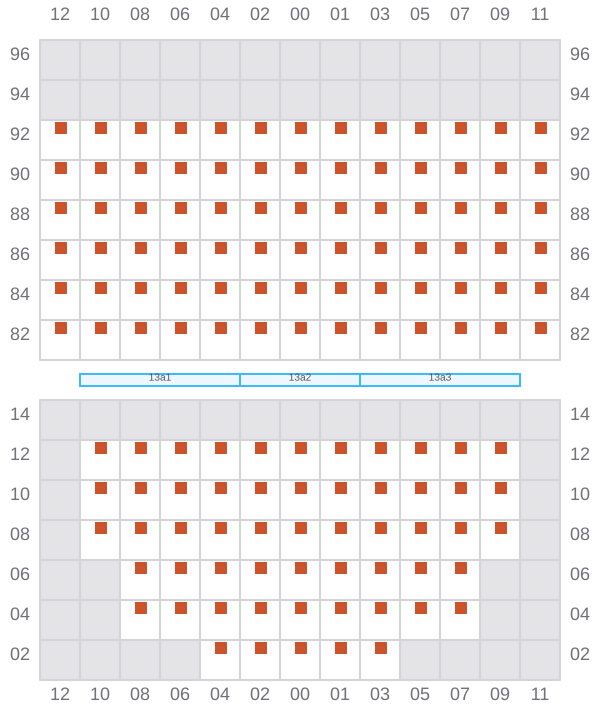

013
- →
![Bay 013 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b013.png?v=1715112739583)

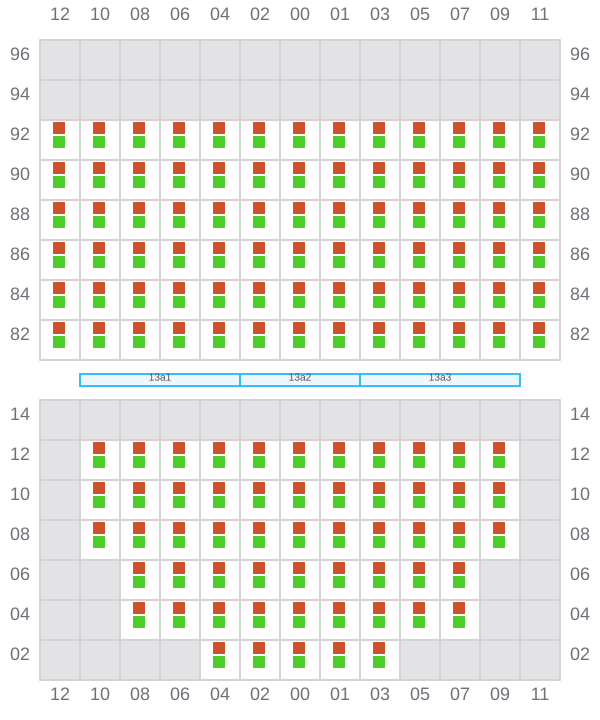

015 (014)
- ←
![Bay 015 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b015.png?v=1715112739583)

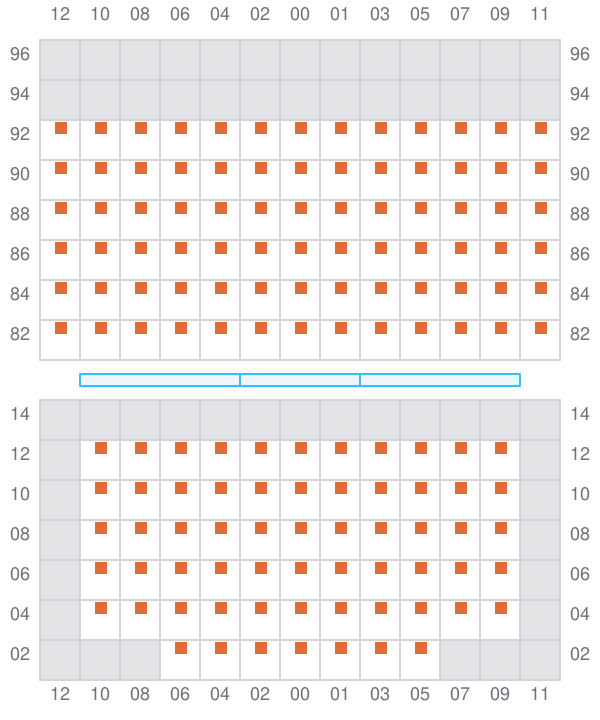

017
- →
![Bay 017 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b017.png?v=1715112739583)

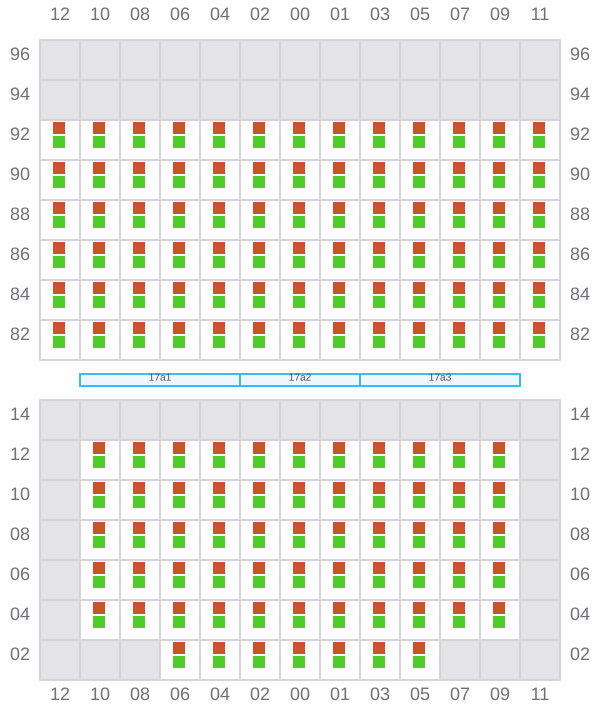

019 (018)
- ←
![Bay 019 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b019.png?v=1715112739583)

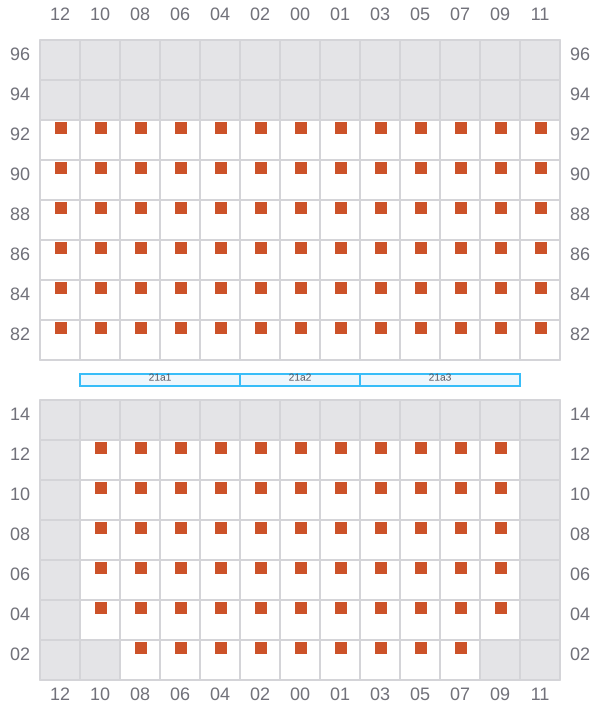

021
- →
![Bay 021 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b021.png?v=1715112739583)

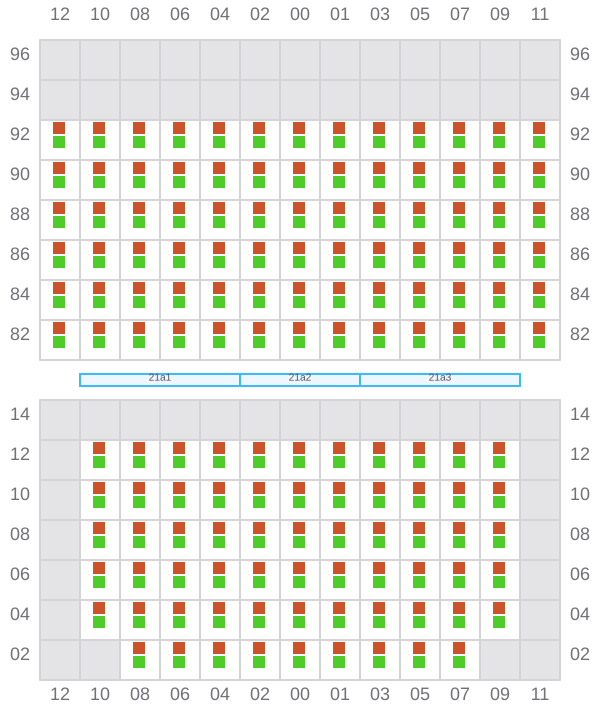

023 (022)
- ←
![Bay 023 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b023.png?v=1715112739583)

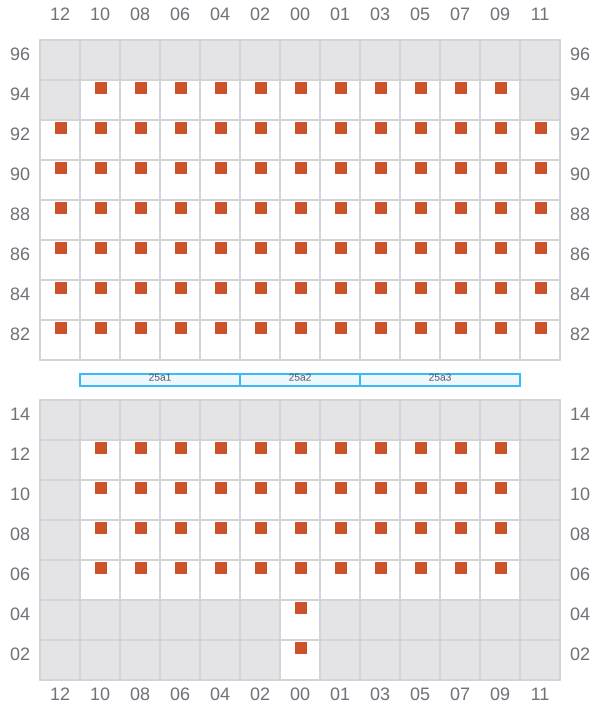

025
- →
![Bay 025 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b025.png?v=1715112739583)

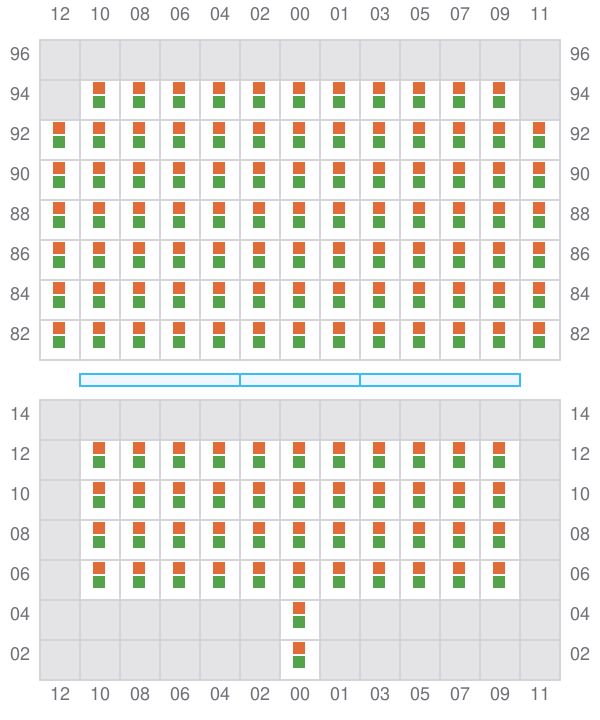

027 (026)
- ←
![Bay 027 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b027.png?v=1715112739583)

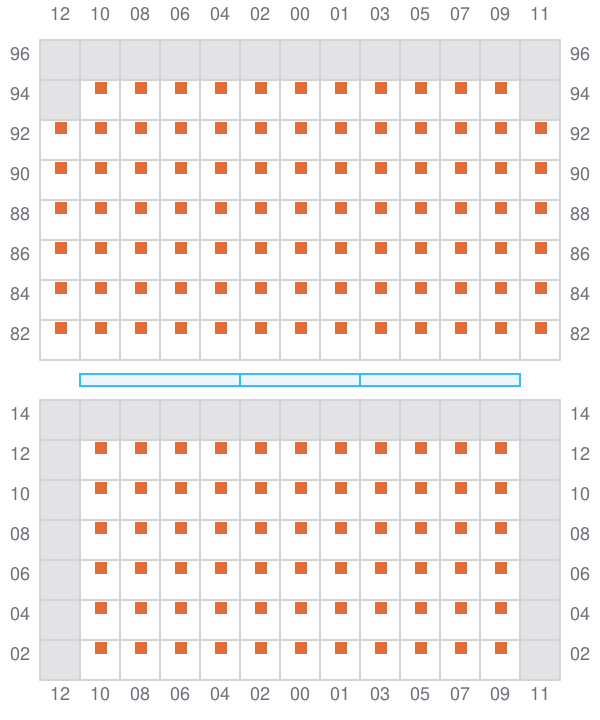

029
- →
![Bay 029 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b029.png?v=1715112739583)

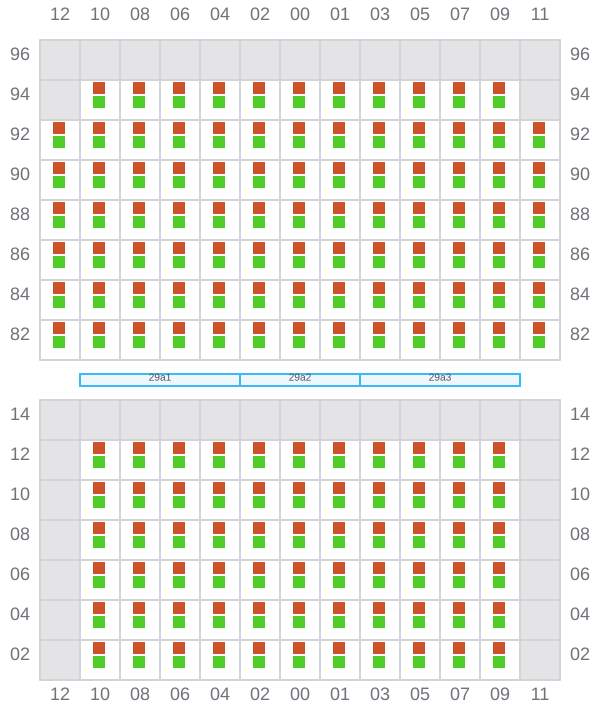

031 (030)
- ←
![Bay 031 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b031.png?v=1715112739583)

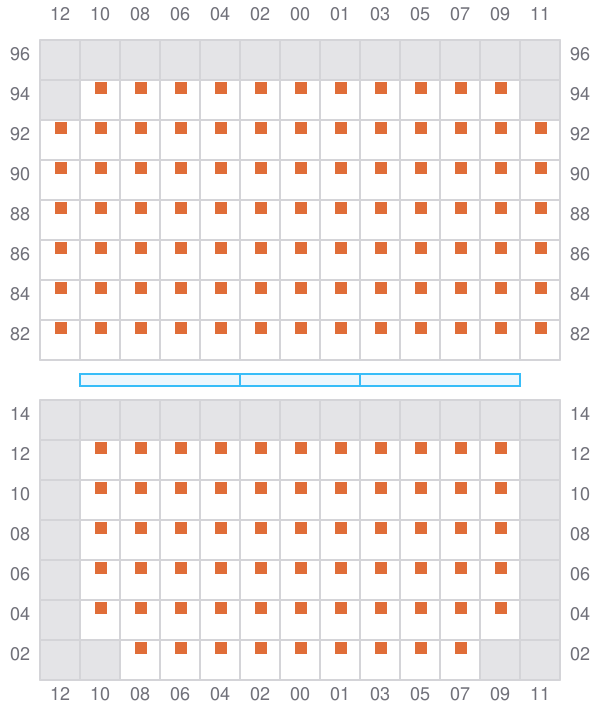

033
- →
![Bay 033 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b033.png?v=1715112739583)
035 (034)
- ←
![Bay 035 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b035.png?v=1715112739583)

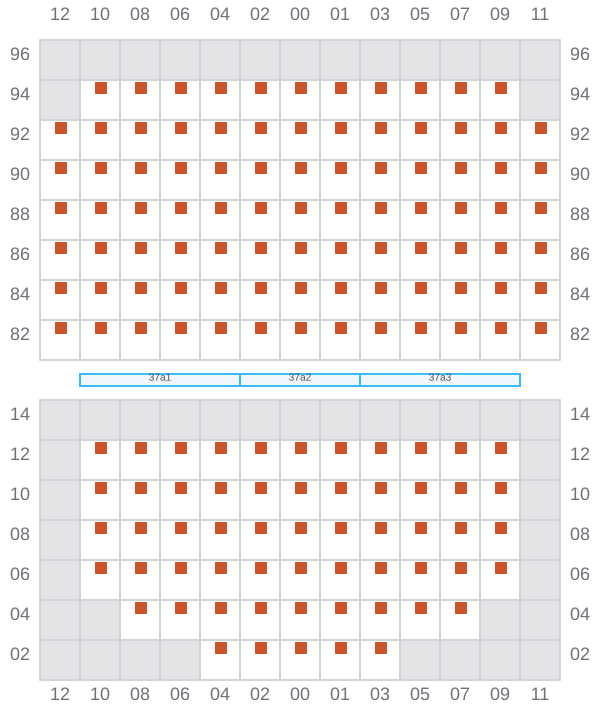

037
- →
![Bay 037 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b037.png?v=1715112739583)

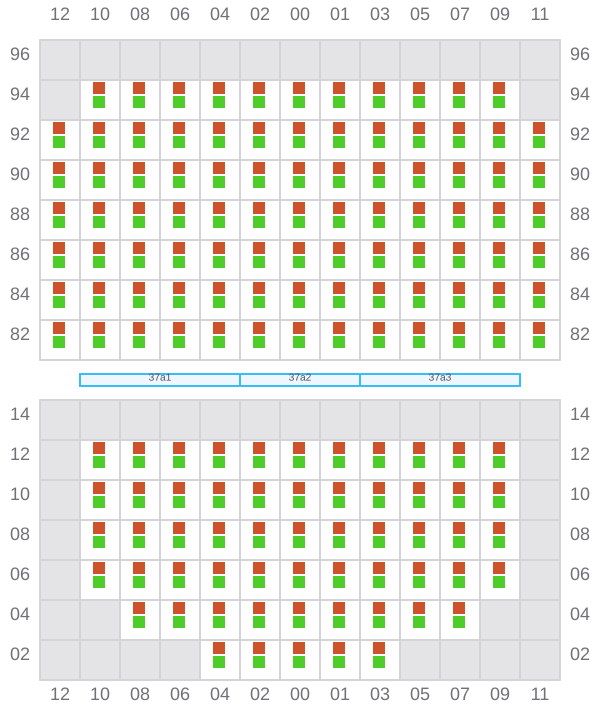

039 (038)
- ←
![Bay 039 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b039.png?v=1715112739583)

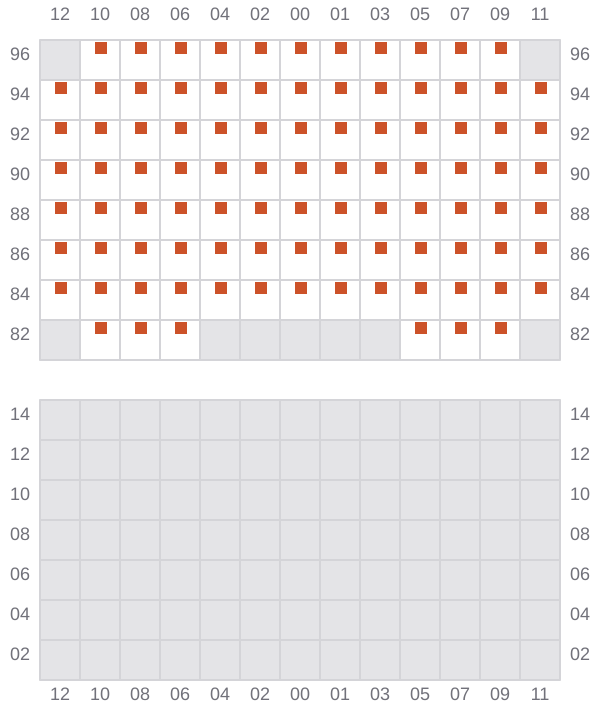

041
- → / ?
![Bay 041 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b041.png?v=1715112739583)

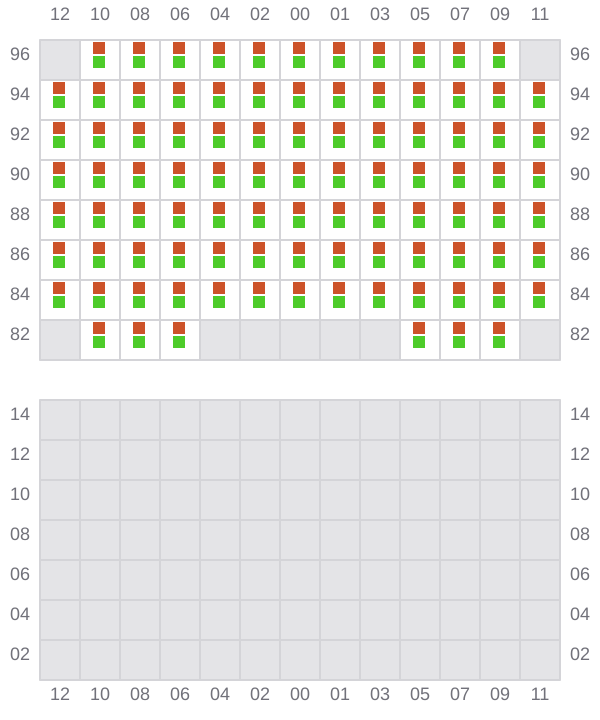

043 (042)
- ← / ?
![Bay 043 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b043.png?v=1715112739583)

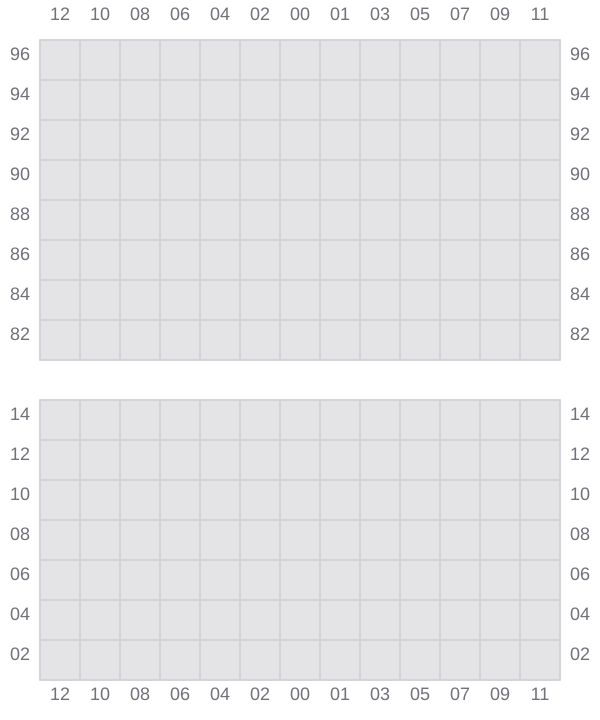

045
![Bay 045 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b045.png?v=1715112739583)

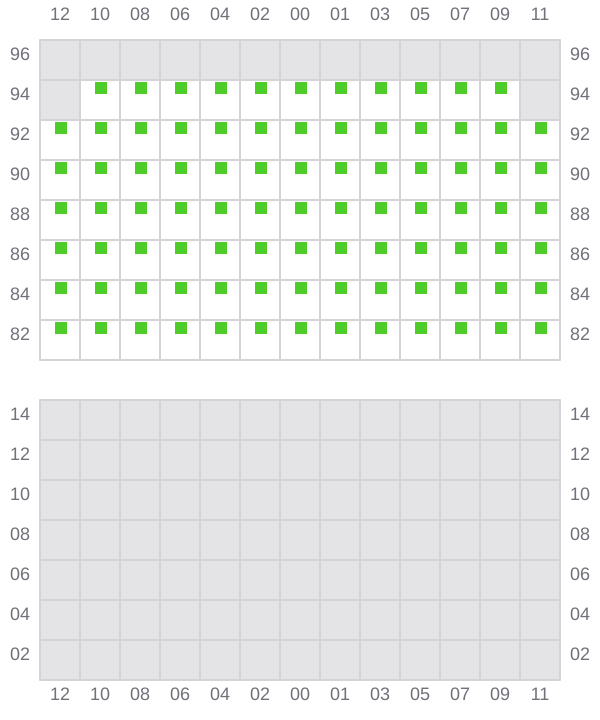

047 (046)
- ← / ?
![Bay 047 view and slots of EVER BLISS](/vessel-images/9b17ee58-79ae-4018-8b99-3f763da167d8-b047.png?v=1715112739583)
