EVER DAINTY
9134232 | 9V7951 | 9134232 by ********* Last update: Tue Apr 30 2024
General Info
Ship Name:EVER DAINTY
IMO Code:9134232
Call Sign:9V7951
Line Operator:9134232
Class Name for Sister Ships:EVER DAINTY
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:40, 20, 45
LPP (LBP):281.00
LOA (Length Overall):294.13
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:91
Min Above ISO Tier:81
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,568
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

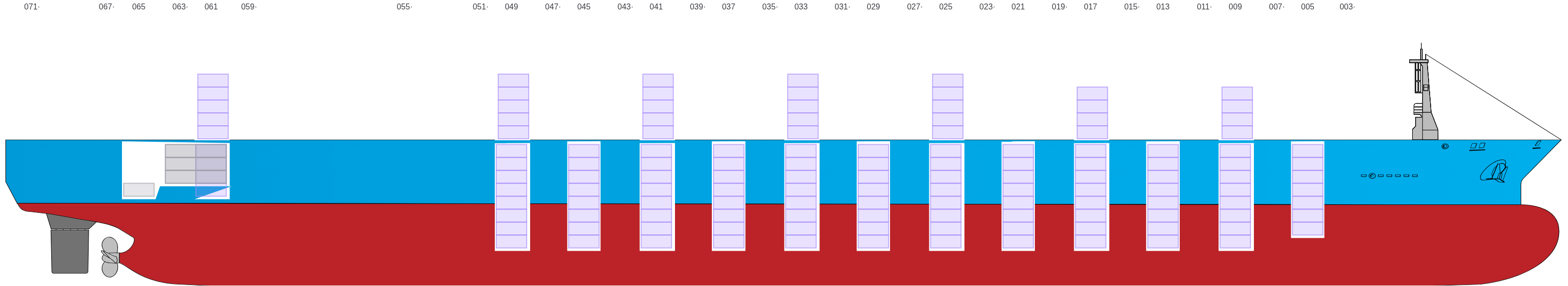

Side View
![Side view of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-sideView.png?v=1714507935359)

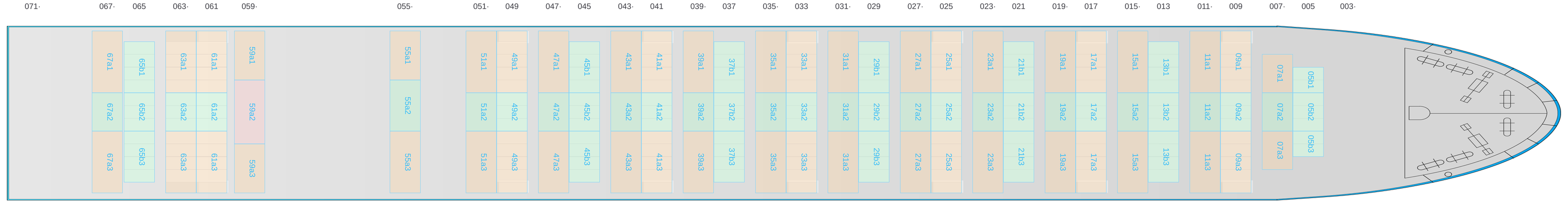

Hatch-Covers View
![Deck view of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-deckView.png?v=1714507935359)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
![Bay 001 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b001.png?v=1714507935359)

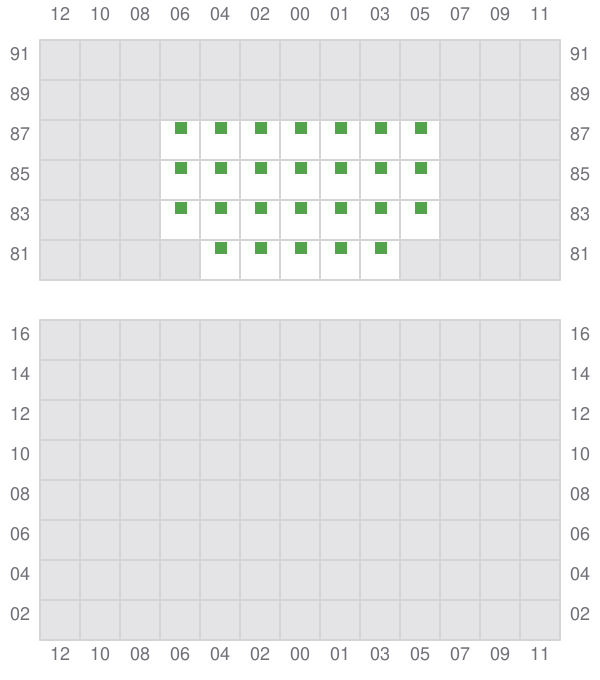

003 (002)
- ← / ?
- → / ?
![Bay 003 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b003.png?v=1714507935359)

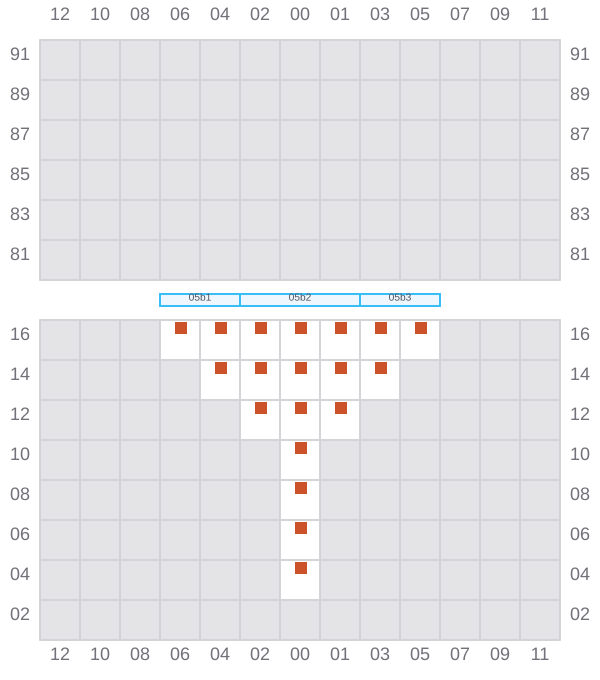

005
- ? / →
![Bay 005 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b005.png?v=1714507935359)

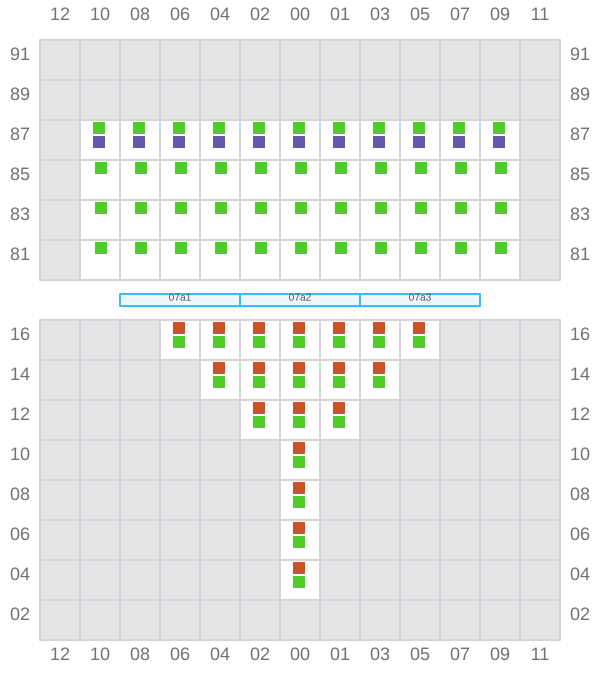

007 (006)
- ←
- →
![Bay 007 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b007.png?v=1714507935359)

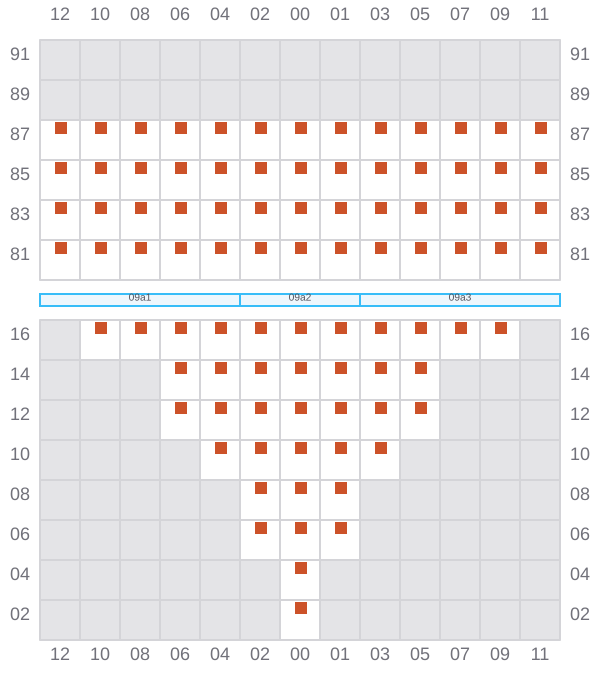

009
- →
![Bay 009 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b009.png?v=1714507935359)

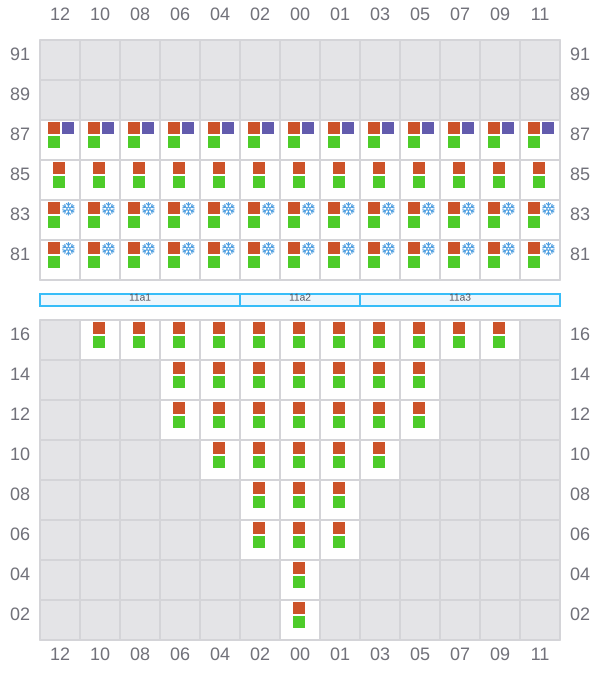

011 (010)
- ←
- → / ?
- →
![Bay 011 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b011.png?v=1714507935359)

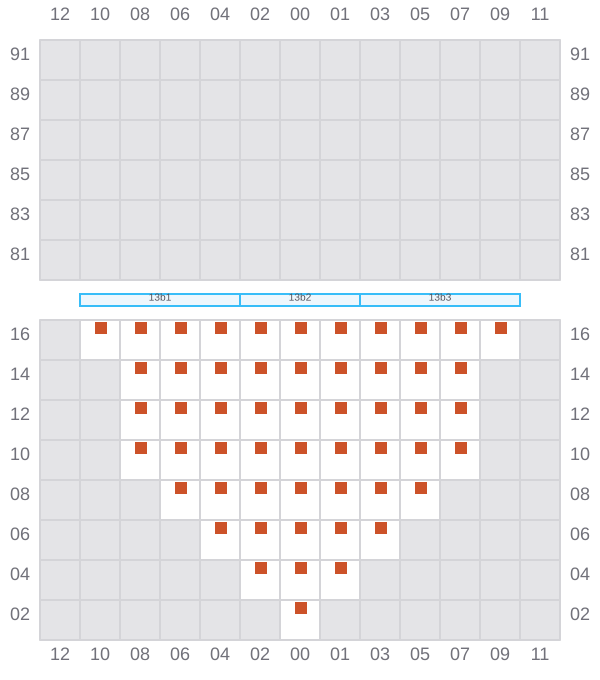

013
- ? / →
![Bay 013 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b013.png?v=1714507935359)

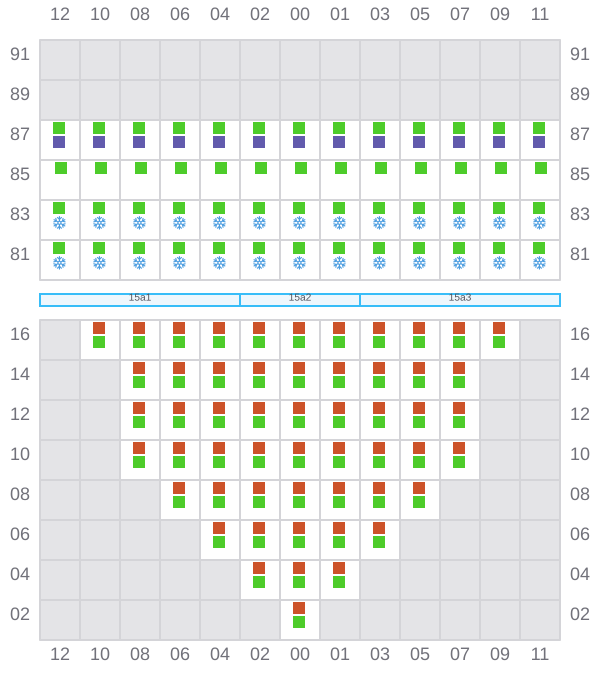

015 (014)
- ←
- → / ?
- →
![Bay 015 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b015.png?v=1714507935359)

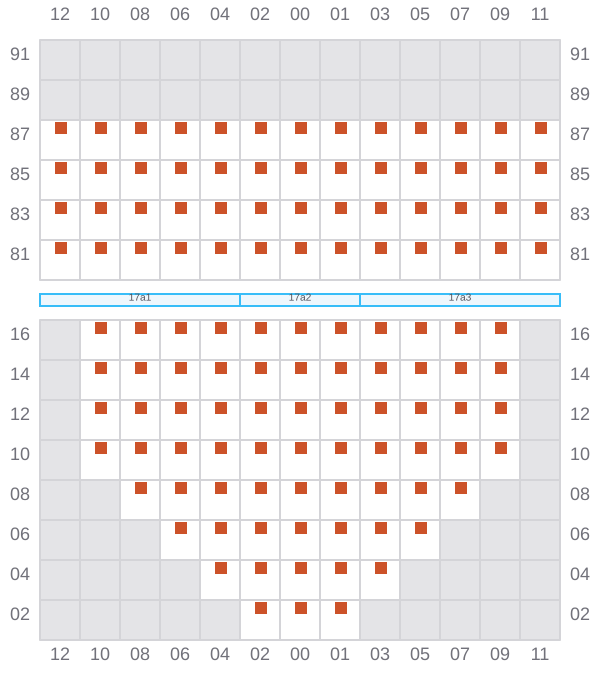

017
- ? / →
![Bay 017 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b017.png?v=1714507935359)
019 (018)
- ←
- → / ?
- →
![Bay 019 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b019.png?v=1714507935359)

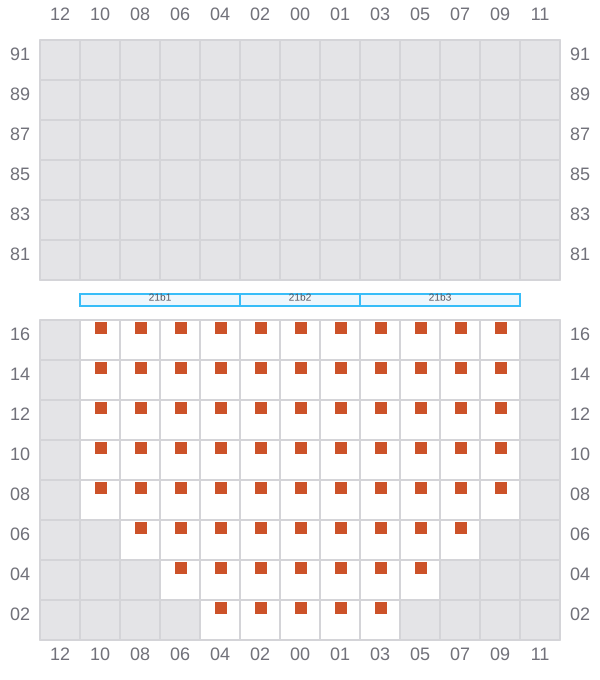

021
- ? / →
![Bay 021 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b021.png?v=1714507935359)

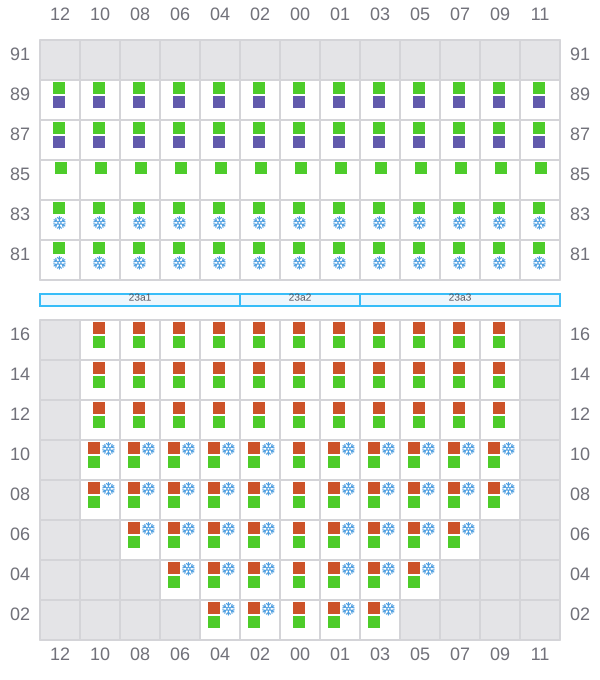

023 (022)
- ←
- →
- →
![Bay 023 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b023.png?v=1714507935359)

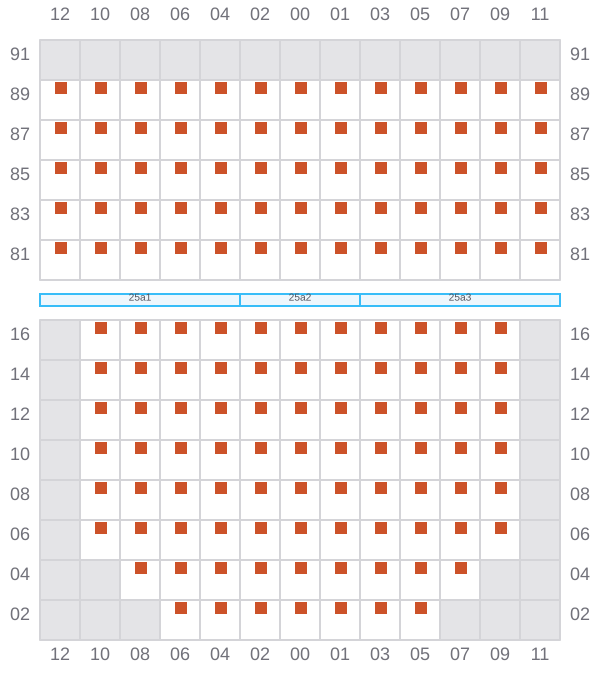

025
- →
![Bay 025 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b025.png?v=1714507935359)

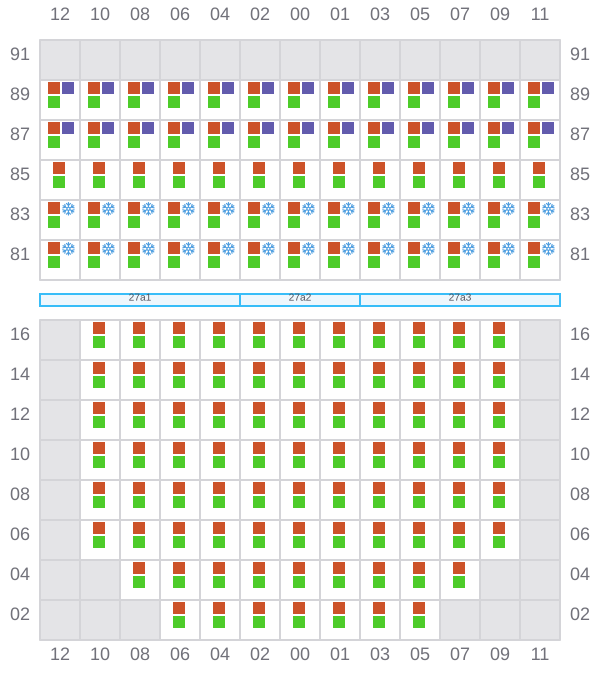

027 (026)
- ←
- → / ?
- →
![Bay 027 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b027.png?v=1714507935359)
029
- ? / →
![Bay 029 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b029.png?v=1714507935359)
031 (030)
- ←
- → / ?
- →
![Bay 031 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b031.png?v=1714507935359)

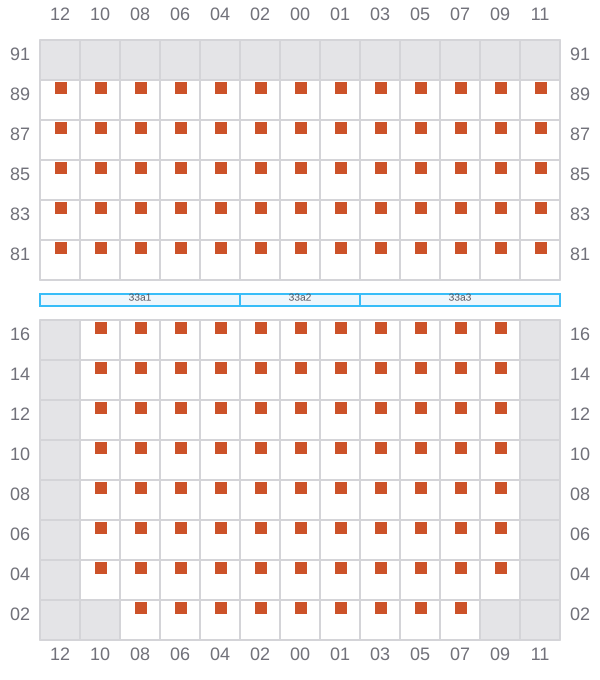

033
- →
![Bay 033 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b033.png?v=1714507935359)

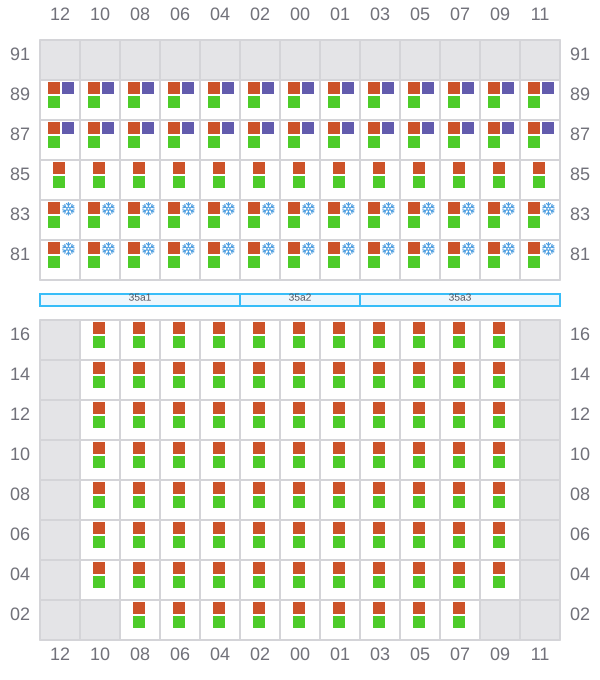

035 (034)
- ←
- → / ?
- →
![Bay 035 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b035.png?v=1714507935359)
037
- ? / →
![Bay 037 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b037.png?v=1714507935359)

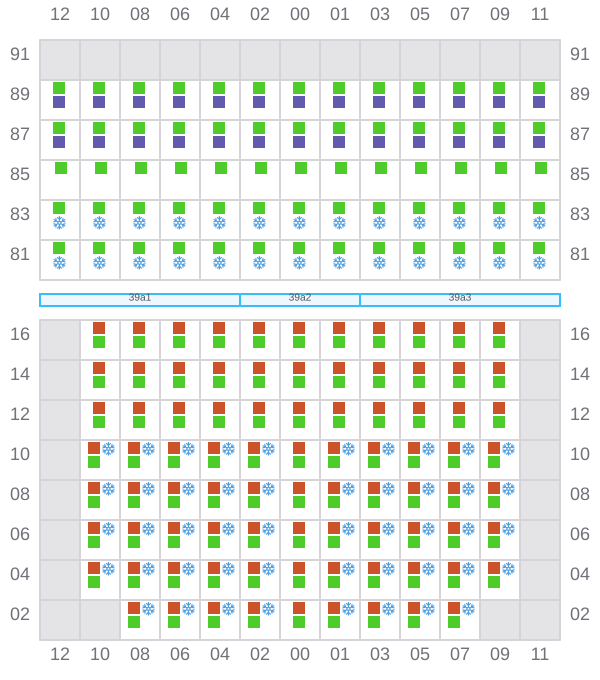

039 (038)
- ←
- → / ?
- →
![Bay 039 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b039.png?v=1714507935359)
041
- →
![Bay 041 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b041.png?v=1714507935359)
043 (042)
- ←
- → / ?
- →
![Bay 043 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b043.png?v=1714507935359)

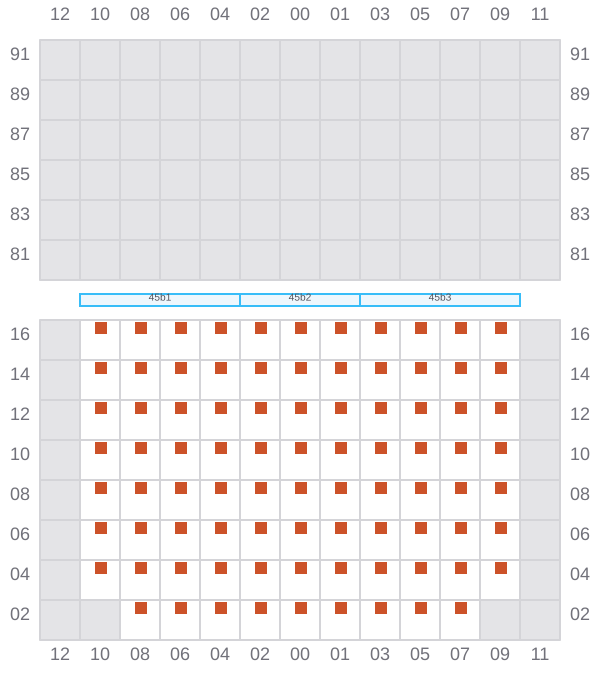

045
- ? / →
![Bay 045 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b045.png?v=1714507935359)

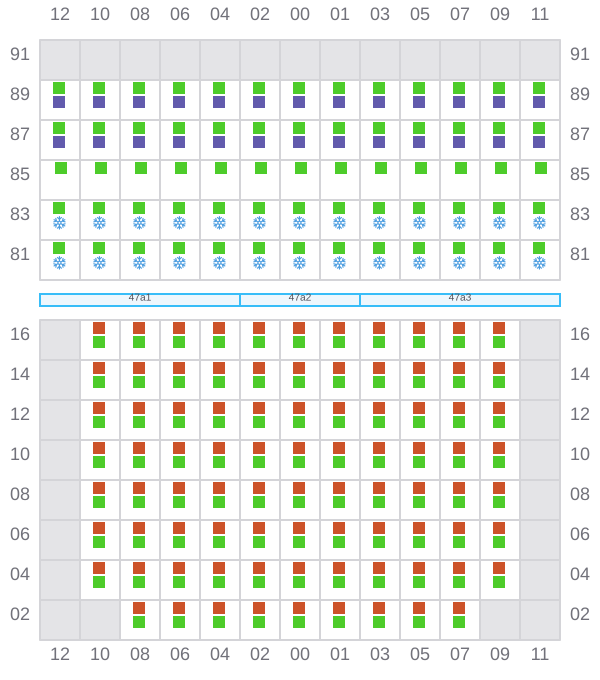

047 (046)
- ←
- → / ?
- →
![Bay 047 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b047.png?v=1714507935359)
049
- →
![Bay 049 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b049.png?v=1714507935359)
051 (050)
- ←
- → / ?
- →
![Bay 051 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b051.png?v=1714507935359)
053
![Bay 053 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b053.png?v=1714507935359)

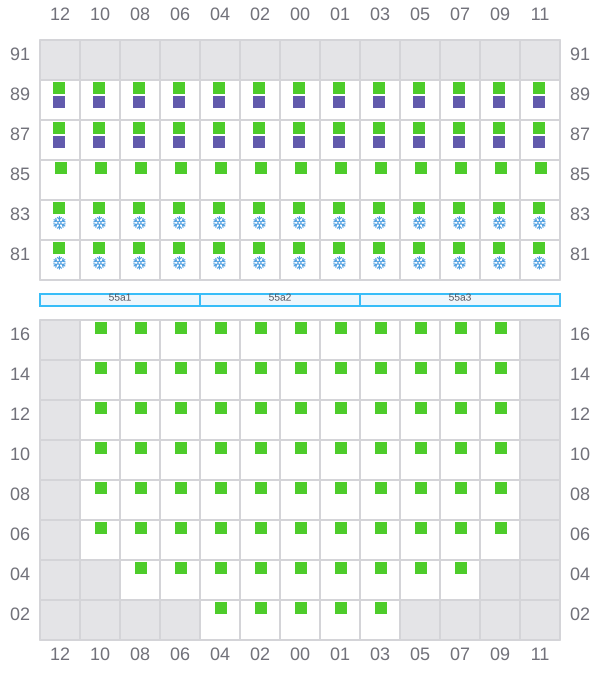

055 (054)
- ←
- → / ?
- →
![Bay 055 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b055.png?v=1714507935359)

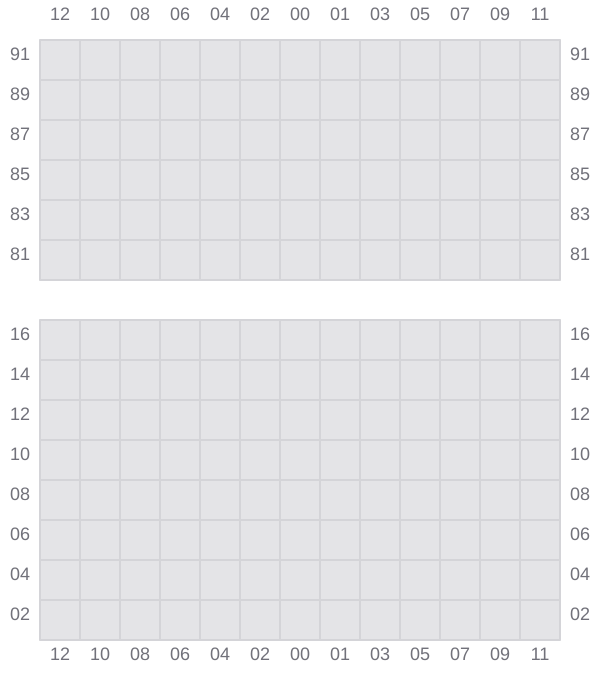

057
![Bay 057 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b057.png?v=1714507935359)

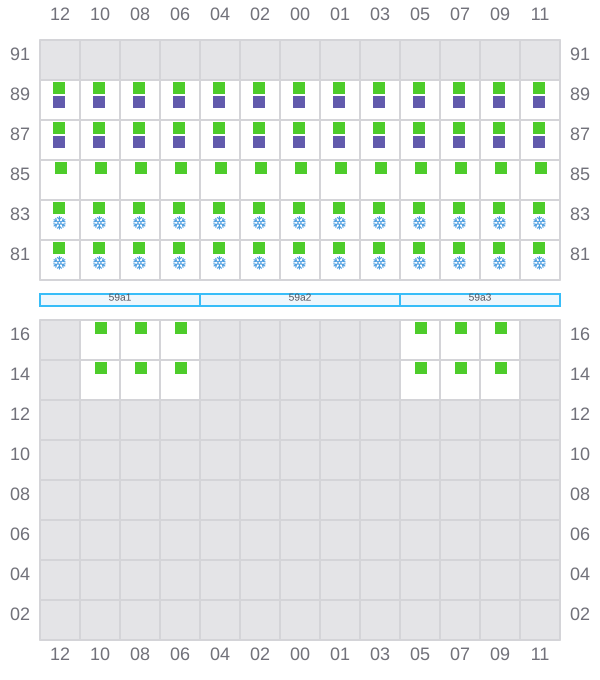

059 (058)
- ←
- → / ?
- →
![Bay 059 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b059.png?v=1714507935359)

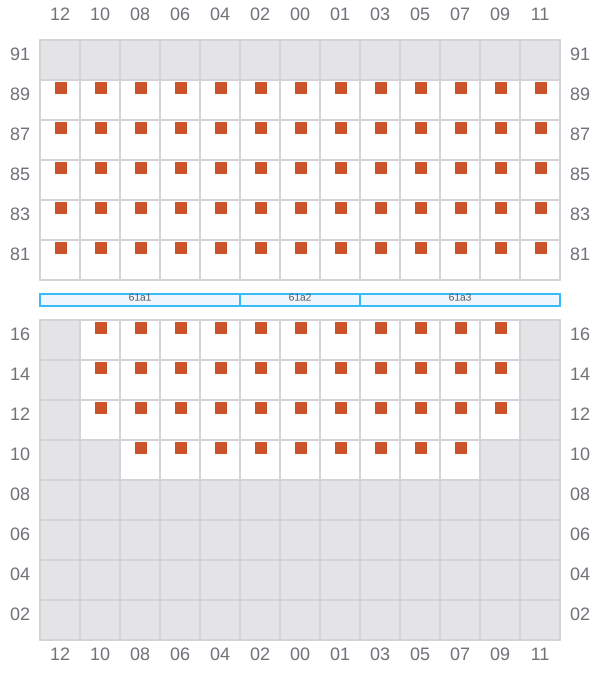

061
- →
![Bay 061 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b061.png?v=1714507935359)

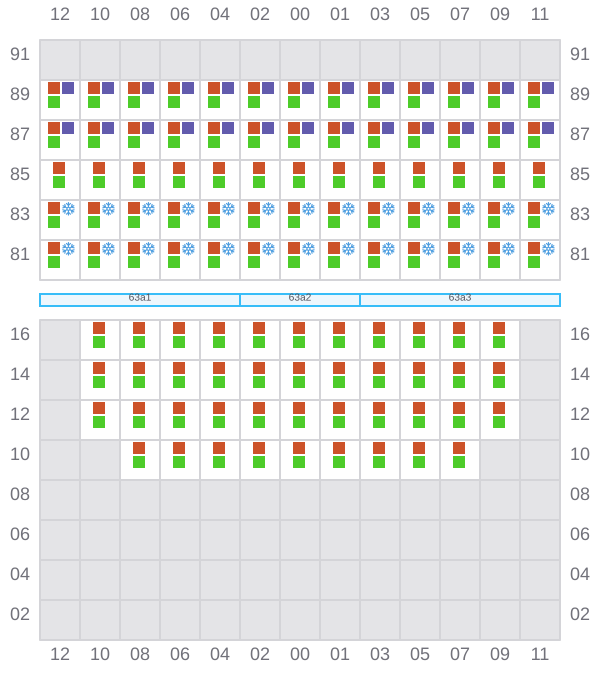

063 (062)
- ←
- → / ?
- →
![Bay 063 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b063.png?v=1714507935359)

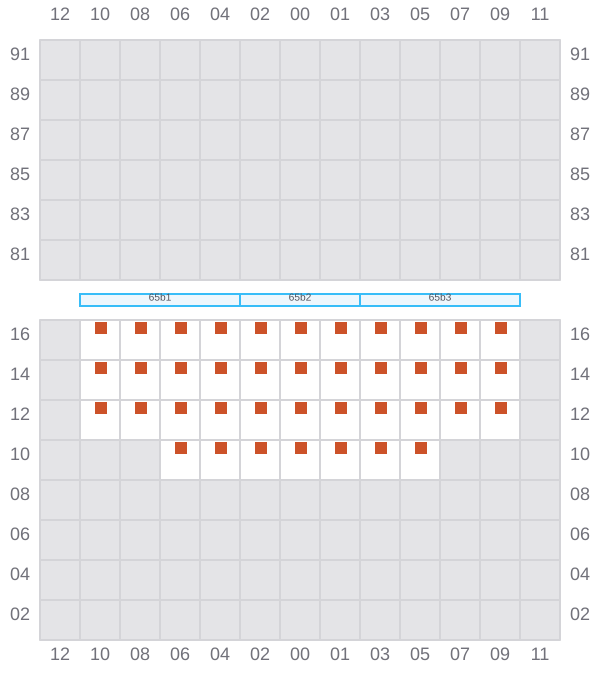

065
- ? / ←
- ? / →
![Bay 065 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b065.png?v=1714507935359)

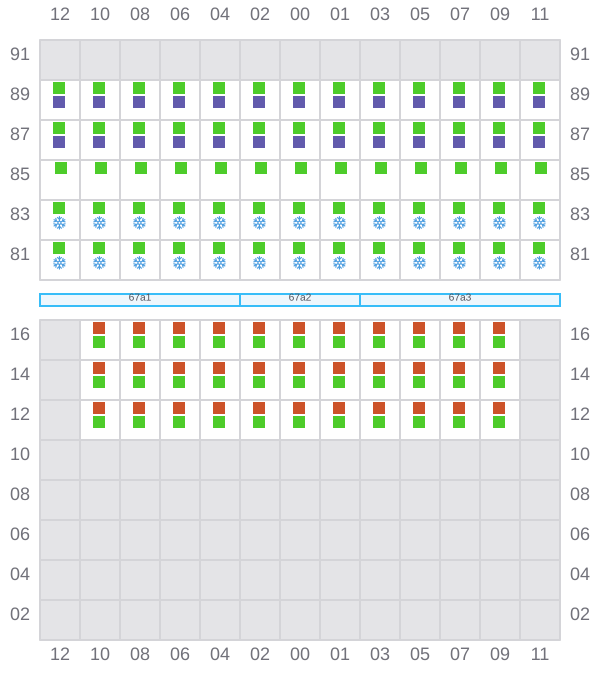

067 (066)
- ←
- → / ?
- →
![Bay 067 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b067.png?v=1714507935359)
069
![Bay 069 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b069.png?v=1714507935359)

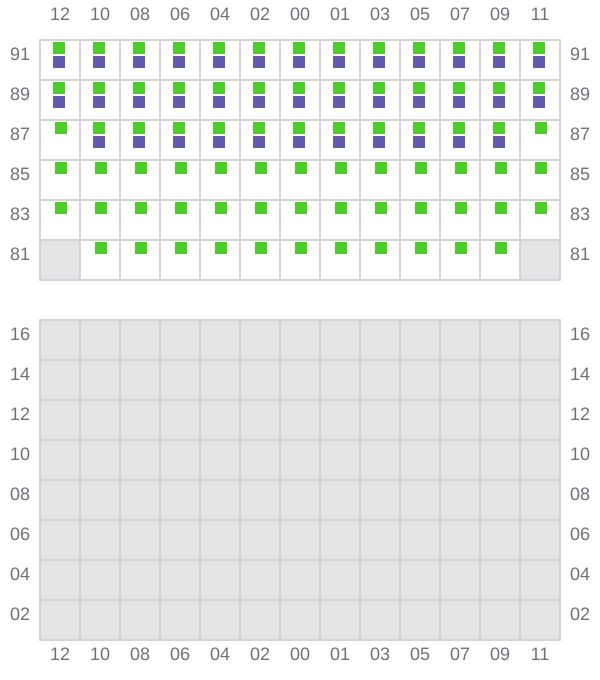

071 (070)
- ← / ?
- → / ?
![Bay 071 view and slots of EVER DAINTY](/vessel-images/cc75755e-751c-4388-bba2-b2b77be55c0d-b071.png?v=1714507935359)
