EVER DELIGHT
9142162 | 3FCB8 | 9142162 by *********************** Last update: Mon Oct 21 2024
General Info
Ship Name:EVER DELIGHT
IMO Code:9142162
Call Sign:3FCB8
Line Operator:9142162
Class Name for Sister Ships:EVG
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):281.00
LOA (Length Overall):294.13
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,211
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

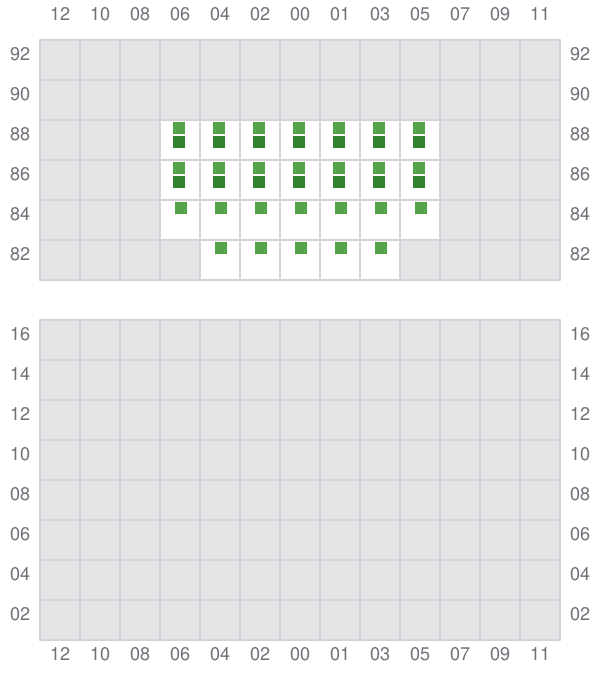

001 (002)
- → / ?
- → / ?
003

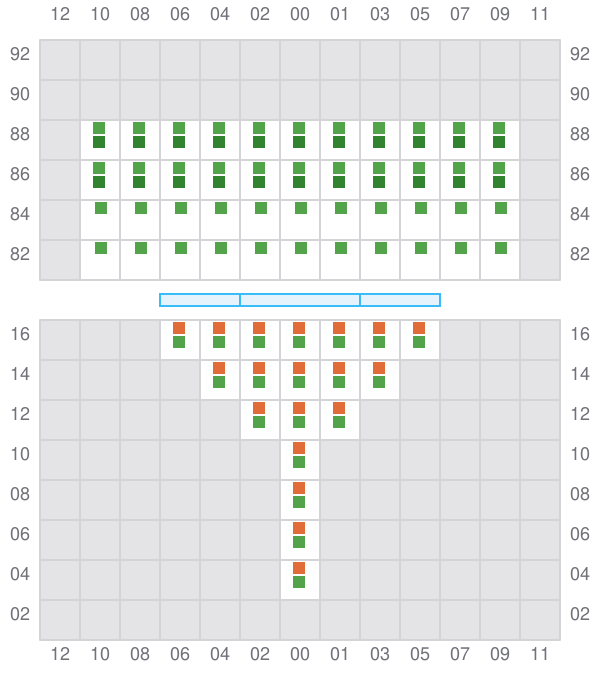

005 (006)
- →
- →
007
- ? / ←
- ? / →

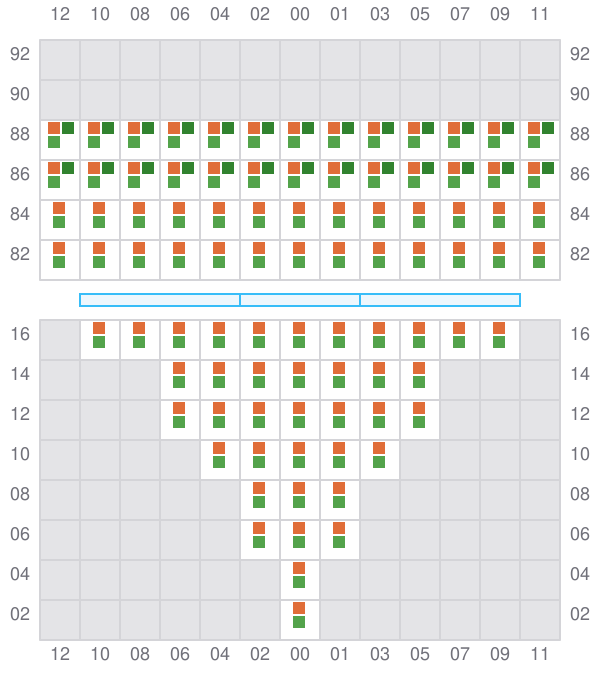

009 (010)
- →
- →

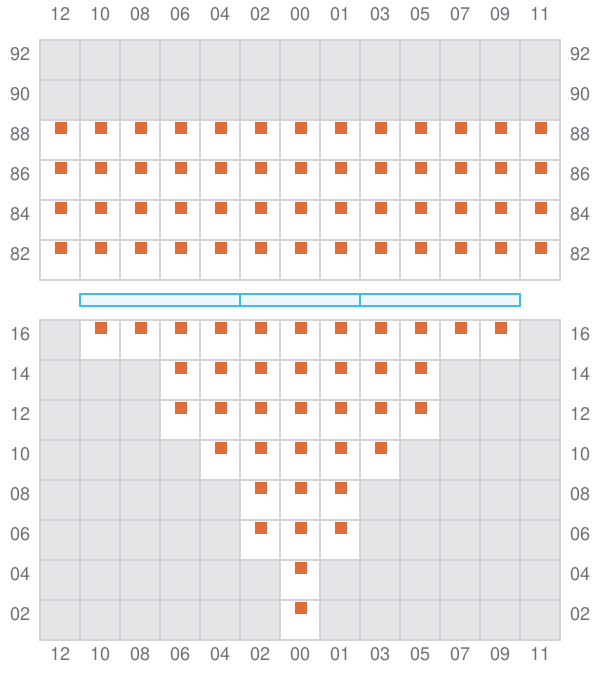

011
- ←
- → / ?
- →

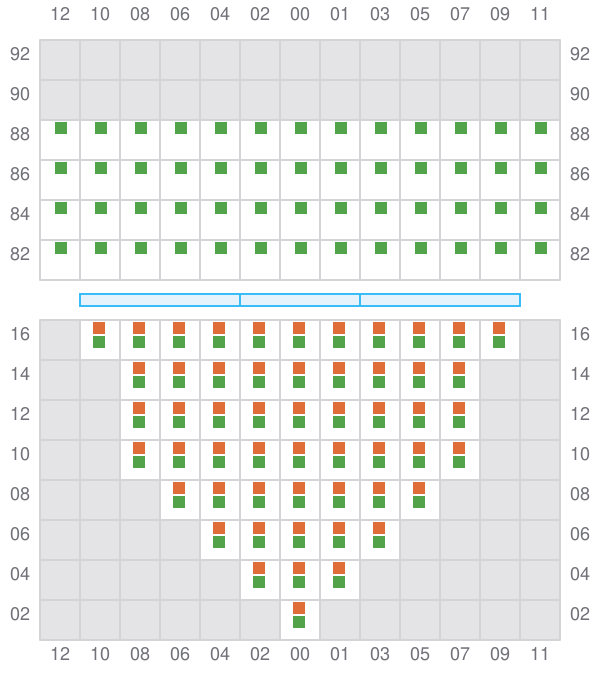

013 (014)
- →
- → / ?
- →

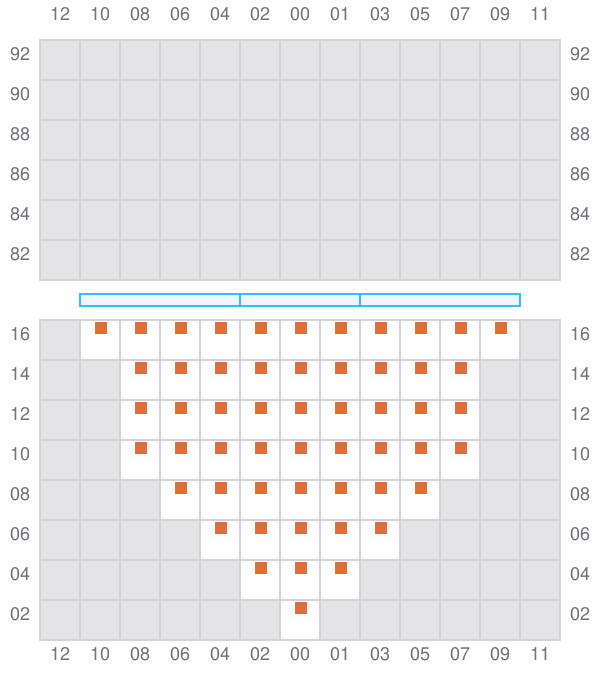

015
- ? / ←
- ? / →

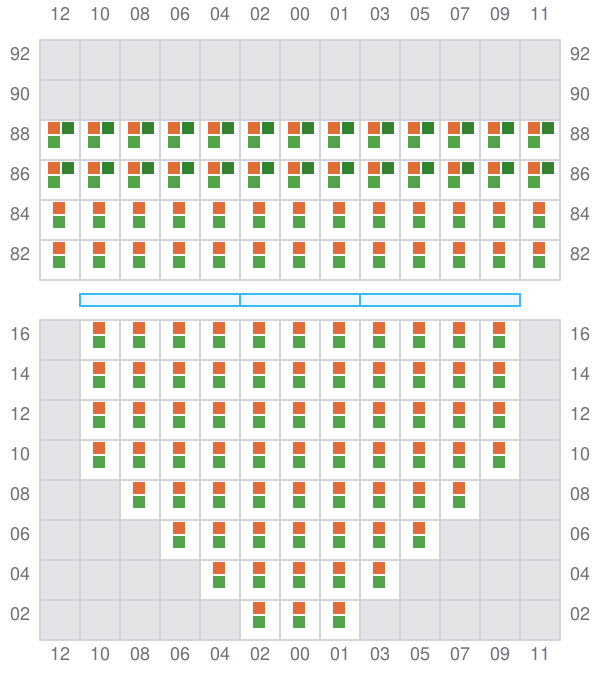

017 (018)
- →
- → / ?
- →

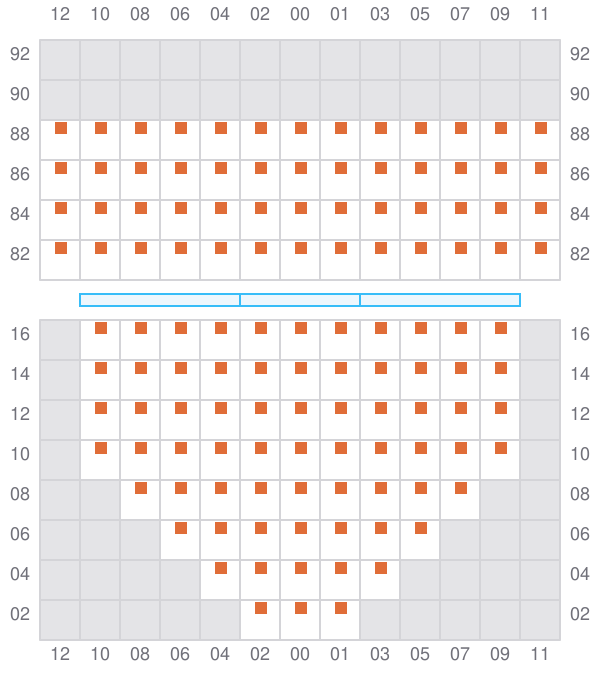

019
- ←
- → / ?
- →

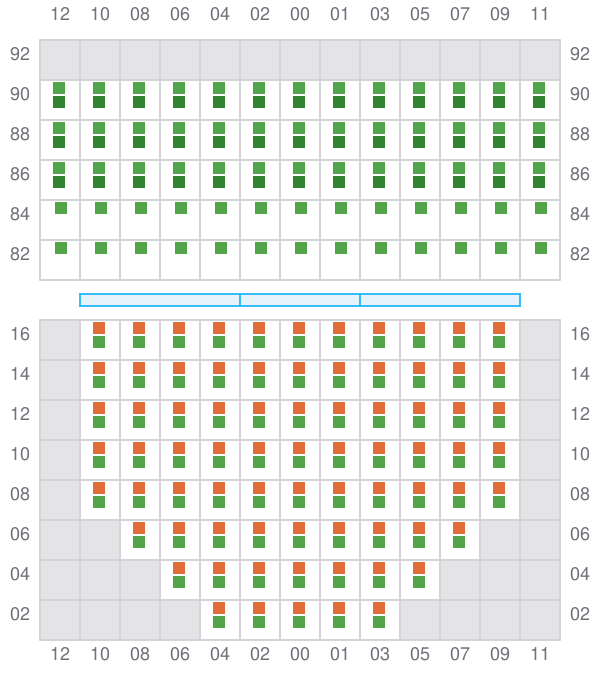

021 (022)
- →
- →
- →

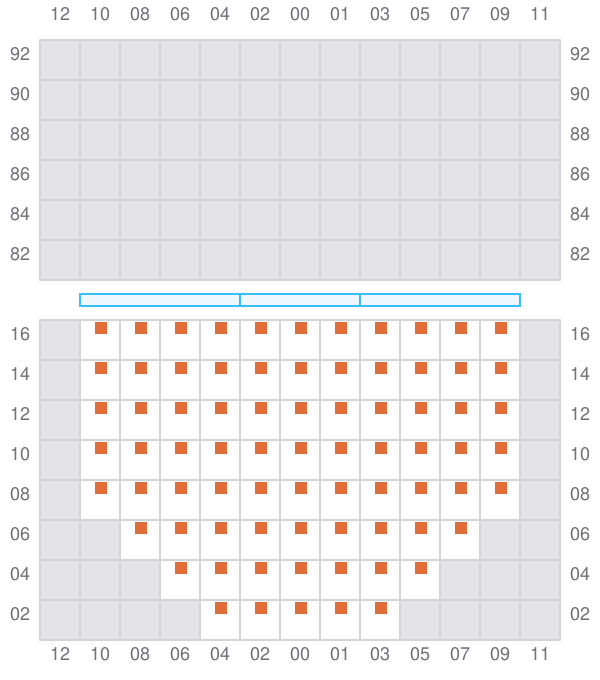

023
- ? / ←
- ? / →
- ? / →

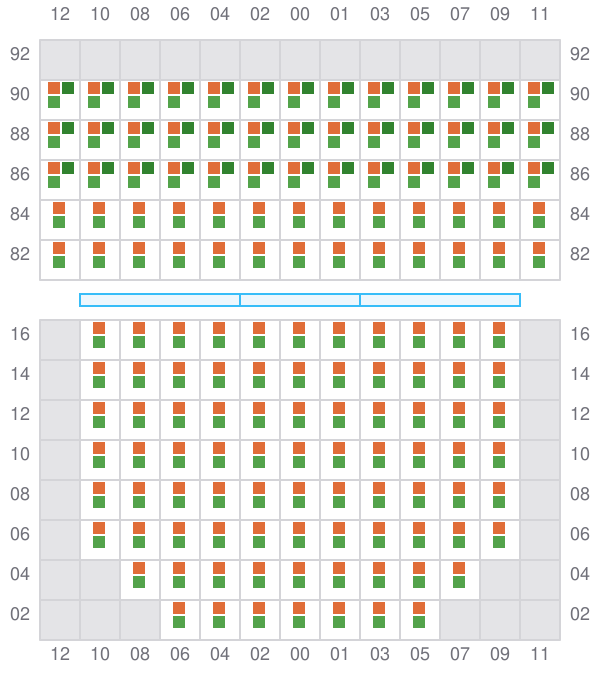

025 (026)
- →
- → / ?
- →

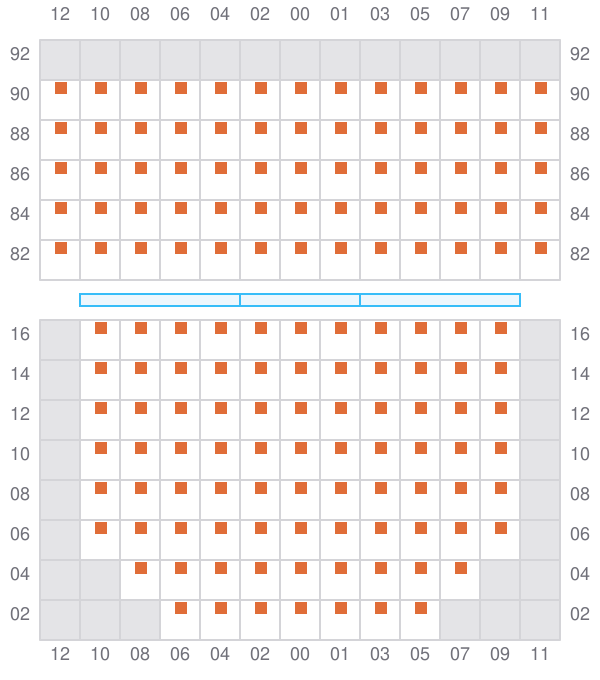

027
- ←
- → / ?
- →
029 (030)
- →
- → / ?
- →

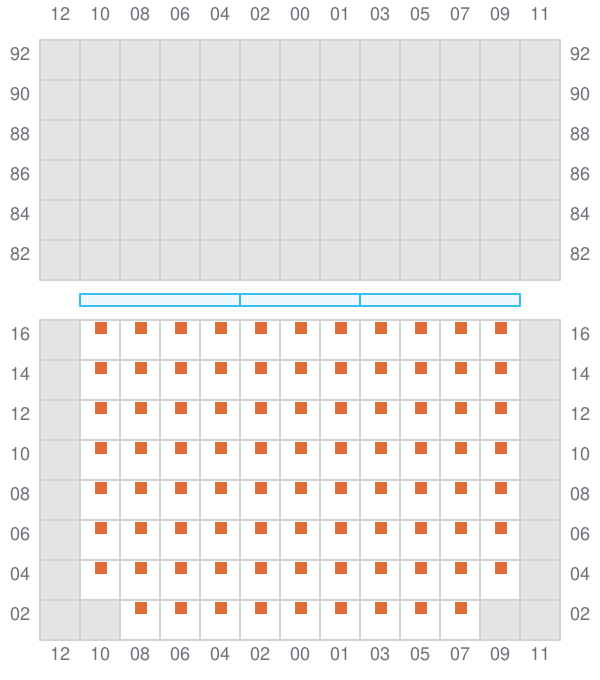

031
- ? / ←
- ? / →
033 (034)
- →
- → / ?
- →

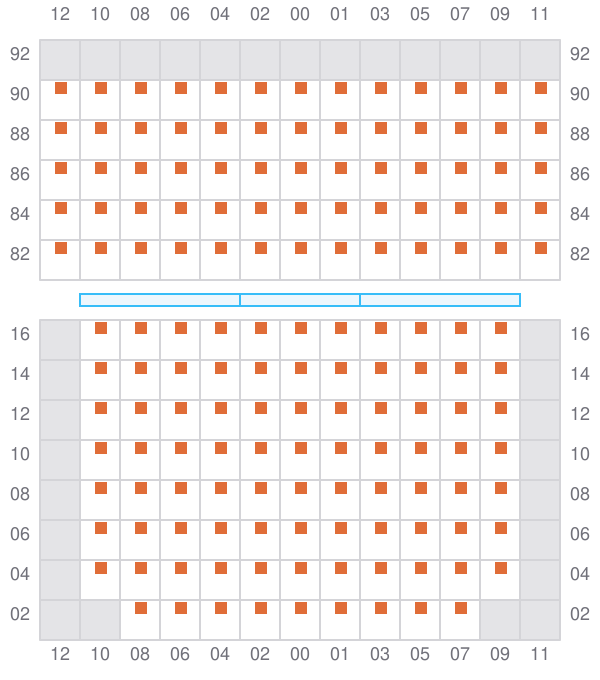

035
- ←
- → / ?
- →

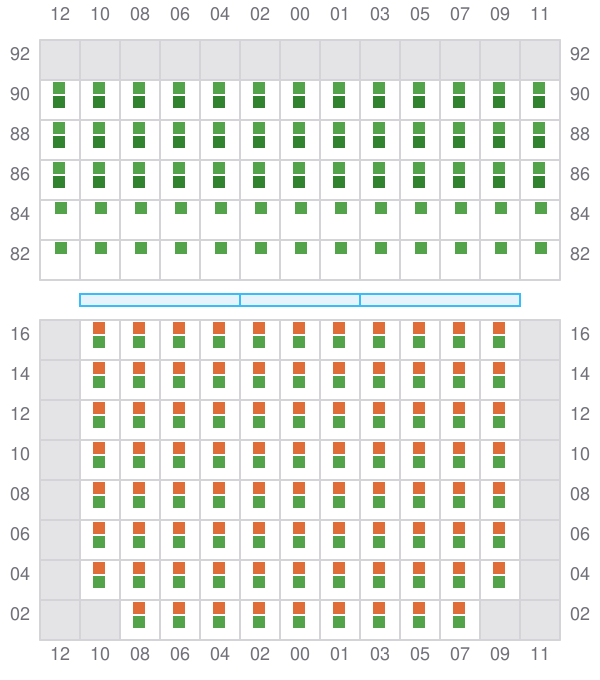

037 (038)
- →
- →
- →
039
- ? / ←
- ? / →
- ? / →
041 (042)
- →
- → / ?
- →

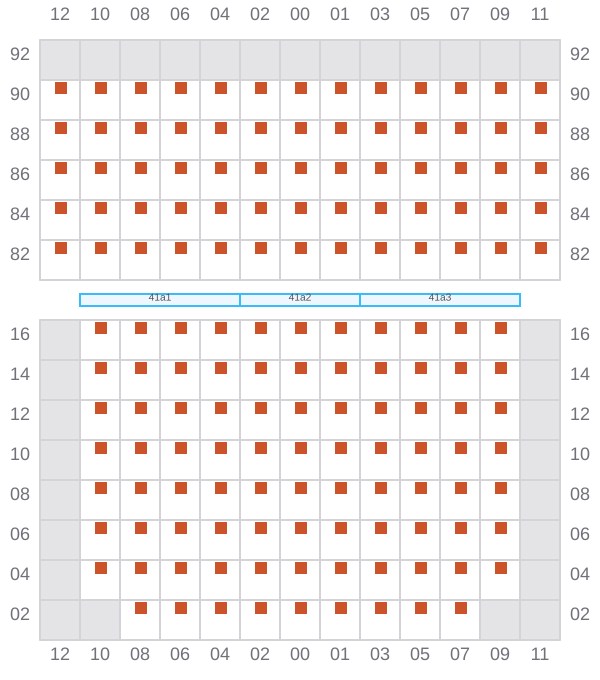

043
- ←
- → / ?
- →
045 (046)
- →
- → / ?
- →
047
- ? / ←
- ? / →

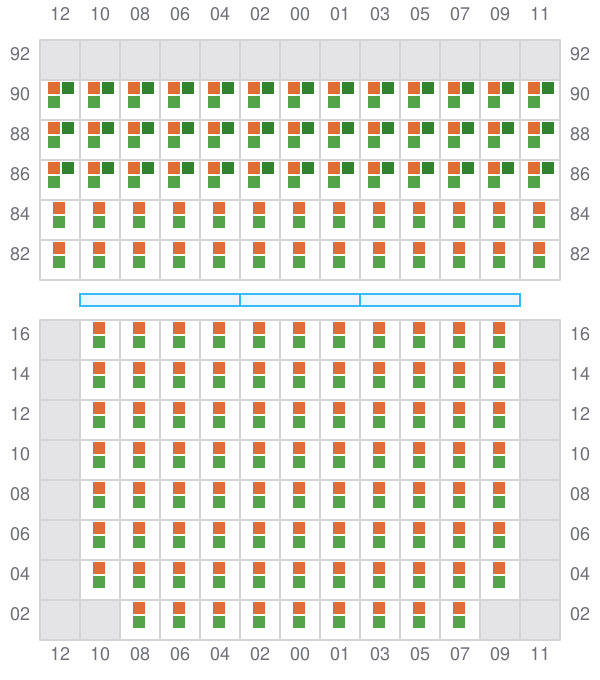

049 (050)
- →
- → / ?
- →
051
- ←
- → / ?
- →
053 (054)
- →
- → / ?
- →

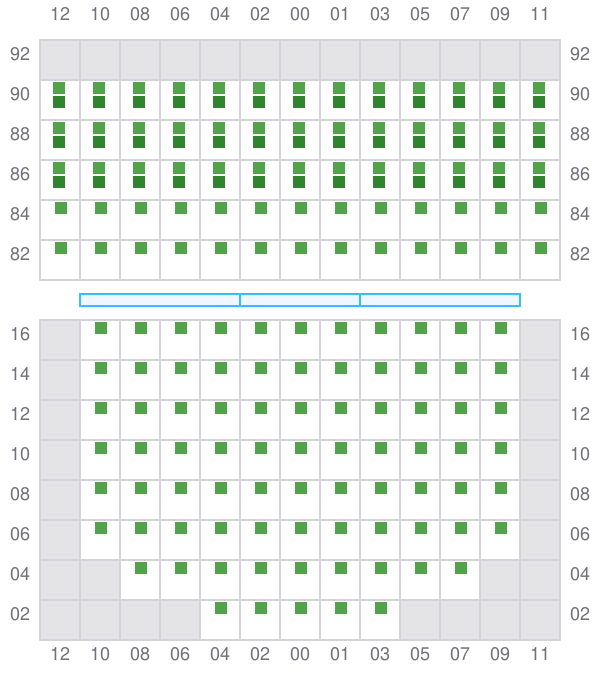

055

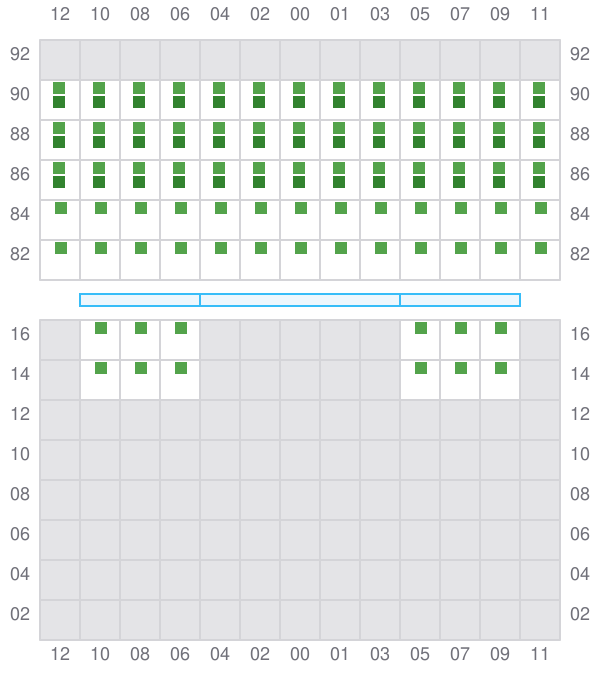

057 (058)
- →
- → / ?
- →

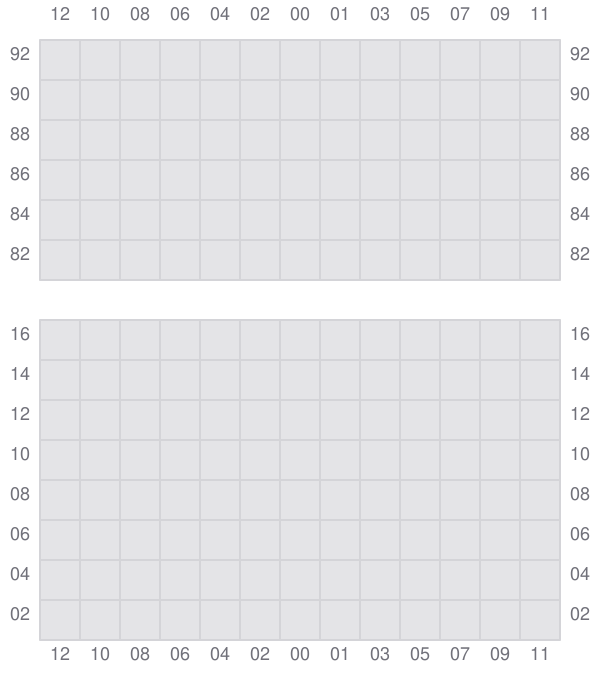

059

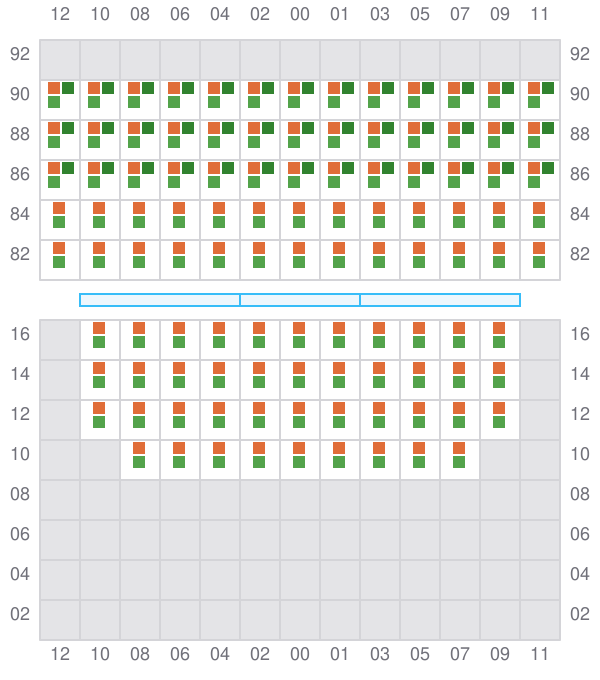

061 (062)
- →
- → / ?
- →

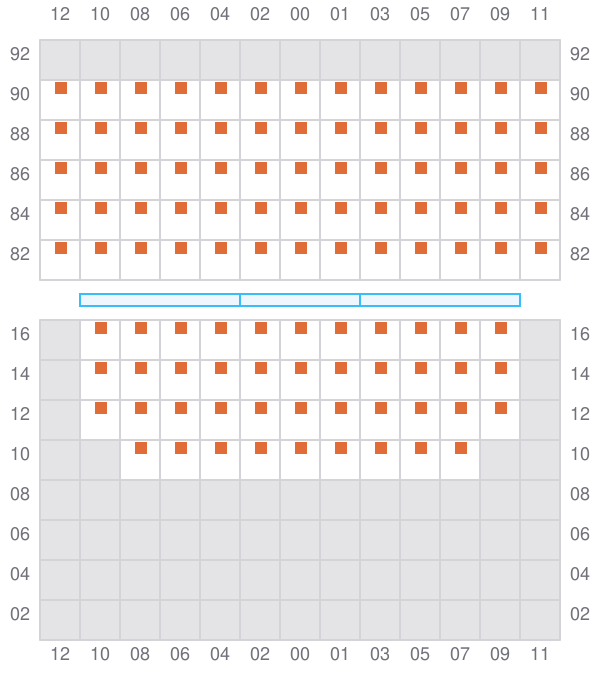

063
- ←
- → / ?
- →

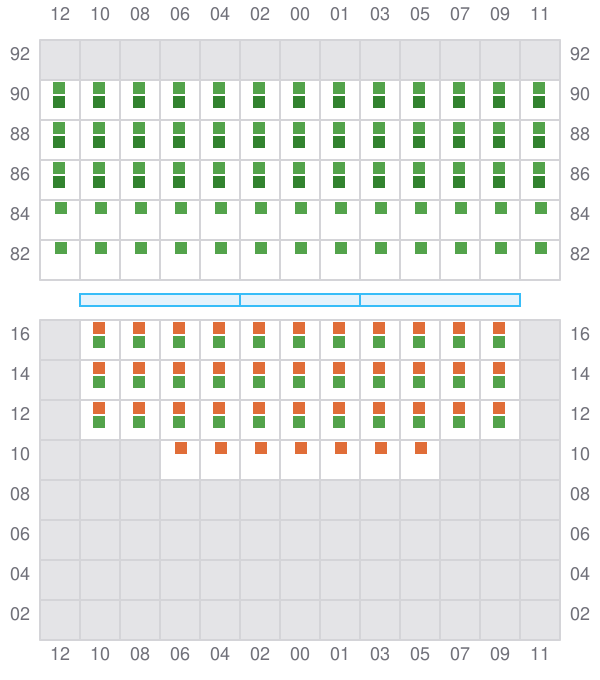

065 (066)
- →
- → / ?
- →

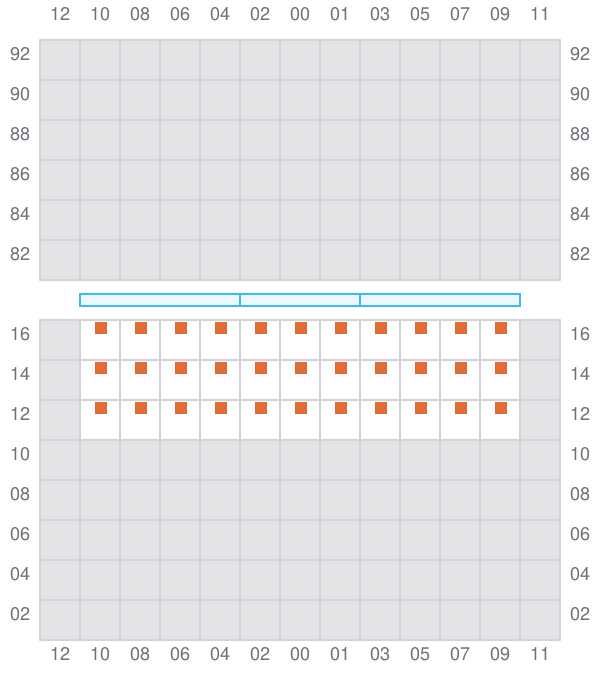

067
- ? / ←
- ? / →

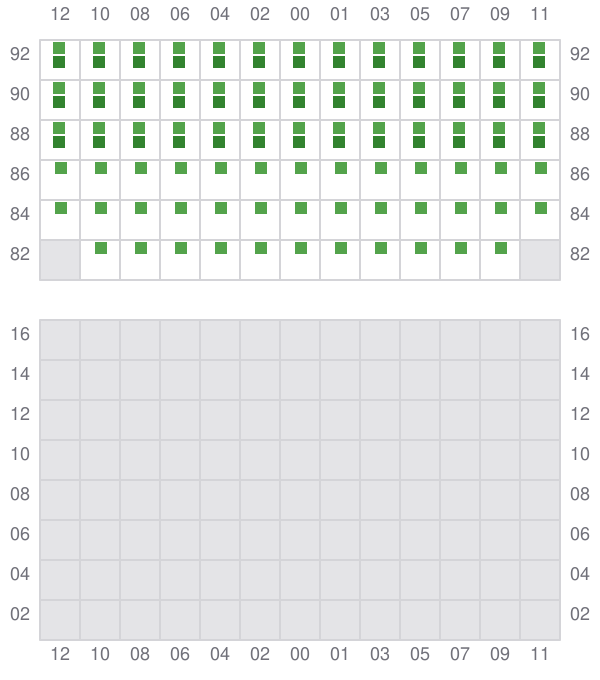

069 (070)
- → / ?
- → / ?
- → / ?
