EVER ENVOY
9241308 | VSQL9 | 9241308 by ********* Last update: Wed May 01 2024
General Info
Ship Name:EVER ENVOY
IMO Code:9241308
Call Sign:VSQL9
Line Operator:9241308
Class Name for Sister Ships:EVER ENVOY
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,638
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

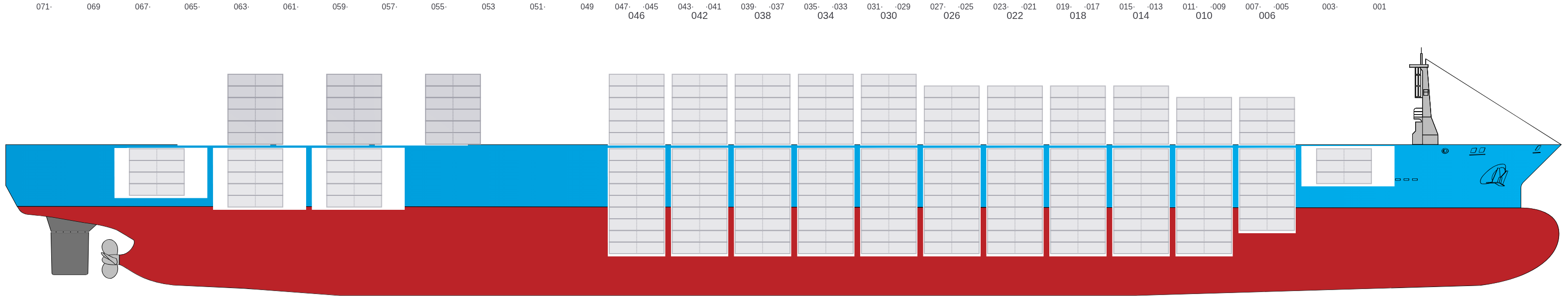

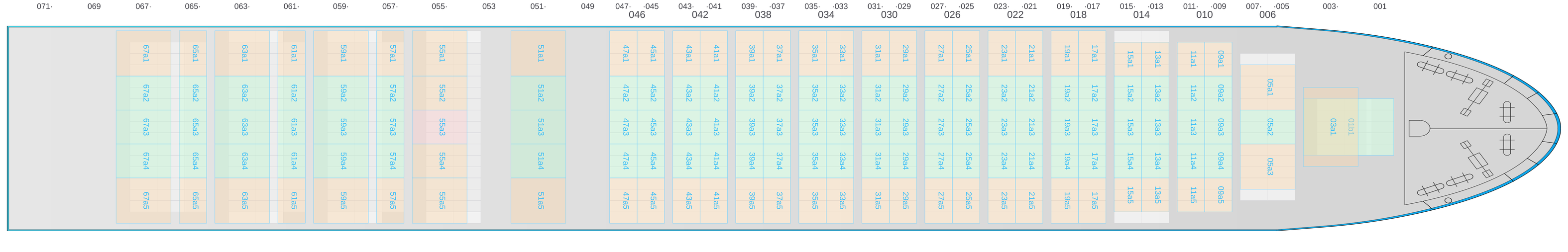

Side View
Hatch-Covers View

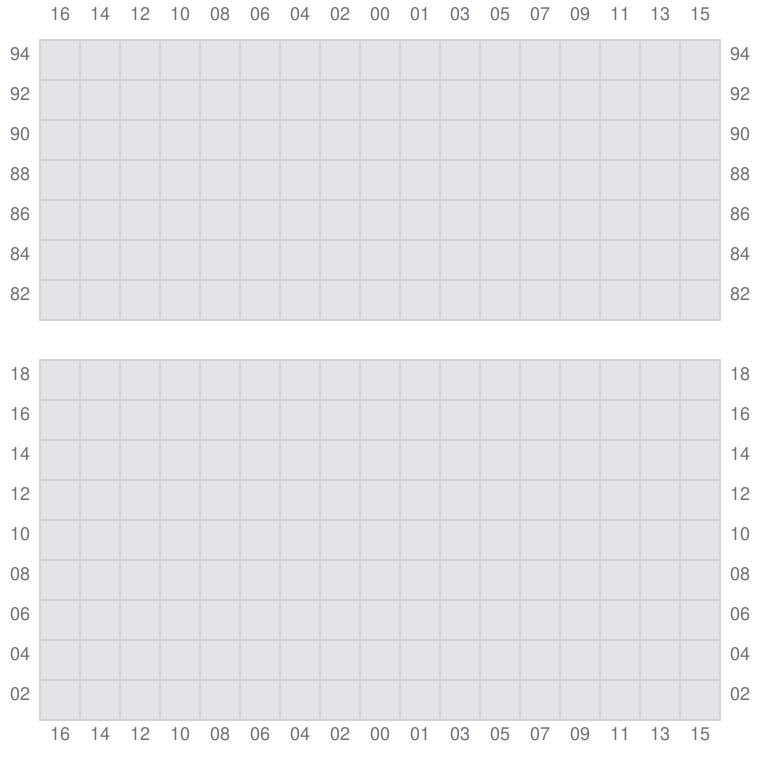

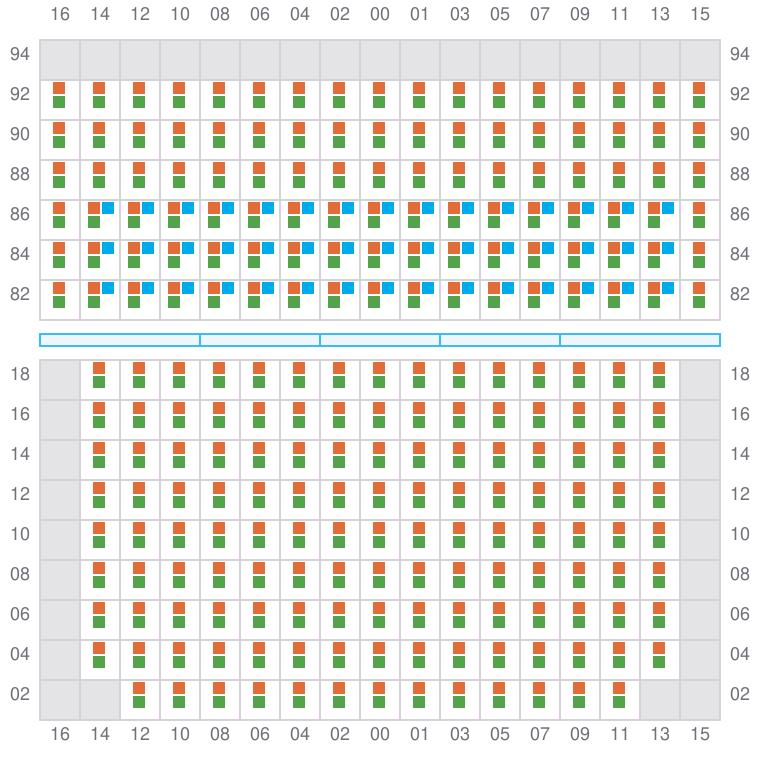

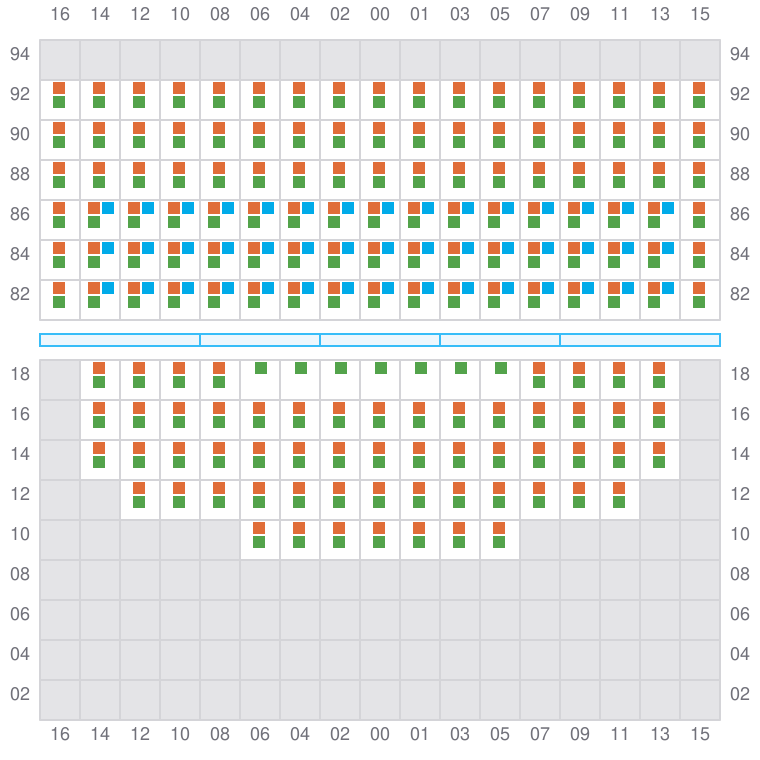

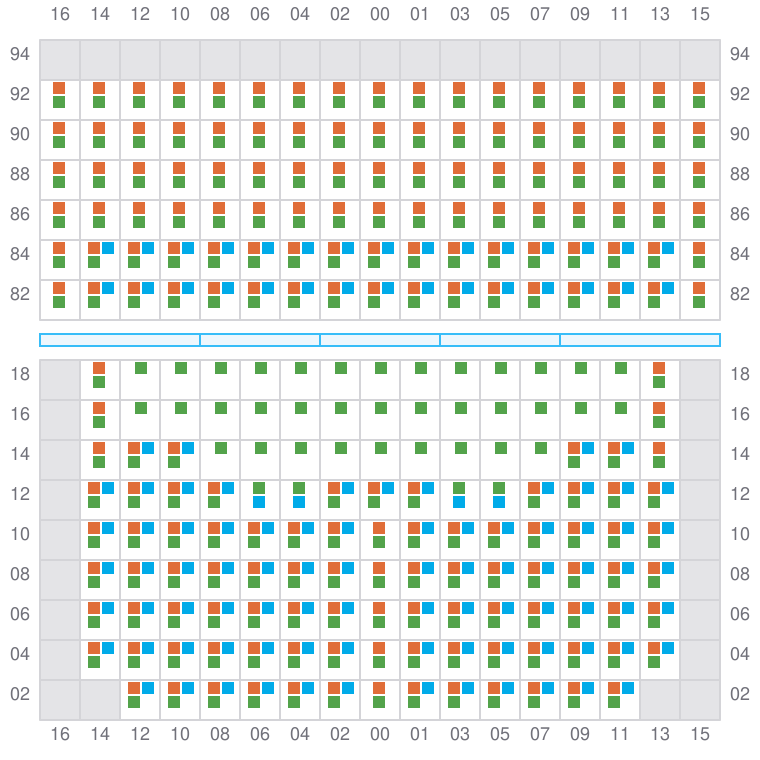

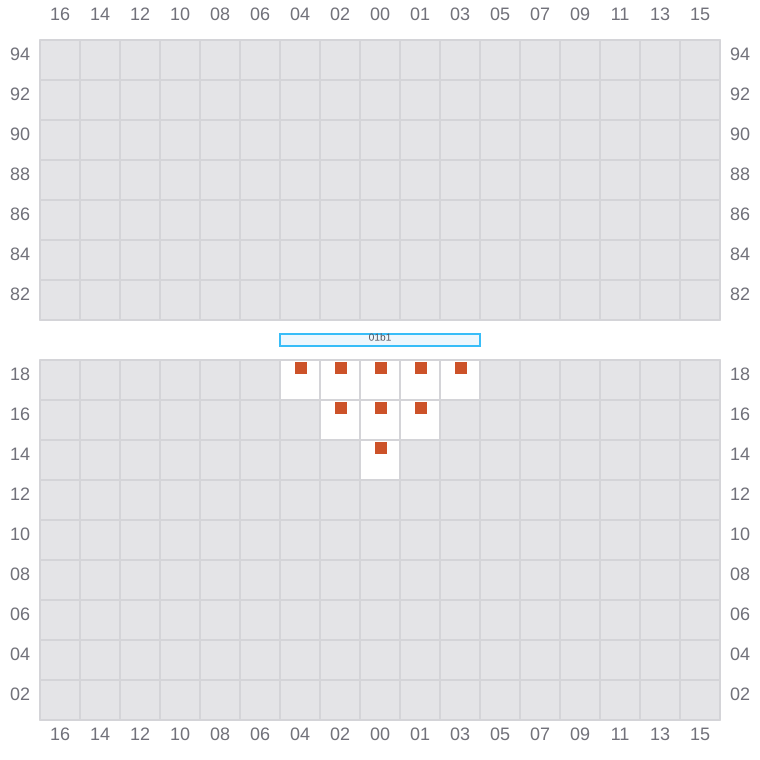

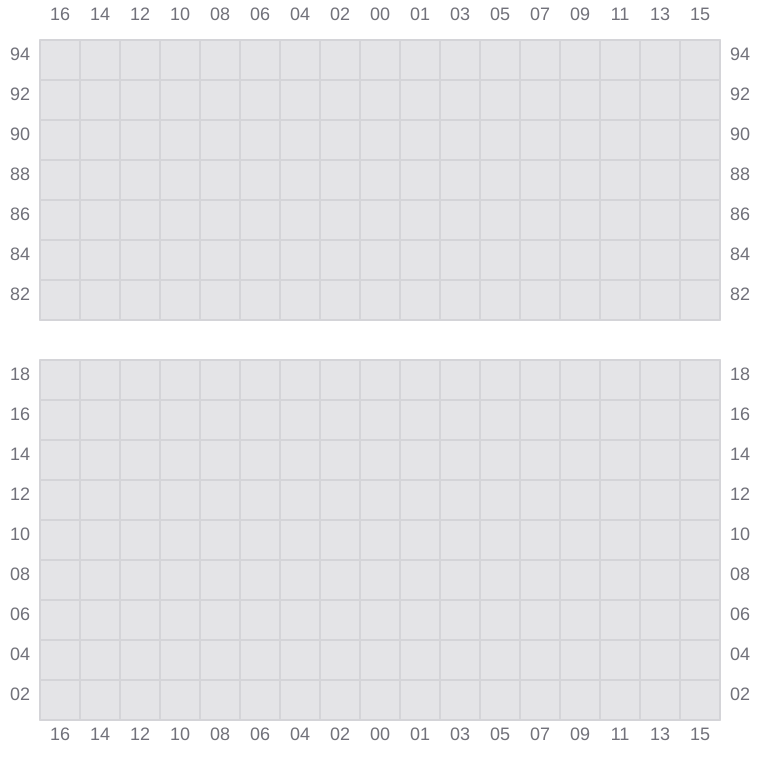

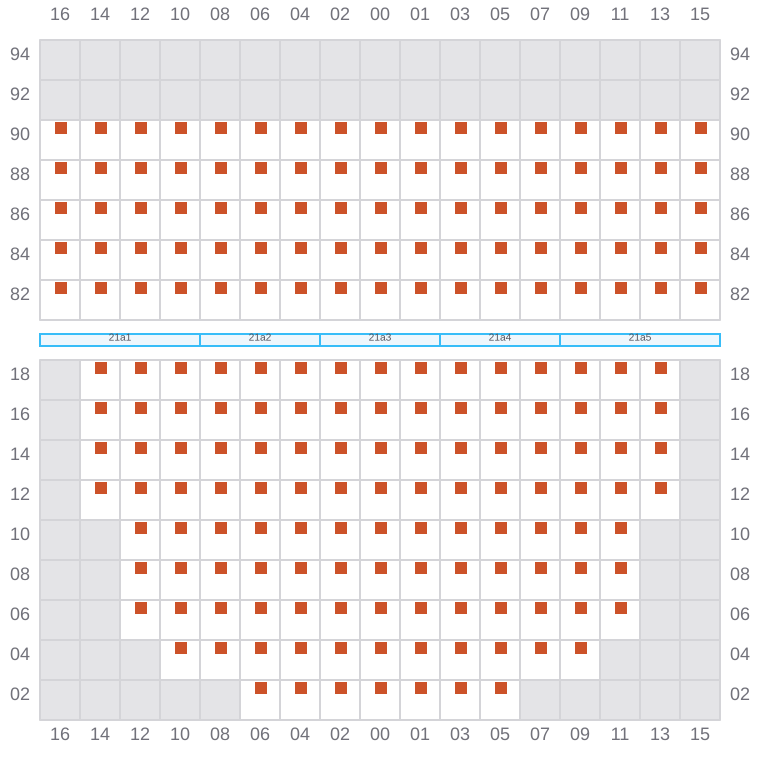

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- ? / →

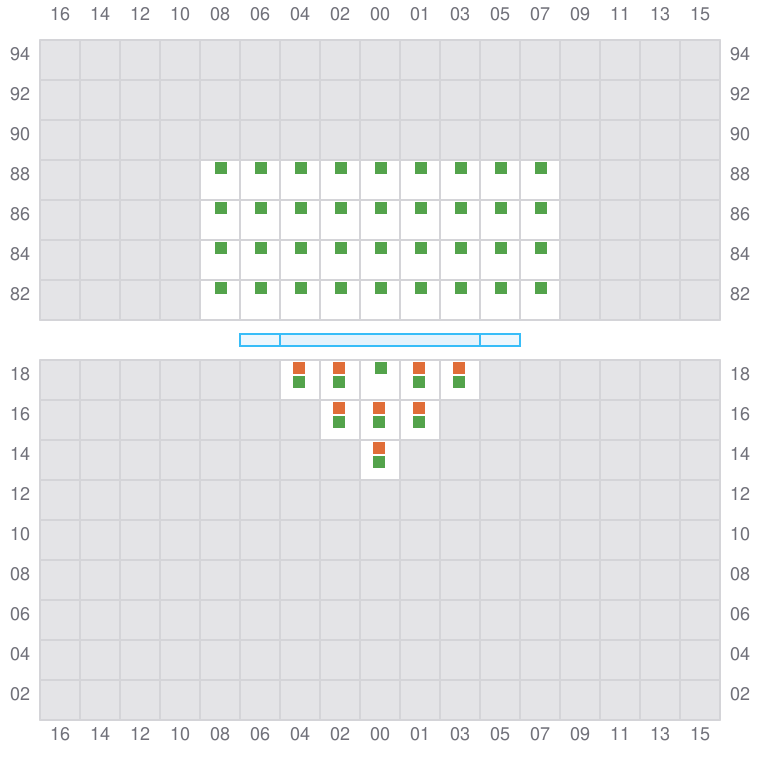

003 (002)
- ←

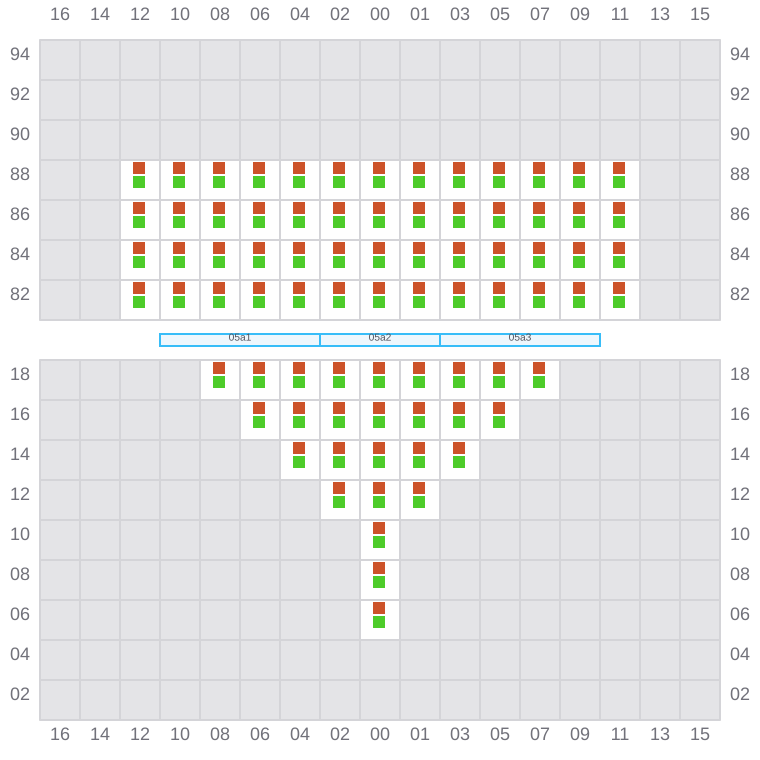

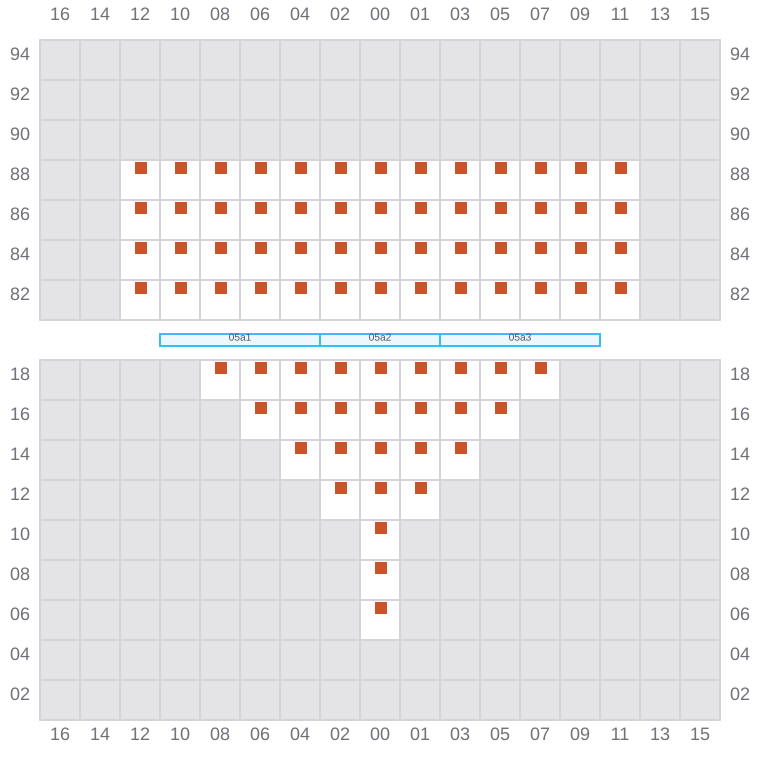

005
- →
007 (006)
- ←

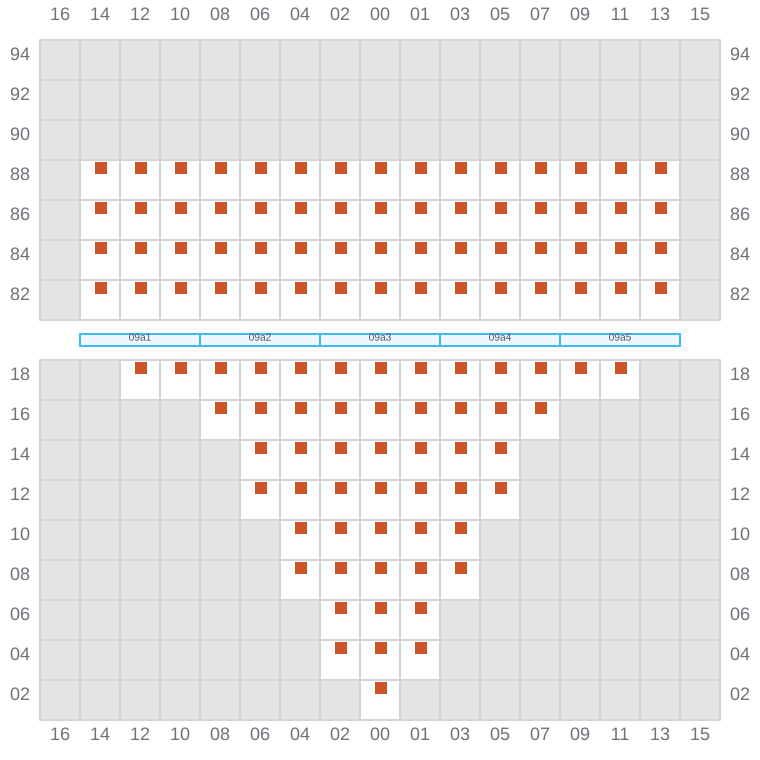

009
- →

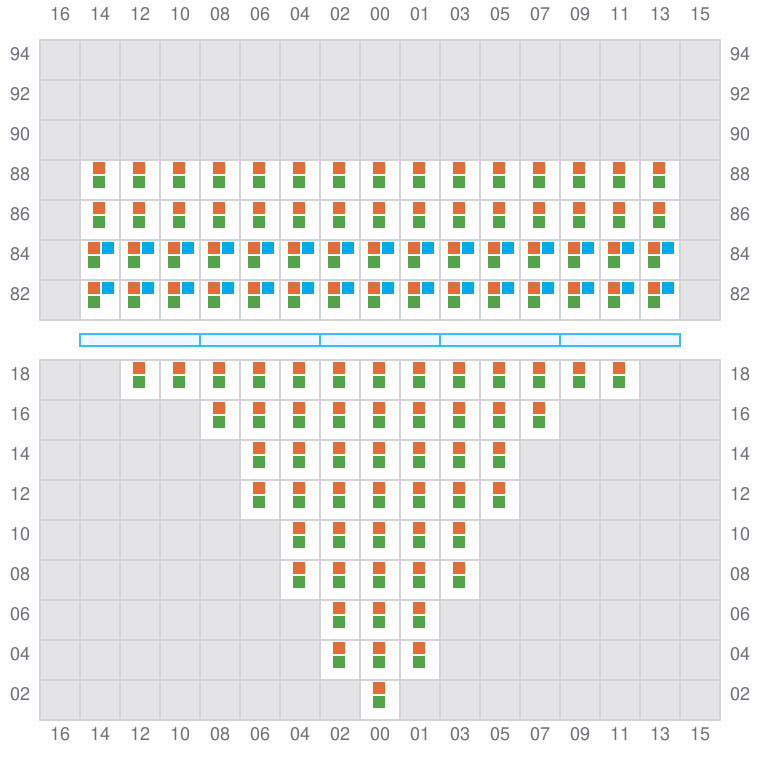

011 (010)
- ←

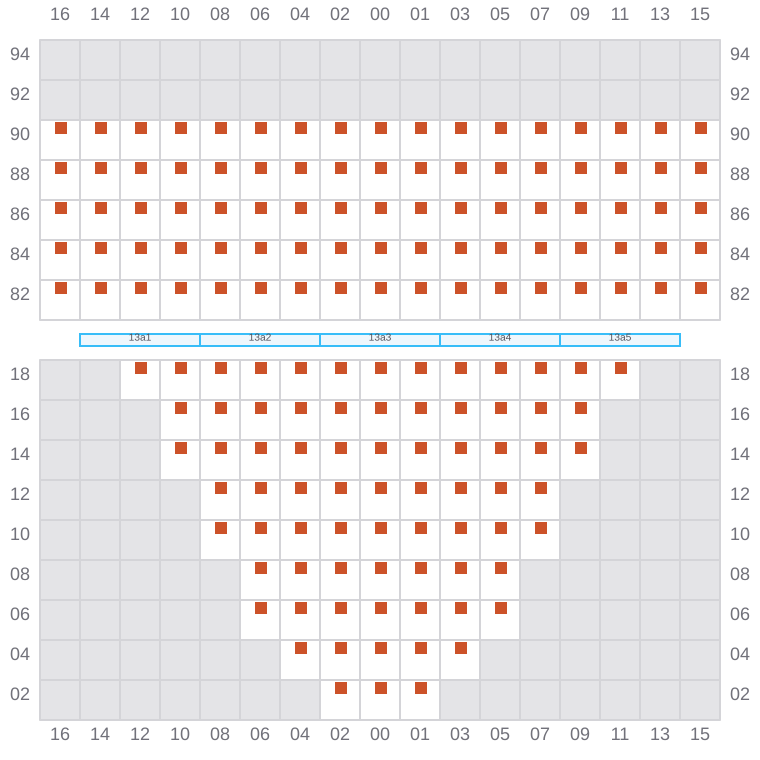

013
- →

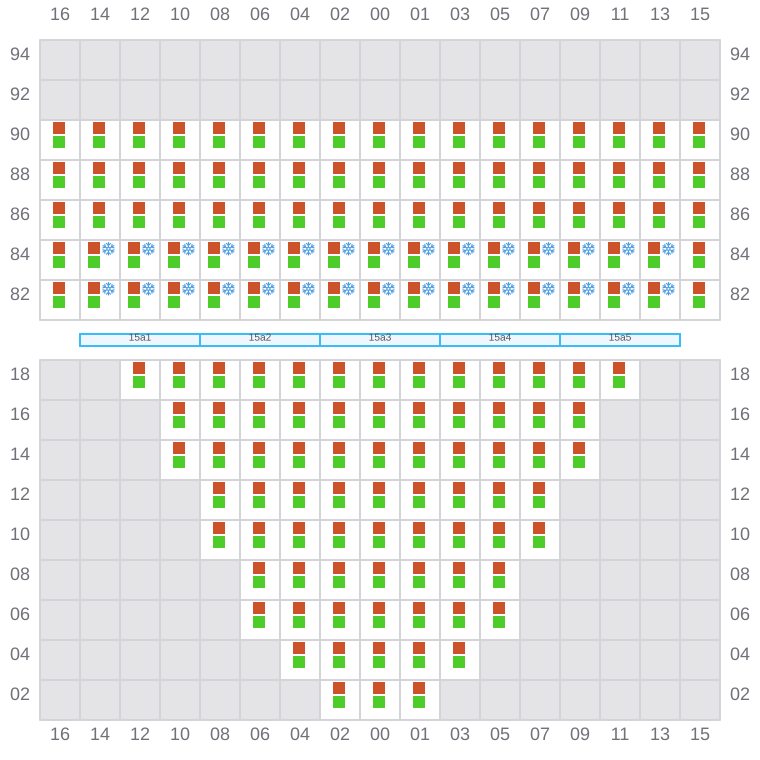

015 (014)
- ←

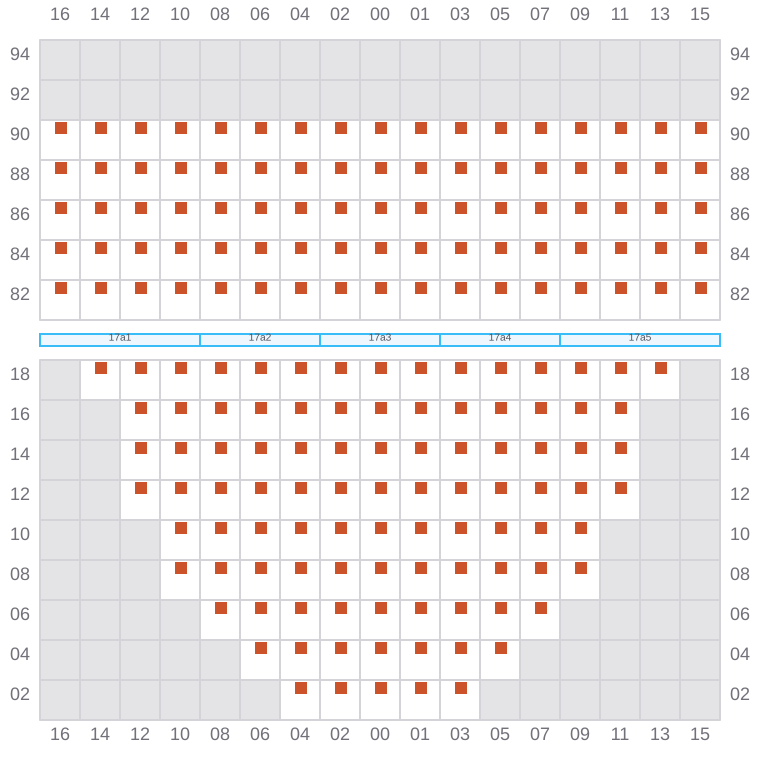

017
- →

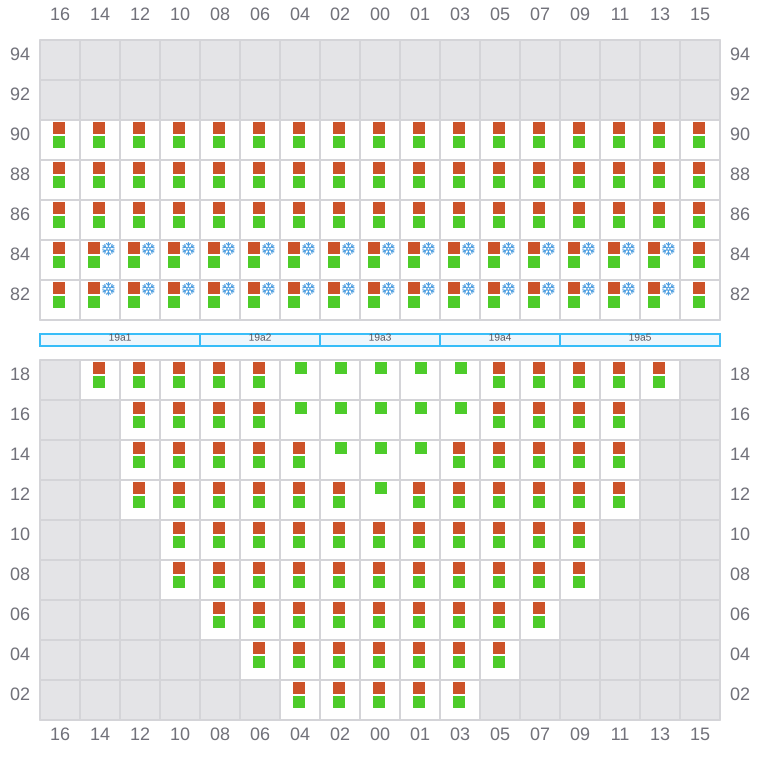

019 (018)
- ←
021
- →

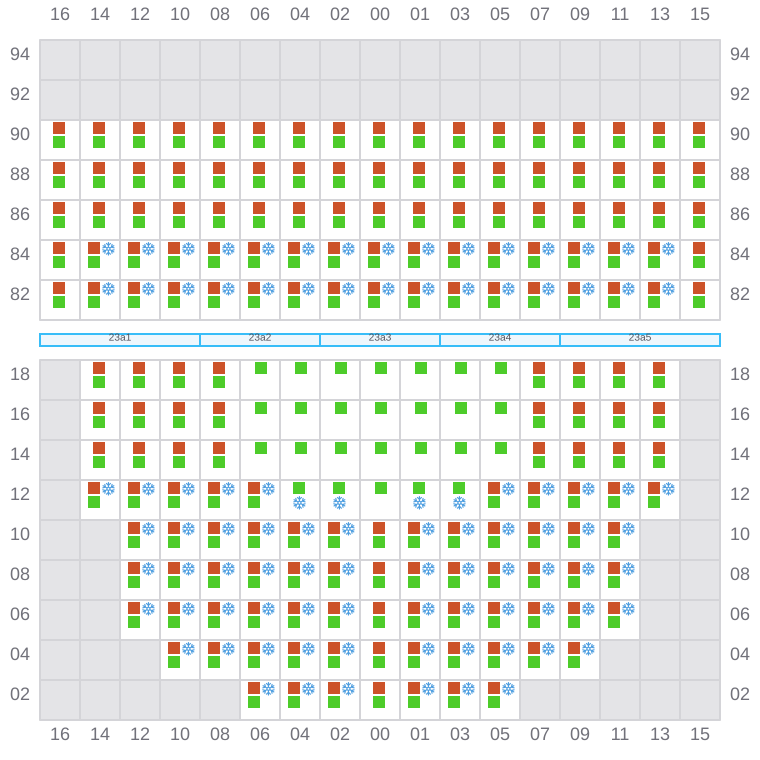

023 (022)
- ←

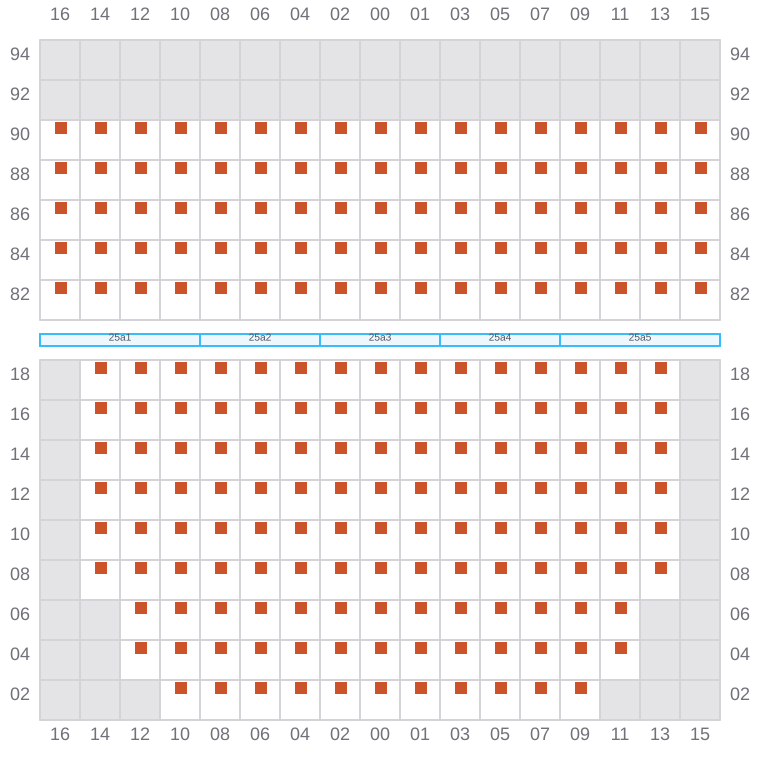

025
- →

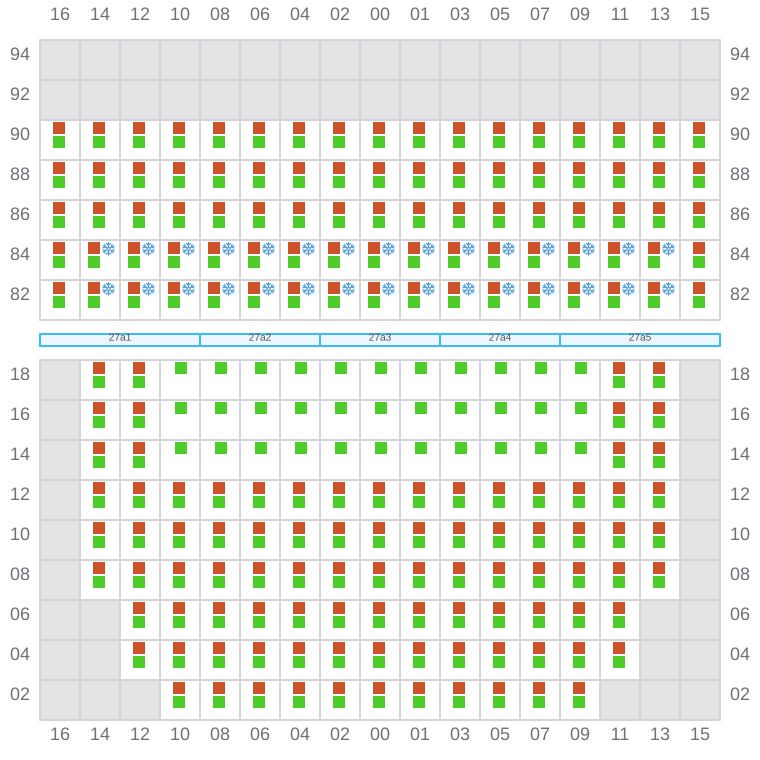

027 (026)
- ←
029
- →

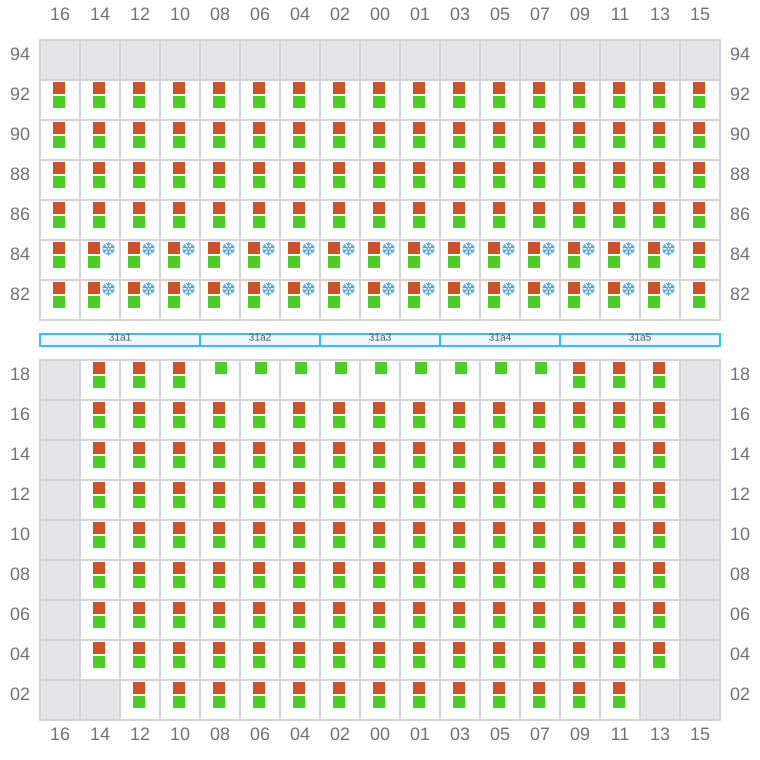

031 (030)
- ←

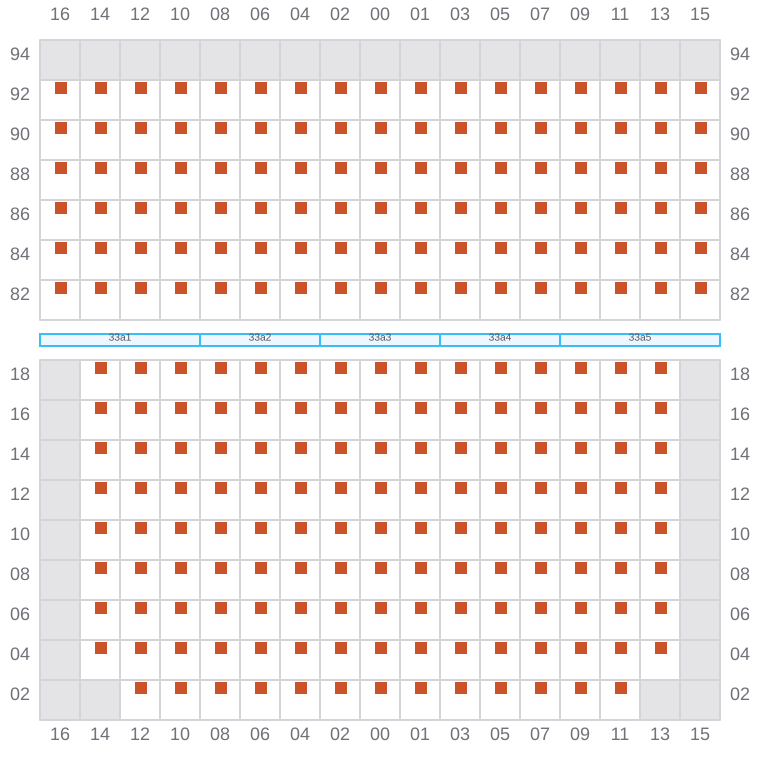

033
- →

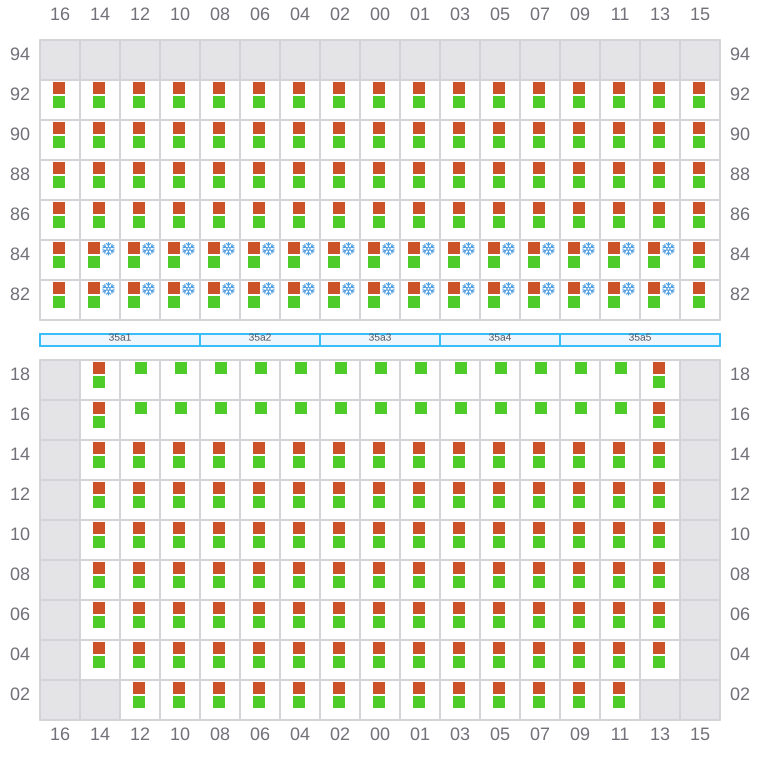

035 (034)
- ←

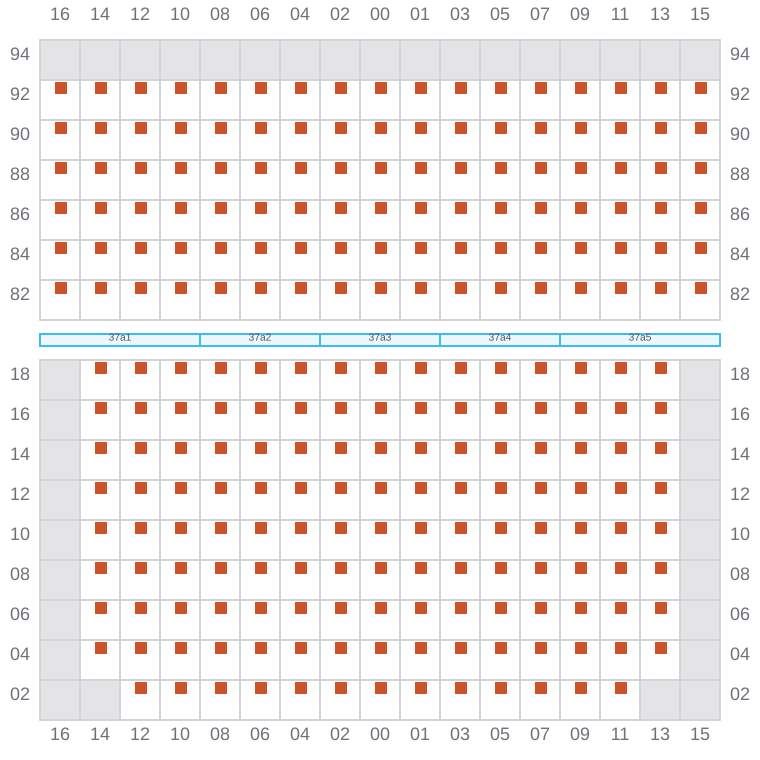

037
- →
039 (038)
- ←

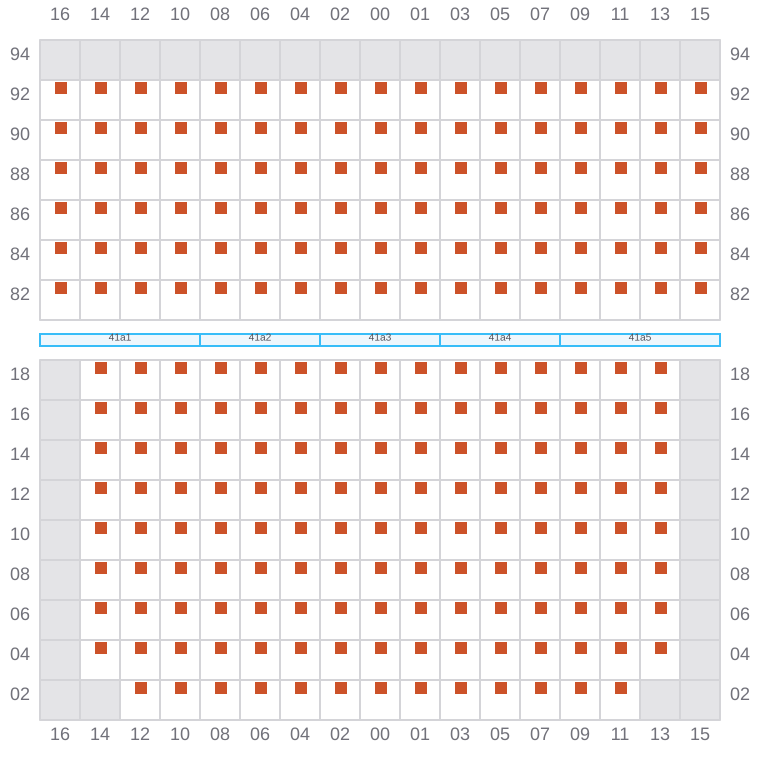

041
- →

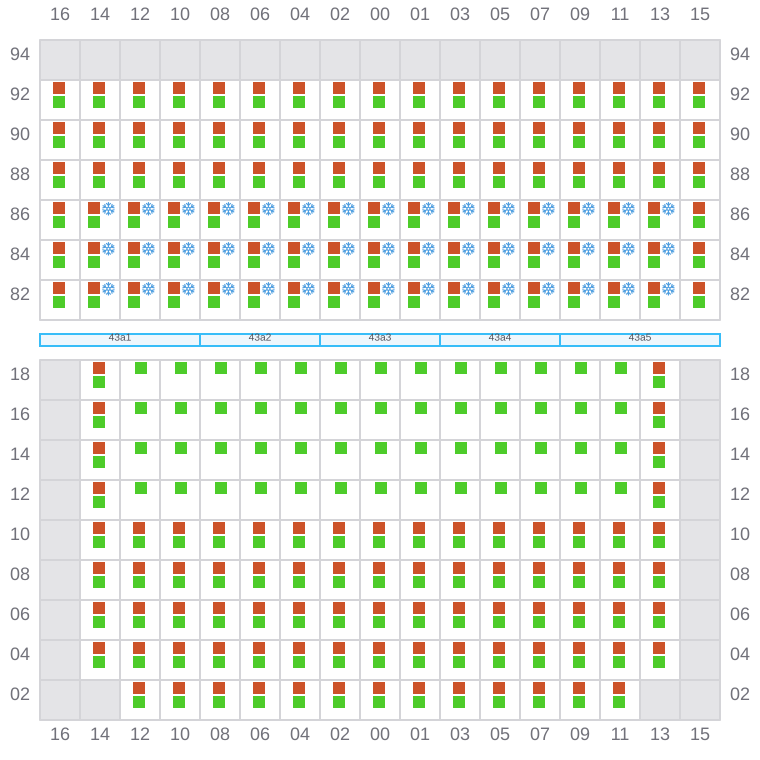

043 (042)
- ←

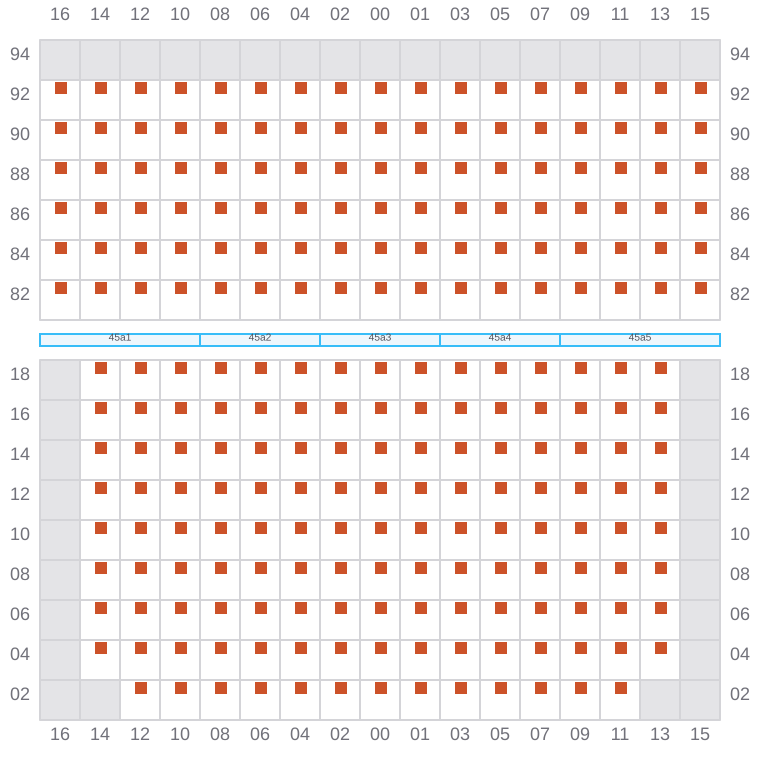

045
- →
047 (046)
- ←
049
051 (050)
- ←
053

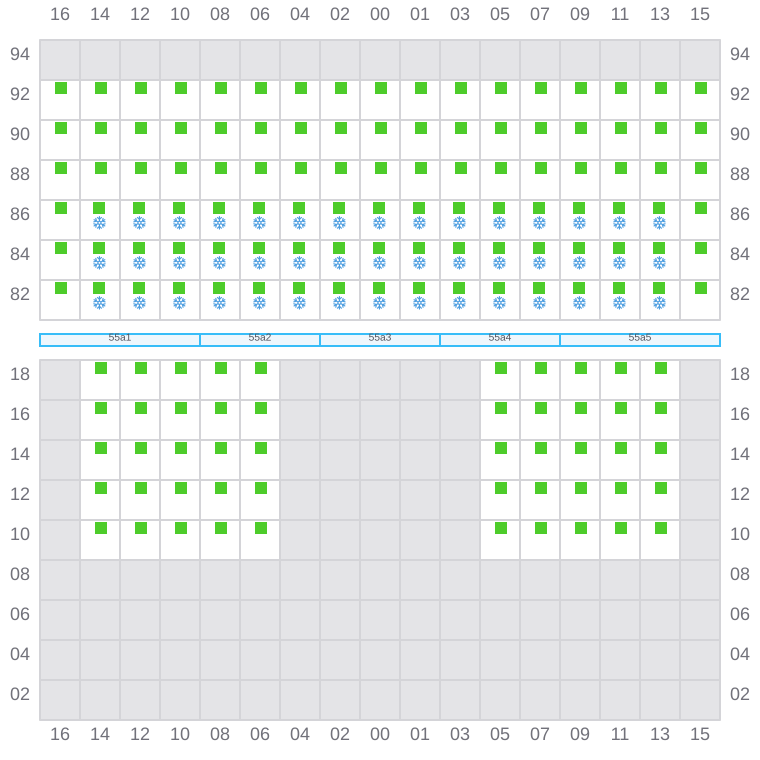

055 (054)
- ←

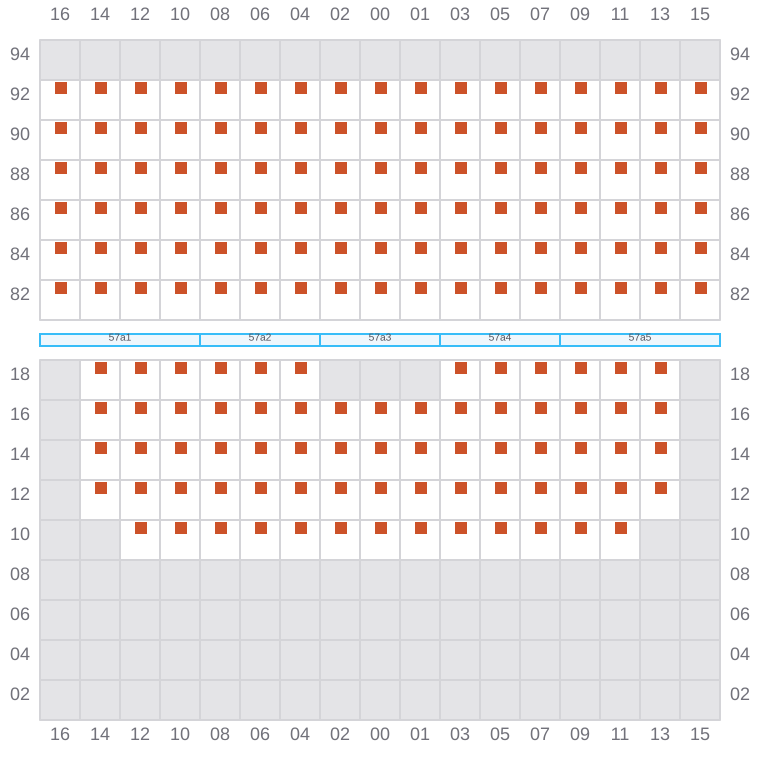

057
- ← / →
059 (058)
- ←

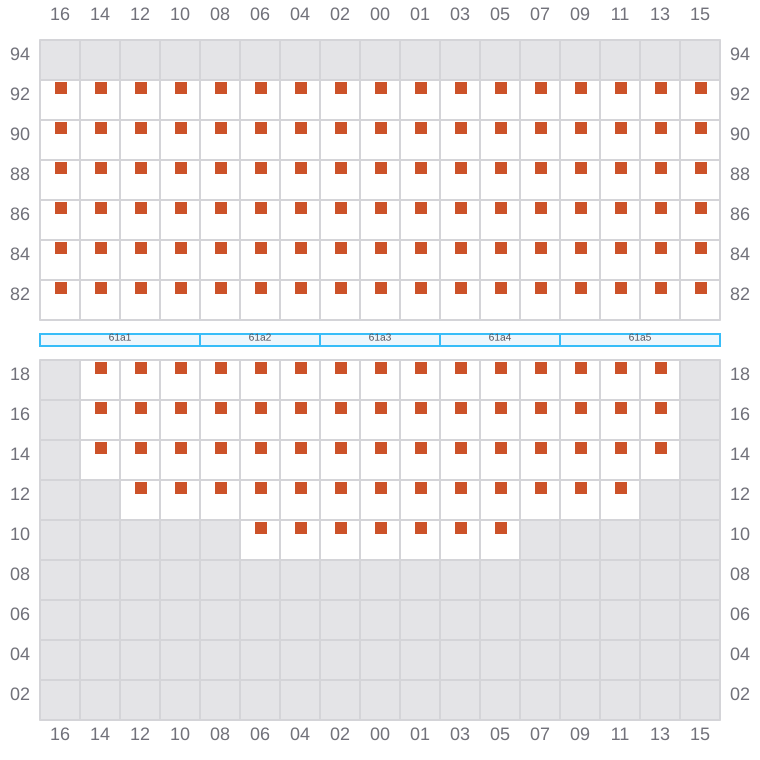

061
- ← / →
063 (062)
- ←

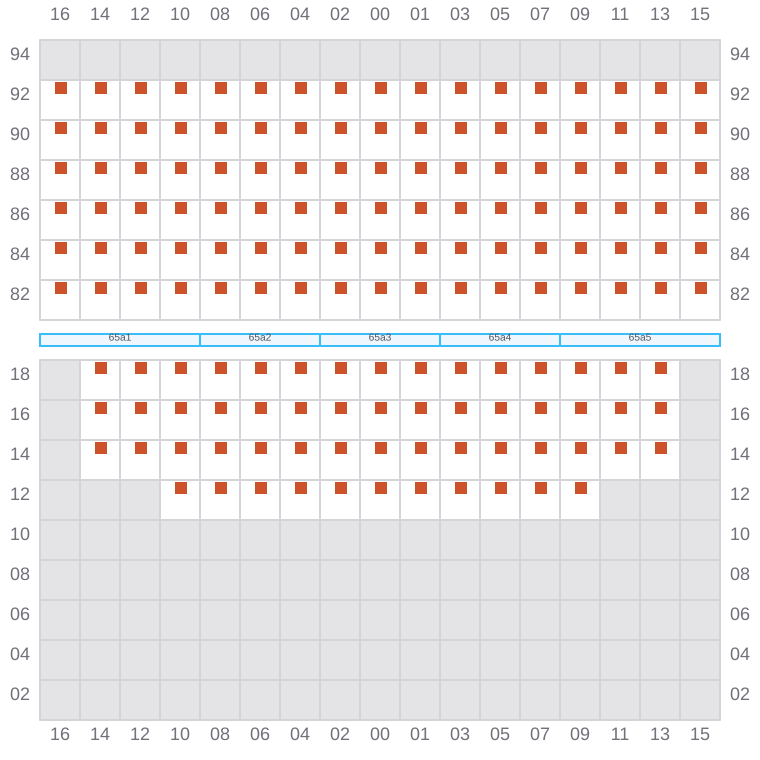

065
- ← / →

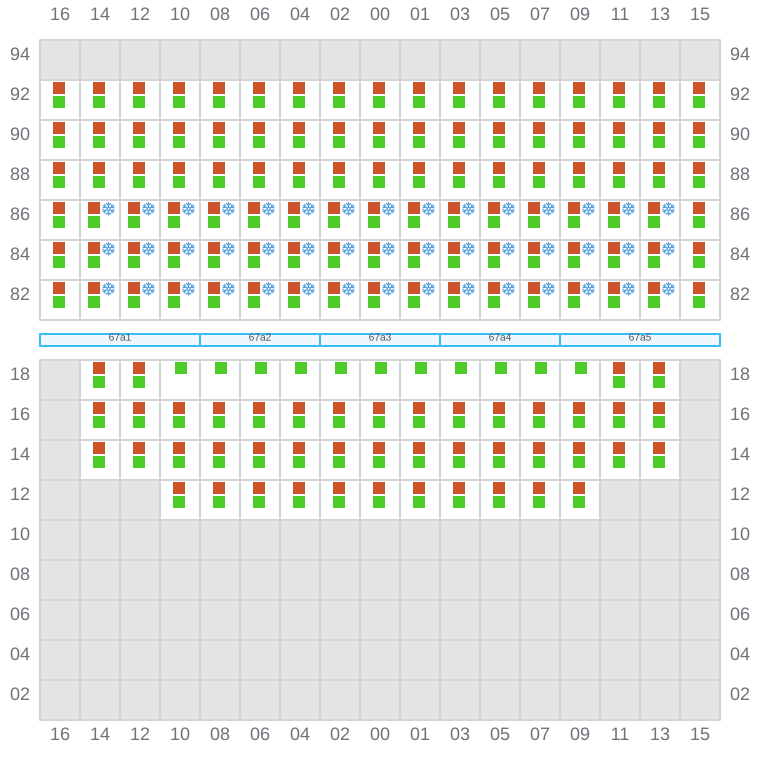

067 (066)
- ←
069

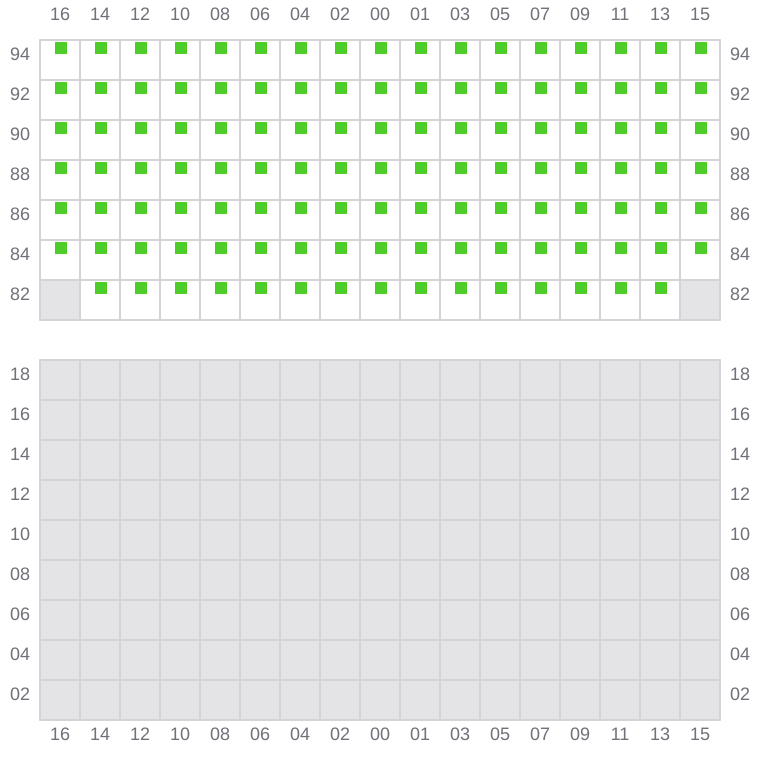

071 (070)
- ← / ?
