EVER FAME
9850800 | H9CF | EIS by ************************** Last update: Thu Jun 08 2023
General Info
Ship Name:EVER FAME
IMO Code:9850800
Call Sign:H9CF
Line Operator:EIS
Class Name for Sister Ships:FAM
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:12,533
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

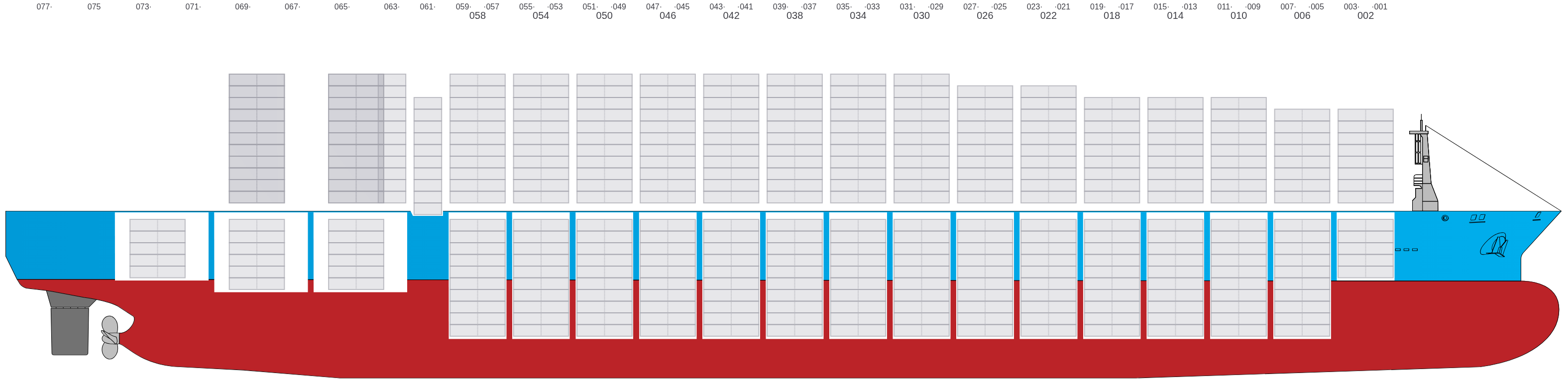

Side View
![Side view of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-sideView.png?v=1686249435816)
Hatch-Covers View
![Deck view of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-deckView.png?v=1686249435816)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
![Bay 001 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b001.png?v=1686249435816)

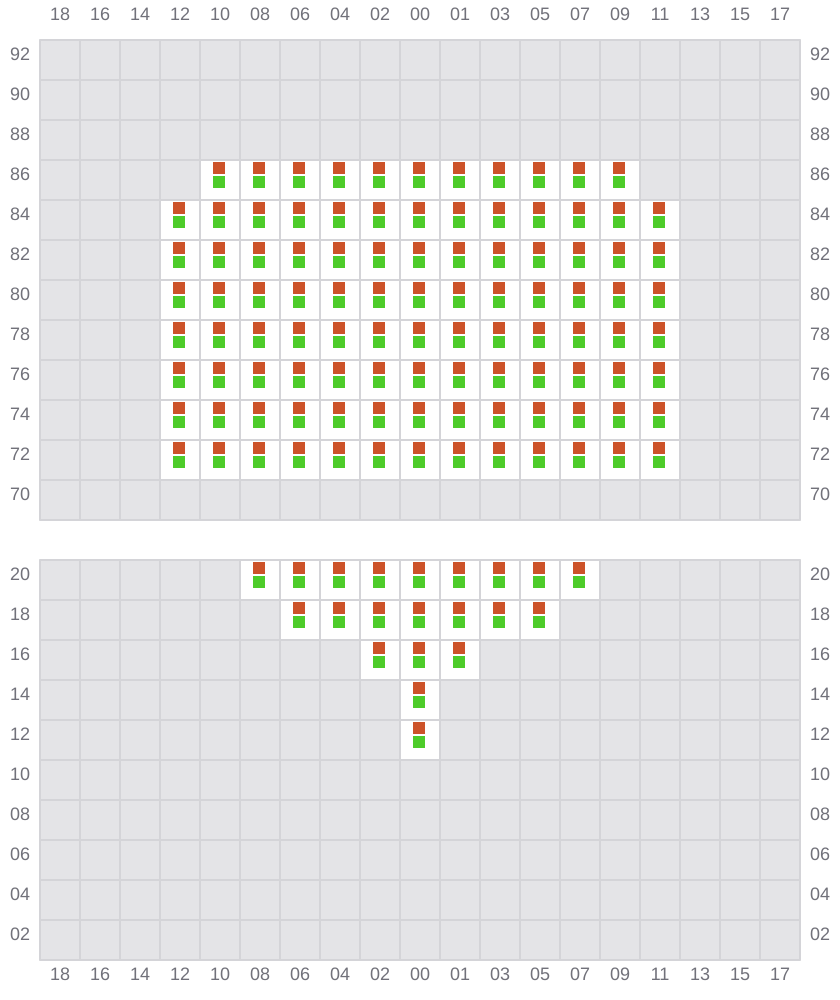

003 (002)
- ←
![Bay 003 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b003.png?v=1686249435816)
005
- →
![Bay 005 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b005.png?v=1686249435816)

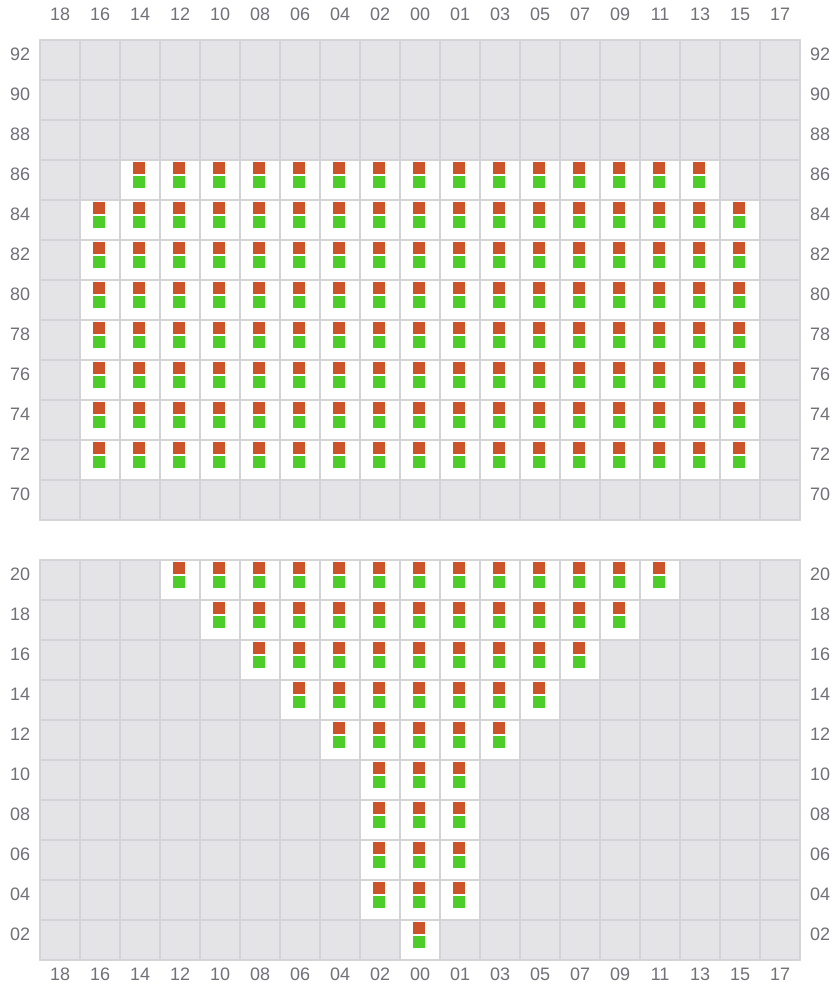

007 (006)
- ←
![Bay 007 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b007.png?v=1686249435816)

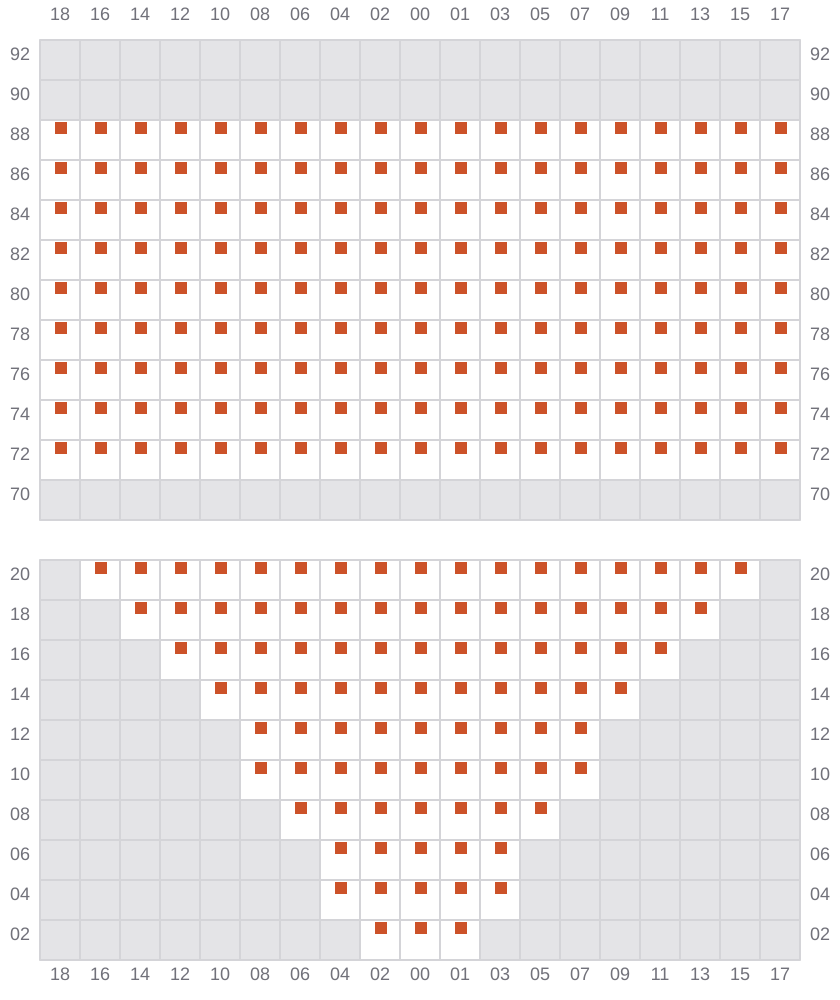

009
- →
![Bay 009 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b009.png?v=1686249435816)
011 (010)
- ←
![Bay 011 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b011.png?v=1686249435816)
013
- →
![Bay 013 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b013.png?v=1686249435816)

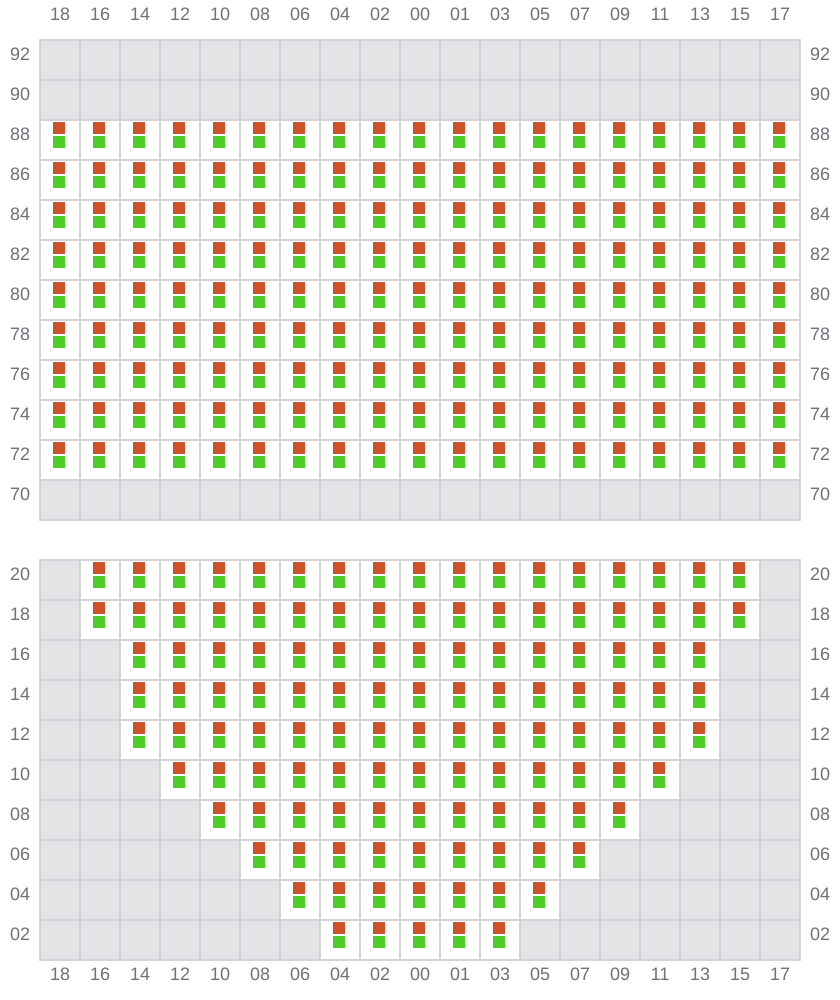

015 (014)
- ←
![Bay 015 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b015.png?v=1686249435816)
017
- →
![Bay 017 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b017.png?v=1686249435816)
019 (018)
- ←
![Bay 019 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b019.png?v=1686249435816)
021
- →
![Bay 021 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b021.png?v=1686249435816)
023 (022)
- ←
![Bay 023 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b023.png?v=1686249435816)
025
- →
![Bay 025 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b025.png?v=1686249435816)
027 (026)
- ←
![Bay 027 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b027.png?v=1686249435816)
029
- →
![Bay 029 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b029.png?v=1686249435816)
031 (030)
- ←
![Bay 031 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b031.png?v=1686249435816)

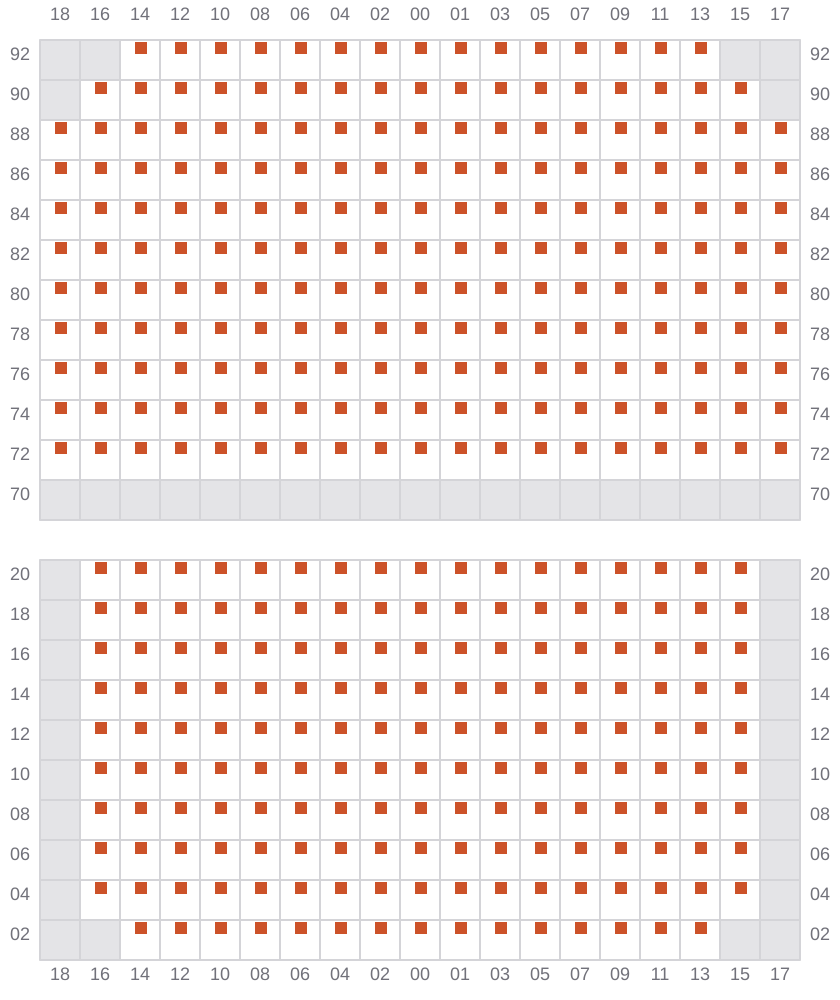

033
- →
![Bay 033 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b033.png?v=1686249435816)
035 (034)
- ←
![Bay 035 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b035.png?v=1686249435816)
037
- →
![Bay 037 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b037.png?v=1686249435816)

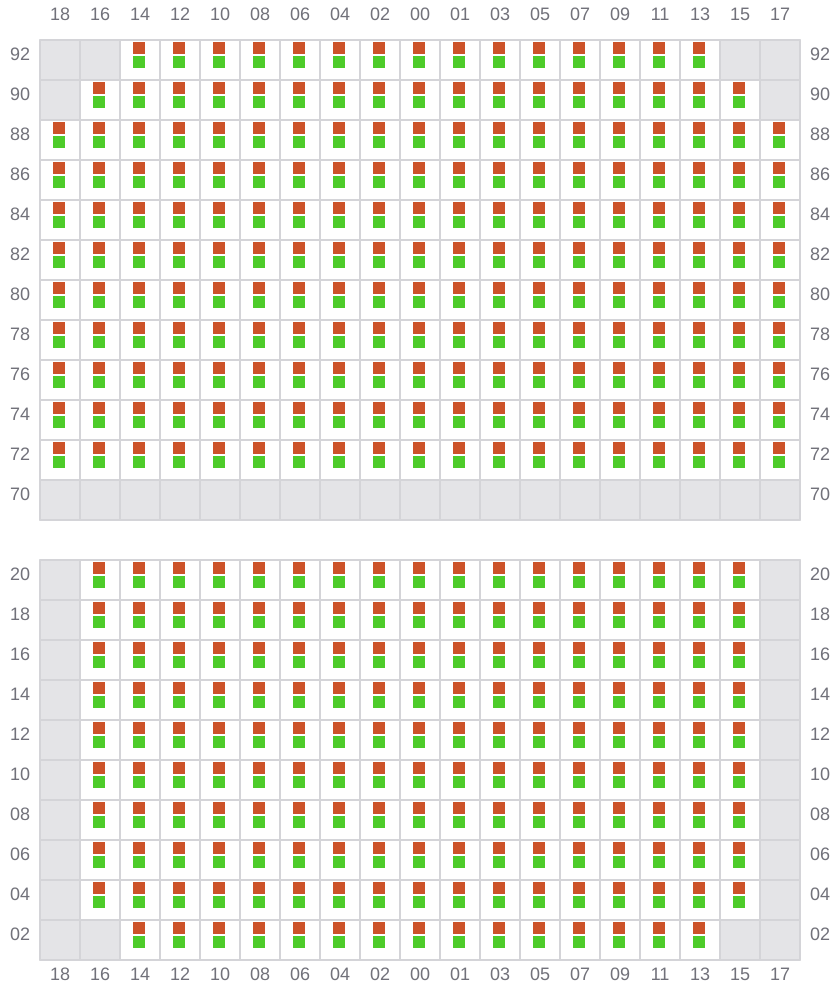

039 (038)
- ←
![Bay 039 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b039.png?v=1686249435816)
041
- →
![Bay 041 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b041.png?v=1686249435816)
043 (042)
- ←
![Bay 043 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b043.png?v=1686249435816)
045
- →
![Bay 045 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b045.png?v=1686249435816)
047 (046)
- ←
![Bay 047 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b047.png?v=1686249435816)
049
- →
![Bay 049 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b049.png?v=1686249435816)
051 (050)
- ←
![Bay 051 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b051.png?v=1686249435816)

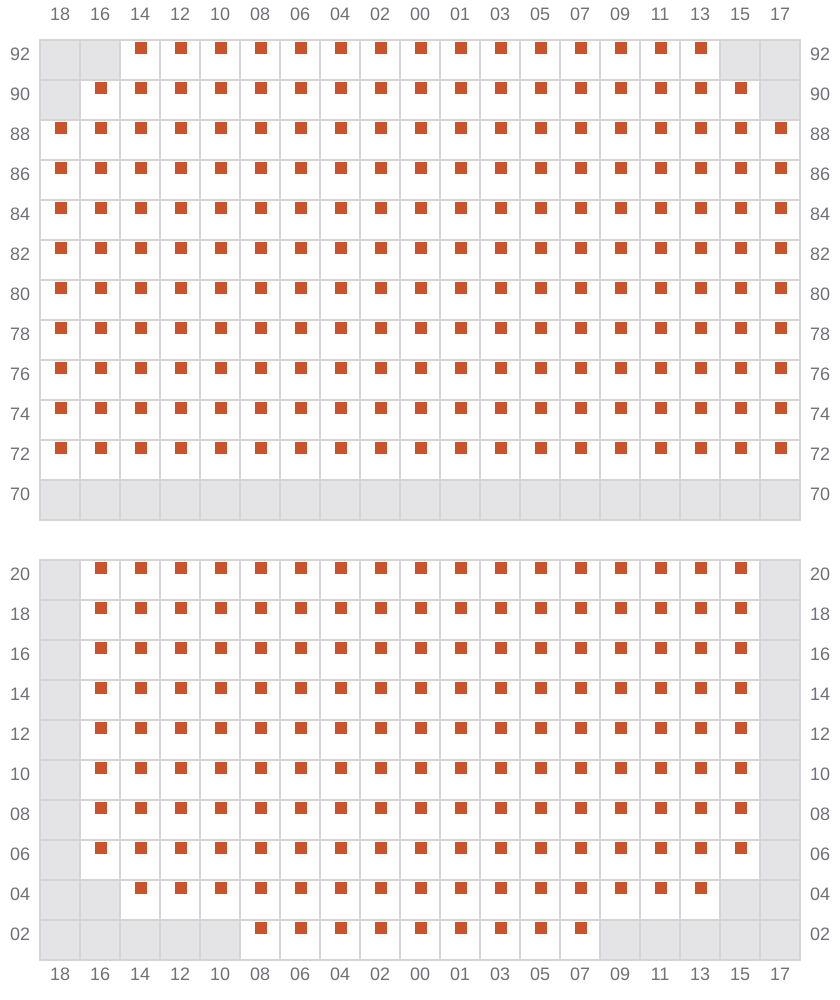

053
- →
![Bay 053 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b053.png?v=1686249435816)
055 (054)
- ←
![Bay 055 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b055.png?v=1686249435816)
057
- →
![Bay 057 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b057.png?v=1686249435816)
059 (058)
- ←
![Bay 059 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b059.png?v=1686249435816)
061
- ← / ?
![Bay 061 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b061.png?v=1686249435816)

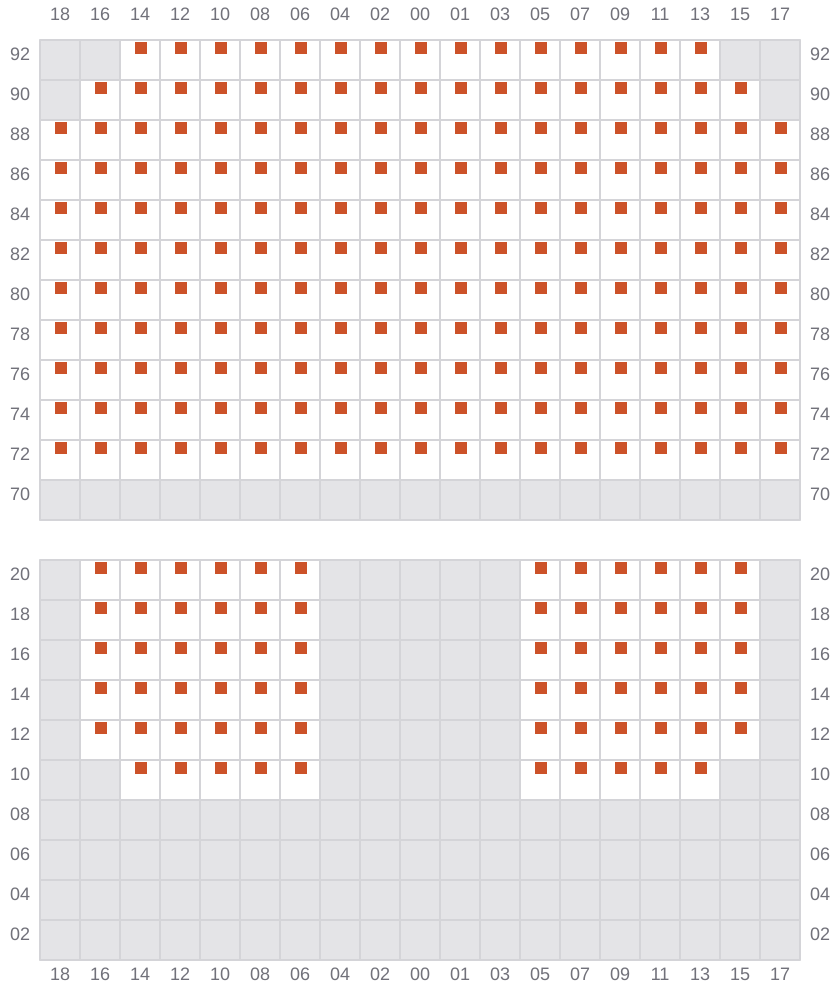

063
- ← / →
![Bay 063 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b063.png?v=1686249435816)
065 (064)
- ←
![Bay 065 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b065.png?v=1686249435816)
067
- ← / →
![Bay 067 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b067.png?v=1686249435816)
069 (068)
- ←
![Bay 069 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b069.png?v=1686249435816)
071
- ← / →
![Bay 071 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b071.png?v=1686249435816)

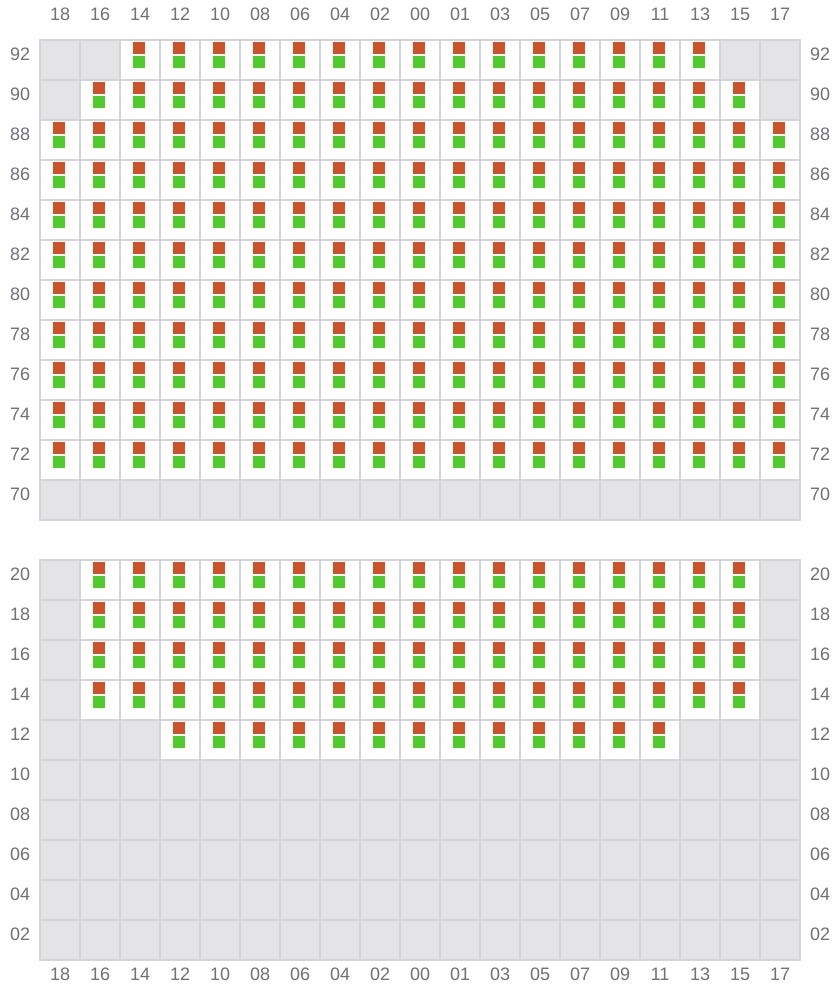

073 (072)
- ←
![Bay 073 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b073.png?v=1686249435816)
075
![Bay 075 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b075.png?v=1686249435816)

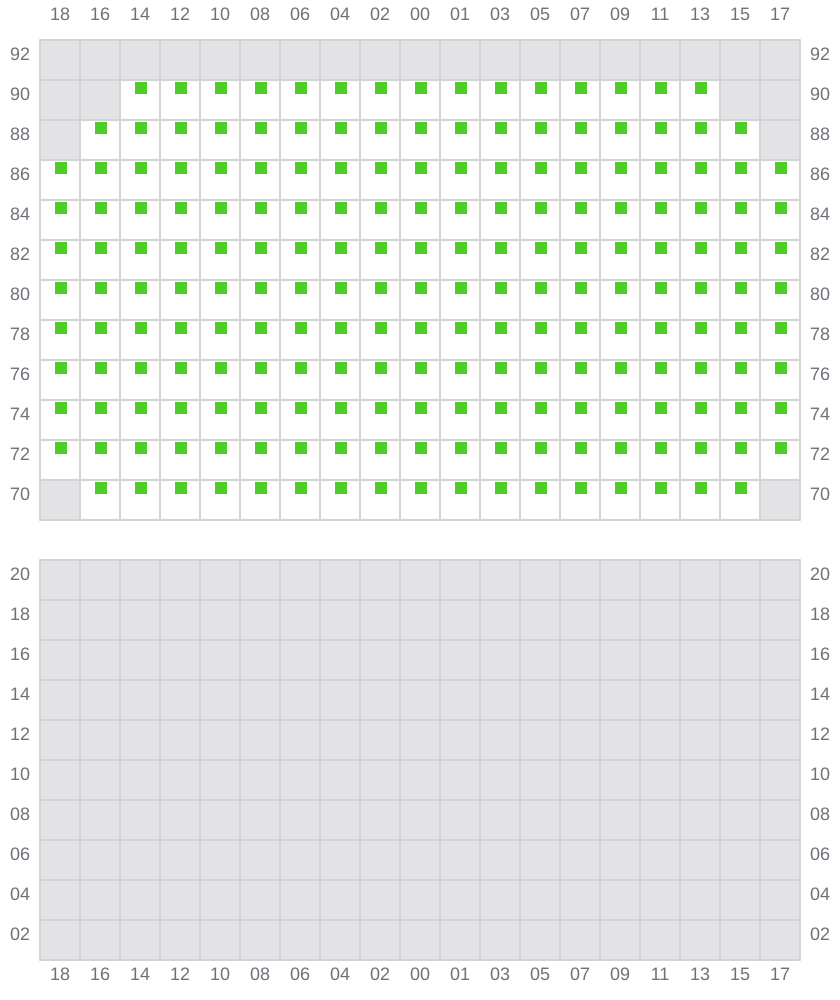

077 (076)
- ← / ?
![Bay 077 view and slots of EVER FAME](/vessel-images/1ad342a3-4c14-43c4-bff2-327c01b82e51-b077.png?v=1686249435816)
