EVER FASHION
9850836 | 5LBS5 | EIS by ************************** Last update: Thu Jun 08 2023

General Info

Ship Name:EVER FASHION
IMO Code:9850836
Call Sign:5LBS5
Line Operator:EIS
Class Name for Sister Ships:FAS
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:075
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:11,964

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

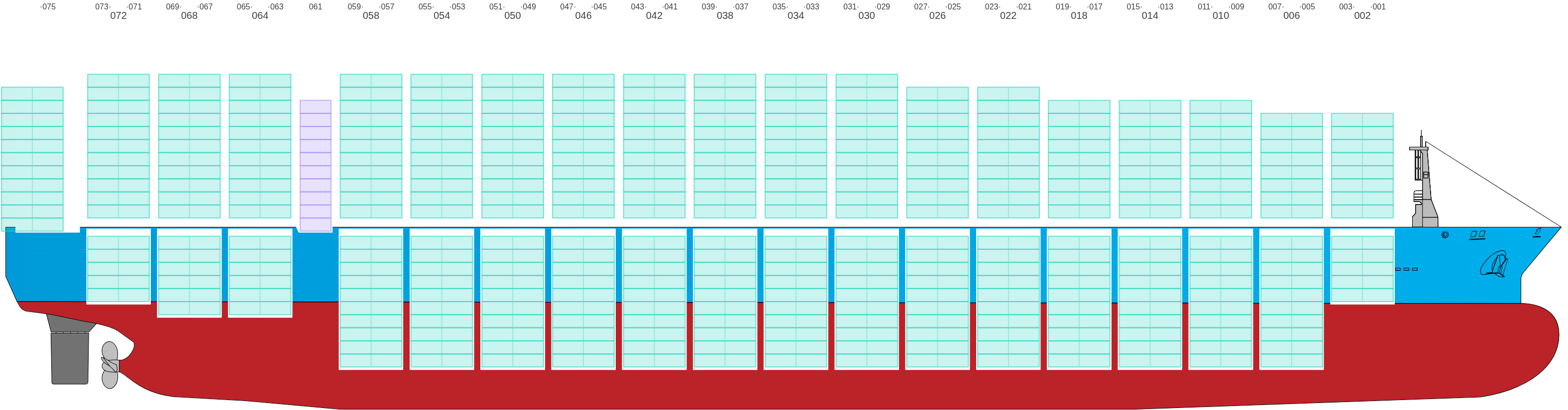

Side view of EVER FASHION

Hatch-Covers View

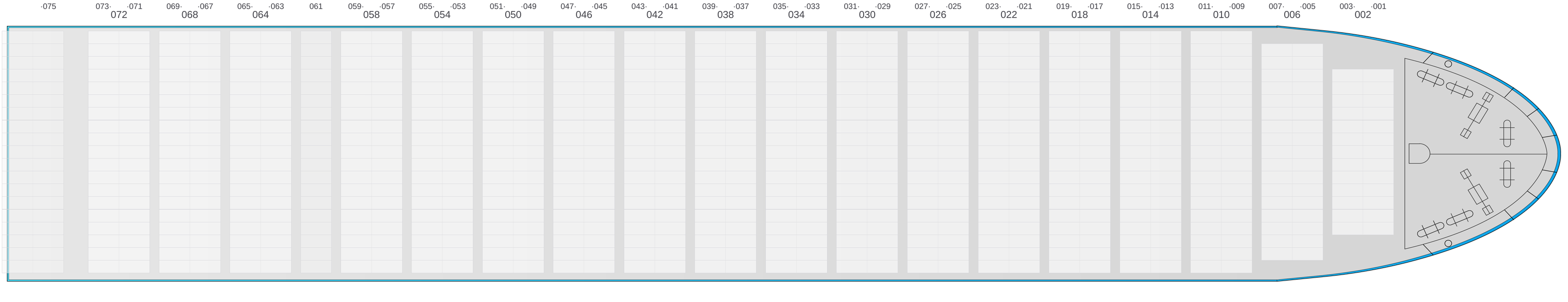

Deck view of EVER FASHION

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

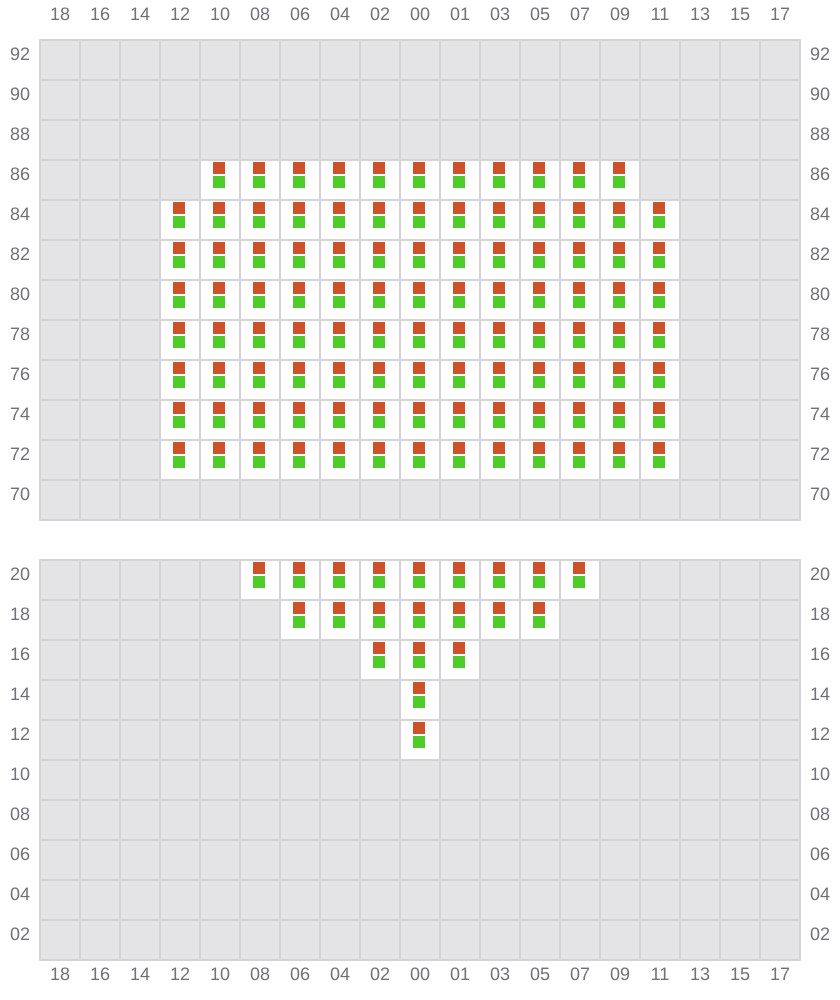

Bay 001 view and slots of EVER FASHION

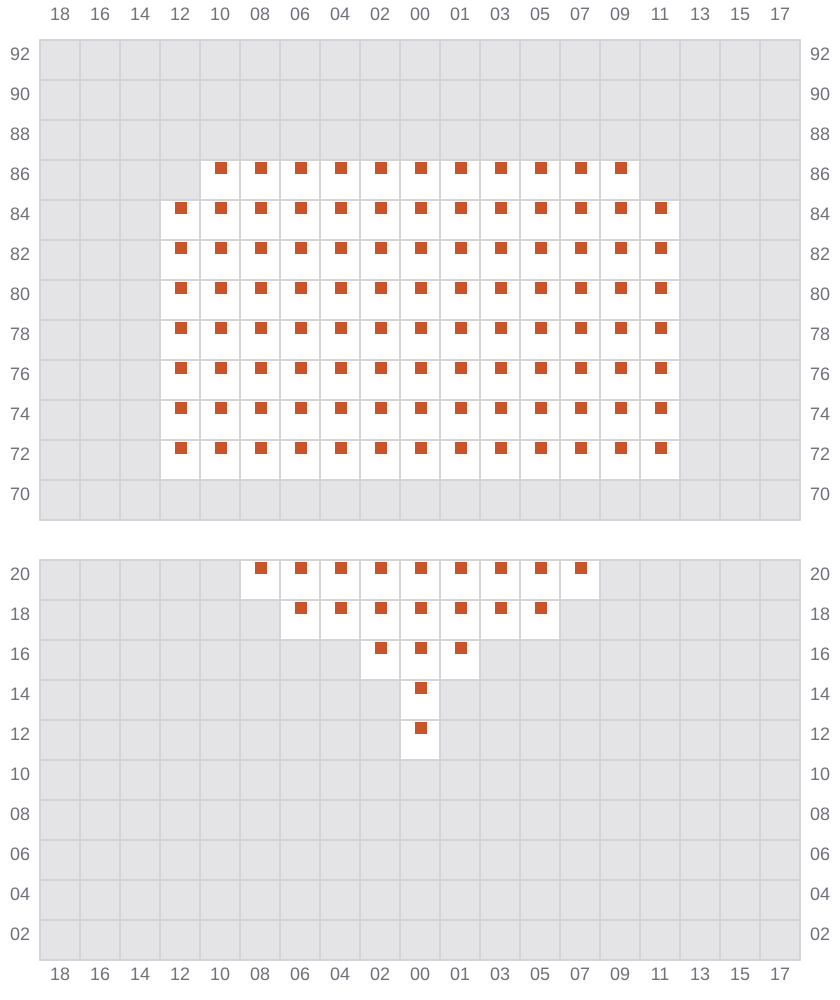

003

Bay 003 view and slots of EVER FASHION

005 (006)

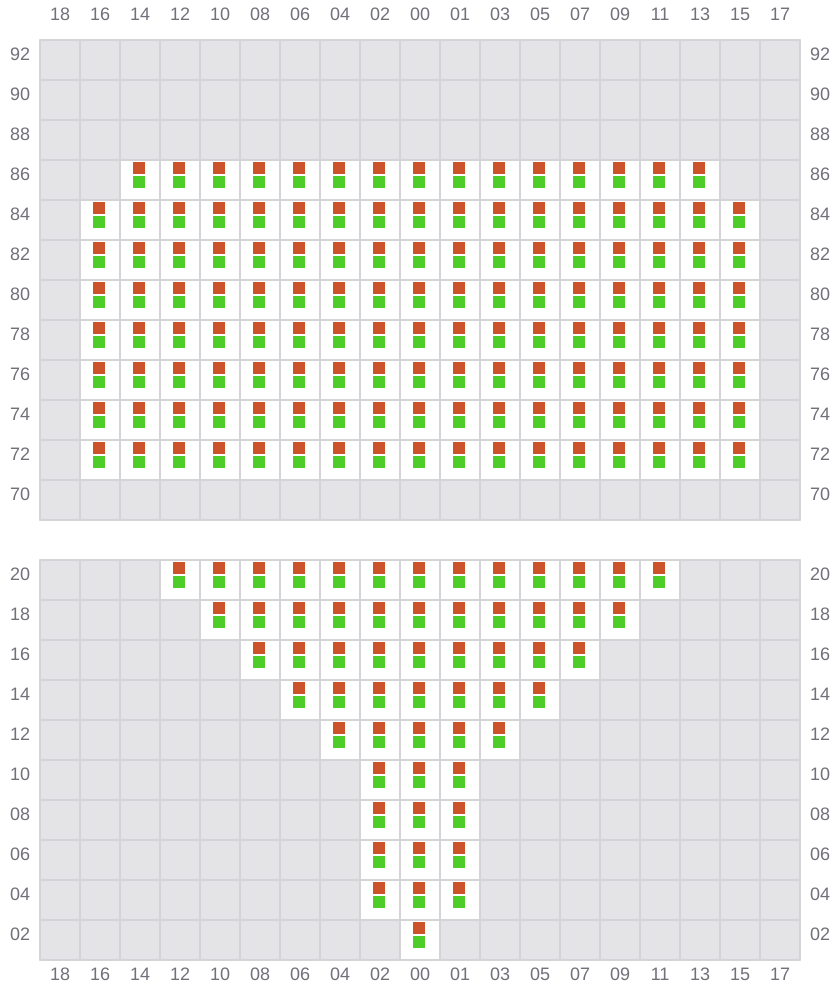

Bay 005 view and slots of EVER FASHION

007

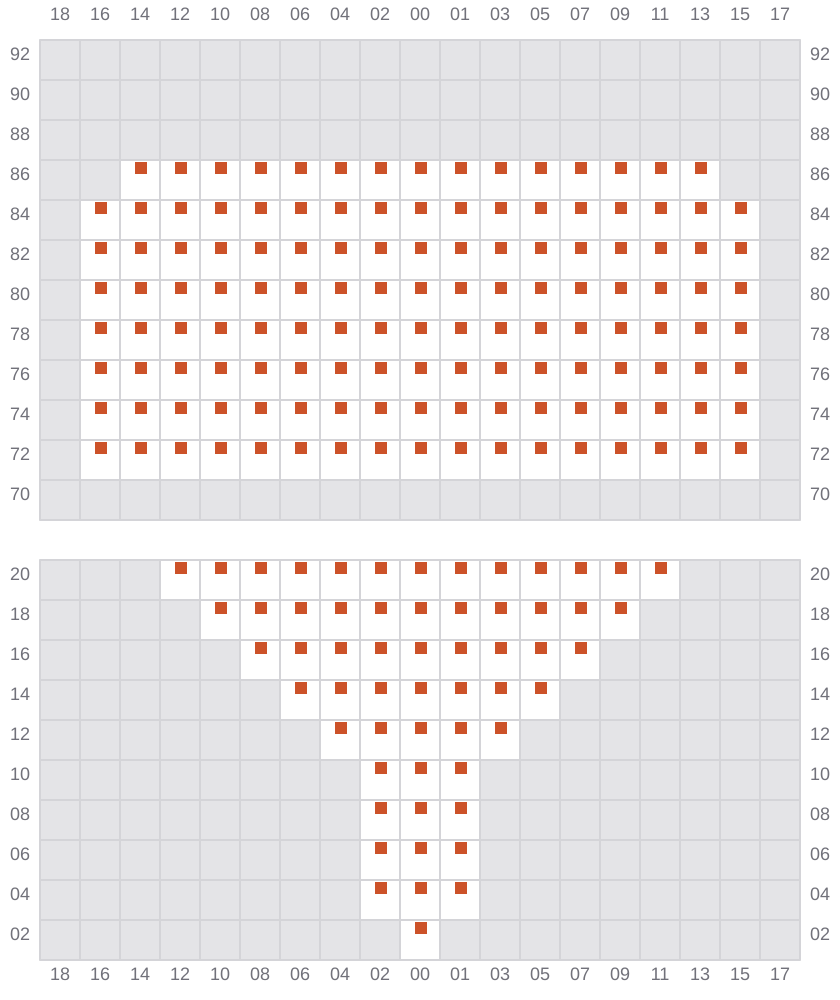

Bay 007 view and slots of EVER FASHION

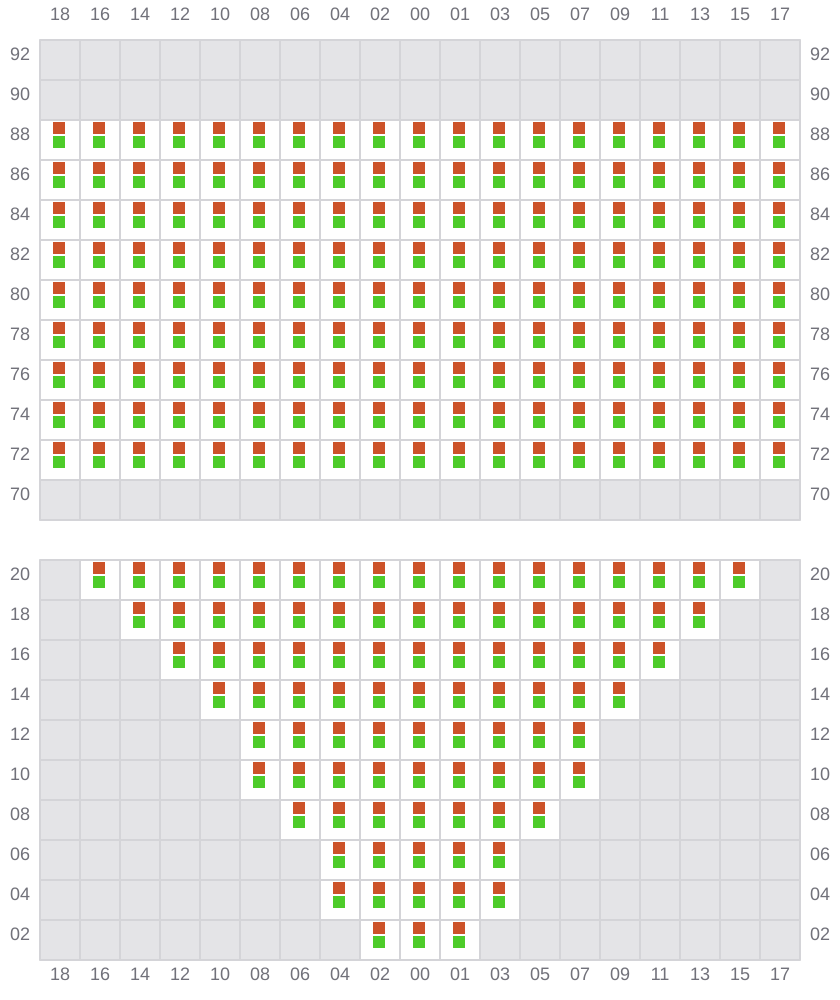

009 (010)

Bay 009 view and slots of EVER FASHION

011

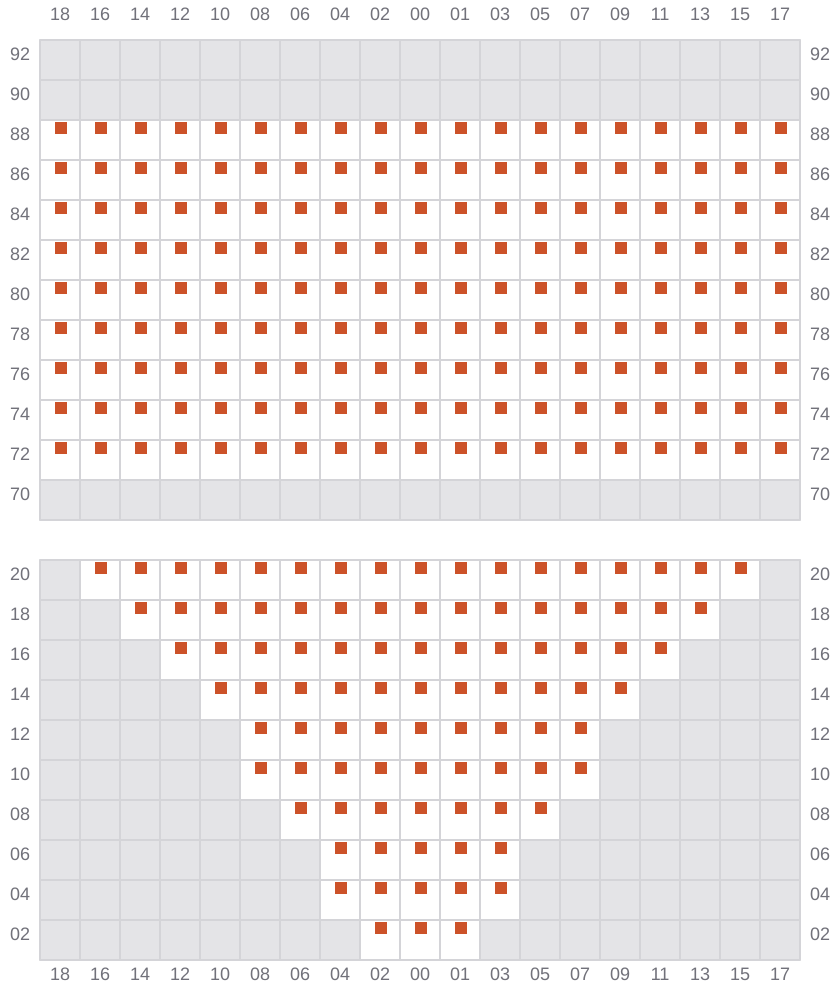

Bay 011 view and slots of EVER FASHION

013 (014)

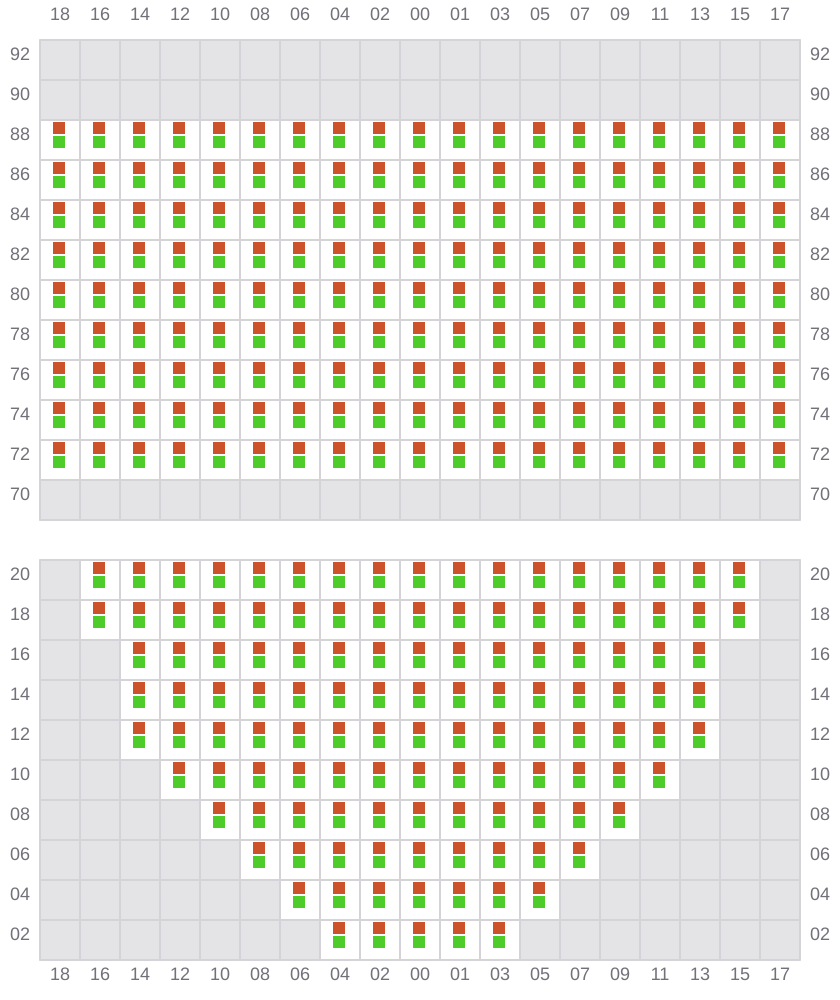

Bay 013 view and slots of EVER FASHION

015

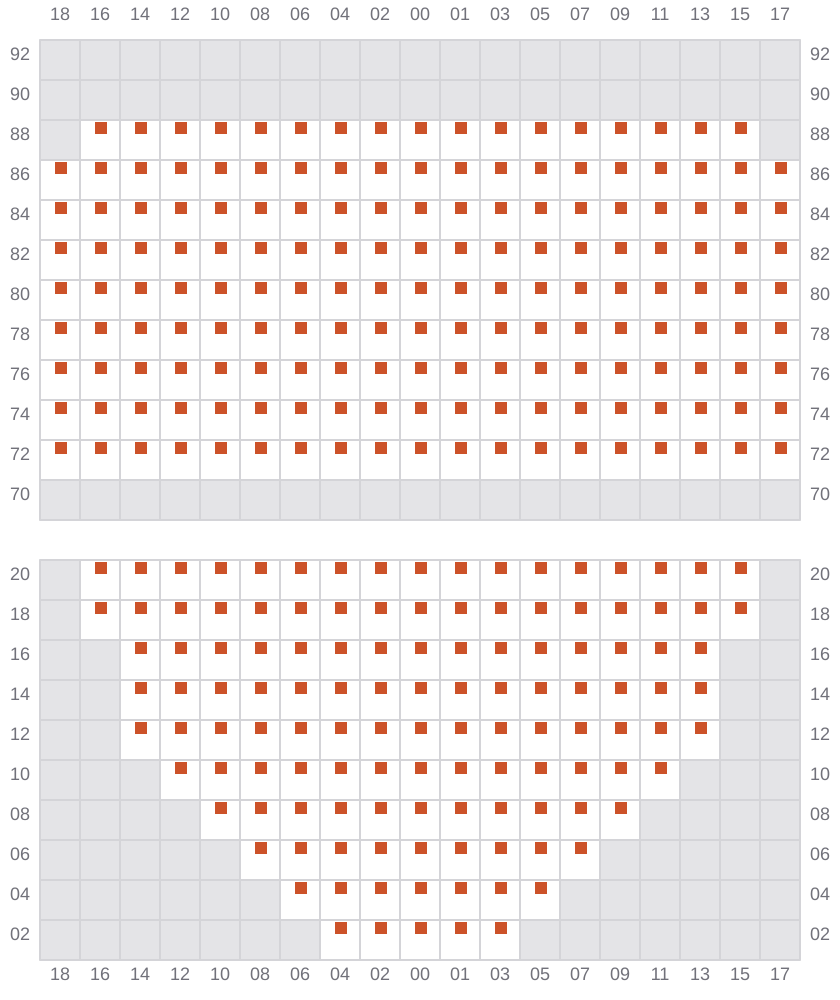

Bay 015 view and slots of EVER FASHION

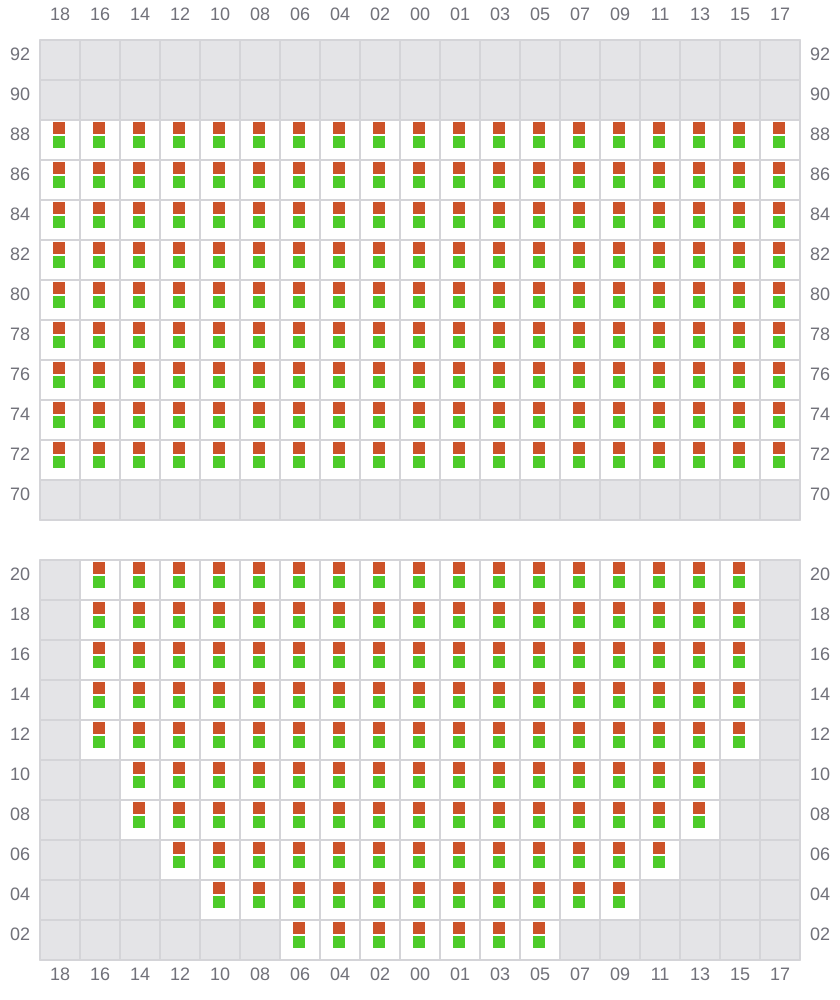

017 (018)

Bay 017 view and slots of EVER FASHION

019

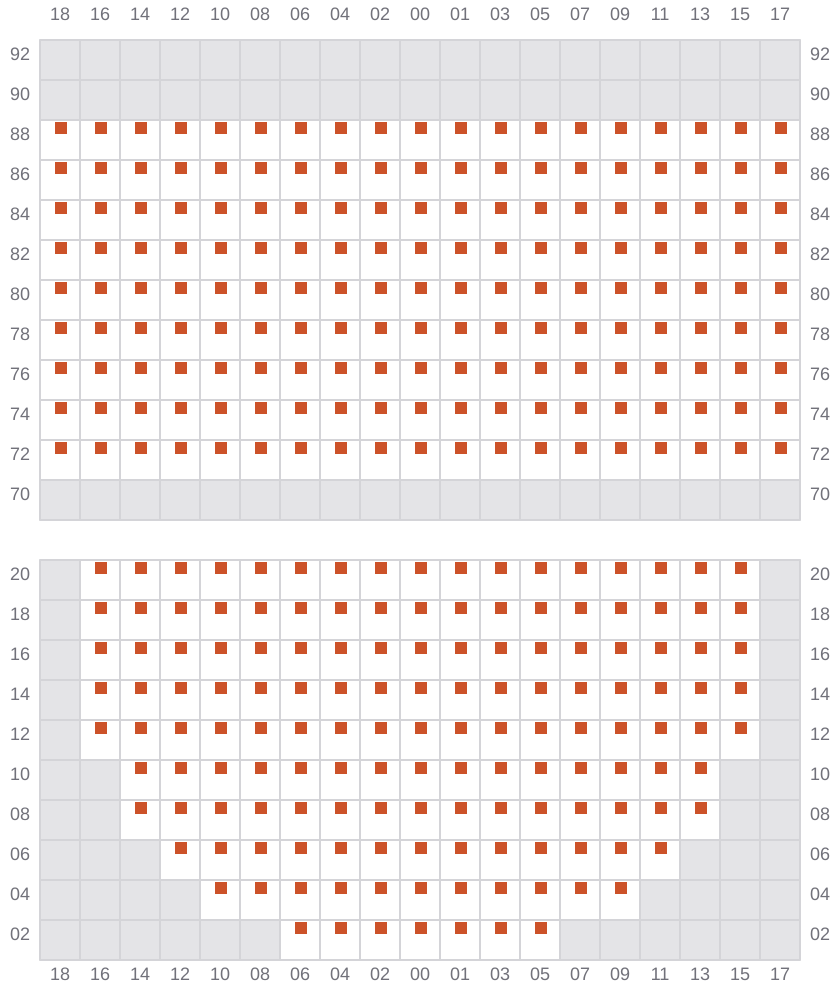

Bay 019 view and slots of EVER FASHION

021 (022)

Bay 021 view and slots of EVER FASHION

023

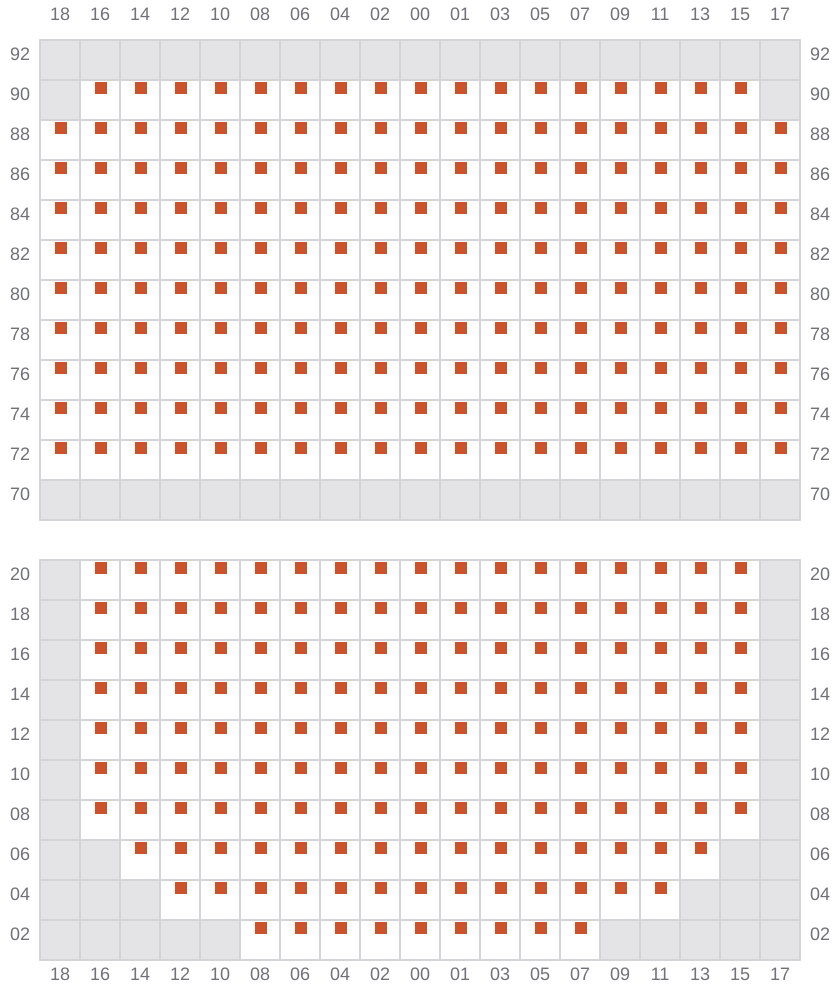

Bay 023 view and slots of EVER FASHION

025 (026)

Bay 025 view and slots of EVER FASHION

027

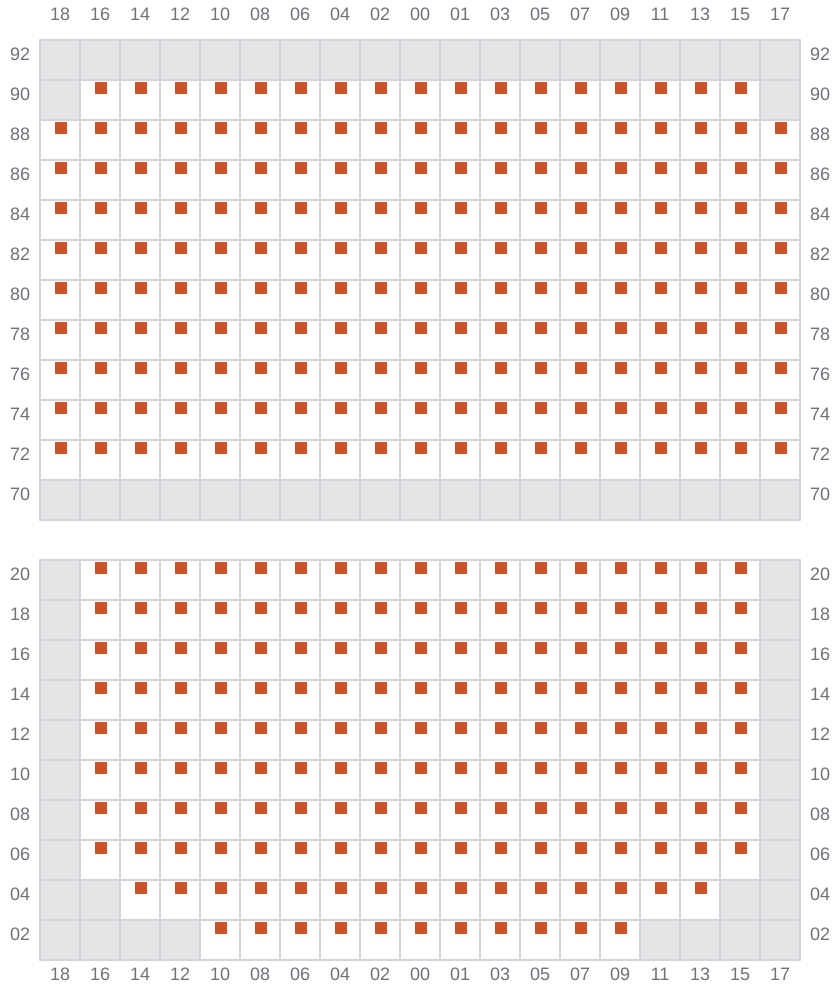

Bay 027 view and slots of EVER FASHION

029 (030)

Bay 029 view and slots of EVER FASHION

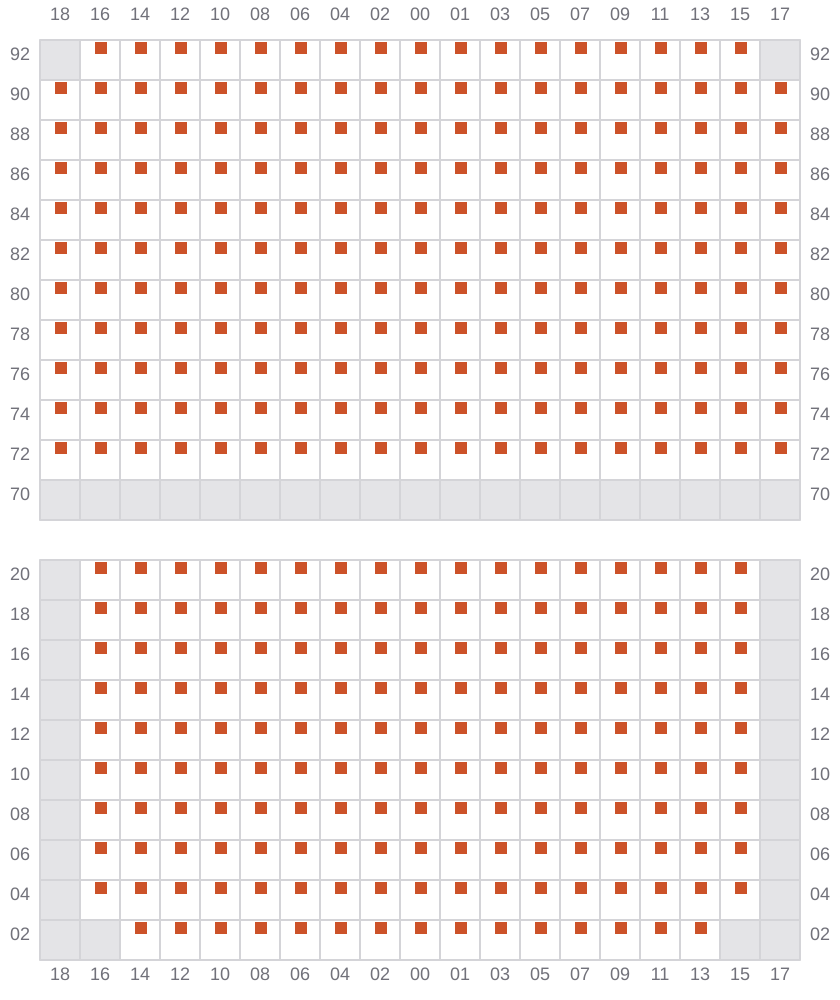

031

Bay 031 view and slots of EVER FASHION

033 (034)

Bay 033 view and slots of EVER FASHION

035

Bay 035 view and slots of EVER FASHION

037 (038)

Bay 037 view and slots of EVER FASHION

039

Bay 039 view and slots of EVER FASHION

041 (042)

Bay 041 view and slots of EVER FASHION

043

Bay 043 view and slots of EVER FASHION

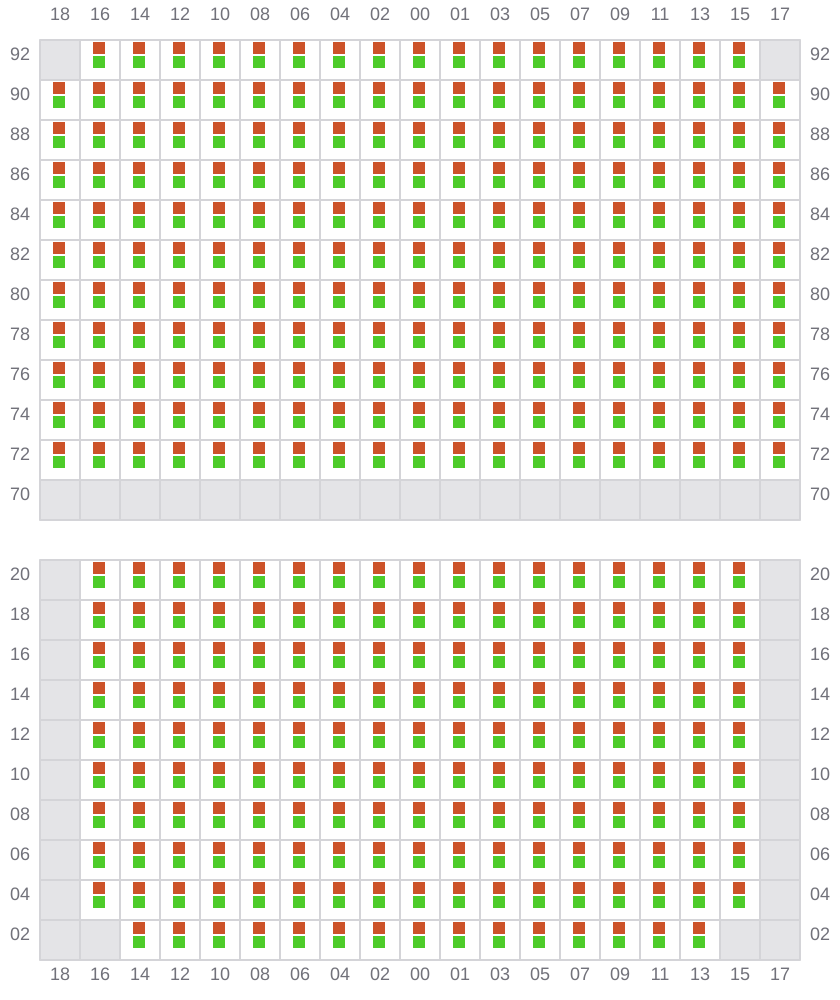

045 (046)

Bay 045 view and slots of EVER FASHION

047

Bay 047 view and slots of EVER FASHION

049 (050)

Bay 049 view and slots of EVER FASHION

051

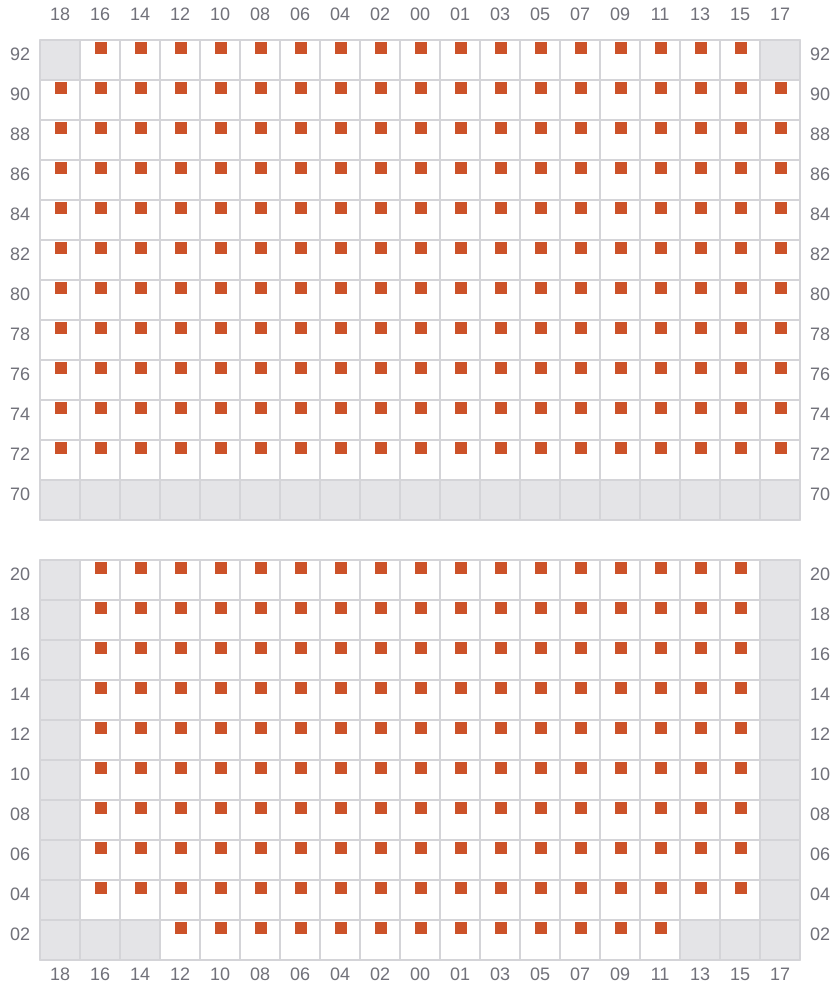

Bay 051 view and slots of EVER FASHION

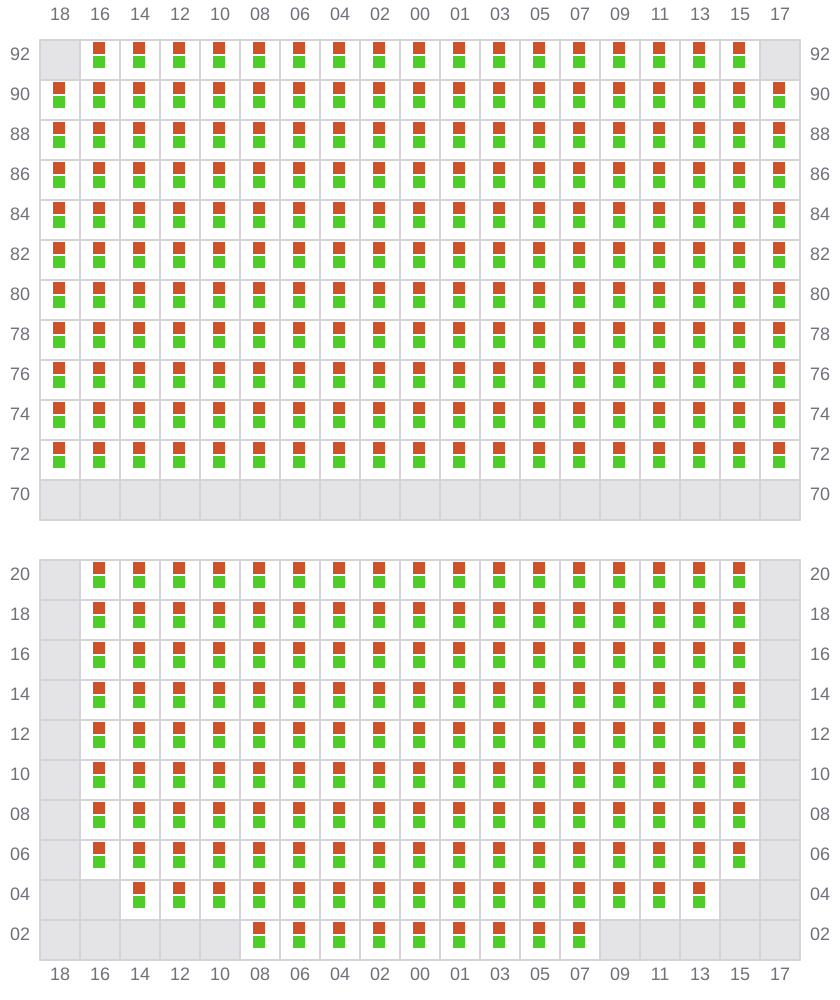

053 (054)

Bay 053 view and slots of EVER FASHION

055

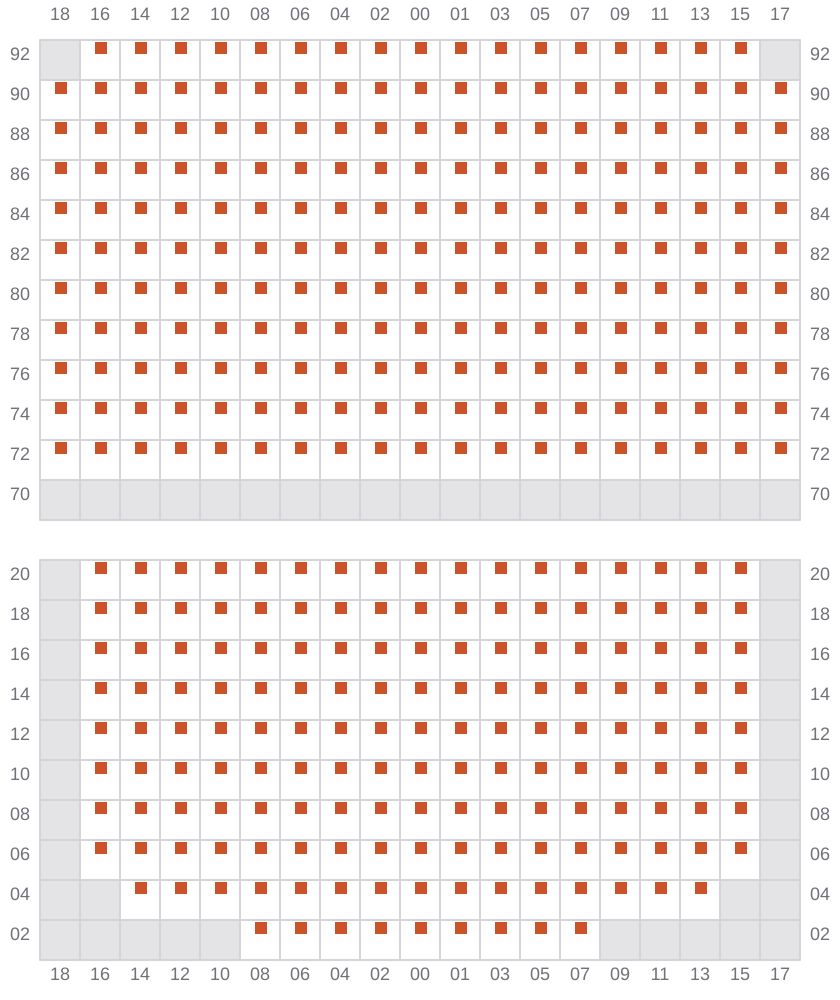

Bay 055 view and slots of EVER FASHION

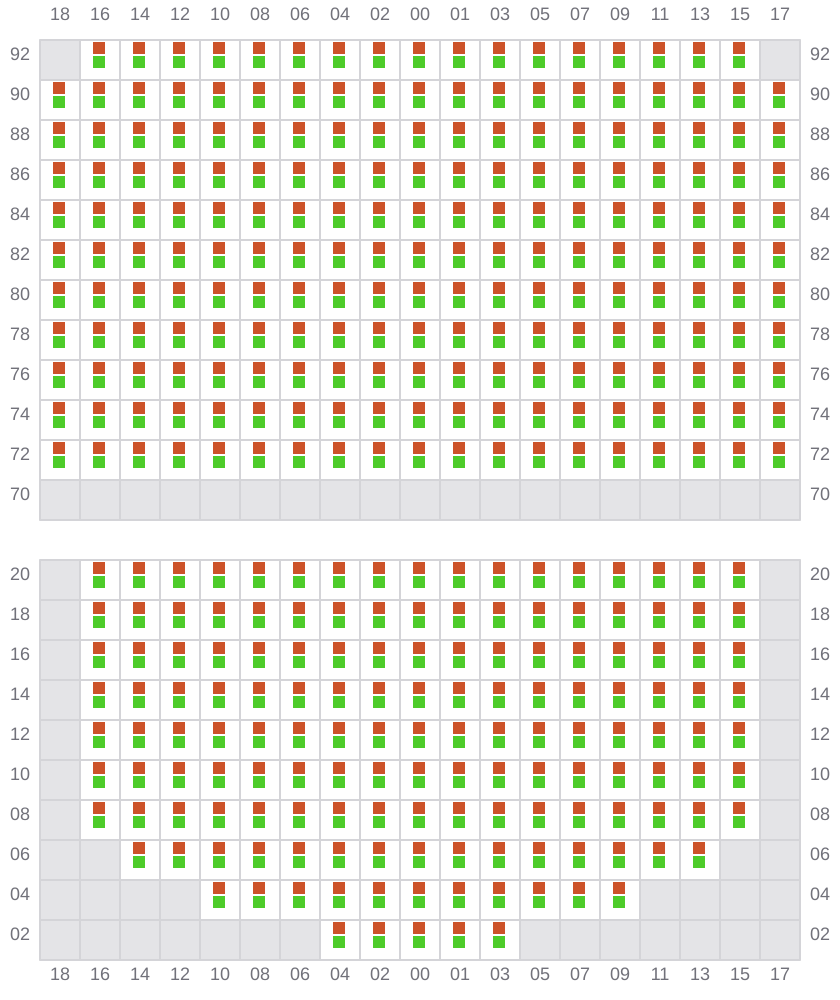

057 (058)

Bay 057 view and slots of EVER FASHION

059

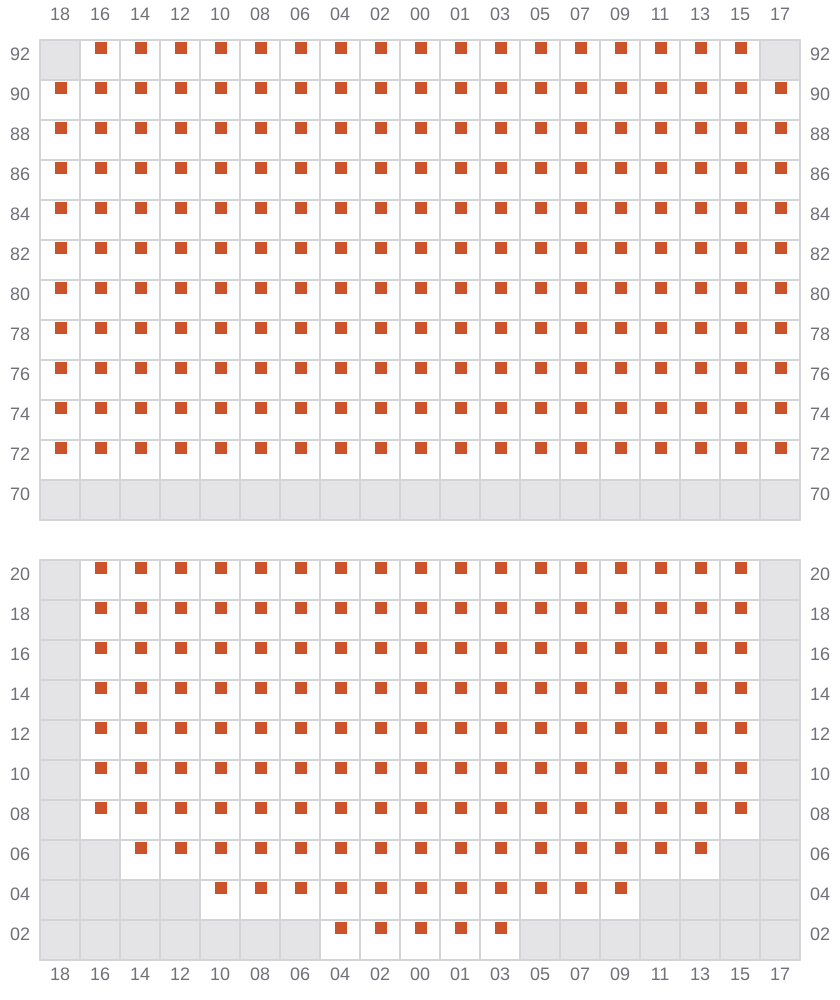

Bay 059 view and slots of EVER FASHION

061

Bay 061 view and slots of EVER FASHION

063 (064)

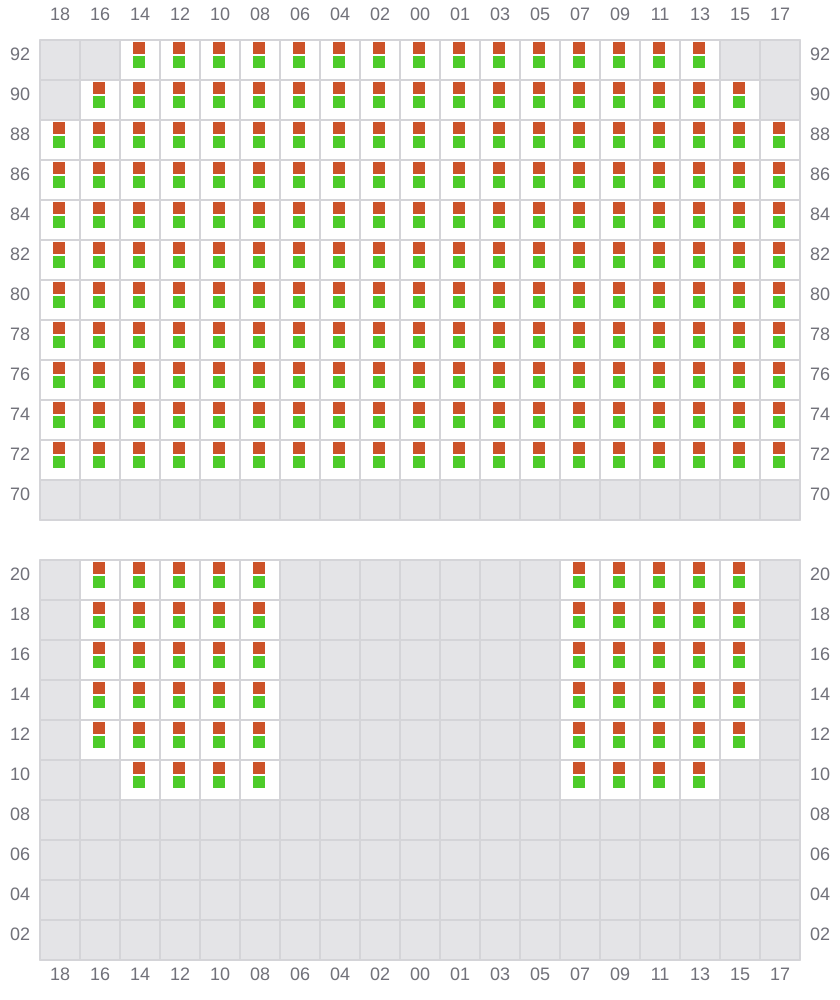

Bay 063 view and slots of EVER FASHION

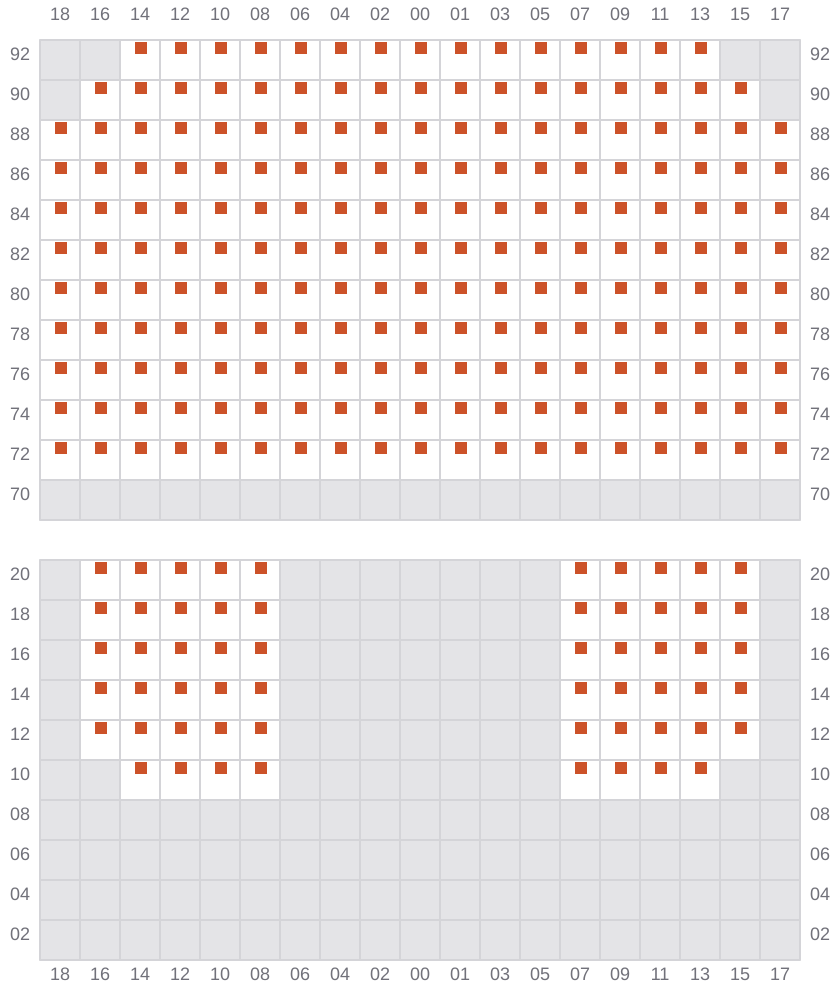

065

Bay 065 view and slots of EVER FASHION

067 (068)

Bay 067 view and slots of EVER FASHION

069

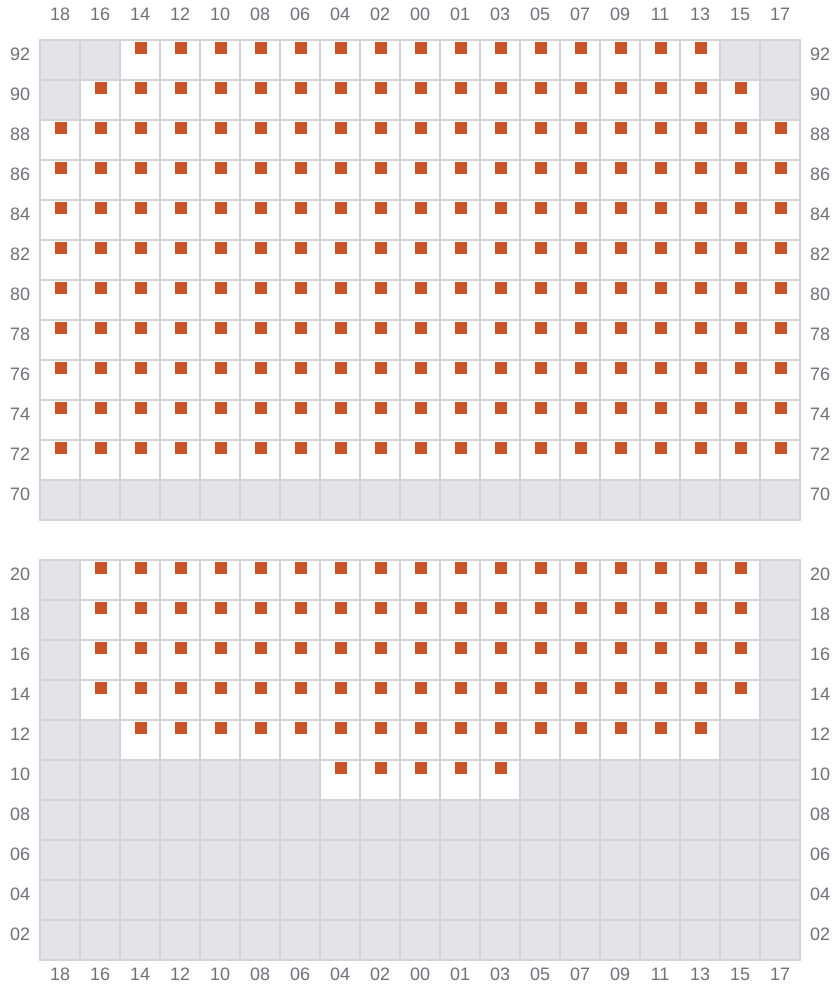

Bay 069 view and slots of EVER FASHION

071 (072)

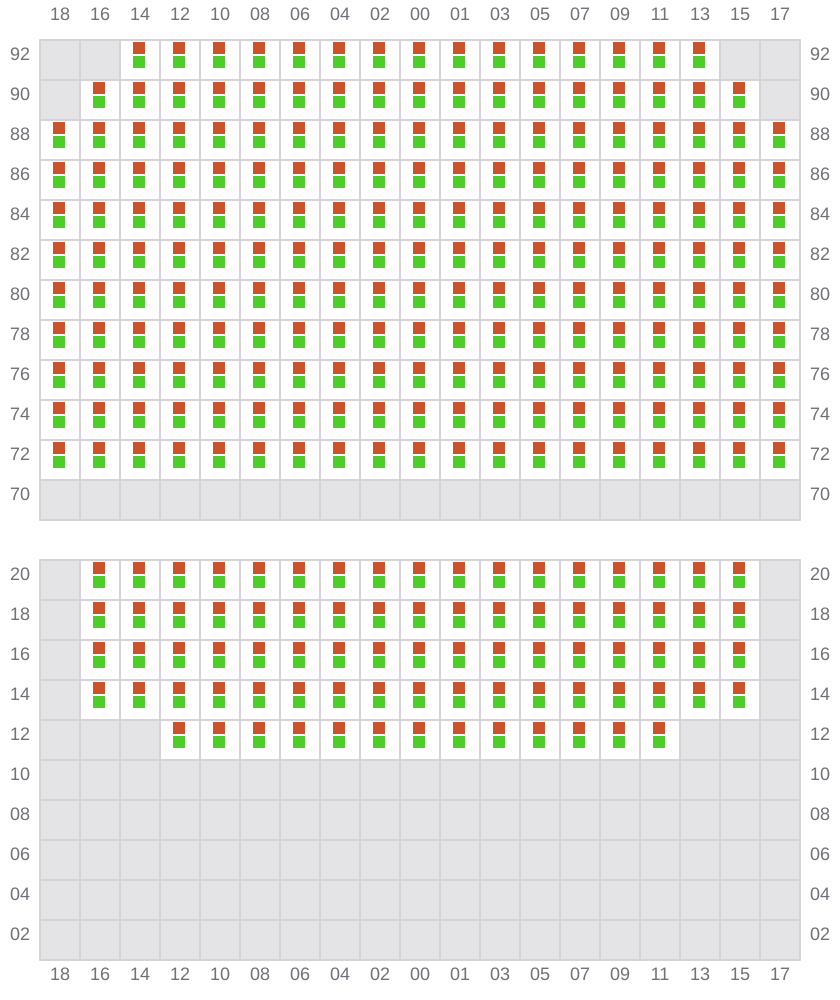

Bay 071 view and slots of EVER FASHION

073

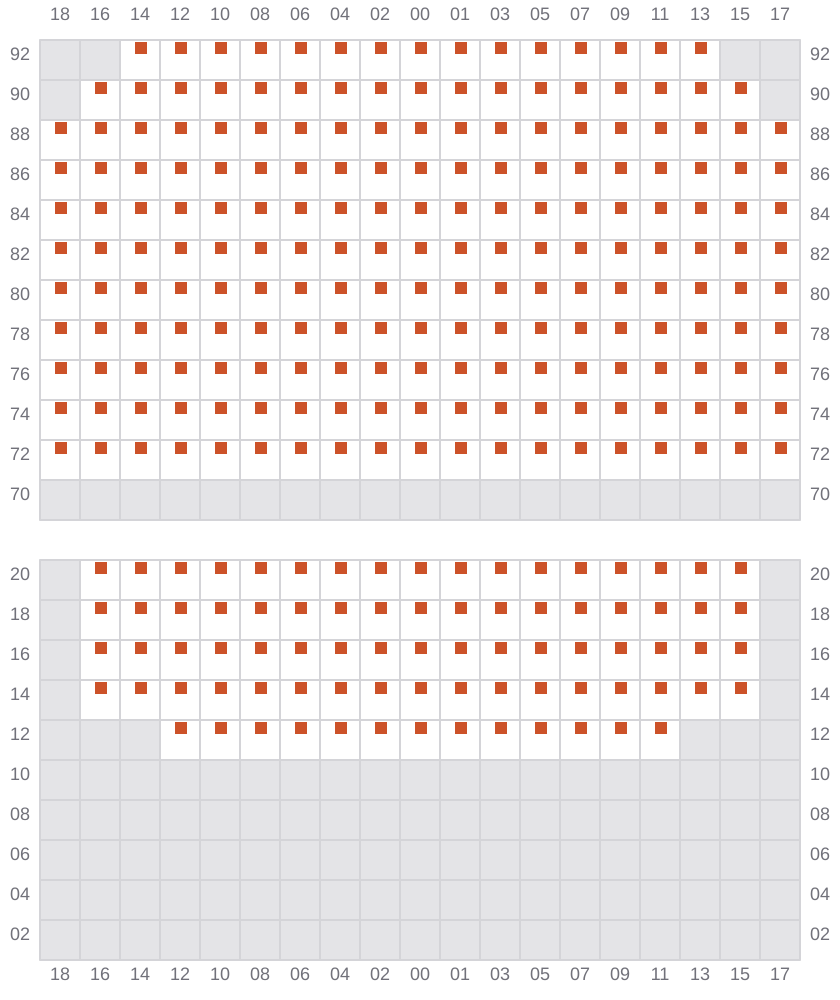

Bay 073 view and slots of EVER FASHION

075 (076)

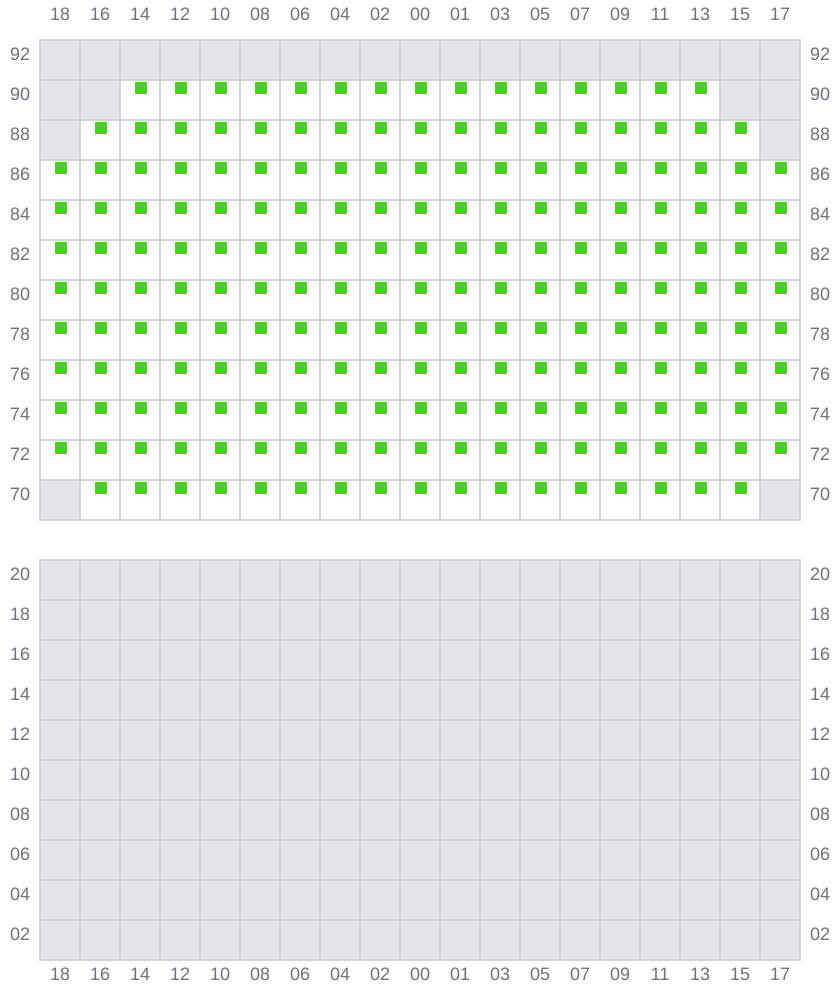

Bay 075 view and slots of EVER FASHION
