EVER FAVOR
9850850 | 5LDS2 | EIS by ************************** Last update: Fri Jun 09 2023
General Info
Ship Name:EVER FAVOR
IMO Code:9850850
Call Sign:5LDS2
Line Operator:EIS
Class Name for Sister Ships:FAV
Year Built:2022
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:12,533
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

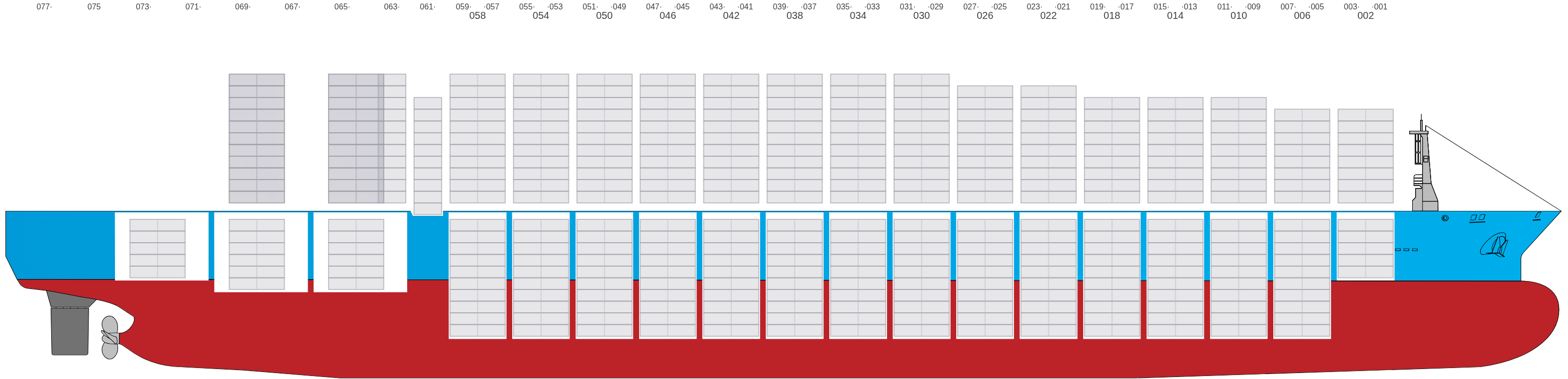

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

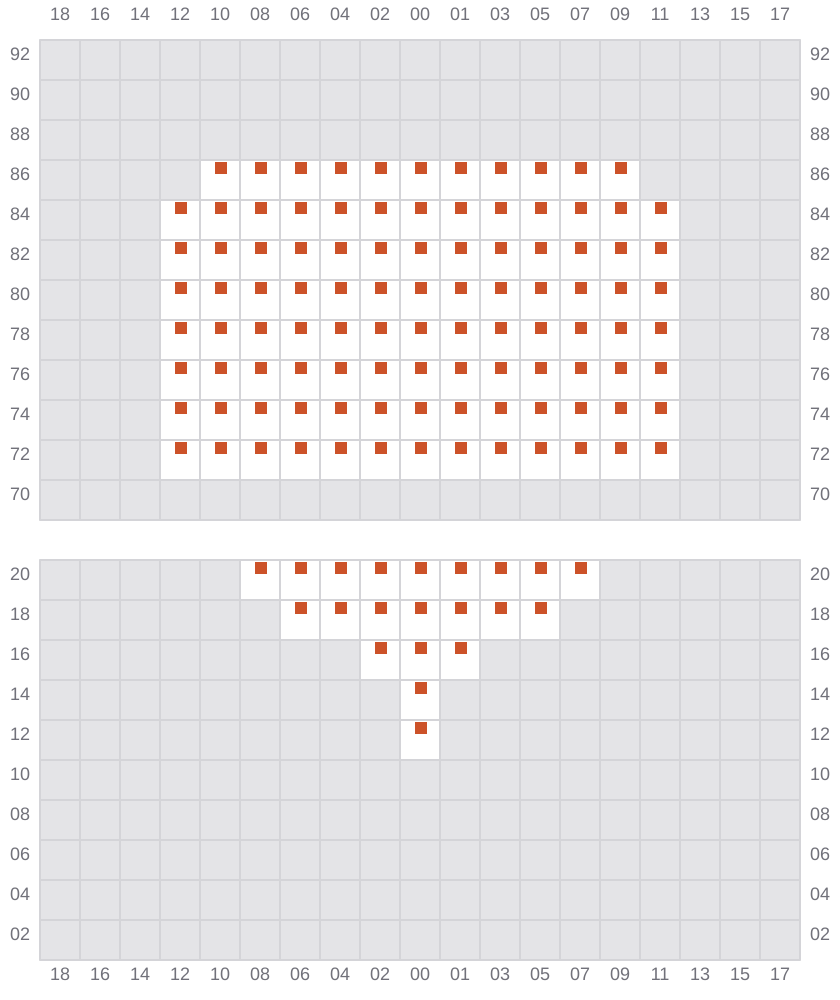

001
- →

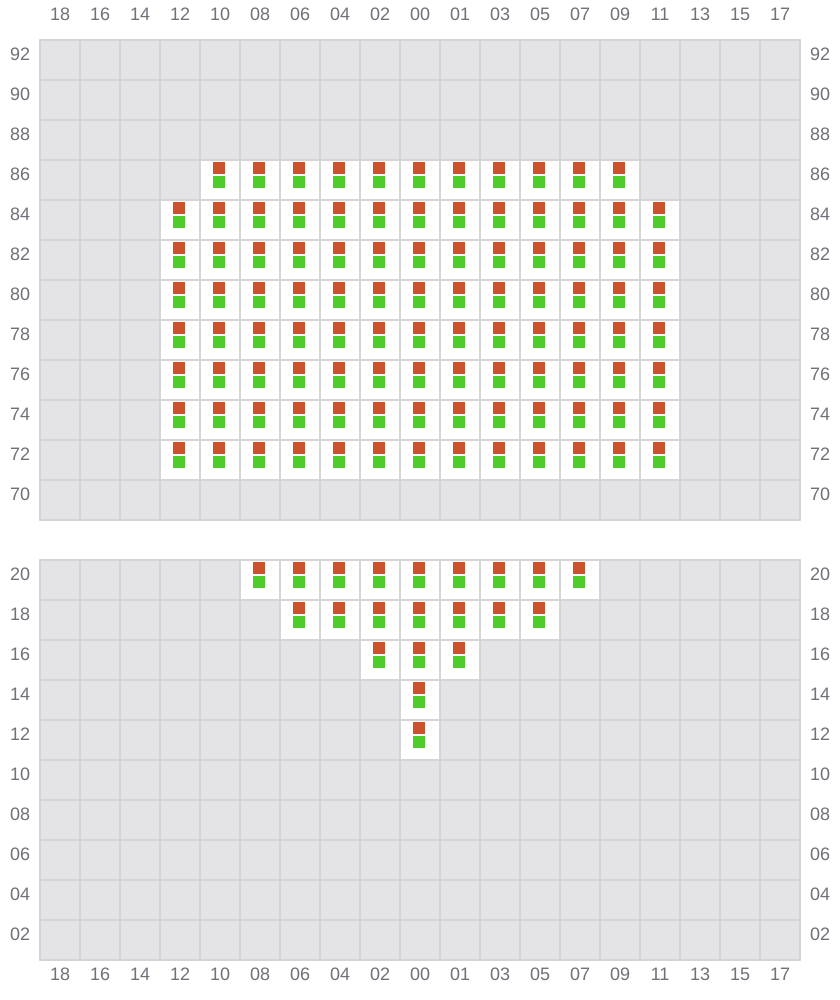

003 (002)
- ←

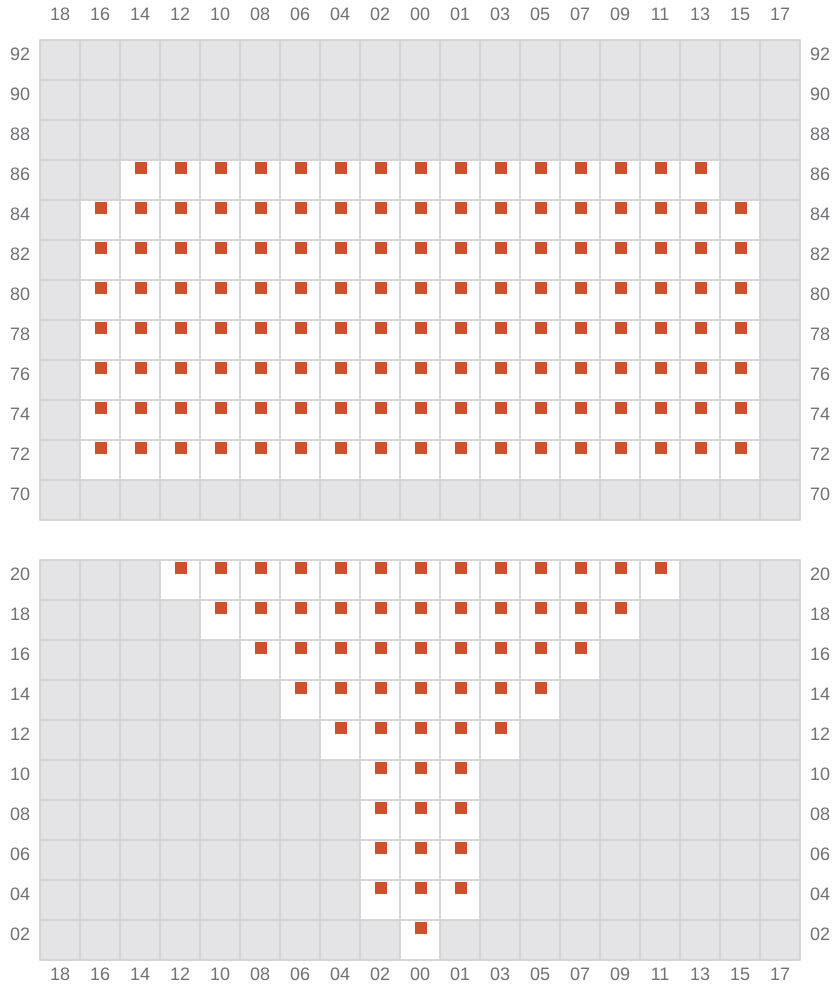

005
- →

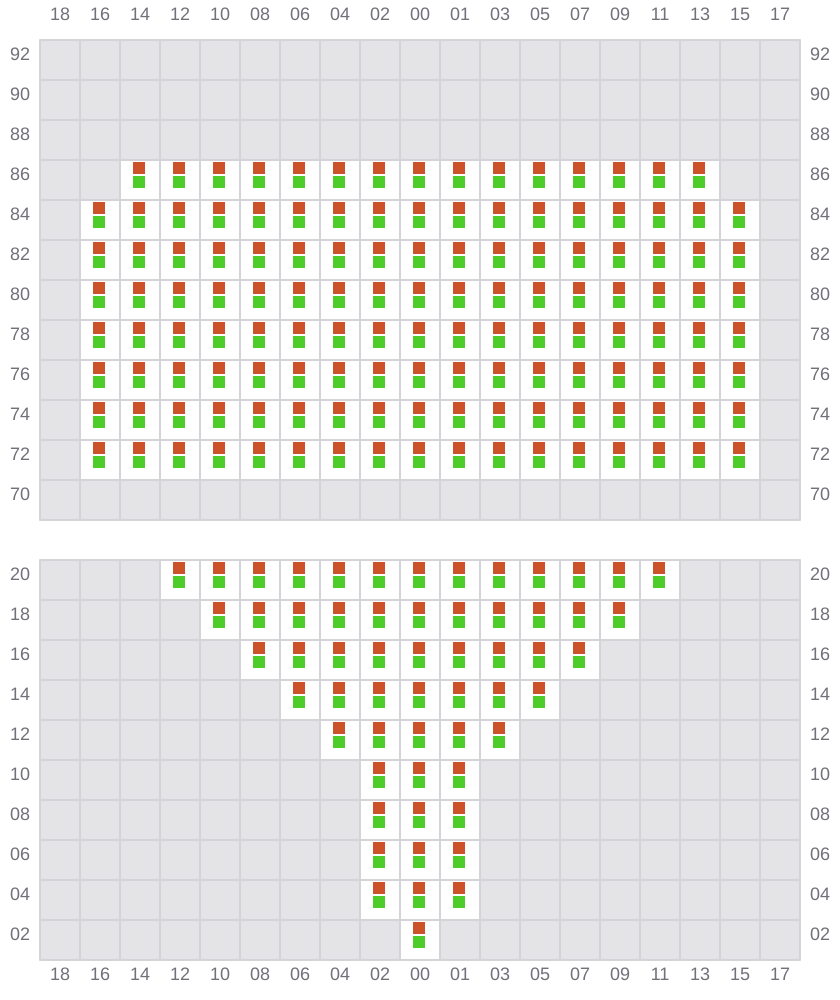

007 (006)
- ←

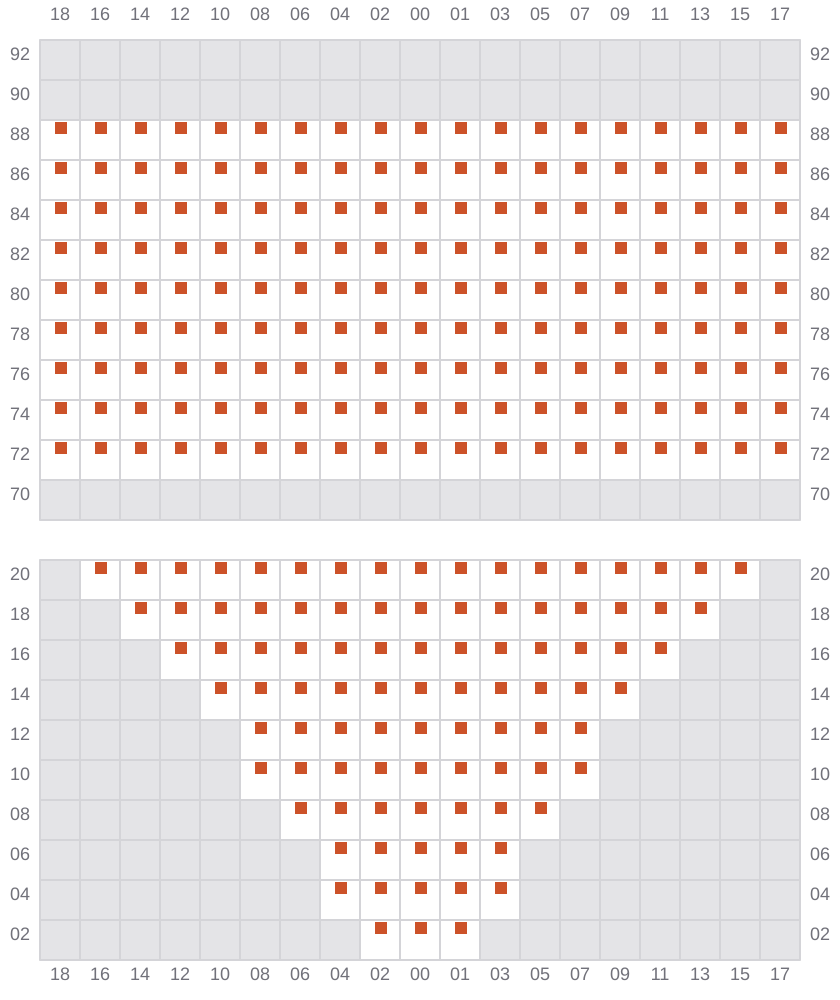

009
- →

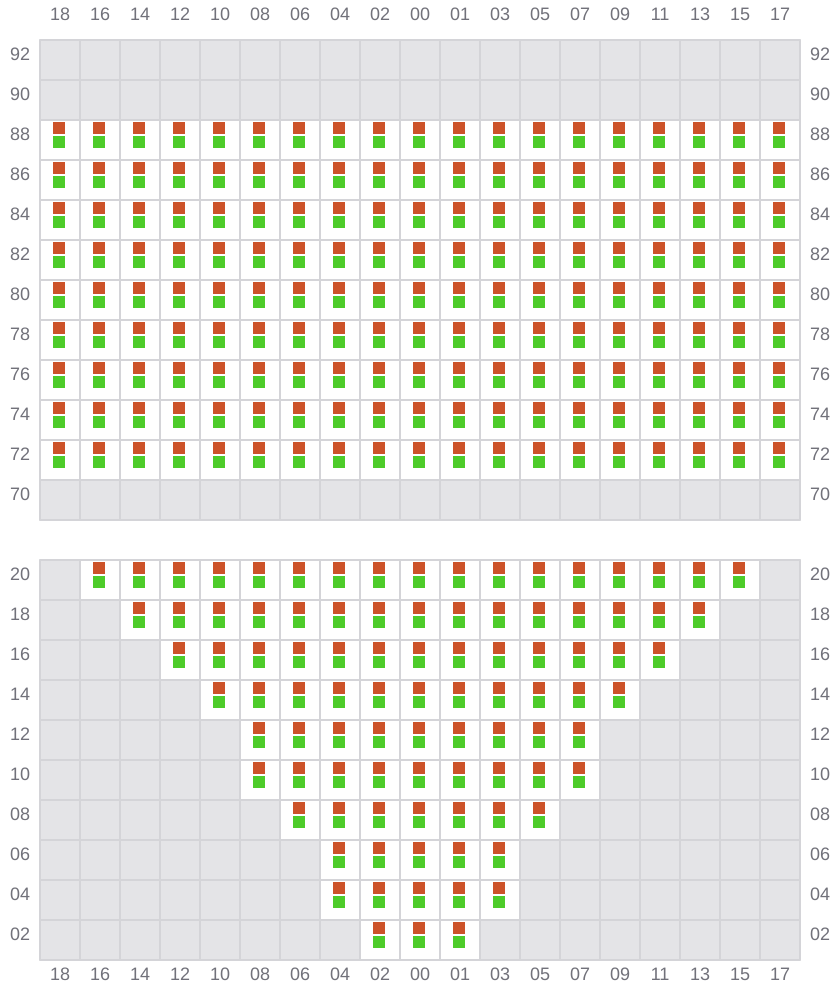

011 (010)
- ←

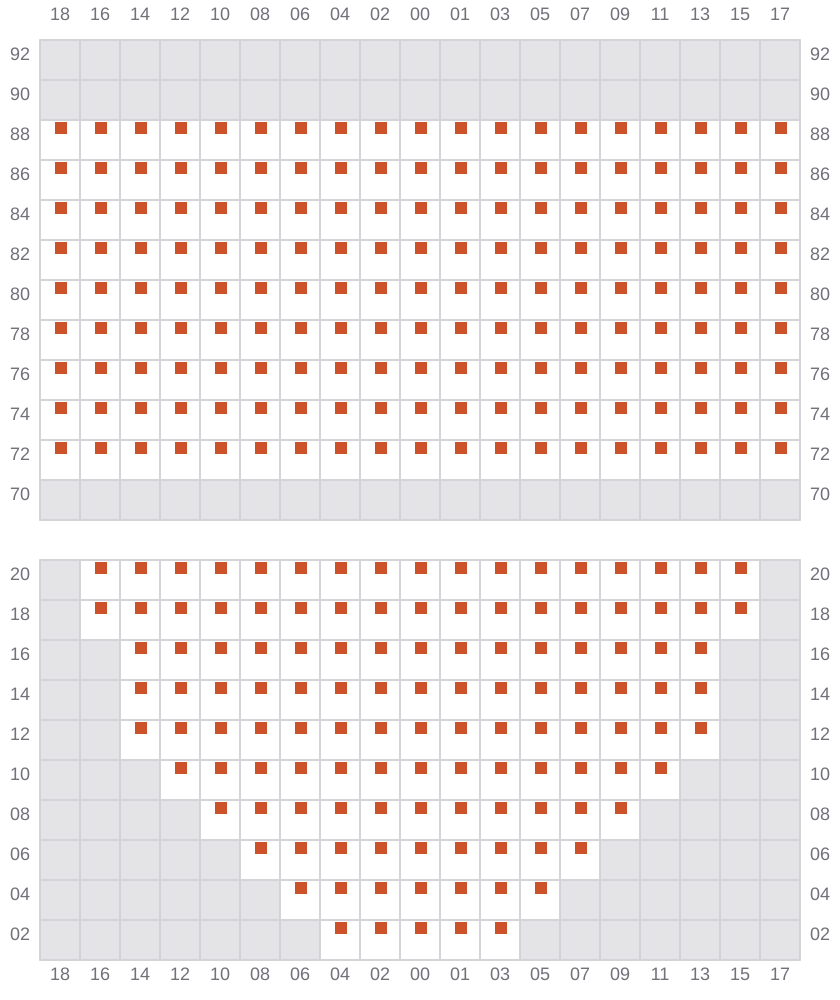

013
- →

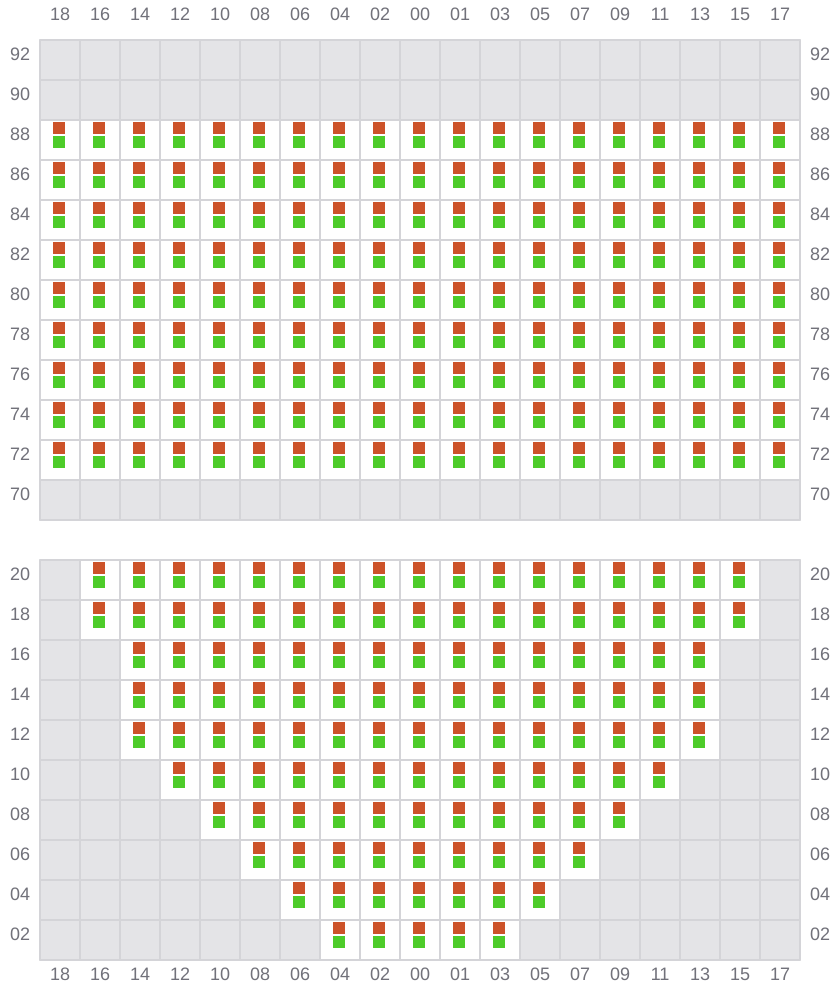

015 (014)
- ←

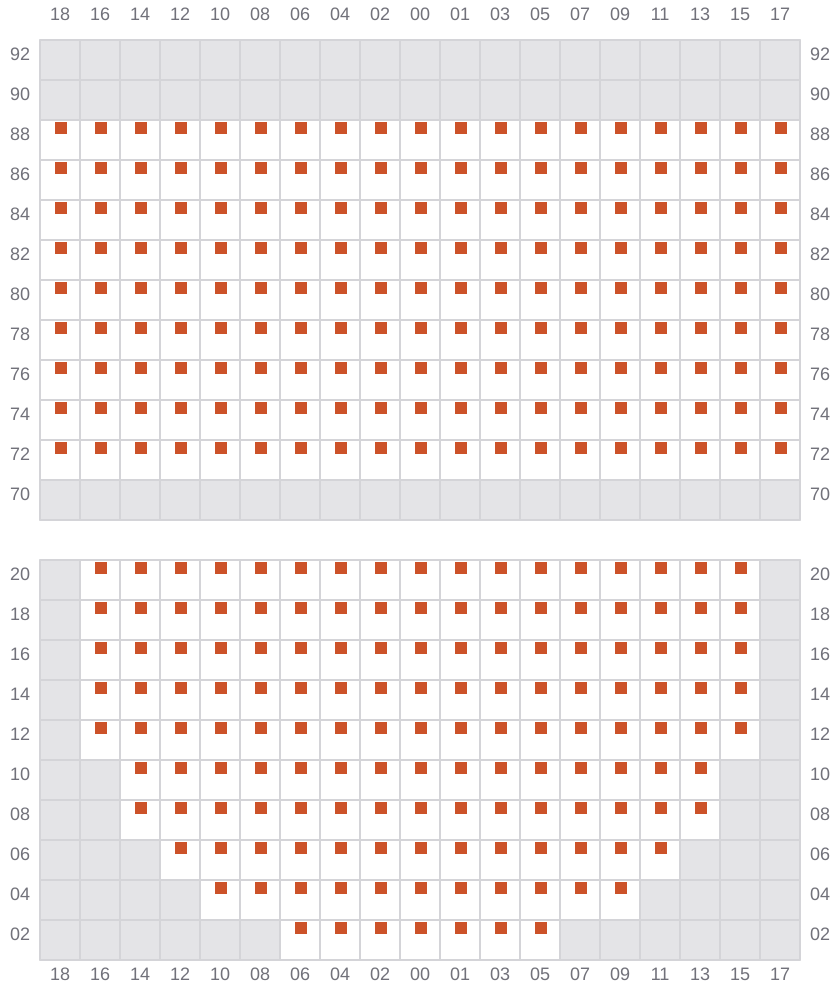

017
- →

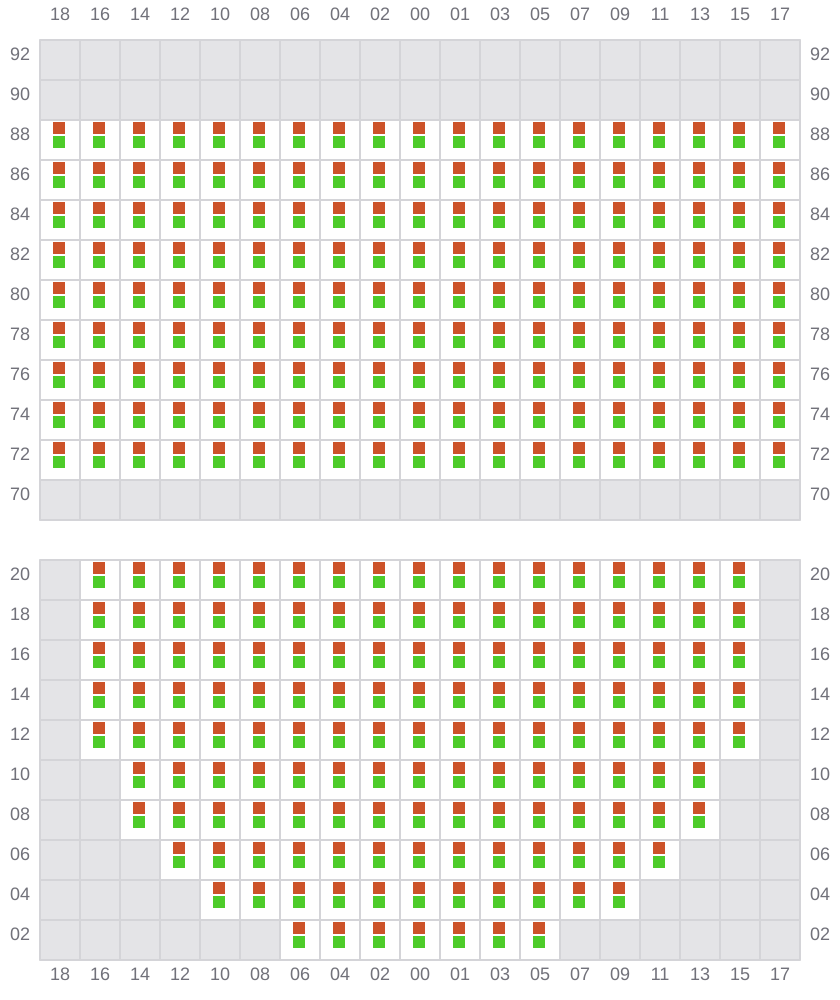

019 (018)
- ←

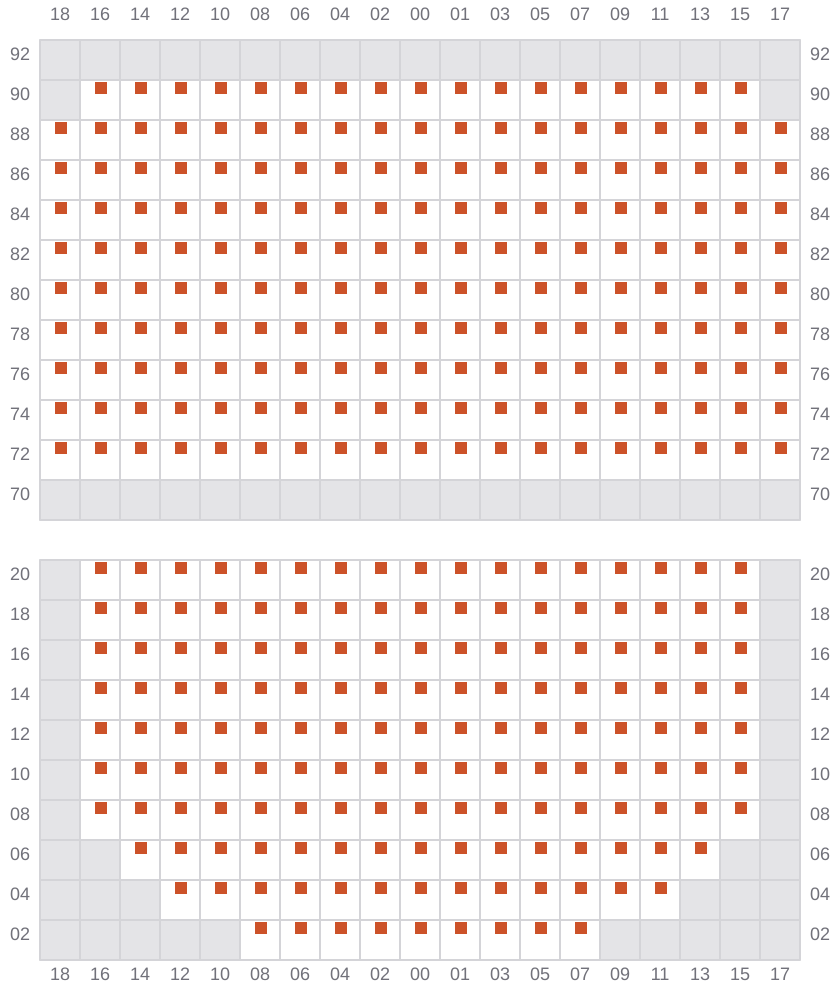

021
- →
023 (022)
- ←

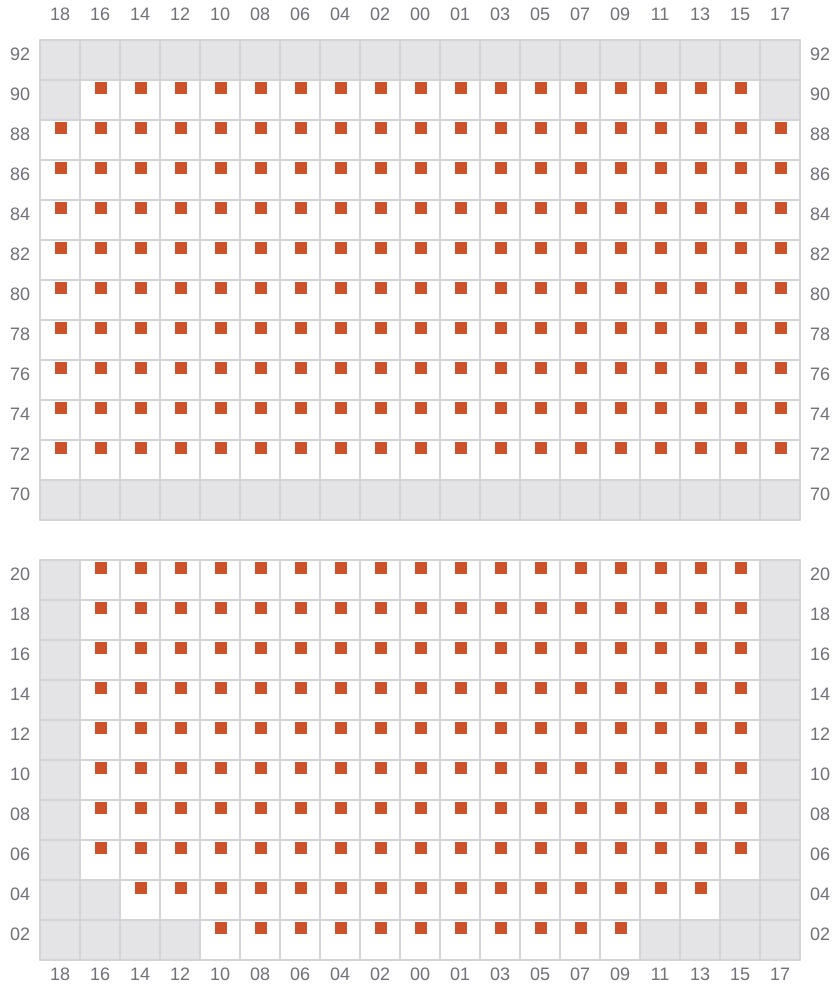

025
- →

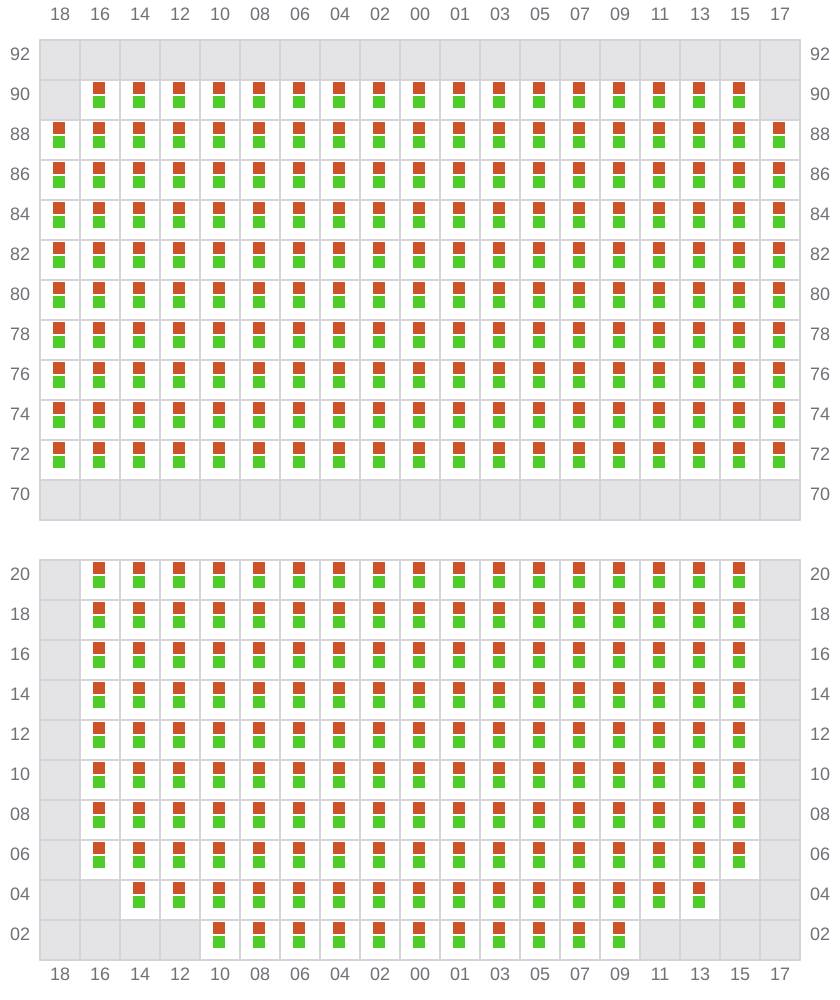

027 (026)
- ←

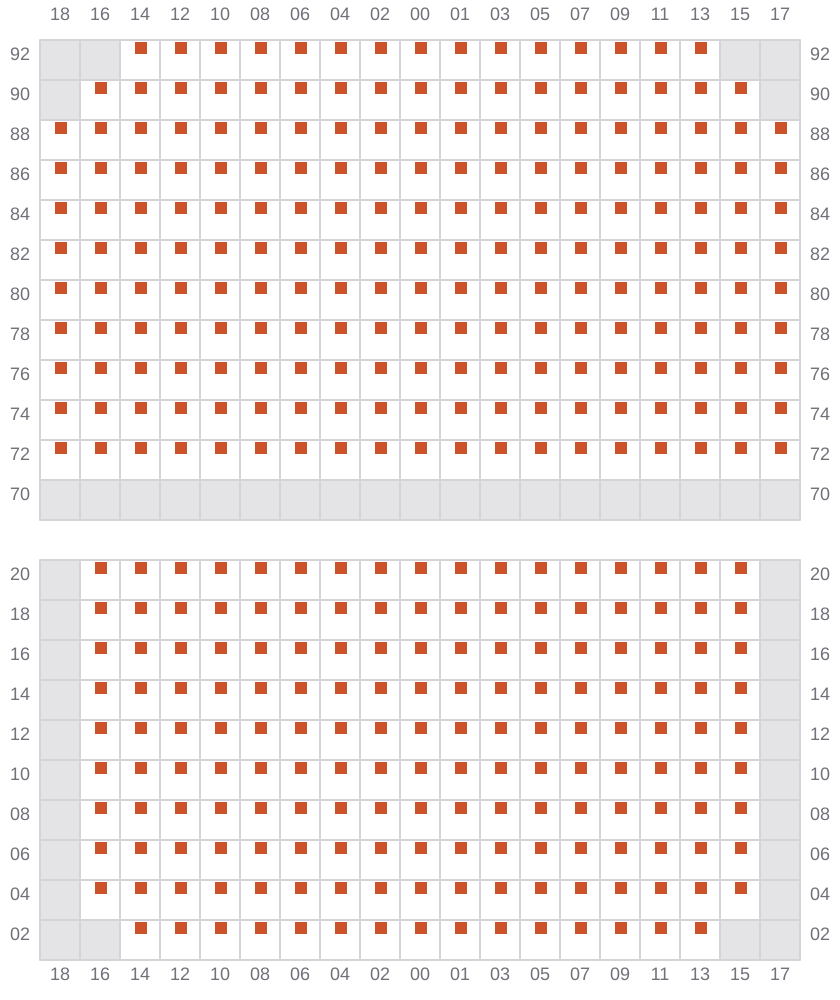

029
- →
031 (030)
- ←
033
- →

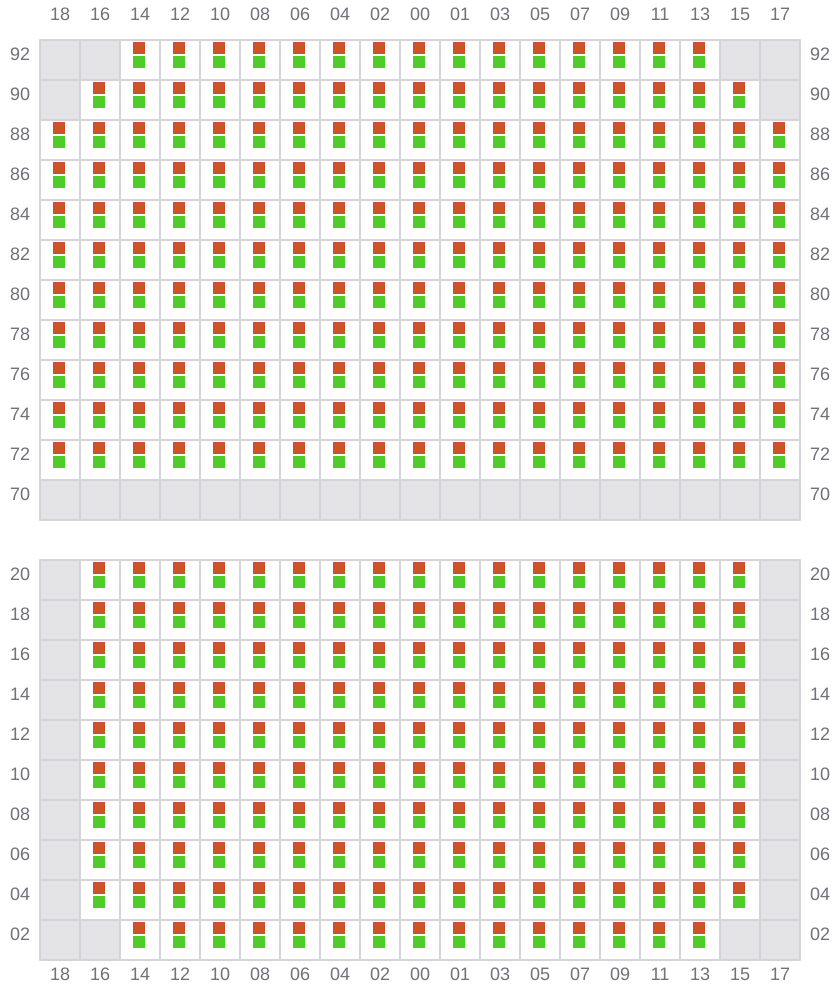

035 (034)
- ←
037
- →
039 (038)
- ←

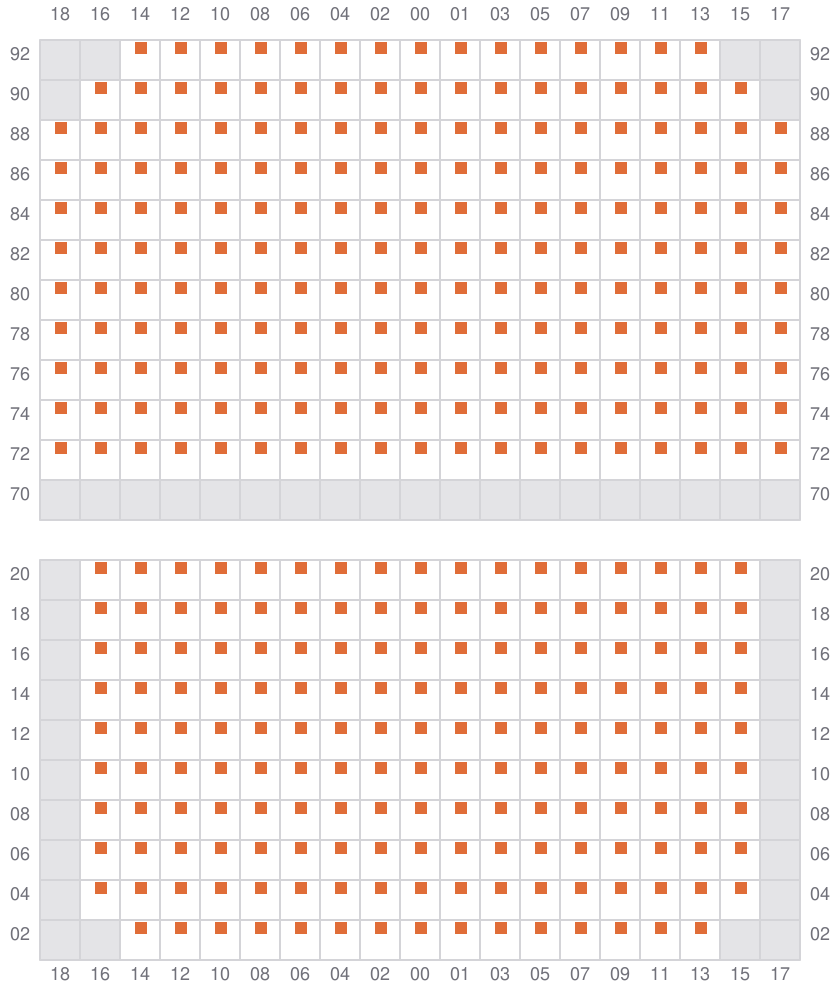

041
- →
043 (042)
- ←
045
- →
047 (046)
- ←

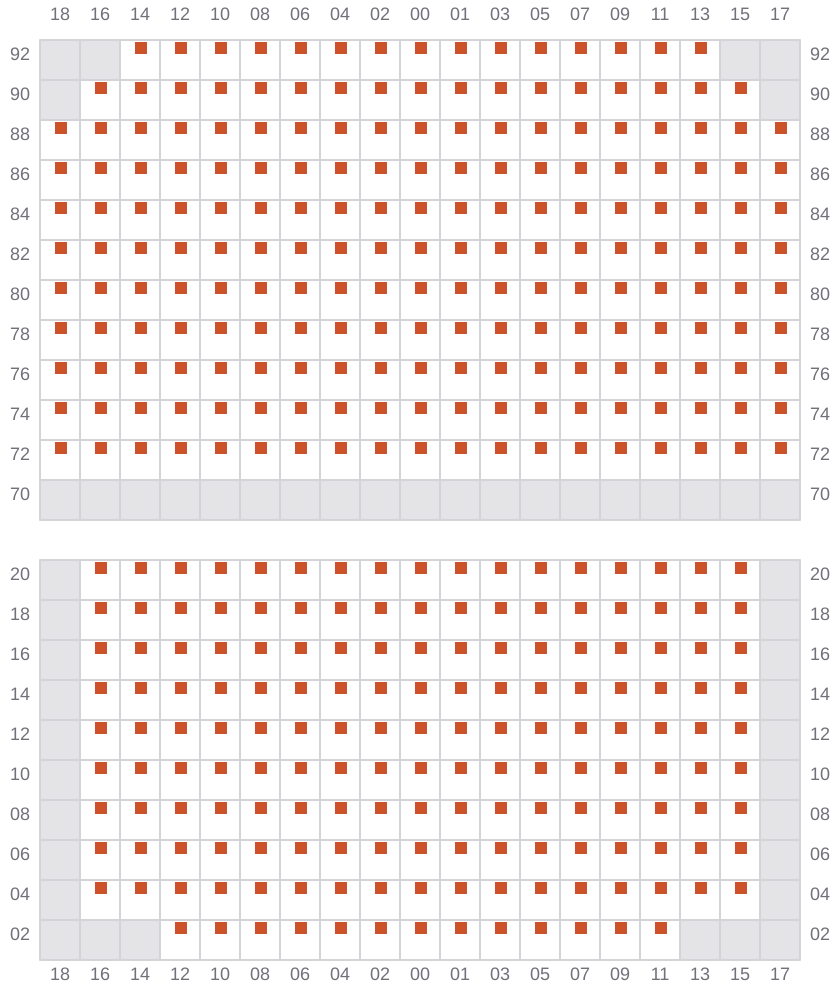

049
- →
051 (050)
- ←

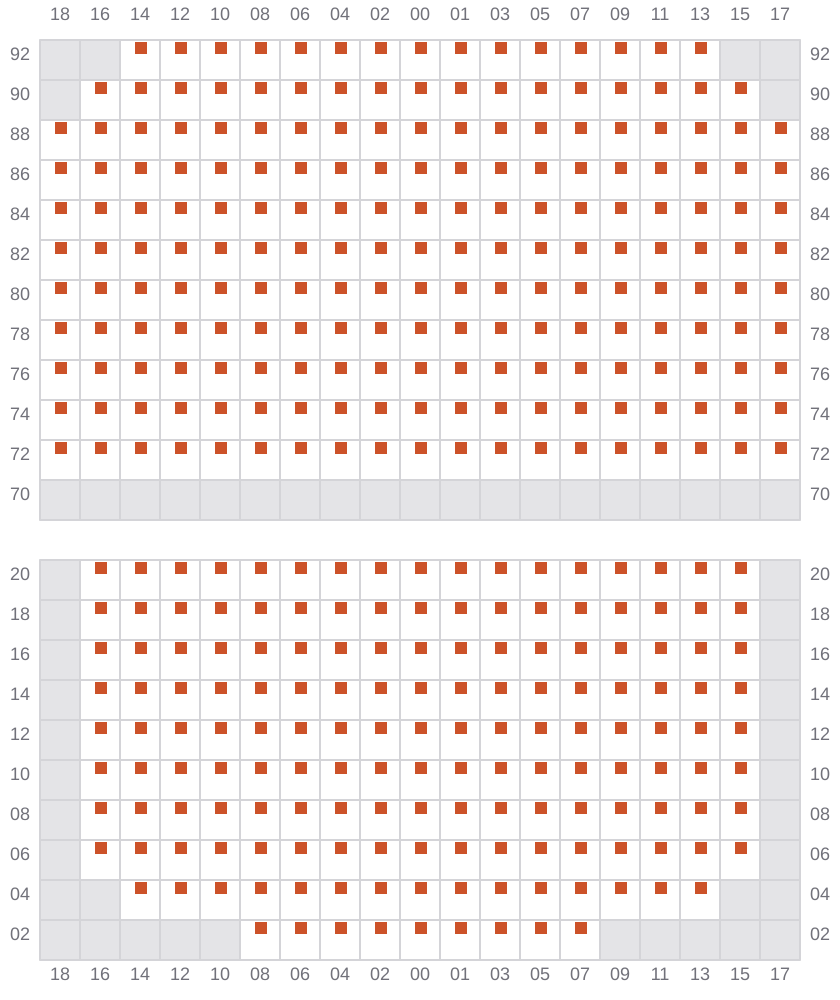

053
- →

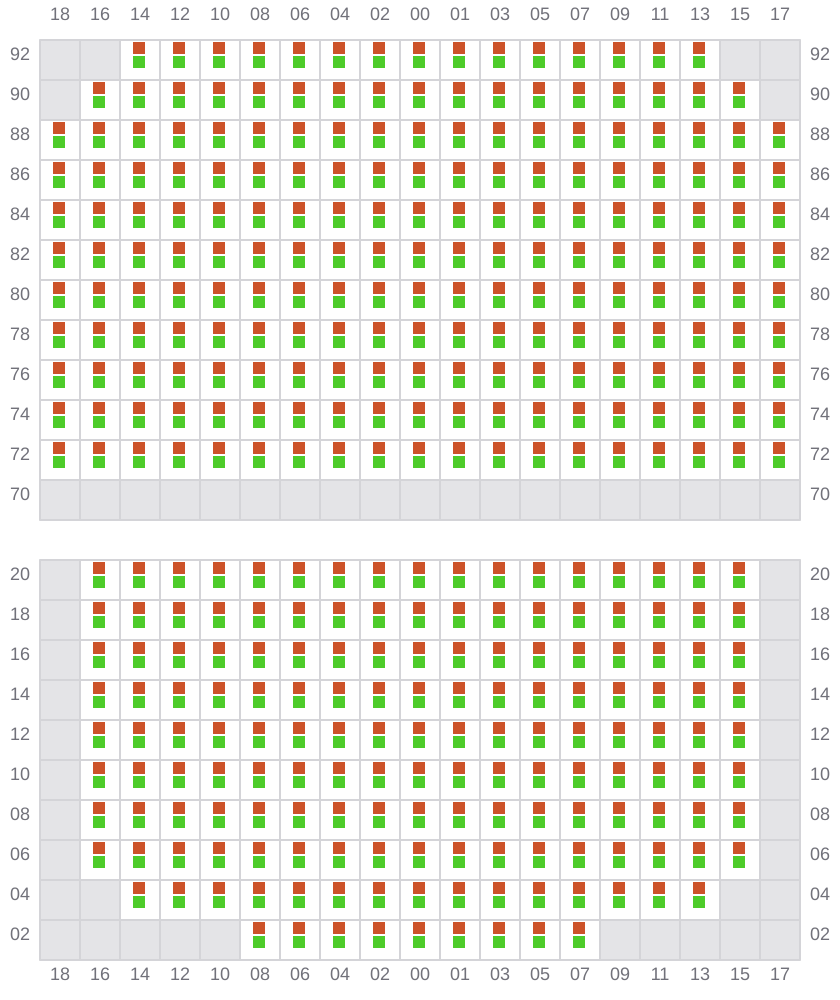

055 (054)
- ←

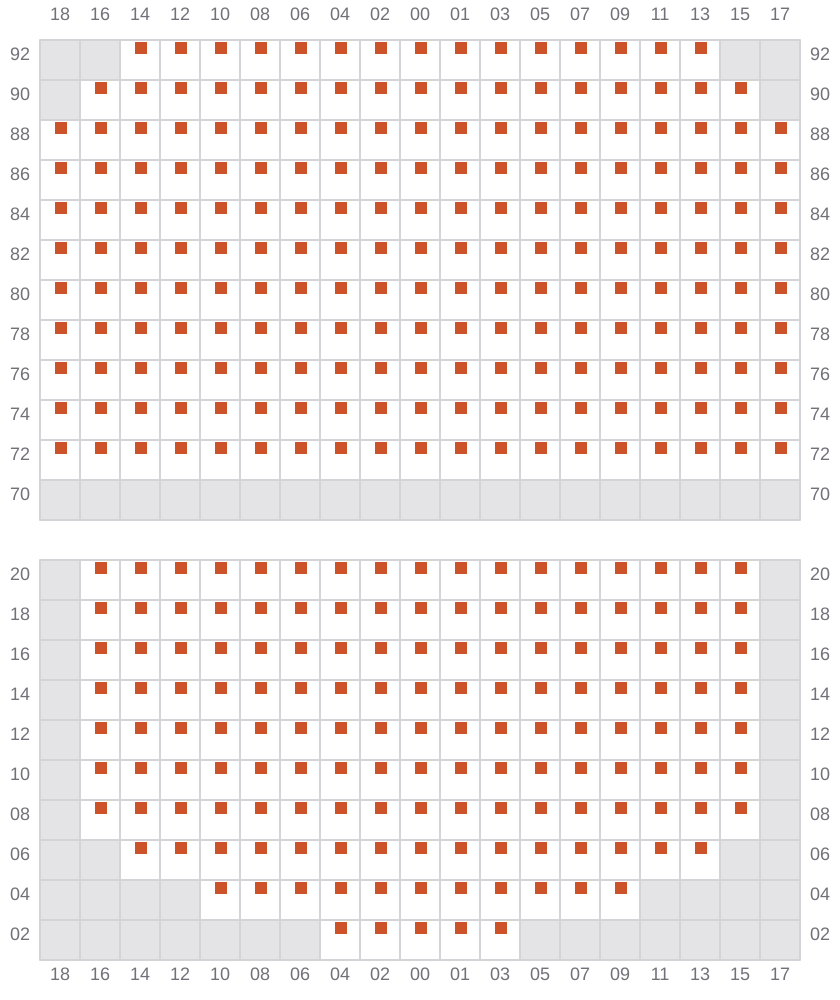

057
- →
059 (058)
- ←

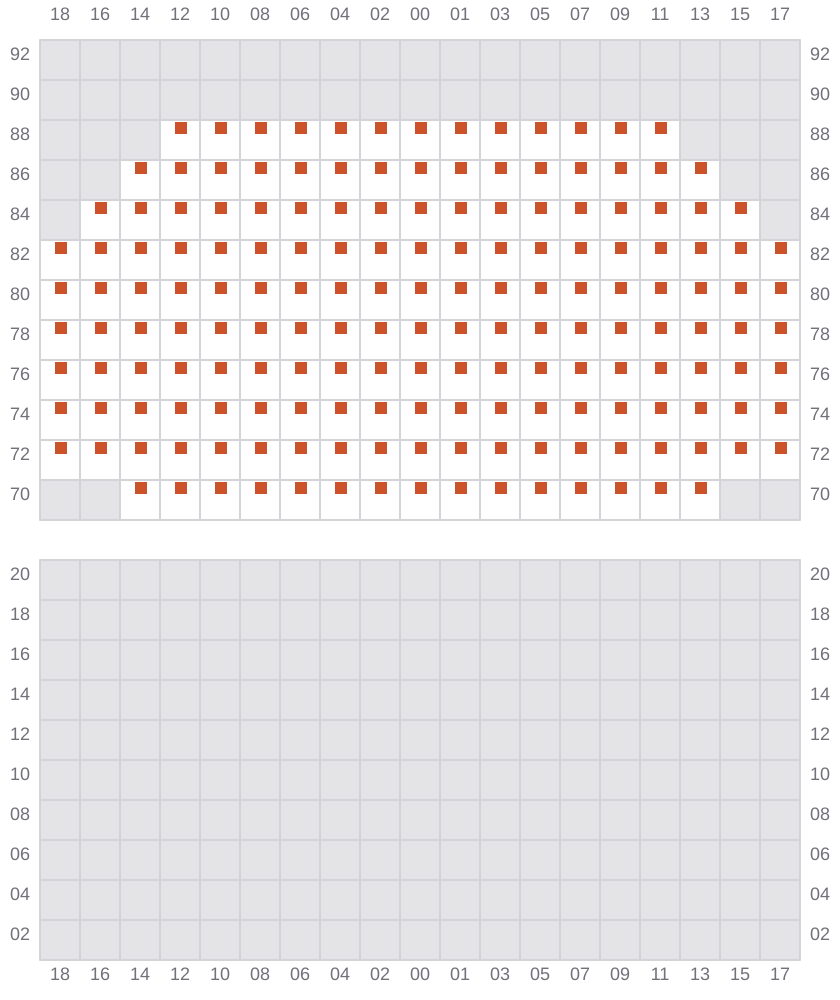

061
- ← / ?

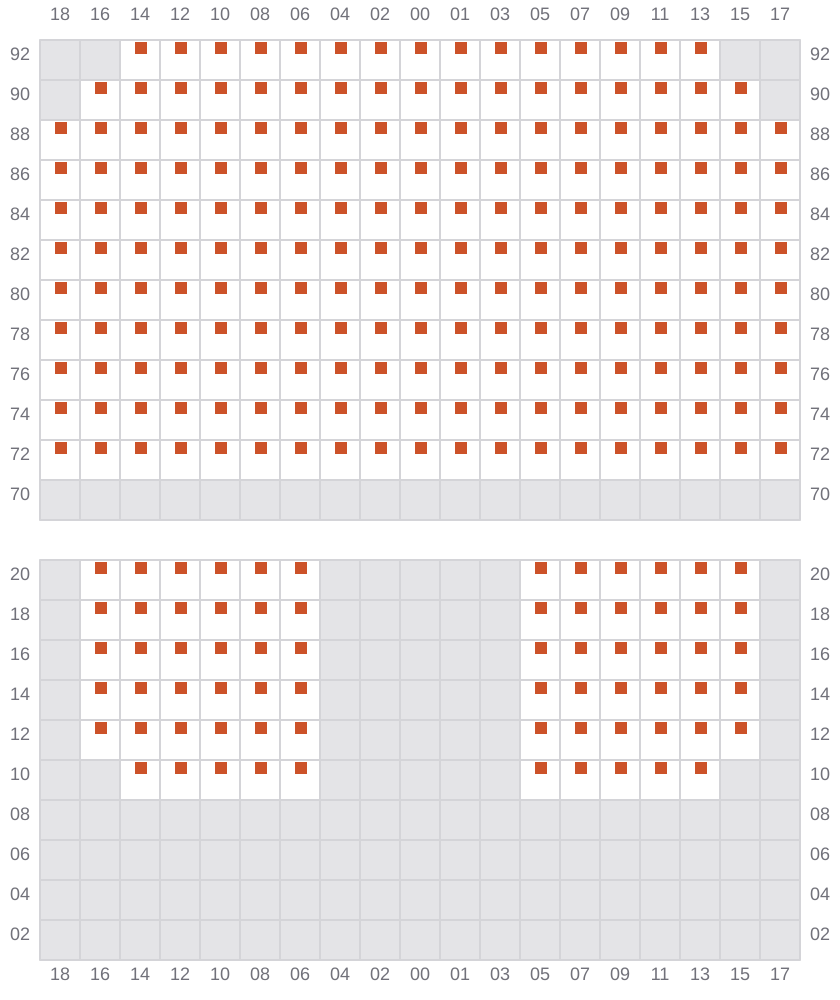

063
- ← / →

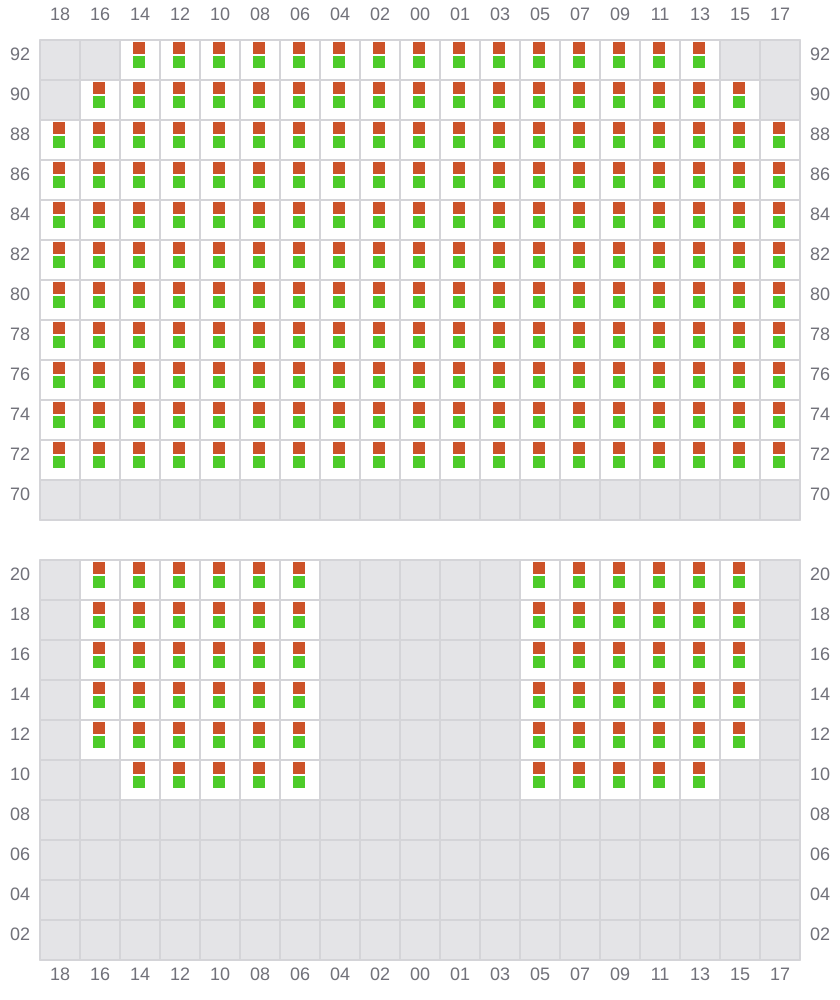

065 (064)
- ←

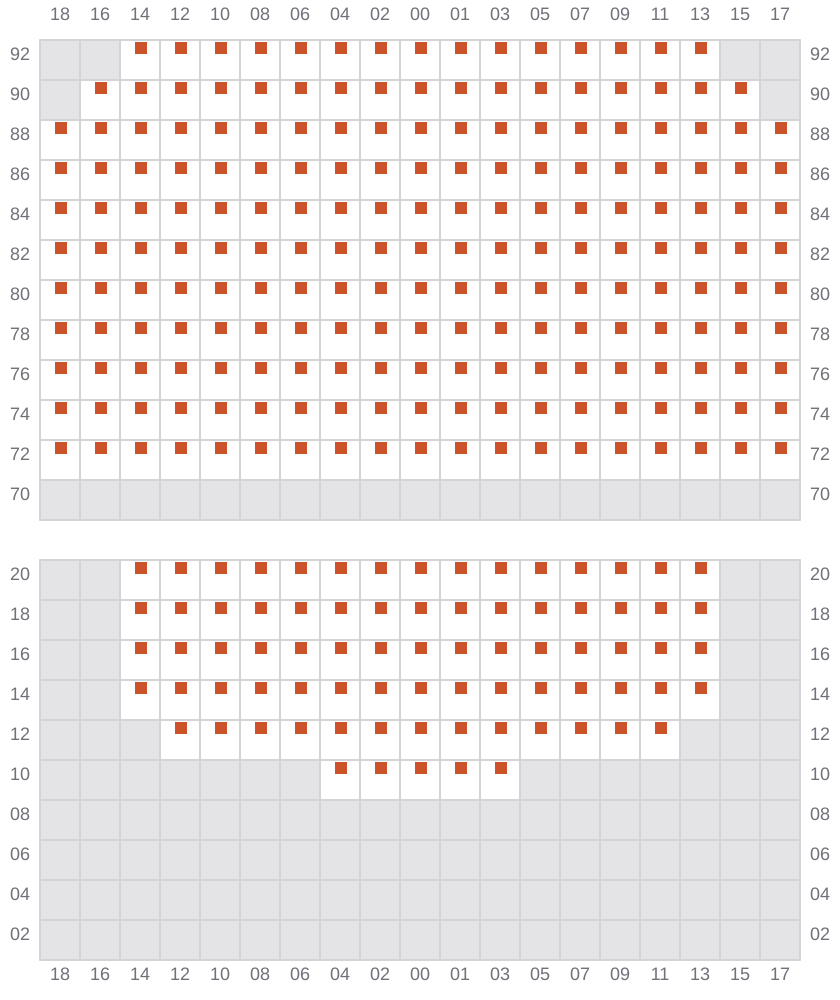

067
- ← / →
069 (068)
- ←

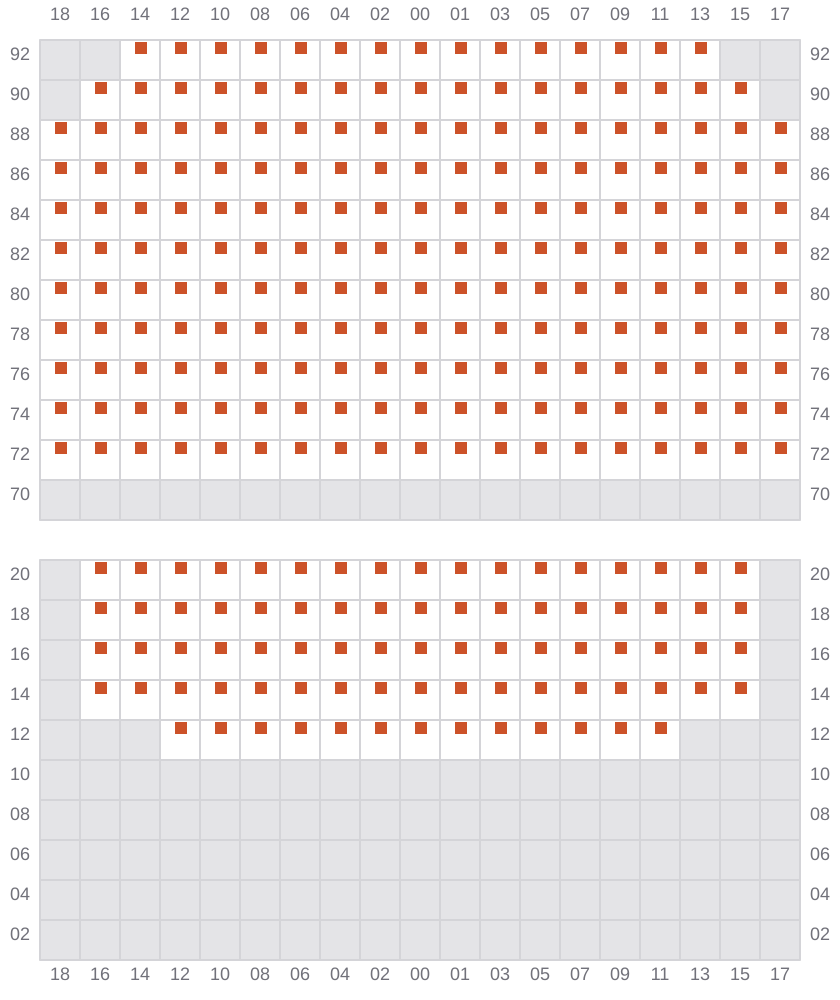

071
- ← / →

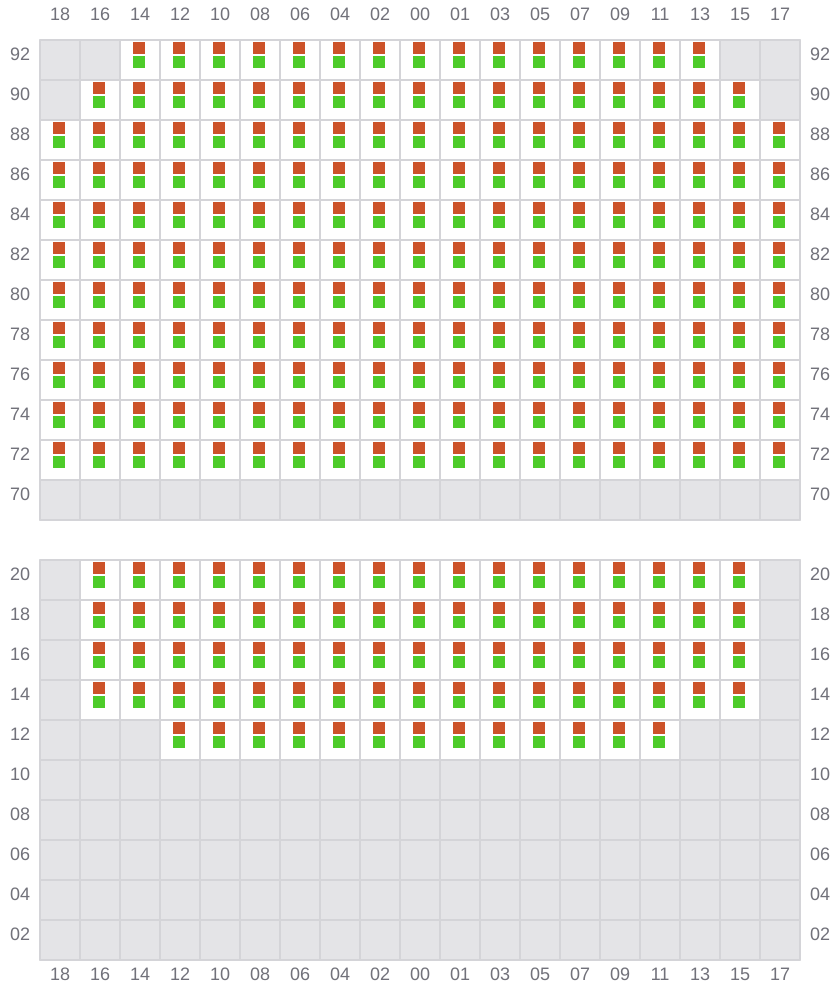

073 (072)
- ←

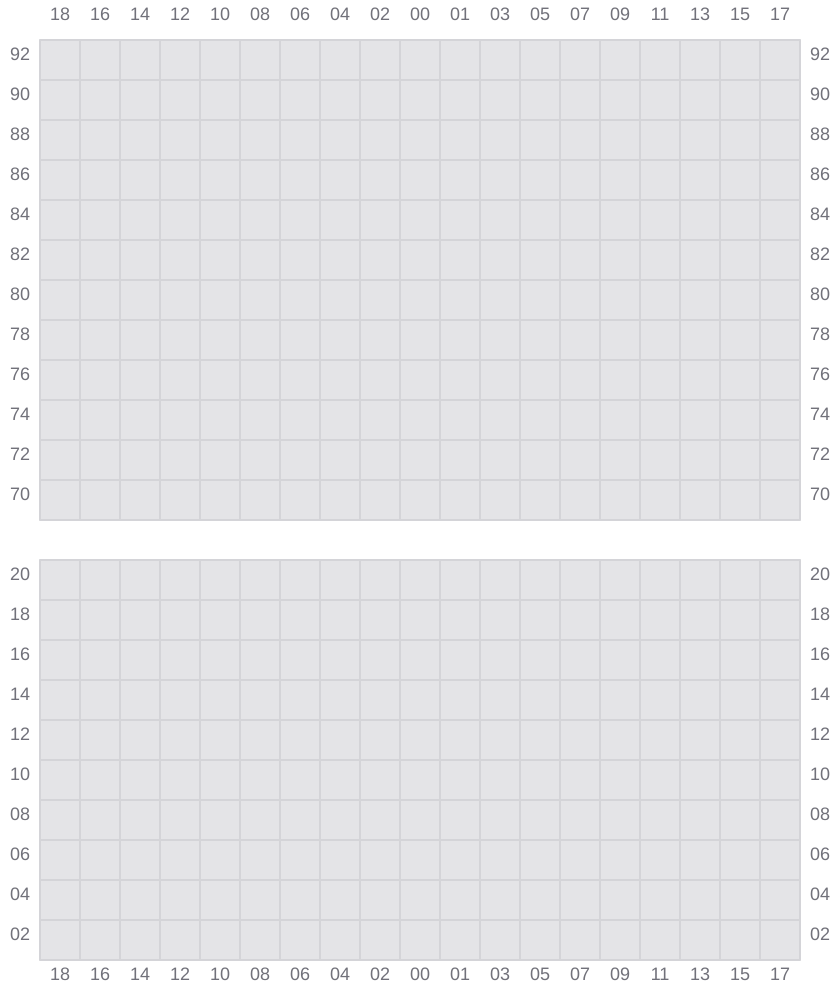

075

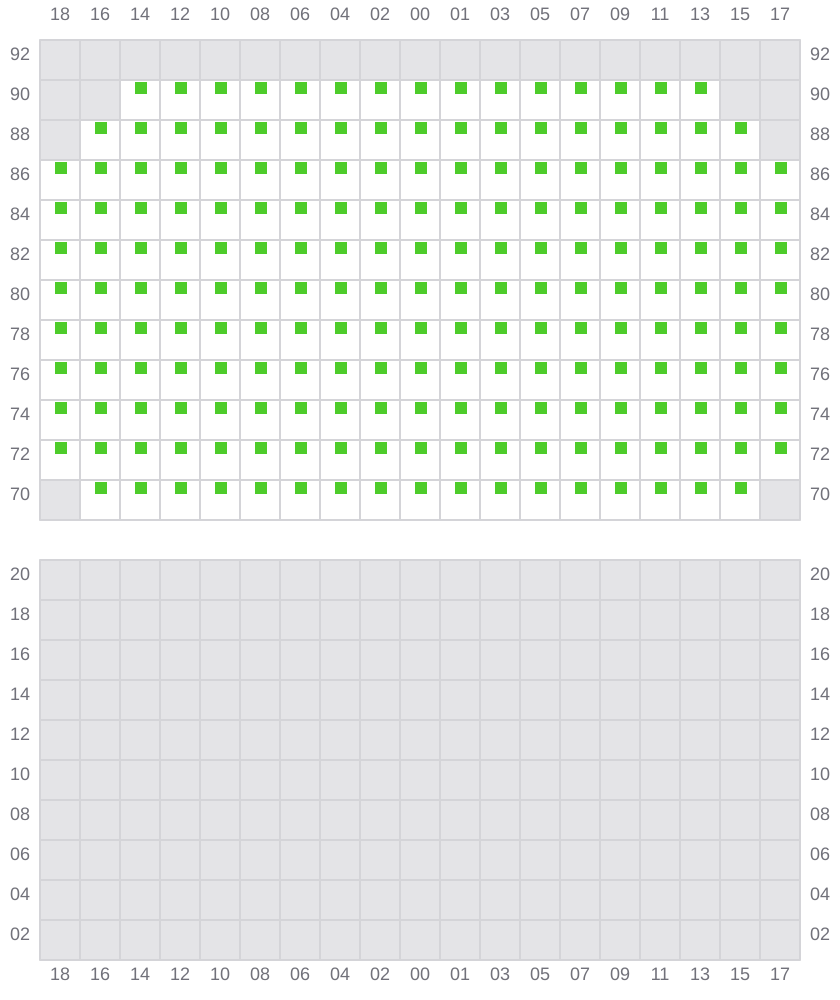

077 (076)
- ← / ?
