EVER FEAT
9850898 | 5LAF3 | EIS by ************************** Last update: Fri Mar 08 2024
General Info
Ship Name:EVER FEAT
IMO Code:9850898
Call Sign:5LAF3
Line Operator:EIS
Class Name for Sister Ships:FET
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:11,964
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

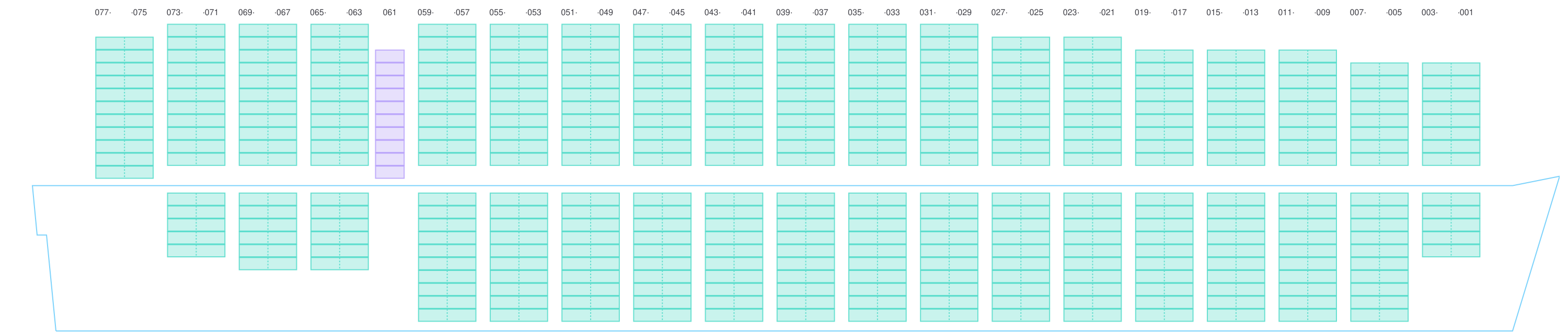

Side View

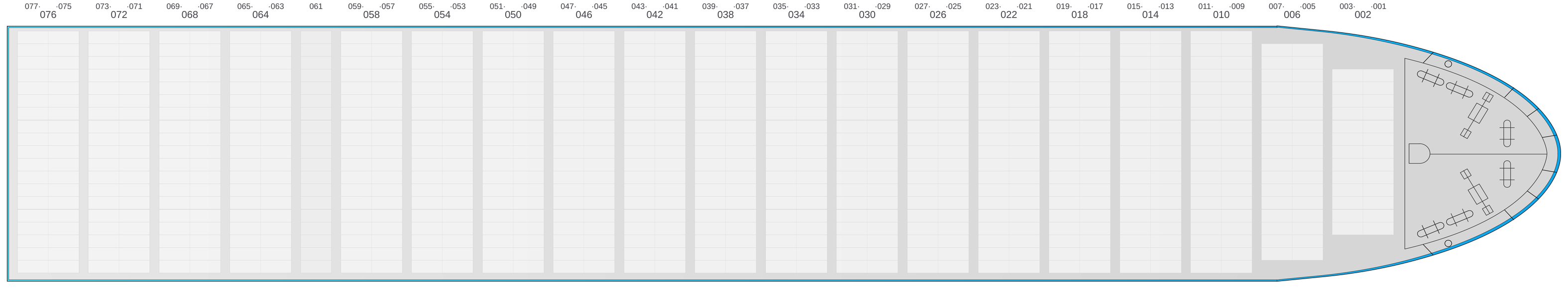

Hatch-Covers View

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

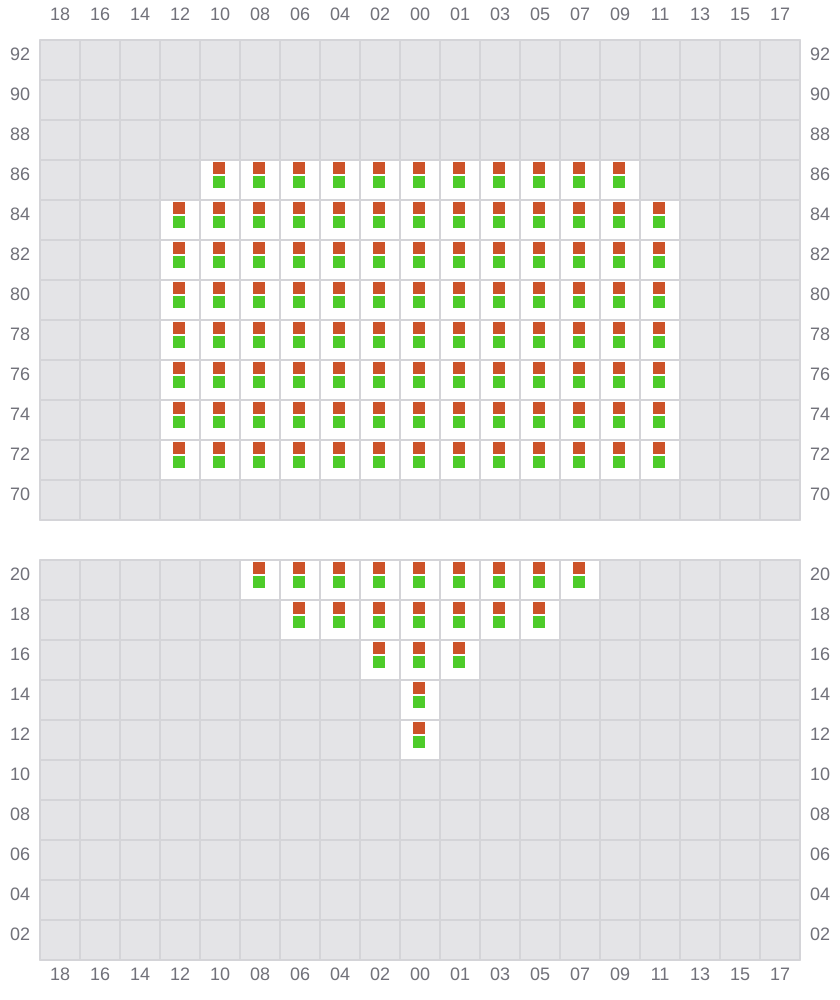

001 (002)
- →

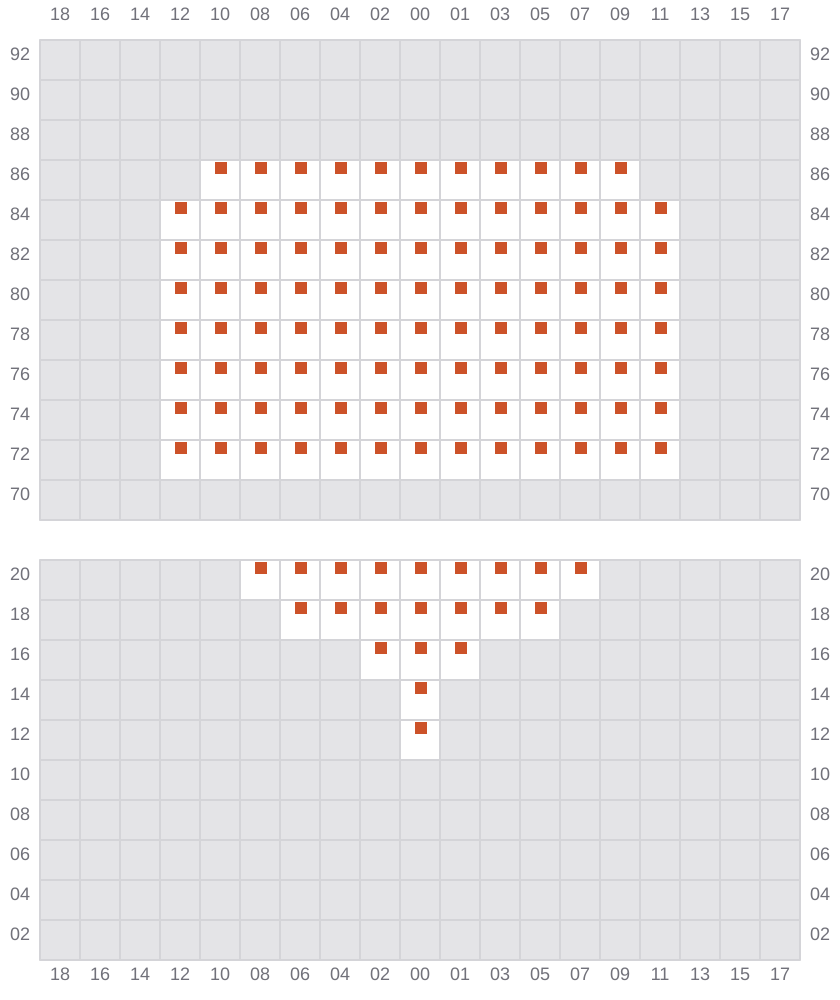

003
- ←

005 (006)
- →

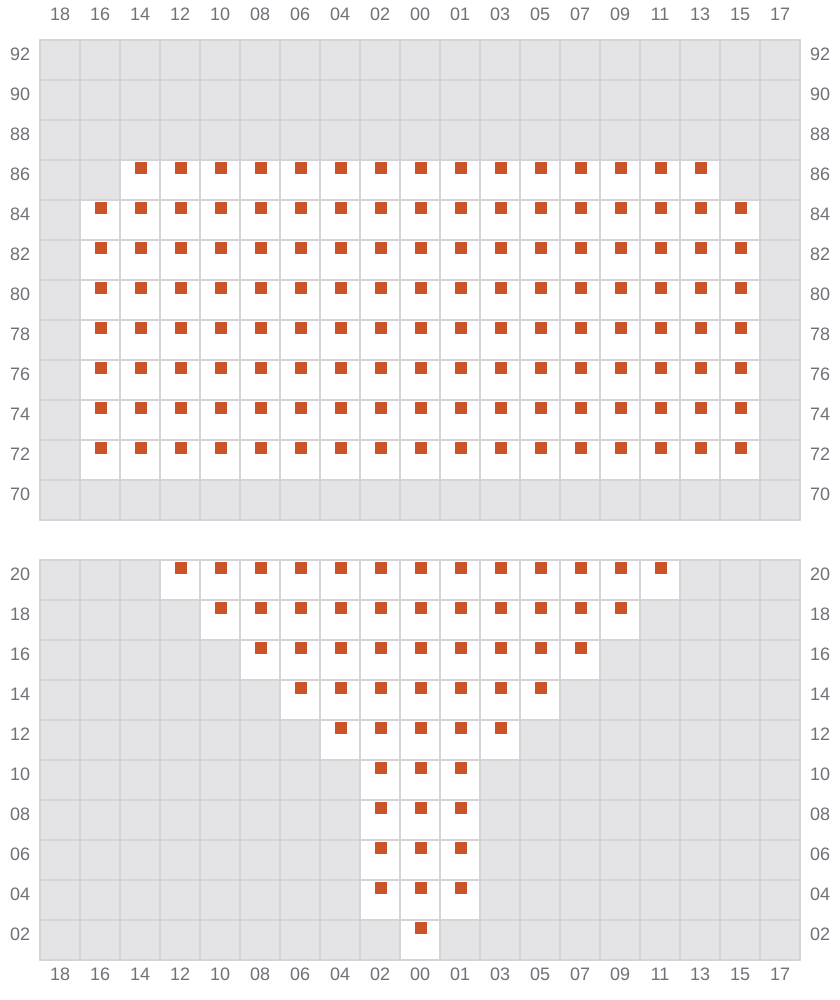

007
- ←

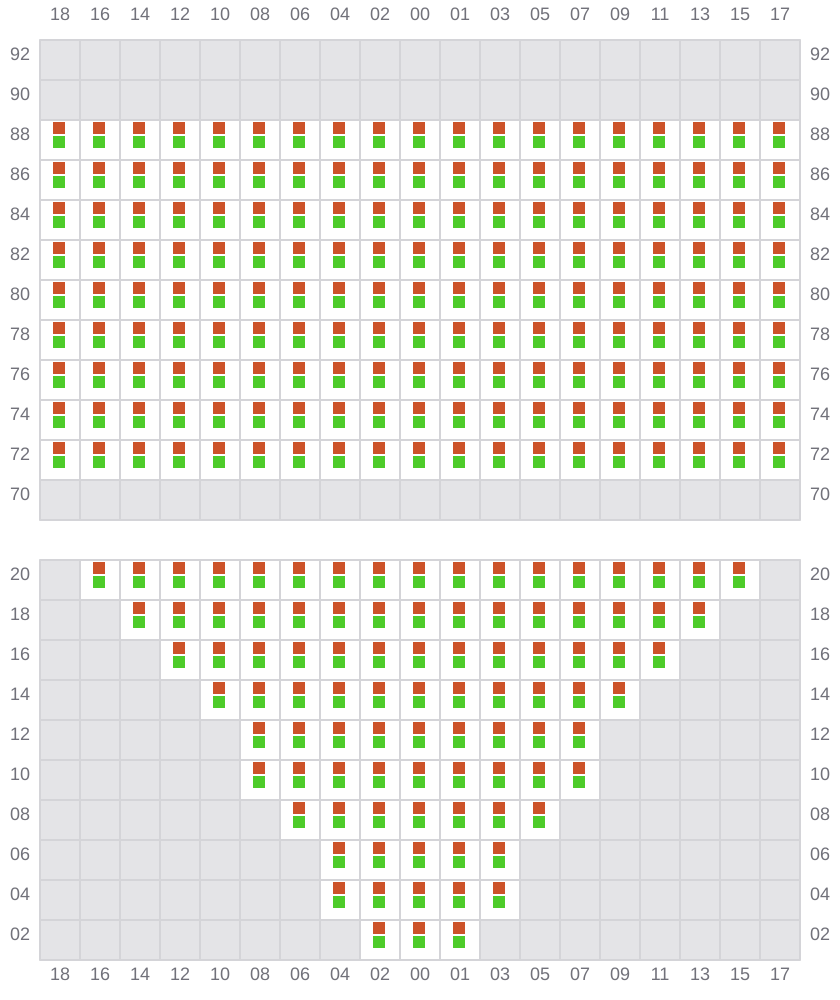

009 (010)
- →

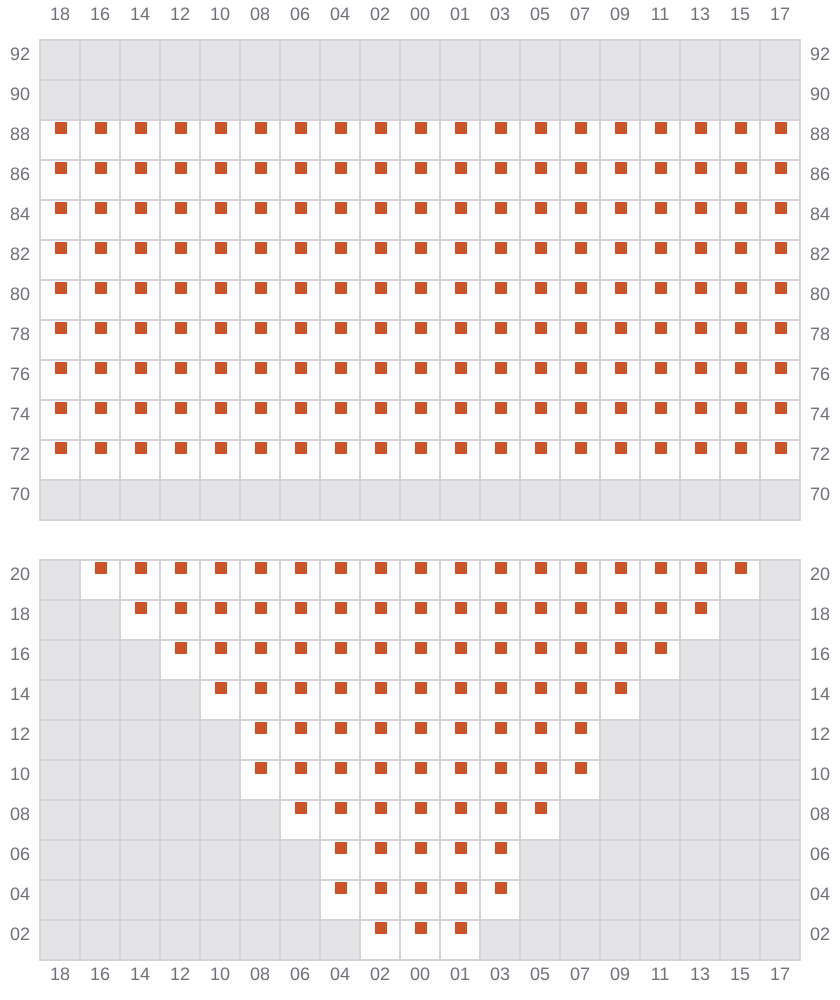

011
- ←

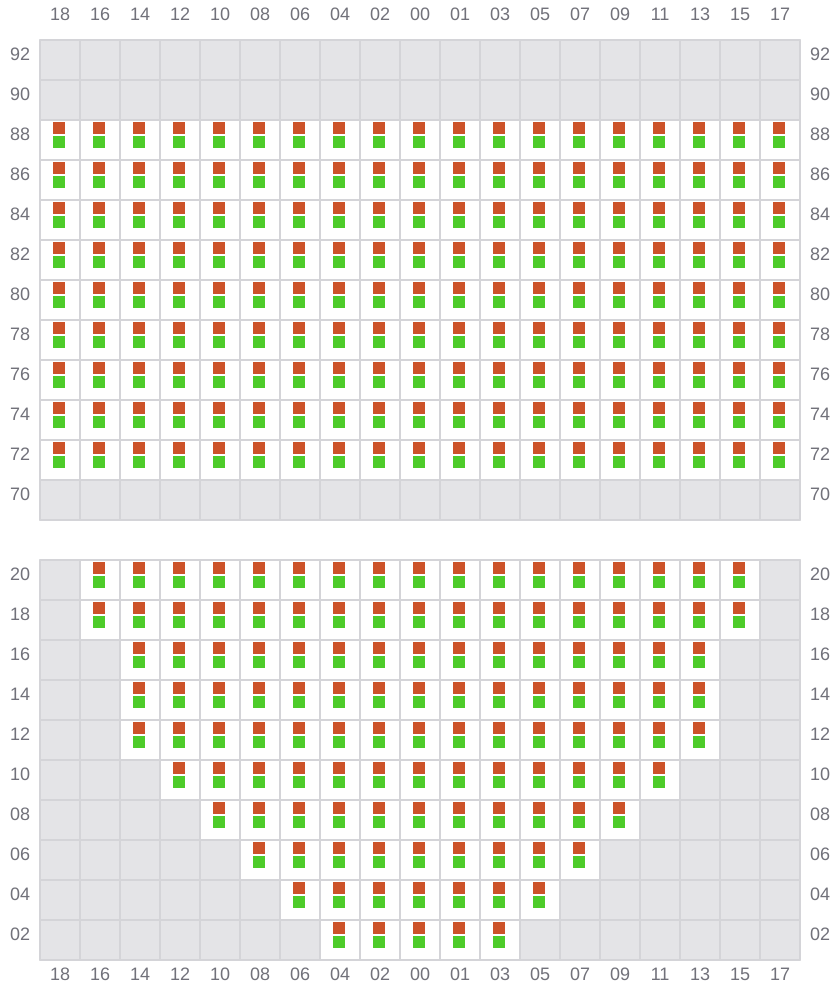

013 (014)
- →

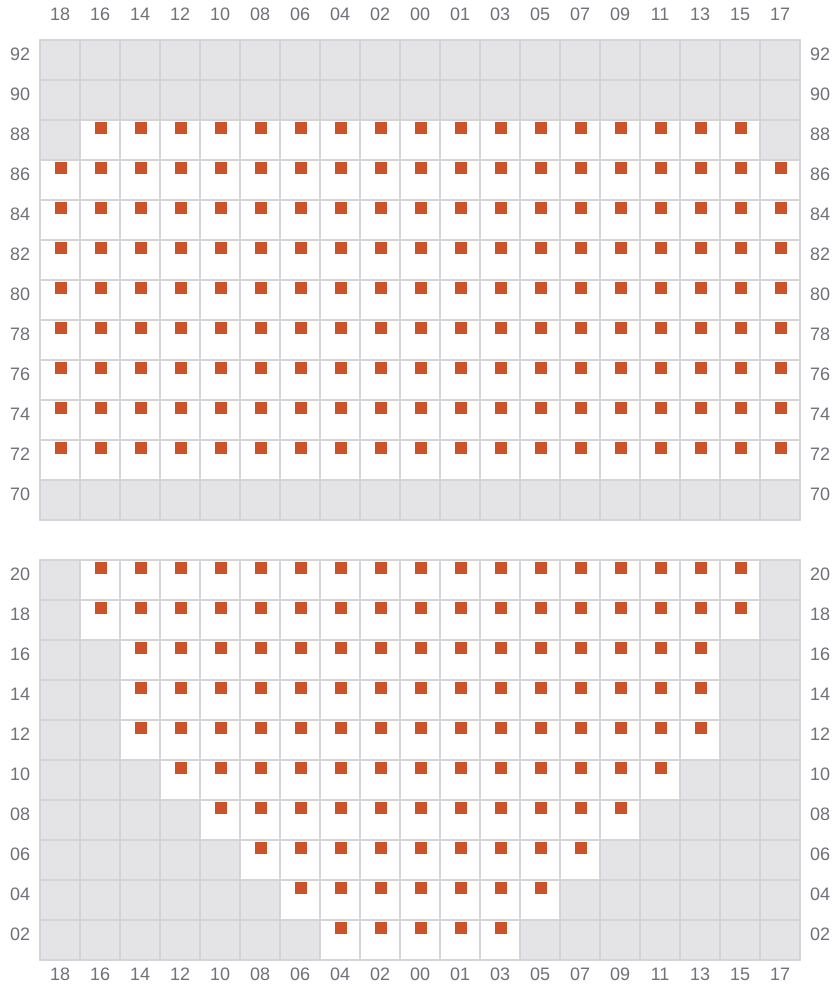

015
- ←

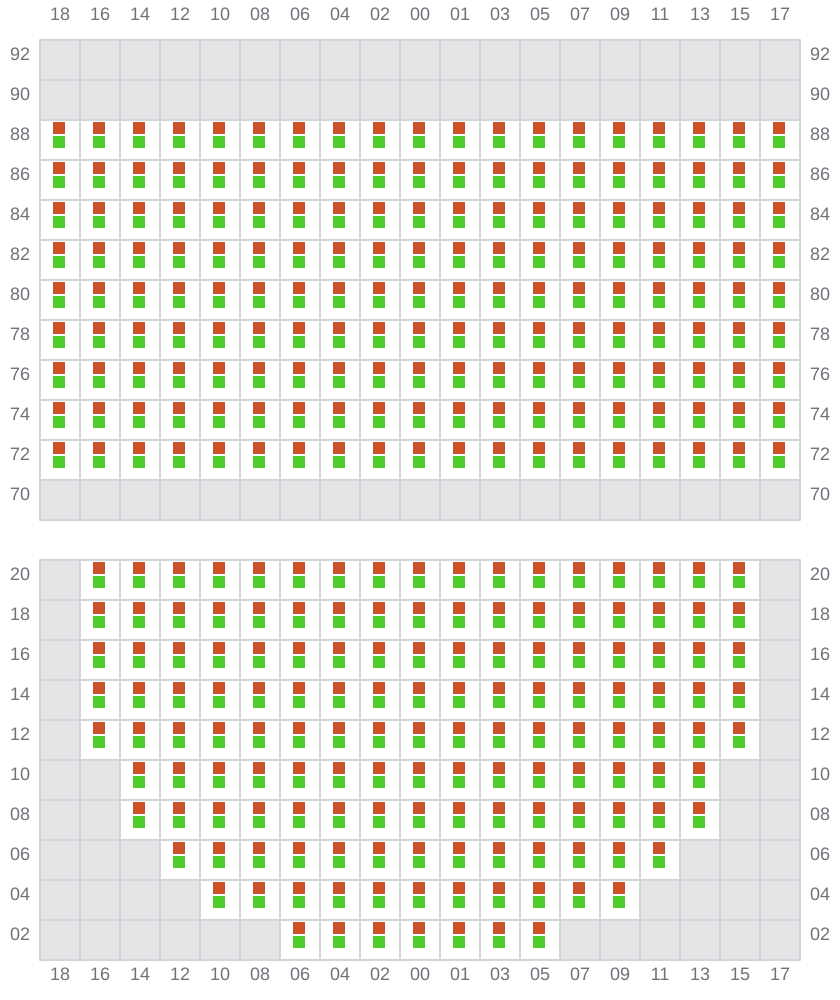

017 (018)
- →

019
- ←

021 (022)
- →

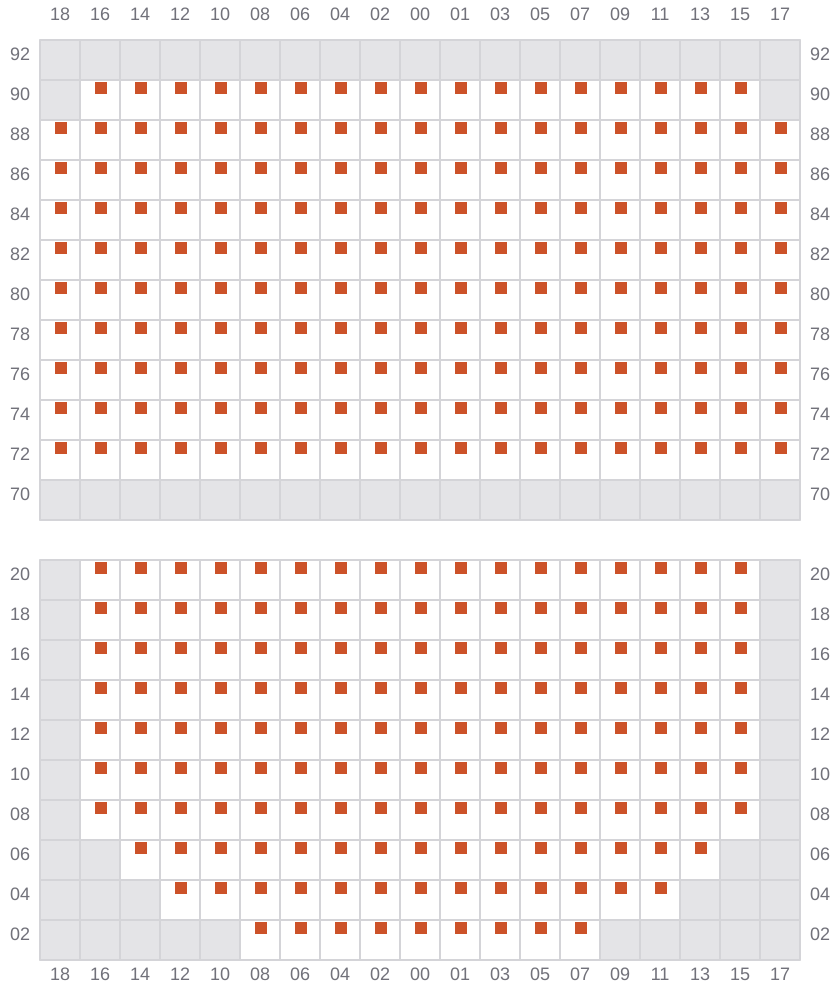

023
- ←

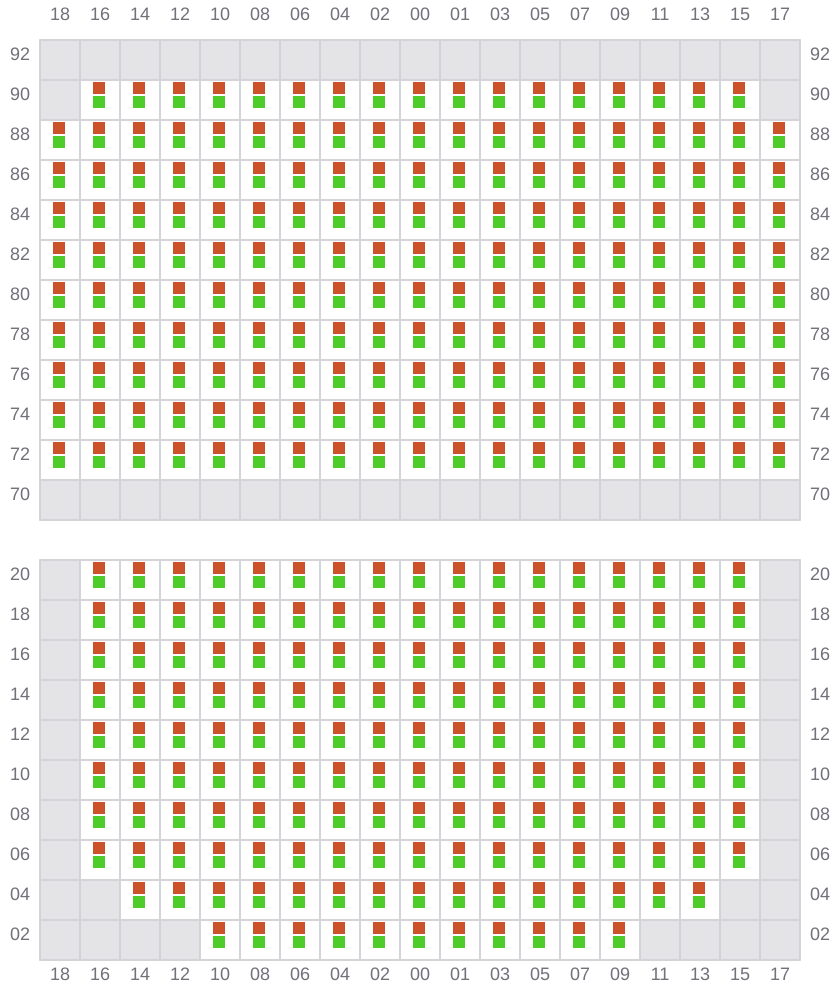

025 (026)
- →

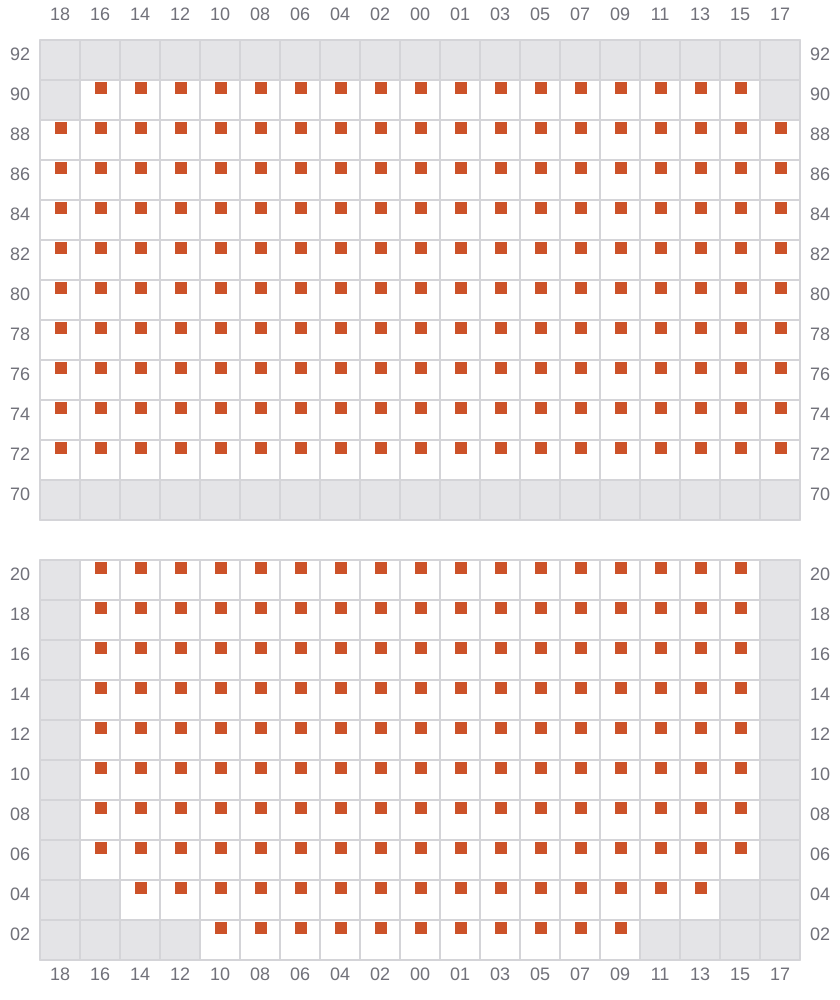

027
- ←

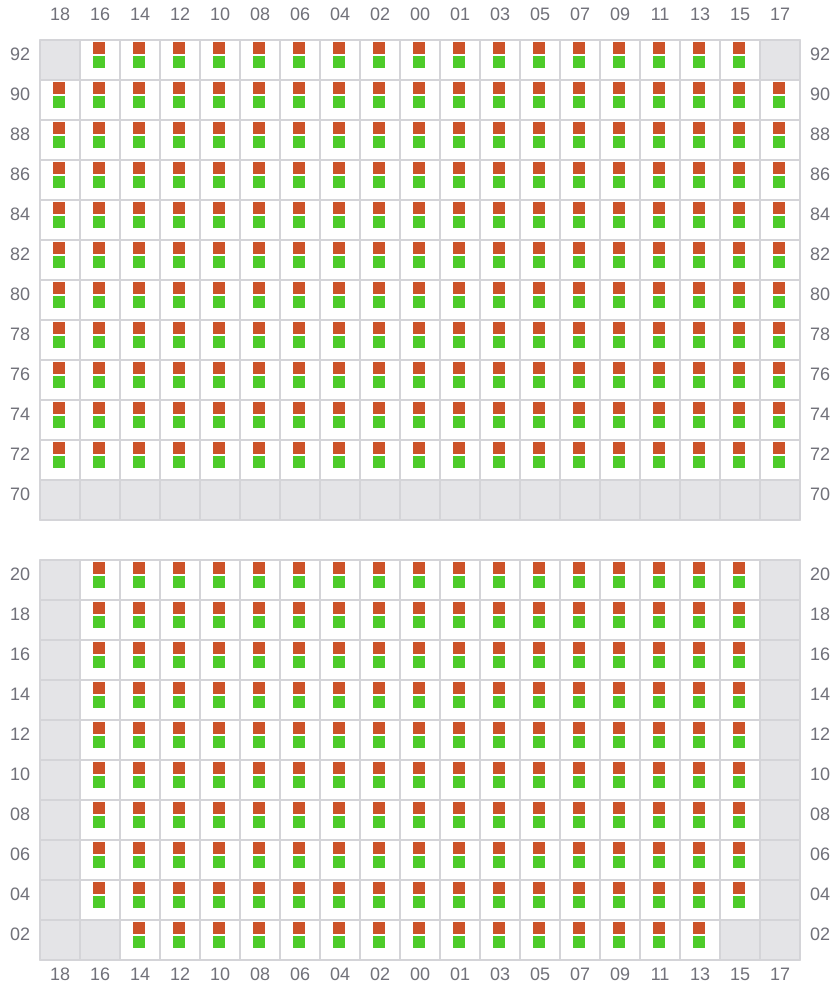

029 (030)
- →

031
- ←

033 (034)
- →

035
- ←

037 (038)
- →

039
- ←

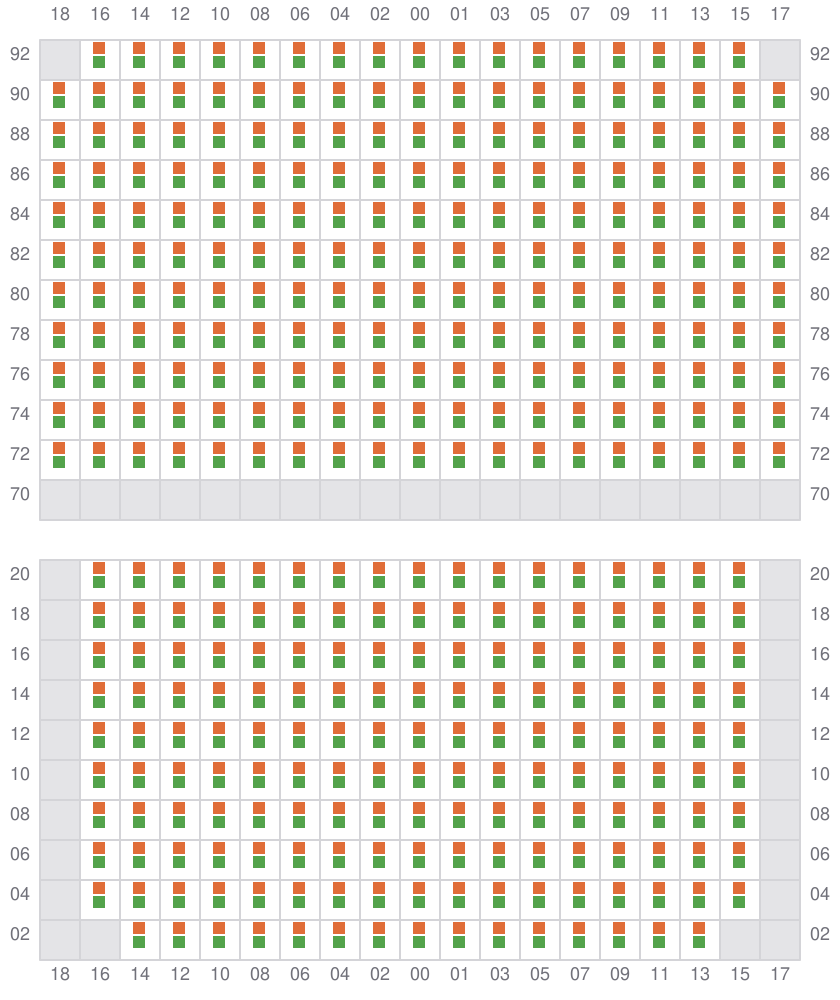

041 (042)
- →

043
- ←

045 (046)
- →

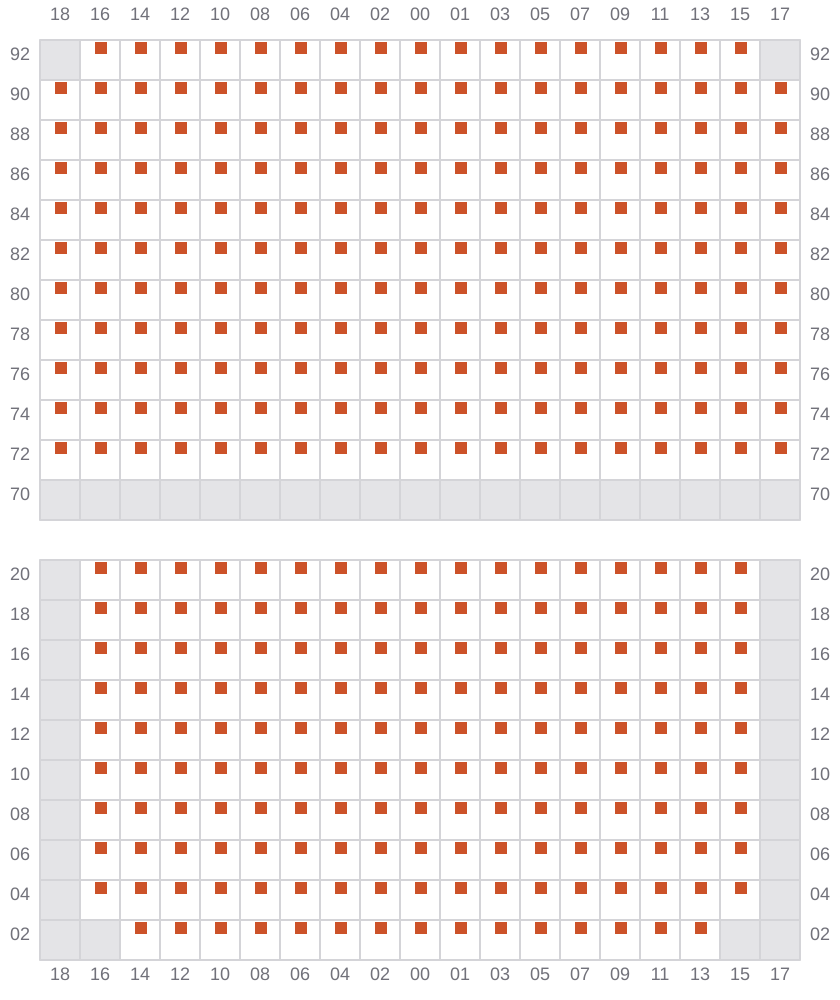

047
- ←

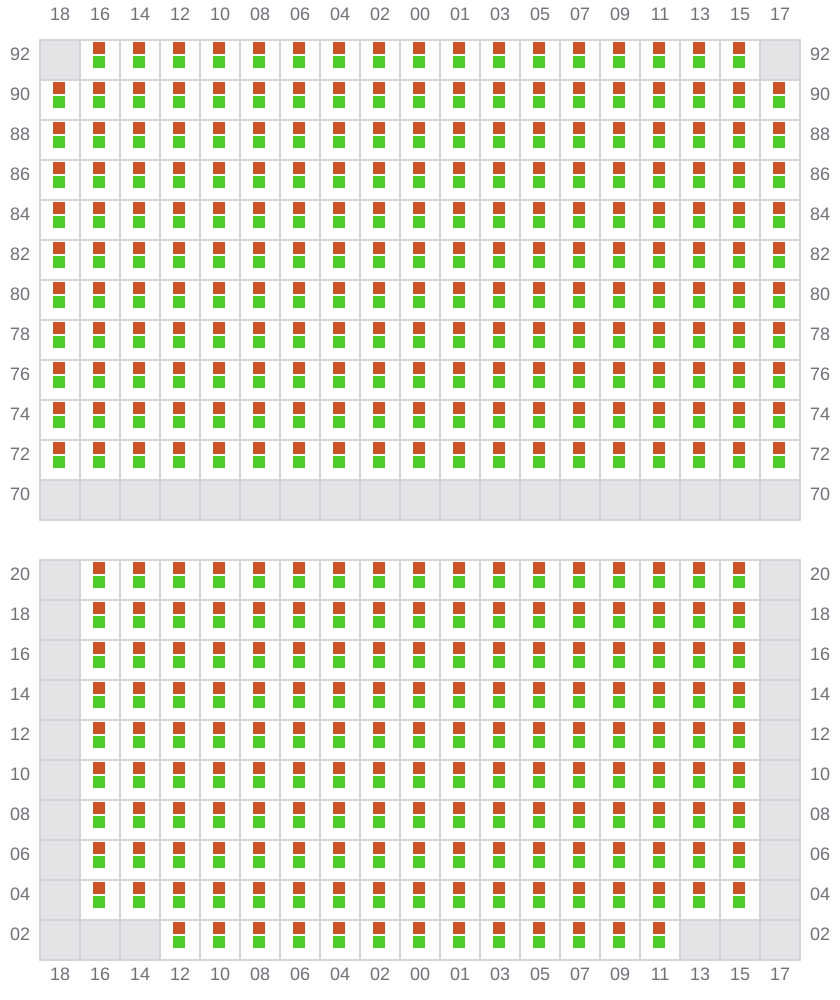

049 (050)
- →

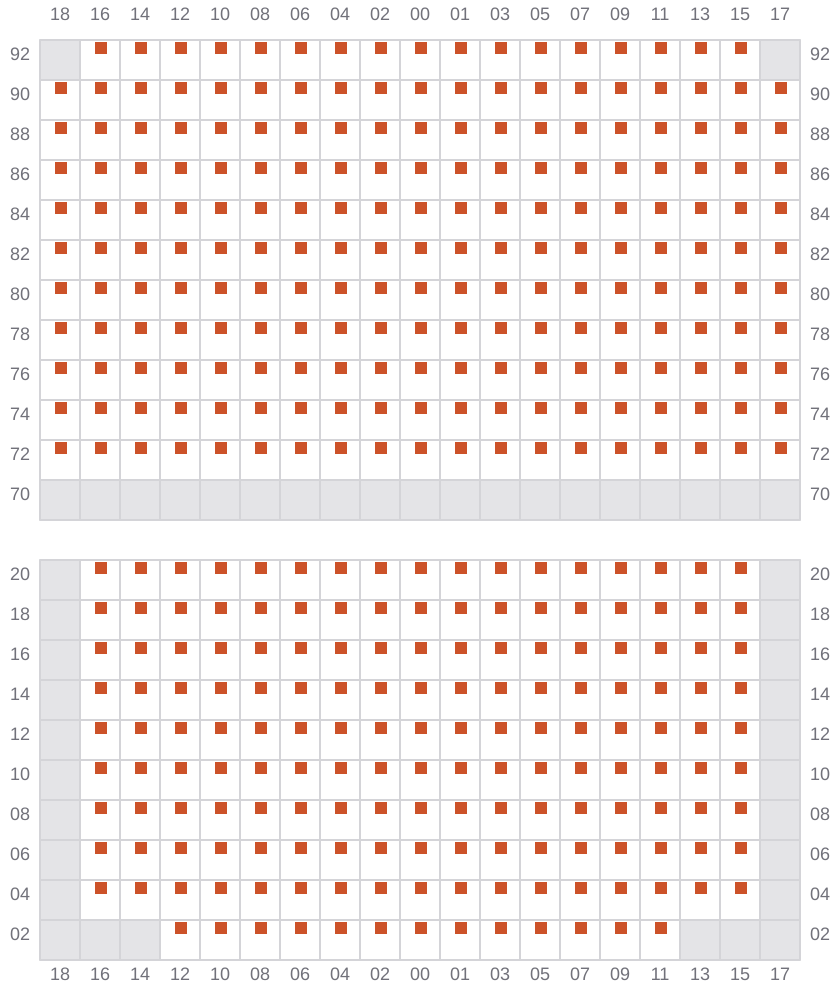

051
- ←

053 (054)
- →

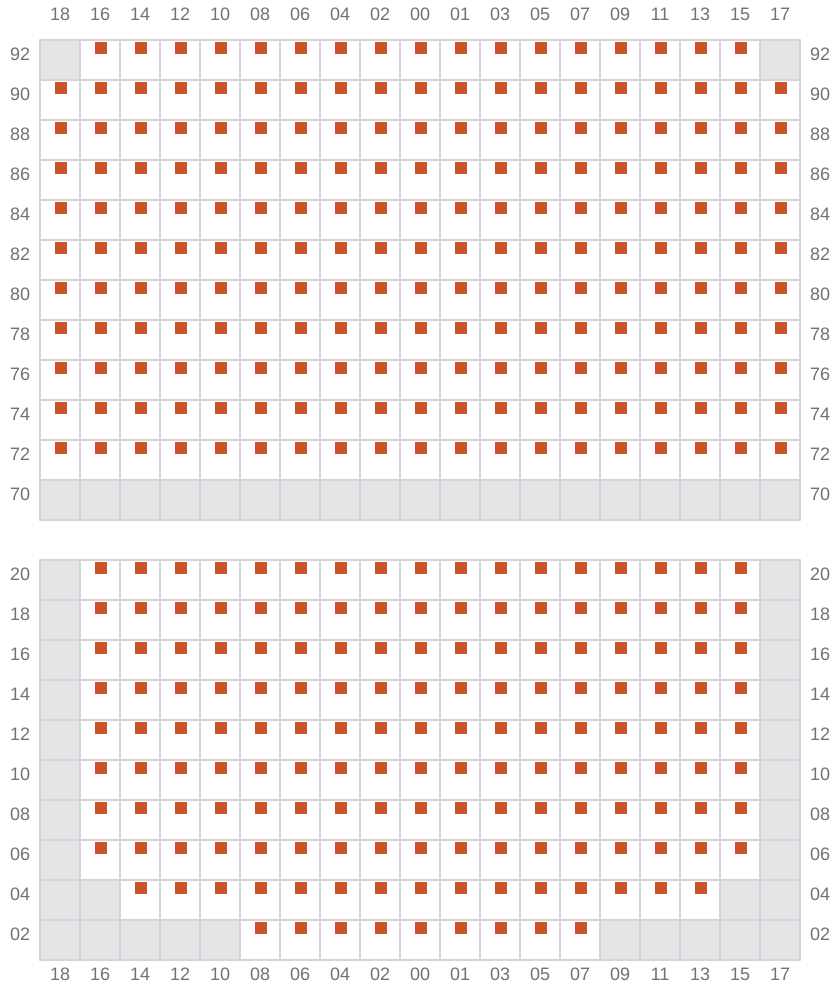

055
- ←

057 (058)
- →

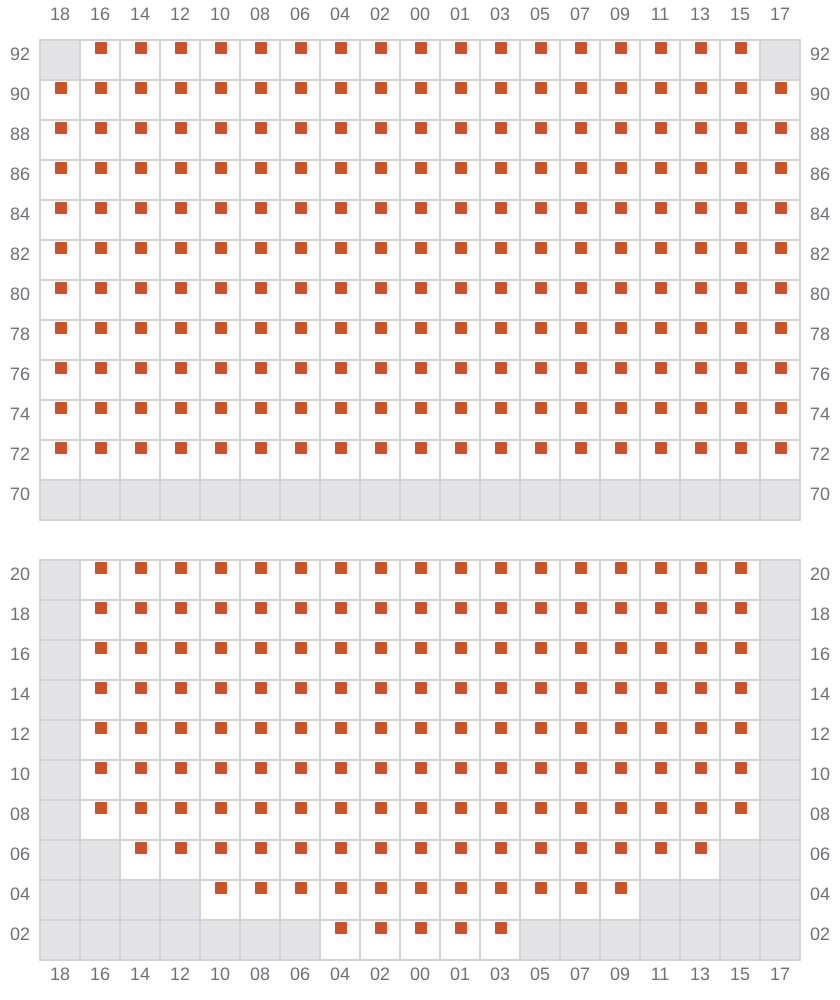

059
- ←

061

063 (064)
- →

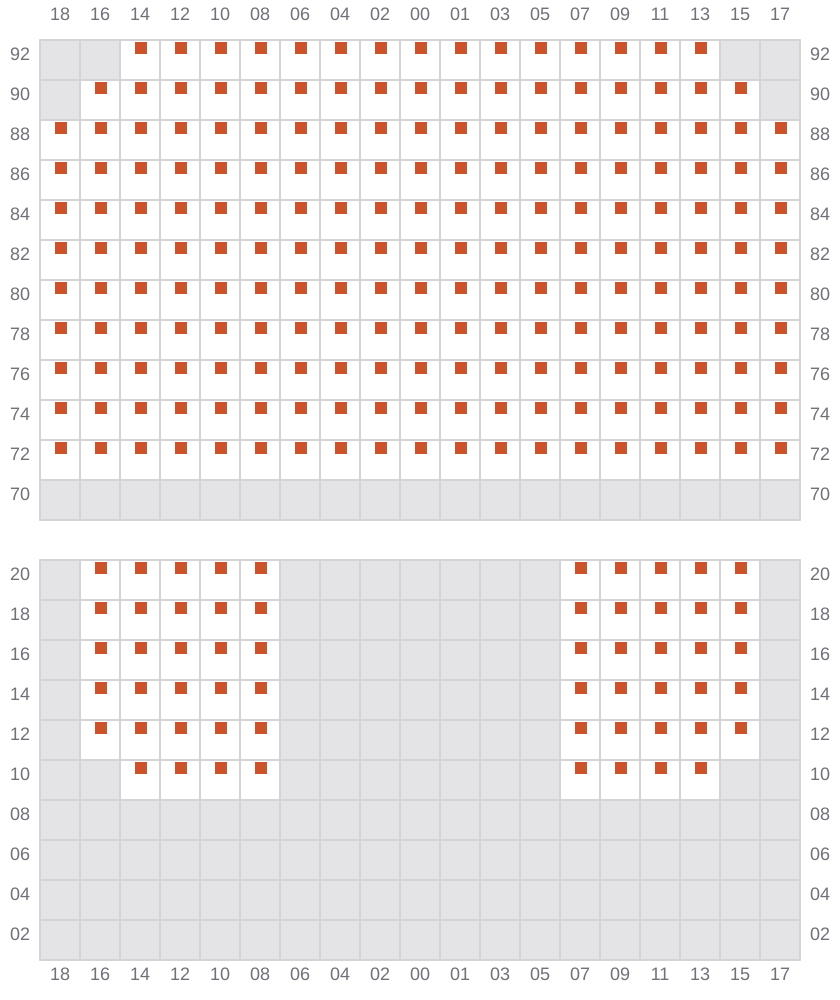

065
- ←

067 (068)
- →

069
- ←

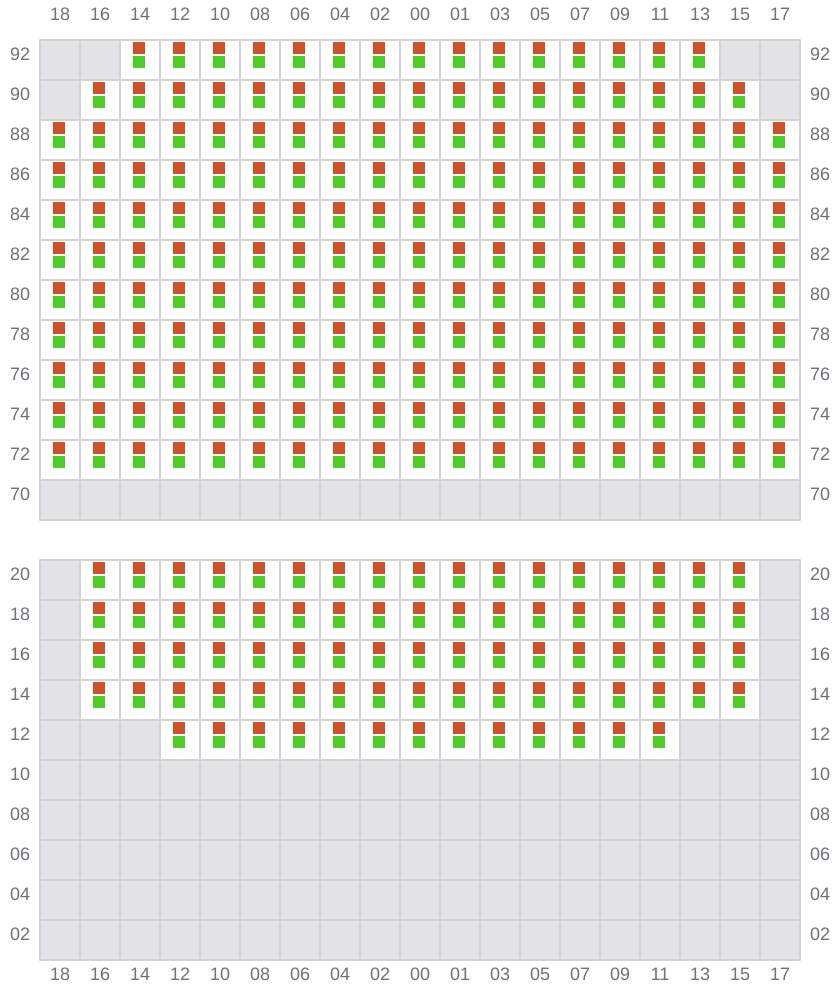

071 (072)
- →

073
- ←

075 (076)
- → / ?

077
- ← / ?
