EVER FORTUNE
9850563 | 9V7979 | EIS by ************************** Last update: Thu Jun 08 2023
General Info
Ship Name:EVER FORTUNE
IMO Code:9850563
Call Sign:9V7979
Line Operator:EIS
Class Name for Sister Ships:FOE
Year Built:2020
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:68
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:12,080
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

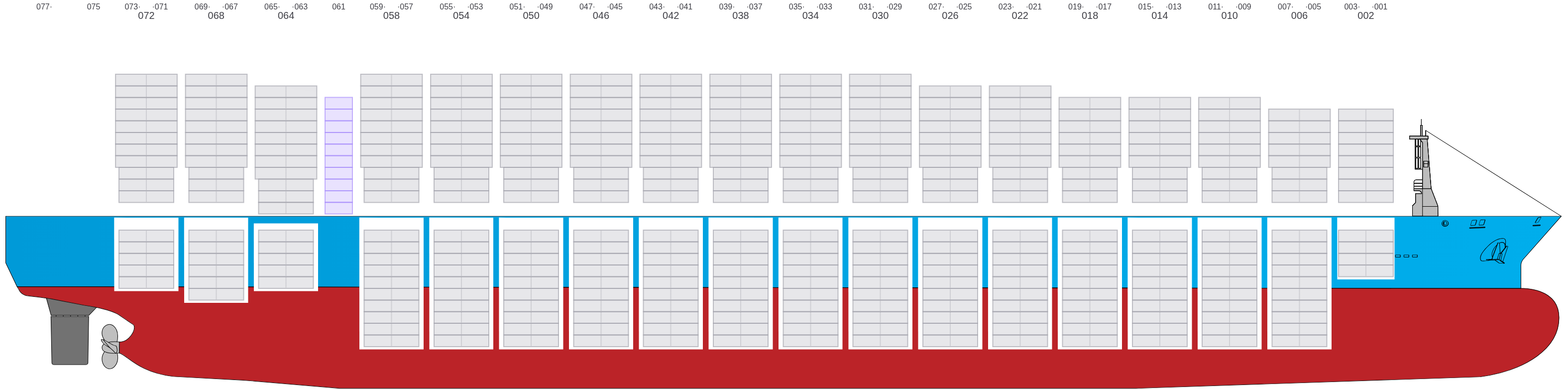

Side View

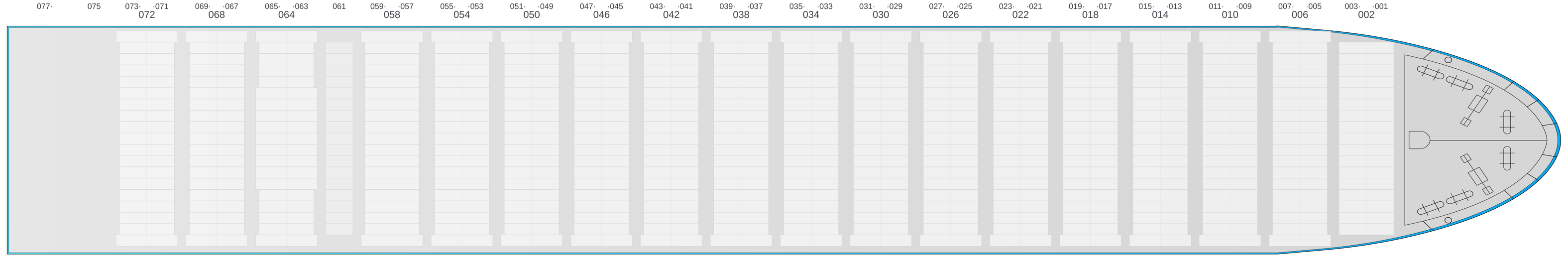

Hatch-Covers View

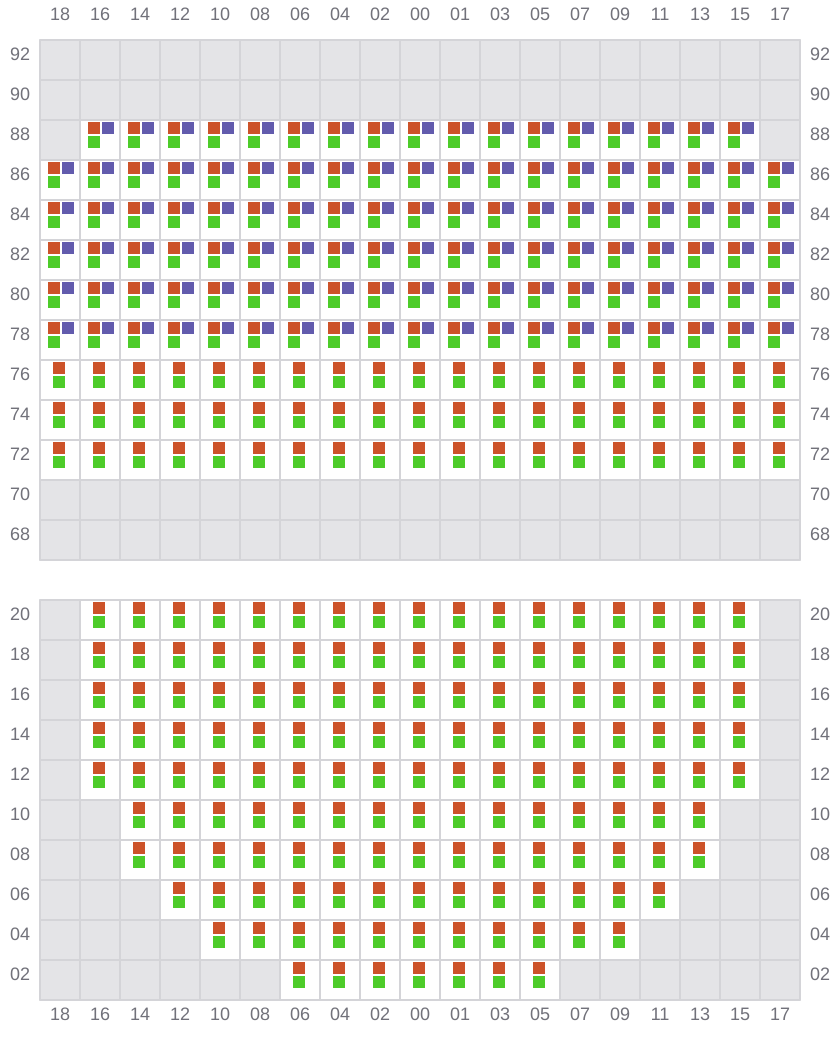

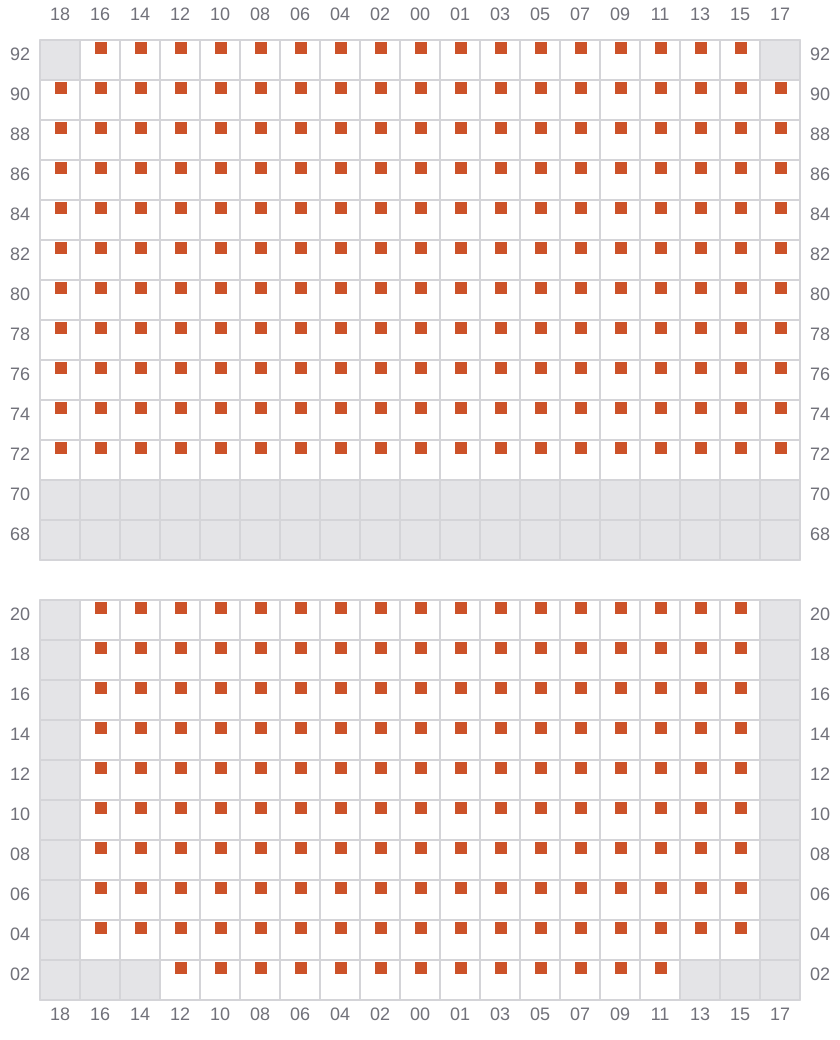

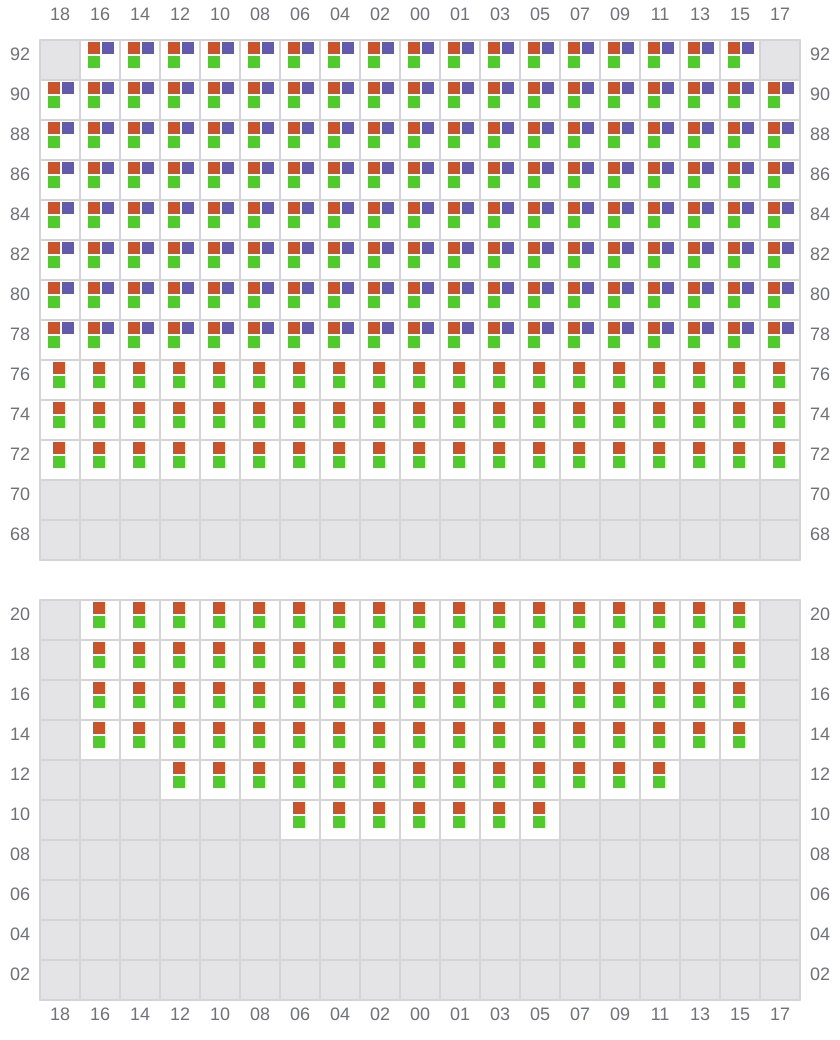

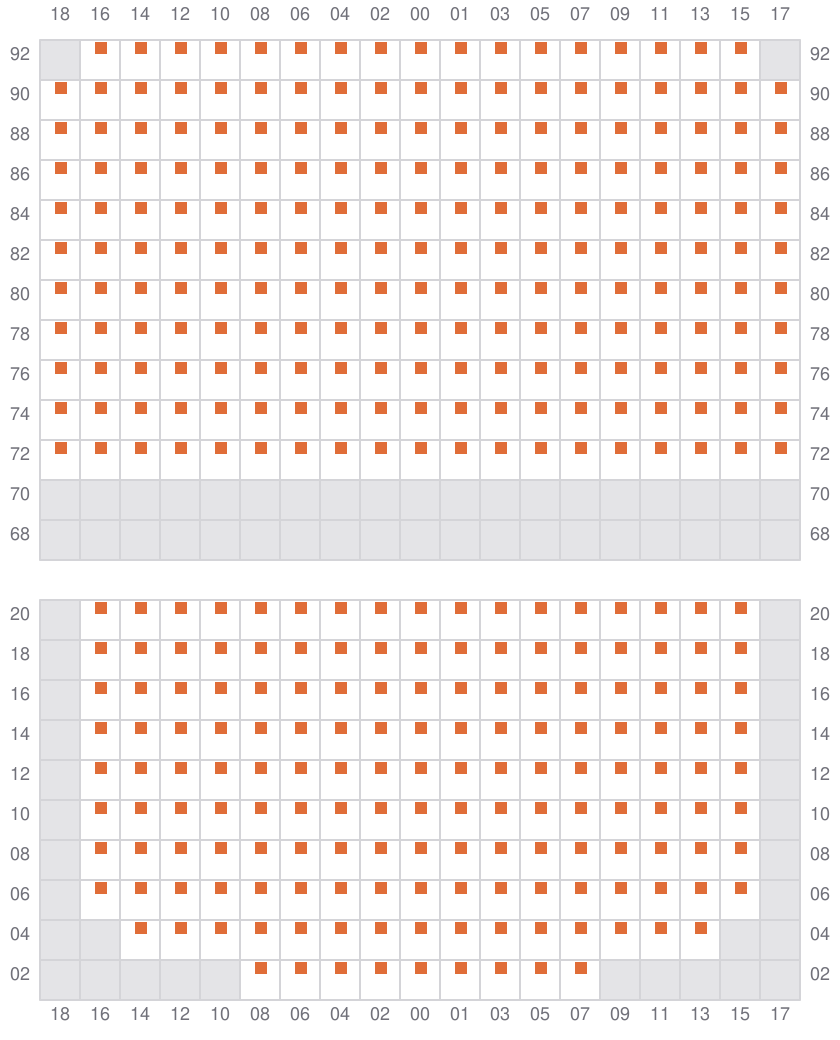

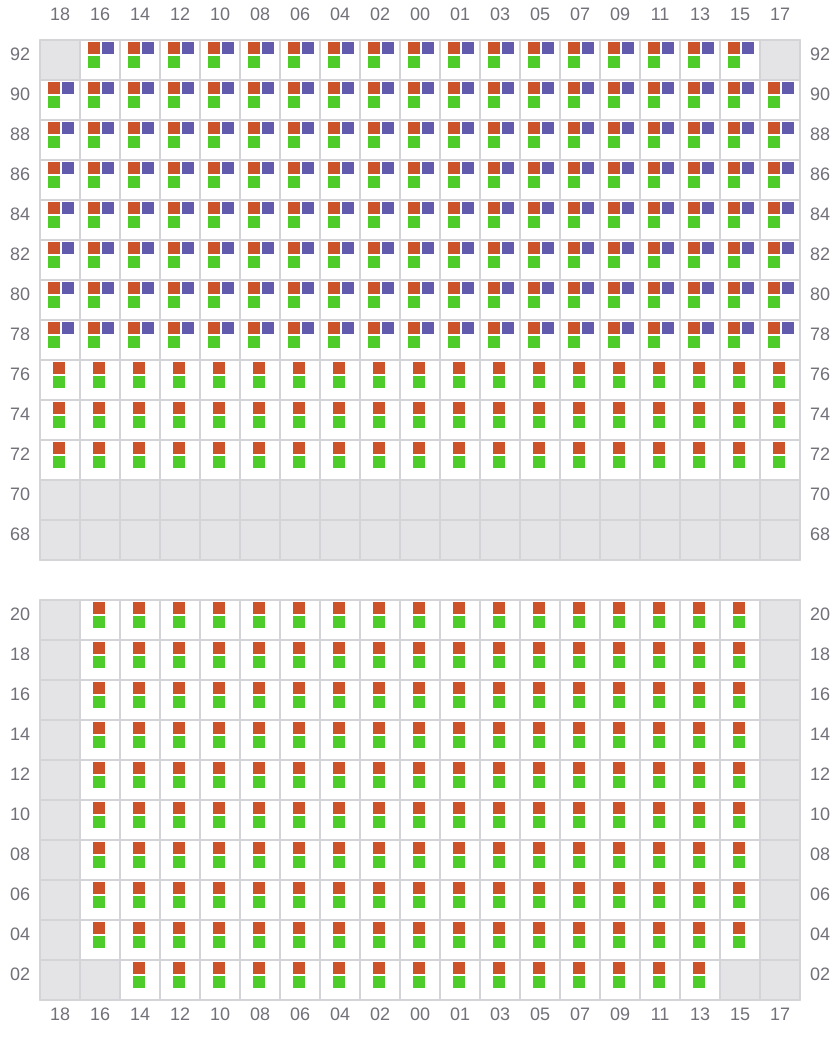

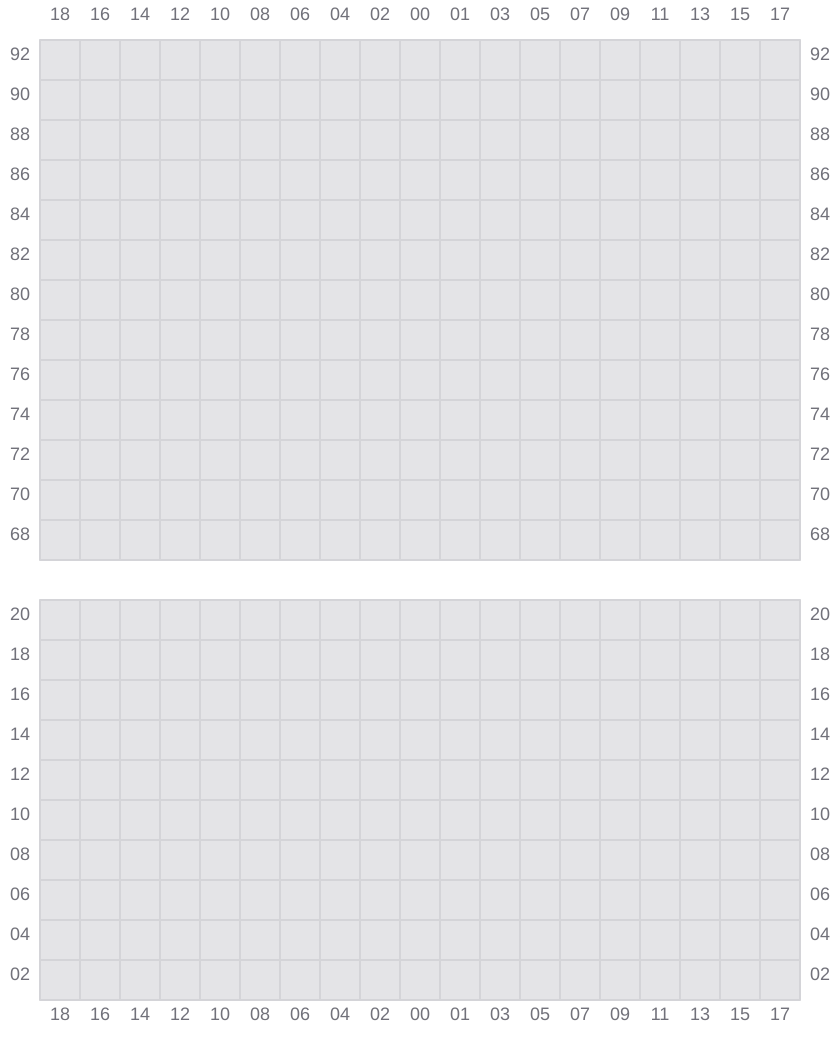

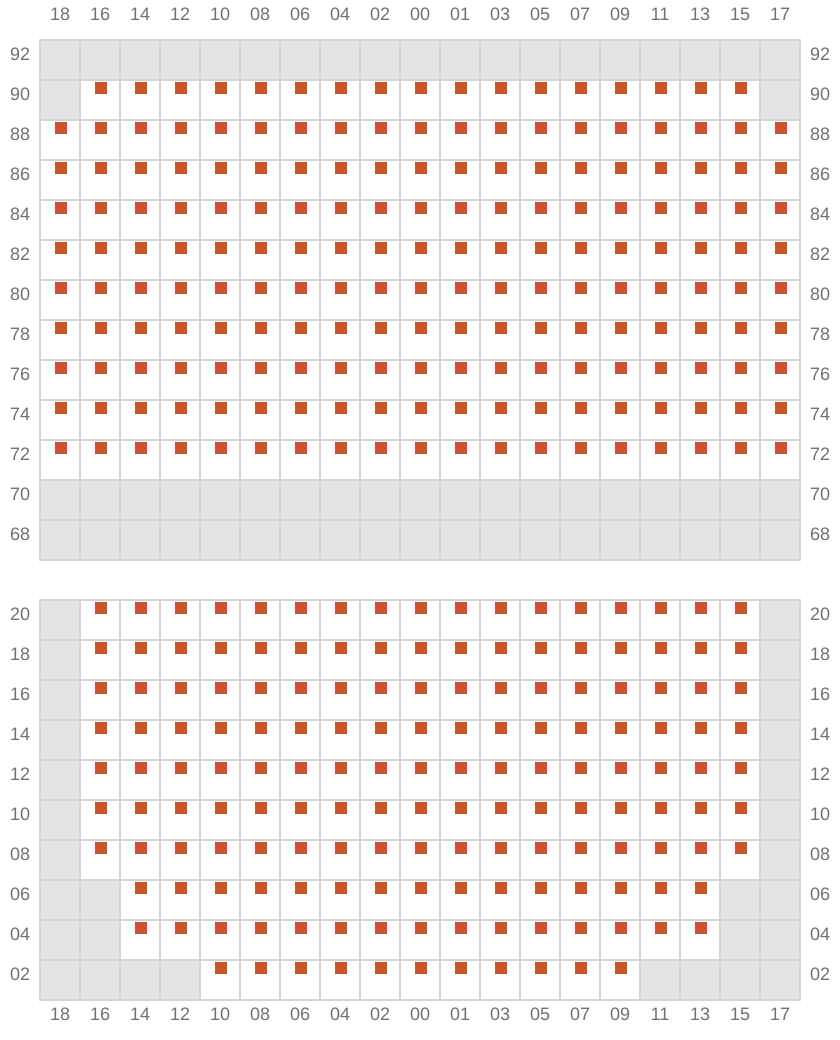

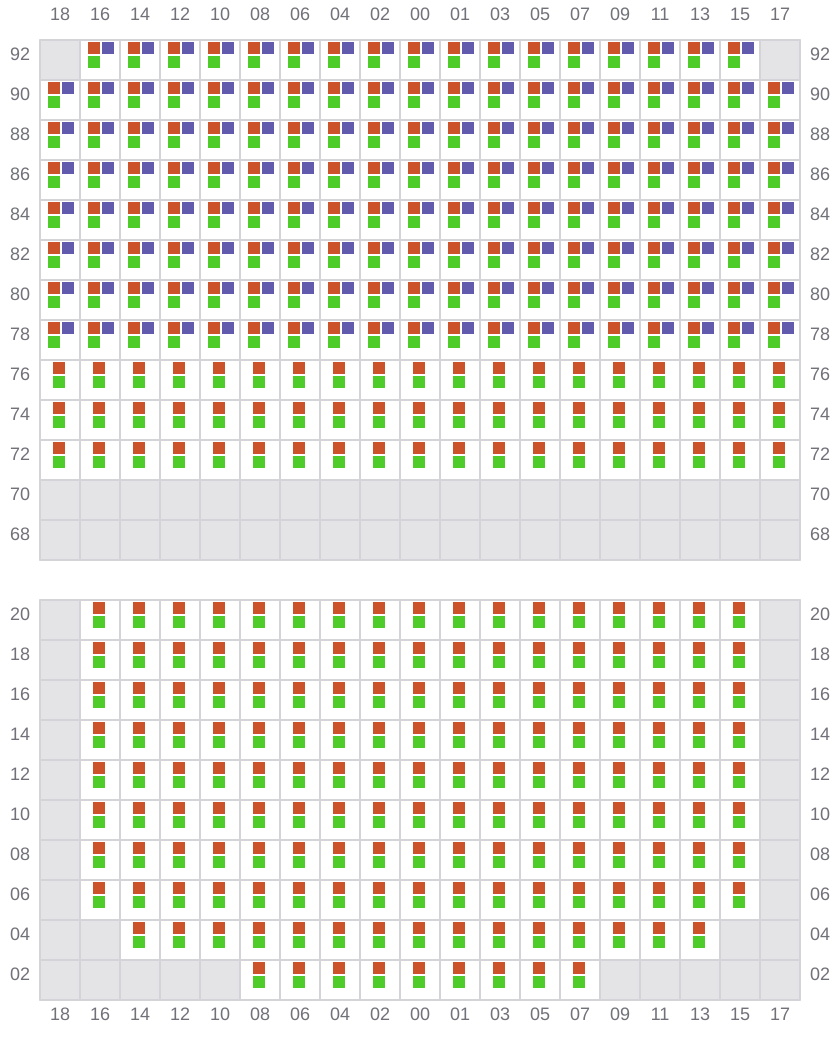

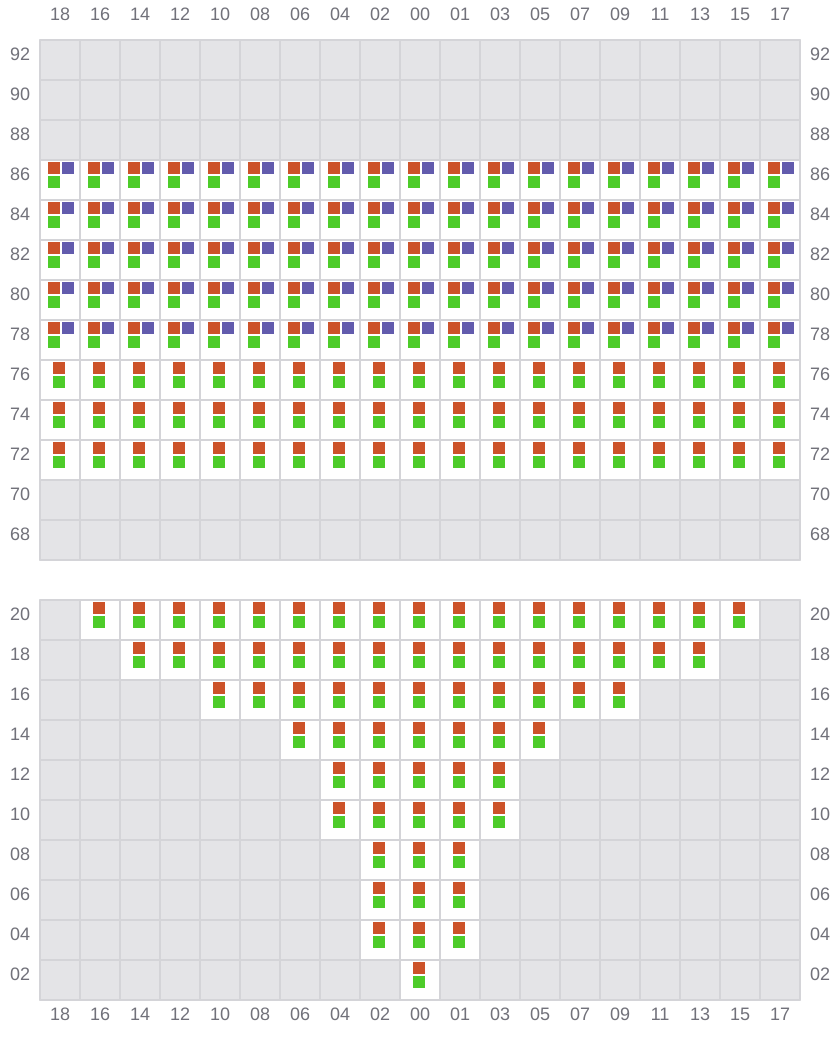

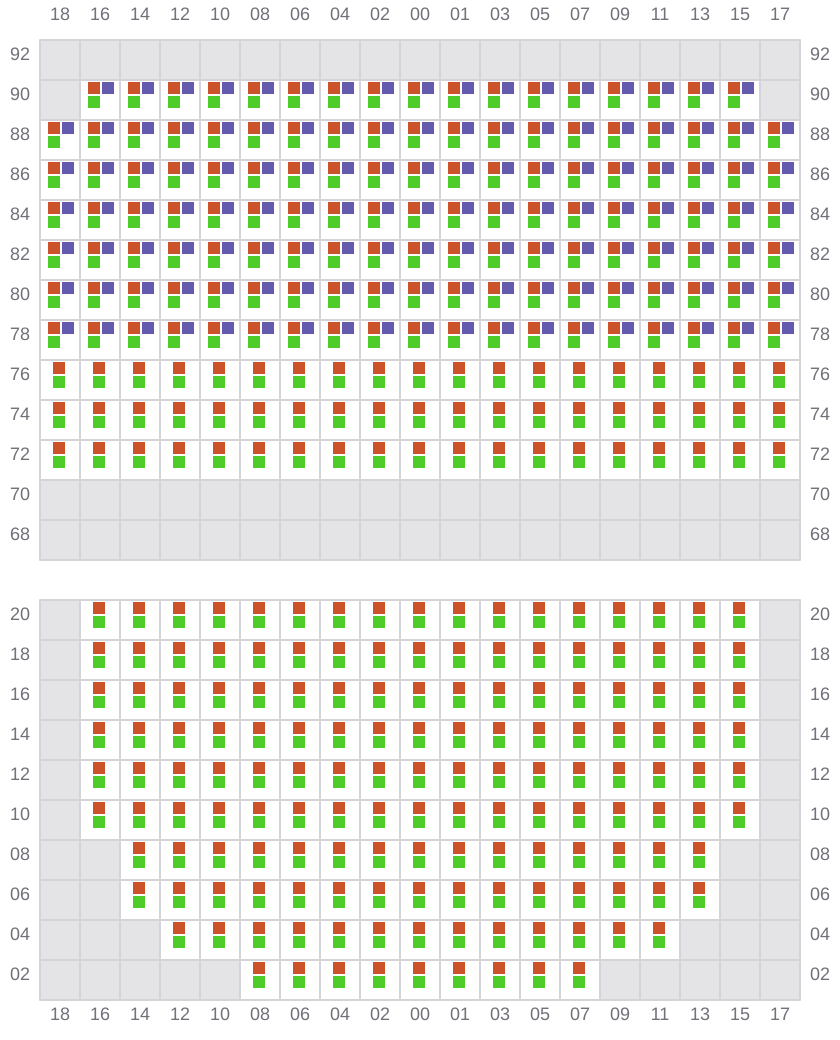

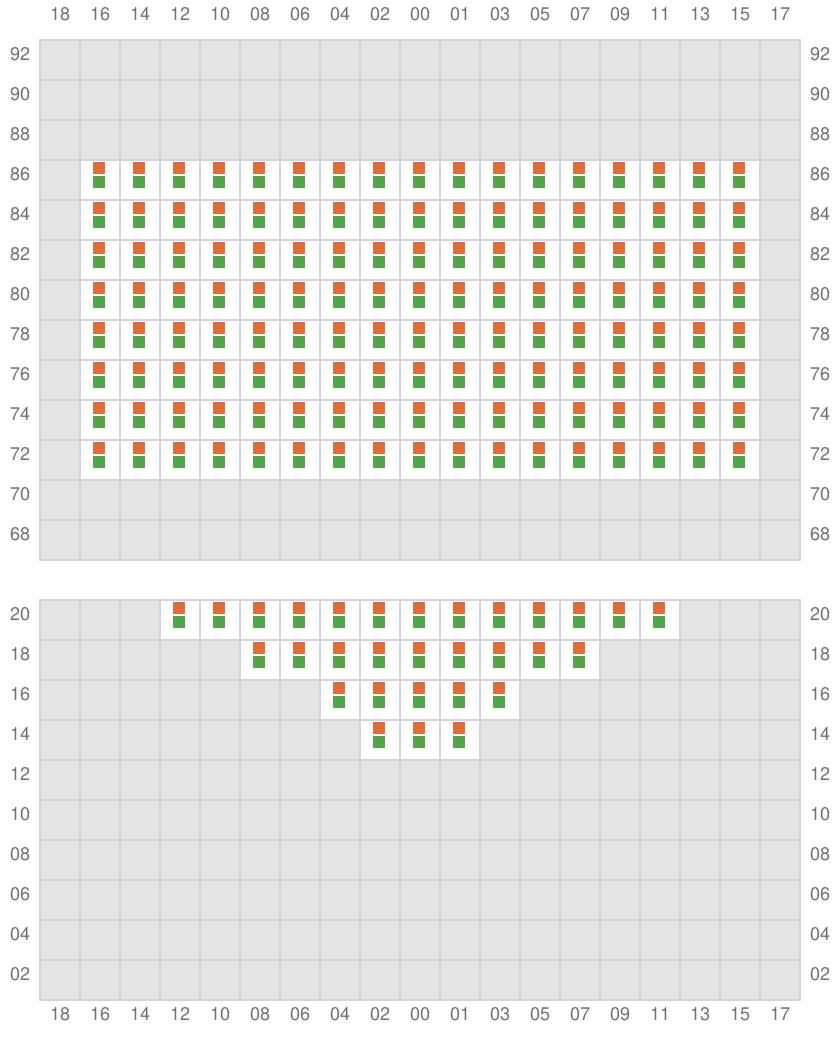

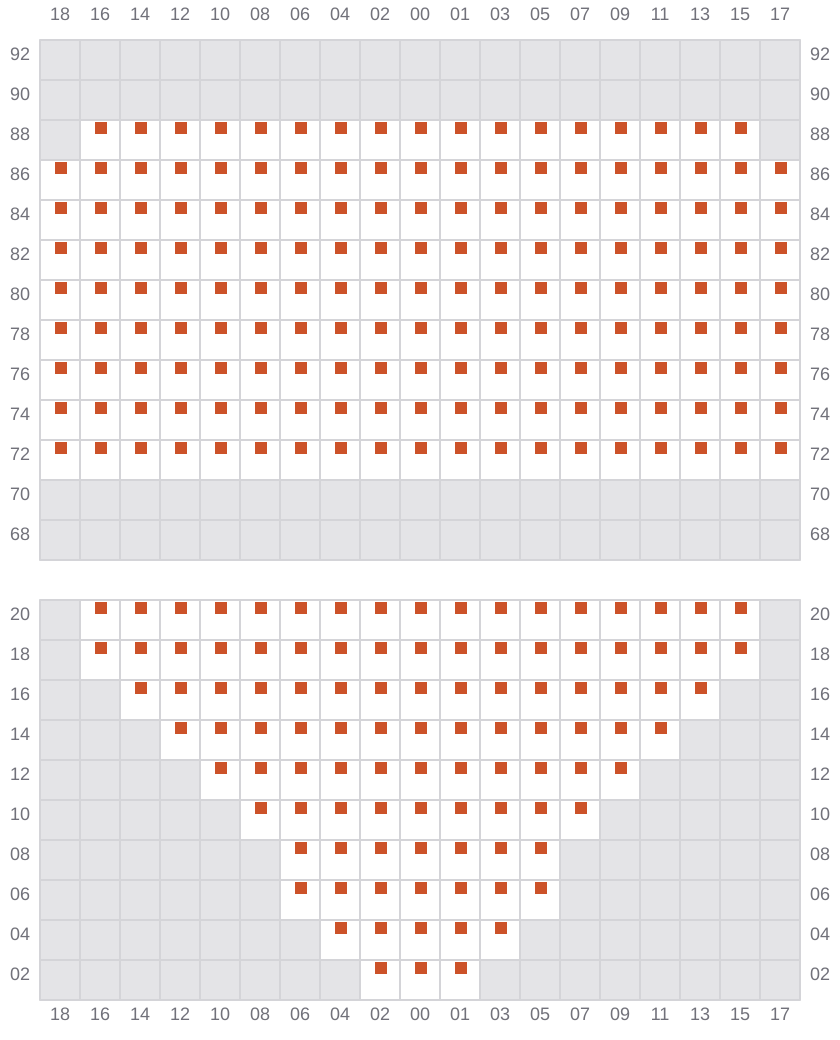

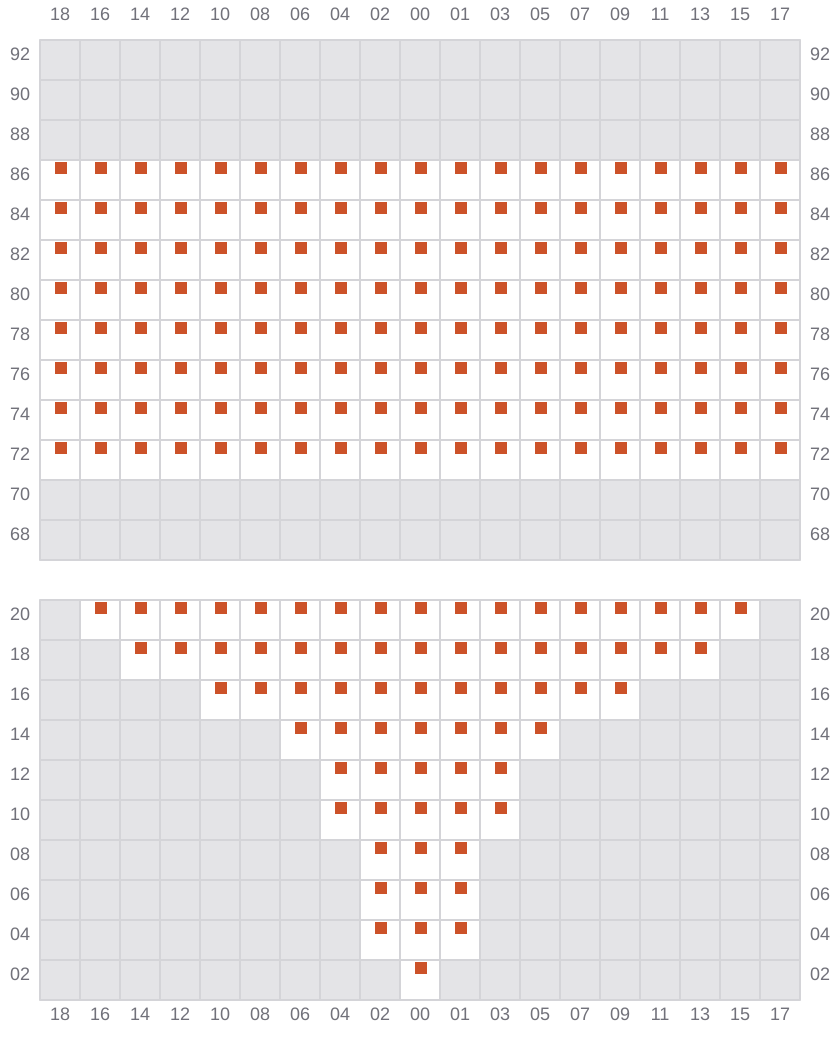

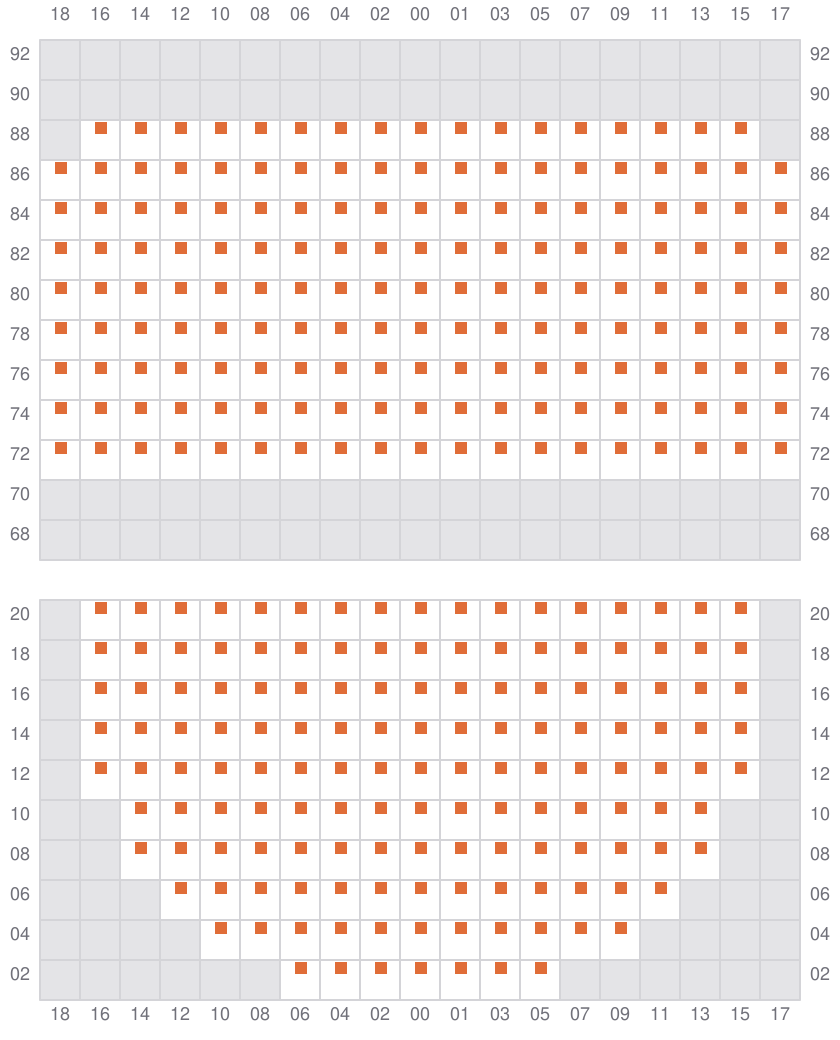

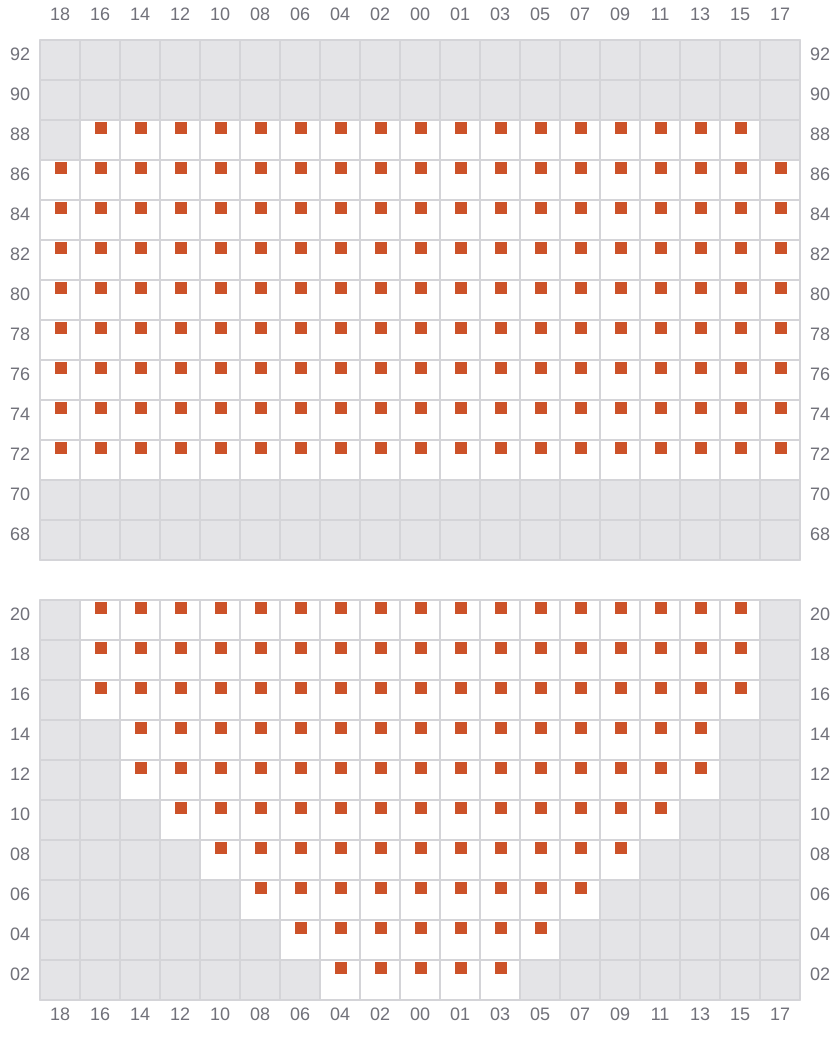

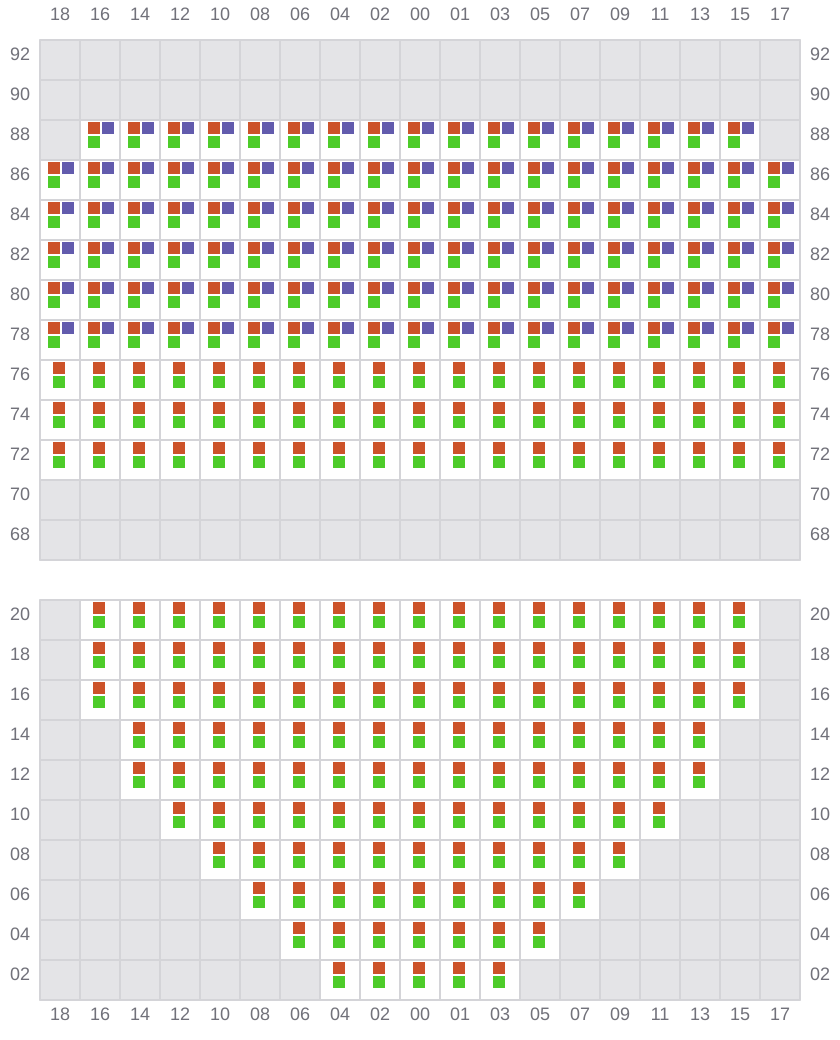

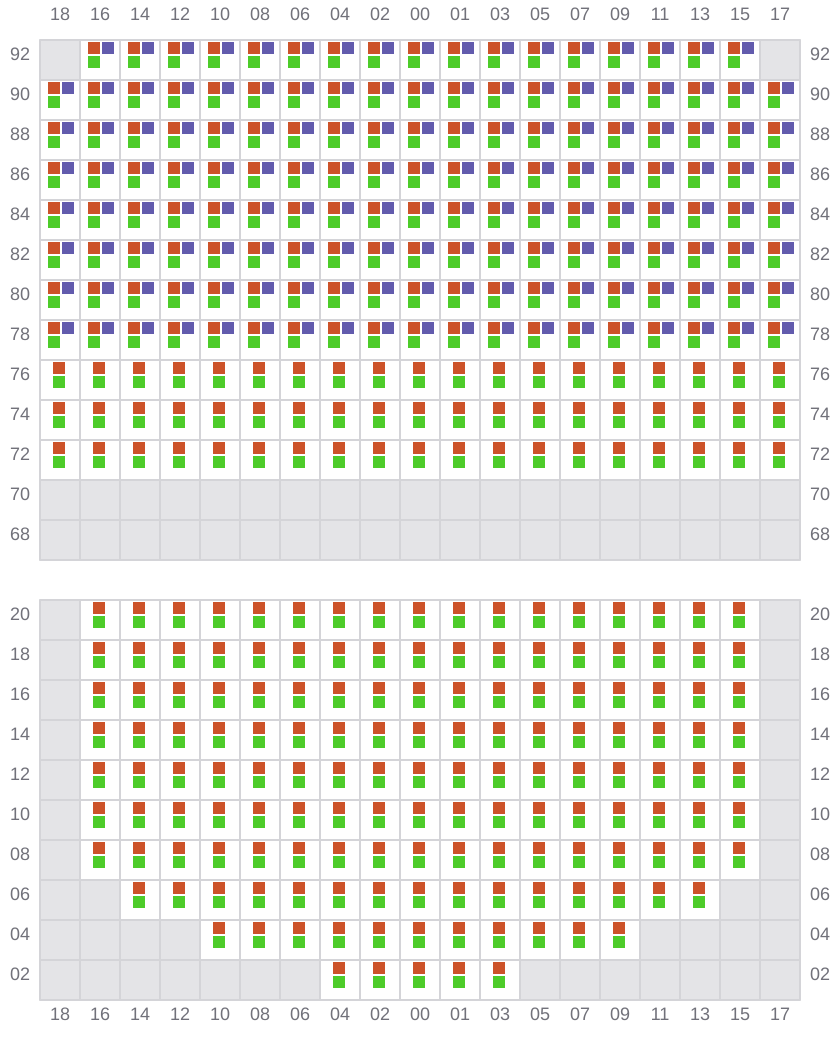

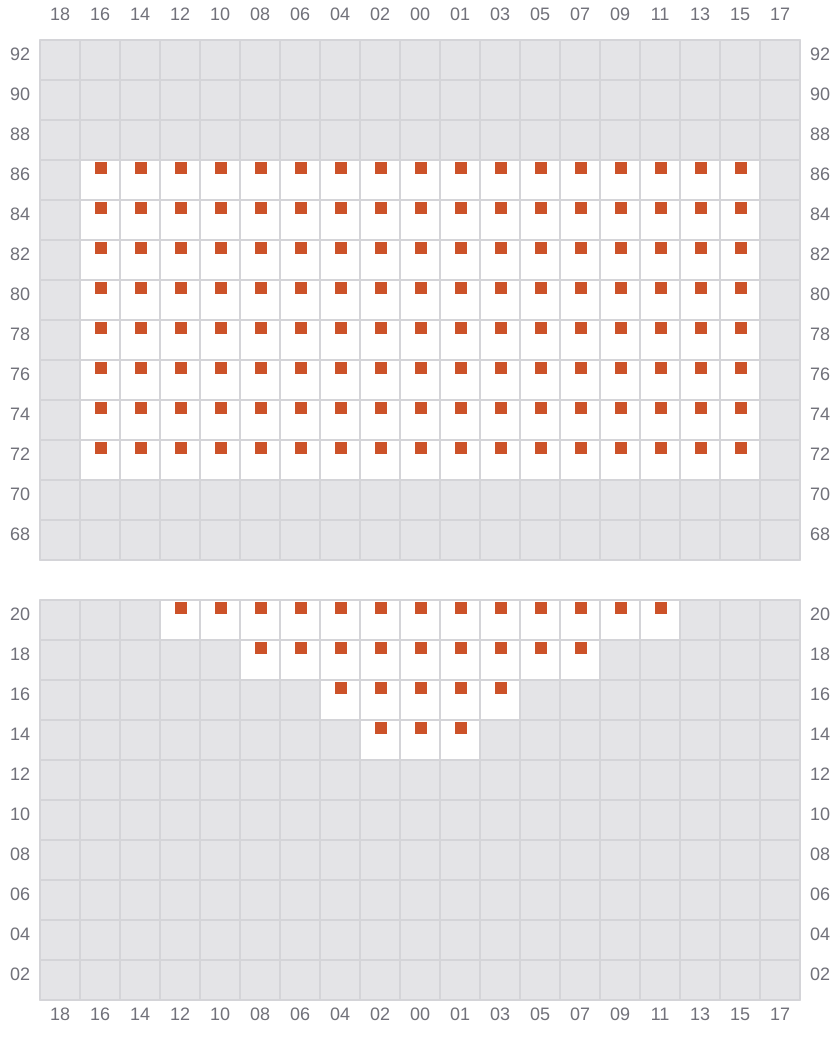

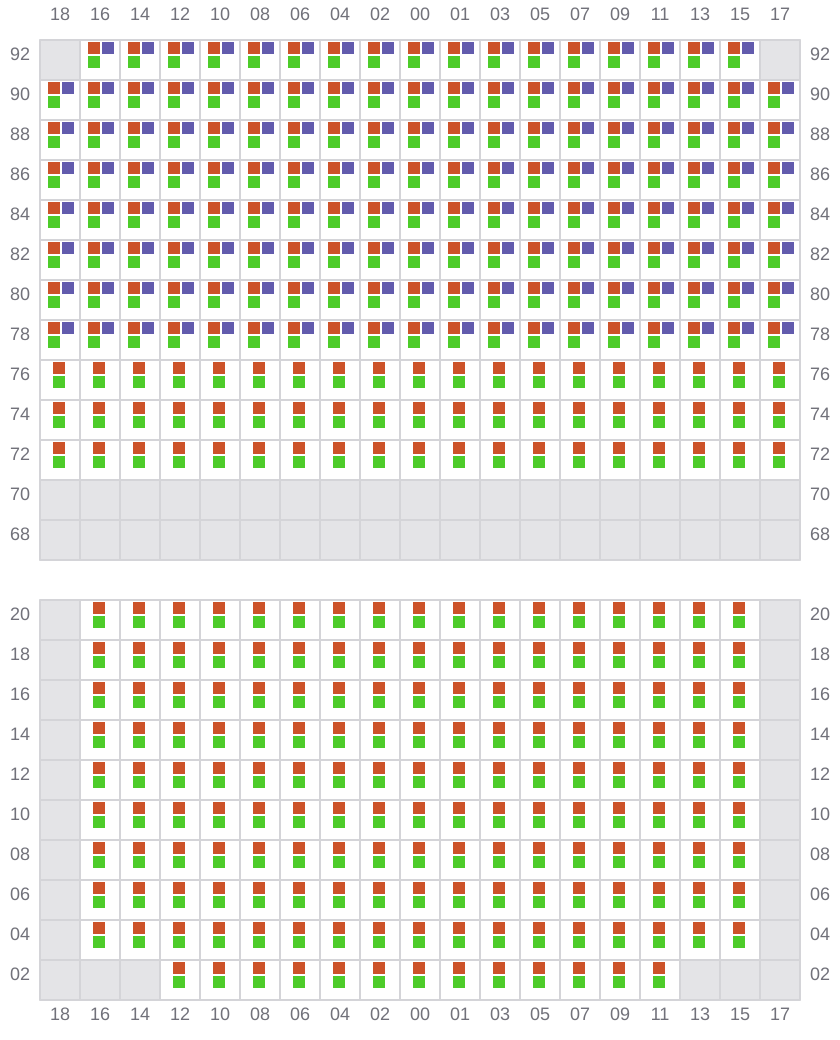

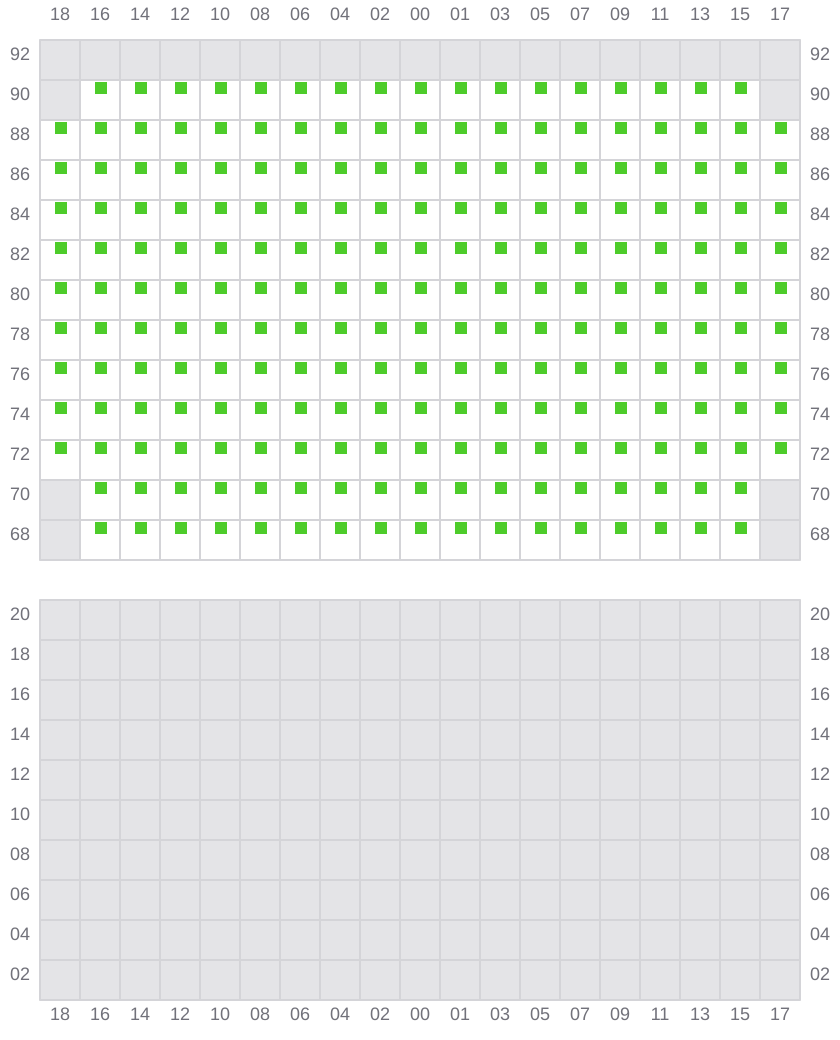

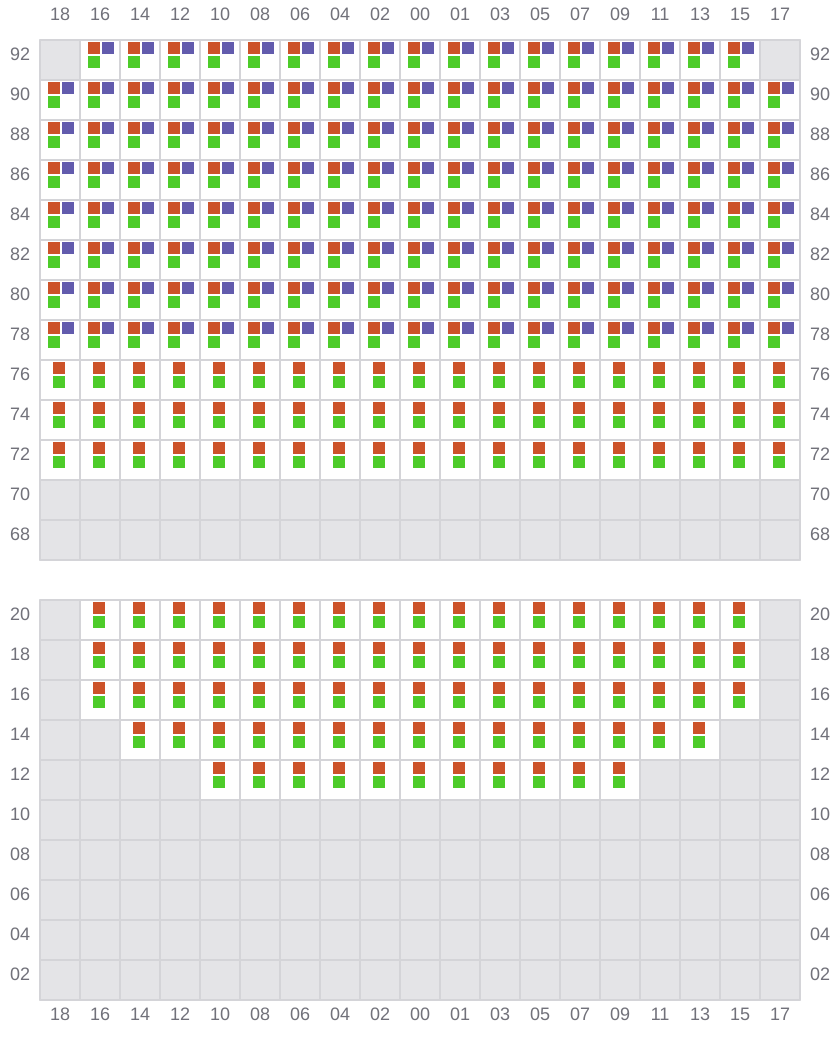

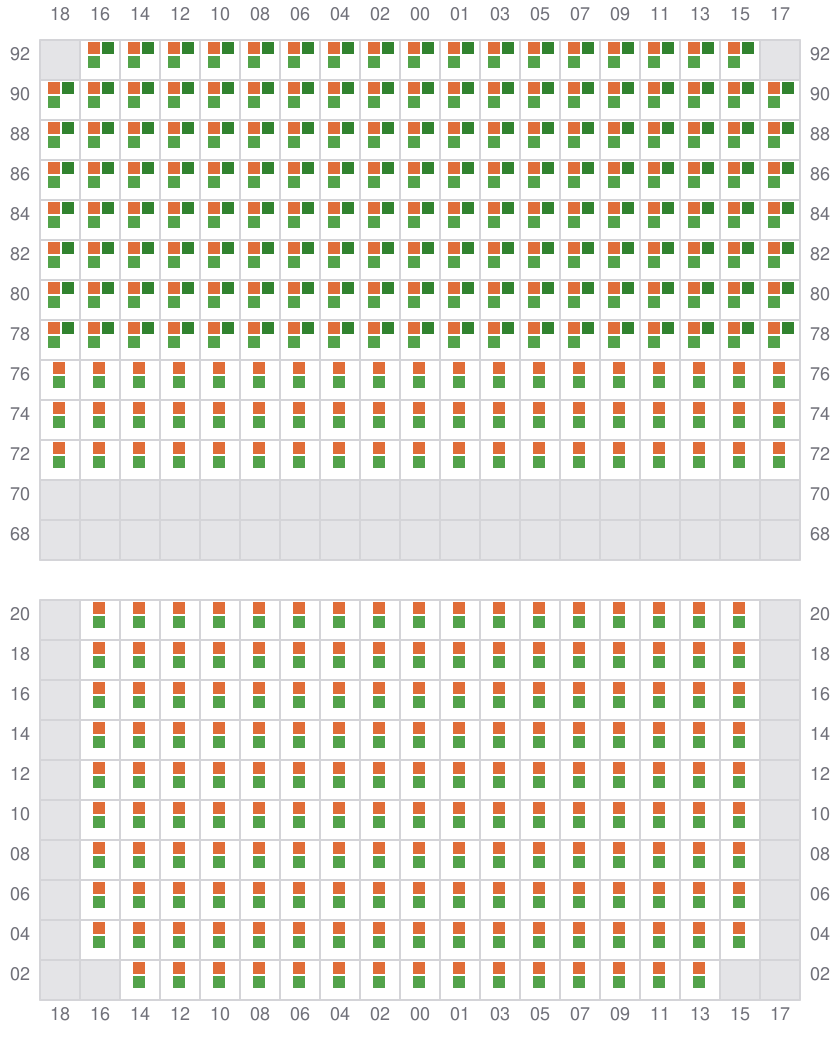

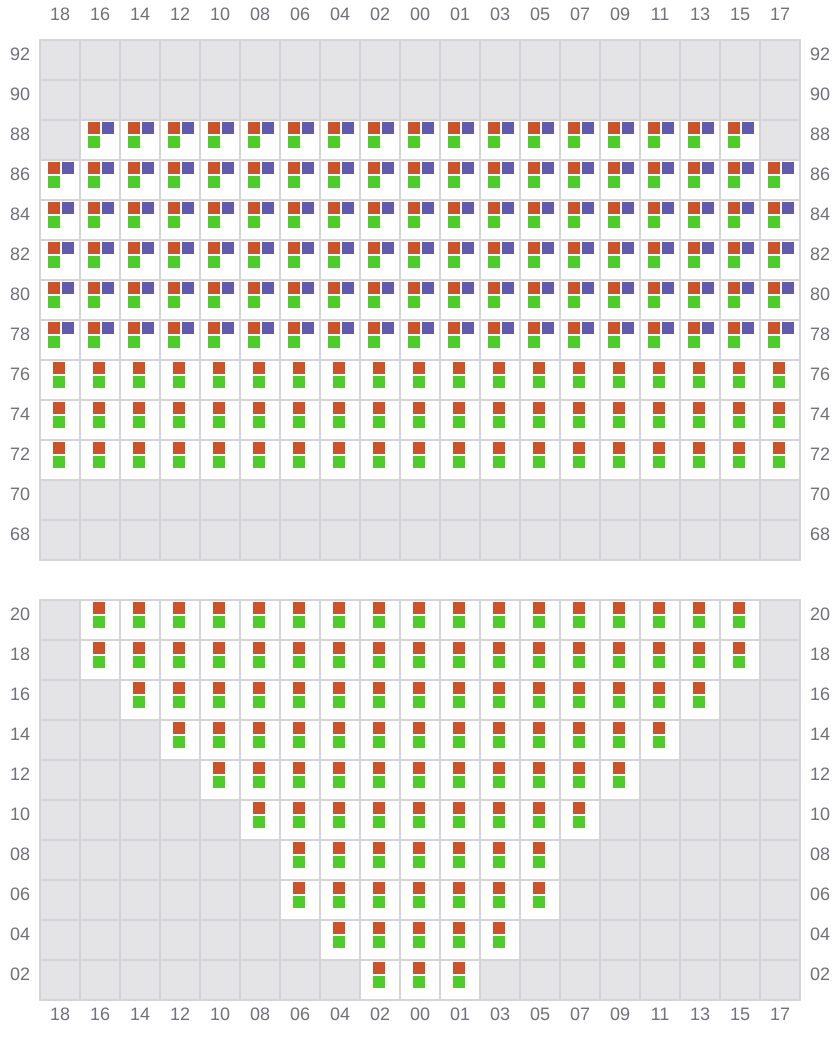

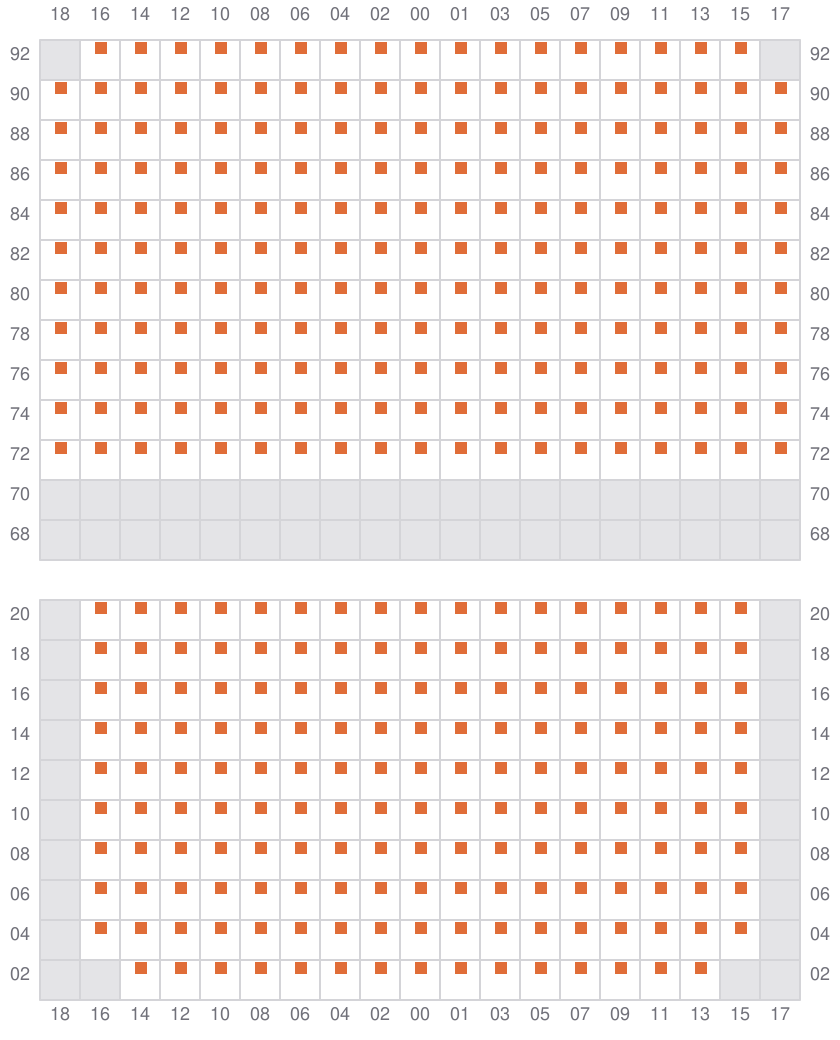

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←
005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←
017
- →
019 (018)
- ←

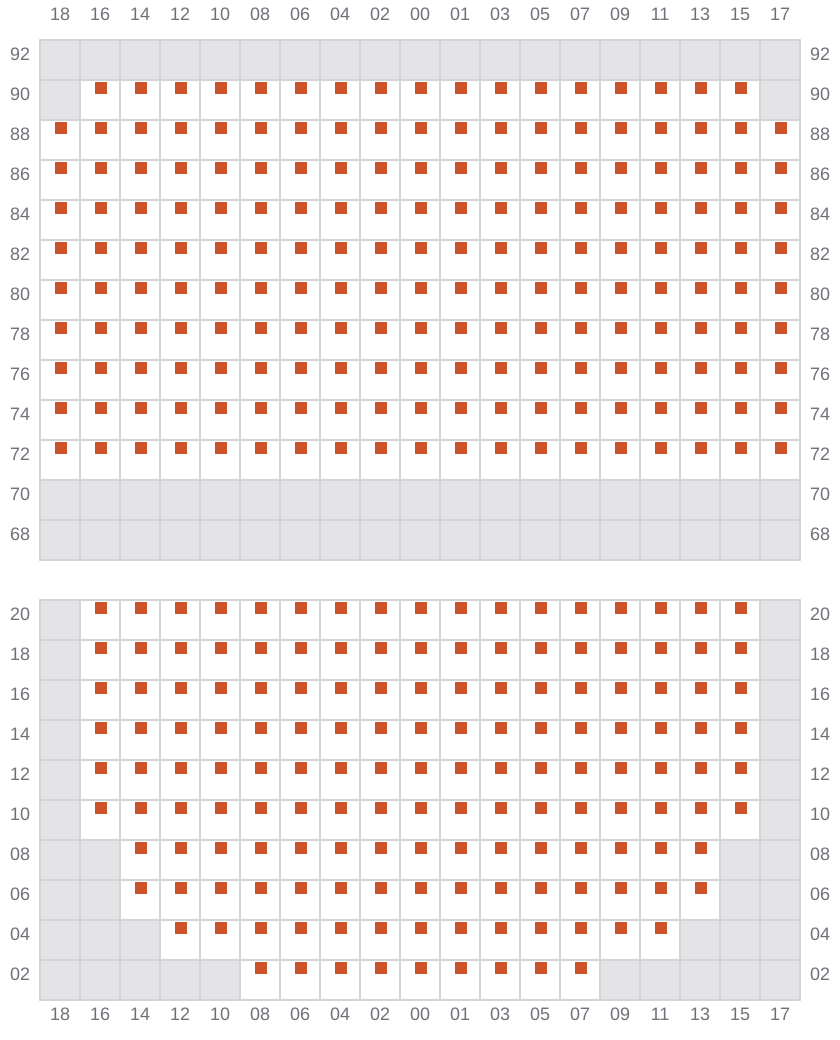

021
- →
023 (022)
- ←
025
- →

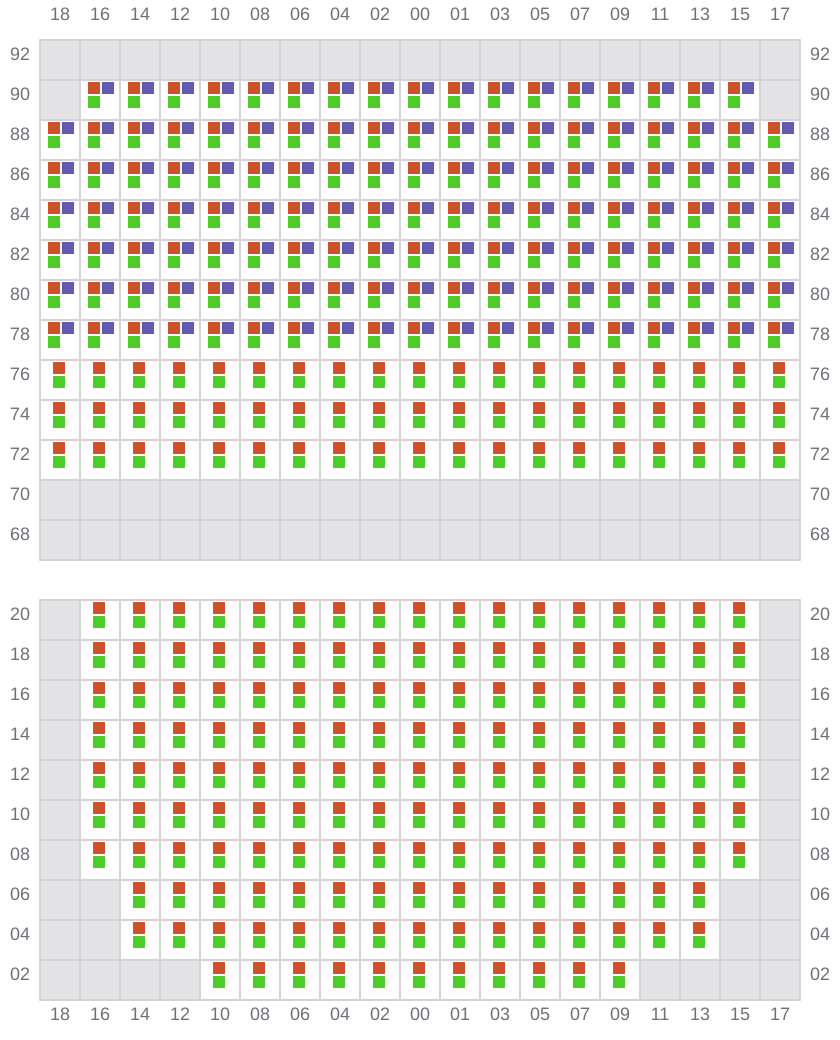

027 (026)
- ←

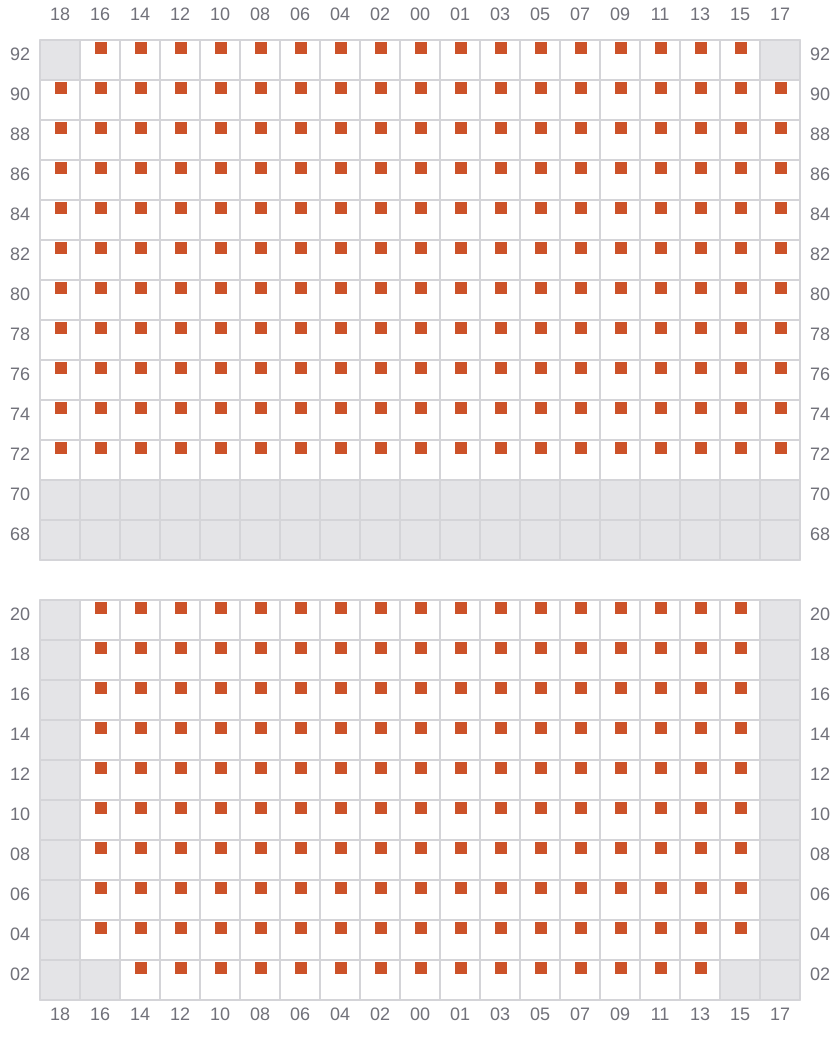

029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←

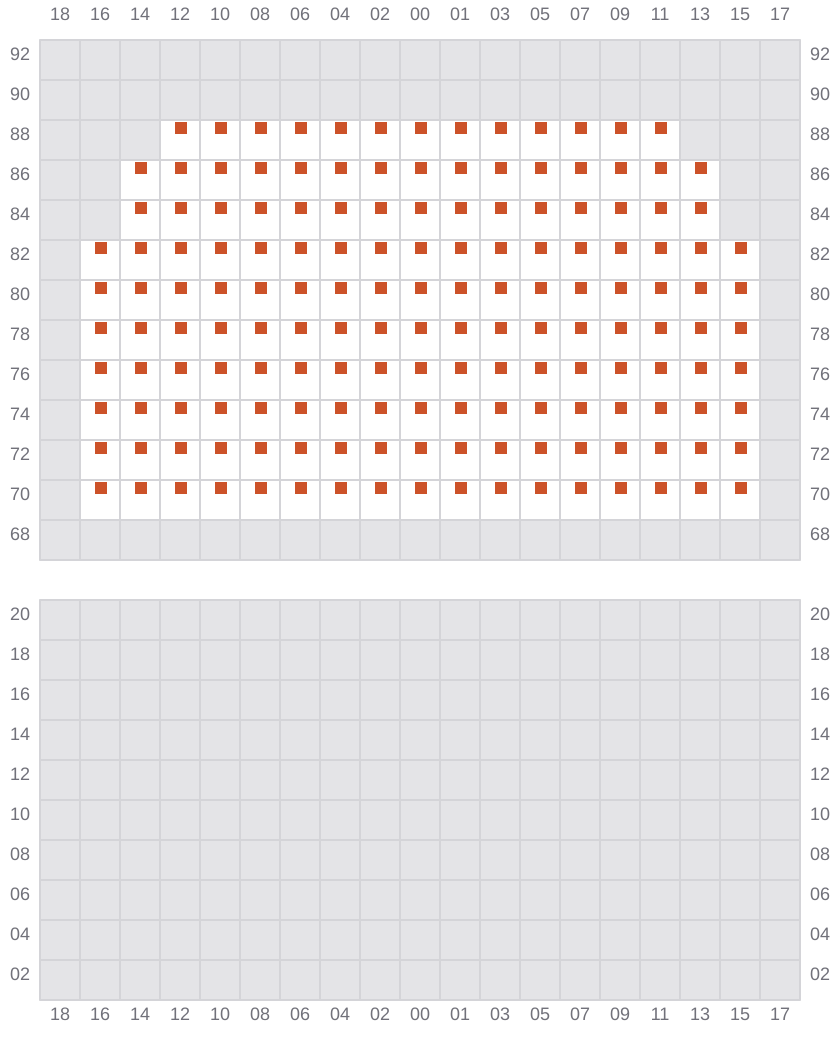

057
- →
059 (058)
- ←

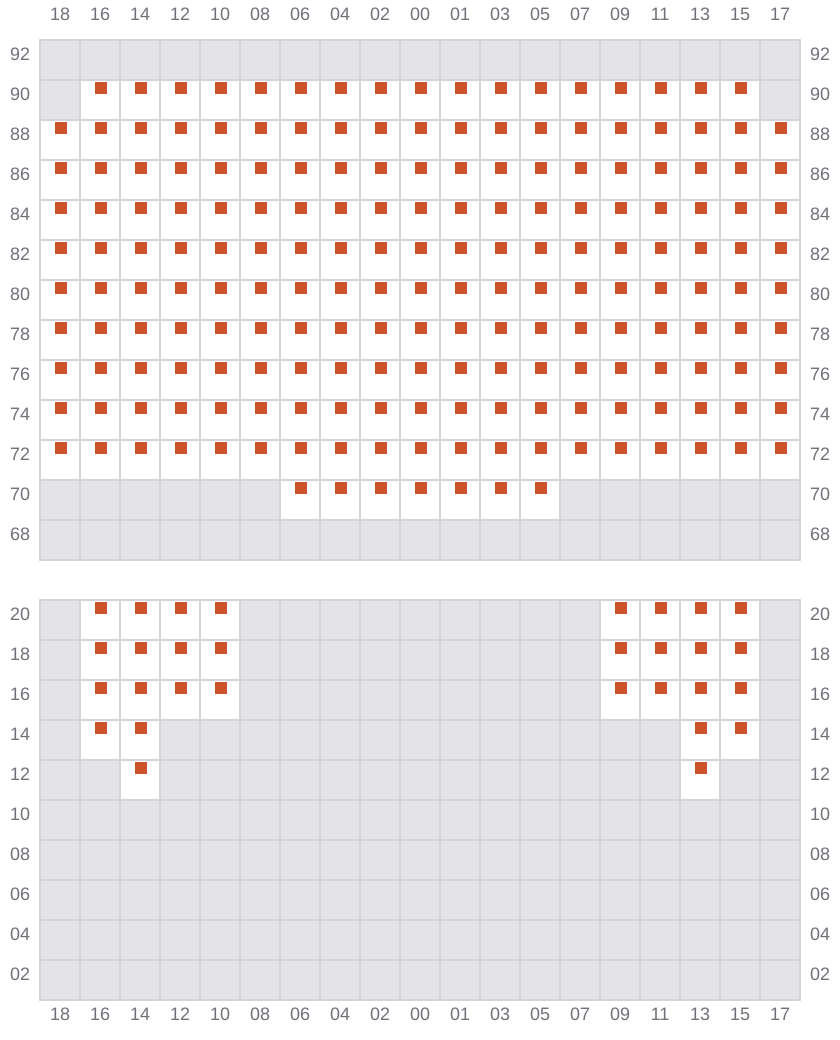

061
063
- →

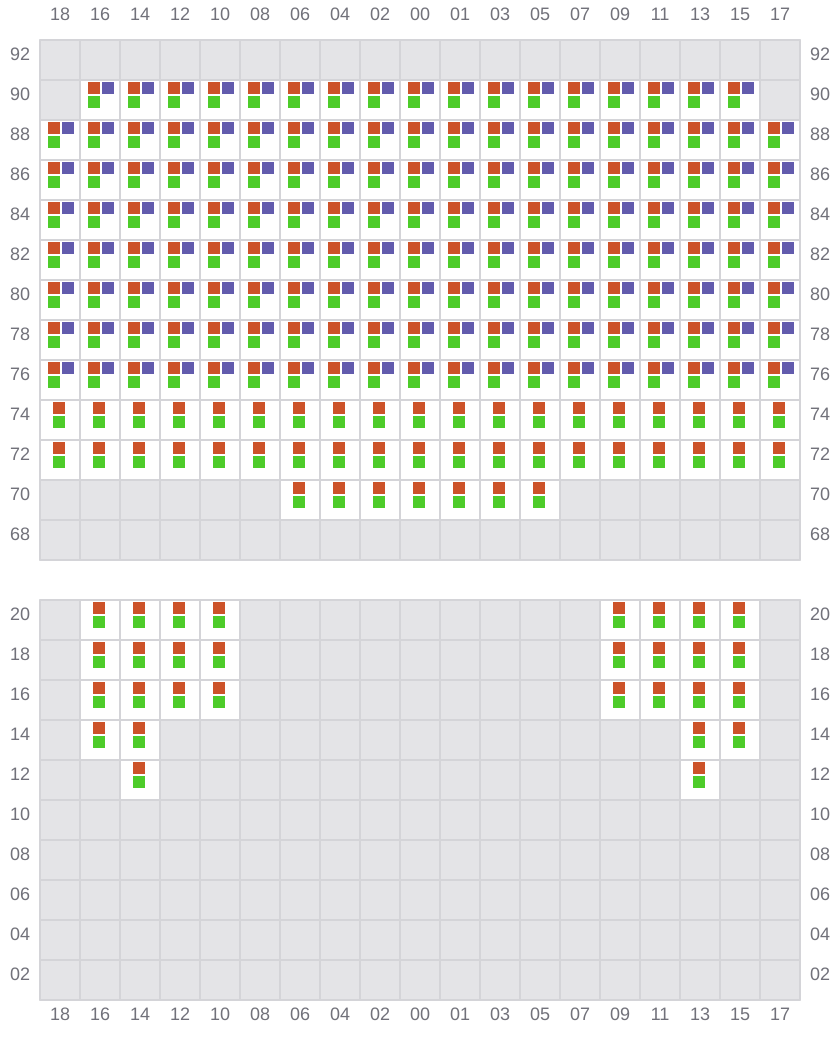

065 (064)
- ←
067
- →

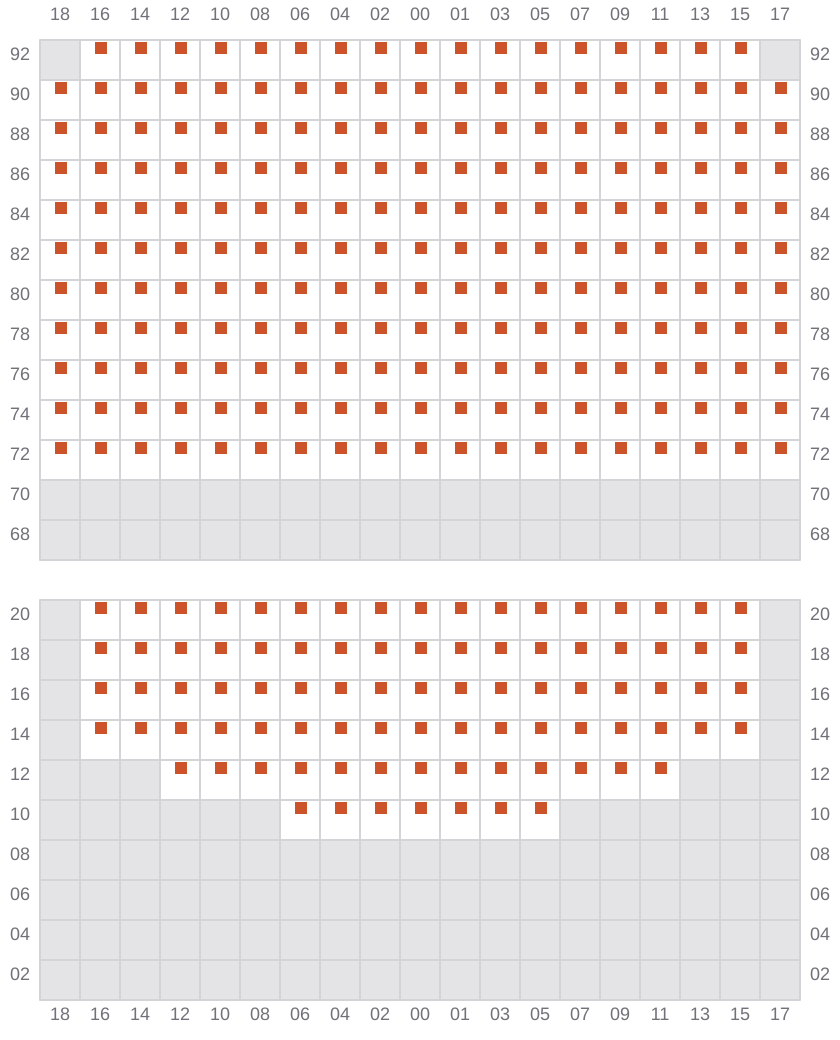

069 (068)
- ←

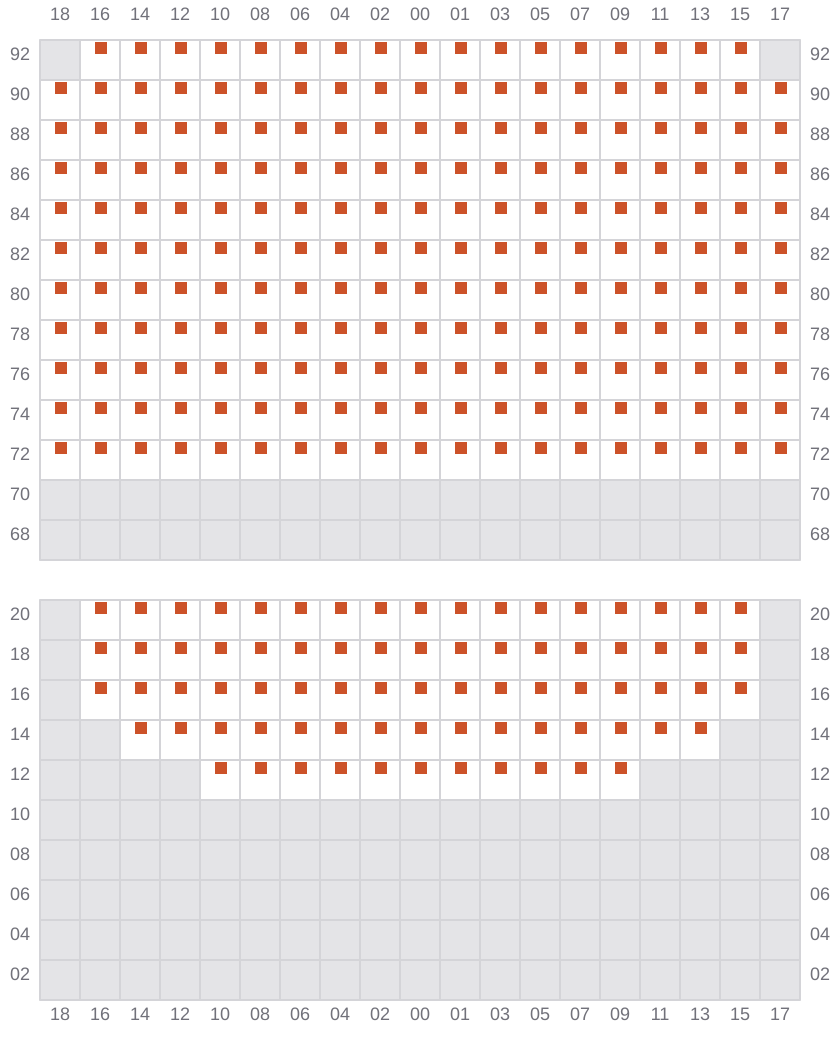

071
- →
073 (072)
- ←
075
077 (076)
- ← / ?
