EVER GENIUS
9786815 | 3FJU4 | 9786815 by ********* Last update: Tue May 07 2024
General Info
Ship Name:EVER GENIUS
IMO Code:9786815
Call Sign:3FJU4
Line Operator:9786815
Class Name for Sister Ships:EVER GENIUS
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):387.00
LOA (Length Overall):399.98
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:4,184
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

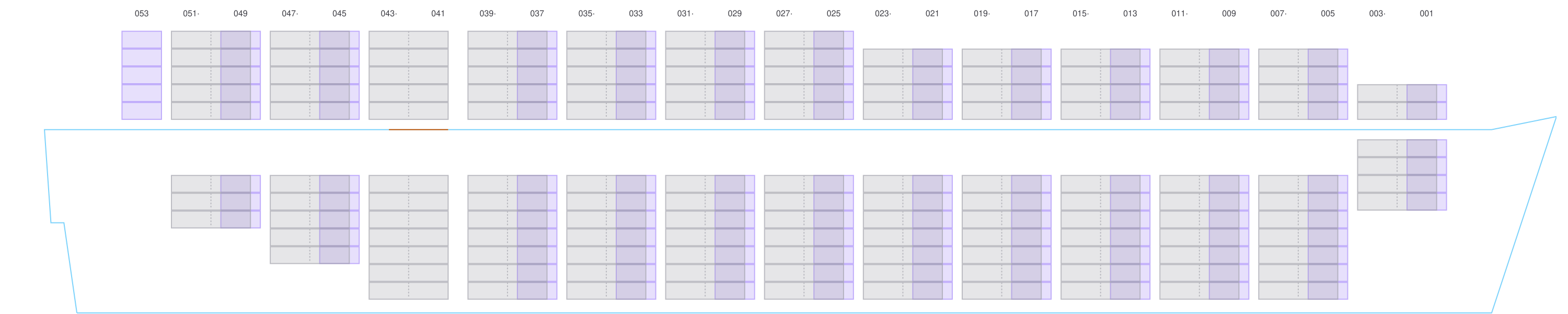

Side View
![Side view of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-sideView.png?v=1715112692637)

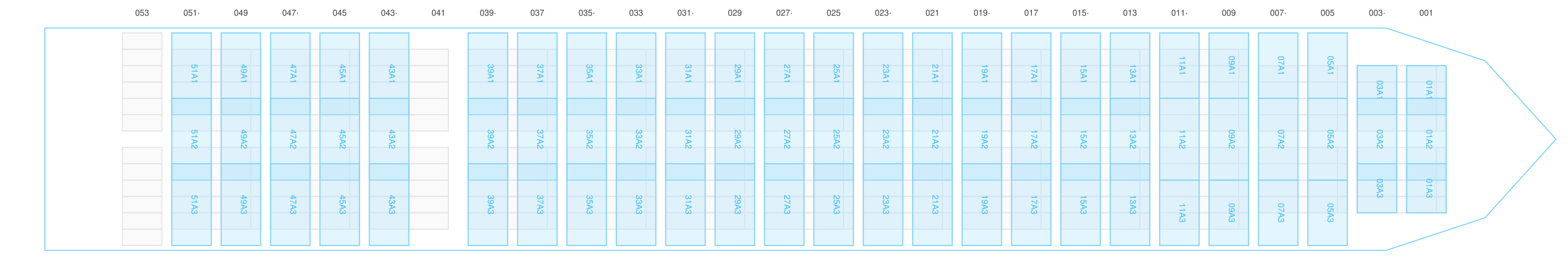

Hatch-Covers View
![Deck view of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-deckView.png?v=1715112692637)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

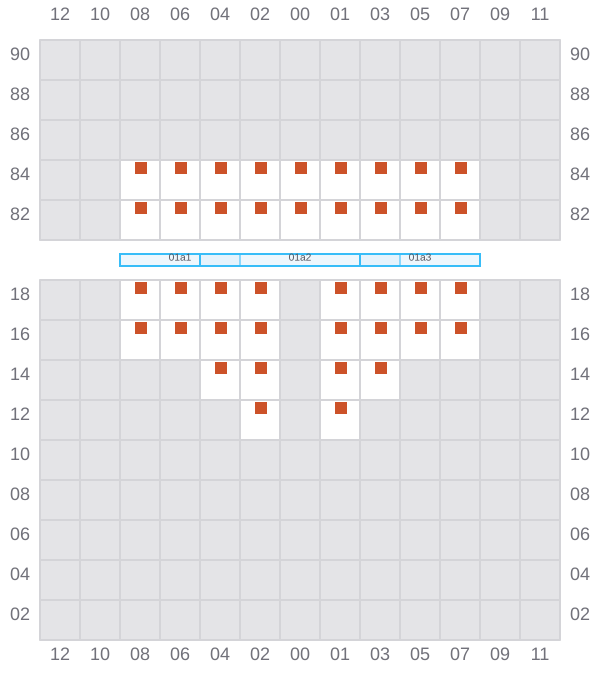

001
- →
![Bay 001 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b001.png?v=1715112692637)

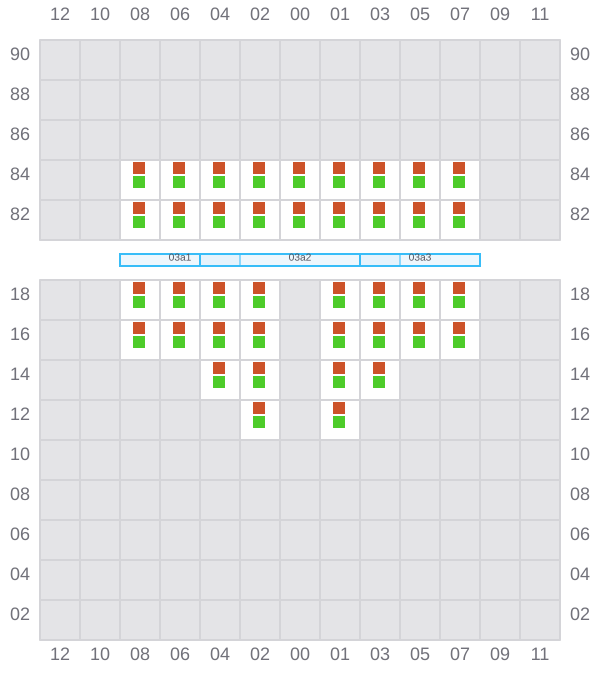

003 (002)
- ←
- →
![Bay 003 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b003.png?v=1715112692637)

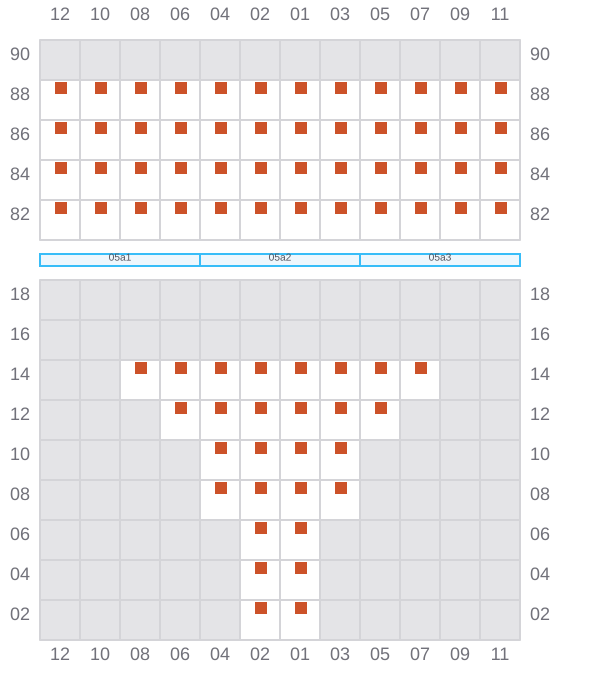

005
- →
![Bay 005 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b005.png?v=1715112692637)

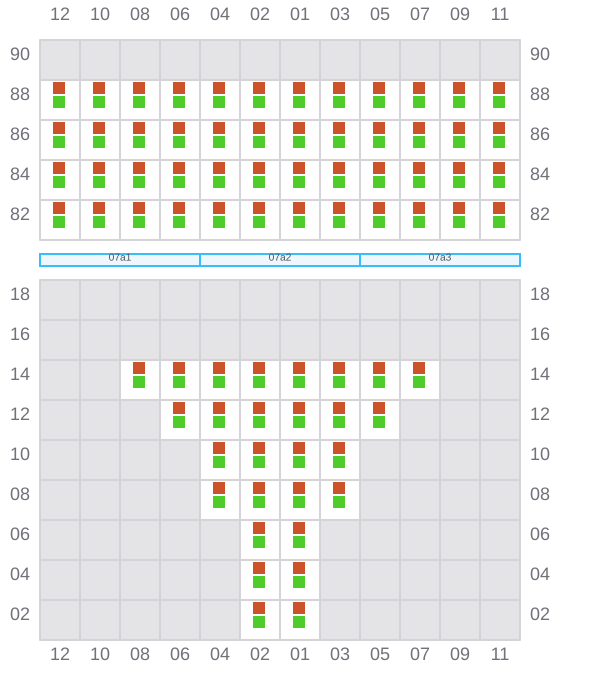

007 (006)
- ←
- →
![Bay 007 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b007.png?v=1715112692637)

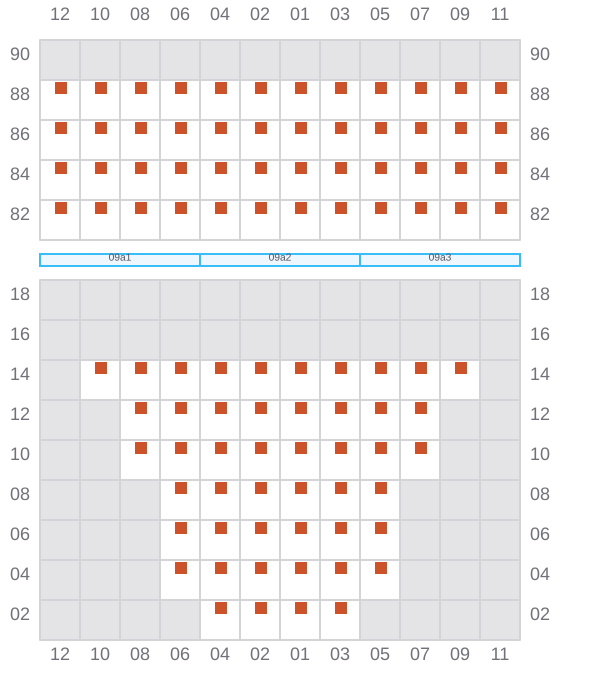

009
- →
![Bay 009 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b009.png?v=1715112692637)
011 (010)
- ←
- →
![Bay 011 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b011.png?v=1715112692637)

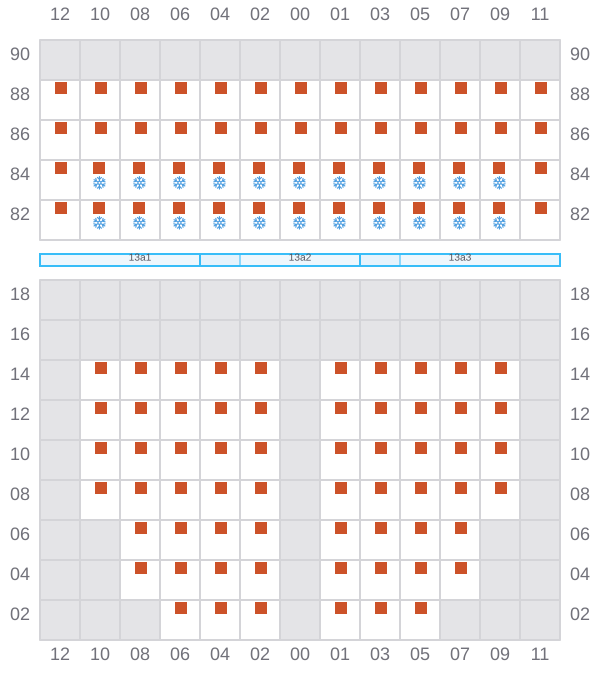

013
- → / ?
- →
![Bay 013 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b013.png?v=1715112692637)

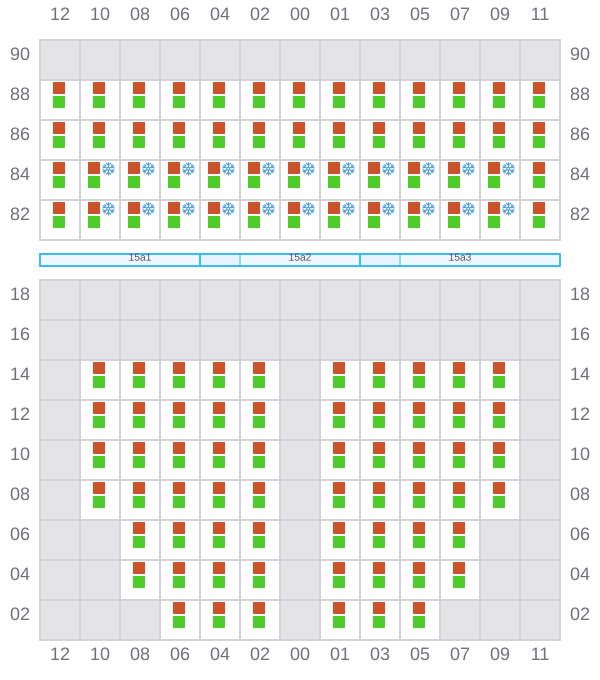

015 (014)
- ←
- → / ?
- →
![Bay 015 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b015.png?v=1715112692637)
017
- → / ?
- →
![Bay 017 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b017.png?v=1715112692637)
019 (018)
- ←
- → / ?
- →
![Bay 019 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b019.png?v=1715112692637)
021
- → / ?
- →
![Bay 021 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b021.png?v=1715112692637)

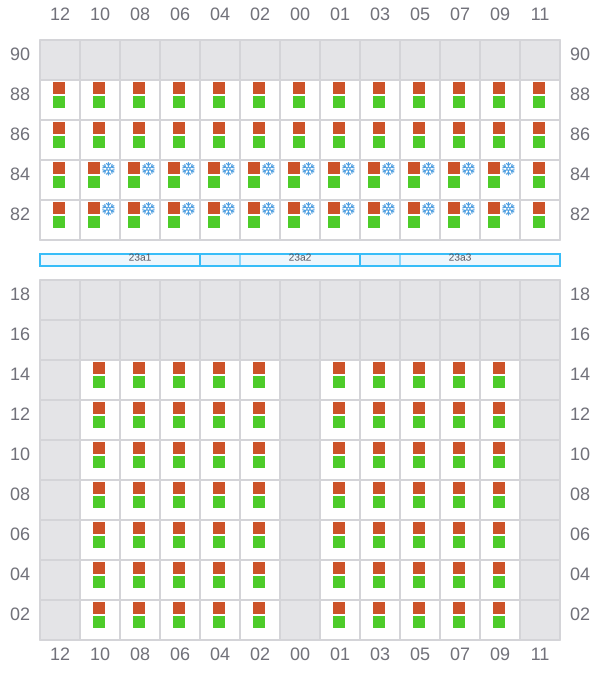

023 (022)
- ←
- → / ?
- →
![Bay 023 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b023.png?v=1715112692637)

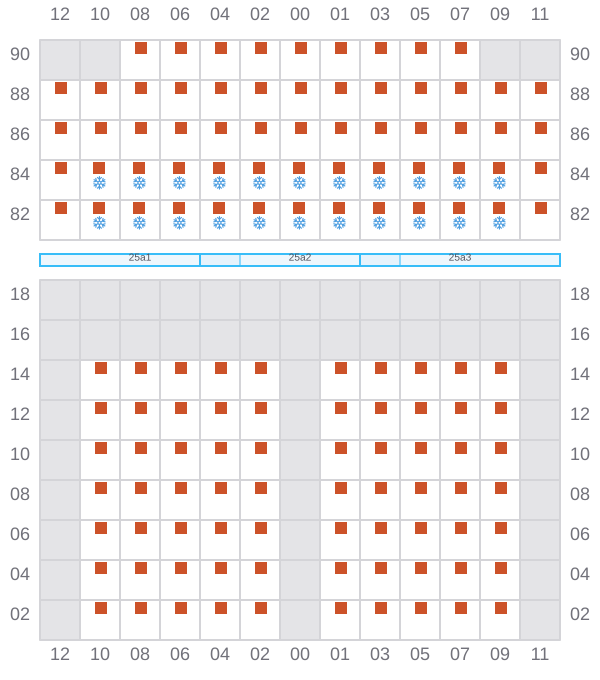

025
- → / ?
- →
![Bay 025 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b025.png?v=1715112692637)
027 (026)
- ←
- → / ?
- →
![Bay 027 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b027.png?v=1715112692637)

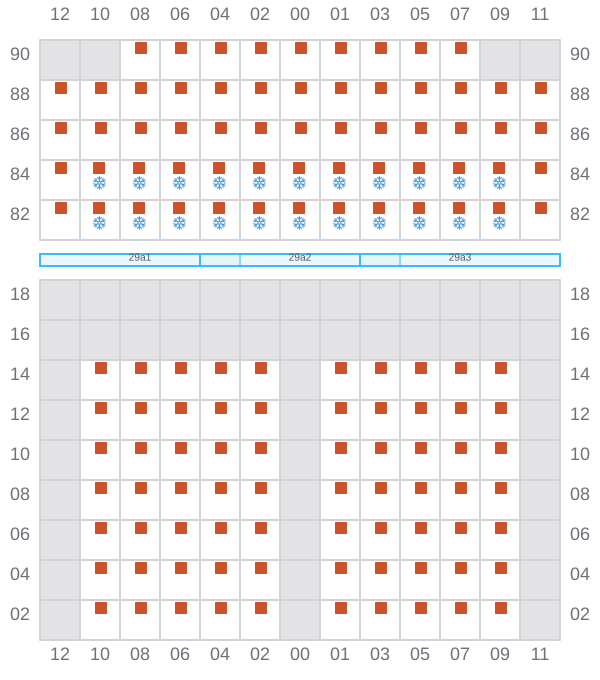

029
- → / ?
- →
![Bay 029 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b029.png?v=1715112692637)
031 (030)
- ←
- → / ?
- →
![Bay 031 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b031.png?v=1715112692637)
033
- → / ?
- →
![Bay 033 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b033.png?v=1715112692637)
035 (034)
- ←
- → / ?
- →
![Bay 035 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b035.png?v=1715112692637)
037
- → / ?
- →
![Bay 037 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b037.png?v=1715112692637)
039 (038)
- ←
- → / ?
- →
![Bay 039 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b039.png?v=1715112692637)

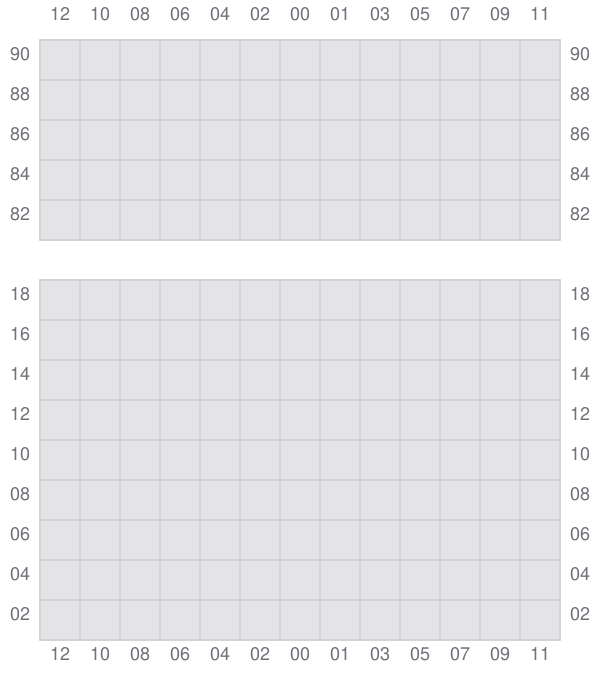

041
![Bay 041 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b041.png?v=1715112692637)
043 (042)
- ←
- → / ?
- →
![Bay 043 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b043.png?v=1715112692637)

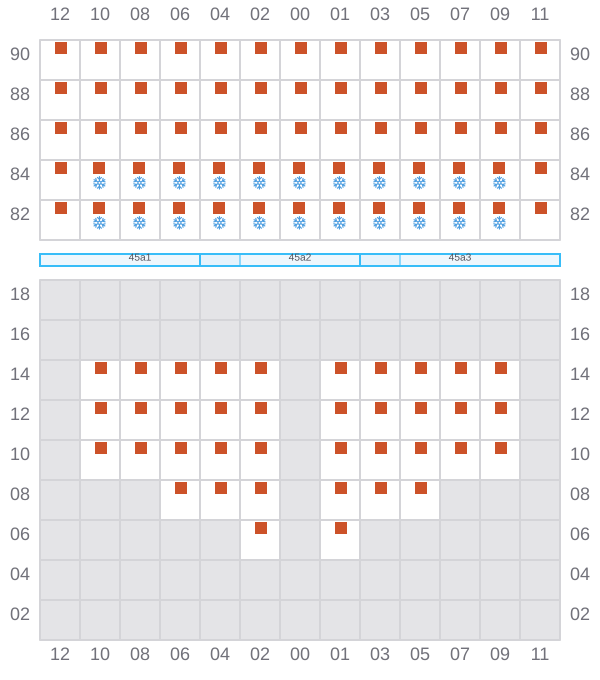

045
- → / ?
- →
![Bay 045 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b045.png?v=1715112692637)

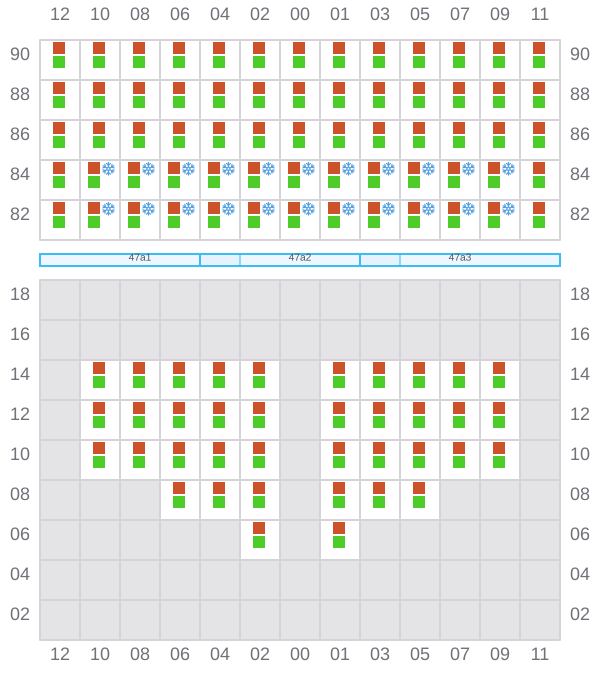

047 (046)
- ←
- → / ?
- →
![Bay 047 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b047.png?v=1715112692637)
049
- → / ?
- →
![Bay 049 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b049.png?v=1715112692637)
051 (050)
- ←
- → / ?
- →
![Bay 051 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b051.png?v=1715112692637)

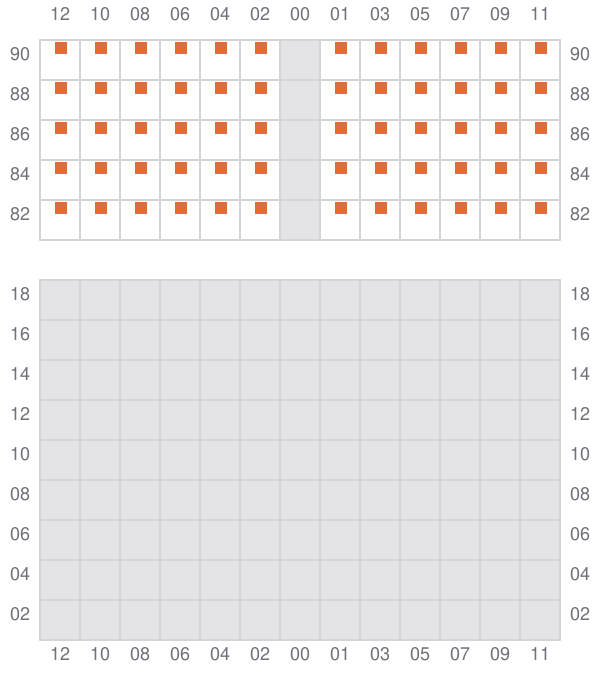

053
- → / ?
![Bay 053 view and slots of EVER GENIUS](/vessel-images/59142b8e-c404-4676-af9d-adca886761f6-b053.png?v=1715112692637)
