EVER GENTLE
9820922 | D5TG9 | EIS by ************************** Last update: Fri Jun 30 2023
General Info
Ship Name:EVER GENTLE
IMO Code:9820922
Call Sign:D5TG9
Line Operator:EIS
Class Name for Sister Ships:GNT
Year Built:2019
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:2,890
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-sideView.png?v=1688146918995)
Hatch-Covers View
![Deck view of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-deckView.png?v=1688146918995)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

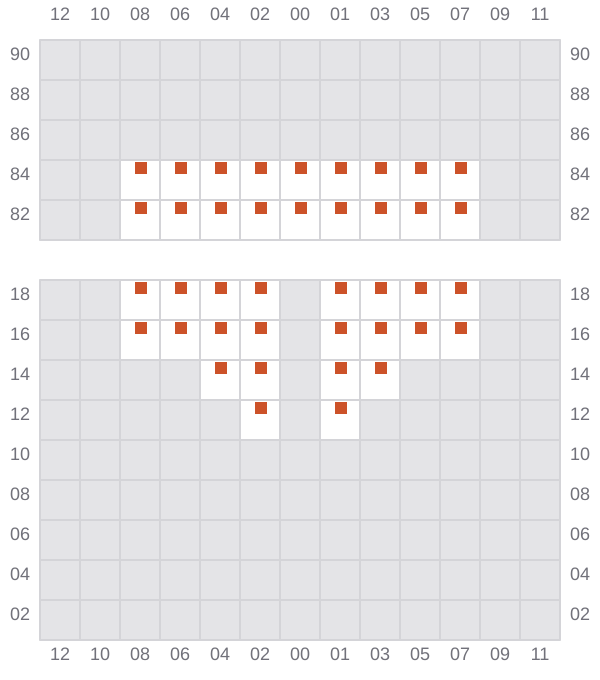

001
- →
![Bay 001 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b001.png?v=1688146918995)

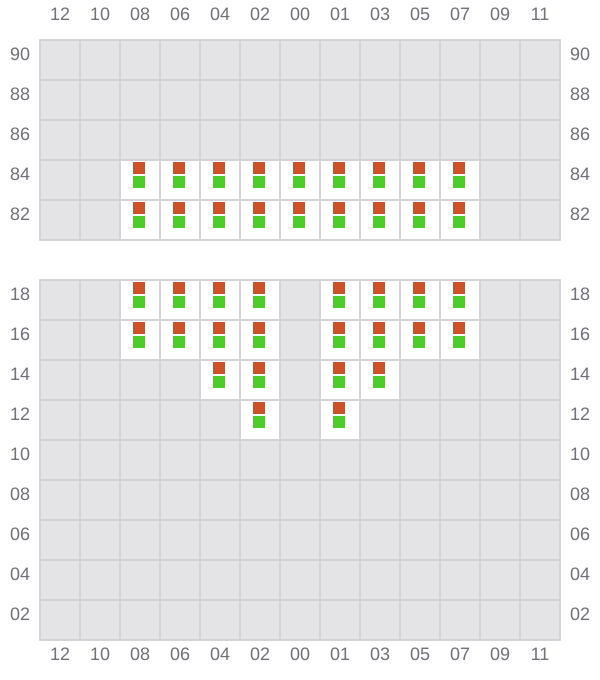

003 (002)
- ←
![Bay 003 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b003.png?v=1688146918995)

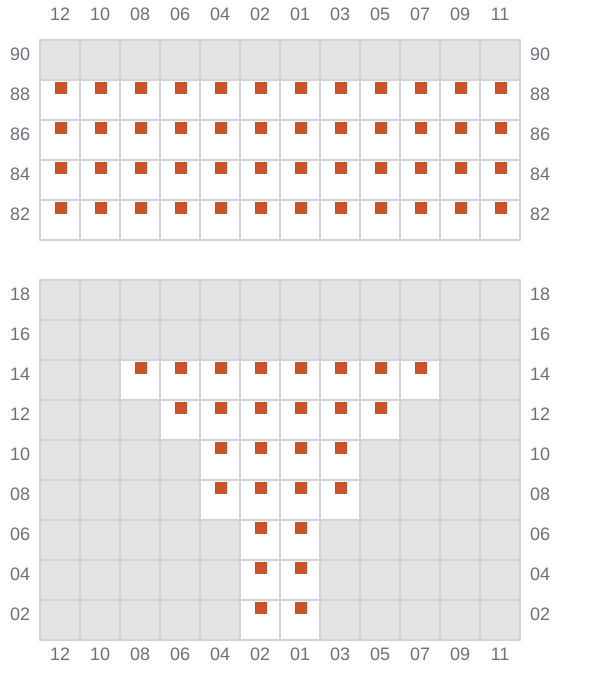

005
- →
![Bay 005 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b005.png?v=1688146918995)
007 (006)
- ←
![Bay 007 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b007.png?v=1688146918995)

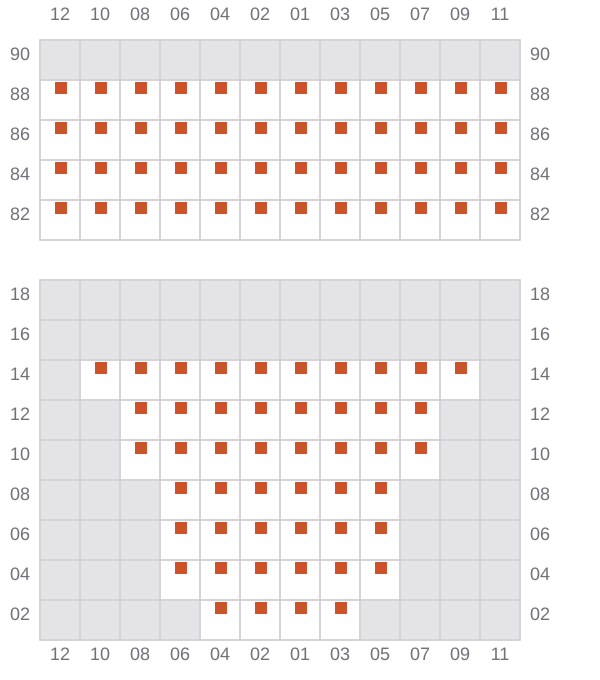

009
- →
![Bay 009 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b009.png?v=1688146918995)

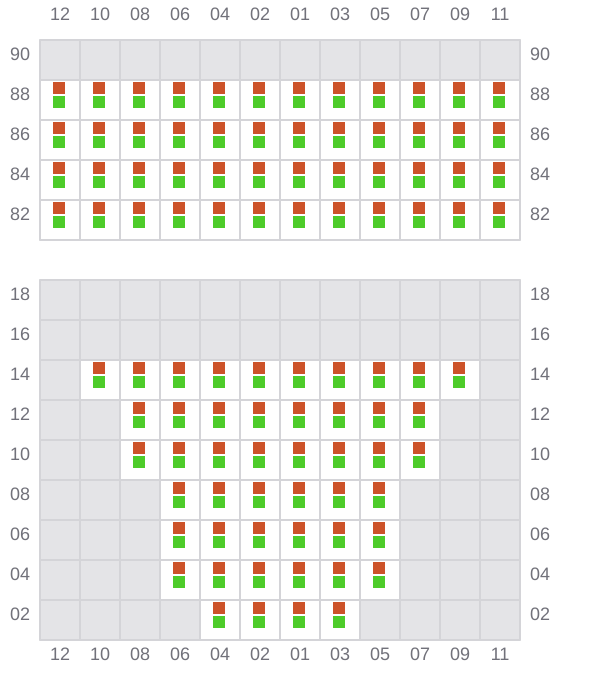

011 (010)
- ←
![Bay 011 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b011.png?v=1688146918995)

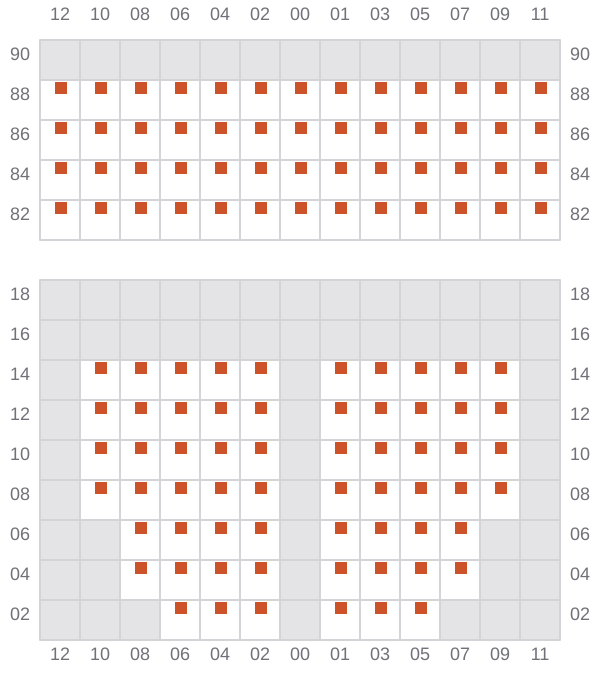

013
- →
![Bay 013 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b013.png?v=1688146918995)

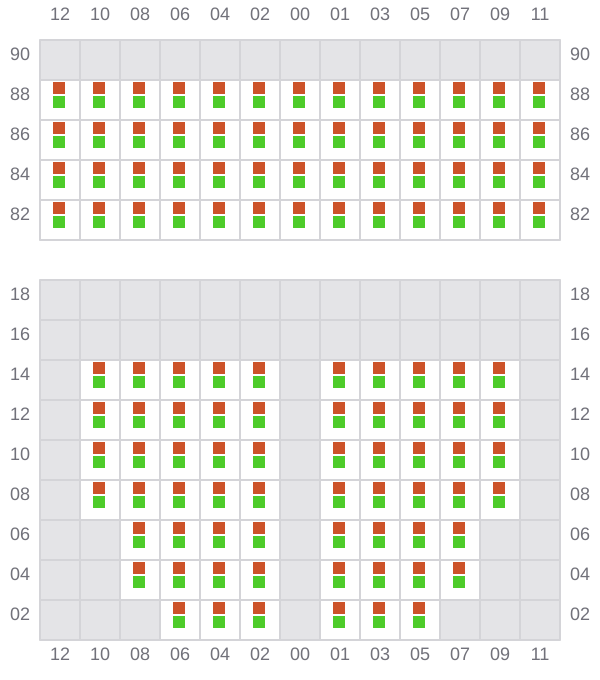

015 (014)
- ←
![Bay 015 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b015.png?v=1688146918995)
017
- →
![Bay 017 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b017.png?v=1688146918995)

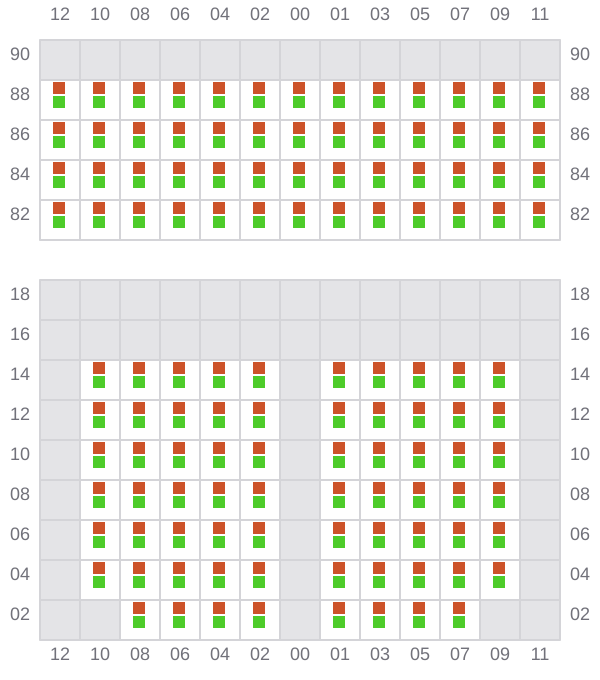

019 (018)
- ←
![Bay 019 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b019.png?v=1688146918995)

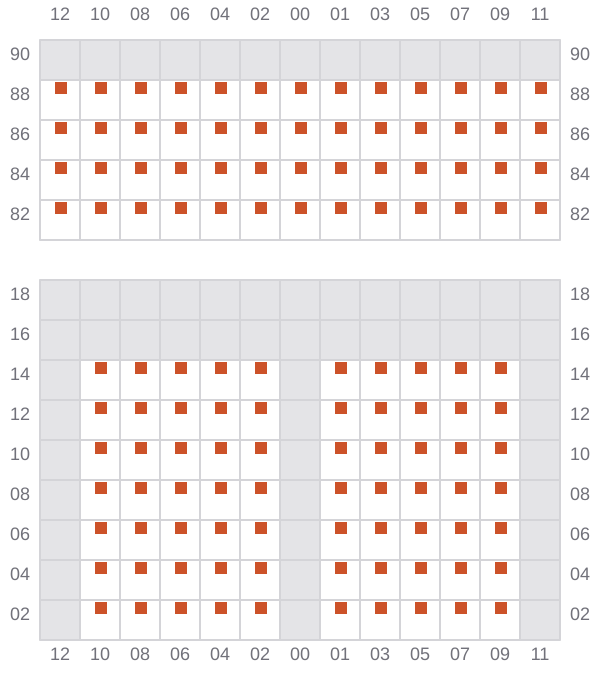

021
- →
![Bay 021 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b021.png?v=1688146918995)

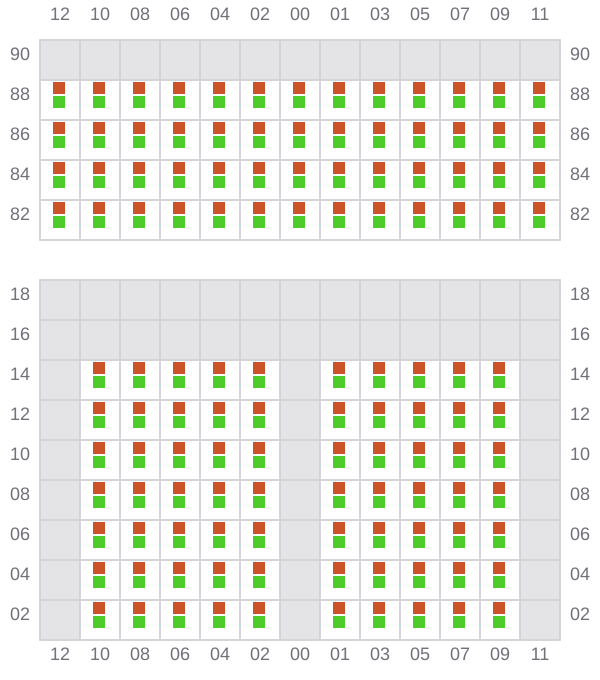

023 (022)
- ←
![Bay 023 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b023.png?v=1688146918995)

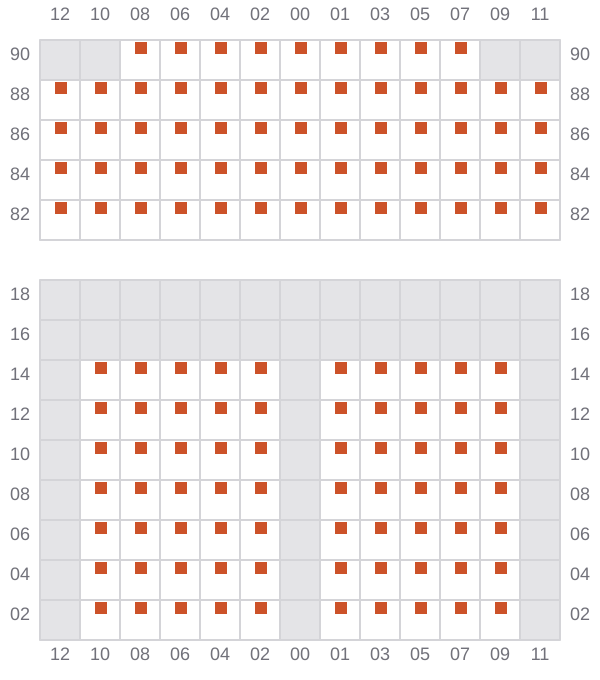

025
- →
![Bay 025 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b025.png?v=1688146918995)

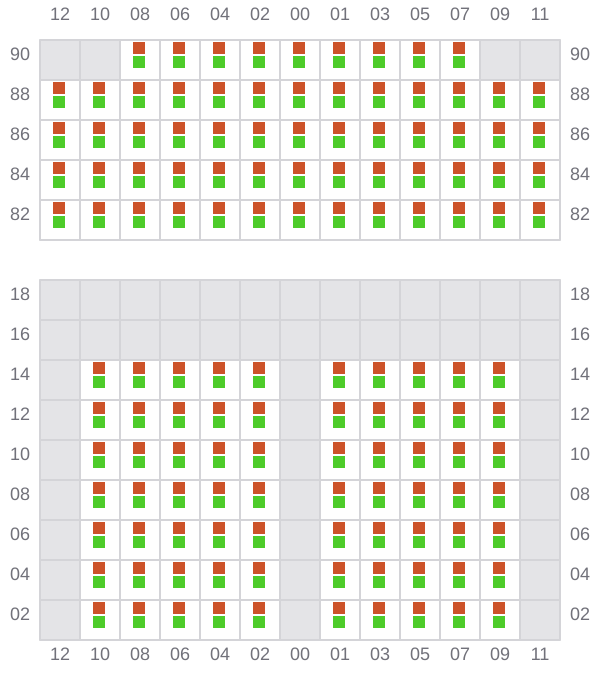

027 (026)
- ←
![Bay 027 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b027.png?v=1688146918995)
029
- →
![Bay 029 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b029.png?v=1688146918995)
031 (030)
- ←
![Bay 031 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b031.png?v=1688146918995)
033
- →
![Bay 033 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b033.png?v=1688146918995)
035 (034)
- ←
![Bay 035 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b035.png?v=1688146918995)

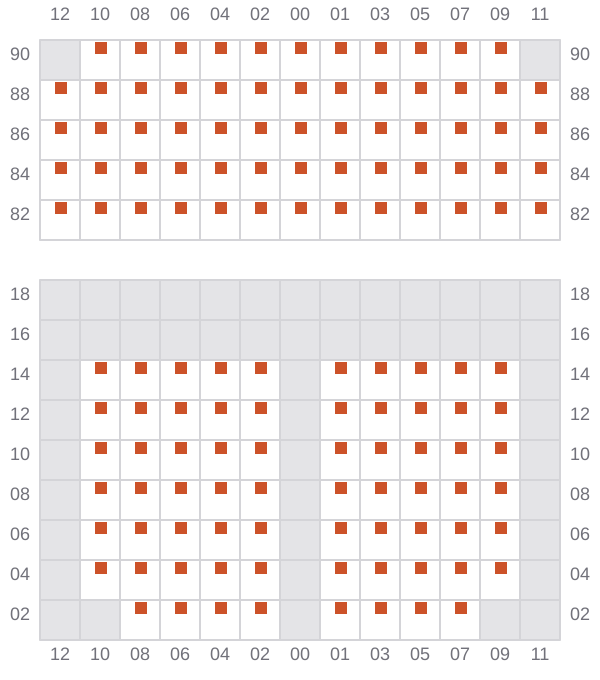

037
- →
![Bay 037 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b037.png?v=1688146918995)

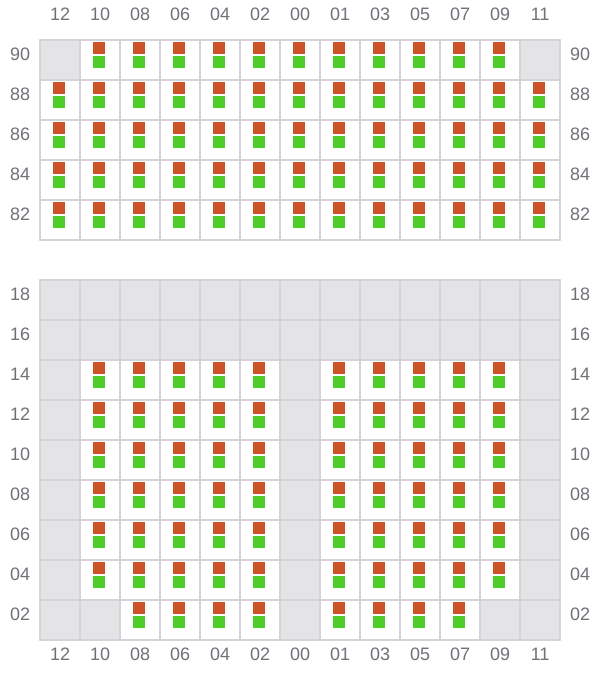

039 (038)
- ←
![Bay 039 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b039.png?v=1688146918995)

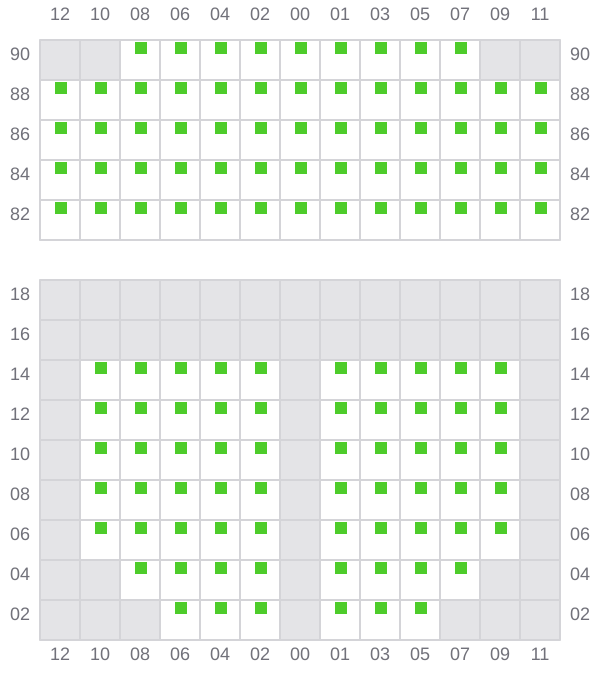

041 (042)
- →
![Bay 041 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b041.png?v=1688146918995)

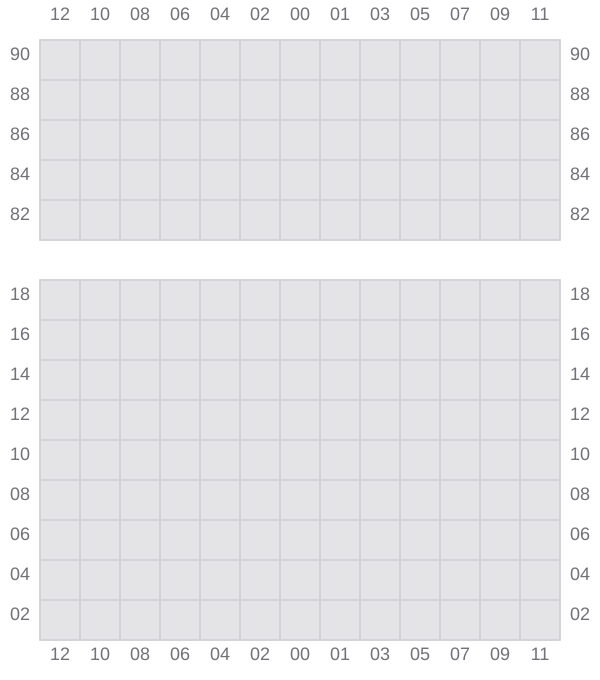

043
![Bay 043 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b043.png?v=1688146918995)

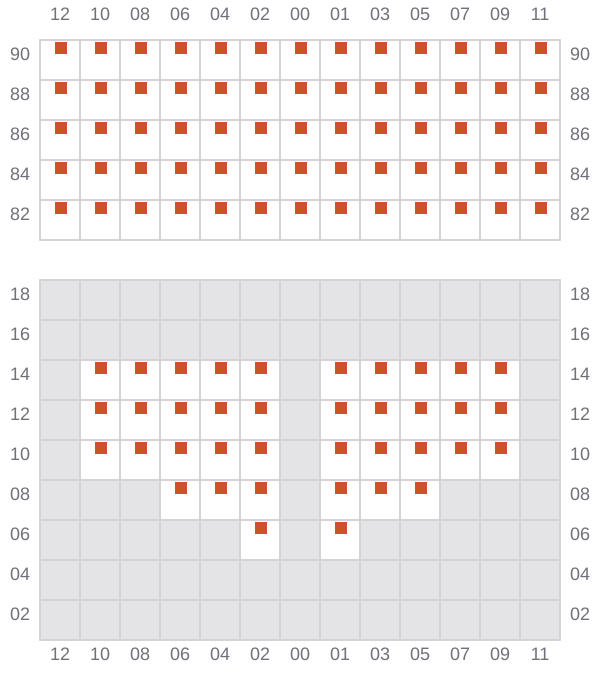

045
- →
![Bay 045 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b045.png?v=1688146918995)

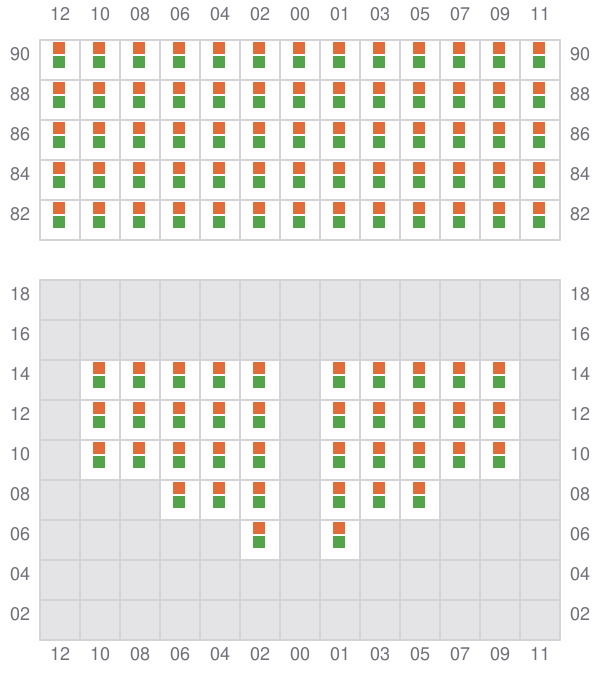

047 (046)
- ←
![Bay 047 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b047.png?v=1688146918995)

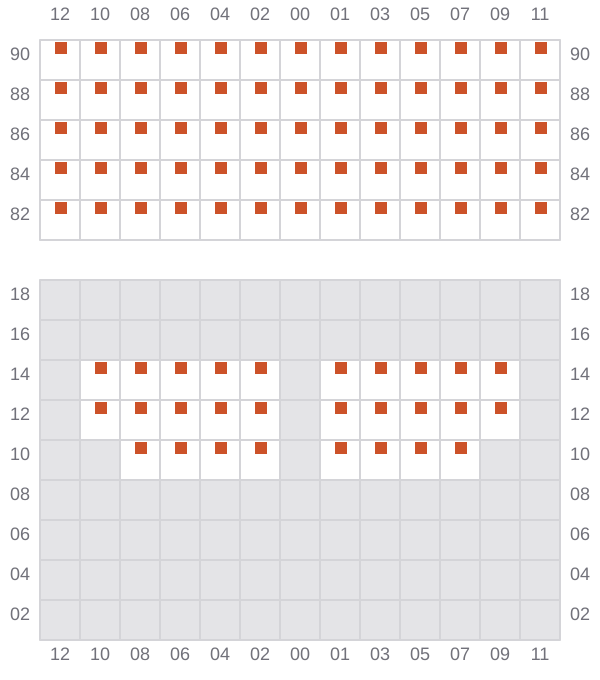

049
- →
![Bay 049 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b049.png?v=1688146918995)

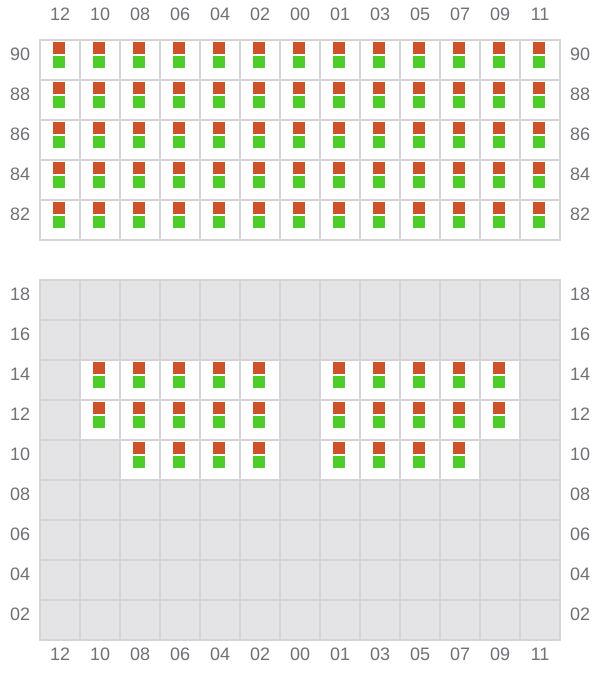

051 (050)
- ←
![Bay 051 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b051.png?v=1688146918995)

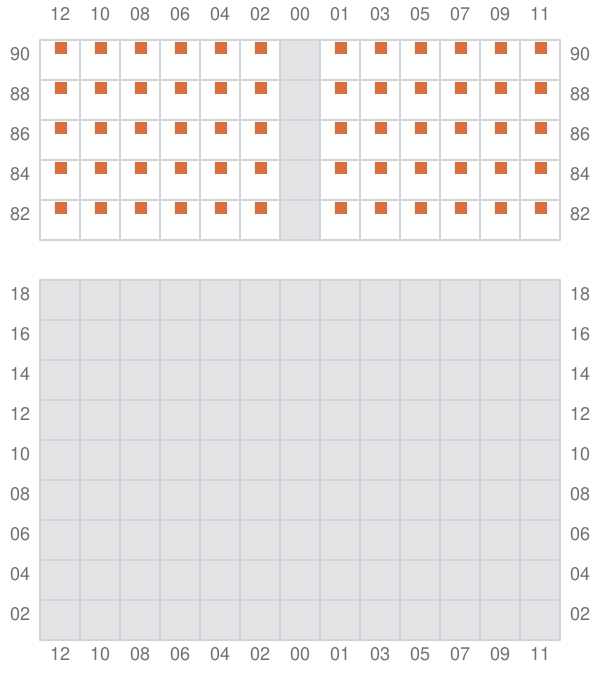

053
![Bay 053 view and slots of EVER GENTLE](/vessel-images/e3c7cc67-4965-45f4-a6bc-89b72b325e00-b053.png?v=1688146918995)
