EVER LADEN
9595448 | 3FXM3 | EIS by ************************** Last update: Fri Jun 30 2023
General Info
Ship Name:EVER LADEN
IMO Code:9595448
Call Sign:3FXM3
Line Operator:EIS
Class Name for Sister Ships:LAD
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:40, 20, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:100
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,466
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

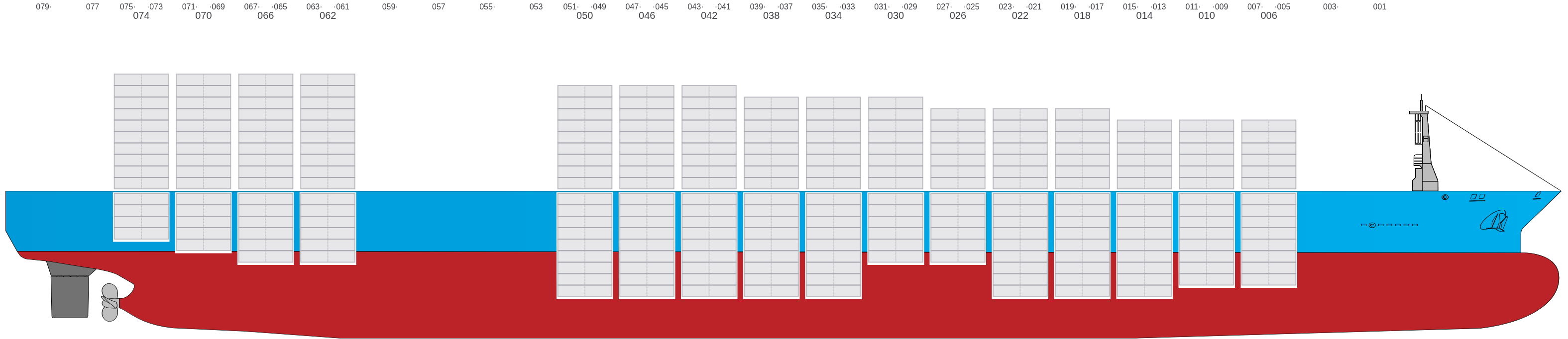

Side View
![Side view of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-sideView.png?v=1688167374829)

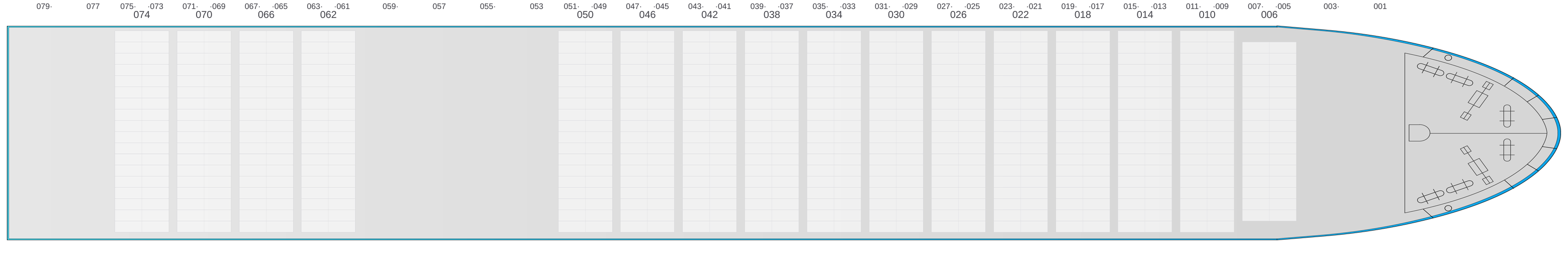

Hatch-Covers View
![Deck view of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-deckView.png?v=1688167374829)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

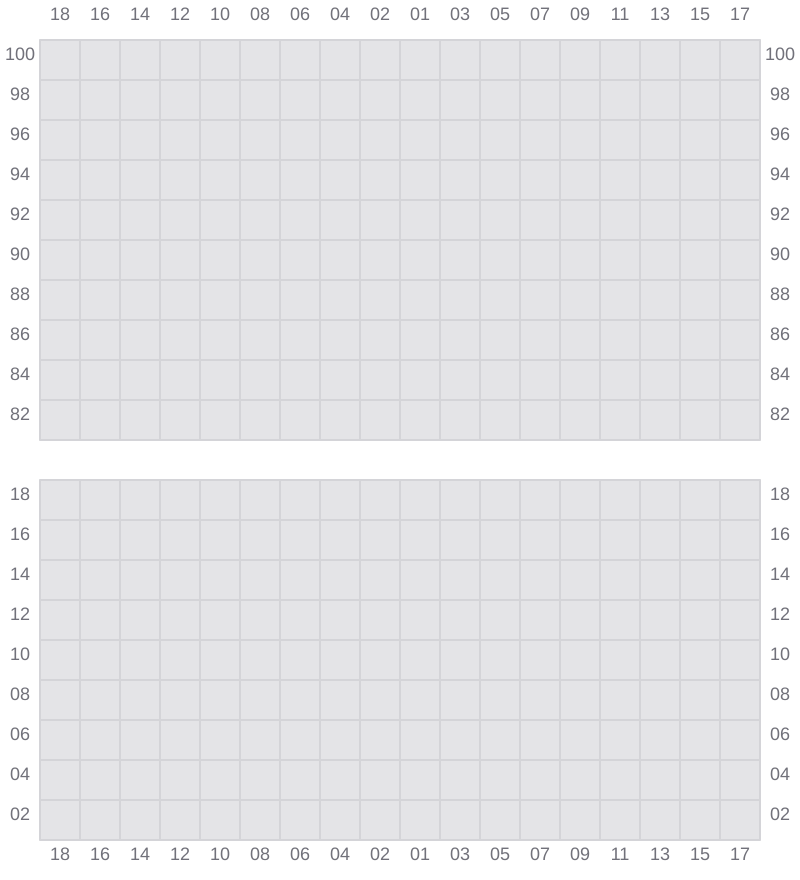

001
![Bay 001 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b001.png?v=1688167374829)

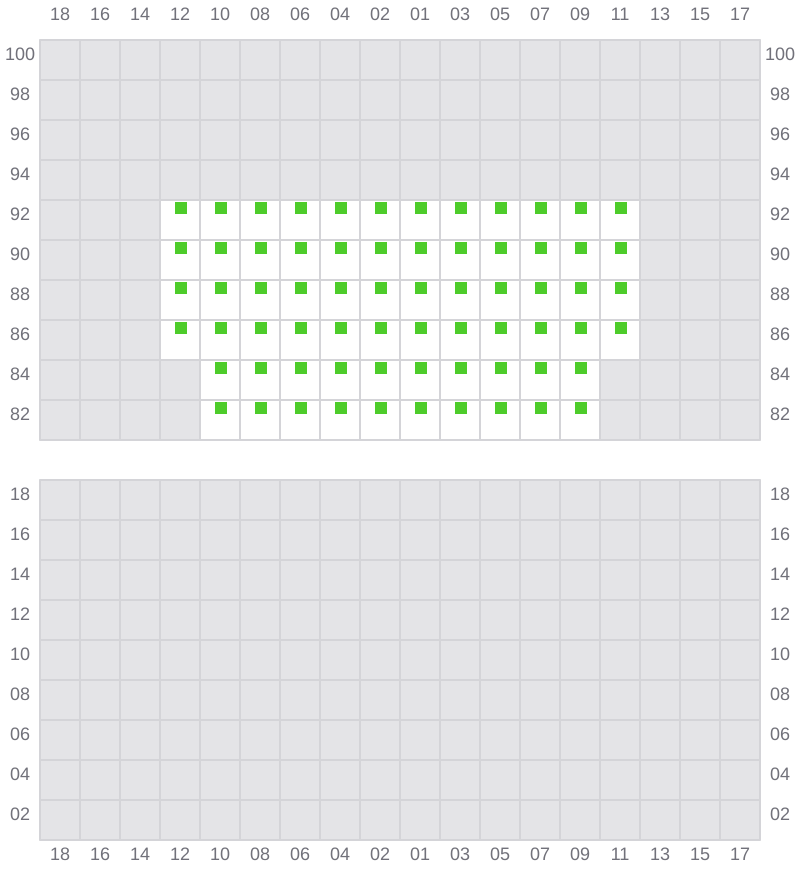

003 (002)
- ← / ?
![Bay 003 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b003.png?v=1688167374829)

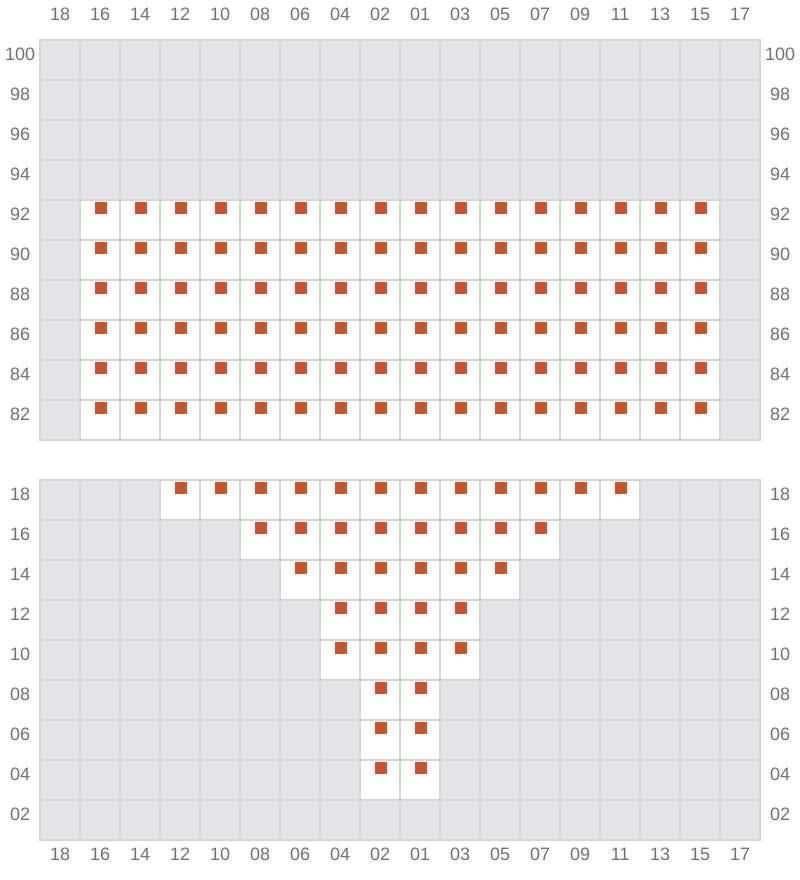

005
- →
![Bay 005 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b005.png?v=1688167374829)
007 (006)
- ←
![Bay 007 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b007.png?v=1688167374829)
009
- →
![Bay 009 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b009.png?v=1688167374829)

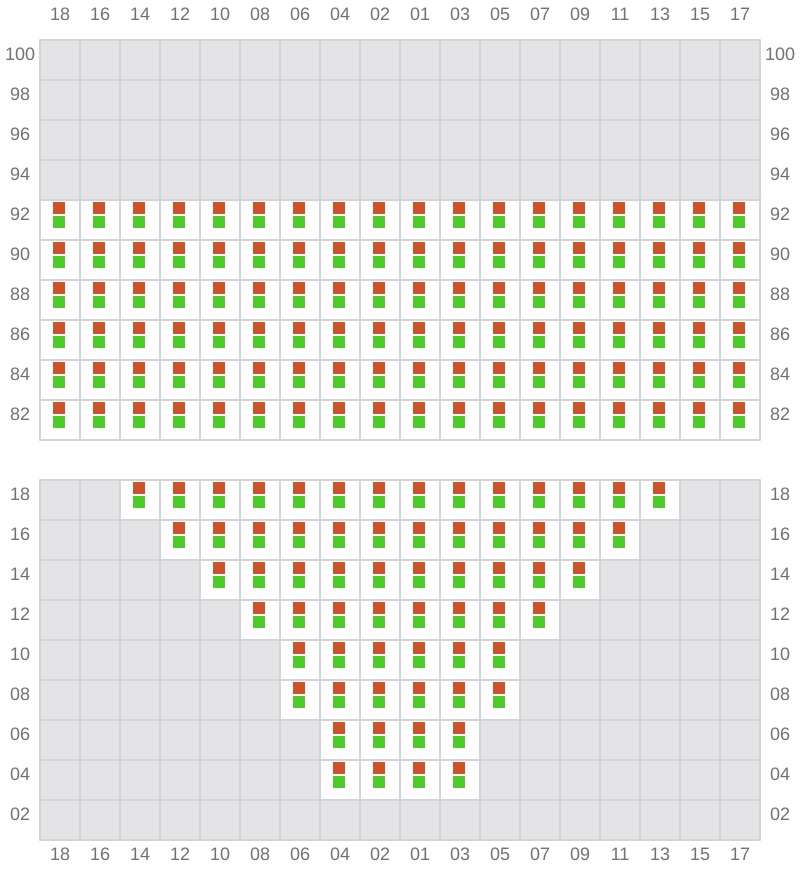

011 (010)
- ←
![Bay 011 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b011.png?v=1688167374829)

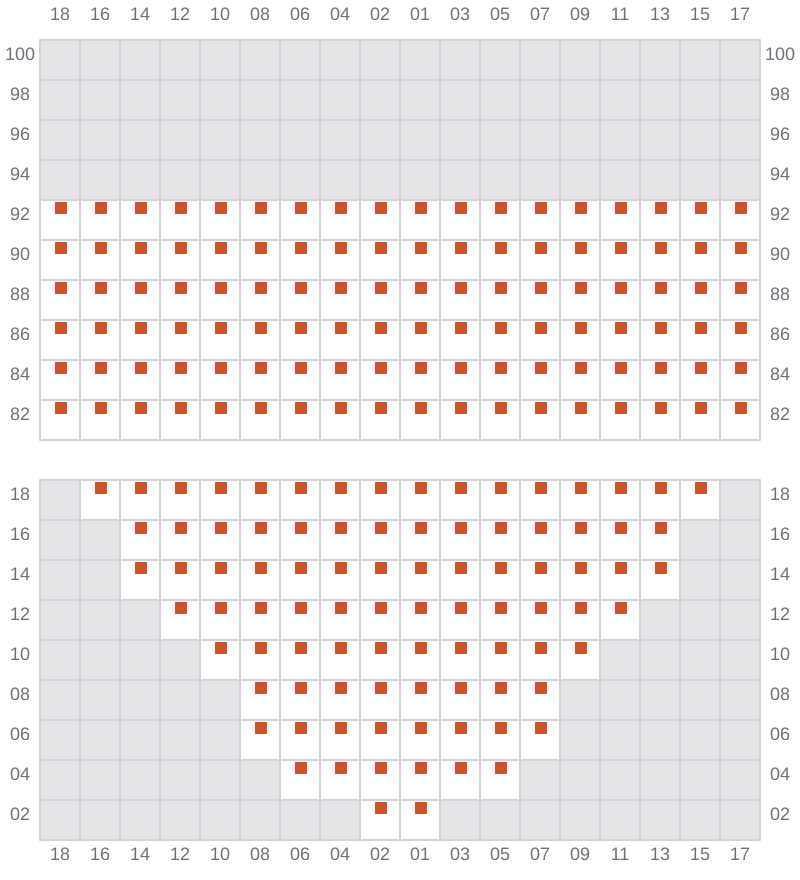

013
- →
![Bay 013 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b013.png?v=1688167374829)
015 (014)
- ←
![Bay 015 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b015.png?v=1688167374829)

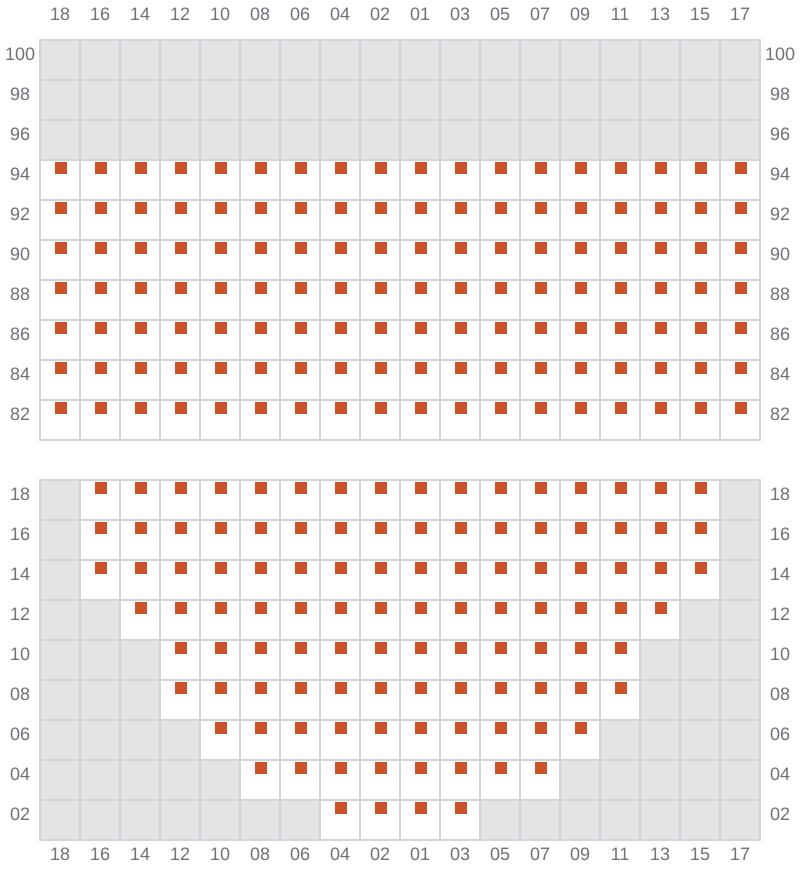

017
- →
![Bay 017 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b017.png?v=1688167374829)

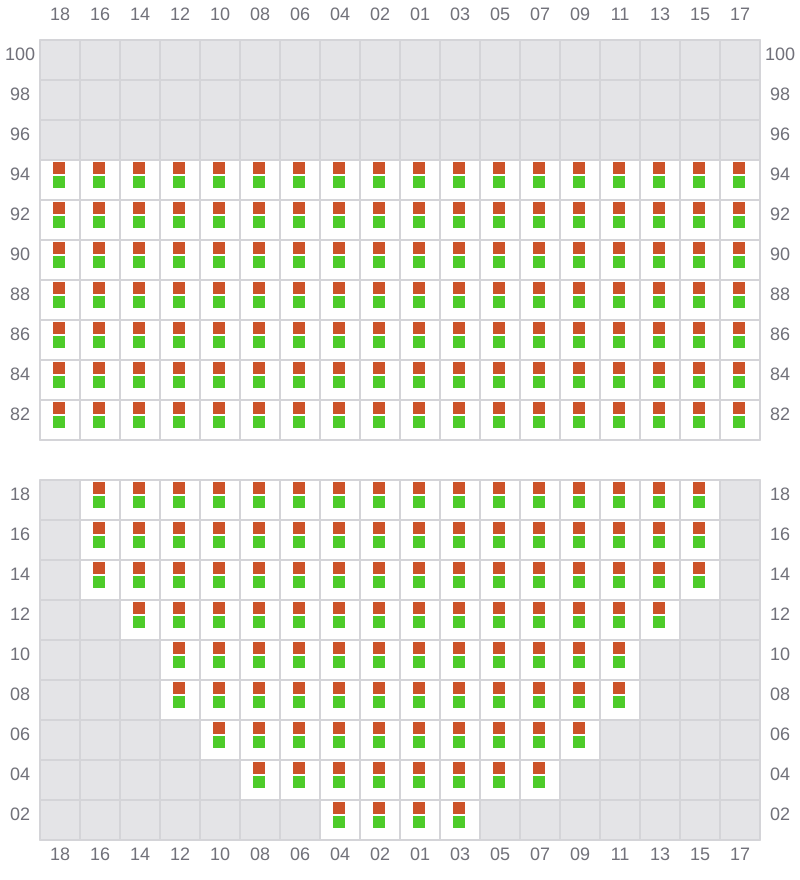

019 (018)
- ←
![Bay 019 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b019.png?v=1688167374829)

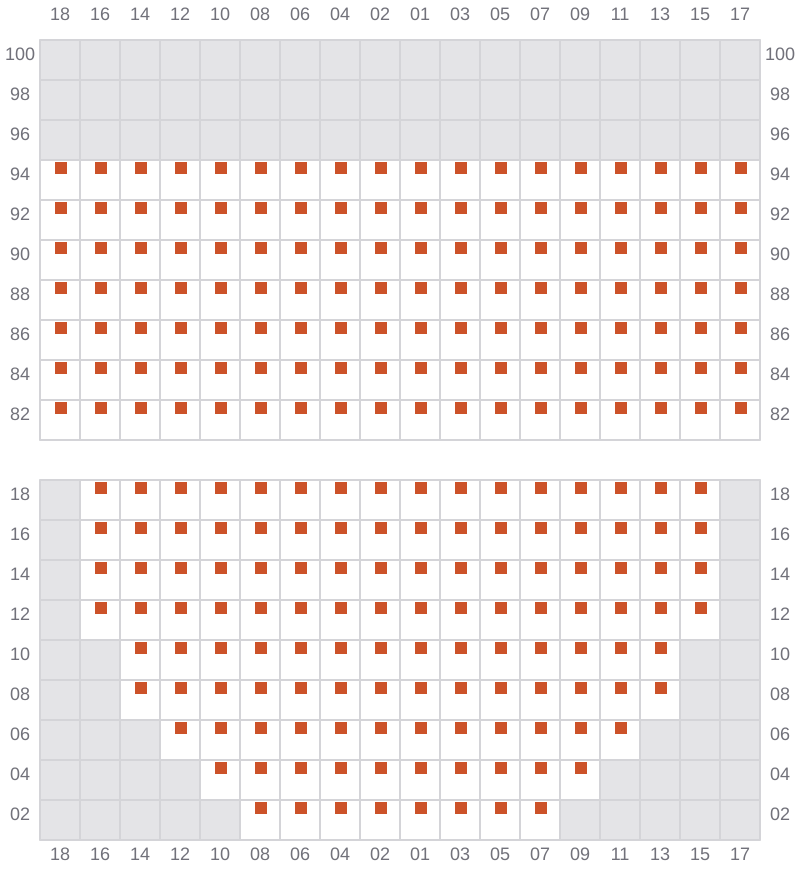

021
- →
![Bay 021 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b021.png?v=1688167374829)

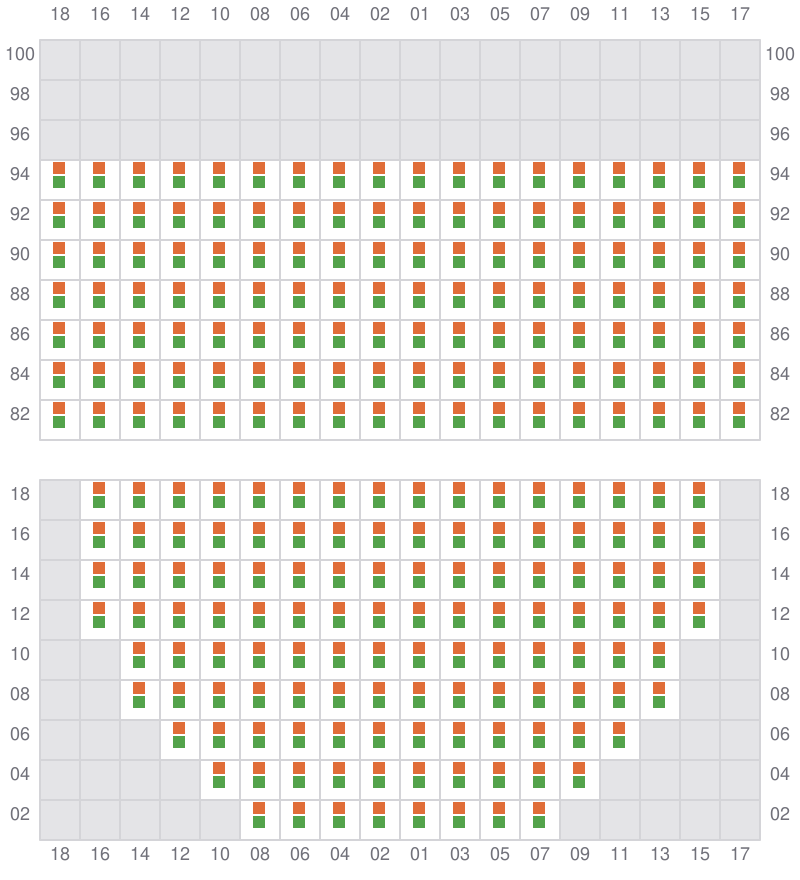

023 (022)
- ←
![Bay 023 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b023.png?v=1688167374829)

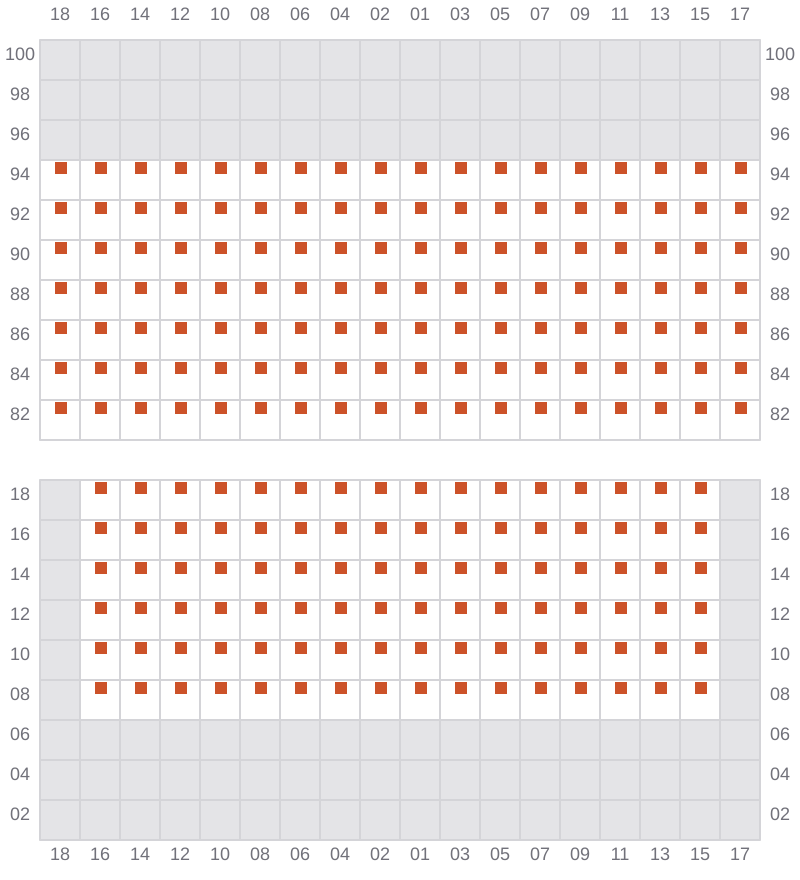

025
- →
![Bay 025 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b025.png?v=1688167374829)

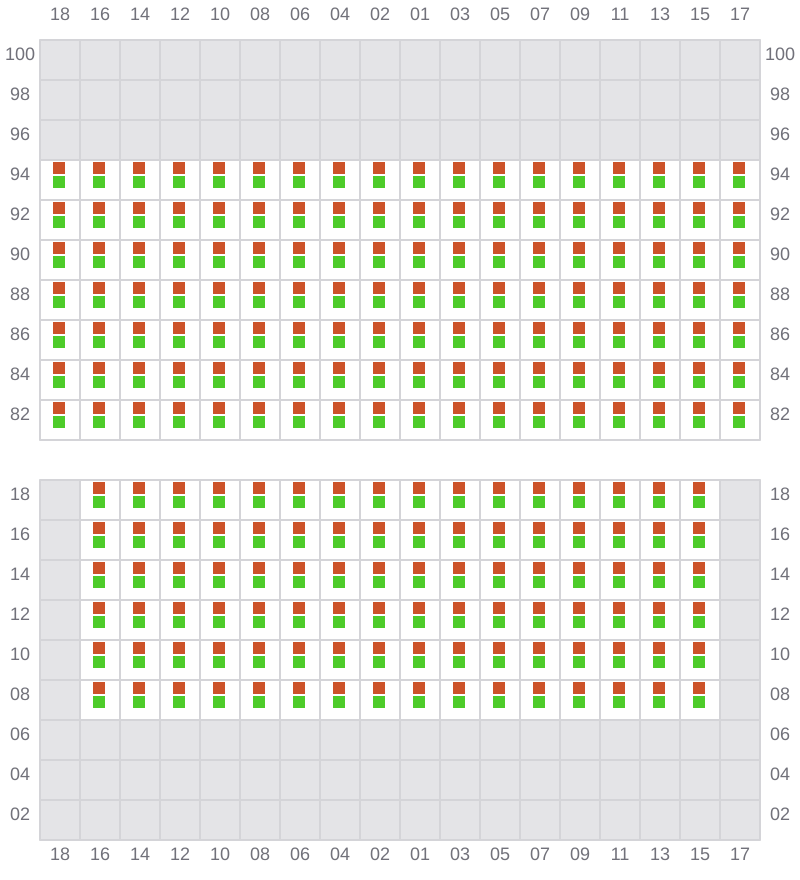

027 (026)
- ←
![Bay 027 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b027.png?v=1688167374829)

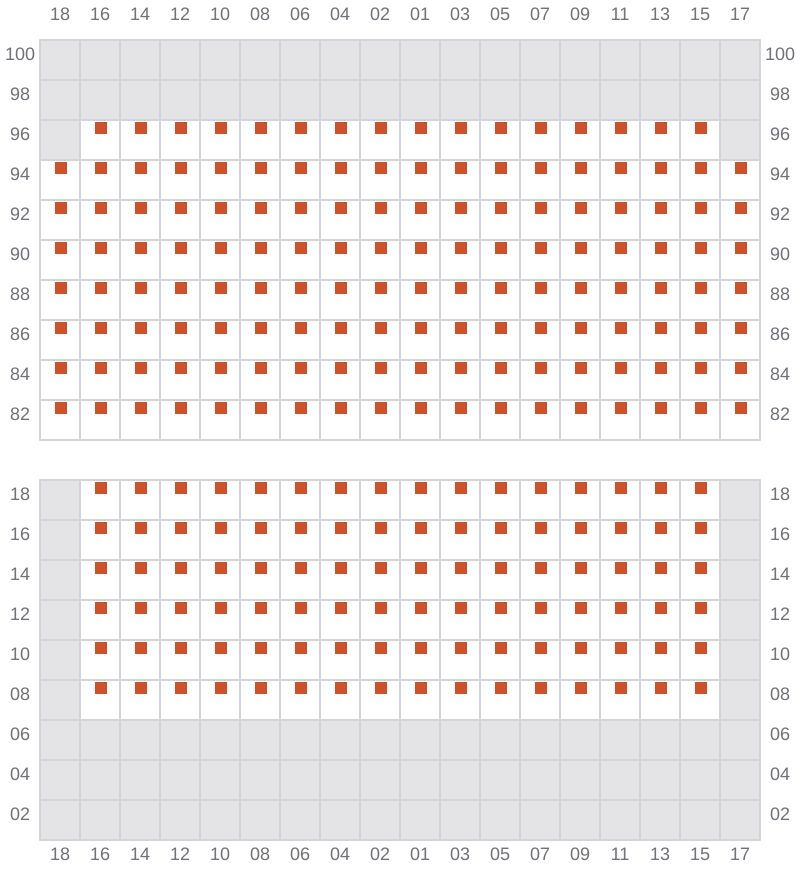

029
- →
![Bay 029 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b029.png?v=1688167374829)

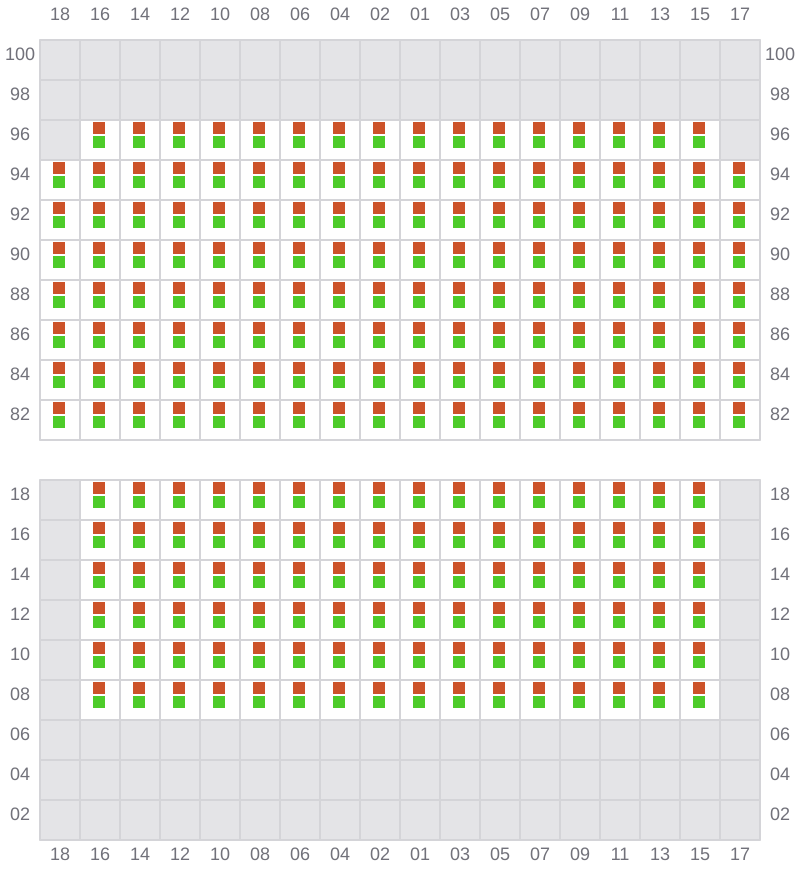

031 (030)
- ←
![Bay 031 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b031.png?v=1688167374829)

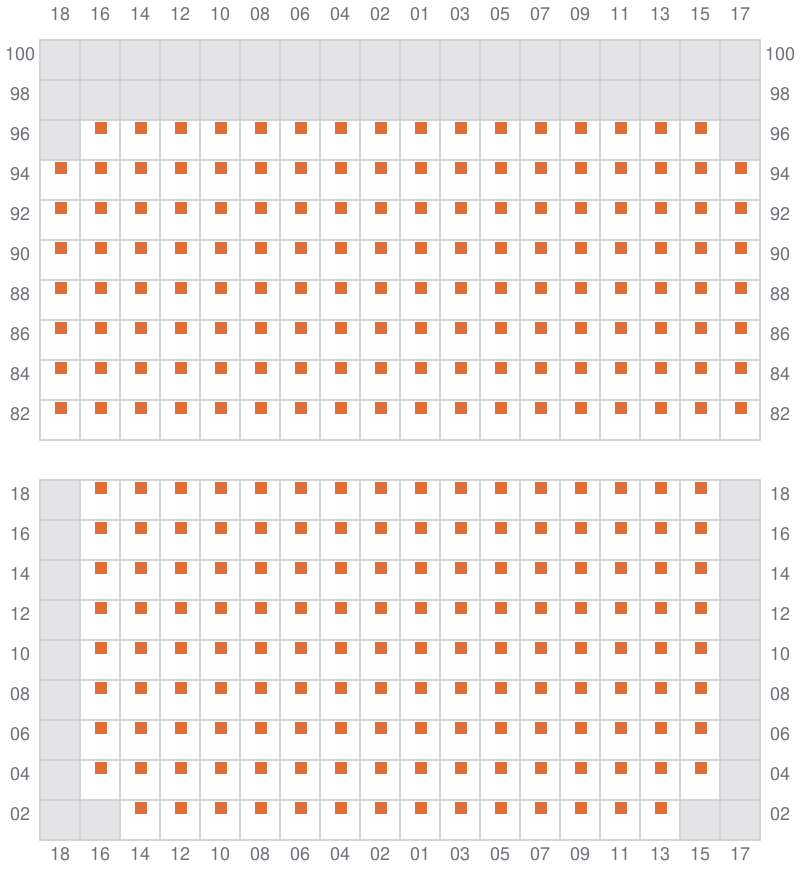

033
- →
![Bay 033 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b033.png?v=1688167374829)

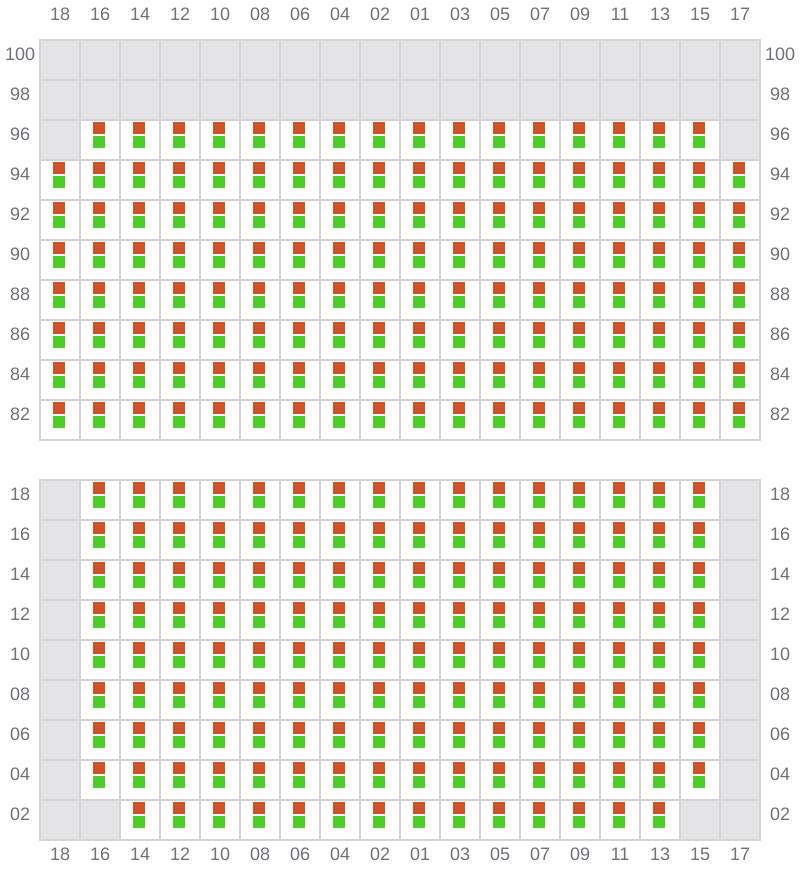

035 (034)
- ←
![Bay 035 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b035.png?v=1688167374829)

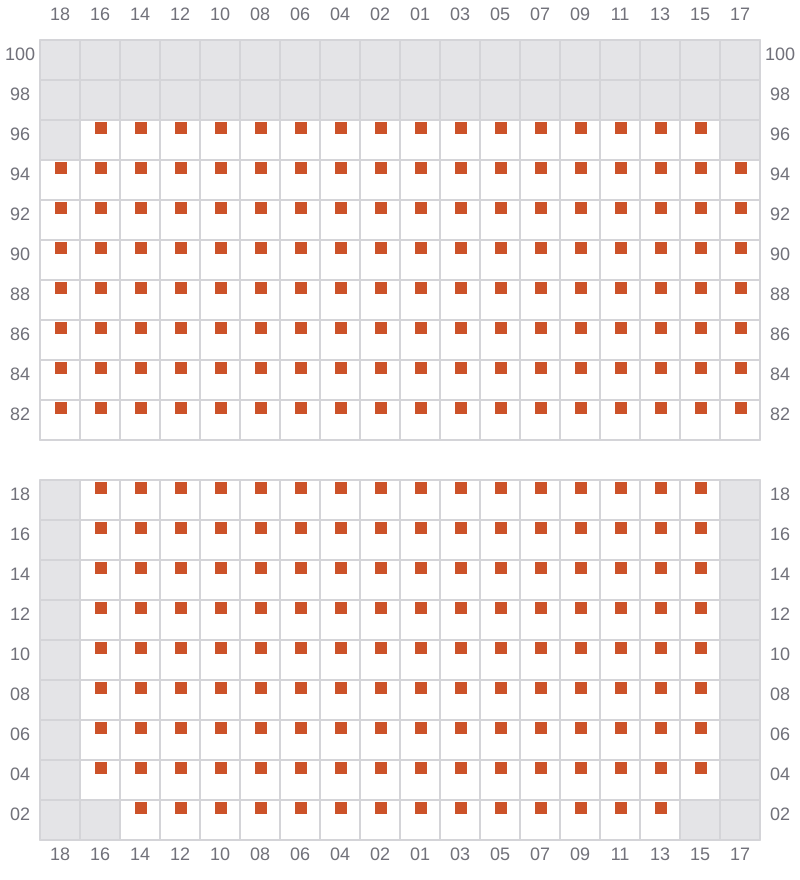

037
- →
![Bay 037 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b037.png?v=1688167374829)
039 (038)
- ←
![Bay 039 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b039.png?v=1688167374829)

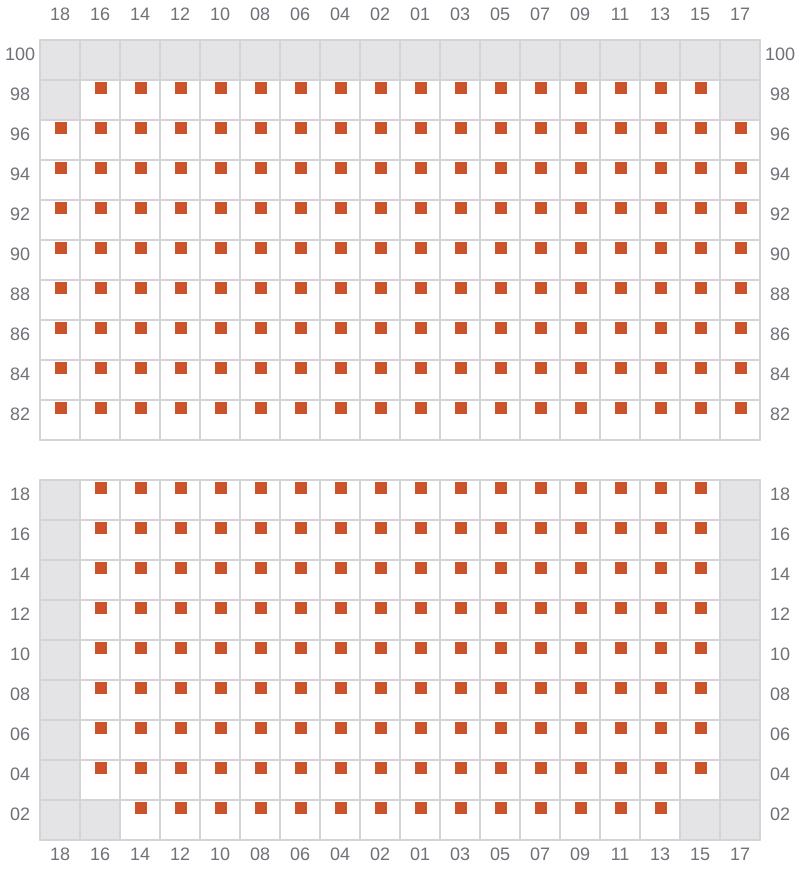

041
- →
![Bay 041 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b041.png?v=1688167374829)
043 (042)
- ←
![Bay 043 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b043.png?v=1688167374829)
045
- →
![Bay 045 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b045.png?v=1688167374829)
047 (046)
- ←
![Bay 047 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b047.png?v=1688167374829)
049
- →
![Bay 049 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b049.png?v=1688167374829)

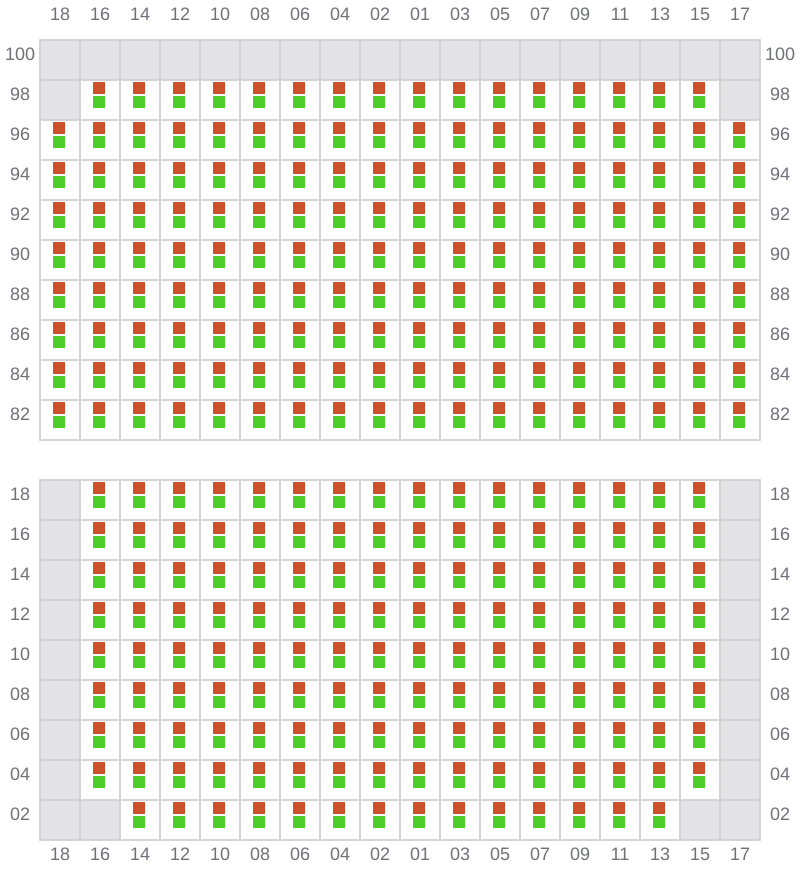

051 (050)
- ←
![Bay 051 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b051.png?v=1688167374829)
053
![Bay 053 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b053.png?v=1688167374829)

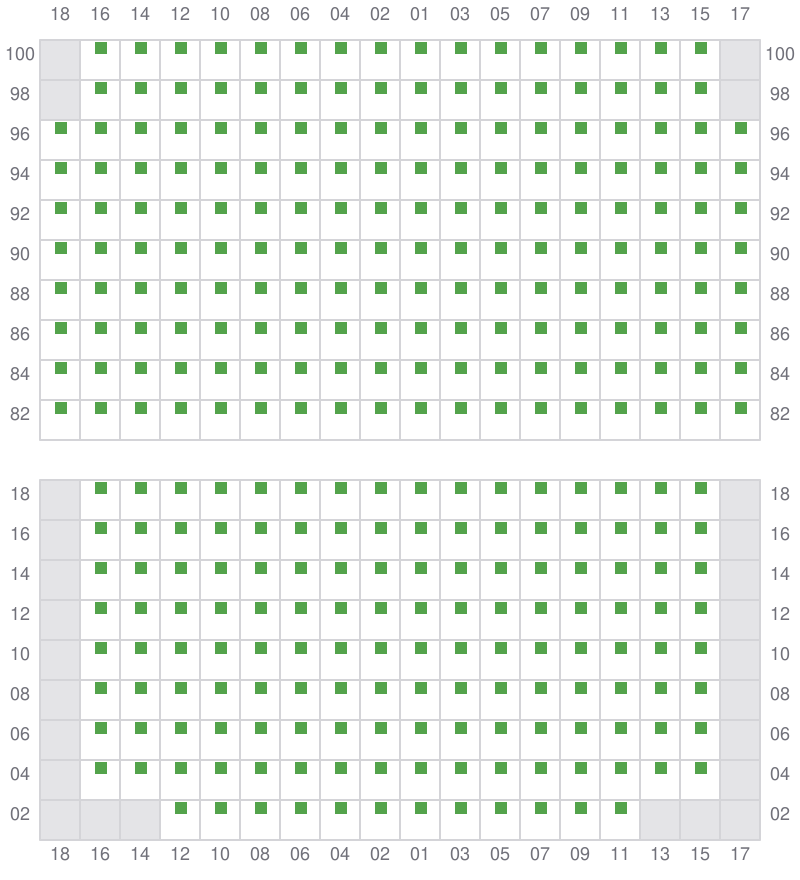

055 (054)
- ←
![Bay 055 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b055.png?v=1688167374829)
057
![Bay 057 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b057.png?v=1688167374829)

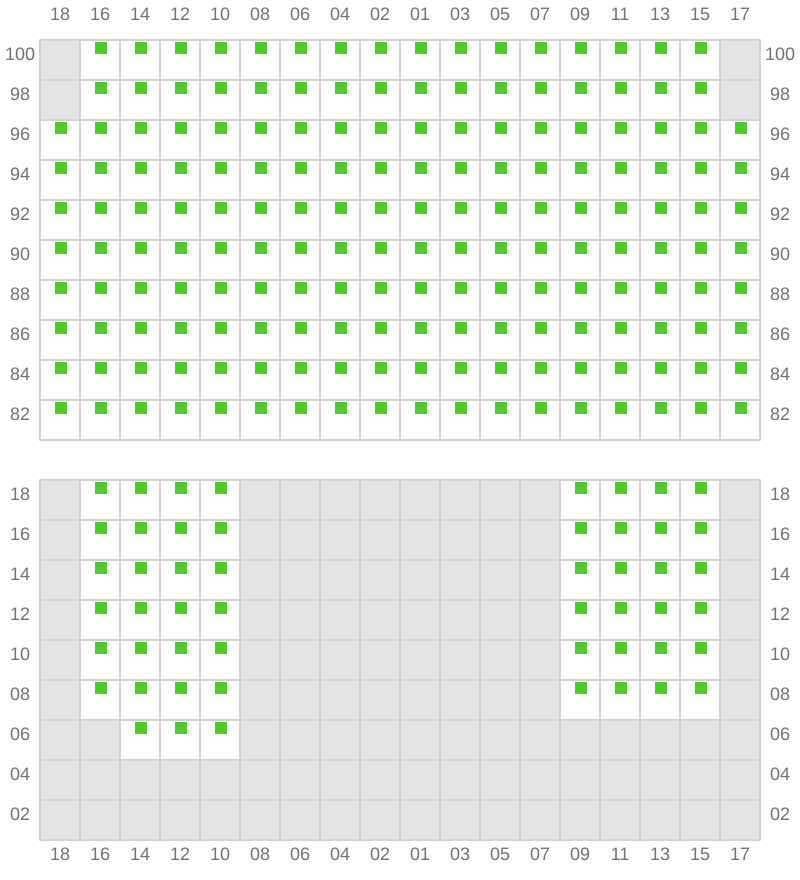

059 (058)
- ←
![Bay 059 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b059.png?v=1688167374829)

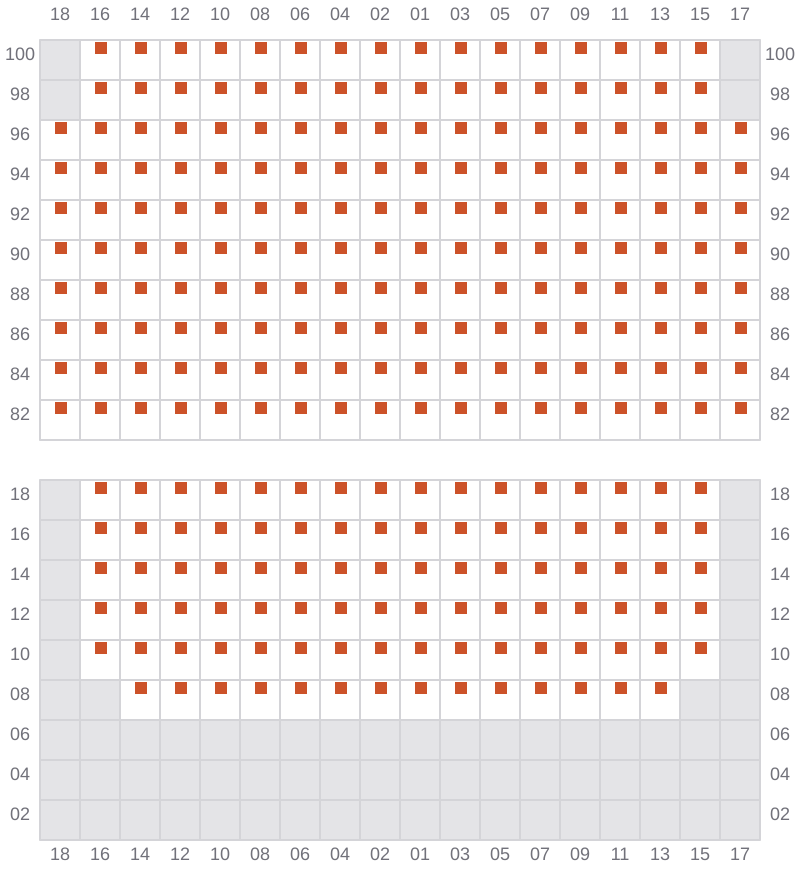

061
- →
![Bay 061 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b061.png?v=1688167374829)
063 (062)
- ←
![Bay 063 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b063.png?v=1688167374829)

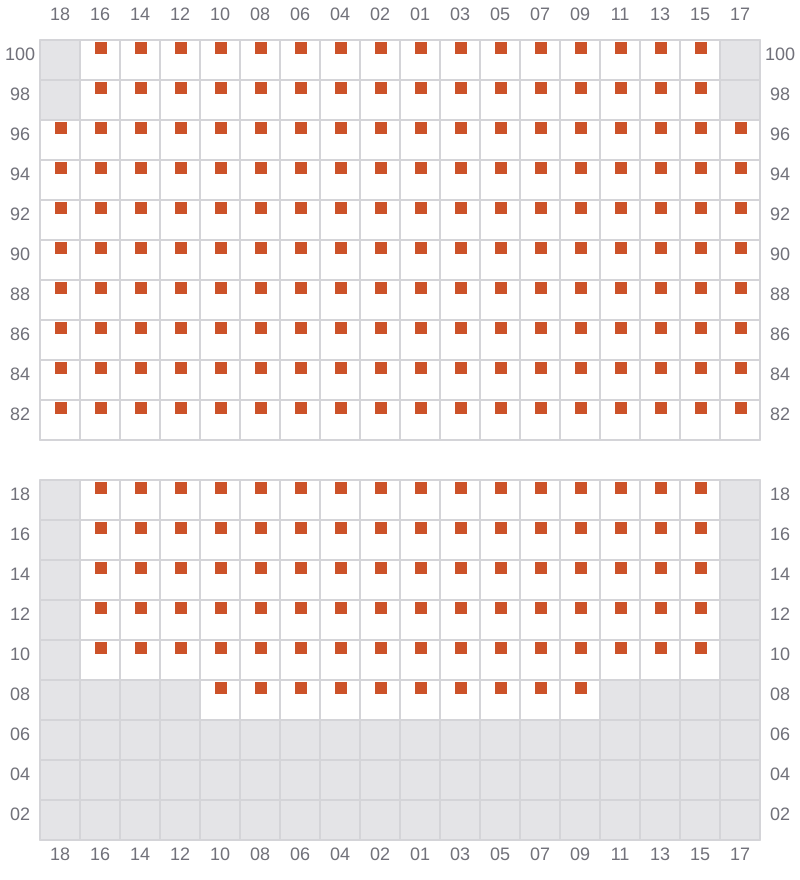

065
- →
![Bay 065 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b065.png?v=1688167374829)

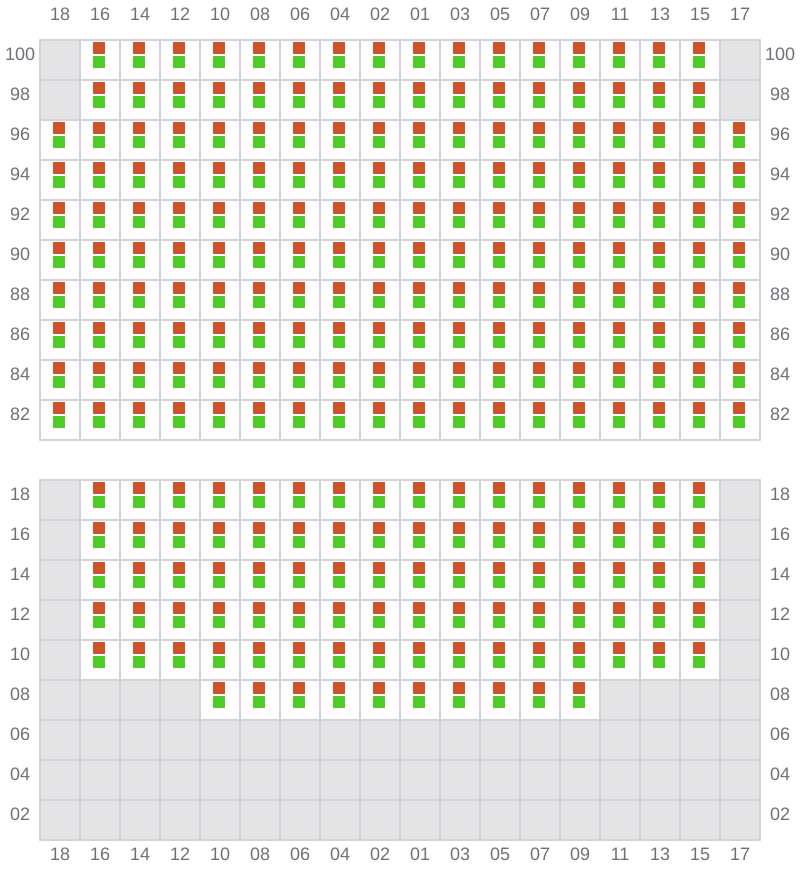

067 (066)
- ←
![Bay 067 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b067.png?v=1688167374829)

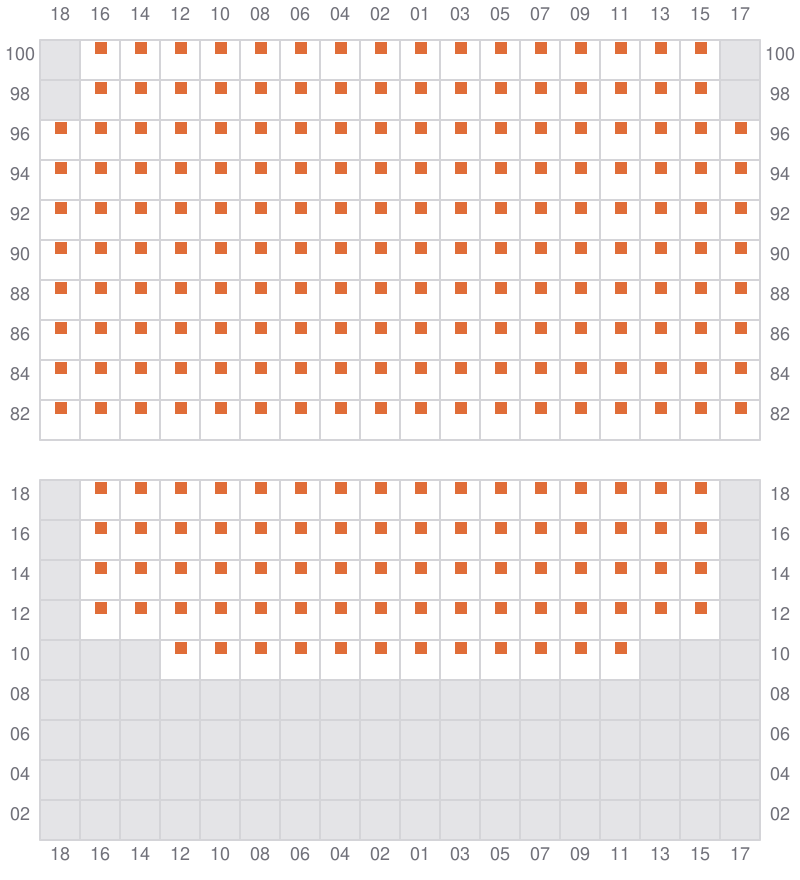

069
- →
![Bay 069 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b069.png?v=1688167374829)
071 (070)
- ←
![Bay 071 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b071.png?v=1688167374829)

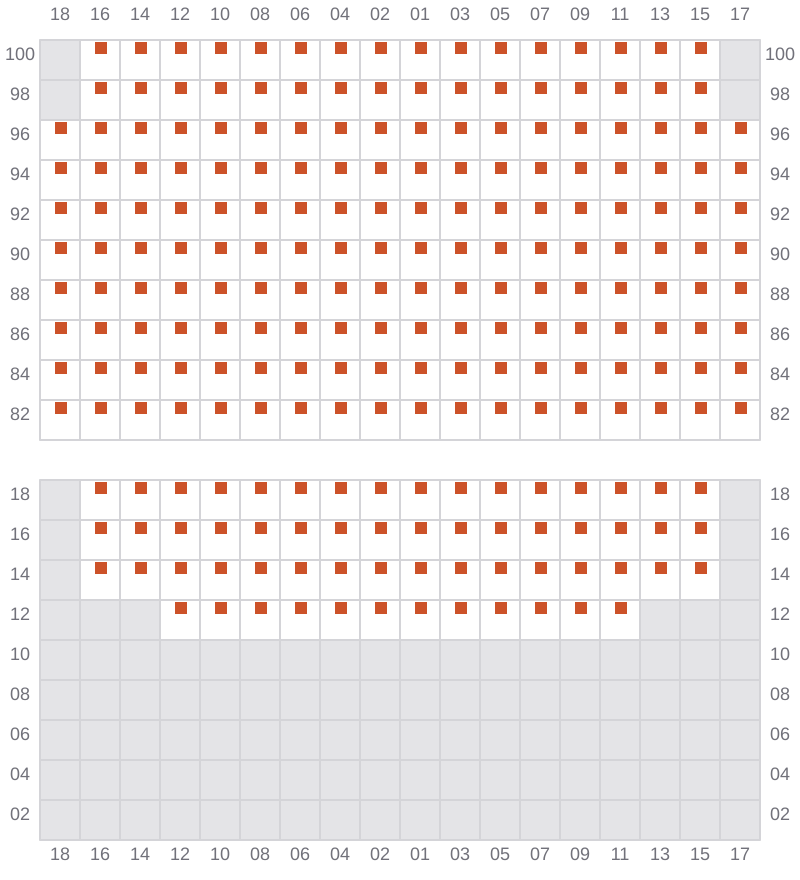

073
- →
![Bay 073 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b073.png?v=1688167374829)

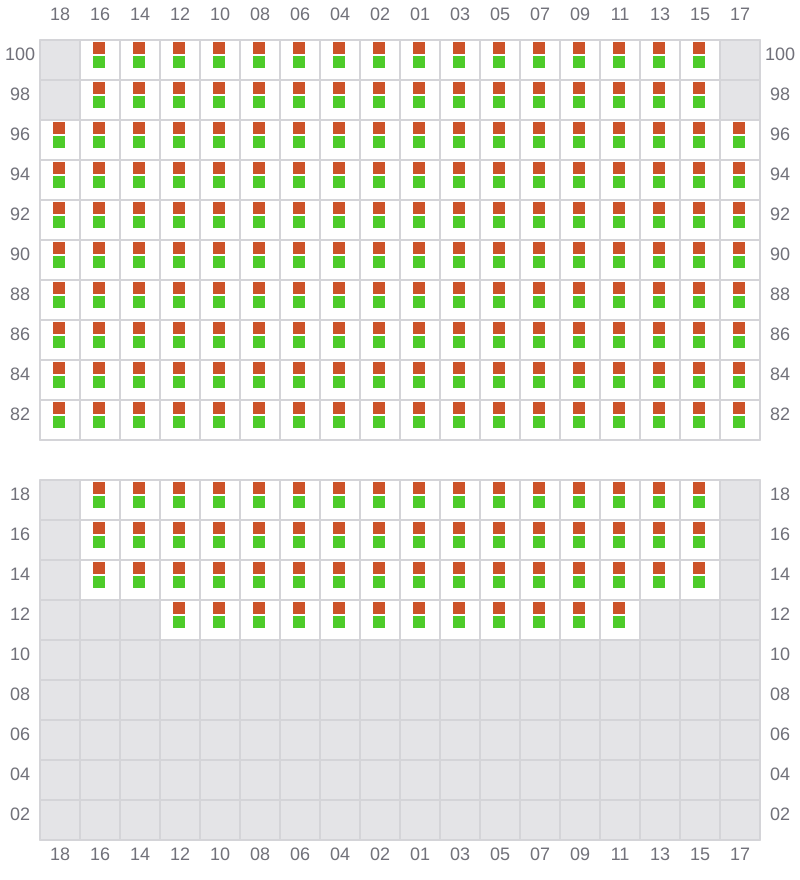

075 (074)
- ←
![Bay 075 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b075.png?v=1688167374829)
077
![Bay 077 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b077.png?v=1688167374829)
079 (078)
- ← / ?
![Bay 079 view and slots of EVER LADEN](/vessel-images/4f957684-9a38-4882-a724-d6125301e692-b079.png?v=1688167374829)
