EVER LADEN
9595448 | 3FXM3 | 9595448 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:EVER LADEN
IMO Code:9595448
Call Sign:3FXM3
Line Operator:9595448
Class Name for Sister Ships:EVER LADEN
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:40, 20, 45
LPP (LBP):317.00
LOA (Length Overall):334.98
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,454
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

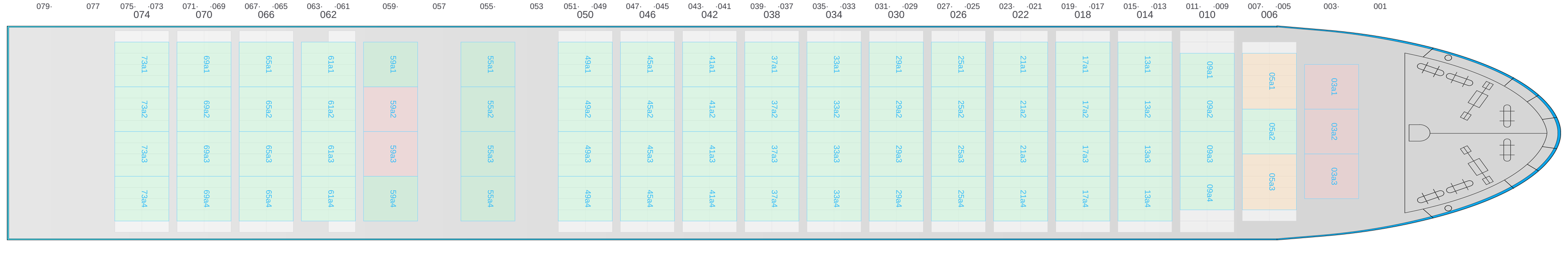

Hatch-Covers View

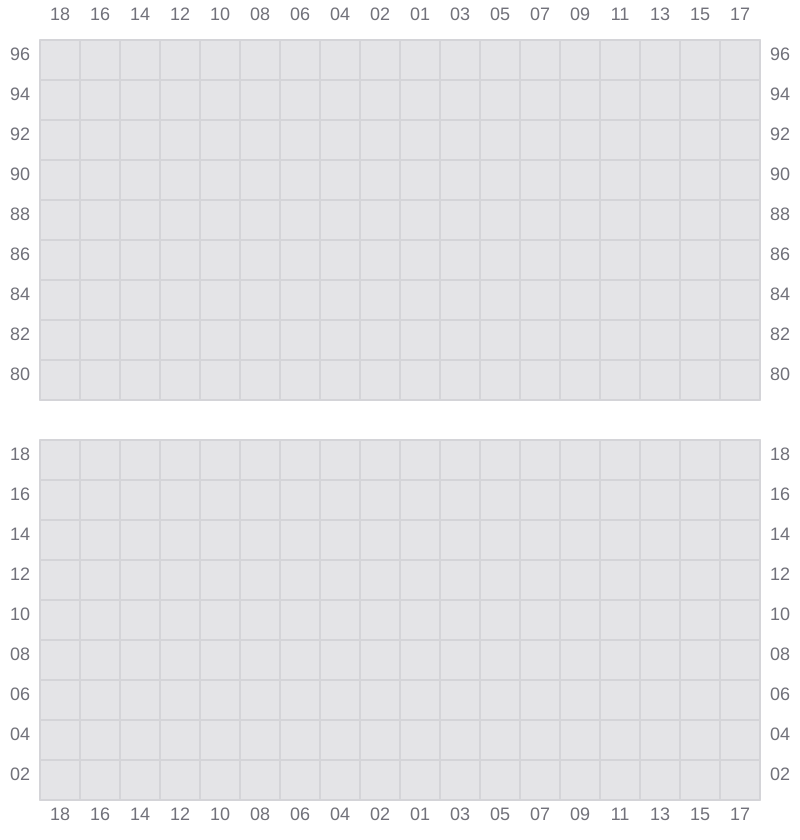

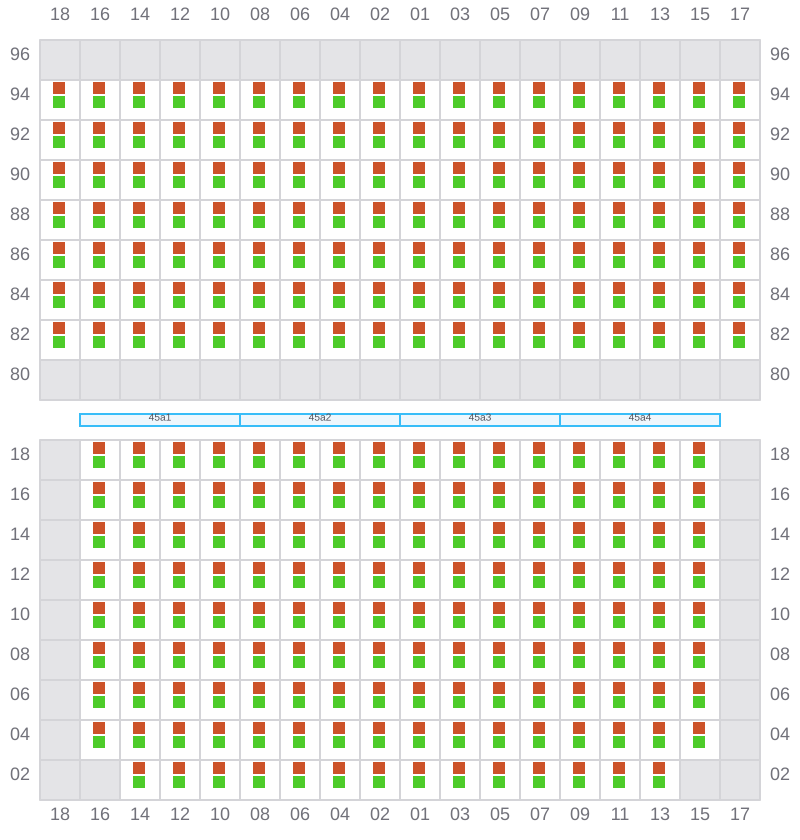

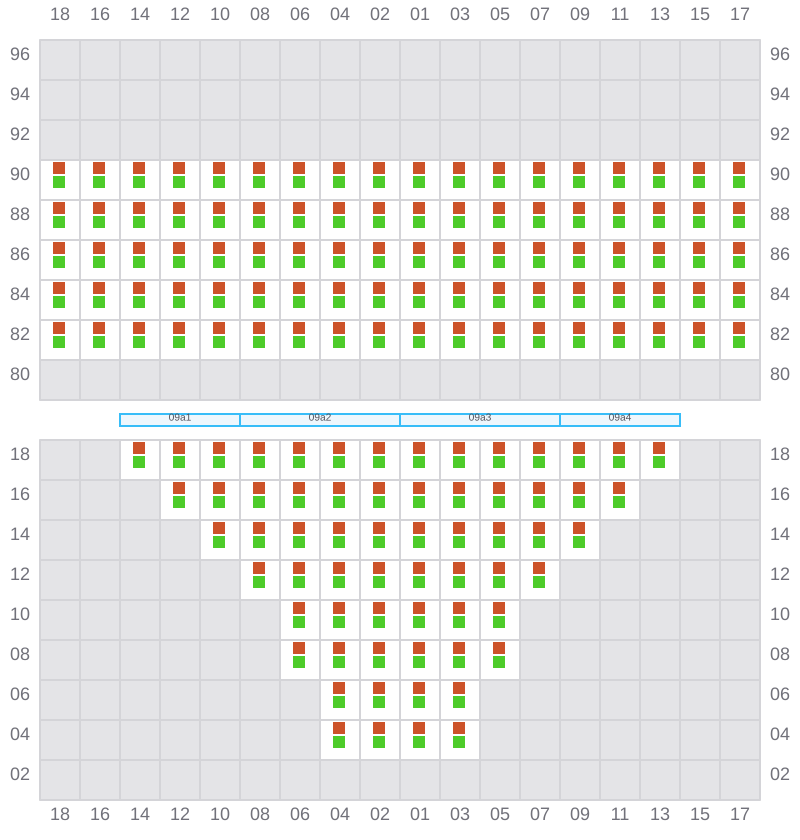

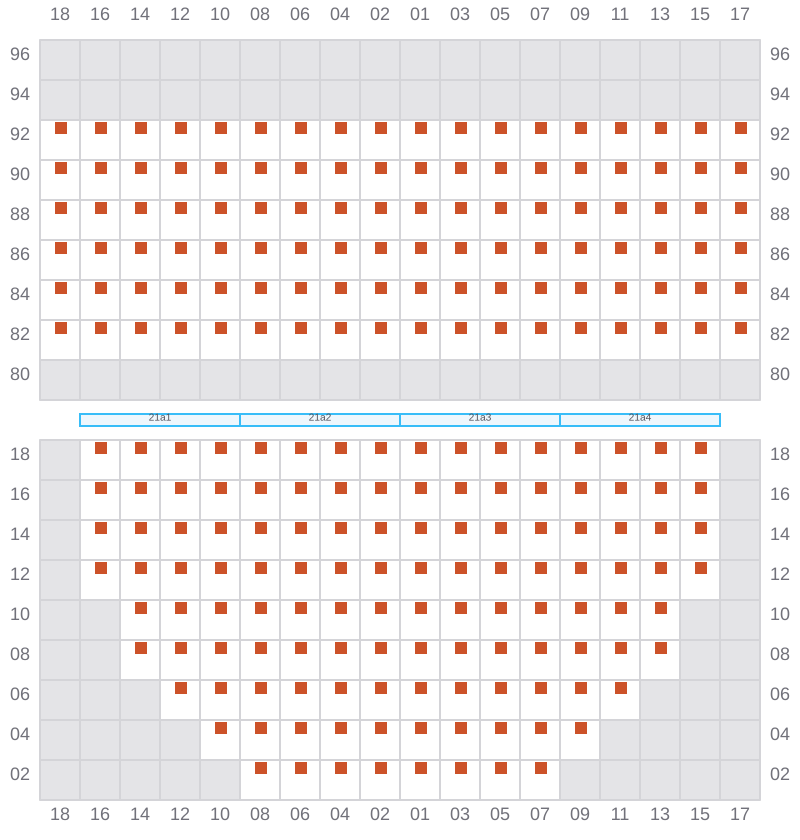

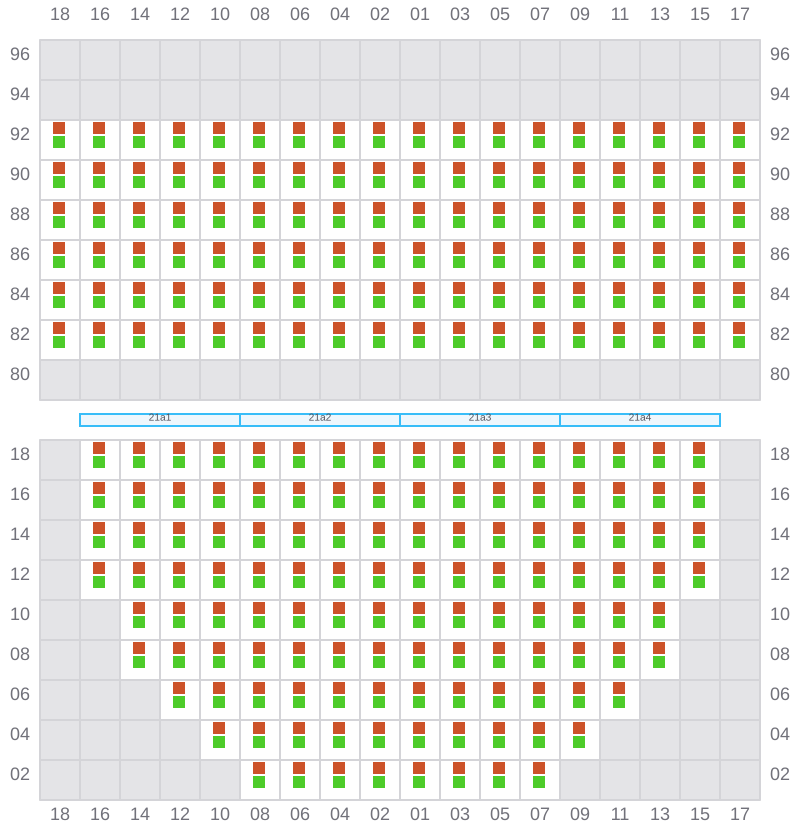

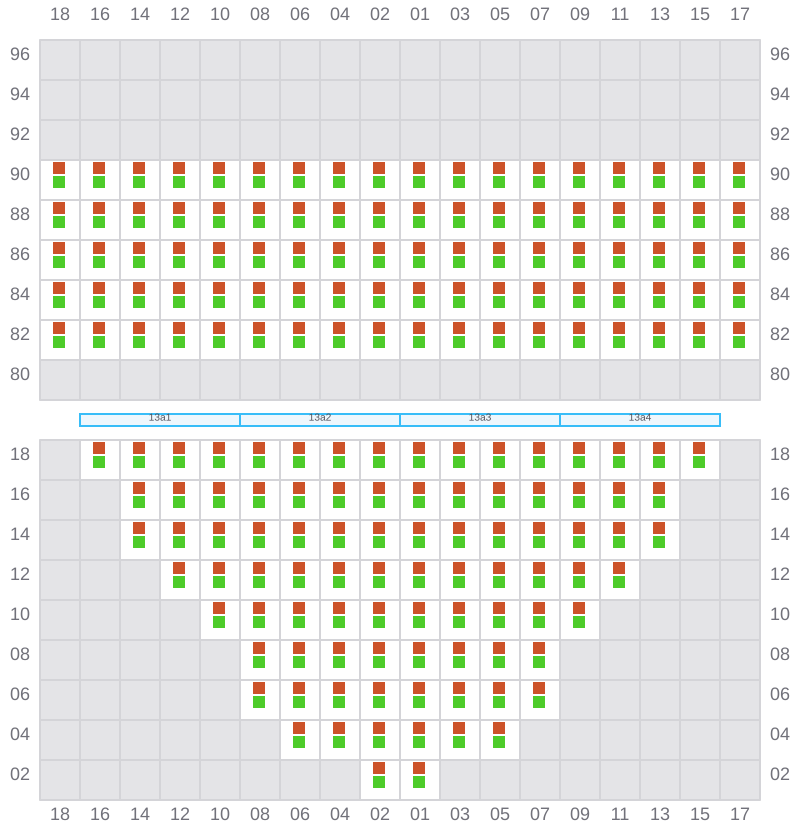

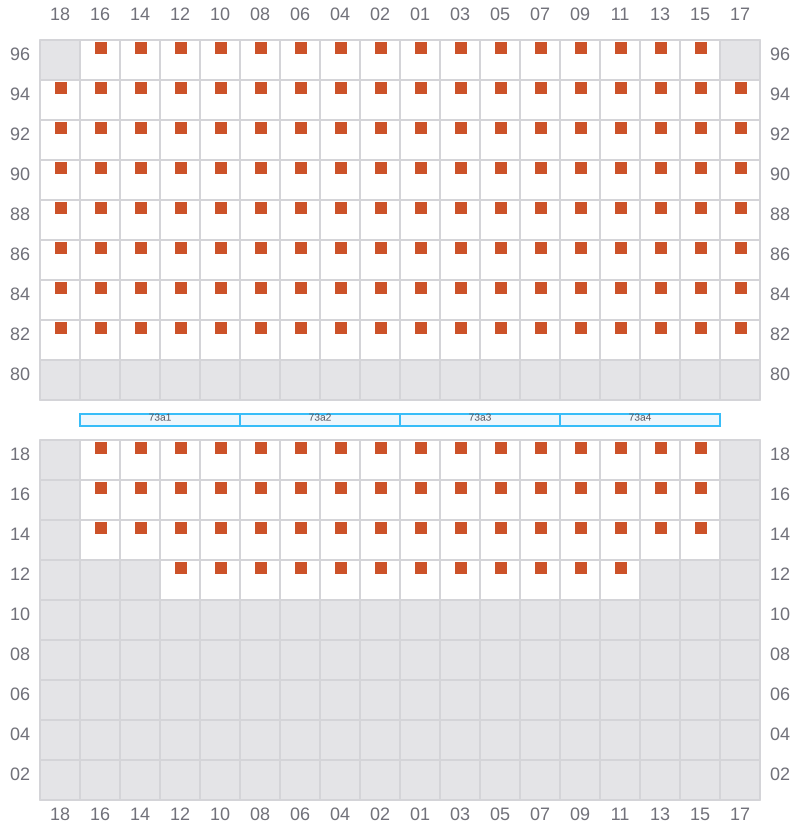

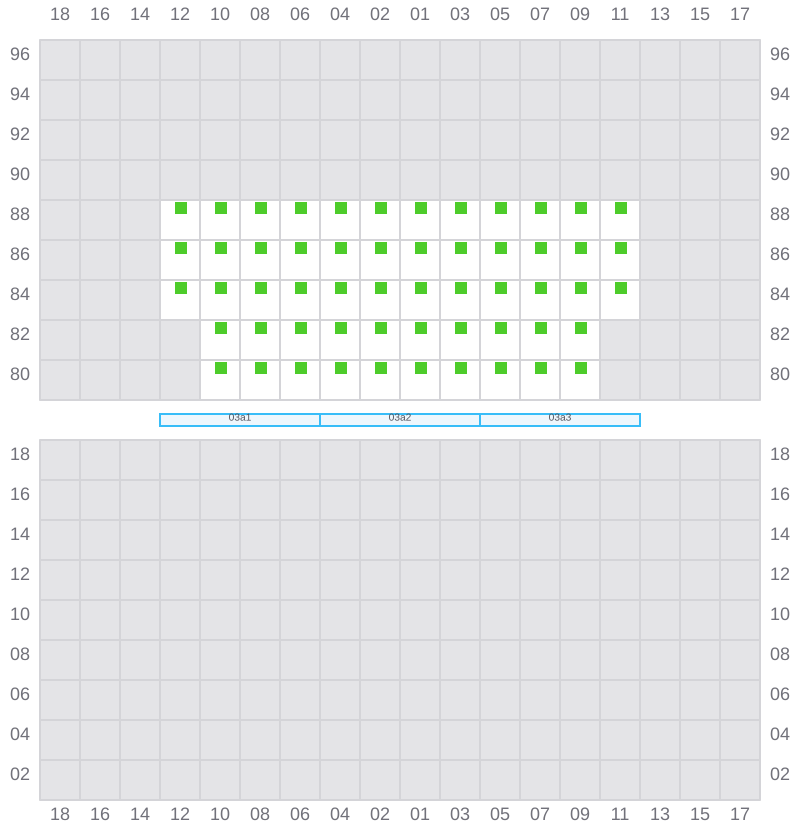

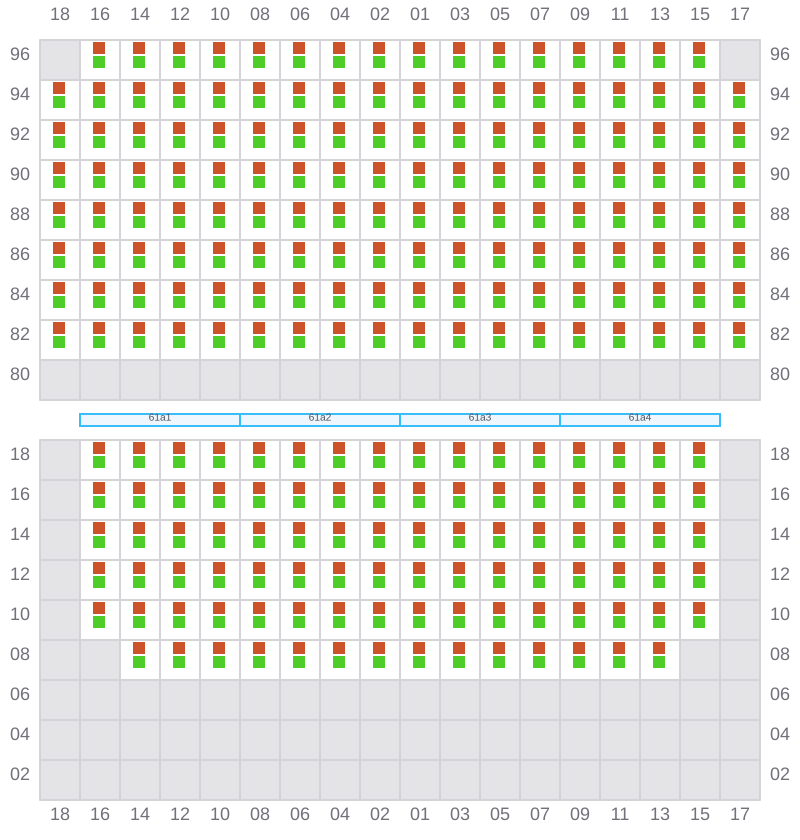

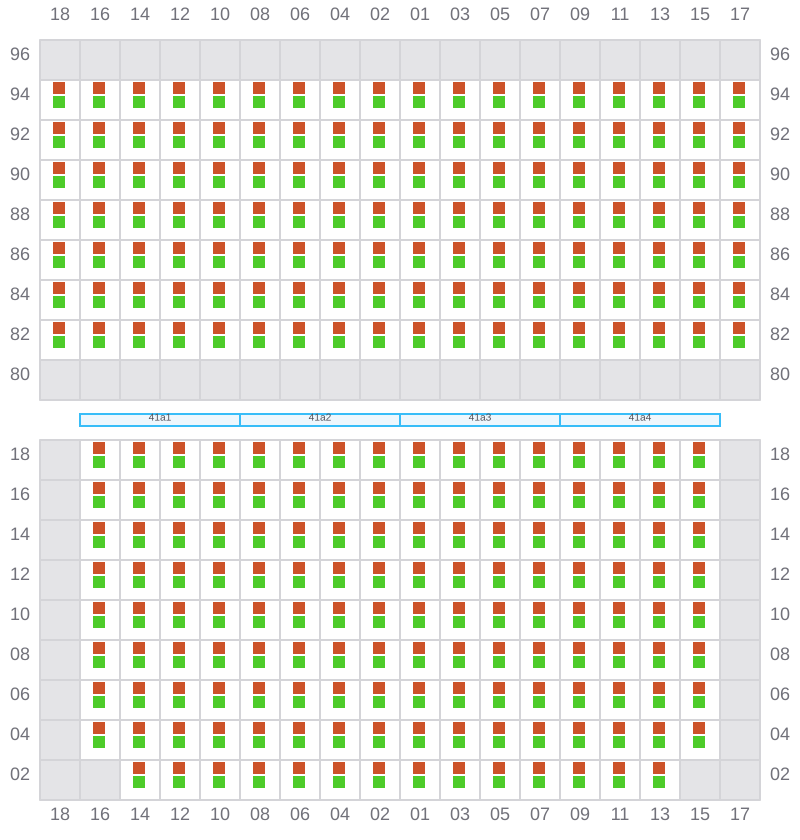

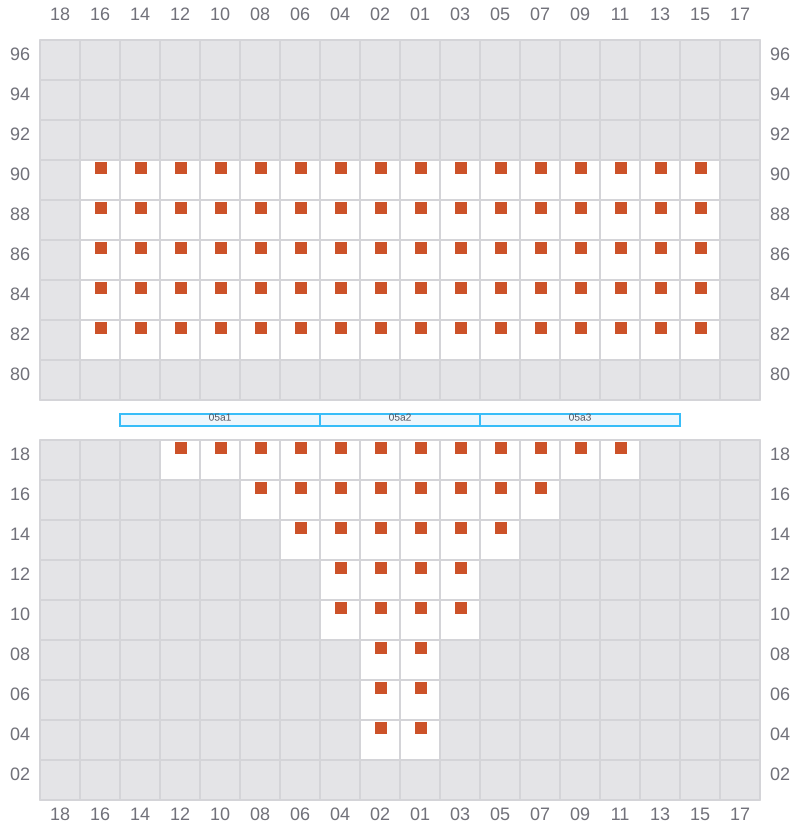

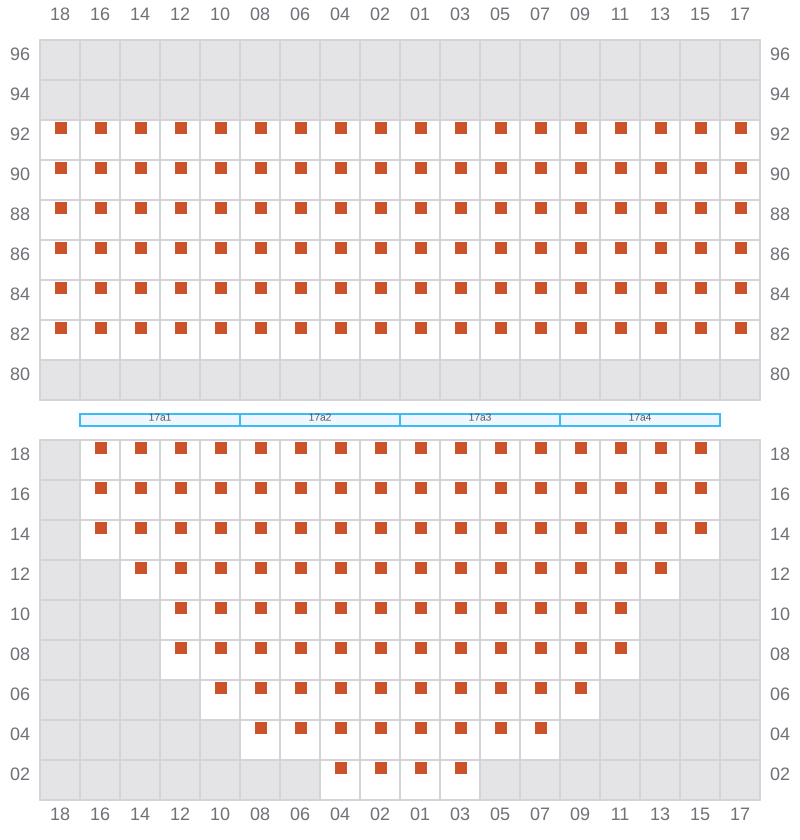

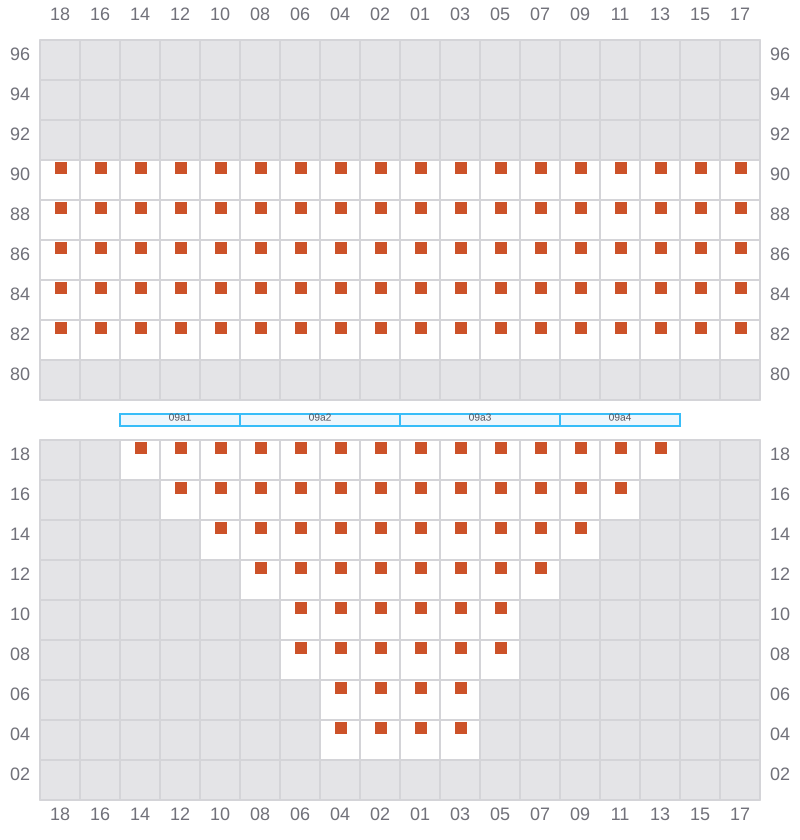

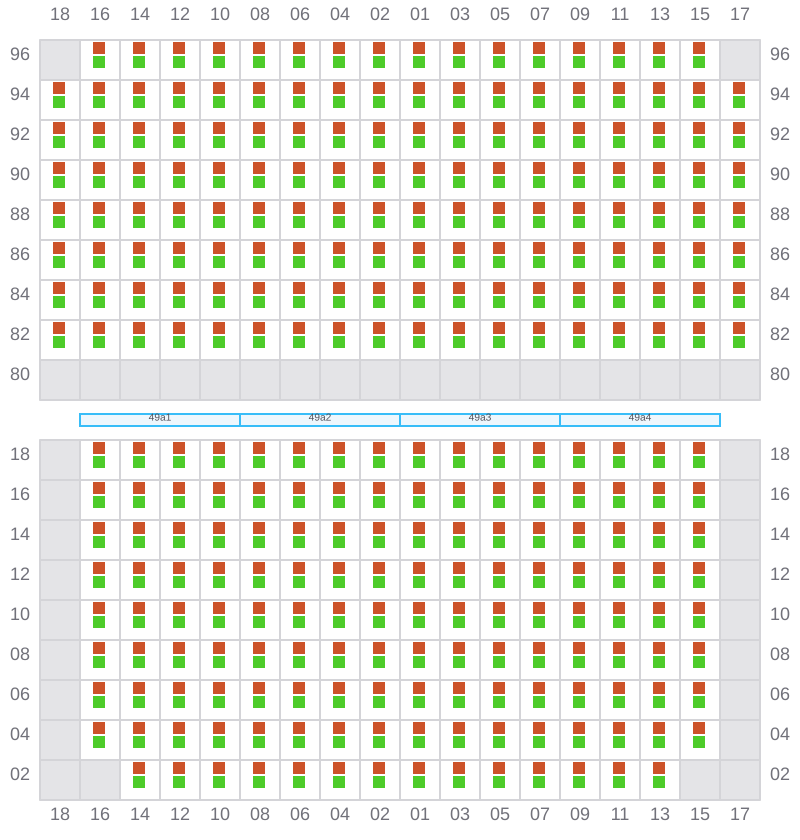

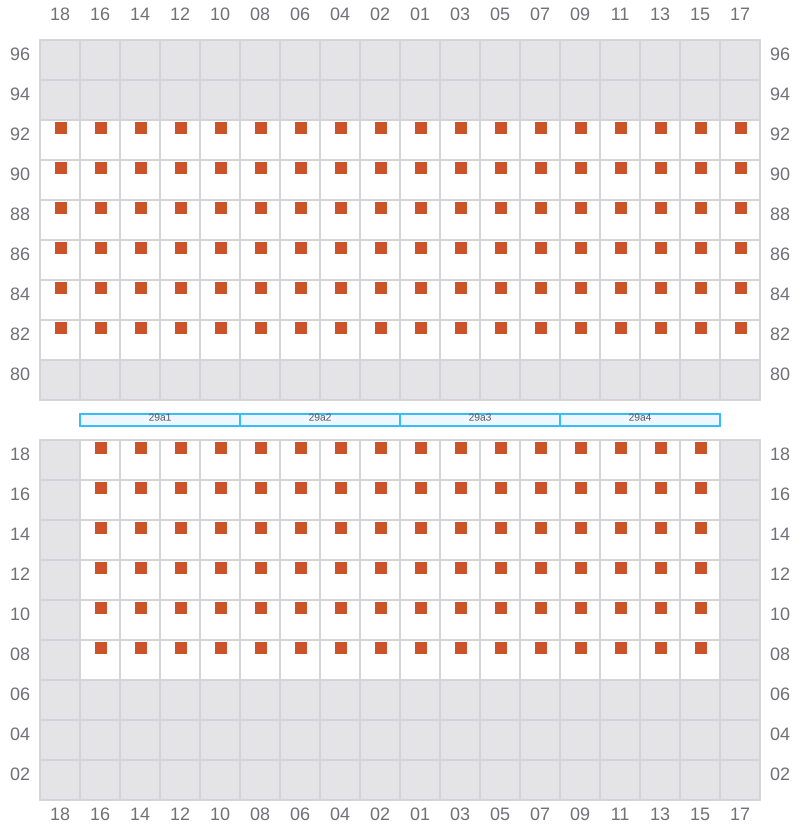

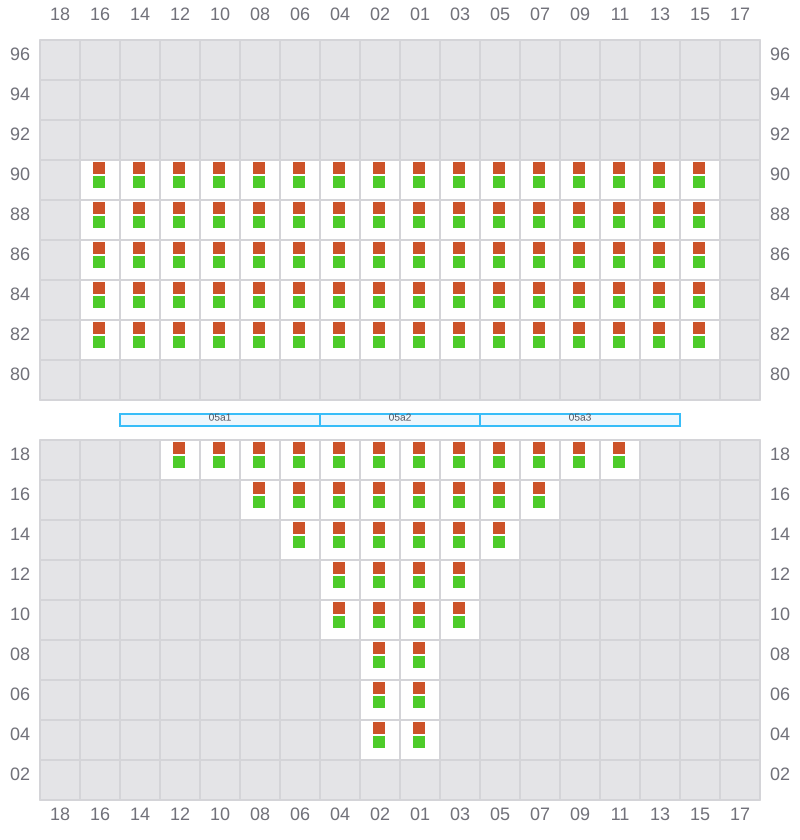

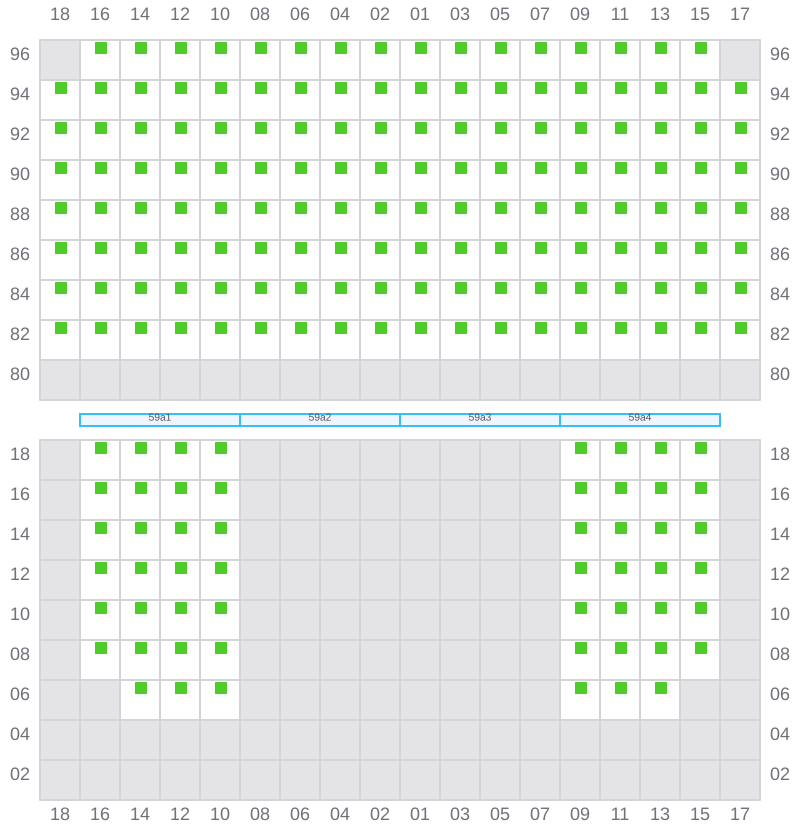

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
003 (002)
- ← / ?
005
- →
007 (006)
- ←
009
- →
011 (010)
- ←

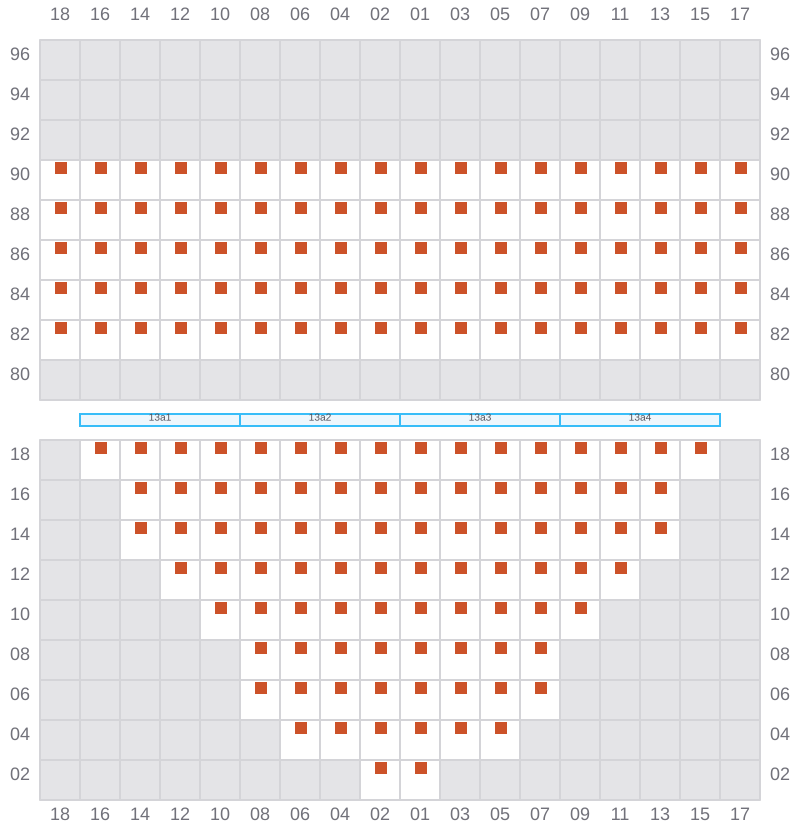

013
- →
015 (014)
- ←
017
- →
019 (018)
- ←
021
- →
023 (022)
- ←

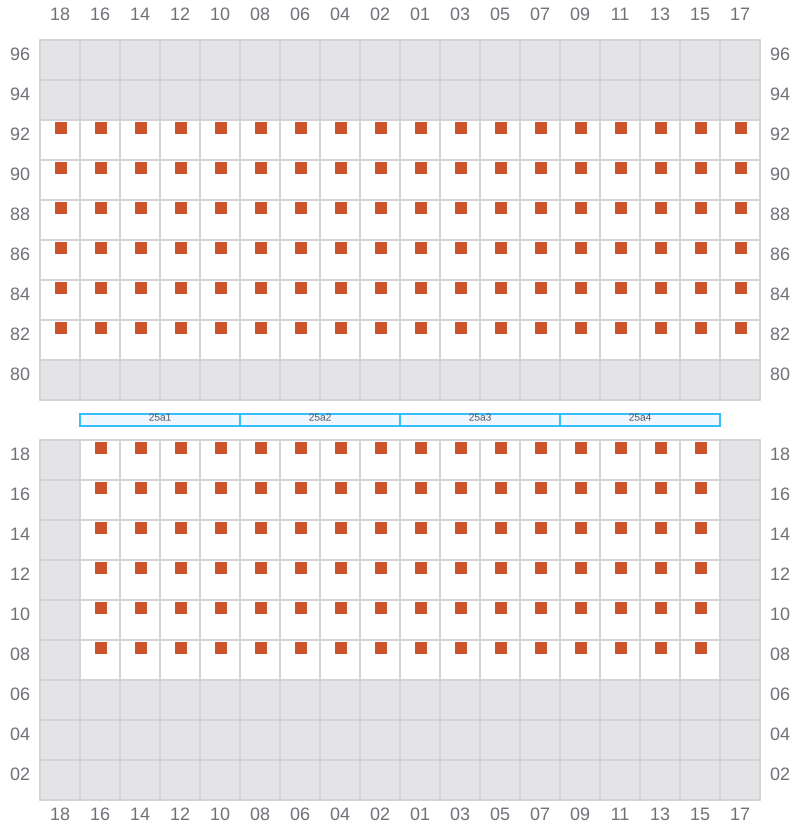

025
- →
027 (026)
- ←

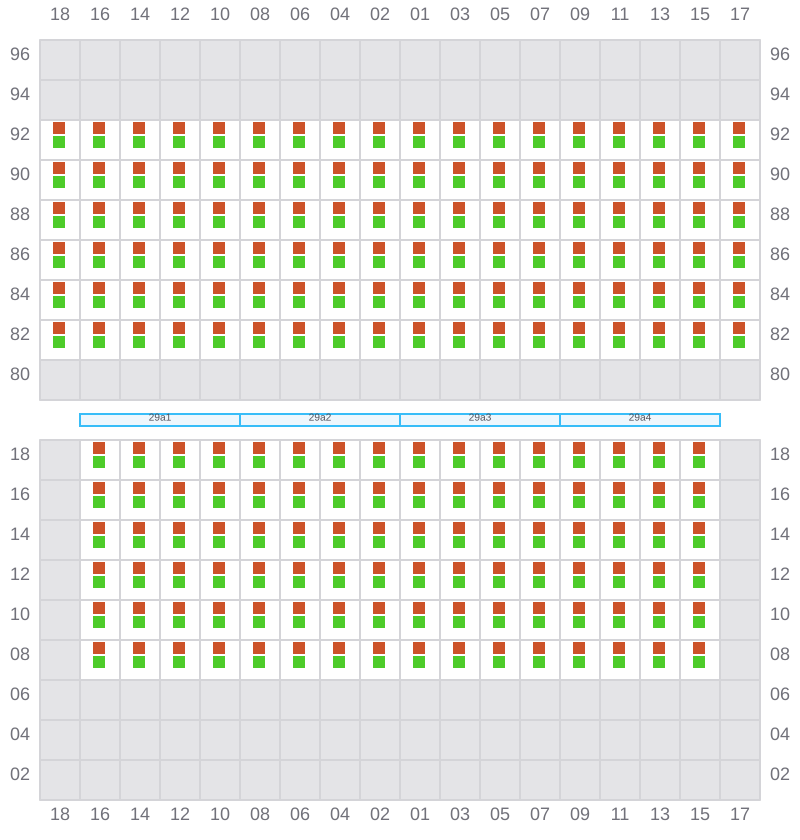

029
- →
031 (030)
- ←
033
- →
035 (034)
- ←

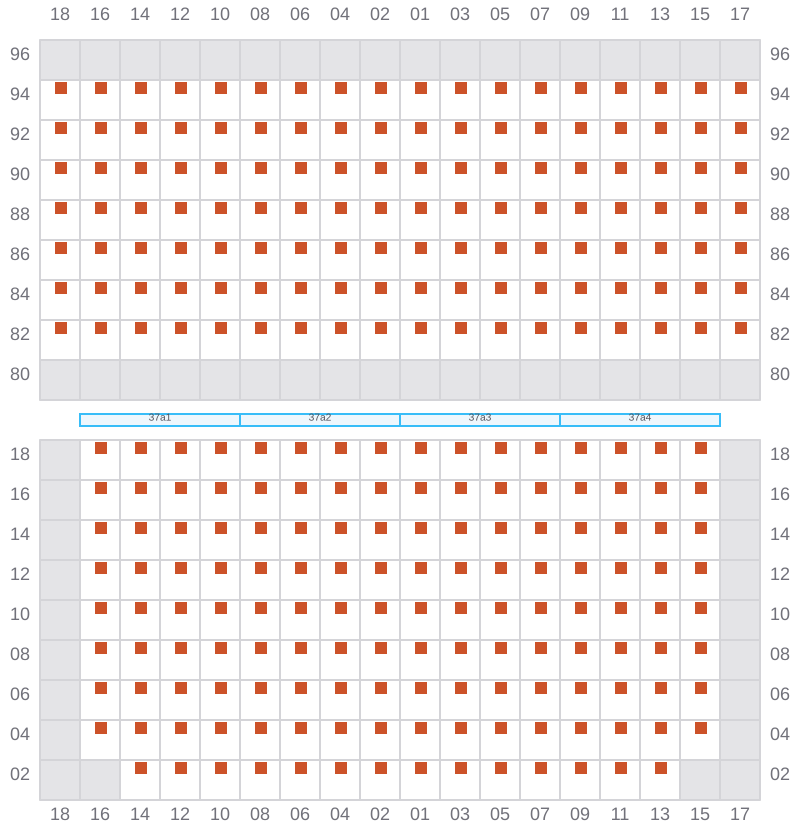

037
- →
039 (038)
- ←
041
- →
043 (042)
- ←

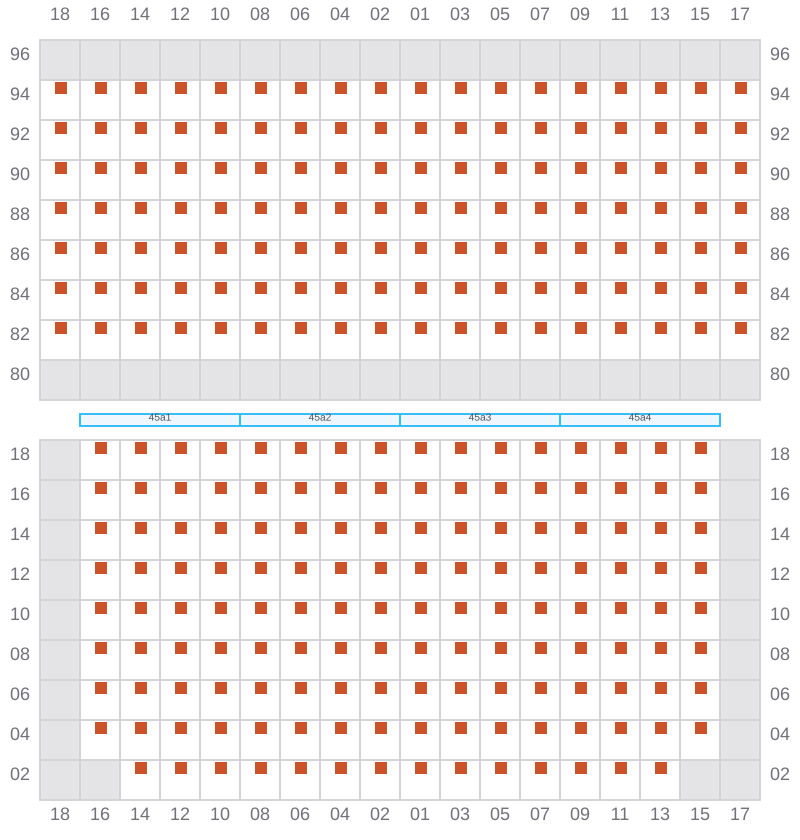

045
- →
047 (046)
- ←

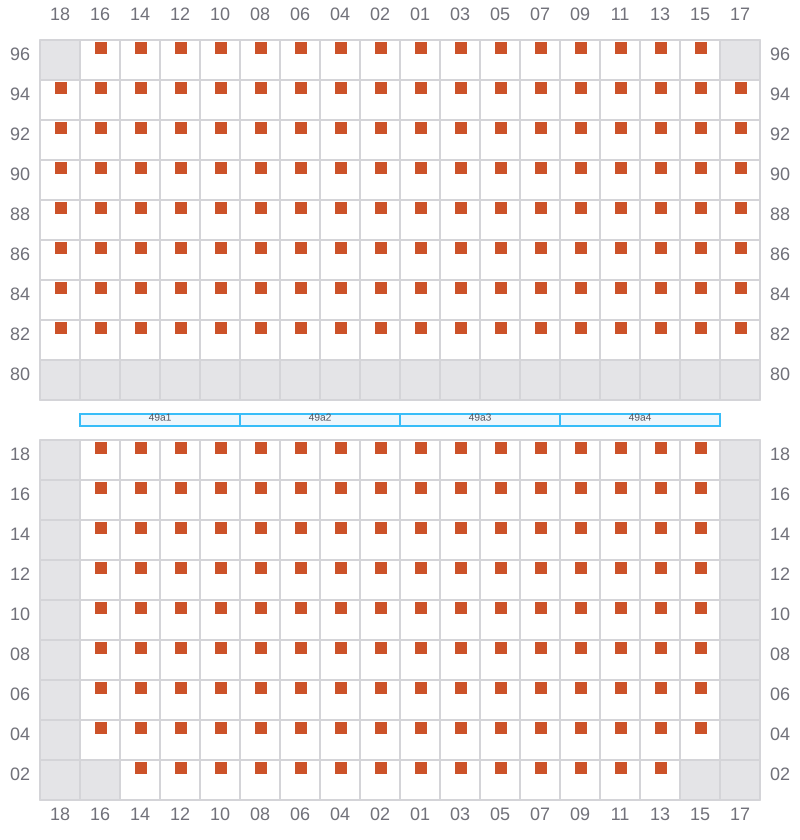

049
- →
051 (050)
- ←
053

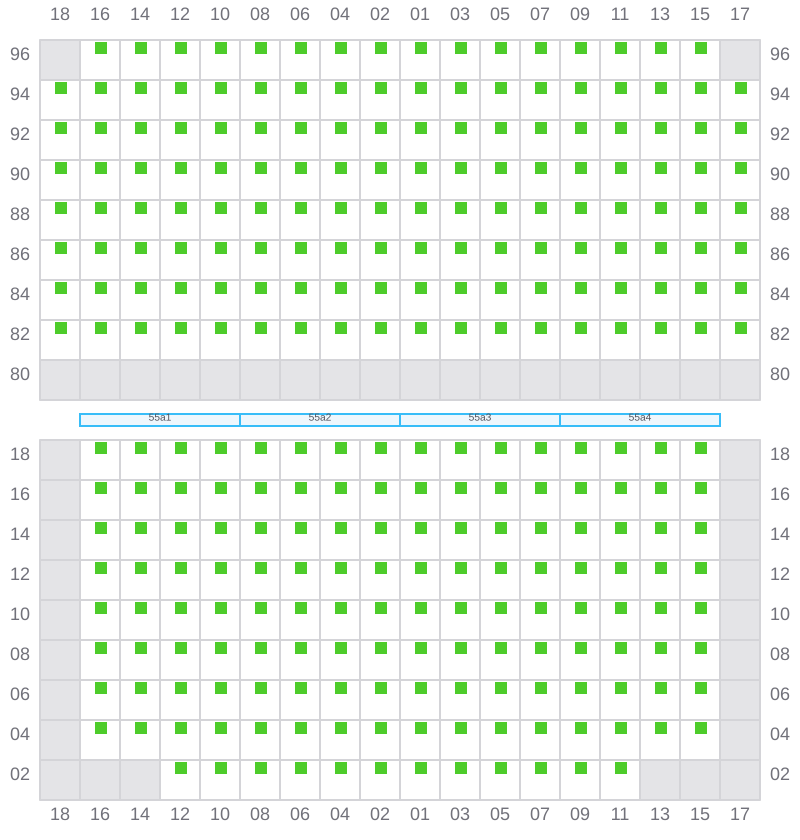

055 (054)
- ←
057
059 (058)
- ←

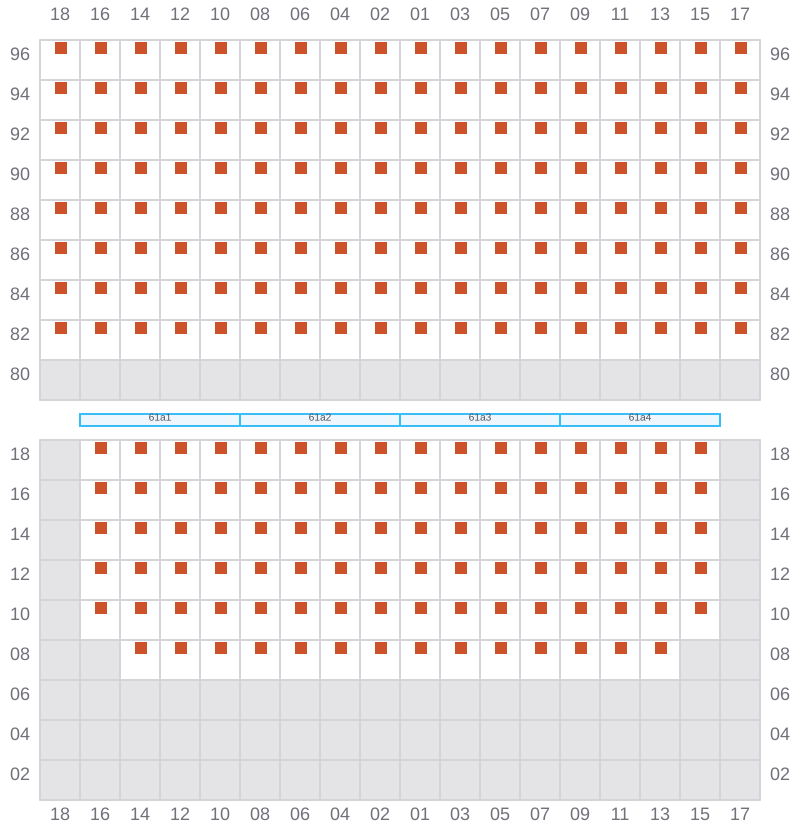

061
- →
063 (062)
- ←

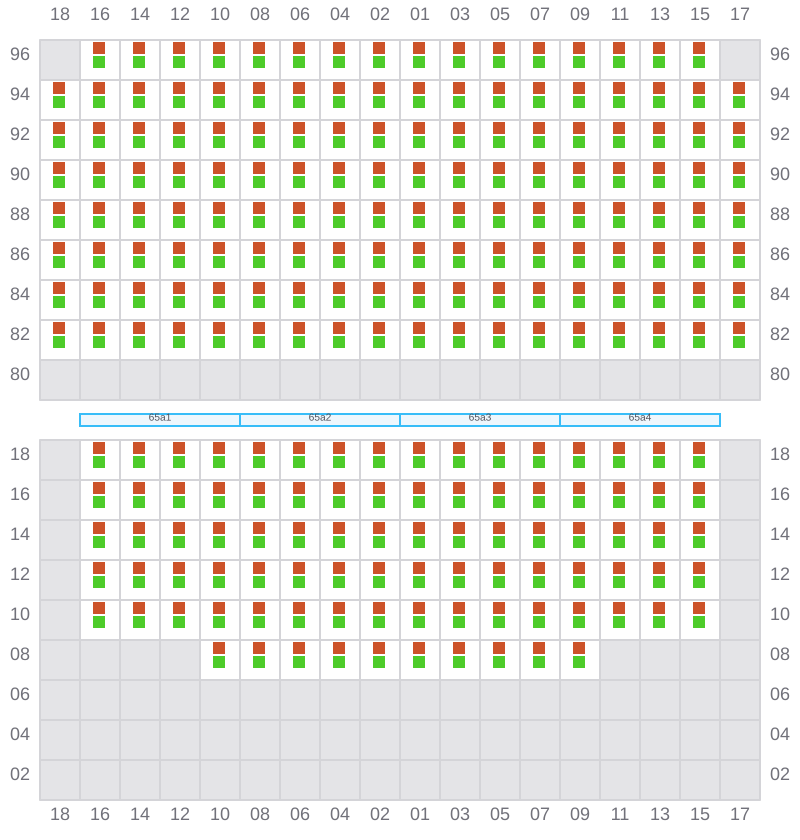

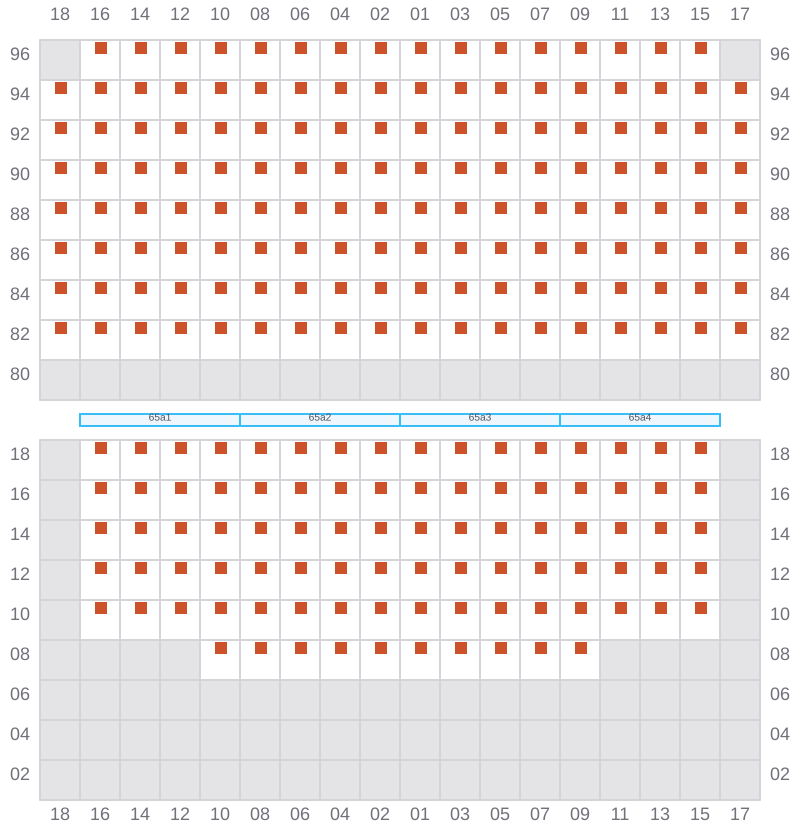

065
- →
067 (066)
- ←

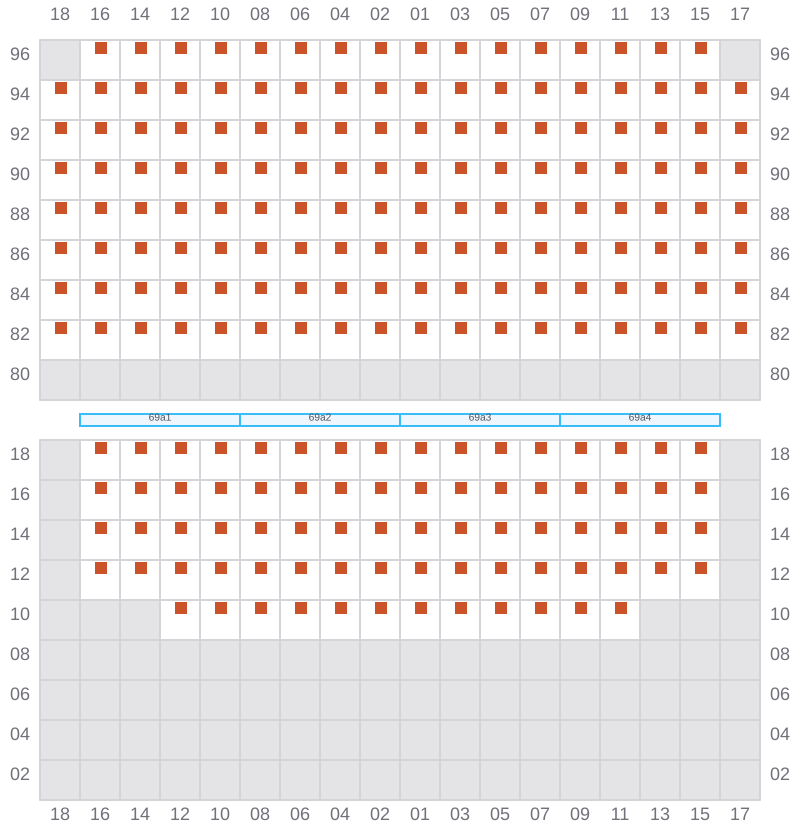

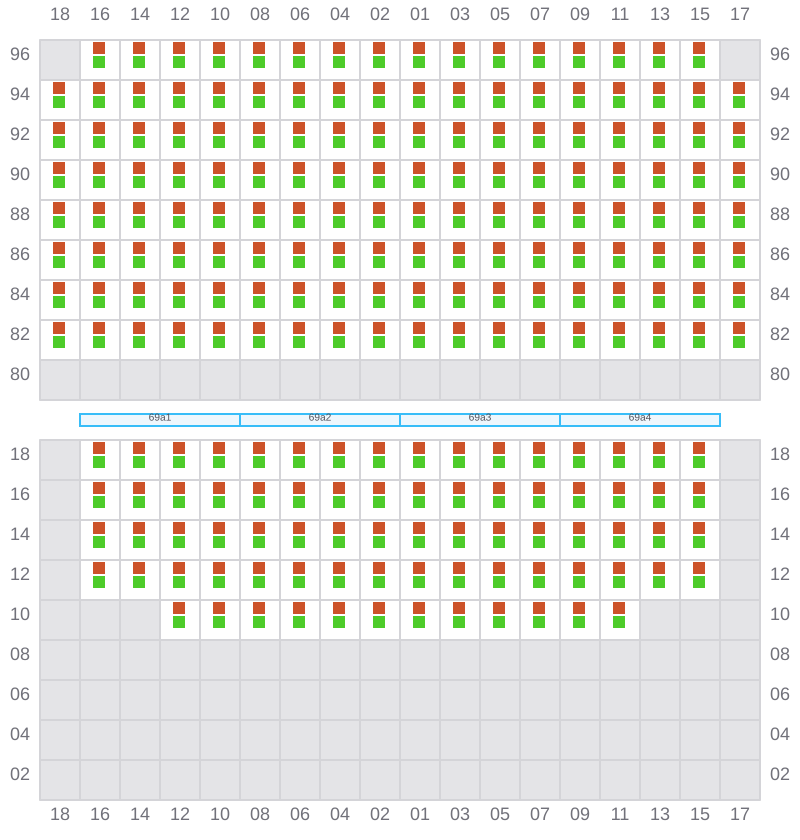

069
- →
071 (070)
- ←

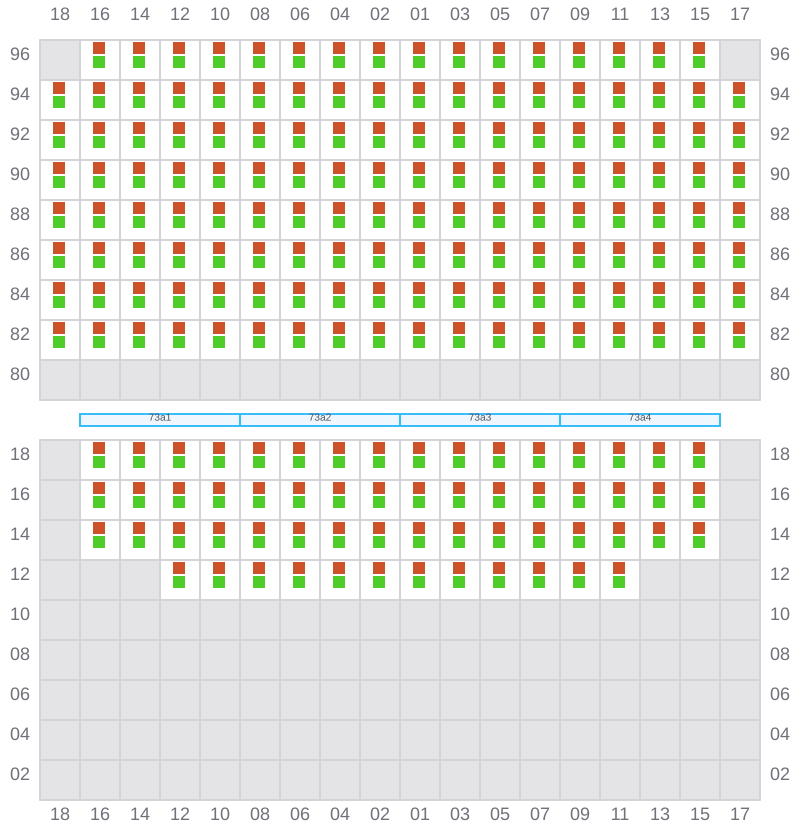

073
- →
075 (074)
- ←
077

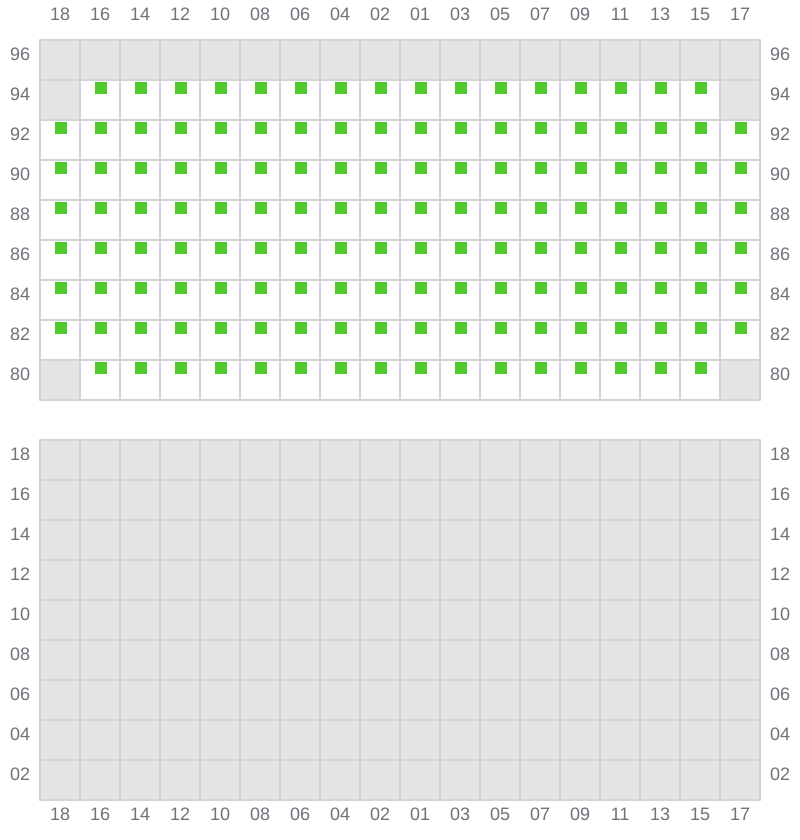

079 (078)
- ← / ?
