EVER LAMBENT
9595436 | 2FRE8 | 9595436 by ********* Last update: Tue May 07 2024
General Info
Ship Name:EVER LAMBENT
IMO Code:9595436
Call Sign:2FRE8
Line Operator:9595436
Class Name for Sister Ships:EVER LAMBENT
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,452
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

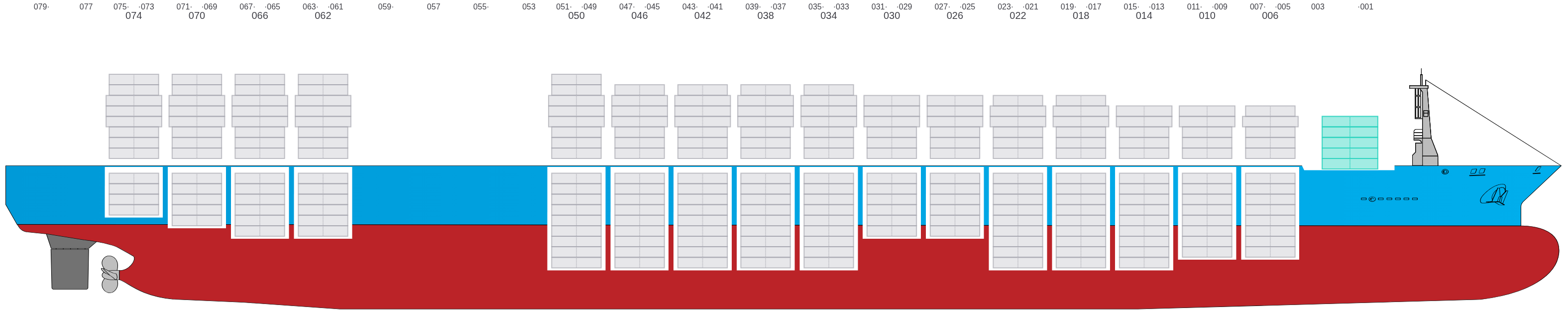

Side View
Hatch-Covers View

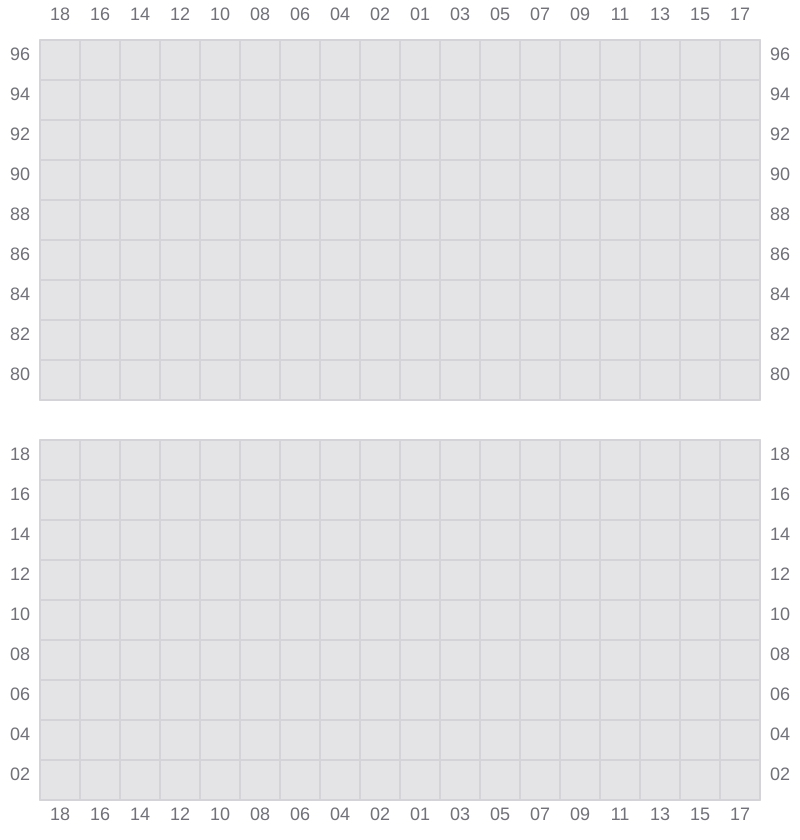

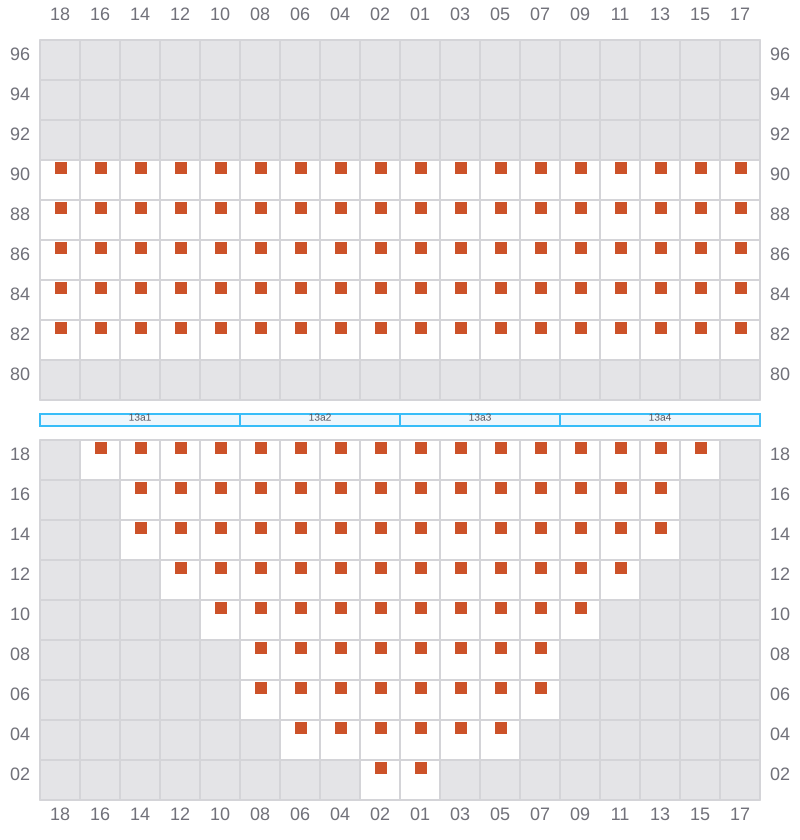

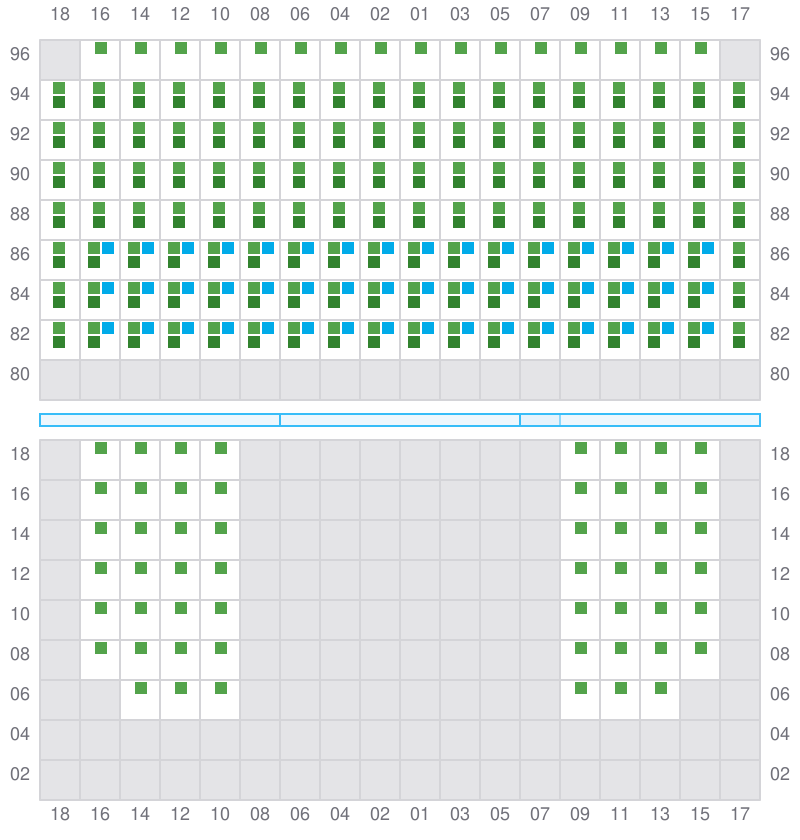

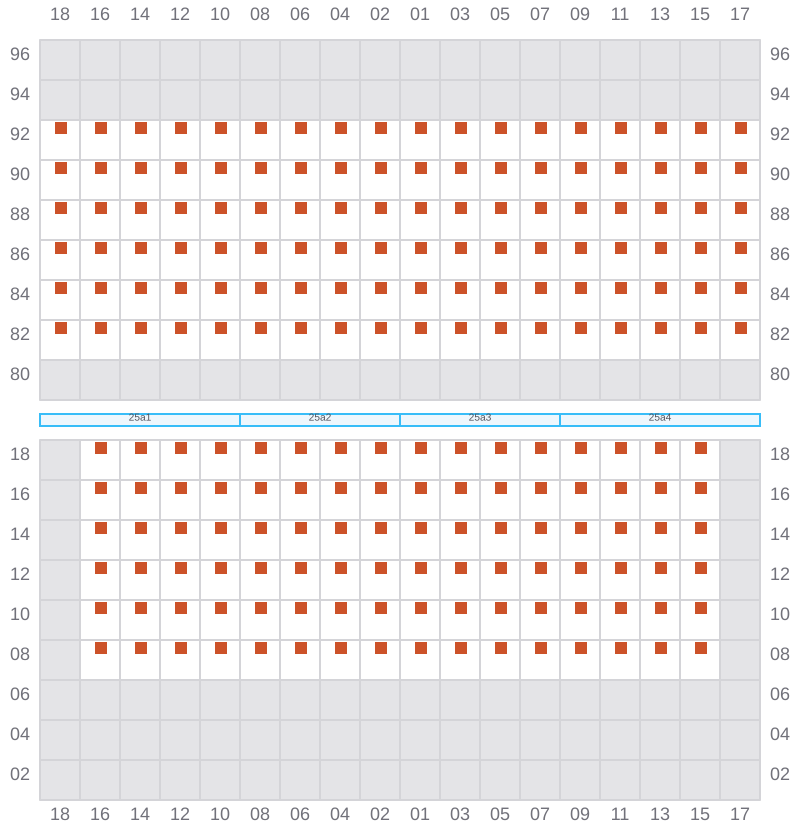

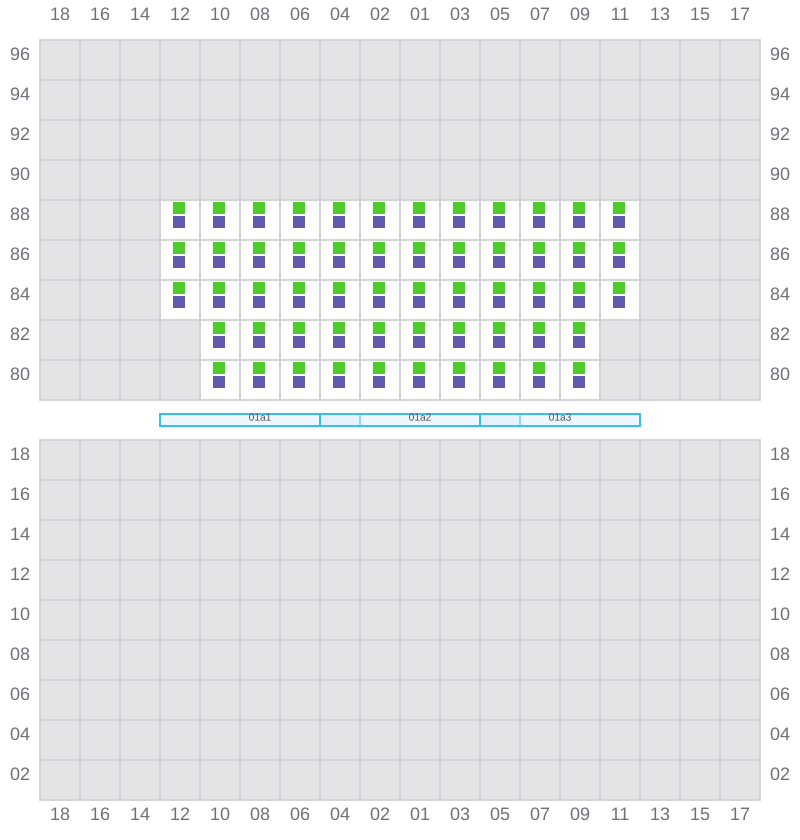

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- → / ?
003
005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←
017
- →
019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
055 (054)
- ←
057
059 (058)
- ←
061
- →
063 (062)
- ←
065
- →
067 (066)
- ←
069
- →
071 (070)
- ←
073
- →
075 (074)
- ←
077
079 (078)
- ← / ?
