EVER LEGEND
9604093 | 9V9724 | 9604093 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:EVER LEGEND
IMO Code:9604093
Call Sign:9V9724
Line Operator:9604093
Class Name for Sister Ships:EVER LEGEND
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:40, 20, 45
LPP (LBP):317.00
LOA (Length Overall):334.98
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,454
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

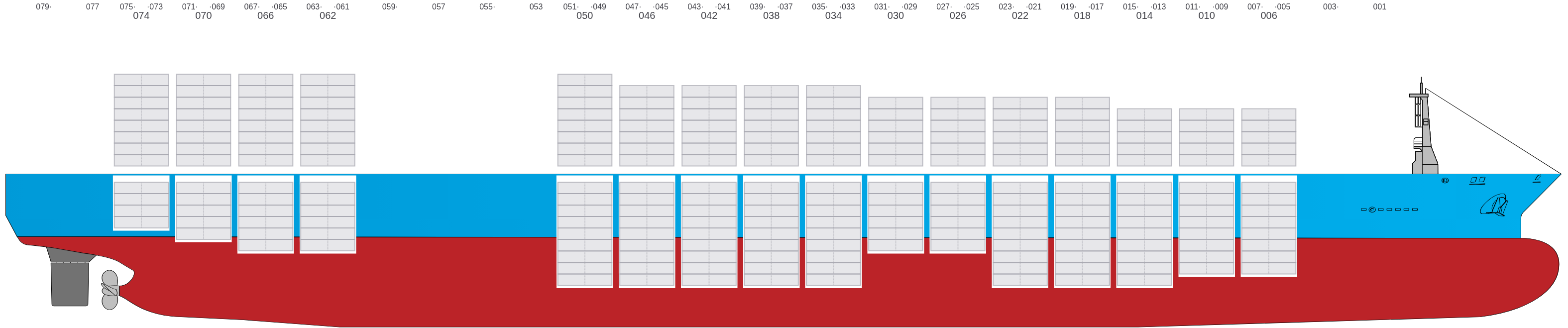

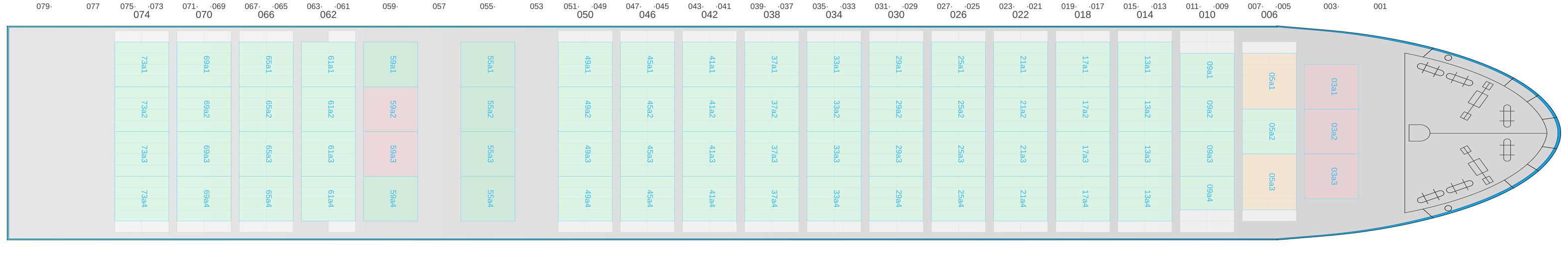

Side View

Hatch-Covers View

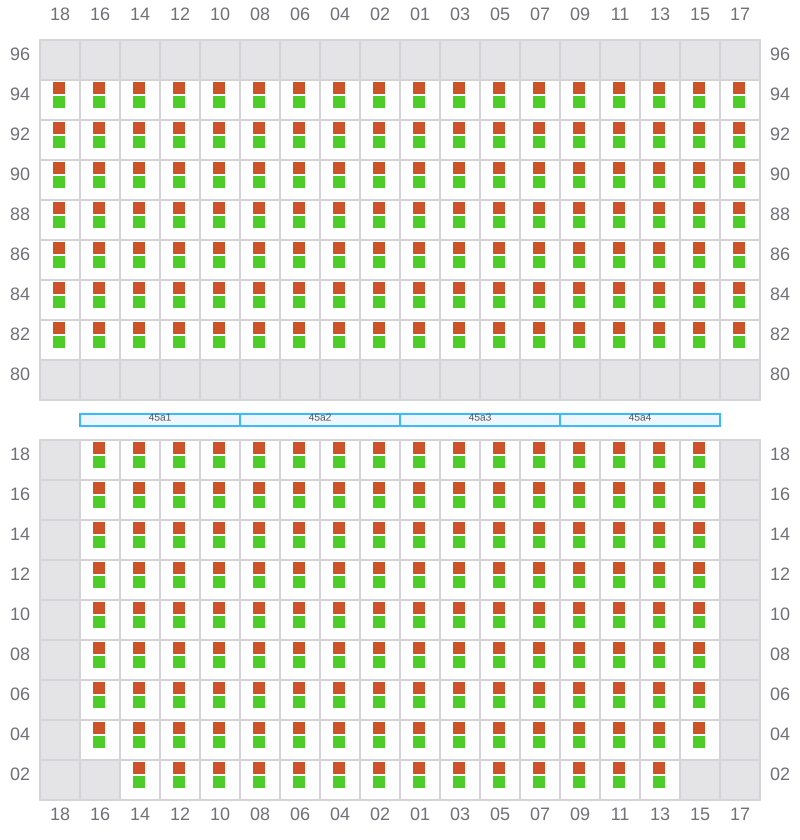

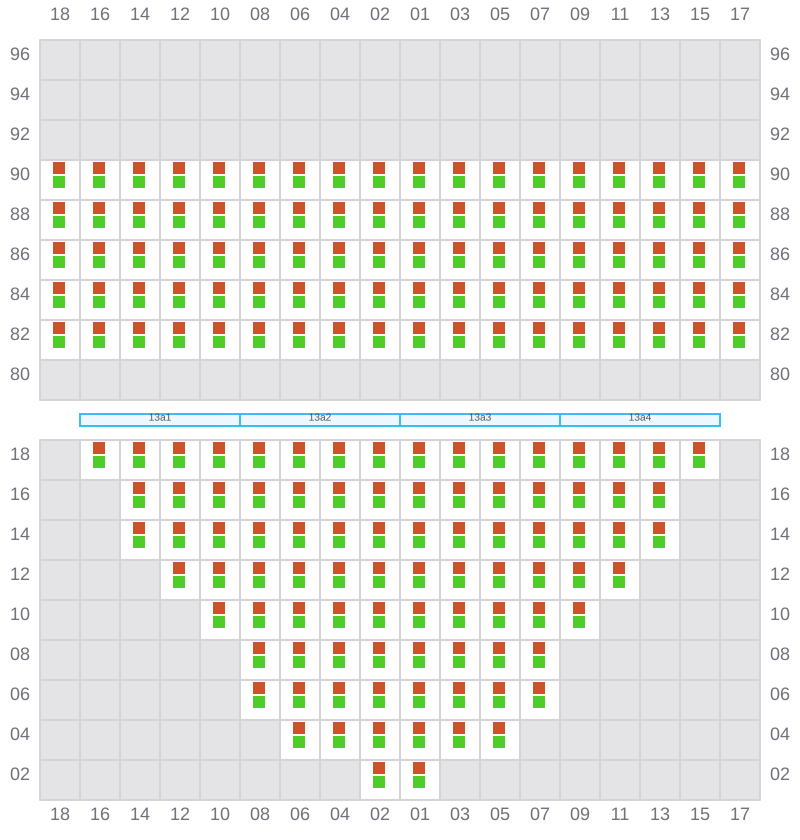

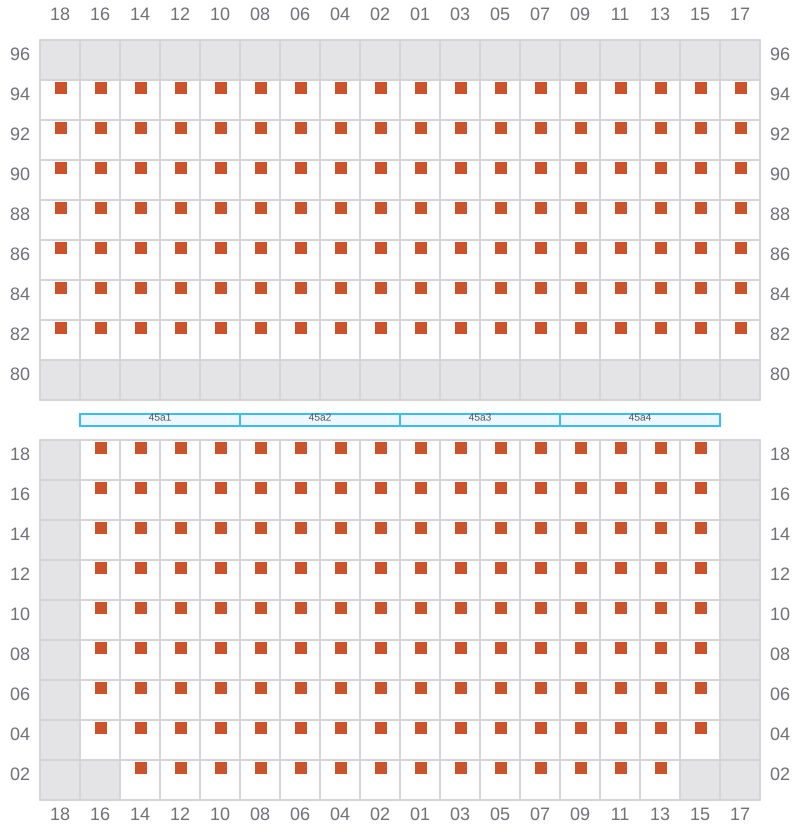

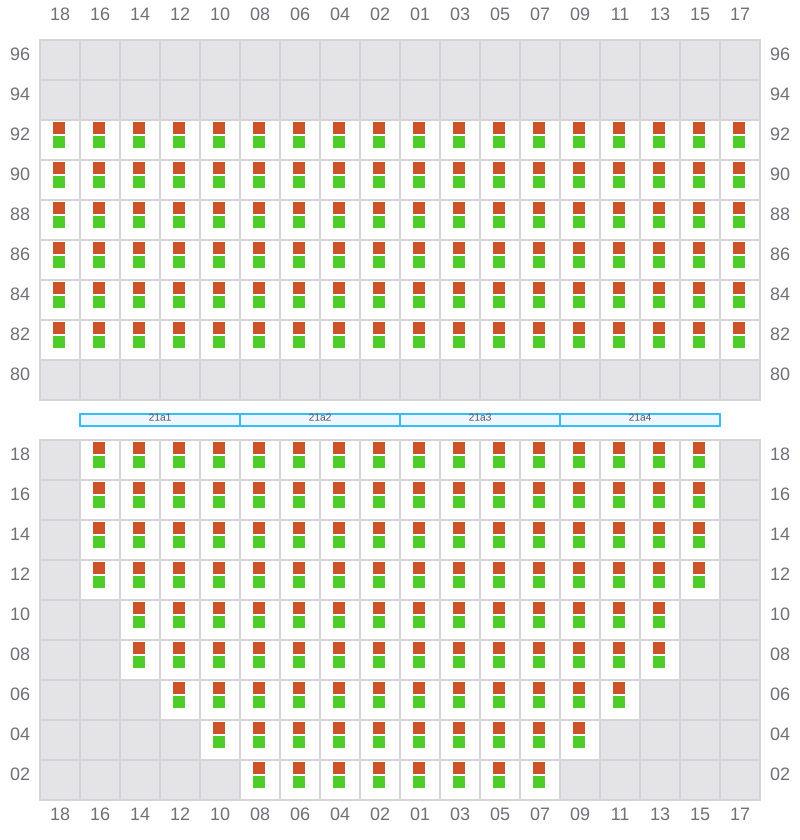

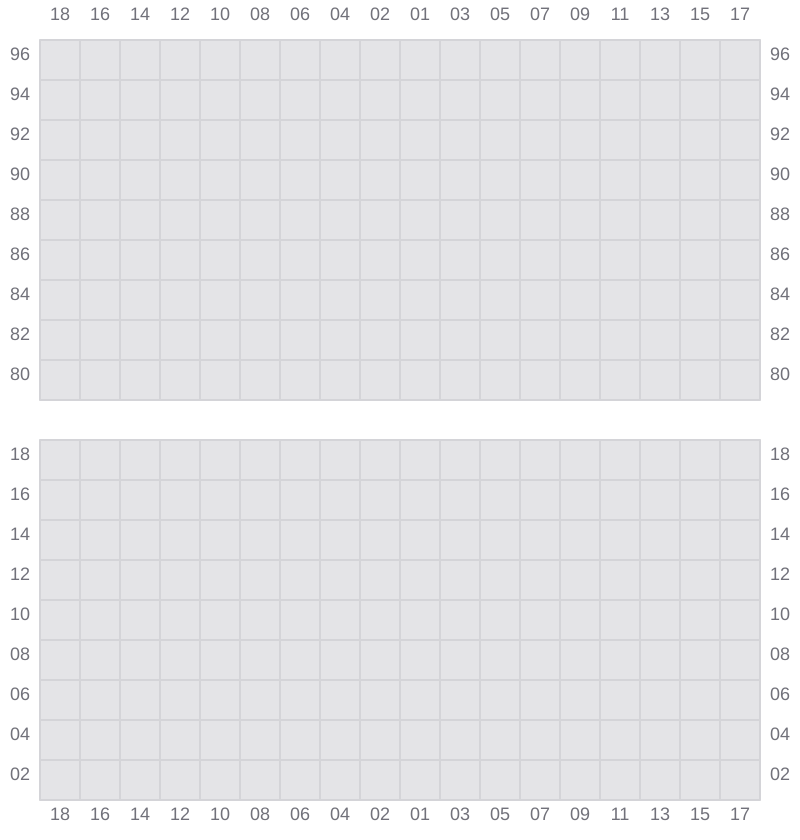

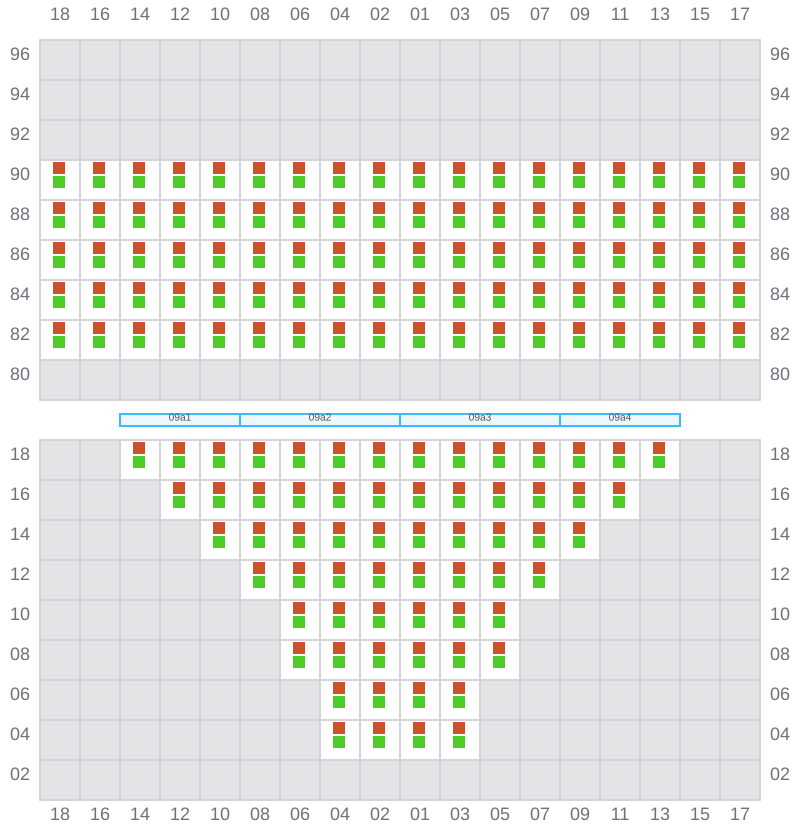

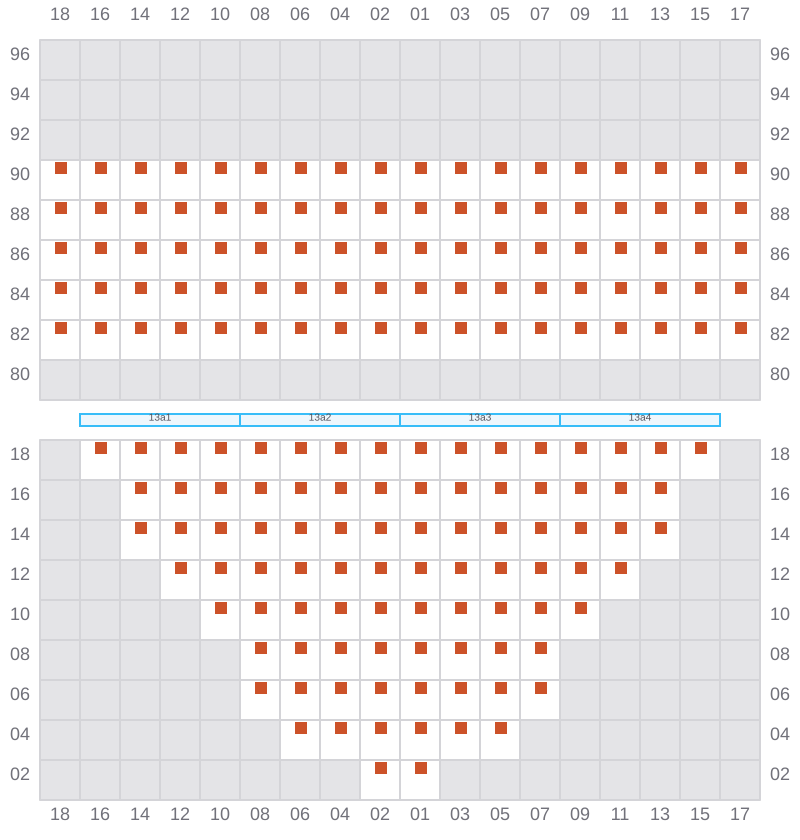

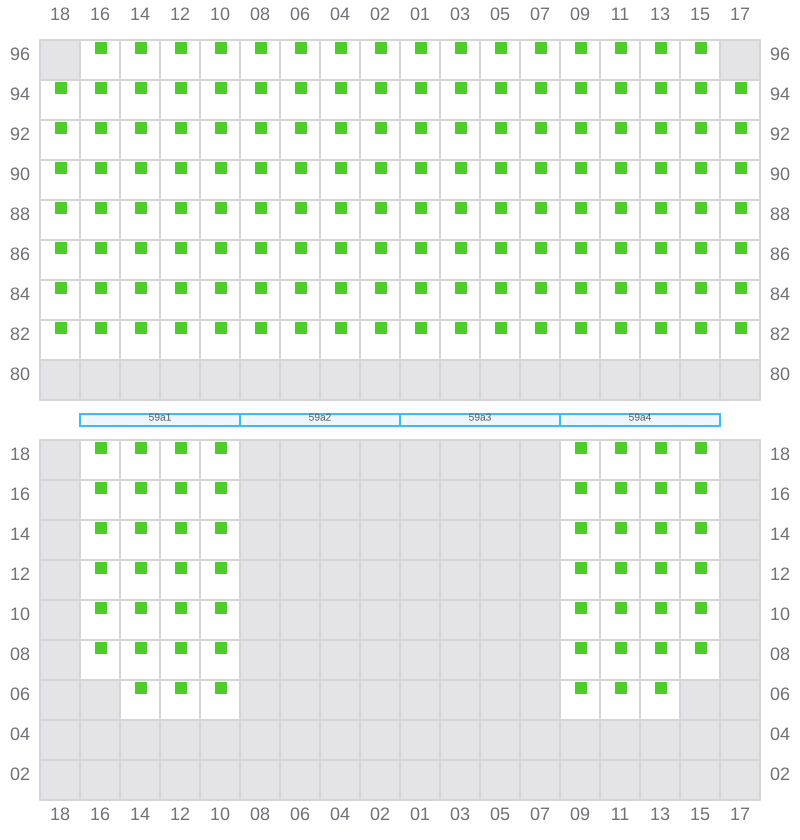

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001

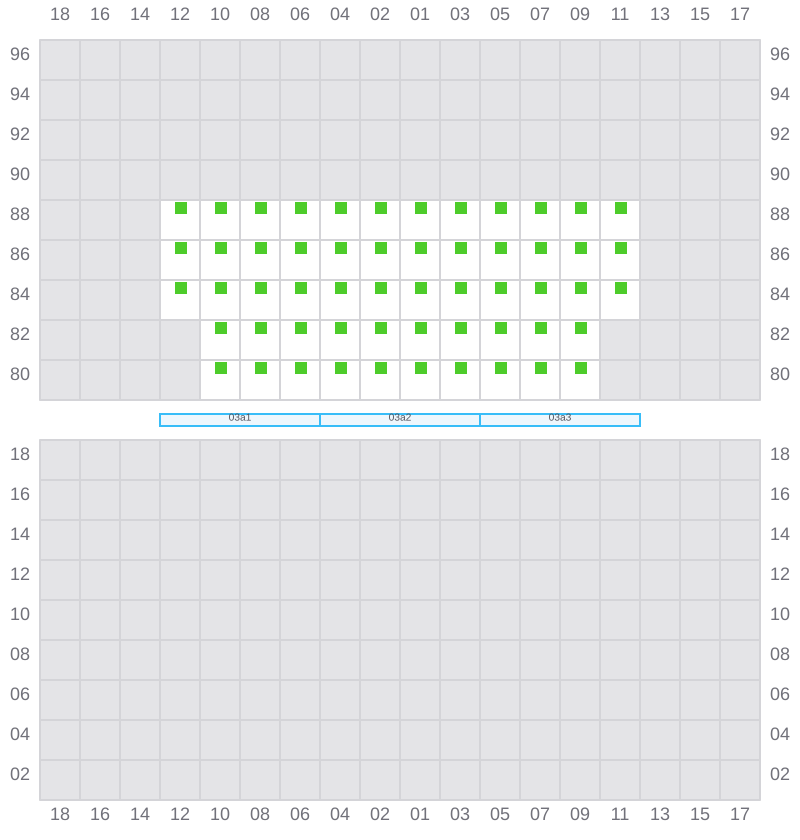

003 (002)
- ← / ?

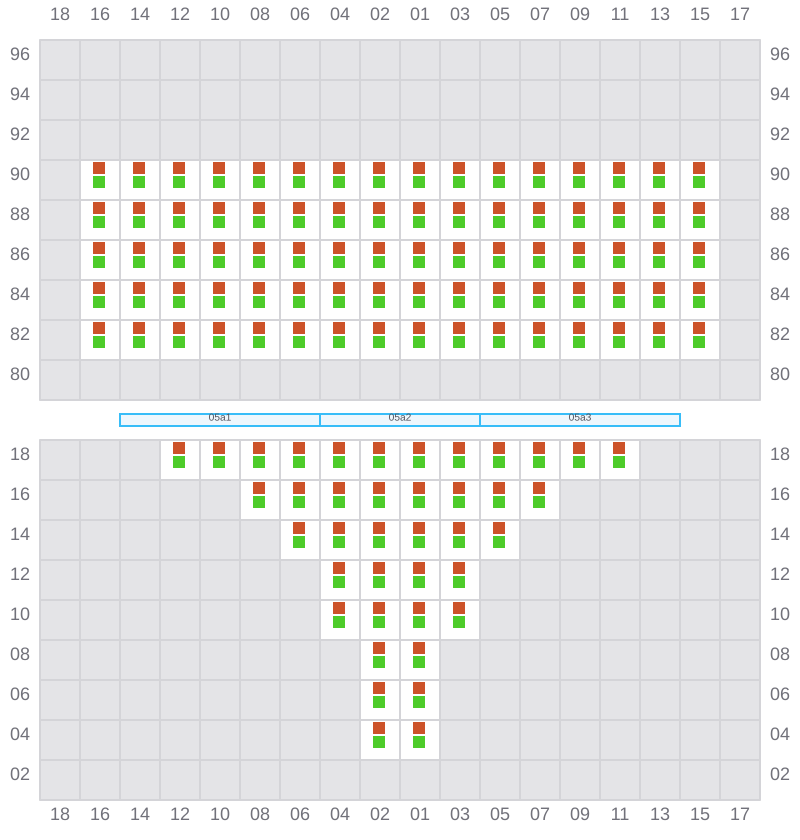

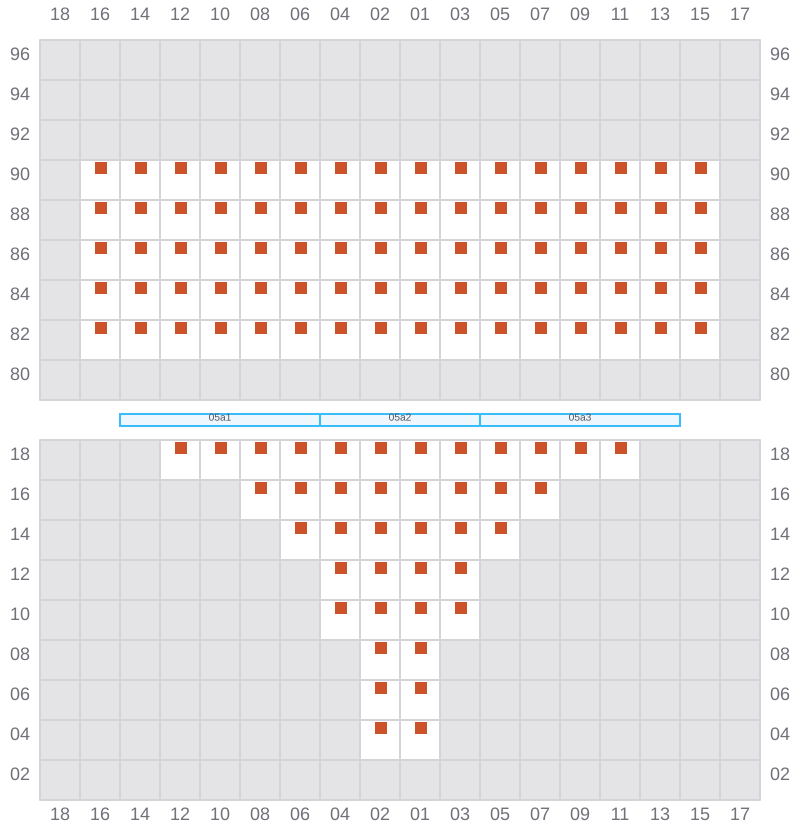

005
- →

007 (006)
- ←

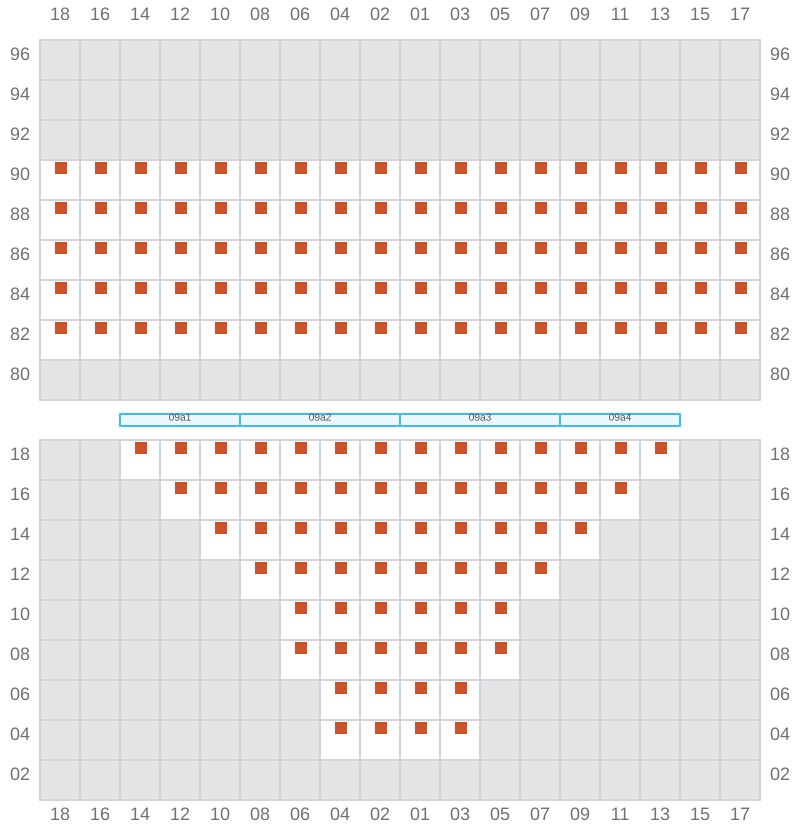

009
- →

011 (010)
- ←

013
- →

015 (014)
- ←

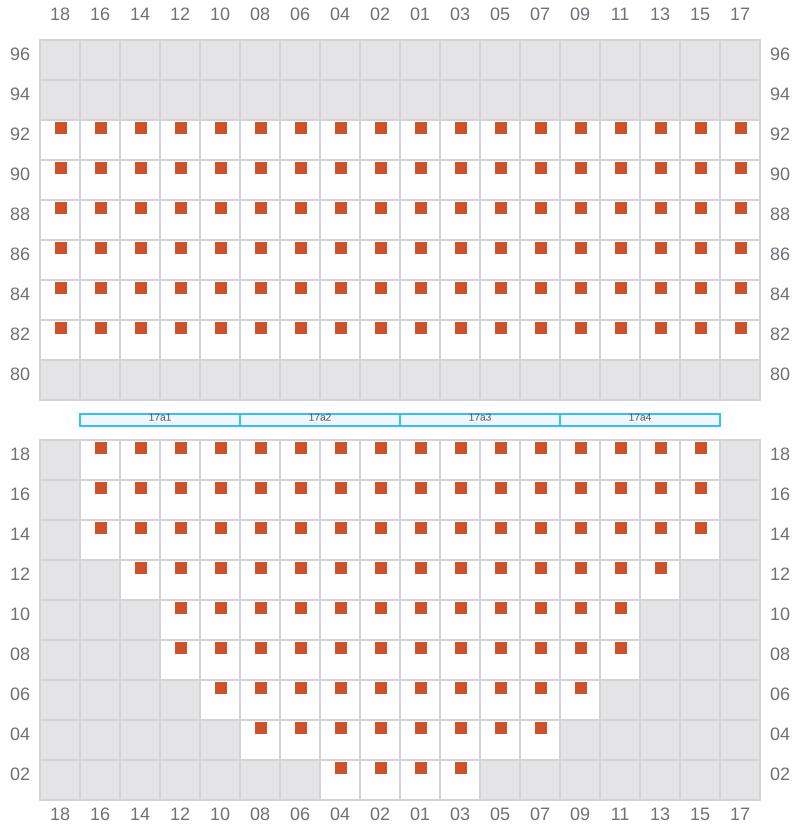

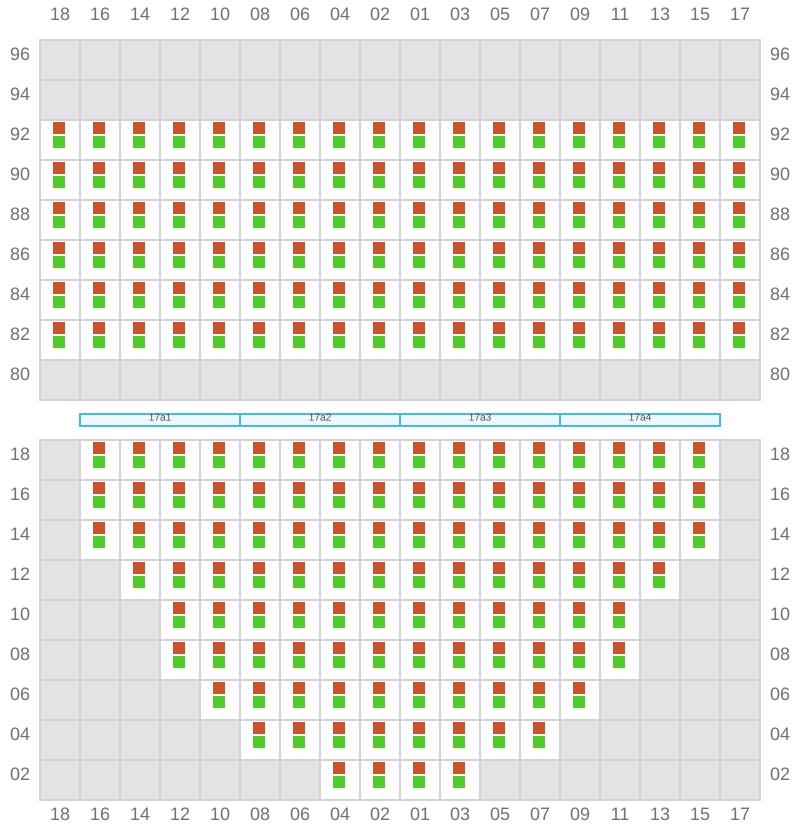

017
- →

019 (018)
- ←

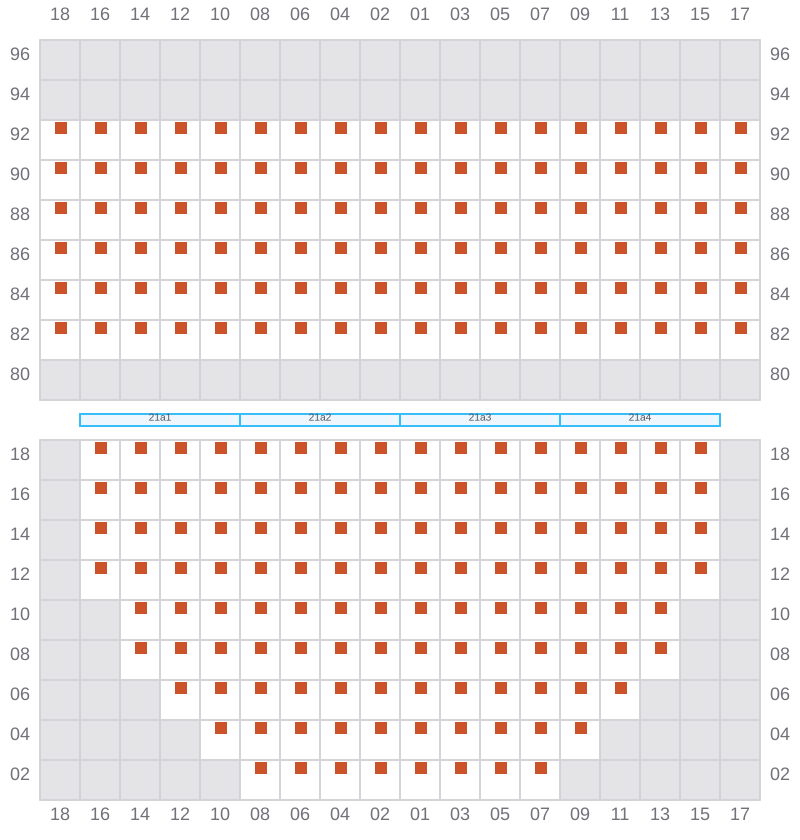

021
- →

023 (022)
- ←

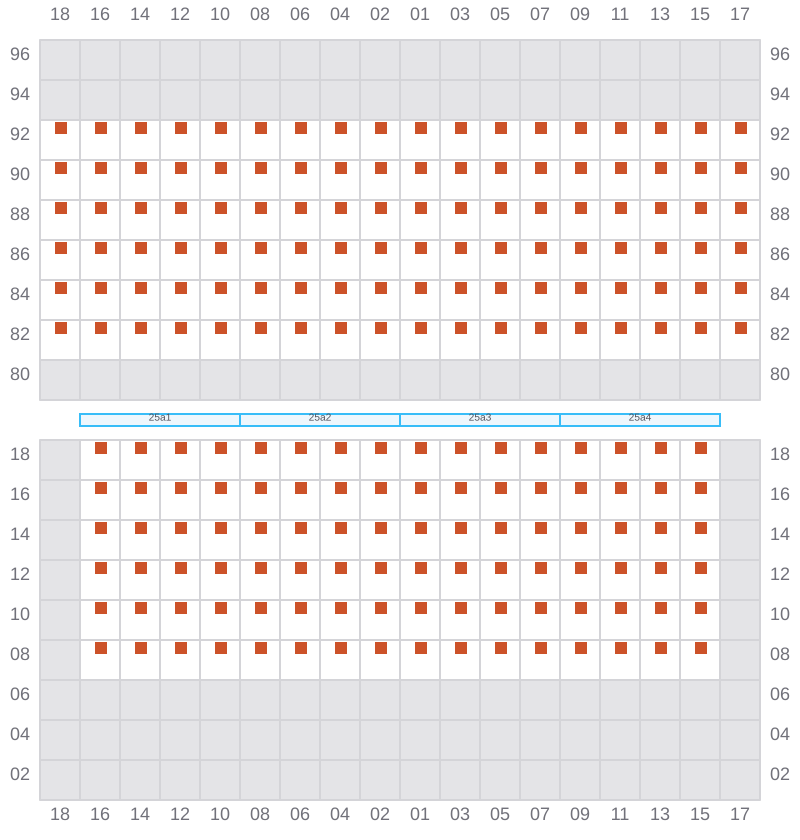

025
- →

027 (026)
- ←

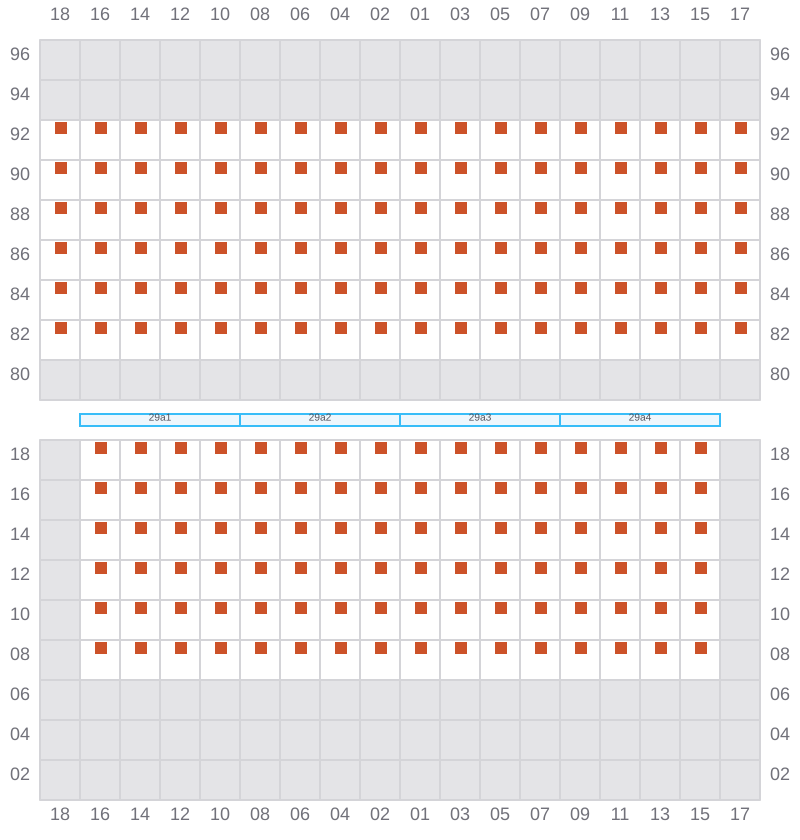

029
- →

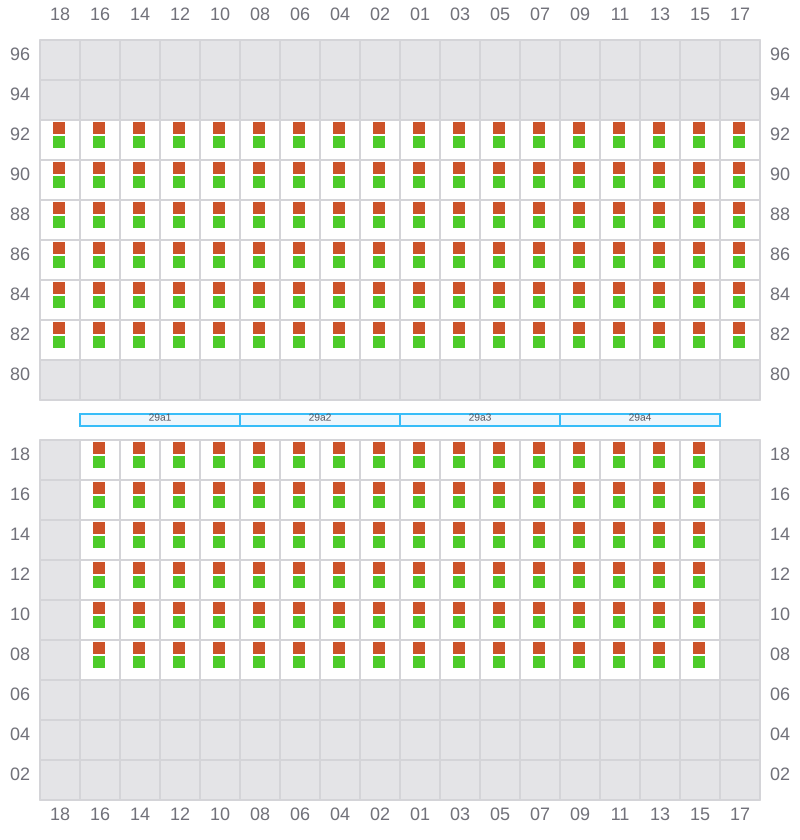

031 (030)
- ←

033
- →

035 (034)
- ←

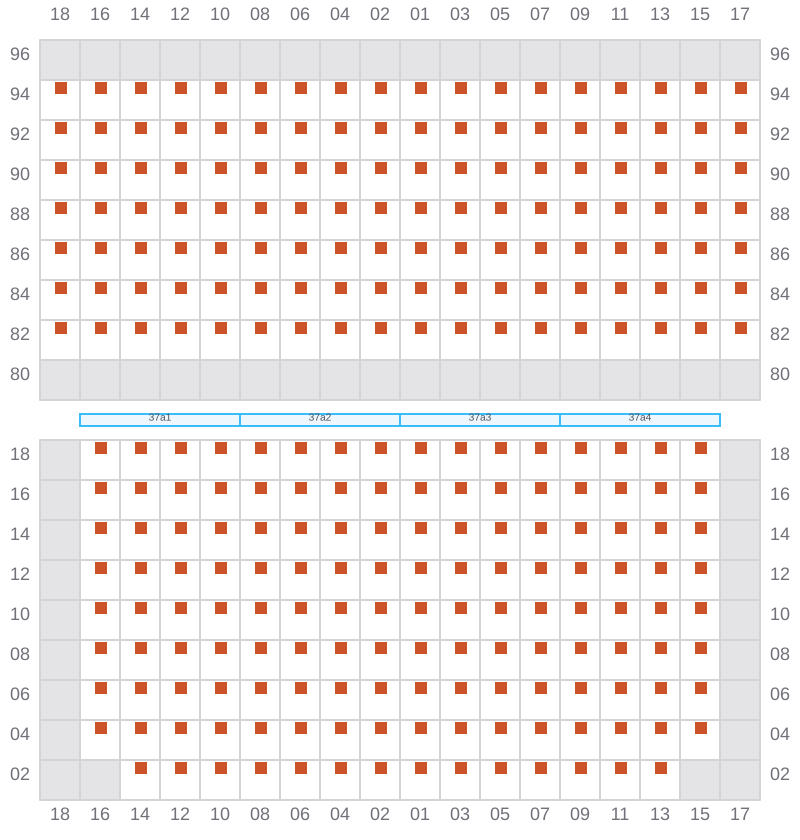

037
- →

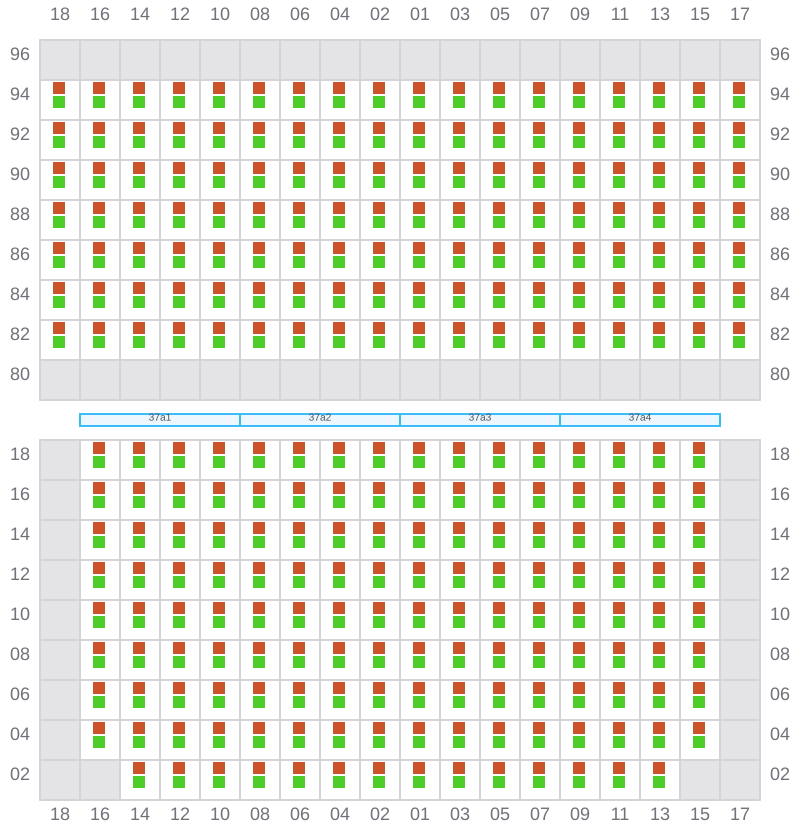

039 (038)
- ←

041
- →

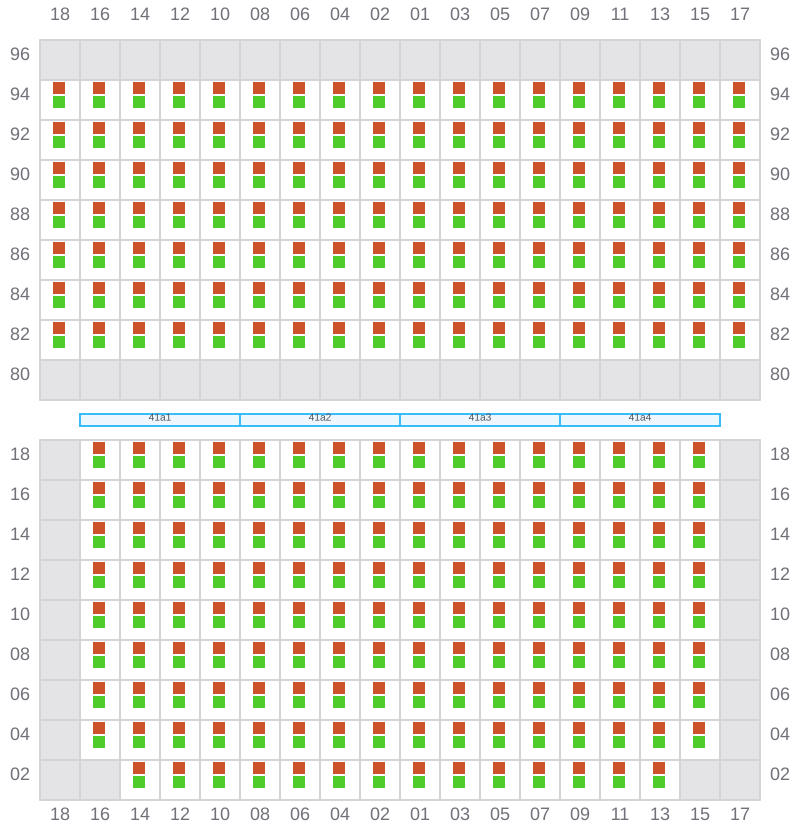

043 (042)
- ←

045
- →

047 (046)
- ←

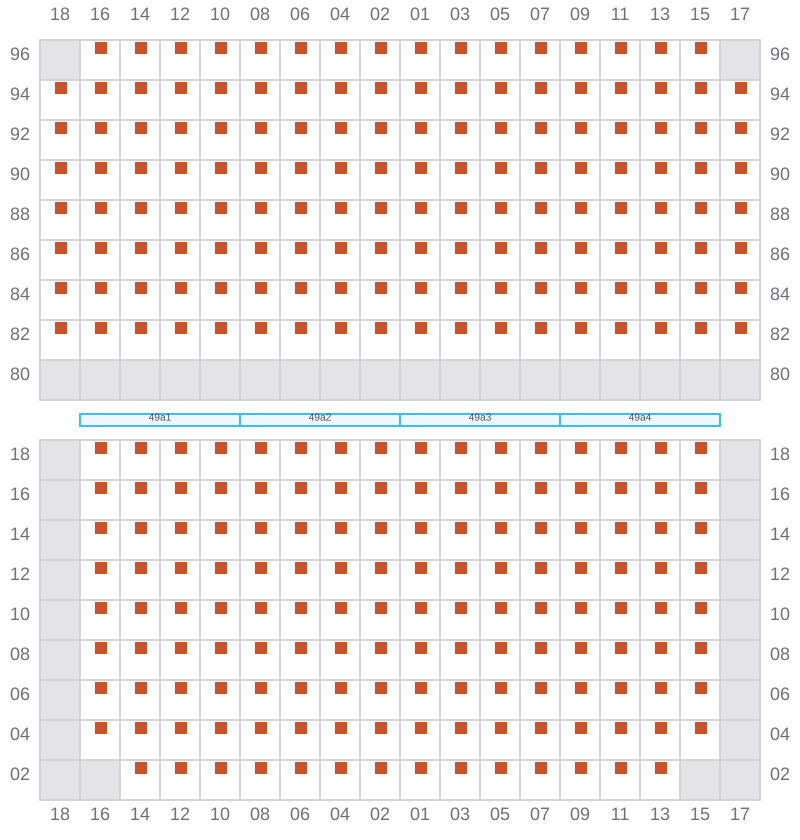

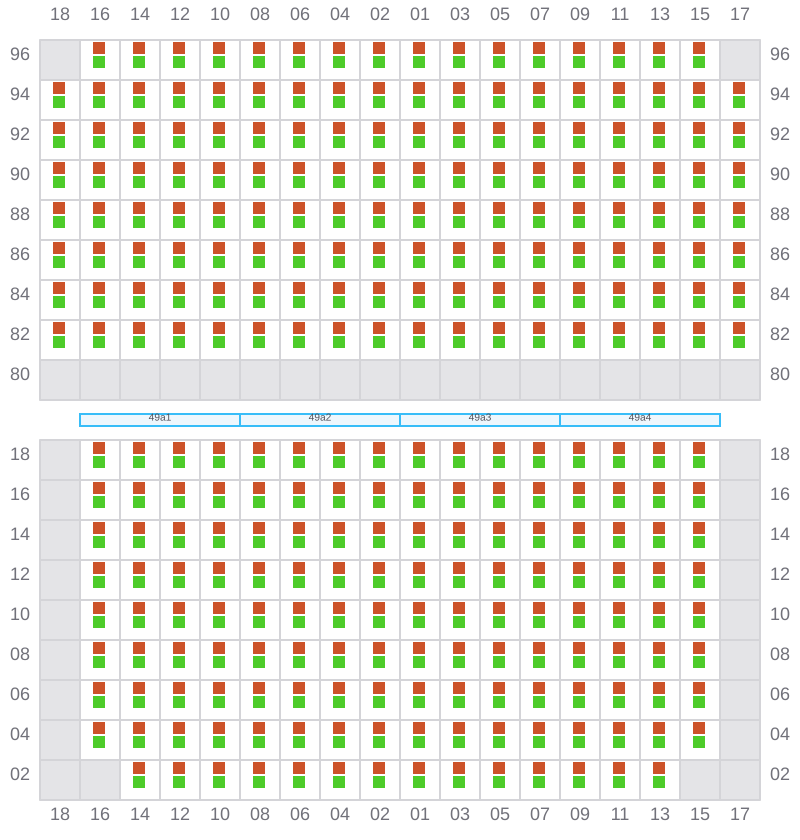

049
- →

051 (050)
- ←

053

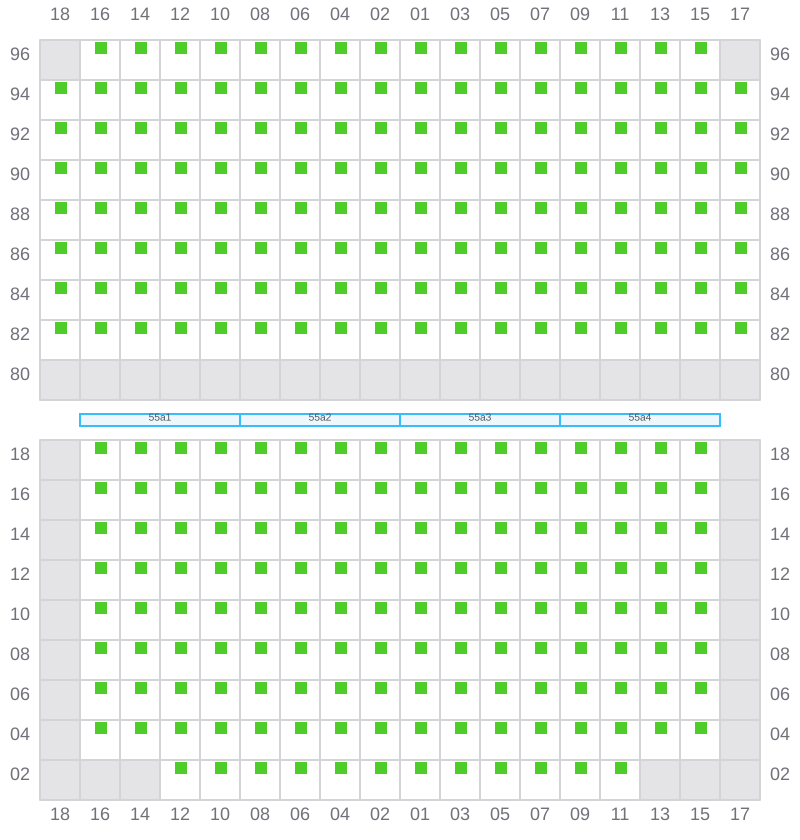

055 (054)
- ←

057

059 (058)
- ←

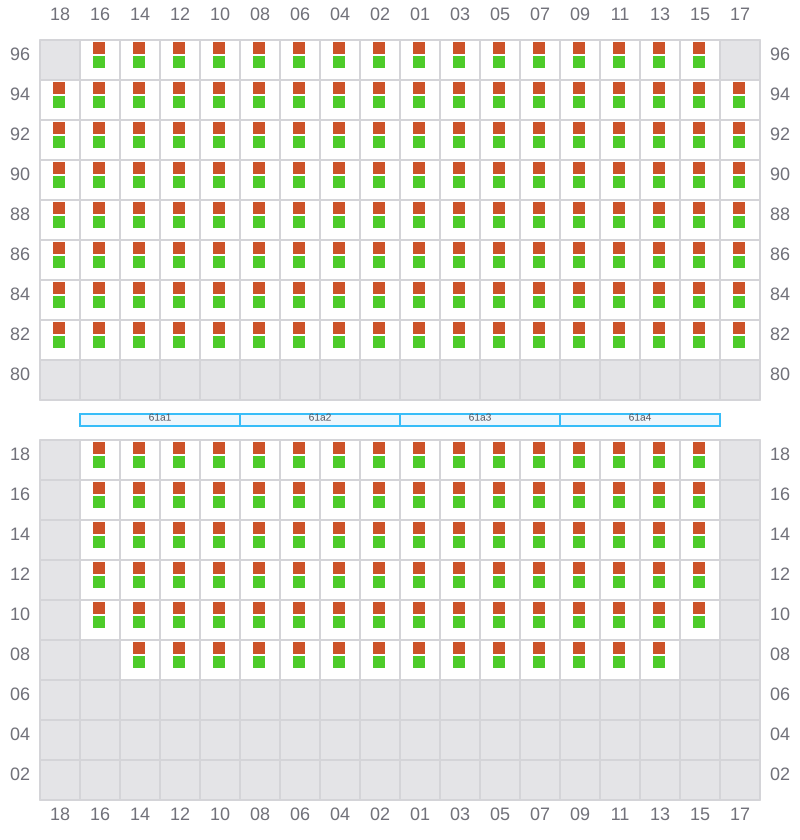

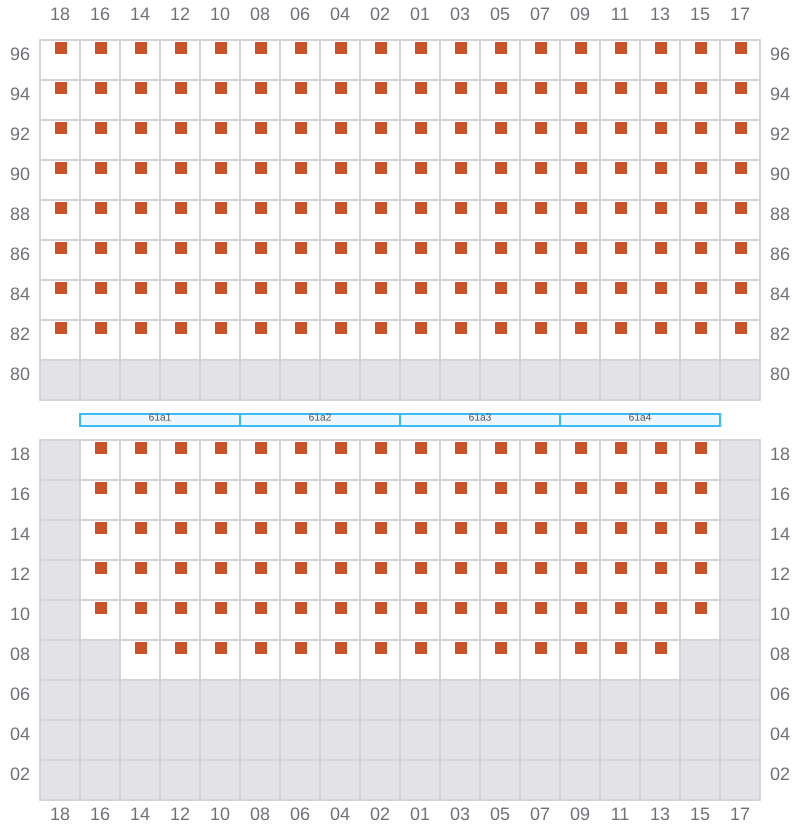

061
- →

063 (062)
- ←

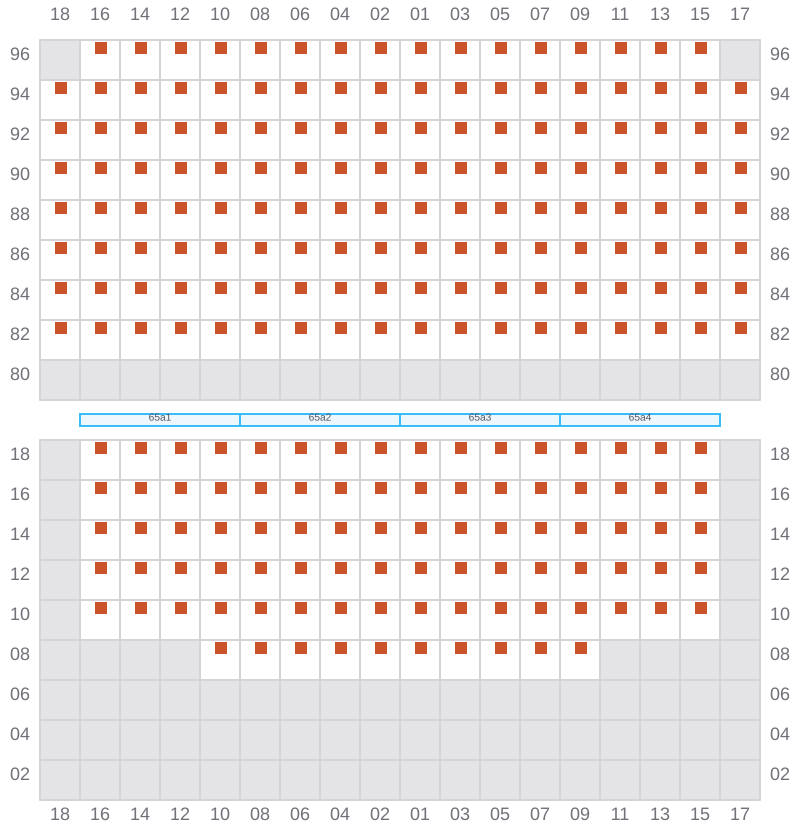

065
- →

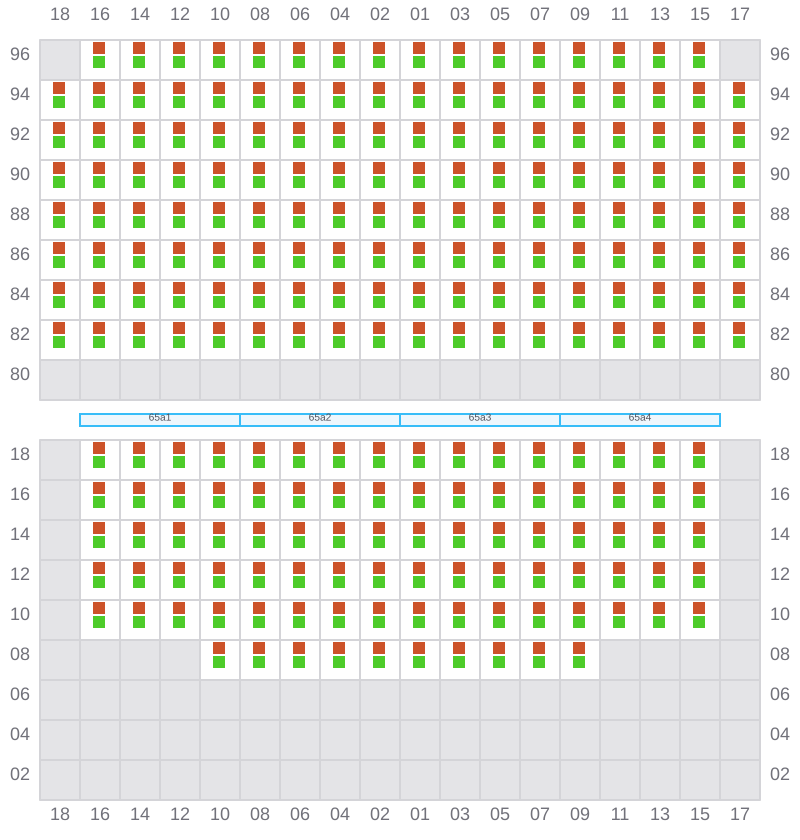

067 (066)
- ←

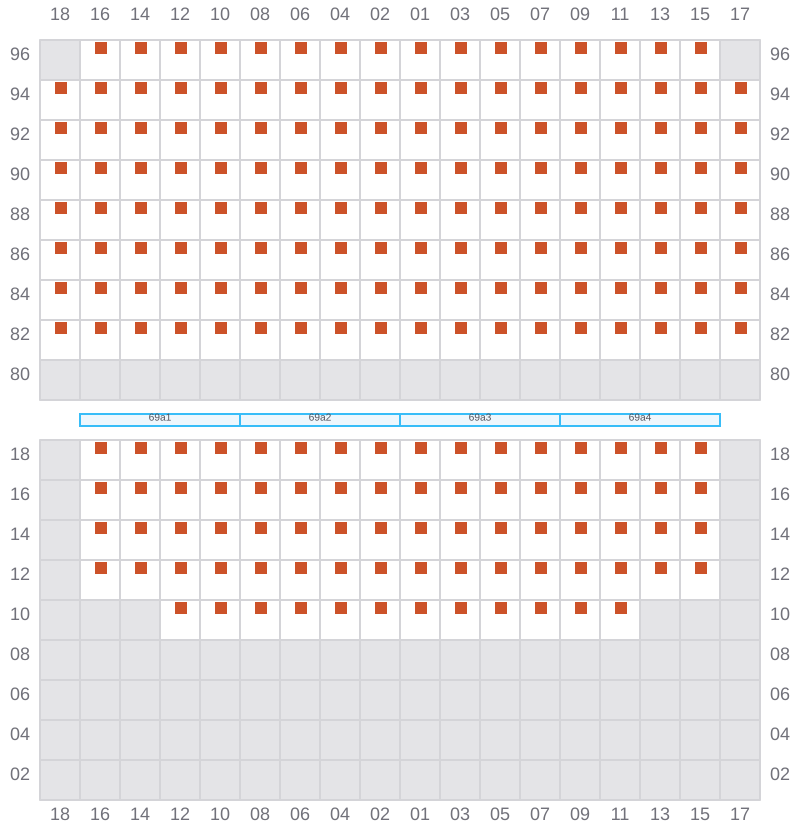

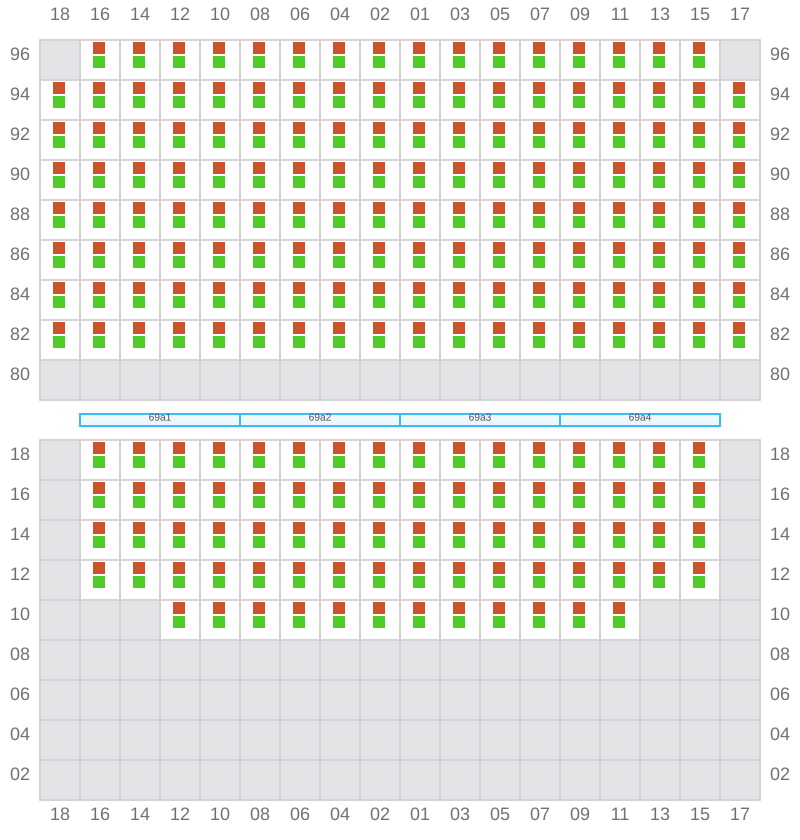

069
- →

071 (070)
- ←

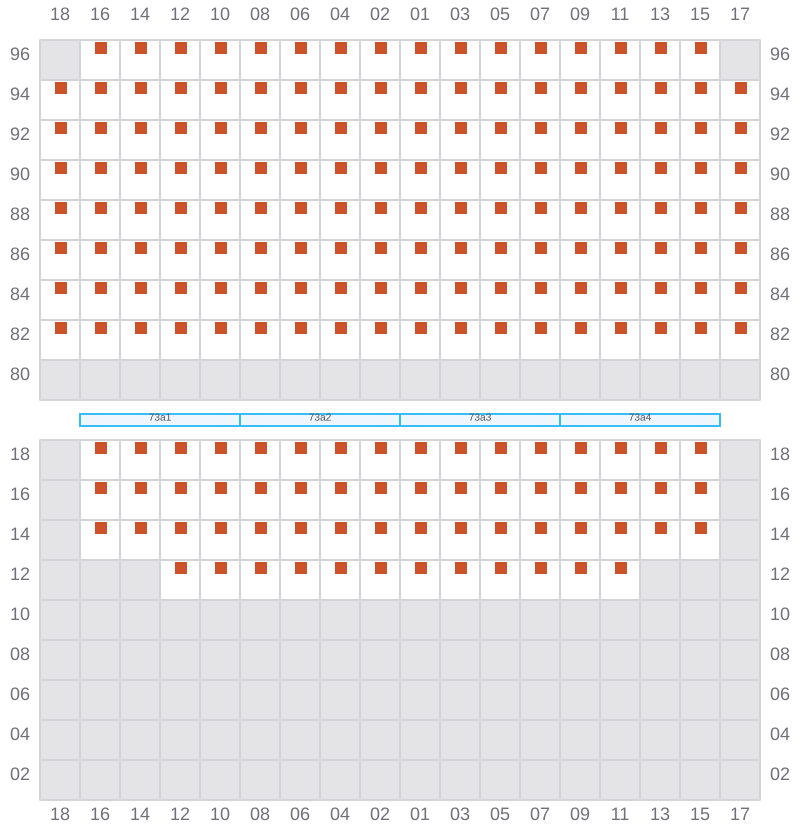

073
- →

075 (074)
- ←

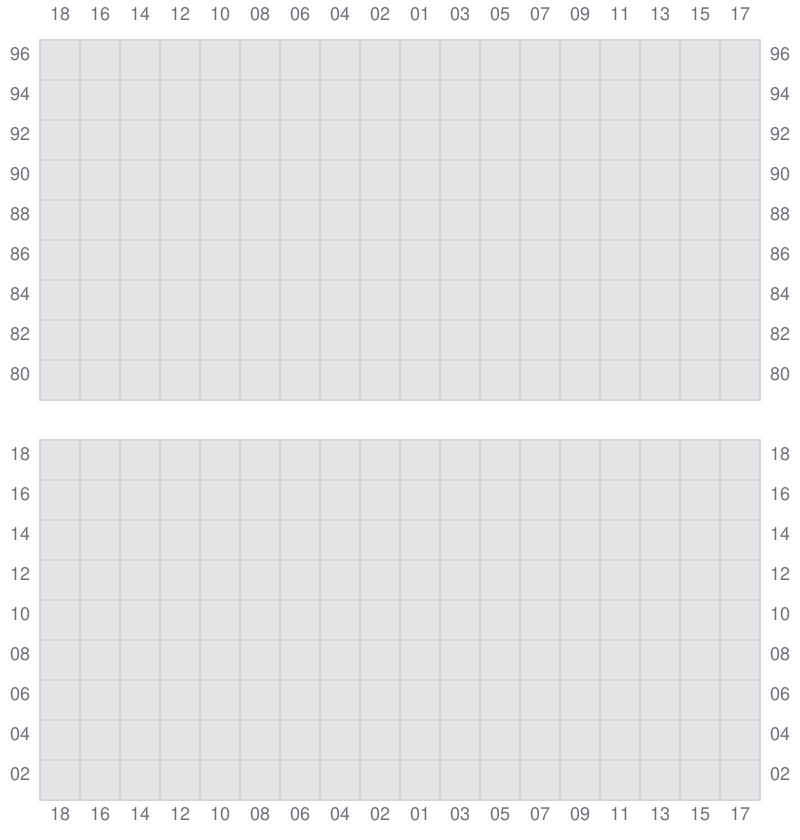

077

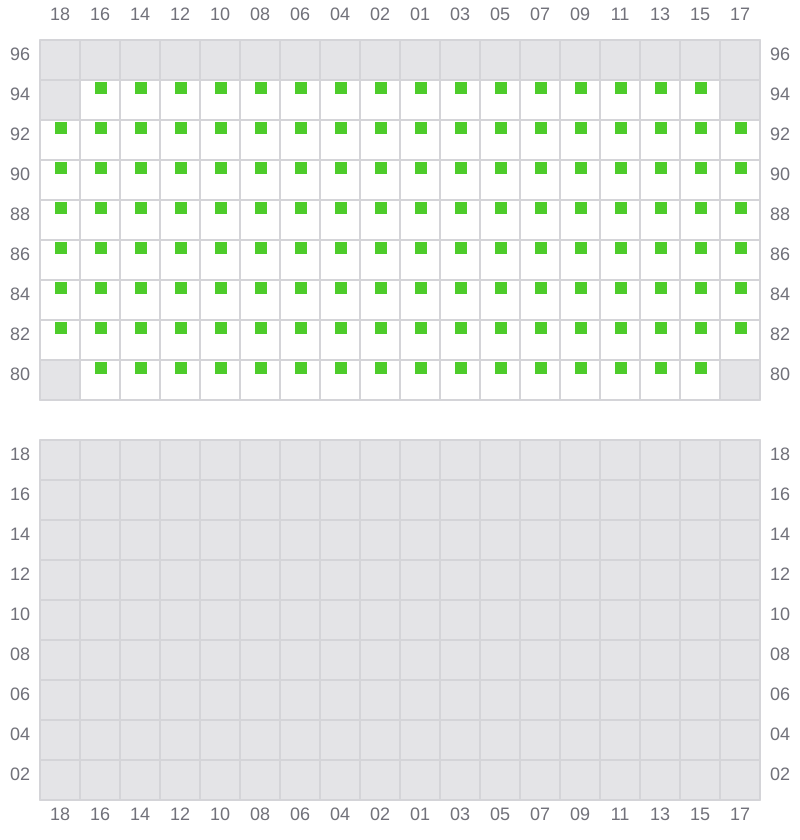

079 (078)
- ← / ?
