EVER LEGEND
9604093 | 9V9724 | EIS by ************************** Last update: Fri Jun 09 2023
General Info
Ship Name:EVER LEGEND
IMO Code:9604093
Call Sign:9V9724
Line Operator:EIS
Class Name for Sister Ships:LEG
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:40, 20, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,472
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

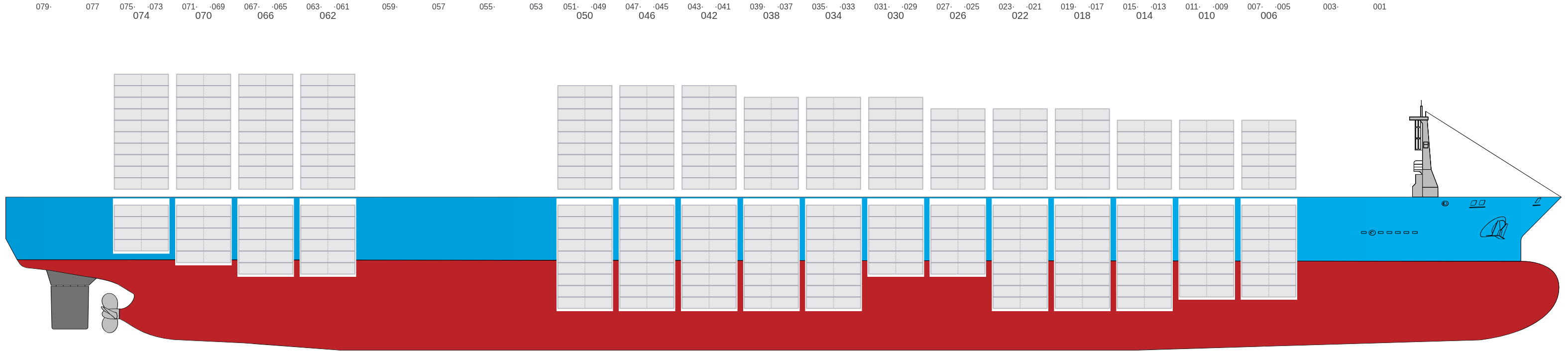

Side View
![Side view of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-sideView.png?v=1686344696893)

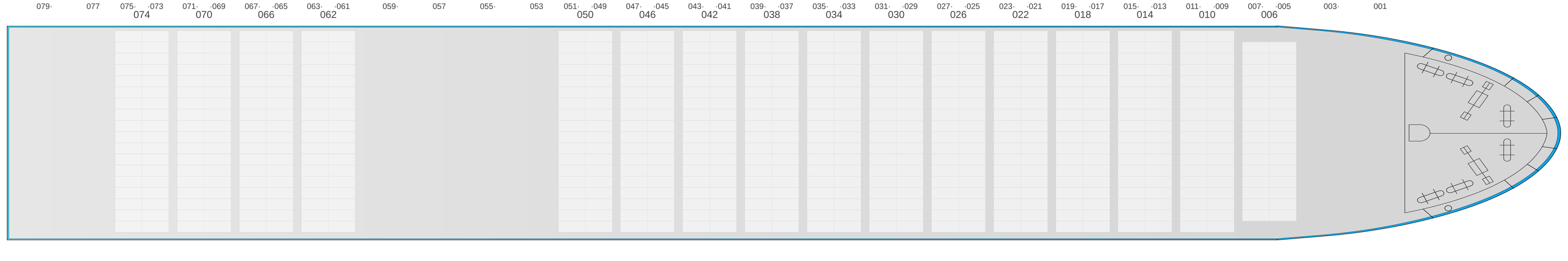

Hatch-Covers View
![Deck view of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-deckView.png?v=1686344696893)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
![Bay 001 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b001.png?v=1686344696893)

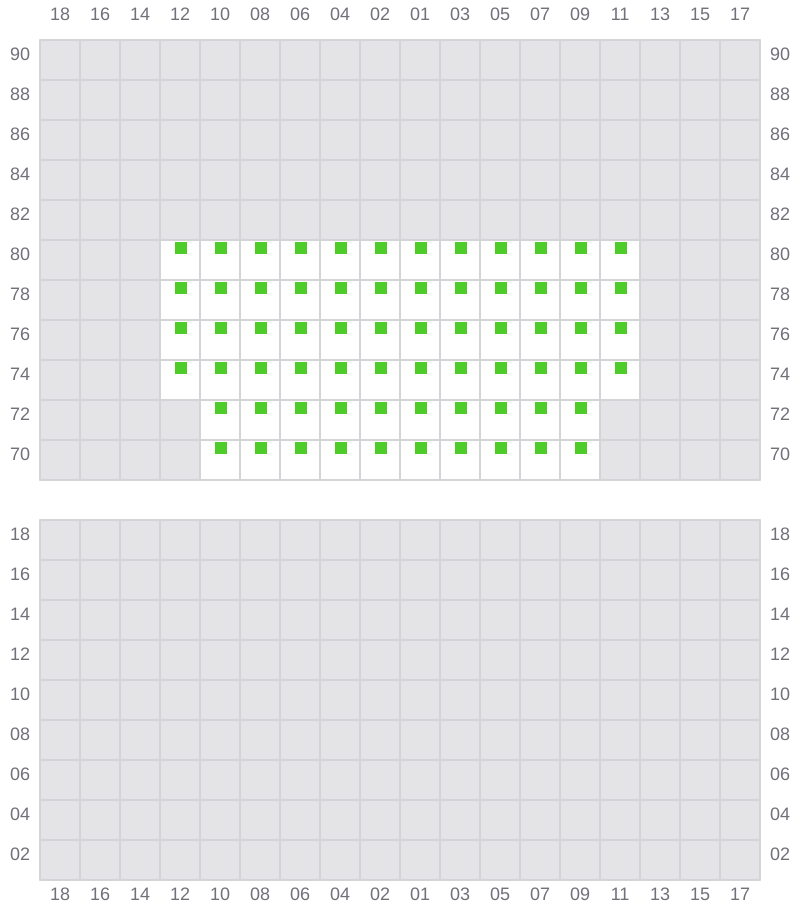

003 (002)
- ← / ?
![Bay 003 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b003.png?v=1686344696893)

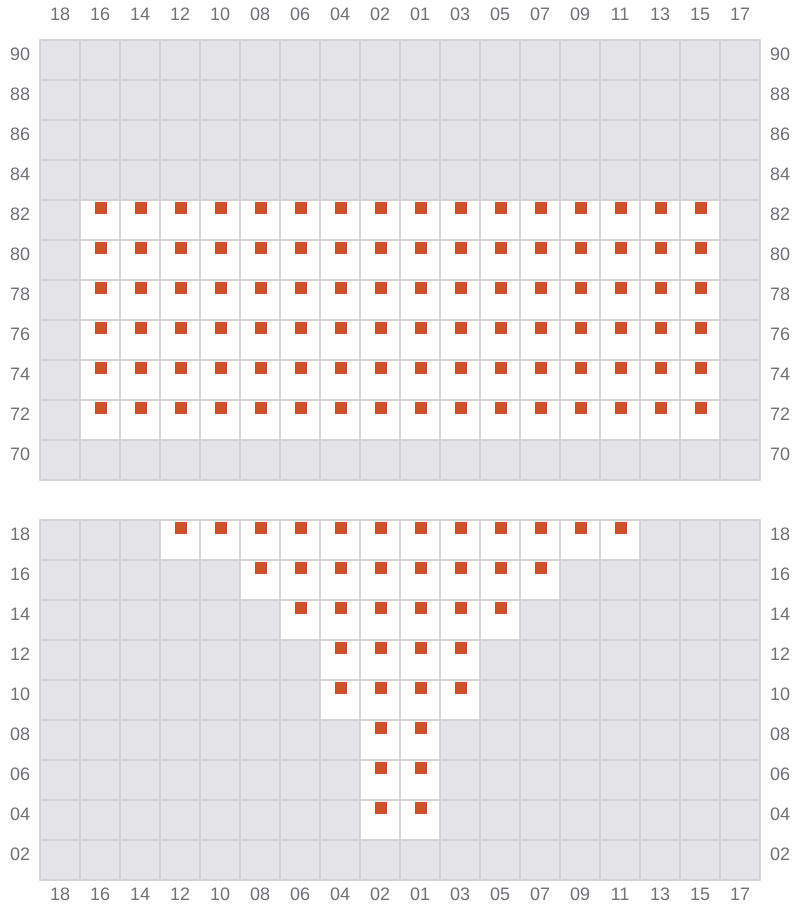

005
- →
![Bay 005 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b005.png?v=1686344696893)

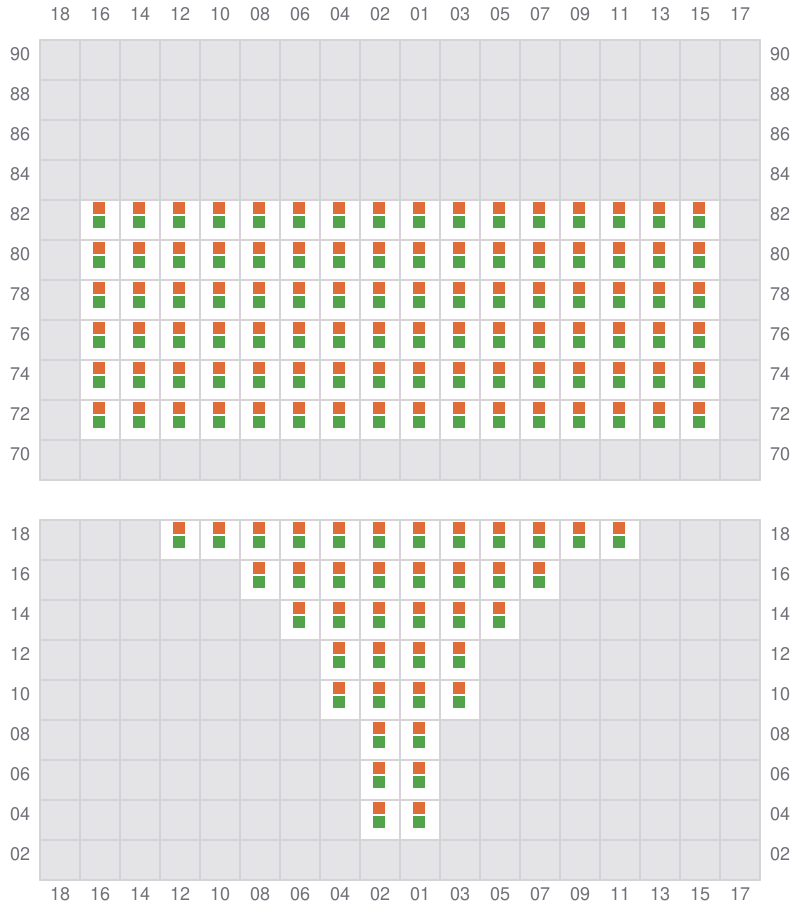

007 (006)
- ←
![Bay 007 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b007.png?v=1686344696893)

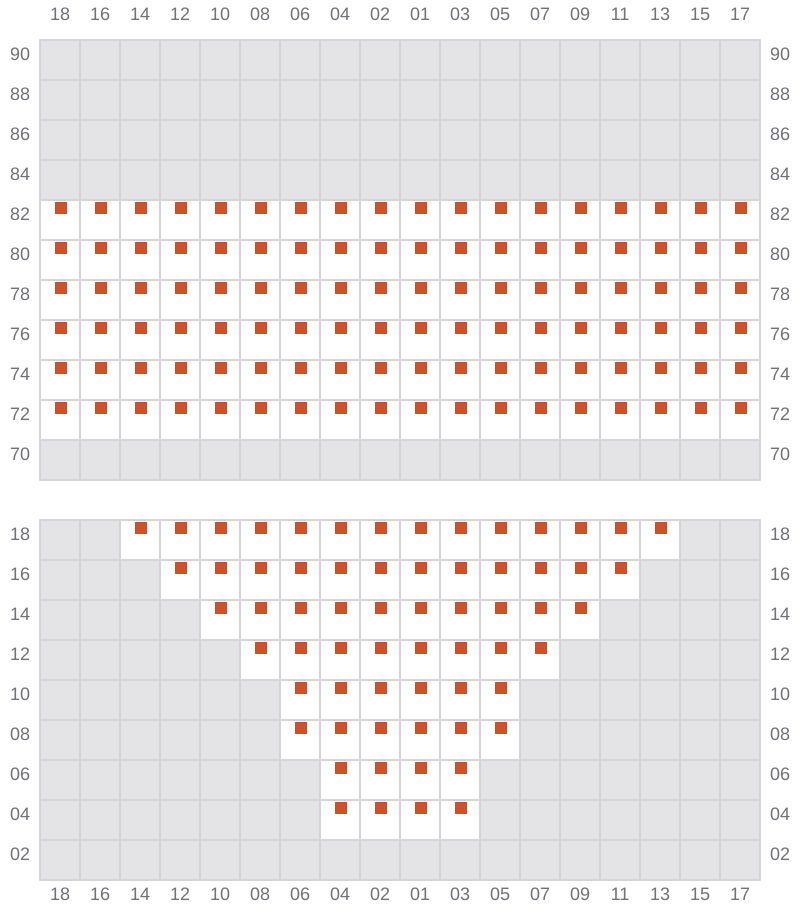

009
- →
![Bay 009 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b009.png?v=1686344696893)

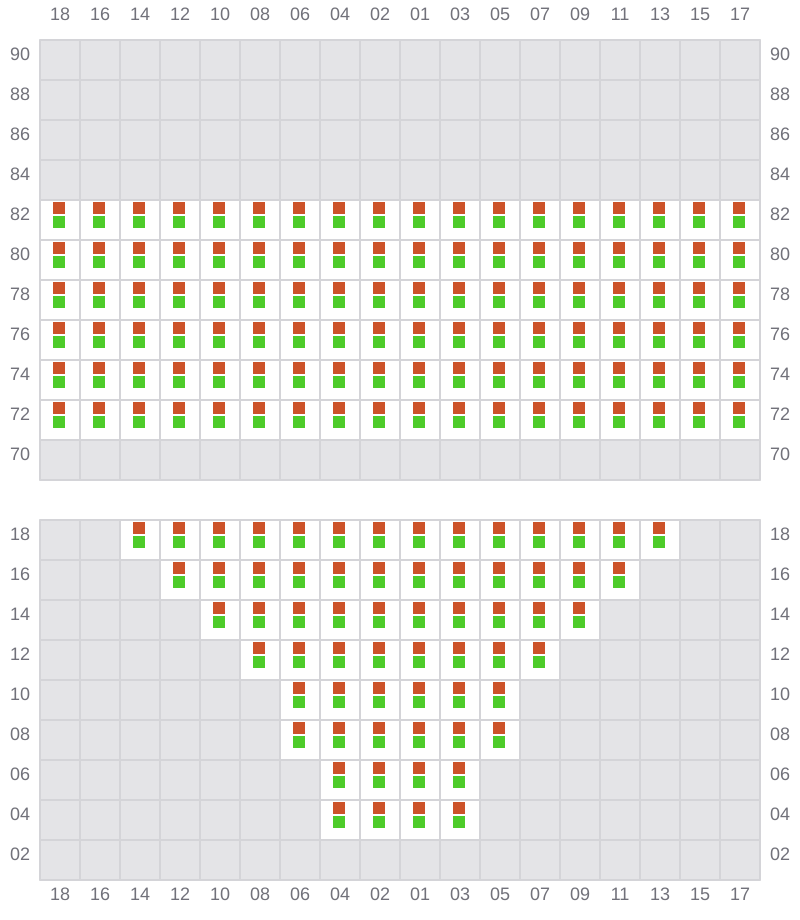

011 (010)
- ←
![Bay 011 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b011.png?v=1686344696893)

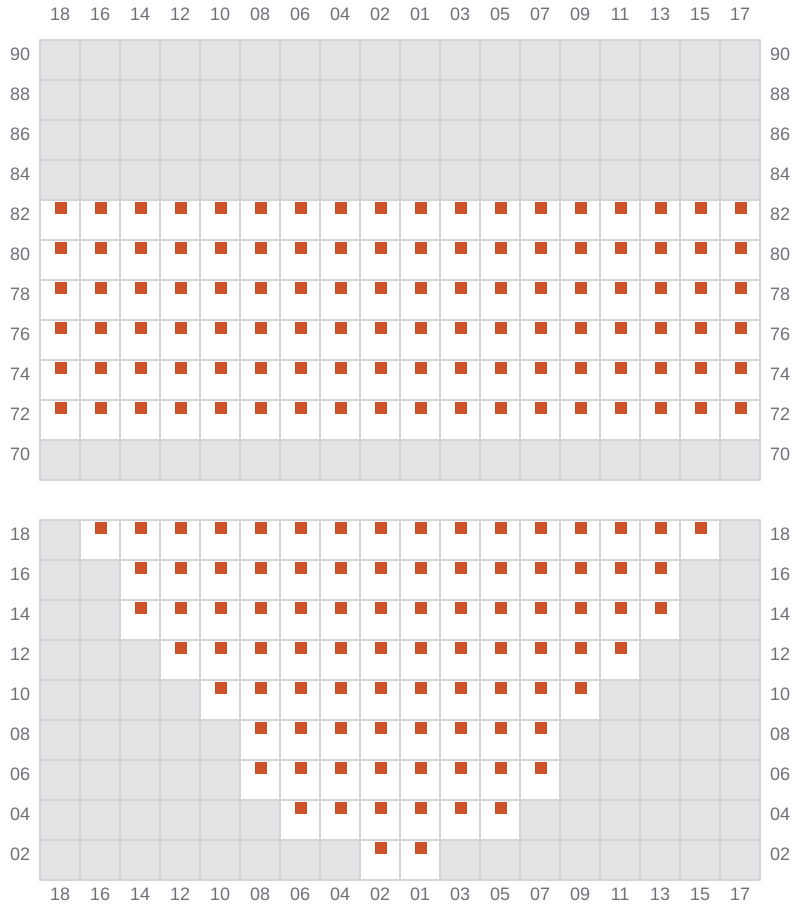

013
- →
![Bay 013 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b013.png?v=1686344696893)

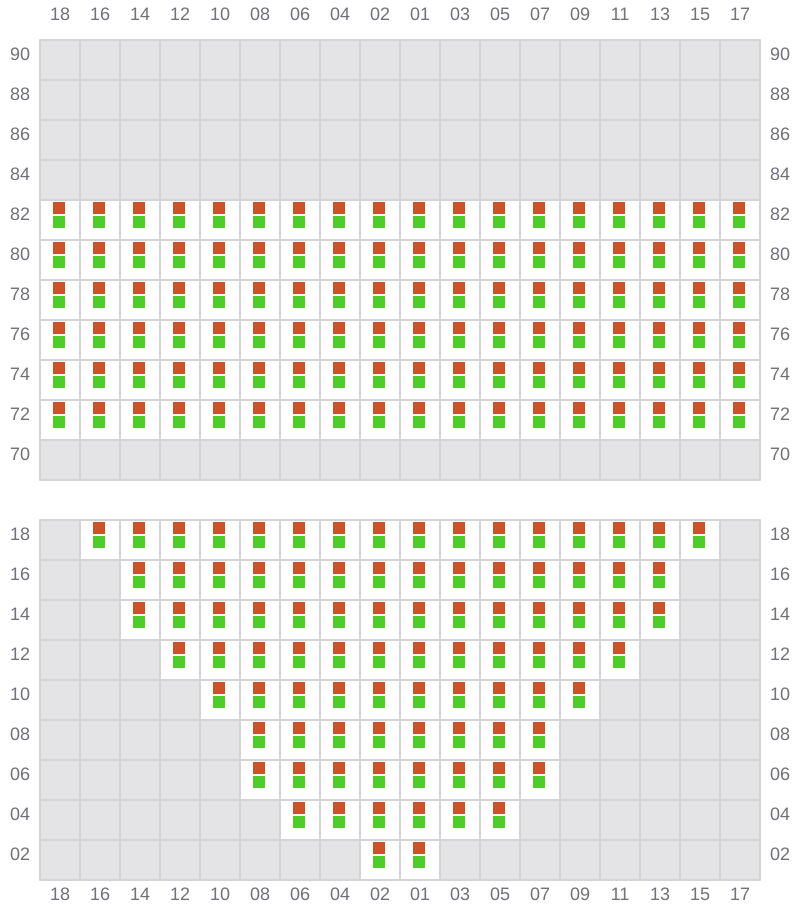

015 (014)
- ←
![Bay 015 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b015.png?v=1686344696893)

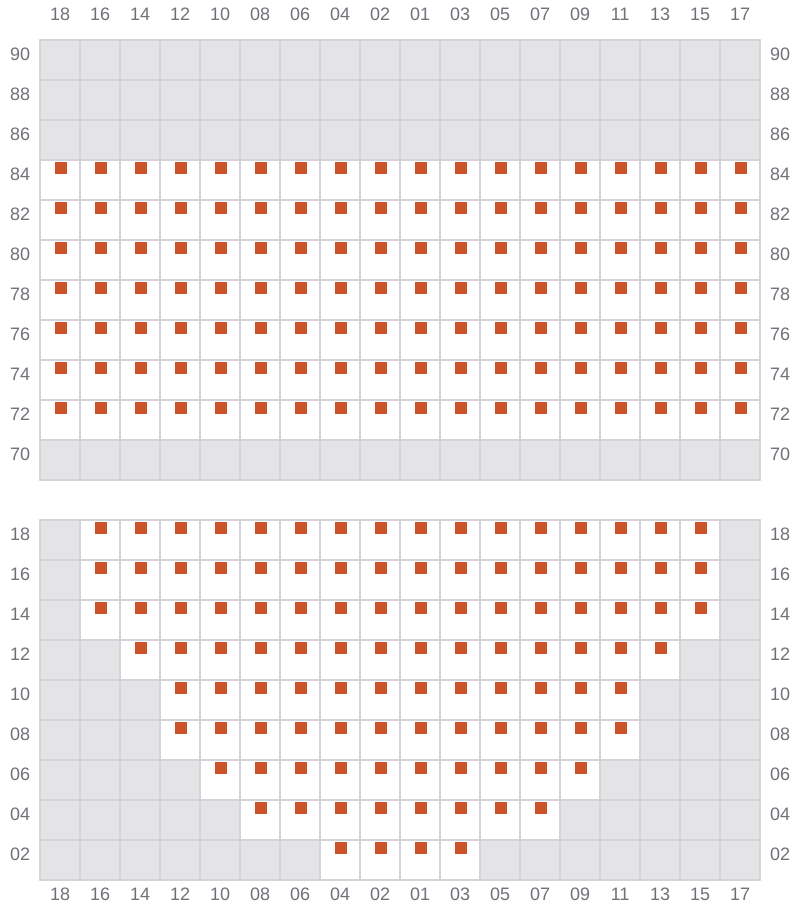

017
- →
![Bay 017 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b017.png?v=1686344696893)

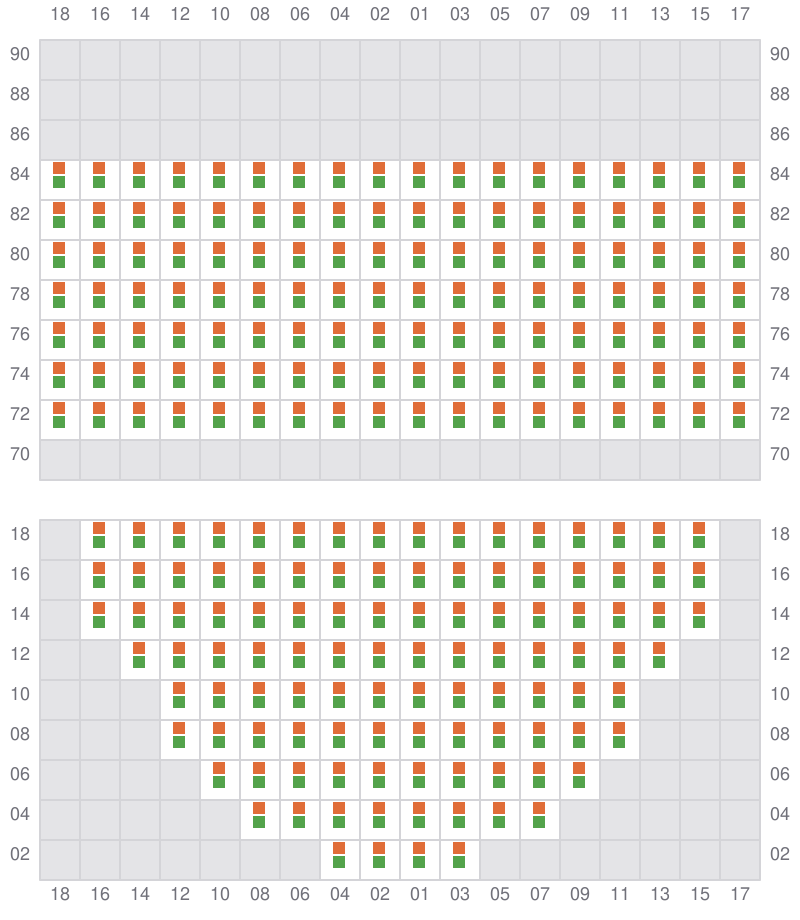

019 (018)
- ←
![Bay 019 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b019.png?v=1686344696893)

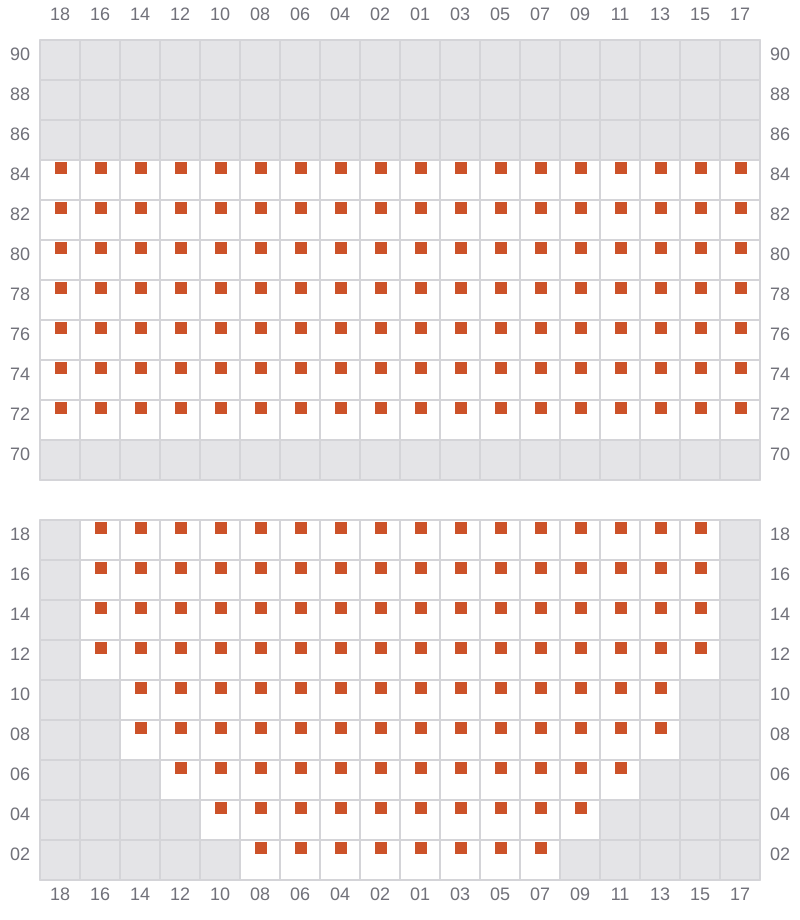

021
- →
![Bay 021 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b021.png?v=1686344696893)

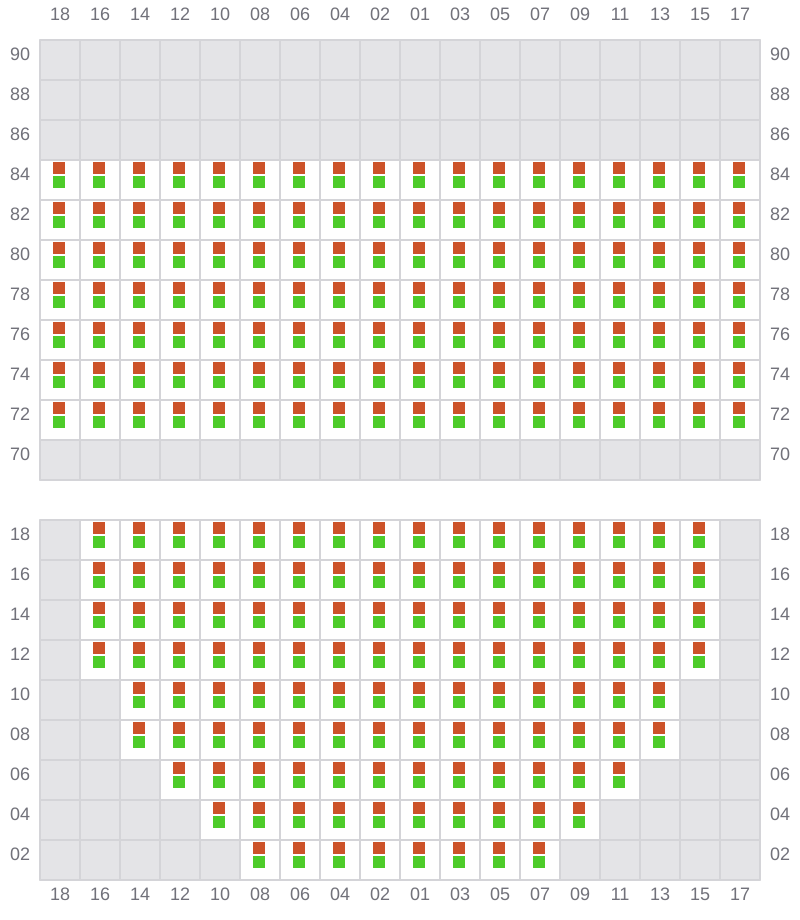

023 (022)
- ←
![Bay 023 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b023.png?v=1686344696893)

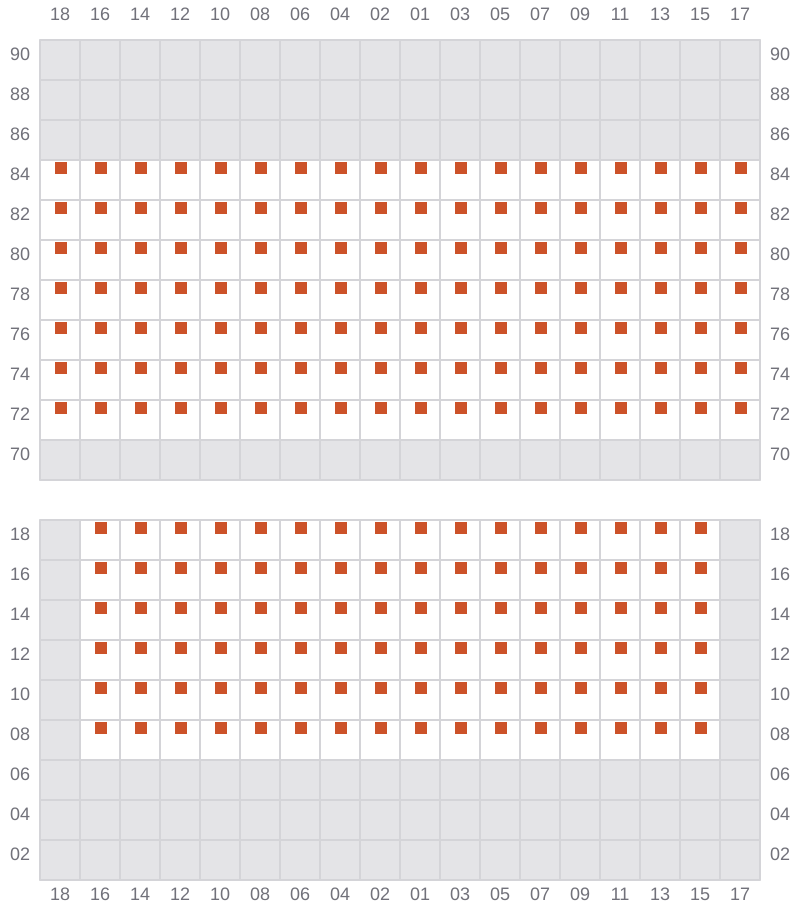

025
- →
![Bay 025 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b025.png?v=1686344696893)

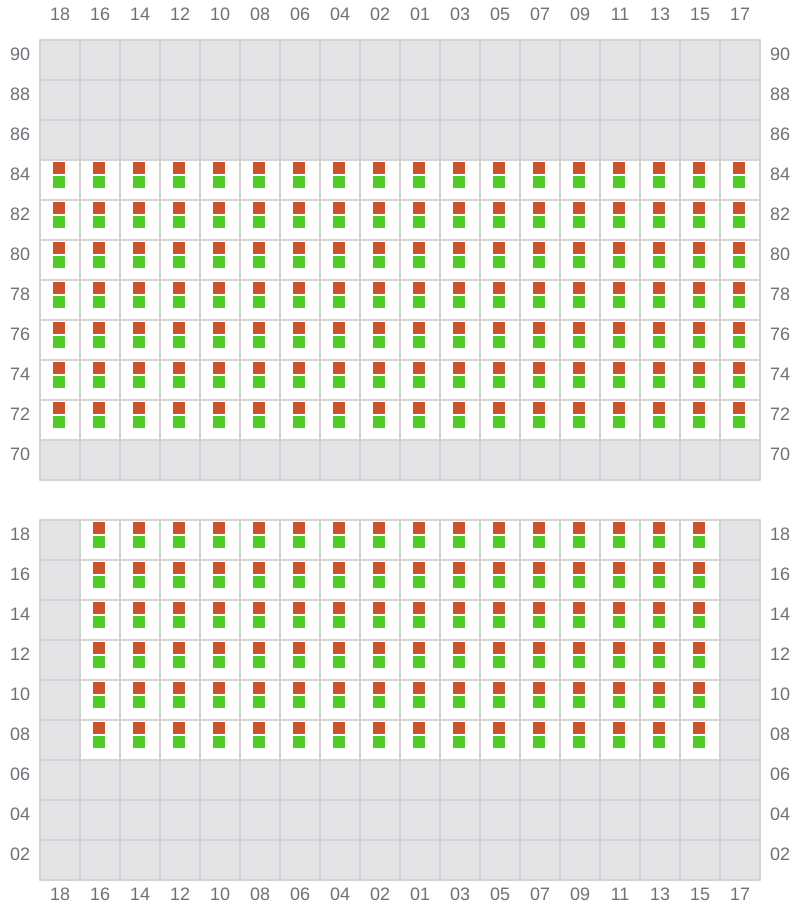

027 (026)
- ←
![Bay 027 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b027.png?v=1686344696893)

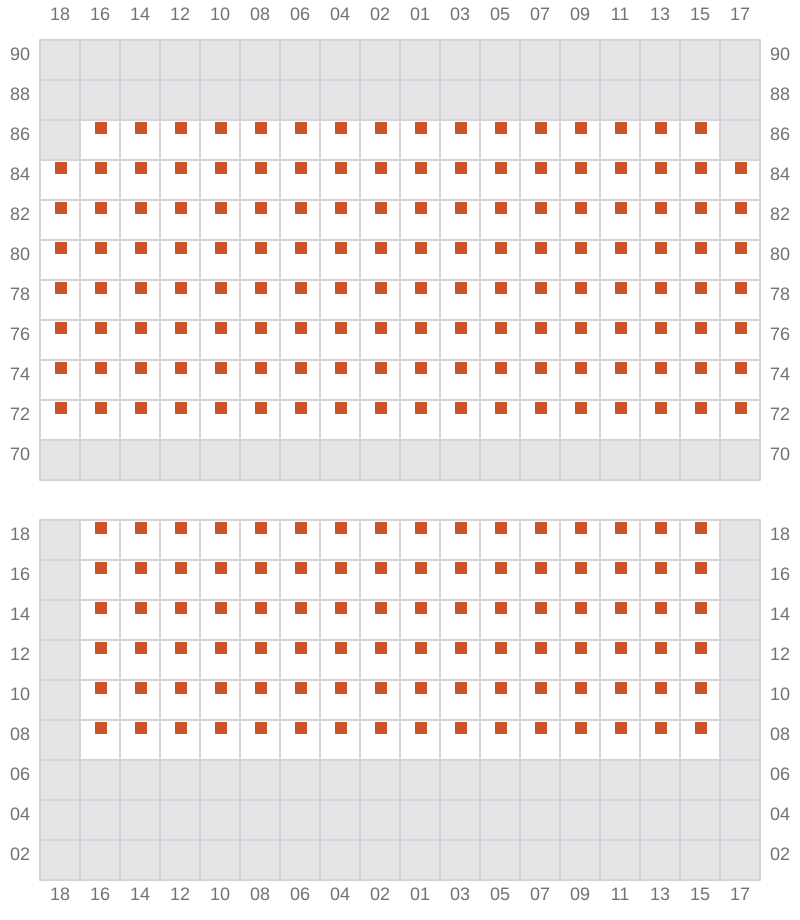

029
- →
![Bay 029 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b029.png?v=1686344696893)

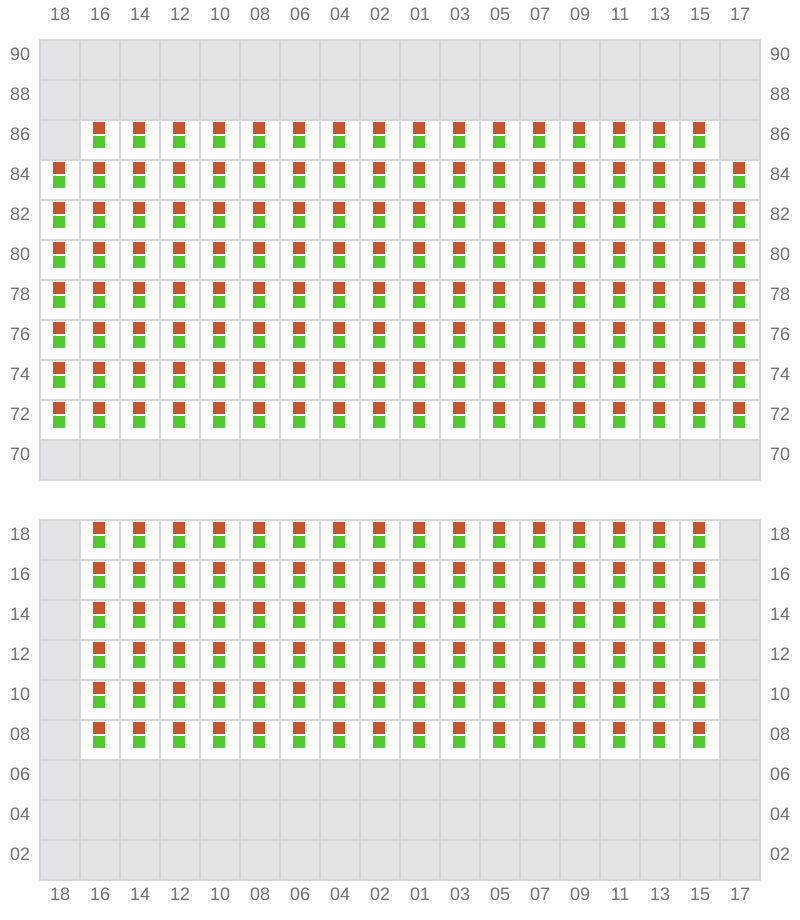

031 (030)
- ←
![Bay 031 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b031.png?v=1686344696893)
033
- →
![Bay 033 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b033.png?v=1686344696893)

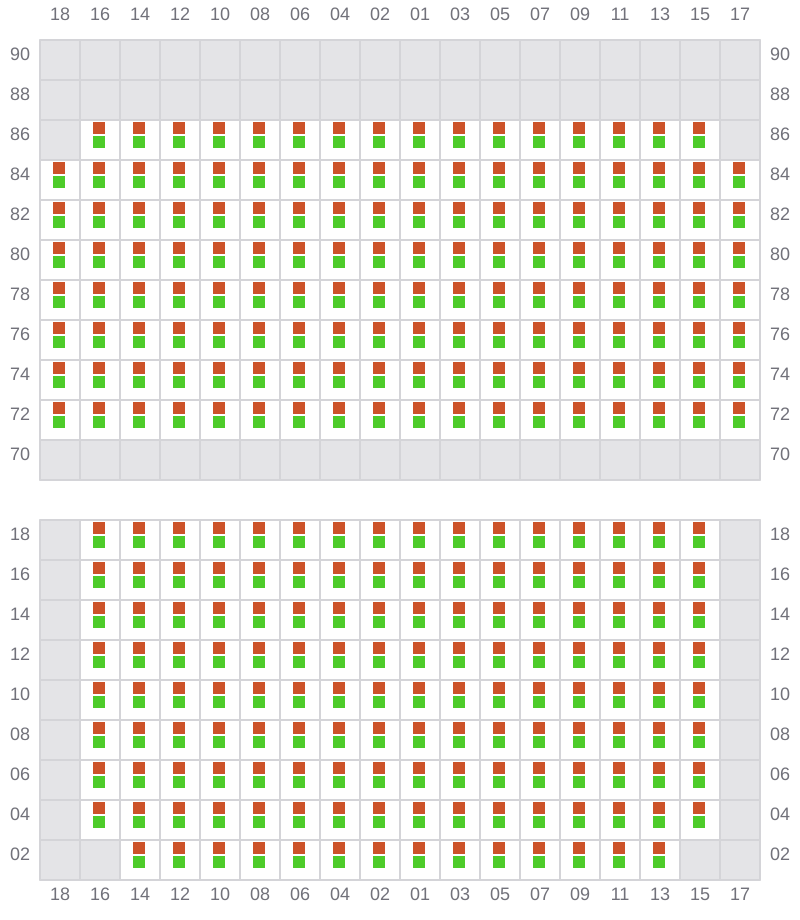

035 (034)
- ←
![Bay 035 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b035.png?v=1686344696893)

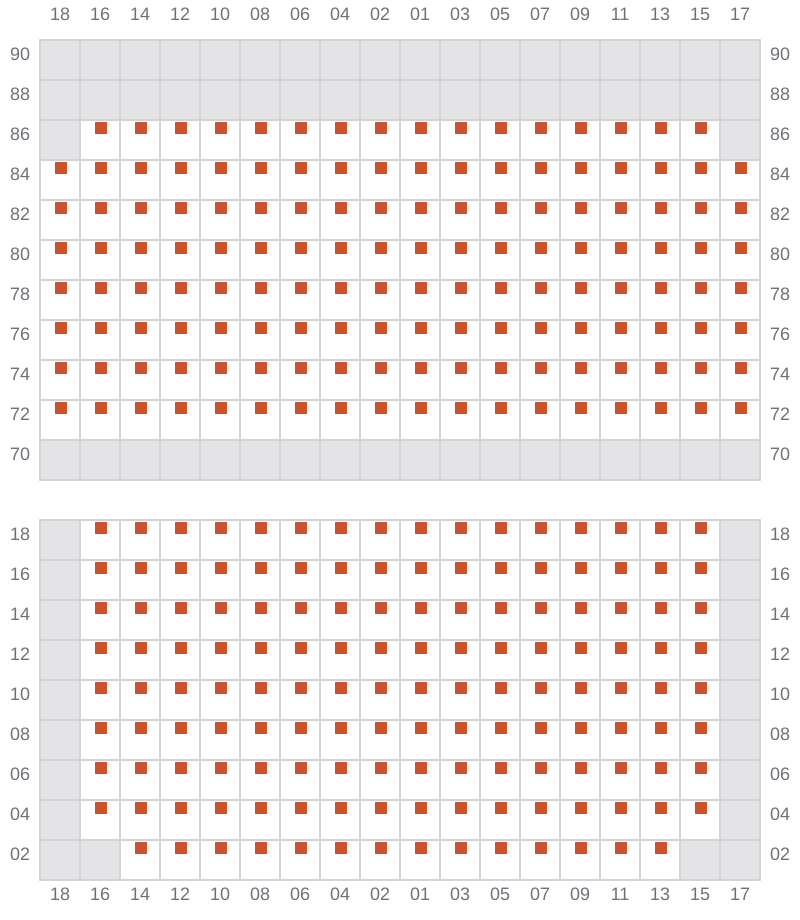

037
- →
![Bay 037 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b037.png?v=1686344696893)
039 (038)
- ←
![Bay 039 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b039.png?v=1686344696893)
041
- →
![Bay 041 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b041.png?v=1686344696893)
043 (042)
- ←
![Bay 043 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b043.png?v=1686344696893)

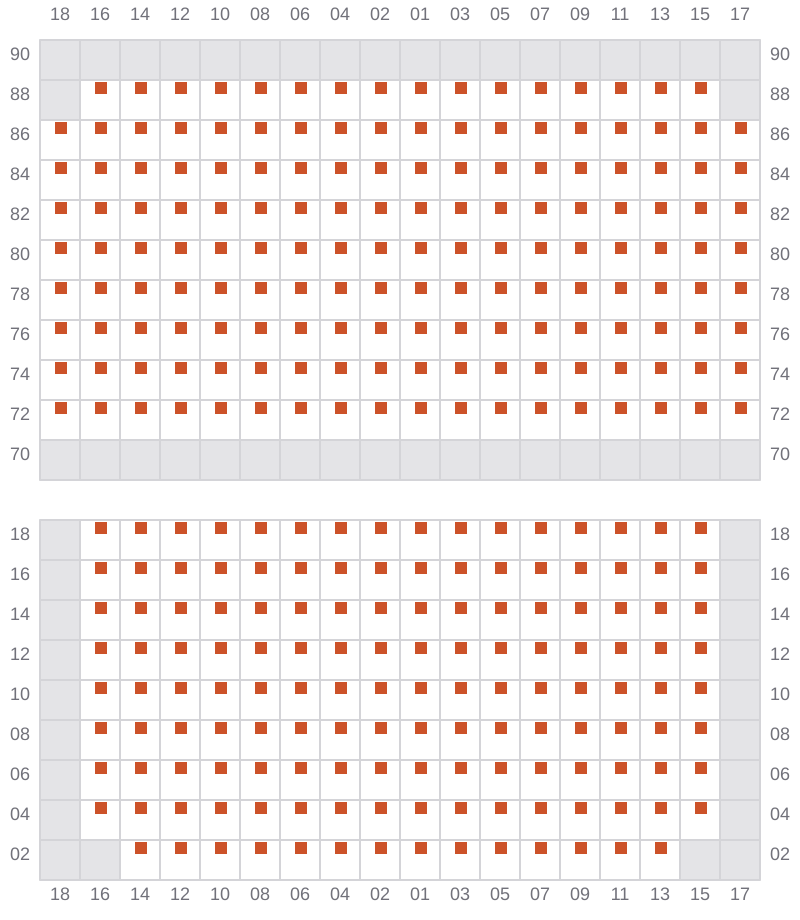

045
- →
![Bay 045 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b045.png?v=1686344696893)

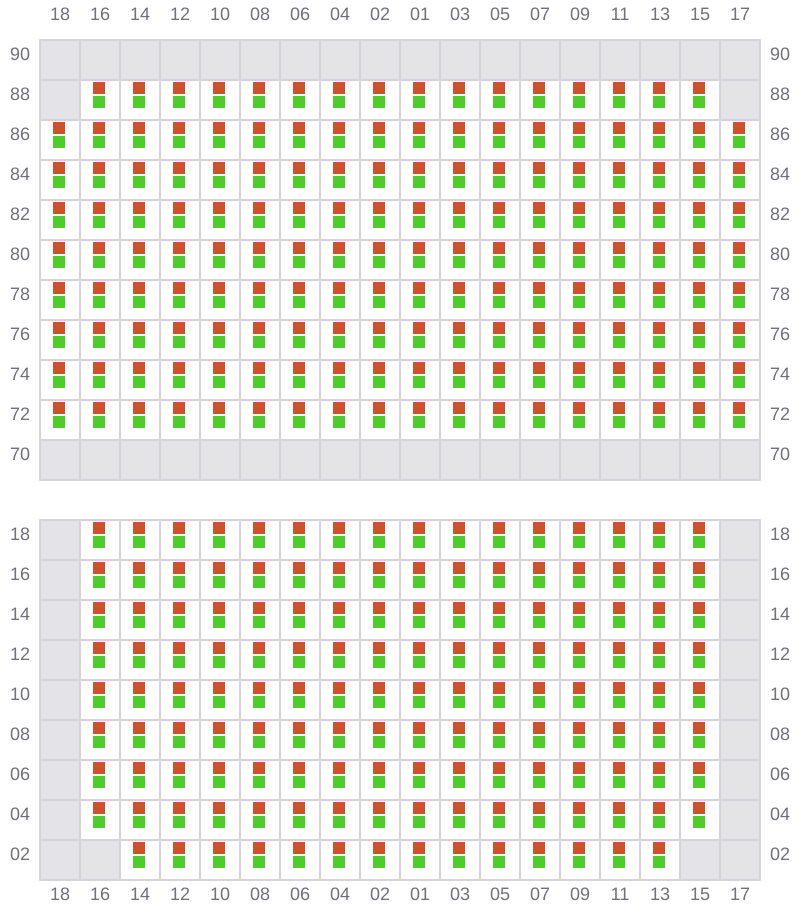

047 (046)
- ←
![Bay 047 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b047.png?v=1686344696893)
049
- →
![Bay 049 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b049.png?v=1686344696893)
051 (050)
- ←
![Bay 051 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b051.png?v=1686344696893)
053
![Bay 053 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b053.png?v=1686344696893)

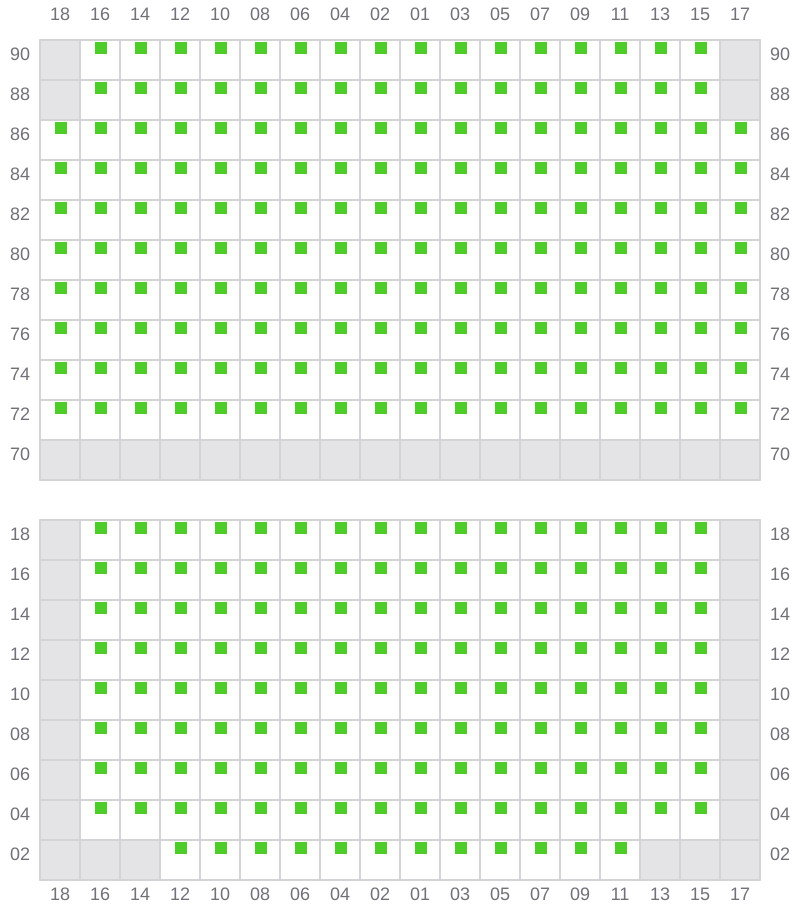

055 (054)
- ←
![Bay 055 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b055.png?v=1686344696893)

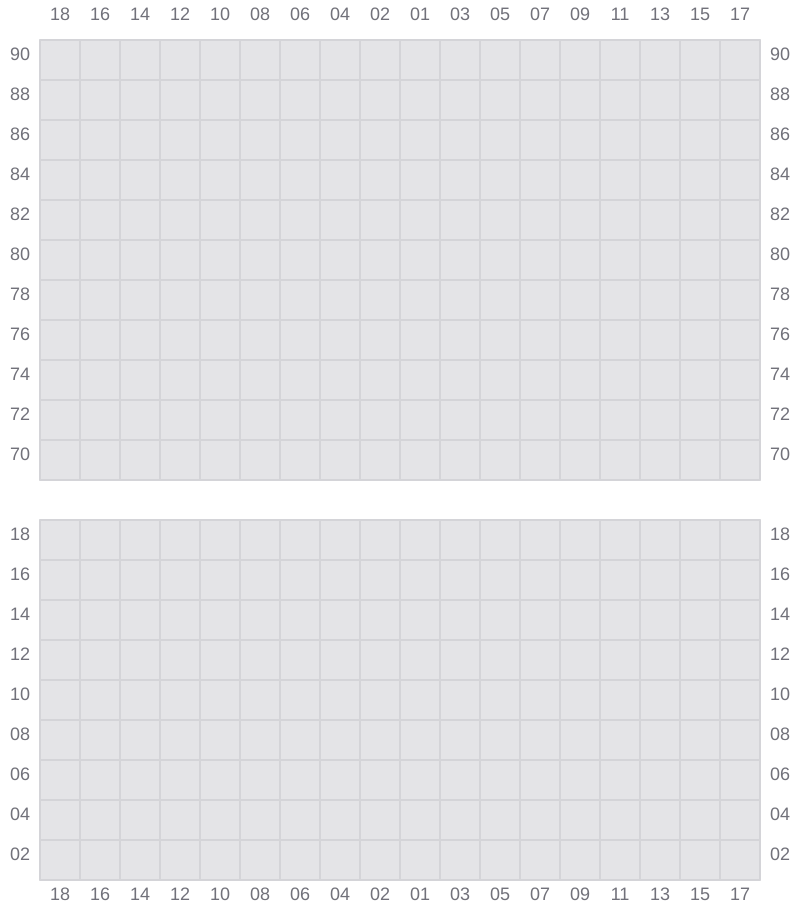

057
![Bay 057 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b057.png?v=1686344696893)

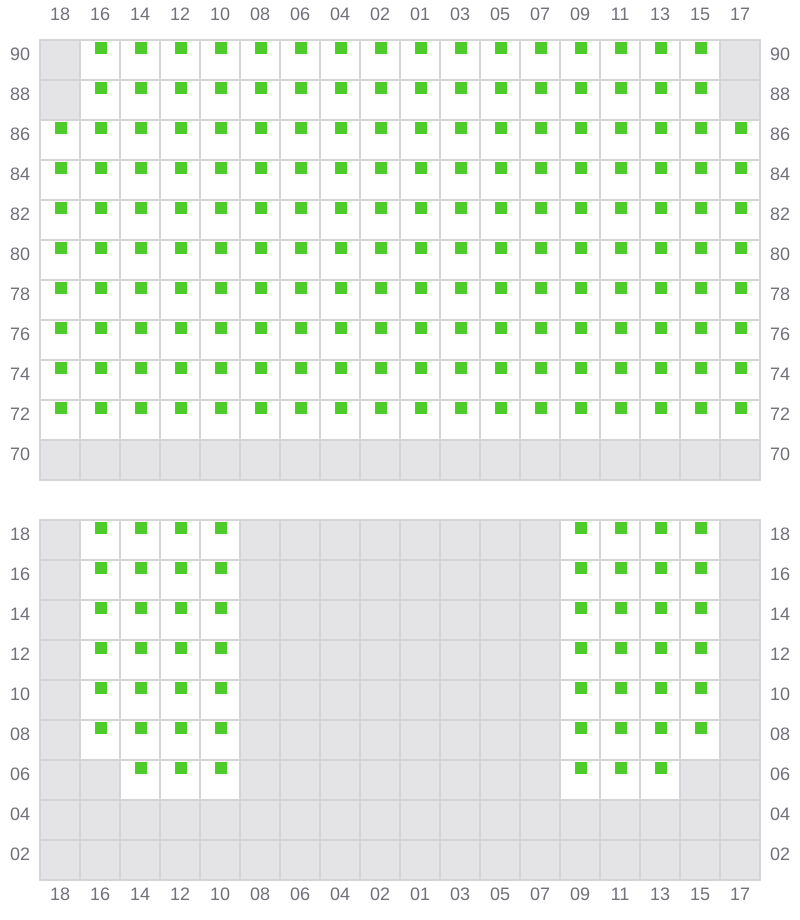

059 (058)
- ←
![Bay 059 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b059.png?v=1686344696893)

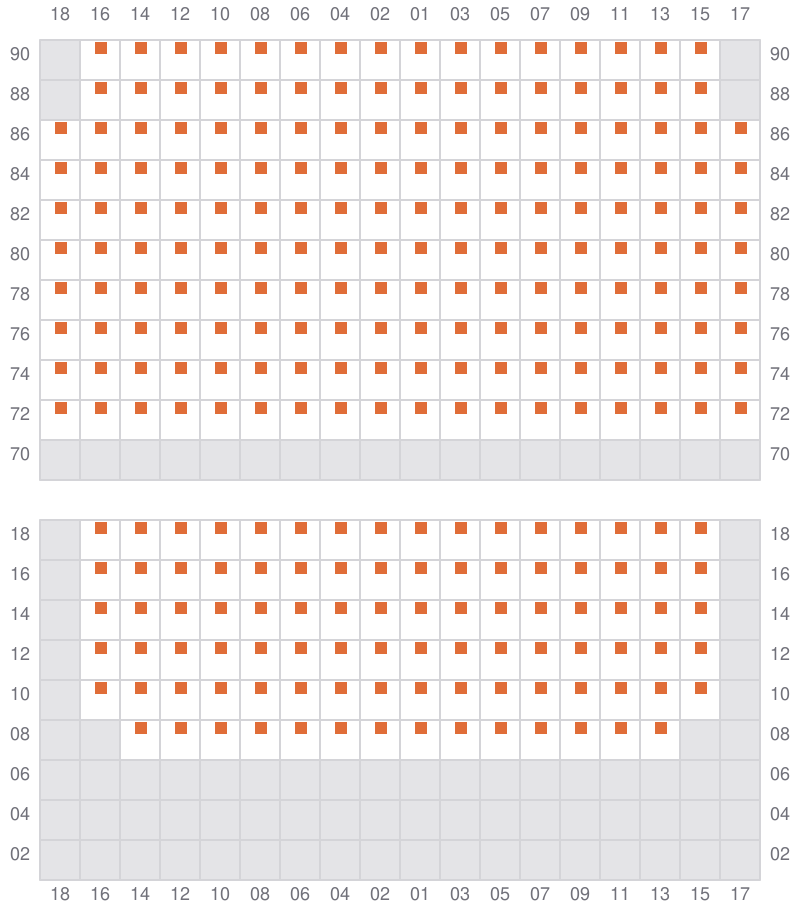

061
- →
![Bay 061 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b061.png?v=1686344696893)

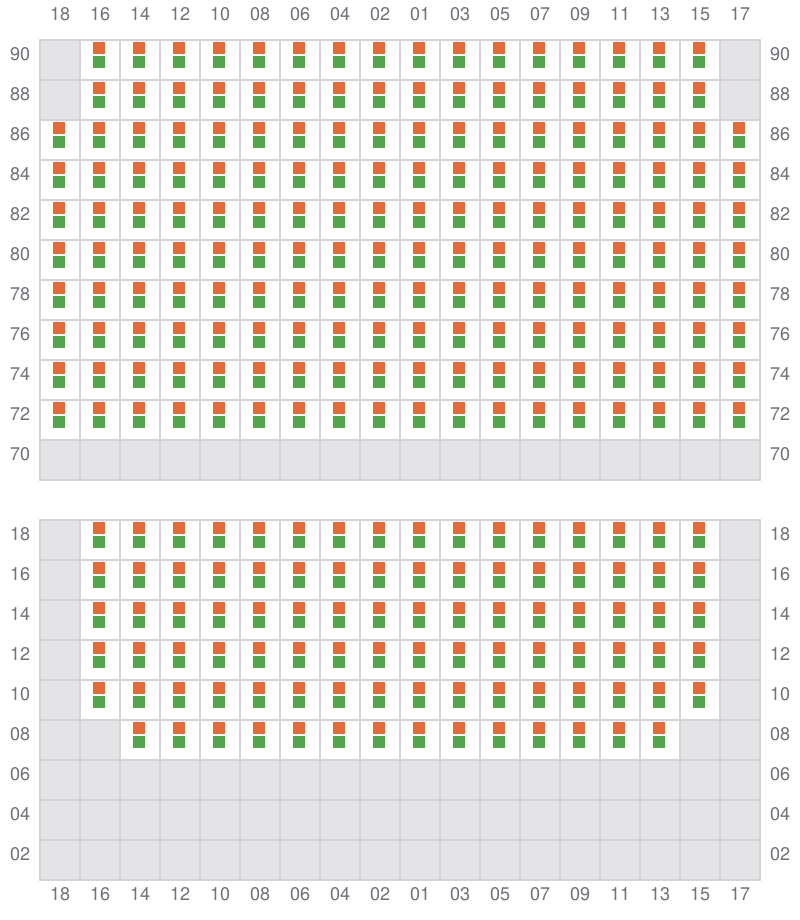

063 (062)
- ←
![Bay 063 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b063.png?v=1686344696893)

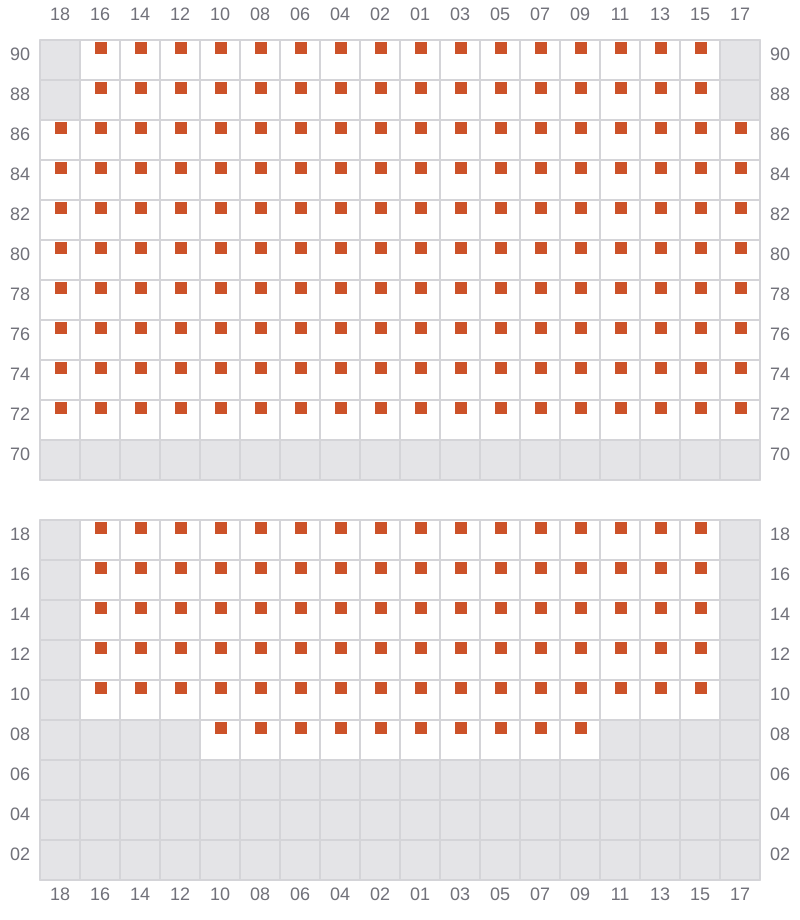

065
- →
![Bay 065 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b065.png?v=1686344696893)

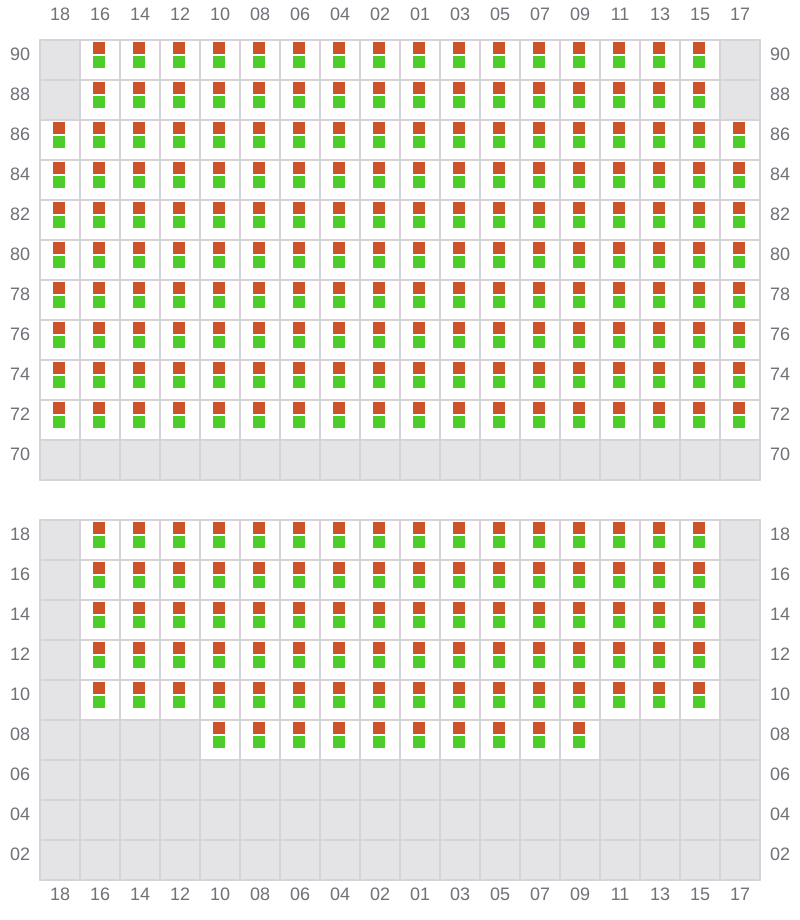

067 (066)
- ←
![Bay 067 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b067.png?v=1686344696893)

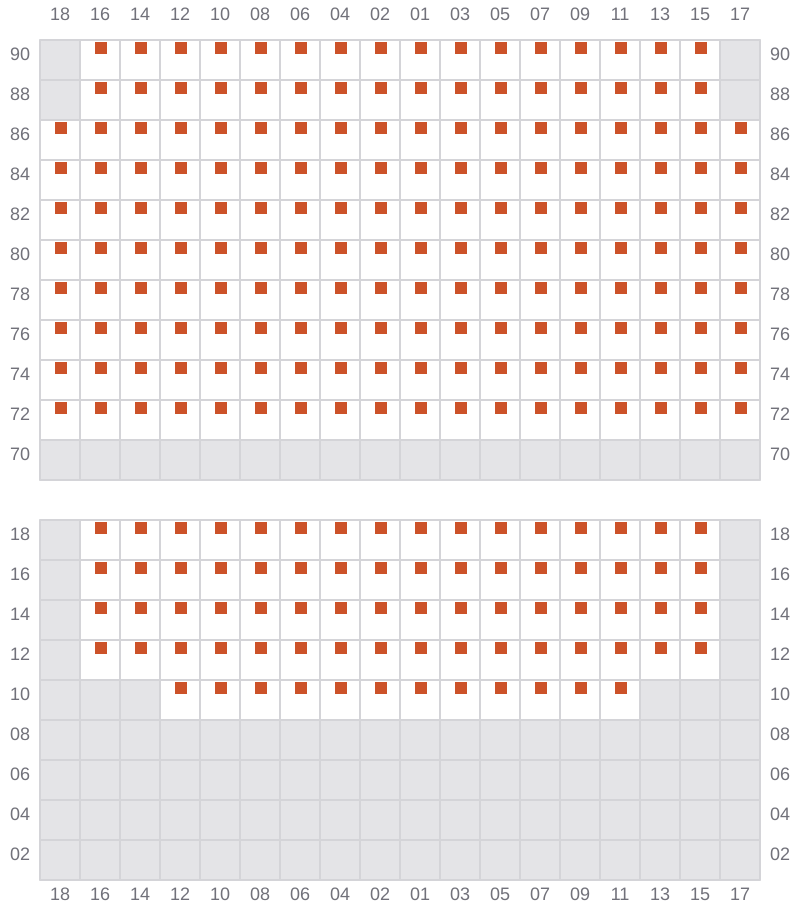

069
- →
![Bay 069 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b069.png?v=1686344696893)

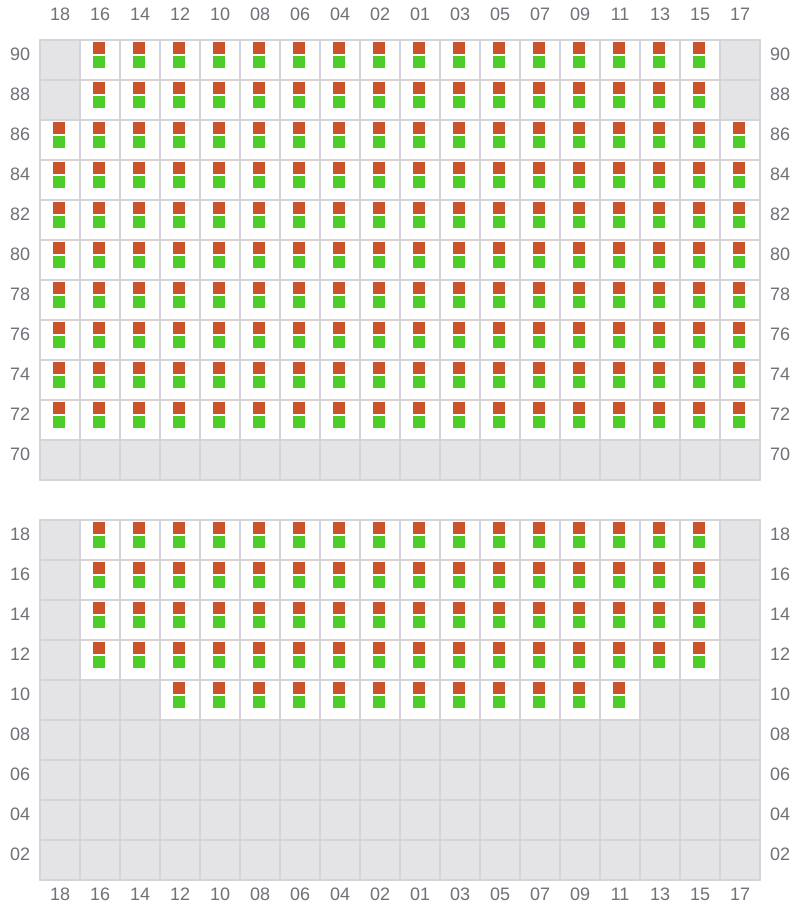

071 (070)
- ←
![Bay 071 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b071.png?v=1686344696893)

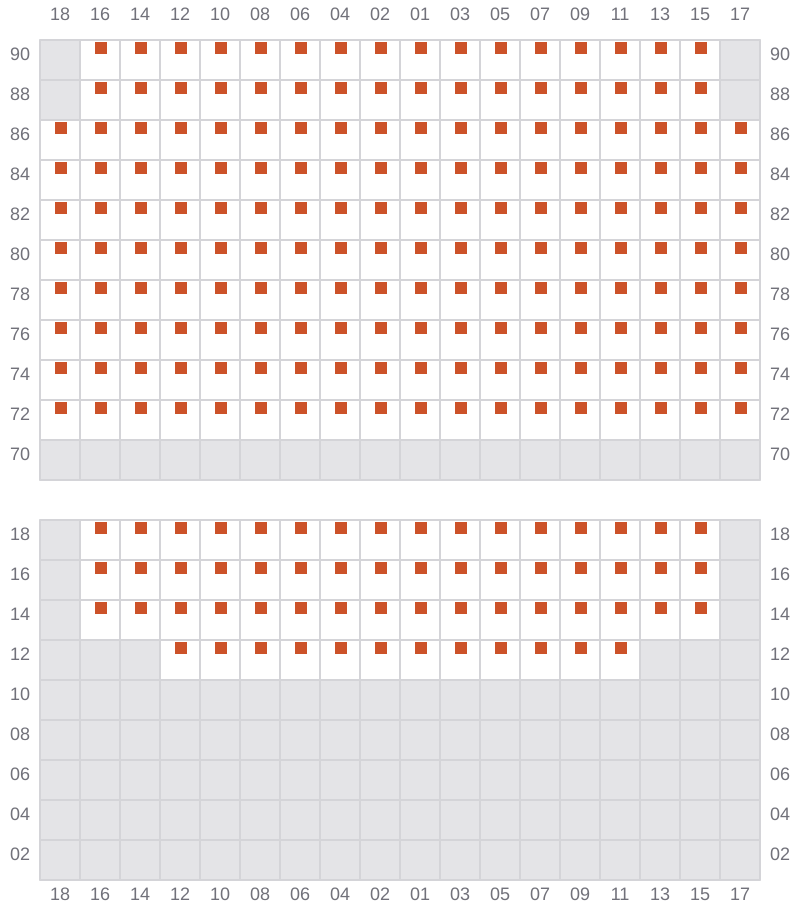

073
- →
![Bay 073 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b073.png?v=1686344696893)

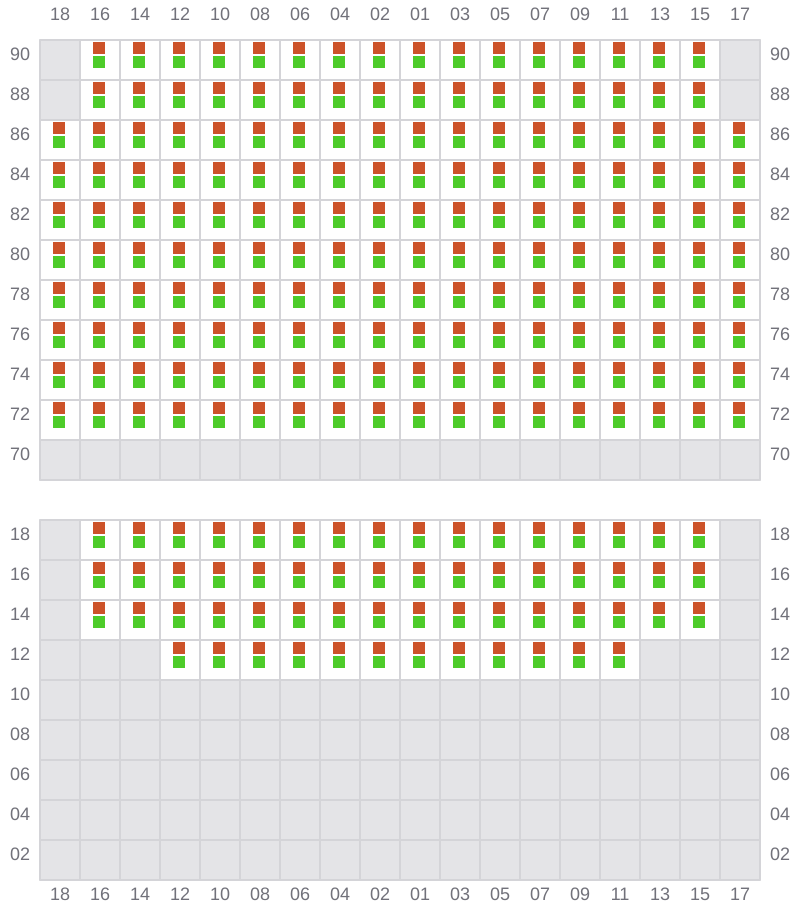

075 (074)
- ←
![Bay 075 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b075.png?v=1686344696893)
077
![Bay 077 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b077.png?v=1686344696893)
079 (078)
- ← / ?
![Bay 079 view and slots of EVER LEGEND](/vessel-images/3d46c0a3-e681-4e81-b383-5c373676b32b-b079.png?v=1686344696893)
