EVER LEGION
9604110 | 9V9725 | 9604110 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:EVER LEGION
IMO Code:9604110
Call Sign:9V9725
Line Operator:9604110
Class Name for Sister Ships:EVER LEGION
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:40, 20, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,478
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

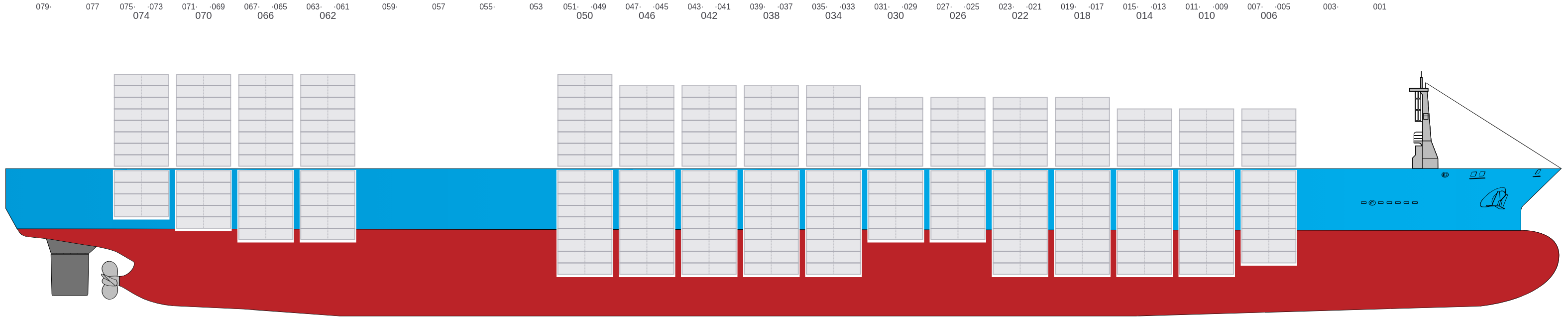

Side View
![Side view of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-sideView.png?v=1717697898885)

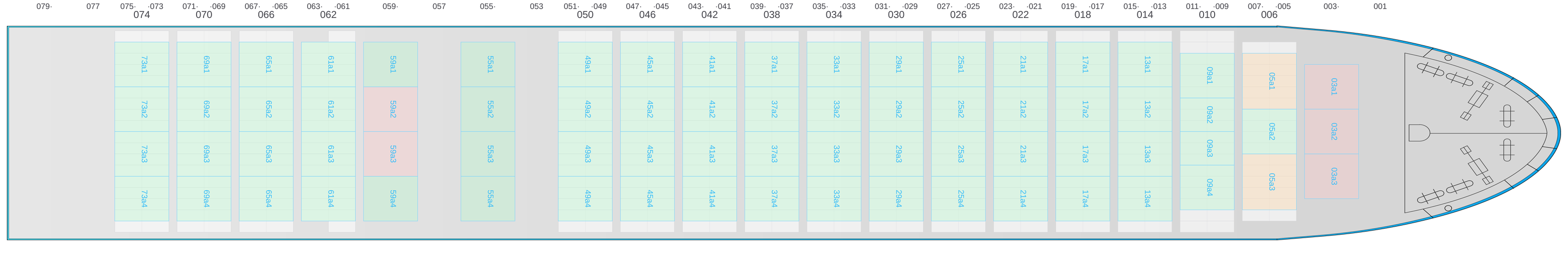

Hatch-Covers View
![Deck view of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-deckView.png?v=1717697898885)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
![Bay 001 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b001.png?v=1717697898885)

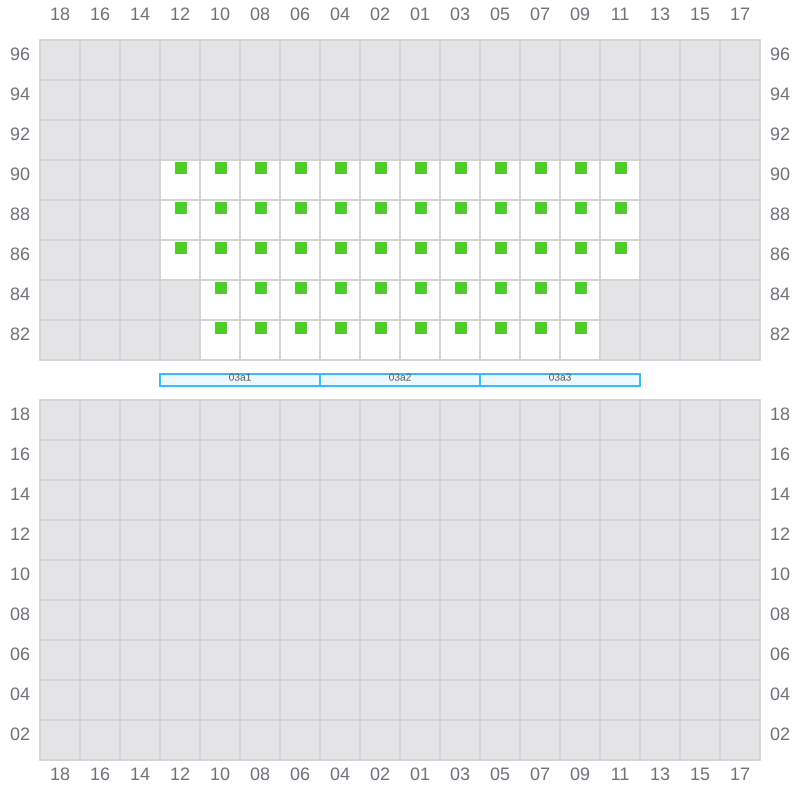

003 (002)
- ← / ?
![Bay 003 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b003.png?v=1717697898885)

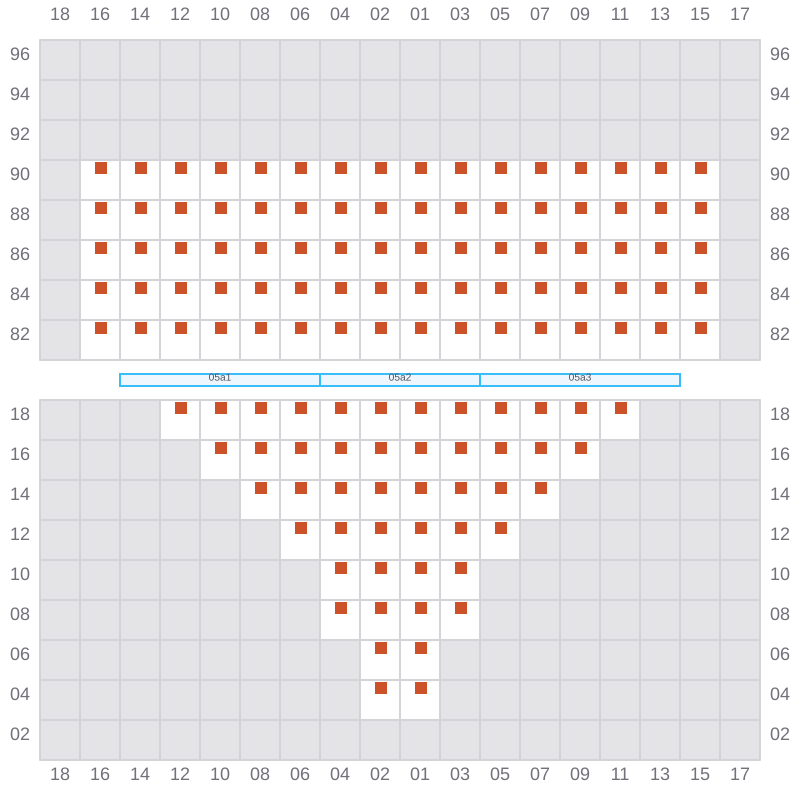

005
- →
![Bay 005 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b005.png?v=1717697898885)

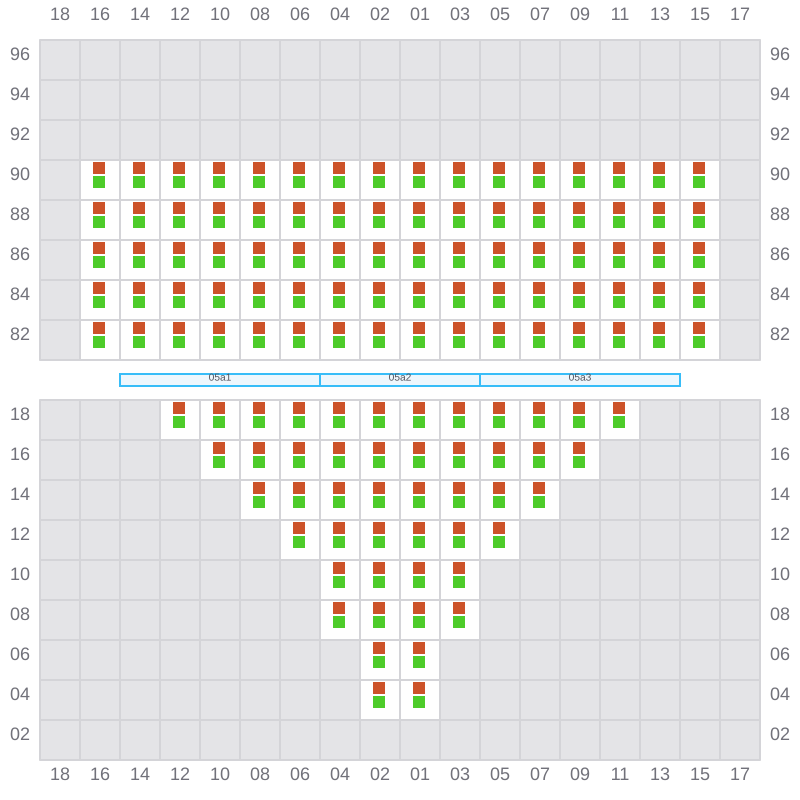

007 (006)
- ←
![Bay 007 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b007.png?v=1717697898885)

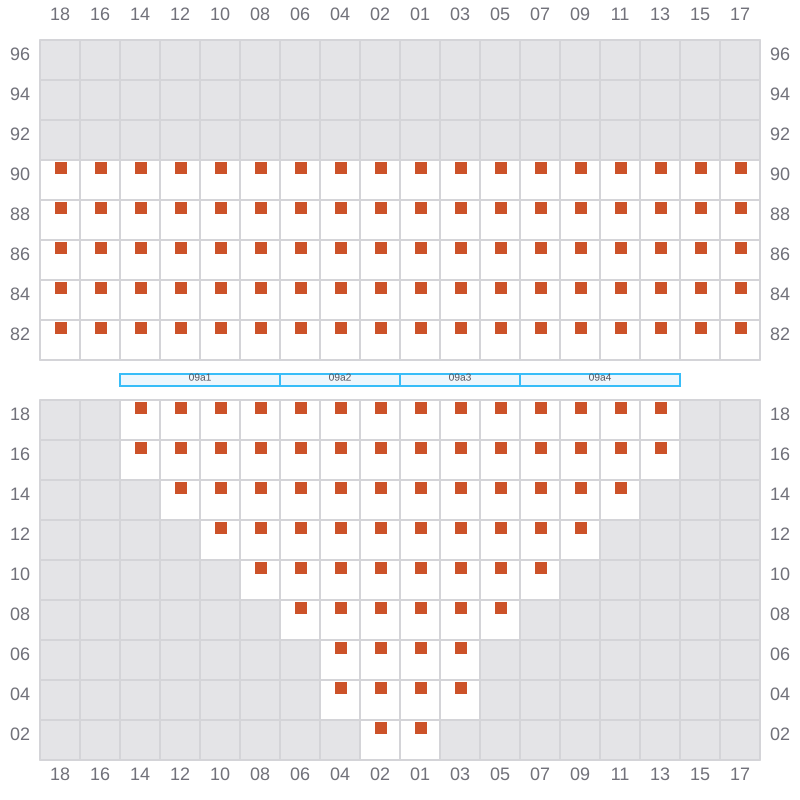

009
- →
![Bay 009 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b009.png?v=1717697898885)

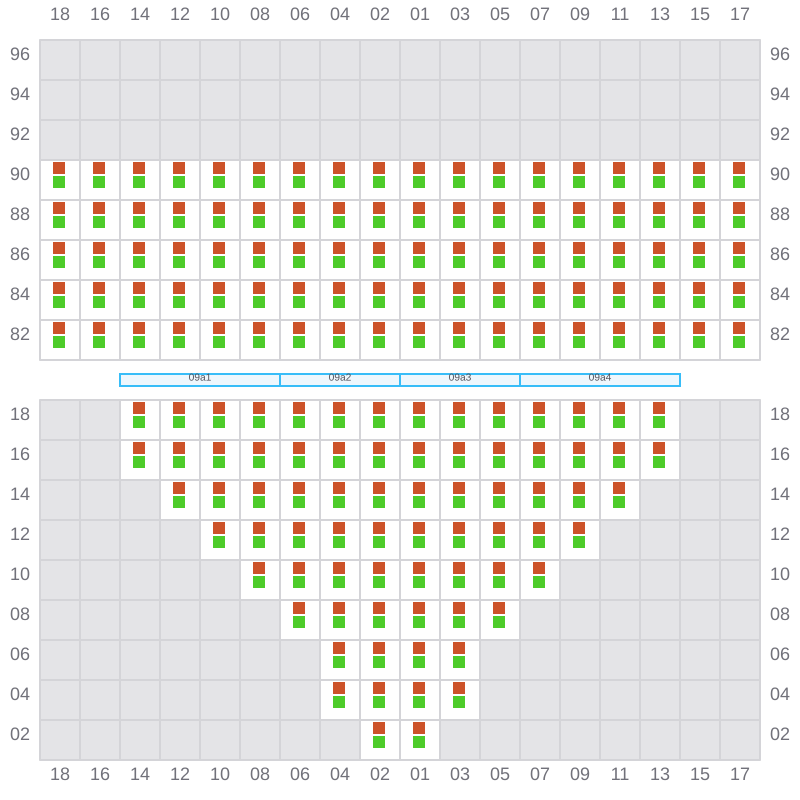

011 (010)
- ←
![Bay 011 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b011.png?v=1717697898885)

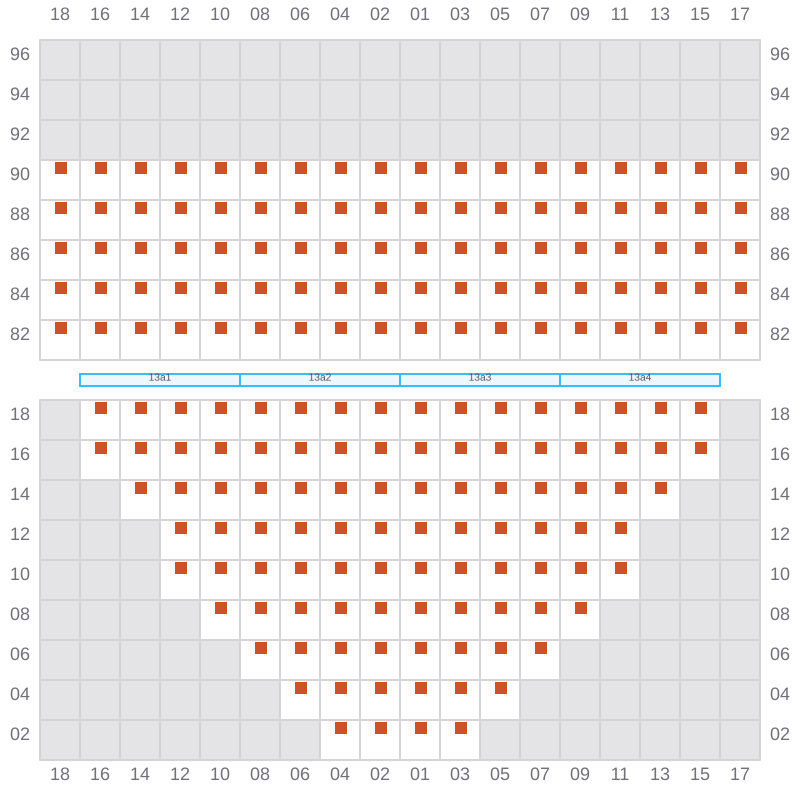

013
- →
![Bay 013 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b013.png?v=1717697898885)

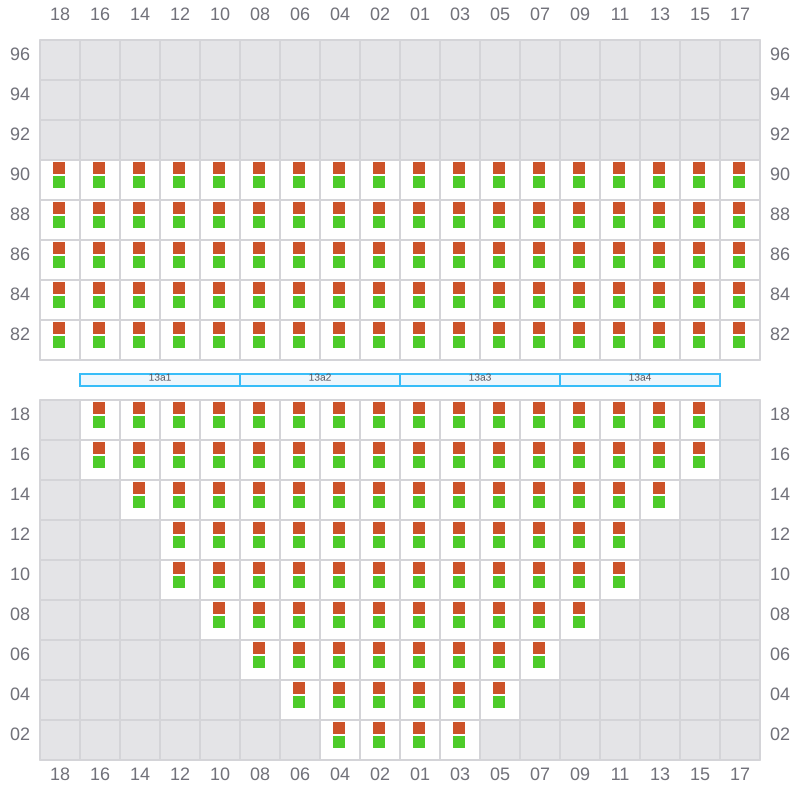

015 (014)
- ←
![Bay 015 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b015.png?v=1717697898885)

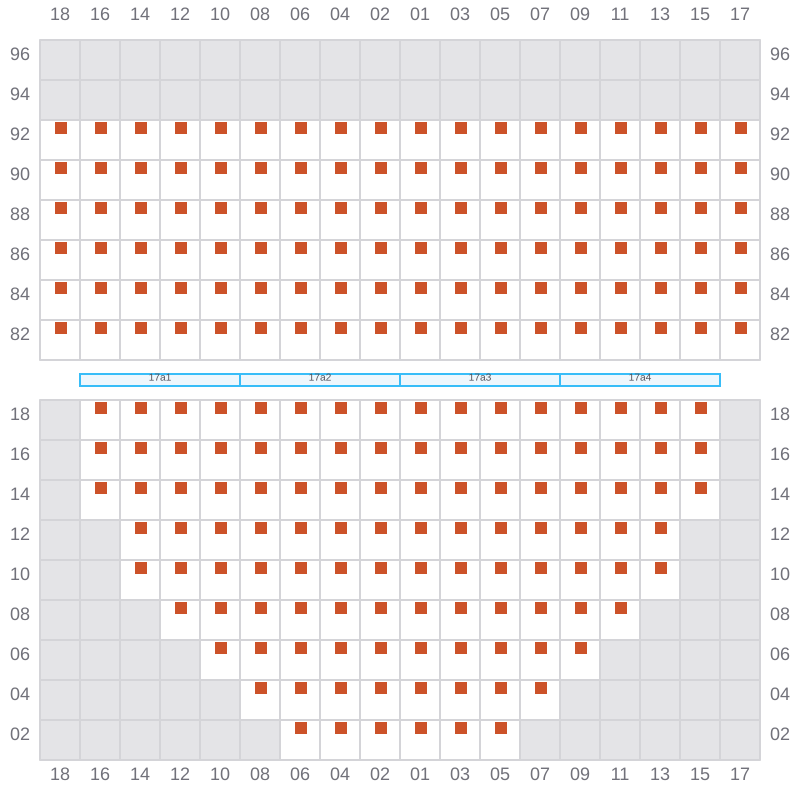

017
- →
![Bay 017 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b017.png?v=1717697898885)

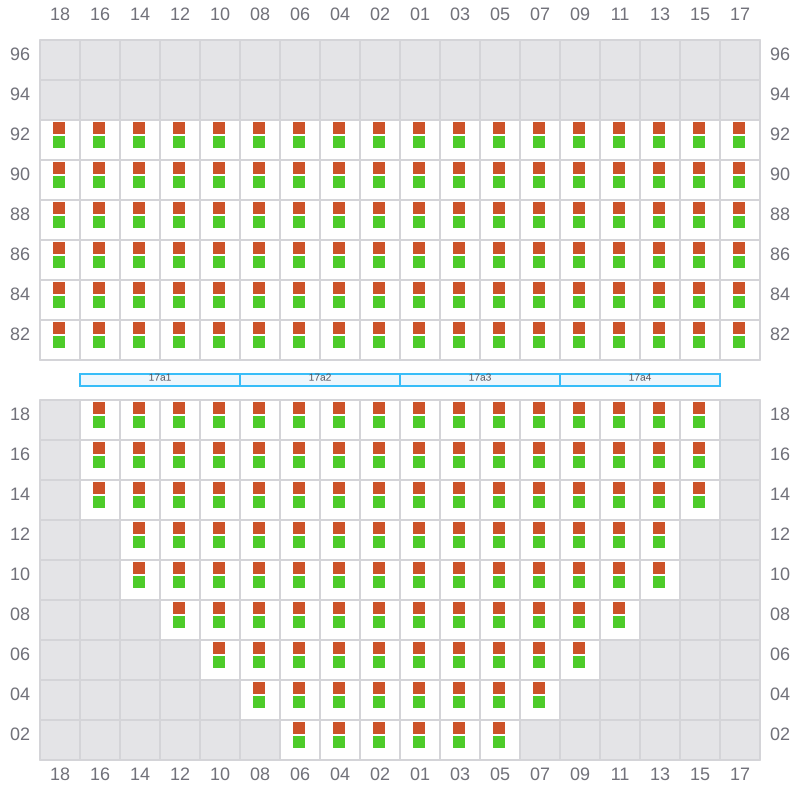

019 (018)
- ←
![Bay 019 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b019.png?v=1717697898885)

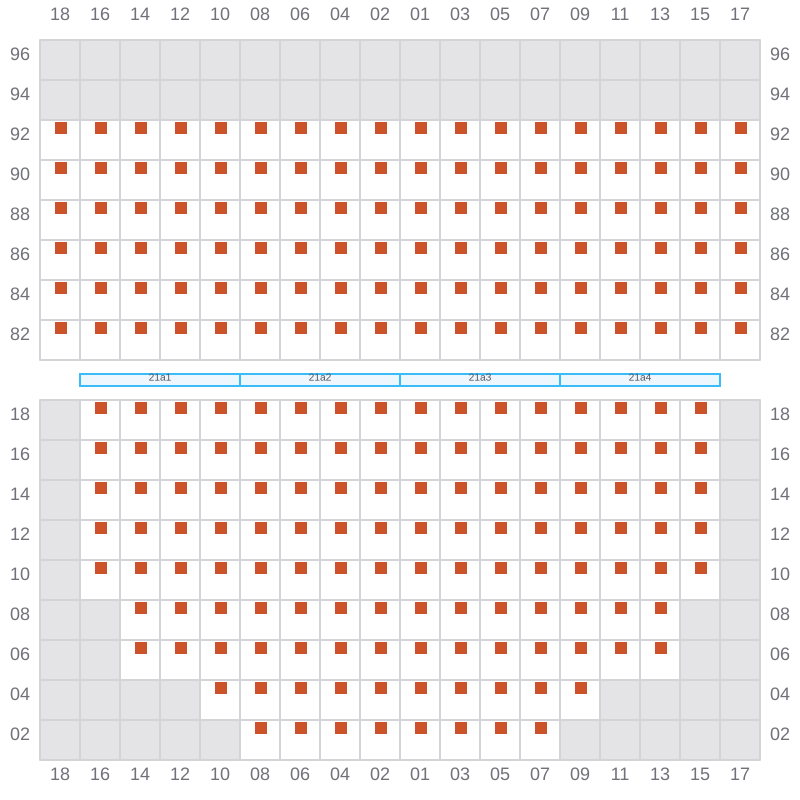

021
- →
![Bay 021 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b021.png?v=1717697898885)

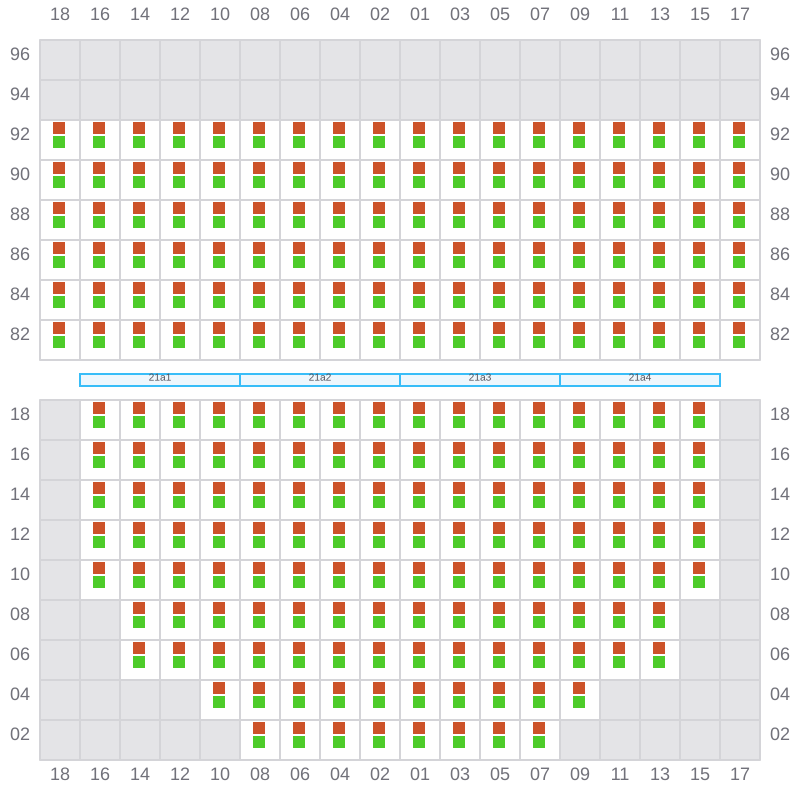

023 (022)
- ←
![Bay 023 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b023.png?v=1717697898885)

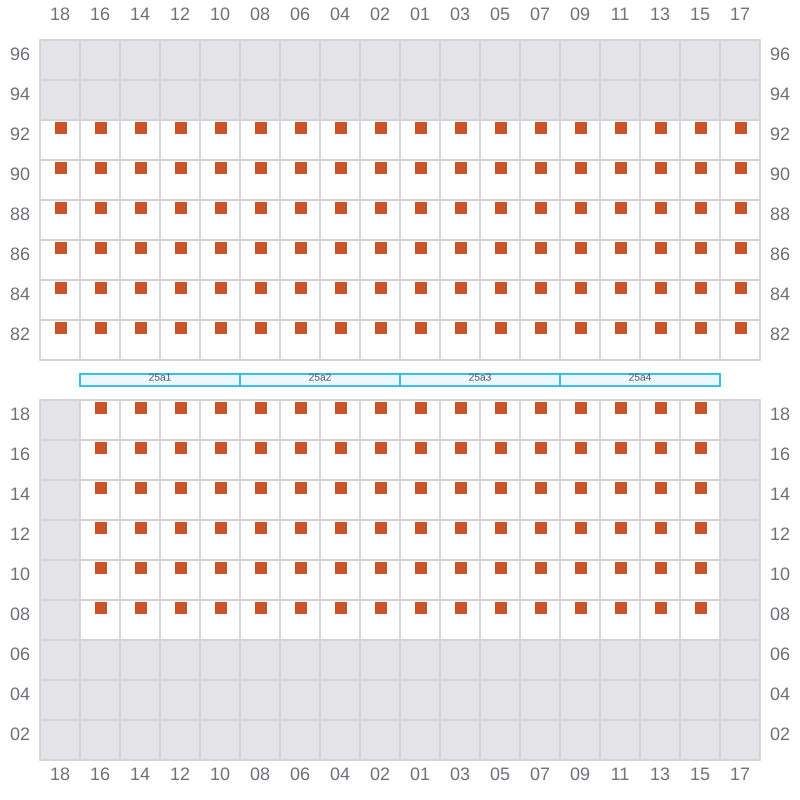

025
- →
![Bay 025 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b025.png?v=1717697898885)
027 (026)
- ←
![Bay 027 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b027.png?v=1717697898885)

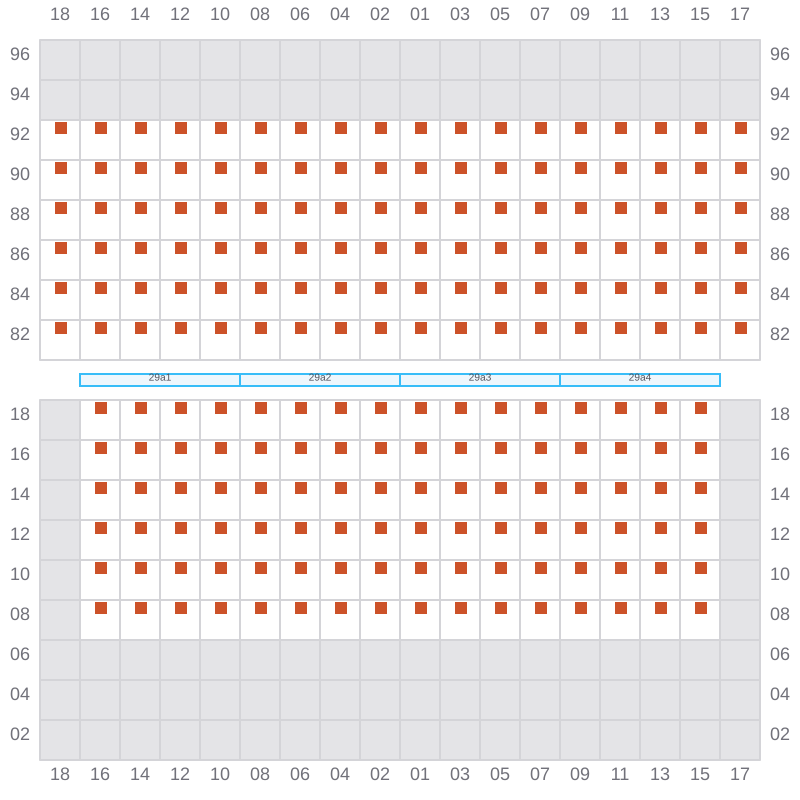

029
- →
![Bay 029 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b029.png?v=1717697898885)

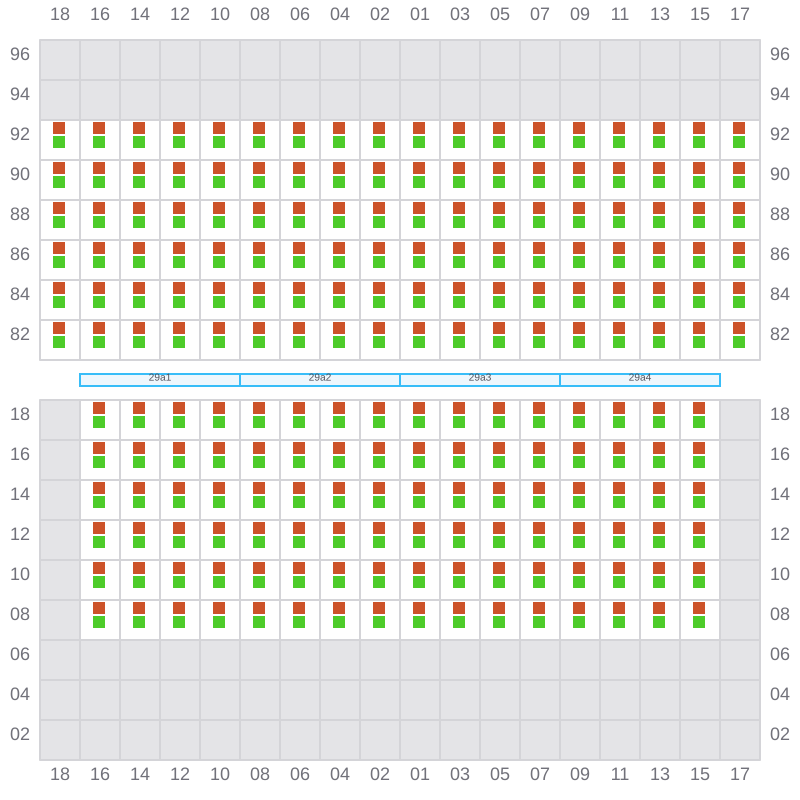

031 (030)
- ←
![Bay 031 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b031.png?v=1717697898885)

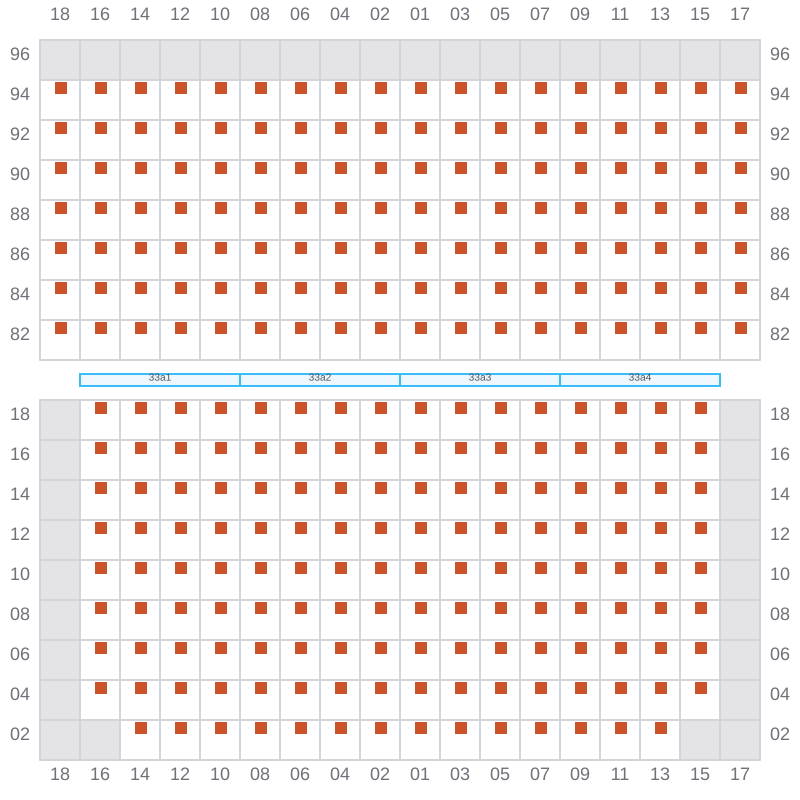

033
- →
![Bay 033 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b033.png?v=1717697898885)
035 (034)
- ←
![Bay 035 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b035.png?v=1717697898885)

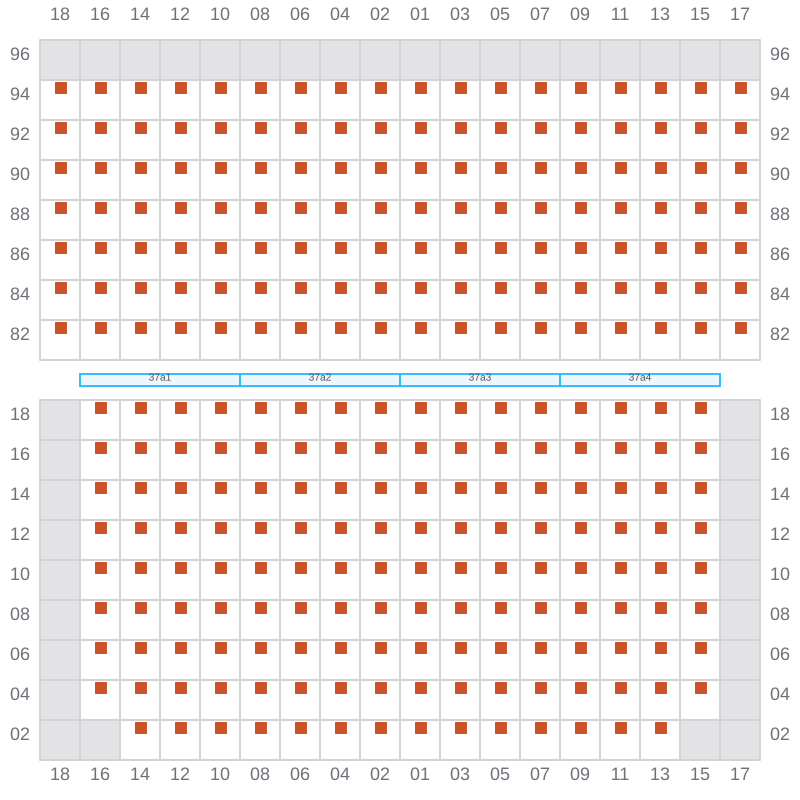

037
- →
![Bay 037 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b037.png?v=1717697898885)
039 (038)
- ←
![Bay 039 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b039.png?v=1717697898885)

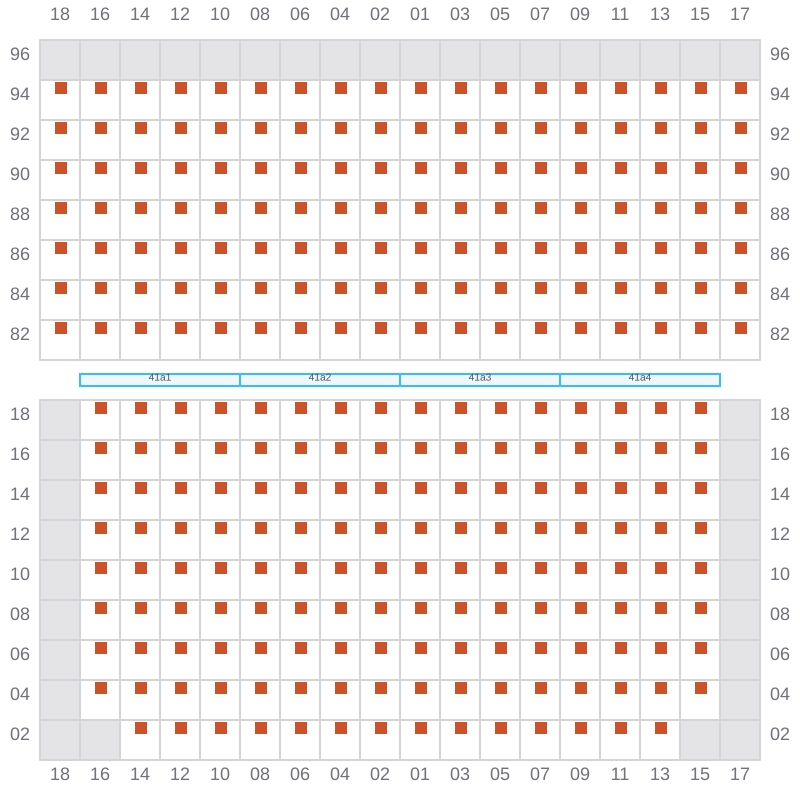

041
- →
![Bay 041 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b041.png?v=1717697898885)
043 (042)
- ←
![Bay 043 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b043.png?v=1717697898885)

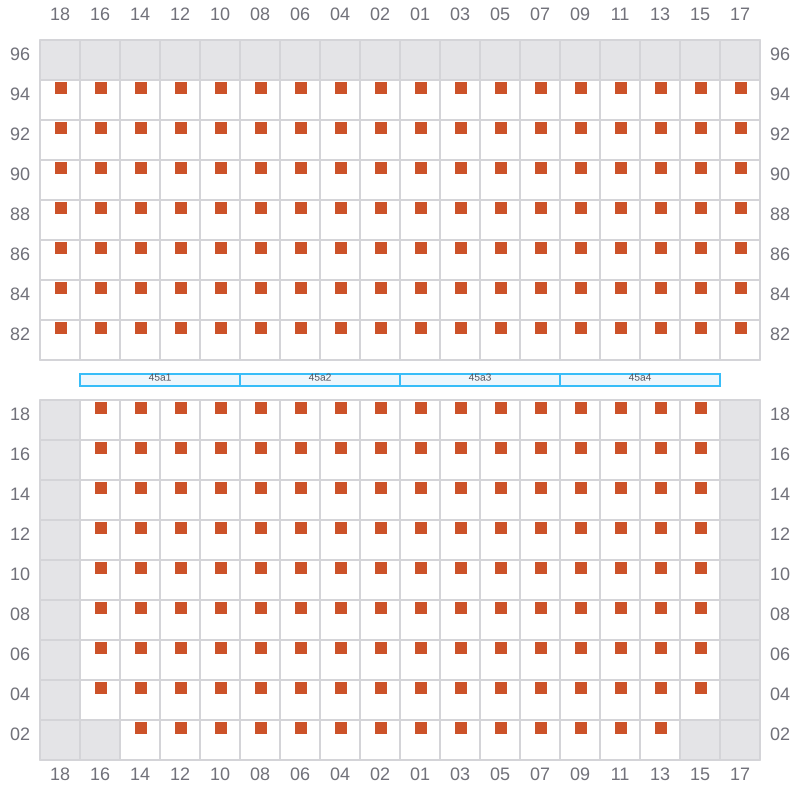

045
- →
![Bay 045 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b045.png?v=1717697898885)

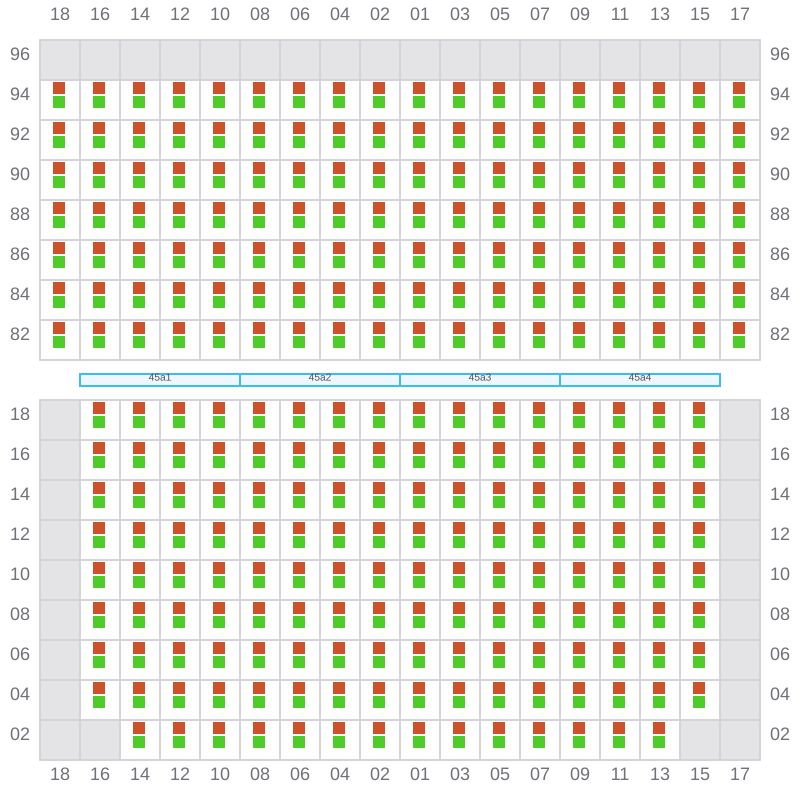

047 (046)
- ←
![Bay 047 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b047.png?v=1717697898885)

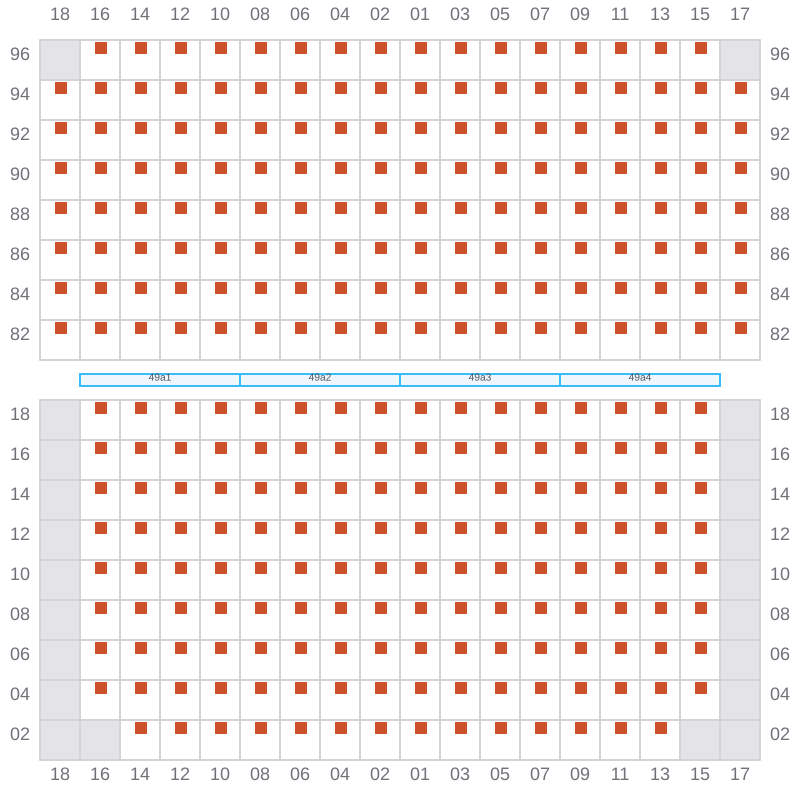

049
- →
![Bay 049 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b049.png?v=1717697898885)

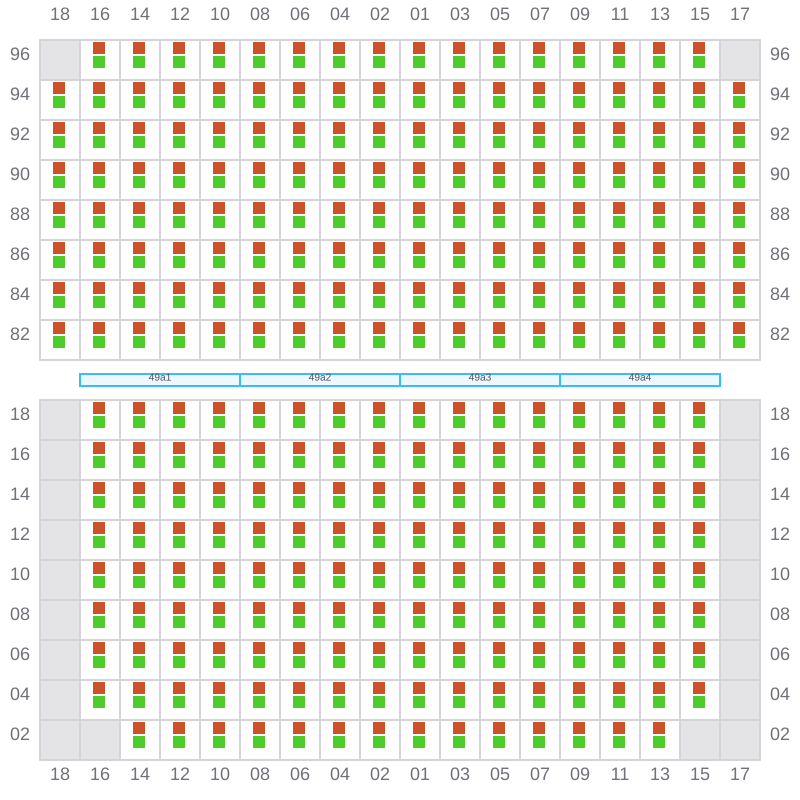

051 (050)
- ←
![Bay 051 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b051.png?v=1717697898885)

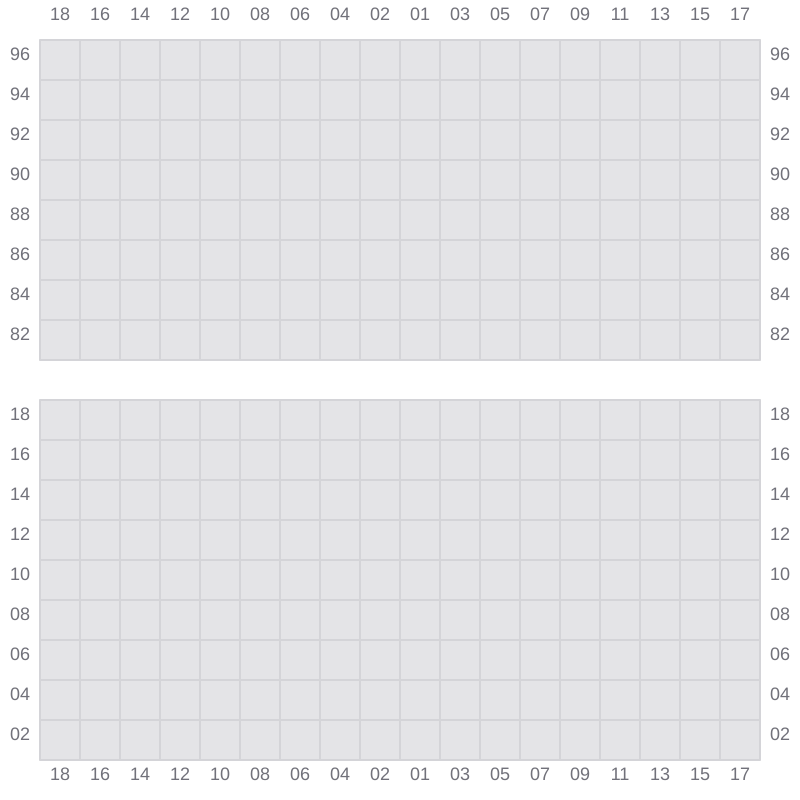

053
![Bay 053 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b053.png?v=1717697898885)

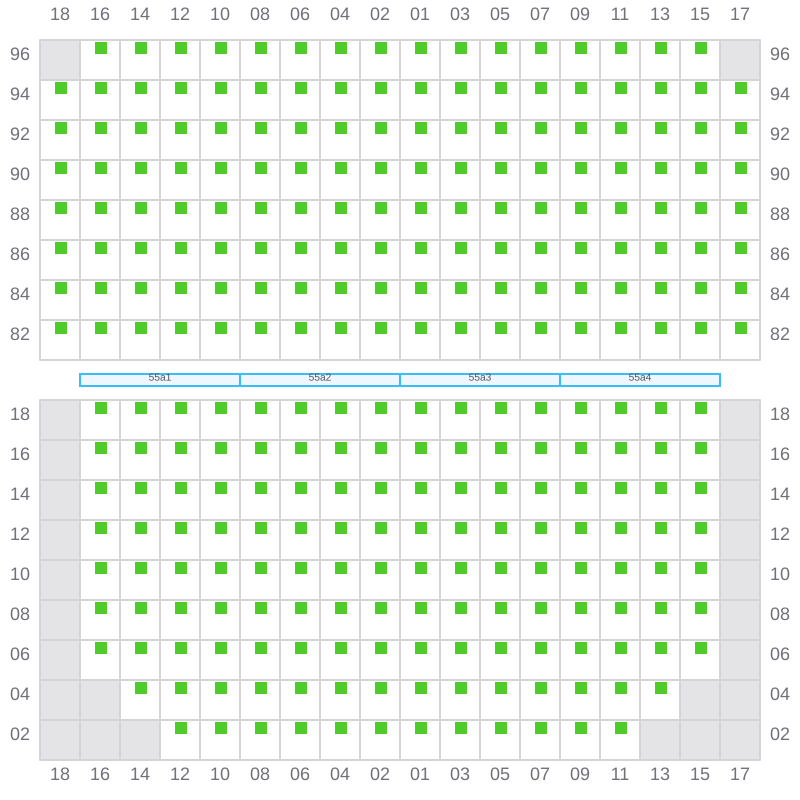

055 (054)
- ←
![Bay 055 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b055.png?v=1717697898885)
057
![Bay 057 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b057.png?v=1717697898885)

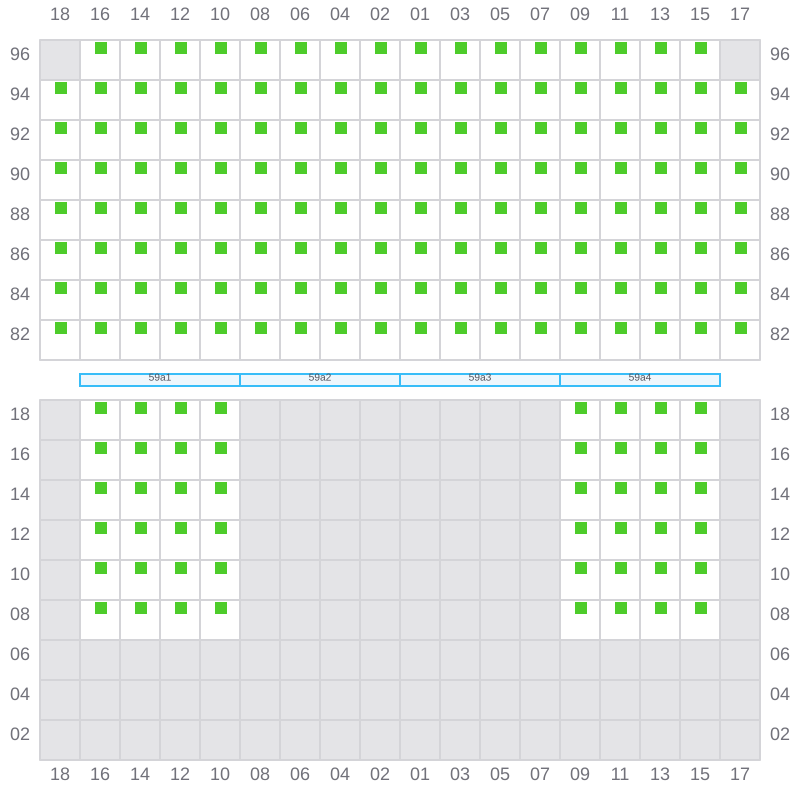

059 (058)
- ←
![Bay 059 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b059.png?v=1717697898885)

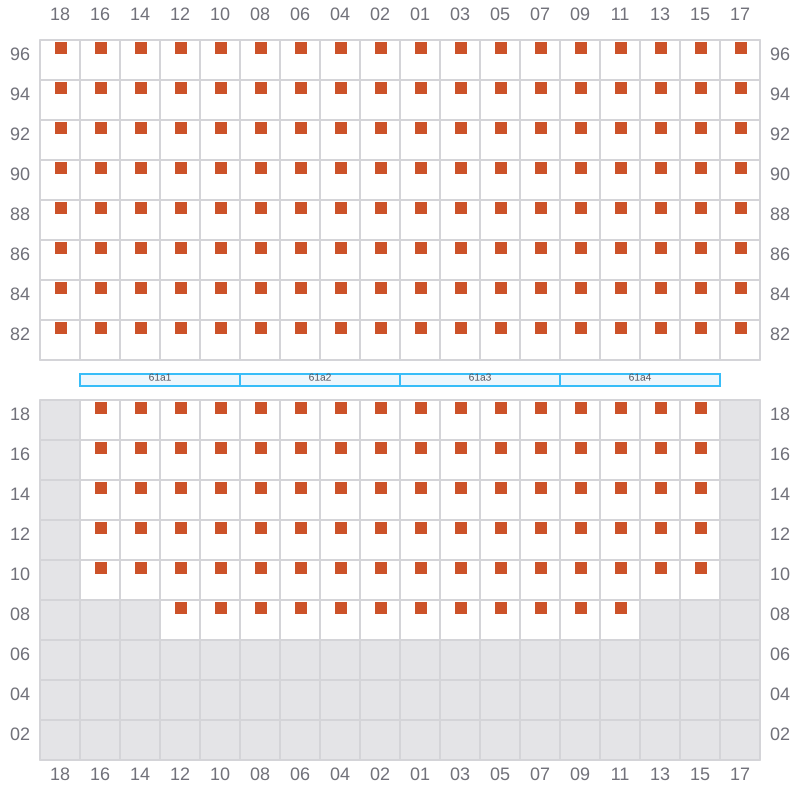

061
- →
![Bay 061 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b061.png?v=1717697898885)

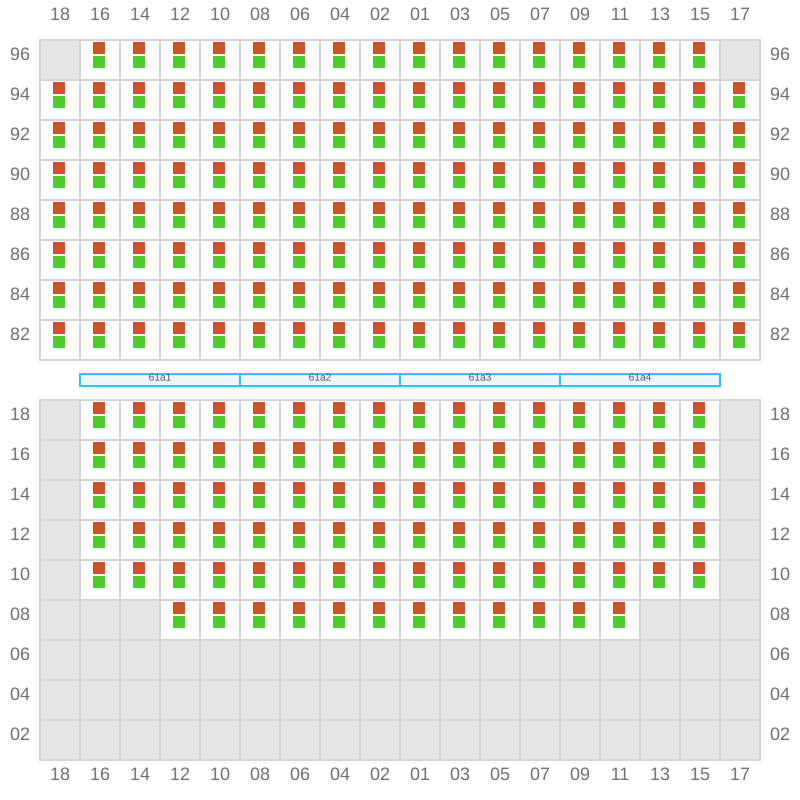

063 (062)
- ←
![Bay 063 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b063.png?v=1717697898885)

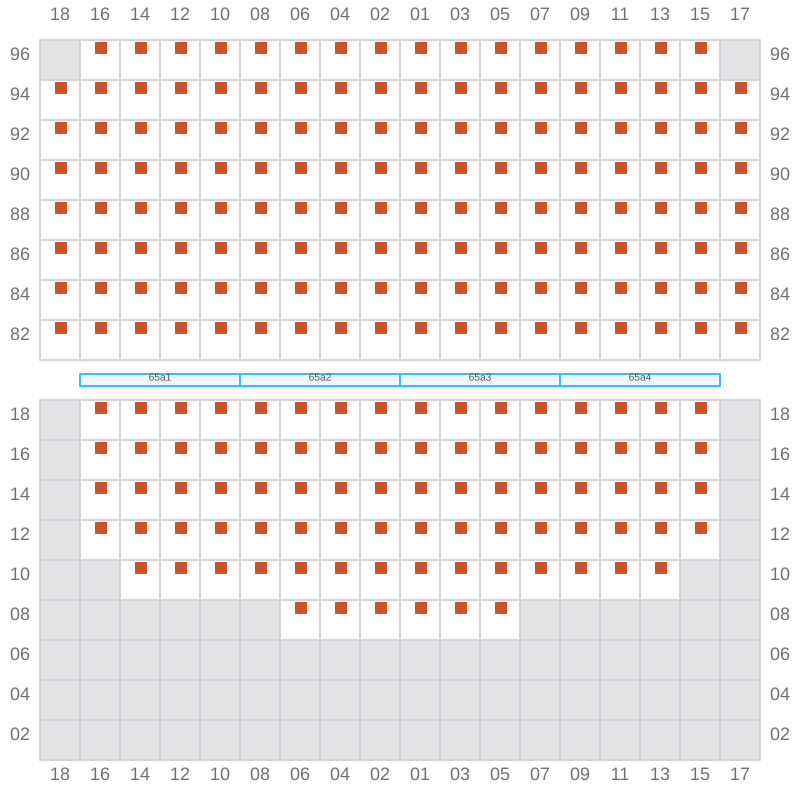

065
- →
![Bay 065 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b065.png?v=1717697898885)

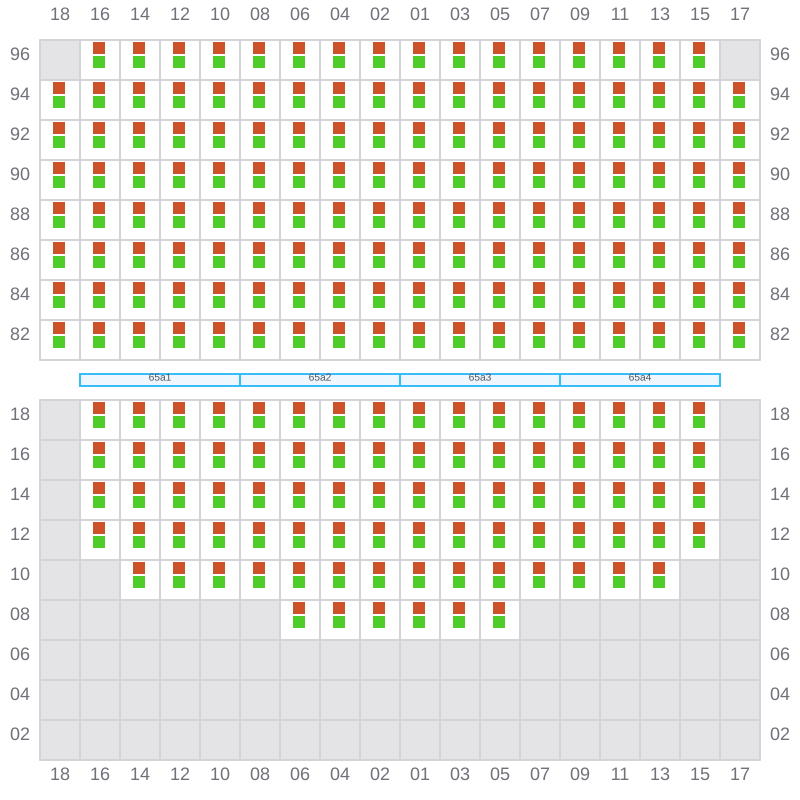

067 (066)
- ←
![Bay 067 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b067.png?v=1717697898885)

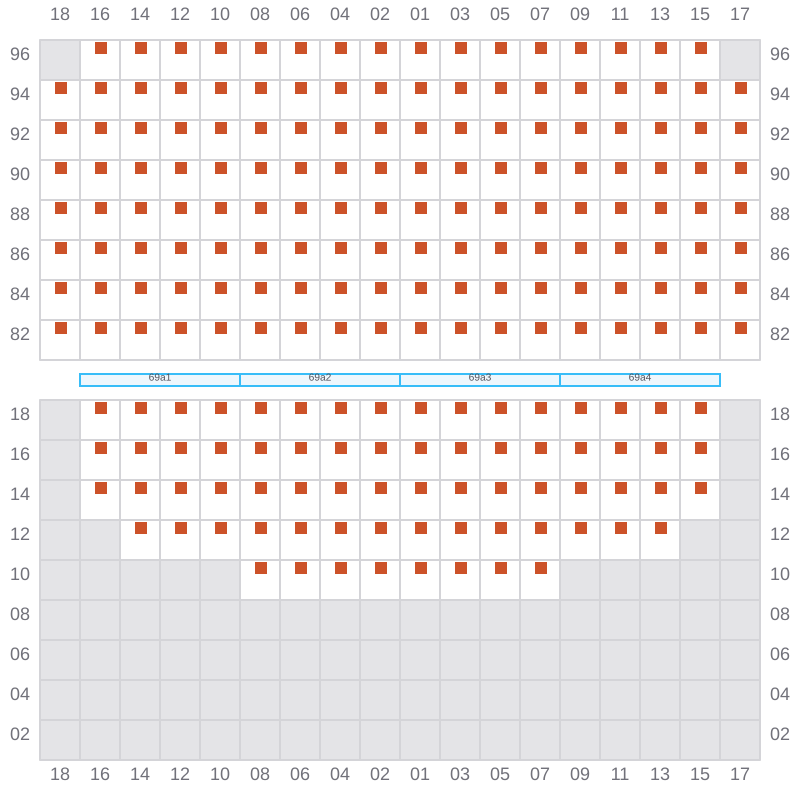

069
- →
![Bay 069 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b069.png?v=1717697898885)

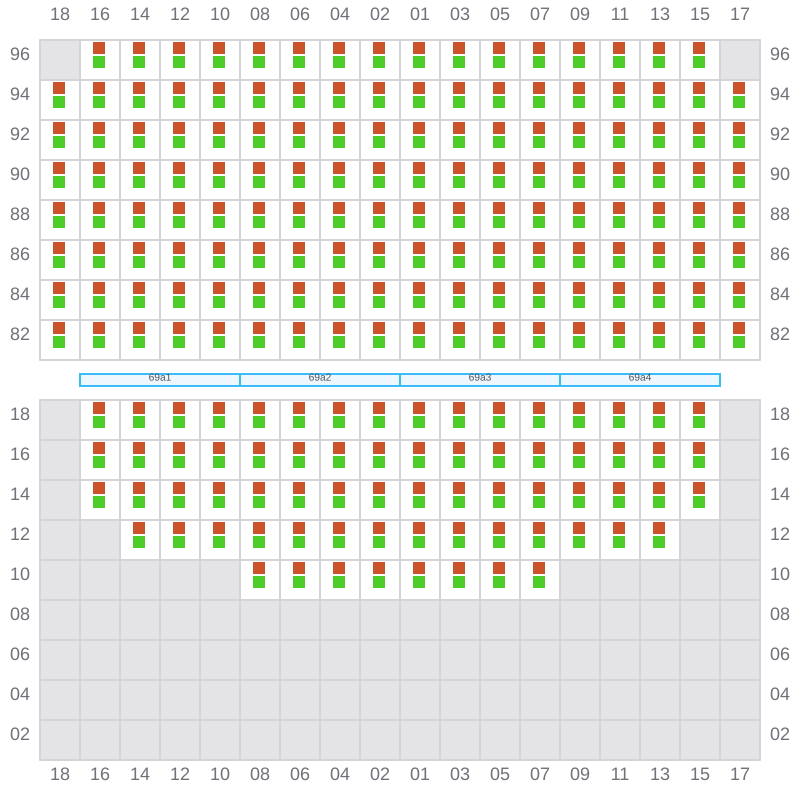

071 (070)
- ←
![Bay 071 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b071.png?v=1717697898885)

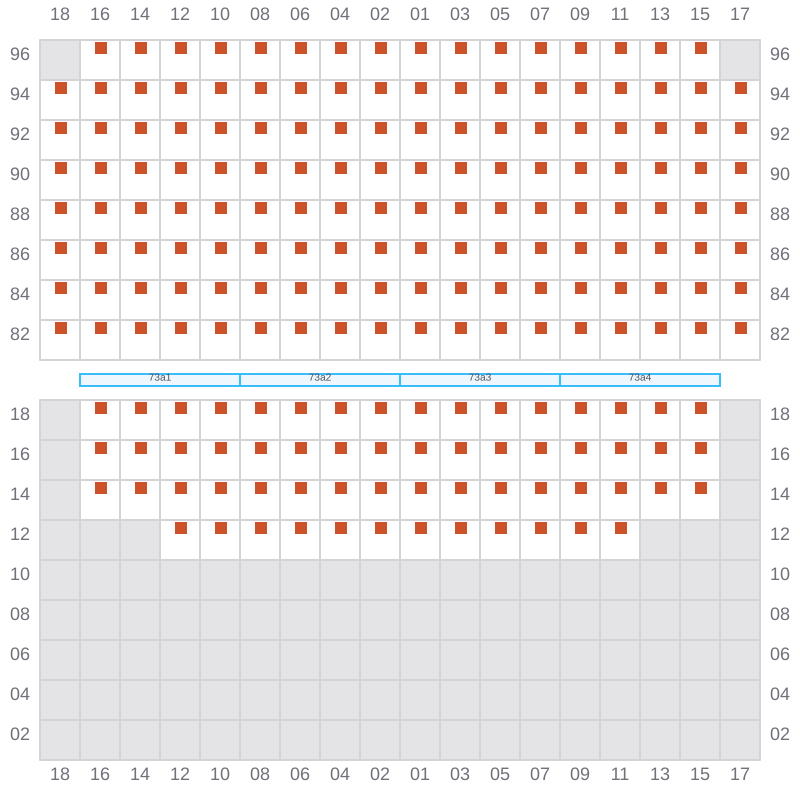

073
- →
![Bay 073 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b073.png?v=1717697898885)

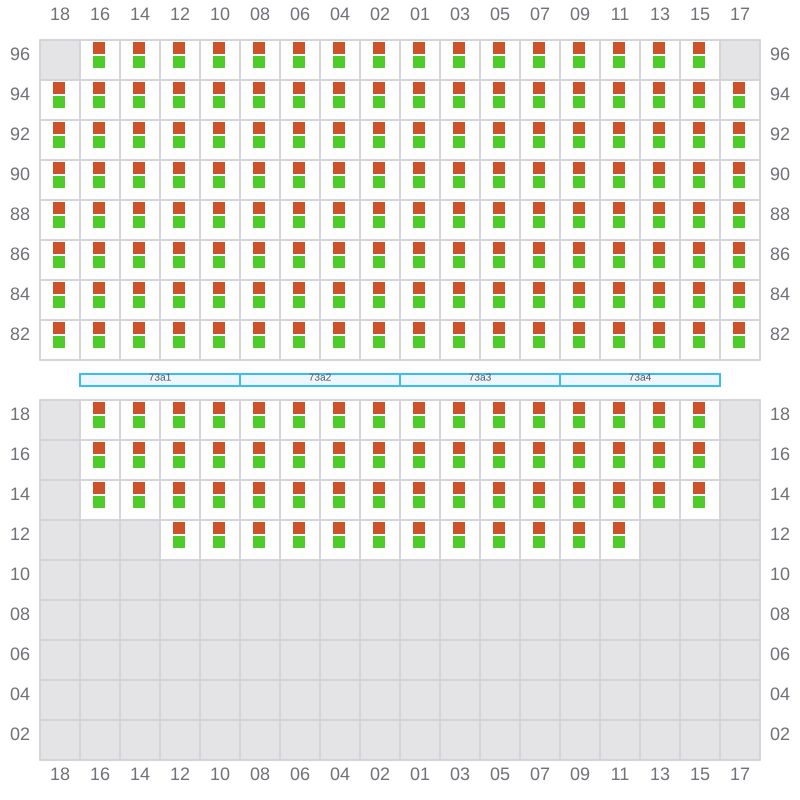

075 (074)
- ←
![Bay 075 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b075.png?v=1717697898885)
077
![Bay 077 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b077.png?v=1717697898885)

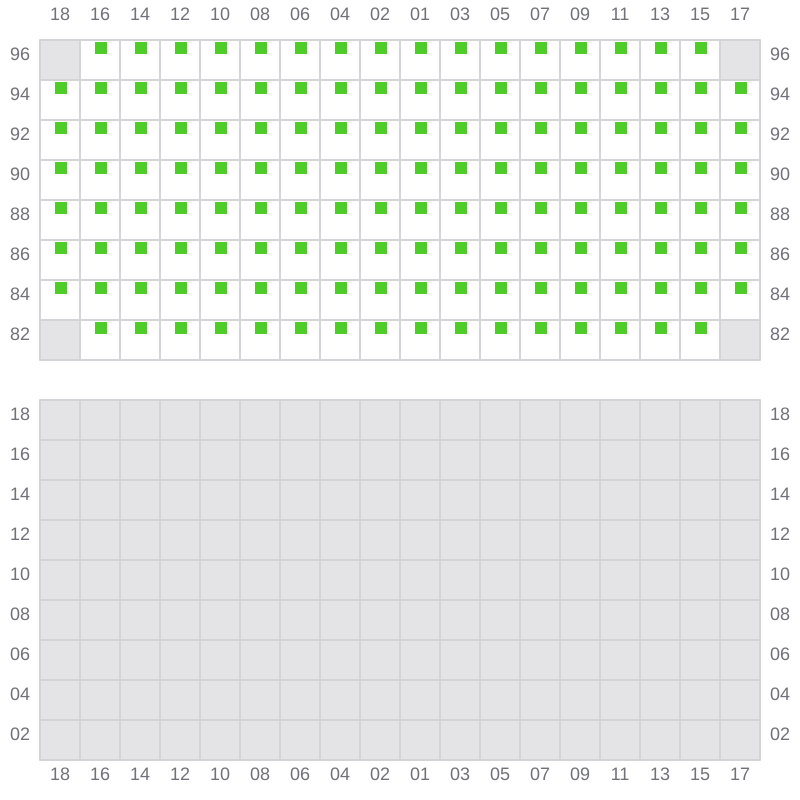

079 (078)
- ← / ?
![Bay 079 view and slots of EVER LEGION](/vessel-images/a4f57a9b-10a0-428e-a304-0be1c13343a3-b079.png?v=1717697898885)
