EVER LENIENT
9604146 | 2HDF9 | EIS by ************************** Last update: Fri Jun 09 2023
General Info
Ship Name:EVER LENIENT
IMO Code:9604146
Call Sign:2HDF9
Line Operator:EIS
Class Name for Sister Ships:LEN
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:40, 20, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,468
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

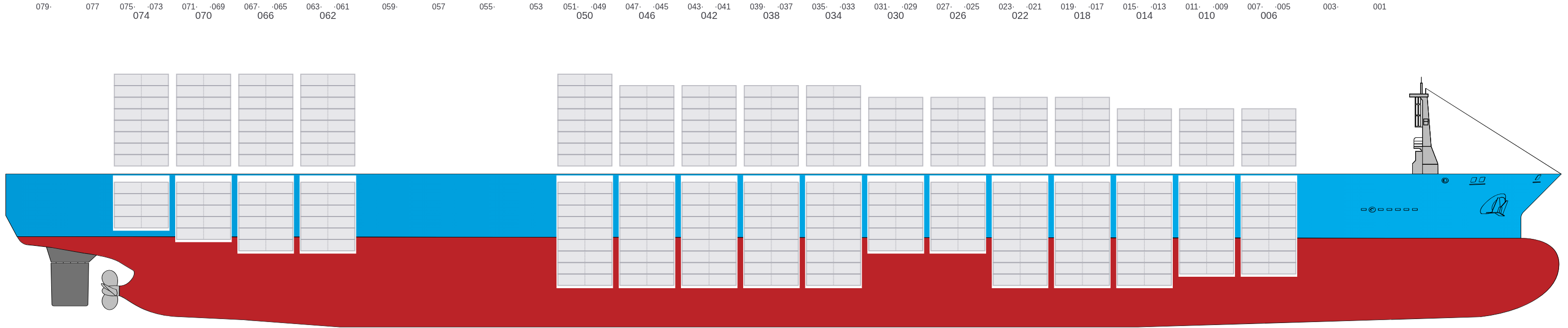

Side View
![Side view of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-sideView.png?v=1686348958685)

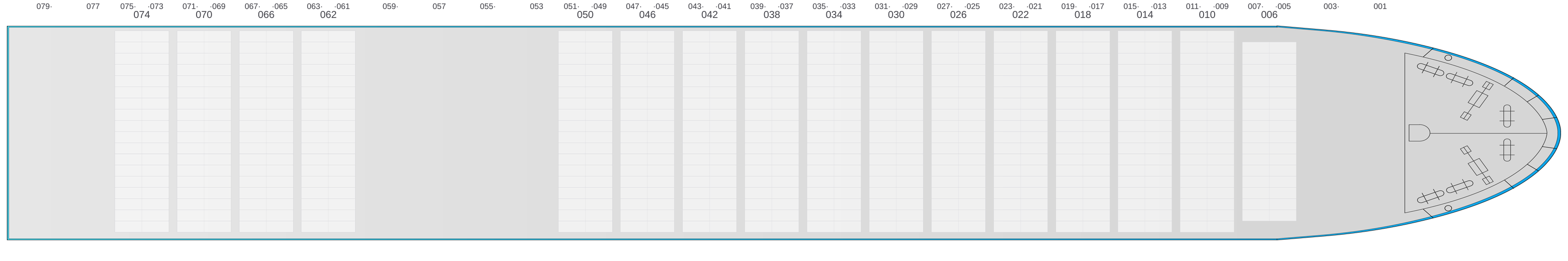

Hatch-Covers View
![Deck view of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-deckView.png?v=1686348958685)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
![Bay 001 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b001.png?v=1686348958685)

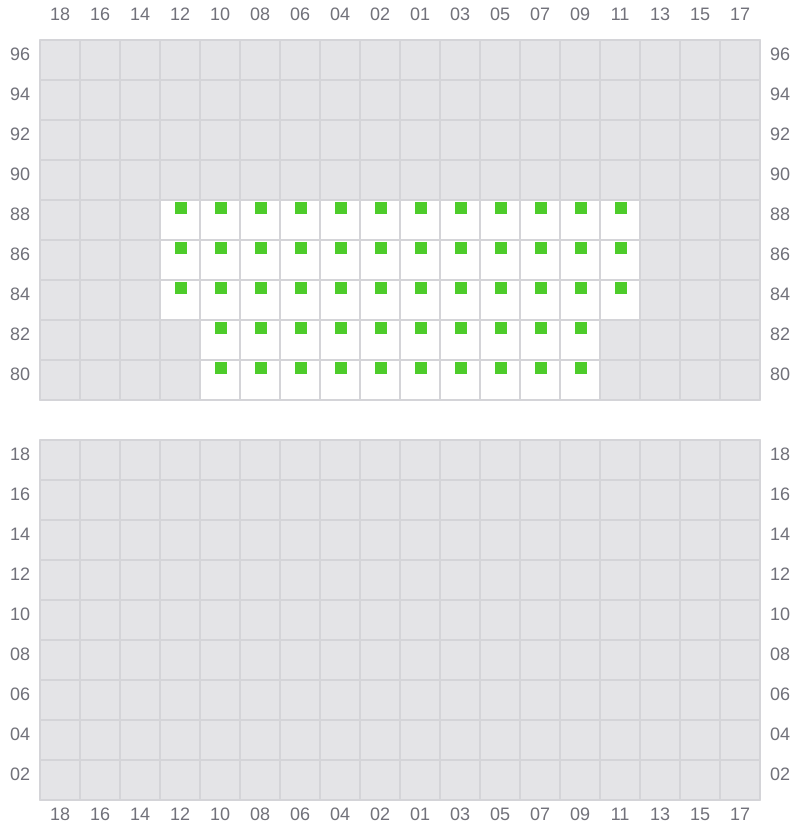

003 (002)
- ← / ?
![Bay 003 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b003.png?v=1686348958685)

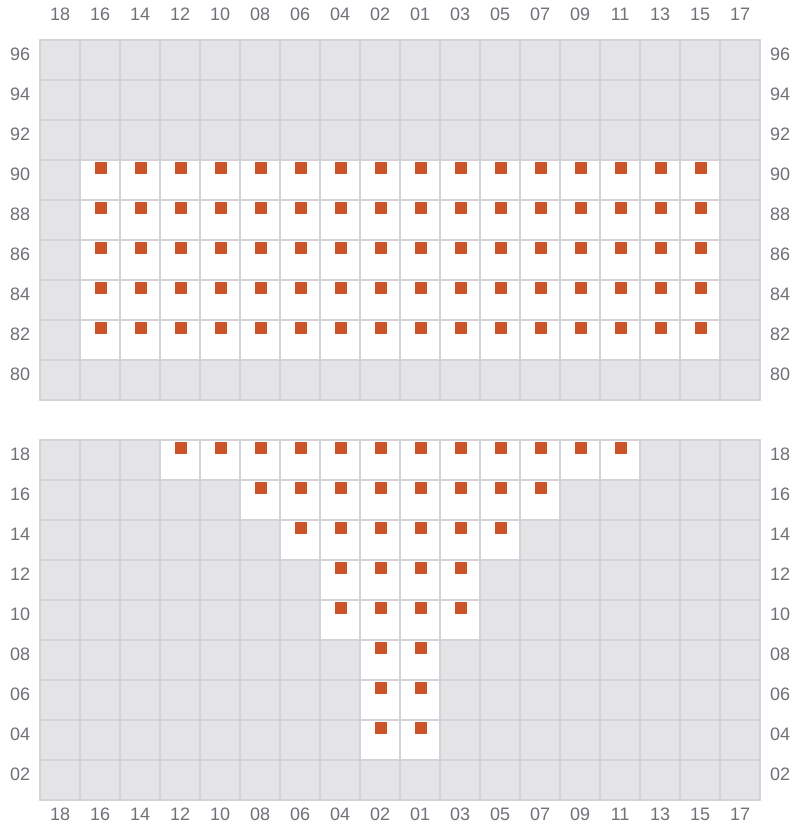

005
- →
![Bay 005 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b005.png?v=1686348958685)

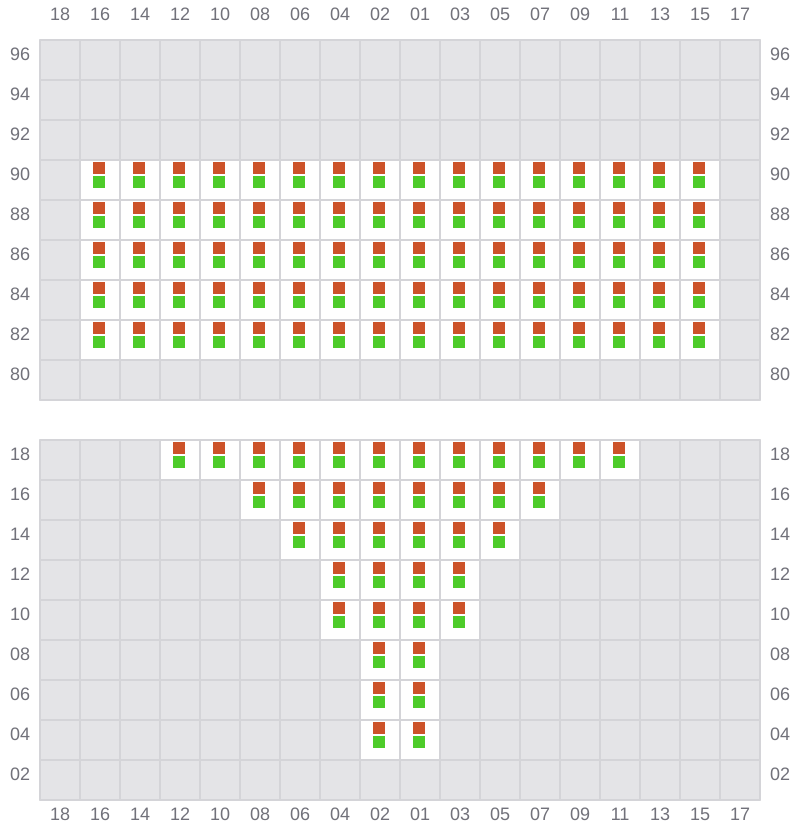

007 (006)
- ←
![Bay 007 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b007.png?v=1686348958685)

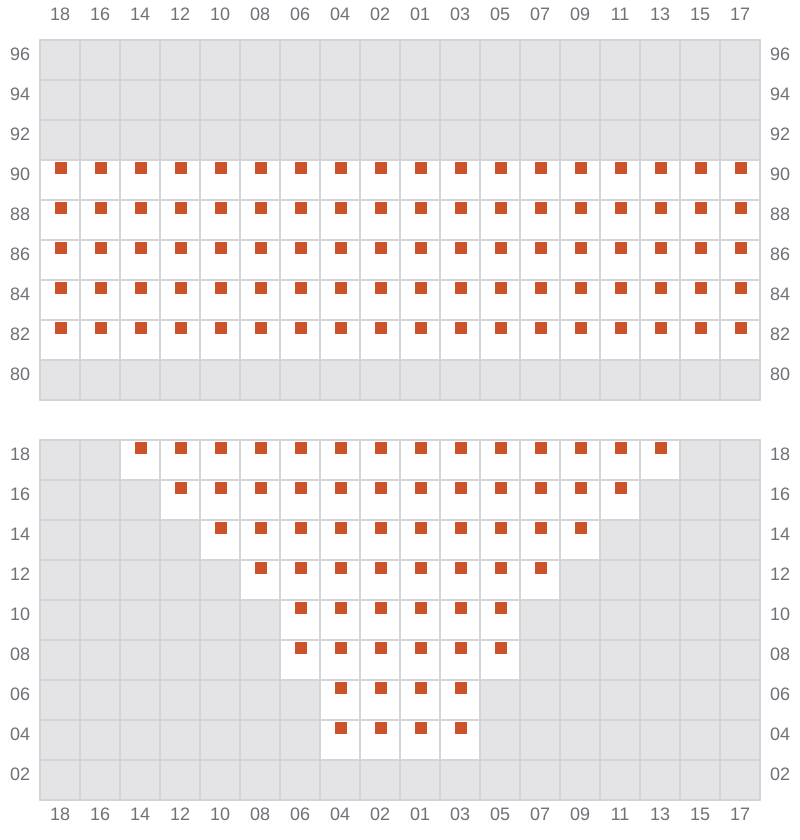

009
- →
![Bay 009 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b009.png?v=1686348958685)

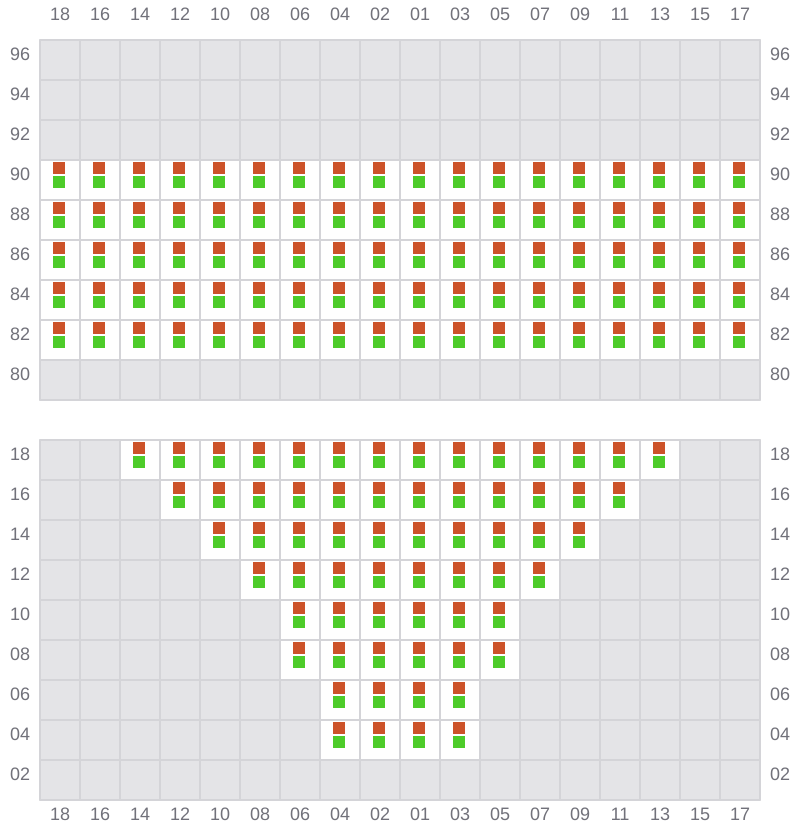

011 (010)
- ←
![Bay 011 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b011.png?v=1686348958685)

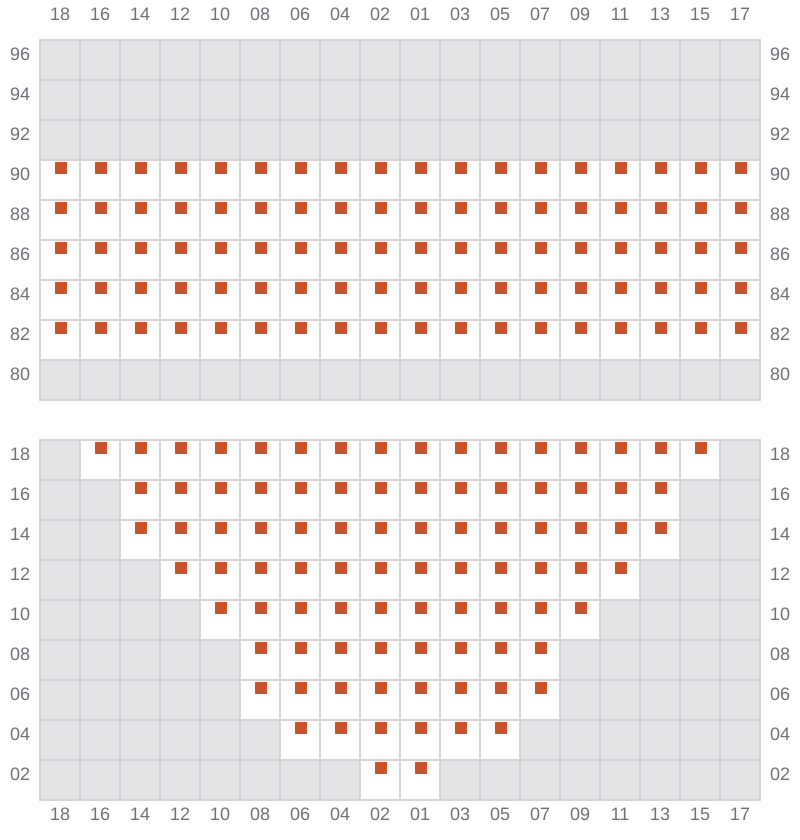

013
- →
![Bay 013 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b013.png?v=1686348958685)

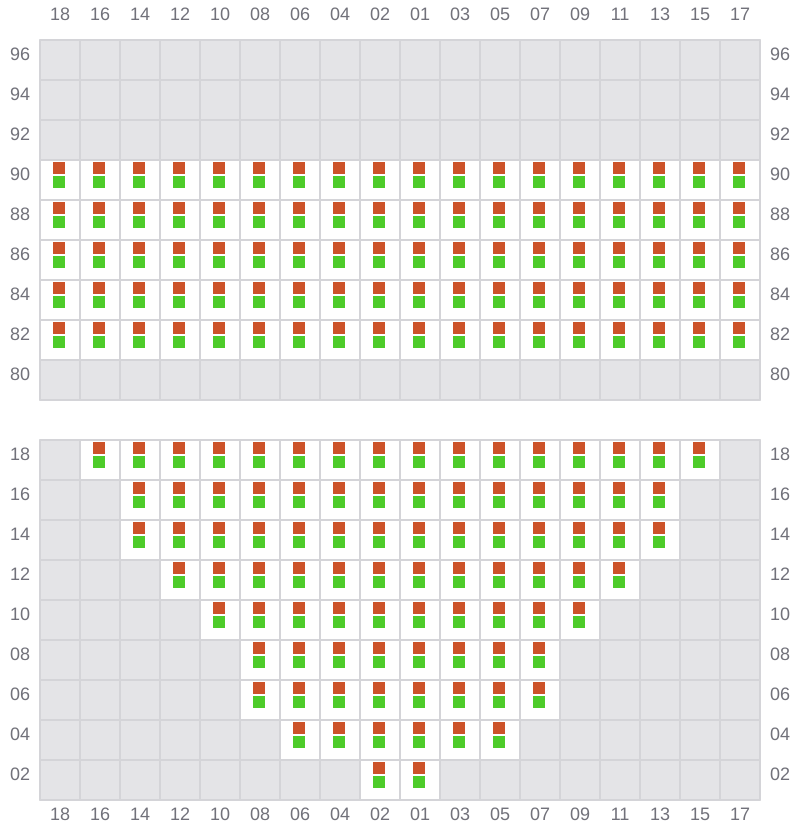

015 (014)
- ←
![Bay 015 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b015.png?v=1686348958685)

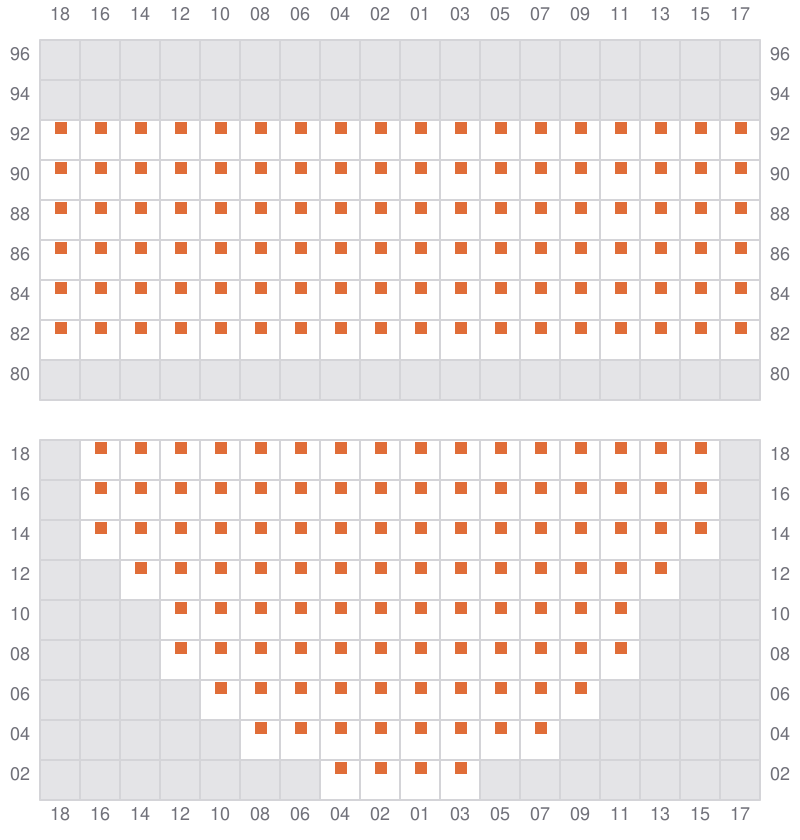

017
- →
![Bay 017 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b017.png?v=1686348958685)

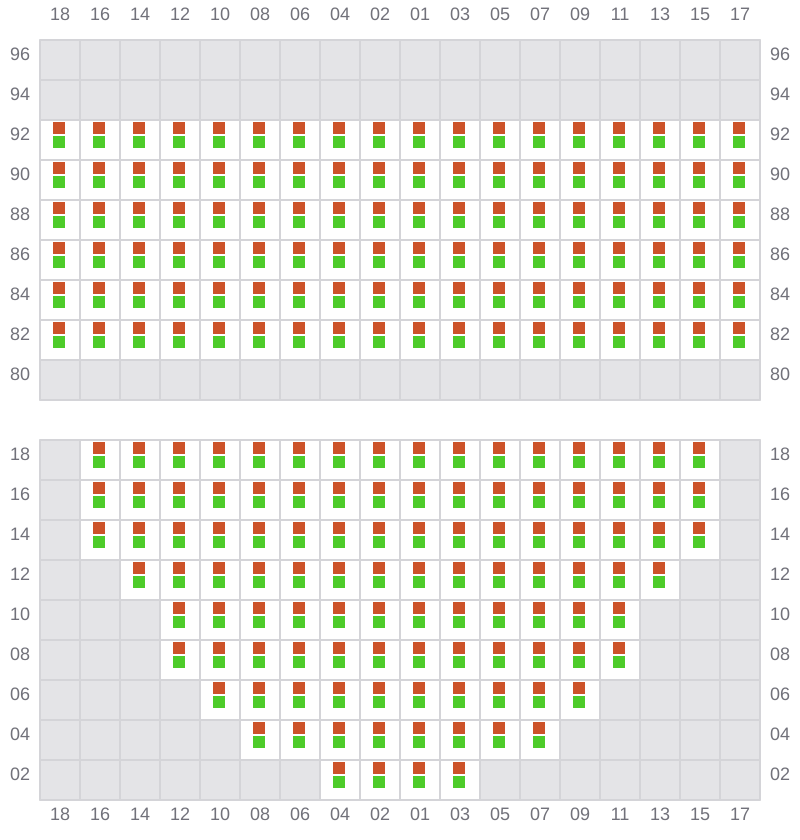

019 (018)
- ←
![Bay 019 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b019.png?v=1686348958685)

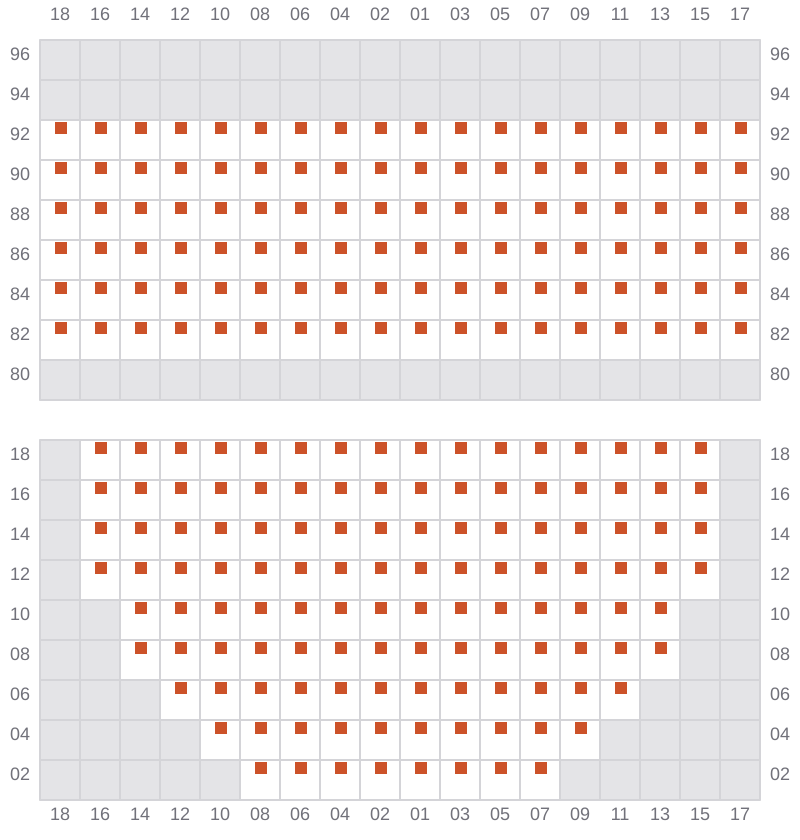

021
- →
![Bay 021 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b021.png?v=1686348958685)

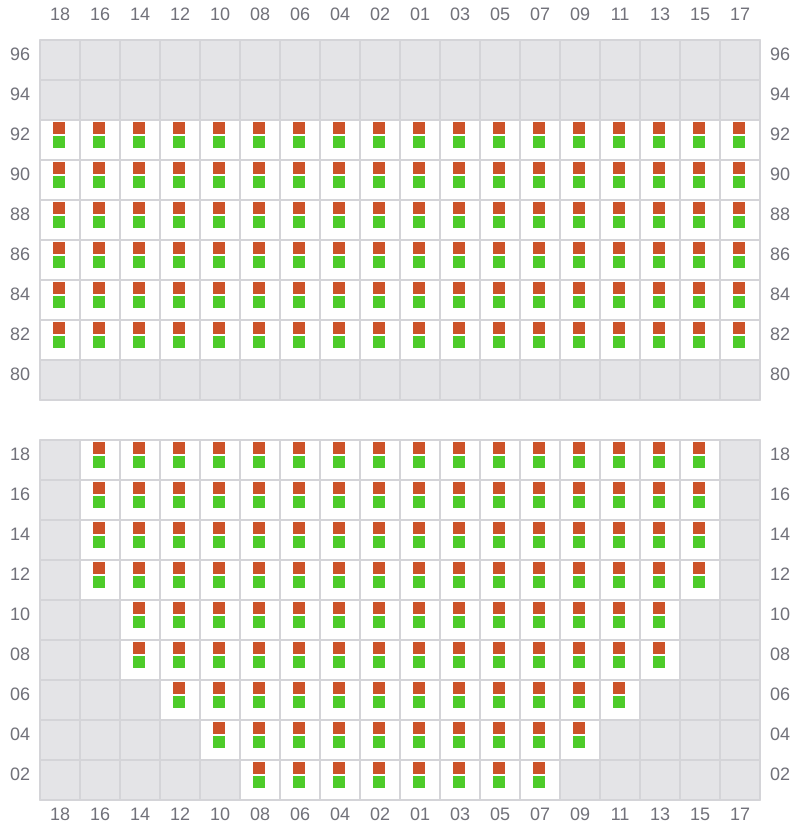

023 (022)
- ←
![Bay 023 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b023.png?v=1686348958685)
025
- →
![Bay 025 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b025.png?v=1686348958685)

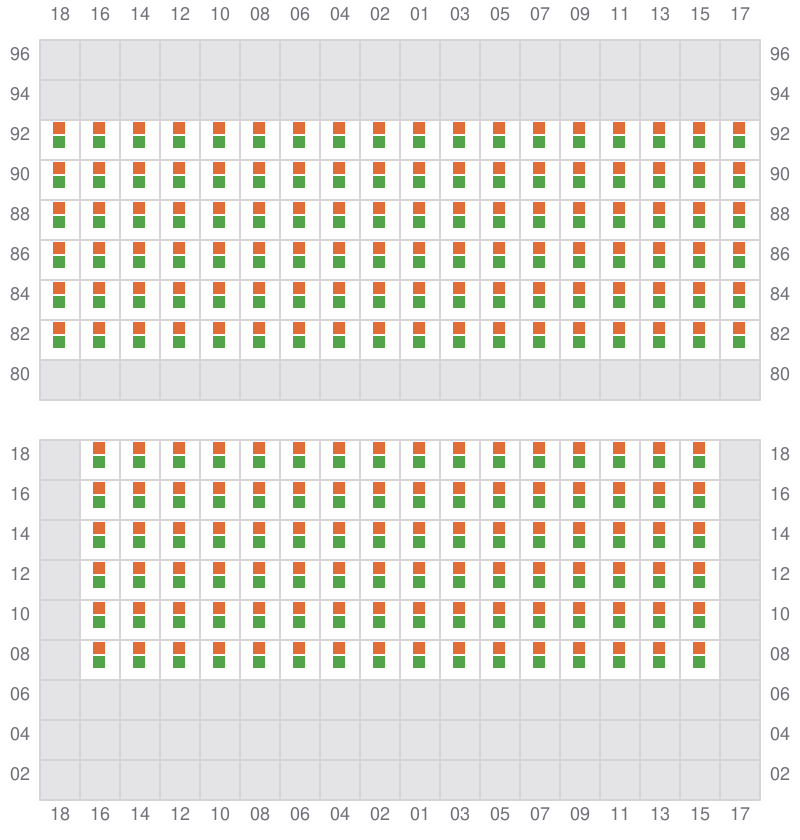

027 (026)
- ←
![Bay 027 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b027.png?v=1686348958685)

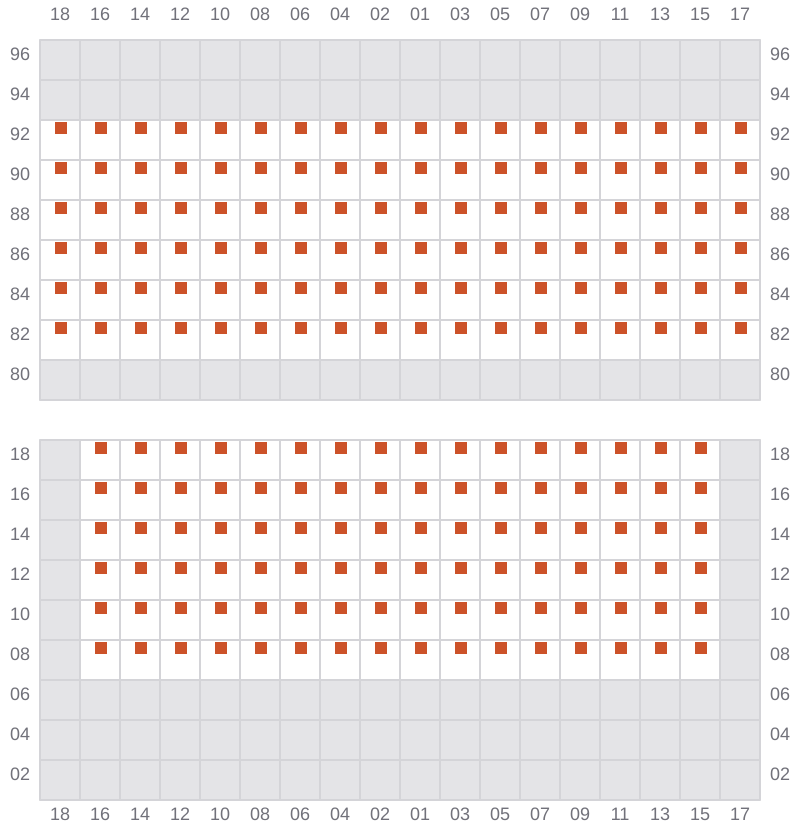

029
- →
![Bay 029 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b029.png?v=1686348958685)

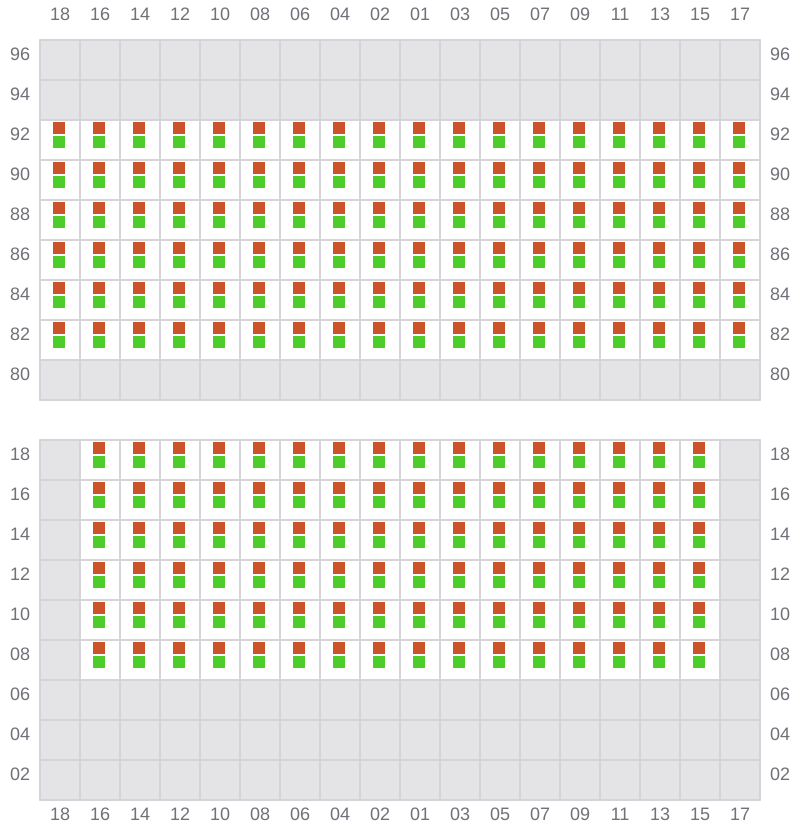

031 (030)
- ←
![Bay 031 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b031.png?v=1686348958685)

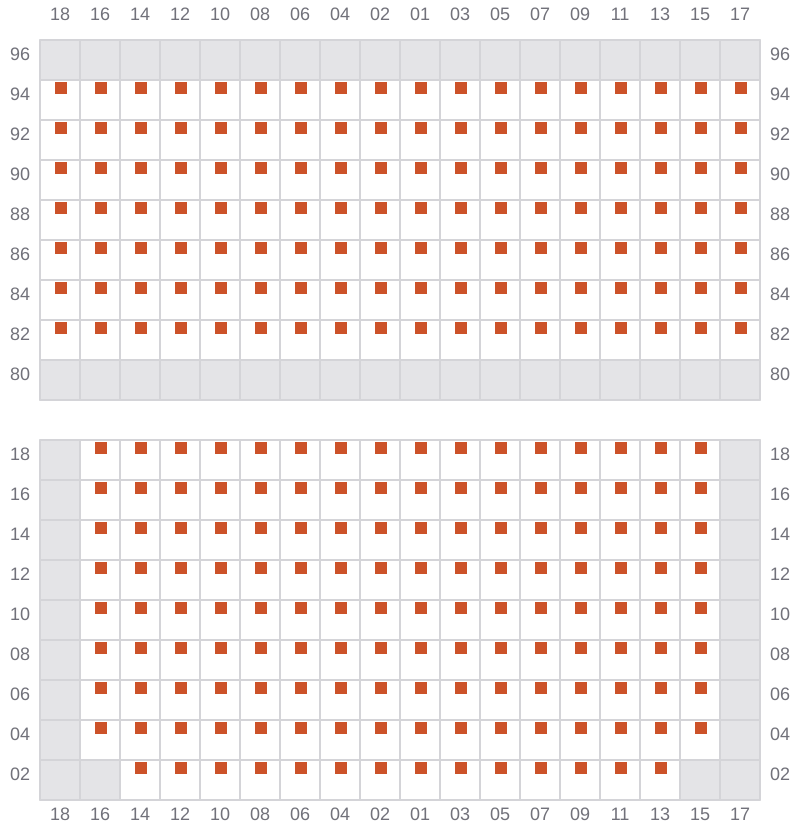

033
- →
![Bay 033 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b033.png?v=1686348958685)
035 (034)
- ←
![Bay 035 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b035.png?v=1686348958685)
037
- →
![Bay 037 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b037.png?v=1686348958685)

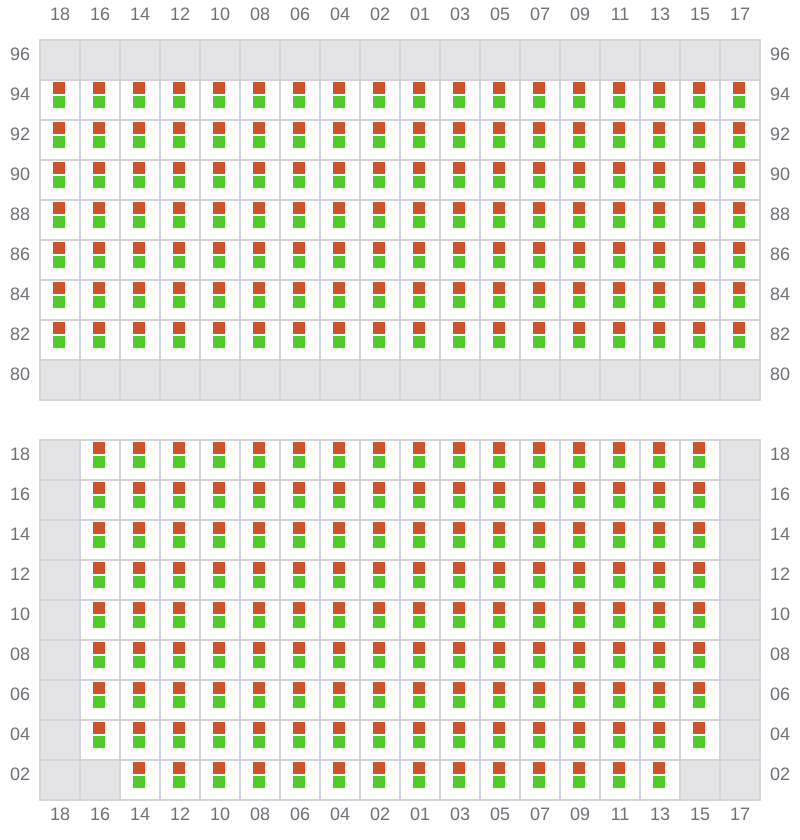

039 (038)
- ←
![Bay 039 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b039.png?v=1686348958685)
041
- →
![Bay 041 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b041.png?v=1686348958685)
043 (042)
- ←
![Bay 043 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b043.png?v=1686348958685)
045
- →
![Bay 045 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b045.png?v=1686348958685)
047 (046)
- ←
![Bay 047 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b047.png?v=1686348958685)

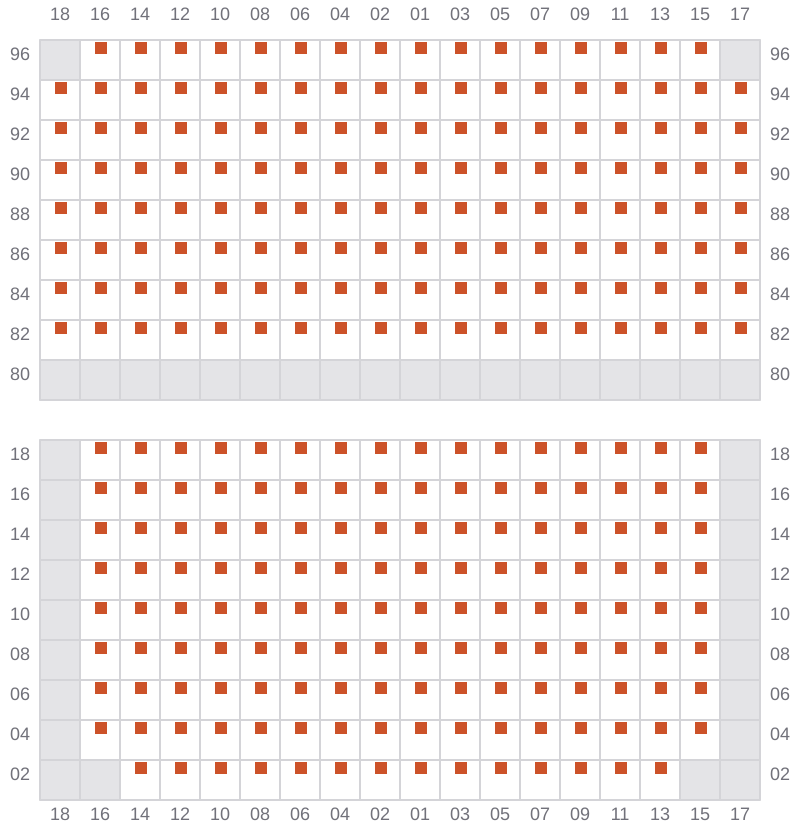

049
- →
![Bay 049 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b049.png?v=1686348958685)

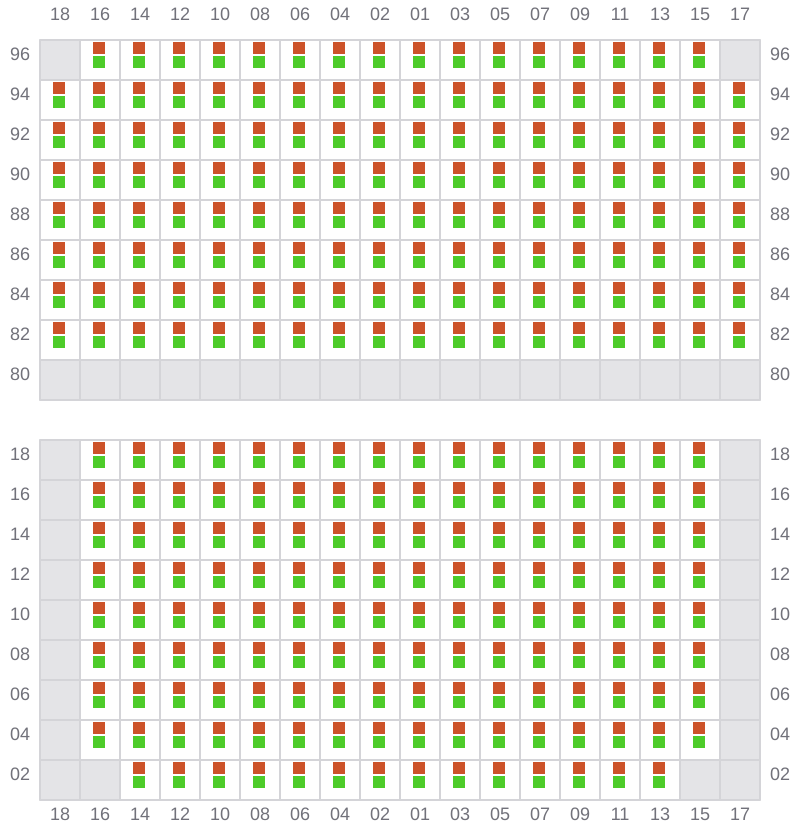

051 (050)
- ←
![Bay 051 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b051.png?v=1686348958685)

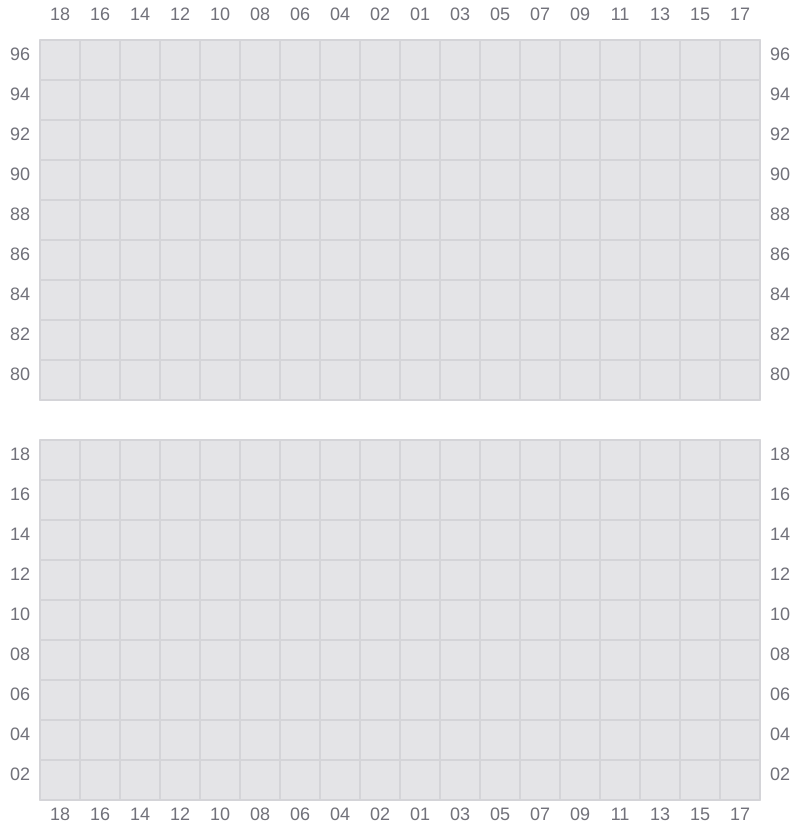

053
![Bay 053 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b053.png?v=1686348958685)

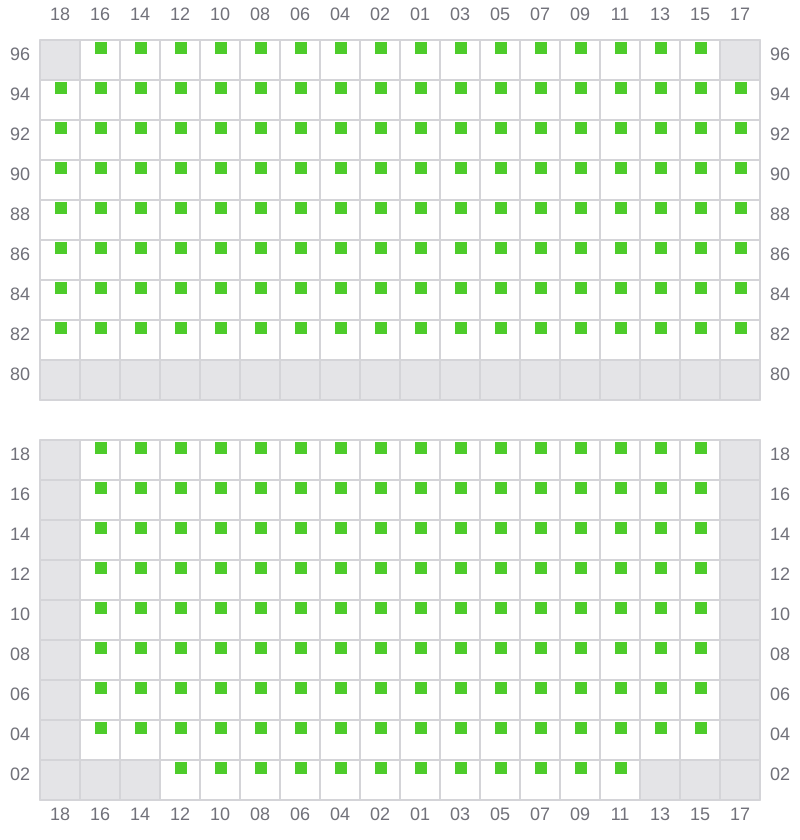

055 (054)
- ←
![Bay 055 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b055.png?v=1686348958685)
057
![Bay 057 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b057.png?v=1686348958685)

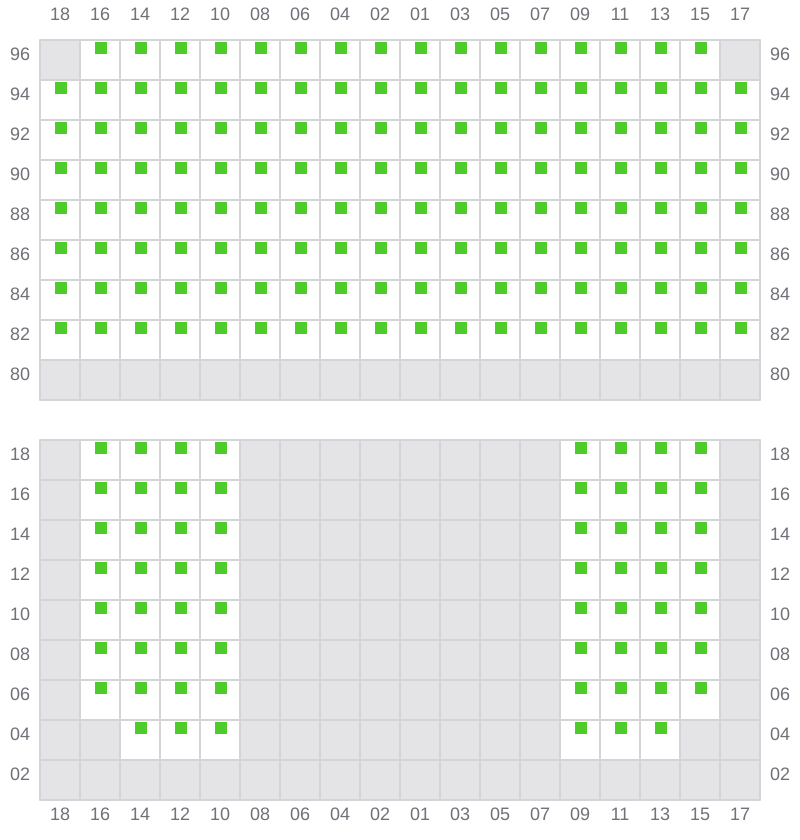

059 (058)
- ←
![Bay 059 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b059.png?v=1686348958685)

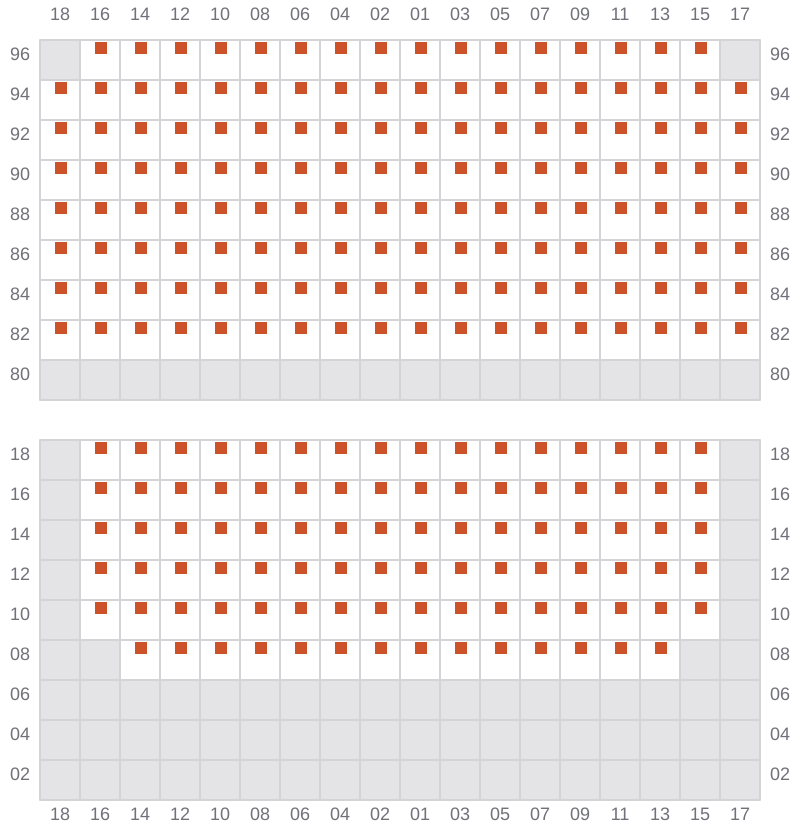

061
- →
![Bay 061 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b061.png?v=1686348958685)

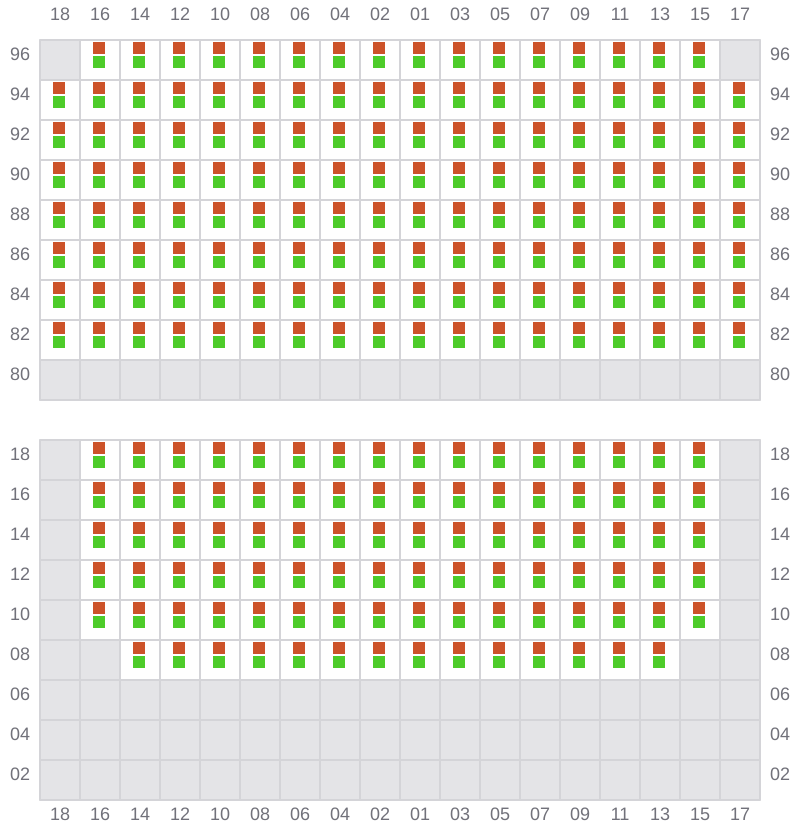

063 (062)
- ←
![Bay 063 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b063.png?v=1686348958685)

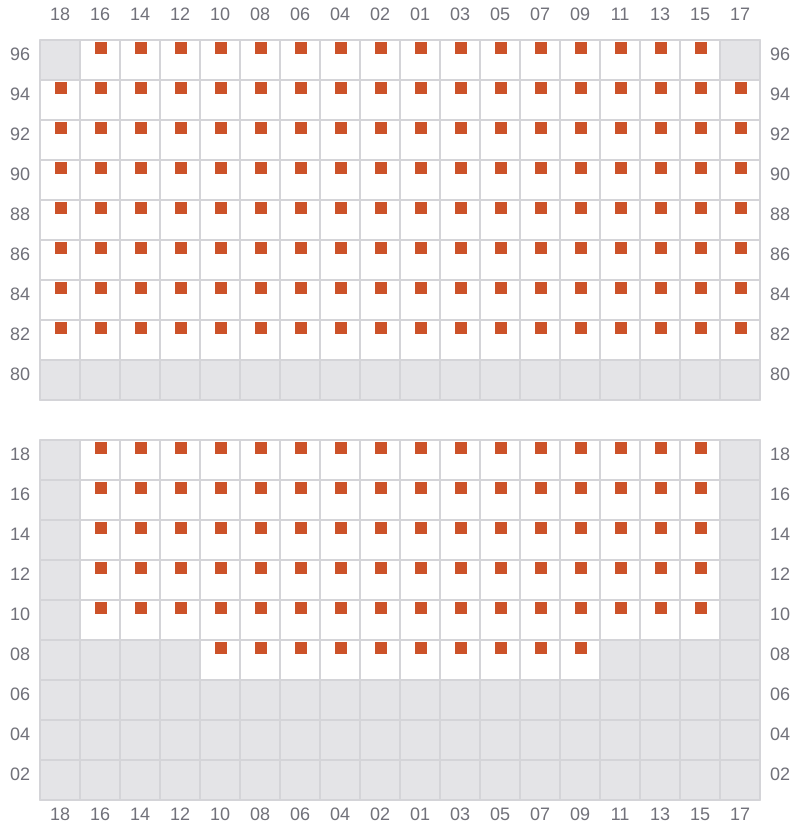

065
- →
![Bay 065 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b065.png?v=1686348958685)

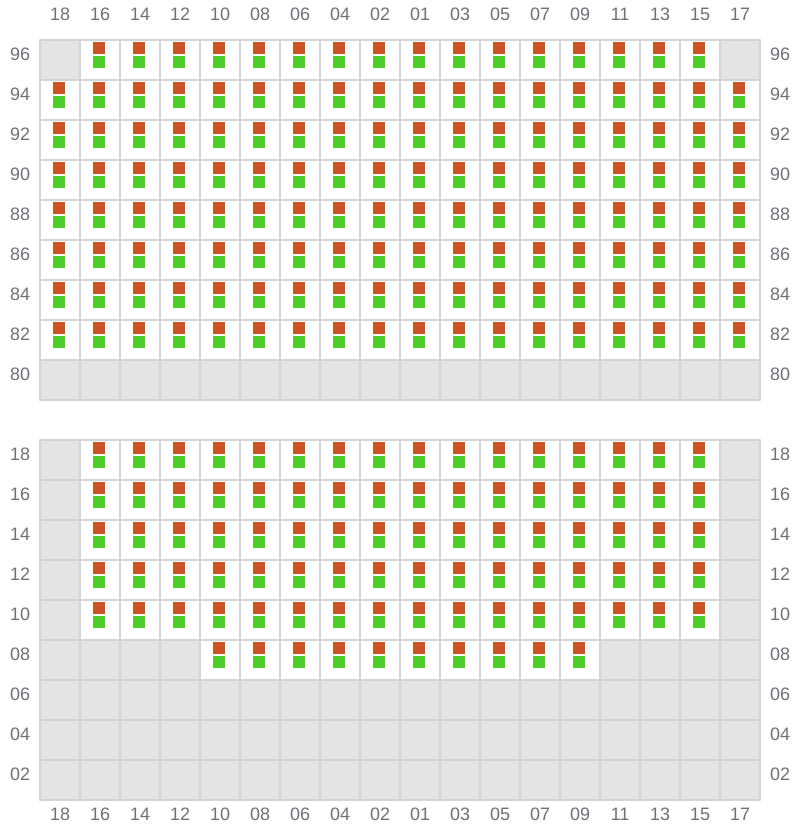

067 (066)
- ←
![Bay 067 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b067.png?v=1686348958685)

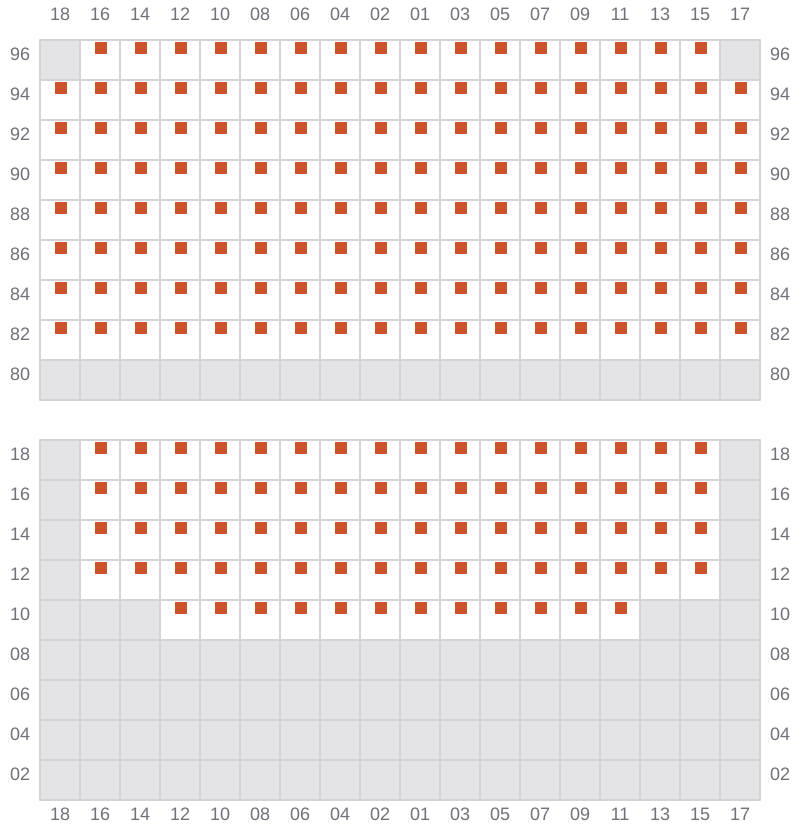

069
- →
![Bay 069 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b069.png?v=1686348958685)

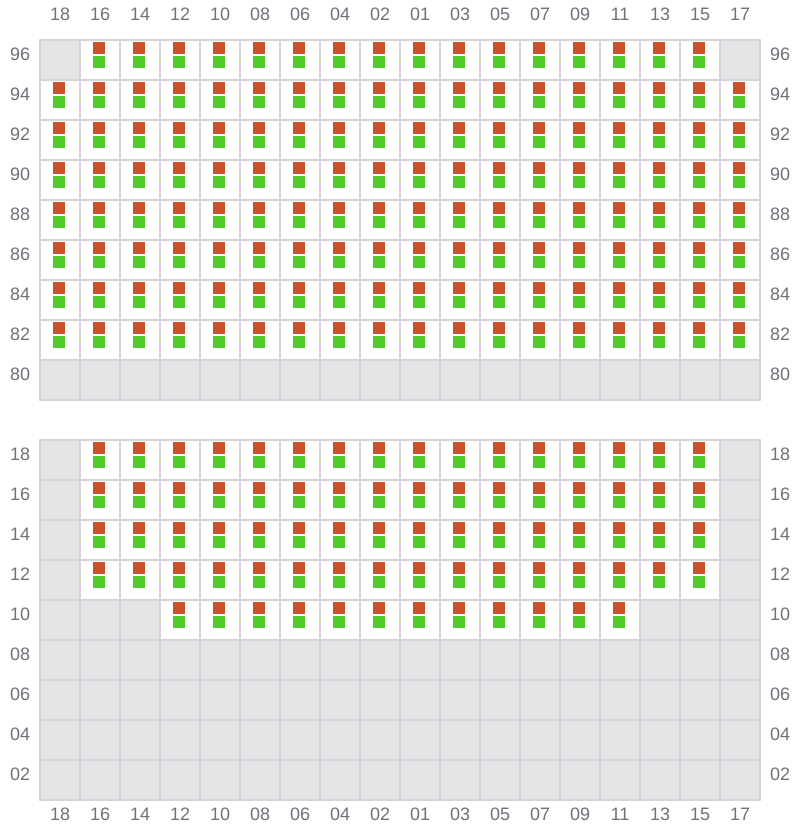

071 (070)
- ←
![Bay 071 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b071.png?v=1686348958685)

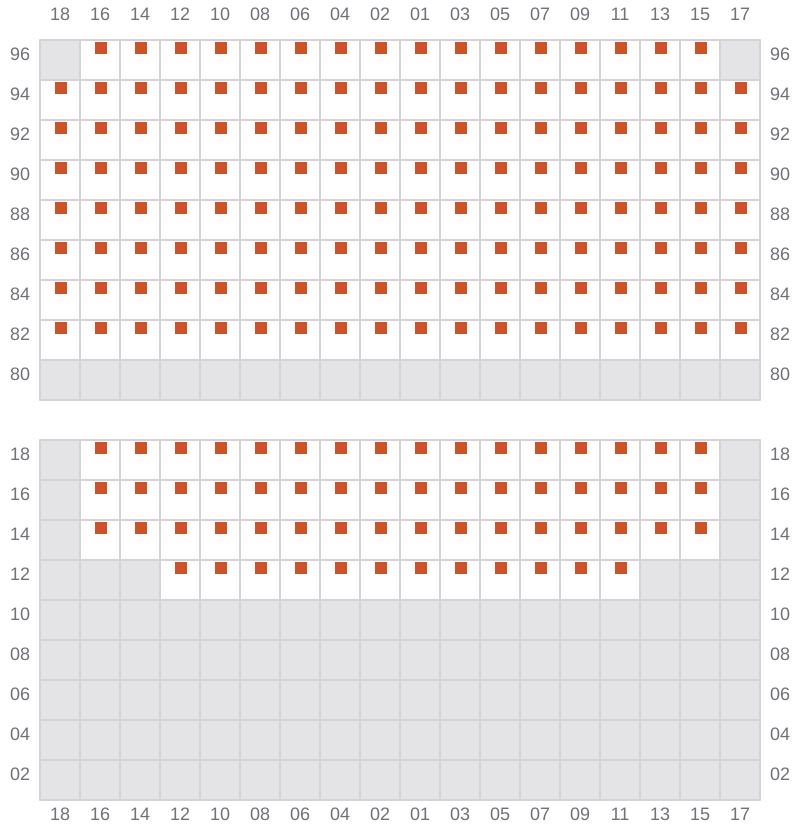

073
- →
![Bay 073 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b073.png?v=1686348958685)

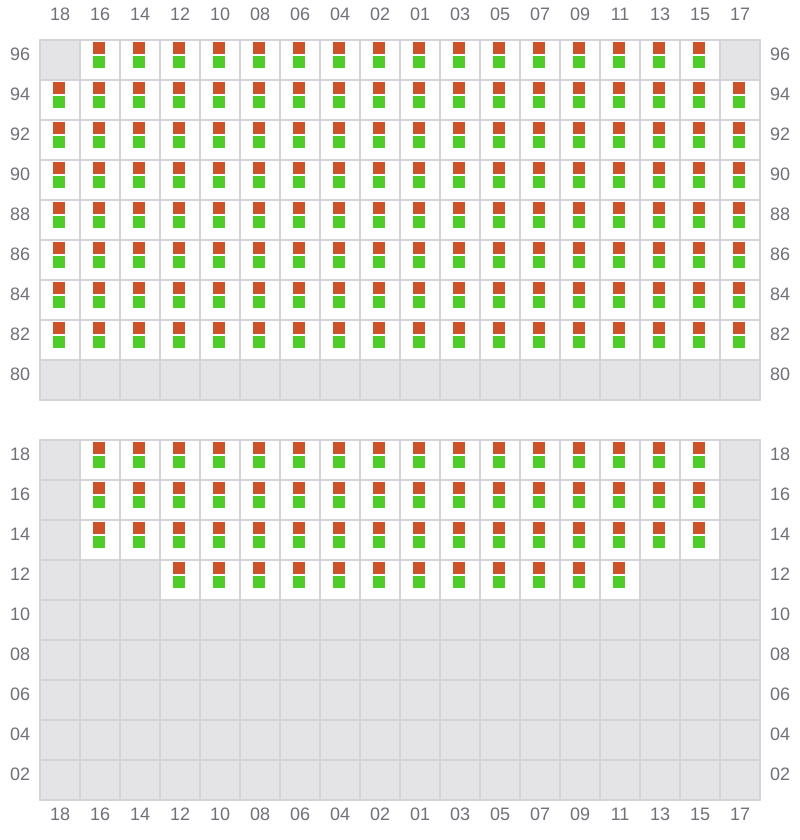

075 (074)
- ←
![Bay 075 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b075.png?v=1686348958685)
077
![Bay 077 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b077.png?v=1686348958685)

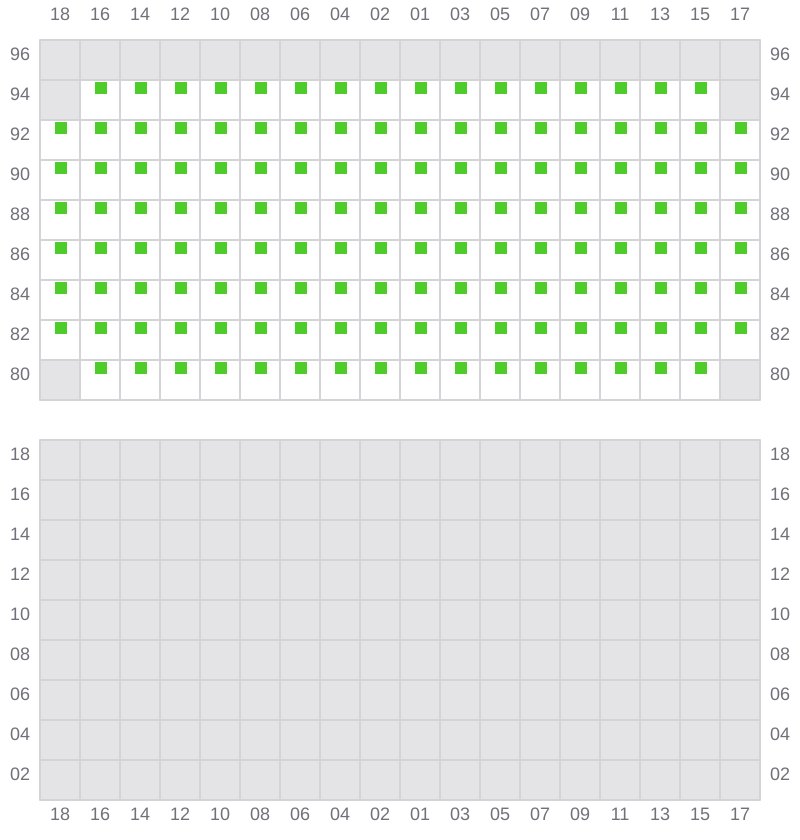

079 (078)
- ← / ?
![Bay 079 view and slots of EVER LENIENT](/vessel-images/15b03562-143c-4369-a249-01fd50178274-b079.png?v=1686348958685)
