EVER LIFTING
9629122 | 2ILJ7 | 9629122 by ********* Last update: Thu Jun 06 2024

General Info

Ship Name:EVER LIFTING

IMO Code:9629122

Call Sign:2ILJ7

Line Operator:9629122

Class Name for Sister Ships:EVER LIFTING

Year Built:2015

Position Format:Bay, Row, Tier

Allowed Containers:40, 20, 45

LPP (LBP):317.00

LOA (Length Overall):335.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:079

Max ISO Row:18

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:8,478

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

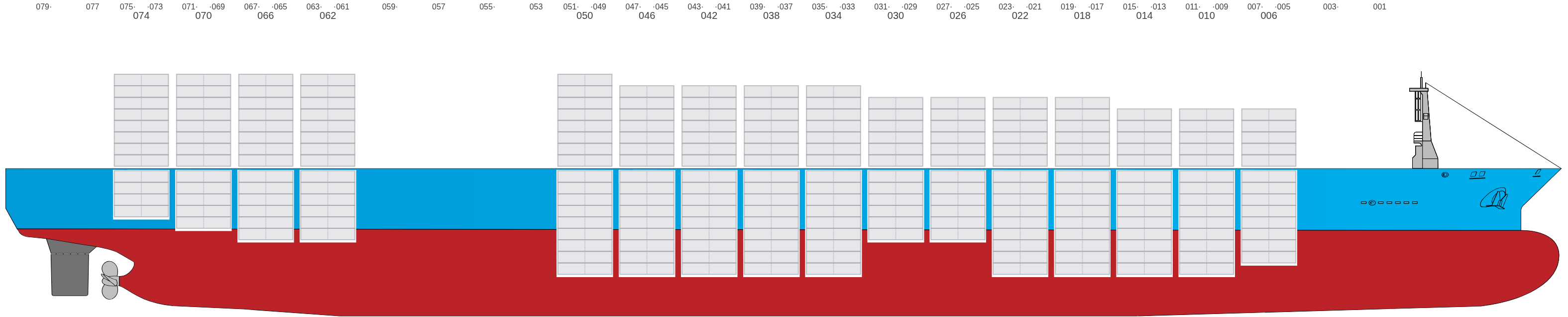

Side view of EVER LIFTING

Hatch-Covers View

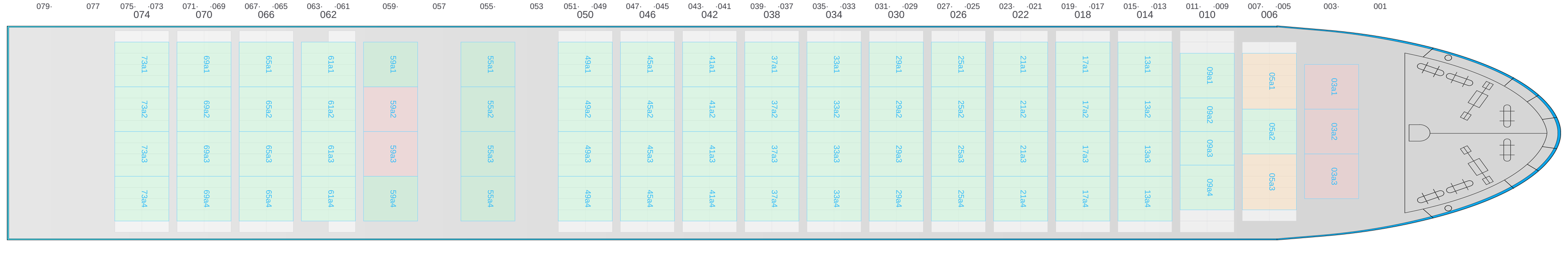

Deck view of EVER LIFTING

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

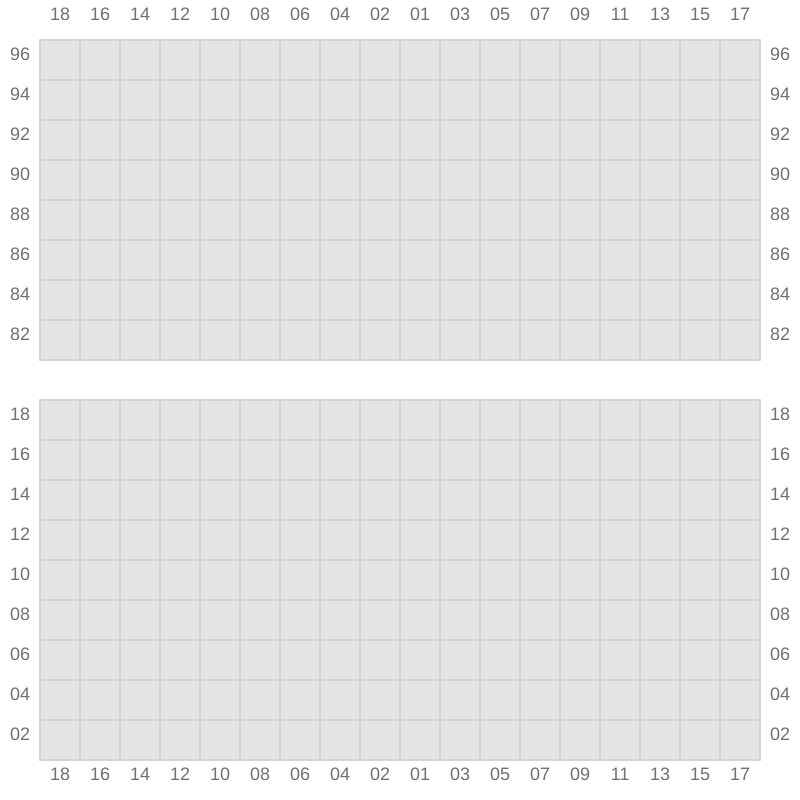

Bay 001 view and slots of EVER LIFTING

003 (002)

^← / _?

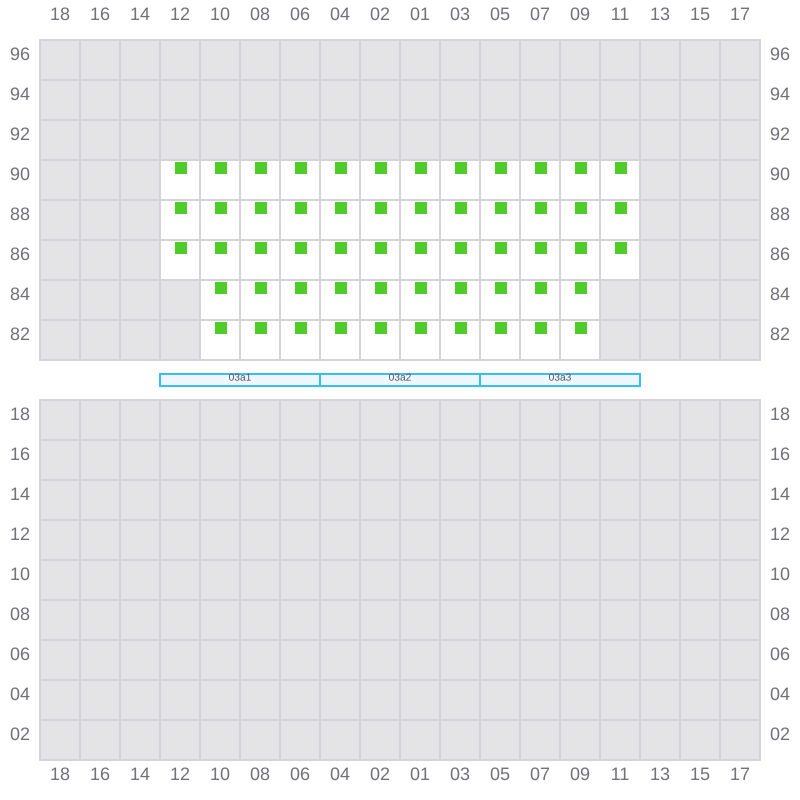

Bay 003 view and slots of EVER LIFTING

005

→

Bay 005 view and slots of EVER LIFTING

007 (006)

←

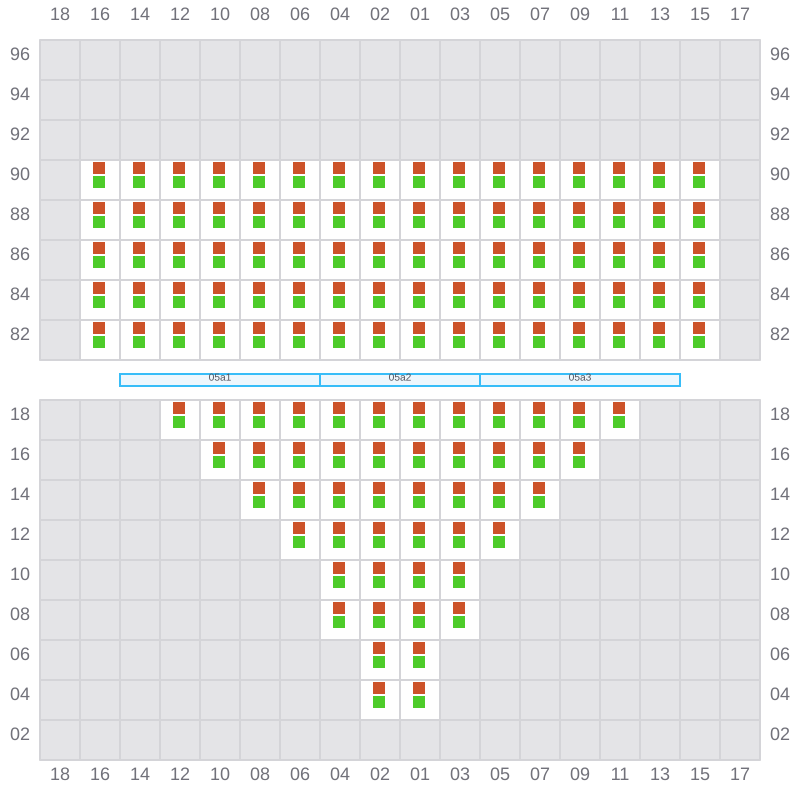

Bay 007 view and slots of EVER LIFTING

009

→

Bay 009 view and slots of EVER LIFTING

011 (010)

←

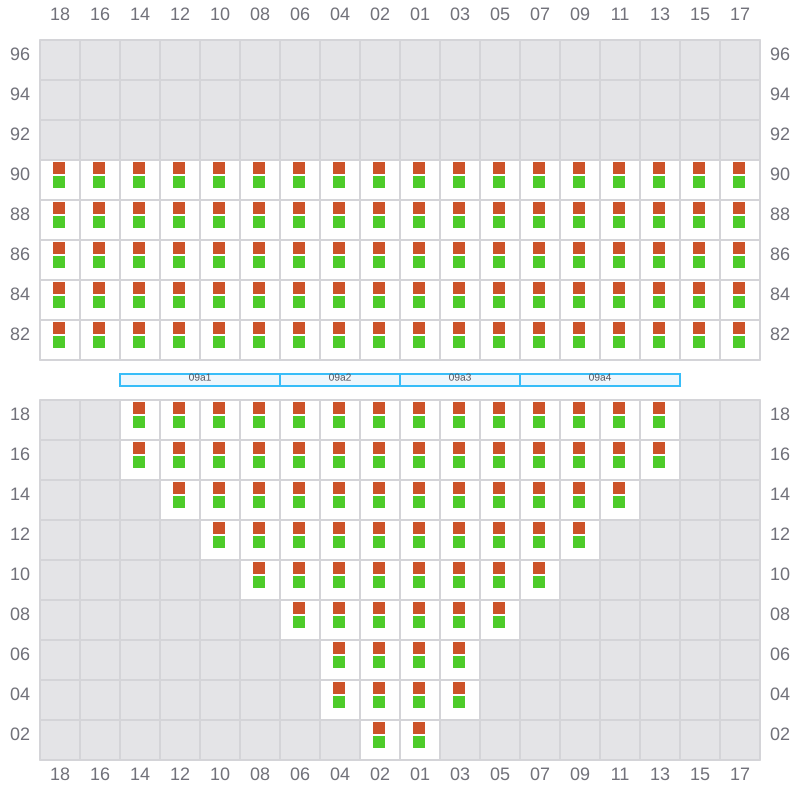

Bay 011 view and slots of EVER LIFTING

013

→

Bay 013 view and slots of EVER LIFTING

015 (014)

←

Bay 015 view and slots of EVER LIFTING

017

→

Bay 017 view and slots of EVER LIFTING

019 (018)

←

Bay 019 view and slots of EVER LIFTING

021

→

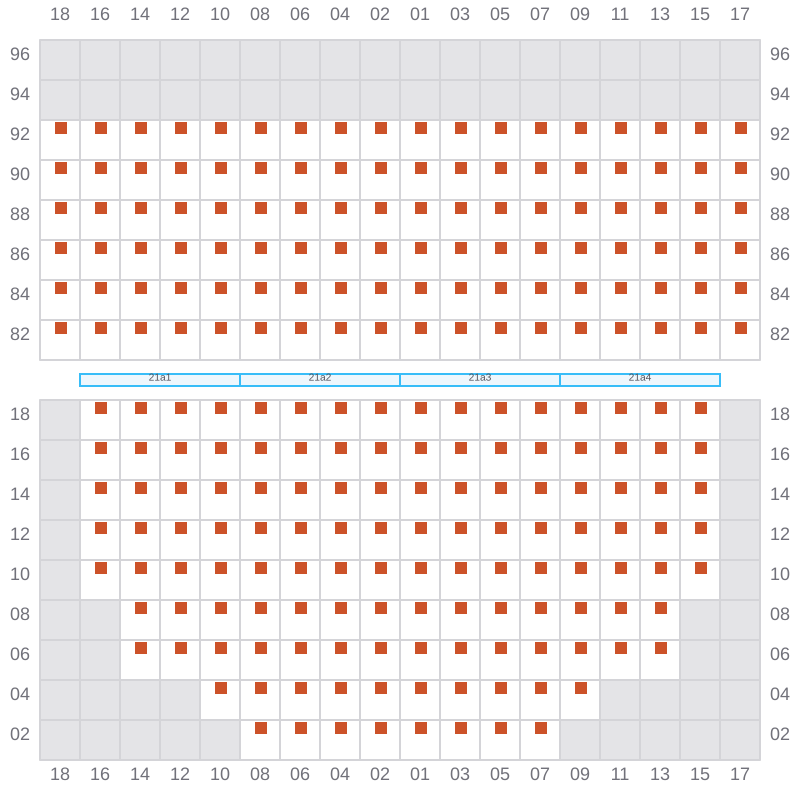

Bay 021 view and slots of EVER LIFTING

023 (022)

←

Bay 023 view and slots of EVER LIFTING

025

→

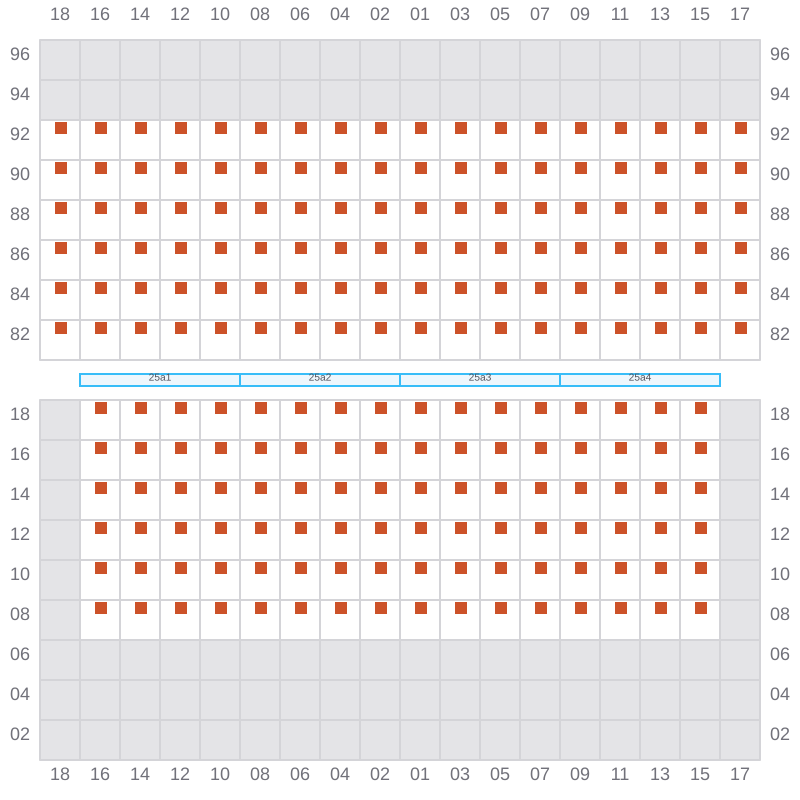

Bay 025 view and slots of EVER LIFTING

027 (026)

←

Bay 027 view and slots of EVER LIFTING

029

→

Bay 029 view and slots of EVER LIFTING

031 (030)

←

Bay 031 view and slots of EVER LIFTING

033

→

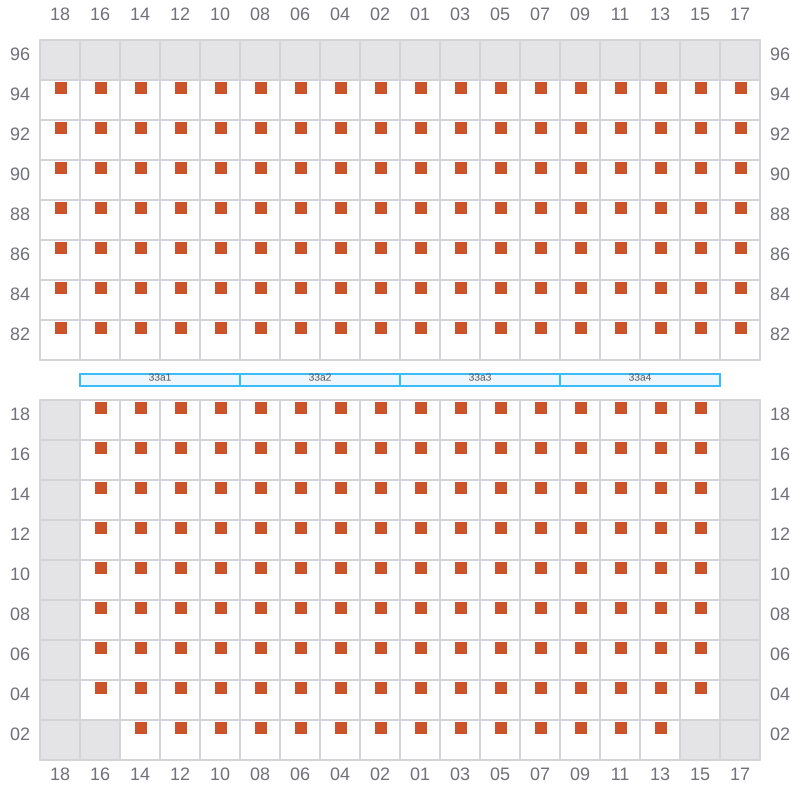

Bay 033 view and slots of EVER LIFTING

035 (034)

←

Bay 035 view and slots of EVER LIFTING

037

→

Bay 037 view and slots of EVER LIFTING

039 (038)

←

Bay 039 view and slots of EVER LIFTING

041

→

Bay 041 view and slots of EVER LIFTING

043 (042)

←

Bay 043 view and slots of EVER LIFTING

045

→

Bay 045 view and slots of EVER LIFTING

047 (046)

←

Bay 047 view and slots of EVER LIFTING

049

→

Bay 049 view and slots of EVER LIFTING

051 (050)

←

Bay 051 view and slots of EVER LIFTING

053

Bay 053 view and slots of EVER LIFTING

055 (054)

←

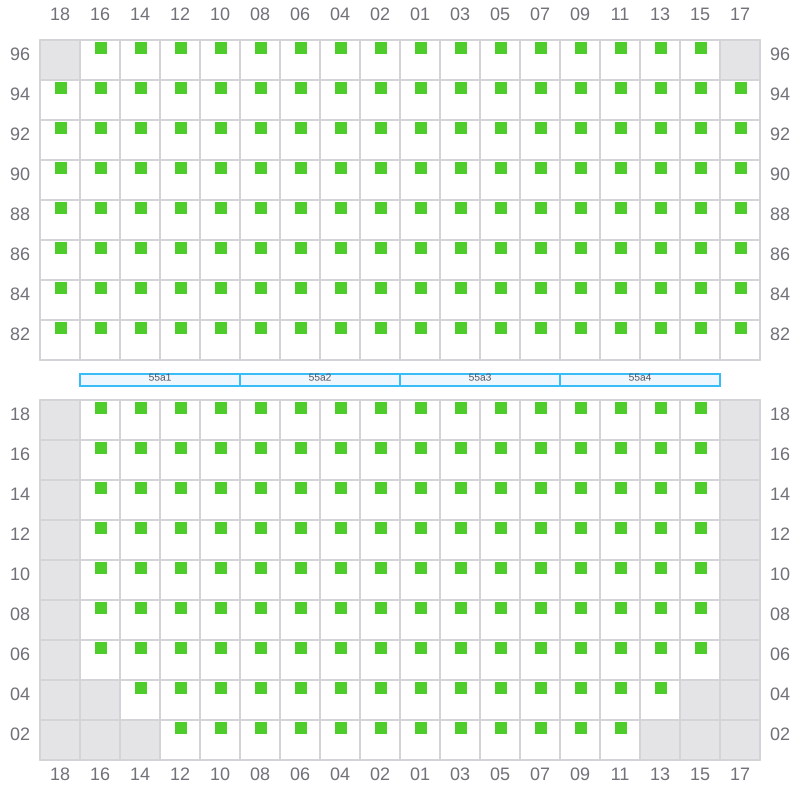

Bay 055 view and slots of EVER LIFTING

057

Bay 057 view and slots of EVER LIFTING

059 (058)

←

Bay 059 view and slots of EVER LIFTING

061

→

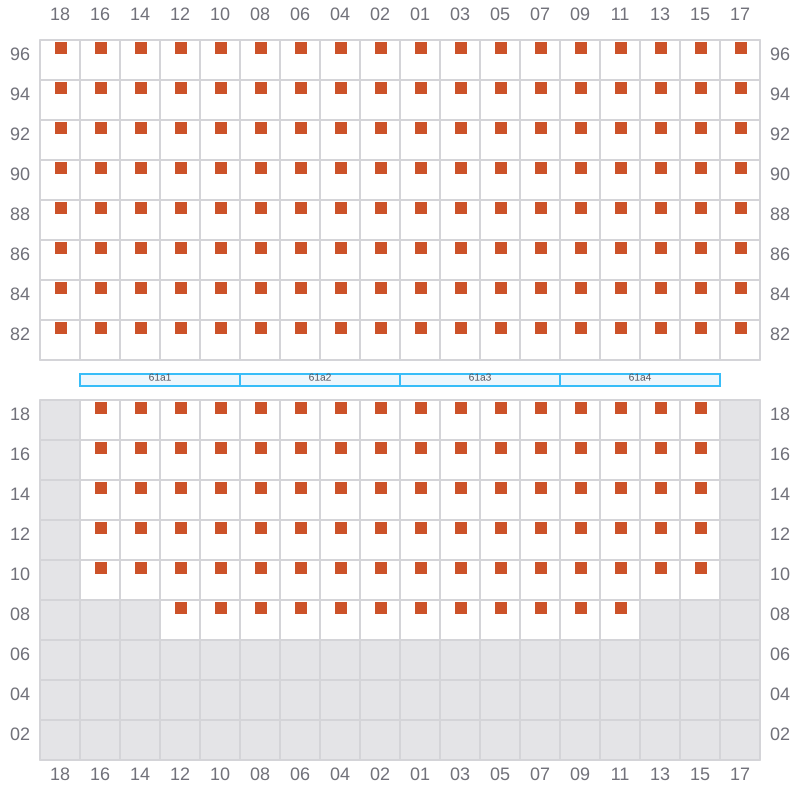

Bay 061 view and slots of EVER LIFTING

063 (062)

←

Bay 063 view and slots of EVER LIFTING

065

→

Bay 065 view and slots of EVER LIFTING

067 (066)

←

Bay 067 view and slots of EVER LIFTING

069

→

Bay 069 view and slots of EVER LIFTING

071 (070)

←

Bay 071 view and slots of EVER LIFTING

073

→

Bay 073 view and slots of EVER LIFTING

075 (074)

←

Bay 075 view and slots of EVER LIFTING

077

Bay 077 view and slots of EVER LIFTING

079 (078)

^← / _?

Bay 079 view and slots of EVER LIFTING
