EVER LUCENT
9629067 | 9V9792 | 9629067 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:EVER LUCENT
IMO Code:9629067
Call Sign:9V9792
Line Operator:9629067
Class Name for Sister Ships:EVER LUCENT
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:40, 20, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,478
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

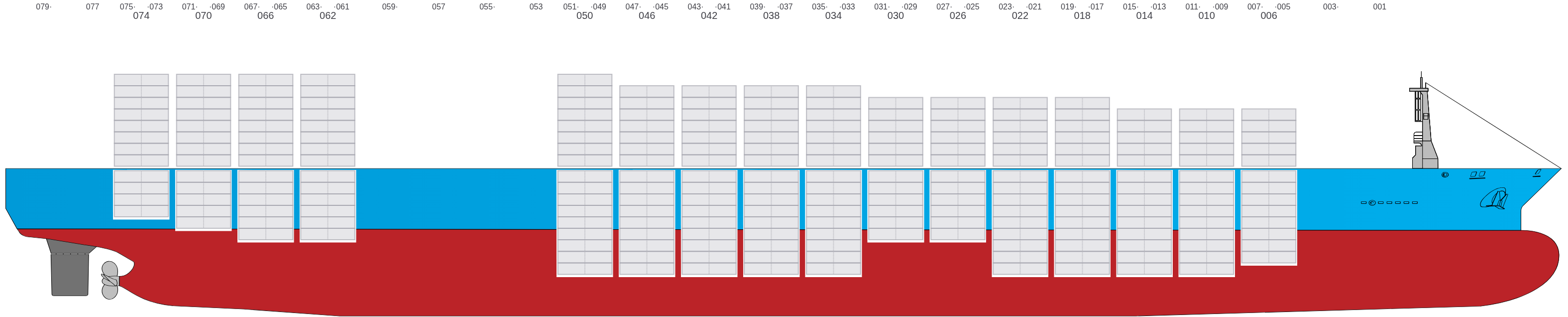

Side View

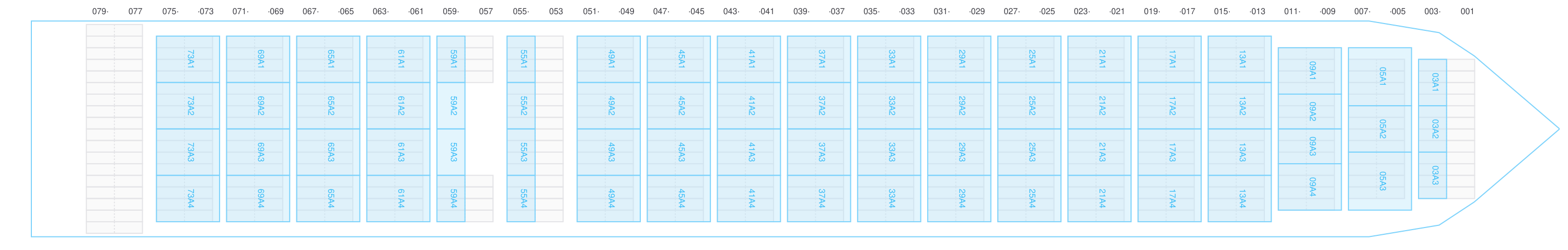

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001

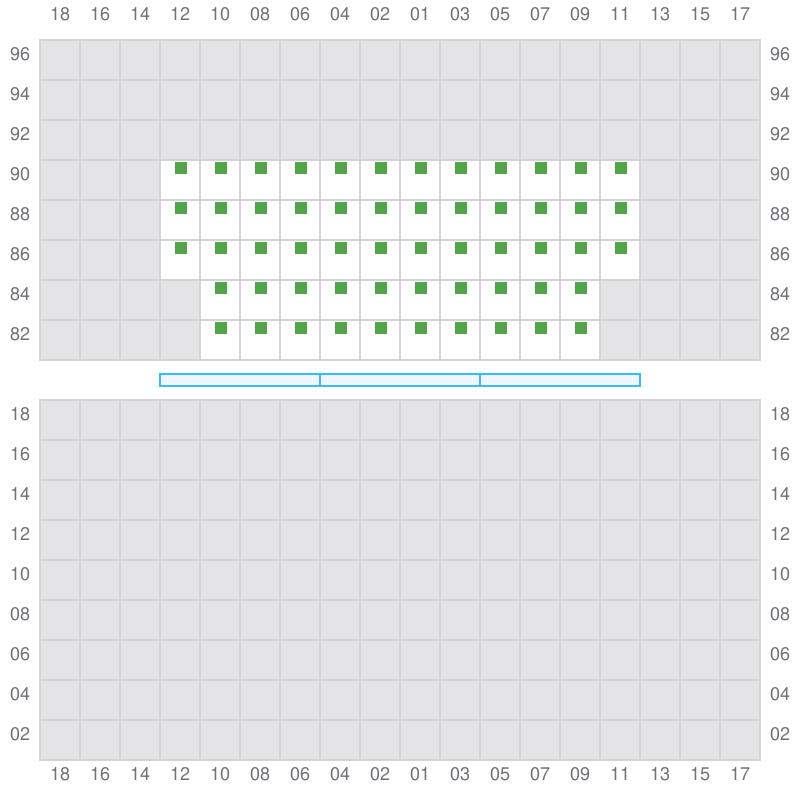

003 (002)
- ← / ?

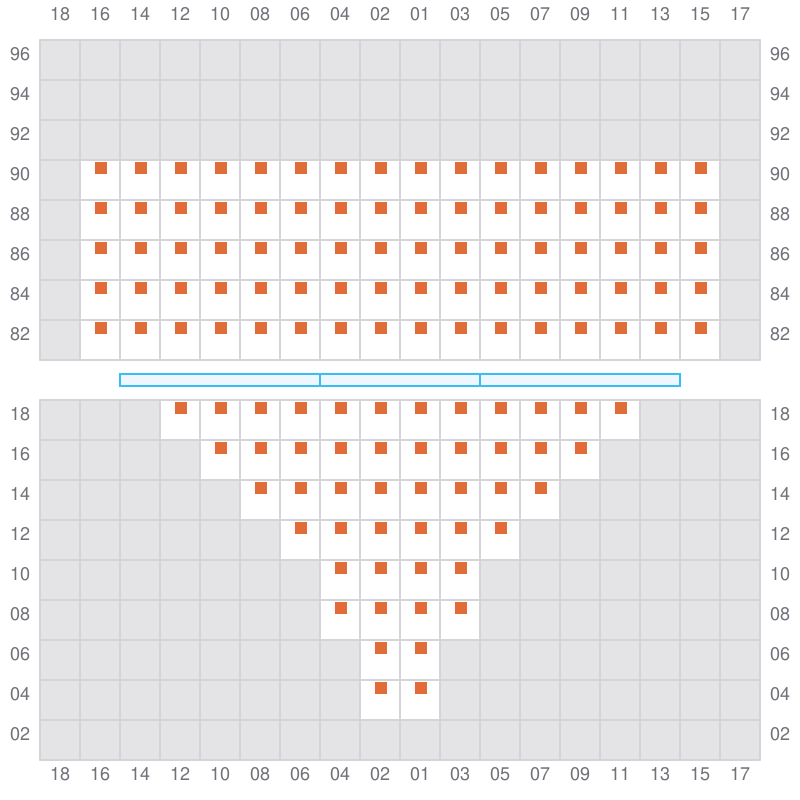

005
- →

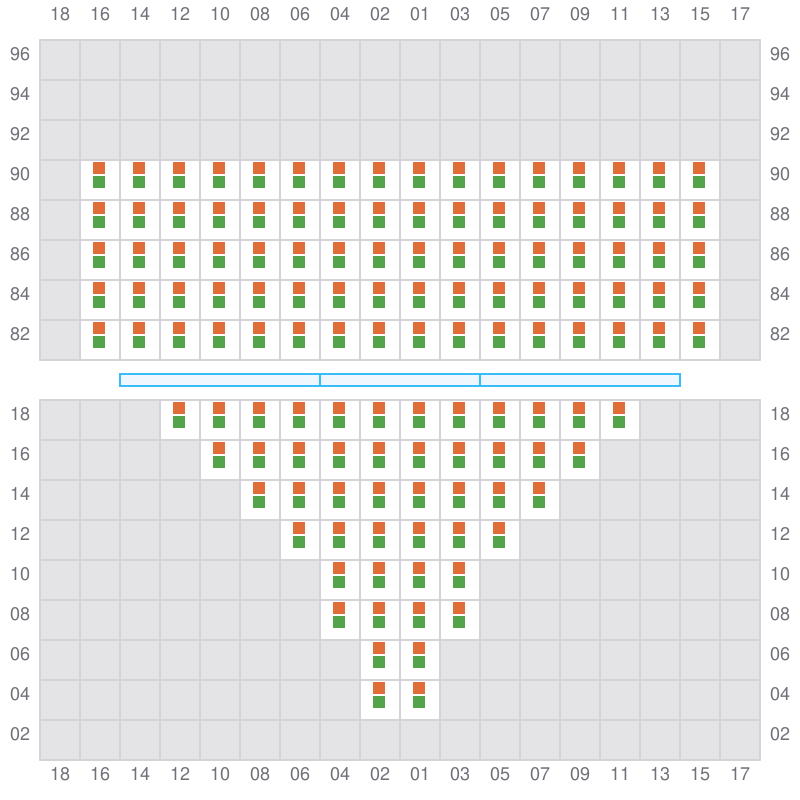

007 (006)
- ←

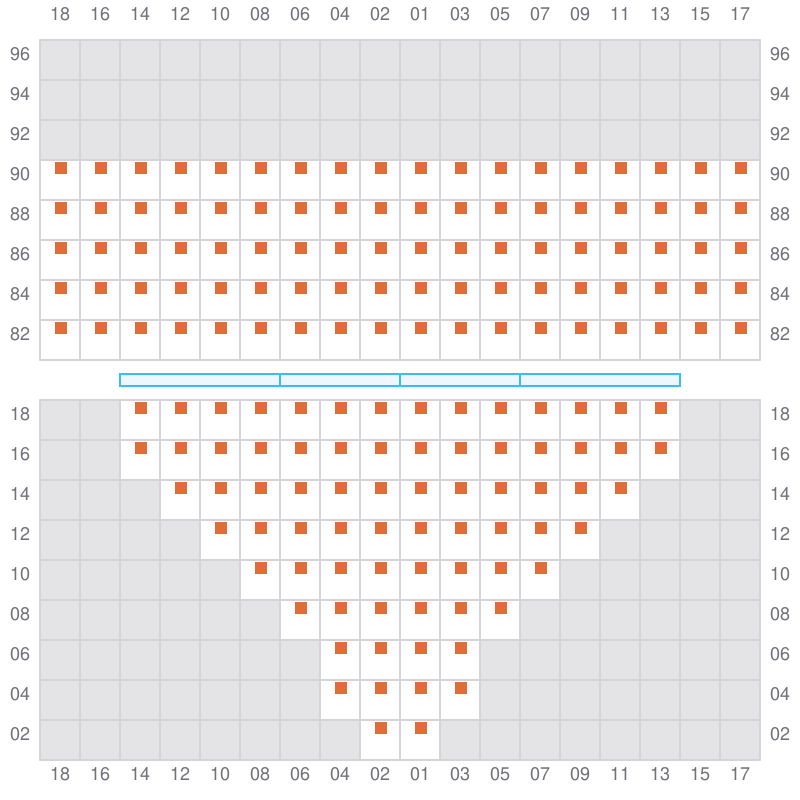

009
- →

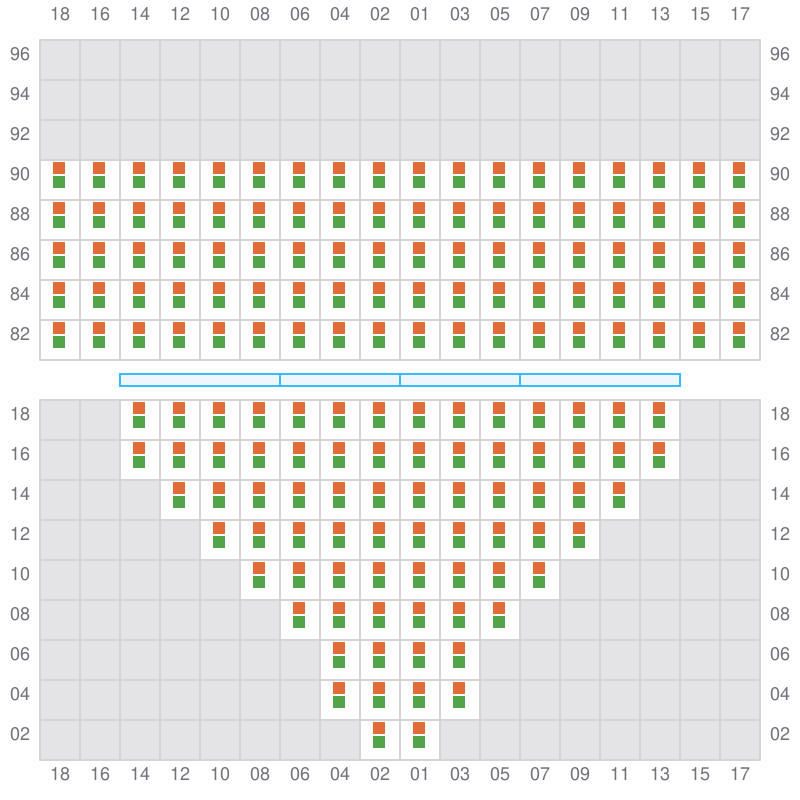

011 (010)
- ←

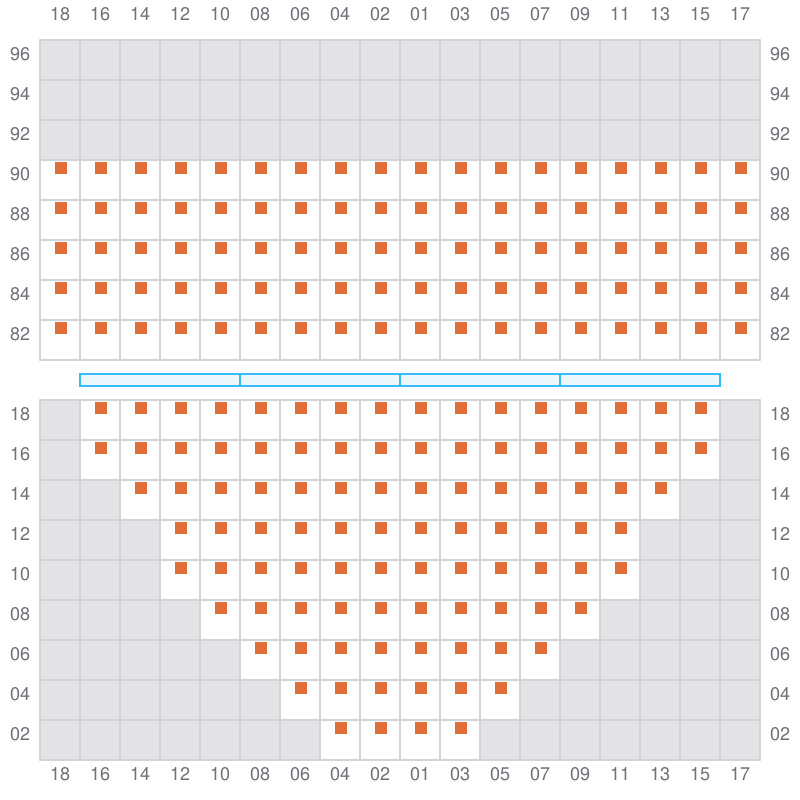

013
- →

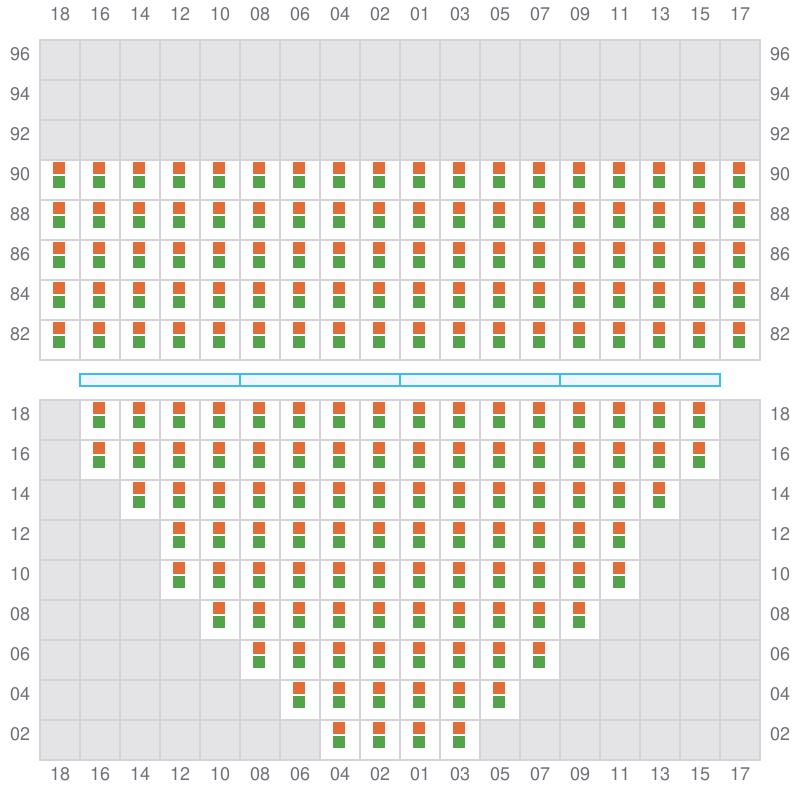

015 (014)
- ←

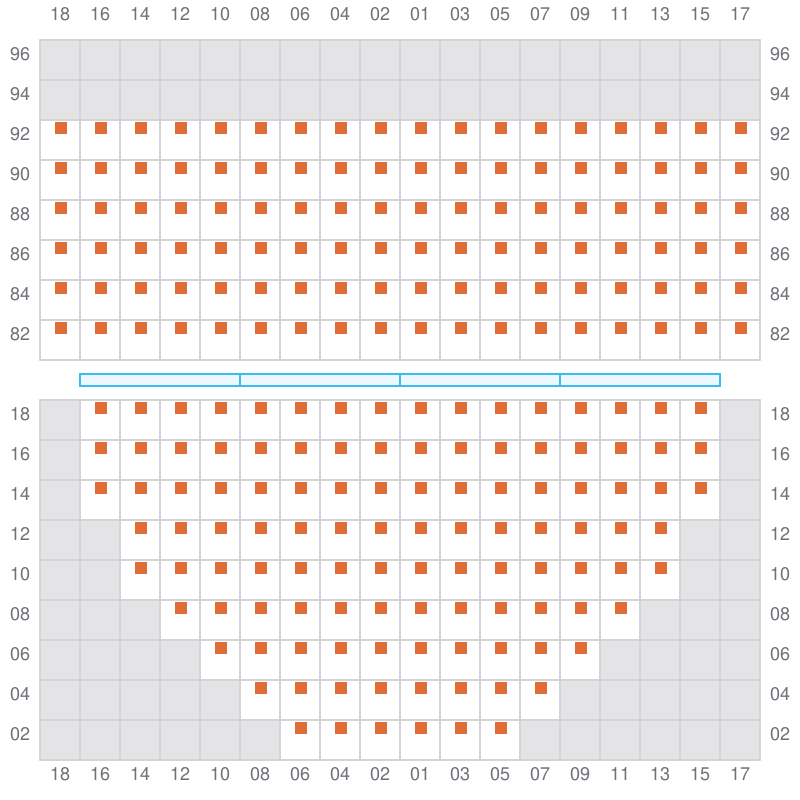

017
- →

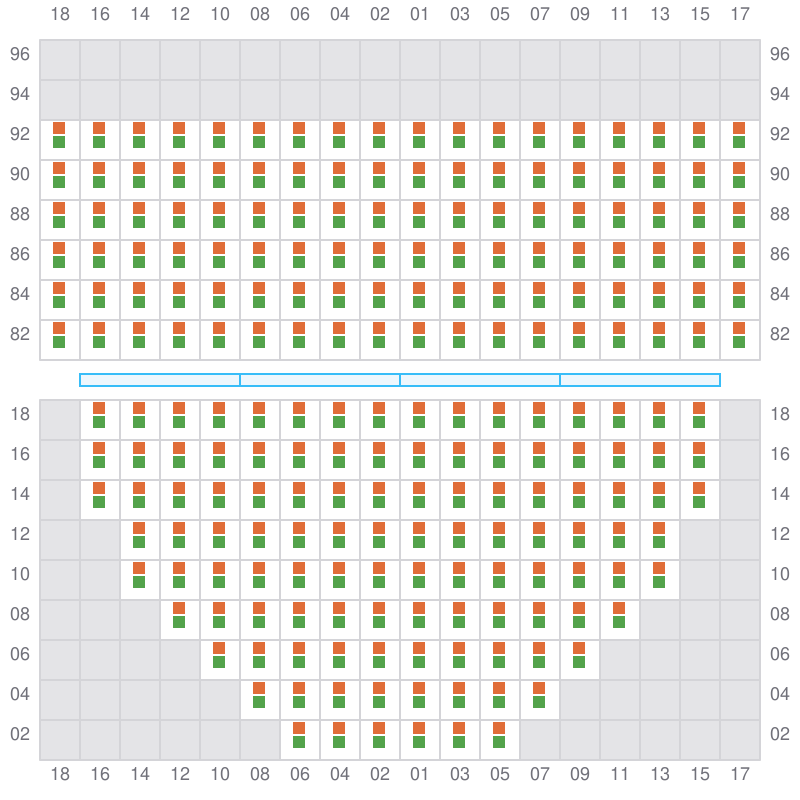

019 (018)
- ←

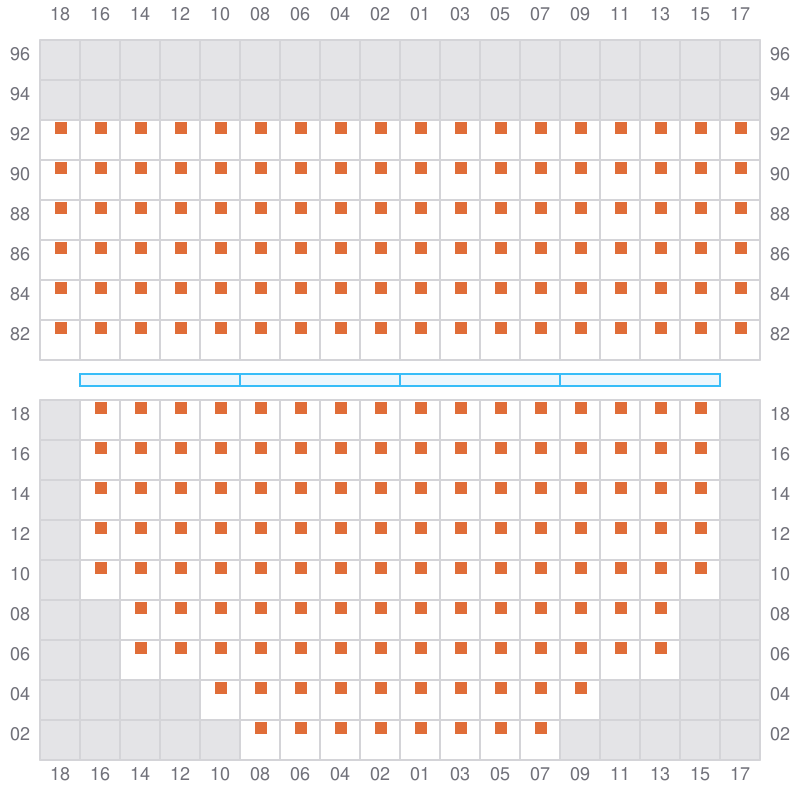

021
- →

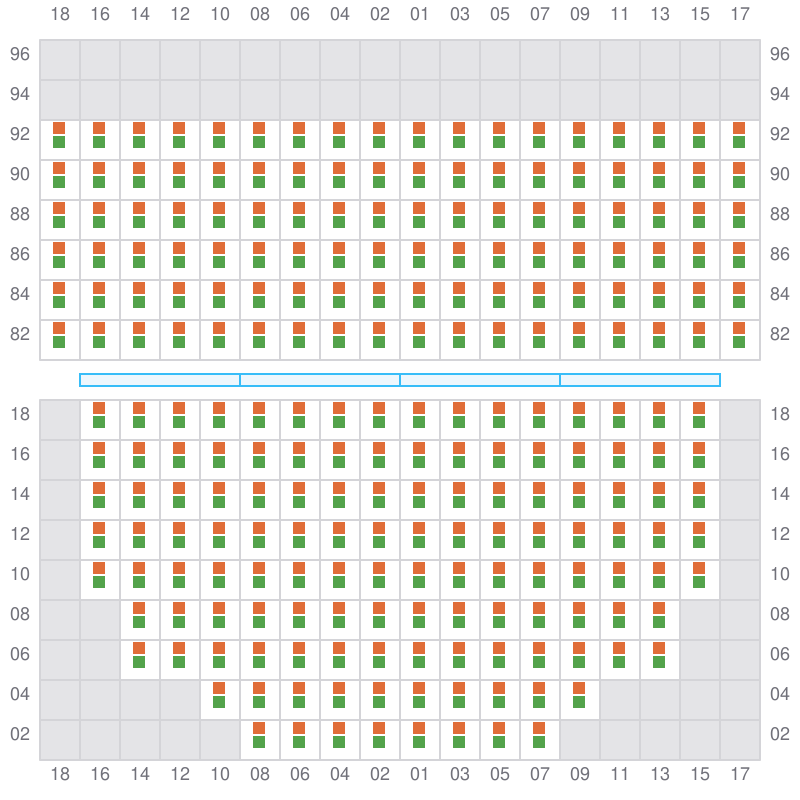

023 (022)
- ←

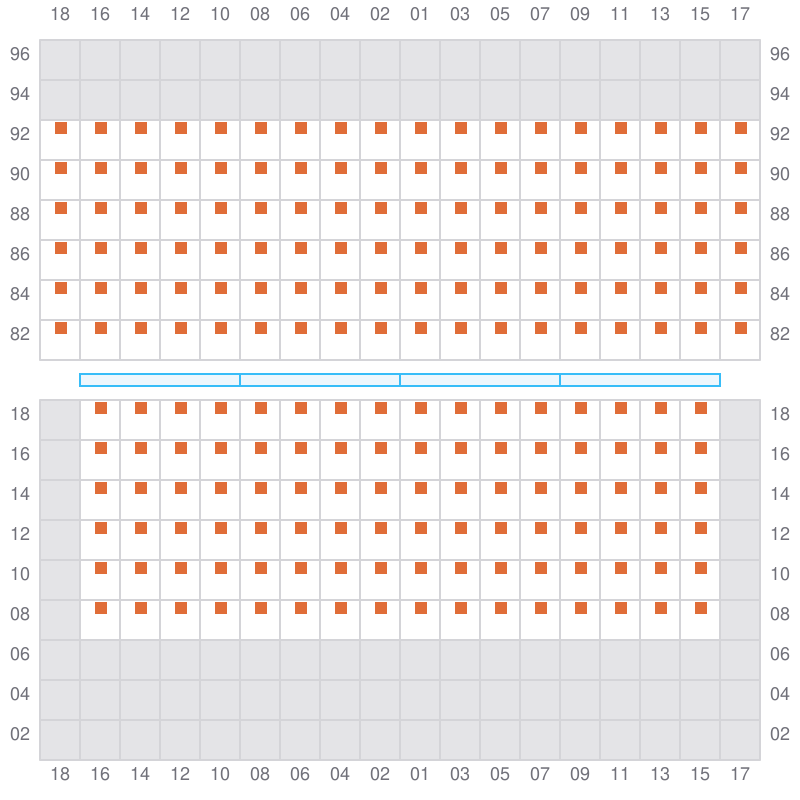

025
- →

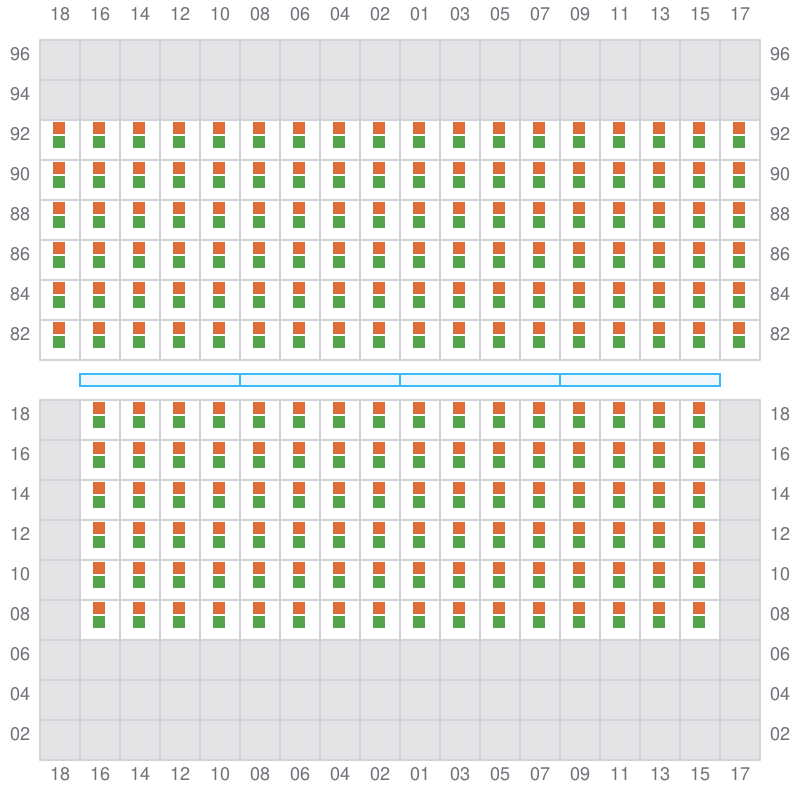

027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←

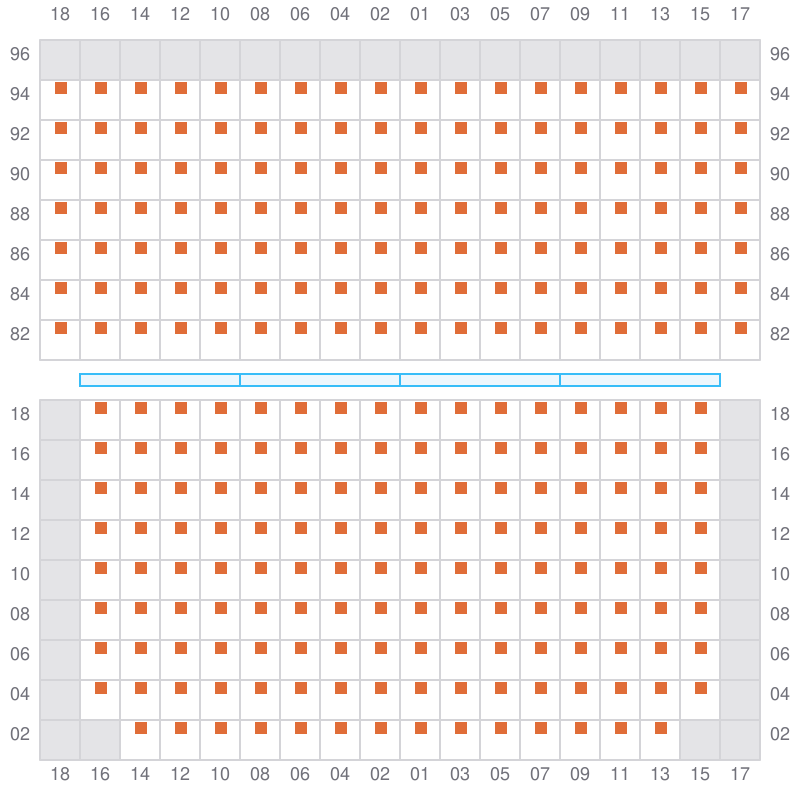

037
- →
039 (038)
- ←
041
- →
043 (042)
- ←
045
- →

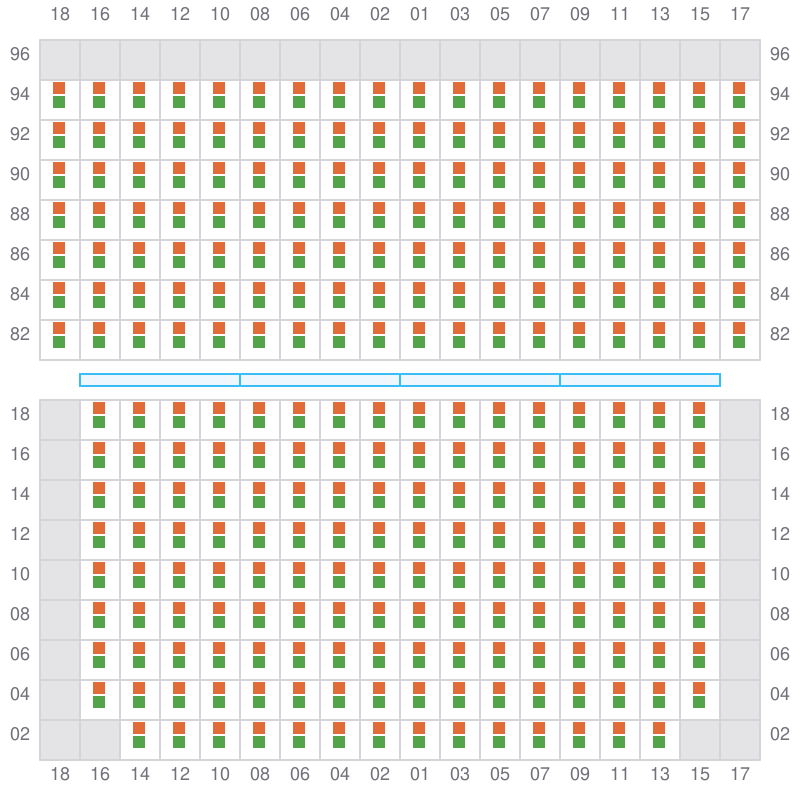

047 (046)
- ←

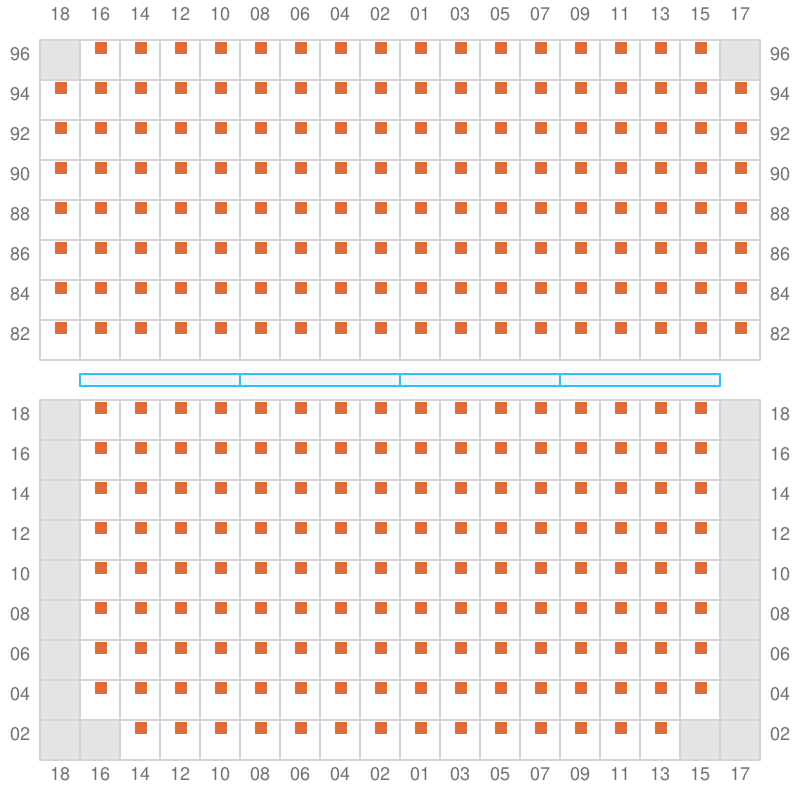

049
- →

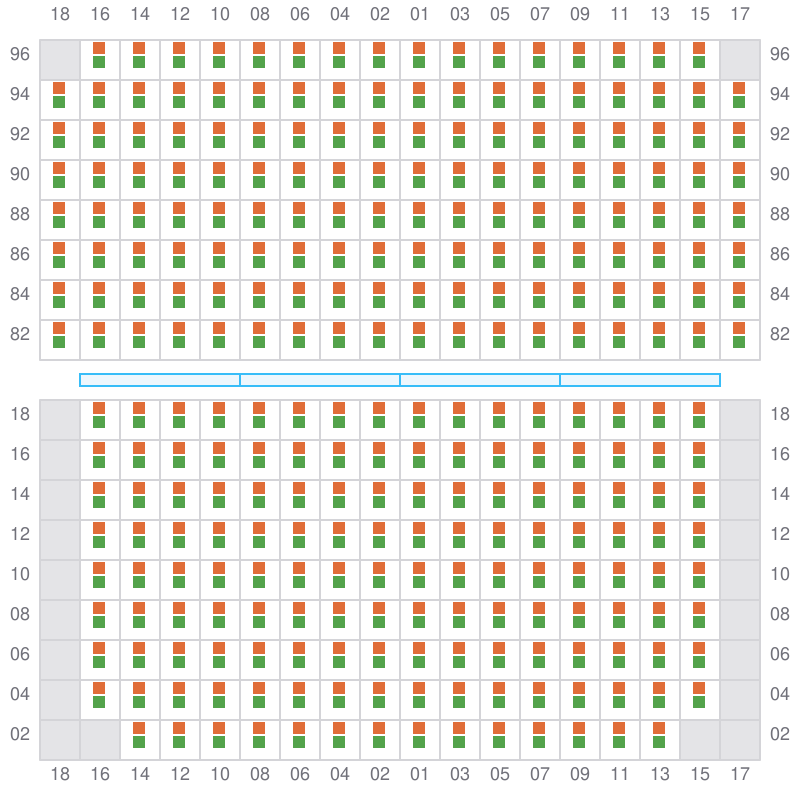

051 (050)
- ←
053

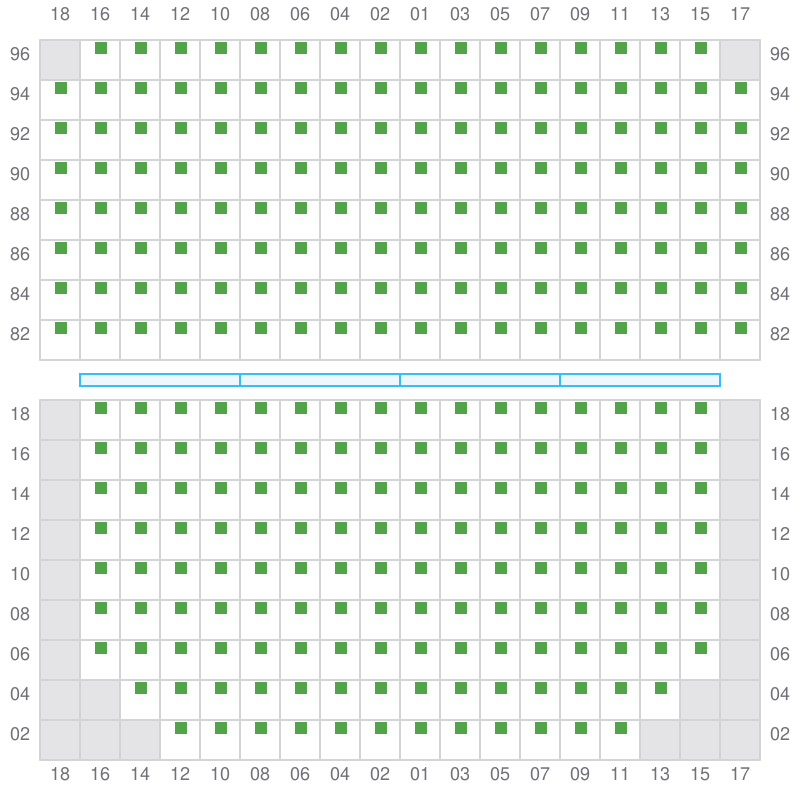

055 (054)
- ←
057

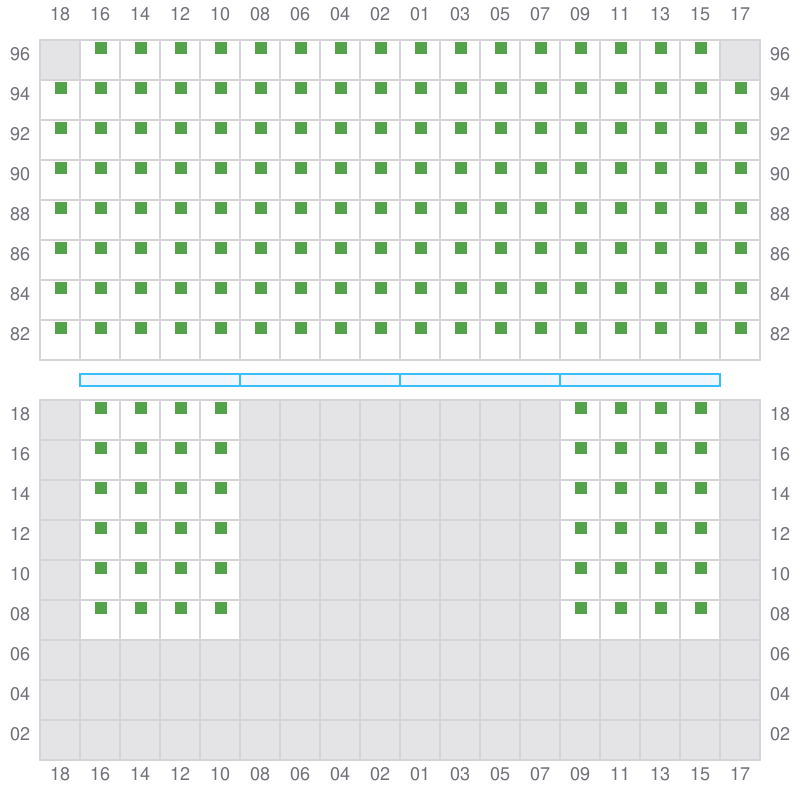

059 (058)
- ←

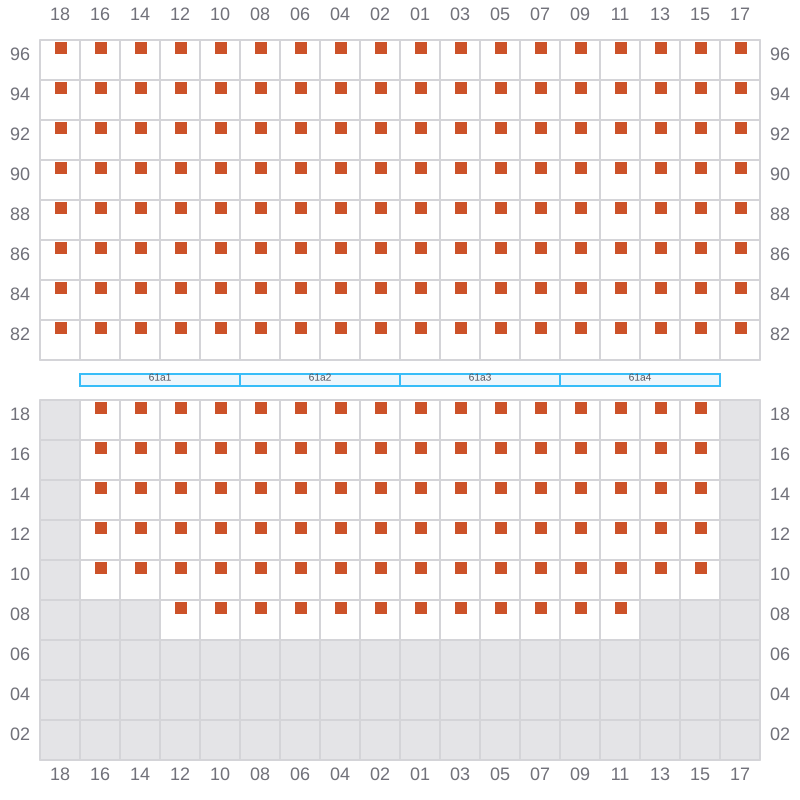

061
- →

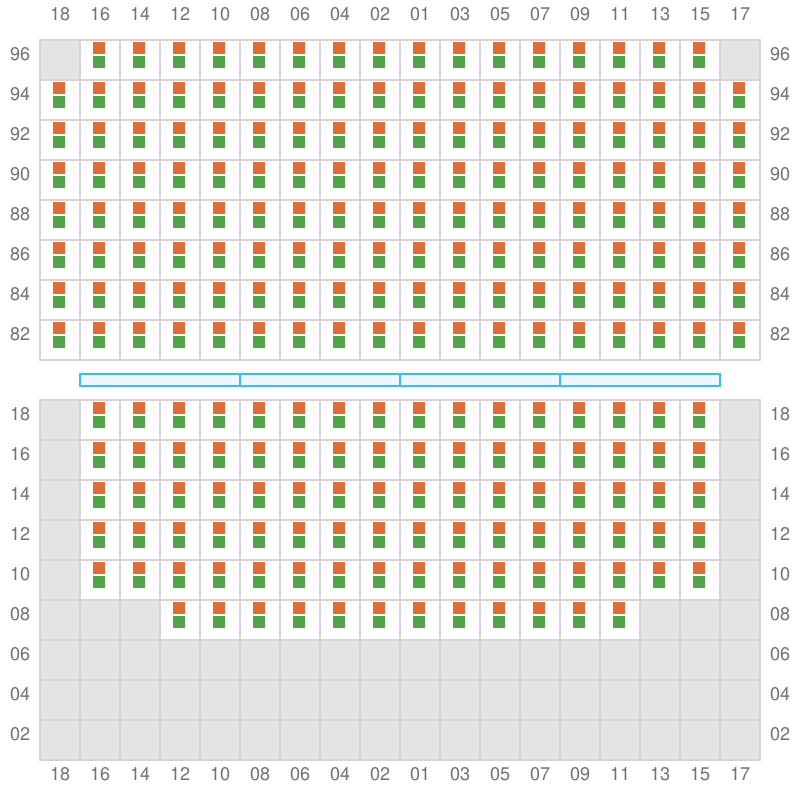

063 (062)
- ←

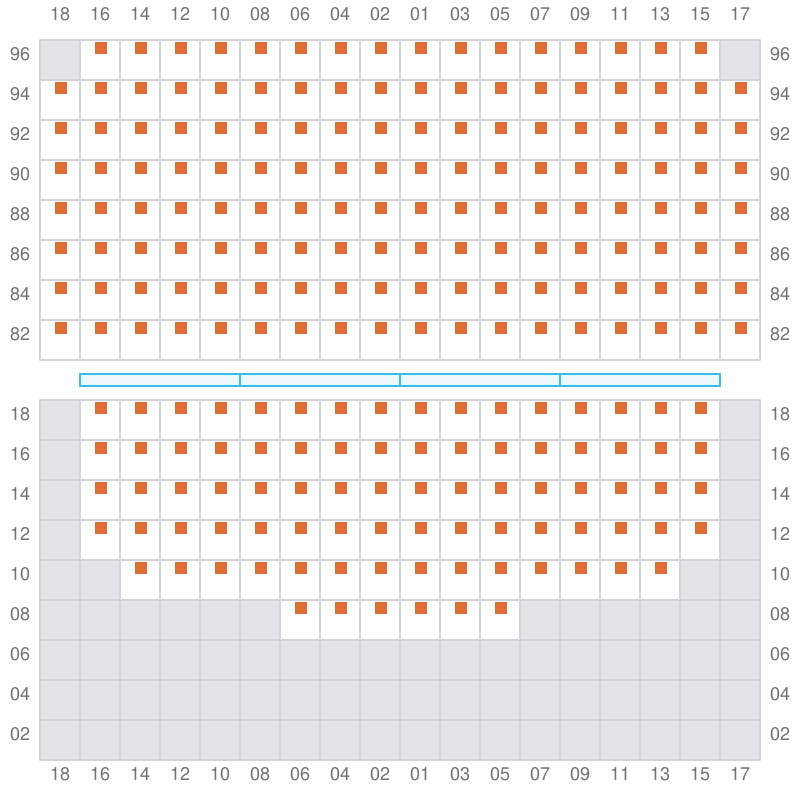

065
- →
067 (066)
- ←

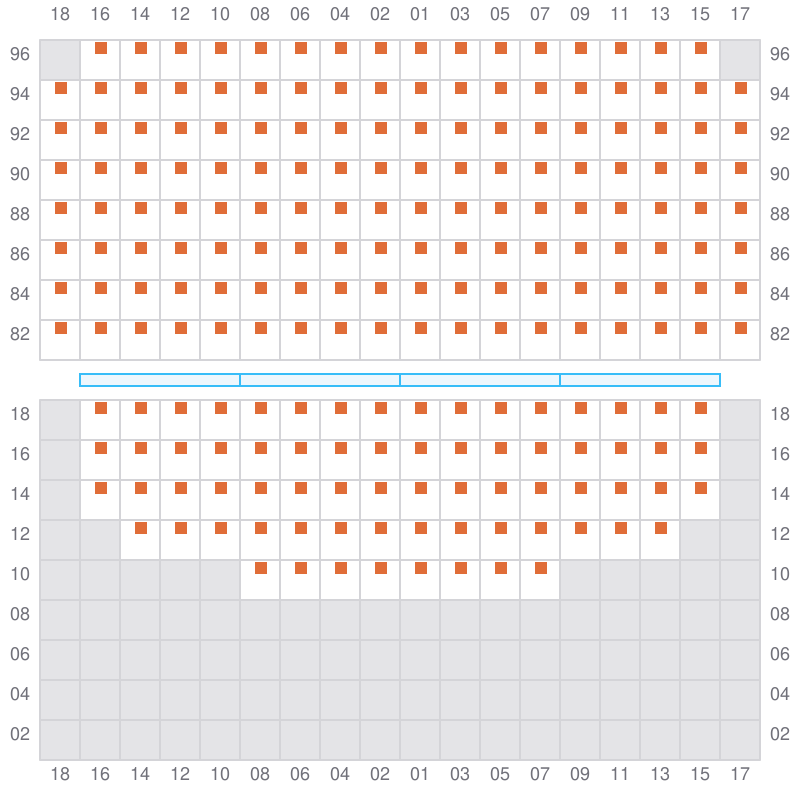

069
- →

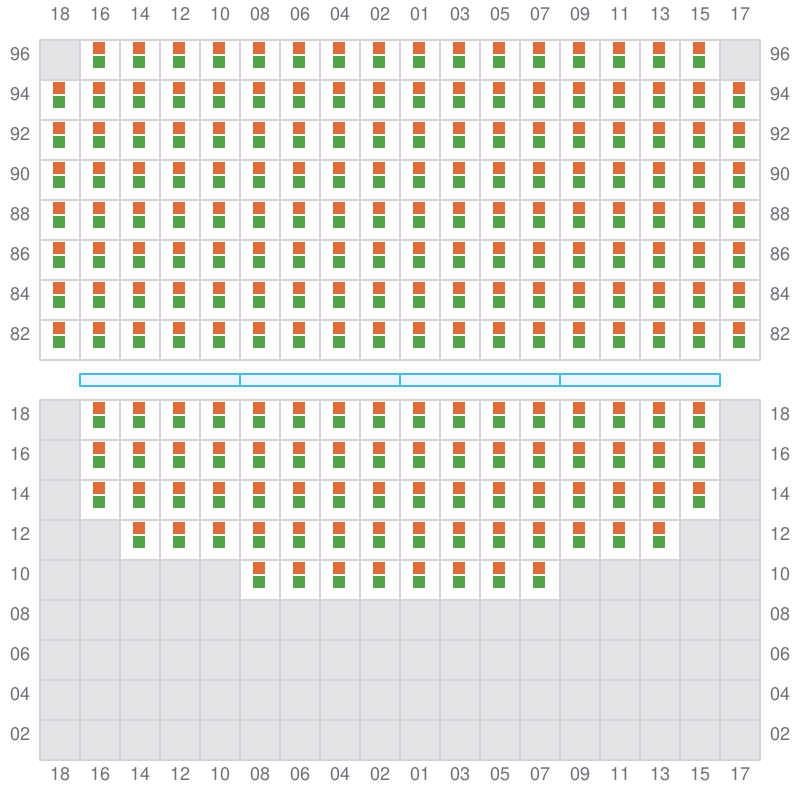

071 (070)
- ←

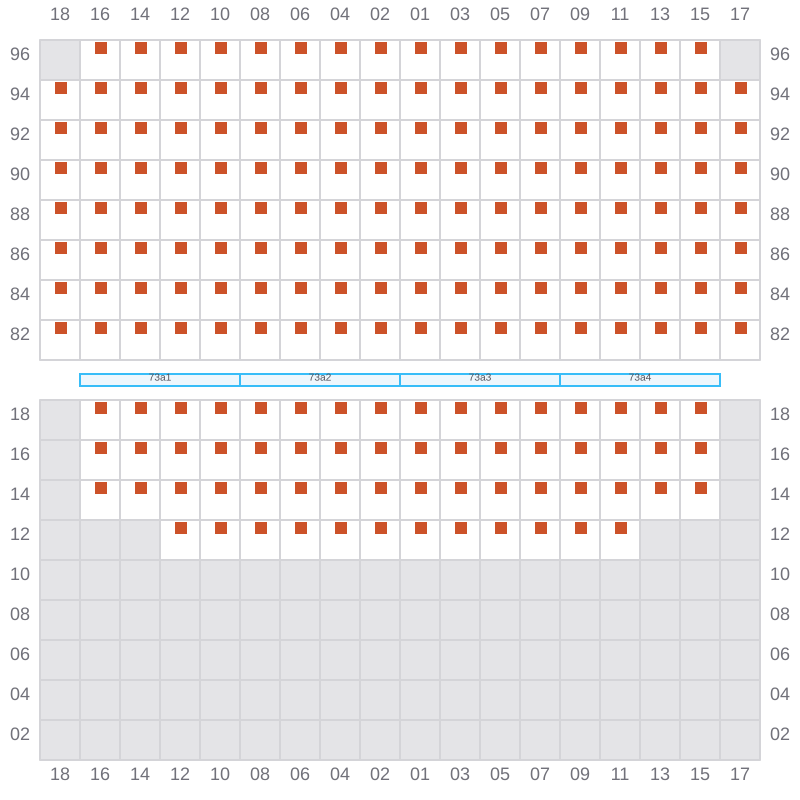

073
- →
075 (074)
- ←

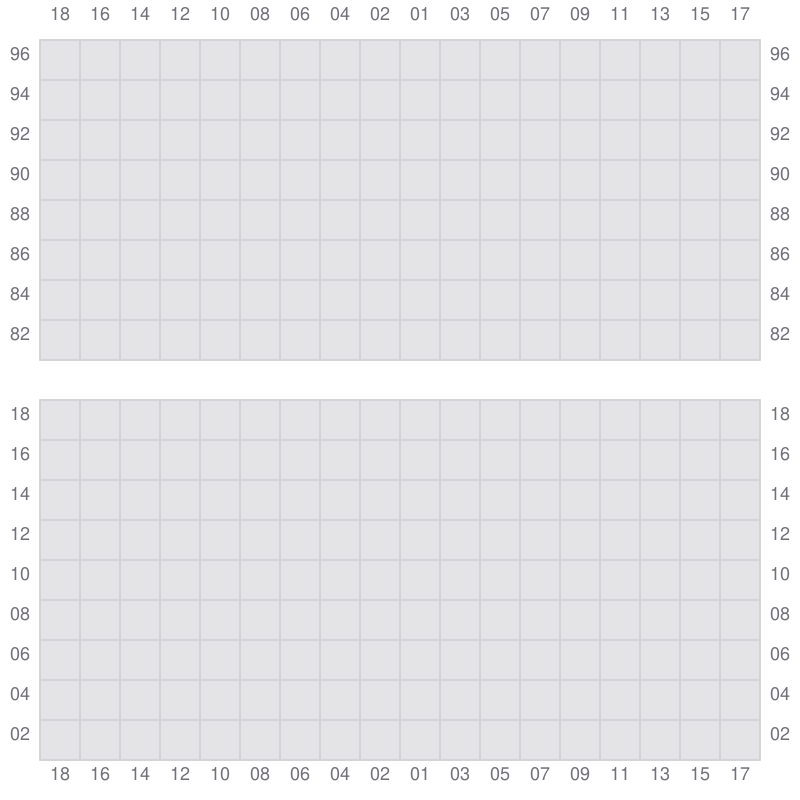

077

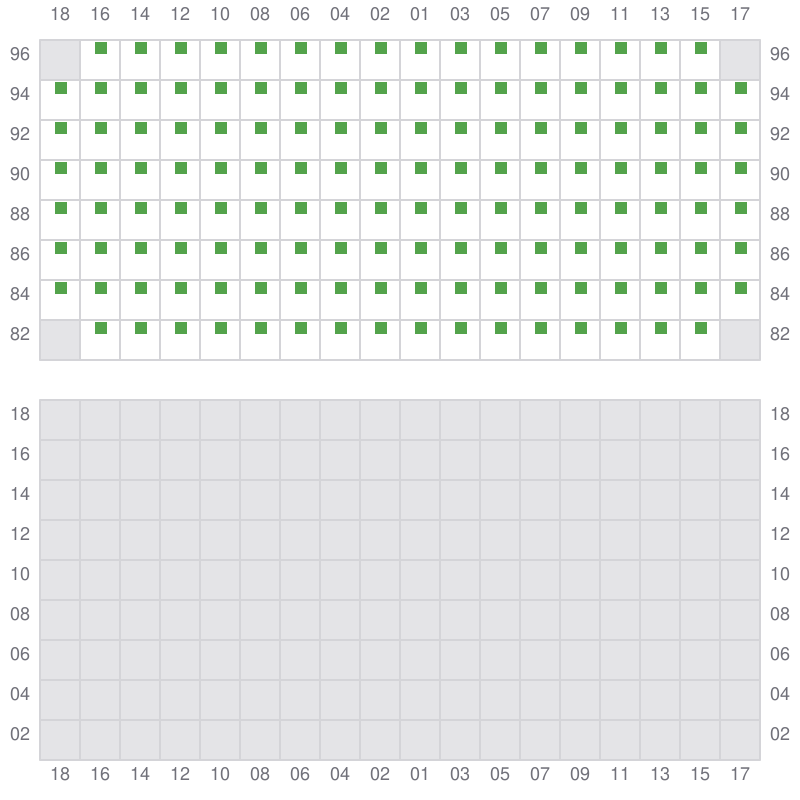

079 (078)
- ← / ?
