EVER LYRIC
9629108 | BKKH | EIS by ************************** Last update: Fri Jun 09 2023

General Info

Ship Name:EVER LYRIC
IMO Code:9629108
Call Sign:BKKH
Line Operator:EIS
Class Name for Sister Ships:LYR
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,532

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

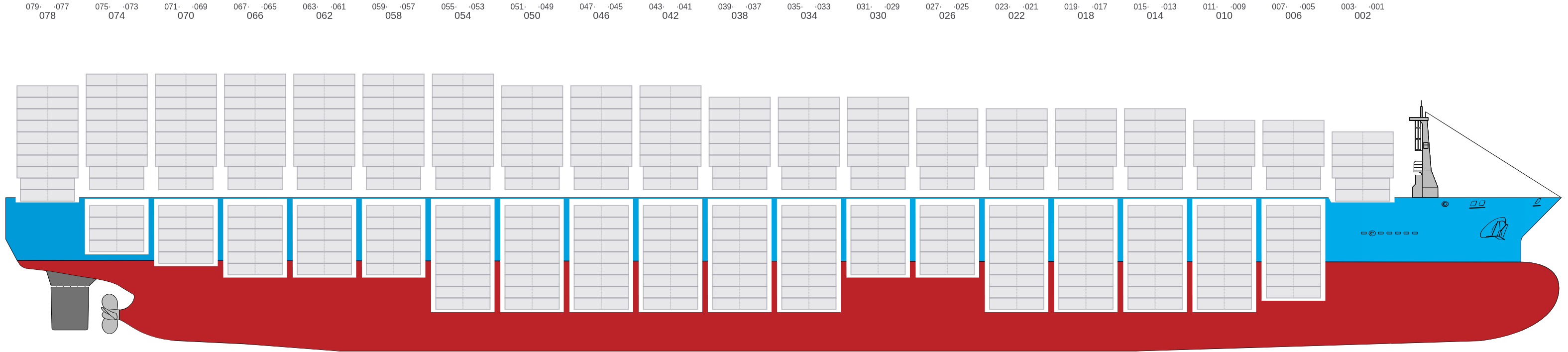

Side view of EVER LYRIC

Hatch-Covers View

Deck view of EVER LYRIC

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • → / ?
  • → / ?
Bay 001 view and slots of EVER LYRIC

003 (002)

  • ← / ?
  • → / ?

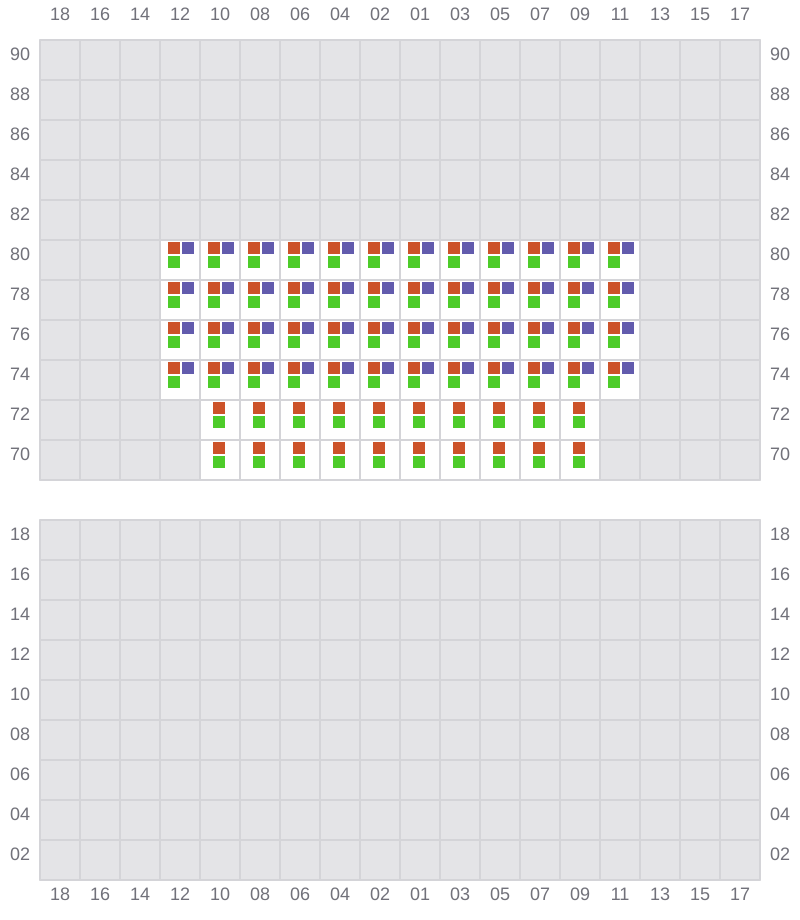

Bay 003 view and slots of EVER LYRIC

005

  • →
  • →

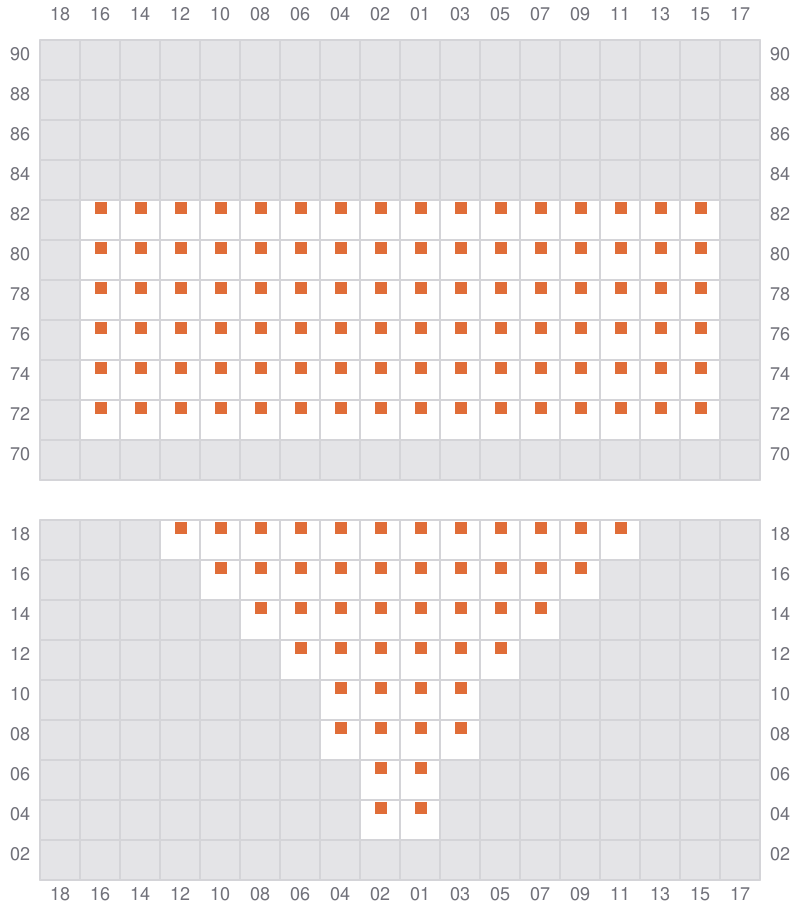

Bay 005 view and slots of EVER LYRIC

007 (006)

  • ←
  • →
Bay 007 view and slots of EVER LYRIC

009

  • →
  • →
Bay 009 view and slots of EVER LYRIC

011 (010)

  • ←
  • →
Bay 011 view and slots of EVER LYRIC

013

  • →
  • →
Bay 013 view and slots of EVER LYRIC

015 (014)

  • ←
  • →
Bay 015 view and slots of EVER LYRIC

017

  • →
  • →
Bay 017 view and slots of EVER LYRIC

019 (018)

  • ←
  • →
Bay 019 view and slots of EVER LYRIC

021

  • →
  • →

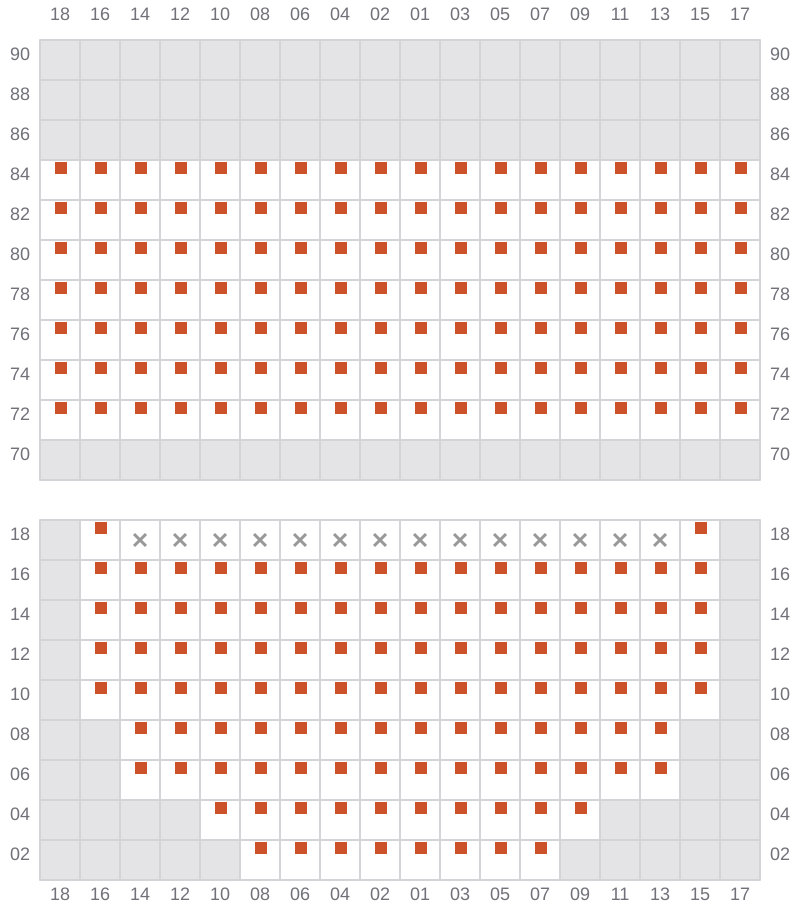

Bay 021 view and slots of EVER LYRIC

023 (022)

  • ←
  • →
Bay 023 view and slots of EVER LYRIC

025

  • →
  • →
Bay 025 view and slots of EVER LYRIC

027 (026)

  • ←
  • →
Bay 027 view and slots of EVER LYRIC

029

  • →
  • →

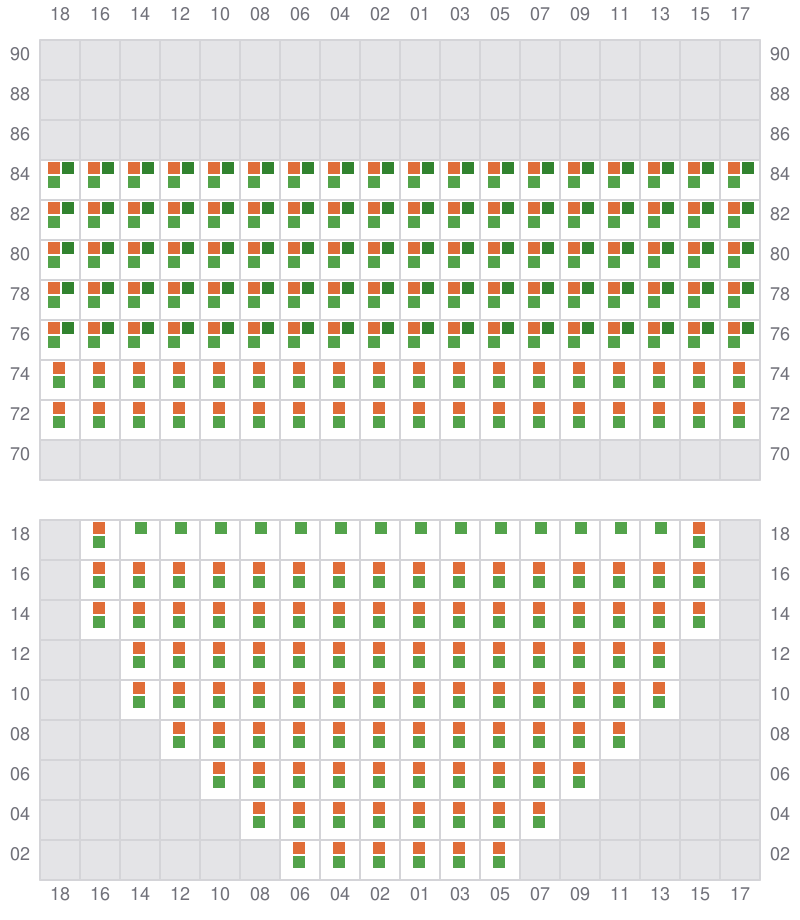

Bay 029 view and slots of EVER LYRIC

031 (030)

  • ←
  • →
Bay 031 view and slots of EVER LYRIC

033

  • →
  • →

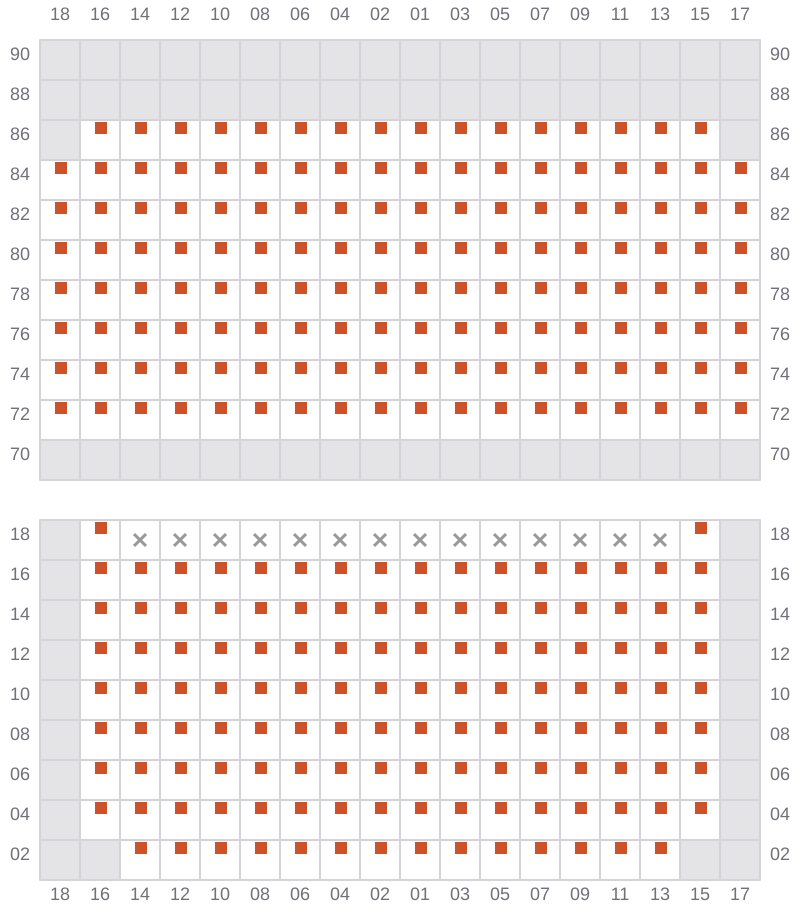

Bay 033 view and slots of EVER LYRIC

035 (034)

  • ←
  • →

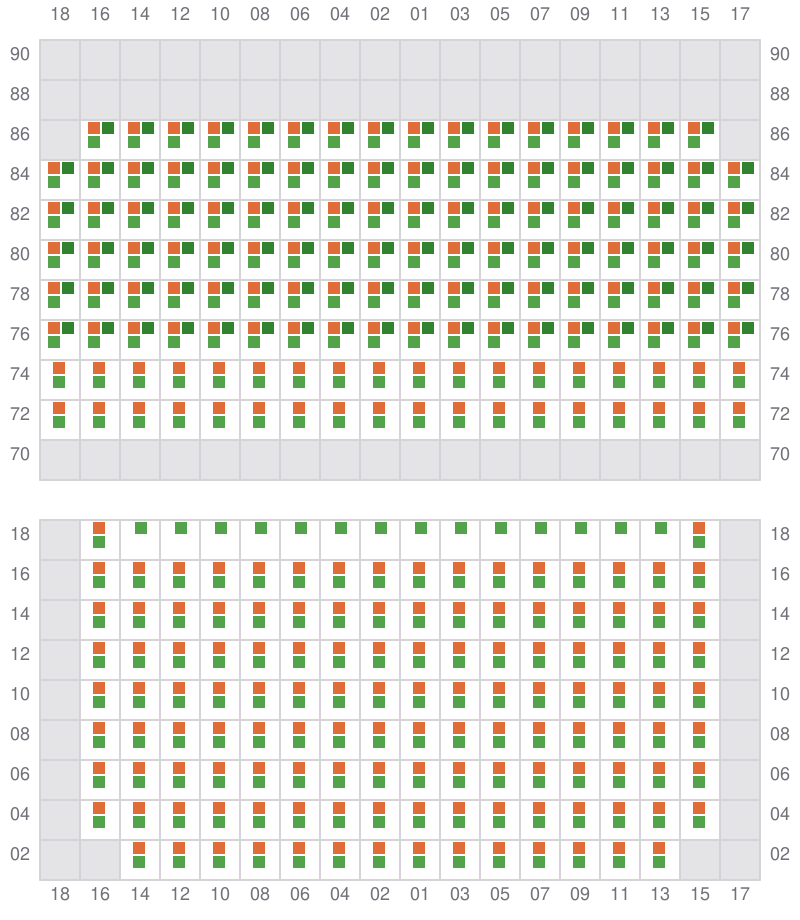

Bay 035 view and slots of EVER LYRIC

037

  • →
  • →
Bay 037 view and slots of EVER LYRIC

039 (038)

  • ←
  • →
Bay 039 view and slots of EVER LYRIC

041

  • →
  • →
Bay 041 view and slots of EVER LYRIC

043 (042)

  • ←
  • →

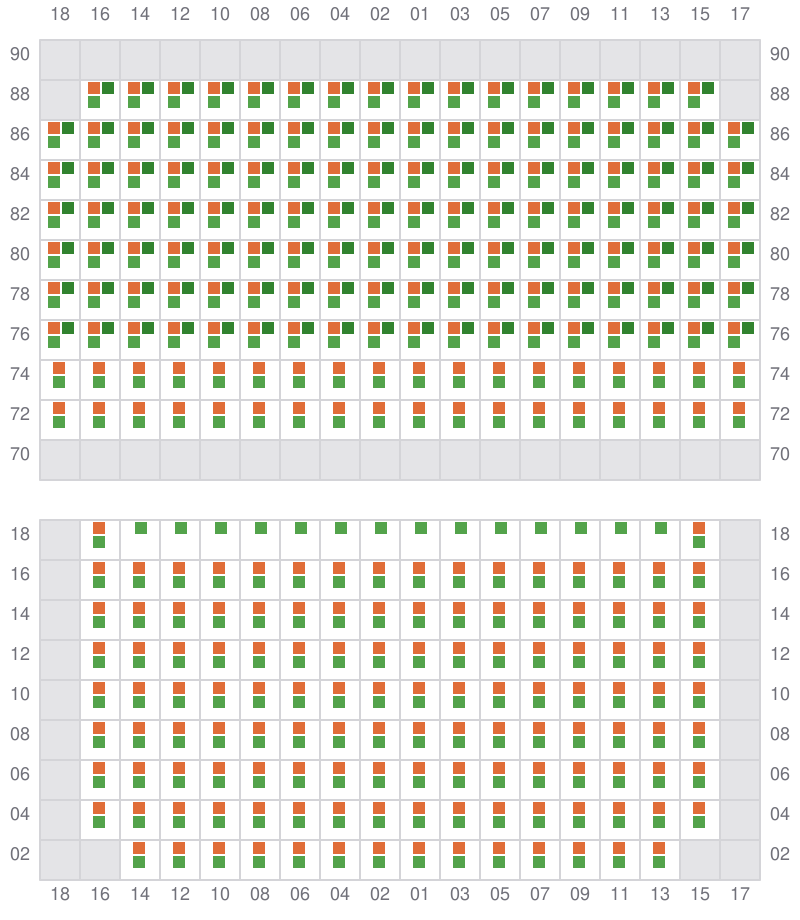

Bay 043 view and slots of EVER LYRIC

045

  • →
  • →

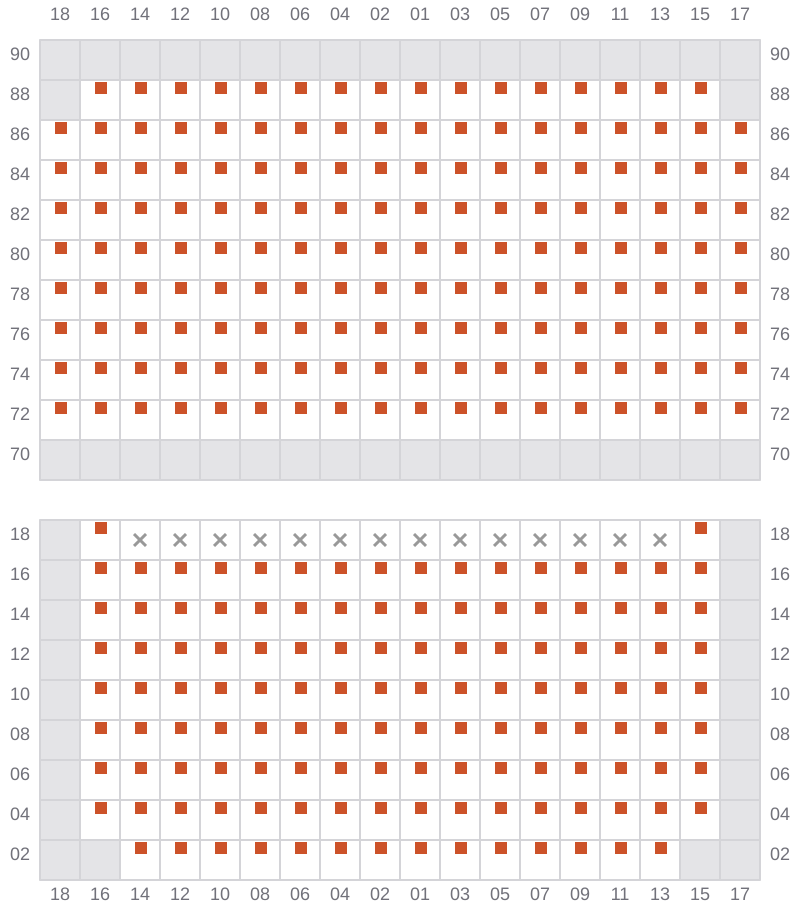

Bay 045 view and slots of EVER LYRIC

047 (046)

  • ←
  • →
Bay 047 view and slots of EVER LYRIC

049

  • →
  • →

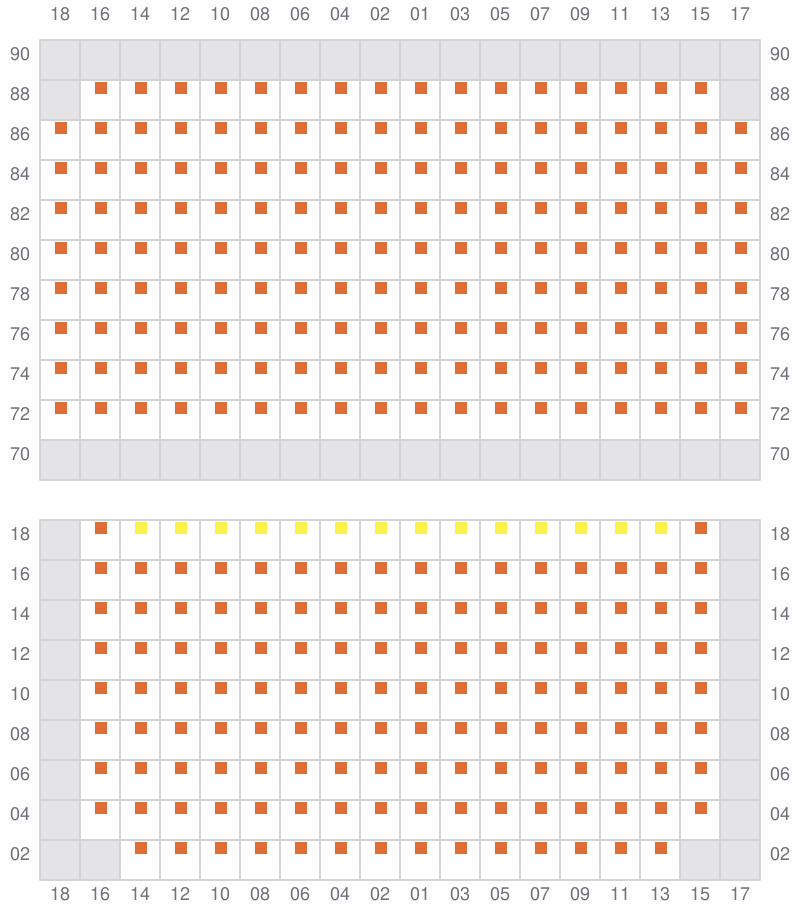

Bay 049 view and slots of EVER LYRIC

051 (050)

  • ←
  • →
Bay 051 view and slots of EVER LYRIC

053

  • →
  • →

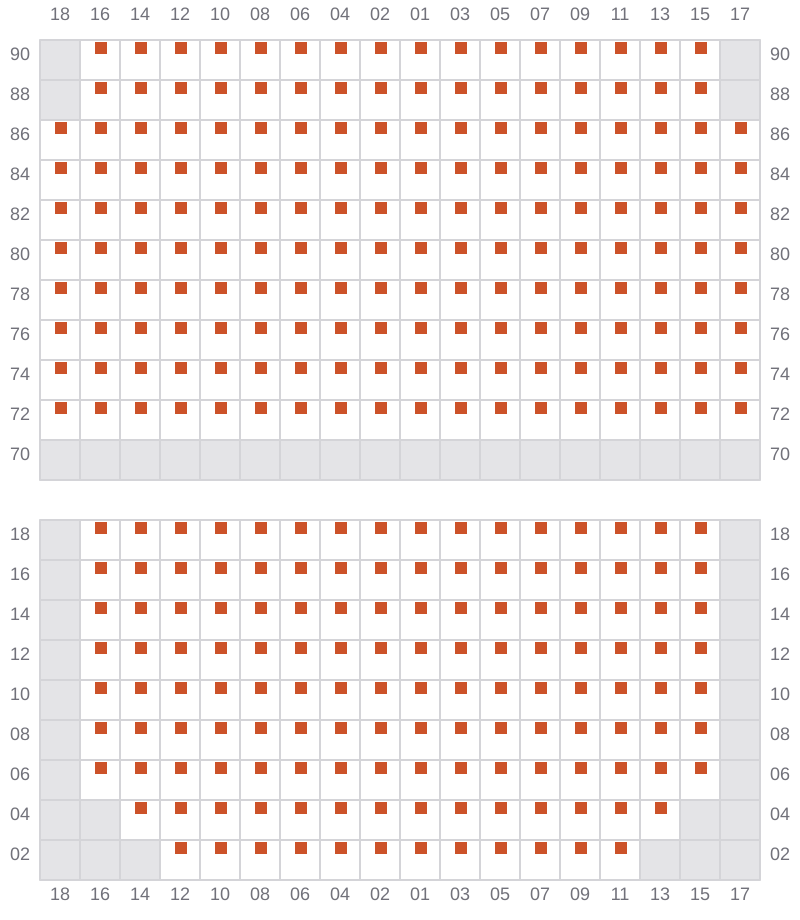

Bay 053 view and slots of EVER LYRIC

055 (054)

  • ←
  • →

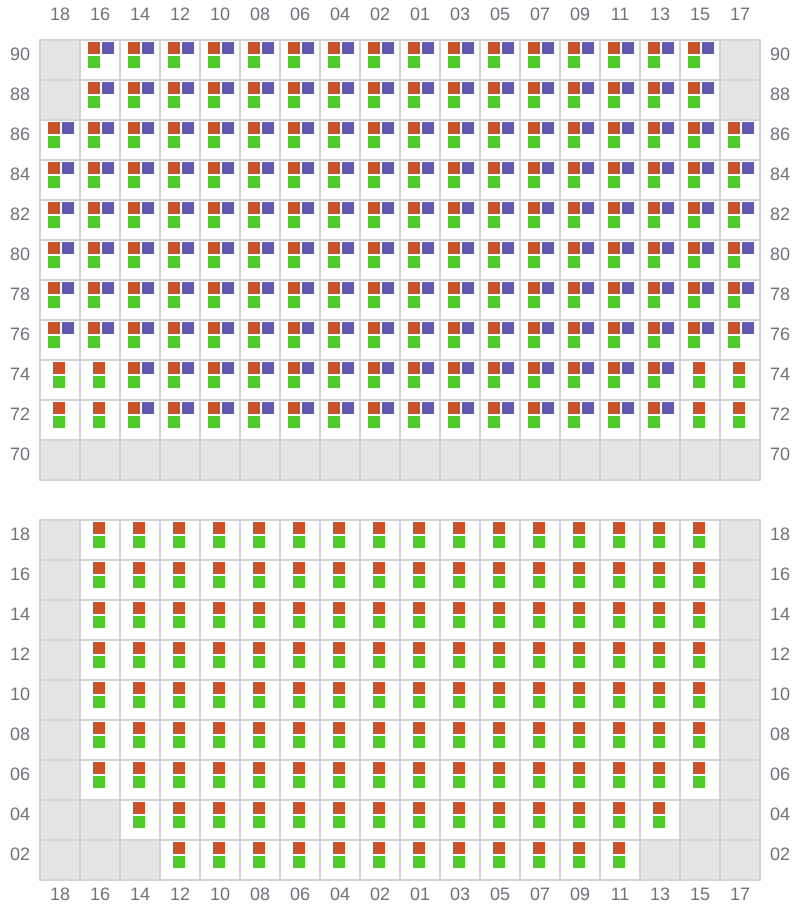

Bay 055 view and slots of EVER LYRIC

057

  • →
  • →

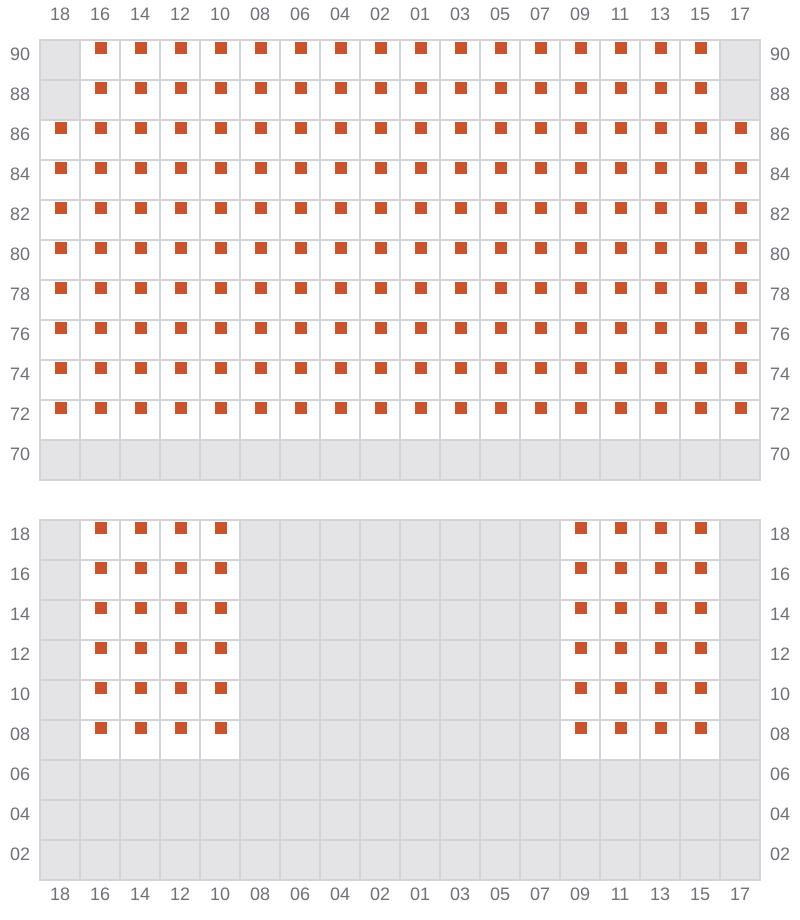

Bay 057 view and slots of EVER LYRIC

059 (058)

  • ←
  • →
Bay 059 view and slots of EVER LYRIC

061

  • →
  • →
Bay 061 view and slots of EVER LYRIC

063 (062)

  • ←
  • →

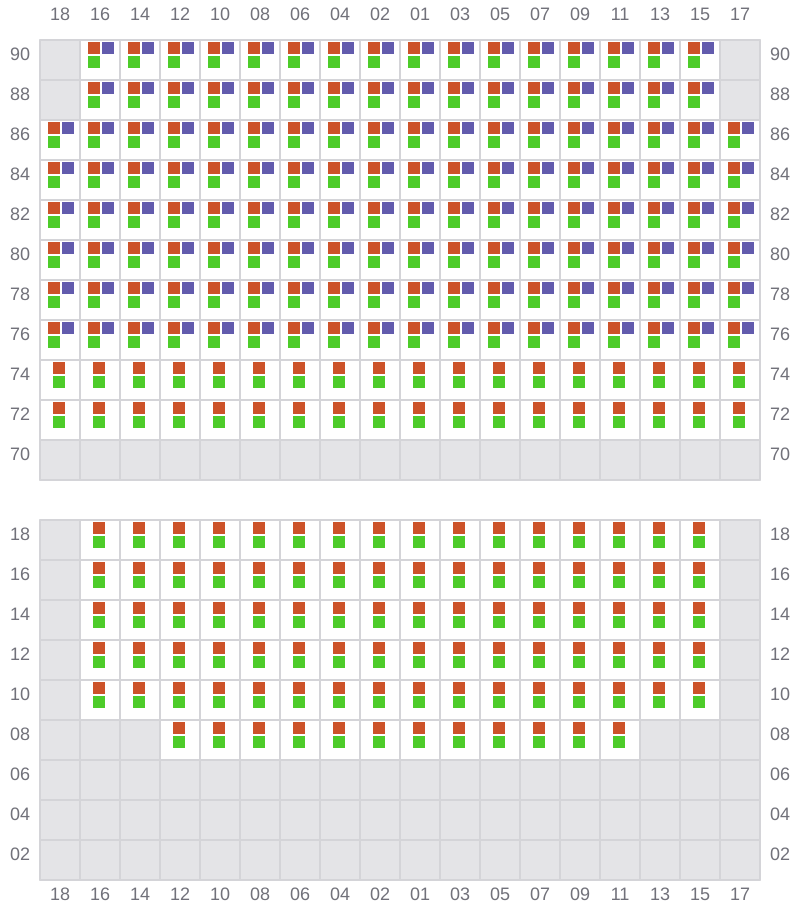

Bay 063 view and slots of EVER LYRIC

065

  • →
  • →

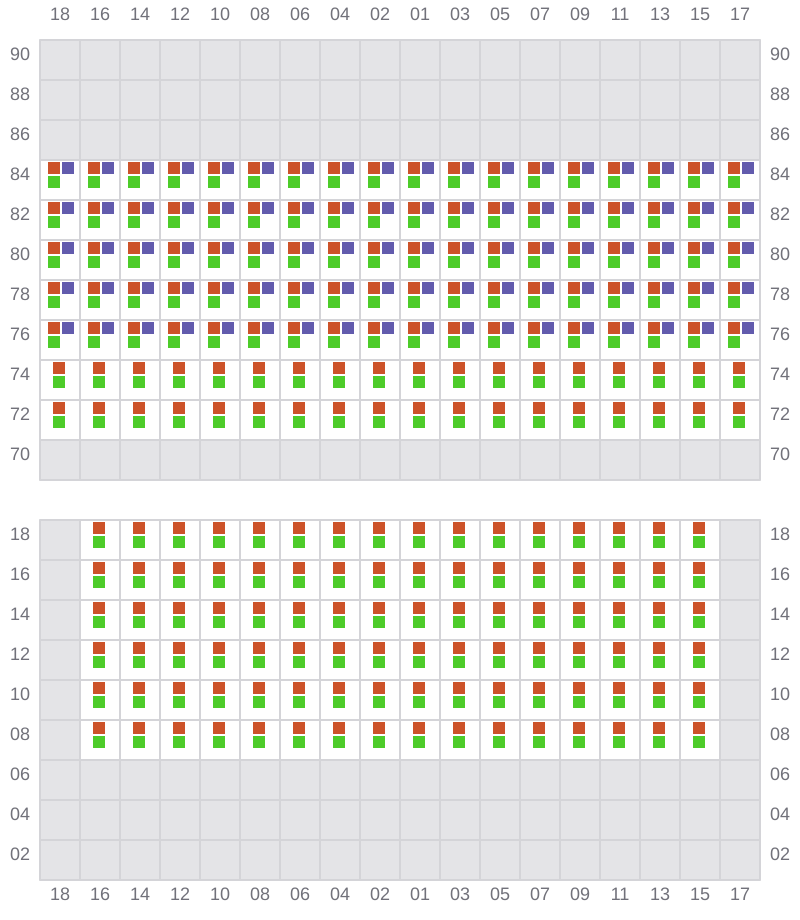

Bay 065 view and slots of EVER LYRIC

067 (066)

  • ←
  • →

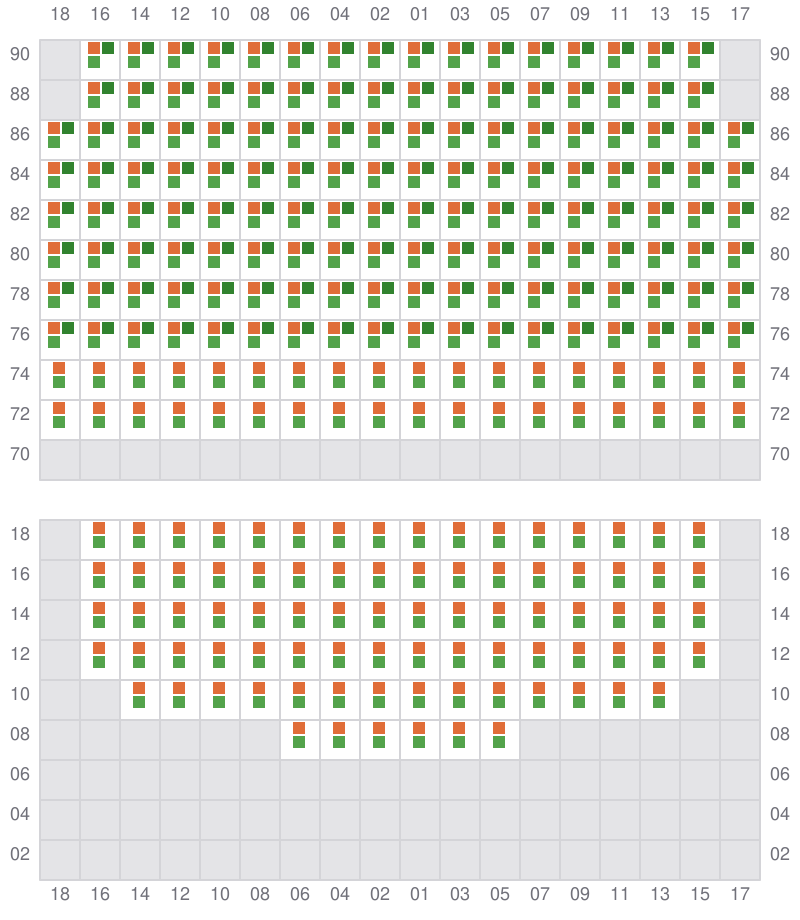

Bay 067 view and slots of EVER LYRIC

069

  • →
  • →

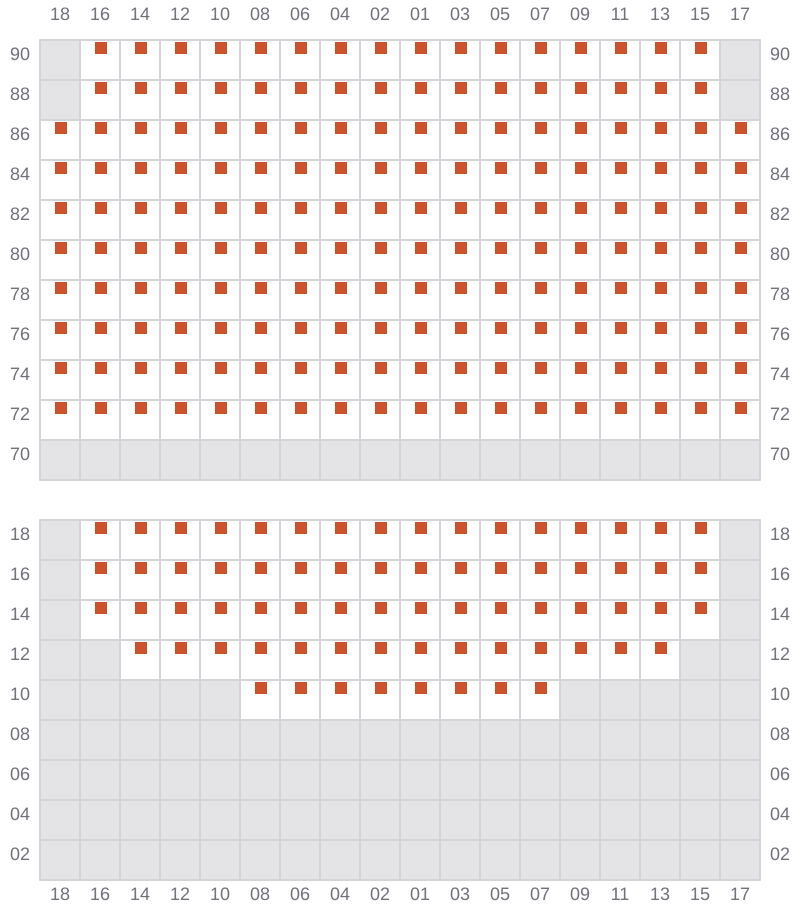

Bay 069 view and slots of EVER LYRIC

071 (070)

  • ←
  • →
Bay 071 view and slots of EVER LYRIC

073

  • →
  • →
Bay 073 view and slots of EVER LYRIC

075 (074)

  • ←
  • →

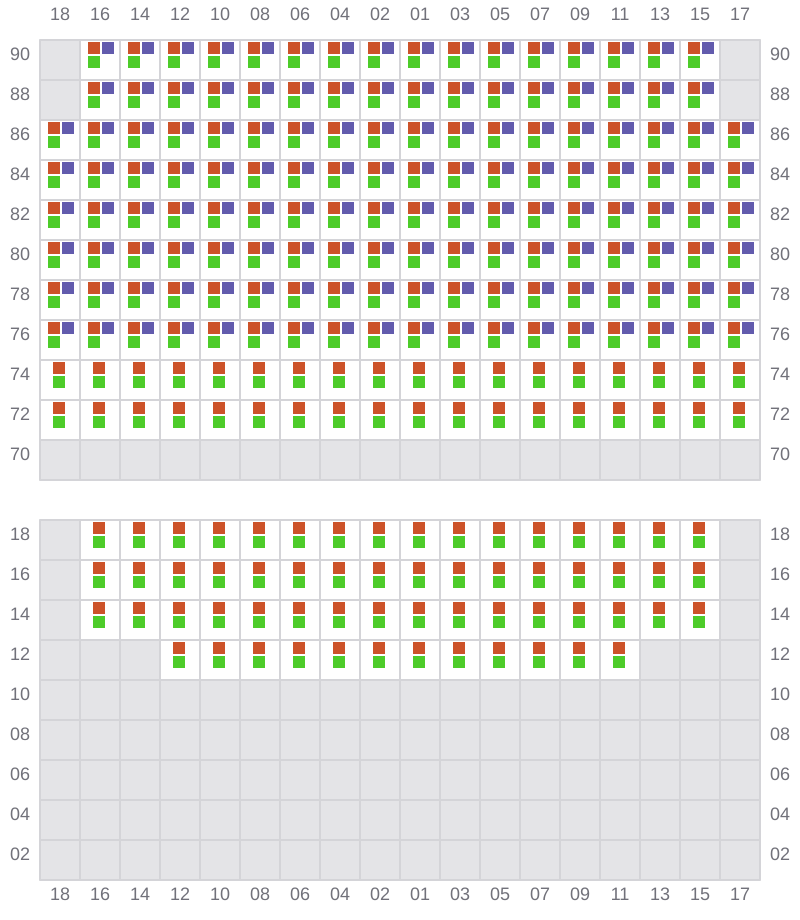

Bay 075 view and slots of EVER LYRIC

077

  • → / ?
  • → / ?
Bay 077 view and slots of EVER LYRIC

079 (078)

  • ← / ?
  • → / ?

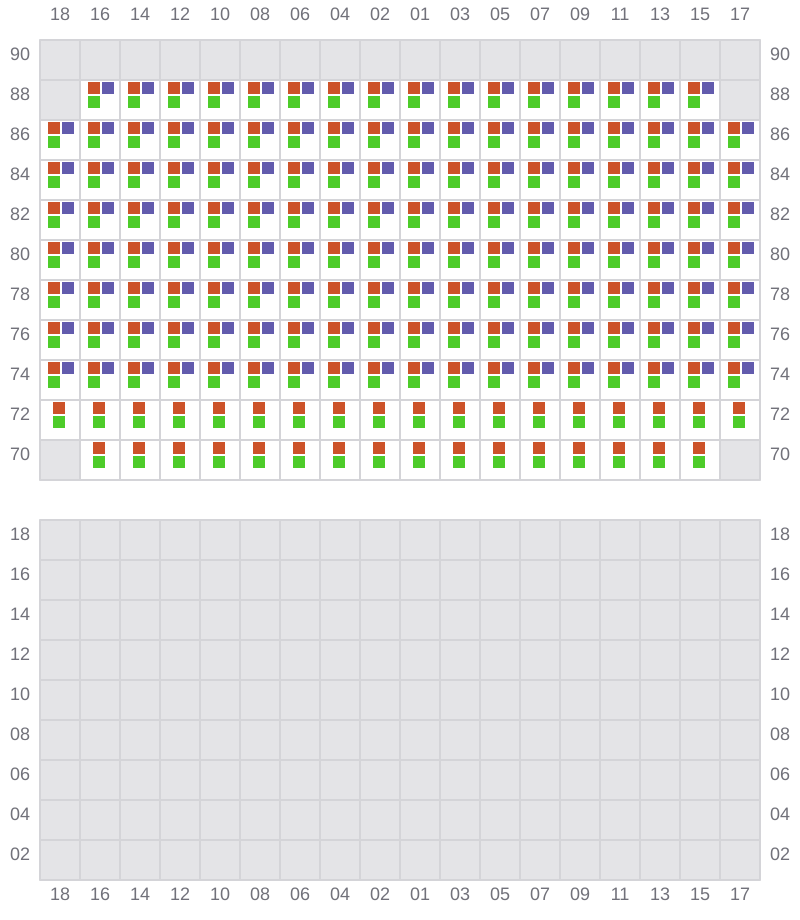

Bay 079 view and slots of EVER LYRIC
