EVER PRIDE
9249233 | VQGH8 | 9249233 by ********* Last update: Tue Jun 11 2024
General Info
Ship Name:EVER PRIDE
IMO Code:9249233
Call Sign:VQGH8
Line Operator:9249233
Class Name for Sister Ships:EMC
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:2,212
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

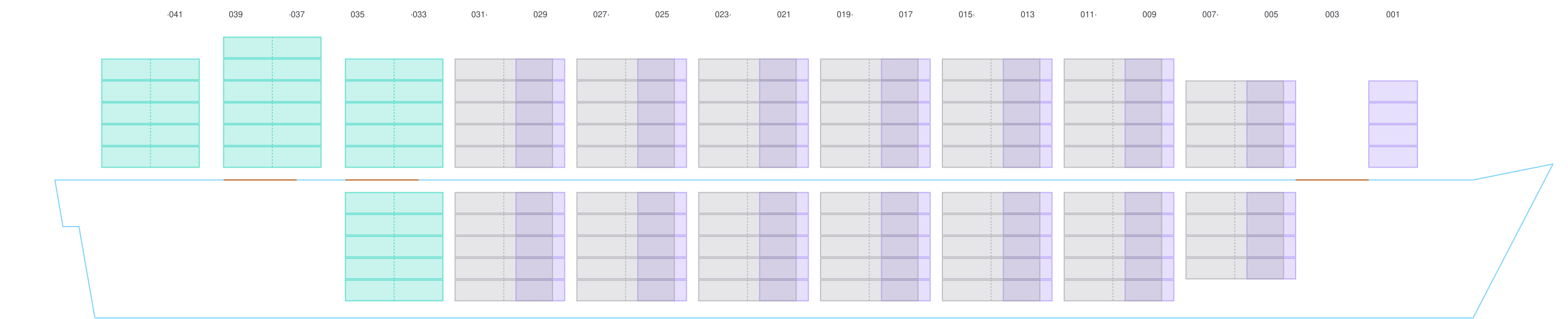

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

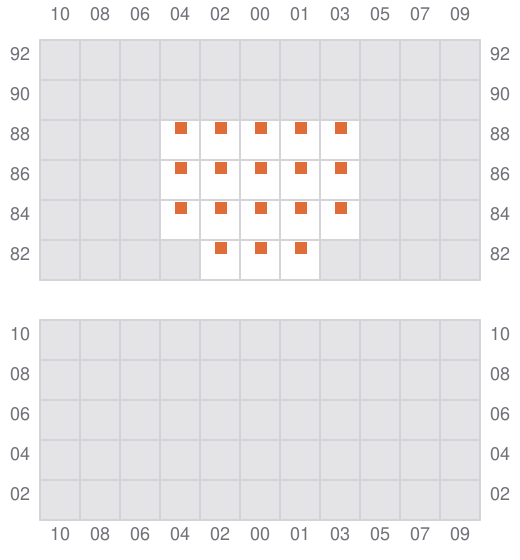

001
- → / ?

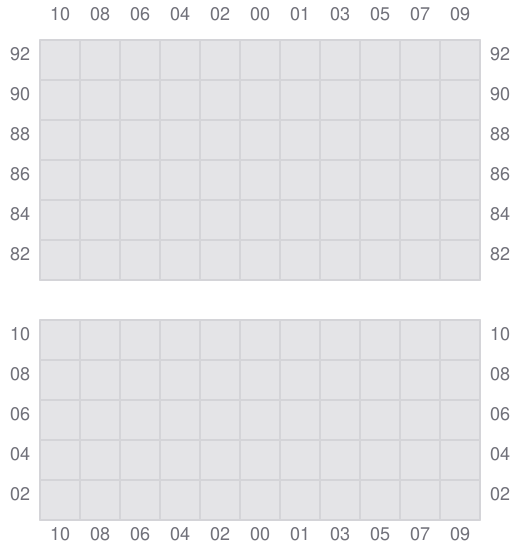

003

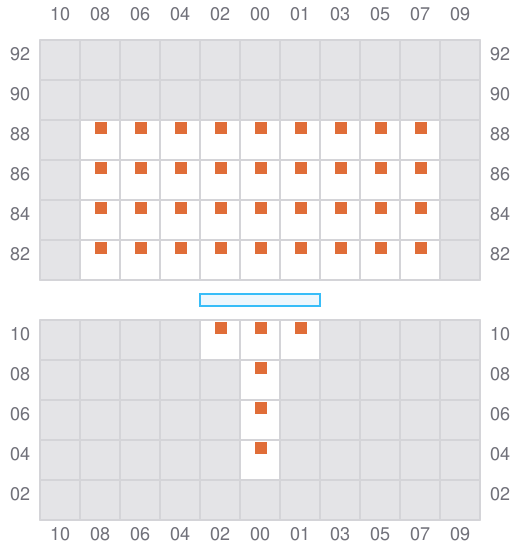

005
- →

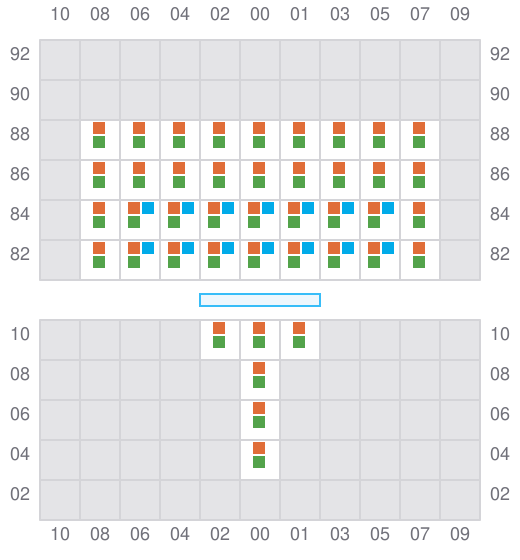

007 (006)
- ←
- → / ?
- →

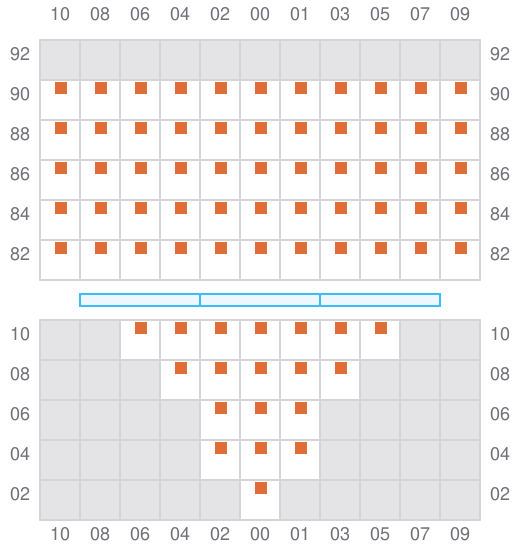

009
- →

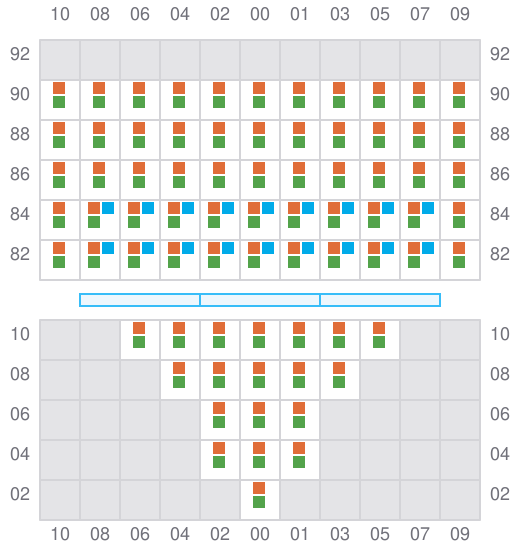

011 (010)
- ←
- → / ?
- →

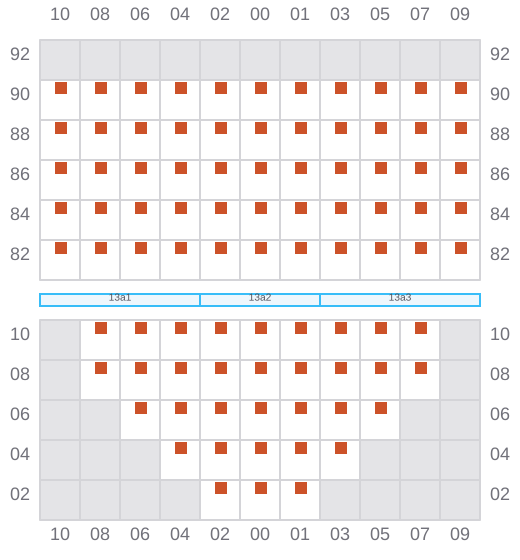

013
- →

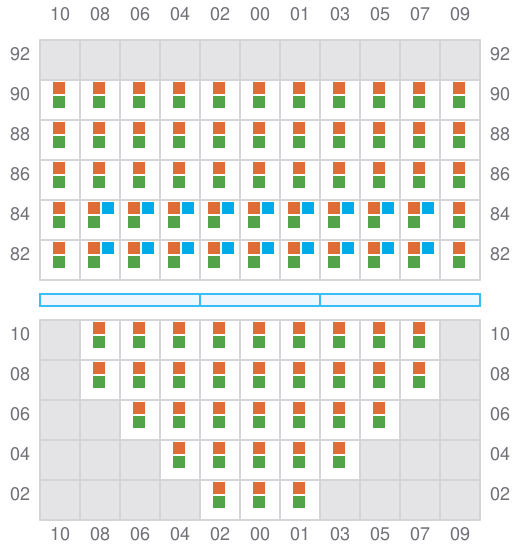

015 (014)
- ←
- → / ?
- →

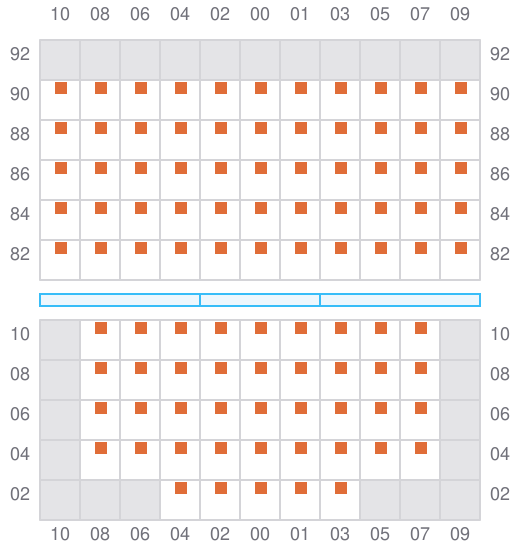

017
- →

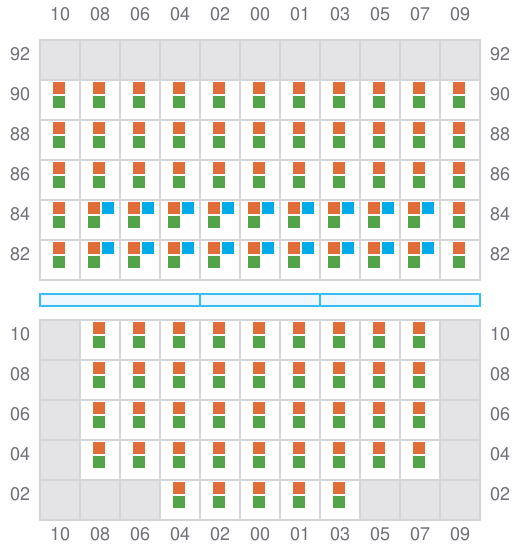

019 (018)
- ←
- → / ?
- →
021
- →
023 (022)
- ←
- → / ?
- →

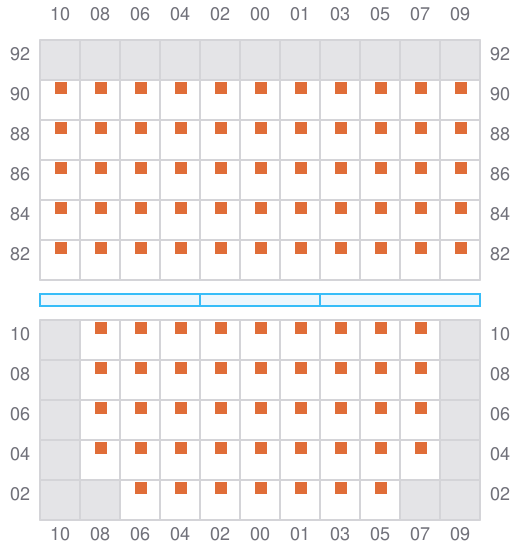

025
- →
027 (026)
- ←
- → / ?
- →
029
- →
031 (030)
- ←
- → / ?
- →

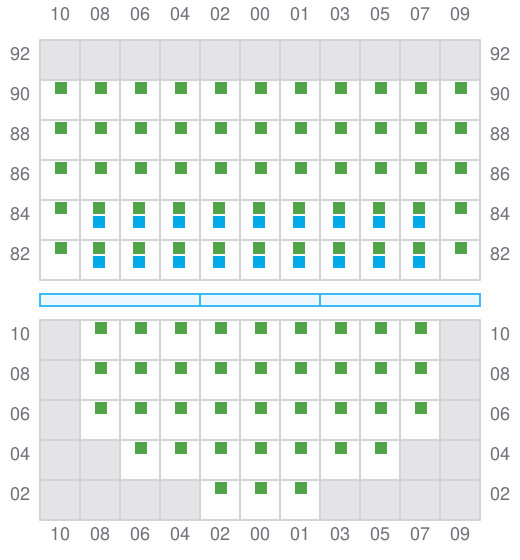

033 (034)
- →
- → / ?
- →
035

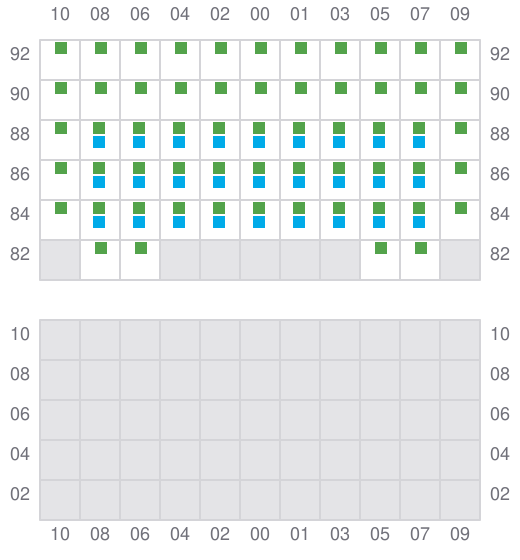

037 (038)
- → / ?
- → / ?
- → / ?
039

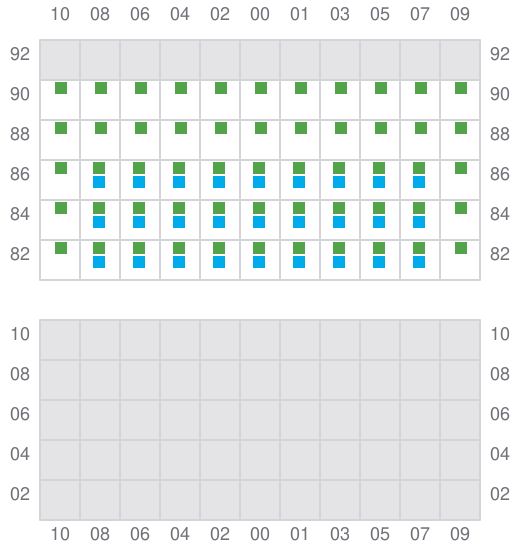

041 (042)
- → / ?
- → / ?
- → / ?
