EVER SIGMA
9300398 | MKKZ7 | 9300398 by ********* Last update: Wed May 01 2024

General Info

Ship Name:EVER SIGMA
IMO Code:9300398
Call Sign:MKKZ7
Line Operator:9300398
Class Name for Sister Ships:EVER SIGMA
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:071
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,501

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

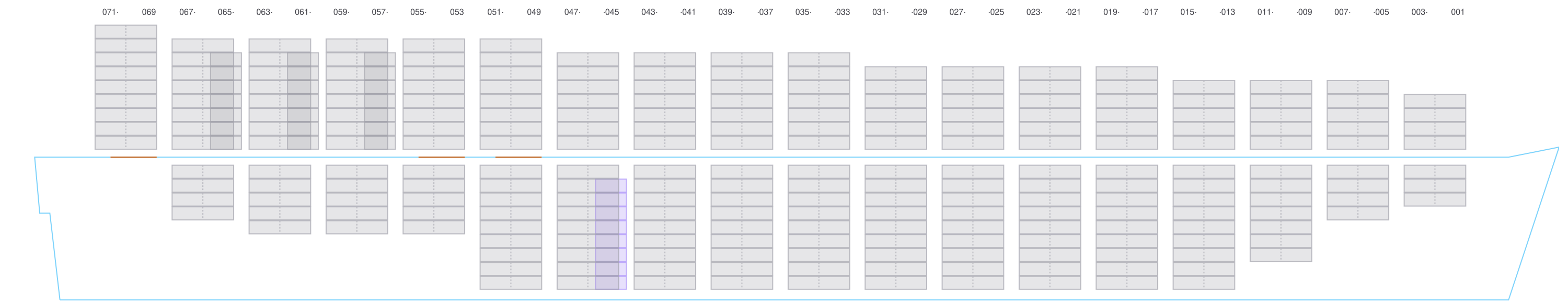

Side view of EVER SIGMA

Hatch-Covers View

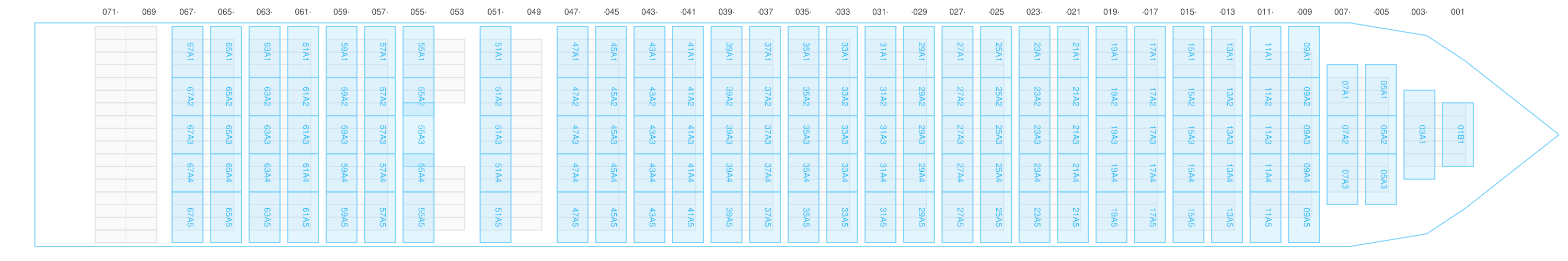

Deck view of EVER SIGMA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • ? / →
  • ? / →

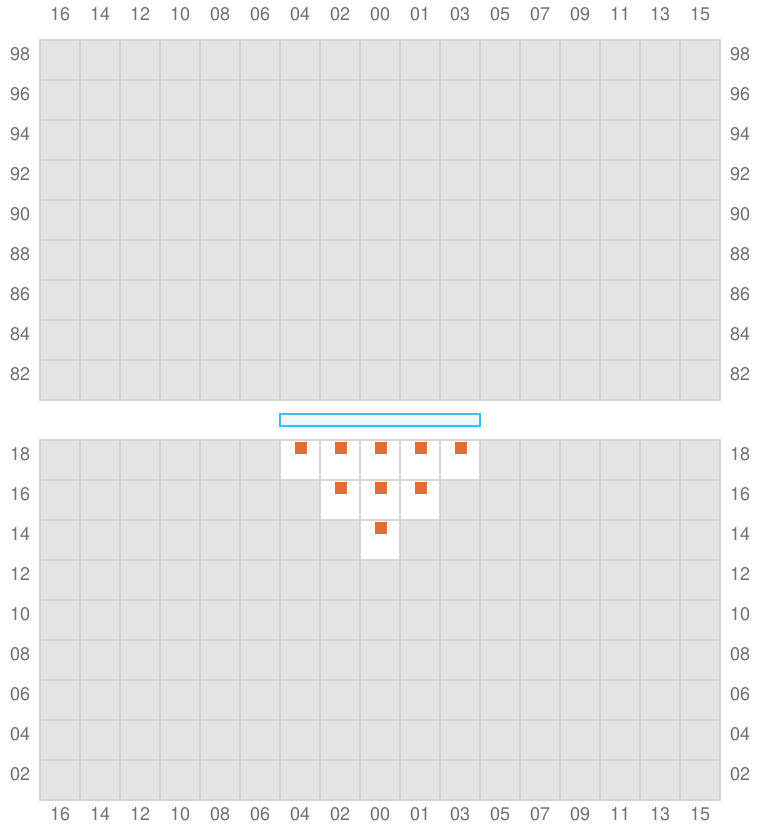

Bay 001 view and slots of EVER SIGMA

003 (002)

  • ←
  • →

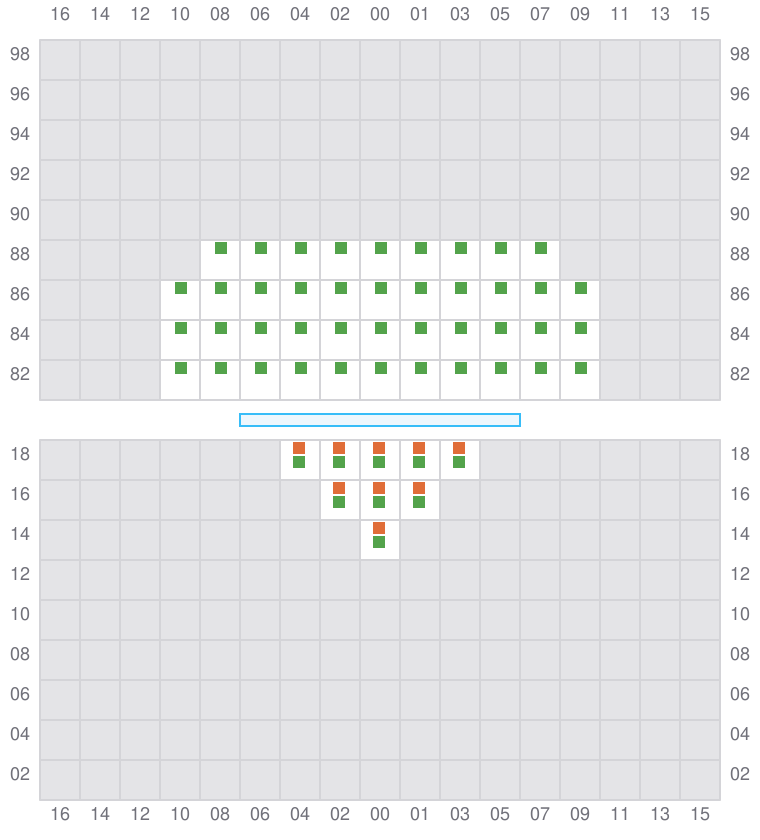

Bay 003 view and slots of EVER SIGMA

005

  • →
  • →

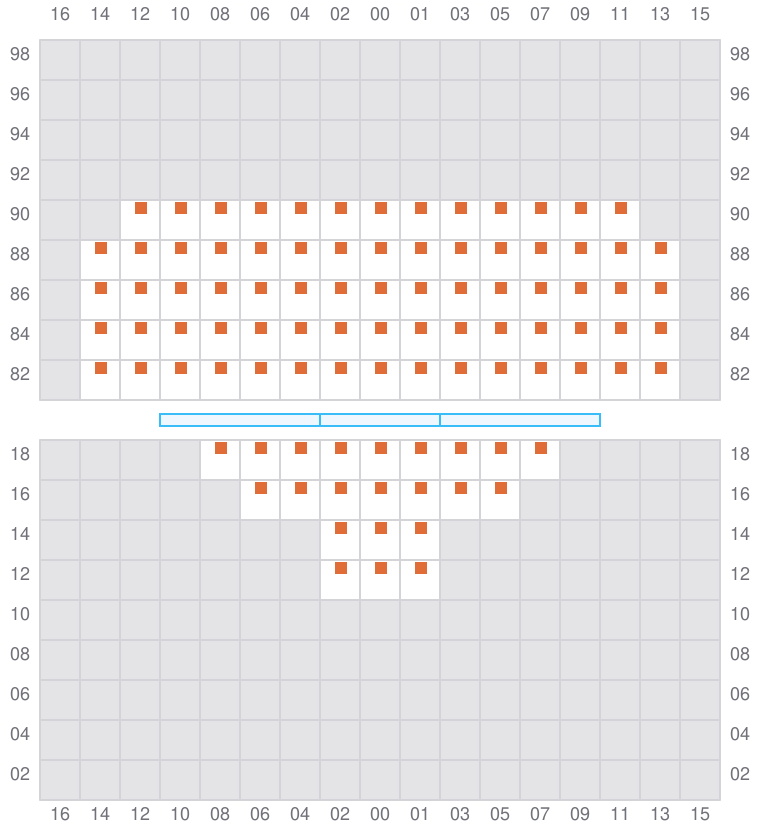

Bay 005 view and slots of EVER SIGMA

007 (006)

  • ←
  • →

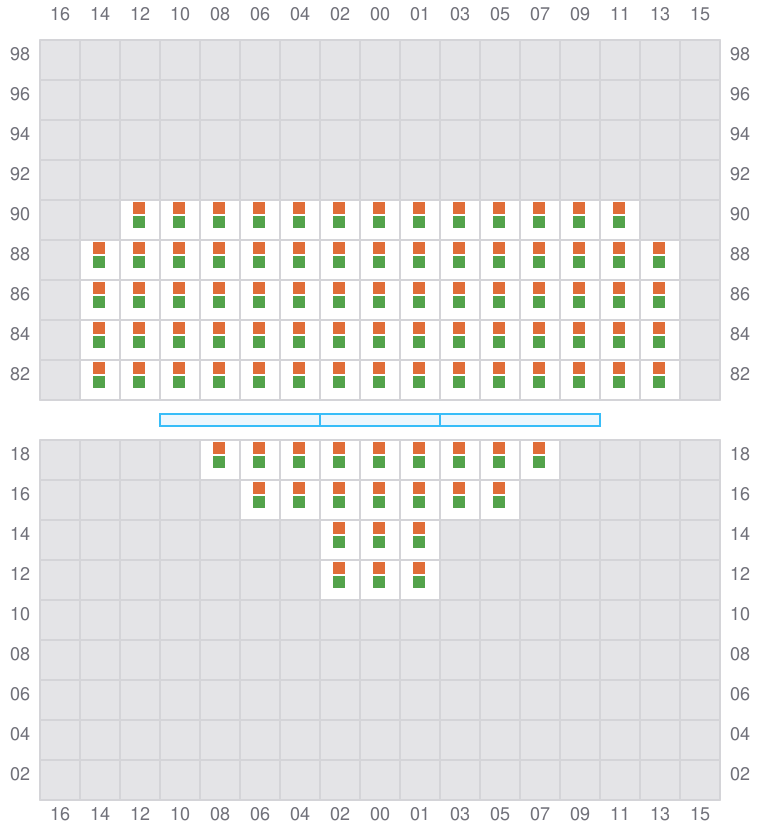

Bay 007 view and slots of EVER SIGMA

009

  • →
  • →

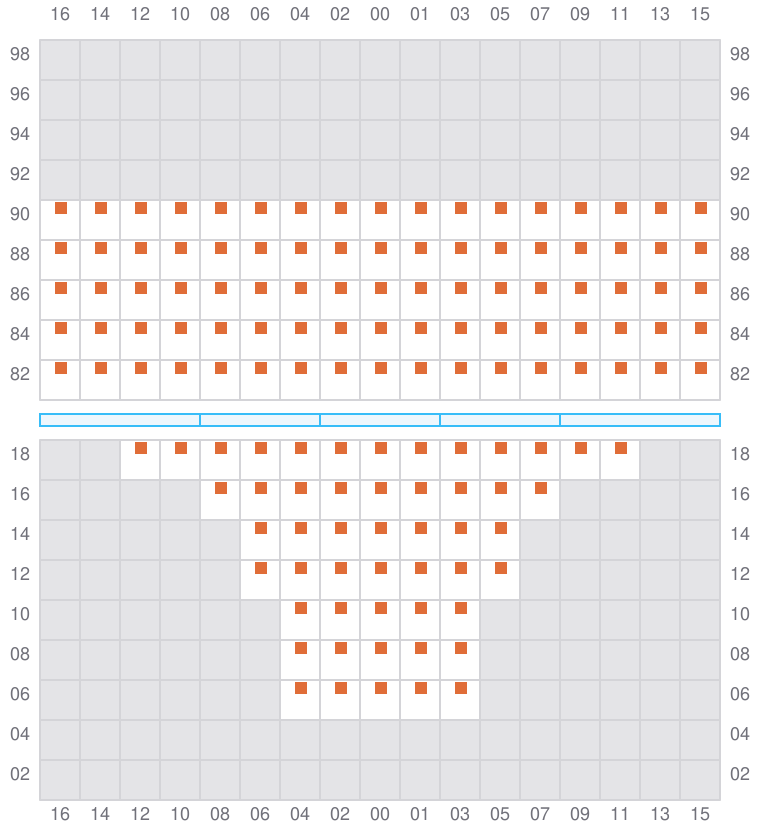

Bay 009 view and slots of EVER SIGMA

011 (010)

  • ←
  • →

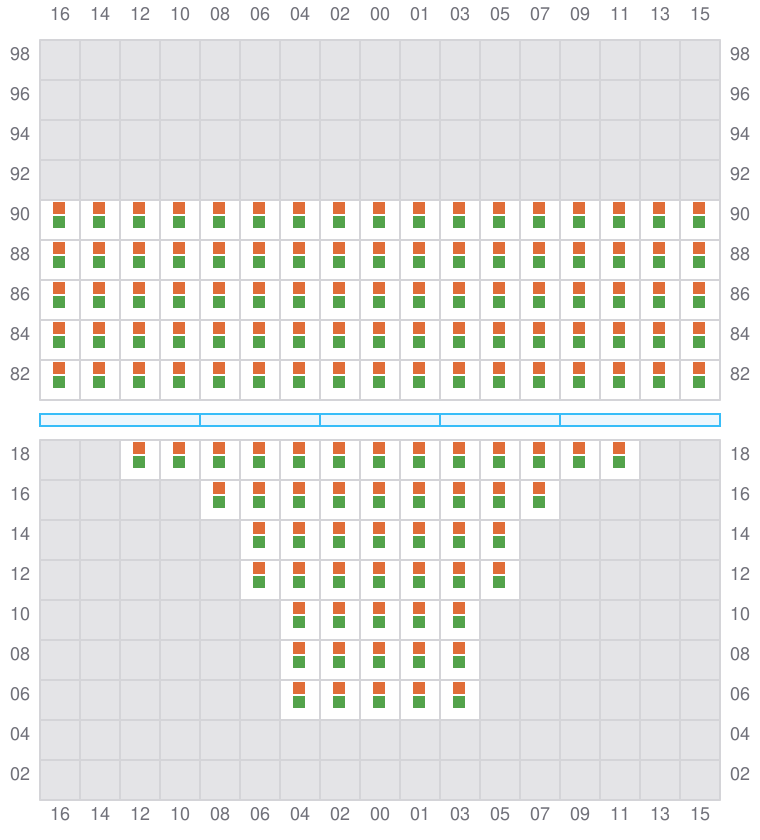

Bay 011 view and slots of EVER SIGMA

013

  • →
  • →

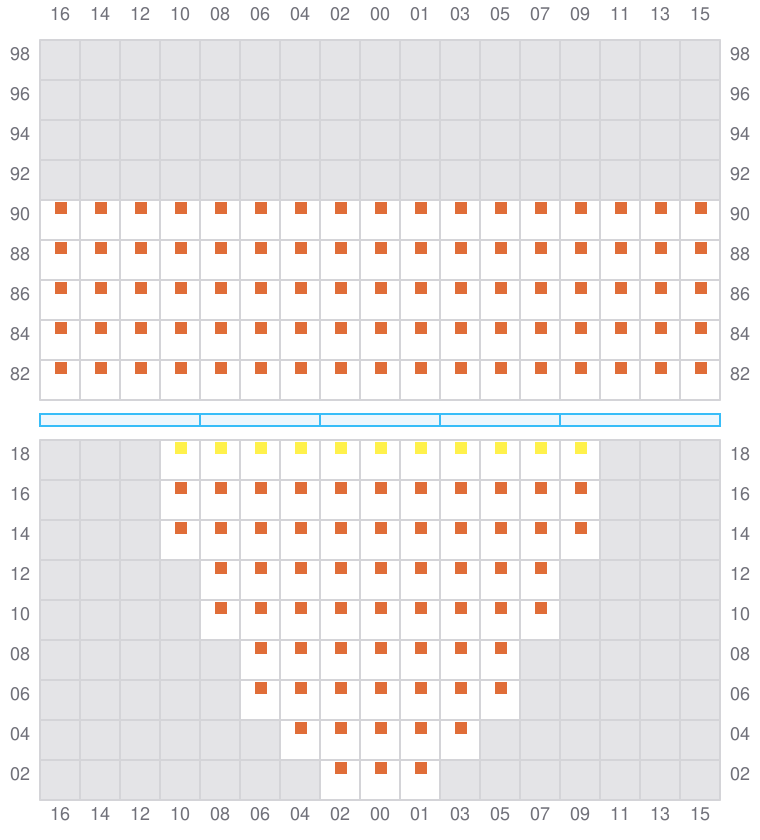

Bay 013 view and slots of EVER SIGMA

015 (014)

  • ←
  • →

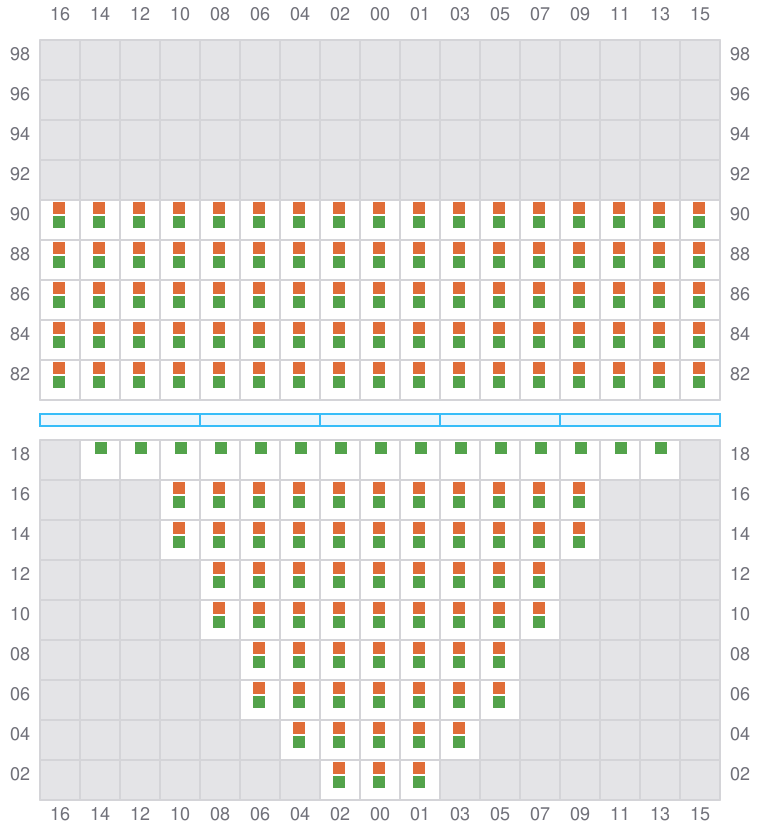

Bay 015 view and slots of EVER SIGMA

017

  • →
  • →

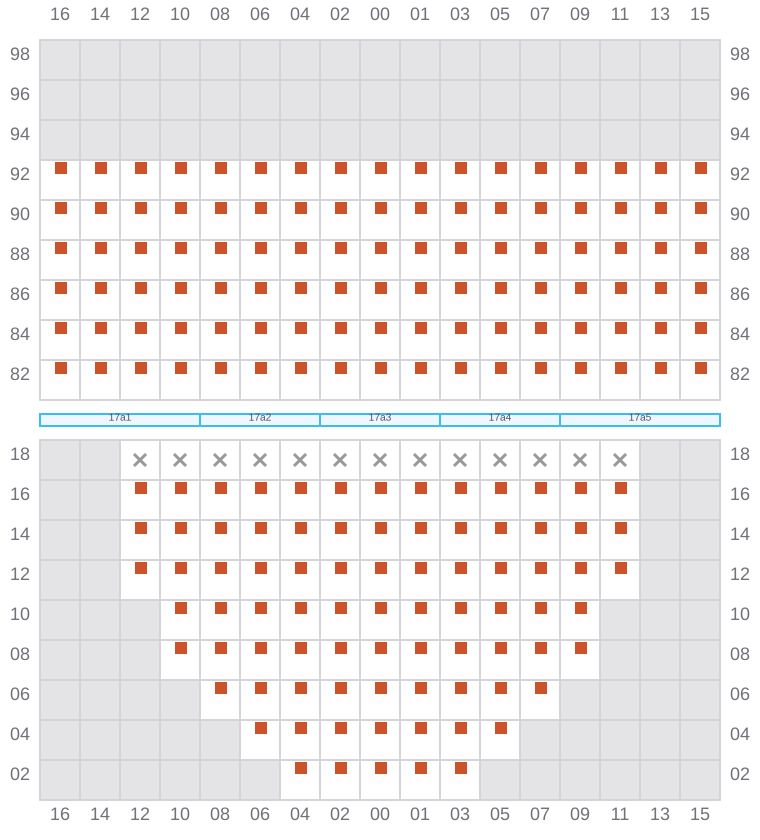

Bay 017 view and slots of EVER SIGMA

019 (018)

  • ←
  • →

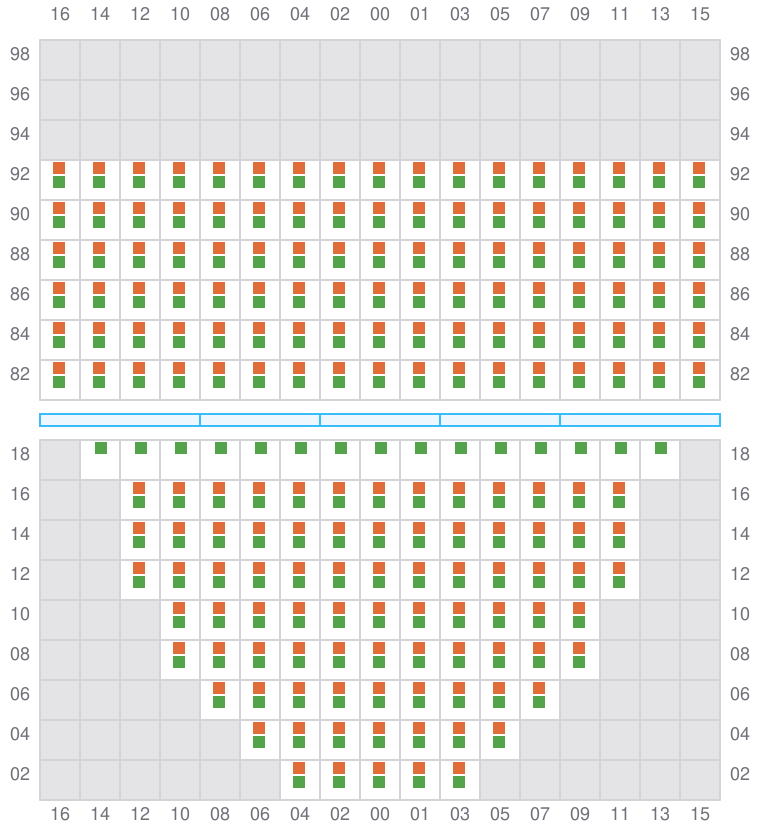

Bay 019 view and slots of EVER SIGMA

021

  • →
  • →

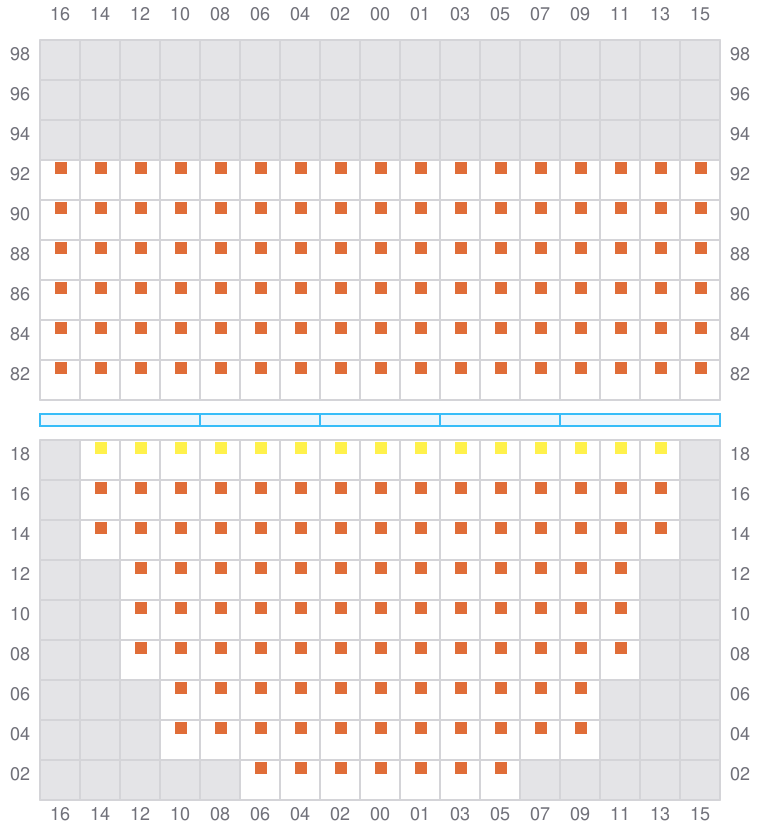

Bay 021 view and slots of EVER SIGMA

023 (022)

  • ←
  • →

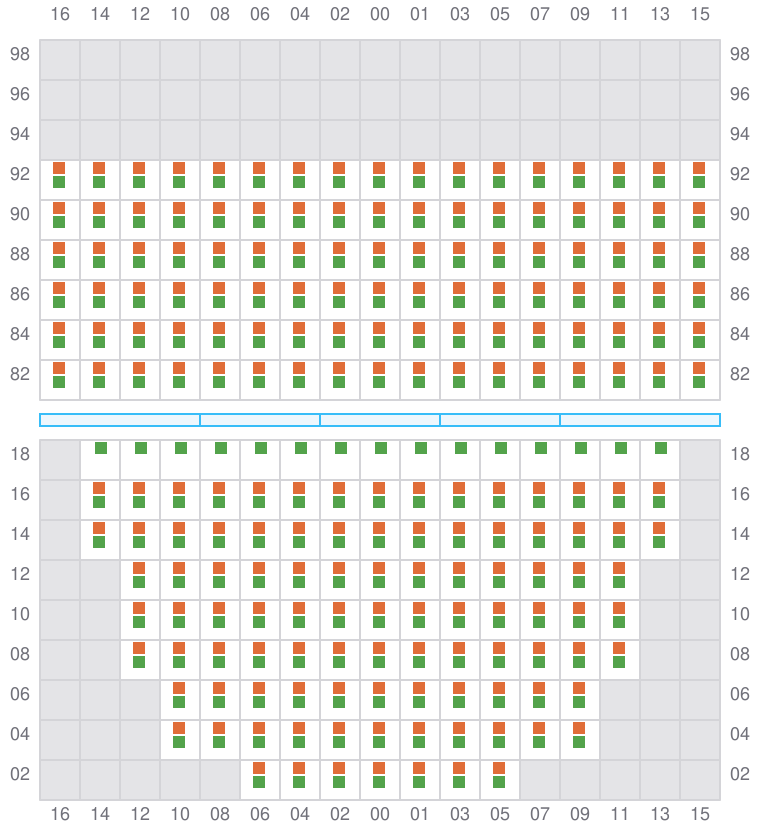

Bay 023 view and slots of EVER SIGMA

025

  • →
  • →

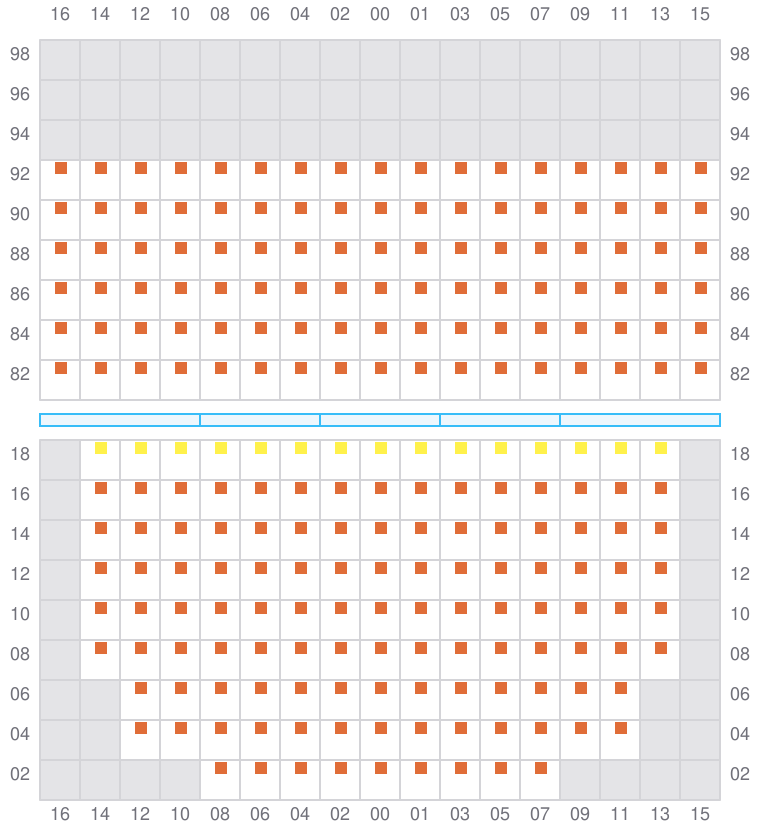

Bay 025 view and slots of EVER SIGMA

027 (026)

  • ←
  • →

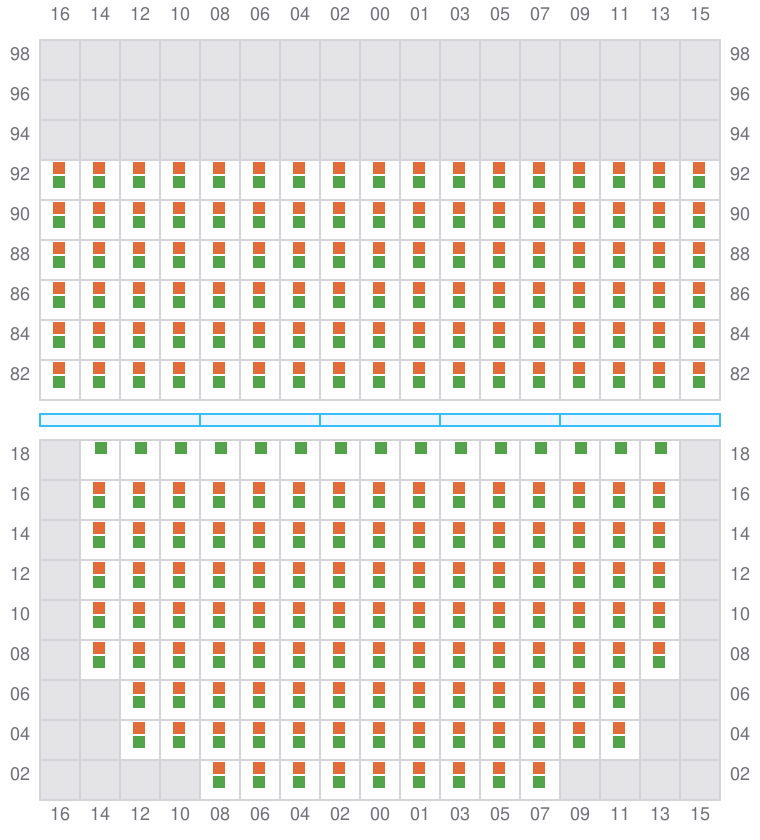

Bay 027 view and slots of EVER SIGMA

029

  • →
  • →

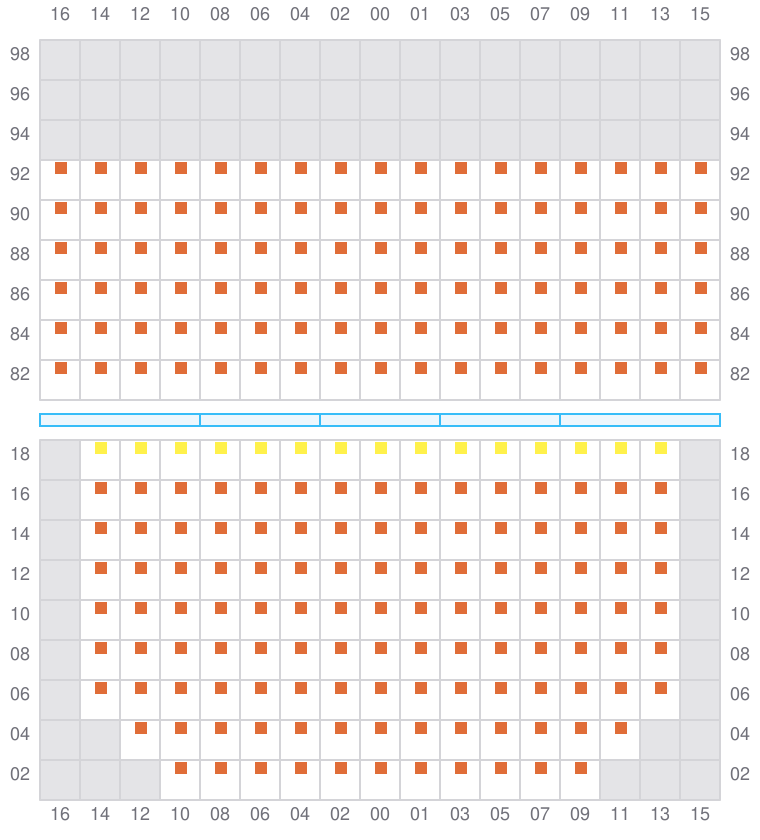

Bay 029 view and slots of EVER SIGMA

031 (030)

  • ←
  • →
Bay 031 view and slots of EVER SIGMA

033

  • →
  • →

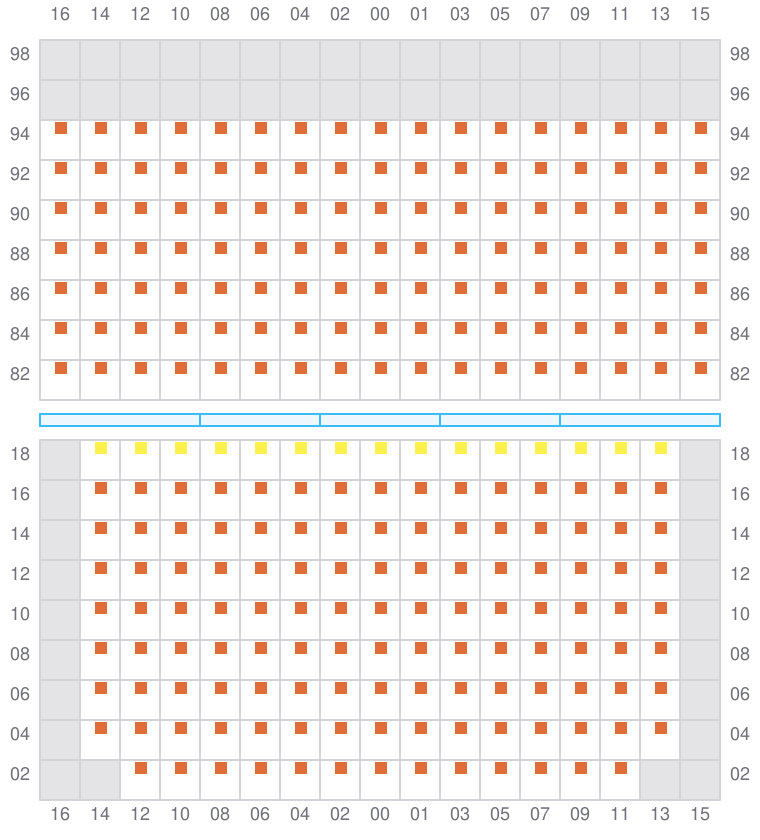

Bay 033 view and slots of EVER SIGMA

035 (034)

  • ←
  • →
Bay 035 view and slots of EVER SIGMA

037

  • →
  • →
Bay 037 view and slots of EVER SIGMA

039 (038)

  • ←
  • →
Bay 039 view and slots of EVER SIGMA

041

  • →
  • →

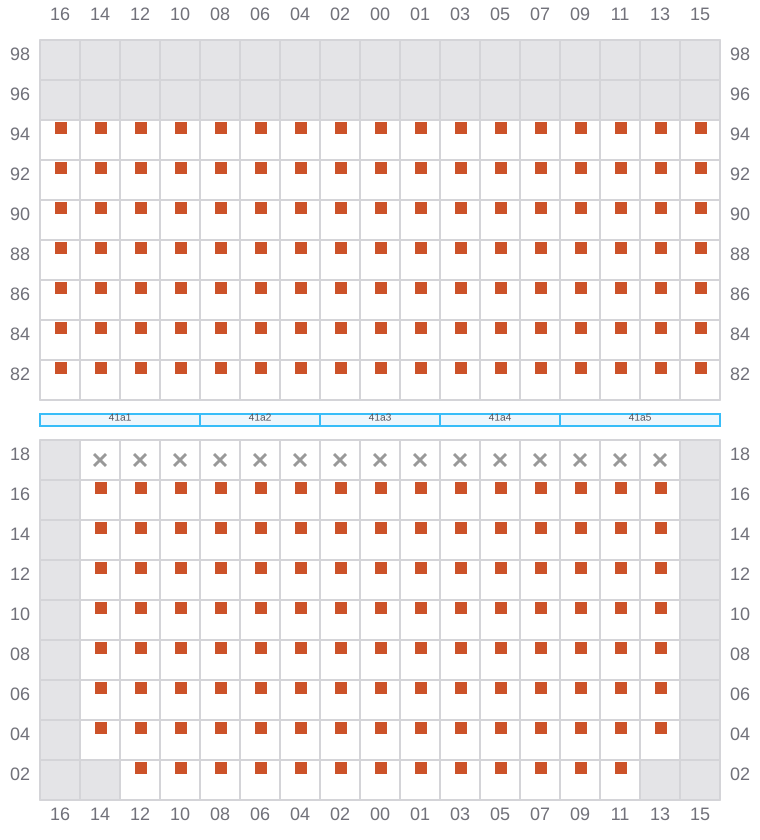

Bay 041 view and slots of EVER SIGMA

043 (042)

  • ←
  • →

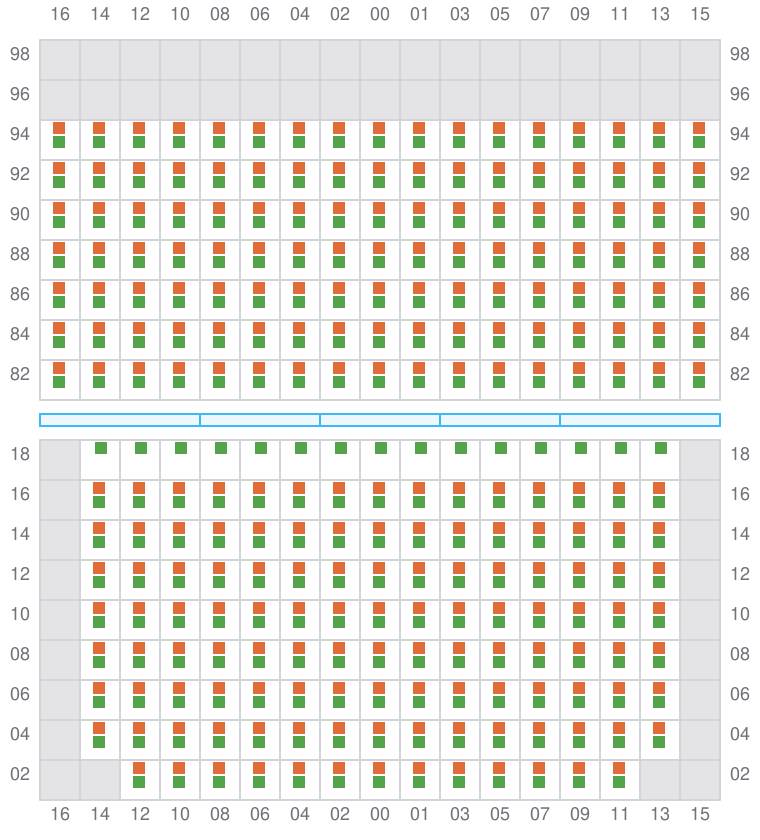

Bay 043 view and slots of EVER SIGMA

045

  • → / ?
  • →

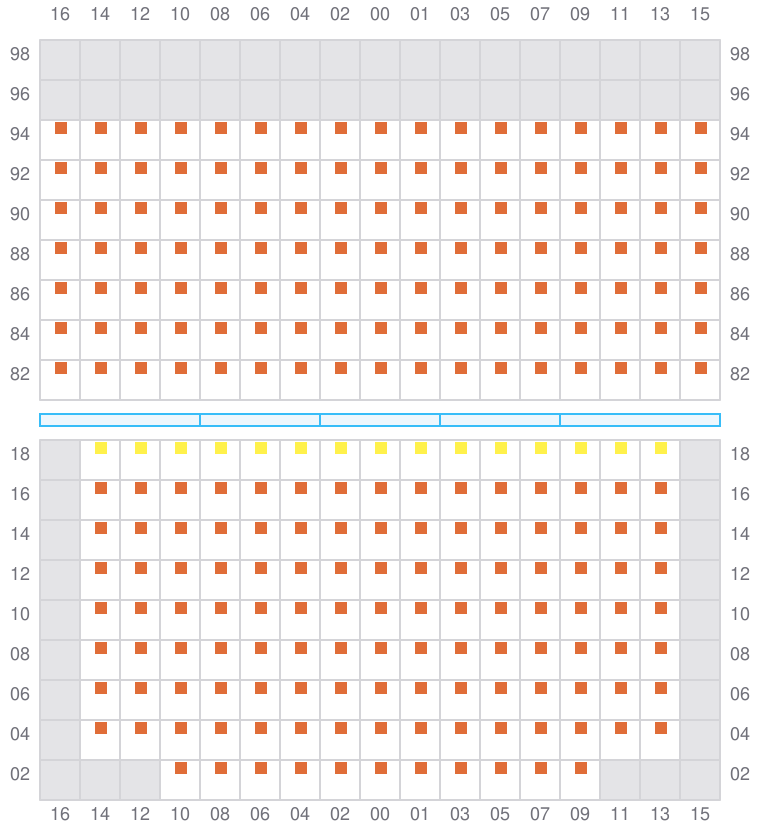

Bay 045 view and slots of EVER SIGMA

047 (046)

  • ←
  • →
Bay 047 view and slots of EVER SIGMA

049

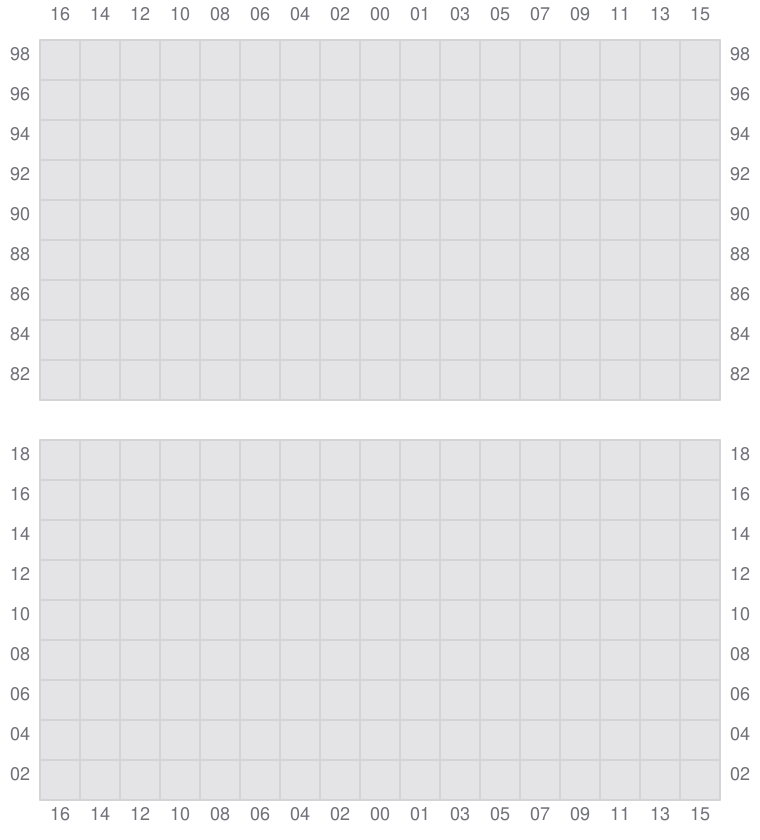

Bay 049 view and slots of EVER SIGMA

051 (050)

  • ←
  • →

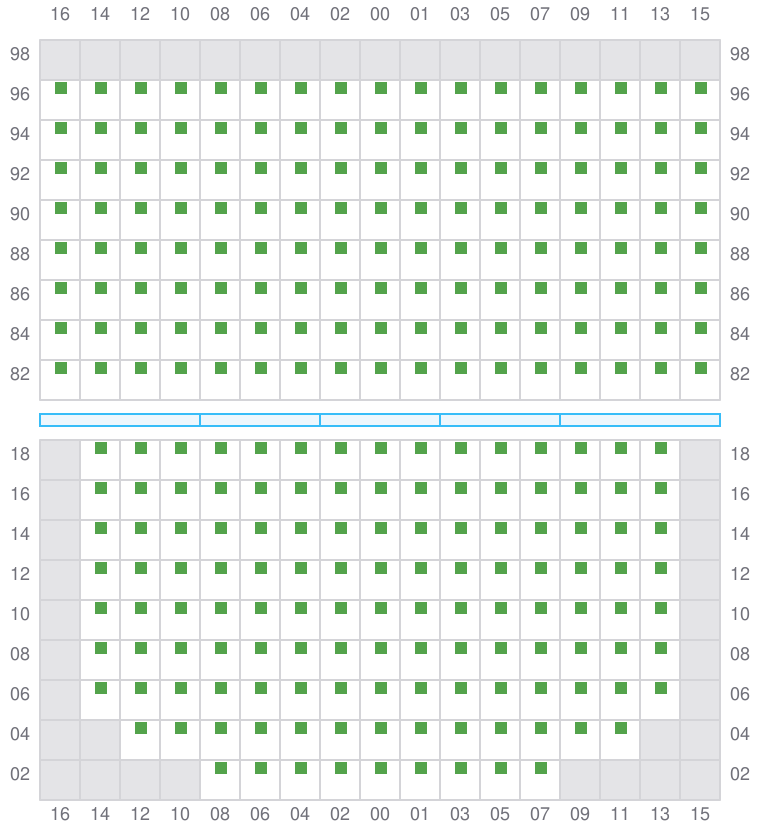

Bay 051 view and slots of EVER SIGMA

053

Bay 053 view and slots of EVER SIGMA

055 (054)

  • ←
  • →

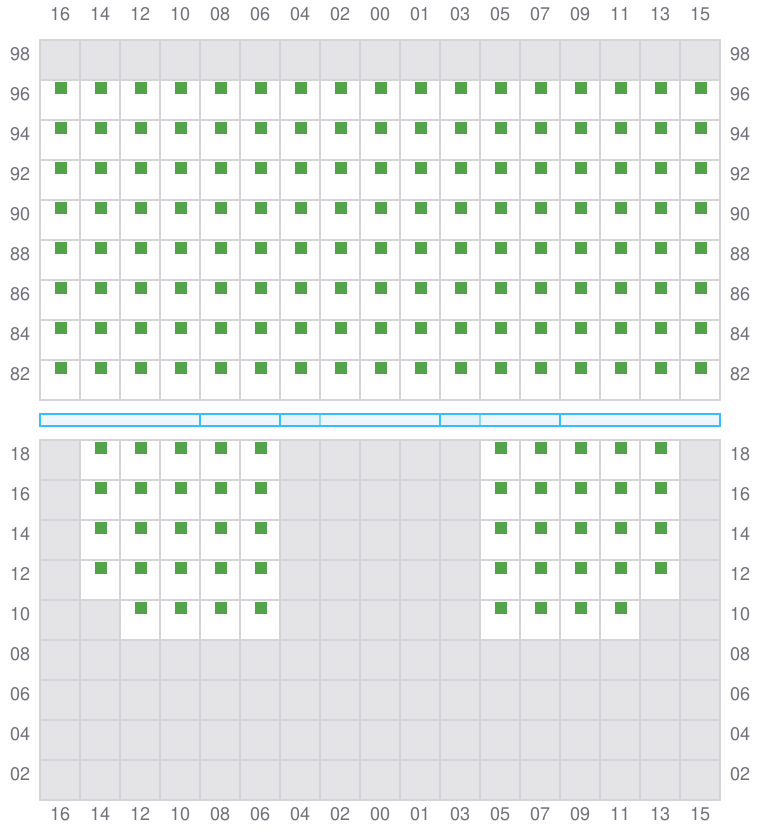

Bay 055 view and slots of EVER SIGMA

057

  • ← / →
  • →

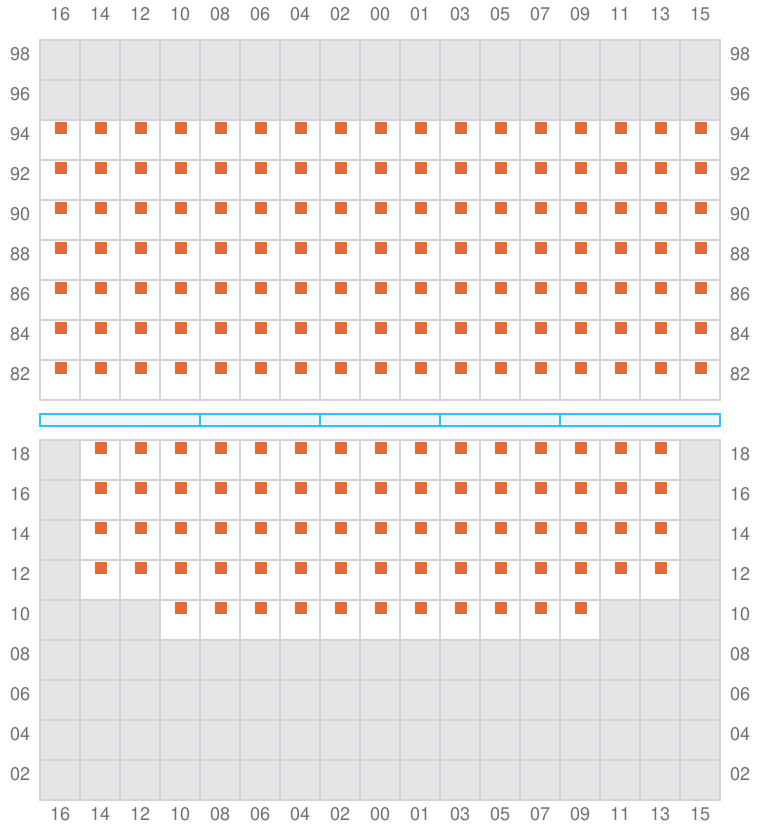

Bay 057 view and slots of EVER SIGMA

059 (058)

  • ←
  • →

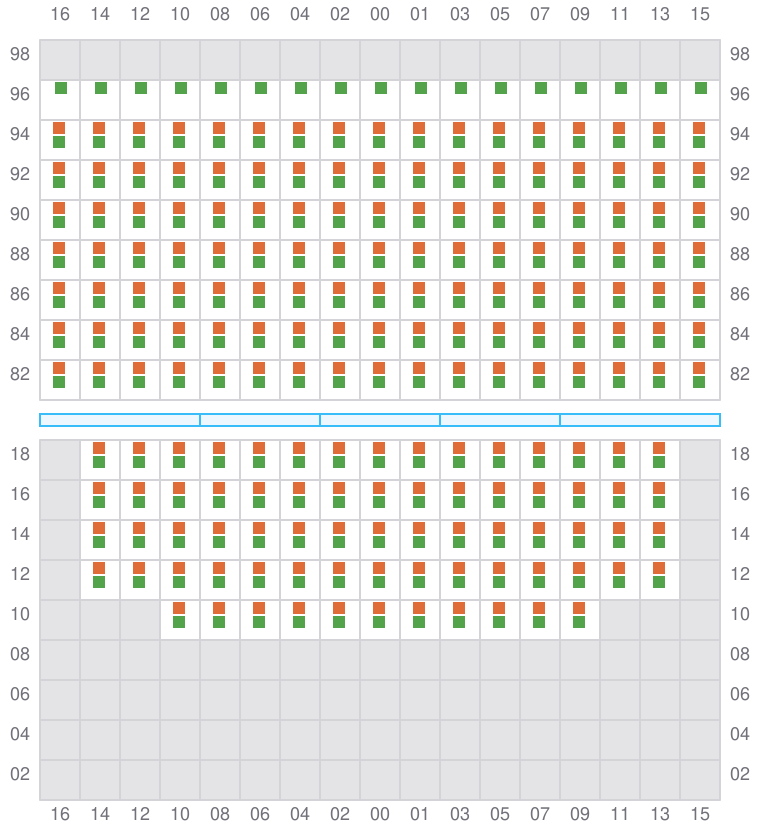

Bay 059 view and slots of EVER SIGMA

061

  • ← / →
  • →

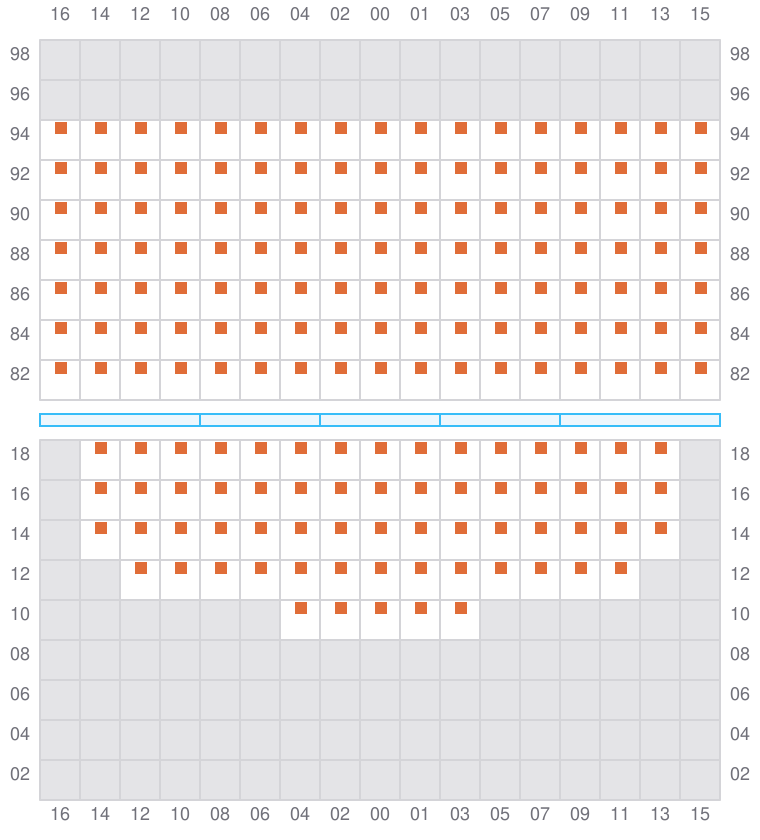

Bay 061 view and slots of EVER SIGMA

063 (062)

  • ←
  • →

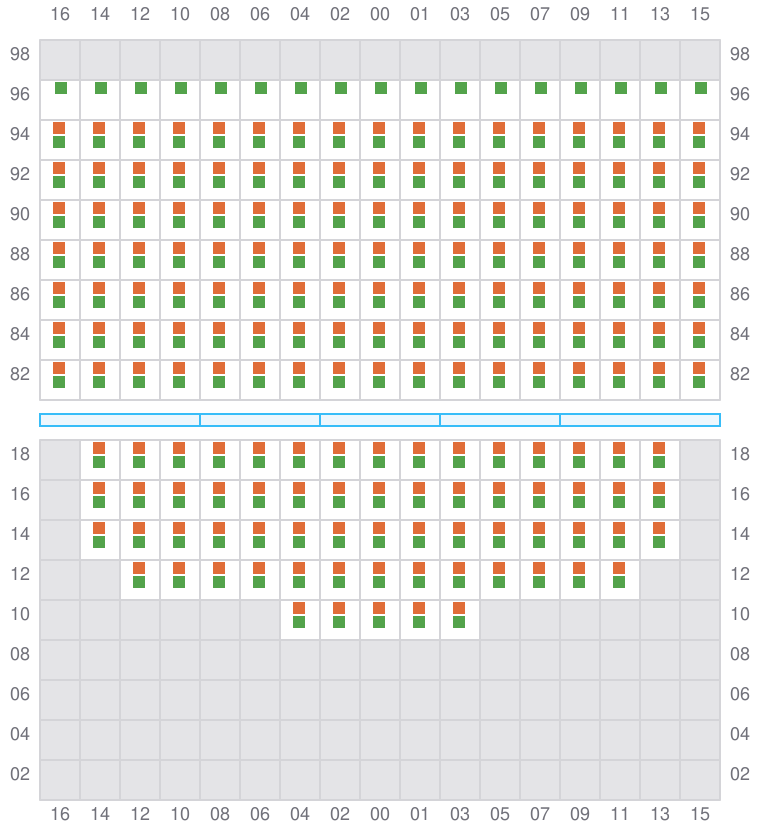

Bay 063 view and slots of EVER SIGMA

065

  • ← / →
  • →

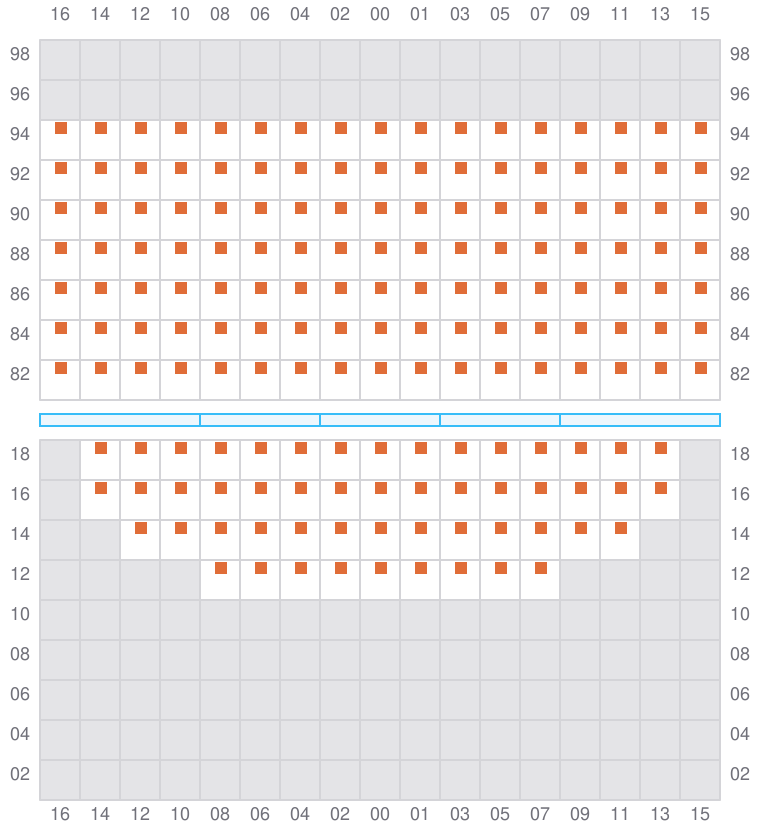

Bay 065 view and slots of EVER SIGMA

067 (066)

  • ←
  • →

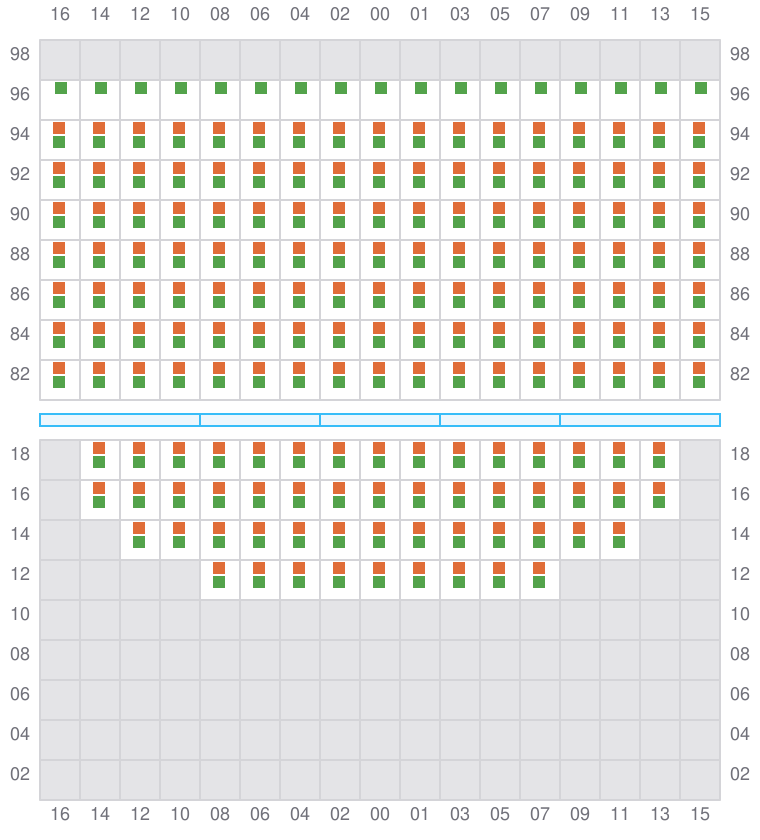

Bay 067 view and slots of EVER SIGMA

069

Bay 069 view and slots of EVER SIGMA

071 (070)

  • ← / ?
  • → / ?

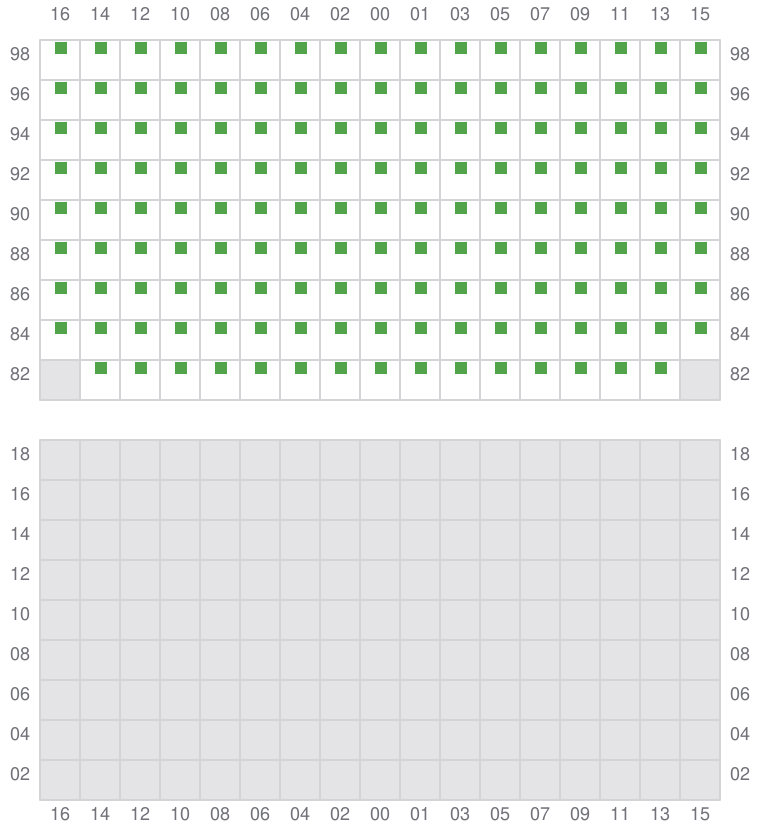

Bay 071 view and slots of EVER SIGMA
