EVER SMART
9300403 | MLBD9 | 9300403 by ********* Last update: Wed May 01 2024
General Info
Ship Name:EVER SMART
IMO Code:9300403
Call Sign:MLBD9
Line Operator:9300403
Class Name for Sister Ships:EVER SMART
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):285.00
LOA (Length Overall):299.99
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,990
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

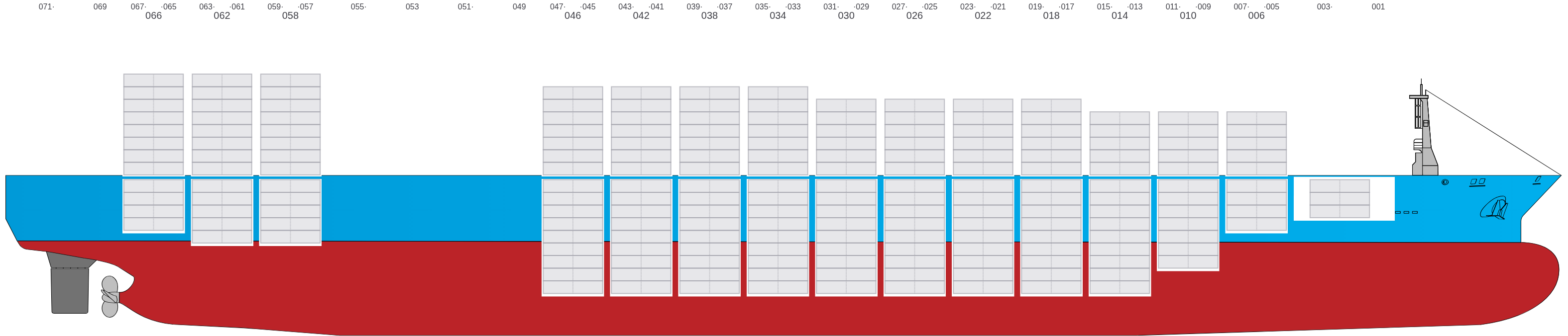

Side View
![Side view of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-sideView.png?v=1714597138033)

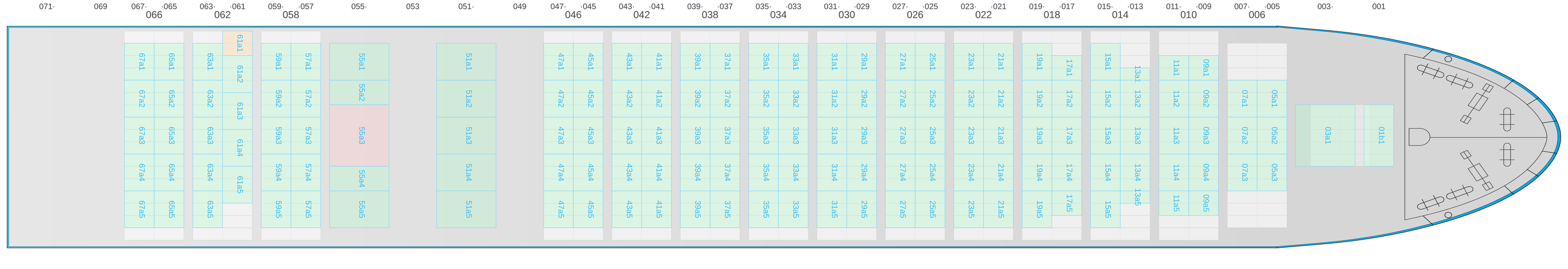

Hatch-Covers View
![Deck view of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-deckView.png?v=1714597138033)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

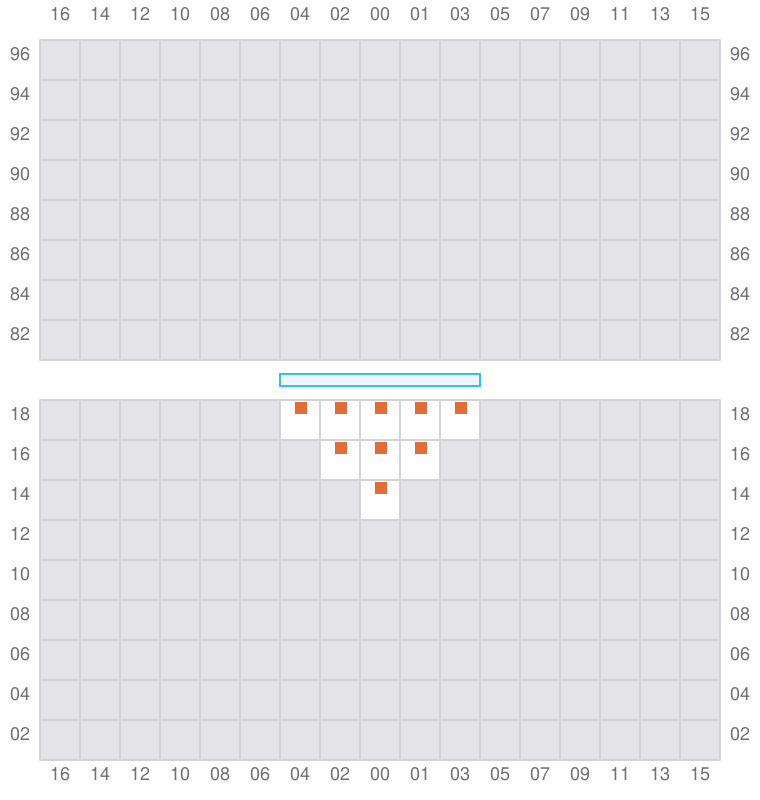

001
- ? / →
![Bay 001 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b001.png?v=1714597138033)

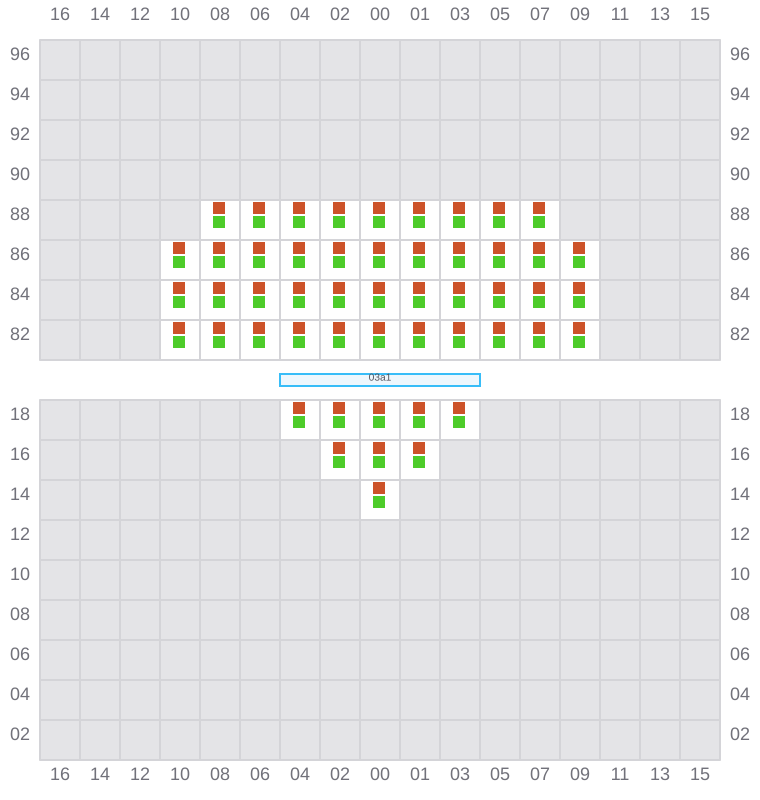

003 (002)
- ←
![Bay 003 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b003.png?v=1714597138033)

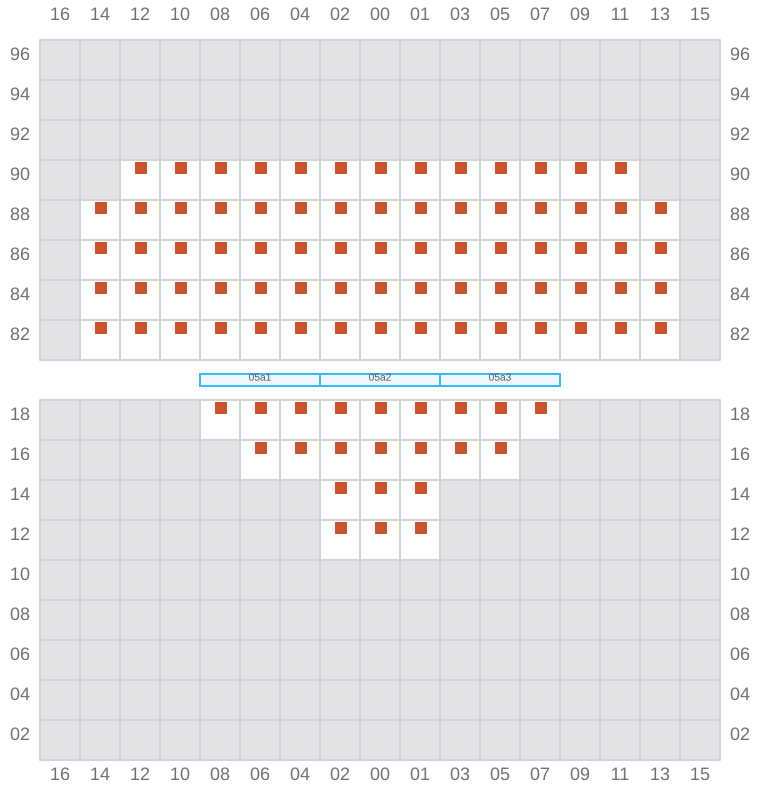

005
- →
![Bay 005 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b005.png?v=1714597138033)

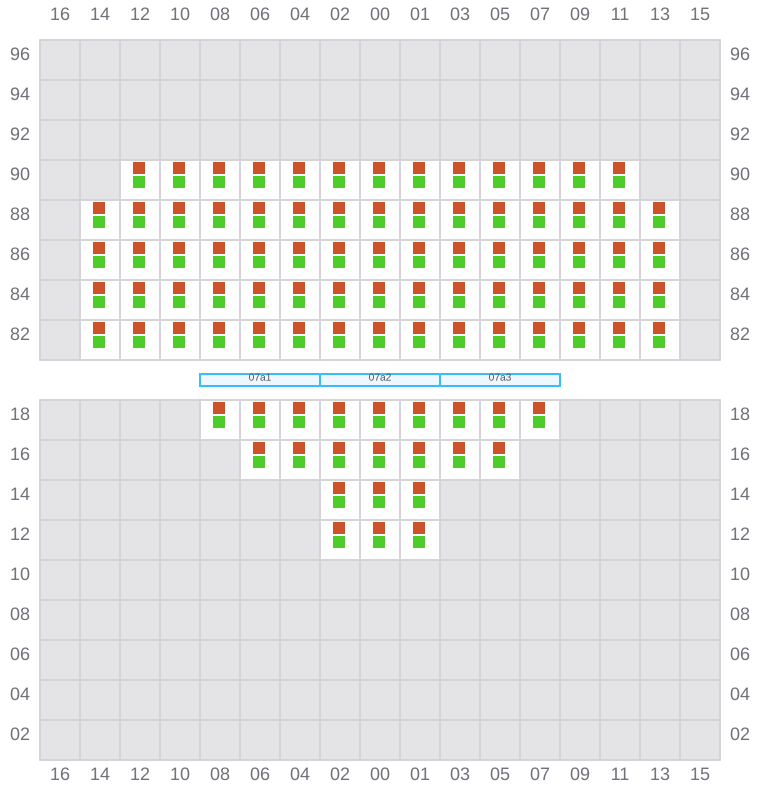

007 (006)
- ←
![Bay 007 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b007.png?v=1714597138033)

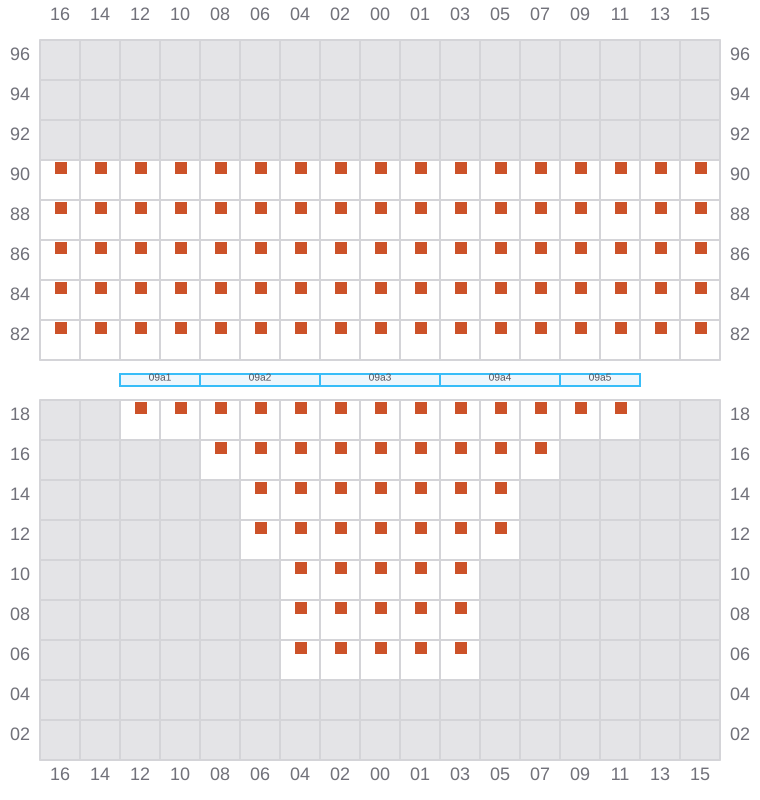

009
- →
![Bay 009 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b009.png?v=1714597138033)

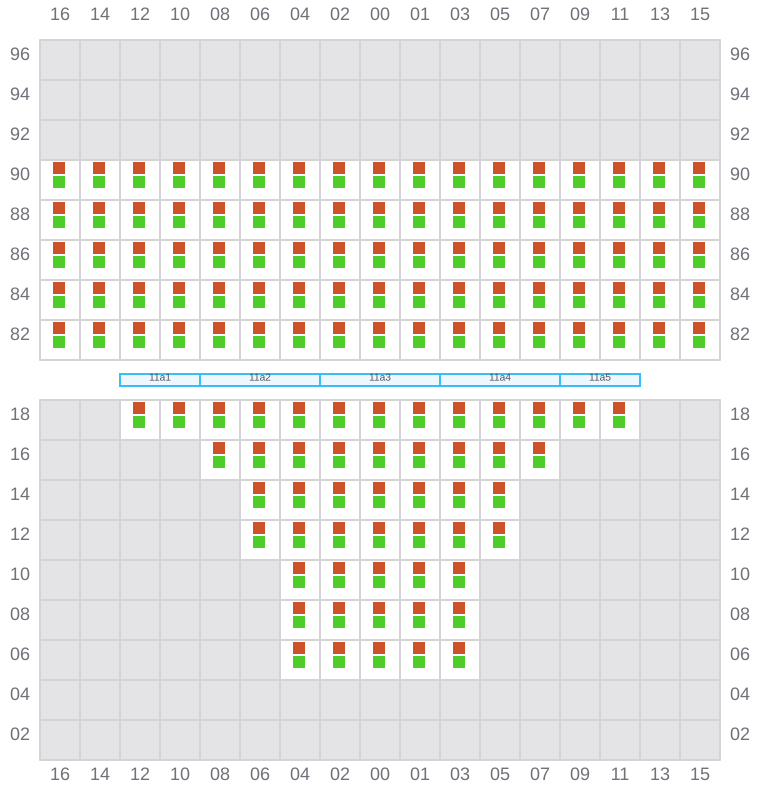

011 (010)
- ←
![Bay 011 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b011.png?v=1714597138033)
013
- →
![Bay 013 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b013.png?v=1714597138033)

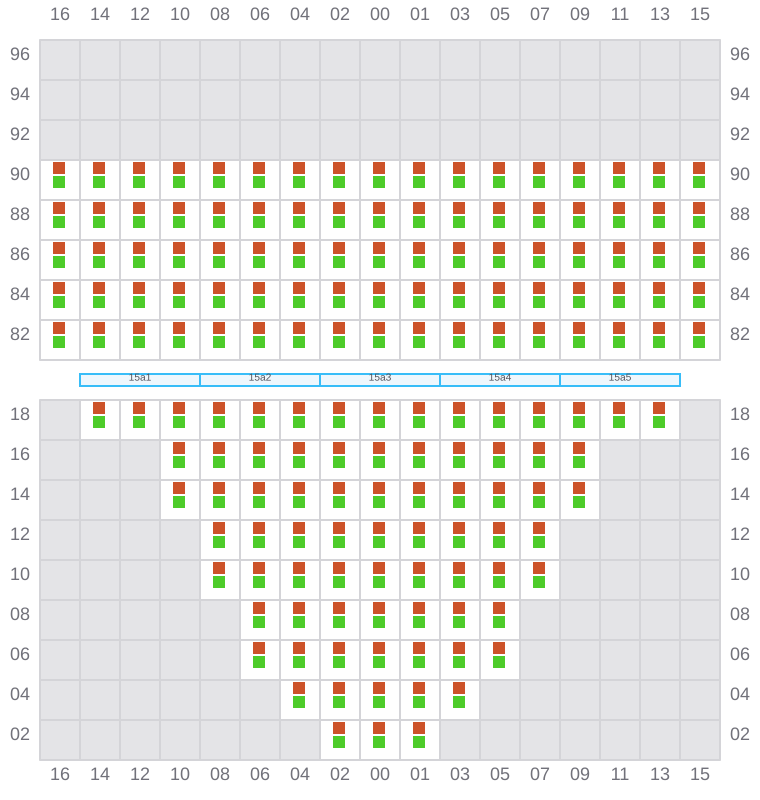

015 (014)
- ←
![Bay 015 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b015.png?v=1714597138033)

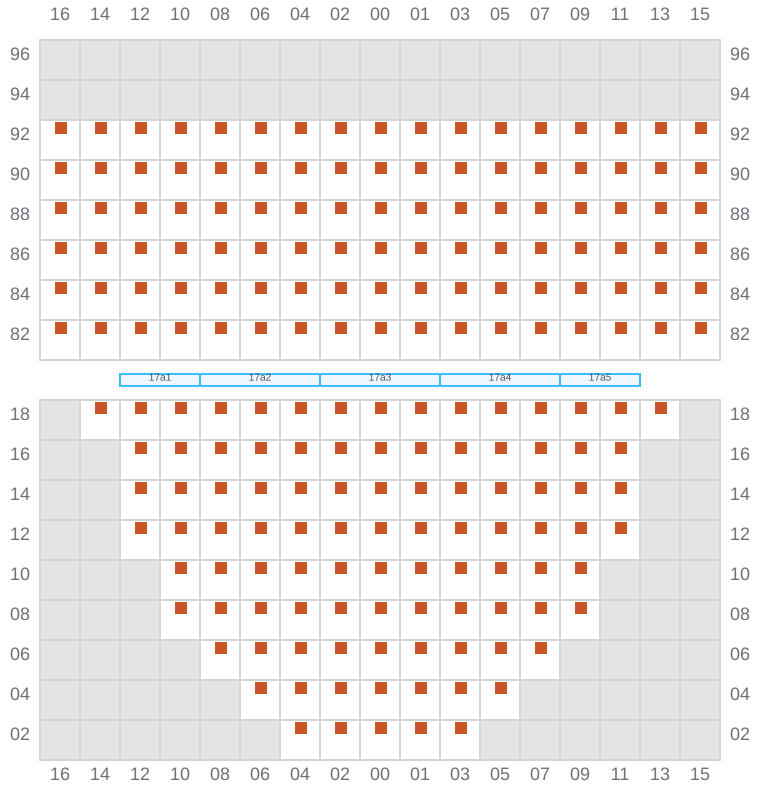

017
- →
![Bay 017 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b017.png?v=1714597138033)

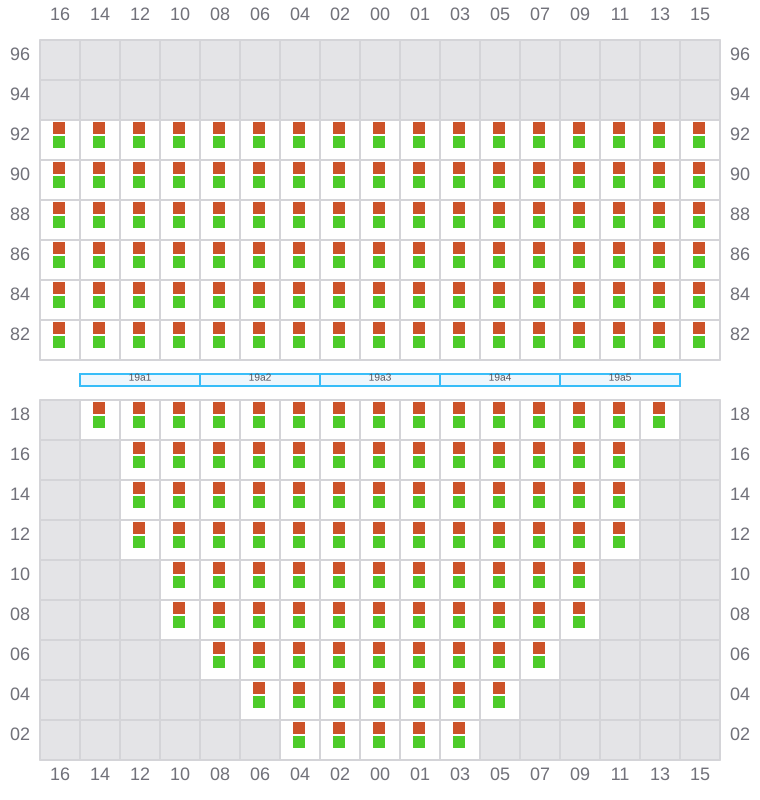

019 (018)
- ←
![Bay 019 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b019.png?v=1714597138033)

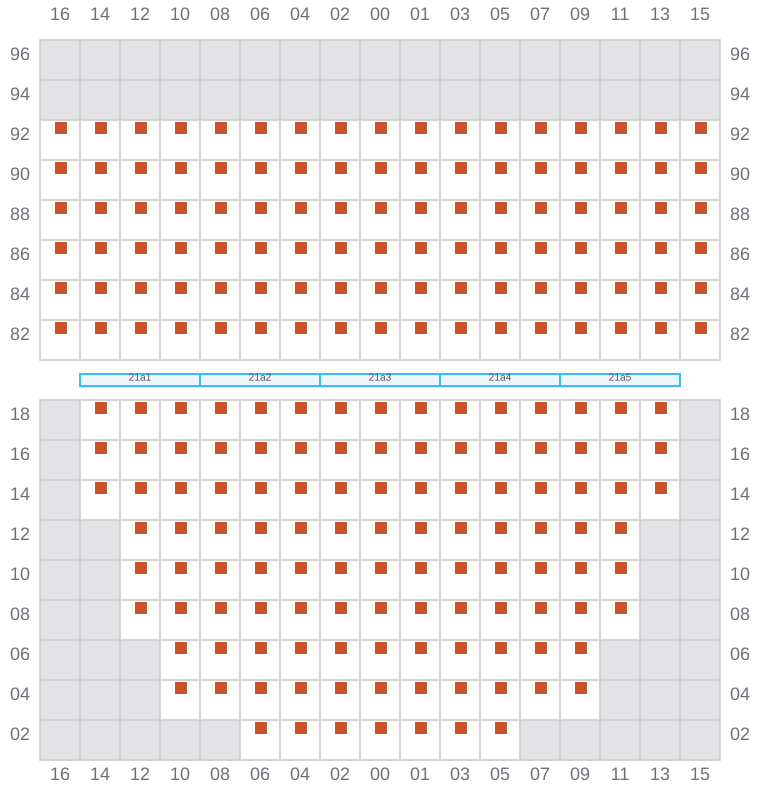

021
- →
![Bay 021 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b021.png?v=1714597138033)

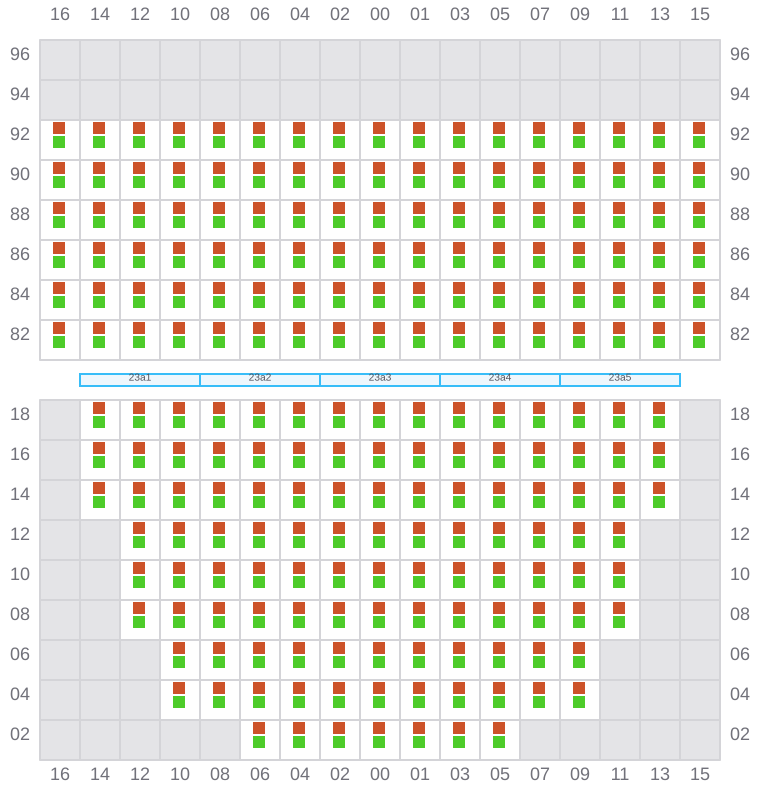

023 (022)
- ←
![Bay 023 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b023.png?v=1714597138033)

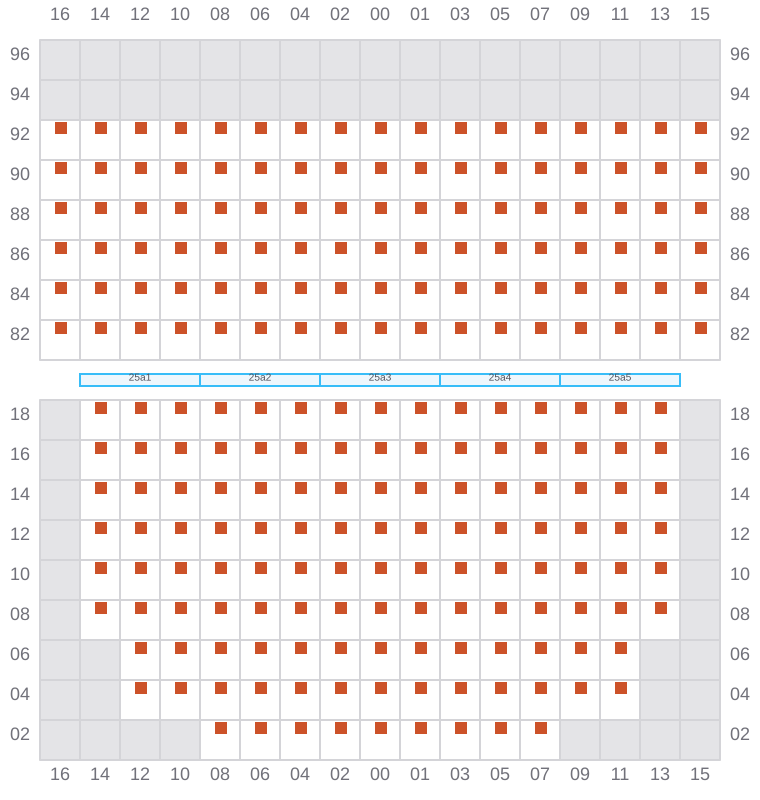

025
- →
![Bay 025 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b025.png?v=1714597138033)

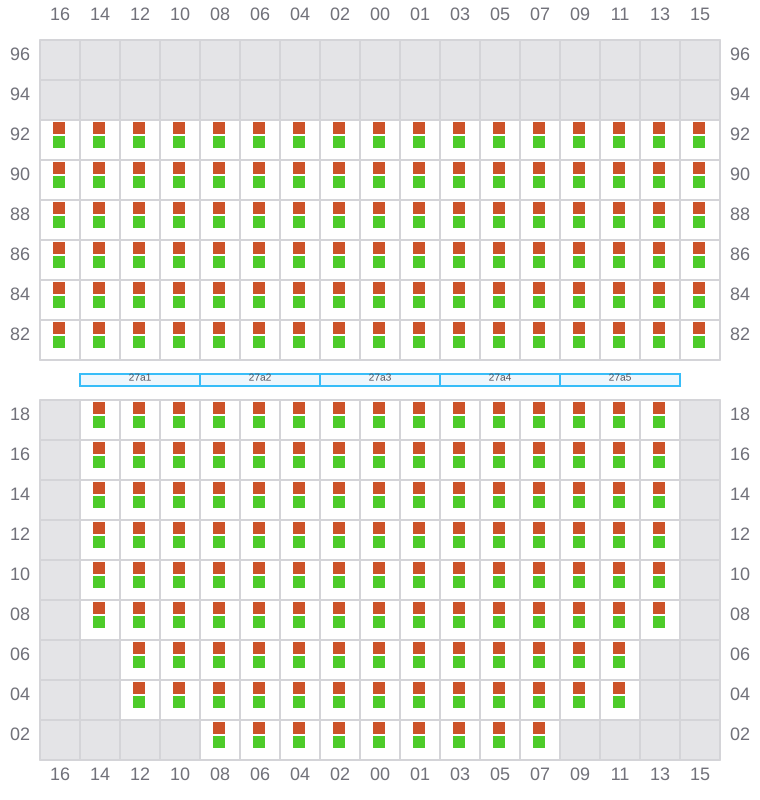

027 (026)
- ←
![Bay 027 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b027.png?v=1714597138033)

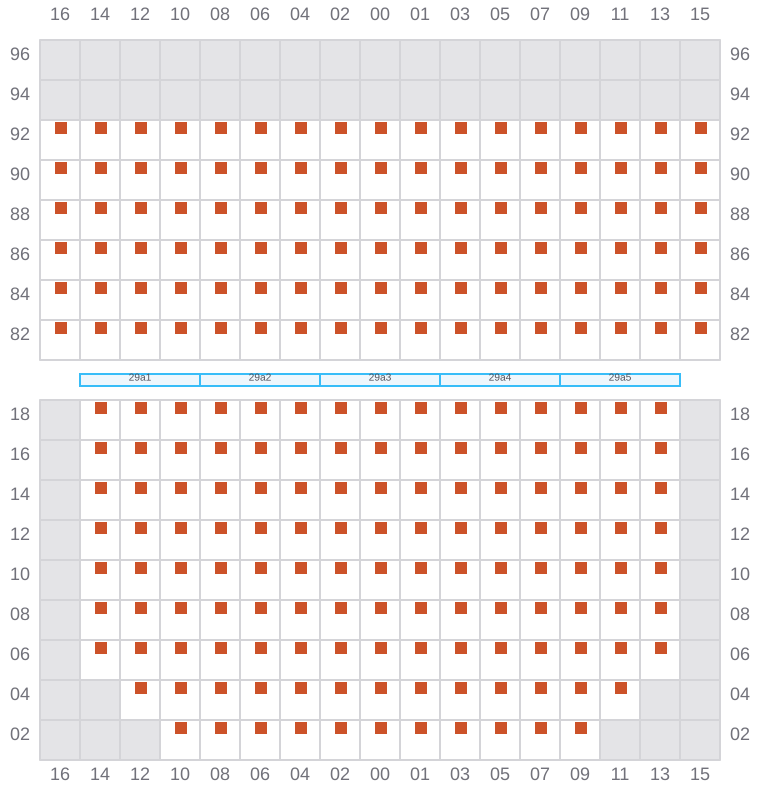

029
- →
![Bay 029 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b029.png?v=1714597138033)

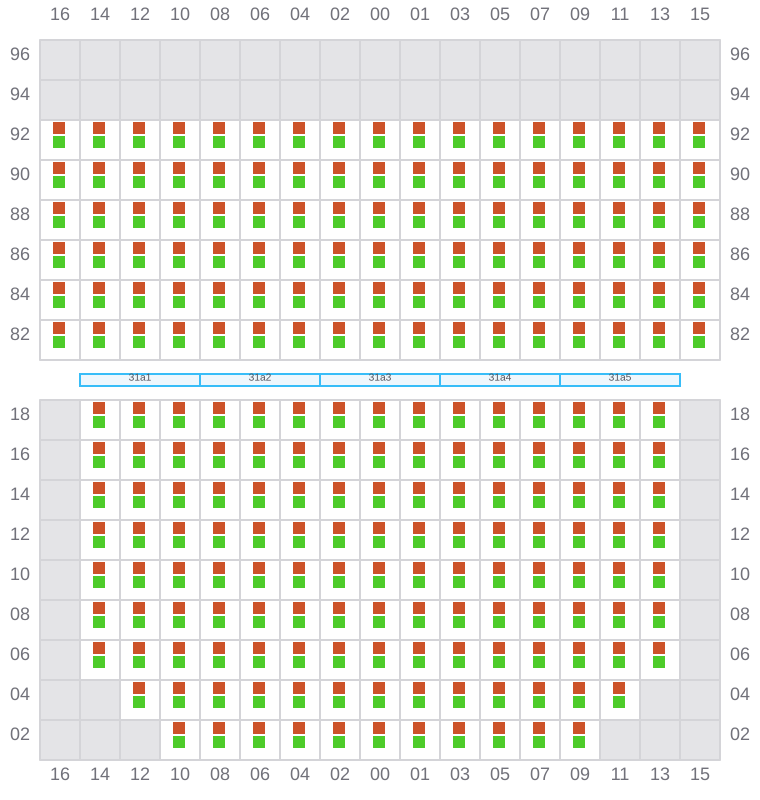

031 (030)
- ←
![Bay 031 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b031.png?v=1714597138033)

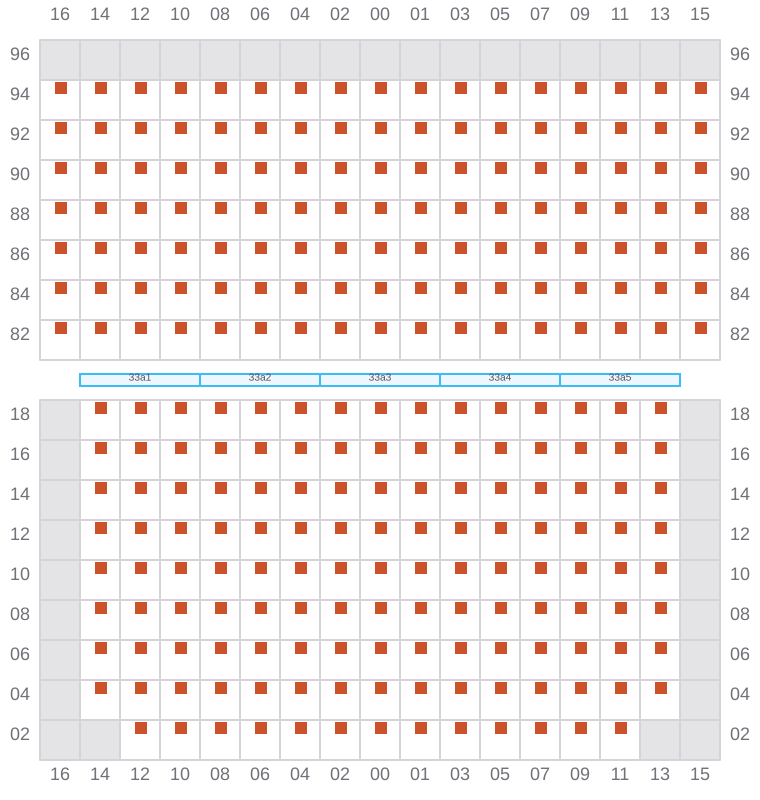

033
- →
![Bay 033 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b033.png?v=1714597138033)

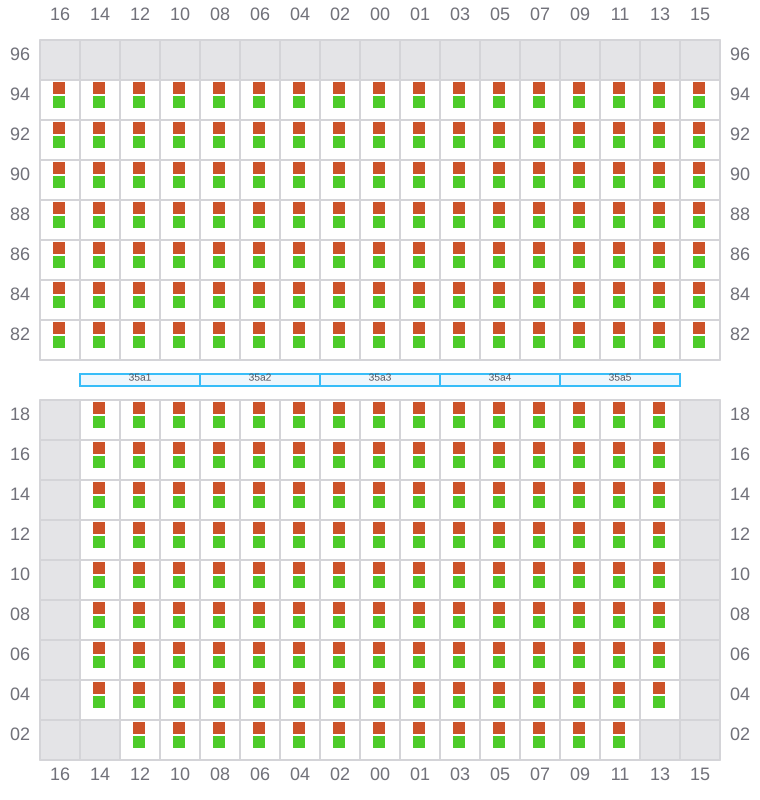

035 (034)
- ←
![Bay 035 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b035.png?v=1714597138033)

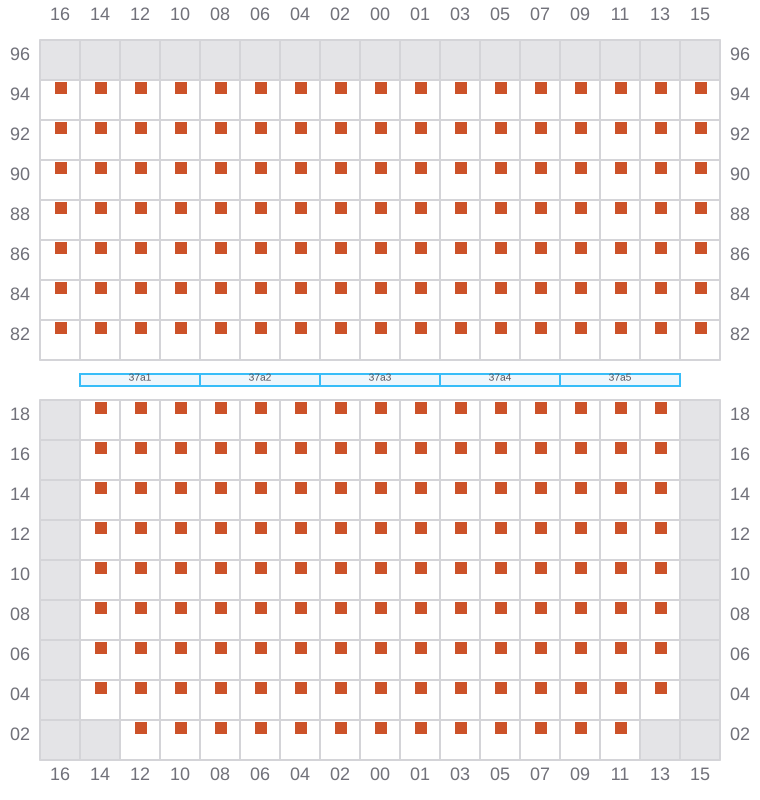

037
- →
![Bay 037 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b037.png?v=1714597138033)
039 (038)
- ←
![Bay 039 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b039.png?v=1714597138033)

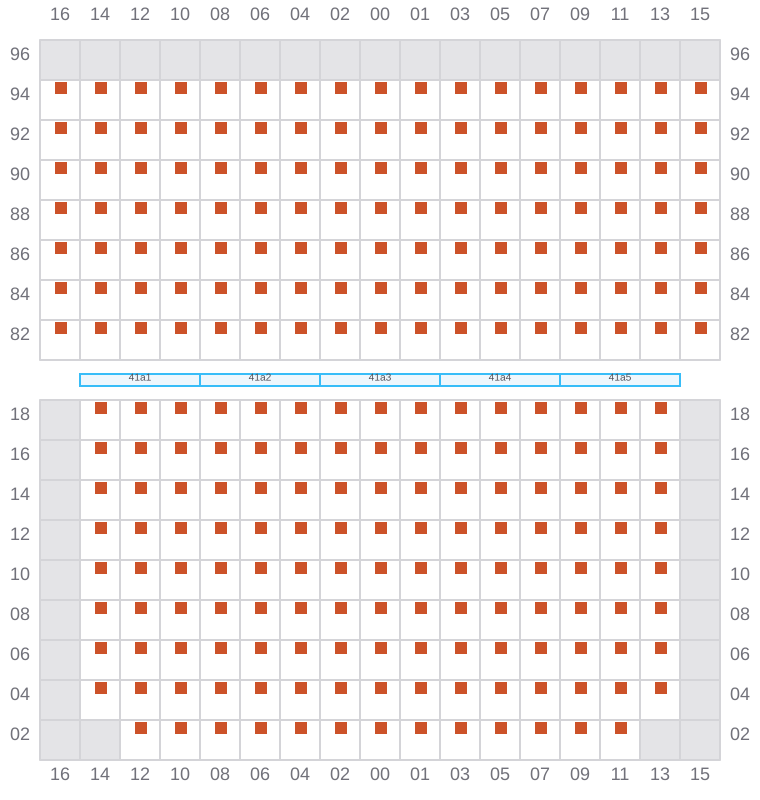

041
- →
![Bay 041 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b041.png?v=1714597138033)

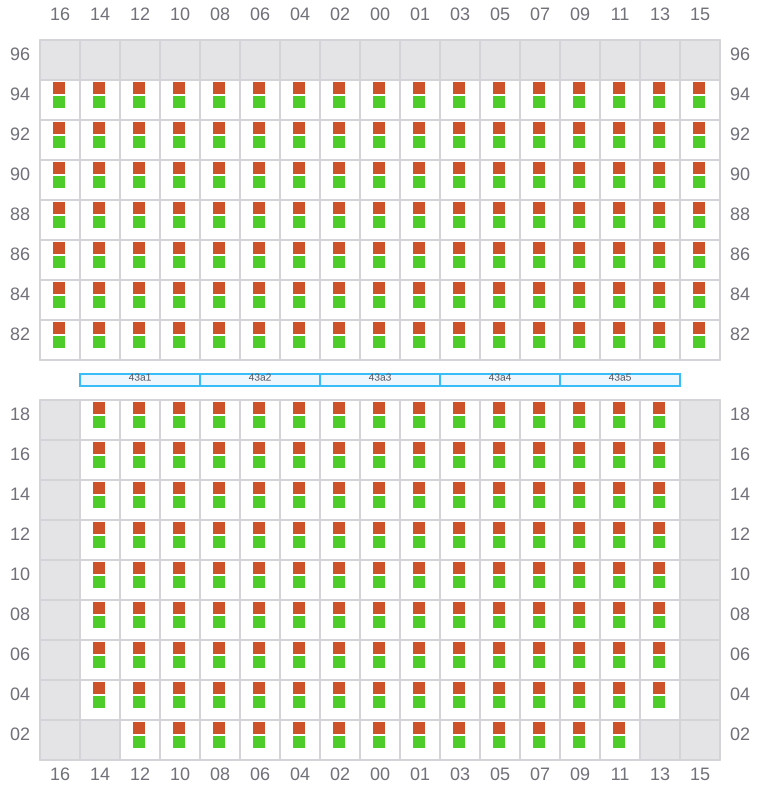

043 (042)
- ←
![Bay 043 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b043.png?v=1714597138033)

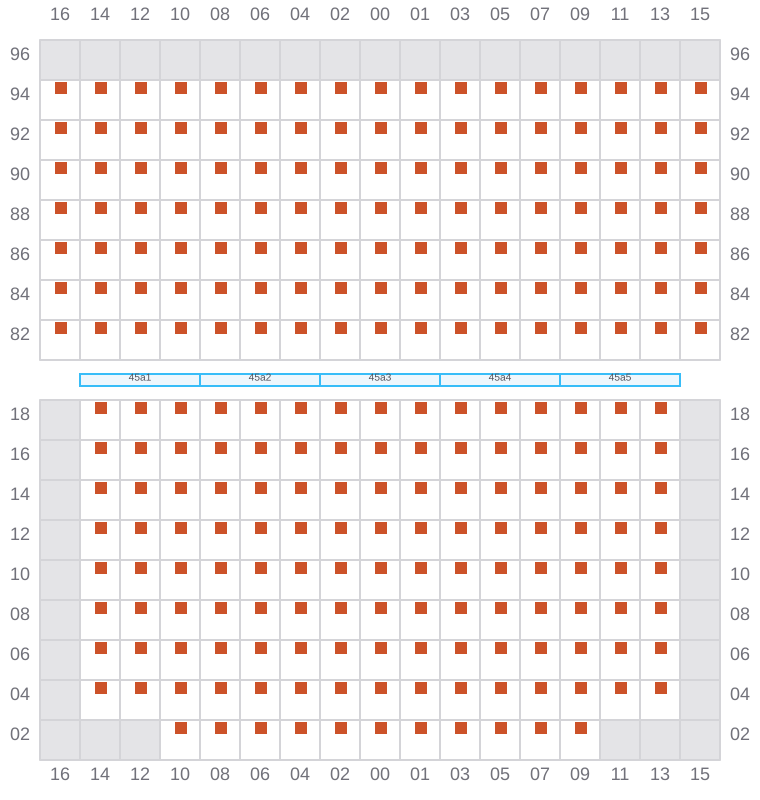

045
- →
![Bay 045 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b045.png?v=1714597138033)

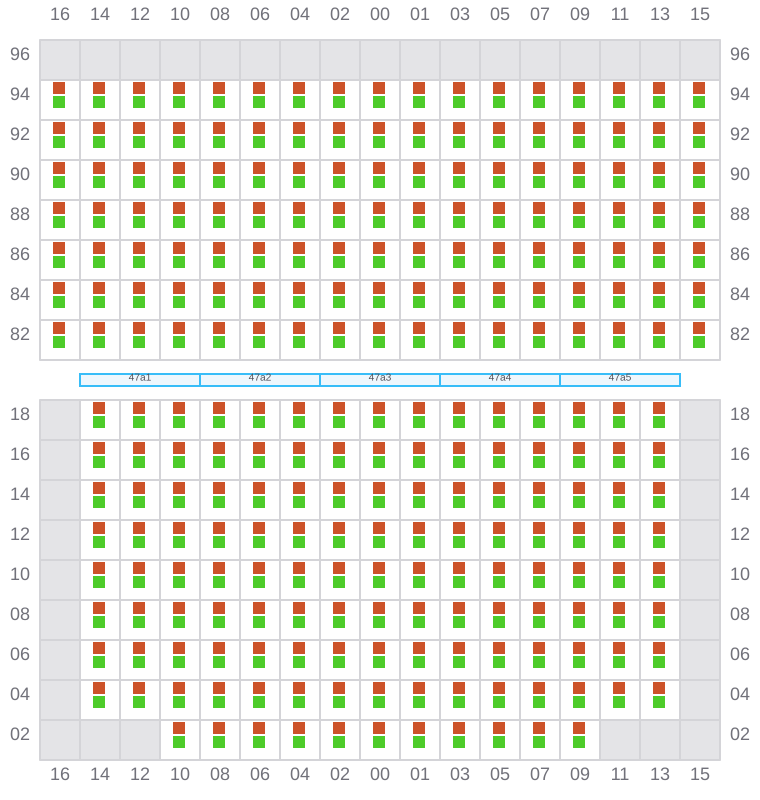

047 (046)
- ←
![Bay 047 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b047.png?v=1714597138033)
049
![Bay 049 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b049.png?v=1714597138033)

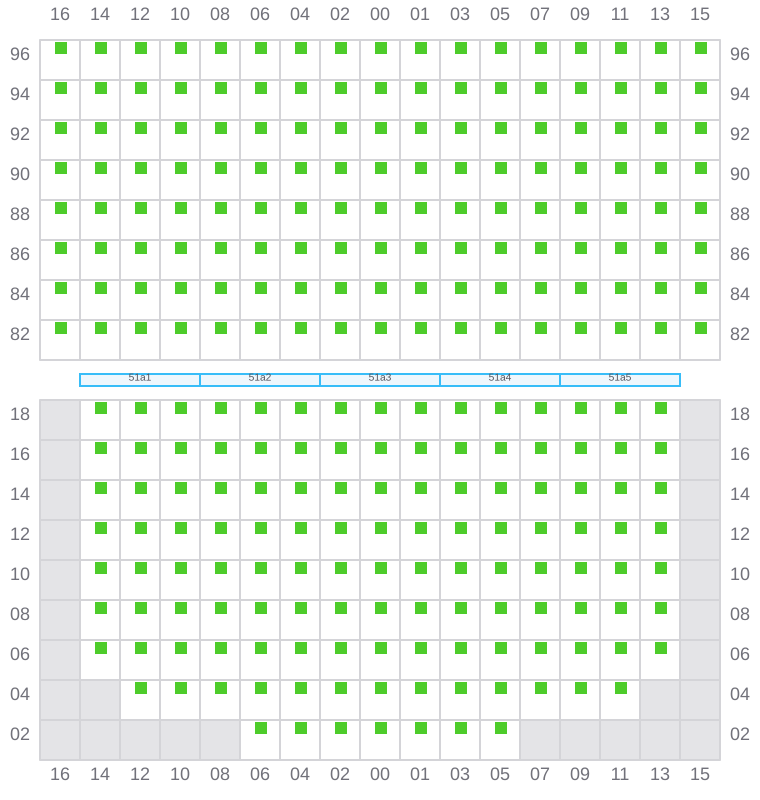

051 (050)
- ←
![Bay 051 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b051.png?v=1714597138033)

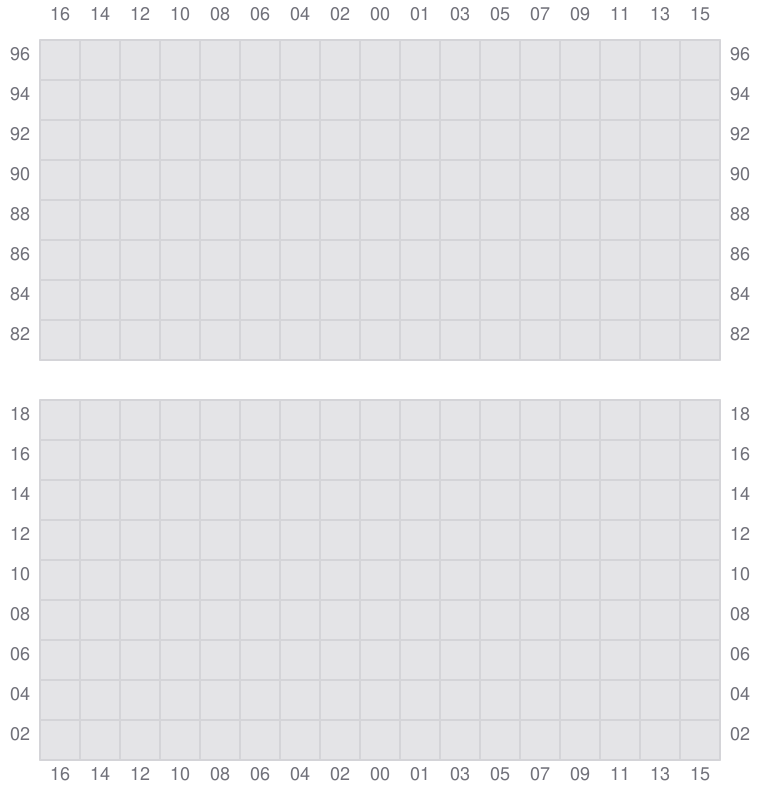

053
![Bay 053 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b053.png?v=1714597138033)

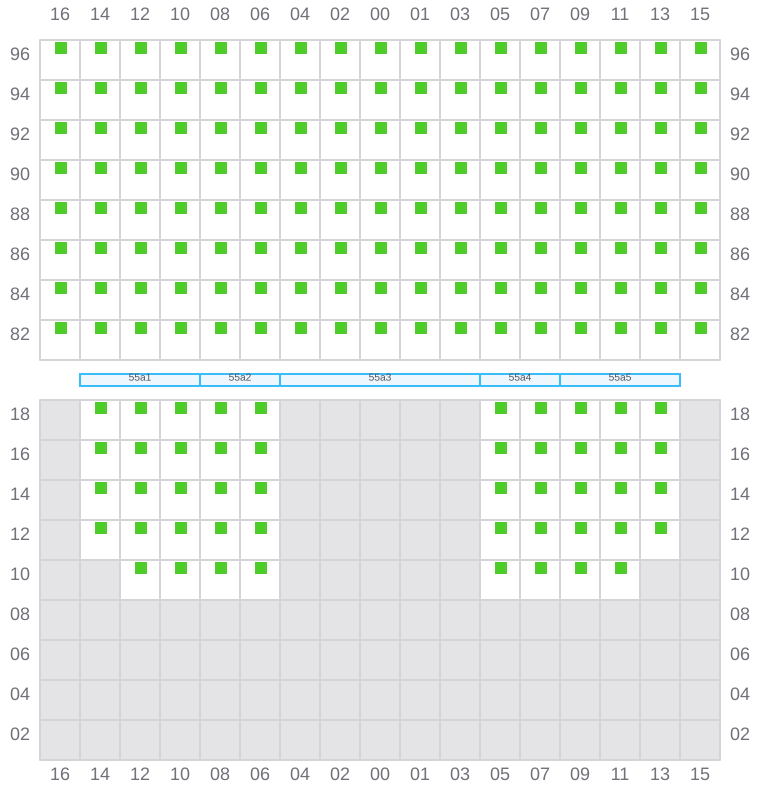

055 (054)
- ←
![Bay 055 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b055.png?v=1714597138033)

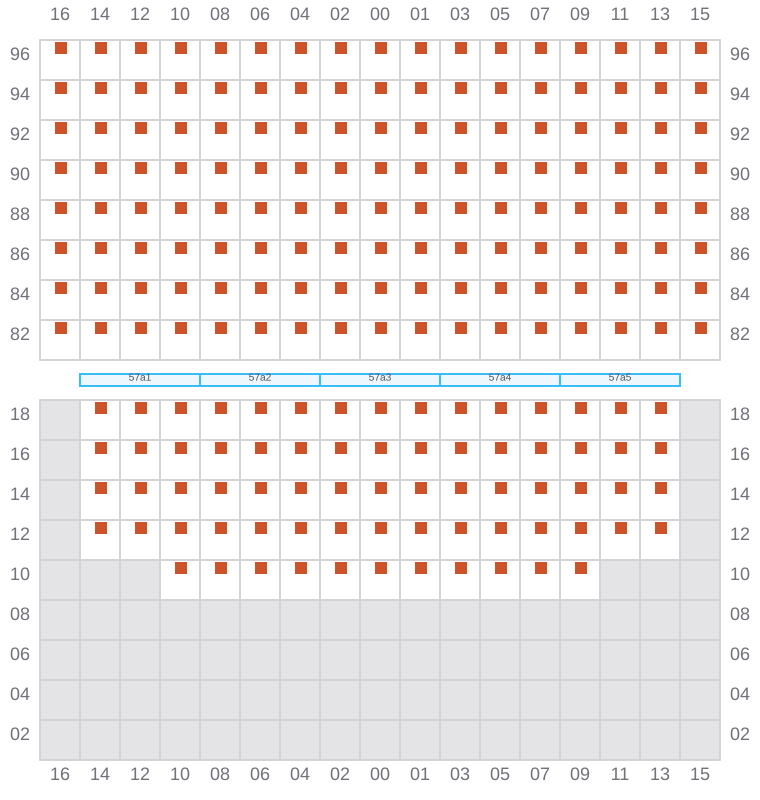

057
- →
![Bay 057 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b057.png?v=1714597138033)

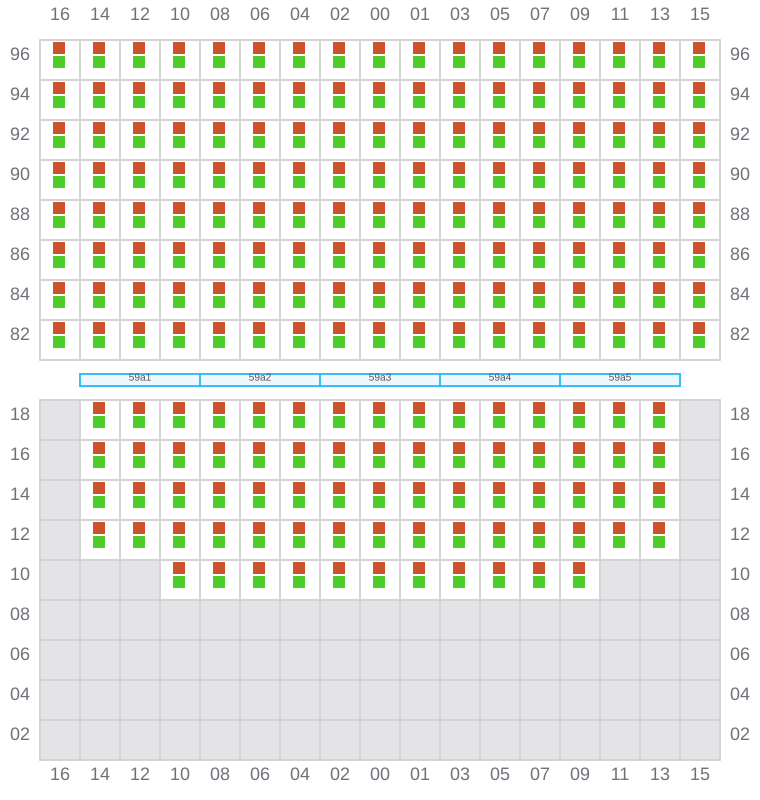

059 (058)
- ←
![Bay 059 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b059.png?v=1714597138033)

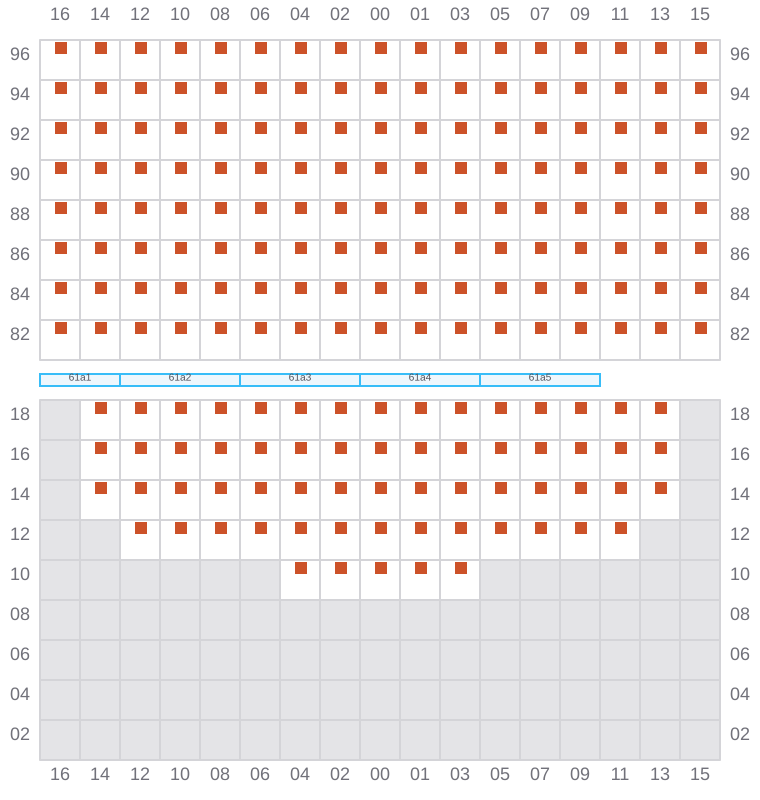

061
- →
![Bay 061 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b061.png?v=1714597138033)

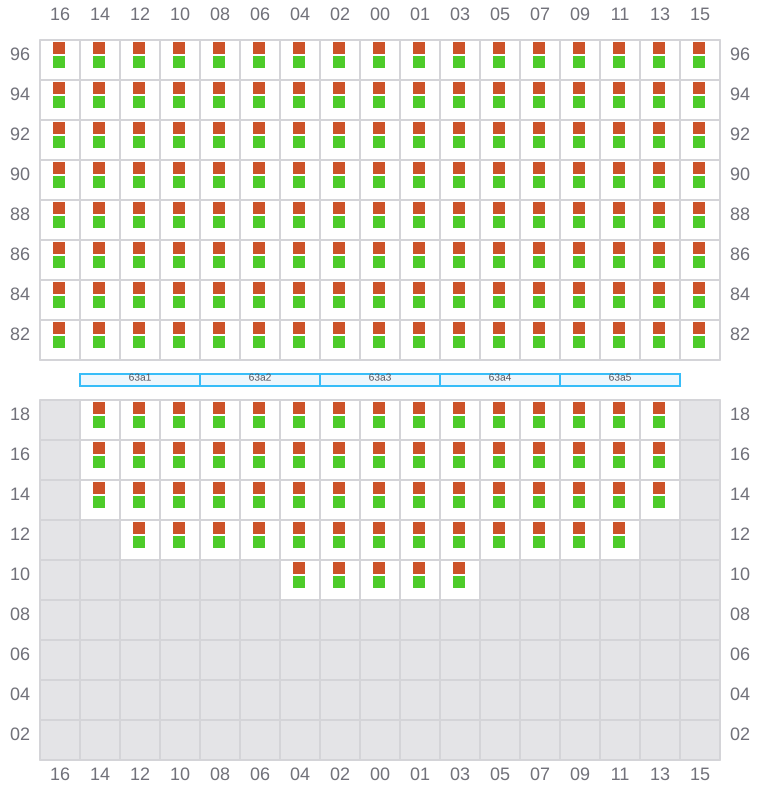

063 (062)
- ←
![Bay 063 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b063.png?v=1714597138033)

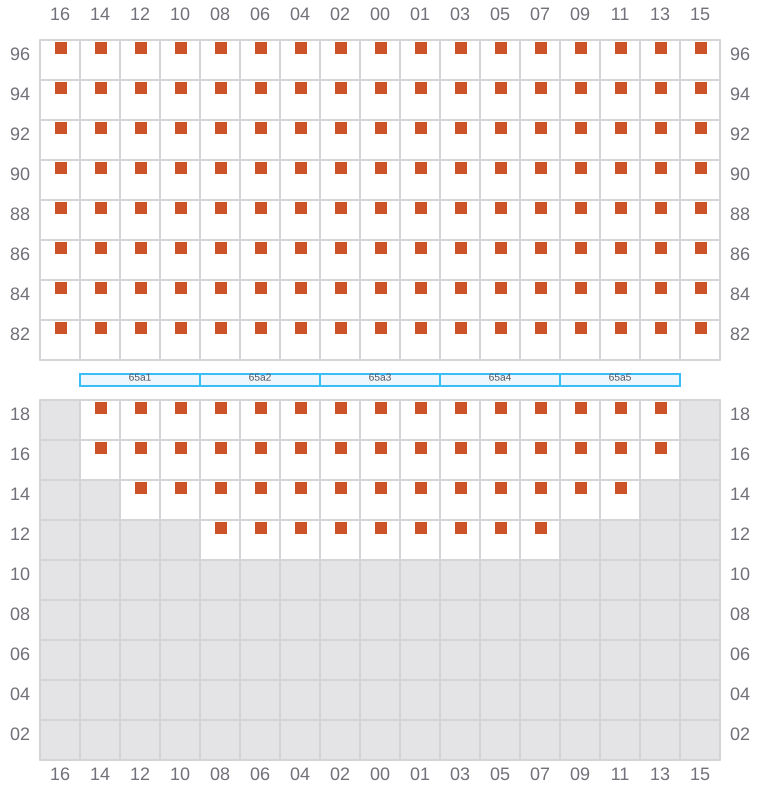

065
- →
![Bay 065 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b065.png?v=1714597138033)

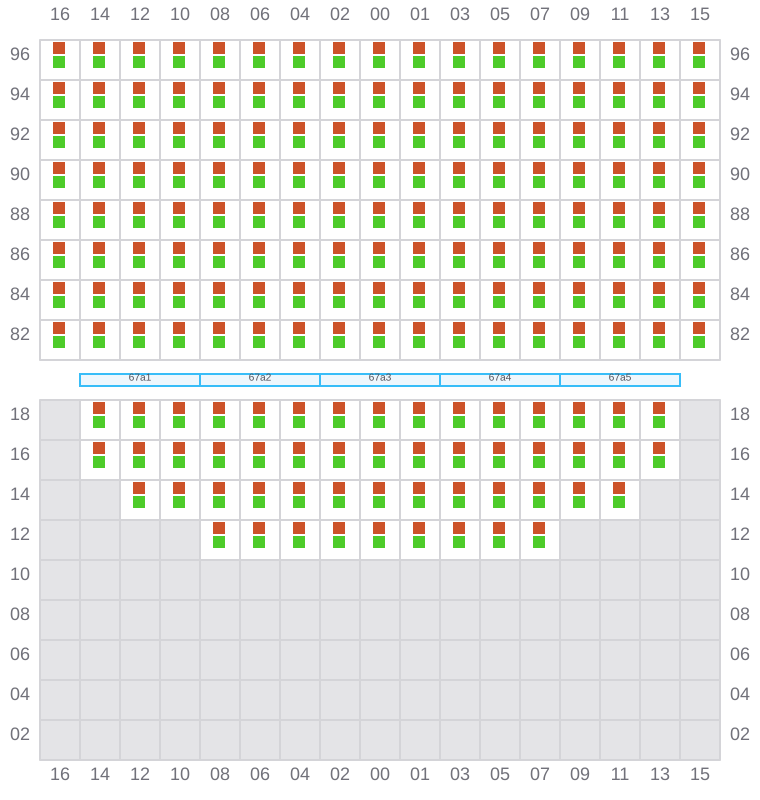

067 (066)
- ←
![Bay 067 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b067.png?v=1714597138033)

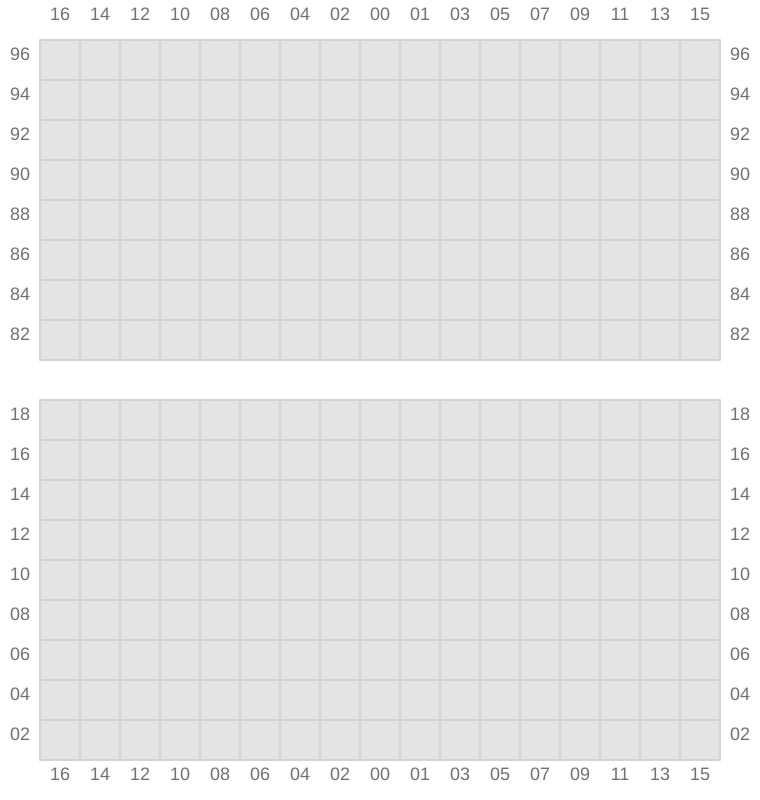

069
![Bay 069 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b069.png?v=1714597138033)

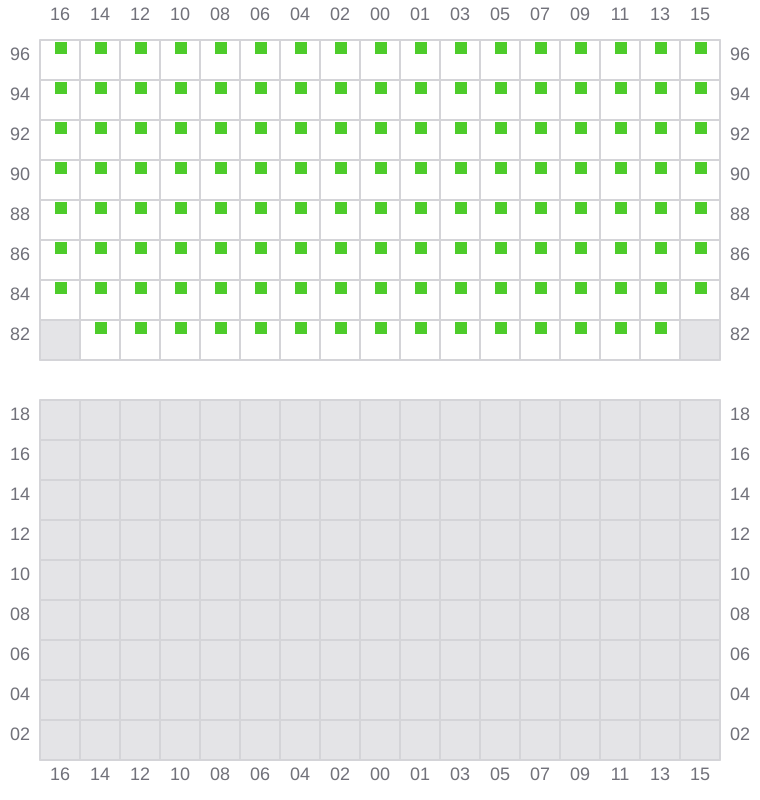

071 (070)
- ← / ?
![Bay 071 view and slots of EVER SMART](/vessel-images/b989ef6e-0129-41f8-aa22-b58ddab98015-b071.png?v=1714597138033)
