EVER UTILE
9188154 | 3FZA9 | 9188154 by ********* Last update: Thu May 09 2024
General Info
Ship Name:EVER UTILE
IMO Code:9188154
Call Sign:3FZA9
Line Operator:9188154
Class Name for Sister Ships:LT UTILE
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):268.00
LOA (Length Overall):285.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,076
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

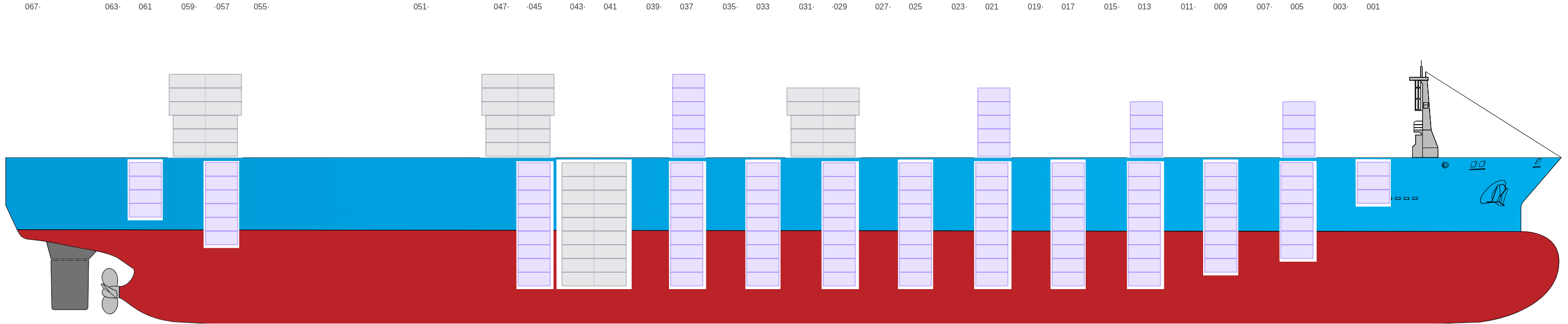

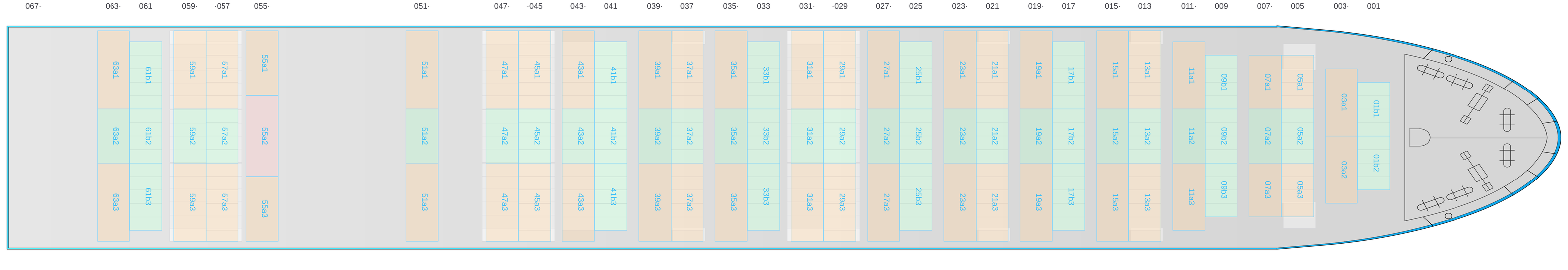

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

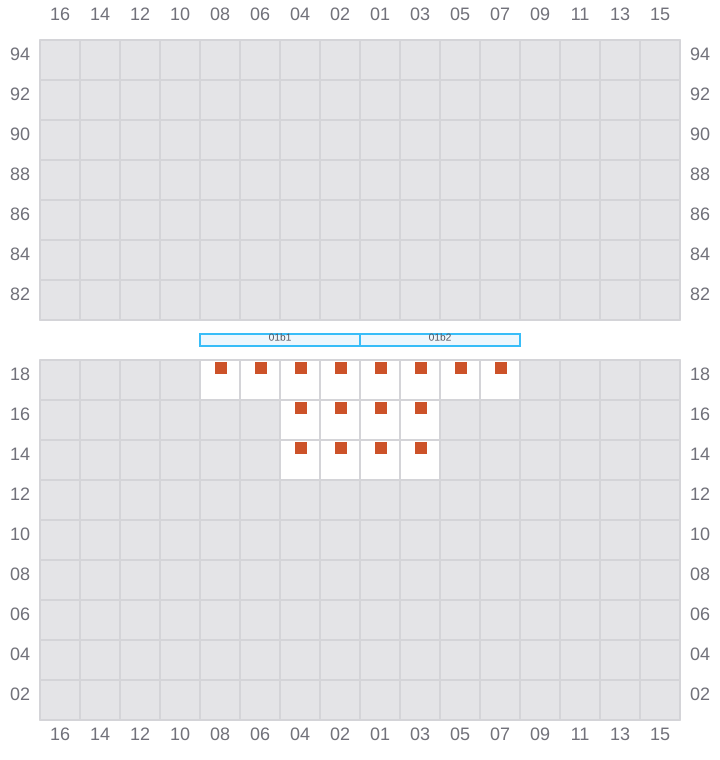

001
- ? / →

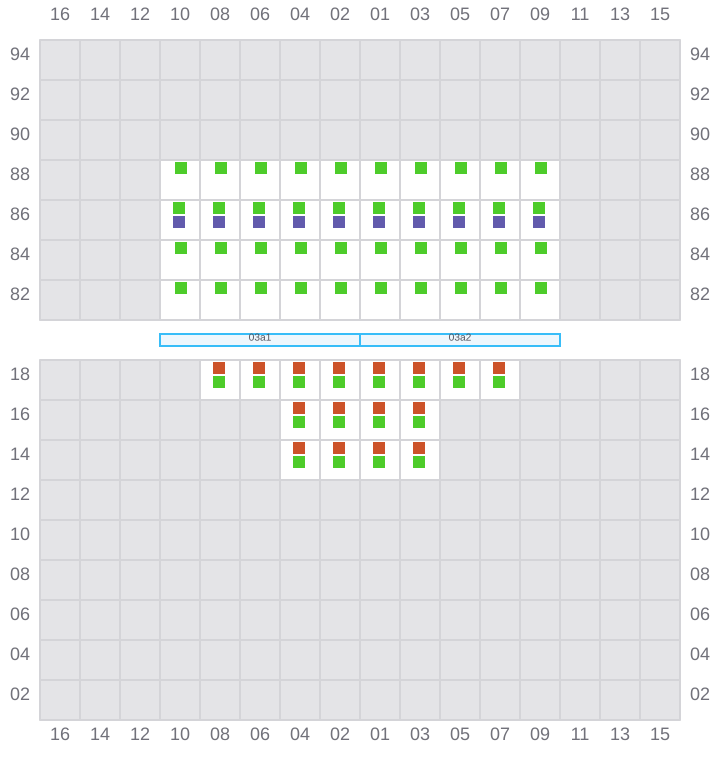

003 (002)
- ←
- →

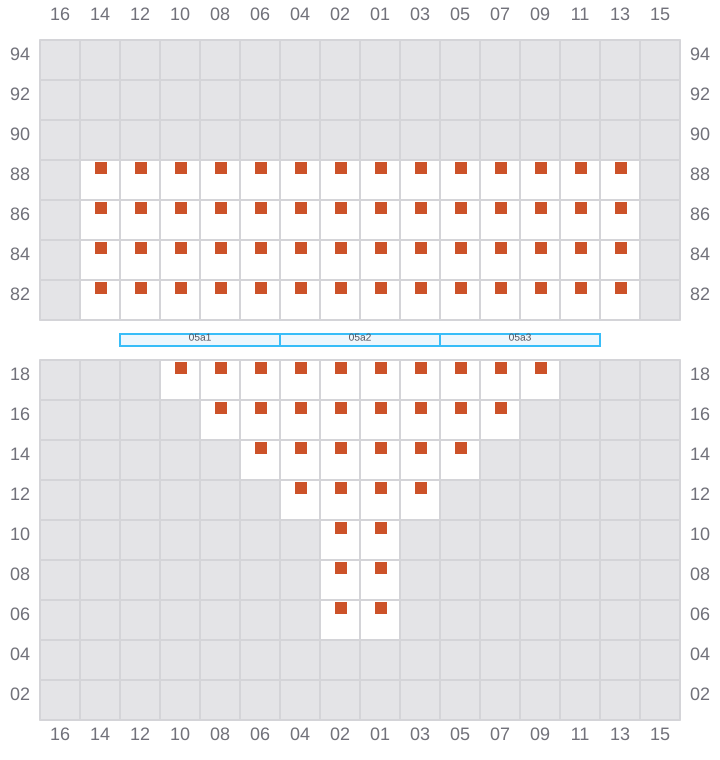

005
- →

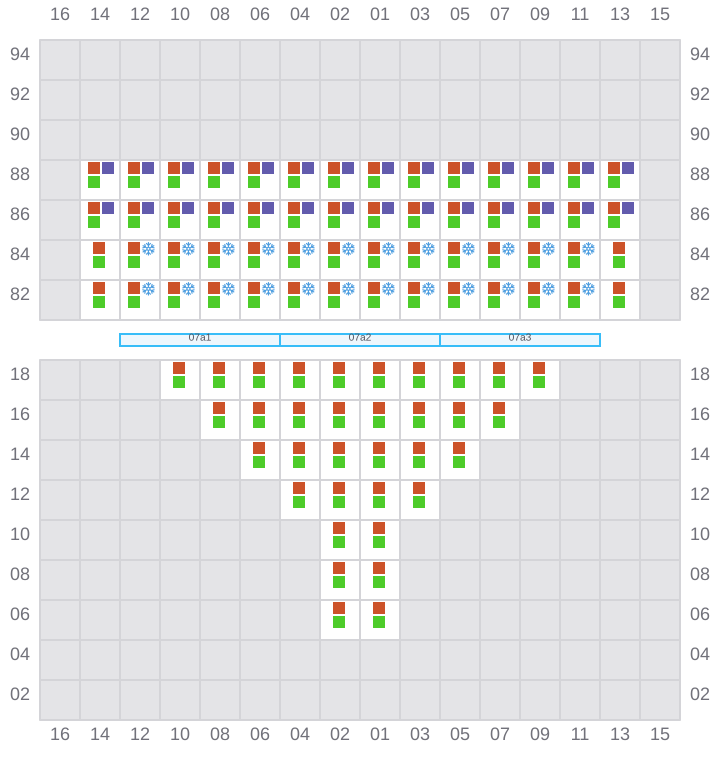

007 (006)
- ←
- → / ?
- →

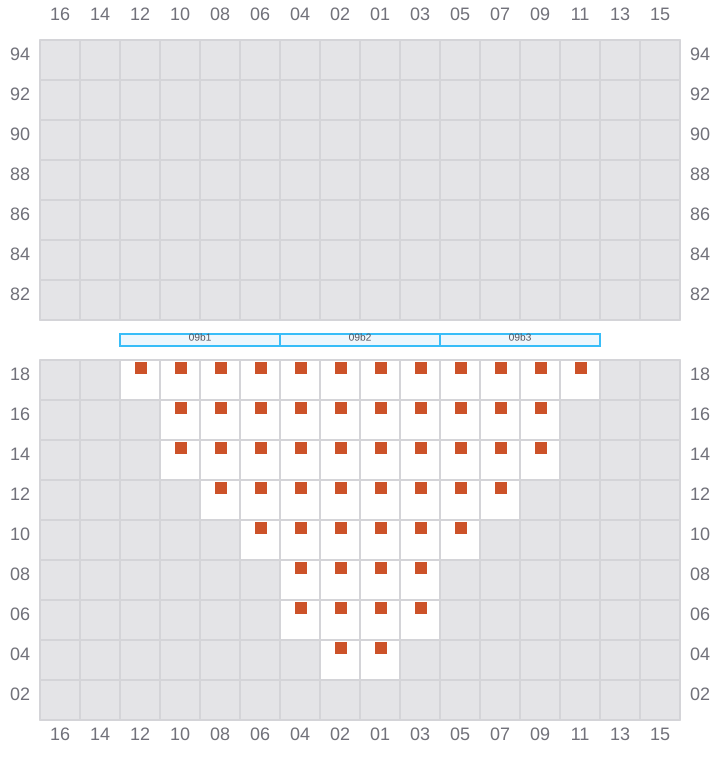

009
- ? / →

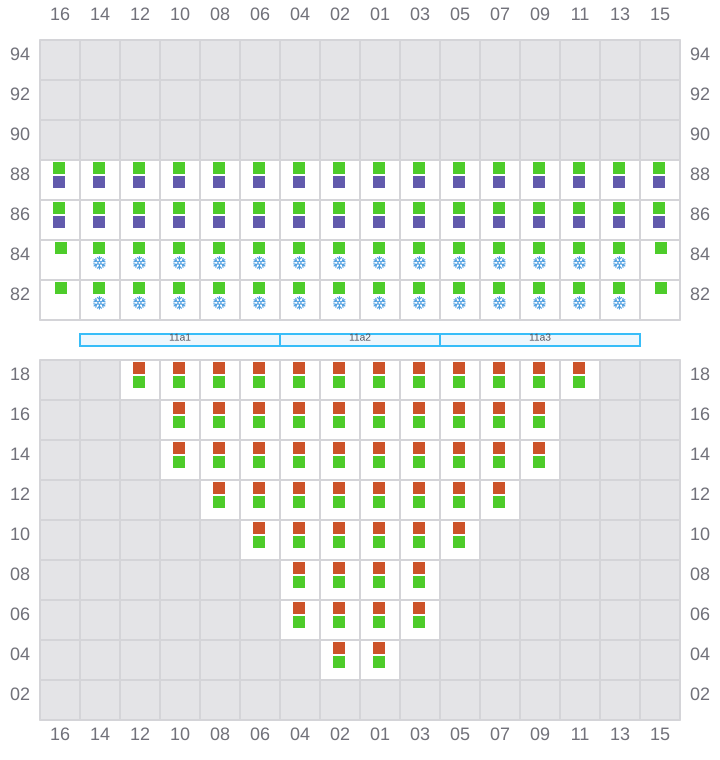

011 (010)
- ←
- → / ?
- →

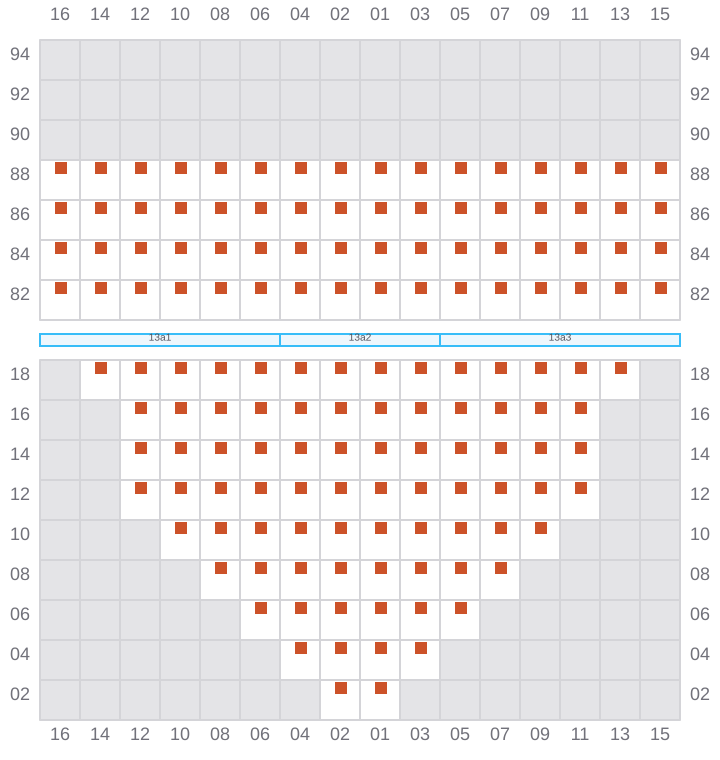

013
- →

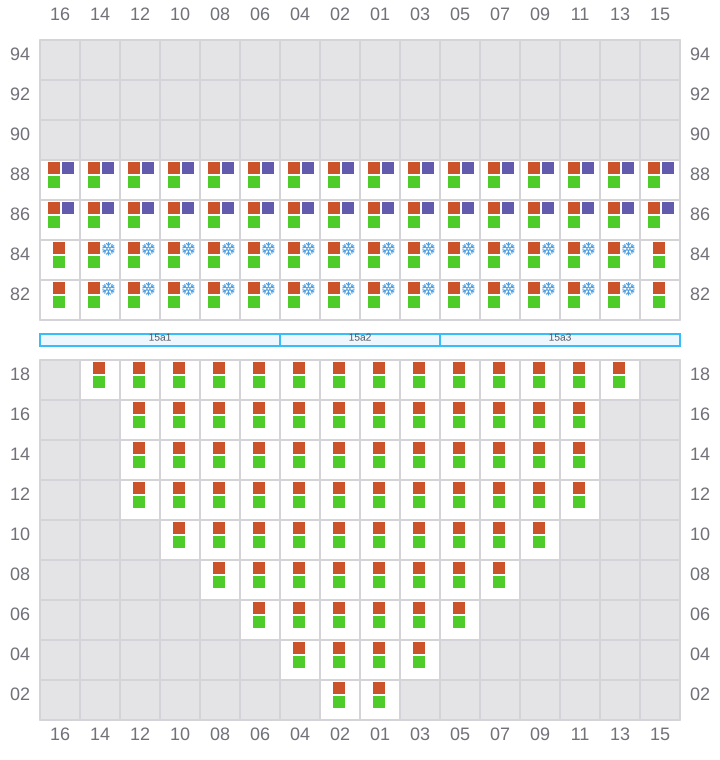

015 (014)
- ←
- → / ?
- →

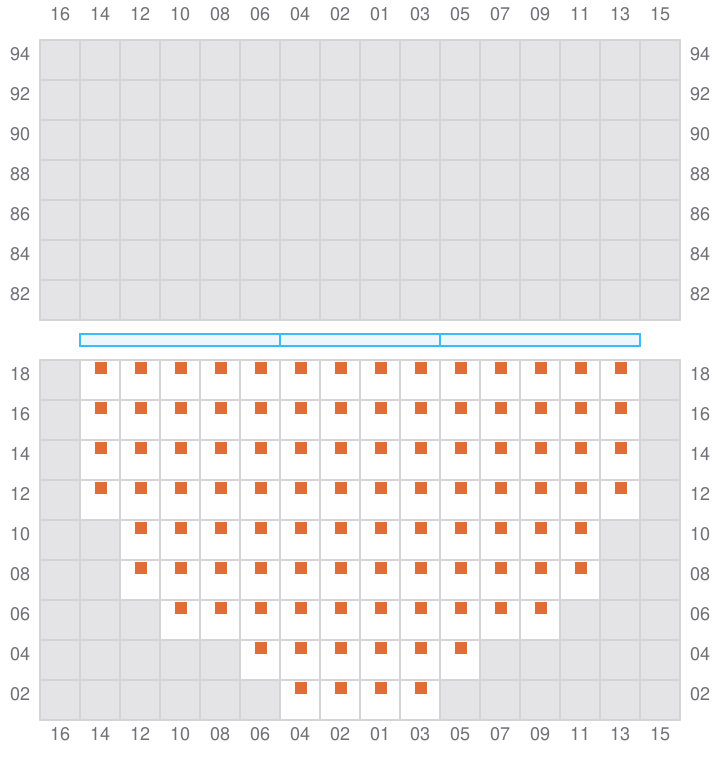

017
- ? / →

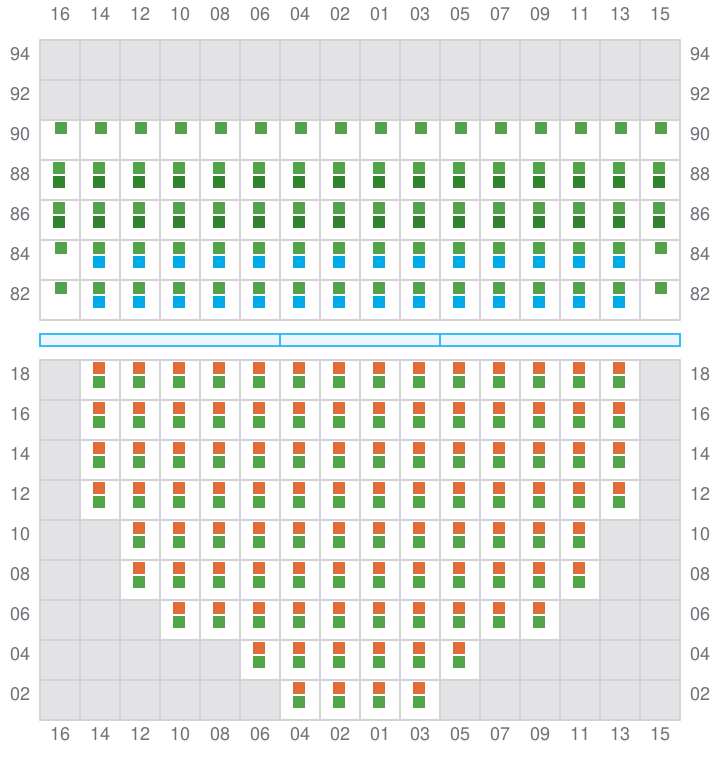

019 (018)
- ←
- → / ?
- →

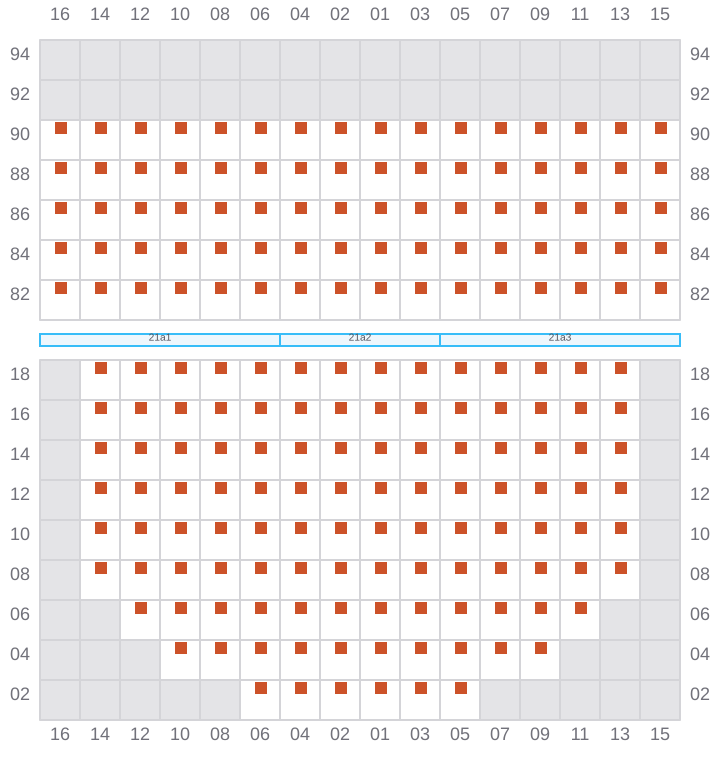

021
- →

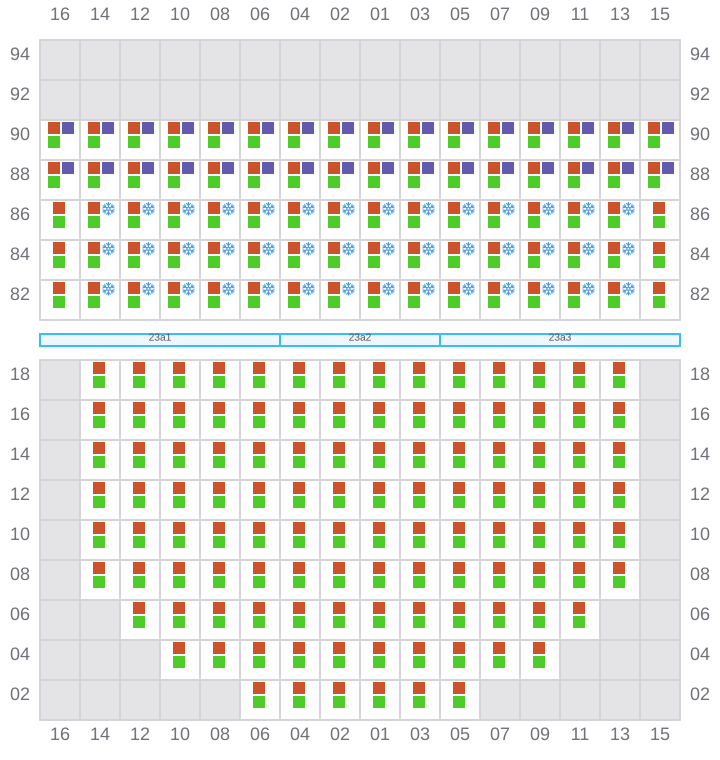

023 (022)
- ←
- → / ?
- →

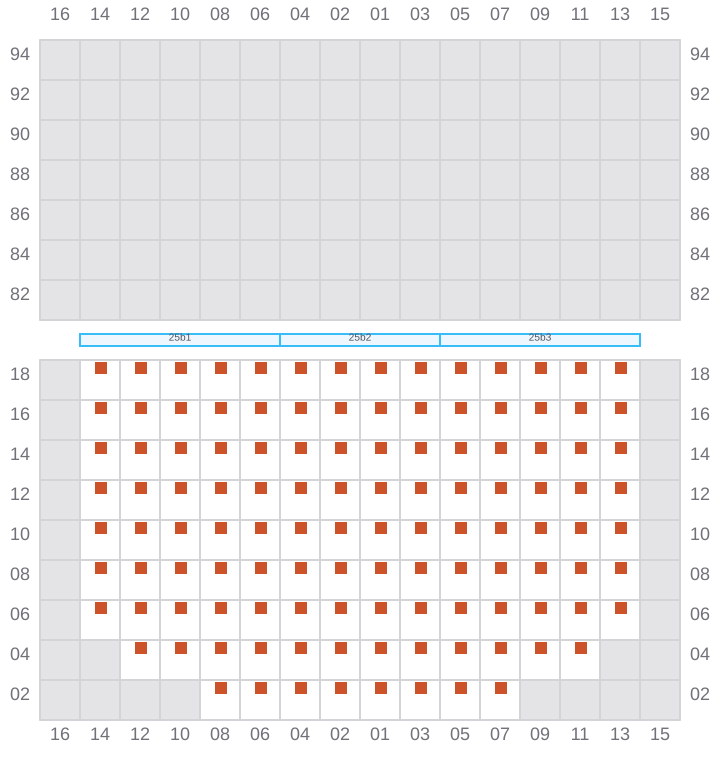

025
- ? / →

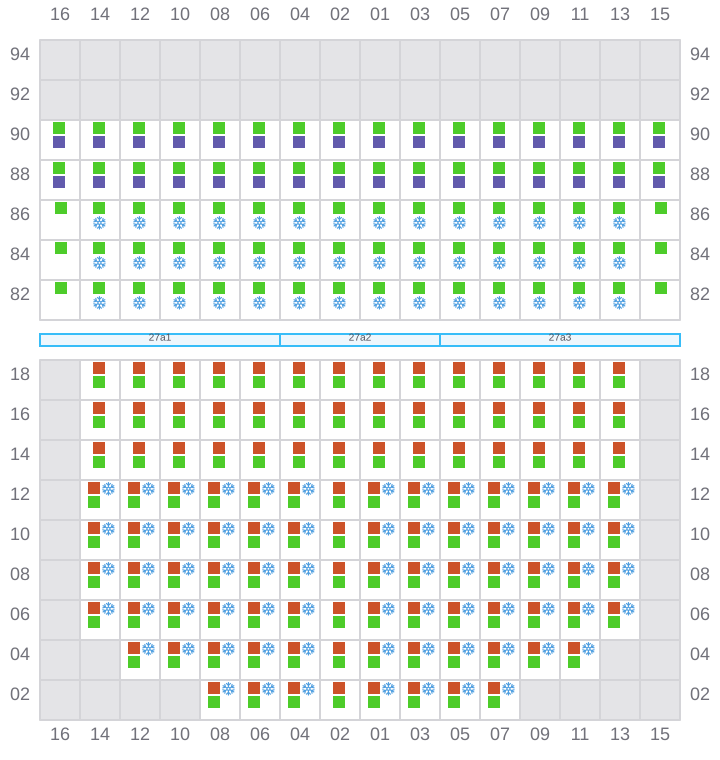

027 (026)
- ←
- →
- →

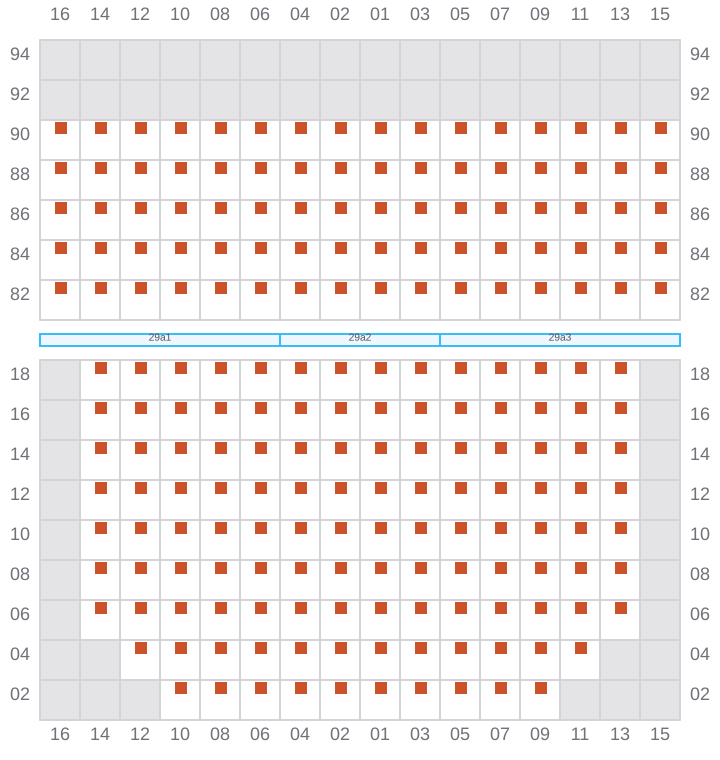

029
- → / ?
- →

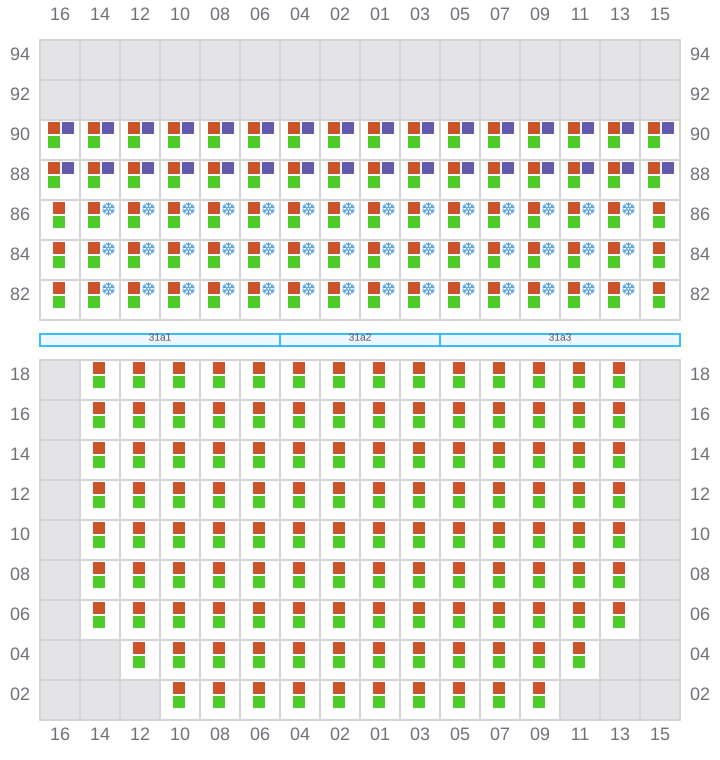

031 (030)
- ←
- → / ?
- →

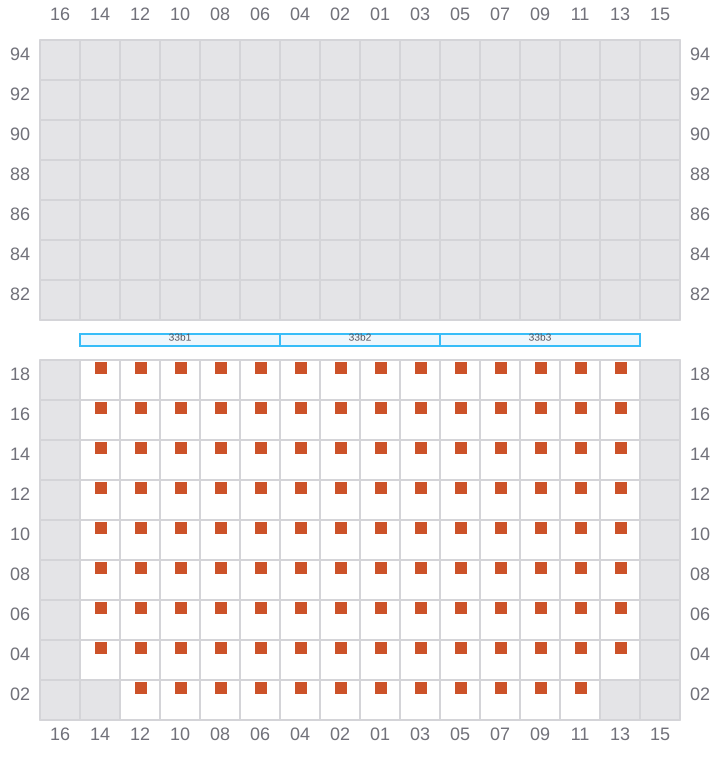

033
- ? / →

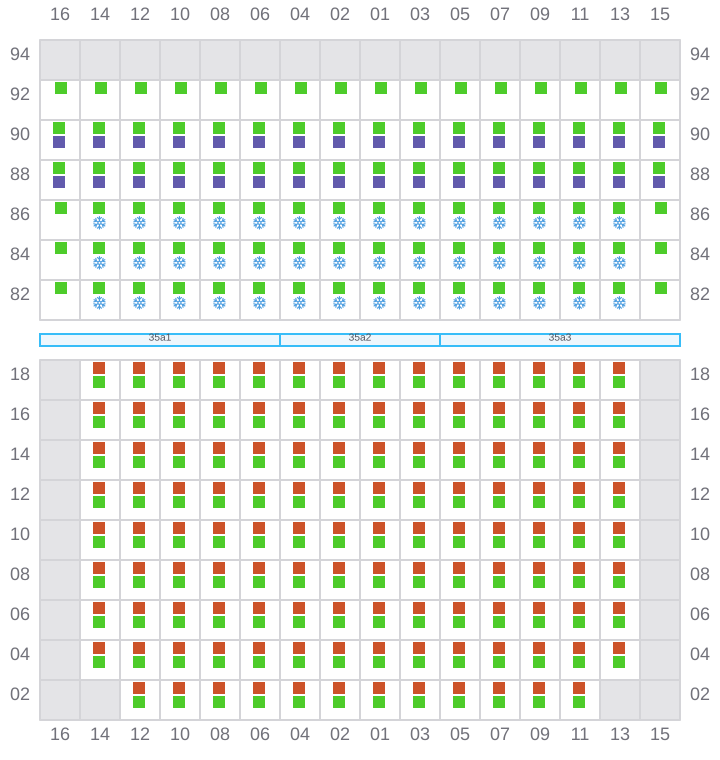

035 (034)
- ←
- → / ?
- →

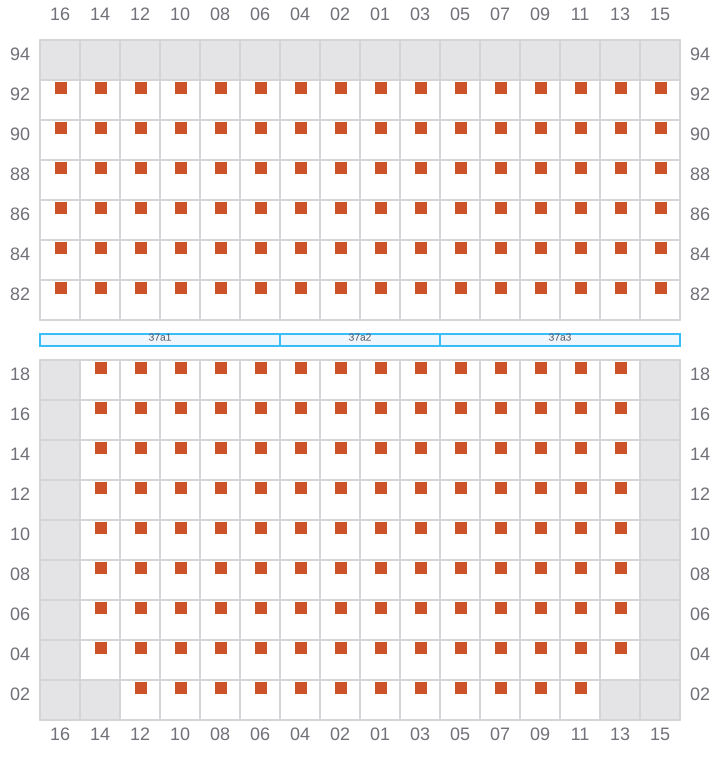

037
- →

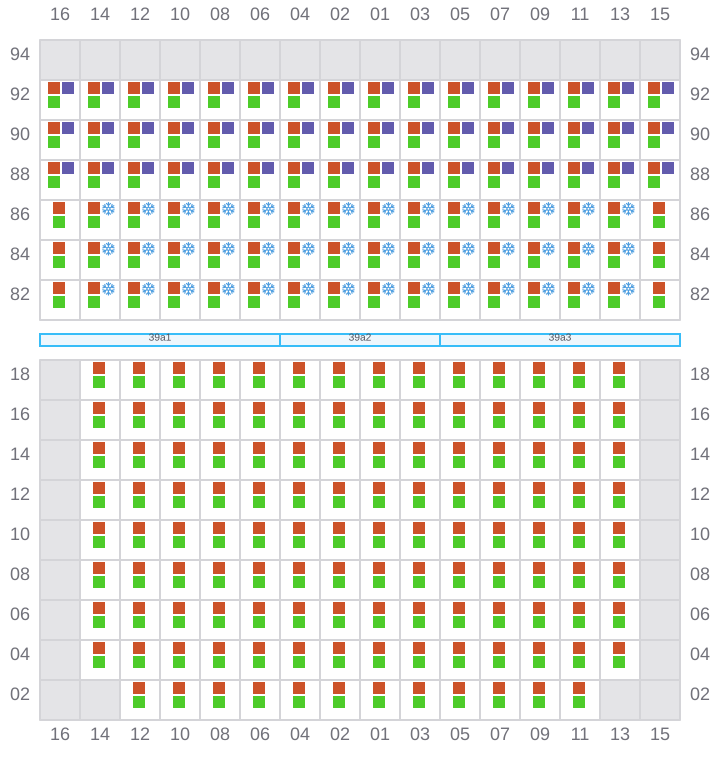

039 (038)
- ←
- → / ?
- →
041
- ? / →
- ? / →

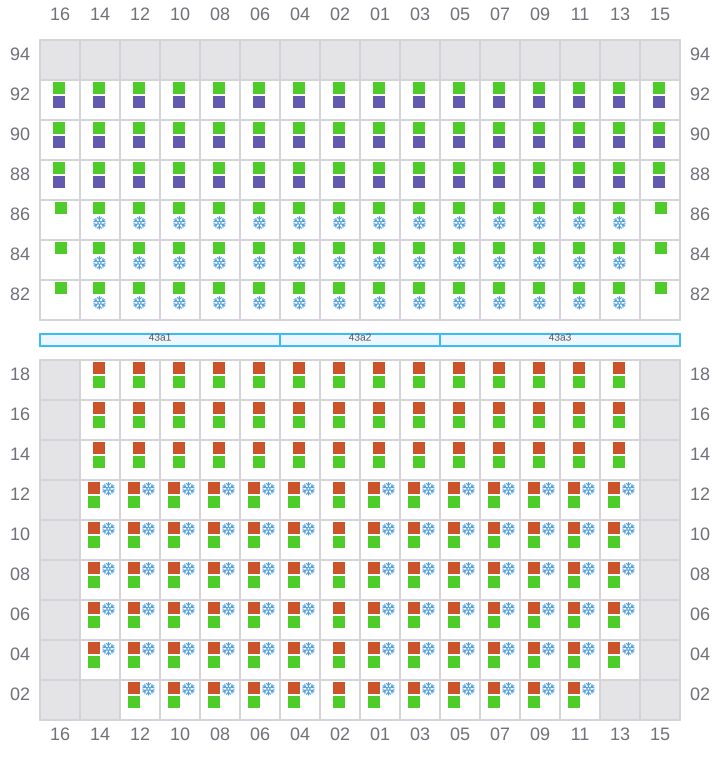

043 (042)
- ←
- → / ?
- →

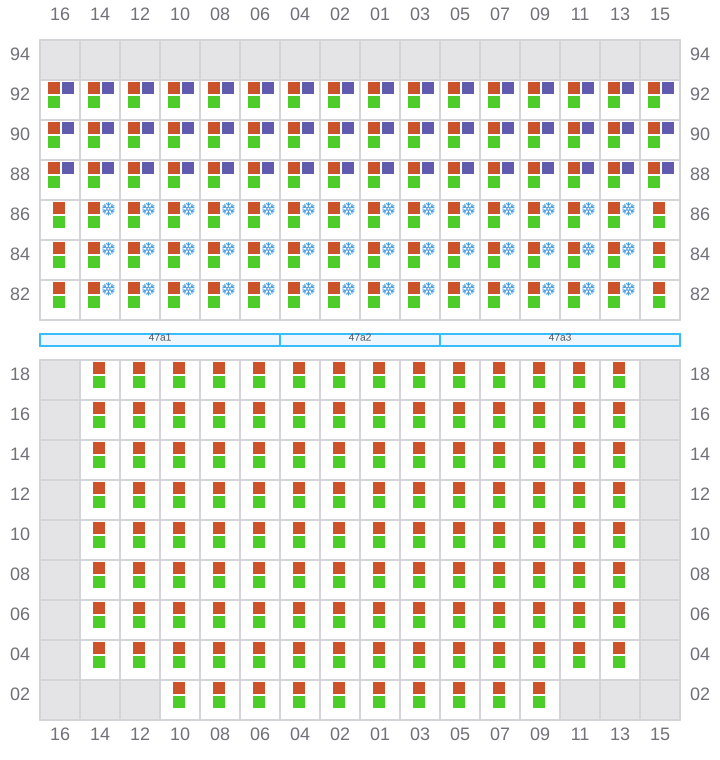

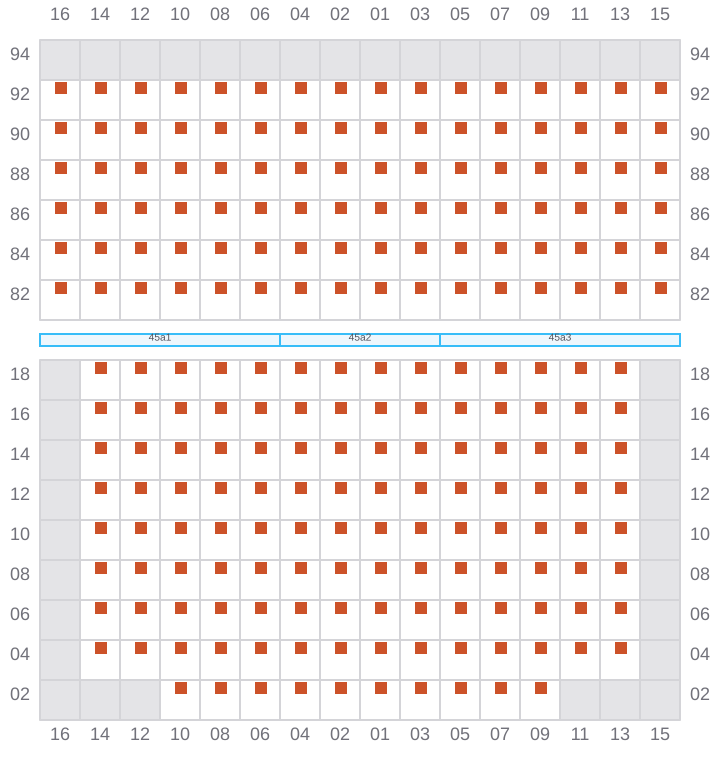

045
- → / ?
- →
047 (046)
- ←
- → / ?
- →

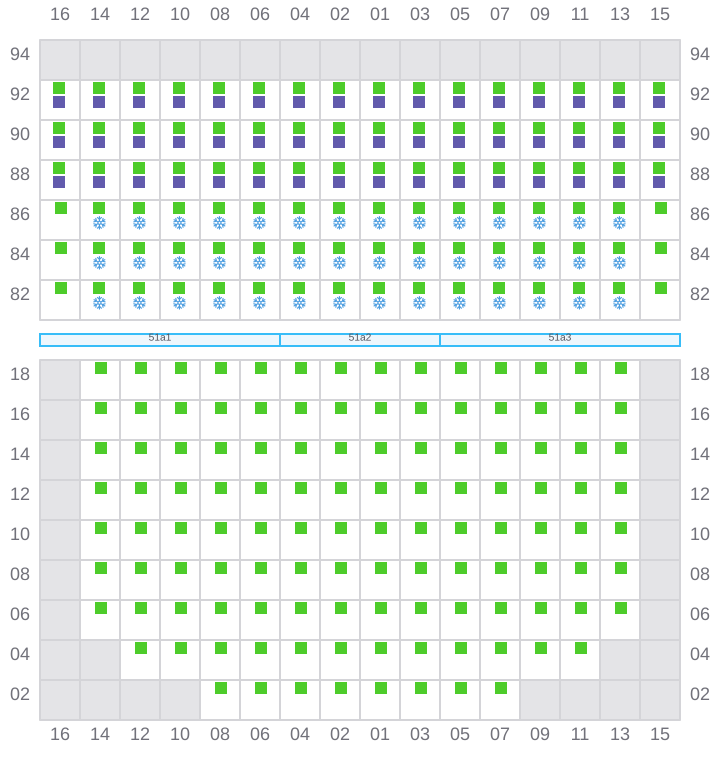

049
051 (050)
- ←
- → / ?
- →
053
055 (054)
- ←
- → / ?
- → / ?

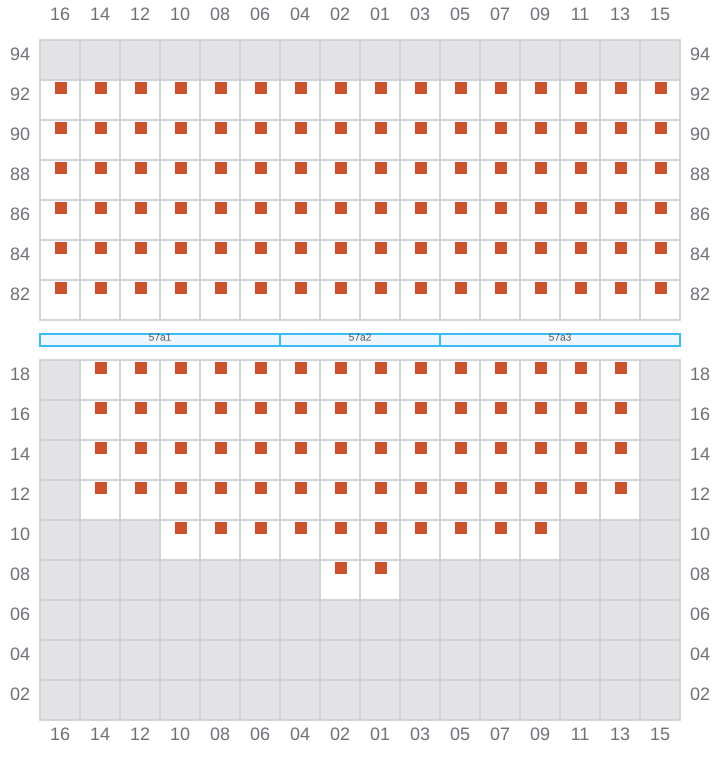

057
- → / ?
- →

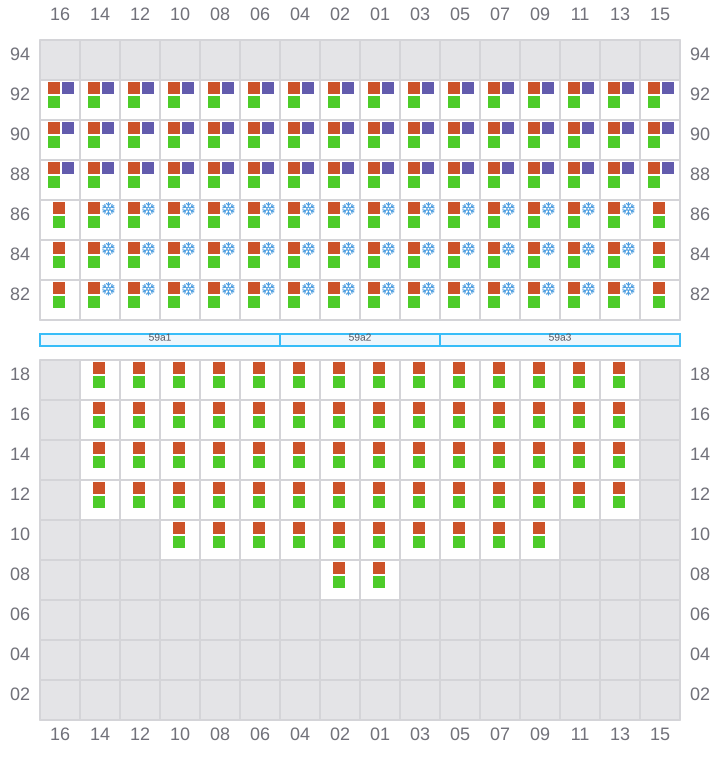

059 (058)
- ←
- → / ?
- →

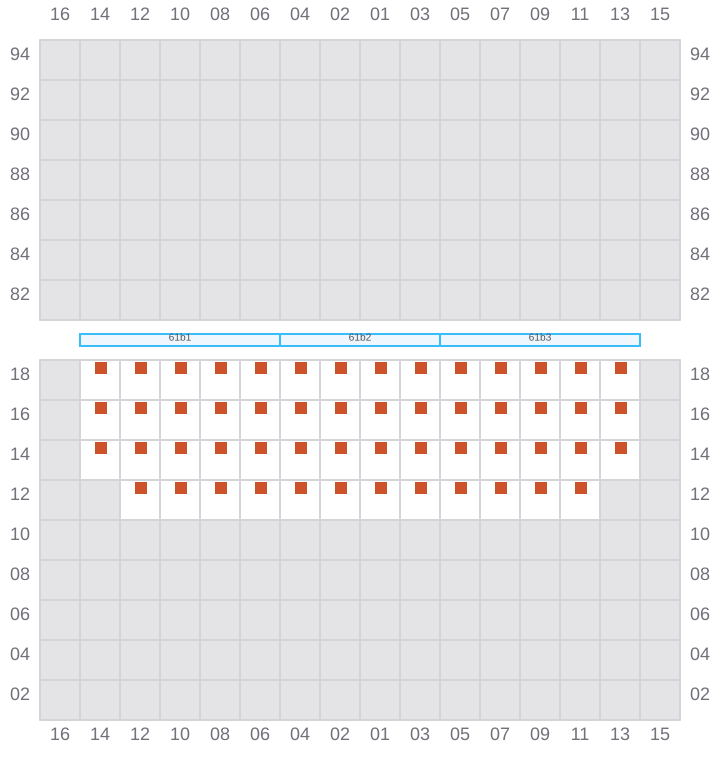

061
- ? / →

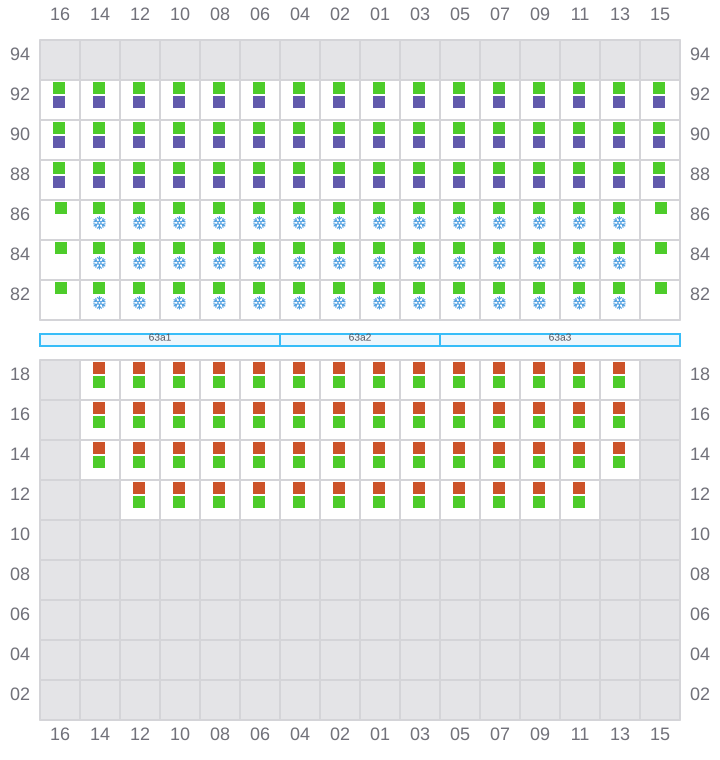

063 (062)
- ←
- → / ?
- →

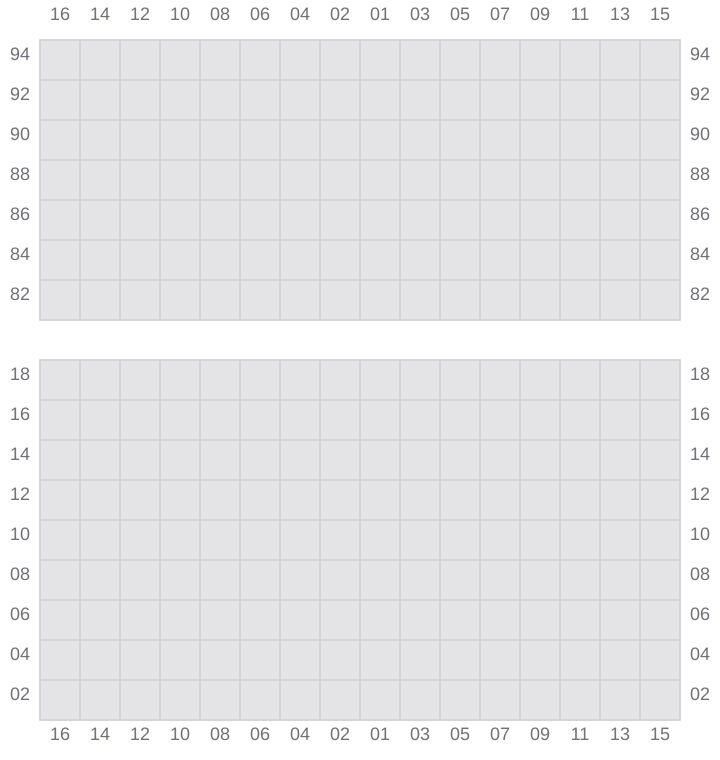

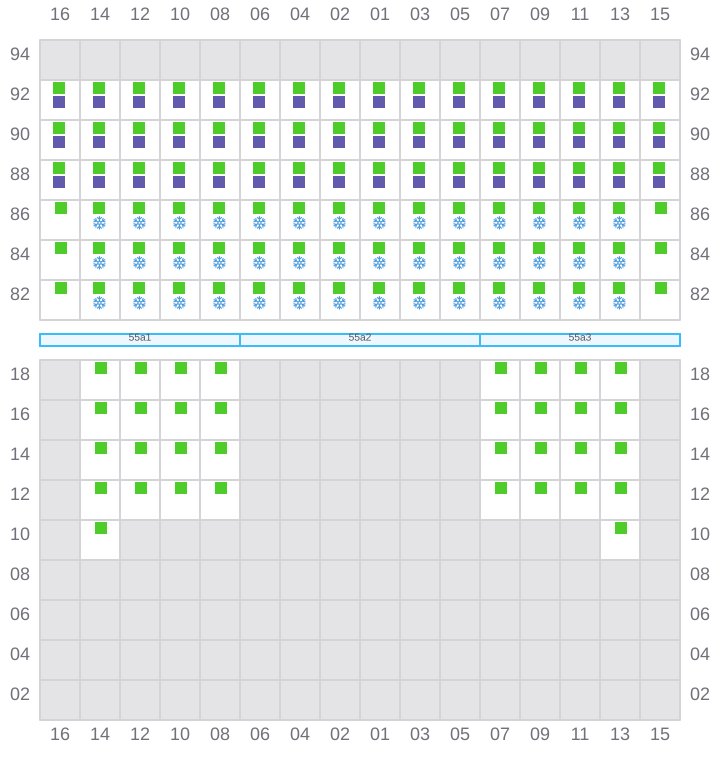

065

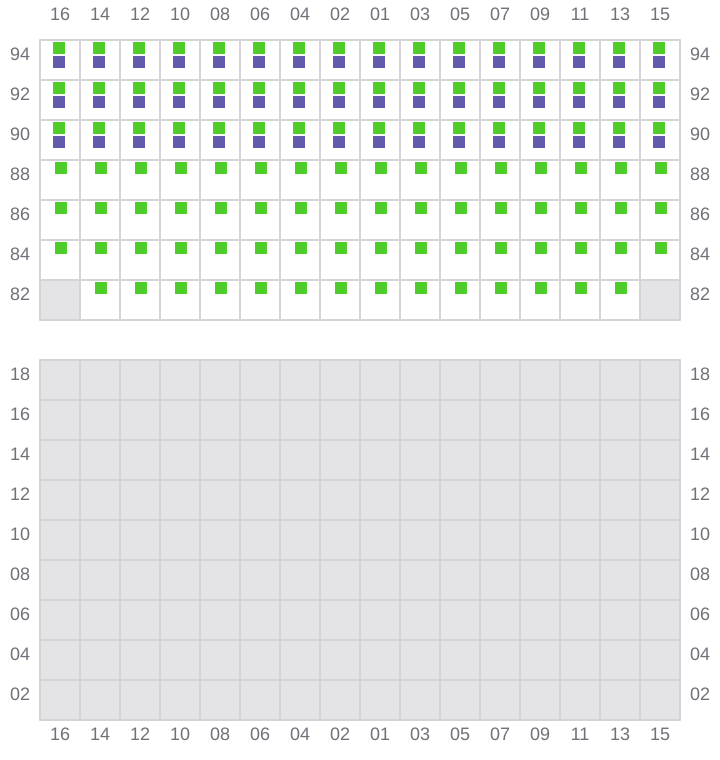

067 (066)
- ← / ?
- → / ?
- → / ?
