EVRIDIKI G
9231482 | A8QD8 | HLC by *********************** Last update: Tue Jan 14 2025

General Info

Ship Name:EVRIDIKI G
IMO Code:9231482
Call Sign:A8QD8
Line Operator:HLC
Class Name for Sister Ships:HEVR
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):190.00
LOA (Length Overall):210.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,556

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of EVRIDIKI G

Hatch-Covers View

Deck view of EVRIDIKI G

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • → / ?
  • →

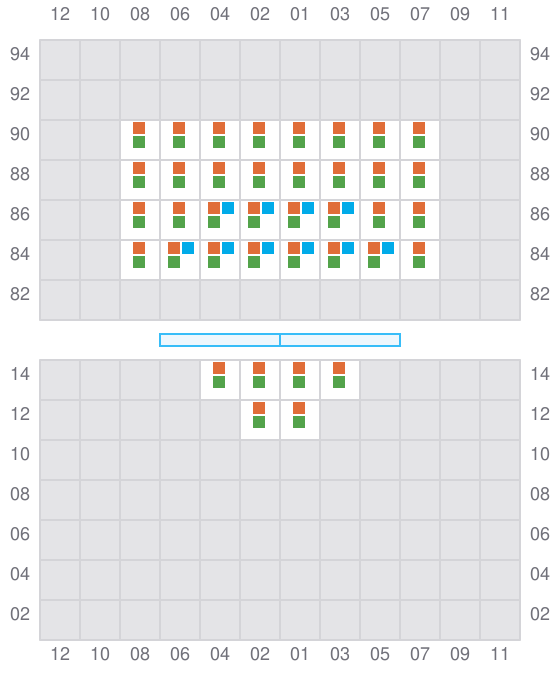

Bay 001 view and slots of EVRIDIKI G

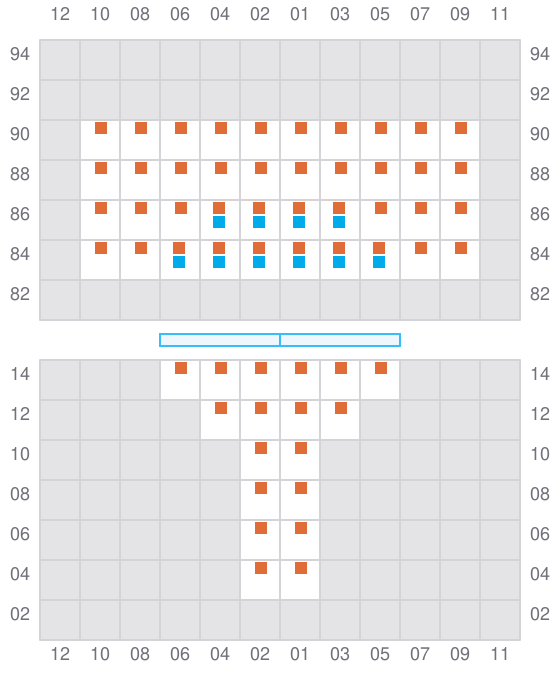

003

  • ←
  • → / ?
  • →
Bay 003 view and slots of EVRIDIKI G

005 (006)

  • →
  • →
  • →

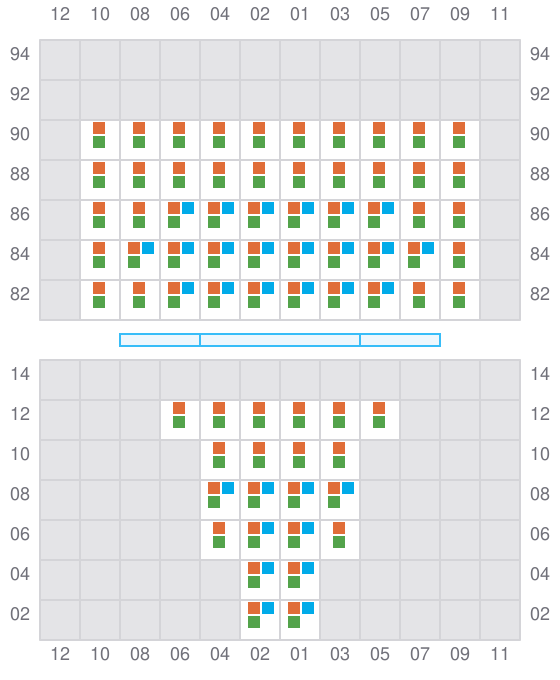

Bay 005 view and slots of EVRIDIKI G

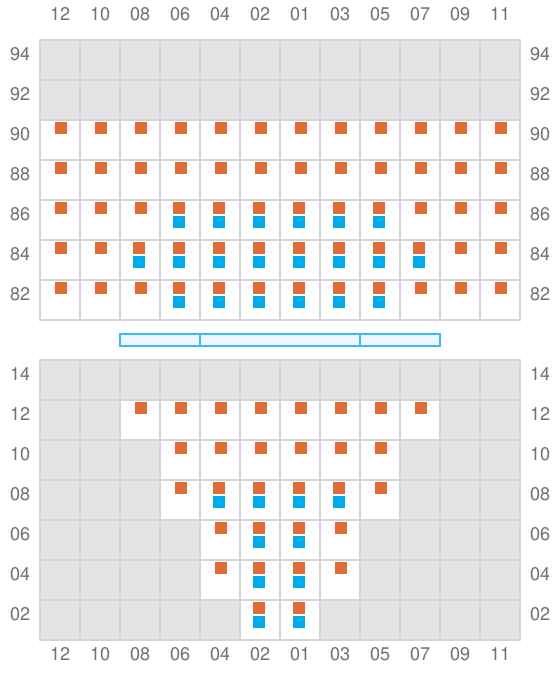

007

  • ←
  • →
  • →
Bay 007 view and slots of EVRIDIKI G

009 (010)

  • →
  • →
  • →

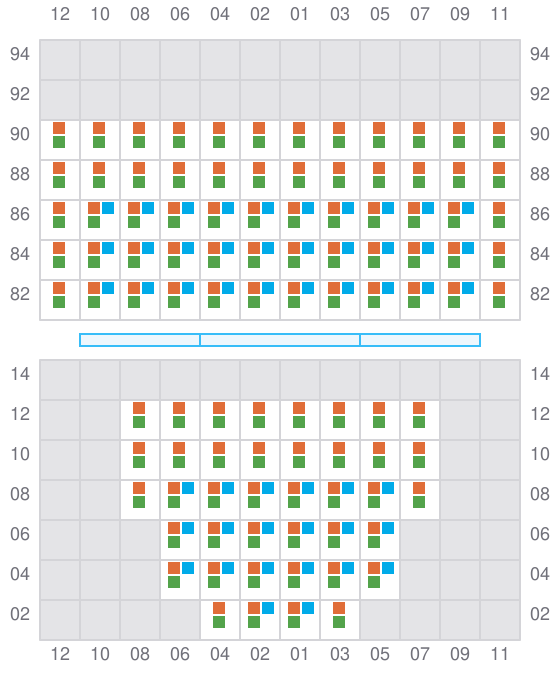

Bay 009 view and slots of EVRIDIKI G

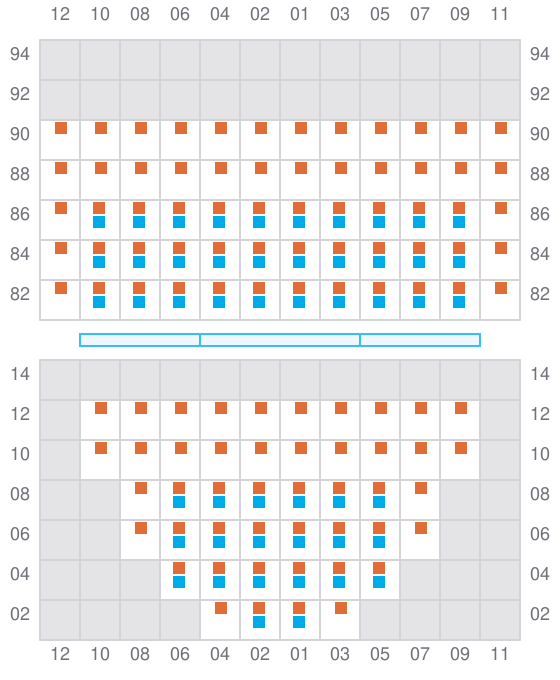

011

  • ←
  • →
  • →
Bay 011 view and slots of EVRIDIKI G

013 (014)

  • →
  • →
  • →

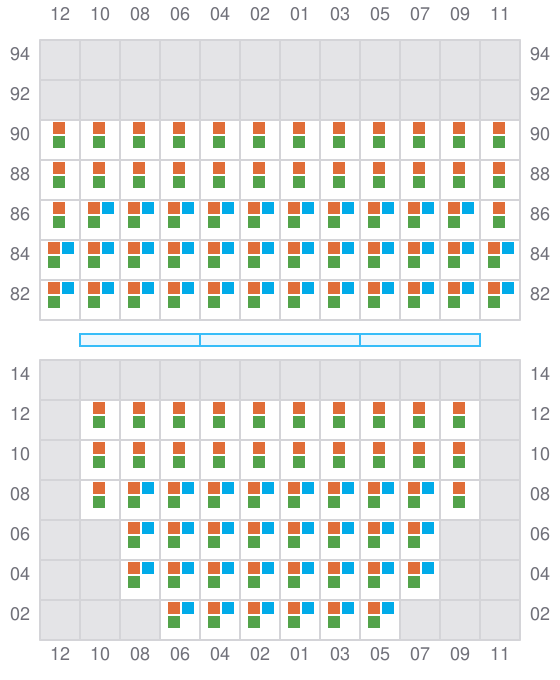

Bay 013 view and slots of EVRIDIKI G

015

  • ←
  • →
  • →

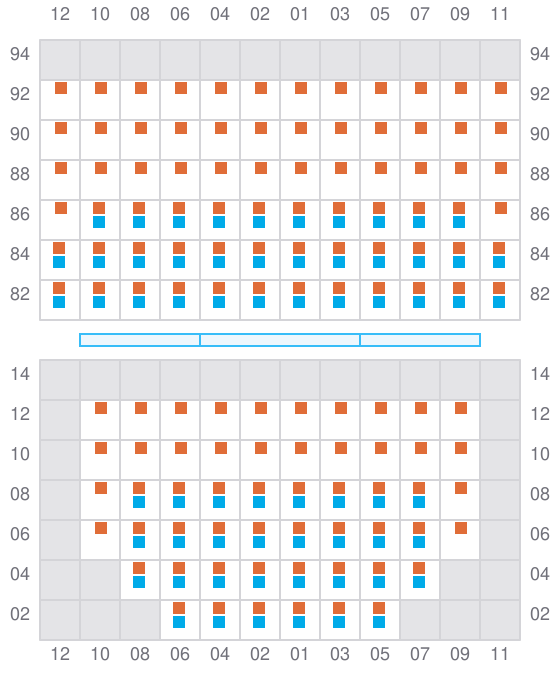

Bay 015 view and slots of EVRIDIKI G

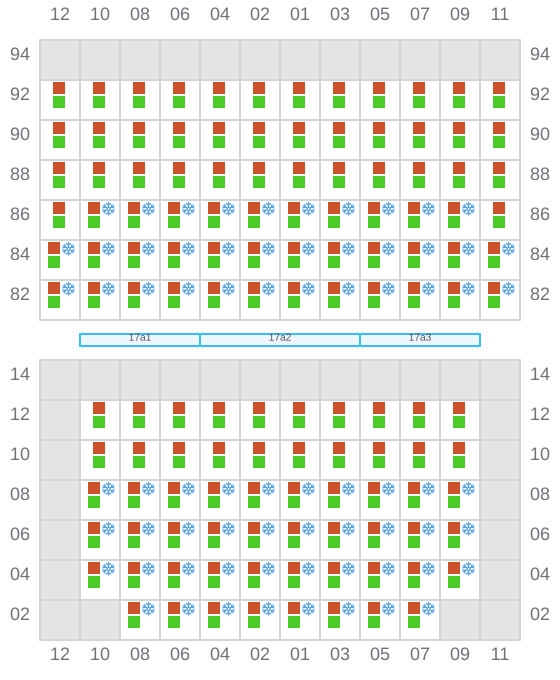

017 (018)

  • →
  • →
  • →
Bay 017 view and slots of EVRIDIKI G

019

  • ←
  • →
  • →
Bay 019 view and slots of EVRIDIKI G

021 (022)

  • →
  • →
  • →

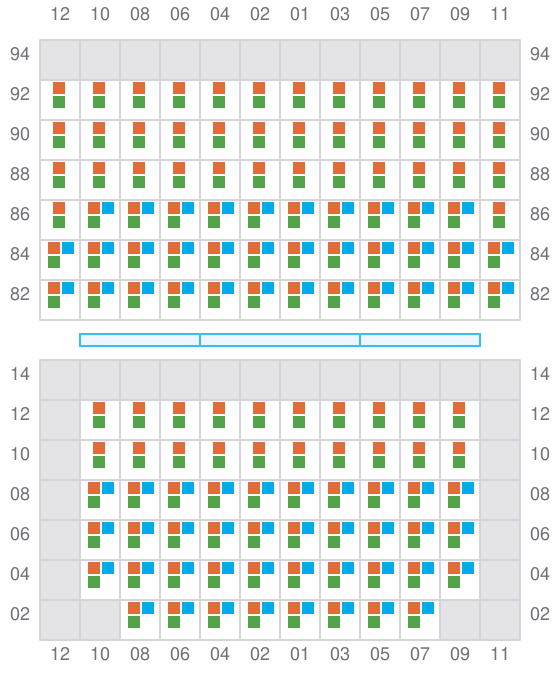

Bay 021 view and slots of EVRIDIKI G

023

  • ←
  • →
  • →
Bay 023 view and slots of EVRIDIKI G

025 (026)

  • →
  • →
  • →
Bay 025 view and slots of EVRIDIKI G

027

  • ←
  • →
  • →

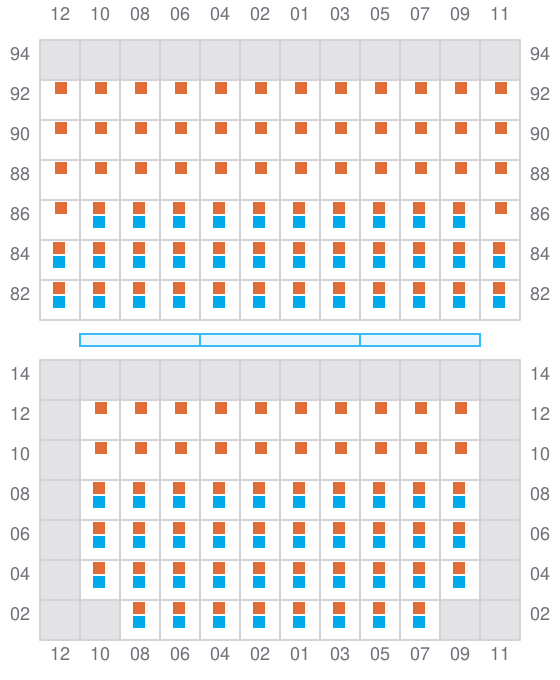

Bay 027 view and slots of EVRIDIKI G

029 (030)

  • →
  • →
  • →

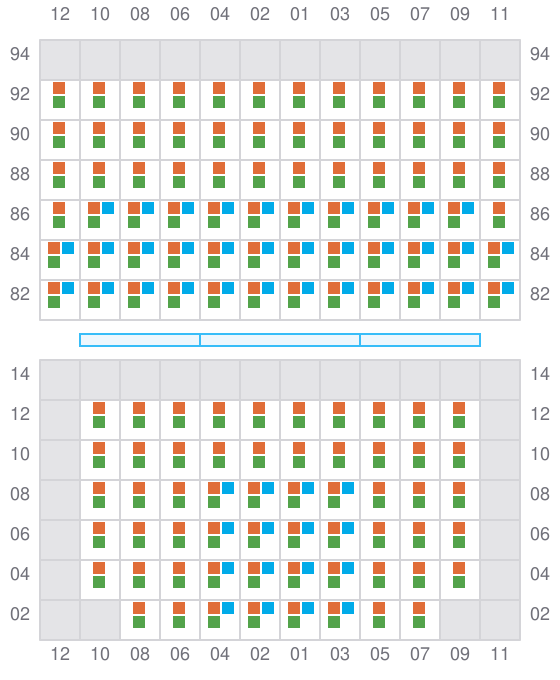

Bay 029 view and slots of EVRIDIKI G

031

  • ←
  • →
  • →

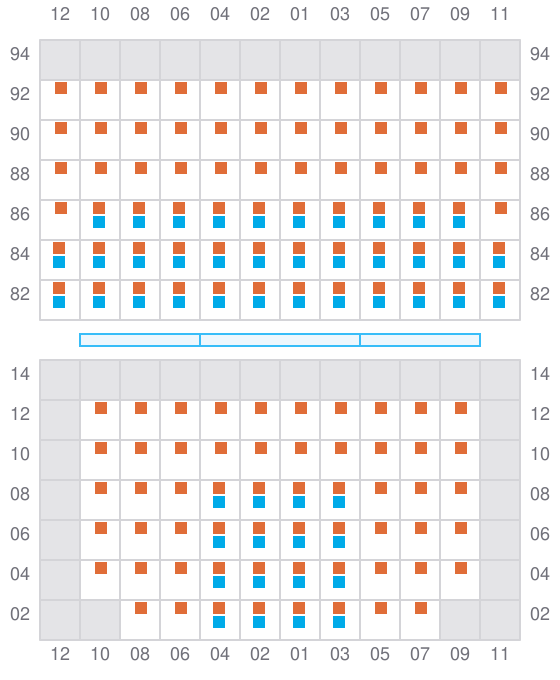

Bay 031 view and slots of EVRIDIKI G

033 (034)

  • →
  • →
  • →

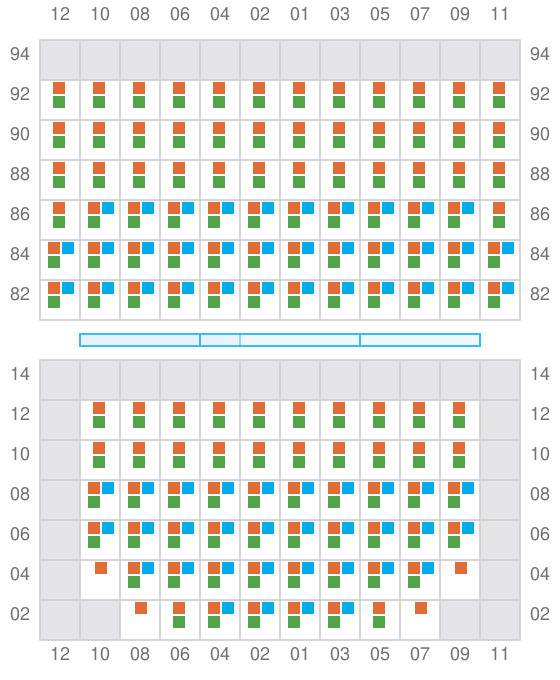

Bay 033 view and slots of EVRIDIKI G

035

  • ←
  • →
  • →

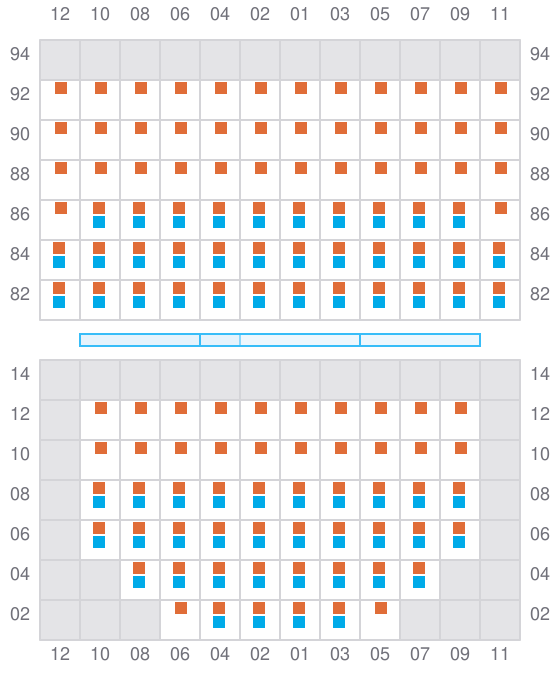

Bay 035 view and slots of EVRIDIKI G

037 (038)

  • →
  • →
  • →

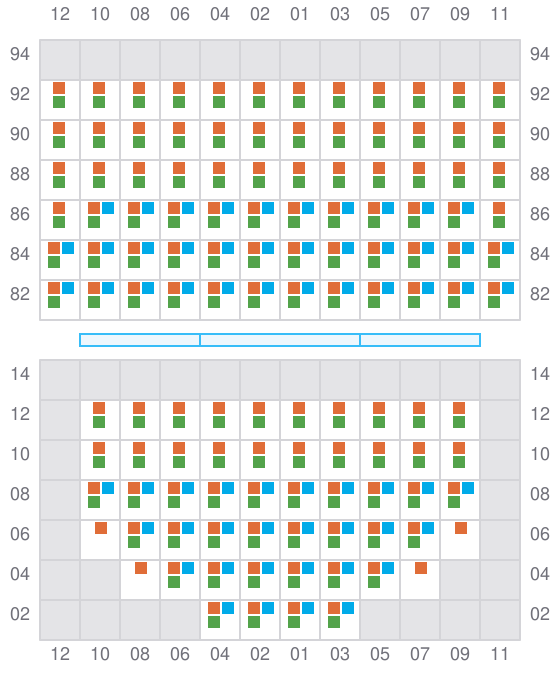

Bay 037 view and slots of EVRIDIKI G

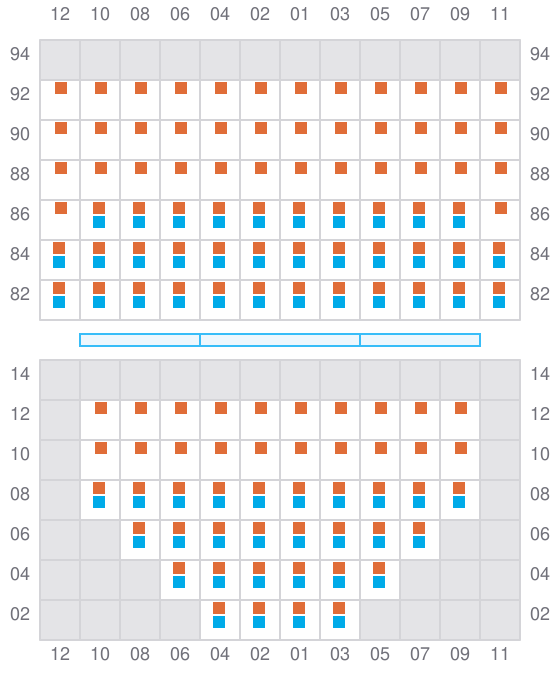

039

  • ←
  • →
  • →
Bay 039 view and slots of EVRIDIKI G

041 (042)

  • → / ?
  • → / ?
  • → / ?

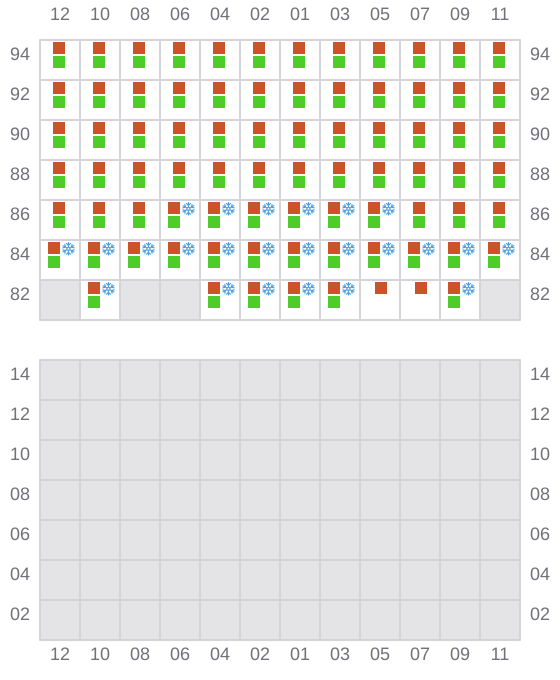

Bay 041 view and slots of EVRIDIKI G

043

  • ← / ?
  • → / ?
  • → / ?

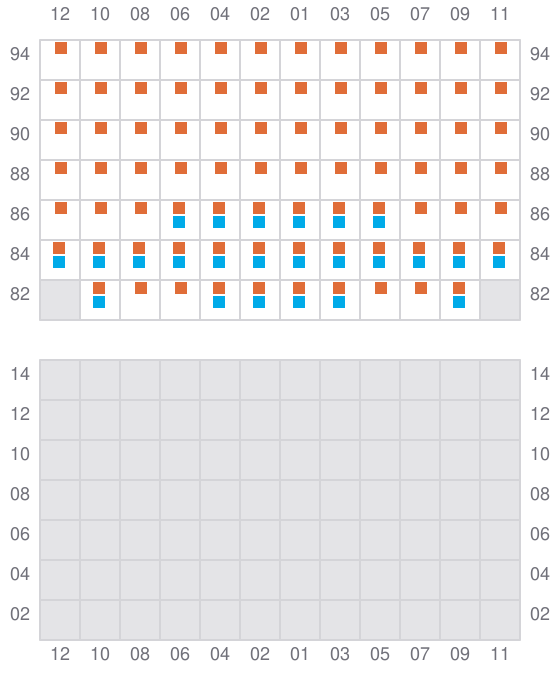

Bay 043 view and slots of EVRIDIKI G

045 (046)

  • → / ?
  • ← / ?
  • → / ?

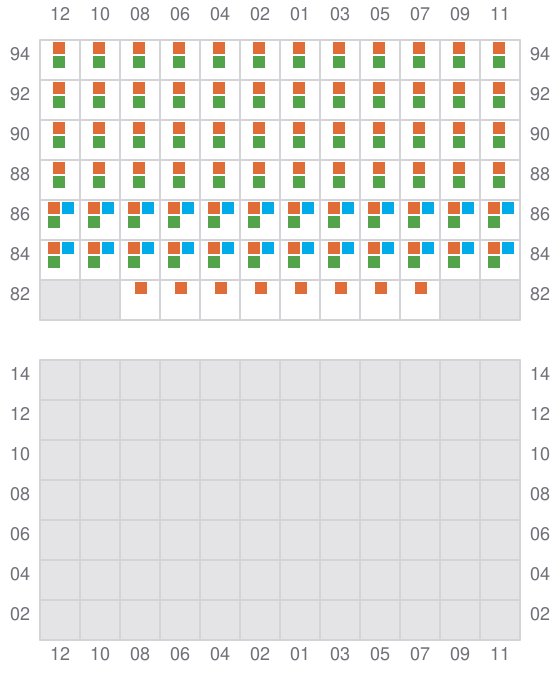

Bay 045 view and slots of EVRIDIKI G

047

  • ← / ?
  • → / ?

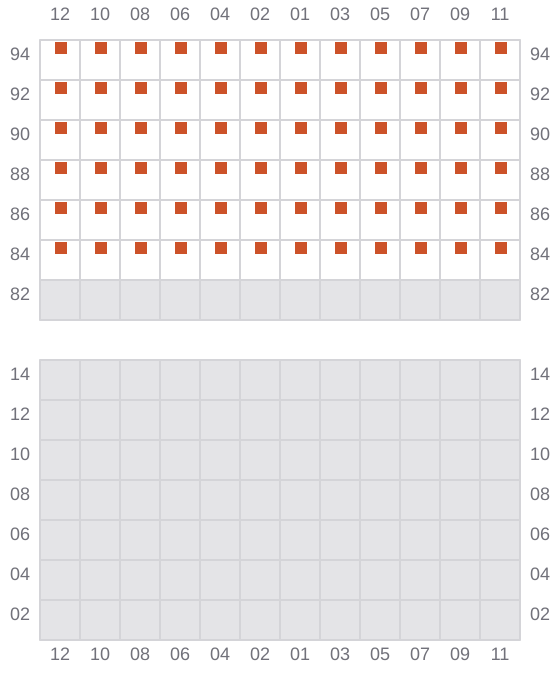

Bay 047 view and slots of EVRIDIKI G
