EXPRESS ARGENTINA
9443011 | 9HA2308 | 9443011 by ********* Last update: Fri May 03 2024

General Info

Ship Name:EXPRESS ARGENTINA
IMO Code:9443011
Call Sign:9HA2308
Line Operator:9443011
Class Name for Sister Ships:HANJIN BUENOS AIRE
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,493

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of EXPRESS ARGENTINA

Hatch-Covers View

Deck view of EXPRESS ARGENTINA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

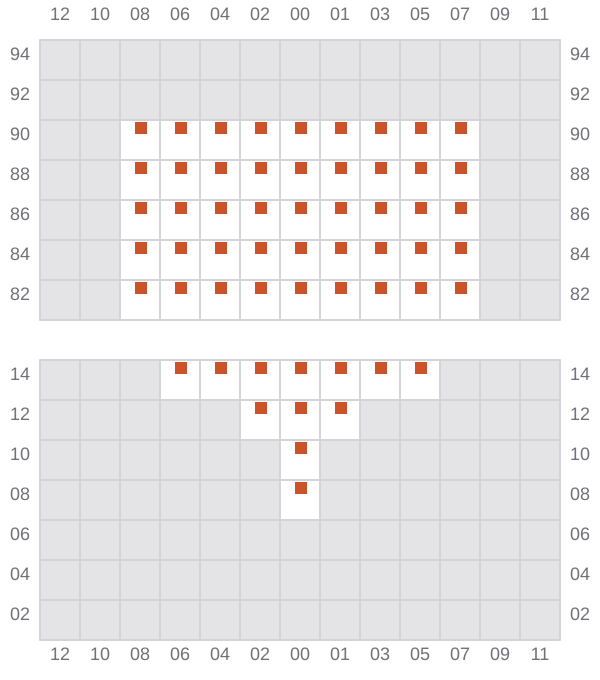

Bay 001 view and slots of EXPRESS ARGENTINA

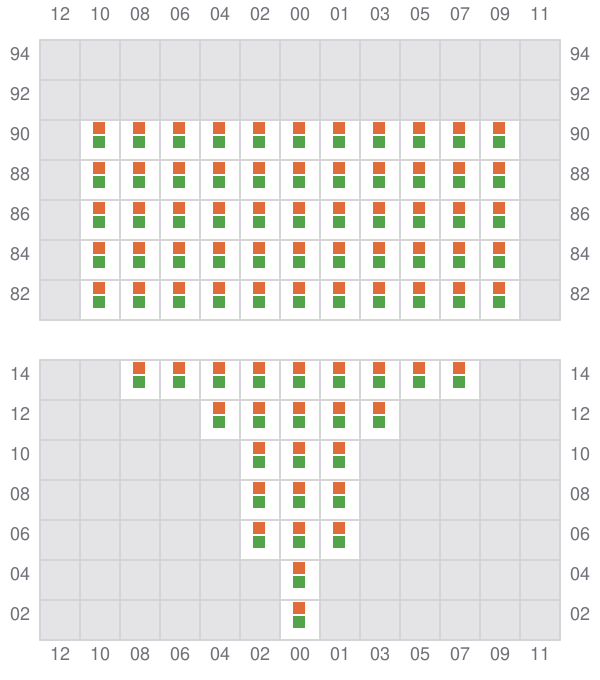

003 (004)

  • →
Bay 003 view and slots of EXPRESS ARGENTINA

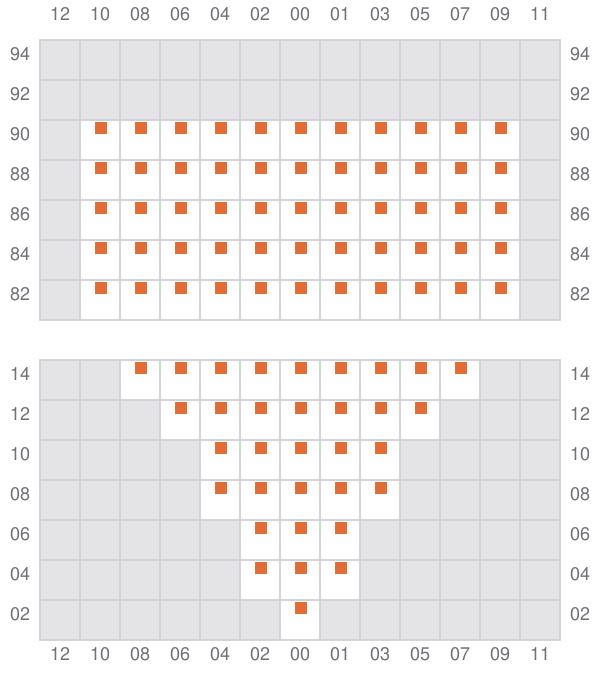

005

  • ←
Bay 005 view and slots of EXPRESS ARGENTINA

007 (008)

  • →

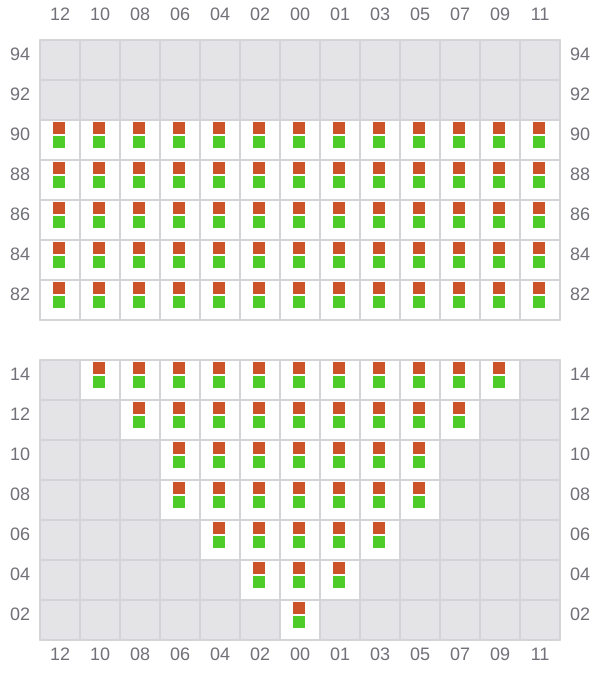

Bay 007 view and slots of EXPRESS ARGENTINA

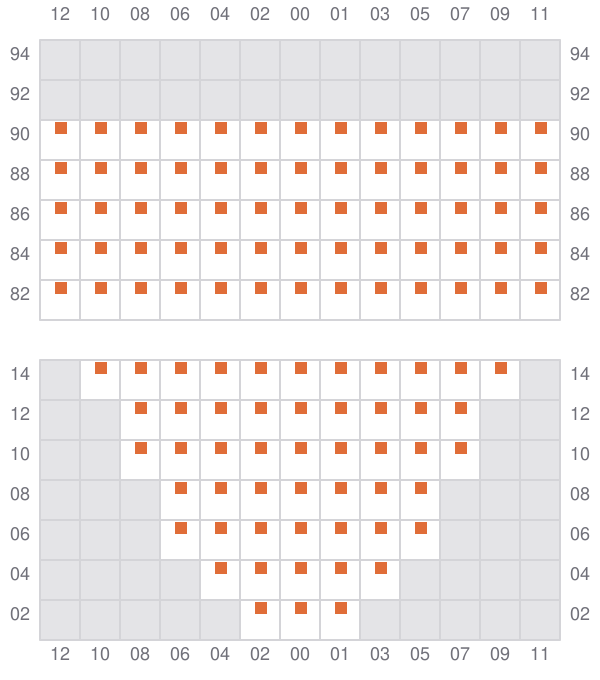

009

  • ←
Bay 009 view and slots of EXPRESS ARGENTINA

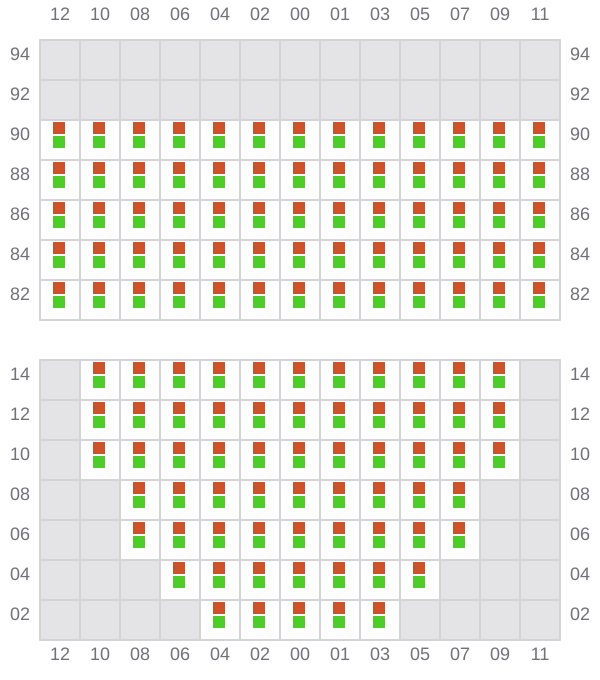

011 (012)

  • →
Bay 011 view and slots of EXPRESS ARGENTINA

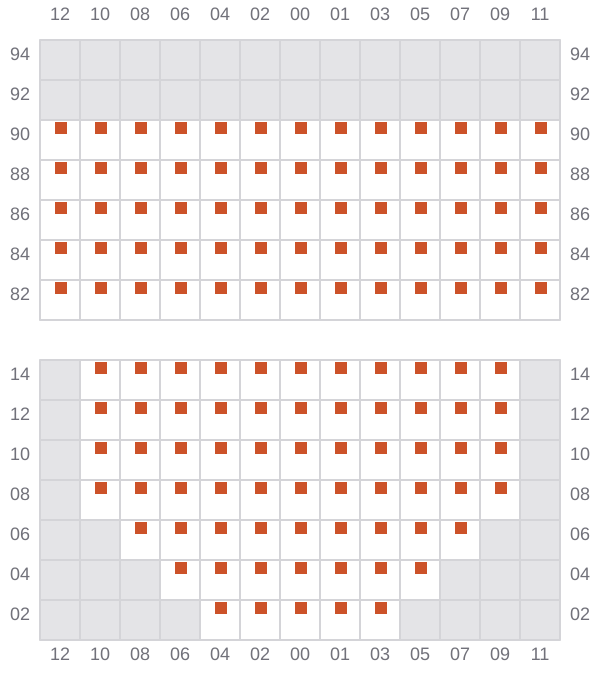

013

  • ←
Bay 013 view and slots of EXPRESS ARGENTINA

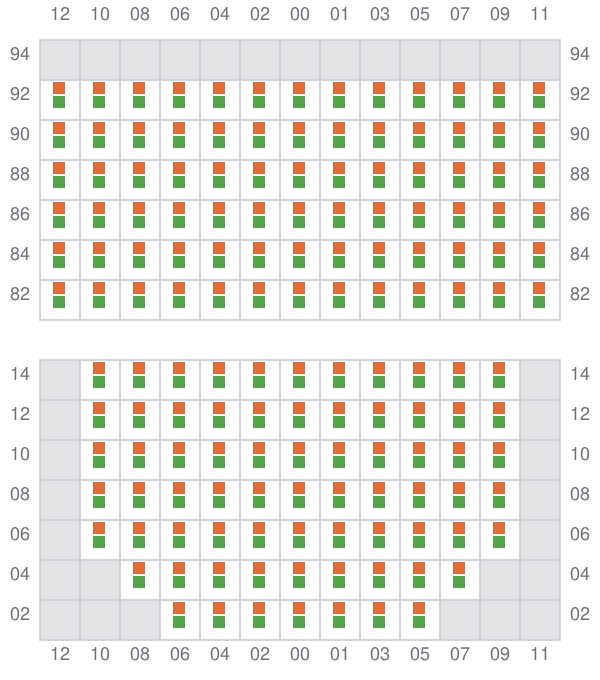

015 (016)

  • →
Bay 015 view and slots of EXPRESS ARGENTINA

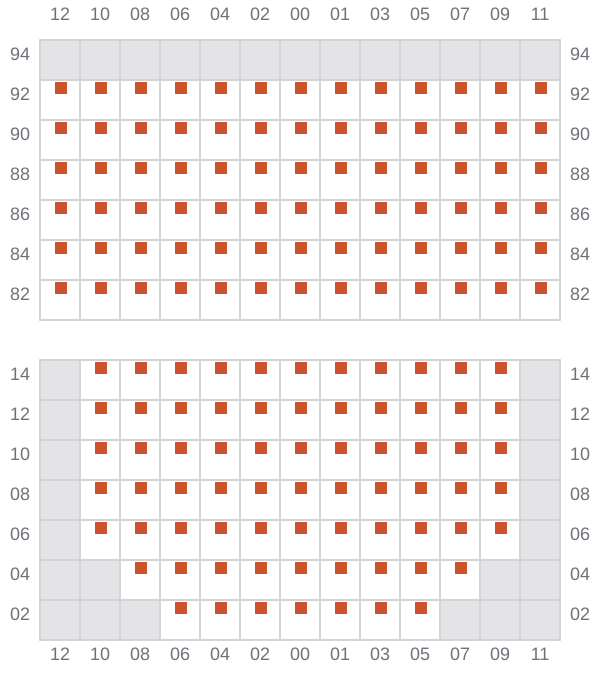

017

  • ←
Bay 017 view and slots of EXPRESS ARGENTINA

019 (020)

  • →
Bay 019 view and slots of EXPRESS ARGENTINA

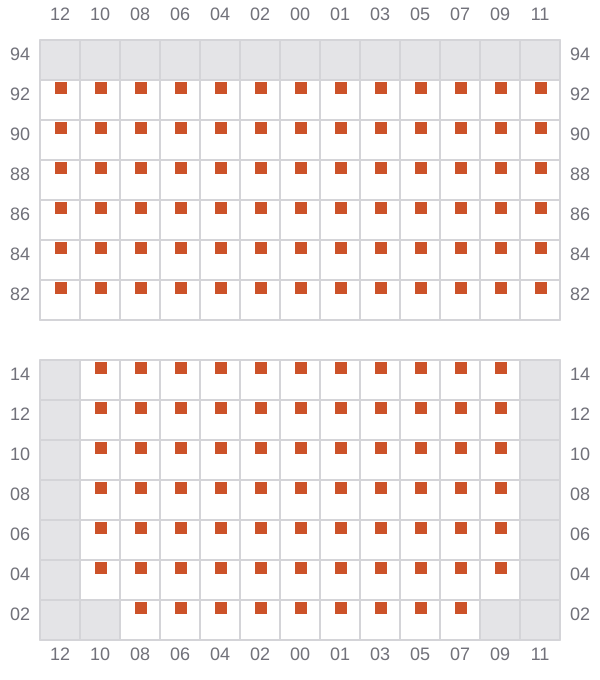

021

  • ←
Bay 021 view and slots of EXPRESS ARGENTINA

023 (024)

  • →
Bay 023 view and slots of EXPRESS ARGENTINA

025

  • ←
Bay 025 view and slots of EXPRESS ARGENTINA

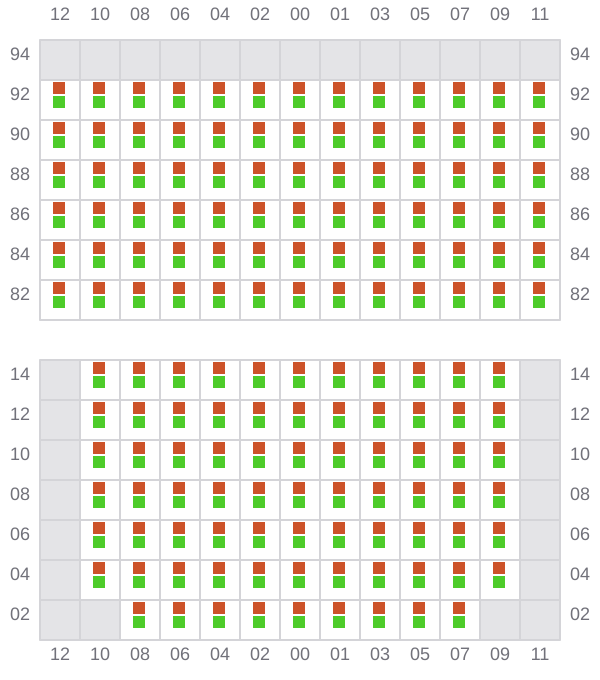

027 (028)

  • →
Bay 027 view and slots of EXPRESS ARGENTINA

029

  • ←
Bay 029 view and slots of EXPRESS ARGENTINA

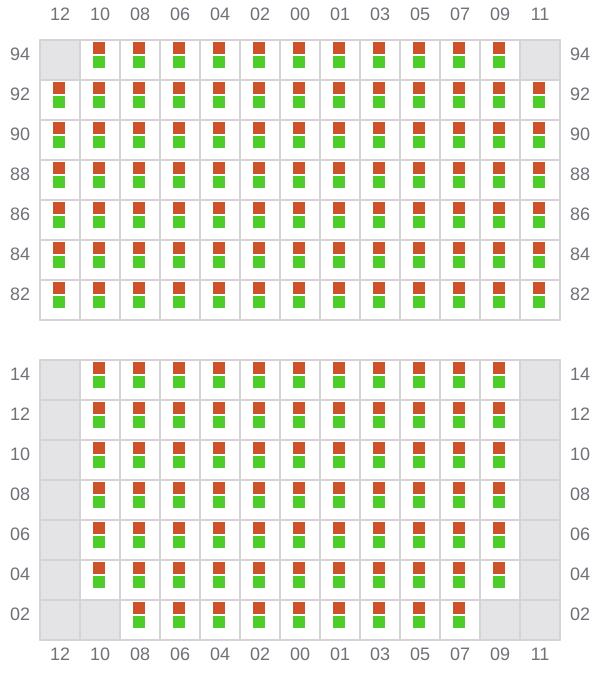

031 (032)

  • →
Bay 031 view and slots of EXPRESS ARGENTINA

033

  • ←
Bay 033 view and slots of EXPRESS ARGENTINA

035 (036)

  • →
Bay 035 view and slots of EXPRESS ARGENTINA

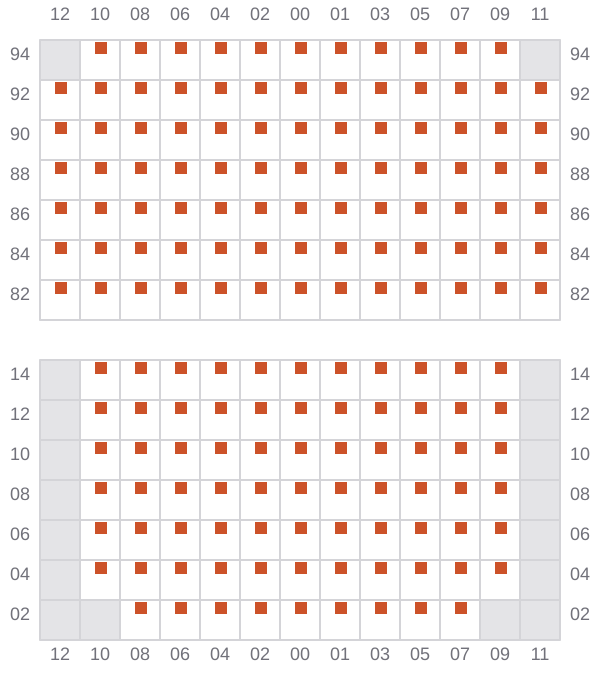

037

  • ←
Bay 037 view and slots of EXPRESS ARGENTINA

039 (040)

  • →

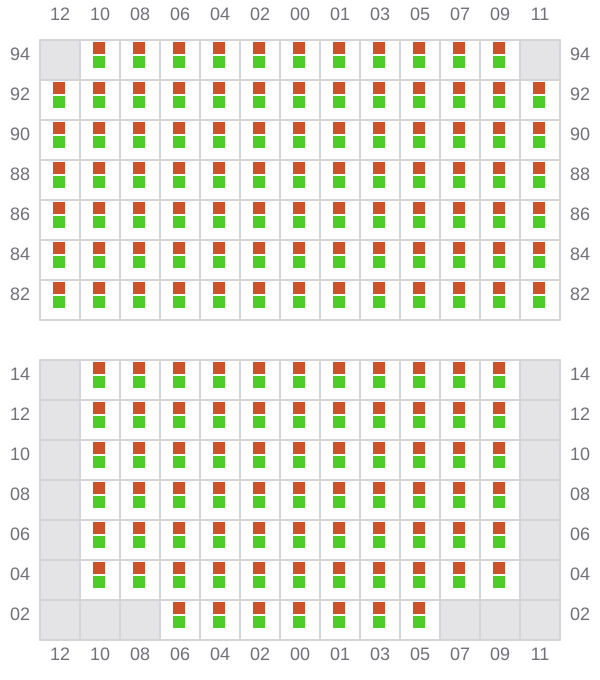

Bay 039 view and slots of EXPRESS ARGENTINA

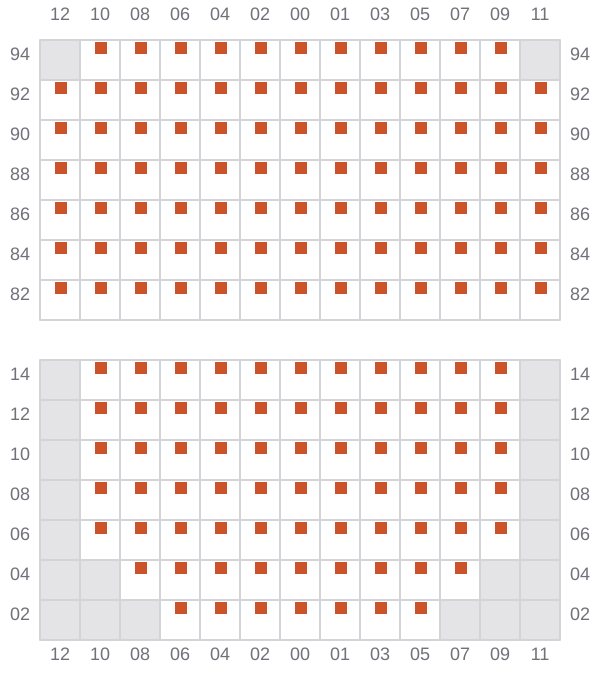

041

  • ←
Bay 041 view and slots of EXPRESS ARGENTINA

043 (044)

  • → / ?
Bay 043 view and slots of EXPRESS ARGENTINA

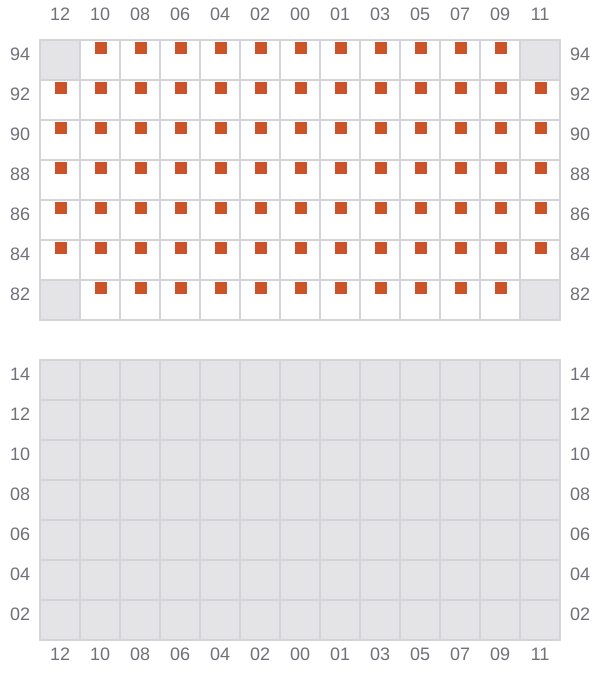

045

  • ← / ?
Bay 045 view and slots of EXPRESS ARGENTINA

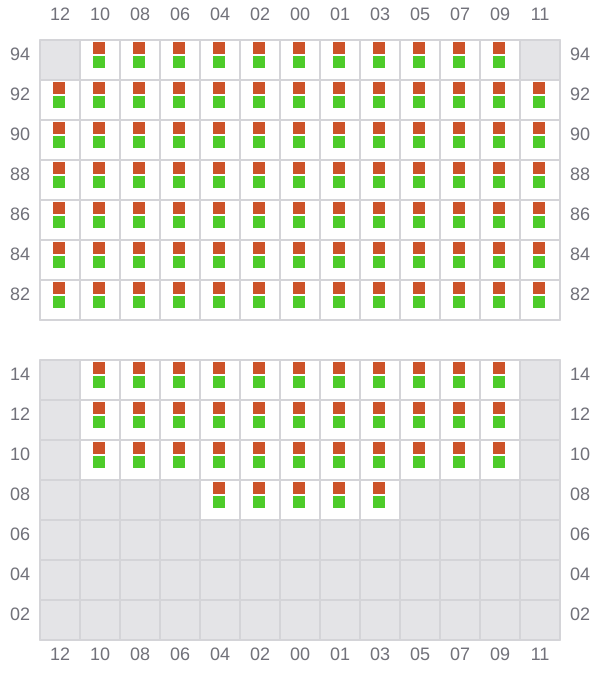

047 (048)

  • →
Bay 047 view and slots of EXPRESS ARGENTINA

049

  • ←

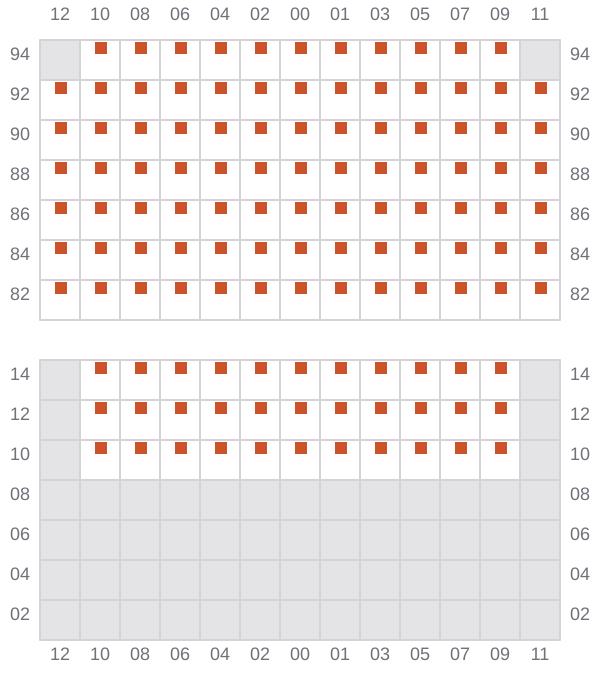

Bay 049 view and slots of EXPRESS ARGENTINA

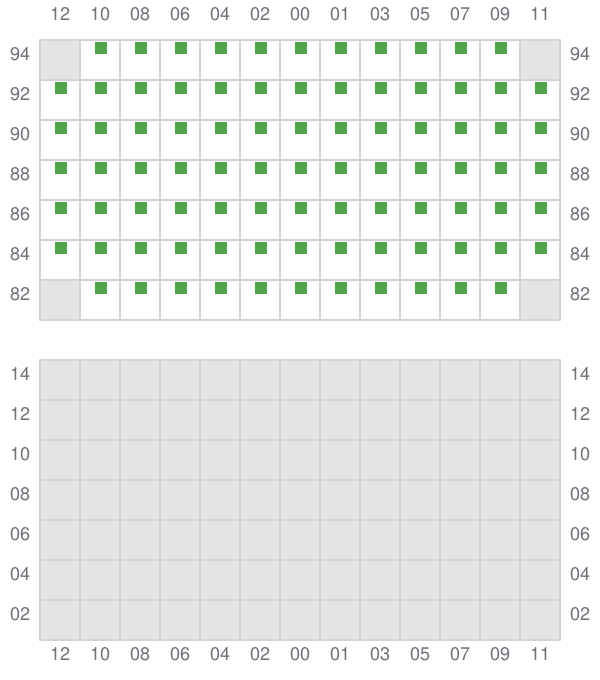

051 (052)

  • → / ?
Bay 051 view and slots of EXPRESS ARGENTINA
