EXPRESS SPAIN
9443047 | 9HA2546 | 9443047 by ********* Last update: Wed Jun 12 2024
General Info
Ship Name:EXPRESS SPAIN
IMO Code:9443047
Call Sign:9HA2546
Line Operator:9443047
Class Name for Sister Ships:MAE
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):212.00
LOA (Length Overall):222.55
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,494
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

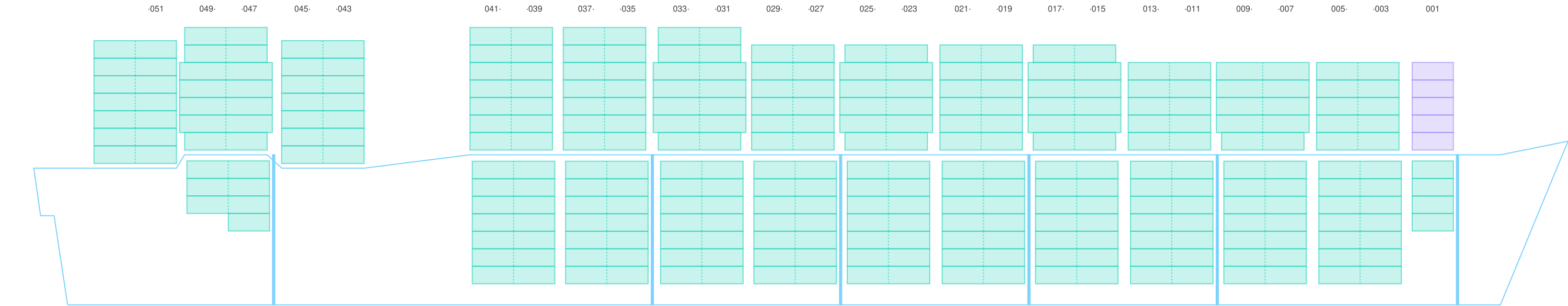

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

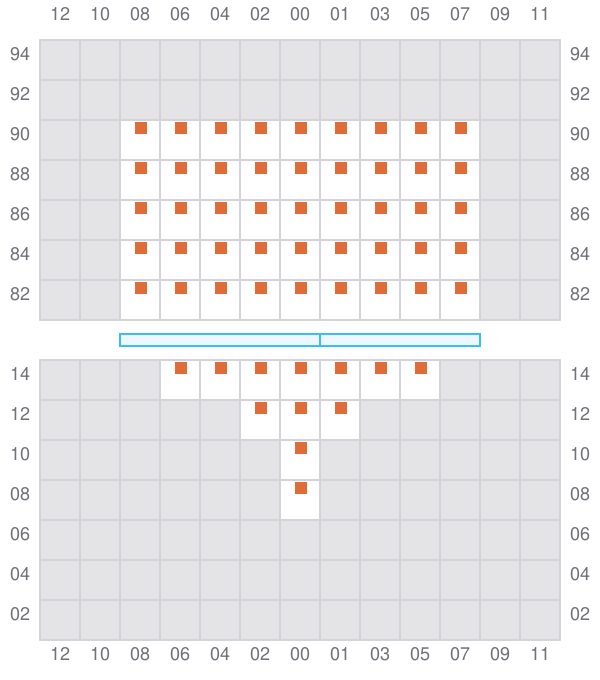

001
- ? / →
- → / ?

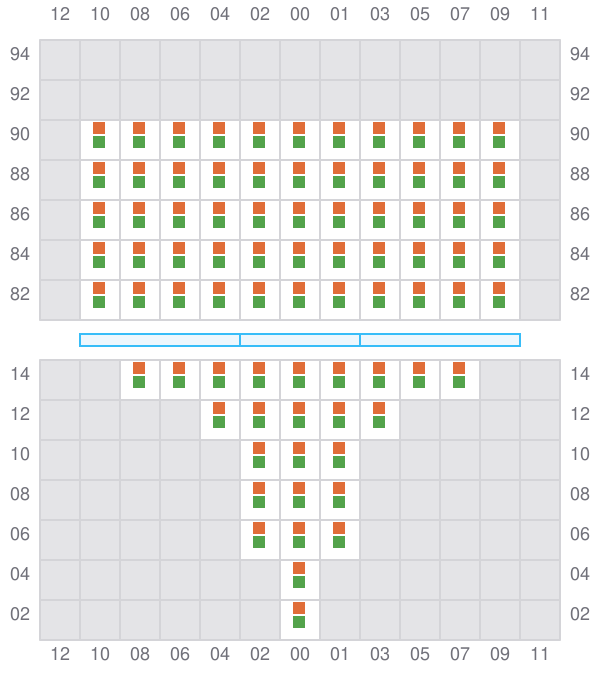

003 (004)
- →
- →

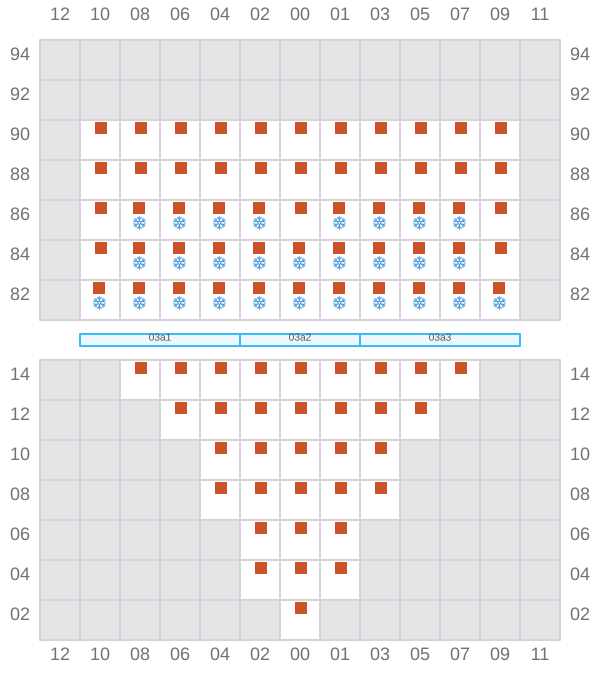

005
- ←
- →

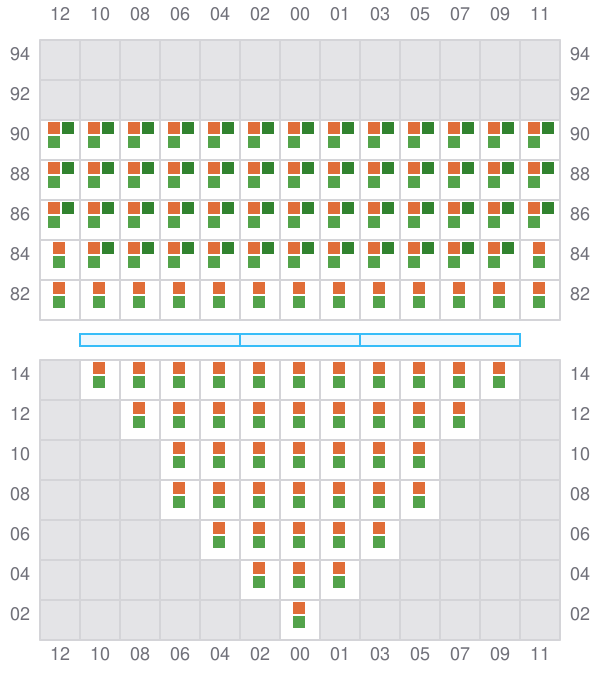

007 (008)
- →
- ? / →

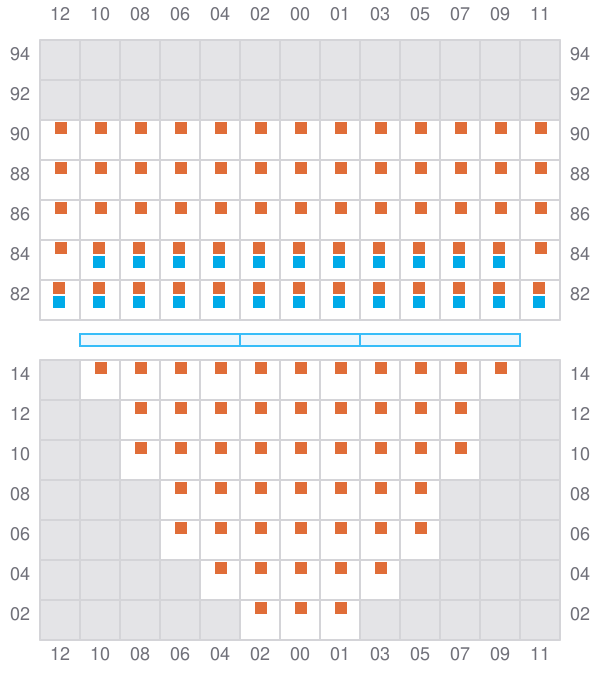

009
- ←
- →

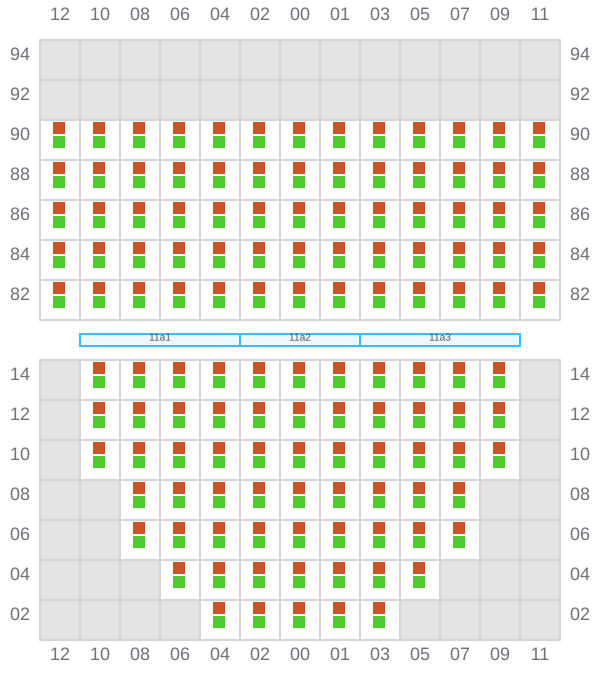

011 (012)
- →
- ? / →

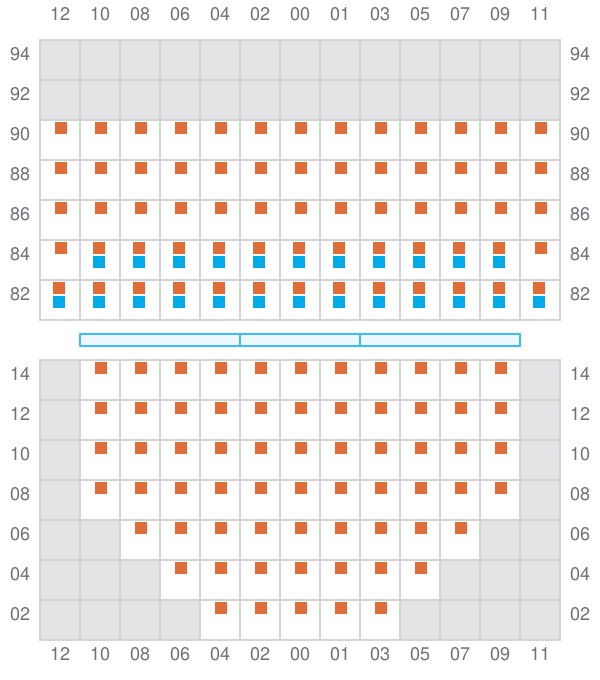

013
- ←
- →

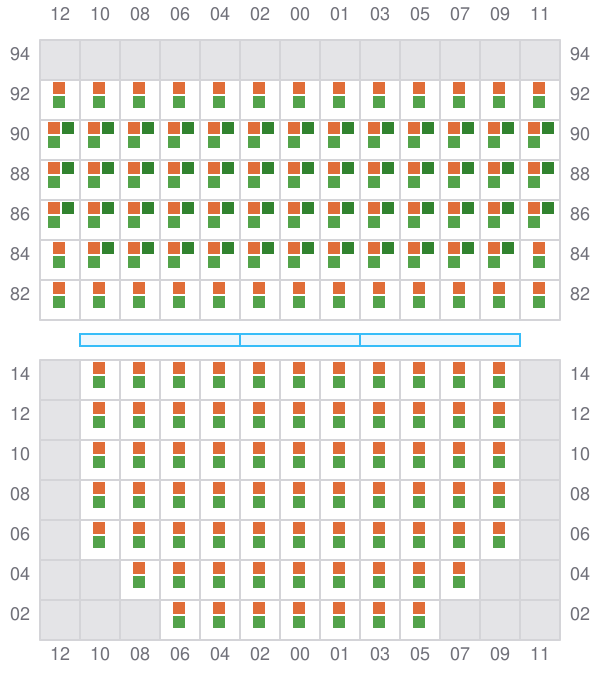

015 (016)
- →
- ? / →

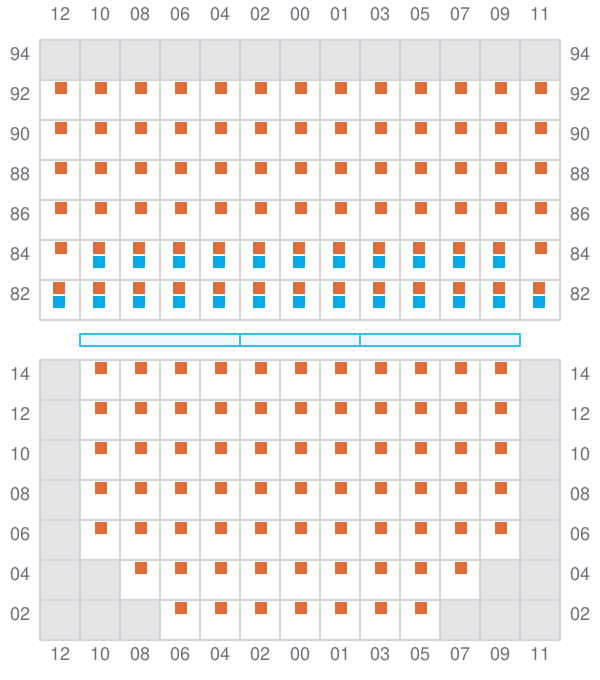

017
- ←
- →

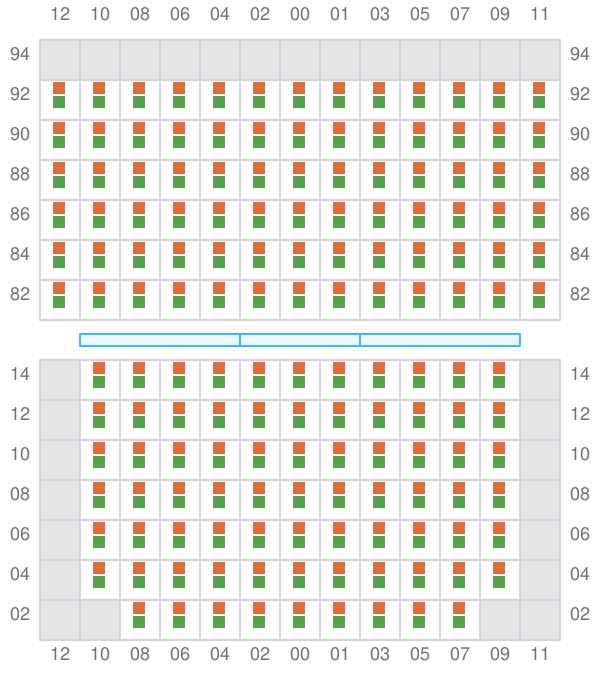

019 (020)
- →
- ? / →

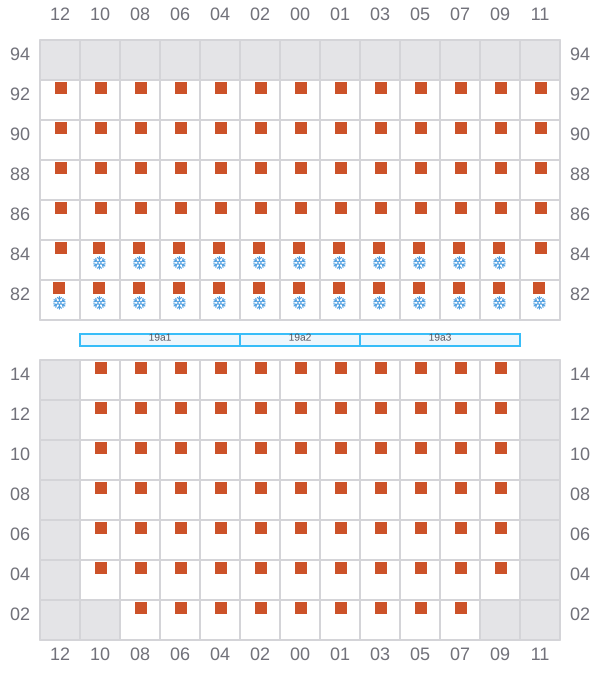

021
- ←
- →

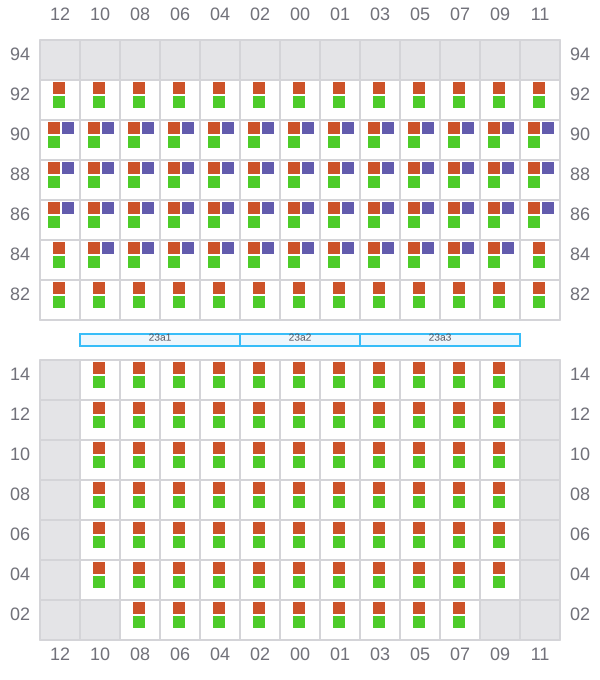

023 (024)
- →
- ? / →

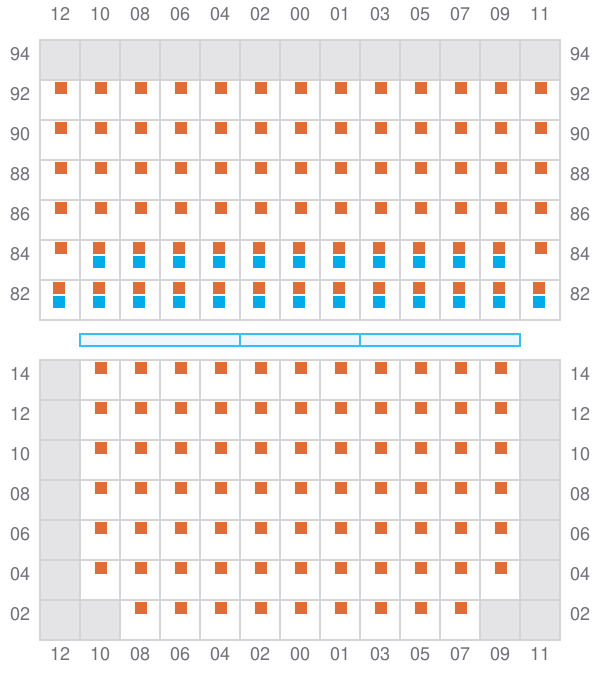

025
- ←
- →
027 (028)
- →
- ? / →

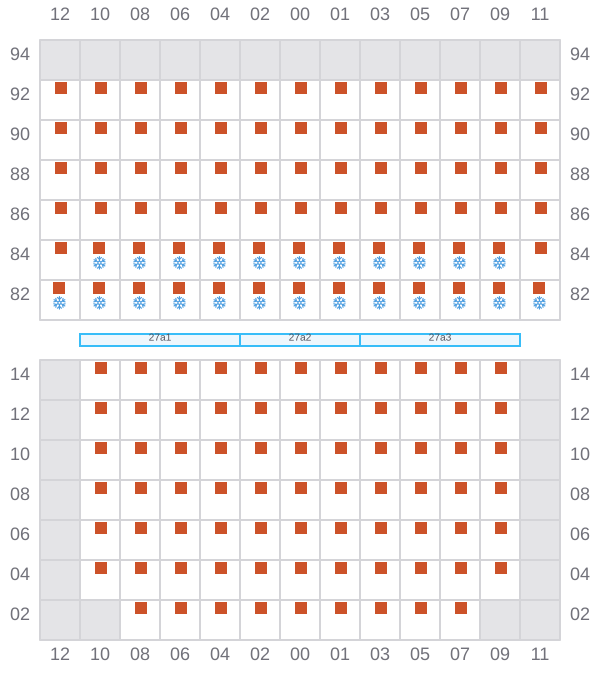

029
- ←
- →

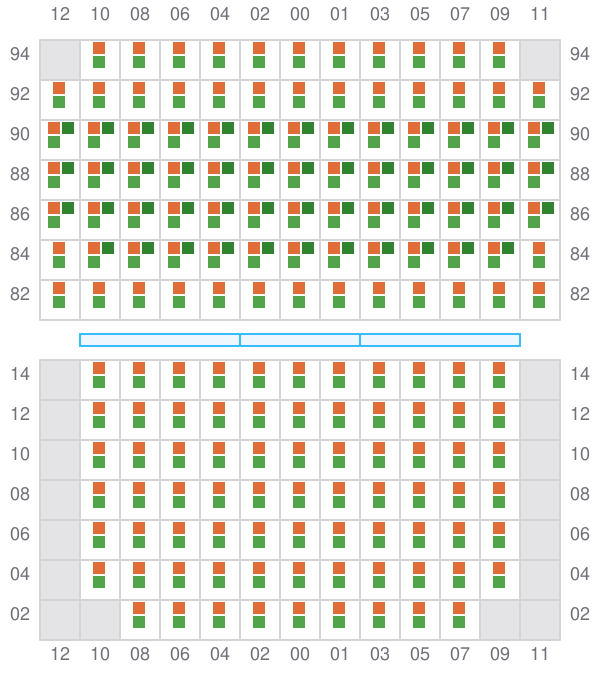

031 (032)
- →
- ? / →

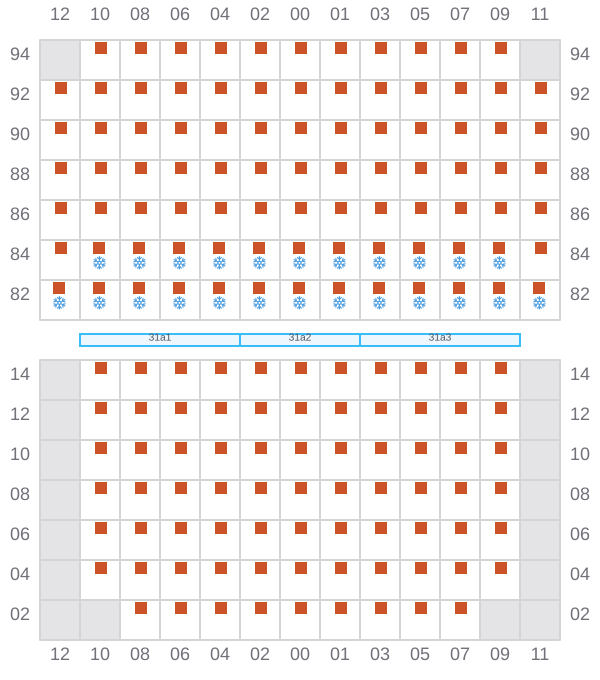

033
- ←
- →

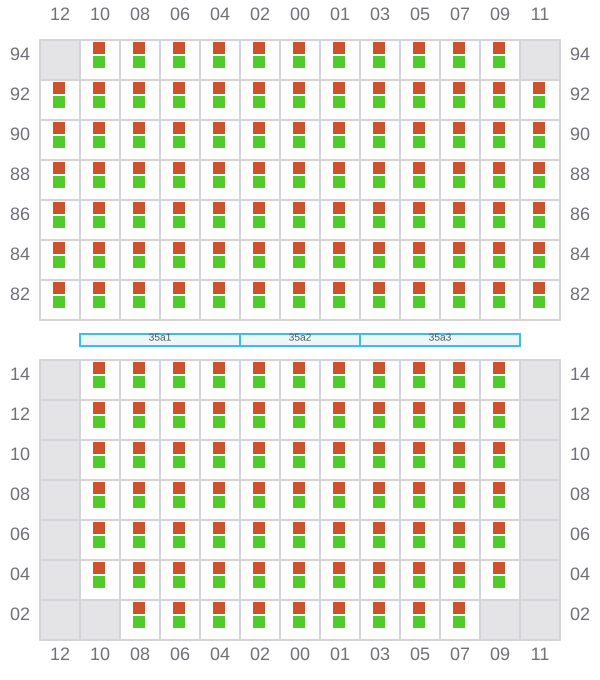

035 (036)
- →
- ? / →

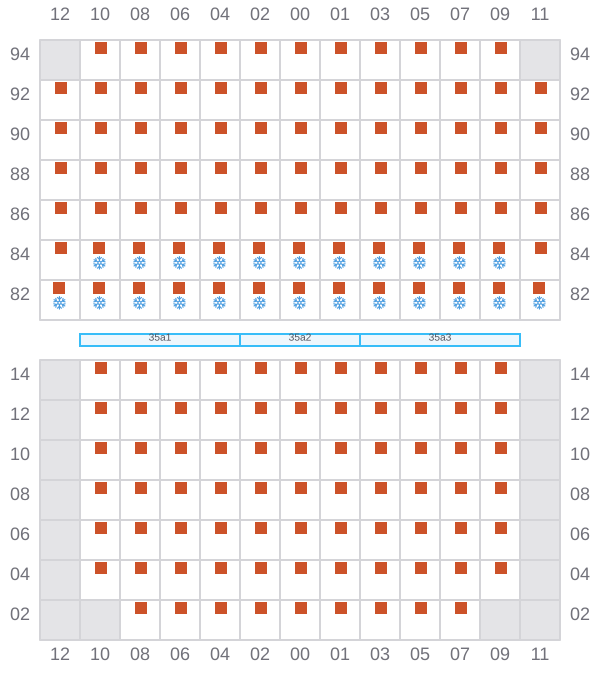

037
- ←
- →

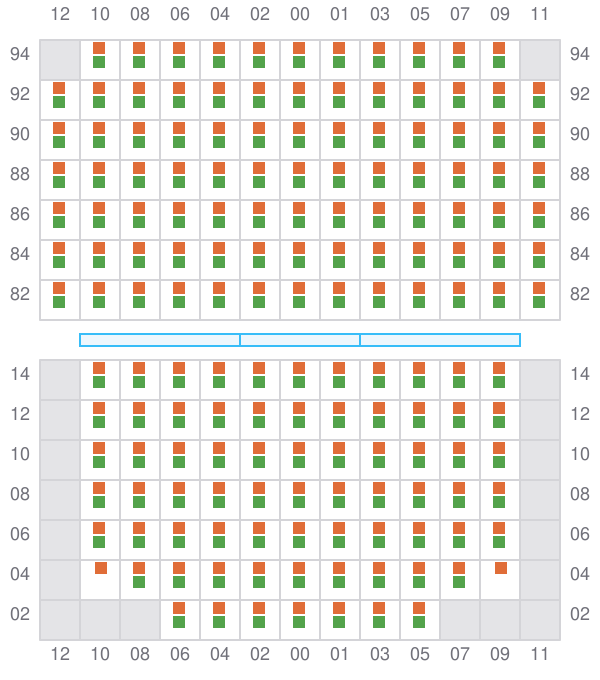

039 (040)
- →
- ? / →

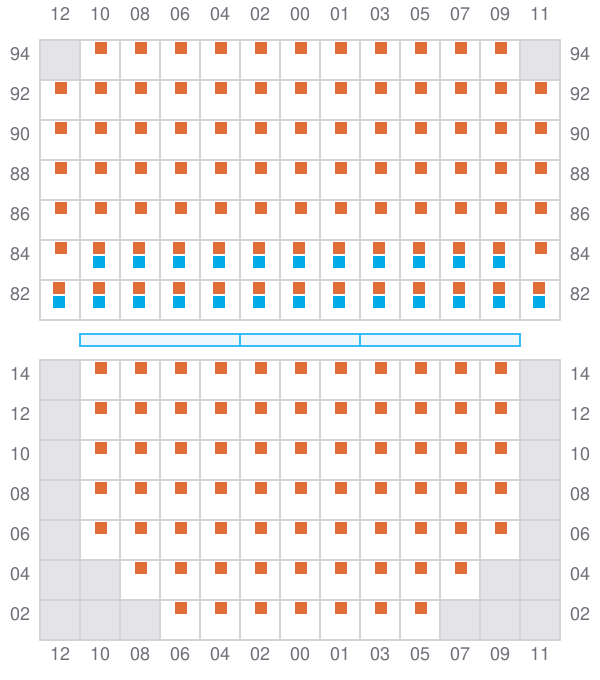

041
- ←
- →

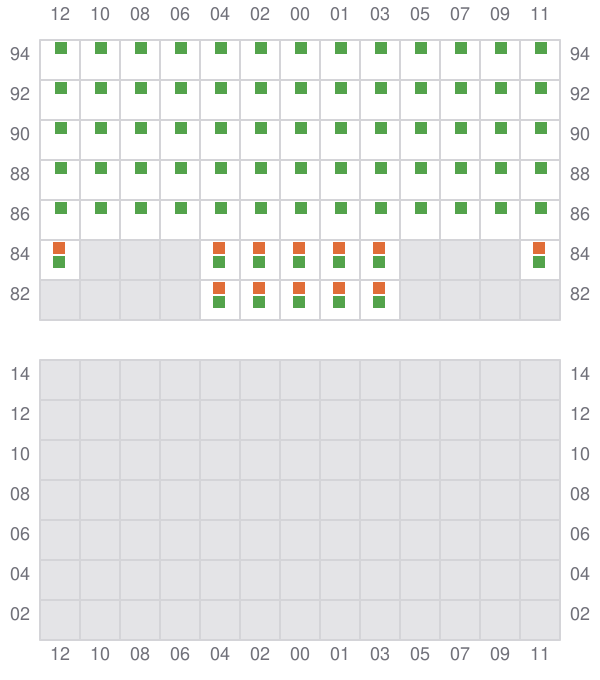

043 (044)
- → / ?

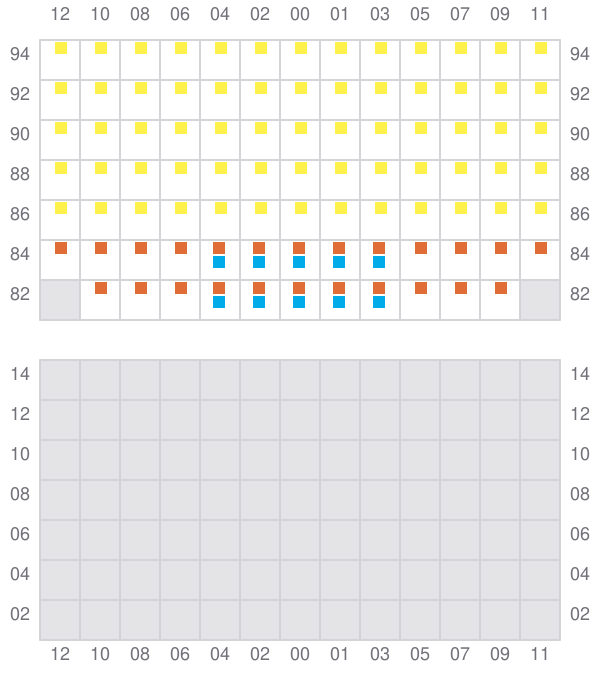

045
- ← / ?
- → / ?

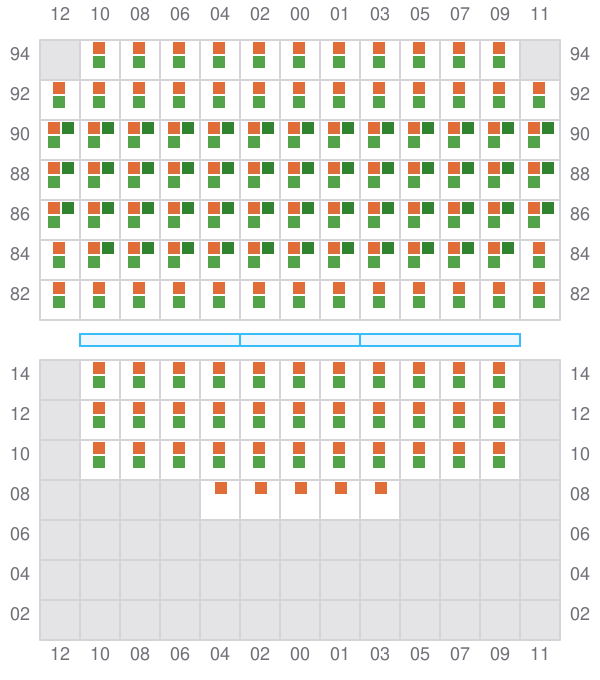

047 (048)
- →
- ? / →
049
- ←
- →

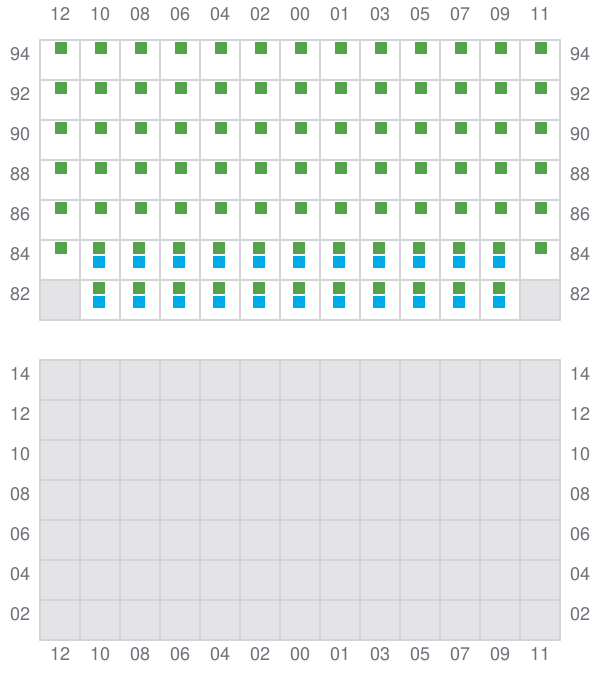

051 (052)
- → / ?
- ← / ?
