FAN YA NING DE
9302554 | BOAC | MSC by ************************** Last update: Fri Jun 16 2023
General Info
Ship Name:FAN YA NING DE
IMO Code:9302554
Call Sign:BOAC
Line Operator:MSC
Class Name for Sister Ships:CLE
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,084
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

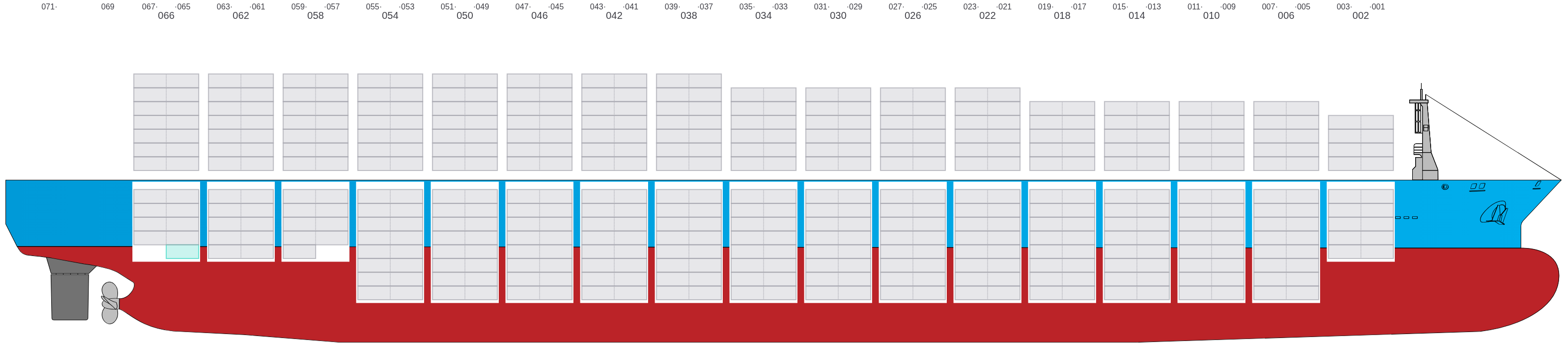

Side View
![Side view of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-sideView.png?v=1686942125542)

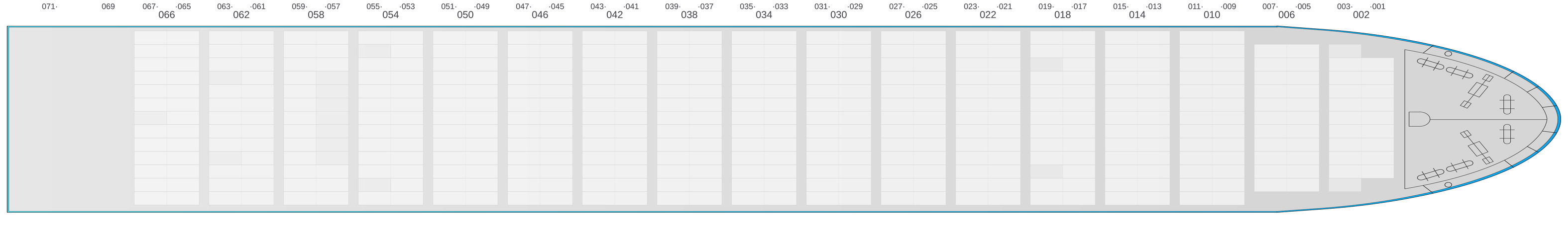

Hatch-Covers View
![Deck view of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-deckView.png?v=1686942125542)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

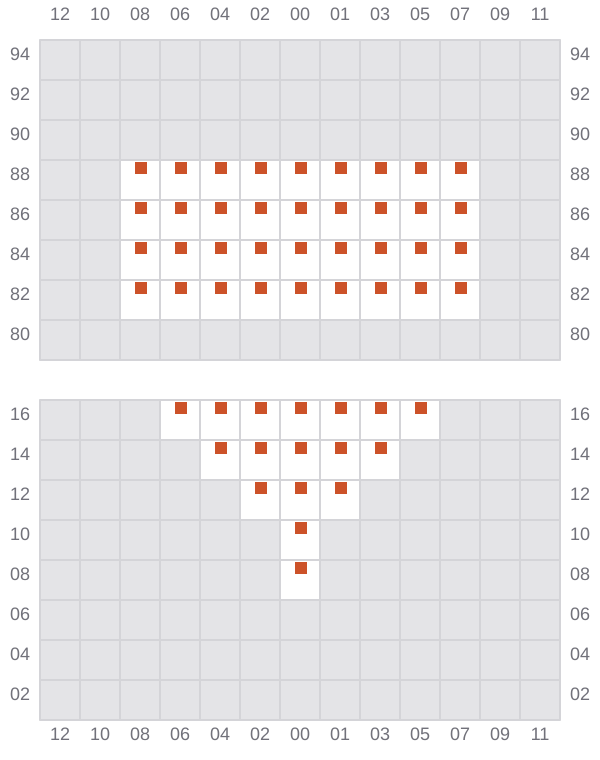

001
- →
![Bay 001 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b001.png?v=1686942125542)

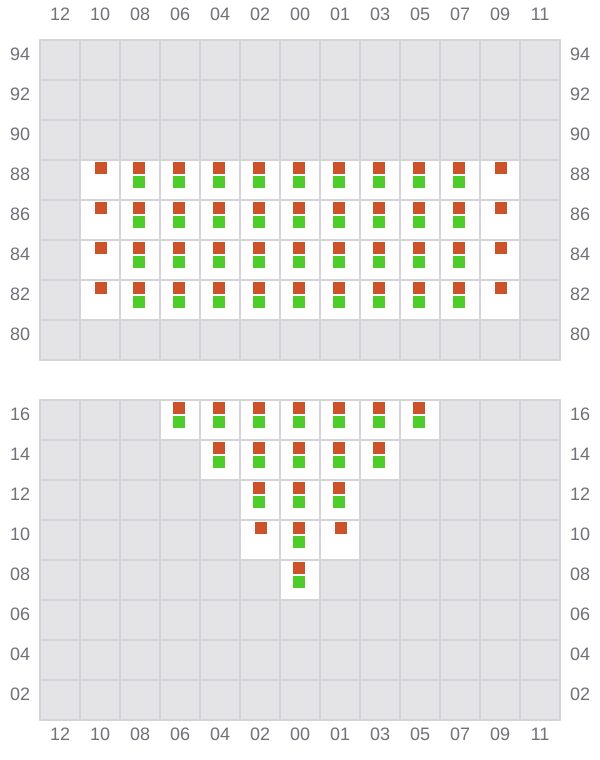

003 (002)
- ←
![Bay 003 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b003.png?v=1686942125542)

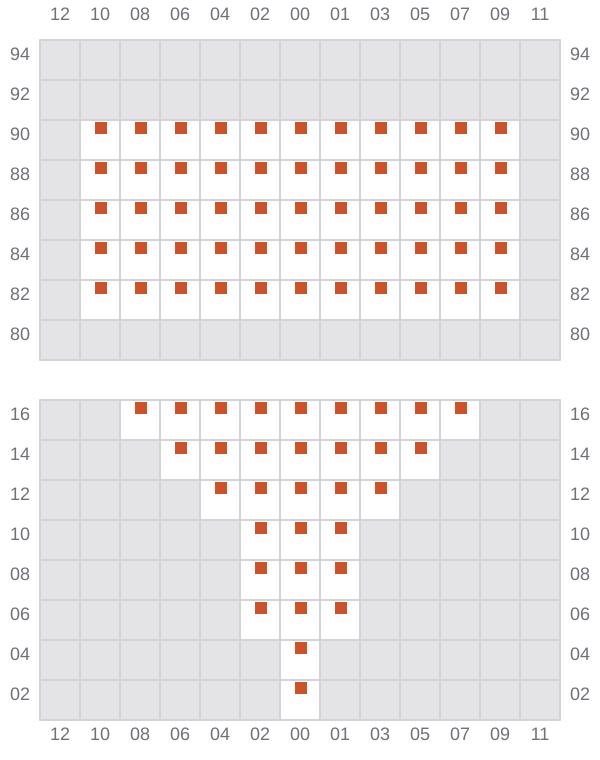

005
- →
![Bay 005 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b005.png?v=1686942125542)
007 (006)
- ←
![Bay 007 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b007.png?v=1686942125542)

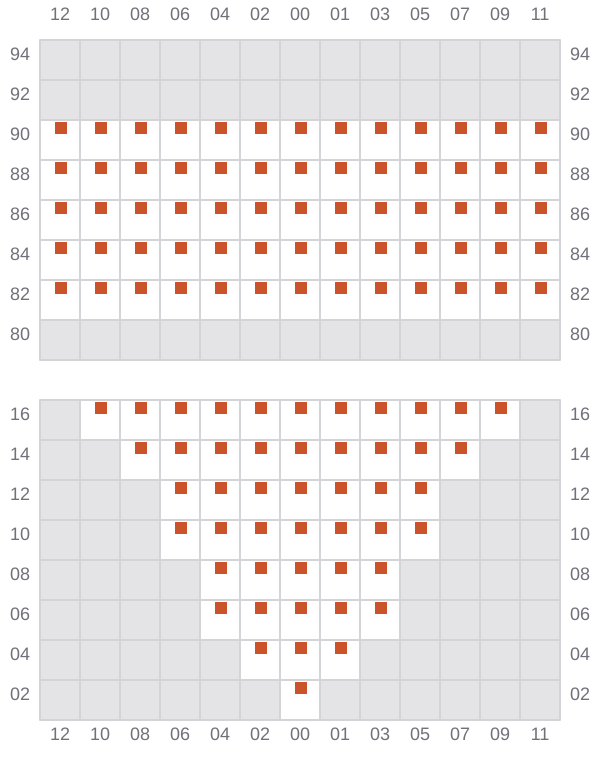

009
- →
![Bay 009 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b009.png?v=1686942125542)

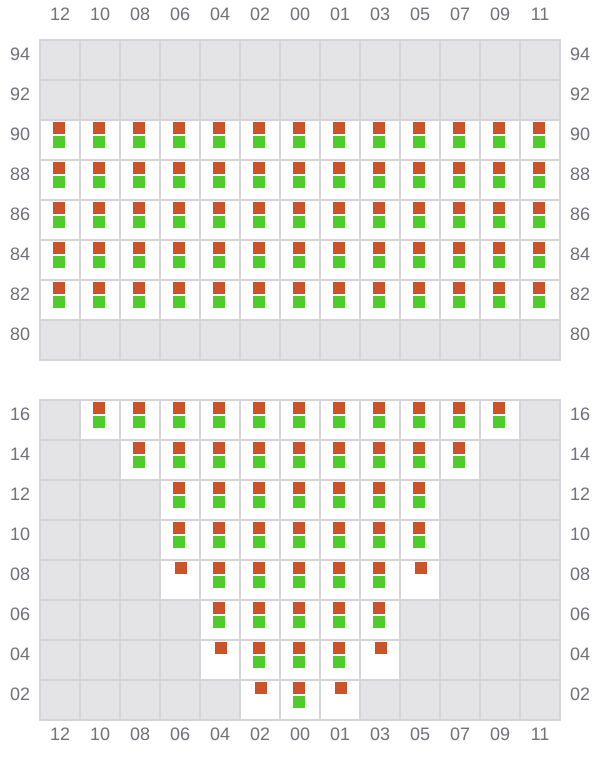

011 (010)
- ←
![Bay 011 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b011.png?v=1686942125542)

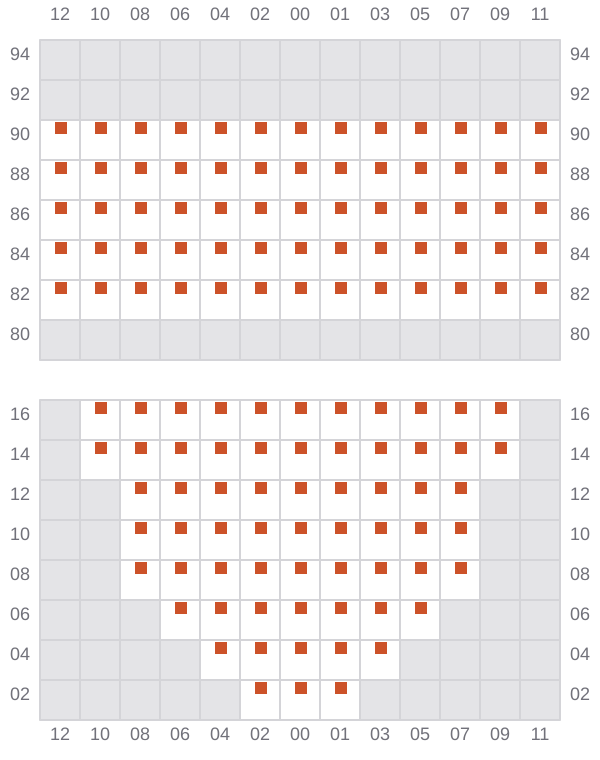

013
- →
![Bay 013 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b013.png?v=1686942125542)

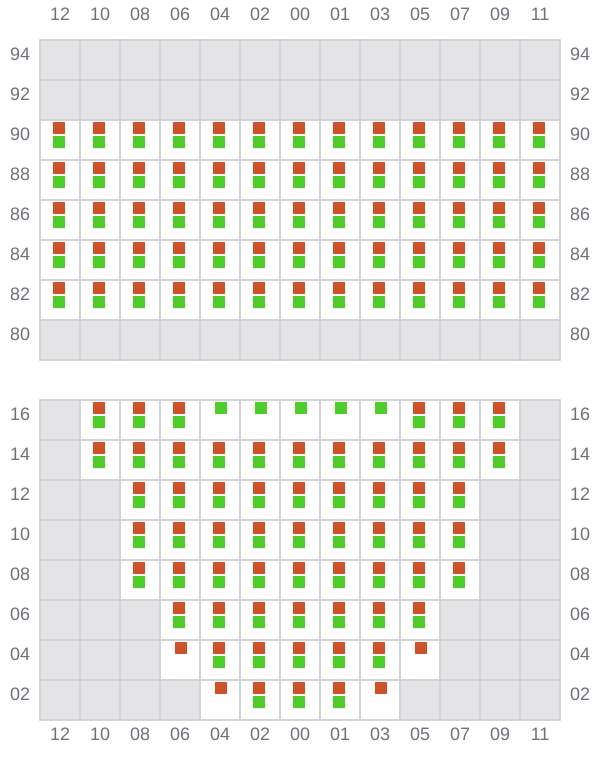

015 (014)
- ←
![Bay 015 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b015.png?v=1686942125542)

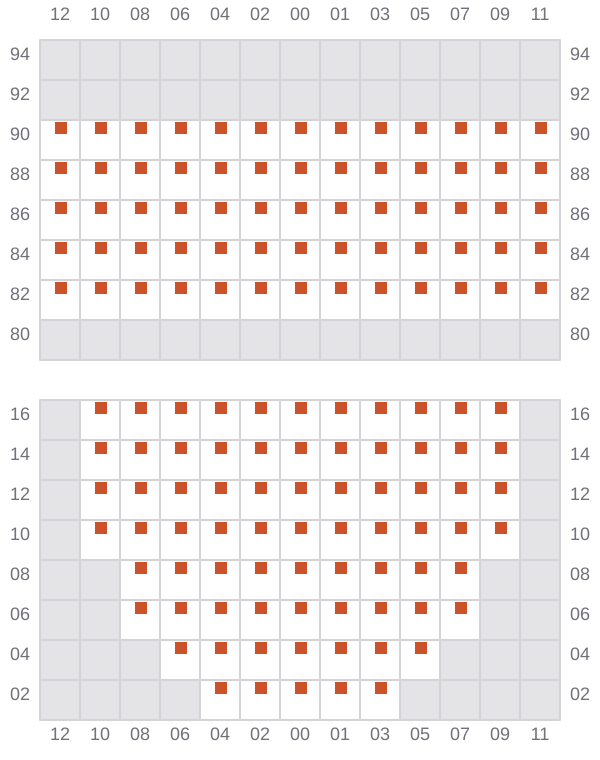

017
- →
![Bay 017 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b017.png?v=1686942125542)

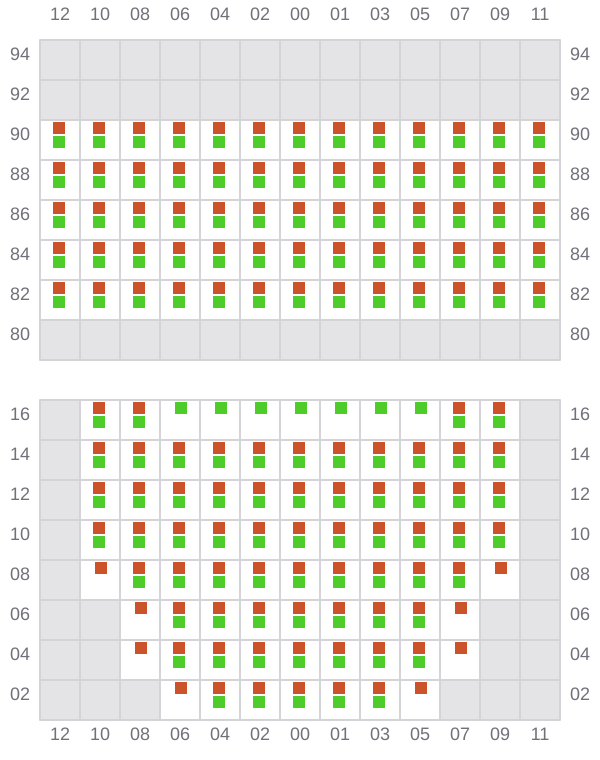

019 (018)
- ←
![Bay 019 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b019.png?v=1686942125542)

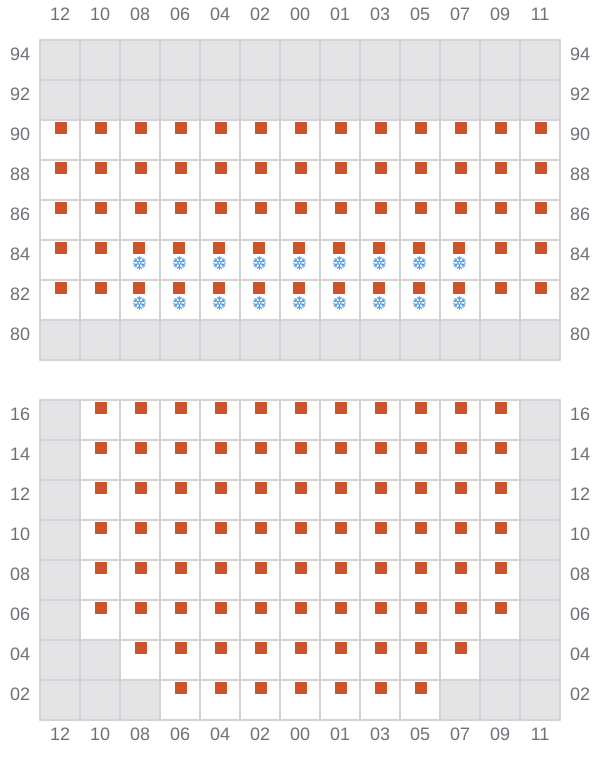

021
- →
![Bay 021 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b021.png?v=1686942125542)

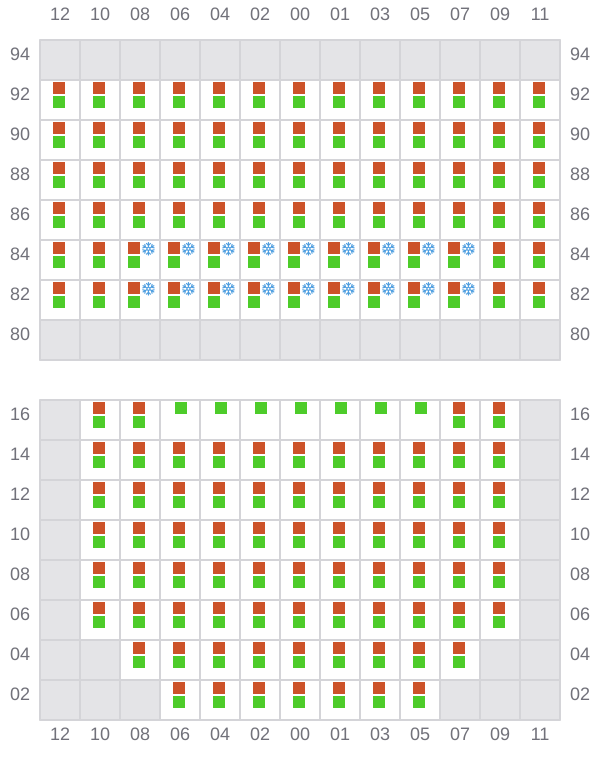

023 (022)
- ←
![Bay 023 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b023.png?v=1686942125542)

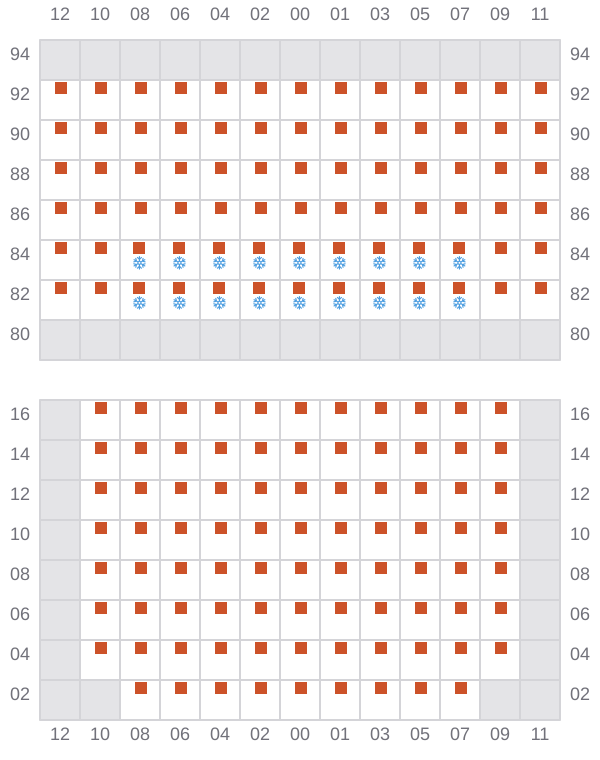

025
- →
![Bay 025 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b025.png?v=1686942125542)

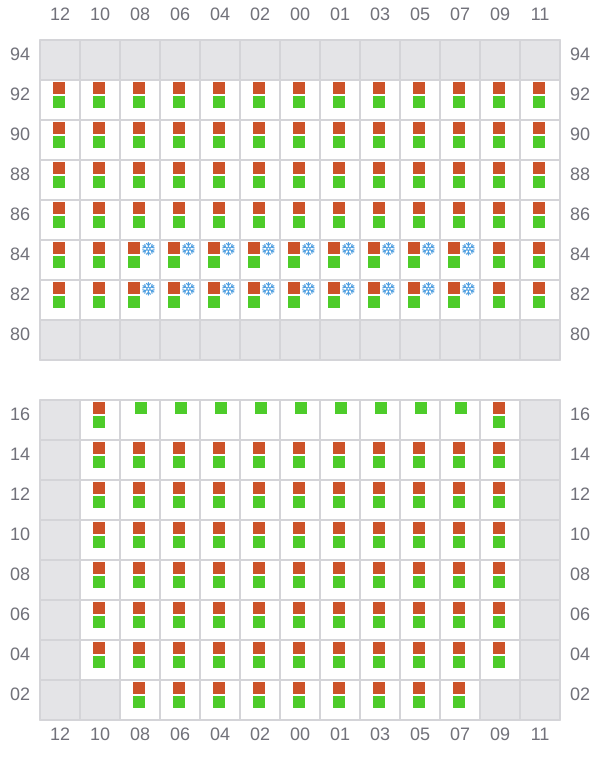

027 (026)
- ←
![Bay 027 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b027.png?v=1686942125542)
029
- →
![Bay 029 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b029.png?v=1686942125542)
031 (030)
- ←
![Bay 031 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b031.png?v=1686942125542)
033
- →
![Bay 033 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b033.png?v=1686942125542)
035 (034)
- ←
![Bay 035 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b035.png?v=1686942125542)
037
- →
![Bay 037 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b037.png?v=1686942125542)

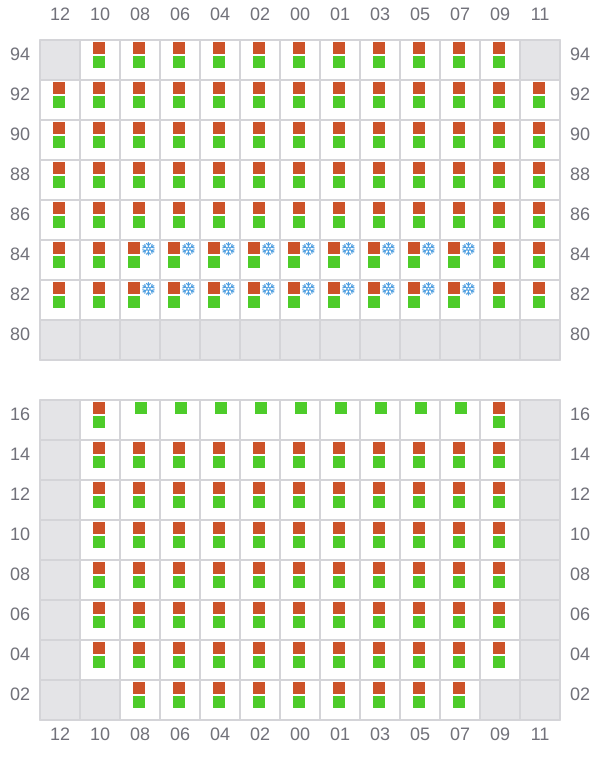

039 (038)
- ←
![Bay 039 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b039.png?v=1686942125542)
041
- →
![Bay 041 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b041.png?v=1686942125542)

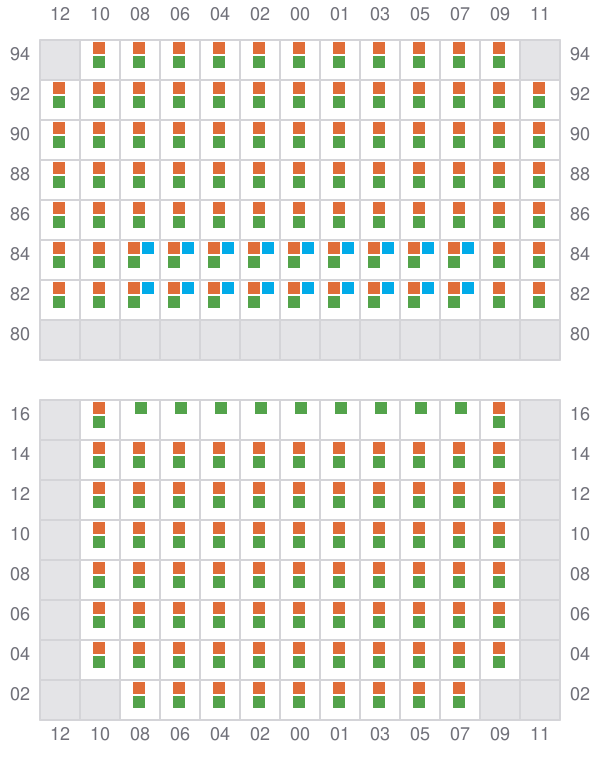

043 (042)
- ←
![Bay 043 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b043.png?v=1686942125542)

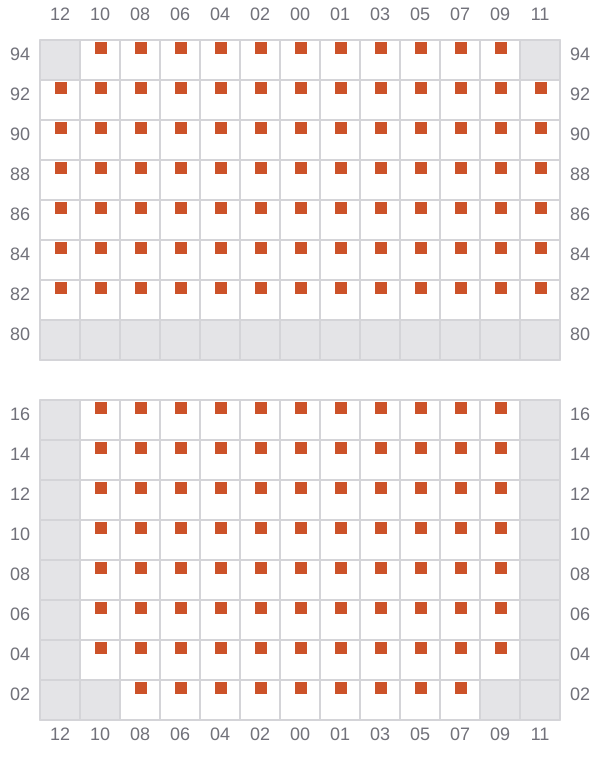

045
- →
![Bay 045 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b045.png?v=1686942125542)

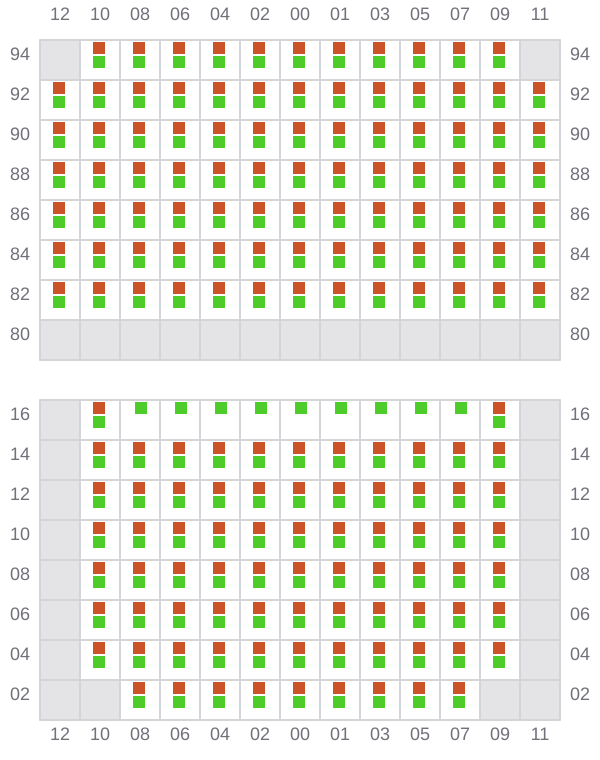

047 (046)
- ←
![Bay 047 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b047.png?v=1686942125542)
049
- →
![Bay 049 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b049.png?v=1686942125542)
051 (050)
- ←
![Bay 051 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b051.png?v=1686942125542)

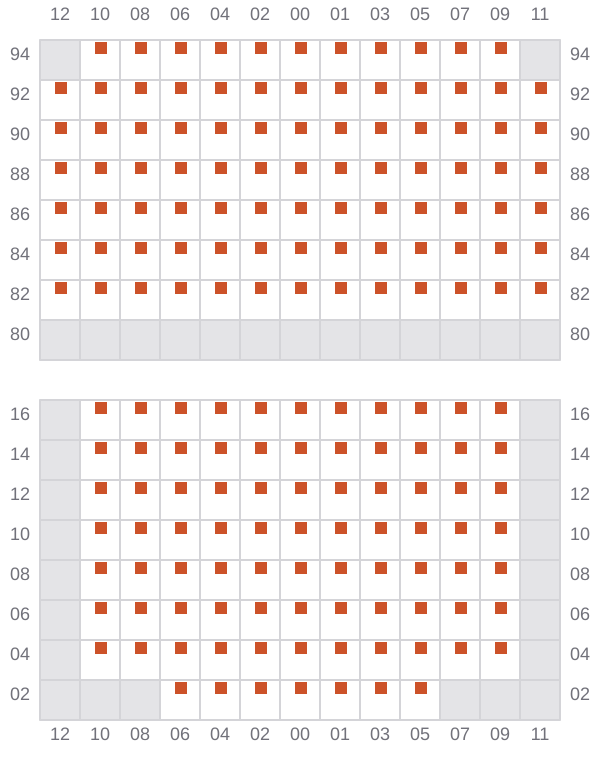

053
- →
![Bay 053 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b053.png?v=1686942125542)

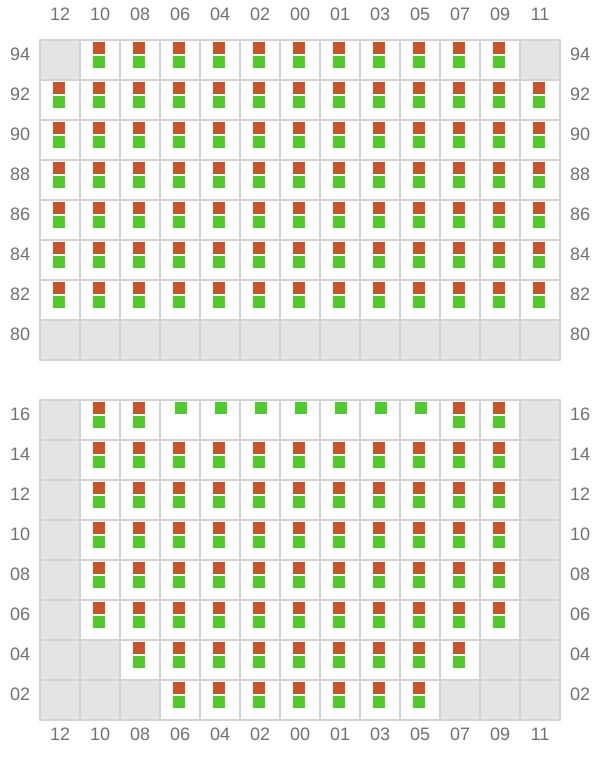

055 (054)
- ←
![Bay 055 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b055.png?v=1686942125542)

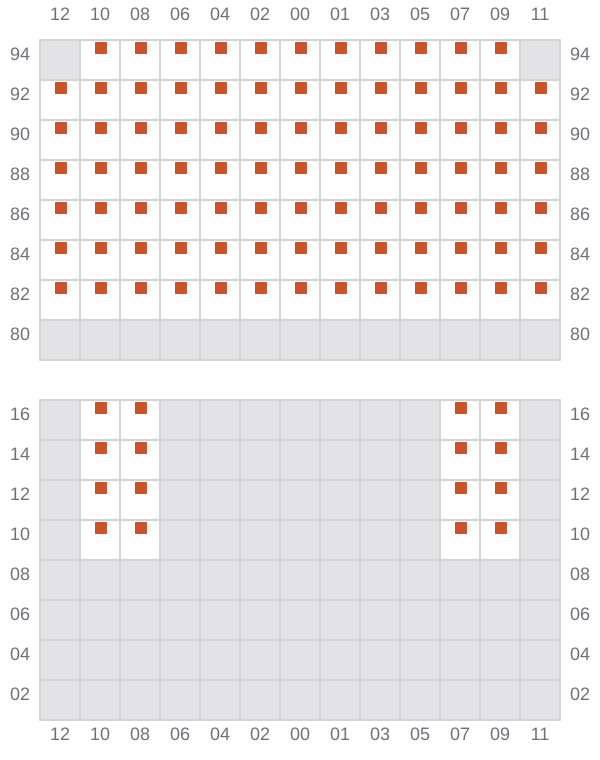

057
- →
![Bay 057 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b057.png?v=1686942125542)

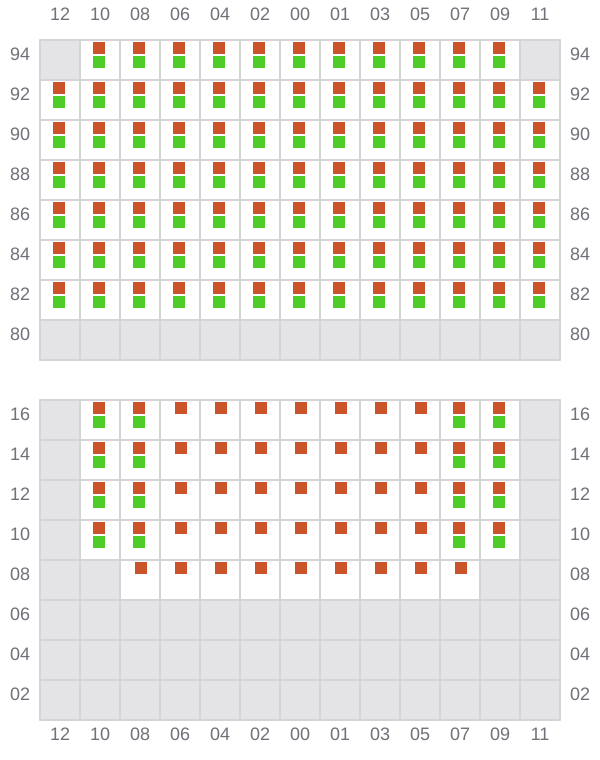

059 (058)
- ←
![Bay 059 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b059.png?v=1686942125542)

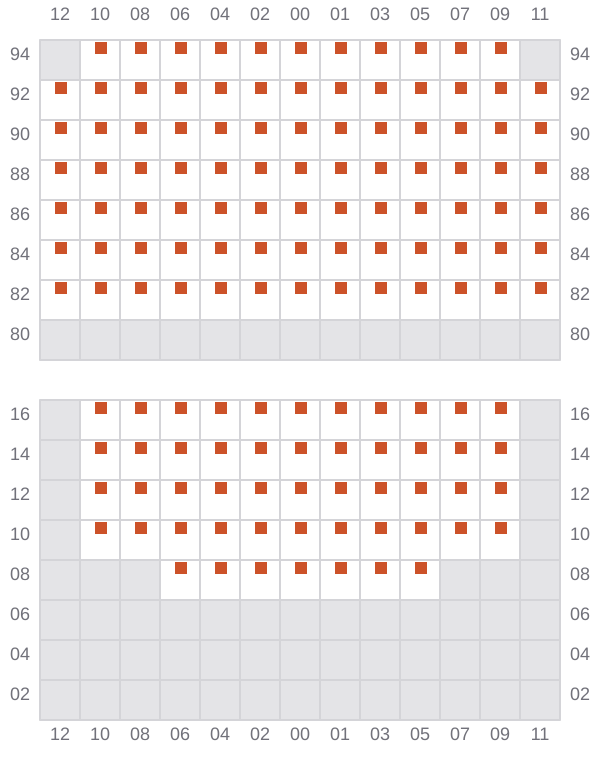

061
- →
![Bay 061 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b061.png?v=1686942125542)

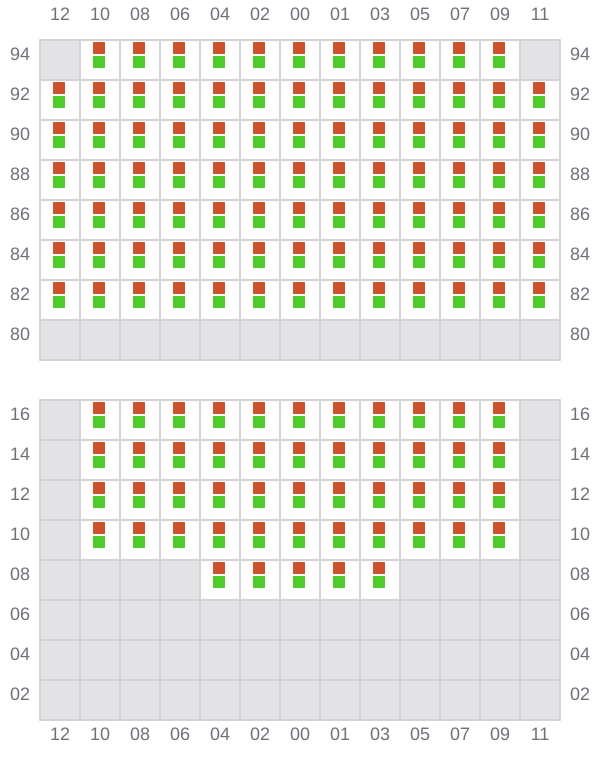

063 (062)
- ←
![Bay 063 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b063.png?v=1686942125542)

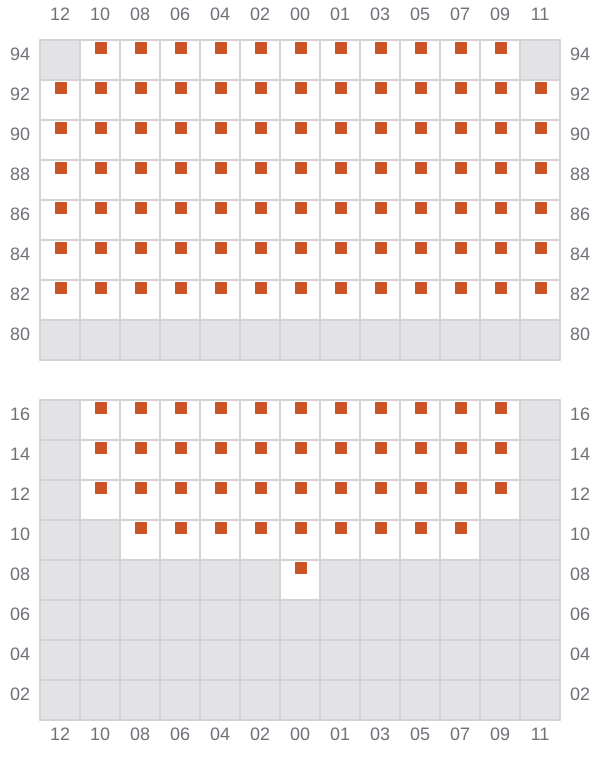

065
- →
![Bay 065 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b065.png?v=1686942125542)

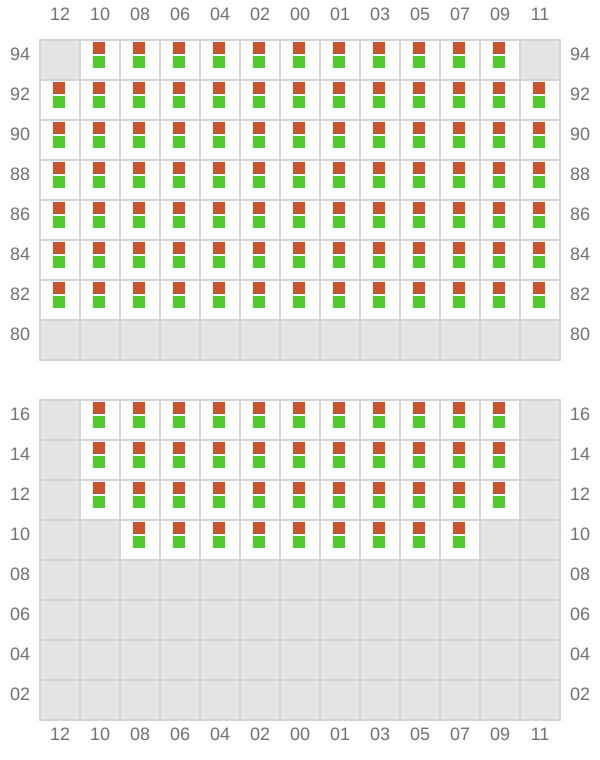

067 (066)
- ←
![Bay 067 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b067.png?v=1686942125542)
069
![Bay 069 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b069.png?v=1686942125542)

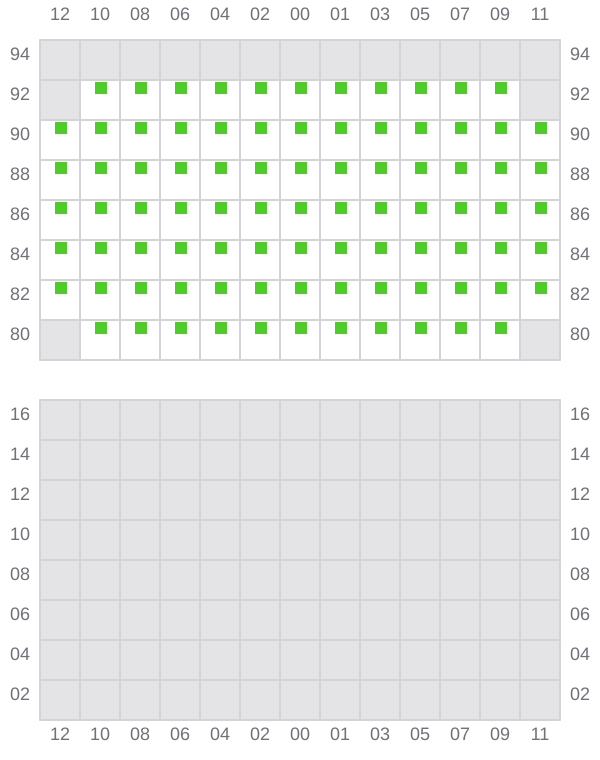

071 (070)
- ← / ?
![Bay 071 view and slots of FAN YA NING DE](/vessel-images/0465437c-f7a6-4f0e-915c-6f500831072d-b071.png?v=1686942125542)
