FAN YA NING DE
9302554 | BOAC | 9302554 by ********* Last update: Wed May 01 2024

General Info

Ship Name:FAN YA NING DE
IMO Code:9302554
Call Sign:BOAC
Line Operator:9302554
Class Name for Sister Ships:SCT CHILE
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,060

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

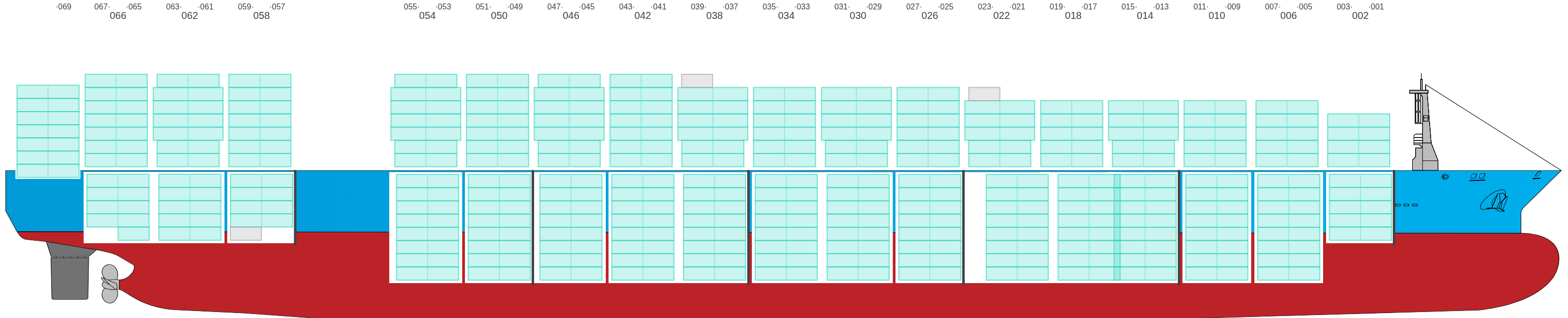

Side View

Side view of FAN YA NING DE

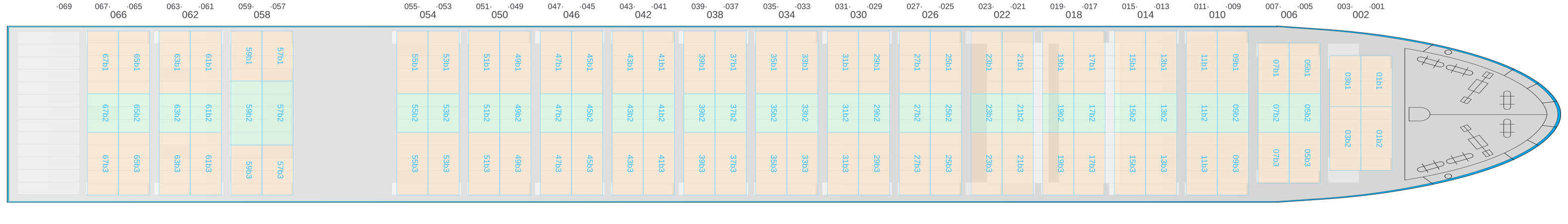

Hatch-Covers View

Deck view of FAN YA NING DE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

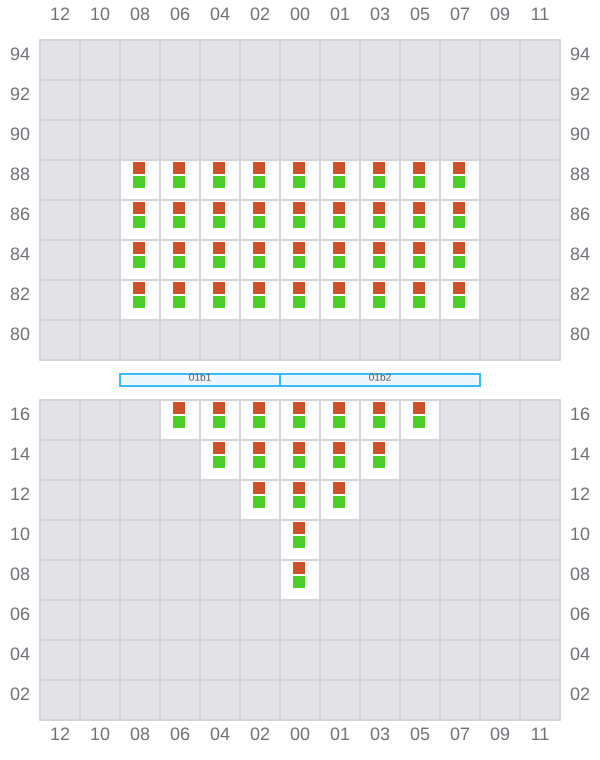

001 (002)

  • →
Bay 001 view and slots of FAN YA NING DE

003

  • ←
  • → / ?

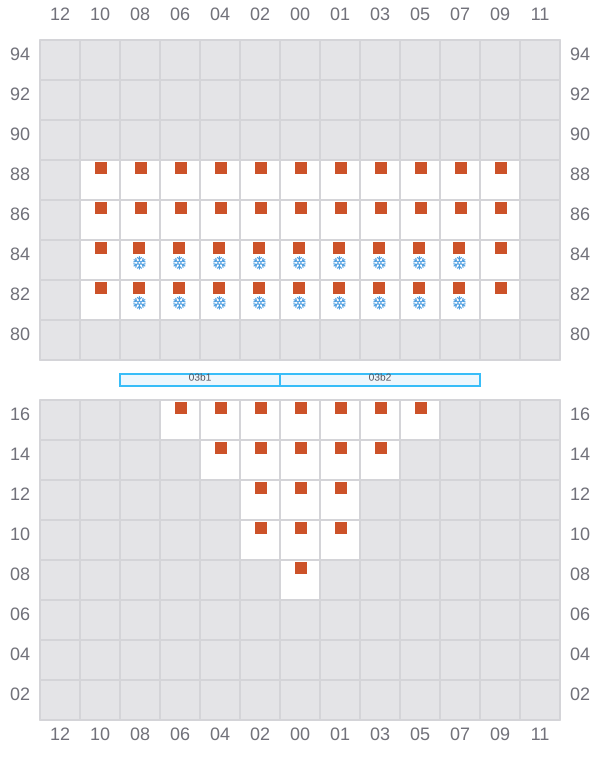

Bay 003 view and slots of FAN YA NING DE

005 (006)

  • →

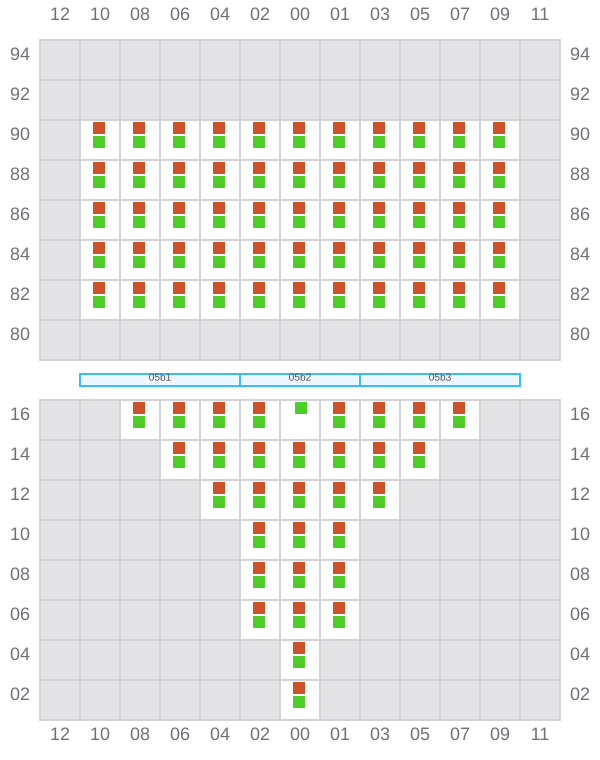

Bay 005 view and slots of FAN YA NING DE

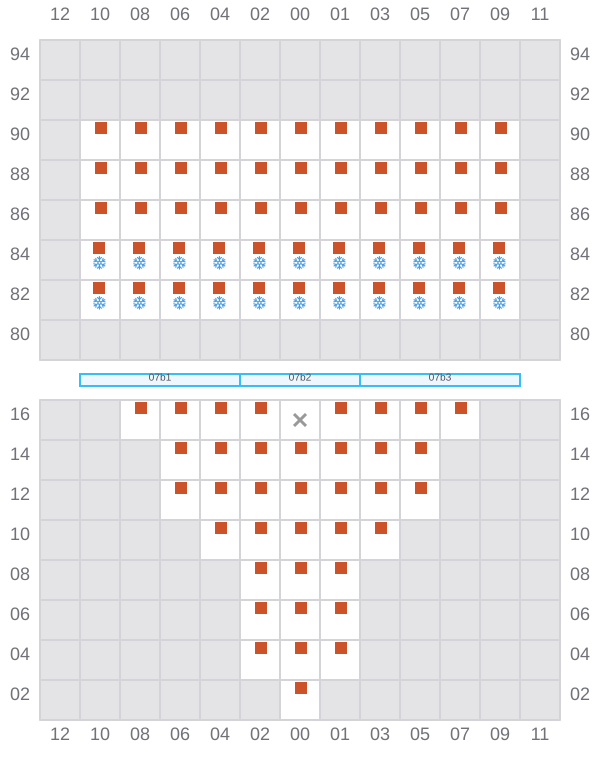

007

  • ←
  • → / ?
Bay 007 view and slots of FAN YA NING DE

009 (010)

  • →

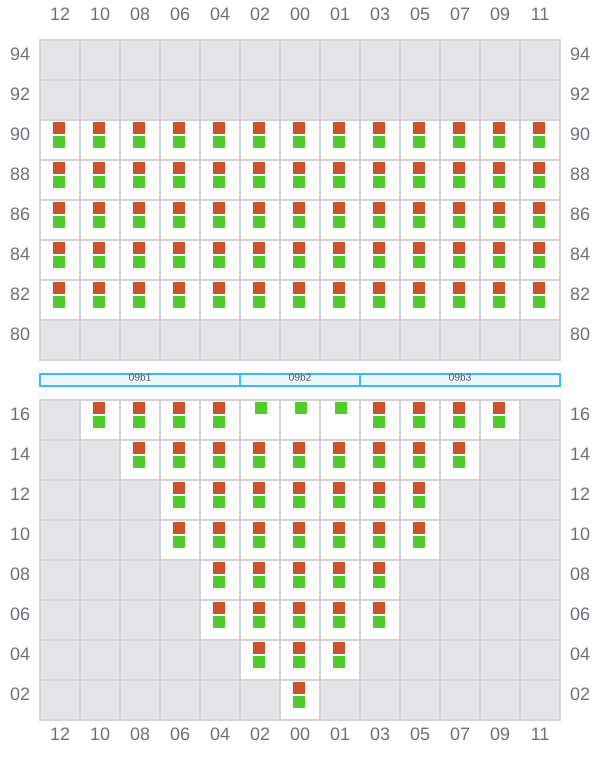

Bay 009 view and slots of FAN YA NING DE

011

  • ←
  • → / ?

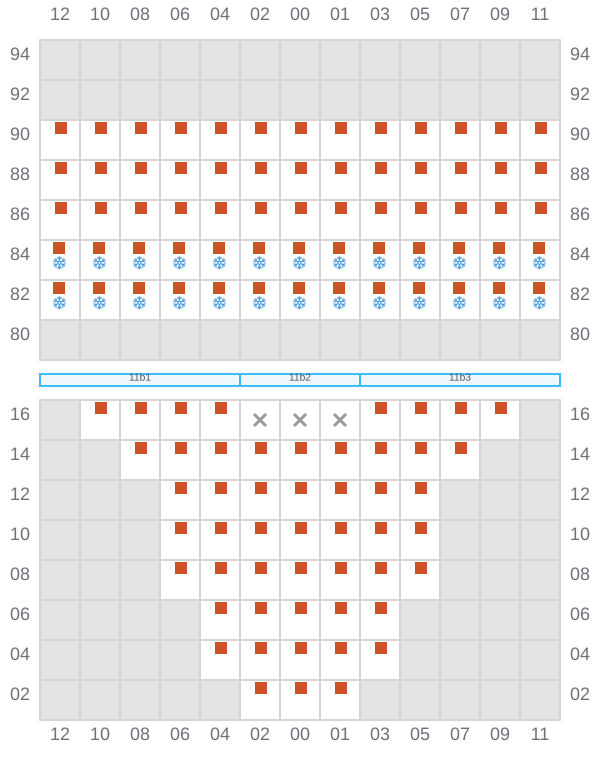

Bay 011 view and slots of FAN YA NING DE

013 (014)

  • →

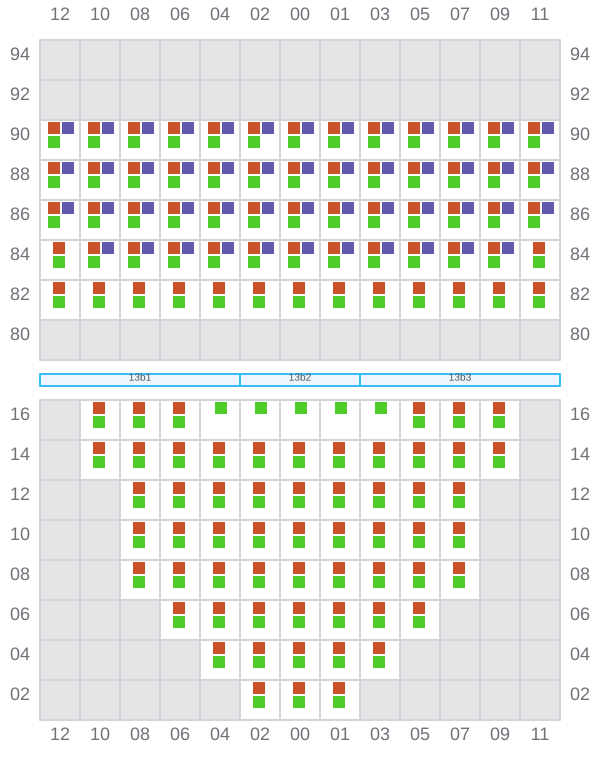

Bay 013 view and slots of FAN YA NING DE

015

  • ←
  • → / ?

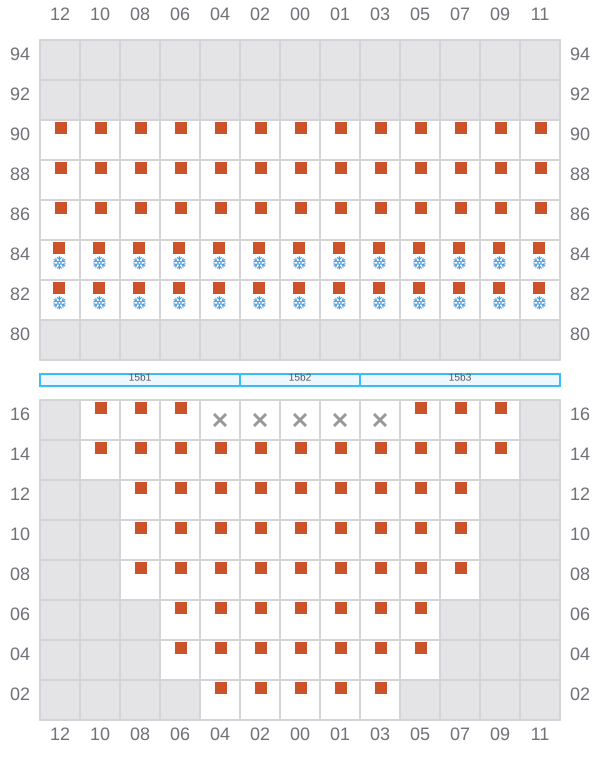

Bay 015 view and slots of FAN YA NING DE

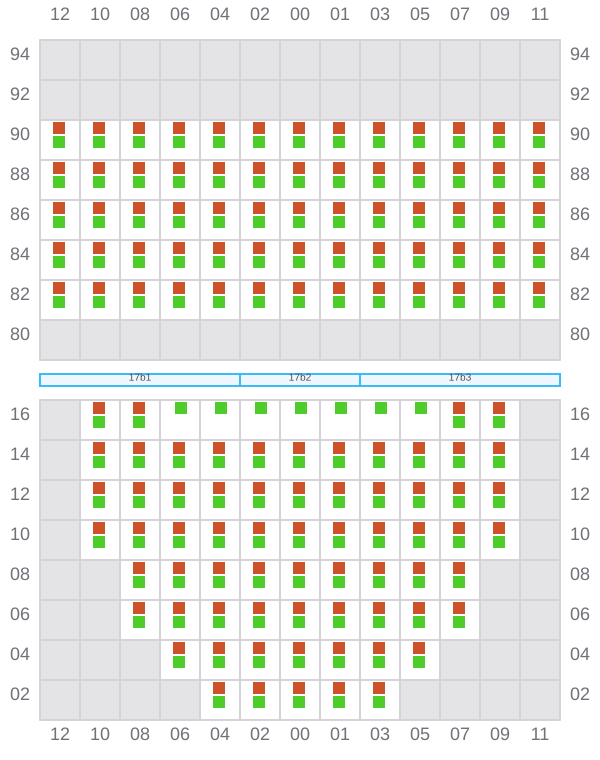

017 (018)

  • →
Bay 017 view and slots of FAN YA NING DE

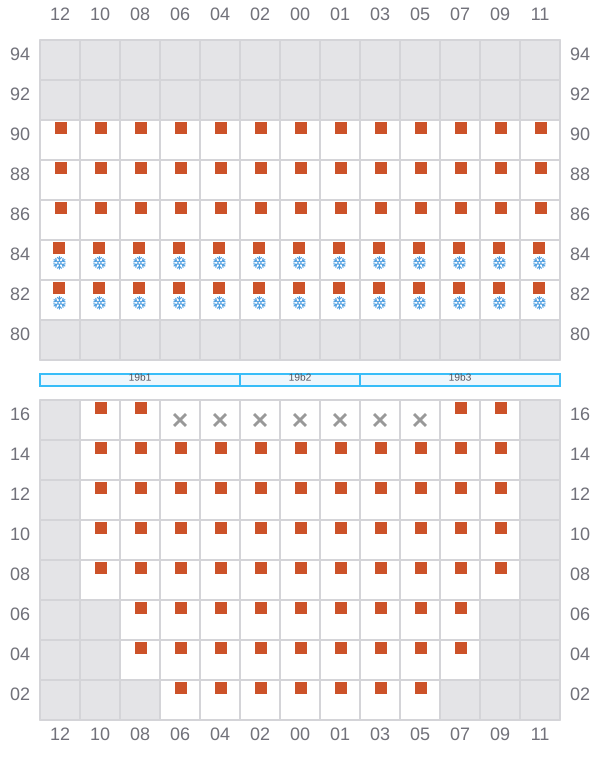

019

  • ←
  • → / ?
Bay 019 view and slots of FAN YA NING DE

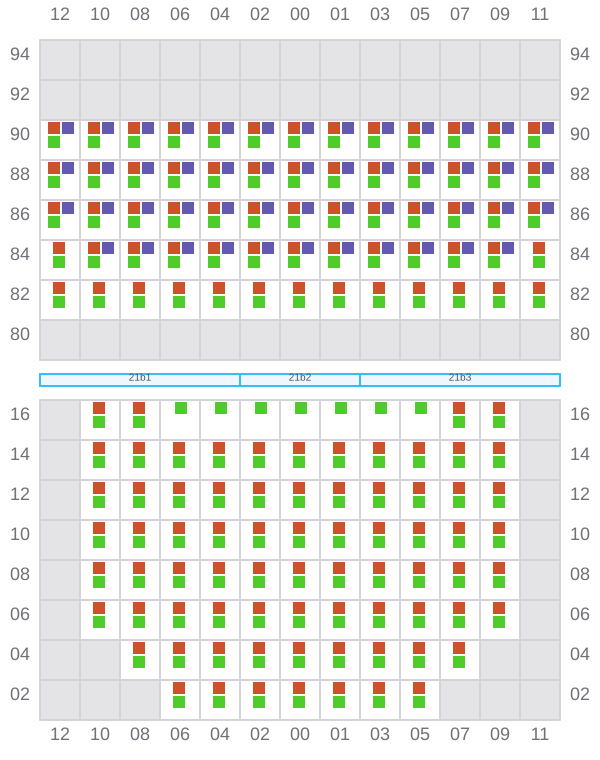

021 (022)

  • →
Bay 021 view and slots of FAN YA NING DE

023

  • ←
  • → / ?

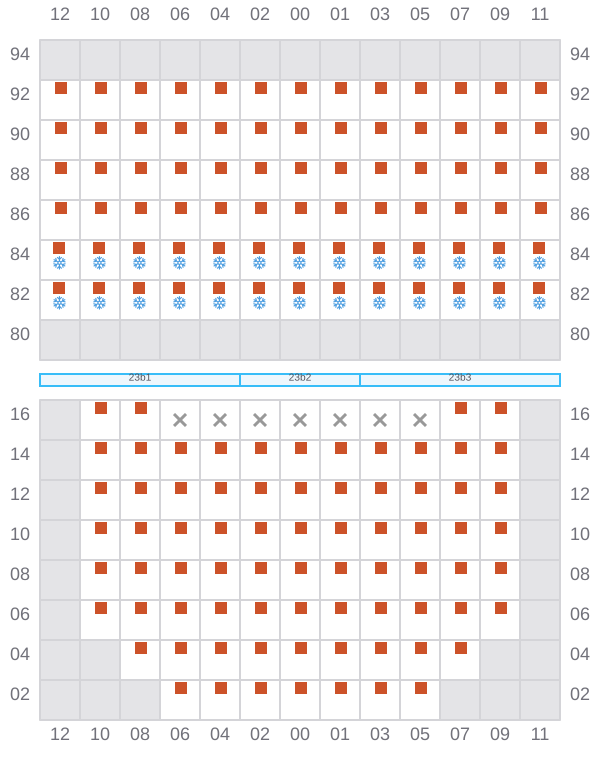

Bay 023 view and slots of FAN YA NING DE

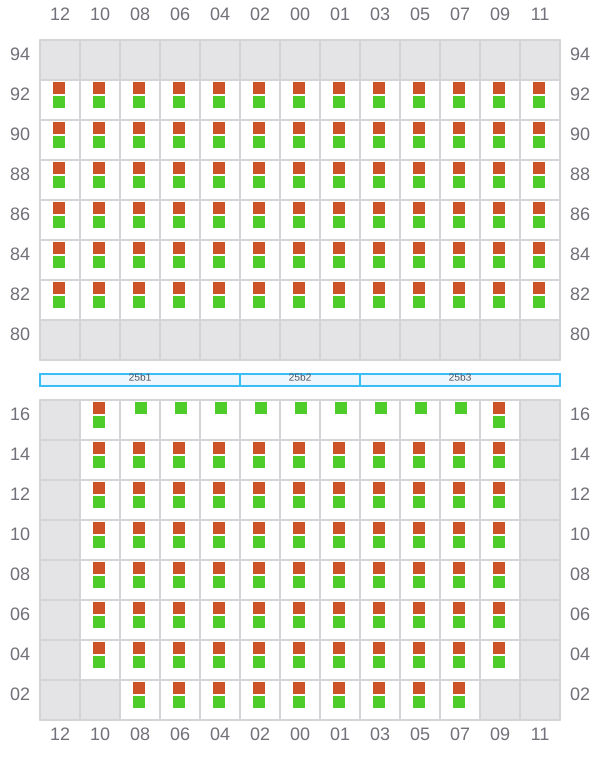

025 (026)

  • →
Bay 025 view and slots of FAN YA NING DE

027

  • ←
  • → / ?

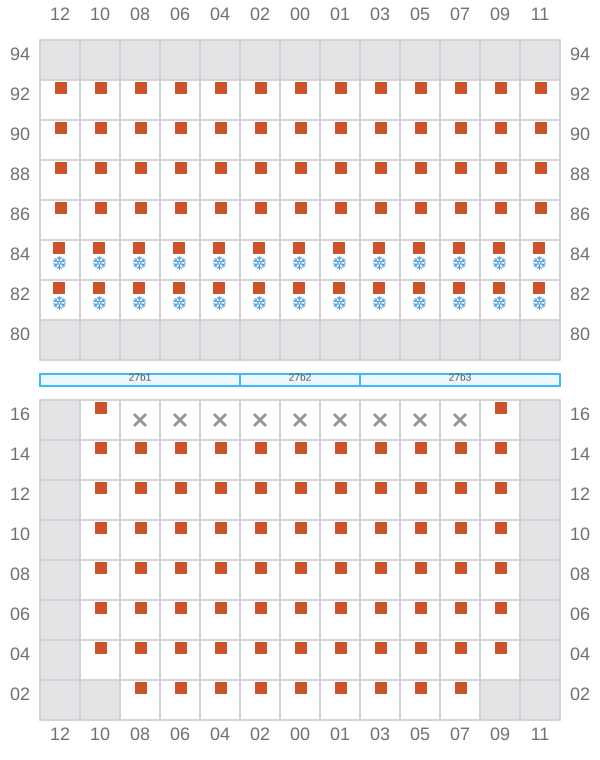

Bay 027 view and slots of FAN YA NING DE

029 (030)

  • →
Bay 029 view and slots of FAN YA NING DE

031

  • ←
  • → / ?

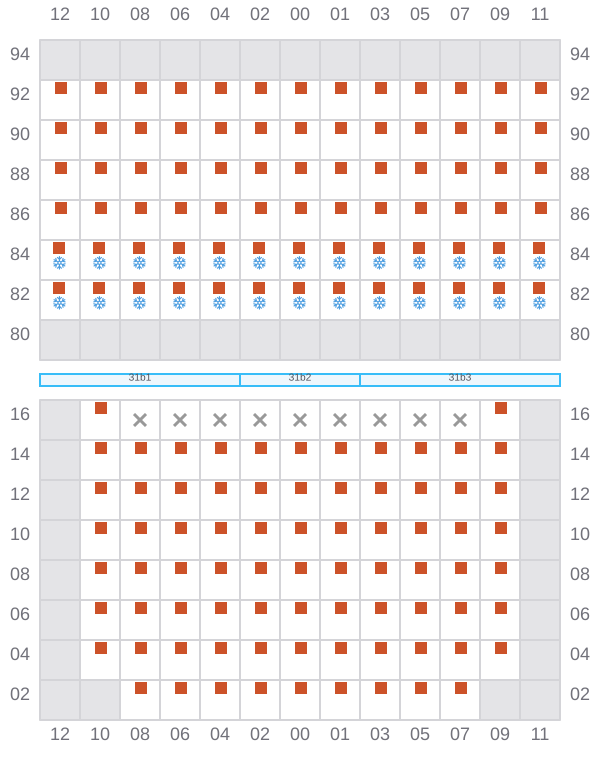

Bay 031 view and slots of FAN YA NING DE

033 (034)

  • →
Bay 033 view and slots of FAN YA NING DE

035

  • ←
  • → / ?
Bay 035 view and slots of FAN YA NING DE

037 (038)

  • →

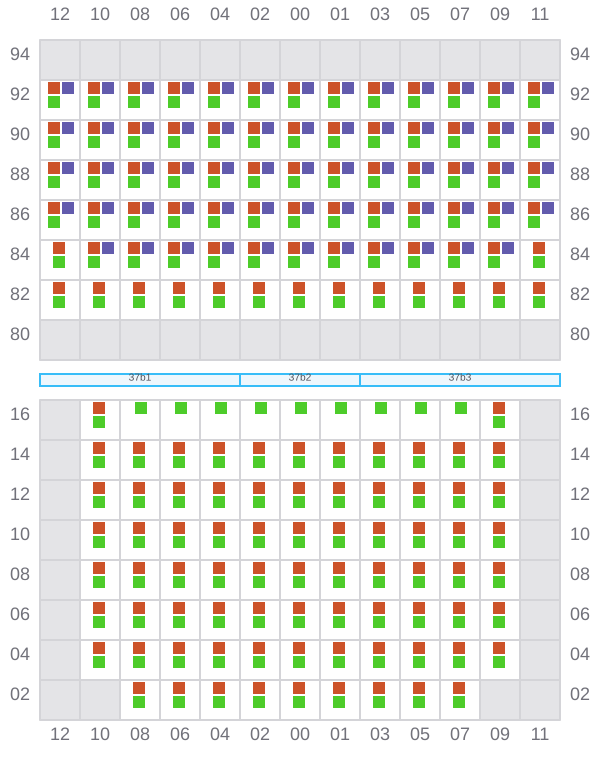

Bay 037 view and slots of FAN YA NING DE

039

  • ←
  • → / ?
Bay 039 view and slots of FAN YA NING DE

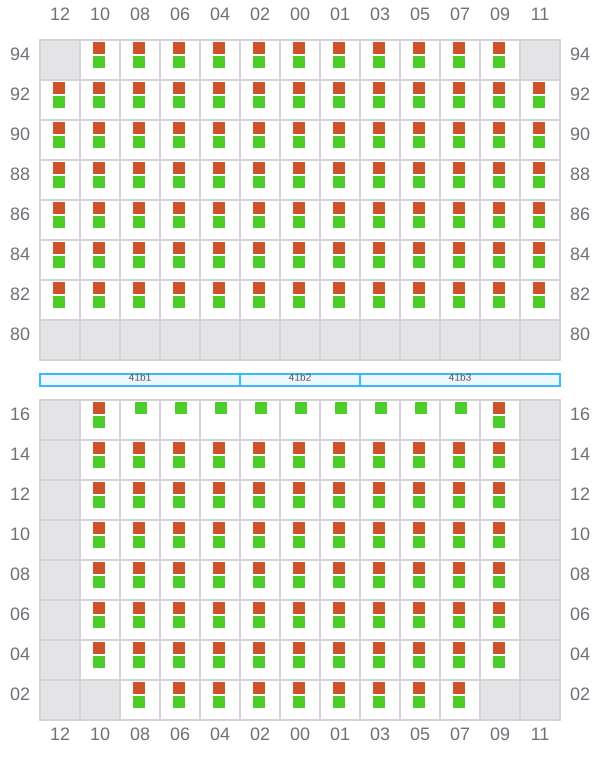

041 (042)

  • →
Bay 041 view and slots of FAN YA NING DE

043

  • ←
  • → / ?
Bay 043 view and slots of FAN YA NING DE

045 (046)

  • →

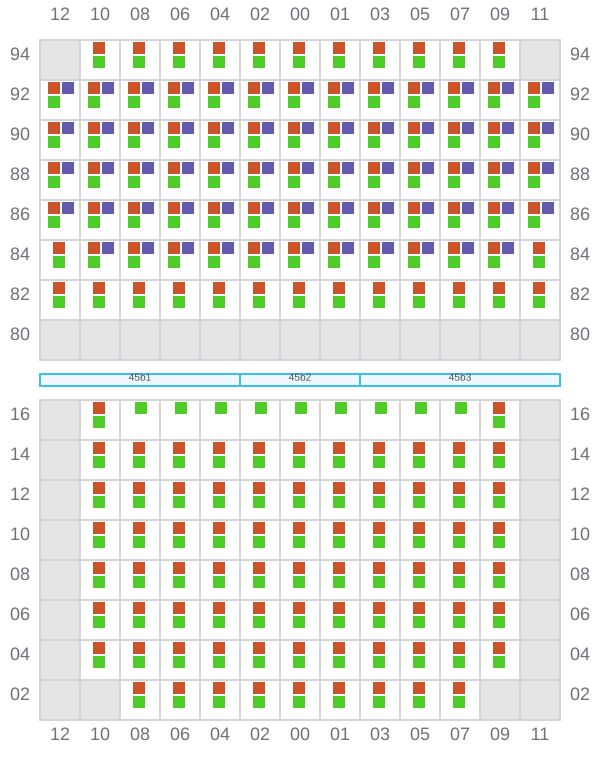

Bay 045 view and slots of FAN YA NING DE

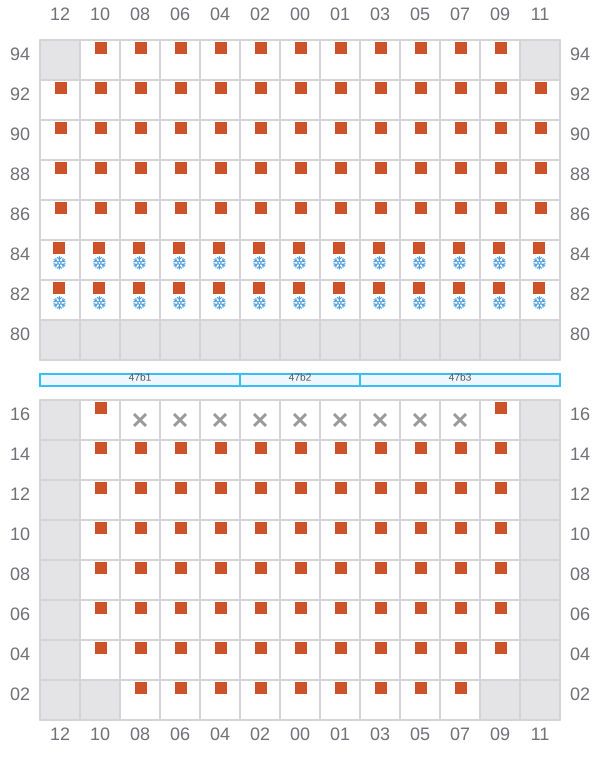

047

  • ←
  • → / ?
Bay 047 view and slots of FAN YA NING DE

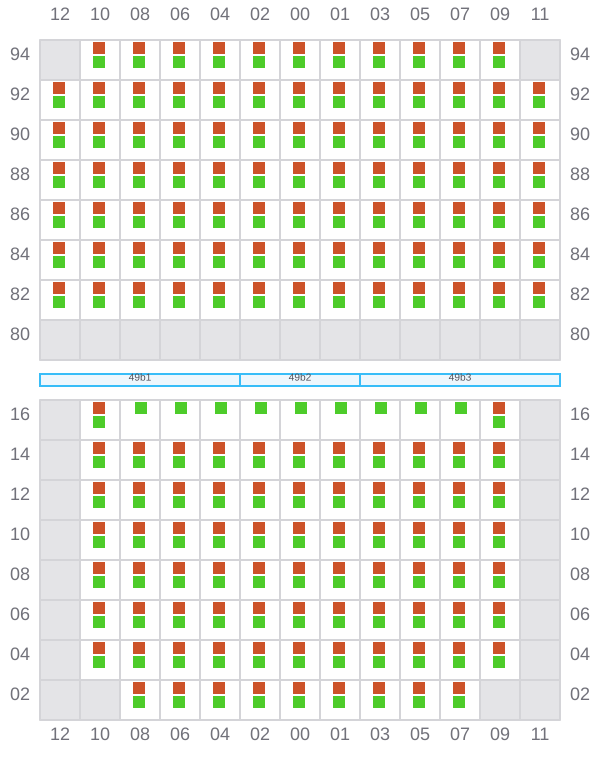

049 (050)

  • →
Bay 049 view and slots of FAN YA NING DE

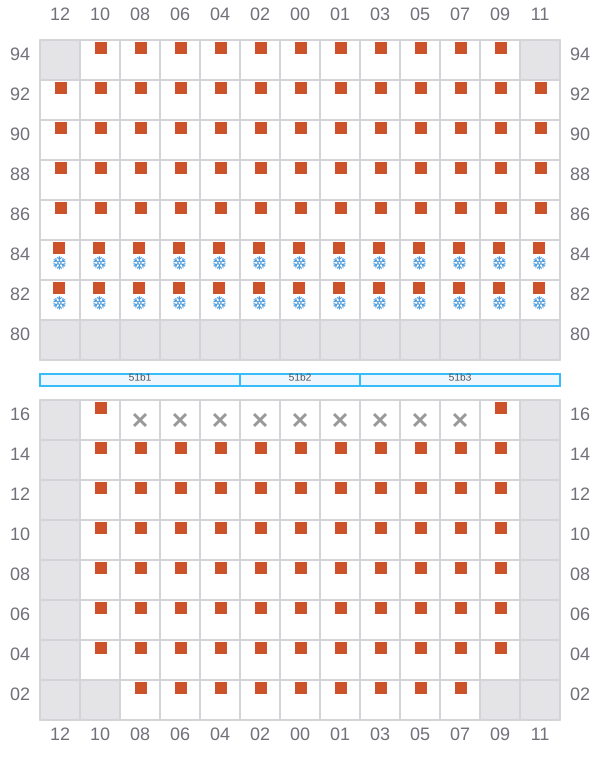

051

  • ←
  • → / ?
Bay 051 view and slots of FAN YA NING DE

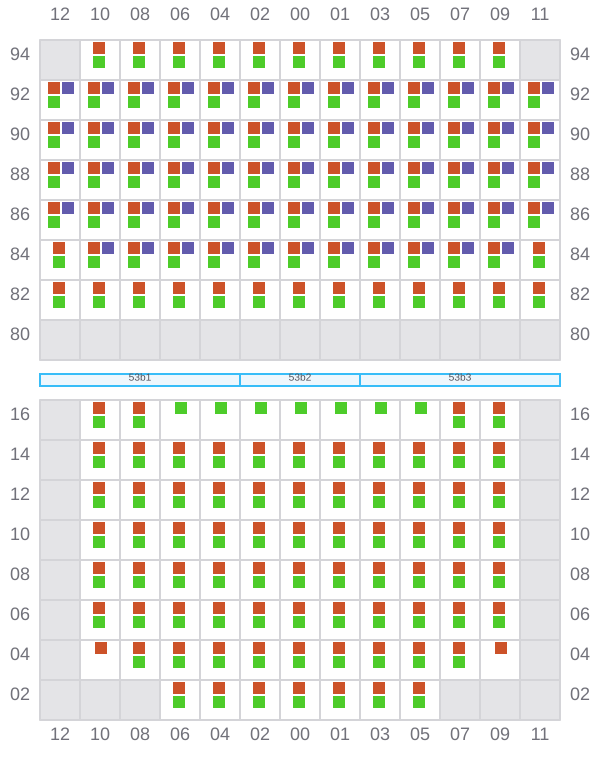

053 (054)

  • →
Bay 053 view and slots of FAN YA NING DE

055

  • ←
  • → / ?

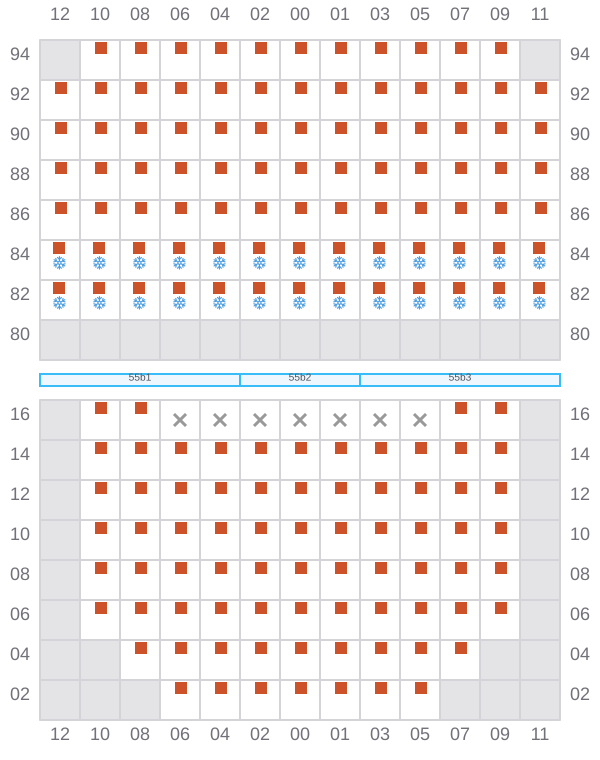

Bay 055 view and slots of FAN YA NING DE

057 (058)

  • →
Bay 057 view and slots of FAN YA NING DE

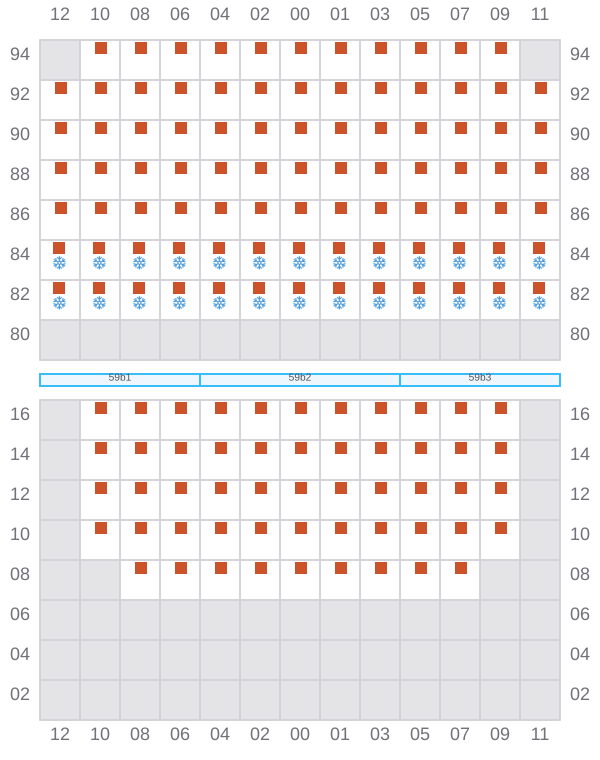

059

  • ←
  • → / ?
Bay 059 view and slots of FAN YA NING DE

061 (062)

  • →

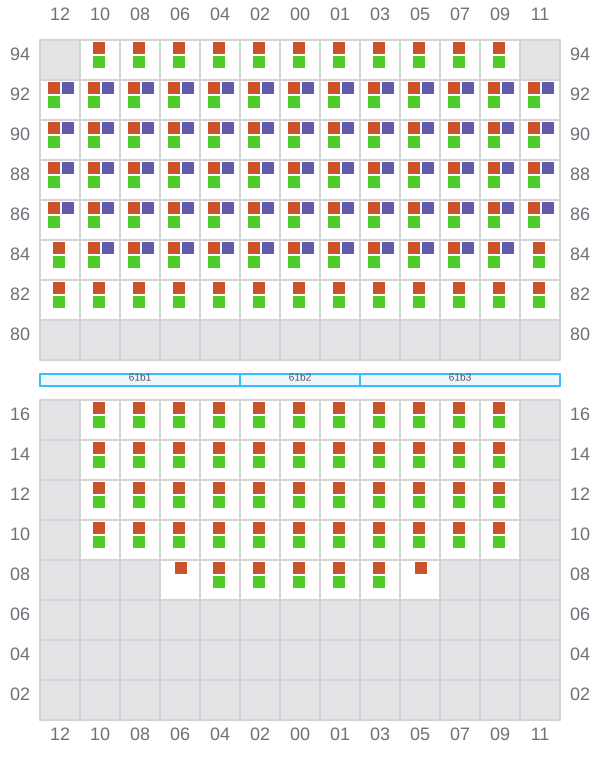

Bay 061 view and slots of FAN YA NING DE

063

  • ←
  • → / ?

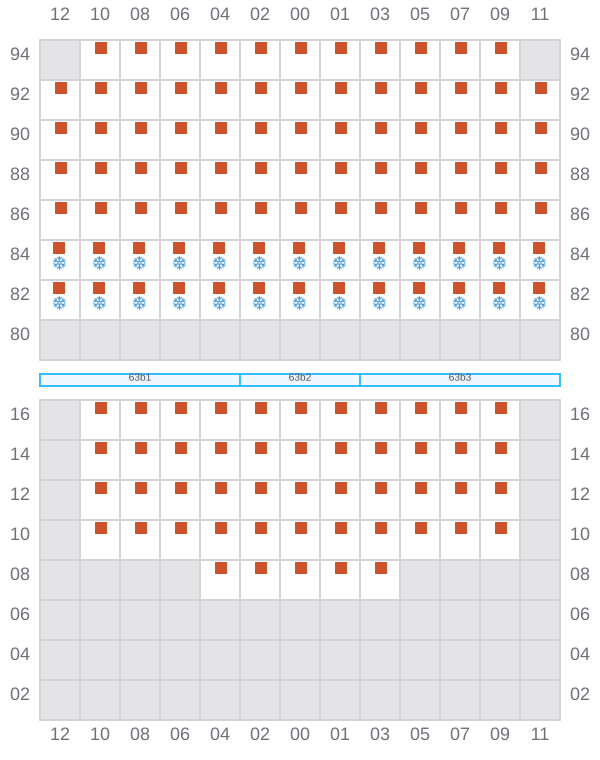

Bay 063 view and slots of FAN YA NING DE

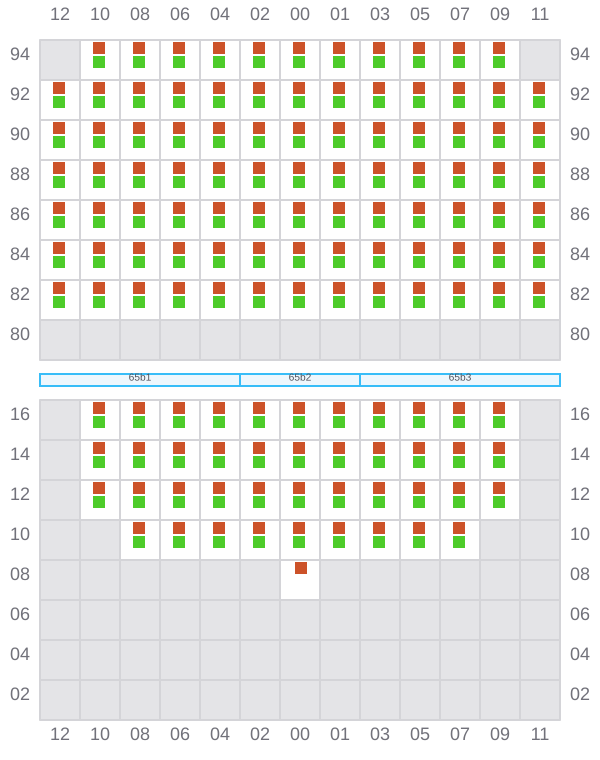

065 (066)

  • →
Bay 065 view and slots of FAN YA NING DE

067

  • ←
  • → / ?

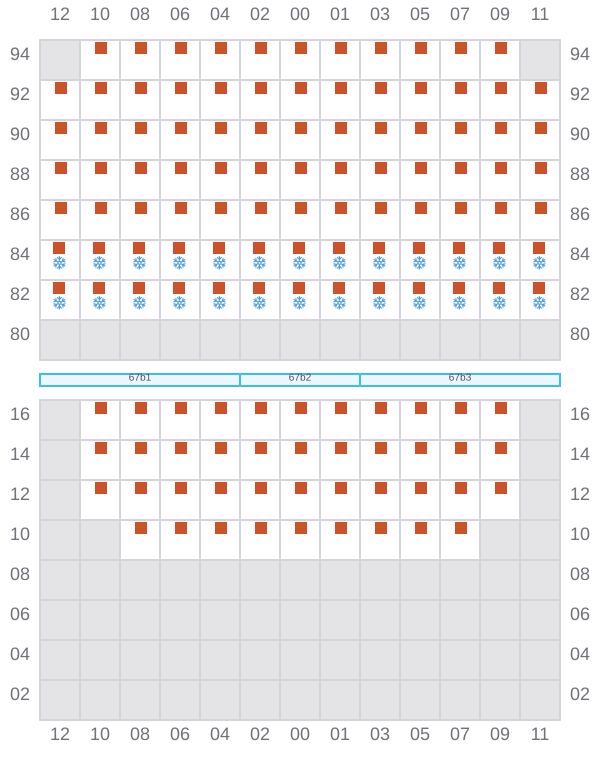

Bay 067 view and slots of FAN YA NING DE

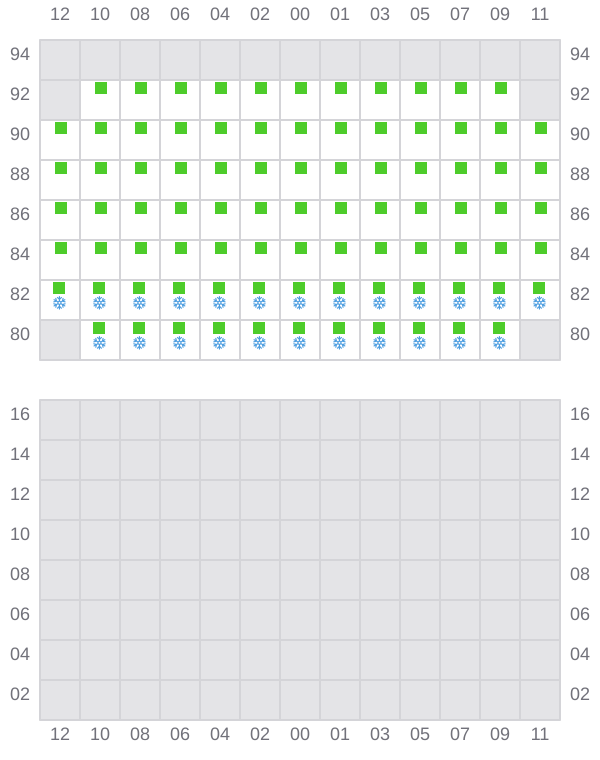

069 (070)

  • → / ?
  • → / ?
Bay 069 view and slots of FAN YA NING DE
