FERDINANDA S
9445019 | CQTF | 9445019 by ********* Last update: Wed Mar 27 2024

General Info

Ship Name:FERDINANDA S
IMO Code:9445019
Call Sign:CQTF
Line Operator:9445019
Class Name for Sister Ships:IMABARI 1700
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):160.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,577

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of FERDINANDA S

Hatch-Covers View

Deck view of FERDINANDA S

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

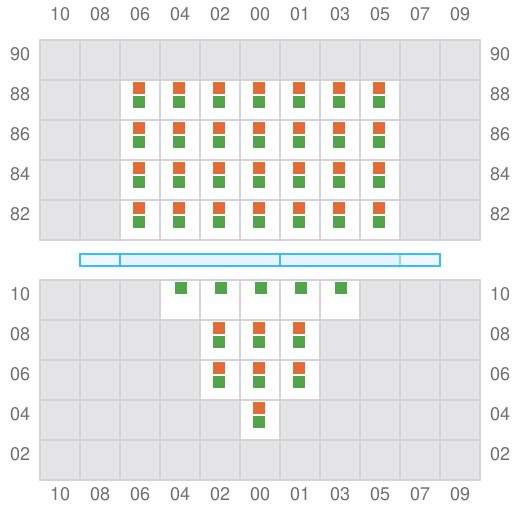

001 (002)

Bay 001 view and slots of FERDINANDA S

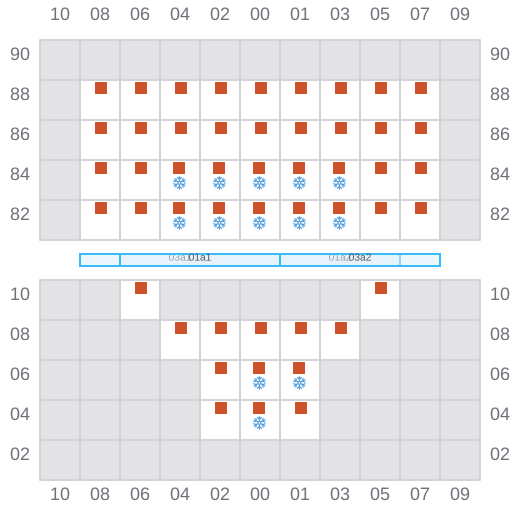

003

Bay 003 view and slots of FERDINANDA S

005 (006)

  • / ?

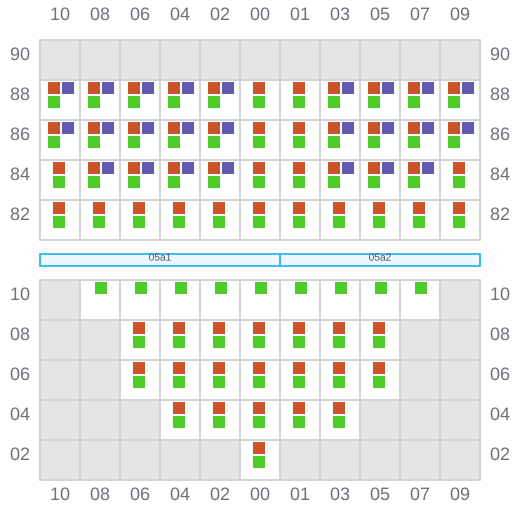

Bay 005 view and slots of FERDINANDA S

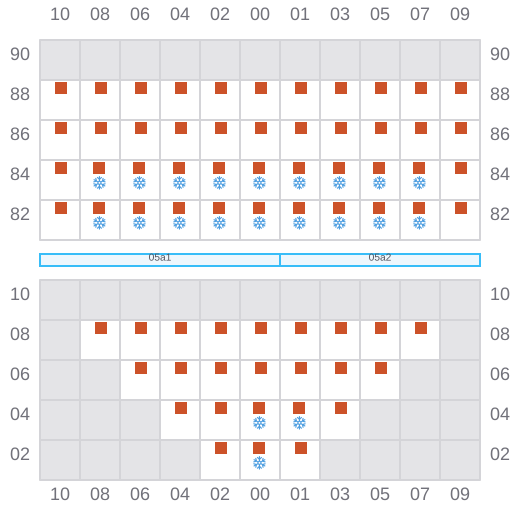

007

Bay 007 view and slots of FERDINANDA S

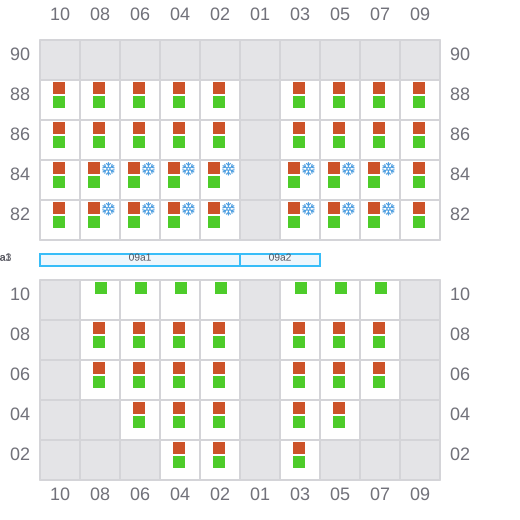

009 (010)

  • / ?
Bay 009 view and slots of FERDINANDA S

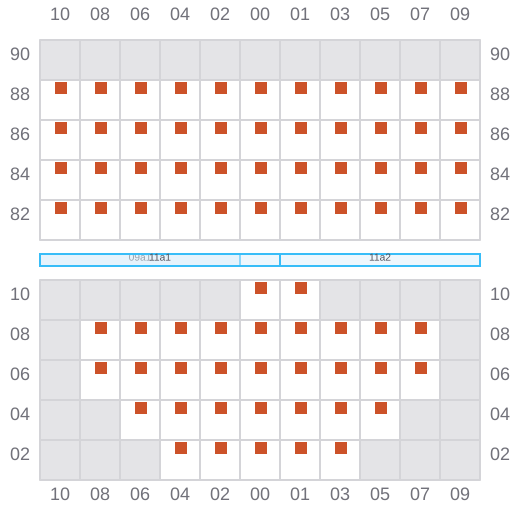

011

  • / ?
Bay 011 view and slots of FERDINANDA S

013 (014)

  • / ?

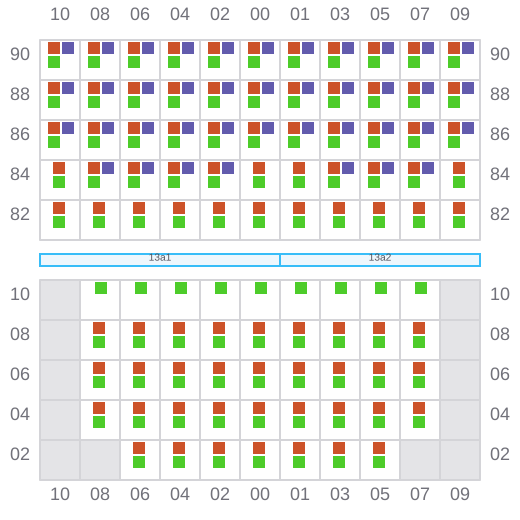

Bay 013 view and slots of FERDINANDA S

015

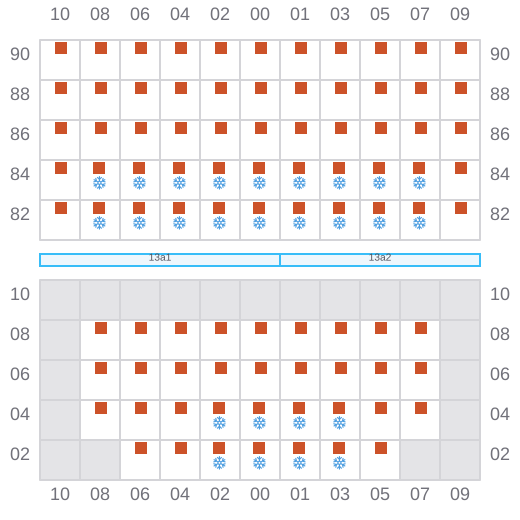

Bay 015 view and slots of FERDINANDA S

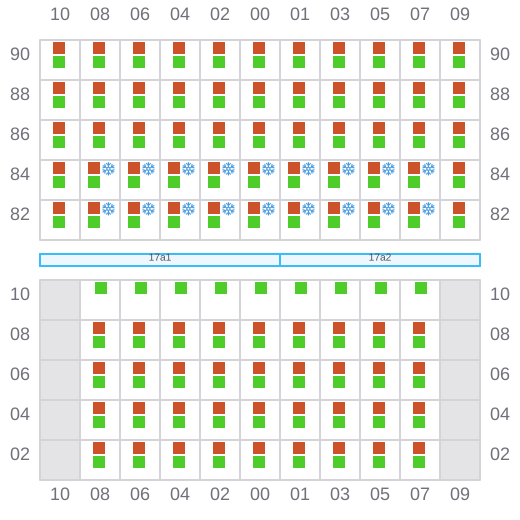

017 (018)

  • / ?
Bay 017 view and slots of FERDINANDA S

019

  • / ?

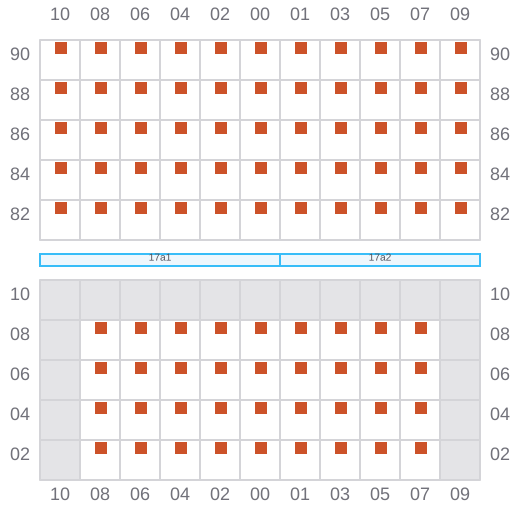

Bay 019 view and slots of FERDINANDA S

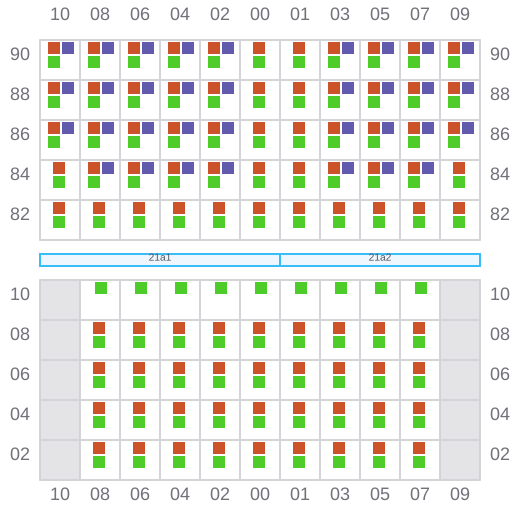

021 (022)

  • / ?
Bay 021 view and slots of FERDINANDA S

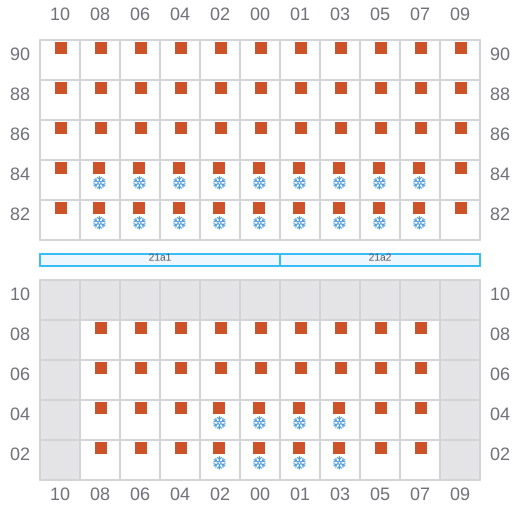

023

Bay 023 view and slots of FERDINANDA S

025 (026)

  • / ?

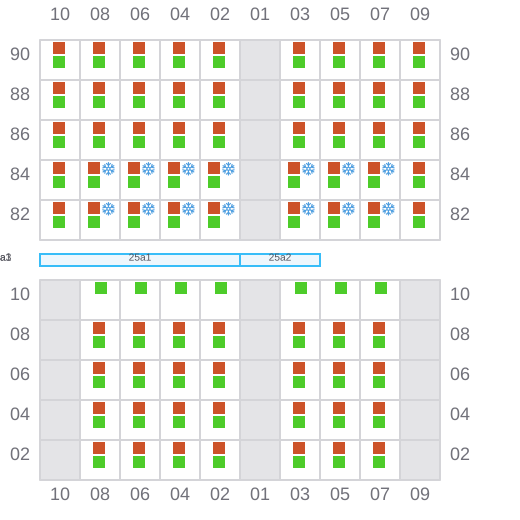

Bay 025 view and slots of FERDINANDA S

027

  • / ?

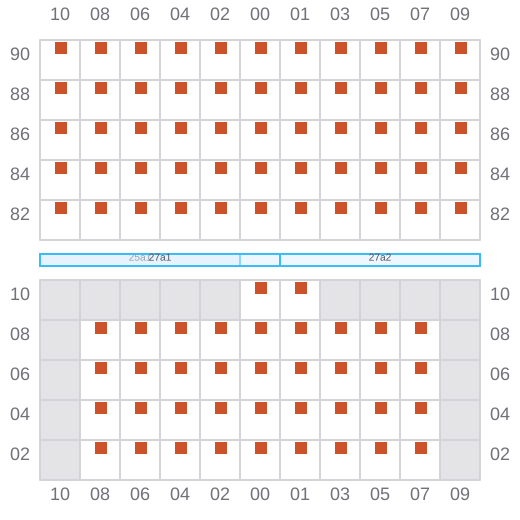

Bay 027 view and slots of FERDINANDA S

029 (030)

  • / ?
Bay 029 view and slots of FERDINANDA S

031

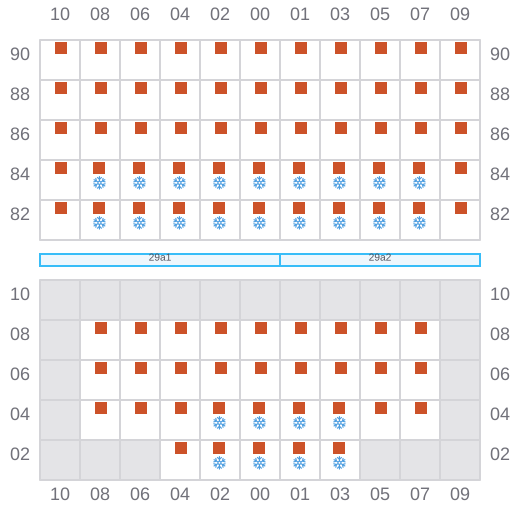

Bay 031 view and slots of FERDINANDA S

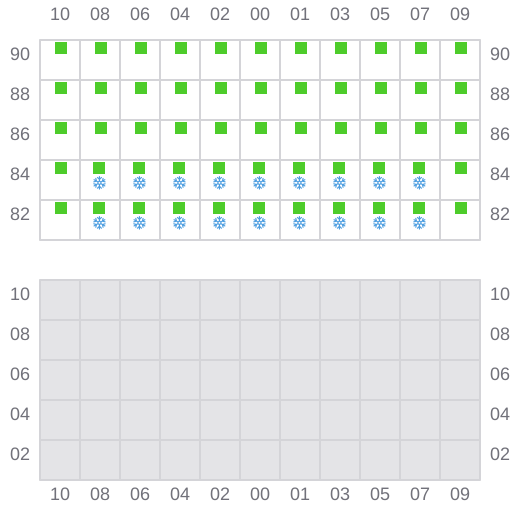

033 (034)

  • / ?
Bay 033 view and slots of FERDINANDA S

035

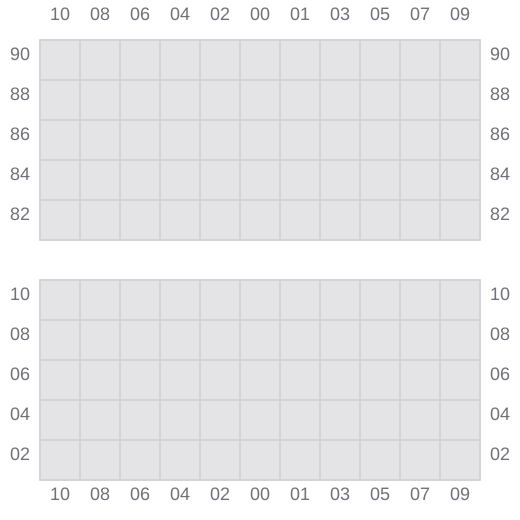

Bay 035 view and slots of FERDINANDA S

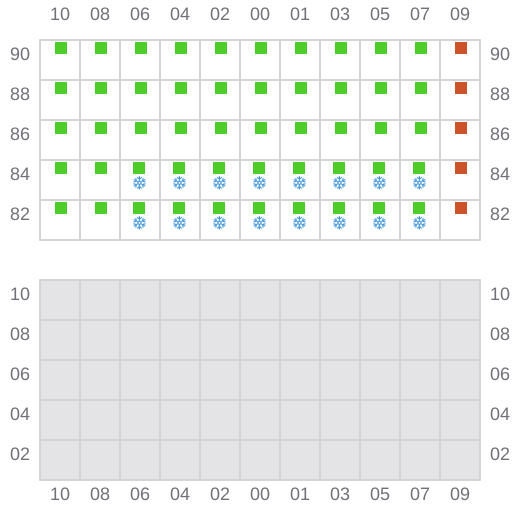

037 (038)

  • / ?
Bay 037 view and slots of FERDINANDA S
